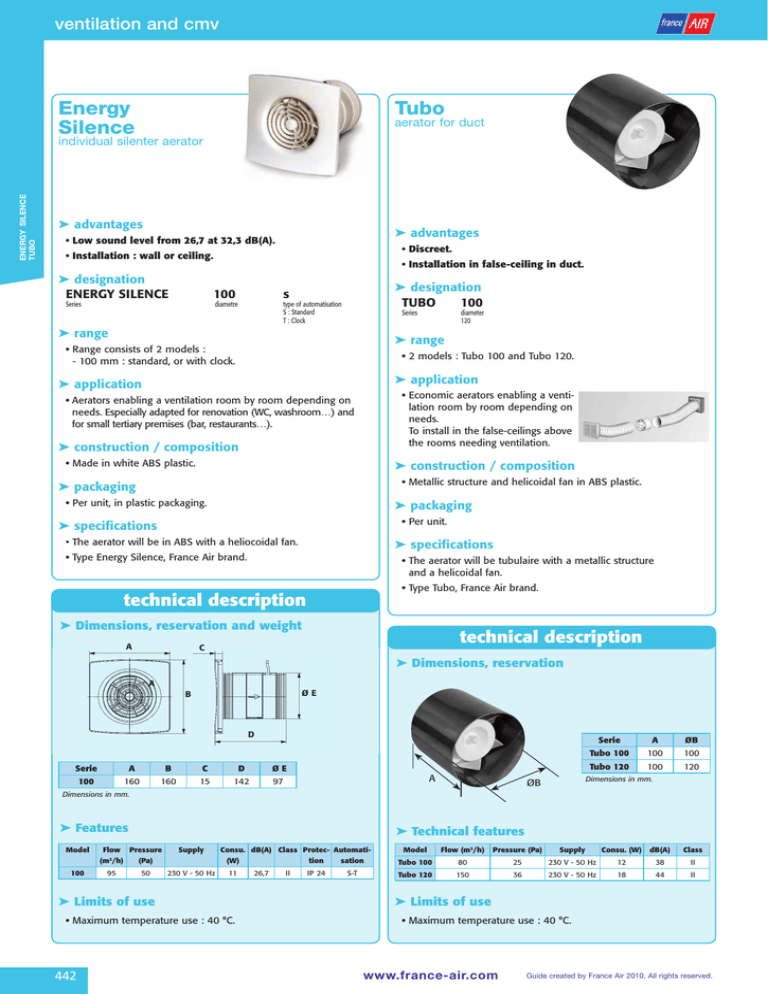

Tubo ventilation and cmv aerator for duct advantages

Tubo ventilation and cmv aerator for duct advantages
ventilation and cmv
Energy
Silence
Tubo
aerator for duct
energy silence
tubo
individual silenter aerator
➤ advantages
➤ advantages
• Low sound level from 26,7 at 32,3 dB(A).
• Discreet.
• Installation : wall or ceiling.
➤ designation
ENERGY SILENCE
• Installation in false-ceiling in duct.
100
➤ designation
TUBO
100
s
Series
diametre
type of automatisation
S : Standard
T : Clock
Series
➤ range
diameter
120
➤ range
•R
ange consists of 2 models :
- 100 mm : standard, or with clock.
• 2 models : Tubo 100 and Tubo 120.
➤ application
➤ application
•E
conomic aerators enabling a ventilation room by room depending on
needs.
To install in the false-ceilings above
the rooms needing ventilation.
• Aerators enabling a ventilation room by room depending on
needs. Especially adapted for renovation (WC, washroom…) and
for small tertiary premises (bar, restaurants…).
➤ construction / composition
• Made in white ABS plastic.
➤ construction / composition
• Metallic structure and helicoidal fan in ABS plastic.
➤ packaging
• Per unit, in plastic packaging.
➤ packaging
• Per unit.
➤ specifications
• The aerator will be in ABS with a heliocoidal fan.
➤ specifications
• Type Energy Silence, France Air brand.
• T he aerator will be tubulaire with a metallic structure
and a helicoidal fan.
• Type Tubo, France Air brand.
technical description
➤ Dimensions, reservation and weight
A
technical description
C
➤ Dimensions, reservation
A
ØE
B
D
Serie
A
100
B
160
160
C
15
D
ØE
142
A
97
Serie
A
øB
Tubo 100
100
100
Tubo 120
100
120
Dimensions in mm.
ØB
Dimensions in mm.
➤ Features
Model
100
➤ Technical features
Flow Pressure
(m3/h)
(Pa)
95
50
Supply
230 V - 50 Hz
Consu. dB(A) Class Protec- Automati(W)
tion
sation
11
➤ Limits of use
• Maximum temperature use : 40 °C.
442
26,7
II
IP 24
S-T
Model
Flow (m3/h)
Pressure (Pa)
Supply
Consu. (W)
dB(A)
Tubo 100
80
25
230 V - 50 Hz
12
38
Class
II
Tubo 120
150
36
230 V - 50 Hz
18
44
II
➤ Limits of use
• Maximum temperature use : 40 °C.
www.france-air.com
Guide created by France Air 2010. All rights reserved.
