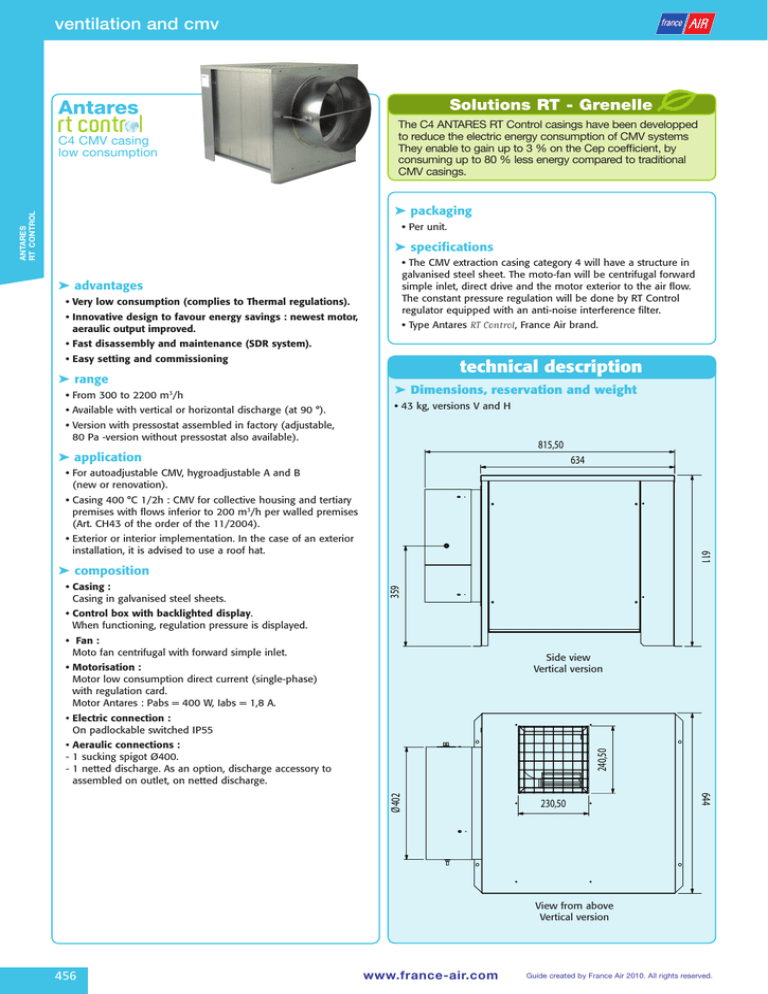

Antares ventilation and cmv technical description C4 CMV casing

Antares ventilation and cmv technical description C4 CMV casing
ventilation and cmv
Solutions RT - Grenelle
Antares
The C4 ANTARES RT Control casings have been developped
to reduce the electric energy consumption of CMV systems
They enable to gain up to 3 % on the Cep coefficient, by
consuming up to 80 % less energy compared to traditional
CMV casings.
C4 CMV casing
low consumption
antares
rt control
➤ packaging
• Per unit.
➤ specifications
• The CMV extraction casing category 4 will have a structure in
galvanised steel sheet. The moto-fan will be centrifugal forward
simple inlet, direct drive and the motor exterior to the air flow.
The constant pressure regulation will be done by RT Control
regulator equipped with an anti-noise interference filter.
➤ advantages
• Very low consumption (complies to Thermal regulations).
• Innovative design to favour energy savings : newest motor,
aeraulic output improved.
• Type Antares RT Control, France Air brand.
• Fast disassembly and maintenance (SDR system).
• Easy setting and commissioning
➤ range
technical description
➤ Dimensions, reservation and weight
• From 300 to 2200 m3/h
• Available with vertical or horizontal discharge (at 90 °).
• 43 kg, versions V and H
•V
ersion with pressostat assembled
644in factory (adjustable,
80 Pa -version without pressostat also available).
➤ application
815,50
634
815,50
644
634
• F or autoadjustable CMV, hygroadjustable A and B
(new or renovation).
611
611
•C
asing 400 °C 1/2h : CMV for collective housing and tertiary
premises with flows inferior to 200 m3/h per walled premises
(Art. CH43 of the order of the 11/2004).
•C
asing :
Casing in galvanised steel sheets.
359
359
611
➤ composition
611
•E
xterior or interior implementation. In the case of an exterior
installation, it is advised to use a roof hat.
•C
ontrol box with backlighted display.
When functioning, regulation pressure is displayed.
• Fan :
Moto fan centrifugal with forward simple inlet.
Side view
Vertical version
•M
otorisation :
Motor low consumption direct current (single-phase)
with regulation card.
Motor Antares : Pabs = 400 W, Iabs = 1,8 A.
230,50
644
230,50
644
Ø402 Ø402
• Aeraulic connections :
- 1 sucking spigot Ø400.
- 1 netted discharge. As an option, discharge accessory to
assembled on outlet, on netted discharge.
240,50 240,50
•E
lectric connection :
On padlockable switched IP55
View from above
Vertical version
456
www.france-air.com
Guide created by France Air 2010. All rights reserved.
ventilation and cmv
selection graphs
300
RT Control
200
45
antares
rt control
45
250
49
41
52
46
antares
150
36
100
42
53
50
0
0
36
100
200
300
400
500
600
Sound pressure (Lw at 4 m dB(A))
accessories
➤ Circular flexible sleeve MO
➤ Kit pressostat leaded 80 Pa
• Application for collective CMV and CMV-GAS.
•E
nables the insulation of the vibrations
generated by the fan.
➤ Adjustable differential pressostat 20-300 Pa
➤ Anti-vibratile Isolvib bat
•E
nables to adapt the measuring
of the network pressure.
•E
nables the insulation of the frame of the vibrations
generated by the fan.
➤ Discharge accessory
•C
onsists of a circular flexible sleeve M0
assembled on a rigid frame fixed to the discharge net.
Guide created by France Air 2010 – All rights reserved.
www.france-air.com
457
