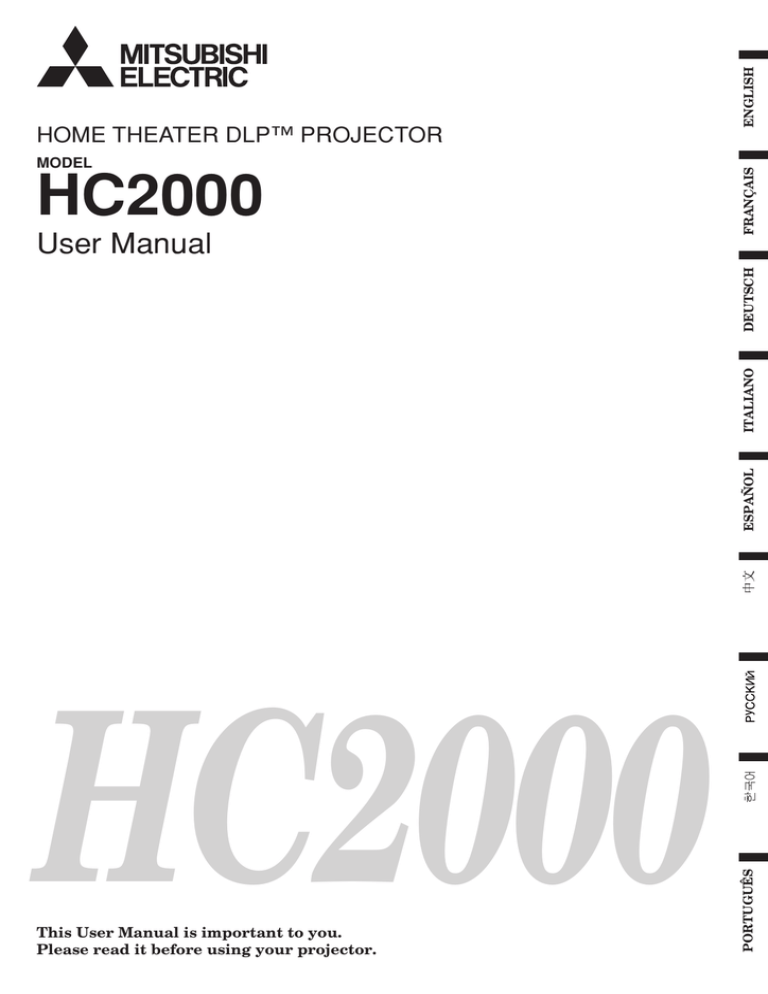

HOME THEATER DLP™ PROJECTOR

MODEL

HC2000

User Manual

HC2000

This User Manual is important to you.

Please read it before using your projector.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

NOTE:

SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE

INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

WARNING

Use the attached specified power supply cord. If you use another power-supply cord, it may cause interference with radio and television reception.

Use the attached RS-232C cable and Mini D-SUB

15P DVI-conversion cable with this equipment so as to keep interference within the limit of a FCC Class

B device.

This apparatus must be grounded.

DO NOT LOOK DIRECTLY INTO THE LENS

WHEN THE PROJECTOR IS IN THE POWER

ON MODE.

CAUTION

Not for use in a computer room as defined in the

Standard for the Protection of Electronic Computer/

Data Processing Equipment, ANSI/NFPA 75.

When using the projector in Europe:

COMPLIANCE NOTICE

This LCD Video Projector complies with the requirements of the EC Directive 89/336/EEC “EMC

Directive” as amended by Directive 92/31/EEC and

93/68/EEC, and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.

The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

WARNING

Use the attached RS-232C cable and Mini D-SUB

15P DVI-conversion cable with this equipment so as to keep interference within the limit of a EN55022

Class B. Please follow WARNINGS instructions.

EN-2

Contents

Important safeguards ......................................................................................................................4

Preparating your projector ..............................................................................................................6

Using the remote control .................................................................................................................9

Setting up your projector ............................................................................................................... 11

Viewing video images ....................................................................................................................14

Viewing computer images ............................................................................................................ 19

Menu Operation .............................................................................................................................22

Adjusting projected images ...........................................................................................................27

Replacing the lamp ........................................................................................................................30

Cleaning ........................................................................................................................................ 32

Asking for installation .................................................................................................................. 33

Troubleshooting .............................................................................................................................34

Specifications .................................................................................................................................36

Declaration of Conformity

Model Number :

Trade Name :

HC2000

MITSUBISHI ELECTRIC

Responsible party : Mitsubishi Digital Electronics America, Inc.

9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Telephone number : +1-(949) 465-6000

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Trademark, Registered trademark

Macintosh is registered trademark of Apple Computer Inc.

DLP, Digital Micromirror Device and DMD are all trademarks of Texas Instruments.

Other brand or product names are trademarks or registered trademarks of their respective holders.

EN-3

Important safeguards

Please read all these instructions regarding your projector and retain them for future reference. Follow all warnings and instructions marked on the projector.

1.

Read instructions

All the safety and operating instructions should be read before the appliance is operated.

2.

Retain instructions

The safety and operating instructions should be retained for future reference.

3.

Warnings

All warnings on the appliance and in the operating instructions should be adhered to.

4.

Instructions

All operating instructions must be followed.

5.

Cleaning

Unplug this projector from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

6.

Attachments and equipment

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

7.

Water and moisture

Do not use this projector near water or in contact with water.

8.

Accessories

Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use only with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

9.

Ventilation

Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation of the projector and to protect it from overheating. Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.

EN-4

10.

Power sources

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your appliance dealer or local power company.

11.

Power-cord protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the appliance.

Do not put the power cord under a carpet.

12.

Overloading

Do not overload wall outlets and extension cords as this can result in a fire or electric shock.

13.

Objects and liquids

Never push objects of any kind through openings of this projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

14.

Servicing

Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.

15.

Damage requiring service

Unplug this projector from the wall outlet and refer servicing to qualified service personnel under the following conditions:

(a) If the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen into the projector.

(c) If the projector does not operate normally after you follow the operating instructions. Adjust only those controls that are covered by the operating instructions. An improper adjustment of other controls may result in damage and may often require extensive work by a qualified technician to restore the projector to its normal operation.

(d) If the projector has been exposed to rain or water.

(e) If the projector has been dropped or the cabinet has been damaged.

(f) If the projector exhibits a distinct change in performance - this indicates a need for service.

16.

Replacement parts

When replacement parts are required, be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

17.

Safety check

Upon completion of any service or repair to this projector, ask the service technician to perform safety checks determining that the projector is in a safe operating condition.

WARNING:

Unplug immediately if there is something wrong with your projector.

Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An inadvertent contact may result in an electric shock.

Except as specifically explained in the Owner's

Guide, do not attempt to service this product yourself. Please contact your dealer when you want to fix, adjust or inspect the projector.

Do not modify this equipment.

It can lead to fire or electric shock.

If you break or drop the cabinet.

Do not keep using this equipment if you break or drop it. Unplug the projector and contact your dealer for inspection. It may lead to fire if you keep using the equipment.

Do not face the projector lens to the sun.

It can lead to fire.

Use correct voltage.

If you use incorrect voltage, it can lead to fire.

Do not place the projector on uneven surface.

Place the projection on a leveled and stable surface only. Please do not place equipment on unstable surfaces.

Do not look into the lens when it is operating. It may hurt your eyes.

Never let children look into the lens when it is on.

Do not turn off the main power abruptly or unplug the projector during operation.

It can lead to lamp breakage, fire, electric shock or other trouble. It is best to wait for the fan to turn off before turning main power off.

Do not touch Air outlet grille and

Bottom plate which becomes hot.

Do not touch them or put other equipment in front of Air outlet grille. The heated Air outlet grille and

Bottom plate may cause injury or damage to other equipment. Also, do not set the projector on the desk which is easily affected by heat.

Do not look into the air outlet grille when projector is operating.

Heat, dust etc. may blow out of it and hurt your eyes.

Place of installation

For safety’s sake, refrain from setting the projector at any place subjected to high temperature and high humidity. Please maintain an operating temperature, humidity, and altitude as specified below.

• Operating temperature: between +41°F (+5°C) and +95°F (+35°C)

• Operating humidity: between 30 and 90%

• Never put any heat-producing device under the projector so that the projector does not overheat.

• Do not attach the projector to a place that is unstable or subject to vibration.

• Do not install the projector near any equipment that produces a strong magnetic field. Also refrain from installing near the projector any cable carrying a large current.

• Place the projector on a solid, vibration free surface: otherwise it may fall, causing serious injury to a child or adult, and serious damage to the product.

• Do not stand the projector: it may fall, causing serious injury and damage to the projector.

• Slanting the projector more than ±10˚(right and left) or ±15˚ (front and rear) may cause trouble or explosion of the lamp.

• Do not place the projector near air-conditioning unit or heater to avoid hot air to the exhaust and ventilation hole of the projector.

COMPLIANCE NOTICE OF FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced Radio / TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could void the user's authority to operate this equipment.

COMPLIANCE NOTICE OF INDUSTRY CANADA

This Class B digital apparatus complies with Canadian ICES-003.

EN-5

Preparating your projector

Checking accessories

The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package.

Power supply parts Remote control parts

Power cord (two)

(42.50115.021, 42.50122.011)

Remote control

(45.80H01.002)

R03 (Size-AAA) battery (two)

Cables

D-SUB 9P

D-SUB 9P

Mini D-SUB 15P

DVI

RS-232C cable

(42.86603.001)

• Used for adjustment by service person.

Mini D-SUB 15P DVIconversion cable (42.80H04.001)

Others

• Lens cap (Attached to the projector) (51.80H05.001)

• User manual (36.81F01.001)

• Quick Start up (36.81F02.001)

• Remote control photo-sensor protection sticker (two)

(35.80H03.001)

• Cushion (See page 11.)

IMPORTANT:

• The attached power cords are to be used exclusively for this product. Never use them for other products.

1

2

3

Inserting the batteries into the remote control

1. Remove the rear lid of the remote control.

2. Check the polarity (+), (-) of the batteries, and set them correctly, inserting their (-) side first.

• If the battery is inserted from the (+) side first, inserting the (-) side is difficult because the coil spring end hits on the battery side. If the battery is forced to insert in this way, the outer label of the battery may get ripped and it may cause a short-circuit and heating.

3. Attach the rear lid.

Important:

• Use two size-AAA batteries (R03).

• Replace the two batteries with new ones when the remote control is slow to operate.

Caution:

• If the batteries are treated incorrectly, they may cause fire or other contamination due to leakage of the liquid, heating, or they may burst. (Read the cautions indicated on the battery, too.)

• Do not use a new battery with an old one.

• Load batteries in the correct position.

• Do not heat, take apart, or throw batteries into fire.

• Do not try to recharge batteries. Do not use rechargeable batteries.

• If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them with water and then consult your doctor.

EN-6

Overview

1 2 3 4

1 Remote control sensor (Front)

2 Lens

3 Control area

4 Power / indicators area

5 Terminal panel

6 Lamp cover

7 Exhaust vent

5 6 7

Control area

LENS SHIFT

1

DOWN UP

3

FOCUS -/LEFT

ZOOM IN / UP

FOCUS +/RIGHT

2

4

5

ZOOM OUT / DOWN

AUTO

POSITION SOURCE MENU/EXIT ENTER

1 Lens shift dial

2 ZOOM IN / UP (

{

3 FOCUS - / LEFT (

$

4 FOCUS + / RIGHT (

%

5 ZOOM OUT / DOWN (

}

6 AUTO POSITION button

7 SOURCE button

8 MENU/EXIT button

9 ENTER button

6 7 8 9

EN-7

2

3

Preparating your projector (Continue)

Terminal panel

1 2 3

Y Cb/Pb Cr/Pr

DVI

G(Y) B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

4

1 Remote control sensor (Rear)

2 Component terminals

3 DVI terminal

4 VIDEO terminal

5 5 BNC terminals

6 S-VIDEO terminal

7 RS-232C terminal

5

RS-232C

S-VIDEO

7 6

Power / indicators area

1 2 3

LAMP TEMP POWER

1 LAMP indicator

2 TEMP (temparature) indicator

3 POWER button / POWER indicator

4 MAIN switch

5 Power cord inlet

5

4

AC IN MAIN

Bottom side

1

4

1 Angle adjusting feet (front)

2 Exhaust vent

3 Angle adjusting feet (rear)

4 Intake vent / filter cover

EN-8

Using the remote control

Overview of the remote control

1

2

3

4

5

6

7

8

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

ZOOM

MEM2

MEM1

ZOOM IN/UP

MEM3

FOCUS–/LEFT FOCUS+/RIGHT

ENTER

MENU

ZOOM OUT/DOWN

CONT

BRIGHT

C.TEMP

COLOR

SHARP

TINT

13

12

11

10

9

1 AUTO (AUTO POSITION) button

2 ON ( ) button

3 SOURCE buttons

4 MEMORY buttons

5 ZOOM IN / UP (

{

6 FOCUS - / LEFT (

$

7 MENU button

8 Picture quality adjusting buttons (see below)

9 ZOOM OUT / DOWN (

10 FOCUS + / RIGHT (

%

}

11 Aspect buttons

12 LIGHT button

13 OFF button

Important:

When you press the LIGHT button, the buttons on the remote control are lit. Press the LIGHT button again or wait approx 15 seconds after releasing the button to turn them off.

Using the picture quality adjusting buttons

When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears.

Adjust the picture quality by pressing the

% and $ buttons. The picture quality adjustment can be made alternatively in the PICTURE menu or the PRO PICTURE menu. (See Pages 27 and 28.) Items in the menus are shown in parentheses below.

CONT (CONTRAST) ............ Adjusts the contrast of projected images. Every time you press the

% button, the projected image becomes brighter and more vivid. Every time you press the

$ button, the projected image becomes darker and less vivid.

BRIGHT (BRIGHTNESS) ... Adjusts the brightness of projected images. Every time you press the

% button, the projected image becomes brighter. Every time you press the

$ button, the projected image becomes darker.

C.TEMP (COLOR TEMP) ... Selects one of the preset color temperatures.

TINT (TINT) .......................... Adjusts the tint of projected images. Every time you press the

% button, the skin color of the projected image becomes more greenish. Every time you press the

$ button, the skin color of the projected image becomes reddish. (Available only when the NTSC signal isi input.)

COLOR (COLOR) ................. Adjusts the color thickness of projected images. Every time you press the

% button, the projected image color becomes thicker. Every time you press the

$ button, the projected image color becomes lighter.

SHARP (SHARPNESS) ....... Adjusts the sharpness of projected images. Every time you press the

% button, the projected image becomes sharper. Every time you press the

$ button, the projected image becomes softer.

EN-9

Using the remote control (Continue)

Operational range of the remote control

30˚

Front of projector

30˚

Rear of projector

30˚ 30˚

• Keep the remote control photo-sensor out of direct sunlight or fluorescent lamp light.

• Keep the remote control photo-sensor at least 2 m away from fluorescent lamps. Otherwise, the remote control may malfunction.

• If there is an inverter-operated fluorescent lamp near the remote control, the remote control operation may become unstable. On this occasion, stick the attached protection sticker on one of the photo-sensors that is closer to the fluorescent lamp.

Operate the remote control within a distance of 10 m from the projector, pointing the light beam at the remote control photo-sensor

(front or rear) of the projector.

When operating the remote control, keep the distance from the remote controller to the projector via the screen within about 6m. The operable range of the remote control, however, depends on the characteristics of the screen.

Reception angle

Vertical directions

15˚

15˚

Vertical directions (ceiling mount)

15˚

EN-10

15˚

15˚

15˚

Setting up your projector

Setting up the screen

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector. (See below.)

• Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of the screen center.

• Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen makes the projected images whitish and hard to view.

Basic setup

Determine the distance from the screen to the projector according to the size of the images to be projected. (See

Pages 12 and 13.)

A B

A=B

LAMP TEMP POWER

AC IN MAIN

• Do not place this projector on a carpet or blanket because the exhaust vent and the intake vent on the bottom surface are blocked and the inside of the projector is heated, causing a breakdown or fire.

• Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake vent, causing the projector to display “OVER TEMPERATURE” and then stop projecting images. In such a case, attach the cushion that comes with the projector to the bottom surface of the projector as shown below.

Adjusting the projection angle

This projector is provided with four feet for adjusting the projection angle on the bottom surface. Adjust the projection angle depending on the position of the projector. (Turn the feet for adjusting the projection angle to the left or right to adjust their length.)

Feet for adjusting the projection angle (front)

Cushion (accessory)

(Attach it near the feet.)

Feet for adjusting the projection angle (rear)

When projected images are distorted to a trapezoid:

When the screen and the projector are not placed perpendicularly to each other, projected images become trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments, adjust

KEYSTONE in the INSTALLATION menu. (See

Page 25.)

• When the keystone adjustment is applied, the correct aspect ratio may not be obtained.

• To secure the correct aspect ratio, use the projector with its lens centered as much as possible. However, the correct aspect ratio may not be obtained even though the lens is centered.

• When the keystone adjustment is applied, the resolution lowers. In addition, vertical stripes appear and straight lines bend in images with complicated patterns. To prevent such symptoms, keep the screen and the projector perpendicular to each other as much as possible.

• Though the projected image may be distorted momentarily when you change the setting value of the keystone adjustment, such symptom is not a malfunction.

• Though the projected image may be distorted depending on the setting value of the keystone adjustment and the type of the input signal, such symptom is not a malfunction. In such a case, adjust the setting value within the range where the projected image is not distorted.

• The setting value displayed at the time of the keystone adjustment may vary depending on the type of the input signal.

EN-11

Setting up your projector (Continue)

Screen size and projection distance

Refer to the following table to determine the screen size.

When the aspect ratio of the screen is 16:9

To position the projector relative to the screen:

Center of the lens

Screen size

B

(Width of the projected image)

To position the screen relative to the projector:

Projected distance (L)

Center of the lens

Screen size

B

(Width of the projected image)

Projected distance (L)

16:9Diagonal inch cm

50

60

70

80

127

152

178

203

90 229

100 254

110 279

120 305

130 330

140 356

150 381

200 508

250 635

Screen size

Height A inch cm

44

49

54

59

24

30

34

39

64

69

74

98

122

62

75

87

100

112

125

137

149

162

174

187

249

311

Width B inch cm

44

52

61

70

111

133

155

177

78

87

199

221

96 244

105 266

113 288

122 310

131 332

174 443

218 553

Projected distance (L) inch

Min.

cm

69

83

96

110

175

210

245

280

124 315

138 350

152 385

165 420

179 455

193 490

207 525

276 700

344 875 inch

Max.

cm

93

111

130

149

167

186

205

223

242

260

279

372

614

661

709

945

465 1181

236

283

331

378

425

472

520

567

Floor installation (cm)

Center of the lens

• The above figures are approximate and may be slightly different from the actual measurements.

EN-12

When the aspect ratio of the screen is 4:3:

When the aspect ratio of the screen is 4:3, the positional relation between the projected image and the screen is as shown on the right. Refer to the following table for installation.

Screen size

To position the projector relative to the screen:

Center of the lens

B

(Width of the projected image)

B

(Width of the projected image)

Projected distance (L)

To position the screen relative to the projector:

Center of the lens

B

(Width of the projected image)

Projected distance (L)

Screen size Size of the projected image Blank Projected distance (L)

4:3Diagonal inch cm

50 127

60

70

80

90

152

178

203

229

100 254

110 279

120 305

130 330

140 356

150 381

200 508

250 635

Height C inch cm

30 76

60

66

72

78

36

42

48

54

84

90

213

229

120 305

150 381

91

107

122

137

152

168

183

198

Width B inch cm

40 102

48

56

64

72

122

142

163

183

80

88

203

224

96 244

104 264

112 284

120 305

160 406

200 508

Height A inch cm

22

45

50

54

59

27

31

36

41

63

67

90

113

57

69

80

91

103

114

126

137

149

160

171

229

286

Width B inch cm space (D) inch cm inch

Min.

cm

40 102 3.7

9.5

63 161

48

56

64

72

122

142

163

183

80

88

203

224

96 244

104 264

4.3

5.3

6.1

6.7

7.5

8.3

9.1

9.6

11.0

13.5

15.5

17.0

76

89

101

114

193

225

257

289

19.0

126 321

21.0

139 353

23.0

152 386

24.5

165 418

112 284 10.4

26.5

177 450

120 305 11.4

29.0

190 482

160 406 15.0

38.0

253 643

200 508 18.7

47.5

316 803 inch

Max.

cm

85 217

102 260

120 304

137 347

154 390

171 434

188 477

205 520

222 564

239 607

256 650

341 867

427 1084

• The above figures are approximate and may be slightly different from the actual measurements.

EN-13

Viewing video images

A. Connecting the projector to video equipment

Preparations:

• Make sure that the power of the projector and that of the video equipment are turned off.

1. Connect one end of a commercially available video cable to the VIDEO terminal of the projector.

2. Connect the other end of the video cable to the video output terminal of the video equipment.

DVI

1

To VIDEO terminal

Video cable

Pb Cr/Pr VIDEO b/Pb) R(Cr/Pr) H/HV V

To video output terminal

RS-232C

S-VIDEO

Video player, or the like

2

DVI

Cb/Pb Cr/Pr

B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

RS-232C

S-VIDEO

1

To S-video terminal

S-video cable

To S-video output terminal

2

Video player, or the like

When the video equipment is equipped with the Svideo output terminal, make the connection as follows.

1. Connect one end of a commercially available S-video cable to the S-VIDEO terminal of the projector.

2. Connect the other end of the S-video cable to the S-video output terminal of the video equipment.

• Also read the instruction manual of the equipment to be connected.

• This projector does not have any built-in speaker. To reproduce audio, connect audio equipment.

• Contact your dealer for details of connection.

When a TV tuner or VCR is connected:

When you use this projector with a TV tuner or VCR connected, no image may appear or a message of No Signal may appear on the screen when you change the channel via any channel that is not being received. In such a case, set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip function (that is a function not to display channels that are not being received) enabled

Connecting to a DVD player

To connect this projector to video equipment that has component video output terminals, such as a DVD player, use the COMPONENT terminals.

Y

Cb/Pb

Cr/Pr

Component cable (Option)

DVI

Y Cb/Pb Cr/Pr

G(Y) B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

RS-232C

S-VIDEO

C

R

(P

R

) C

B

(P

B

) Y

DVD player

To audio output terminal

Audio cable (Option)

To audio input terminal

C

B

(P

B R

(P

R

)

BNC-RCAconnector

(Option)

G(Y)

DVI

Y Cb/Pb Cr/Pr

G(Y) B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

RS-232C

S-VIDEO

B(Cb/Pb)

R(Cr/Pr)

Cable with BNC connector (Option)

Select this connection when using long cable.

• Images may not be projected correctly depending on the type of the DVD player you use.

• Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.

EN-14

Connecting to video equipment having a DVI-D terminal

You can project high-quality images by connecting the DVI terminal of this projector to video equipment having a

DVI-D output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data that are output from DVD players.

Equipment having a

DVI-D terminal

To audio output terminal

Audio cable(Option)

To audio input terminal

To DVI-D terminal

DVI

Y Cb/Pb Cr/Pr

G(Y) B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

RS-232C

S-VIDEO

DVI cable (Option) To DVI terminal

• For connection to the DVI terminal, use a commercially available DVI cable.

• Select DVI-DIGITAL as the input source.

• Only RGB signals are supported. Component video signals are not supported.

• HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital video data for the purpose of copy protection.

• When DVI-D is selected as the input source, setting of COLOR, TINT, SET UP, TRACKING, H.PPSITION,

V.POSITION and FINE SYNC. is unavailable.

When you connect this projector and a DVI-Digital device (such as a DVD player) via the DVI terminal, black color may appear light and pale, depending on the type of the connected device.

• This depends on the black level setting of the connected device. There are two kinds of methods to digitally transfer image data, in which different black level settings are employed respectively. Therefore, the specifications of the signals output from DVD players differ, depending on the type of the digital data transfer method they use.

• Some DVD players are provided with a function to switch the methods to output DVI-Digital signals. When your DVD player is provided with such function, set it as follows.

NORMAL

➔ EXPAND or ENHANCED

• See the users guide of your DVD player for details.

• When your DVD player does not have such function, set BRIGHTNESS of this projector to -7. When you have more than one DVD player, it is convenient to store the image quality settings for each DVD player in the memory.

B. Plugging in the power cord

LAMP TEMP POWER

Earthing terminal

1 Plug the attached power cord into the power cord inlet of this projector.

2 Plug the other end of the power cord into a power outlet.

AC IN MAIN

1

2

Power cord

(Example)

• The power cords for use in the U.S. and Europe are included with this projector. Use the appropriate one for your country.

• This projector uses the power plug of three-pin grounding type. Do not take away the grounding pin from the power plug. If the power plug doesn’t fit your wall outlet, ask an electrician to change the wall outlet.

• The provided power cord for the U.S. is rated at 120 V. Never connect this cord to any outlet or power supply using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare an appropriate power cord separately.

EN-15

Viewing video images (continued)

C. Projectiing images

Preparation:

• Remove the lens cap.

• Turn on the power of the connected video equipment.

POWER button/

POWER indicator

1. Turn the main power switch to on (or to the I position).

• When the main power switch is turned on, the POWER indicator lights up red.

LAMP TEMP POWER

LAMP TEMP POWER

Lighting in red

Main power switch

AC IN MAIN

LENS SHIFT

DOWN

SOURCE MENU/EXIT

ON( )button

SOURCE button

{, } button

$, % button

UP

Lens shift dial

ZOOM IN, OUT buttons

FOCUS +/- buttons

SOURCE button

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

MEM2

MEM1

ZOOM IN/UP

ZOOM

MEM3

FOCUS–/LEFT FOCUS+/RIGHT

ENTER

MENU

ZOOM OUT/DOWN

CONT

BRIGHT

C.TEMP

TINT

COLOR

SHARP

• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the main power switch is turned on. (The POWER indicator blinks red.) After the fan stops rotating, press the power button to turn back on the POWER indicator.

2. Press the POWER button on the projector or ON ( ) button on the remote control.

LAMP TEMP POWER

Blinking in blue

Power can not be turned

“OFF”.

After about 1 minute.

LAMP TEMP POWER

Lighting in blue

• It may take about one minute for the lamp to light up.

• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.

3. Select an input source.

• Press the SOURCE button on the projector or any of the

SOURCE buttons (such as DVI-D, DVI-A, COMP, S-Video,

Video, and BNC) on the remote control that is corresponding to the terminal in use.

• Switch the input source after an image is projected on the screen.

• Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.

• Some images become easier to view when the setting of aspect ratio is changed. (See Page 18.)

4. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in their specified sizes.

5. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See Page 11.)

• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See Page 11.)

6. Adjust the size of the projected image by pressing the ZOOM

IN or OUT button on the projector or the remote control.

7. Adjust the focus by pressing the FOCUS+ or FOCUS- button on the projector or the remote control.

8. Adjust the image position by turning the lens shift dial of the projector.

Repeat steps 4 to 8, if necessary.

EN-16

POWER button/

POWER indicator

LAMP TEMP POWER

Main power switch

AC IN MAIN

OFF button

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

ZOOM

MEM2

MEM1

ZOOM IN/UP

MEM3

FOCUS–/LEFT FOCUS+/RIGHT

ENTER

MENU

ZOOM OUT/DOWN

CONT

BRIGHT

C.TEMP

COLOR

SHARP

TINT

To stop projecting:

9. Press the POWER button on the projector or the OFF button on the remote control.

• A confirmation message is displayed.

• To cancel the procedure, leave the projector for a while or press the MENU button on the remote control or the MENU/

EXIT button on the projector.

10.Press the POWER button on the projector or the OFF button on the remote control again.

• The lamp goes out and the projector goes into a standby mode. In this standby mode, the POWER indicator blinks red.

11.Wait about two minutes for the POWER indicator to be lit in red steadily.

• During this period of two minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

• Do not turn off the main power switch while the POWER indicator is blinking. Turning off the main power switch immediately after use may cause a breakdown.

• Though the fan makes loud sounds during cooling, such symptom is not a malfunction.

12.Turn the main power switch to off (or to the O position).

• For safety reasons, when you are not going to use the projector for a long time, unplug it from the outlet.

• Cover the lens with the lens cap to protect it from dust.

When projected images are distorted to a trapezoid:

Adjust the setting values of KEYSTONE in the INSTALLATION menu.

(See Page 23 for menu setting.)

1. Display the INSTALLATION menu.

2. Select KEYSTONE by pressing the

{ or } button.

3. Press the ENTER button.

• The KEYSTONE menu appears.

4. Select V.KEYSTONE or H.KEYSTONE by pressing the

{ or } button.

5. Equalize the widths at the top and bottom of the screen (or heights at the left and right of the screen) by pressing the

$ or % button, viewing the screen.

To cancel the menu:

6. Press the MENU button several times.

INSTALLATION opt.

TEST PATTERN

SIGNAL SETTING

COMPONENT

ASPECT

MIRROR

KEYSTONE

LANGUAGE

EXPAND

AUTO

STANDARD

FLOOR FRONT

ENGLISH

0

KEYSTONE

H.KEYSTONE

V.KETSTONE

0

0

EN-17

Viewing video images (continued)

Setting the aspect ratio

You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the input video signal.

16 : 9

Standard

ZOOM1 ZOOM2 ZOOM3 REAL

Original image size

Projects images on the full screen

(16:9)

Changes the aspect ratio according to the type of the input signal.

Projects images in the

CinemaScope size together with subtitles.

Projects images in the Vista size together with subtitles.

Projects images in the European

Vista size together with subtitles.

Projects images in their original size as input.

PC inputs not less than

1280x720 are projected on the full screen

(16:9).

4:3 image (480i,

576i, 480p, 576p, and PC)

4:3 CinemaScope and Vista image

Squeezed 4:3

(480i, 576i, 480p,

576p)

16:9 image(1080i)

Images are projected with half vertical pixels.

16:9 image (720p)

Bold frames are recommended modes.

Images are projected on the full screen.

How to change the settings:

With the remote control:

1. Press any of the aspect buttons (Standard, 16:9, or ZOOM).

• Every time the ZOOM button is pressed, the zoom mode changes from

Zoom 1 to Zoom 2, to Zoom 3, and back to Zoom 1.

With the operation panel of the projector:

(See Page 23 for menu setting.)

1. Display the INSTALLATION menu.

2. Select ASPECT by pressing the

{ or } button.

3. Select your desired aspect ratio by pressing the

$ or % button.

To cancel the menu:

4. Press the MENU button.

EN-18

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

MEM2

MEM1

ZOOM IN/UP

ZOOM

MEM3

Aspect buttons (Standard,

16:9, ZOOM)

INSTALLATION opt.

TEST PATTERN

SIGNAL SETTING

COMPONENT

ASPECT

MIRROR

KEYSTONE

LANGUAGE

EXPAND

AUTO

STANDARD

FLOOR FRONT

ENGLISH

0

Viewing computer images

A. Connecting the projector to a computer

Preparation:

• Make sure that the power of the projector and that of the computer are turned off.

• When connecting the projector to a desktop computer, disconnect the RGB cables that are connected to the monitor.

For analog connection:

to DVI

1. Connect one end of the supplied Mini D-SUB 15pin-DVI conversion cable to the DVI terminal of the projector.

Pb Cr/Pr

DVI b/Pb) R(Cr/Pr) H/HV

VIDEO

RS-232C

S-VIDEO

V

1

2

to monitor port

Mini D-SUB 15pin-DVI conversion cable

2. Connect the other end of the Mini D-SUB 15pin-DVI conversion cable to the monitor port of the computer.

• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.

• Use of a long cable other than the supplied cable may decrease the quality of projected images.

• When viewing images supplied from an analog-connected computer, press the DVI-A button on the remote control.

• This projector does not support 3-line signals (SYNC-

ON-GREEN signals).

DVI b Cr/Pr

Pb) R(Cr/Pr) H/HV

VIDEO

V

RS-232C

S-VIDEO to DVI to BNC

1

Y Cb/Pb Cr/Pr

G(Y) B(Cb/Pb) R(Cr/Pr) H/HV

VIDEO

V

DVI cable

2

1

2 to DVI to monitor port

For digital connection:

1. Connect one end of a commercially available DVI cable to the DVI terminal of the projector.

2. Connect the other end of the DVI cable to the DVI terminal of the computer.

• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.

• Use of a long cable may decrease the quality of projected images.

• When viewing images supplied from a digital-connected computer, press the DVI-D button on the remote control.

• Turn on the power of the projector before that of the computer.

For connection using the BNC terminal:

1. Connect one end of a commercially available Mini D-SUB

15pin-BNC conversion cable to five BNC terminals of the projector.

2. Connect the other end of the Mini D-SUB 15pin-BNC conversion cable to the monitor port of the computer.

Mini D-SUB 15pin-

DVI conversion cable

RS-232C

S-VIDEO

• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.

• Use of a long cable may decrease the quality of projected images.

• When viewing images supplied from an BNC-connected computer, press the BNC button on the remote control.

• Also read the instruction manual of the equipment to be connected.

• Though the projected image may be displaced or displayed incorrectly when a VGA60 signal is output at the startup of the computer, such symptom is not a malfunction. (This is because VGA60 signal is not supported.)

• This projector does not have any built-in speaker. To reproduce audio, use the speaker of the computer or connect the projector to audio equipment.

• Images may not be projected correctly, depending on the type of the connected computer.

• Contact your dealer for details of connection.

B.

Plugging the power cord

Plug the power cord in the same way as in the case of “Connecting the projector to video equipment.” See Page

15.

EN-19

Viewing video images (continued)

C. Projectiing images

Preparation:

• Remove the lens cap.

• Turn on the power of the connected equipment.

POWER button/

POWER indicator

1. Turn the main power switch to on (or to the I position).

• When the main power switch is turned on, the POWER indicator lights up red.

LAMP TEMP POWER

LAMP TEMP POWER

Lighting in red

AC IN MAIN

LENS SHIFT

DOWN

SOURCE MENU/EXIT

ON( )button

SOURCE button

{, } button

$, % button

UP

Main power switch

Lens shift dial

ZOOM IN, OUT buttons

FOCUS +/- buttons

SOURCE button

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

ZOOM

MEM2

MEM1

ZOOM IN/UP

MEM3

FOCUS–/LEFT FOCUS+/RIGHT

ENTER

MENU

ZOOM OUT/DOWN

CONT

BRIGHT

C.TEMP

COLOR

SHARP

TINT

• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the main power switch is turned on. (The POWER indicator blinks red.) After the fan stops rotating, press the power button to turn back on the POWER indicator.

2. Press the POWER button on the projector or ON ( ) button on the remote control.

LAMP TEMP POWER

Blinking in blue

Power can not be turned “OFF”.

After about

1 minute.

LAMP TEMP POWER

Lighting in blue

• It may take about one minute for the lamp to light up.

• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.

3. Select an input source.

• Press the SOURCE button on the projector or any of the

SOURCE buttons (such as DVI-D, DVI-A, and BNC) on the remote control that is corresponding to the terminal in use.

• Switch the input source after an image is projected on the screen.

• Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.

• Images may not be projected in the correct position, depending on the type of the input signal. In such a case, press the AUTO POSITION button on the projector or the

AUTO button on the remote control. (See Page 21.)

4. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in their specified sizes.

5. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See Page 11.)

• When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See Page 11.)

6. Adjust the size of the projected image by pressing the ZOOM IN or OUT button on the projector or the remote control.

7. Adjust the focus by pressing the FOCUS+ or FOCUS- button on the projector or the remote control.

8. Adjust the image position by turning the lens shift dial of the projector.

Repeat steps 4 to 8, if necessary.

EN-20

POWER button/

POWER indicator

LAMP TEMP POWER

AC IN MAIN

Main power switch

OFF button

ON

STANDBY

AUTO OFF

LIGHT

DVI-A

DVI-D

COMP

Video

S-Video

BNC

16:9

Standard

ZOOM

MEM2

MEM1

ZOOM IN/UP

MEM3

FOCUS–/LEFT FOCUS+/RIGHT

ENTER

MENU

ZOOM OUT/DOWN

CONT

BRIGHT

C.TEMP

TINT

COLOR

SHARP

To stop projecting:

9. Press the POWER button on the projector or the OFF button on the remote control.

• A confirmation message is displayed.

• To cancel the procedure, leave the projector for a while or press the MENU button on the remote control or the MENU/

EXIT button on the projector.

10.Press the POWER button on the projector or the OFF button on the remote control again.

• The lamp goes out and the projector goes into a standby mode. In this standby mode, the POWER indicator blinks red.

11.Wait about two minutes for the POWER indicator to be lit in red steadily.

• During this period of two minutes in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

• Do not turn off the main power switch while the POWER indicator is blinking. Turning off the main power switch immediately after use may cause a breakdown.

• Though the fan makes loud sounds during cooling, such symptom is not a malfunction.

12.Turn the main power switch to off (or to the O position).

• For safety reasons, when you are not going to use the projector for a long time, unplug it from the outlet.

• Cover the lens with the lens cap to protect it from dust.

AUTO POSITION button (AUTO button)

When the image supplied from the computer is displaced, carry out the following procedure.

1. Display a bright image (such as a full-screen display of the Recycle Bin window).

2. When the screen saver has been enabled, disable it.

3. Press the AUTO POSITION button on the projector or the AUTO button on the remote control.

The projector automatically makes optimum positional settings for the input signal.

• If the image is not projected in the correct position even after you press the AUTO POSITION button (or

AUTO button) several times, change the settings in the SIGNAL SETTING menu to put the image in the correct position. (See Page 29.)

• When you carry out this procedure with a dark image, the image may be displaced.

When connecting to a notebook computer:

When the projector is connected to a notebook computer, images may not be projected in some cases. In such cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type of the computer. See the instruction manual of your computer.

Example of the setting procedure for external output

Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of the computer you use.)

EN-21

Menu Operation

• Menus are not displayed when no signal is supplied to the projector.


PRO PICTURE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

WHITE ENHANCE

*1

*2

COLOR TEMP.

HIGH BRIGHTNESS

6500K

SPECIAL

USER 1

USER 2

GAMMA

SET UP *1,*3

BLACK STRETCH

DISPLAY POSITION

R GAIN

G GAIN

B GAIN

R BIAS

G BIAS

B BIAS

OPTION

INSTALLATION

SAVE MEMORY

TRANSPARENT MENU

MENU POSITION

BACK COLOR

LAMP HOUR

LAMP MODE

RESET SETTING

TEST PATTERN

SIGNAL SETTING

*5

COMPONENT

ASPECT

MIRROR

KEYSTONE

LANGUAGE

EXPAND

SHUTTER

SHUTTER UPPER

SHUTTER LOWER

SHUTTER LEFT

SHUTTER RIGHT

VERTICAL LOCATION

MEMORY1

MEMORY2

MEMORY3

MEMORY RESET

LAMP HOUR

LAMP RESET

TRACKING

*6

FINE SYNC.

*6

H.POSITION

V.POSITION

H.KEYSTONE

V.KEYSTONE

-50 - +50

-50 - +50

-50 - +50

-50 - +50

0 - 4

0 - 10

−50∼+50

−50∼+50

−50∼+50

−50∼+50

−50∼+50

−50∼+50

COPY TO

USER 1

USER 2

CANCEL

THEATER1/THEATER2/STANDARD

OFF/3.75%/7.5%

-2/-1/OFF/+1/+2

0 - 100

0 - 100

0 - 100

0 - 100

-50 - +50

MEMORY1

MEMORY2

MEMORY3

CANCEL

ON/OFF

YES/NO

YES/NO

YES/NO

UPPER LEFT/UPPER RIGHT/

LOWER RIGHT/LOWER LEFT/

CENTER

BLUE/BLACK

YES/NO

NORMAL/LOW

OK/CANCEL

-50 - +50

-50 - +50

-50 - +50

-50 - +50

AUTO/RGB/YCbCr/YPbPr

STANDARD/16:9/ZOOM1/

ZOOM2/ZOOM3/REAL

FLOOR FRONT/CEILING FRONT/

FLOOR REAR/CEILING REAR

-50 - +50

-50 - +50

ENGLISH/FRANÇAIS/DEUTSCH/

ITALIAN/PORTUGUÊS/ /

/ESPAÑOL/

0 - 31

*1) Unavalable when the computer or DVI-D is selected as the input source.

*2) Available only when the NTSC signal is input.

*3) Unavailable when the 720p signal or 1080i signal is input.

*4) Available only when the signal supplied to the VIDEO terminal or S-VIDEO terminal is selected as the input source.

*5) Unavailable when DVI-I is selected as the input source.

*6) Available only when the computer is selected as the input source. However, they may cause available depending on the type of the input component video signal.

EN-22

How to set the menus:

Following describe how to set Vertical Location as an example.

1. Press the MENU button.

The top menu appears.

• When no signal is input, the top menu does not appear.

PICTURE opt.

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

WHITE ENHANCE

0

0

0

0

0

0

2. Press the

{ or } button to select a menu to use.

PRO PICTURE

COLOR TEMP.

GAMMA

SET UP

BLACK STRETSCH

DISPLAY POSITION

THEATER1

OFF

OFF opt.

3. Press the ENTER button.

The item at the top is selected.

PRO PICTURE

COLOR TEMP.

GAMMA

SET UP

BLACK STRETSCH

DISPLAY POSITION

THEATER1

OFF

OFF opt.

4. Press the

{ or } button to select an item to adjust.

• To set items marked with , press the

$ or

% button.

PRO PICTURE

COLOR TEMP.

GAMMA

SET UP

BLACK STRETSCH

DISPLAY POSITION

THEATER1

OFF

OFF opt.

5. Press the ENTER button.

• The submenu appears.

SHUTTER

SHUTTER UPPER

SHUTTER LOWER

SHUTTER LEFT

SHUTTER RIGHT

VERTICAL LOCATION

0

0

0

6. Press the

{ or } button to select an item to adjust.

SHUTTER

SHUTTER UPPER

SHUTTER LOWER

SHUTTER LEFT

SHUTTER RIGHT

VERTICAL LOCATION

0

0

0

7. Set the selected item by pressing the

$ or % button.

SHUTTER

SHUTTER UPPER

SHUTTER LOWER

SHUTTER LEFT

SHUTTER RIGHT

VERTICAL LOCATION

0

0

-50

To cancel the menu:

8. Press the MENU/EXIT button on the projector or the MENU button on the remote control several times.

EN-23

Menu operation (continued)

Available settings in the menus

Set the following items on their relevant menus.

1. PICTURE menu 2.PRO PICTURE menu

PICTURE opt.

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

WHITE ENHANCE

0

0

0

0

0

0

PRO PICTURE opt.

COLOR TEMP.

GAMMA

SET UP

BLACK STRETSCH

DISPLAY POSITION

THEATER1

OFF

OFF

3. OPTION menu

OPTION opt.

SAVE MEMORY

TRANSPARENT MENU

MENU POSITION

BACK COLOR

LAMP HOUR

LAMP MODE

RESET SETTING

OFF

UPPER LEFT

BLACK

OFF

NORMAL

4.INSTALLATION menu

INSTALLATION opt.

TEST PATTERN

SIGNAL SETTING

COMPONENT

ASPECT

MIRROR

KEYSTONE

LANGUAGE

EXPAND

AUTO

STANDARD

FLOOR FRONT

ENGLISH

0

1. PICTURE menu

ITEM SETTING

CONTRAST

BRIGHTNESS

-50 - +50

-50 - +50

COLOR

TINT

-50 - +50

-50 - +50

SHARPNESS 0 - 4

WHITE ENHANCE 0 - 10

FUNCTION

Use to adjust the contrast of the projected image. (See Page 27.)

Use to adjust the brightness of the projected image. (See Page 27.)

Use to adjust the color thickness of the projected image. (See Page 27.)

Use to adjust the color tint of the projected image. (See Page 27.)

Use to adjust the sharpness of the projected image. (See Page 27.)

Use to adjust the white level of the projected image. (See Page 27.)

2. PRO PICTURE menu

ITEM SETTING FUNCTION

COLOR TEMP.

HIGH BRIGHTNESS/6500K Select when watching movies in dim lighting as in a theater.

SPECIAL

USER1/USER2

Select for the image of which black-to-white balance should be concerned.

Select to use the color temperature set by the user. (See Page 28.)

GAMMA THEATER1

THEATER2

STANDARD

Select when watching movies in dim lighting as in a theater.

Select to gain the halftone to make the skin color more vibrant even in a dark scene. This mode is suitable for TV viewing.

Select to secure the contrast even when the room lighting is increased to

SET UP OFF

3.75%/7.5%

BLACK STRETSCH -2/-1/Off/+1/+2 some extent.

Select to make black lighter.

Select to make black thicker.

• SET UP has been factory set to OFF. Change this setting to 7.5% for viewing DVD disks for the U.S.

Use to slightly adjust the color shades in the darkest area in the image.

Selecting -1 makes black in such area thicker, and selecting +1 makes the color shades in such area crisper. This item does not affect relatively bright

DISPLAY POSITION SHUTTER images.

Use to apply the electric shutter to the upper or lower or left or right portion of the projected image.

• When the menu is displayed or the zoom or focus function is used with the shutter function enabled, the shutter function is disabled temporarily. It is resumed when the menu or the zoom or focus function is canceled.

VERTICAL LOCATION Use to adjust the vertical position of the projected image on the screen.

3. OPTION menu

ITEM SETTING

SAVE MEMORY MEMORY 1/2/3

TRANSPARENT MENU

MENU POSITION

BACK COLOR

ON/OFF

5 points

BLUE/BLACK

LAMP HOUR LAMP HOUR

LAMP MODE

LAMP RESET

RESET SETTING

NORMAL

LOW

FUNCTION

Use to store the settings of the PICTURE menu or the PRO PICTURE menu in the memory. (See Page 26.)

Select whether or not to display the menus transparently.

Use to change the position of the menu.

Use to change the color of the screen that appears when no signal is supplied.

Use to confirm the lamp operating time.

Use to reset the lamp operating time when replacing the lamp.

Select this option in normal use.

Select to moderate the intensity of the lamp. The lamp operating sound is reduced and the lamp lifetime becomes longer.

• Frequent switching of the lamp mode may damage the lamp.

Use to reset the settings of the OPTION menu and the INSTALLATION menu (excluding SAVE MEMORY, LAMP HOUR, and LANGUAGE) to the factory setting values.

EN-24

4. Installation Menu

ITEM SETTING FUNCTION

TEST PATTERN

SIGNAL SETTING

COMPONENT

ASPECT

MIRROR

KEYSTONE

LANGUAGE

EXPAND

TRACKING

FINE SYNC.

H.POSITION *

V.POSITION *

AUTO

RGB

YCbCr

YPbPr

The test pattern for focus adjustment is displayed when the ENTER button is pressed.

Use to adjust the image supplied from the computer.

Use to eliminate vertical wide stripes, if appears, viewing the projected image.

Use to eliminate flickering or blur, if appears, viewing the projected image.

Use to adjust the horizontal position of the projected image.

Use to adjust the vertical position of the projected image.

Select this option in normal use. Input signals are automatically recognized.

Select this option when connecting the projector to high definition video equipment having R, G, and B output terminals.

Select this option when connecting the projector to a DVD player or other device having Y, C

B

, and C

R

component video output terminals.

Select this option when connecting the projector to a MUSE recorder or other device having Y, P

B

, and P

R

component video output terminals.

STANDARD

16:9

ZOOM1/2/3

Select to change the aspect ratio automatically depending on the input signal.

Select to project images with an aspect ratio of 16:9.

Select to enlarge and project images of CinemaScope size, Vista size, or

REAL

European Vista size.

Select to project images in their original size as input.

FLOOR FRONT Select when viewing images from the front with the projector installed on the floor.

CEILING FRONT Select when viewing images from the front with the projector installed on

FLOOR REAR the ceiling.

Select when viewing images projected from the behind of the screen with the projector installed on the floor.

CEILING REAR Select when viewing images projected from the behind of the screen with

H.KEYSTONE

V.KEYSTONE

9 languages the projector installed on the ceiling.

Use to correct horizontal keystone distortion.

Use to correct vertical keystone distortion.

Use to select the language used in the menus.

Use to enlarge the projected image. (You cannot change the display position after enlargement.)

SIGNAL SETTING Menu is not displayed when DVI-D is selected as the input source.

• Though horizontal strips may appear on the enlarged projected image, such symptom is not a malfunction.

• Options marked with * become unavailable depending on the type of the input signal.

• When you change the horizontal or vertical position to a large extent, noise may appear.

• The adjustable range of the vertical position varies depending on the type of the input signal. Though the image may stay in the same position even when the setting value is changed, such symptom is not a malfunction.

EN-25

Menu operation (continued)

To store the image quality settings:

You can store up to 3 patterns of the image quality setting, which consists of the settings of the

PICTURE menu and the PRO PICTURE menu

(excluding COLOR TEMP.) per group of input signals.

(See the table on the right.)

Signal group

Video

Progressive

HDTV

RGB

Signal name

Video, S-Video, 480i, 576i

480p, 576p

1080i, 720p

Others (Computer signal etc.)

Number

3

3

3

3

To store the settings:

(See Page 23 for menu setting.)

1. Set the items of the PICTURE menu and the PRO PICTURE menu.

2. Display the OPTION menu.

3. Select SAVE MEMORY by pressing the

{ or } button.

4. Select a memory to store the settings by pressing the

$ or % button.

5. Press the ENTER button.

• The settings are stored.

OPTION opt.

SAVE MEMORY

TRANSPARENT MENU

MENU POSITION

BACK COLOR

LAMP HOUR

LAMP MODE

RESET SETTING

OFF

UPPER LEFT

BLACK

OFF

NORMAL

To enable the stored image quality settings:

1 Press the MEMORY 1, 2, or 3 button on the remote control.

The image quality settings stored in the selected memory is enabled.

MEMORY1

SAVE MEMORY

MEMORY2 MEMORY3 MEMORY Reset

• Note that the Image quality settings are just stored on the menu. The remote control is required to enable the stored image quality settings.

To reset the stored image quality settings (to the factory setting values), carry out the following procedure.

1. Display a video signal belonging to the signal group you want to reset.

2. Display the OPTION menu.

3. Select SAVE MEMORY by pressing the

{ or } button.

4. Select MEMORY RESET by pressing the

$ or % button.

5. Press the ENTER button.

6. Select a memory to reset by pressing the

{ or } button.

• When you select CANCEL, the procedure is canceled (or the memory is not reset).

7. Press the ENTER button.

• This projector has four memories for the groups of input signals, and you can store up to 3 patterns of settings per group. These memories are not classified per input terminal.

EN-26

Adjusting projected images

To adjust the brightness (CONTRAST and BRIGHTNESS):

You can make adjustments for the brightness of the projected image using the menu.

(See Page 23 for menu setting.)

CONTRAST

1. Display the PICTURE menu.

2. Select CONTRAST or BRIGHTNESS by pressing the

{ or } button.

3. Adjust the selected item by pressing the

$ or % button.

BRIGHTNESS

To cancel the menu:

4. Press the MENU button.

0

0

CONTRAST

Select to adjust the contrast of the image. Every time the

% button is pressed, the image becomes brighter and more defined. Every time the

$ button is pressed, the image becomes darker and less defined.

BRIGHTNESS

Every time the

% button is pressed, the image becomes brighter. Every time the $ button is pressed, the image becomes darker.

To adjust the color (COLOR and TINT):

You can adjust the color of the projected image using the menu.

COLOR

(See Page 23 for menu setting.)

TINT

1. Display the PICTURE menu.

2. Select COLOR or TINT by pressing the

{ or } button.

COLOR is unavailable when the computer or DVI-D is selected as the input source.

TINT is available only when the NTSC signal is input.

3. Adjust the selected item by pressing the

$ or % button.

To cancel the menu:

4. Press the MENU button.

0

0

COLOR

Use to adjust the color thickness of the projected image. Every time the

% button is pressed, the color becomes thicker. Every time the

$ button is pressed, the color becomes lighter.

COLOR is unavailable when the computer or DVI-D is selected as the input source.

TINT

Use to adjust the tint of the projected image. Every time the

% button is pressed, the image appears more greenish. Every time the

$ button is pressed, the image appears more reddish.

To sharpen or soften the projected image (SHARPNESS):

You can adjust the sharpness of the projected image using the menu. (See Page 23 for menu setting.)

1. Display the PICTURE menu.

2. Select SHARPNESS by pressing the

{ or } button.

3. Adjust the selected item by pressing the

$ or % button.

SHARPNESS

To cancel the menu:

4. Press the MENU button.

0

To enhance or weaken the white level of the projected image (WHITE ENHANCE):

You can adjust the white level of the projected image using the menu.

(See Page 23 for menu setting.)

1. Display the PICTURE menu.

2. Select WHITE ENHANCE by pressing the

{ or } button.

3. Adjust the selected item by pressing the

$ or % button.

WHITE ENHANCE

0

To cancel the menu:

4. Press the MENU button.

EN-27

Adjusting projected images (continued)

To adjust the tone of white (COLOR TEMP.):

You can select a preset color temperature (white tone) using the menu.

(See Page 23 for menu setting.)

COLOR TEMP.

1. Display the PRO PICTURE menu.

2. Select COLOR TEMP. by pressing the

{ or } button.

3. Select your desired color temperature by pressing the

{ or } button.

• When you select SPECIAL, the color temperature which concerns the black-to-white balance is applied.

• Generally, select HIGH BRIGHTNESS for viewing TV and select 6500K for viewing HDTV.

• When you select USER1 or USER2, the customized color temperature applies.

To cancel the menu:

4. Press the MENU button.

To adjust the tone of white (To customize the color temperature):

To customize (and store) the color temperature to your preference, carry out the following procedure.

(See Page 23 for menu setting.)

To store the settings:

1. Display the PRO PICTURE menu.

2. Select COLOR TEMP. by pressing the

{ or } button.

3. Select a color temperature to be used as the reference by pressing the

{ or } button.

• Generally, select the most preferable color temperature.

4. Press the ENTER button.

• The setting items such as R GAIN, G GAIN, B GAIN, R BIAS, G BIAS, and B BIAS are displayed at the lower left of the screen.

5. Press the

{ or } button to select an item to adjust.

6. Set the selected item by pressing the

$ or % button.

• The image varies accordingly.

7. Repeat steps 5 and 6.

8. Press the ENTER button.

• A screen to store the customized color temperature is displayed.

9. Select USER1 or USER2 by pressing the

$ or % button.

10.Press the ENTER button.

• The customized color temperature is stored.

To cancel the menu:

11.Press the MENU button.

To enable the stored color temperature:

1. Select USER1 or USER2 of COLOR TEMP. in the PRO PICTURE menu.

About color temperature

There are different degrees of white color. Color temperature is a way to measure the degree of white color. The lower the color temperature is, the more reddish the white color appears, and the higher the color temperature is, the more bluish the white color appears. With this projector, you can adjust the color temperature by changing the values of gain and bias of R (red), G (green), and B (blue) respectively.

EN-28

This projector automatically and properly projects video signals supplied from the computer. However, some video signals may not be projected, depending on the type of the computer. In such a case, press the AUTO

POSITION button on the projector or the AUTO button on the remote control. (See Page 21.) When the signal is still not projected properly, adjust the projected image using the SIGNAL SETTING menu.

How to adjust the image supplied from the computer using the menu:

Carry out the following procedures according to the symptoms.

Wide strips appear. ................................................ Adjust TRACKING in the SIGNAL SETTING menu.

The projected image flickers.

The projected image is blurred. ............................ Adjust FINE SYNC. in the SIGNAL SETTING menu.

The projected image is displaced horizontally. ..... Adjust H.POSITION in the SIGNAL SETTING menu. Every time the

$ button is pressed, the image moves to the right.

Every time the

% button is pressed, the image moves to the left.

The projected image is displaced vertically. ......... Adjust V.POSITION in the SIGNAL SETTING menu. Every time the

$ button is pressed, the image moves down. Every time the

% button is pressed, the image moves up.

1. Display the INSTALLATION menu.

2. Select SIGNAL SETTING by pressing the

{ or } button.

3. Press the ENTER button.

• The SIGNAL SETTING menu appears.

4. Press the

{ or } button to select an item to adjust.

5. Adjust the selected item by pressing the

$ or % button.

To cancel the menu:

6. Press the MENU button.

• Do not change the settings of the SIGNAL SETTING menu in normal use.

Simple method to adjust the image position

To adjust the horizontal position:

1. Align the left edge of the image with the left side of the screen by adjusting H.POSITION. Then, align the right edge of the image with the right side of the screen by adjusting TRACKING.

2. Repeat step 1 above to complete the adjustment of the horizontal position.

To adjust the vertical position:

3. Align the upper edge of the image with the upper side of the screen by adjusting V.POSITION.

Special initial settings

In addition to the general image adjustment items, this projector has the following items as hidden adjustment items.

CW SEED

LPF

5

OFF

LPF (Progressive filter)

You can select whether or not to enable the LPF. This item is set to OFF normally.

Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player you use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected images become softened slightly.

CW SPEED (Color wheel control)

You can change the rotation speed of the color wheel. This item is set to 5 normally.

5 (x5):

The rotation speed of the color wheel increases, reducing color breaking noise.

4 (x4):

Reproducibility of the color shades increases.

• The projected image is distorted momentarily when you change the setting value. Such symptom occurs because of variation in the rotation speed of the color wheel and is not a malfunction.

1. Press the MENU button to display the top menu.

2. Press the AUTO POSITION button and the SOURCE button on the projector at the same time.

3. Press the

{ or } button to select an item to adjust.

4. Adjust the selected item by pressing the

$ or % button.

To cancel the menu:

5. Press the MENU button.

EN-29

Replacing the lamp

This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the lamp with a new lamp separately sold that is exclusive to HC2000. Contact your dealer for purchase of the lamp.

WARNING:

• Be sure to turn off the main power switch and unplug the power cord from the wall outlet before replacing the lamp. Lamp replacement without turning off the main power switch may result in electric shock.

• Be careful not to drop the lamp fixing screws into the inside of the projector. Don’t put a metal piece or flammable object into the projector. Using the projector with any foreign object present inside may result in electric shock or fire. When you can’t remove the foreign object from the inside, contact your dealer for removal.

• Be sure to install the lamp securely. When the lamp isn’t installed properly, it won’t illuminate. Improper installation may also result in fire.

• Don’t shake the removed lamp or don’t lift it above your face. You may be injured in your eye by flying or falling glass fragments.

• Don’t replace the lamp immediately after use because the lamp cover is very hot. You may get burned. Turn off the power using the POWER button. After the lamp goes out, wait about two minutes until the intake and exhaust fans for cooling the lamp stop rotating. Then turn off the main power switch, unplug the power cord, and wait at least one hour to allow the lamp to cool down enough to the touch.

CAUTION:

When the lamp operating time exceeds 1470 hours*1, a warning indication is displayed on the screen for one minute. When it exceeds 1500 hours*1, *2, the warning indication is kept displayed on the screen. In such a case, replace the lamp with a new one immediately.

• Don’t remove the lamp for any purpose other than replacement. Unnecessary removal of the lamp may result in a breakdown.

• This projector uses a high-pressure mercury lamp as the light source. The high-pressure mercury lamp may explode or fail to illuminate permanently because of an impact, scratch, or deterioration through use. The period of time until explosion or permanent failure to illuminate varies considerably from lamp to lamp, depending on operation conditions. Therefore, the lamp may explode soon after the start of use.

• The possibility of explosion of the lamp increases if you use it beyond its replacement period. When the instruction of lamp replacement appears, replace it with a new one immediately even if the lamp is still lighting normally.

• When the high-pressure mercury lamp explodes, glass fragments will scatter inside or outside the lamp box and the gas charged inside the lamp will diffuse inside or outside the projector. The gas inside the lamp contains mercury. Be careful not to breathe it or avoid it from entering your eye or mouth. If you should breathe it or if it should enter your eye or mouth, see a doctor immediately.

• In the event that the high-pressure mercury lamp has exploded, glass fragments may have been scattered inside the projector. Ask your dealer to replace the lamp and to inspect the inside of the projector. When you clean or replace the lamp by yourself, be sure to hold the handle of the lamp. You may get injured by glass fragments.

• Don’t replace the lamp with the projector installed on the ceiling. Glass fragments may fall from the projector, entering your eye or mouth causing injury.

• Dispose of the used lamp according to the local regulations and rules.

*1) Time when the projector is used with LAMP MODE set to NORMAL. When it is set to LOW, this period of time becomes longer.

*2) About 3000 hours at the maximum

(a)

(b)

To replace the lamp:

1. Loosen the lamp cover fixing screw (a) using a hexagon wrench (2-face, 3 mm).

2. Slide the lamp cover to the side and remove it from the projector.

3. Loosen three lamp box fixing screws (b) using a flatblade driver.

4. Lift the handle.

Handle

EN-30

5. Pull the lamp out of the projector by the handle.

• Pull the lamp out of the projector slowly and carefully.

When the bulb has exploded, rough removal of the lamp may cause glass fragments to scatter.

• Do not spill water on the lamp, or do not place it where children can reach or near flammables. You may get burned or injured.

6. Hold the handle of the new lamp and insert the lamp in the opening in the projector to the end in the correct orientation.

7. Press the handle into its storing position.

• Make sure that the handle is securely locked.

8. Tighten the three fixing screws (b) securely using a flatblade driver.

9. Mount the lamp cover on the projector and fix the lamp cover fixing screw (a) securely using a hexagon wrench

(2-face, 3 mm).

• When the lamp cover is not mounted correctly, the projector is not turned on.

How to reset the lamp operating time

1. Display the OPTION menu.

2. Select LAMP HOUR by pressing the

{ or } button.

3. Press the ENTER button.

• The LAMP HOUR menu appears.

4. Select LAMP RESET by pressing the

$ or % button.

5. Select YES by pressing the

{ or } button.

6. Press the ENTER button.

• The lamp operating time is reset. To cancel the menu:

7. Press the MENU button.

• When the lamp operating time has exceeded 1500 hours, a warning indication is kept displayed on the screen even after the lamp is replaced until the lamp operating time is reset.

• Do not reset the lamp operating time unless you replace the lamp.

• The lamp in this product contains mercury. Please dispose of properly.

EN-31

Cleaning

Be sure to turn off the main power switch and unplug the power cord before you start cleaning.

To clean the filter:

Clean the filter as frequently as possible (or once per month). Dust collecting on the filter of the intake vent may cause the temperature inside the projector to abnormally rise, damaging the parts inside and affecting the projector’s lifetime, resulting in a breakdown.

• When the temperature inside the projector abnormally rises, the TEMP indicator starts blinking red, the power is turned off, and the projector goes into a standby state with the lamp off.

How to clean the filter of the intake vent:

1. Reverse the projector.

2. While pressing the tabs on the filter cover, remove the filter cover in the direction of the arrow.

3. Remove the filter.

4. Clean the filter.

• Wash the filter with water, or if dust and dirt are stubborn, wash it with diluted detergent and then rinse it with water sufficiently. After washing, dry it well.

5. Attach the filter to the projector.

6. Attach the filter cover to the projector.

• Make sure that the filter is attached correctly.

• If dirt on the filter cannot be removed or the filter should be damaged, contact your dealer for purchase of another filter.

• Be sure to attach the filter to the projector. Without the filter, dust and foreign objects may enter the inside of the projector, causing a fire or breakdown.

Cleaning dust in the intake vent

If dust is accumulated in the intake vent, the temperature in the projector goes up abnormally, and may damage the internal parts. Also, the light-source lamp may come off to protect the internal parts. Clean up the dust with a vacuum cleaner about once a year.

Cleaning the projector

Softly wipe off dirt on the projector with a soft cloth.

• If the dirt is thick, wipe it off with a cloth soaked in a neutral detergent diluted with water, and then finish with a dry cloth.

• If any pesticide is sprayed over the projector, or if the projector is wiped with benzine or thinner, or if rubber or vinyl products are brought into contact with the projector for a long period of time, the paint on the projector could be damaged.

Cleaning the lens

Remove dust or dirt on the lens with a commercially available lens cleaning kit (blower, brush, and the like).

• Because the surface of the lens is easily scratched, do not rub or hit the surface with anything hard.

EN-32

Asking for installation

To view images projected by the ceilingmounted projector from the front:

When the projector is installed on the ceiling, the special ceiling mount bracket, which is separately sold, is required. Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

• Mitsubishi assumes no responsibilities for any damage caused by use of other manufacturer’s ceiling bracket and by inadequate installation conditions even within the warranty period.

To view images projected on the translucent screen from behind:

Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

• To view images projected from behind the screen, set MIRROR in the INSTALLATION menu to

FLOOR REAR. See Page 25 for details.

• When installing the projector on the ceiling, set

MIRROR in the INSTALLATION menu to

CEILING FRONT. See Page 25 for details.

• Ask your installation specialist to provide a breaker. When you do not use the projector, be sure to shut down the main power by the breaker.

• When the projector is installed on the ceiling, projected images may appear darker than those projected when the projector is installed on the floor. This symptom is not a malfunction.

• Do not install the projector where the exhaust vents are exposed to air emitted by an air conditioning. Such installation may cause a breakdown.

• Do not install the projector near a fire alarm because it emits hot air from its exhaust vents.

Dimension Drawings (unit : mm)

3-M6

226

ø64

100

200

364

77

430

143

EN-33

Troubleshooting

Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer.

No image appears on the screen.

Problem

Solution

Power can not be turned on.

• Check whether the indicators are on or off and how they are lightning.

LAMP TEMP POWER

Off

Solution

・ Connect the power cable to the projector.

・ Plug the power plug in the wall outlet.

・ Turn on the main power switch.

・ Fit the lamp cover.

・ When the projector is hot, turn off the POWER switch. Wait for the projector to cool down, and then turn on the power switch again.

Off

Blinking in red

・ After the POWER indicator stops blinking red, press the POWER button.

・ If you turn on the main power switch when the inside of the projector is still hot, the lamp may not be able to turn on for about 90 seconds.

・ After the lamp goes out, you cannot turn it on again for about two minutes.

Off

・ Replace the cooling fan. Contact your dealer for replacement.

On in red

Blinking in orange

On in orange

Off

Blinking in red

On in red

Blinking in red

・ After the TEMP indicator goes out, press the POWER button.

・ Remove objects blocking the intake and/or exhaust vents, if any.

・ Avoid the intake and/or exhaust vents from being exposed to hot air emitted from heating appliances.

・ Remove objects blocking the intake and/or exhaust vents, if any.

・ Avoid the intake and/or exhaust vents from being exposed to hot air emitted from heating appliances.

・ After the LAMP indicator goes out, press the POWER button. If the lamp does not turn on even after this procedure is repeated several times, replace the lamp. Contact your dealer for purchase of the lamp.

Blinking in red

No image appears on the screen.

Projected images suddenly disappear.

• It may take about one minute for the lamp to light up.

• The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.

• If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the main power switch is turned on. (In such a case, the POWER indicator turns on red and the TEMP indicator blinks orange.) After the fan stops rotating, press the POWER button to turn back on the POWER indicator.

• Check that the intake vent is clean.

• Check that the lamp cover is closed. (See Pages 30 and 31.)

• Check that the cables connected to the external devices are not broken.

• When an extension cable is being used, replace it with the supplied cable for check. When images are displayed correctly, add an RGB signal amplifier to the extension cable.

• This problem may occur when the intake vent and/or exhaust vents are blocked.

(In such a case, the TEMP indicator turns on red and the POWER indicator blinks red.)

➔ Remove the objects blocking the intake vent and/or exhaust vents and then carry out the following procedure.

1. Wait for the intake fan and/or exhaust fan to stop. (Wait until the TEMP indicator goes out and the POWER indicator is lit red steadily.)

2. Turn off the main power switch.

3. Wait about 20 minutes.

4. Turn on the main power switch.

5. Press the POWER button. If the problem persists, attach the supplied cushion to the bottom surface of the projector. (See Page 11.)

EN-34

Images are not displayed correctly.

Problem

Projected images are distorted.

Projected images are dark.

Projected images are blurred.

White dots are seen on projected images.

Black dots are seen on projected images.

Rainbow effect is seen on projected images.

Fine streaks are seen on projected images.

Projected images become wavy.

Hue is not appropriate.

Solution

• Adjust the projector and the screen so that they are perpendicular to each other.

(See Page 11.)

• Adjust BRIGHTNESS and CONTRAST in the PICTURE menu. (See Page 27.)

• Replace the lamp. (See Pages 30 and 31.)

• Adjust the focus. (See Pages 16 and 20.)

• Check that the lens cap is removed.

• Clean the lens.

• Adjust TRACKING and FINE SYNC. in the SIGNAL SETTING menu. (See

Page 29.)

• Adjust BRIGHTNESS and CONTRAST in the PICTURE menu. (See Page 27.)

• Adjust the projector and the screen so that they are perpendicular to each other.

(See Page 11.)

• This symptom is normal for a DLP projector and is not a malfunction. (A very small number of pixels may stay lit or out, but such symptom is not a malfunction.

Pixels of 99.99% or more are effective.)

• This is due to color breaking noise that occurs in a DLP system and is not a malfunction.

• This is due to interference with the screen surface and is not a malfunction.

Replace the screen or displace the focus a little.

• Connect the plugs of the cables to external devices securely.

• Keep the projector away from devices that emit interfering radio waves.

• Check that COMPONENT in the INSTALLATION menu has been set correctly.

(See Page 25.)

• Check that the cables connected to the external devices are not broken.

Others

Problem

The exhaust vents emit warm air.

Menus cannot be set.

Abnormal sound is heard.

Solution

• This air comes out after cooling the inside of the projector. You may feel hot, but this is not a malfunction.

• Being affected by noise, the microcomputer inside the projector may be working wrongly.

➔ Turn off the power, wait for two minutes, and then turn it back on.

• When you cannot turn off the power, turn off the main power, leave the projector alone for at least 20 minutes, and then turn back on the power.

• Because the color wheel spins at a high speed, metallic sounds may be heard in rare occasions. Such symptom is not a malfunction.

If the following problem occurs after the lamp is replaced, check the following first.

Problem Solution

The projector does not turn on.

• Fit the lamp cover securely. (See Pages 30 and 31.)

• Reset the lamp operating time. (See Page 31.)

EN-35

Specifications

The specifications and outside appearance of the projector are subject to change without prior notice.

Model

Projection system

Optical system

Mirror reflection system

Size

Light-source lamp

Resolution

Projection lens

Focal distance

Image size (Projection distance)

Maximum number of display colors

Maximum

Computer resolution sugnal

Video signal

Component signal

Computer input

Video input

Control terminal/Others

Operating temperatures

Rated voltage

Power consumption

Dimentions

Weight

Others S-video input

Video input

Component video input

Analog input

(DVI/BNC)

Digital input

(DVI)

HC2000

DLP™(Single-Chip DMD™) system

Mirror reflection system

0.8" (Aspect ratio16:9)

921,600 dots (1280 x 720) f= 28.3 - 38.2mm

250W lamp

50" min. to 250" max. (Projection distance 1.75 to 8.75 m: WIDE end)

16,770,000(full-color display)

Maximum resolution : 1600 x 1200 dots (Analog) / compressed

Panel resolution : 1280 x 720 dots

NTSC/PAL

480i, 480p, 576i, 576p, 720p, 1080i

Panel resolution : 1280 x 720 dots

[Signal type]

Analog RGB

[Terminal type]

DVI

[Line]

1

Digital RGB DVI 1

(DVI terminal is used for both analog RGB and digital RGB.)

5-line RGB

[Signal type]

Video input

S-Video input

BNC

[Terminal type]

RCA

S

Component video input RCA

RS-232C (D-SUB 9P) : For service person

+41˚F (+5˚C) to +95˚F (+35˚C)

AC100 - 240V, 50/60Hz

1

1

1

[Line]

1

4A 350W

430mm (W) x 150mm (V) x 307 mm (D) * Including legs

7.8 kg

Luminance signal : Vp-p=1.0 V 75Ω (negative sync)

Chrominance signals : Vp-p=0.286 V 75Ω (burst signal)

Vp-p=1.0 V 75Ω (negative sync)

YC

B

C

R

: Vp-p=1.0 V (Y) (negative sync)

Vp-p=0.7 V (C

B

, C

R

)

RGB : Vp-p=0.7 V 75Ω(negative sync)

YC

B

C

R

: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (C

B

, C

R

)

HD/CS : TTL-level (negative or positive polarity)

VD : TTL-level (negative or positive polarity)

DVI interface (TMDS single link)

Replacement part

(Option / Not included in the box)

Spare lamp VLT-D2010LP

EN-36

Type of connectable signals

Signal representation

Resolution

SVGA

SVGA

SVGA

XGA

XGA

XGA

XGA

SXGA

VGA

VGA

VGA

VGA

VGA

VGA

SVGA

SVGA

SXGA

SXGA

UXGA

*1 ) Analog input only

640 x 480

640 x 480

640 x 480

640 x 480

720 x 400

720 x 400

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

1280 x 1024

1600 x 1200

Input signal

Horizontal sync frequency (kHz)

70

75

85

60

72

75

85

60

75

85

60

70

85

56

60

60

72

75

85

Vertical sync frequency (Hz)

48.1

46.9

53.7

48.4

56.5

60.0

68.7

64.0

31.5

37.9

37.5

43.3

31.5

37.9

35.2

37.9

80.0

91.1

75.0

Screen size

Real display

(H x V)

640 x 480

640 x 480

640 x 480

640 x 480

720 x 400

720 x 400

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

1024 x 720

1024 x 720

1024 x 720

1024 x 720

1280 x 720

1280 x 720

1280 x 720

1280 x 720

*1

*1

*1

*1

*1

Important:

• The maximum resolution supported by this projector is 1280x720. Signals having a higher resolution than this are not projected with their original resolution.

• In the case of a signal having a resolution and sync frequency other than those described in the table above, it may be projected correctly by changing the resolution and frequency of the connected computer.

• The component input terminals of this projector do not support RGB signals.

• Nonconforming signals may not projected correctly.

• Though it takes some time for an image to appear after a signal is input, such symptom is not a malfunction.

• This projector does not support 3-line signals (Sync-on-green signals).

Connectors

RS-232C terminal

(D-SUB 9P)

1 5

PIN No.

1

4

5

2

3

6

7

8

9

6 9

NAME

-

RXD

TXD

-

GND

-

-

-

-

I/O

-

IN

OUT

-

-

-

-

-

-

DVI terminal

(DVI-D)

PIN NO.

7

8

9

10

11

12

5

6

3

4

1

2

STATUS

DATA 2-

DATA 2+

DATA 2 Shield

-

-

DDC Clock

DDC Data

-

DATA 1-

DATA 1+

DATA 1 Shield

-

24 17

16 9

PIN NO.

19

20

21

22

23

24

13

14

15

16

17

18

8 1

STATUS

-

+5V Power

GND

Hot Plug Detect

DATA 0-

DATA 0+

DATA 0 Shield

DATA 5-

DATA 5+

Clock Shield

Clock+

Clock-

C4 C3

24

17

PIN NO.

C1

C2

C3

C4

C5

6

14

15

7

8

16

DVI terminal

(DVI-A)

C5

STATUS

ANALOG RED

ANALOG GREEN

ANALOG BLUE

H Sync

GND

DDC Clock

DDC Data

Analog Sync

+5V Power

GND

Hot Plug Detect

C2 C1

8

16 1

9

EN-37

MITSUBISHI Projector Contact Information

North America

MESCA (Mitsubishi Electric Sales Canada Inc.) http://www.mitsubishielectric.ca

Information Technologies Group, 4299 14th Avenue, Markham, Ontario L3R

0J2, Canada

Sales Phone

Fax

E-mail

:+1-(905) 475-7728

:+1-(905) 475-7958

:[email protected]

Technical Phone

Fax

Customer Care

E-mail

:+1-(905) 475-7728

:+1-(905) 475-7958

:[email protected]

MDEA (Mitsubishi Digital Electronics America, Inc.)

(Warranty Registration) http://www.mitsubishi-presentations.com/

Presentation Products Division, 9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Phone Main Line

Technical

:+1-(949) 465-6000

:+1-(888) 307-0309

Product Information

Technical Support

E-mail

:+1-(888) 307-0312

:[email protected]

Europe

MEU-FRA (Mitsubishi Electric Europe B.V French Branch)

25, Boulevard des Bouvets 92 741, Nanterre CEDEX, France

Sales Phone :+33 (0)1 55-68-55-07

Technical

Fax

Phone

Fax

:+33 (0)1 55-68-57-31

:+33 (0)1 41-02-83-24

:+33 (0)1 49-01-07-23

MEU-GER (Mitsubishi Electric Europe B.V. German Branch) http://www.mitsubishi-evs.de/

Gothaer Strasse 8, 40880 Ratingen, Germany

MEU-IR (Mitsubishi Electric Europe B.V. Irish Branch) http://www.mitsubishi.ie/

Westgate Business Park, Ballymount, Dublin 24, Ireland

Sales Phone

Fax

:+353-(0)1- 4198844

:+353-(0)1-4564422

Technical Phone

Fax

:+353-(0)1-4198807

:+353-(0)1-4198895

MEU-IT (Mitsubishi Electric Europe B.V. Italian Branch)

Centro Direzionale Colleoni, Palazzo Persero-Ingresso 2, Via Paracelso 12, 20041

Agrate Brianza, Italy

Sales Phone

Fax

:+39-(0)39-60531

:+39-(0)39-6053214

E-mail :[email protected]

MEU-NL (Mitsubishi Electric Europe B.V. Benelux Branch) http://www.mitsubishi.nl/LCD/ProdFrame.html

Nijverheidsweg 23a, 3641 RP Mijdrecht, The Netherlands

Sales Phone

Fax

:+31-297-282461

:+31-297-283936

Technical

E-mail

Phone

Fax

E-mail

:[email protected]

:+31-297-282461

:+31-297-283936

:[email protected]

MEU (MITSUBISHI ELECTRIC EUROPE B.V.) http://www.mitsubishi-projector.ru/

Moscow Representative Office, 12/1 Goncharnaya St. 109240, Moscow, Russia

Sales Phone

Fax

:+7 (095) 915 8602

:+7 (095) 915 8603

MEU-SP (Mitsubishi Electric Europe B.V. Spanish Branch) http://www.mitsubishielectric.es/

Ctra. de Rubi, 76-80, 08190 Sant Cugat del Valles, Barcelona, Spain

Sales Phone :+34-93.565.31.54

Technical

Fax

E-mail

Phone

Fax

E-mail

:+34-93.589.43.88

:[email protected]

:+34-93.586.27.51

:+34-93.699.74.45

:[email protected]

MEU-SWE (Mitsubishi Electric Europe B.V Scandinavian Branch)

Hammarbacken 14, Box 750, S-19127, Sollentuna, Sweden

Sales Phone

Fax

:+46-(0)8-6251070

:+46-(0)8-6251036

Technical Phone

Fax

:+46-(0)8-6251052

:+46-(0)8-6251036

MEU-UK (Mitsubishi Electric Europe) http://www.mitsubishi.co.uk/evs/

Visual Information Systems Division, Travellers Lane, Hatfield, Hertfordshire,

AL10 8XB

Sales Phone

Fax

:+44 (1707) 278684

:+44 (1707) 278541

Technical

E-mail

Phone

Fax

E-mail

:[email protected]

:+44 (870) 606 5008

:+44 (1506) 431927

:[email protected]

Russia (Mitsubishi Electric Europe B.V Moscow Representative Office)

52, bldg.5, Kosmodamianskaya Nab, 113054, Moscow, Russian Federation

Sales Phone :+7 (095) 721 2070

Technical

Fax

Phone

Fax

:+7 (095) 721 2071

:+7 (095) 721 2070

:+7 (095) 721 2071

Asia

RIL (Ryoden (Holdings) Ltd. ) http://www.ryoden.com.hk

• Hong Kong Office

15/F, Manulife Tower, 169 Electric Road, North Point, Hong Kong, China

Technical Support

Phone

Fax

:+852 6510 1750

:+852 2887 8027

• Beijing Office

9/F, Office Tower 1, Henderson Centre, 18 Jianguomennei Dajie, Dongcheng

District, Beijing, 100005, China

Sales & Technical Support

Phone

Fax

:+86 (10) 6518 2930

:+86 (10) 6518 2530

• Shanghai Office

10/F, Shanghai Square Office Tower, 138 Huai Hai Zhong Road, Lu Wan

District, Shanghai, 200021, China

Sales & Technical Support

Phone

Fax

:+86 (21) 6327 2228

:+86 (21) 6327 4918

• Shenzhen Office

Unit 01-04, 13/F, Building A, Tian An International Building, Renmin Road

South, Shenzhen, 518005, China

Sales & Technical Support

Phone

Fax

:+86 (755) 518 6386

:+86 (755) 218 4775

• Chengdu Office

Block B-1, 23/F., Chuan Xin Mansion, 18 Section 2, Renmin Road South,

Chengdu, 610016, China

Sales & Technical Support

Phone

Fax

:+86 (28) 619 9730

:+86 (28) 619 9801

REMECO (Ryoden Merchandising Co., Ltd.) http://www.mitsubishi-ryoden.com.hk

Units 5-10, 20th Floor, Tower I, Ever Gain Plaza, 88 Container Port Road, Kwai

Chung, N.T., Hong Kong, China

Sales Support Phone

Technical Support

Sales & Technical Support

Fax

Phone

E-mail

:+852 2510 2119

:+852 2510 463

:+852 2510 2188

:[email protected]

MEAP (Mitsubishi Electric Asia Pte Ltd) http://www.mitsubishielectric.com.sg

307 Alexandra Road, Mitsubishi Electric Building, 289245,Singapore

Main Line Phone :+65 6 473 2308

Fax

Sales & Technical Support

:+65 6 475 9503

E-mail :[email protected]

AMS (Antah Melco Sales & Services Sdn Bhd

(A Joint-Venture Company of Mitsubishi Electric Corporation)) http://www.antahmelco.com.my

6, Jalan 13/6, Petaling Jaya, Selangor Darul Ehsan, Malaysia

Main Line Phone

Fax

:+603-7955 2088

:+603-7956 3950

:+603-7958 2576

Technical Support

Phone

E-mail

:+603-7955 2088

:[email protected]

Product Information

Phone :+603-7955 2088

ME-TWN (Mitsubishi Electric Taiwan Co., Ltd.) http://www.mitsubishi-electric.com.tw

9th Floor., 90 Sec. 6, Chung Shan N. Rd., Taipei, Taiwan

Sales Support Phone :+886 (0) 2 2832 8255

Fax : +886 (0) 2 2833 9813

KYW (Kang Yong Watana Co., Ltd.) http://www.mitsubishi-kyw.in.th

28 Krungthep Kreetha Road, Huamark Bangkapi, Bangkok, 10240, Thailand

Sales Support Phone :+66 (2) 731 6901

Fax :+66 (2) 379 4763

STC (Setsuyo Trading Co.Ltd. Seoul Branch

Dongseo Game Channel Bldg, 660-11, Deungchon-dong, Kangseo-ku, Seoul, Korea

Main Line Phone :+82 (0) 2 3665 4964

Fax :+82 (0) 2 3665 4965

Oceania

ME-AUST (Mitsubishi Electric Australia) http://www.mitsubishi-electric.com.au/prod.asp?prod=proj

348 Victoria Road, Rydalmere, N.S.W. 2116, Australia

Sales Phone

Fax

:+(612)9684-7777

:+(612)9898-0484

E-mail :[email protected]

MENZ (BDT Ltd)

(Warranty Registration) http://www.bdt.co.nz/projectors/warranty.asp

1 Parliament St, Lower Hutt, Wellington, New Zealand

Sales Phone

Fax

:+64-(0)4-560-9100

:+64-(0)4-560-9133

Technical

E-mail

Phone

Fax

:[email protected]

:+64-(0)4-560-9100

:+64-(0)4-560-9133

Manufactured by Mitsubishi Electric Corporation

1 Zusho Baba, Nagaokakyo-City, Kyoto Japan

MITSUBISHI ELECTRIC CORPORATION

Printed in JAPAN

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
