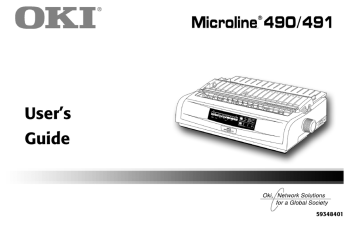

User’s
Guide
59348401
Every effort has been made to ensure that the information in
this document is complete, accurate, and up-to-date. Oki Data
assumes no responsibility for the results of errors beyond its
control. Oki Data also cannot guarantee that changes in
software and equipment made by other manufacturers and
referred to in this guide will not affect the applicability of the
information in it. Mention of software products manufactured
by other companies does not necessarily constitute
endorsement by Oki Data.
Copyright 2003 by Oki Data. All rights reserved.
First Edition, January, 2003
Written and produced by the Oki Data Training and
Publications Department.
Please address any comments on this publication to:
Mailing Address
Oki Data Americas, Inc.
Training & Publications Dept.
2000 Bishops Gate Blvd.
Mt. Laurel, NJ 08054-4620
e-Mail Address: [email protected]
Web Site: http://www.okidata.com.
2
ENERGY STAR®
As an ENERGY STAR Partner, Oki Data has
determined that this product meets the
ENERGY STAR guidelines for energy
efficiency.
Trademark Information
OKI and MICROLINE are registered trademarks of Oki Electric
Industry Company, Ltd.
ENERGY STAR is a registered trademark of the United States
Environmental Protection Agency
Epson is a registered trademark of Epson America, Inc.
IBM is a registered trademark of International Business Machines
Corp.
Microsoft and Windows are either registered trademarks or trademarks
of Microsoft Corporation in the United States and other countries.
Safety
Your Oki printer has been carefully designed to give you years
of safe, reliable performance. As with all electrical equipment,
there are a few basic precautions you should take to avoid
hurting yourself or damaging the printer:
• Carefully read all setup and operating instructions. Be sure
to save all documents for future reference.
• Read and follow all warning and instruction labels on the
printer itself.
• Place your printer on a firm, solid surface. If you put in on
something unsteady, it might fall and be damaged.
• Avoid overheating the printer. Do not place it on a soft
surface, such as a rug, sofa, or bed. The vents may be
blocked, causing the printer to overheat.
• The printer must be installed near a power outlet which will
remain easily accessible.
• Be certain that your power source matches the rating listed
on the back of the printer. If you aren’t sure, check with your
dealer or with your local power company.
• Your printer has a grounded, 3-prong plug as a safety feature.
It will only fit into a grounded outlet. If you can not plug it
in, chances are that you have an older, non-grounded outlet.
Contact an electrician to have it replaced with a grounded
outlet. Do not use an adapter to defeat the grounding.
• To avoid damaging the power cord, do not put anything on it
or place it where it will be walked on. If the cord becomes
damaged or frayed, replace it immediately.
• If you’re using an extension cord or power strip with the
printer, make sure that the total of the amperes required by all
the equipment on the extension is less than the extension’s
rating. Generally, the total ratings of all equipment plugged
into any one power line should not exceed 15 amperes. Don’t
exceed this unless you know that the power line your
equipment is plugged into has a rating above 15 amperes.
3
• Unplug the printer before you clean it. Use only a damp
cloth. Do not use liquid or aerosol cleaners.
• To protect your printer from overheating, make sure no
openings on the printer are blocked. Do not put the printer on
or near a heat source, such as a radiator or heat register. If
you put the printer in any kind of enclosure, make sure it is
well ventilated.
• The printhead can get quite hot when it has been printing for
a length of time. Do not touch the printhead until it has had a
chance to cool off.
• Do not use your printer near water. Do not spill liquid of any
kind into it.
• Do not poke anything into the ventilation slots on the sides of
the printer. You could get a shock or cause a fire.
• Aside from the routine maintenance described in this
document, don’t try to service the printer yourself. Opening
the cover may expose you to shocks or other hazards. Don’t
make any adjustments other than those outlined in the
document. You might cause damage requiring extensive
repair work.
4 Microline 490/491 User’s Guide
• If anything happens that indicates that your printer is not
working properly or has been damaged, unplug it
immediately. Then, follow the procedures in “Service and
Support” for having your printer serviced.
These are some of the things to look for:
– The power cord or plug is frayed or damaged.
– Liquid has been spilled into the housing, or the printer has
been exposed to water.
– The printer has been dropped or its cabinet has been
damaged.
– The printer doesn’t function normally when you’re
following the operating instructions.
Contents
Safety............................................................................ 3
Chapter 1: Introduction ............................................. 7
Printer Features ............................................................................... 7
Chapter 2: Helpful Hints ........................................... 8
Saving Money: Forms Tear-Off ...................................................... 8
Saving Time .................................................................................... 8
Internet Support ........................................................................... 8
Paper Park .................................................................................... 8
Operation Tips ................................................................................ 9
Top of Form (TOF) ...................................................................... 9
Turning the Platen Knob .............................................................. 9
Controlling Access to the Printer ................................................. 9
Chapter 3: Using Your Printer ................................ 10
Parts Identification: Rear Feed (Continuous Forms) .................... 10
Parts Identification: Top Feed (Single Sheets) ............................. 11
Top of Form (TOF) ....................................................................... 12
Top of Form (TOF) and Forms Tear-Off .................................... 12
Determining if Forms Tear-Off is Off or On .............................. 13
Setting Top of Form (TOF):
Forms Tear-Off OFF (Default Setting) ...................................... 14
Setting Top of Form (TOF):
Forms Tear-Off Set to ON .......................................................... 15
Temporarily Changing the Top of Form Position ...................... 16
Resetting Top of Form to the Factory Default ........................... 16
Forms Tear-Off Feature ................................................................ 17
Potential Problems with Software Packages .............................. 17
Changing the Forms Tear-Off Setting ........................................ 18
Manual Forms Tear Off .............................................................. 18
Paper Park ..................................................................................... 18
Changing Paper Paths ................................................................... 19
Continuous Forms to Single Sheets ........................................... 19
Single Sheets to Continuous Forms ........................................... 20
Printhead Gap ............................................................................... 21
Print Quality ................................................................................. 22
Typefaces: LQ Mode .................................................................... 23
Character Pitch ............................................................................. 24
Printer Reset ................................................................................. 25
Emulations .................................................................................... 25
5
Chapter 4: Menu Mode ............................................ 26
Appendix B: Printer Control Codes ....................... 68
Menu Mode Keys ....................................................................... 26
Entering and Exiting Menu Mode ............................................. 27
Resetting the Menu to the Factory Defaults .............................. 27
Printing the Menu Settings ......................................................... 27
Changing the Menu Settings ...................................................... 28
Menu Settings Table ................................................................... 29
Explanations of Menu Items ...................................................... 35
Epson LQ Commands .................................................................. 68
IBM Proprinter X24e / XL24e and IBM X24e AGM / XL24e
AGM Commands ......................................................................... 72
Chapter 5: Maintenance........................................... 41
Replacing the Ribbon Cartridge ................................................... 41
Loading Paper ............................................................................... 43
Rear Feed ................................................................................... 43
Top Feed (Single Sheets) ........................................................... 52
Clearing Paper Jams ..................................................................... 54
Rear-Feed Paper Jams ................................................................ 54
Rear-Feed, Repeating Paper Jams .............................................. 55
Single-Sheet Paper Jams ............................................................ 57
Cleaning the Housing ................................................................... 58
Chapter 6: Troubleshooting ..................................... 59
General Information ..................................................................... 59
Problems / Solutions ..................................................................... 60
Appendix A: Parts & Accessories ............................ 65
Purchasing Parts & Accessories ................................................... 65
Replacement Parts ........................................................................ 66
Accessories ................................................................................... 67
6 Microline 490/491 User’s Guide
Appendix C: Specifications ...................................... 75
Appendix D: Installation .......................................... 81
Location ........................................................................................ 81
Unpack .......................................................................................... 81
Install the Ribbon Cartridge ....................................................... 84
Power Connection ........................................................................ 85
Computer Connections ................................................................. 85
Parallel (LPT): IEEE 1284 ......................................................... 85
USB: Specification 1.1 Compliant ............................................. 86
Loading Paper ............................................................................... 86
Testing the Printer ......................................................................... 87
Font Sample Test ........................................................................ 87
Rolling ASCII Test ..................................................................... 88
Hexadecimal Dump Mode ......................................................... 89
Emulations .................................................................................... 89
Printer Drivers .............................................................................. 89
Loading the OKI Driver ............................................................. 90
Using a Compatible Driver ........................................................ 90
Index .......................................................................... 91
Chapter 1: Introduction
Printer Features
Oki Data on the Internet
• Super reliable, durable operation: 20,000 hours Mean Time
Between Failures (MTBF) at 25% duty cycle and 35% page
density
• Advanced paper handling, with built-in rear push tractor and
zero-tear forms capability.
• Blazing print speeds, in characters per second
(depending on characters per inch selected):
– High Speed Draft Mode: 420 cps (10 cpi)
– Utility Mode: 269 to 472 cps
– Letter Quality Mode: 105 to 220 cps
The Oki Data Web Sites provide the most current information
available on your printer.
On-line documents are available for viewing and downloading
via Oki Data’s Web Sites.
You may reach Oki Data via the Internet at:
• www.okidata.com
• my.okidata.com
• This rugged 24-pin printer can meet the needs of harsh and
demanding environments.
7
Chapter 2: Helpful Hints
Saving Money: Forms Tear-Off
Saving Time
The Forms Tear-Off feature allows a printed continuous forms
page to be torn off without wasting paper or adjusting the
printer.
Internet Support
When printing stops, Forms Tear-Off automatically moves the
paper to align the perforation with the tear bar (located under
the access cover), after a time interval which you select through
the menu.
• www.okidata.com is the main web site, the gateway to Oki
Data’s products and services.
• http://my.okidata.com is a powerful area of Oki Data’s web
site designed to help you personalize the information and
service you get from Oki Data.
Paper remains in the tear-off position until the printer receives
more data. Then, the paper moves back down for printing.
Note: This feature is normally turned off.
Important!
Forms Tear-Off and the Top of Form settings interact. For
more information, see “Top of Form (TOF) and Forms TearOff” in Chapter 3: Using Your Printer.
8
Oki Data provides support via the Internet:
Paper Park
Your printer’s paper park feature allows you to print a single
sheet (cut-sheet) page without removing continuous feed paper
from the printer.
For more information, see “Paper Park” in Chapter 3: Using
Your Printer.
Operation Tips
Top of Form (TOF)
Top of Form (TOF) sets the print start position. The factory
default is 1" from the top.
The Top of Form can be changed in increments of 1/180",
either for a single print job or set to a new default. The overall
amount of adjustment is limited to avoid paper jams.
The first line prints at the red line of the plastic paper shield (1)
on the printhead.
Turning the Platen Knob
Important!
Always turn the printer off before turning the platen knob! If
you turn the platen knob when the printer is on, the Top of
Form misaligns.
Controlling Access to the Printer
You can control access to the printer by changing the setting for
the Operator Panel Function in the Menu from Full Operation
(the factory default) to Limited Operation.
When Limited Operation is selected, the PRINT QUALITY and
CHARACTER PITCH keys don’t work. This prevents these
settings from being changed from the control panel when
several people are using the printer.
For more information, see “Changing the Menu Settings” in
Chapter 3: Using Your Printer.
For more information, see “Top of Form (TOF)” in Chapter 3.
Helpful Hints 9
Chapter 3: Using Your Printer
Parts Identification: Rear Feed
(Continuous Forms)
Note: The serial number of your printer is on a label on the
back, beside “S/N.”
Sheet Guide
Paper Lever
On-Off Switch
Platen Knob
Control Panel
Acoustic Cover
Access Cover
10
Note: For rear feed, the paper lever must be forward.
Parts Identification: Top Feed
(Single Sheets)
Note: For single-sheet printing, the paper lever must be in the
middle position.
Paper Guides
Sheet Guide
Paper Lever
On-Off Switch
Platen Knob
Control Panel
Acoustic Cover (open)
Using Your Printer 11
Top of Form (TOF)
Top of Form (TOF) and Forms Tear-Off
Important!
If you turn the platen knob when the printer is on, the Top of
Form misaligns. Always shut the printer off before turning
the platen knob!
Note: Your software may print the first line of print above or
below where TOF is set. You may need to adjust the
TOF to meet your software’s requirements.
Note: The factory default setting for the Top of Form (where
the printing should begin) is 1" down from the top of the
page.
Top of Form sets the print start position for the printer. It is
adjustable in increments of 1/180 of an inch. The amount of
adjustment is limited to avoid paper jams.
The first line prints at the red line of the plastic paper shield (1)
on the printhead.
12 Microline 490/491 User’s Guide
The Top of Form and Forms Tear-Off settings of your printer
interact. How you set the Top of Form depends on whether
Forms Tear-Off is On (set to 500 ms, 1 sec, or 2 sec) or OFF
(the factory default setting).
Determining if Forms Tear-Off is Off or On
To use the TEAR key:
There are two ways to determine the status of the Forms
Tear-Off menu setting:
1 Make sure paper is loaded.
2 Press TEAR (3).
• If the paper moves up, Forms Tear-off is off.
• If the paper moves down, Forms Tear-off is on.
• Print the Menu.
• Use the TEAR key.
To print the Menu:
1
2
3
4
Make sure paper is loaded.
Hold SHIFT (2), then press SEL (1) to enter the Menu Mode.
Press PARK (4) to print the menu.
Look for the Form Tear-Off setting in the paper feed group
you are using (Rear Feed, Bottom Feed or Top Feed—Forms
Tear–Off appears in the Top Feed group only if the optional
Roll Paper Stand is installed).
Using Your Printer 13
Setting Top of Form (TOF):
Forms Tear-Off OFF (Default Setting)
Important!
If you turn the platen knob when the printer is on, the Top of
Form misaligns. Always turn the printer off before turning
the platen knob!
With paper loaded and the printer on and selected:
1 Press SEL | MENU (1) to take the printer off line.
The SEL light goes out.
2 Press and hold SHIFT (2), then
Note: When you begin pressing the Micro Feed key, the
printhead will move to the right.
• Press LF | Micro Feed Down (3) to set the TOF higher (the
paper moves down).
• Press FF/LOAD | Micro Feed Up (4) to set the TOF lower
(the paper moves up).
Note: The first line prints at the red line (1) of the plastic
paper shield on the printhead.
3 When you have the TOF set where you want it, press and
hold SHIFT (2), then press QUIET/TOF (7) to engage the new
setting.
The printhead moves back to the left margin.
4 Press SEL/MENU (1) to save the setting and place the printer
back on line.
Note: To reset the Top of Form to the factory default, see
“Resetting Top of Form to the Factory Default” later in
this chapter.
14 Microline 490/491 User’s Guide
Setting Top of Form (TOF):
Forms Tear-Off Set to ON
Important!
If you turn the platen knob when the printer is on, the Top of
Form misaligns. Always turn the printer off before turning
the platen knob!
2 Press SHIFT (2) and QUIET/TOF (7) to reset the current TOF.
3 Press FF/LOAD (4) to load the paper.
4 Wait briefly until the paper moves up to the tear position,
then press and hold TEAR (5).
The paper moves to the current TOF.
5 Keep holding TEAR, then press and hold SHIFT (2) and
release TEAR.
6 Continue to hold SHIFT, then
Note: When you begin pressing the Micro Feed key, the
printhead will move to the right.
Note: The first line prints at the red line (1) of the plastic
paper shield on the printhead.
• Press LF | Micro Feed Down (3) to set the TOF higher (the
paper moves down).
• Press FF/LOAD | Micro Feed Up (4) to set the TOF lower
(the paper moves up).
With paper loaded and the printer on and selected:
7 When you have the TOF set where you want it, press and
hold SHIFT (2), then press QUIET/TOF (7) to engage the new
setting.
The printhead moves back to the left margin.
8 Press SEL/MENU (1) to save the setting and place the printer
back on line.
1 Press PARK (6) to park the paper.
The SEL light goes off and the red alarm light comes on.
Note: To reset the Top of Form to the factory default, see the
next page.
Using Your Printer 15
Temporarily Changing the Top of Form
Position
Important
Do not use the platen knob to change the Top of Form. If you
turn the platen knob when the printer is turned on, the Top of
Form misaligns. Always turn the printer off before turning
the platen knob!
To move the Top of Form position lower for one page only:
1 Press SEL to deselect the printer.
2 Press LF to lower the position of the Top of Form.
16 Microline 490/491 User’s Guide
Resetting Top of Form to the Factory Default
The factory default setting for the Top of Form (where the
printing should begin) is 1" down from the top of the page.
To reset the Top of Form to the factory default:
1 Remove paper from the paper path.
2 Turn the printer off.
3 Press and hold PARK + QUIET/TOF while turning on the
printer.
4 Reload paper.
Forms Tear-Off Feature
Note: This feature is normally turned off. To use Forms
Tear-Off, you must enter the menu and change the
setting to the desired time interval (see next page).
The Forms Tear-Off feature allows a printed continuous forms
page to be torn off without wasting paper or adjusting the
printer. It can be used for rear feed continuous forms, bottom
feed continuous forms (with the optional push tractor installed)
or for top feed roll paper (with optional roll paper stand
installed).
When the printer is turned on, the paper feeds to the tear-off
position.
When data is received, the paper automatically moves down to
the print position (TOF) and printing begins.
Note: You can also move the paper down to the print position
manually by pressing TEAR.
Notes: The status of the Forms Tear-Off menu setting affects
how you set the Top of Form: see “Top of Form (TOF)
and Forms Tear-Off” earlier in this chapter.
Do not use Forms Tear-Off with labels or multipart
forms!
Forms Tear-Off cannot be used when the optional pull
tractor is engaged.
Potential Problems with Software Packages
If Forms Tear-Off is set to On and the software package you are
using “pauses” for a long enough interval while sending data to
the printer, Forms Tear-Off may be activated. No data is lost,
but this causes uneven print registration due to the paper
movement.
If this occurs, use the menu to turn off this feature, then use the
TEAR key to move the paper up to the tear position manually
(see next page).
When printing stops, Forms Tear-Off automatically moves the
paper to align the perforation with the tear bar (located under
the access cover), after the time interval which you selected
through the menu.
Paper remains in the tear-off position until the printer receives
more data. Then, the paper moves back down for printing.
Using Your Printer 17
Changing the Forms Tear-Off Setting
Manual Forms Tear Off
Note: The default setting for Forms Tear-Off is OFF.
If you don’t wish to engage the Forms Tear-Off feature, you
can advance
• rear-feed continuous forms loaded on the built-in tractor
or
• bottom-feed continuous forms loaded on the optional push
tractor
up to the tear off position manually by pressing TEAR (5).
Paper Park
To change the Forms Tear-Off setting:
1 Press SHIFT (2) + SEL (1).
2 Press GROUP (3) repeatedly until the Rear Feed or Bottom
Feed group shows in the first column of the printed line,
depending on which paper feed you are using,
3 Press ITEM (4) repeatedly until Form Tear-Off appears in the
second column:
Rear Feed
Form Tear-Off
Off
4 Press SET (5) until the time interval you wish to select
appears in the third column:
Rear Feed
Form Tear-Off
1 Sec
5 Press SHIFT (2) + SEL (1) to exit Menu Mode and save the
setting.
18 Microline 490/491 User’s Guide
Important!
Never park labels!
Paper park allows you to switch to single-sheet printing without
removing continuous feed paper from the printer.
When you wish to print single sheets, simply press PARK (6) to
retract the continuous form paper from the paper path, then lift
the sheet guide, load the sheet and send the print job.
Changing Paper Paths
4 Move the paper lever (1) to the middle position marked
“TOP.”
Continuous Forms toÿSingle Sheets
1 Tear off any printed pages, then press PARK.
2 Raise the sheet guide (1) to the single-sheet feed position.
5 Adjust the paper guides (1) for the size paper you are using,
then place a sheet of paper in the sheet guide.
3 Pivot the wire feed guide into the sheet guide.
Using Your Printer 19
Single Sheets toÿContinuous Forms
1 Press FF/LOAD to remove the single-sheet paper.
2 Lower the sheet guide into the continuous-forms position.
4 Move the paper lever to the appropriate position.
• Rear feed:
• Bottom feed:
3 Swing the wire feed guide over onto the pull-up roller.
5 If necessary, load continuous-form paper.
6 Press FF/LOAD.
20 Microline 490/491 User’s Guide
Printhead Gap
The printhead gap is the distance between the printhead and the
platen.
To adjust the gap, open the access cover and move the blue
lever (1) to the recommended setting from the table.
CAUTION!
Make sure the printer is turned off before you open the access
cover.
Setting
Media
1
Regular paper
2
2-part form (with carbon)
3
3-part form (with carbon)
4
4-part form (with carbon)
5
Envelopes or extra thick paper
Note: When the head gap is set to 2, 3, 4 or 5, the printer
automatically slows down for better print quality with
multipart forms.
Using Your Printer 21
Print Quality
Press PRINT QUALITY (1) to select:
Important!
Front panel settings for print quality and character pitch are
normally overridden by software commands.
LQ: Letter Quality
[LQ light on]
• Highest quality, slowest speed
• Choice of 7 typefaces
Utility
[UTILITY light on]
• Medium quality, medium speed
• Gothic typeface only
HSD: High Speed Draft
[LQ and UTILITY lights both on]
• Lowest quality, highest speed
• Gothic typeface only
22 Microline 490/491 User’s Guide
Typefaces: LQ Mode
Important!
Front panel settings for print quality and typeface are
normally overridden by software commands.
Typeface
Lights on
Courier
LQ and COURIER
Gothic
LQ and GOTHIC
Orator
LQ and ORATOR
Prestige
LQ and PRESTIGE
Roman
LQ, COURIER, and GOTHIC
Swiss
LQ, PRESTIGE and ORATOR
Swiss Bold
LQ, COURIER and PRESTIGE
To select the typeface you wish to use, press PRINT QUALITY
(1) until the appropriate front panel lights are on:
Using Your Printer 23
Character Pitch
Important!
Front panel settings for character pitch are normally
overridden by software commands.
Character pitch determines how many characters will print on
each line. You can choose a specific fixed width for each
character of from 10 to 20 characters per inch (CPI). The
higher cpi settings are often used for spreadsheets.
In LQ mode, you can select proportional (PROP) which sets
character widths based on the character itself: e.g., the letter i is
assigned a narrower width than the letter m. This provides a
more polished, typeset appearance.
Set the character pitch by pressing CHARACTER PITCH/RESET
(1) until the LED beside the desired setting glows.
24 Microline 490/491 User’s Guide
Printer Reset
Emulations
Clearing some error conditions requires that you reset
(reinitialize) the printer. To do this:
• Epson® LQ — factory setting
• IBM® Proprinter
• IBM® AGM
1 Press and release SEL (1) to take the printer off-line.
The SEL light goes out.
2 Press and hold SHIFT (2), then press RESET/CHARACTER
PITCH.
Important!
Pressing SHIFT + RESET reinitializes the printer, but does not
affect any menu settings and does not reset the printer to the
factory defaults. For information on resetting the printer to
the factory defaults, see “Resetting the Menu to the Factory
Defaults” later in this chapter.
Changing Emulations
1 Make sure paper is loaded.
2 Press and hold SHIFT (2), then press SEL (1).
3 Press LF (3).
The following line prints:
Printer Control
Emulation Mode
EPSON LQ
4 Press TEAR (4) repeatedly until the emulation you wish to
select prints in the right-hand column.
5 Press and hold SHIFT (2), then press SEL (1) to save your
setting and exit the Menu Mode.
Using Your Printer 25
Chapter 4: Menu Mode
Note: Please print the current Menu Mode settings before you
reset or change them. This is the only way to have a
record of the settings.
In Menu Mode, you use the front panel keys to change the
defaults for the printer parameters. The changes you make in
the Menu Mode are automatically saved when you exit the
Menu Mode and are retained, even when you turn the printer
off.
Menu Mode Keys
GROUP Key
Prints the next Group in the Menu.
With the SHIFT key, prints the previous Group.
ITEM Key
Prints the next Item in the Group.
With the SHIFT key, prints the previous Item in the Group.
SET Key
Prints the next setting for an Item.
With the SHIFT key, prints the previous setting for an Item.
PRINT Key
Prints a copy of all the Menu settings.
With the SHIFT key, prints the current settings for the
Group selected.
MENU Light
Glows when the printer is in the Menu Mode.
26
Entering and Exiting Menu Mode
Printing the Menu Settings
To enter or exit the Menu Mode, hold SHIFT while pressing
SEL.
Printing the Current Menu Settings
Resetting the Menu to the Factory Defaults
Note: Please print the current Menu Mode settings before you
reset or change them. This is the only way to have a
record of the settings.
To reset the Menu to the standard settings (factory defaults):
1 Turn the printer off.
2 Press SEL + LF while turning the printer on.
1 Make sure paper is loaded in the printer.
2 Press and hold SHIFT, then press SEL to enter the Menu
Mode.
3 Press PRINT (PARK key).
Printing All Menu Settings
To print out a listing of the settings for all menu items,
regardless of the emulation selected or the accessories installed:
1 Make sure paper is loaded in the printer.
2 Press and hold SHIFT, then press SEL to enter the Menu
Mode.
3 Press and hold SHIFT, then press PRINT QUALITY.
Menu Mode 27
Changing the Menu Settings
Note: Please print the current Menu Mode settings before you
reset or change them. This is the only way to have a
record of the settings.
1 Press and hold SHIFT, then press SEL to enter the Menu
Mode.
2 Use the GROUP, ITEM and SET keys to make your changes:
a Press GROUP until the Group you wish to change appears
in the first column.
b Press ITEM until the Item you wish to change appears in
the second column.
c Press SET until the setting you want appears in the third
column.
3 Press and hold SHIFT, then press SEL to exit the Menu Mode
and save your settings.
Important!
If you turn off the printer without first exiting the Menu
Mode, the changes you have made will be lost.
28 Microline 490/491 User’s Guide
Menu Settings Table
For a complete explanation of each menu item, see “Explanations of Menu Items” later in this chapter.
The table below shows the items which may appear in the menu. Settings which are engaged at the factory (defaults) are set in bold
italic. Some groups or entries will only appear when a specific emulation is engaged, as noted.
Group
Item
Settings (Defaults are set in bold italic)
Printer Control
Emulation Mode
EPSON LQ, IBM PPR, IBM AGM
Font
Print Mode
LQ Courier, LQ Roman, LQ Swiss, LQ Swiss Bold, LQ Orator, LQ Gothic,
LQ Prestige, Utility, HSD
Pitch
10 cpi, 12 cpi, 15 cpi, 17.1 cpi, 20 cpi
Proportional Spacing
No, Yes
Style
Normal, Italics
Size
Single, Double
Character Set
Set I, Set II
Language Set
American, French, German, British, Danish I, Swedish, Italian, Spanish I,
Japanese, Norwegian, Danish II, Spanish II, Latin American, French Canadian,
Dutch, Publisher
Zero Character
Slashed, Unslashed
Code Page
USA, Canada French, Multilingual, Portugal, Norway, BRASCII, Abicomp,
Multilingual 858, ISO 8859-15
Symbol Sets
Menu Mode
29
Menu Settings Table (Continued)
Group
Item
Settings (Defaults are set in bold italic)
Rear Feed
Line Spacing
6 LPI, 8 LPI
Form Tear-Off
Off, 500 ms, 1 sec, 2 sec
Skip Over Perforation
No, Yes
Page Width (wide model)
13.6", 8"
Page Length
11", 11-2/3", 12", 14", 17", 5", 3", 3.25", 3.5", 4", 5.5", 6", 7", 8", 8.5"
Line Spacing
6 LPI, 8 LPI
Form Tear-Off
Off, 500 ms, 1 sec, 2 sec
Skip Over Perforation
No, Yes
Page Width (wide model)
13.6", 8"
Page Length
11", 11-2/3", 12", 14", 17", 5", 3", 3.25", 3.5", 4", 5.5", 6", 7", 8", 8.5"
Bottom Feed
30 Microline 490/491 User’s Guide
Menu Settings Table (Continued)
Group
Item
Settings (Defaults are set in bold italic)
Top Feed
Line Spacing
6 LPI, 8 LPI
Form Tear-Off*
Off, 500 ms, 1 sec, 2 sec
Bottom Margin
Valid, Invalid
Page Width (wide model)
8", 13.6"
Page Length
11", 11-2/3", 12", 14", 17", 5", 3", 3.25", 3.5", 4", 5.5", 6", 7", 8", 8.5"
Wait Time
500 ms, 1 sec, 2 sec
Page Length Control
by MENU Setting, by Actual Page Length
Graphics
Bi-directional, Uni-directional
Receive Buffer Size
1 Line, 32K, 64K, 128K
Paper Out Override
No, Yes
Print Registration 1
0, range to 0.25 mmm to the right or left, set in 0.05 mm increments
• press SEL to shift registration to the left;
• press SHIFT + SEL to shift registration to the right.
Print Registration 2
0, range to 0.25 mmm to the right or left, set in 0.05 mm increments
• press SEL to shift registration to the left;
• press SHIFT + SEL to shift registration to the right.
Set-Up
* Appears only when the optional Roll Paper Stand is installed.
Menu Mode
31
Menu Settings Table (Continued)
Group
Item
Settings (Defaults are set in bold italic)
Setup (cont.)
Operator Panel Function
Full Operation, Limited Operation
Reset Inhibit
No, Yes
Print Suppress Effective
No, Yes
Auto LF
No, Yes
Auto CR*
No, Yes
CSF Bin Select†
Bin 1, Bin 2
SI Select Pitch (10 cpi)*
15 cpi, 17.1 cpi
SI Select Pitch (12 cpi)*
12 cpi, 20 cpi
Time Out Print
Valid, Invalid
Auto Select
No, Yes
Graphics Speed
Low, High
Centering Position
DEFAULT, MODE 1, MODE 2
CSF Type
Wide, Narrow
Power Saving
Enable, Disable
Power Save Time
5 min, 10 min, 15 min, 30 min, 60 min
* Appears only when the IBM emulation is selected.
† Appears only when optional Cut Sheet Feeder is installed.
32 Microline 490/491 User’s Guide
Menu Settings Table (Continued)
Group
Item
Settings (Defaults are set in bold italic)
Parallel I/F
I-Prime
Buffer Print, Buffer Clear, Invalid
Pin 18
+5V, Open
Auto Feed XT*
Invalid, Valid
Bi-Direction
Enable, Disable
Parity
None, Odd, Even
Serial Data 7/8 Bits
8 Bits, 7 Bits
Protocol
Ready/Busy, X/On / X/Off
Diagnostic Test
No, Yes
Busy Line
SSD-, SSD+, DTR, RTS
Baud Rate
19200 bps, 9600 bps, 4800 bps, 2400 bps, 1200 bps, 600 bps, 300 bps
DSR Signal
Valid, Invalid
DTR Signal
Ready on Power Up, Ready on Select
Busy Time
200 ms, 1 sec.
Serial IF†
* Appears only when the Epson LQ emulation is selected.
† Appears only when the optional Serial Interface is installed.
Menu Mode
33
Menu Settings Table (Continued)
Group
Item
Settings (Defaults are set in bold italic)
CSF Bin 1*
Line Spacing
6 LPI, 8 LPI
Bottom Margin
Valid, Invalid
Page Width (Wide model)
8", 13.6"
Page Length
11", 11-2/3", 12", 14", 17", 5", 3.5", 4", 5.5", 6", 7", 8", 8.5"
Line Spacing
6 LPI, 8 LPI
Bottom Margin
Valid, Invalid
Page Length
11", 11-2/3", 12", 14", 17", 5", 3.5", 4", 5.5", 6", 7", 8", 8.5"
CSF Bin 2*
* Appears only when the optional Cut Sheet Feeder is installed.
34 Microline 490/491 User’s Guide
Explanations of Menu Items
These explanations are in alphabetical sequence to make it
easier to look them up. Some items only appear when optional
accessories are installed; others appear in several groups in the
menu.
Auto CR, Default =No
IBM Only. If you want the printer to automatically add a
carriage return when a Line Feed is received at the end of a
line, change the setting to Yes.
Auto Select, Default = No
Determines whether or not your printer will automatically be
selected after you load in paper. With the factory default
engaged, the printer will be deselected so that you can set the
Top of Form. If you always use the same Top of Form position,
change the setting to Yes.
Bi-direction, Default = Enable
Change this setting if you wish to disable bidirectional
transmission (PnP) in Nibble mode.
Bottom Margin, Default = Valid
Auto LF, Default = No
If your printout is consistently double spaced, select No; if it
overprints, select Yes.
Auto Feed XT, Default = Invalid
Epson Only. In the Epson emulation, the XT signal on pin 14 of
the parallel interface can control automatic line feed. Some
interface cables are wired in such a way that automatic line
feed is always in effect: this item eliminates this potential
problem. If your system uses pin 14 of the parallel interface to
control automatic line feed, change the setting to Valid.
Change to Invalid if you want the printer to ignore the bottom
margin setting.
CAUTION!!
Setting the Bottom Margin to Invalid can cause loss of data
and damage the printhead by allowing printing without paper.
Menu Mode 35
Busy Line, Default = SSD-
Code Page, Default = USA
Appears only when the optional Serial Interface is installed. If
Ready/Busy protocol (factory default) is selected, you can
choose which line your system monitors for a busy signal:
Choose the Code Page character set you wish to use: USA,
Canada French, Multilingual, Portugal, Norway, BRASCII,
Abicomp, Multilingual 858, or ISO 8859-15.
•
•
•
•
SSD -9V, select SSDSSD +9V, select SSD+
DTR -9V, select DTR
RTS -9V, select RTS
Busy Time, Default = 200 ms
Appears only when the optional Serial Interface is installed.
Sets the length of the busy signal when the Ready/Busy
protocol (factory default) is engaged,
Centering Position, Default = DEFAULT
Used to limit printhead travel when printing narrow columns.
• Select Mode 1 for the narrow carriage printer.
• Select Mode 1 or Mode 2 for the wide carriage printer.
Character Set, Default = IBM Set I
Use this to switch character sets to IBM Set II
36 Microline 490/491 User’s Guide
CSF Bin Select, Default = Bin 1
Appears only when the optional Dual-Bin Cut Sheet Feeder is
installed. Use this to switch to Bin 2 as the default.
CSF Type, Default = Wide
To avoid paper jams, change this setting to Narrow if you are
using the optional Cut Sheet Feeder on the wide model ML491
printer.
Diagnostic Test, Default = No
Appears only when the optional Serial Interface is installed.
Select yes to perform a diagnostic test of the serial interface.
DSR Signal, Default = Valid
Appears only when the optional Serial Interface is installed.
Used with the Ready/Busy protocol (factory default) to select
the way your system handles the DSR signal.
DTR Signal, Default = Ready on Power Up
I-Prime, Default = Buffer Print
Appears only when the optional Serial Interface is installed.
Change to Ready on Select if the DTR signal is required when
the printer is selected (leave as Ready on Power Up if the DTR
signal is required when the printer is turned on).
Determines what the printer will do when it receives the
I-Prime signal from the software.
Emulation Mode, Default = Epson LQ
Selects the printer command set (emulation) you want to
engage.
Form Tear-Off, Default = Off
Choose 500 ms, 1 sec, or 2 sec to turn the Form Tear-Off
feature on and to set the time interval for the printer to wait
before advancing the paper.
Graphics, Default = Bi-directional
Change to uni-directional graphics for better registration, but
slower printing. With this set for bi-directional, you can
optimize the registration using the Print Registration setting in
the Menu.
• Buffer Print: prints out the buffer contents before resetting.
• Buffer Clear: dumps the buffer contents immediately.
• Invalid: causes the printer to ignore the I-Prime command.
Select this setting if you wish to enter settings through the
printer’s control panel which will not be automatically
overridden by the software’s settings when the I-Prime
signal is sent.
Language Set, Default = American
Replaces certain standard symbols with special characters used
in foreign languages.
Line Spacing, Default = 6 lpi
Change to 8 lines per inch (lpi) to get more lines on a page.
Graphics Speed, Default = Low
Change to High for faster printing when optimum print quality
is not an issue.
Menu Mode 37
Operator Panel Function, Default = Full Operation
Change to Limited Operation to deactivate the PRINT QUALITY
and CHARACTER PITCH buttons, so that these features can
only be controlled through your software. This prevents these
from being changed from the control panel when several
people are using the printer.
Important!
This feature also prevents access to the Menu. To access the
Menu in these circumstances, turn the printer off, then hold
down the SEL key while turning on the printer.
Page Length, Default = 11"
Selects the length of the paper you are using. This enables the
printer to keep track of the initial printing position (TOF) on
each page.
Page Length Control, Default = by Menu Setting
Change the setting to “by Actual Page Length” if you wish to
print on single-sheets longer than 17 inches. When “by Actual
Page Length” is selected, the menu setting for Top Feed Page
Length is ignored.
38 Microline 490/491 User’s Guide
Page Width, Default = 8"
Wide carriage model only. Change to 13.6" to print on wide
paper.
Paper Out Override, Default = No
Senses when less than 1" (25 mm) of paper remains and stops
printing. Change to Yes to override the sensor and print closer
to the bottom of the page.
Caution!!
Engaging Paper Out Override can cause loss of data and
damage the printhead by allowing printing without paper.
Parity, Default = None
Appears only when the optional Serial Interface is installed.
Selects the type of parity your system uses: None, Odd or
Even.
Pin 18, Default = +5V
Sets the signal on pin 18 to +5 volts or open.
Pitch, Default = 10 cpi
Choose the character width, in characters per inch (cpi).
Power Save Time, Default = 5 min
Proportional Spacing, Default = No
Sets the interval the printer waits for more data before it goes
into the power save mode. Power Saving must be set to enable
(the factory default) for this to be effective.
Change the setting to Yes to engage proportional spacing of
characters.
Protocol, Default = Ready/Busy
Change to Disable if you wish to prevent the printer from
entering the Power Save mode after the selected interval.
Appears only if the optional Serial Interface is installed.
Change to X-ON / X-Off if that is the type of protocol your
system uses.
Print Mode, Default = LQ Courier
Receive Buffer Size, Default = 64K
Choose the quality and typeface of printing.
Print Registration, Default = 0
Selects the amount of memory devoted to holding received
data. Choosing 1 Line will tie up your computer while printing,
but if you abort the print job, the printer will stop much sooner.
Change the setting as required to obtain the best registration for
bi-directional printing.
Reset Inhibit, Default = No
Power Saving, Default = Enable
Print Suppress Effective, Default = Yes
If your system uses the DC1 and DC3 codes for something
other than the print suppress mode, change the setting to No.
Select Yes if you wish the printer to ignore the reset command
sent by software. This prevents your software from changing
the settings you make through the front panel controls or
through printer commands.
Note: This will also prevent your software from clearing out
existing settings when you finish printing one document
and switch to another.
Menu Mode 39
Serial Data 7/8 Bits, Default = 8 Bits
Style, Default = Normal
Appears only if the optional Serial Interface is installed.
Change to 7 Bits if you systems uses a 7-bit data format.
Change to italics if you want the printed characters to be
slanted.
SI Select Pitch 10 cpi, Default = 17.1 cpi
Time Out Print, Default = Valid
IBM emulation only. Sets the pitch to be engaged when the
printer control panel is set for 10 cpi and the SI command is
received.
If your software spends a long time processing between
portions of data it feeds to the printer, change the setting to
Invalid to keep your printer from dumping the received data
while it is waiting for more.
SI Select Pitch 12 cpi, Default = 20 cpi
IBM emulation only. Sets the pitch to be engaged when the
printer control panel is set for 12 cpi and the SI command is
received.
Wait Time, Default = 1 sec
Size, Default = Single
Zero Character, Default = Slashed
Change to Double for double width and height printing.
If you do not want the printer to use a slash to distinguish the
number zero from the capital letter O, change the setting to
Unslashed.
Skip Over Perforation, Default = No
Change to Yes if you want the printer to go to the next page
when it comes within 1" (25 mm) of the bottom of the page.
Keep it set to No if your software has its own page formatting
controls.
40 Microline 490/491 User’s Guide
Sets the amount of time the printer will wait for more data
before moving to the form tear-off position.
Chapter 5: Maintenance
Replacing the Ribbon Cartridge
Important!
Make sure you have the correct replacement ribbon for the
your printer. The wrong ribbon will not print when installed
in your printer.
1 Make sure the printer is turned OFF.
2 Open the access cover and center the printhead.
Ribbon Cartridge Handling
• Leave unused ribbon cartridges in their packages until
needed.
• Careful; the ribbon ink may cause permanent stains.
• Ribbon ink on skin or clothing can usually be removed
with soap and water.
41
CAUTION!
The printhead may be HOT!
5 Turn the take-up knob in the direction of the arrow to take
up any ribbon slack.
3 Swing the used ribbon cartridge up off the printhead, lift it
out, and discard it.
6 Close the access cover and turn the printer back on.
CAUTION!
If ribbon should contact the eyes:
4 Unpack the new ribbon cartridge and install it.
Important!
Do not remove the ribbon shield (1) from the ribbon!
Flush eyes with large quantities of water for 15 minutes,
keeping eyelids open with fingers. Seek medical attention.
If ribbon should contact the skin
Wash thoroughly with soap and water.
For more information
See the Material Safety Data Sheet in your Warranty,
Regulatory, and Safety Information booklet.
42 Microline 490/491 User’s Guide
Loading Paper
Loading Rear Feed Paper from the Back of the Printer
Rear Feed
Note: These instructions assume you have ready access to the
back of the printer. If you do not, skip down to “Loading
Rear Feed Paper from the Front of the Printer.”
Note: If you have any paper in the paper path, remove it
before installing rear feed paper.
Lock Lever
1 Make sure the paper lever is forward (position marked
“REAR”).
Upper Tractor Cover
Pins
2 Open the access cover (1).
Maintenance 43
3 Grasp the sheet guide. Lift it slightly, then slide it back.
4 Pivot the sheet guide forward and gently rest it against the
roller assembly.
Careful!
If you push the sheet guide too hard against the roller
assembly, it may dislodge it. If it does, be sure to reseat the
roller assembly before continuing.
44 Microline 490/491 User’s Guide
5 From the back of the printer, locate the tractors (1).
6 Open the lock levers (1) and move the right tractor (as
viewed from the back of the printer) to the reference mark
(2) matching the width of the paper you are loading. Then
close the lock lever on the right tractor:
ML491
ML490
Note: The movement of the right tractor is limited to ensure
that the paper covers the paper sensor.
7 Open the tractor covers.
Maintenance 45
8 Place continuous forms paper on the first two pins of either
tractor.
Important!
You must keep the number of paper holes engaged on either
pin the same. If you don’t the paper will skew and jam.
9 Close the right tractor cover.
46 Microline 490/491 User’s Guide
10 Adjust the left tractor until the holes in the paper are
centered on the pins then lock the lever and close the left
tractor cover.
Note: If the paper is too loose or too tight it can cause jams.
11 Lower the sheet guide and slide it toward the front of the
printer until the marks align.
12 Place the wire guide (“1” in the illustration for the step
above) in the sheet guide on the pull-up roller assembly.
13 Press FF/LOAD.
Note: The factory default setting for the Top of Form (where
the printing should begin) is 1" down from the top of the
page. To change the setting, see “Top of Form (TOF)”
in Chapter 3.
Maintenance 47
Loading Rear Feed Paper from the Front of the Printer
2 Open the access cover (1).
Note: These instructions assume you do not have ready access
to the back of the printer. If you do, go back to “Loading
Rear Feed Paper from the Rear of the Printer” earlier
in this chapter.
Lock Lever
Upper Tractor Cover
Pins
3 Grasp the tabs and lift off the sheet guide.
1 Make sure the paper lever is forward (position marked
“REAR”).
4 Pull up on the lock levers to release them.
48 Microline 490/491 User’s Guide
Note: The movement of the left tractor (as viewed from the
front of the printer) is restricted to ensure that the
paper covers the paper out sensor.
7 Open the tractor covers and place continuous forms paper on
the first two pins of either tractor, then close the left tractor
cover.
5 You will find reference marks (1 in illustration below) on the
printer for the two most common paper sizes:
Important!
You must keep the number of paper holes engaged on either
pin the same. If you don’t the paper will jam.
ML490:
ML491:
6 Move the left tractor to the position to match your paper size
and push back on the lever to lock it in place, then move the
right tractor to fit the width of the paper.
Maintenance 49
8 Adjust the position of the right tractor to center the holes in
the paper on the pins. Then, close its tractor cover and push
back the lock lever. Do not stretch the paper.
Note: If the paper is too loose or too tight it can cause jams.
50 Microline 490/491 User’s Guide
9 Reinstall the sheet guide.
10 Place the wire guide (1) in the sheet guide on the pull-up
roller assembly.
11 Press FF/LOAD.
Note: The factory default setting for the Top of Form (where
the printing should begin) is 1" down from the top of the
page. To change the setting, see “Top of Form (TOF)”
in Chapter 3.
Maintenance 51
Top Feed (Single Sheets)
Note: If you have continuous form paper in the path, press
PARK to remove it before loading single sheets.
1 Make sure the printer is on and deselected (SEL light off).
2 Place the paper lever in the center position (marked “TOP”).
52 Microline 490/491 User’s Guide
3 Open the acoustic cover (1) and raise the sheet guide to the
single-sheet position. Pivot the wire feed guide (2) up into
the sheet guide.
4 Adjust the paper feed guides (1) for the width of the paper,
then place a sheet of paper in the separator. The paper will
feed into the printer.
Important!
If the paper does not feed in, remove it. Check the paper lever
position. Make sure the ALARM light is on: if it is flashing,
hold the SHIFT key and press the CHARACTER PITCH/RESET
key. Reload the sheet of paper.
Note: The factory default setting for the Top of Form (where
the printing should begin) is 1" down from the top of the
page. To change the setting, see “Top of Form (TOF)”
in Chapter 3.
Maintenance 53
Clearing Paper Jams
4 Lift the sheet guide (1) and reload paper. Make sure you
lock the tractor covers.
Rear-Feed Paper Jams
1 Turn off the printer.
2 Use the platen knob to back the paper all the way out of the
printer.
CAUTION!
Make sure the printer is turned off before you open the access
cover.
3 Open the access cover (1) and remove the pull-up roller
assembly (2). Remove any torn pieces of paper.
5 Lower the sheet guide, then install the pull-up roller
assembly and close the access cover.
6 Turn on the printer and press FF/LOAD.
54 Microline 490/491 User’s Guide
Rear-Feed, Repeating Paper Jams
Bits of Paper Stuck in the Paper Path
If the paper keeps jamming, you may have:
1 Turn off the printer.
2 Use the platen knob to back the paper all the way out of the
printer.
• defective paper
• misaligned paper
• bits of paper stuck in the paper path
Defective Paper
Replace the paper with a fresh stack.
Misaligned Paper
1 Turn off the printer.
2 Use the platen knob to back the paper all the way out of the
printer.
3 Tear off a couple of sheets of paper, leaving a new, clean,
square-cut edge.
4 Reload the paper and turn the printer back on.
CAUTION!
Make sure the printer is turned off before you open the access
cover.
3 Open the access cover (1) and remove the pull up roller
assembly (2). Then grasp the tabs (3) on the sheet guide (4)
and lift it off the printer.
Maintenance 55
4 Remove any torn pieces of paper.
5 Fold some continuous-form paper over three times to make a
page four sheets thick. Then, load it on the tractors and close
and lock the covers.
8 Load regular paper, close and lock the tractor covers.
9 Install the sheet guide, then install the pull-up roller
assembly and close the access cover.
6 Use the platen knob to draw the quadruple-thick page
around the platen. This brings out jammed pieces of paper.
7 Remove the paper pieces. Then, use the platen knob to back
the paper out.
10 Turn the printer on and press FF/LOAD.
56 Microline 490/491 User’s Guide
Single-Sheet Paper Jams
1 Turn off the printer.
2 Use the platen knob to back the paper out.
3 Open the access cover (1) and remove the pull-up roller
assembly (2).
4 Remove any torn pieces from around the carriage.
5 Reinstall the pull-up roller assembly and close the access
cover.
Maintenance 57
Cleaning the Housing
You should clean the printer housing every six months (or after
about 300 hours of operation).
CAUTION!
Never use strong solvents or strong detergents on the
cabinet—they could damage the housing.
1 Turn off the printer.
2 Use the platen knob to back the paper out of the printer.
CAUTION!
Make sure the printer is turned off before you open the access
cover.
3 Open the access cover (1) and remove the pull-up roller
assembly (2).
58 Microline 490/491 User’s Guide
4 Use a clean, dry cloth to dust around the carriage shaft and
platen. Remove any loose bits of paper.
5 Reinstall the pull-up roller assembly and close the access
cover.
Chapter 6: Troubleshooting
General Information
Here are some general things to check before proceeding with
detailed troubleshooting.
• Is the printer plugged in and turned on?
• Are the connections (power and interface) secure?
• Is the product being operated under the proper ambient
conditions?
• Does the paper being used meet the specifications for this
product?
• Is the paper properly installed?
• Is the ribbon properly installed?
• Is an Oki ribbon being used?
• Is the printhead gap correctly set?
• Are the correct printer drivers being used for the printer?
Note: Settings in your software application will normally
override any settings in your printer driver.
Printer driver settings normally override settings from
the printer menu or printer front panel.
59
Problems / Solutions
Problem
The I-Prime signal will automatically override any front panel
settings you have made. To eliminate this problem, enter the
Menu Mode, go to the Parallel Interface group and change the
setting for I Prime to Invalid.
My word processor files do not print the way I have the menu
and front panel set.
For more information on changing menu settings, see
“Changing the Menu Settings” in Chapter 4.
Solution
Remember:
Problem
• Settings in your software application can override settings in
your printer driver.
• Your printer driver settings can override any settings from the
printer menu or printer front panel.
Before sending a file to the printer, many word processors send
either an “initialization string” or an I-Prime signal to the
printer.
The initialization string contains codes that override the panel
and menu settings. To change your printer to ignore the reset
code, enter the Menu Mode, go to the Set-Up group and change
the setting for Reset Inhibit to Yes.
60 Microline 490/491 User’s Guide
Nothing happens when I turn on the printer.
Solution
Check the power cord connection to the outlet and to the
printer. If you are using a power strip, make sure it is turned on,
and that the fuse hasn’t blown or that the circuit breaker hasn’t
tripped.
Problem
Problem
The printer does not print when the computer sends data.
I'm getting strange symbols, incorrect fonts, etc., when I try to
print a document.
Solutions
1 Is the SEL light on? If not, press the SEL key.
2 Check that the interface cable is securely connected to both
the printer and the computer.
3 If you have the optional serial interface board installed,
check to be sure that it is firmly seated in the printer.
Solutions
1 Check to be sure that the printer driver you have selected in
your software matches the printer emulation.
• Press SHIFT and SEL keys, then press GROUP key.
• This will print a line showing the emulation you have
selected.
2 If you have embedded any printer commands in your
software, check to be sure that you entered them correctly.
Troubleshooting 61
Problem
Problem
Ink smears on the paper when I print narrow columns.
I've installed a new ribbon and the printing is smeared and
streaked.
Solution
This may be caused by excessive printhead travel from the
centering position. Enter the Menu and set the Centering
Position to MODE 1. See “Using Your Printer, Menu Mode.”
Solution
The ribbon shield (1) is either loose or missing.
For the wide-carriage printer, if MODE 1 doesn't work, try
setting the Centering Position to MODE 2.
Remove the ribbon cartridge and check the ribbon shield.
• If it is loose, secure it.
• If it is missing, find it and install it.
62 Microline 490/491 User’s Guide
Problem
Problem
There are dots missing in my printouts.
The ALARM light is on and the Character Pitch 10 light is
flashing.
Solution
The head gap may not be set correctly. Try moving the headgap
lever to a lower setting. If that doesn’t help, the printhead may
be damaged; call for service.
Solution
This indicates that the paper lever is set at the wrong position
for the paper you are trying to use. Move it to the proper
setting.
Problem
The ALARM light is flashing.
Solution
Try turning the printer off and then back on again. If the light
still blinks, call for service.
Problem
The ALARM light is on and the Character Pitch 15 light is
flashing.
Solution
This indicates a paper jam. Press the SEL key and correct the
paper jam situation. See “Clearing Paper Jams,” in Chapter 4.
Troubleshooting 63
Problem
Problem
The printer needs paper. The ALARM is not on. I can’t load
paper.
The Print Quality and Character Pitch keys on the front panel
don't work.
Solution
1 Press and release the SEL key.
2 Press and hold the SHIFT key and press the RESET /
CHARACTER PITCH key.
3 The ALARM light comes on and you can now load paper.
Solution
The Operator Panel Function in the printer menu can be used to
disable these buttons (Limited Function). If the printer is part of
a customized system or if it is used by a number of people, the
system manager may have used this option to make sure the
printer is always set properly.
Problem
Check with your system manager before changing any menu
settings.
Continuous-form paper sticks to the sheet guide.
Solution
In cold dry weather, static charges can build up and make the
paper cling to the sheet guide. Try moving the paper guides
together so that the paper rests on the guides rather than on the
separator.
64 Microline 490/491 User’s Guide
Appendix A: Parts & Accessories
Purchasing Parts & Accessories
Before you purchase, know your printer model number (see the
front of the unit) and have the correct part number and
description of the item. Item descriptions and part numbers are
provided in this section.
• Consult the dealer where your purchased your printer.
• Locate an Authorized Oki Data Reseller by visiting one of
our web sites
http://my.okidata.com (allows you to register your
product and personalize your own support needs)
• In the United States, purchase directly from Oki Data
- Via the Internet
http://my.okidata.com
http://www.okidata.com
- Via telephone
Order toll-free by phone at 1-800-654-3282
(1-800-OKI-DATA) using VISA®, MasterCard®, or
AmEx®.
• In Canada, call 888-309-4570.
http://www.okidata.com (provides general information)
65
Replacement Parts
Item
Part Number
Both Models
Ribbon Cartridge ( ) ------------------------------- 42377801
Platen Knob ( ) ------------------------------------- 51902220
Power Cord ( ) ------------------------------------- 56631801
Model ML490
Printhead ( ) ---------------------------------------- 42124201
Access Cover ( ) ----------------------------------- 42115401
Sheet Guide ( ) ------------------------------------- 51009509
Pull-Up Roller Assembly ( ) --------------------- 42044701
Model ML491
Printhead ( ) ---------------------------------------- 42124201
Access Cover ( ) ----------------------------------- 42115301
Sheet Guide ( ) ------------------------------------- 51009410
Pull-Up Roller Assembly ( ) --------------------- 42045701
66 Microline 490/491 User’s Guide
Accessories
Option
Part Number
Model ML490
Pull Tractor, Top-Mount ( ) ----------------------- 70030501
Push Tractor, Bottom-Mount ( ) ----------------- 70030701
Roll Paper Stand ( ) ------------------------------- 70023301
Model ML491
Pull Tractor, Top-Mount ( ) ----------------------- 70030601
Push Tractor, Bottom-Mount ( ) ----------------- 70030801
Both Models
Cut Sheet Feeder ( ) ------------------------------- 70030101
Serial Interface ( ) --------------------------------- 70012801
OkiLAN 6120i 10/100 Base-T, Ethernet
Internal Print Server (not shown) --------------- 70046501
OkiLAN 6020e 10/100 Base-T Ethernet
External Print Server (not shown) --------------- 70036001
OkiLAN® 6010 10 Base-T Ethernet
External Print Server (not shown) --------------- 70034401
Accessories 67
Appendix B: Printer Control Codes
This section lists the most commonly used printer control
codes.
You will find a comprehensive listing of the control codes
(English only), on your Printer CD.
To access it:
1 Place the CD in your CD-ROM drive and wait for it to
AutoPlay.
2 Select your printer model, then click Continue.
3 Click Documentation and follow the on-screen prompts to
view the file.
Epson LQ Commands
Epson Command
ASCII
Decimal
Backspace
BS
8
Cancel
CAN
24
Carriage Return,
Execute
CR
13
ESC P
ESC M
ESC g
ESC SI, or SI
27 80
27 77
27 103
27 15, or 15
DC2
18
Character Pitch
Select 10 cpi
Select 12 cpi
Select 15 cpi
Begin 10 cpi
Cancel Condensed
Print
68
Epson LQ Commands (Continued)
Epson Command
ASCII
Decimal
ESC q 0
ESC q 1
ESC q 2
ESC q 3
27 113 48
27 113 49
27 113 50
27 113 51
Delete
DEL
127
Double Height On
ESC w 1
or ESC US 0
27 119 49
or 27 31 48
Double Height Off
ESC w 0
or ESC US 1
27 119 48
or 27 31 49
Double Width On
ESC W 1
27 87 49
Double Width Off
ESC W 0
27 87 48
SO
or ESC SO
14
or 27 14
Emphasized Print On
ESC E
27 69
Emphasized Print Off
ESC F
27 70
Character Style
Normal
Outline
Shadow
Outline with Shadow
Double Width
for One Line
Epson Command
ASCII
Decimal
Enhanced Print On
ESC G
27 71
Enhanced Print Off
ESC H
27 72
Italic Printing On
ESC 4
27 52
Italic Printing Off
ESC 5
27 53
Form Feed
FF
12
Form Length
n Inches (n = 1 to 22)
n Lines (n = 1 to 127)
ESC C NUL n 27 67 0 n
ESC C n
27 67 n
Horizontal Tab
HT
9
Initialize Printer
ESC @
27 64
ESC a 0
ESC a 1
ESC a 2
ESC a 3
27 97 48
27 97 49
27 97 50
27 97 51
Justification
Left
Center
Right
Full
Control Codes 69
Epson LQ Commands (Continued)
Epson Command
ASCII
Decimal
Line Feed, Execute
w/ Carriage Return
n/180" (n = 0 to 255)
n/360" (n = 0 to 255)
Reverse, n/180"
(n = 0 to 255)
Line Spacing, Set
n/360" (n = 0 to 255)
n/180" (n = 0 to 255)
n/60" (n = 0 to 127)
1/6"
1/8"
Epson Command
Decimal
ESC 1 n
27 108 n
ESC Q n
27 81 n
ESC 8
ESC 9
27 56
27 57
ESC x 1
ESC x 0
ESC k 0
ESC k 1
ESC k 2
ESC k 3
ESC k 7
27 120 49
27 120 48
27 107 48
27 107 49
27 107 50
27 107 51
27 107 55
Margins
Set Left Margin
(n = 0 to 255)
Set Right Margin
(n = 0 to 255)
LF
ESC J n
ESC ] n
10
27 74 n
27 93 n
Paper Out Sensor
ESC j n
27 106 n
Disabled (Off)
Enabled (On)
ESC + n
or ESC [ n
27 43 n
or 27 91 n
ESC 3 n
ESC A n
ESC 2
ESC 0
27 51 n
27 65 n
27 50
27 48
70 Microline 490/491 User’s Guide
ASCII
Print Quality/Font
Select LQ
Select Utility
Select Roman (LQ only)
Select Swiss (LQ only)
Select Courier (LQ only)
Select Prestige (LQ only)
Select Orator (LQ only)
Epson LQ Commands (Continued)
Epson Command
ASCII
Decimal
ESC s 1
ESC s 0
27 115 49
27 115 48
Print Suppress Mode On
DC3
19
Print Suppress Mode Off
DC1
17
Proportional Spacing On
ESC p 1
27 112 49
Proportional Spacing Off
ESC p 0
27 112 48
Print Speed
Half-Speed On
Half-Speed Off
Epson Command
ASCII
Decimal
Underline On
ESC - 1
27 45 49
Underline Off
ESC - 0
27 45 48
ESC <
ESC U 1
ESC U 0
27 60
27 85 49
27 85 48
ESC 6
ESC 7
27 54
27 55
VT
11
Uni-Directional Printing
Skip Over Perforation ON ESC N n
(n = 1 to 127)
27 78 n
Skip Over Perforation OFF ESC O
27 79
Software I-Prime
ESC } NUL
27 125 0
Subscript On
ESC S 1
27 83 49
Superscript On
ESC S 0
27 83 48
Subscript/Superscript Off
ESC T
27 84
One Line Only
On
Off
Upper Range Control Codes
Permit Printing
Cancel Printing
Vertical Tab, Execute
Control Codes 71
IBM Proprinter X24e / XL24e and
IBM X24e AGM / XL24e AGM
Commands
IBM Command
ASCII
Decimal
ESC W 1
ESC W 0
SO
27 87 49
27 87 48
14
Double Width
On
Off
for One Line
IBM Command
ASCII
Decimal
Backspace
BS
8
Emphasized Printing On
ESC E
27 69
Cancel
CAN
24
Emphasized Printing Off
ESC F
27 70
Carriage Return
CR
13
Enhanced Printing On
ESC G
27 71
Enhanced Printing Off
ESC H
27 72
Form Feed
FF
12
Character Pitch, Select
10 cpi
12 cpi
15 cpi
Condensed Print
DC2
ESC :
ESC g
18
27 58
27 103
ESC SI, or SI 27 15, or 15
Character Style
Normal
Outline
Shadow
Outline with Shadow
ESC q 0
ESC q 1
ESC q 2
ESC q 3
72 Microline 490/491 User’s Guide
27 113 48
27 113 49
27 113 50
27 113 51
Form Length
n inches
n = 1 to 255
n lines
n = 1 to 255
ESC C NUL n 27 67 0 n
ESC C n
27 67 n
HT
9
Select Set I
ESC 7
27 55
Select Set II
ESC 6
27 54
Horizontal Tab, Execute
IBM Character Set
IBM Commands (continued)
IBM Command
ASCII
Decimal
Print One Character from
IBM Set III
(n = 0 to 255)
ESC ^ n
27 94 n
Italic Printing On
ESC % G
27 37 71
Italic Printing Off
ESC % H
27 37 72
LF
10
ESC J n
27 74 n
ESC J n
ESC% 4 n
ESC ]
27 74 n
27 37 52 n
27 93
Auto Line Feed On
ESC 5 1
27 53 49
Auto Line Feed Off
ESC 5 0
27 53 48
Line Feed, Execute
w/ Carriage Return
n/180" AGM only
(n = 1 to 255)
n/216" PPR only
(n = 0 to 255)
n/360" (n = 0 to 255)
Reverse
IBM Command
ASCII
Decimal
Line Spacing
Set Spacing to 1/8"
ESC 0
Set Spacing to 7/72"
ESC 1
Set to n/60": AGM only
(n = 1 to 255)
ESC A n
Set to n/72": PPR only
(n = 1 to 255)
ESC A n
Activate Spacing Set
by ESC A n
ESC 2
Set to n/180": AGM only
(n= 1 to 255)
ESC 3 n
Set to n/216": PPR only
(n= 1 to 255)
ESC 3 n
Set to n/360" (n= 1 to 255)ESC % 8 n
27 48
27 49
27 65 n
27 65 n
27 50
27 51 n
27 51 n
27 37 56 n
Overscore On
ESC _ 1
27 95 49
Overscore Off
ESC _ 0
27 95 48
Control Codes 73
IBM Commands (Continued)
IBM Command
ASCII
Decimal
ESC N n
27 78 n
IBM Command
ASCII
Decimal
Skip Over Perforation On
(n = 1 to 255)
Paper Out Sensor Off
ESC 8
27 56
Skip Over Perforation Off ESC 0
27 79
Paper Out Sensor On
ESC 9
27 57
Software I-Prime
ESC } NUL
27 125 0
Stop Printing
ESC j
27 106
Subscript On
ESC S 1
27 83 49
Superscript On
ESC S 0
27 83 48
Subscript/Superscript Off
ESC T
27 84
Top of Form,
Set at Current Position
ESC 4
27 52
Print Quality / Font
Select LQ Roman
Select LQ Swiss
Select LQ Courier
Select LQ Prestige
Select LQ Orator
Print Suppress Mode On
ML490
ESC k 0
ESC k 1
ESC k 2
ESC k 3
ESC k 7
27 107 48
27 107 49
27 107 50
27 107 51
27 107 55
ESC Q $
27 81 36
Underline Printing On
ESC - 1
27 45 49
ESC Q #
27 81 35
Underline Printing Off
ESC - 0
27 45 48
Print Suppress Mode Off
DC1
17
Uni-Directional Print On
ESC U 1
27 85 49
Proportional Spacing On
ESC P 1
27 80 49
Uni-Directional Print Off
ESC U 0
27 85 48
Proportional Spacing Off
ESC P 0
27 80 48
Vertical Tab, Execute
VT
11
ML491
74 Microline 490/491 User’s Guide
Appendix C: Specifications
Note: Specifications are subject to change without notice.
Print Method
Impact dot matrix
Printhead
24 pins, 0.20 mm (0.0079") diameter, with thermal
protection
Interfaces
Standard: Centronics parallel, IEEE-1284 compliant
USB 1.1
Optional: RS-232C Serial
Ethernet Print Servers:
6120i 10/100 Base-TX Internal
6020e 10/100 Base-T External
6010e 10 Base-T External
Receive Buffer Size
Maximum 128K
Reliability
Ribbon Life
4 million characters, on average, 10 cpi utility
Printhead Life
200 million characters average in 10 cpi draft mode at 25%
duty and 35% page density
Mean Time Between Failures (MTBF)
20,000 hours at 25% duty cycle and 35% page density
Mean Time to Repair (MTTR)
15 minutes
75
Emulations (co-resident)
Characters per Line (cpl)
• Epson LQ
• IBM Proprinter X24e / XL24e
• IBM X24e AGM / XL24e AGM
Print Speed
Setting
ML490
ML491
10 cpi
80 cpl
136 cpl
12 cpi
96 cpl
163 cpl
15 cpi
120 cpl
204 cpl
Mode
Pitch
Speed
17.1 cpi
137 cpl
233 cpl
High Speed Draft (HSD)
10 cpi*
420 cps†
20 cpi
160 cpl
272 cpl
Utility
10 cpi
12 cpi
15 cpi
17.1 cpi
20 cpi
315 cps
378 cps
472 cps
269 cps
315 cps
10 cpi
12 cpi
15 cpi
17.1 cpi
20 cpi
105 cps
126 cps
157 cps
180 cps
210 cps
Letter Quality (LQ)
* Characters per inch
† Characters per second
76 Microline 490/491 User’s Guide
Graphics Resolution
360 x 360 dpi maximum (24-dot, hex density)
Paper Thickness: Tractor Feed
Rear Feed: 0.014" (0.36 mm) maximum
Bottom Feed: 0.017" (0.44 mm) max.
Requires optional push or pull tractor.
Resident Fonts
Resident Typefaces
Print Quality
Available Fonts
Mode/Font
Size: Style
Letter Quality
Courier, Gothic, Orator, Prestige,
Roman, Swiss, Swiss Bold
LQ Courier
Utility
Gothic
10 & 12 cpi: Normal, Superscript, Subscript
Proportional: Normal, Superscript, Subscript
8 point: Normal
Scalable: 11 to 64 points
LQ Letter
Gothic
10 cpi, 12 cpi, Proportional: Normal
LQ Prestige
10 cpi, 12 cpi, Proportional: Normal
LQ Orator
10 cpi, 12 cpi, Proportional: Normal
LQ Roman
10 & 12 cpi: Normal, Superscript, Subscript
Proportional & 8 point: Normal
Scalable: 11 to 64 points
LQ Swiss
10 & 12 cpi: Normal, Superscript, Subscript
Proportional & 8 point: Normal
Scalable: 11 to 64 points
Bar Codes
•
•
•
•
•
•
Code 39
UPC A, UPC E
EAN 8, EAN 13
Interleaved 2 of 5
Code 128
Postnet
LQ Swiss Bold 10 cpi, 12 cpi, Proportional: Normal
Utility Gothic
10 & 12 cpi: Normal, Superscript, Subscript
HSD Gothic
10 cpi: Normal
Specifications 77
Paper Specifications: ML490
Single (Cut) Sheets
Feed: Top Only
Weight: 14 to 24 lb. US Bond (52.6 to 90 g/m2)
Width Range: 7.2" to 8.5" (183 to 216 mm)
Single-part, continuous forms
Feed: Rear, Bottom*
Weight: 12 to 24 lb. US Bond (45 to 90 g/m2)
Width Range: 3" to 10" (76 to 254 mm)
Carbonless continuous forms (orig. + 4 copies)
Feed: Rear, Bottom*
Weight: 9 to 11 lb.
Width Range: 3" to 10" (76 to 254 mm)
Interleaf continuous forms (orig. + 4 copies)
Feed: Rear, Bottom*
Weight: 10 to 12 lb. paper, 9 lb carbon
Width Range: 3 to 10" (76 to 254 mm)
* Bottom feed requires optional pull or push tractor
78 Microline 490/491 User’s Guide
Labels
Feed: Bottom* Only
Weight: Not applicable
Width Range: 3" to 10" (76 to 254 mm)
Envelopes, single feed
Feed: Top Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165 to 241 mm)
Envelopes, continuous feed, non-overlap
Feed: Bottom* Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165 to 241 mm)
Card Stock
Feed: Bottom*
Weight: Max. 100 lb. Index (180 g/m2)
Width Range: Not applicable
Paper Specifications: ML491
Single (Cut) Sheet
Feed: Top Only
Weight: 14 to 24 lb. US Bond (52.6 to 90 g/m2)
Width Range: 7.2" to 14.3" (182.8 to 363.2 mm)
Single-part, continuous forms
Feed: Rear, Bottom*
Weight: 12 to 24 lb. US Bond (45 to 90 g/m2)
Width Range: 3" to 16" (76.2 to 406.4 mm)
Carbonless continuous forms
Feed: Rear, Bottom*
Weight: 9 to 11 lb.
Width Range: 3" to 16" (76.2 to 406.4 mm)
Interleaf continuous forms
Feed: Rear, Bottom*
Weight: 10 to 12 lb. paper, 9 lb. carbon
Width Range: 3" to 16" (76.2 to 406.4 mm)
Labels
Feed: Bottom* Only
Weight: Not applicable
Width Range: 3" to 16" (76.2 to 406.4 mm)
Envelopes, single feed
Feed: Top Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165.1 to 241.3 mm)
Envelopes, continuous feed, non-overlap
Feed: Bottom* Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165.1 to 241.3 mm)
Card Stock
Feed: Bottom* Only
Weight: Max. 100 lb. Index (180 g/m2)
Width Range: Not applicable
* Bottom feed requires optional pull or push tractor
Specifications 79
Environmental Requirements
Physical Specifications
Temperature
Note: Height dimensions do not include the acoustic cover.
Operating: 41 to 95°F (5 to 36°C)
Storage: 14 to 122°F (-10 to 50°C)
Humidity
Operating: 20 to 80% RH
Storage: 5 to 95% RH
Electrical Requirements
• 120 volts ac, (+6%, -15%)
50 or 60 Hz (±2%)
78 W Typical, 10 W idle
• 230 ac, (+15%, -14 %)
50 or 60 Hz (±2%)
78 W Typical, 10 W idle
80 Microline 490/491 User’s Guide
ML490
Size (WxDxH): 17.1" x 16.1" x 6"
(434 x 409 x 153 mm)
Weight: 16.7 lbs. (7.6 kg)
ML491
Size (WxDxH): 23.1" x 16.1" x 6"
(588 x 409 x 153 mm)
Weight: 21.1 lbs. (9.6 kg)
Appendix D: Installation
Location
Printer
• Place your printer on a firm, solid surface.
• Allow enough space around the printer to easily access the
platen knob and the various paper feed paths.
• Make sure a suitable grounded power outlet is available
nearby.
Ribbon Cartridge
Power Cord
Unpack
• If any items are missing, contact your dealer immediately.
• Keep your packing materials and carton in case you ever
need to ship or transport the printer.
• Interface cable and paper are sold separately.
81
1 Remove any packing tape, then grasp the tabs (1) at either
end of the access cover and pivot it toward the front of the
printer as far as it will go.
2 Remove the printhead shipping restraint.
82 Microline 490/491 User’s Guide
3 Remove the shipping restraint from the pull-up roller
assembly (1).
4 Use the tabs (1) to lift and remove the sheet guide, then
remove the shipping restraint.
5 Reinstall the sheet guide: insert the clips on either side of the
separator into the notches marked with a triangle, then press
down to secure the separator in place.
Installation 83
Install the Ribbon Cartridge
Important!
Make sure you have the correct replacement ribbon for the
your printer. The wrong ribbon will not print when installed
in your printer.
Ribbon Cartridge Handling
CAUTION!
The printhead may be HOT!
3 Unpack the new ribbon cartridge and install it on the
printhead.
Important!
Do not remove the ribbon shield (1) from the ribbon!
• Leave unused ribbon cartridges in their packages until
needed.
• Careful; the ribbon ink may cause permanent stains.
• Ribbon ink on skin or clothing can usually be removed
with soap and water.
1 Make sure the printer is turned OFF.
2 Open the access cover and center the printhead (1).
4 Turn the take-up knob (1) in the direction of the molded-in
arrow to take up any ribbon slack.
5 Close the access cover and turn the printer on.
84 Microline 490/491 User’s Guide
Power Connection
Computer Connections
1 Make sure both the printer and the computer are OFF.
2 Plug the power cord into the back of the printer, then into a
grounded outlet.
Parallel (LPT): IEEE 1284
• Requires bidirectional cable, max. length 6 ft. (1.8 m), not
supplied.
• Printer has 36-pin socket
1 Make sure the printer and computer are both turned off.
2 Attach a suitable bidirectional cable to the parallel connector
on the back of the printer. Then attach and secure the cable
to your computer.
3 Turn on the printer.
3 Turn the printer and computer back on.
Installation 85
USB: Specification 1.1 Compliant
Loading Paper
• Requires USB 1.1 cable, maximum length 19.7 ft. (5 m), not
supplied.
• Printer has USB “B” receptacle.
For instructions on loading paper, see “Loading Paper” in
Chapter 5.
1 Make sure the printer and computer are both turned off.
2 Attach a suitable USB cable to the printer. Then attach the
cable to your computer.
3 Turn the computer and printer back on.
86 Microline 490/491 User’s Guide
Testing the Printer
• Font Sample Test
• Rolling ASCII Test
• Hexadecimal Dump Mode
Font Sample Test
The Font Sample Test prints a sample of the fonts standard to
the printer.
The top of the printout shows the Printer Model, Emulation,
Country Code, Interface, and Firmware Revision Level.
1 Make sure paper is loaded.
2 Turn off the printer.
3 Press and hold the LF key while turning the printer back on.
The printer prints a page of font samples and the test ends.
Important!
Wide carriage Model ML491: If you are using 8.5" paper to
run the tests, make sure the paper width selection in the
printer menu is set to 8.5 inches. Otherwise, printing on the
platen may damage the printer. See Chapter 4: Menu Mode
for more information.
Installation 87
Rolling ASCII Test
The Rolling ASCII Print Test produces a continuous printout of
all 96 ASCII characters in a rolling pattern in whatever
typeface is selected (default = LQ Courier).
The top of the printout shows the Printer Model, Emulation,
Country Code, and Firmware Revision Level.
Important!
Wide carriage Model ML491: If you are using 8.5" paper to
run the tests, make sure the paper width selection in the
printer menu is set to 8.5 inches. Otherwise, printing on the
platen may damage the printer. See Chapter 4: Menu Mode
for more information.
88 Microline 490/491 User’s Guide
1 Make sure continuous forms paper is loaded.
2 Turn the printer off.
3 Press and hold the QUIET/TOF key while turning the printer
back on. (If the printer comes on without starting the Rolling
ASCII test print, you did not hold the QUIET/TOF key long
enough.)
The printer prints the rolling ASCII text page after page.
4 Press SEL to end the test.
Hexadecimal Dump Mode
Emulations
When the printer is placed in the Hexadecimal Dump Mode, all
data received, including text and printer commands, is printed
in both hexadecimal and ASCII format.
The factory default emulation for your printer is Epson® LQ.
For example, the following line of BASIC code
LPRINT CHR$ (27);”0”;CHR$ (30);”This is an
example of a hexadecimal dump.”
If you wish to change to one of the IBM emulations, see
“Changing Emulations” in Chapter 3.
Printer Drivers
would print like this:
Note: In the ASCII format, all non-printable characters will be
represented by a period.
To engage the Hexadecimal Dump Mode:
1 Make sure paper is loaded.
2 Turn off the printer.
3 Hold the SEL and FF/LOAD keys for several seconds while
turning on the printer.
The Oki driver for your printer is provided on the CD included
with the printer. You can either load the Oki driver or select one
of the compatible drivers listed below in your software
application.
To exit the Hexadecimal Dump Mode:
• Press the SEL key
or
• Turn the printer off, then on again.
Installation 89
Loading the OKI Driver
Using a Compatible Driver
Parallel Interface
Note: See your software documentation for information on
how to select a printer driver.
1 Insert the CD into your CD-ROM drive.
®
Note: If the CD does not AutoPlay, click Start Run
Browse, then browse to your CD-ROM drive,
double-click Install.exe and click OK.
®
The drivers below are listed by decreasing compatibility with
your printer. Use one as close to the top of the list as possible.
Epson LQ
2 Select your printer model.
3 When the Menu Installer window appears, click the Printer
Software button.
4 Follow the on-screen instructions.
• Epson LQ 870/1170
• Epson LQ 80/1000
• Epson LQ 2500
USB Interface
• IBM Proprinter X24e/XL24e
• IBM Proprinter X24/XL24
• IBM Proprinter
1 Turn the printer on.
The Windows Add New Hardware Wizard window displays.
2 Click Next.
3 Insert the CD into your CD-ROM drive.
4 Follow the on-screen instructions to install the software for
your printer model.
90 Microline 490/491 User’s Guide
IBM Proprinter
IBM X24e AGM/XL24e AGM
Use this emulation only when you’ve selected an IBM
Proprinter X24e/XL24e driver and you need to use Epson
Letter Quality (LQ) high density graphics.
Index
A
C
E
Accessories ............................................. 67
Alignment problems ................................. 9
ASCII Test .............................................. 88
Auto Carriage return ............................... 35
Auto LF (Line Feed) ........................ 32, 35
Auto Select ............................................. 32
Carbonless continuous forms .......... 78, 79
Card Stock ....................................... 78, 79
Centering printhead position .................. 62
Character Pitch ....................................... 38
Selecting ............................................ 24
Character Set ................................... 29, 36
Character Width ...................................... 38
Characters Per Second (CPS) ................... 7
Code Page Character Set ........................ 36
Codes, Printer Control ............................ 68
Commands
Epson LQ ..................................... 68–71
IBM Proprinter ............................ 72–81
Control Codes ......................................... 68
Cut Sheet Feeder..................................... 67
Electrical Requirements .......................... 80
Emulations ................................ 25, 29, 89
Changing ............................................ 25
Matching the printer driver ................ 61
Mode ........................................... 29, 37
Envelopes ........................................ 78, 79
Environmental Requirements ................. 80
Epson LQ Commands ...................... 68–71
B
Bar Codes ............................................... 77
Bi-directional printing ..................... 31, 39
Bottom Feed .................................... 78, 79
Form Tear-Off .................................... 30
Line Spacing ...................................... 30
Skip Over Perforation ........................ 30
Buffer
Clearing ............................................. 37
Receive Buffer Size ........................... 75
91
F
H
Factory defaults, menu mode ................. 27
Font Sample Test .................................... 87
Fonts
Embedded Printer Commands ........... 61
Resident ............................................. 77
Selecting ............................................ 39
Forms Tear-Off ....................................... 37
Changing ............................................ 18
Top of Form ................................ 12, 17
Wait Time ........................................... 40
Front Panel
Keys ..................................................... 9
Menu Mode ........................................ 26
Height, double height printing ............... 40
Hex Dump Mode .................................... 89
Humidity ................................................. 80
Limited Operation ...................... 9, 38, 64
Line Spacing ........................................... 37
Bottom Feed ...................................... 30
Rear Feed ........................................... 30
Top Feed ............................................ 31
I
M
I-Prime ...................................... 33, 37, 60
IBM
Character Set ...................................... 36
Commands ................................... 72–81
Emulation ........................................... 29
Initialization string .................................. 60
Interleaf Continuous Forms .................... 79
Interleaf continuous forms...................... 78
Interleaved 2 of 5 .................................... 77
Italics ............................................... 29, 40
Margin, Bottom ............................... 31, 35
Mean Time Between Failures (MTBF)
7, 75
Mean Time to Repair (MTTR) ............... 75
Memory, receive buffer size ................... 75
MENU light ............................................ 26
Menu Mode ............................................ 26
Changing Settings .............................. 28
Entering ............................................. 27
Exiting ............................................... 27
Front Panel keys ................................ 26
Group ................................................. 26
Item .................................................... 26
MENU light ....................................... 26
Printing the Menu Settings ................ 27
Reset to factory defaults .................... 27
Settings Table ............................... 29–41
G
Gothic font .............................................. 77
Graphics
Printing .............................................. 37
Bi-directional ................................ 31
Uni-directional .............................. 31
Resolution .......................................... 76
GROUP, Menu Mode ............................. 26
92 Microline 490/491 User’s Guide
L
Labels .............................................. 78, 79
Language ................................................ 29
Length, Page
Rear Feed ........................................... 30
Top Feed ............................................ 31
Lights, Front Panel ................................. 23
O
Operator Panel Function ......................... 64
Options, purchasing ................................ 65
Orator font .............................................. 77
P
Page Length
Rear Feed ........................................... 30
Top Feed ............................................ 31
Page Width .............................................. 38
Bottom Feed ...................................... 30
Rear Feed ........................................... 30
Setting in the Printer Menu ......... 31, 38
Top Feed ............................................ 31
Paper
Cut Sheet ............................................ 67
Paper Out Override ..................... 31, 38
Single Sheet ....................................... 52
Static .................................................. 64
Thickness ........................................... 76
Weight ................................................ 79
Widths ................................................ 79
Setting in the Printer Menu .... 31, 38
Paper Jams .............................................. 63
Continuous feed ................................. 64
Rear Feed ........................................... 54
Rear Feed, repetitive .......................... 55
Single Sheet ....................................... 57
Paper Lever ............................................. 63
Paper Out ................................................ 64
Paper Park ............................................... 18
Paper Path, switching ............................. 19
Parallel Interface ..................................... 33
I-PRIME Signal ................................. 60
Parts, replacement, purchasing ............... 65
Perforation, skip over ...................... 30, 40
Pitch, character ................................ 29, 38
Platen knob part number ........................ 66
Postnet .................................................... 77
Power rating.............................................. 3
PRINT, Menu Mode ............................... 26
Print Method ........................................... 75
Print Mode ....................................... 29, 39
Print Registration ............................. 31, 39
Print Server Option ................................. 67
Print Servers ........................................... 67
Print Size ................................................ 76
Print Speed ......................................... 7, 76
Print start position, reset to default ......... 16
Print Suppress .................................. 32, 39
Printer Control Codes ............................. 68
Printer Drivers
matching the emulation ..................... 61
Selecting ............................................ 89
Printer Parameters .................................. 26
Printhead ................................................. 75
Centering position .............................. 36
Life ..................................................... 75
Replacement Part No. ........................ 66
Printhead Gap
Definition ........................................... 21
Setting ................................................ 21
Proportional Spacing ....................... 29, 39
Proprinter Commands ....................... 72–81
Pull Tractor ............................................. 67
Push Tractor ............................................ 67
R
Rear Feed
Continuous Forms .............................. 10
Form Tear-Off ............................. 30, 31
Jams, Repetitive ................................. 55
Line Spacing ...................................... 30
Paper Jam ........................................... 54
Skip Over Perforation ........................ 30
Receive Buffer Size ................................ 75
Reliability ............................................... 75
Replacement Parts .................................. 65
Index 93
Resolution (Graphics) ............................. 76
Ribbon Cartridge
Replacement Part No. ........................ 66
Replacing ........................................... 41
Ribbon Shield ........................... 42, 62, 84
Roll Paper Stand ..................................... 67
RS-232C Serial Interface ........................ 75
S
Security. control printer access ................. 9
Self Tests ................................................. 87
Serial Interface Option .................... 61, 67
Server, Print Option ................................ 67
Set, Menu Mode ..................................... 26
Sheet Guide ............................................ 64
SI ...................................................... 32, 40
Single Sheet
Cut Sheet Feeder Option .................... 67
Jams ................................................... 57
Loading .............................................. 52
Skip Over Perforation ............................. 30
Software
Embedded commands ........................ 61
Matching drivers to emulations ......... 61
Software vs. printer settings .............. 60
Specifications ......................................... 75
Speed, print, graphics ............................. 37
94 Microline 490/491 User’s Guide
Resident ............................................. 77
Selecting ..................................... 23, 39
Software commands .......................... 23
Standard Character Set ........................... 29
Static charges and paper ......................... 64
Symbol Sets ..................................... 29, 37
T
U
TEAR
Front Panel key .................................. 18
TEAR feature ..................................... 17
Temperature Specifications .................... 80
Tests
ASCII Test ......................................... 88
Font Sample Test ............................... 87
Hex Dump .......................................... 89
Thickness, Paper ..................................... 76
Time Out .......................................... 32, 40
Top Feed ........................................... 78–81
Bottom Margin ................................... 31
Line Spacing ...................................... 31
Pull Tractor ........................................ 67
Single Sheet ....................................... 11
Top of Form ............................................ 35
Forms Tear-Off ...................... 8, 12, 17
Paper Shield .................................. 9, 12
Reset to factory default ...................... 16
Setting ................................................ 12
Standard Setting .......................... 12, 16
Typefaces ................................................ 29
Uni-directional printing, graphics .......... 31
Utility
Front Panel Light ............................... 77
Print Speeds ......................................... 7
Utility Mode Print Quality ................. 22
W
Wait Time ........................................ 31, 40
Weight, Paper ......................................... 79
Width
Character ............................................ 38
Double width printing ........................ 40
Page
Bottom Feed .................................. 30
Rear Feed ...................................... 30
Top Feed ........................................ 31
Paper .................................................. 79
Z
Zero character (slashed, unslashed) . 29, 40
