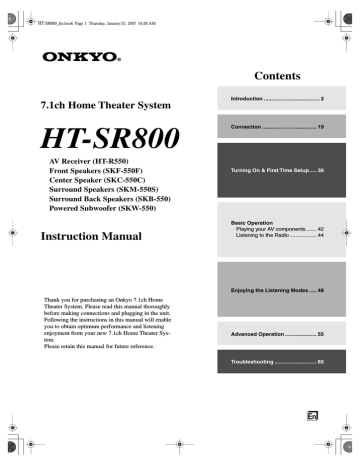

Contents
Introduction ..................................... 2
7.1ch Home Theater System
HT-SR800
AV Receiver (HT-R550)
Front Speakers (SKF-550F)
Center Speaker (SKC-550C)
Surround Speakers (SKM-550S)
Surround Back Speakers (SKB-550)
Powered Subwoofer (SKW-550)
Instruction Manual
Connection .................................... 19
Turning On & First Time Setup..... 36
Basic Operation
Playing your AV components ....... 42
Listening to the Radio .................. 44
Enjoying the Listening Modes ..... 48
Thank you for purchasing an Onkyo 7.1ch Home
Theater System. Please read this manual thoroughly
before making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new 7.1ch Home Theater System.
Please retain this manual for future reference.
Advanced Operation ..................... 55
Troubleshooting ............................ 65
En
HT-SR800_En.book Page 2 Thursday, January 25, 2007 10:28 AM
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
WARNING
AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Important Safety Instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
2
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, PORTABLE CART WARNING
tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to
avoid injury from tip-over.
S3125A
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or
water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and follow local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides
and 10 cm (4") at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.
HT-SR800_En.book Page 3 Thursday, January 25, 2007 10:28 AM
Precautions
1. Recording Copyright—Unless it’s for personal use
only, recording copyrighted material is illegal without the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact
your Onkyo dealer.
3. Care—Occasionally you should dust the unit all
over with a soft cloth. For stubborn stains, use a soft
cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards
with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because
they may damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
AC outlet voltages vary from country to country.
Make sure that the voltage in your area meets the
voltage requirements printed on the unit’s rear panel
(e.g., AC 230–240 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug
is readily operable (easily accessible) at all times.
Pressing the [STANDBY/ON] button to select
Standby mode does not fully shutdown the unit. If
you do not intend to use the unit for an extended
period, remove the power cord from the AC outlet.
5. Never Touch this Unit with Wet Hands—Never
handle this unit or its power cord while your hands
are wet or damp. If water or any other liquid gets
inside this unit, have it checked by your Onkyo
dealer.
6. Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you originally bought it.
• Do not leave rubber or plastic items on this unit
for a long time, because they may leave marks on
the case.
• This unit’s top and rear panels may get warm
after prolonged use. This is normal.
• If you do not use this unit for a long time, it may
not work properly the next time you turn it on, so
be sure to use it occasionally.
For U.S. models
FCC Information for User
CAUTION:
The user changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
Modèle pour les Canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE
LA CLASSE B EST CONFORME À LA NORME
NMB-003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
3
HT-SR800_En.book Page 4 Thursday, January 25, 2007 10:28 AM
Speaker Precautions
Placement
Input Signal Warning
• The speaker cabinets are made out of wood and are
therefore sensitive to extreme temperatures and
humidity, do not put them in locations subject to direct
sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen.
• Do not put water or other liquids close to the speakers.
If liquid is spilled over the speakers, the drive units
may be damaged.
• Speakers should only be placed on sturdy, flat surfaces
that are free from vibration. Putting them on uneven or
unstable surfaces, where they may fall and cause damage, will affect the sound quality.
• Subwoofer is designed to be used in the upright vertical position only. Do not use it in the horizontal or
tilted position.
• If the unit is used near a turntable, CD player or DVD
player, howling or slipping of sound may occur. To
prevent this, move the unit away from the turntable,
CD player or DVD player otherwise lower the unit’s
output level.
The speakers can handle the specified input power when
used for normal music reproduction. If any of the following signals are fed to them, even if the input power is
within the specified rating, excessive current may flow in
the speaker coils, causing burning or wire breakage:
1. Interstation noise from an untuned FM radio.
2. Sound from fast-forwarding a cassette tape.
3. High-pitched sounds generated by an oscillator, electronic musical instrument, and so on.
4. Amplifier oscillation.
5. Special test tones from audio test CDs and so on.
6. Thumps and clicks caused by connecting or disconnecting audio cables (Always turn off your amplifier
before connecting or disconnecting cables.)
7. Microphone feedback.
Using Close to a TV or Computer
TVs and computer monitors are magnetically sensitive
devices and as such are likely to suffer discoloration or
picture distortion when conventional speakers are placed
nearby. To prevent this, the SKF-550F and SKC-550C
feature internal magnetic shielding. In some situations,
however, discoloration may still be an issue, in which case
you should turn off your TV or monitor, wait 15 to 30
minutes, and then turn it back on again. This normally
activates the degaussing function, which neutralizes the
magnetic field, thereby removing any discoloration
effects. If discoloration problems persist, try moving the
speakers away from your TV or monitor. Note that discoloration can also be caused by a magnet or demagnetizing
tool that’s too close to your TV or monitor.
4
HT-SR800_En.book Page 5 Thursday, January 25, 2007 10:28 AM
Enjoying Home Theater
Speaker Sets A and B
You can use two sets of speakers with the AV receiver: speaker set A and speaker set B.
Speaker set A (included speakers) should be used in your main listening room for up to 7.1-channel playback.
*While speaker set B is on, speaker set A is reduced to 5.1-channel playback.
Speaker set B (not included) can be used in another room and offers 2-channel stereo playback.
*Only analog input sources are output by speaker set B.
TV
VOL
CH
DISC
ALBUM
VOL
INPUT
MASTER VOLUME
TUNING
A SPEAKERS
STANDBY/ON
GUIDE
TOP MENU
PREVIOUS
MENU
PRESET
B
STANDBY
SP A / B
or
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
MUTING
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
PLAYLIST/CAT
R
PLAYLIST/CAT
MEMORY TUNING MODE
CLEAR
SETUP
Speaker set A
On
Speaker set B
Indicator
On
A
Off
A
On
Off
RETURN
Output
B
Set A: 5.1 channels
Set B: 2 channels
B
Set B: 2 channels
Set A: 7.1 channels
Off
No sound
Main Room (speaker set A, the supplied speakers)
Center speaker
Front left
speaker
Front right
speaker
Subwoofer
Sub Room (speaker set B)
Surround
left
speaker
Surround
right
speaker
Surround back
left speaker
Surround back
right speaker
* While speaker set B is on, the surround
back speakers output no sound.
* Digital input sources are not output
by speaker set B. Connect your
source component with an analog
connection.
5
1_Important_En Page 6 Thursday, January 25, 2007 1:11 PM
Package Contents
Make sure you have the following items:
AV receiver (HT-R550)
Remote controller and two batteries (AA/R6)
Indoor FM antenna
Surround and Surround back speakers
(SKM-550S/SKB-550)
Subwoofer (SKW-550)
(Red)
(White)
Speaker cable for front speakers 11 ft. (3.5 m)
AM loop antenna
(Green)
Speaker cable for center speaker 10 ft. (3 m)
(Blue)
(Gray)
(Brown)
(Tan)
Speaker setup microphone
Speaker terminal tool
Speaker cables for surround speakers 30 ft. (9 m)
RCA cable for subwoofer connection 10 ft. (3 m)
Front speakers (SKF-550F)
4 floor pads for the subwoofer
Center speaker (SKC-550C)
6
* In catalogs and on packaging, the letter at the end of the
product name indicates the color. Specifications and operation are the same regardless of color.
HT-SR800_En.book Page 7 Thursday, January 25, 2007 10:28 AM
Features
Amplifier
• 7-channel amplifier
• 110 watts per channel rms into 8 ohms, 2 channels
driven at 1 kHz, less than 0.9% total harmonic distortion (FTC rating)
• WRAT (Wide Range Amplifier Technology)
• Optimum Gain Volume Circuitry
• Audyssey 2EQ/HTIB room correction*1
*1
Manufactured under license from Audyssey Laboratories.
U.S. and foreign patents pending. Audyssey 2EQ/HTIB is
a trademark of Audyssey Laboratories.
*2
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are registered trademarks of Dolby Laboratories.
Processing
• Dolby*2 Digital EX and Dolby Pro Logic IIx
• DTS, DTS-ES Matrix/Discrete, DTS Neo:6, and DTS
96/24*3
• Neural Surround*4 (North American models only)
• Theater-Dimensional*5 virtual surround sound
• Linear PCM 192 kHz/24-bit D/A converters on all
channels
• Pure Audio listening mode (not North American
model)
• Powerful and highly accurate 32-bit DSP processing
Audio/Video
• 2 HDMI*6 inputs, 1 output
• Adjustable crossover (40, 50, 60, 80, 100, 120, 150,
200 Hz)
• HDTV-capable component video (3 inputs, 1 output)
• 3 S-Video inputs, 2 outputs
• 4 assignable digital inputs (2 optical, 2 coaxial)
• Subwoofer pre out
• Color-coded 7.1 multichannel input for use with Super
Audio CD and DVD-Audio
• A/B speaker drive
• Color-coded speaker terminal posts
Tuner
• XM*7 Satellite Radio (North American models only)
*XM Passport System required; sold separately.
• SIRIUS*8 Satellite Radio (North American models
only)
• 40 radio presets
• AM/FM auto tuning
*3
“DTS” and “DTS-ES | Neo: 6” are registered trademarks of
DTS, Inc. “96/24” is a trademark of DTS, Inc.
*4
Neural Surround name and related logos are trademarks
owned by Neural Audio Corporation.
*5
Theater-Dimensional is a trademark of Onkyo Corporation.
*6
HDMI, the HDMI logo and High Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing, LLC. This unit incorporates HDMI technology.
*7
XM Ready® is a registered trademark of XM Satellite
Radio Inc. All rights reserved.
*8
©2005 SIRIUS Satellite Radio Inc. “SIRIUS,” the SIRIUS
dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. Available only in the contiguous
United States (excluding Alaska and Hawaii) and Canada.
Remote Controller
• Preprogrammed for use with other AV components
Speaker
• Color-coded speaker terminals and speaker cables
• Subwoofer Auto standby function
• Magnetically shielded front and center speakers
7
HT-SR800_En.book Page 8 Thursday, January 25, 2007 10:28 AM
Getting Started in Five Easy Steps
1.
Hookup
Connect the speakers and your AV components to the AV receiver.
☞ page 19
IN 1
OUT
XM
SIRIUS
HDMI
IN 2
ASSIGNABLE
ANTENNA
AM
FM 75
DIGITAL IN
L
L
R
R
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
L
L
L
R
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
SURROUND CENTER SURR BACK
L
FRONT
SPEAKERS A
CENTER
SPEAKER
PRE OUT
L
SUB
WOOFER
R
REMOTE
CONTROL
2.
CD
TAPE
R
CBL/SAT
VCR/DVR
DVD
SUB
WOOFER
FRONT
SPEAKERS B
Turning On
With the hookup complete, you’re ready to switch on.
☞ page 36
3.
First Time Setup
A few simple settings to get the very best from your system.
☞ page 37
4.
HDMI Video
Setup
Digital Input
Automatic
Speaker Setup
Input Display
Playing Your AV Components
Enjoying movies and music.
☞ page 42
5.
Using the Listening Modes
Time to really enjoy your home theater system!
☞ page 48
8
HT-SR800_En.book Page 9 Thursday, January 25, 2007 10:28 AM
Contents
Introduction
Basic Operation
Important Safety Instructions ....................2
Precautions .................................................3
Speaker Precautions ..................................4
Playing Your AV Components ................ 42
Enjoying Home Theater ..............................5
Listening to the Radio.............................. 44
Speaker Sets A and B ...................................5
Package Contents .......................................6
Features .......................................................7
Getting to Know the AV Receiver ............10
Remote Controller.....................................13
Speakers ....................................................18
Connection
Connecting Your Speakers ......................19
Connecting Antennas ...............................22
Connecting Your Components ................24
About AV Connections ................................24
Connecting Audio and Video Signals
to the AV Receiver ....................................25
Which Connections Should I Use?..............25
TV or Projector ..........................................26
DVD player .................................................27
Components with HDMI ..............................29
VCR or DVD Recorder for Playback ...........30
VCR or DVD Recorder for Recording..........31
Camcorder, Games Console,
or Other Device.........................................31
Satellite, Cable, Set-top box,
or Other Video Source ..............................32
CD Player or Turntable................................33
RI Dock........................................................34
Cassette, CDR, MiniDisc,
or DAT Recorder.......................................34
Connecting Onkyo
Components..........35
Connecting the Power Cord ........................35
Basic AV Receiver Operation ..................... 42
Using the Multichannel DVD Input.............. 43
Displaying Source Information.................... 43
Listening to AM/FM Stations....................... 44
Presetting AM/FM Stations ......................... 45
Common Functions.................................. 46
Setting the Display Brightness.................... 46
Adjusting the Bass and Treble.................... 46
Muting the AV Receiver .............................. 46
Using the Sleep Timer ................................ 47
Using Headphones ..................................... 47
Adjusting Speaker Levels ........................... 47
Enjoying the Listening Modes
Using the Listening Modes...................... 48
Selecting Listening Modes.......................... 48
About the Listening Modes ......................... 50
Using the Late Night Function
(Dolby Digital only) ................................... 52
Using the CinemaFILTER........................... 52
Using the Audio Adjust Settings ................. 52
Advanced Operation
Recording.................................................. 55
Advanced Setup ....................................... 56
Advanced Speaker Settings ....................... 56
Digital Input Signal Formats ....................... 61
Correcting Sound and Picture Sync ........... 61
Controlling Other Components............... 62
Entering Remote Control Codes................. 62
Remote Control Codes for Onkyo
Components Connected via
.............. 63
Resetting REMOTE MODE Buttons ........... 63
Resetting the Remote Controller ................ 63
Turning On & First Time Setup
Turning On the AV Receiver ....................36
First Time Setup ........................................37
Automatic Speaker Setup
(Audyssey 2EQ/HTIB)...............................37
HDMI Video Setup.......................................40
Digital Audio Input Setup.............................41
Changing the Input Display .........................41
Troubleshooting ....................................... 65
If you can’t resolve an issue, try resetting the AV
receiver by holding down the [VCR/DVR] button
and pressing the [STANDBY/ON] button.
Specifications ........................................... 69
9
HT-SR800_En.book Page 10 Thursday, January 25, 2007 10:28 AM
Getting to Know the AV Receiver
Front Panel
North American Model
2
1
3
4
5
6
7
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
VIDEO
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
8
9
J
K L
MN OPQ R S T
U
Other Models
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
PURE AUDIO
PURE AUDIO
MULTI CH
DVD
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
V
For detailed information, see the pages in parentheses.
A STANDBY/ON button (36)
Sets the AV receiver to On or Standby.
B STANDBY indicator (36)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C Remote-control sensor (13)
Receives control signals from the remote controller.
D Display
See “Display” on page 11.
E Input selector buttons (42)
Select the input sources.
The [MULTI CH] button selects the multichannel
DVD input.
10
F Arrow/TUNING/PRESET and ENTER buttons
When the tuner is selected, the TUNING [ ] [ ]
buttons are used for radio tuning, and the PRESET
[ ] [ ] buttons are used to select radio presets
(see page 45). With the setup menus, they work as
arrow buttons and are used to select and set items.
The ENTER button is also used with the setup
menus.
G MASTER VOLUME control (42)
Sets the volume of the AV receiver to MIN, 1
through 79, or MAX.
H PHONES jack (47)
This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening.
I SPEAKERS A and B buttons (5, 42)
Turn speaker sets A and B on or off.
HT-SR800_En.book Page 11 Thursday, January 25, 2007 10:28 AM
Getting to Know the AV Receiver—Continued
J TONE, [–], and [+] buttons (46)
Q TUNING MODE button (44)
Used to adjust the bass and treble.
Selects the Auto or Manual tuning mode for AM
and FM radio.
K STEREO button (48)
R SETUP button
Selects the Stereo listening mode.
Used to access the setup menus.
L LISTENING MODE [ ]/[ ] buttons (48)
S SETUP MIC (38)
Select the listening modes.
The automatic speaker setup microphone connects
here.
M DISPLAY button (43)
Displays various information about the currently
selected input source.
T RETURN button
Selects the previously displayed setup menu.
N DIGITAL INPUT button (41, 61)
Used to assign the digital inputs and to specify the
format of digital input signals.
U AUX INPUT (31, 55)
Used to connect a camcorder, games console, and so
on. There are jacks for composite video and analog
audio.
O DIMMER button (46)
Adjusts the display brightness.
V PURE AUDIO button and indicator (48)
P MEMORY button (45)
The North American model doesn’t have this button
and indicator.
Used when storing or deleting radio presets.
Selects the Pure Audio listening mode. The indicator lights up when this mode is selected.
Display
1 2
3
6
For detailed information, see the pages in parentheses.
1 A and B speaker indicators (5, 42)
Indicator A lights up when speaker set A is on. Indicator B lights up when speaker set B is on.
2 MUTING indicator (46)
Flashes while the AV receiver is muted.
3 Input signal format indicators
Show the audio signal format of the current input
source.
4 Listening mode indicators (50)
Show the selected listening mode.
5 Radio indicators
4
7
5
8
AUTO (44): For AM and FM radio, lights up when
Auto Tuning mode is selected, and disappears when
Manual Tuning mode is selected.
TUNED (44): Lights up when tuned to a radio station.
6 SLEEP indicator (47)
Lights up when the Sleep function has been set.
7 Message area
Displays various information about the selected
input source.
8 Audyssey indicator (37)
Lights up during automatic speaker setup.
FM STEREO (44): Lights up when tuned to a stereo FM station.
11
HT-SR800_En.book Page 12 Thursday, January 25, 2007 10:28 AM
Getting to Know the AV Receiver—Continued
Rear Panel
1
2
7 8 (North American model only)
4 56
9
3
IN 2
OUT
XM
SIRIUS
HDMI
IN 1
ANTENNA
ASSIGNABLE
AM
FM 75
DIGITAL IN
L
L
R
R
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
L
L
L
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
FRONT
SPEAKERS A
CENTER
SPEAKER
PRE OUT
SURROUND CENTER SURR BACK
L
SUB
WOOFER
L
R
R
REMOTE
CONTROL
J
CD
TAPE
K L
R
CBL/SAT
VCR/DVR
M
DVD
SUB
WOOFER
FRONT
SPEAKERS B
N
A DIGITAL IN OPTICAL 1, 2 and COAXIAL 1, 2
These optical and coaxial digital audio inputs are
for connecting components with optical or coaxial
digital audio outputs, such as CD and DVD players.
B HDMI IN 1, 2, and OUT
These jacks are for connecting HDMI-compatible
components. Audio and video signals received by
the HDMI IN jacks pass through to the HDMI OUT
jack.
C COMPONENT VIDEO
A DVD player, TV, or other component that supports component video can be connected here.
D AM ANTENNA
These push terminals are for connecting an AM
antenna.
E FM ANTENNA
This jack is for connecting an FM antenna.
F MONITOR OUT
The S-Video or composite video output should be
connected to a video input on your TV or projector.
G SIRIUS antenna (North American models
only)
This jack is for connecting a SIRIUS Satellite Radio
antenna (see the separate SIRIUS instructions).
H XM antenna (North American models only)
This jack is for connecting an XM Passport System,
sold separately (see the separate XM instructions).
I FRONT SPEAKERS A, SURROUND
O
J
P
REMOTE CONTROL
This
Remote Interactive jack can be connected
to the
jack on another
-capable Onkyo component. To use
, you must make an analog audio
connection (RCA) between the AV receiver and the
other component, even if they are connected digitally.
K CD IN
This analog audio input is for connecting a CD
player’s analog audio output.
L TAPE IN/OUT
This analog audio input and output are for connecting a recorder with an analog audio input and output, such as a cassette deck, MD recorder, etc.
M VCR/DVR IN/OUT and CBL/SAT IN
The VCR/DVR inputs and outputs can be used to
connect a VCR or DVR (digital video recorder).
The CBL/SAT inputs can be used to connect a
cable/satellite receiver, set-top box, etc.
N DVD IN
These jacks can be used to connect a DVD player
with an analog multichannel audio output for SACD
and DVD-Audio playback.
O SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
P FRONT SPEAKERS B
These push terminals are for connecting speaker
set B.
SPEAKERS, CENTER SPEAKER, and
SURROUND BACK SPEAKERS
These terminal posts are for connecting speaker
set A.
See pages 19–35 for hookup information.
12
HT-SR800_En.book Page 13 Thursday, January 25, 2007 10:28 AM
Remote Controller
Installing the Batteries
1
To open the battery compartment, press
the small hollow and slide open the cover.
Aiming the Remote Controller
When using the remote controller, point it toward the AV
receiver’s remote control sensor, as shown below.
Remote control sensor
AV receiver
STANDBY indicator
2
3
Insert the two supplied batteries (AA/R6)
in accordance with the polarity diagram
inside the battery compartment.
Slide the cover shut.
Approx. 16 ft.
(5 m)
Notes:
• The remote controller may not work reliably if the AV
receiver is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in
mind when installing.
• If another remote controller of the same type is used in
the same room, or the AV receiver is installed close to
equipment that uses infrared rays, the remote controller may not work reliably.
• Don’t put anything on top of the remote controller,
such as a book or magazine, because a button may be
pressed continuously, thereby draining the batteries.
• The remote controller may not work reliably if the AV
receiver is installed in a rack behind colored glass
doors. Keep this in mind when installing.
• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote control
sensor.
Notes:
• If the remote controller doesn’t work reliably, try
replacing the batteries.
• Don’t mix new and old batteries or different types of
batteries.
• If you intend not to use the remote controller for a long
time, remove the batteries to prevent damage from
leakage or corrosion.
• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.
13
HT-SR800_En.book Page 14 Thursday, January 25, 2007 10:28 AM
Remote Controller—Continued
Using the Remote Controller
RECEIVER/TAPE Mode
Including the AV receiver, the remote controller can be
used to control up to seven different components. The
remote controller has a specific operating mode for use
with each type of component. Modes are selected by
using the six REMOTE MODE buttons.
■ RECEIVER/TAPE Mode
In RECEIVER/TAPE mode, you can control
the AV receiver and an Onkyo cassette
recorder connected via
.
RECEIVER/TAPE mode is used to control the AV
receiver. It can also be used to control an Onkyo cassette
recorder connected via
.
STANDBY/ON
REMOTE MODE
1
RECEIVER
DVD
RECEIVER
RECEIVER
TAPE/AMP
TAPE/AMP
TAPE/AMP
INPUT SELECTOR
2
1
2
VCR/DVR
CBL/SAT
M D/CDR
CD
3
DOCK
■ DVD and CD/MD/CDR/DOCK
DVD
Modes
With these modes, you can control a DVD
M D/CDR
CD
player and CD player, MD recorder, CDR,
DOCK
or RI dock. By entering the appropriate
remote control code, you can control Onkyo
components or components made by other manufacturers (see page 62).
3
1
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
10
0
--/---
DIMMER
4
12
CLR
D TUN
K
VCR
CD
11
+10
TV
CABLE
SAT
ENT
TV
VOL
SLEEP
CH
DISC
ALBUM
L
VOL
M
INPUT
■ TV, VCR and SAT/CABLE Modes
With these modes, you can control a TV,
VCR, and satellite or cable receiver. You
must enter the appropriate remote control
code first (see page 62).
2
TV
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
N
5
VCR
3
6
CABLE
ENTER
PLAYLIST/CAT
SAT
PLAYLIST/CAT
O
7
1
REMOTE MODE
RECEIVER
SETUP
Press one of the REMOTE MODE
buttons to select a mode.
RETURN
4
DVD
TAPE/AMP
M D/CDR
CD
8
DOCK
TV
9
VCR
J
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
DISPLAY
VCR
CABLE
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
SAT
2
Use the buttons supported by
that mode to control the component.
RECEIVER/TAPE mode:
see right column
DVD mode:
see page 16
CD/MD/CDR/DOCK mode:
see page 17
TV, VCR, SAT/CABLE modes:
see page 64
Note:
Some of the remote controller operations described in
this manual may not work as expected with other components.
14
P
Q
RC-681M
Buttons 1, 2, 3, and 4 are used when the TUNER
or TAPE input is selected.
HT-SR800_En.book Page 15 Thursday, January 25, 2007 10:28 AM
Remote Controller—Continued
For detailed information, see the pages in parentheses.
A STANDBY/ON button (36)
Sets the AV receiver to On or Standby.
■ Buttons used when the TUNER input is
selected
To select the Tuner (AM/FM) as the input
source, press:
B INPUT SELECTOR buttons (42)
Used to select the input sources.
RECEIVER
8
TUNER
C MULTI CH button (43)
Selects the multichannel DVD input.
D DIMMER button (46)
Adjusts the display brightness.
E SP A/B button (5, 42)
Used to turn speaker sets A and B on or off.
F Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons
Used to select and adjust settings.
G SETUP button
1 Number, D TUN, and ENT buttons (45)
Used to select AM and FM radio stations directly.
2 CH +/– button (45)
Used to select radio presets.
3 Arrow [ ]/[ ] buttons
For AM and FM, the Up and Down [
tons are used for tuning.
]/[
] but-
Used to access the setup menus.
H LISTENING MODE buttons (48)
Used to select the listening modes. These buttons
work in all remote controller modes.
STEREO button
Selects the Stereo listening mode.
SURROUND button
Selects the Dolby and DTS listening modes and the
Neural Surround listening mode (North American
model only).
[ ]/[ ] buttons
Used to select the available listening modes.
I TEST TONE, CH SEL, LEVEL-, and LEVEL+
buttons (47, 59)
Used to adjust the level of each speaker.
J DISPLAY button (43)
Displays various information about the selected
input source.
K REMOTE MODE buttons (14)
Used to select the remote controller modes. When a
remote controller button is pressed, the REMOTE
MODE button for the currently selected mode lights
up.
■ Buttons used when the TAPE input is
selected
To select your Cassette deck as the input
source, press:
RECEIVER
7
TAPE
4 Playback buttons
On twin cassette decks, only deck B can be controlled.
Play [ ] button
Starts playback.
Stop [ ] button
Stops playback.
Reverse Play [ ] button
Starts reverse playback.
Rewind and FF [ ]/[ ] buttons
The Rewind [ ] button starts rewind. The FF
[ ] button starts fast forward.
L SLEEP button (47)
Used with the Sleep function.
M VOL [ ]/[ ] button (42)
Adjusts the volume of the AV receiver regardless of
the currently selected remote controller mode.
N MUTING button (46)
Mutes or unmutes the AV receiver.
O RETURN button
Selects the previously displayed setup menu.
P CINE FLTR button (52)
Used with the CinemaFILTER function.
Q L NIGHT button (52)
Used with the Late Night function.
15
HT-SR800_En.book Page 16 Thursday, January 25, 2007 10:28 AM
Remote Controller—Continued
A STANDBY/ON button
DVD Mode
Sets the DVD player to On or Standby.
By default, the remote controller is set to control an
Onkyo DVD player.
To select your DVD player as the input source, press:
RECEIVER
or
6
DVD
B Number buttons
Used to enter title, chapter, and track numbers and
times for locating specific points.
C DISC +/– button
Selects discs on a DVD changer.
5
D TOP MENU button
MULTI CH
Selects a DVD’s top menu.
E Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons
Used to navigate DVD menus and the DVD player’s
onscreen setup menus.
F SETUP button
STANDBY/ON
Used to access the DVD player’s onscreen setup
menus.
REMOTE MODE
1
DVD
RECEIVER
DVD
TAPE/AMP
INPUT SELECTOR
2
1
2
CD
3
DOCK
VCR/DVR
CBL/SAT
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
10
+10
Selects subtitles.
12
CABLE
SAT
ENT
--/---
DIMMER
TV
VOL
I AUDIO button
VCR
CLR
D TUN
H SUBTITLE button
TV
CD
11
0
K
SLEEP
CH
DISC
ALBUM
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
4
L
5
Selects foreign language soundtracks and audio formats (e.g., Dolby Digital or DTS).
J DISPLAY button
Displays information about the current disc, title,
chapter, or track, including elapsed time, remaining
time, total time, and so on.
VOL
INPUT
3
G Playback buttons
From left to right: Pause, Play, Stop, Fast Reverse,
Fast Forward, Previous, and Next.
M D/CDR
K CLR button
Cancels functions and clears entered numbers.
L MENU button
ENTER
PLAYLIST/CAT
Displays a DVD’s menu.
PLAYLIST/CAT
M
6
SETUP
RETURN
M RETURN button
Exits the DVD player’s onscreen setup menus.
N RANDOM button
7
Used with the random playback function.
O REPEAT button
Used with the repeat playback functions.
LISTENING MODE
STEREO
SURROUND
8
9
AUDIO SUBTITLE RANDOM REPEAT
J
DISPLAY
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
VCR
RC-681M
16
N
O
P
P VCR, DVD, and HDD buttons
Q
Q PLAY MODE button
Used to select VCR, HDD (hard disk drive), or
DVD playback on a VCR/DVD recorder with a
built-in hard disk drive.
Selects play modes on components with selectable
play modes.
HT-SR800_En.book Page 17 Thursday, January 25, 2007 10:28 AM
Remote Controller—Continued
A STANDBY/ON button
CD/MD/CDR/DOCK Mode
Sets the component to On or Standby.
By default, the remote controller is set to control an
Onkyo CD player.
To select the input source, press:
9
CD player
MD or CD recorder
7
7
Selects discs on a CD changer, or the next or previous album on an HDD-compatible component connected to an RI Dock.
D TOP MENU button
TAPE
Works as a Mode button when used with a DS-A2
RI Dock.
RI Dock
2
or
TAPE
Used to enter track numbers and times for locating
specific points on CD/MD players.
C DISC/ALBUM +/– button
CD
RECEIVER
B Number buttons
CBL/SAT
* If you’re using an MD, CDR, or an RI Dock, you must
change the Input Display (see page 41).
E Arrow [ ]/[ ] and ENTER buttons
Used to navigate menus on an HDD-compatible
component connected to an RI Dock.
F Playback buttons
From left to right: Pause, Play, Stop, Fast Reverse,
Fast Forward, Previous and Next.
STANDBY/ON
DVD
RECEIVER
M D/CDR
TAPE/AMP
INPUT SELECTOR
2
G DISPLAY button
REMOTE MODE
1
1
2
VCR/DVR
CBL/SAT
M D/CDR
CD
3
CD
DOCK
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
CD
10
11
TV
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
TV
CH
Cancels functions and clears entered numbers on a
CD player or MD/CD recorder.
CABLE
SAT
8
ENT
3
H CLR button
VCR
12
+10
I MENU button
Used to navigate menus on an HDD-compatible
component connected to an RI Dock.
VOL
INPUT
4
5
Displays information about the current disc or track
on a CD player or MD/CD recorder, including
elapsed time, remaining time, total time, and so on.
On an HDD-compatible component connected to an
RI Dock, it turns on the back light for 30 seconds.
J PLAYLIST [ ]/[ ] buttons
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
9
J
ENTER
PLAYLIST/CAT
Selects the previous or next playlist on an HDDcompatible component connected to an RI Dock.
K RANDOM button
Used with the random/shuffle playback function.
PLAYLIST/CAT
L REPEAT button
SETUP
Used with the repeat playback functions.
RETURN
M PLAY MODE button
6
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
7
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
K
L
Used to select play modes on components with
selectable play modes.
Works as a Resume button when used with a DS-A2
RI Dock.
PLAY MODE
DISPLAY
VCR
M
RC-681M
17
HT-SR800_En.book Page 18 Thursday, January 25, 2007 10:28 AM
Speakers
Subwoofer (SKW-550)
For detailed information, see the pages in parentheses.
A STANDBY/ON indicator
■ Front
Red:
Subwoofer in standby mode
Green: Subwoofer on
1
With the Auto Standby function, the SKW-550
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for a while, the SKW-550 automatically
enters Standby mode.
B OUTPUT LEVEL control (42)
This control is used to adjust the volume of the subwoofer.
C LINE INPUT (20)
This RCA input should be connected to the subwoofer pre out on the AV receiver with supplied
RCA cable.
D POWER switch (Not North American model)
■ Rear
(36)
Press this switch to the ON position to turn on the
power. Press it to the OFF position to turn off the
power.
4 (Not North American model)
POWER
ON
OFF
2
3
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
the AV receiver (page 59).
To AC outlet
■ Attaching and detaching the speaker grilles
Front and Center speakers have detachable grilles. Use the
following method to attach or detach the grilles.
1. While holding the bottom edge of the speaker grille with
your both hands, pull it gently toward you to remove the
bottom of the grille.
2. In the same way, gently pull the upper edge of the
speaker grille toward you to remove it from the main
unit.
3. To replace the grill, push the projections at the corners
into the grille plug holes on the speaker cabinet.
18
Removal
Replacement
3_Connection_En Page 19 Thursday, January 25, 2007 2:34 PM
Connecting Your Speakers
Enjoying Home Theater
Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your
own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring DTS and Dolby Digital.
With analog and digital TV, you can enjoy Dolby Pro Logic IIx and Onkyo’s own DSP surround listening modes.
Front left and right speakers (SKF-550F)
These output the overall sound. Their role in a home theater is to provide a solid
anchor for the sound image. They should be positioned facing the listener at
about ear level, and equally spaced from the TV. Angle them inward slightly so as
to create a triangle, with the listener at the apex.
Surround back left and right
speakers (SKB-550)
These speakers are necessary to
enjoy Dolby Digital EX, DTS-ES
Matrix, DTS-ES Discrete. They
enhance the realism of surround
sound and improve sound localization behind the listener. Position them behind the listener
about 2–3 feet (60–100 cm)
above ear level.
Center speaker (SKC-550C)
This speaker enhances the front left and right speakers,
making sound movements distinct and providing a full
sound image. For movies it’s used mainly for dialog.
Position it close to your TV facing forward at about ear
level, or at the same height as the front left and right
speakers.
* While speaker set B is on,
these speakers output no
sound.
Subwoofer (SKW-550)
The subwoofer handles the bass sounds
of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass
output from your subwoofer will depend on
its position, the shape of your listening
room, and your listening position. In general, a good bass sound can be obtained
by installing the subwoofer in a front corner, or at one-third the way along the wall,
as shown.
Tip: To find the best position for your subwoofer, while playing a movie or some
music with good bass, experiment by placing your subwoofer at various positions
within the room, and choose the one that
provides the most satisfying results.
If the subwoofer is placed on a hard floor
(wood, vinyl, tile, etc.) and playback is very
loud, the subwoofer's feet may damage the
flooring. To prevent this, place the supplied
pads underneath the subwoofer's feet. The pads
also provide a stable base
for the subwoofer.
Corner
1/3 wall
length
Surround left and right speakers (SKM-550S)
These speakers are used for precise sound positioning and
to add realistic ambience.
Position them at the sides of the listener, or slightly behind,
about 2–3 feet (60–100 cm) above ear level. Ideally they
should be equally spaced from the listener.
19
HT-SR800_En.book Page 20 Thursday, January 25, 2007 10:28 AM
Connecting Your Speakers—Continued
Speaker Connection Precautions
Read the following before connecting your speakers:
• You can connect speakers with an impedance of
between 8 and 16 ohms. If you use speakers with a
lower impedance, and use the amplifier at high volume
levels for a long period of time, the built-in amp protection circuit may be activated.
• Disconnect the power cord from the wall outlet before
making any connections.
• Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals to only positive
(+) terminals, and negative (–) terminals to only negative (–) terminals. If you get them the wrong way
around, the sound will be out of phase and will sound
unnatural.
• Unnecessarily long or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the
positive and negative wires.
Doing so may damage the AV
receiver.
• Don’t connect more than one
cable to each speaker terminal. Doing so may damage the
AV receiver.
• Don’t connect a speaker to several terminals.
Using the Speaker Terminal Tool
The supplied speaker terminal tool makes it easy to
tighten and loosen the speaker terminals. If you are using
banana plugs, to ensure optimum sound quality, tighten
the speaker terminal before inserting the banana plug.
Connecting Speaker Set A
The AV receiver’s positive (+) speaker terminals and
speaker’s positive (+) terminals are color-coded for ease
of identification. (The negative (–) speaker terminals are
all black.) Match the color of each cable to the corresponding speaker terminal.
Speaker terminal
Color
Front left
White
Front right
Red
Center
Green
Surround left
Blue
Surround right
Gray
Surround back left
Brown
Surround back right
Tan
1
On the AV receiver, unscrew the terminal. Fully
insert the bare wires. Make sure that the bare wire
is touching the inside of the pole. Screw the terminal tight.
2
On the speakers, while pressing
the terminal lever, insert the
wire into the hole, and then
release the lever.
3
Using the supplied RCA cable, connect the AV
receiver’s SUBWOOFER PRE OUT to LINE
INPUT on the subwoofer.
Make sure the cable is plugged all the way.
Connecting Speaker Set B (sold
separately)
1
Strip 3/8" (10 mm) of insulation from the ends of the
speaker cables, and twist
the bare wires tightly, as
shown.
2
While pressing the lever, insert
the wire into the hole, and then
release the lever.
Make sure that the terminals are
gripping the bare wires, not the
insulation.
3/8" (10 mm)
Note:
When speaker set B is turned on, speaker set A is reduced
to 5.1-channel playback.
20
HT-SR800_En.book Page 21 Thursday, January 25, 2007 10:28 AM
Connecting Your Speakers—Continued
The following illustration shows which speaker should be connected to each pair of terminals.
Speaker Set A (supplied)
Surround
back right
speaker
Subwoofer
Surround
back left
speaker
Surround
right
speaker
Surround
left
speaker
Front right
speaker
Front left
speaker
Center
speaker
LINE INPUT
SURROUND BACK
SPEAKERS
IN 2
OUT
FRONT
SPEAKERS A
CENTER
SPEAKER
L
R
R
XM
SIRIUS
HDMI
IN 1
SURROUND
SPEAKERS
L
ANTENNA
ASSIGNABLE
AM
FM 75
DIGITAL IN
L
L
R
R
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
L
L
R
R
VCR/DVR
DVD
MONITOR
OUT V
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
L
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
SURROUND CENTER SURR BACK
L
FRONT
SPEAKERS A
CENTER
SPEAKER
PRE OUT
L
SUB
WOOFER
R
R
REMOTE
CONTROL
CD
TAPE
R
CBL/SAT
VCR/DVR
DVD
SUB
WOOFER
Front right
speaker
FRONT
SPEAKERS B
Front left
speaker
Speaker Set B
Wall Mounting
The speakers can easily be mounted
on a wall by using the attached wall
brackets.
Wall brackets
To mount a front, surround, or surround back speaker vertically, use
its wall bracket, as shown, to hang
it on a screw that's securely screwed
into the wall.
To mount the center speaker horizontally, use its two wall brackets,
as shown, to hang it on two screws
that are securely screwed into the
wall.
13" (330 mm)
Front speaker
(SKF-550F)
Surround and
Surround back speaker
(SKM-550S/SKB-550)
Caution:
A mounting screw’s ability to support a speaker depends on how well it’s anchored to the wall.
If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the
walls are solid, use suitable wall anchors.
Use screws with a head diameter of 5/16" (9 mm) or less and a shank diameter of 1/8" (4 mm)
or less. With hollow walls, use a cable/pipe detector to check for any power cables or water
pipes before making any holes.
Leave a gap of between 5/16" (7 mm) and 7/16" (10 mm) between the wall and the base of the
screw head, as shown.
(We recommend that you consult a home installation professional.)
Center speaker
(SKC-550C)
Wall
5/16" – 7/16"
(7 mm) – (10 mm)
21
HT-SR800_En.book Page 22 Thursday, January 25, 2007 10:28 AM
Connecting Antennas
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM and AM antennas.
The AV receiver won’t pick up any radio signals without
any antenna connected, so you must connect the antenna
to use the tuner.
AM antenna push terminals
FM antenna jack
AM
OUT
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around).
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
FM 75
OUT
OUT
Connecting the Indoor FM Antenna
The supplied indoor FM antenna is for indoor use only.
1
The supplied indoor AM loop antenna is for indoor use
only.
ANTENNA
OUT
OUT
Connecting the AM Loop Antenna
Attach the FM antenna, as shown.
■ American Model
FM 75
Insert the plug fully
into the jack.
Push
Insert wire
Release
■ Other Models
FM 75
Insert the plug fully
into the jack.
Once your AV receiver is ready for use, you’ll
need to tune into an FM radio station and adjust
the position of the FM antenna to achieve the best
possible reception.
2
Use thumbtacks or something similar to
fix the FM antenna into position.
Thumbtacks, etc.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 23).
22
Once your AV receiver is ready for use, you’ll
need to tune into an AM radio station and adjust
the position of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from
your AV receiver, TV, speaker cables, and power
cords.
If you cannot achieve good reception with the supplied
indoor AM loop antenna, try using it with a commercially available outdoor AM antenna (see page 23).
HT-SR800_En.book Page 23 Thursday, January 25, 2007 10:28 AM
Connecting Antennas—Continued
Connecting an Outdoor FM Antenna
Connecting an Outdoor AM Antenna
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available outdoor FM antenna instead.
If good reception cannot be achieved using the supplied
AM loop antenna, an outdoor AM antenna can be used in
addition to the loop antenna, as shown.
Outdoor antenna
FM 75
Insulated antenna cable
AM loop antenna
Notes:
• Outdoor FM antennas work best outside, but usable
results can sometimes be obtained when installed in an
attic or loft.
• For best results, install the outdoor FM antenna well
away from tall buildings, preferably with a clear line
of sight to your local FM transmitter.
• Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.
• For safety reasons, outdoor antenna should be situated
well away from power lines and other high-voltage
equipment.
• Outdoor antenna must be grounded in accordance
with local regulations to prevent electrical shock hazards.
Outdoor AM antennas work best when installed horizontally outside, but good results can sometimes be obtained
indoors by mounting horizontally above a window. Note
that the AM loop antenna should be left connected.
Outdoor antenna must be grounded in accordance with
local regulations to prevent electrical shock hazards.
■ Using a TV/FM Antenna Splitter
It’s best not to use the same antenna for both FM and TV
reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as
shown.
TV/FM antenna splitter
To AV receiver
To TV (or VCR)
23
HT-SR800_En.book Page 24 Thursday, January 25, 2007 10:28 AM
Connecting Your Components
AV Connection Color Coding
About AV Connections
RCA-type AV connections are usually color coded: red,
white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use
white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to
connect composite video inputs and outputs.
• Before making any AV connections, read the manuals
supplied with your other AV components.
• Don’t connect the power cord until you’ve completed
and double-checked all AV connections.
Optical Digital Jacks
Left (white)
The AV receiver’s optical digital jacks have shutter-type
covers that open when an optical plug is inserted and
close when it’s removed. Push plugs in all the way.
Analog audio
Right (red)
(Yellow)
Caution: To prevent shutter damage, hold the optical
plug straight when inserting and removing.
Left (white)
Right (red)
Composite video
• Push plugs in all the way to make
good connections (loose connections can cause noise or malfunctions).
• To prevent interference, keep
audio and video cables away from
power cords and speaker cables.
(Yellow)
Right!
Wrong!
AV Cables and Jacks
Video
Cable
Component
video cable
Jack
Y
Y
PB
PB
PR
PR
Description
Y
CB/PB
CR/PR
Component video separates the luminance (Y) and
color difference signals (PR, PB), providing the best
picture quality. (Some TV manufacturers label their
component video jacks slightly differently.)
S-Video cable
S
S-Video separates the luminance and color signals
and provides better picture quality than composite
video.
Composite
video cable
V
Composite video is commonly used on TVs, VCRs,
and other video equipment. Use only dedicated
composite video cables.
Audio
Cable
Jack
Optical digital
audio cable
OPTICAL
Coaxial digital
audio cable
COAXIAL
Analog audio
cable (RCA)
L
R
Multichannel
analog audio
cable (RCA)
Note: The AV receiver does not support SCART connections.
24
Description
This offers the best sound quality and allows you to
enjoy Dolby Digital and DTS. The audio quality is
the same as for coaxial.
This offers the best sound quality and allows you to
enjoy Dolby Digital and DTS. The audio quality is
the same as for optical.
This cable carries analog audio. It’s the most common connection format for analog audio and can be
found on virtually all AV components.
This cable carries multichannel analog audio and is
typically used to connect DVD players with a 7.1channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.
HT-SR800_En.book Page 25 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting Audio and Video Signals to the AV Receiver
By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you
can switch the audio and video signals simultaneously simply by changing the input source on the AV receiver.
: Signal Flow
Video
Video
Audio
Audio
Speakers (see page 21 for hookup
details)
TV, projector,
etc.
DVD player, etc.
Which Connections Should I Use?
The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format
you choose will depend on the formats supported by your other components. Use the following sections as a guide.
For video components, such as a DVD player, you must make an audio connection and a video connection.
Audio Connection Formats
When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats.
Video Connection Formats
Video equipment can be connected by using any one of the following video connection formats: composite video,
S-Video, or component video, the latter offering the best picture quality.
When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats, so only outputs
of the same format as the input will output the signal.
Video Signal Flow Chart
DVD player, etc.
Composite
S-Video
Component
IN
AV Receiver
MONITOR OUT
Composite
S-Video
Component
TV, projector, etc.
25
HT-SR800_En.book Page 26 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a TV or Projector
Step 1: Choose a video connection from A , B , and C .
Step 2: Choose an audio connection from a , b , and c .
• With connection a , you can listen to and record audio from your TV and listen via speaker set B.
• To enjoy Dolby Digital and DTS, use connection b or c . (For recording, use a and b , or a and c .)
Connection
AV receiver
Signal flow
A
COMPONENT VIDEO OUT
B
MONITOR OUT S
C
MONITOR OUT V
a
CBL/SAT IN L/R
b
DIGITAL IN COAXIAL 2
c
DIGITAL IN OPTICAL 1
TV
⇒
⇒
⇒
⇐
⇐
⇐
Component video input
IN 1
OUT
Best
S-Video input
Better
Composite video input
Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
XM
SIRIUS
HDMI
IN 2
Picture quality
ANTENNA
ASSIGNABLE
AM
FM 75
L
DIGITAL IN
L
ASSIGNABLE
COAXIAL
1
b
C
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
R
R
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
c
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
A
OUT
IN
L
L
L
R
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
B
FRONT
SPEAKERS A
PRE OUT
L
SUB
WOOFER
L
CD
R
CBL/SAT
TAPE
L
COAXIAL
OUT
OPTICAL
OUT
Y
PB
PR
COMPONENT VIDEO IN
Connect one or the other
Connection c must be assigned (see page 41)
26
SURROUND
SPEAKERS
R
REMOTE
CONTROL
Hint!
SURROUND BACK
SPEAKERS
SURROUND CENTER SURR BACK
VCR/DVR
DVD
SUB
WOOFER
a
FRONT
SPEAKERS B
R
AUDIO
OUT
S VIDEO
IN
VIDEO
IN
TV, projector,
etc.
If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite
receiver to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see
pages 30 and 32).
S
HT-SR800_En.book Page 27 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a DVD player
Step 1: Choose a video connection from A , B , and C .
You must connect the AV receiver to your TV via the same type of connection.
Step 2: Choose an audio connection from a , b , and c .
• With connection a , you can listen to and record audio from a DVD and listen via speaker set B.
• To enjoy Dolby Digital and DTS, use connection b or c . (For recording, use a and b , or a and c .)
• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the
main left and right outputs for connection a .
Connection
AV receiver
Signal flow DVD player
⇐
⇐
⇐
⇐
⇐
⇐
COMPONENT VIDEO DVD IN
A
B
DVD IN S
C
DVD IN V
a
DVD IN FRONT
b
DIGITAL IN COAXIAL 1
c
DIGITAL IN OPTICAL 1
b
IN 1
OUT
Best
S-Video output
Better
Composite video output
Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
XM
SIRIUS
HDMI
IN 2
Picture quality
Component video output
ASSIGNABLE
ANTENNA
AM
FM 75
L
DIGITAL IN
L
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
c
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
C
MONITOR
OUT V
R
R
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
A
OUT
IN
L
L
L
R
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND CENTER SURR BACK
L
B
SURROUND
SPEAKERS
FRONT
SPEAKERS A
PRE OUT
L
SUB
WOOFER
R
REMOTE
CONTROL
CD
R
CBL/SAT
TAPE
L
COAXIAL
OUT
OPTICAL
OUT
Y
PB
PR
COMPONENT VIDEO OUT
Connect one or the other
Connection c must be assigned (see page 41)
VCR/DVR
DVD
SUB
WOOFER
a
FRONT
SPEAKERS
R
AUDIO
OUT
S VIDEO
OUT
VIDEO
OUT
DVD player
To connect a DVD player or DVD-Audio/SACD-capable player with a
multichannel analog audio output, see page 28.
27
HT-SR800_En.book Page 28 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Hooking Up the Multichannel DVD Input
If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel
analog audio output, you can connect it to the AV receiver’s multichannel DVD input.
Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD IN FRONT
L/R, CENTER, SURROUND L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output
on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV
receiver’s SURR BACK L/R jacks.
IN 1
OUT
XM
SIRIUS
HDMI
IN 2
ASSIGNABLE
ANTENNA
AM
FM 75
DIGITAL IN
L
L
R
R
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
7.1 ch
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
IN
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
IN
OUT
OUT
IN
IN
SURROUND BACK
SPEAKERS
IN
FRONT
L
L
L
R
R
R
R
FRONT
SPEAKERS A
FRONT
PRE OUT
SURROUND CENTER SURR BACK
L
5.1 ch
SURROUND
SPEAKERS
CENTER
SPEAKER
SURROUND
CENTER
SURR BACK
L
SUB
WOOFER
L
L
R
REMOTE
CONTROL
CD
TAPE
CBL/SAT
VCR/DVR
DVD
R
SUB
WOOFER
FRONT
SPEAKERS B
DVD
L
R
FRONT
L
R
SUB
WOOFER
R
SURROUND
L
CENTER
SUB
WOOFER
DVD player
28
R
SURR
BACK
HT-SR800_En.book Page 29 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting Components with HDMI
If you have an HDMI-compatible player, you can connect it to the AV receiver with an HDMI cable.
Step 1: Connect your HDMI-compatible TV to the AV receiver’s HDMI OUT jack.
Step 2: Connect your HDMI-compatible player to the AV receiver’s HDMI IN 1 or 2 jack.
Step 3: Connect your HDMI-compatible player to an analog and/or digital audio input on the AV
receiver.
✽ Audio and video signals received via the HDMI IN 1 and 2 jacks are output by the HDMI OUT jack as they
are (HDMI pass-through), so even if you only make the connections in steps 1 and 2, your TV will output
sound. However, if you want to listen through the speakers connected to the AV receiver, in addition to an
HDMI connection, you’ll also need to make a separate analog or digital audio connection.
Step 4: Assign the HDMI IN.
Turn on the AV receiver, and then assign the HDMI IN (see page 40)
HDMI
OUT
HDMI
IN
TV
Step 2
DVD player
Step 1
HDMI
HDMI
ASSIGNABLE
Step 3 ✽
IN 1
IN 2
IN 1
OUT
HDMI
ANTENNA
ASSIGNABLE
AM
SURROUND BACK
SPEAKERS
FM 75
L
DIGITAL IN
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
CB/PB
(CBL/SAT)
VCR/DVR
DVD
MONITOR
OUT V
R
V
S
OPTICAL
CR/PR
S
L
L
L
L
R
R
R
R
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
REMOTE
CONTROL
CD
OUT
IN
TAPE
IN
OUT
IN
IN
IN
OUT
IN
FRONT
CBL/SAT
VCR/DVR
Tip!
If you make the connection described in
step 3, to fully enjoy the AV receiver's listening modes, turn down the volume on
your TV all the way so that its speakers
output no sound.
SURROUND CENTER SURR BACK
DVD
SUB
WOOFER
Sound off
Connect one
or the other
Notes:
• Audio and video signals received via the HDMI IN jacks are output only by the HDMI OUT.
• Audio and video signals received via inputs other than the HDMI IN jacks are not output by the HDMI OUT.
• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input
can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll
need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed.
In addition, video signals from a PC are not supported.
• To watch an HDMI source that’s connected via the AV receiver’s HDMI jacks, the AV receiver must be turned on,
otherwise no HDMI signal will be output.
• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If
the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the
connected component’s instruction manual for details.
29
HT-SR800_En.book Page 30 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a VCR or DVD Recorder for Playback
Hint!
With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV
receiver, useful if your TV has no audio outputs.
Step 1: Choose a video connection from A , B , and C .
You must connect the AV receiver to your TV via the same type of connection.
Step 2: Choose an audio connection from a , b , and c .
• With connection a , you can listen to the VCR or DVD recorder even via speaker set B.
• To enjoy Dolby Digital and DTS, use connection b or c . (To listen via speaker set B, use a and b , or a and
c .)
Connection
A
AV receiver
Signal flow
B
VCR/DVR IN S
C
VCR/DVR IN V
a
VCR/DVR IN L/R
b
DIGITAL IN COAXIAL 2
c
DIGITAL IN OPTICAL 1
VCR or DVD recorder
⇐
⇐
⇐
⇐
⇐
⇐
COMPONENT VIDEO VCR/DVR IN
S-Video output
IN 1
OUT
Best
Better
Composite video output
Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
XM
SIRIUS
HDMI
IN 2
Picture quality
Component video output
ASSIGNABLE
ANTENNA
AM
FM 75
L
DIGITAL IN
ASSIGNABLE
COAXIAL
1
b
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
R
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
c
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
A
OUT
IN
L
L
L
R
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
B
SURROUND CENTER SURR BACK
L
SURROUND
SPEAKERS
FRONT
SPEAKERS A
PRE OUT
L
SUB
WOOFER
R
REMOTE
CONTROL
CD
R
CBL/SAT
TAPE
L
COAXIAL
OUT
OPTICAL
OUT
Y
PB
PR
COMPONENT VIDEO OUT
VCR/DVR
DVD
SUB
WOOFER
R
AUDIO
OUT
Connect one or the other
Connection b must be assigned (see page 41)
VCR,
DVD recorder
30
C
Y
(DVD)
S VIDEO
OUT
VIDEO
OUT
a
FRON
SPEAKE
HT-SR800_En.book Page 31 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a VCR or DVD Recorder for Recording
Step 1: Choose a video connection from A and B .
The video source to be recorded must be connected to the AV receiver via the same type of connection.
Step 2: Make the audio connection a .
XM
SIRIUS
ANTENNA
AM
FM 75
DIGITAL IN
L
L
R
R
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
CB/PB
(CBL/SAT)
VCR/DVR
DVD
B
MONITOR
OUT V
V
S
OPTICAL
1
CR/PR
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
S
OUT
DVD IN
COMPONENT VIDEO
2
IN
(CD)
a
OUT
IN
L
L
L
R
R
R
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
A
FRONT
SPEAKERS A
PRE OUT
SURROUND CENTER SURR BACK
L
SUB
WOOFER
L
R
REMOTE
CONTROL
CD
R
TAPE
CBL/SAT
VCR/DVR
DVD
SUB
WOOFER
FRONT
SPEAKERS B
L
S VIDEO IN
R
AUDIO
IN
VIDEO IN
VCR, DVD recorder
Connection
AV receiver
Signal flow
A
VCR/DVR OUT S
B
VCR/DVR OUT V
a
VCR/DVR OUT L/R
VCR or DVD recorder
⇒
⇒
⇒
Picture quality
S-Video input
Better
Composite video input
Standard
Analog audio L/R input
—
Connecting a Camcorder, Games Console, or Other Device
Step 1: Make the video connection A .
Step 2: Make the audio connection a .
MASTER VOLUME
TUNING
PRESET
a
SETUP
ENTER
AUX INPUT
L AUDIO R
RETURN
AUX INPUT
SETUP MIC
VIDEO
L
AUDIO
R
TUNING MODE
L AUDIO R
OUT
A
AUX INPUT
VIDEO
VIDEO OUT
Camcorder, games console, etc.
Connection
AV receiver
A
AUX INPUT VIDEO
a
AUX INPUT L-AUDIO-R
Signal flow
Camcorder or console
⇐
⇐
Analog audio L/R output
Composite video output
31
HT-SR800_En.book Page 32 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a Satellite, Cable, Set-top box, or Other Video Source
Hint!
With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs
via the AV receiver, useful if your TV has no audio outputs.
Step 1: Choose a video connection from A , B , and C .
You must connect the AV receiver to your TV via the same type of connection.
Step 2: Choose an audio connection from a , b , and c .
• With connection a , you can listen to and record audio from the video source and listen via speaker set B.
• To enjoy Dolby Digital and DTS, use connection b or c . (For recording, use a and b , or a and c .)
Connection
AV receiver
Signal flow
A
COMPONENT VIDEO CBL/SAT IN
B
CBL/SAT IN S
C
CBL/SAT IN V
a
CBL/SAT IN L/R
b
DIGITAL IN COAXIAL 2
c
DIGITAL IN OPTICAL 1
Video source
⇐
⇐
⇐
⇐
⇐
⇐
Picture quality
S-Video output
Better
IN 1
Standard
Composite video output
Analog audio L/R output
Digital coaxial output
Digital optical output
OUT
XM
SIRIUS
HDMI
IN 2
Best
Component video output
ANTENNA
ASSIGNABLE
AM
FM 75
L
DIGITAL IN
ASSIGNABLE
COAXIAL
1
b
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
C
MONITOR
OUT V
DVD
R
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
c
OUT
DVD IN
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
L
L
L
R
R
R
SURROUND BACK
SPEAKERS
B
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND CENTER SURR BACK
L
SURROUND
SPEAKERS
FRONT
SPEAKERS A
PRE OUT
L
SUB
WOOFER
R
A
REMOTE
CONTROL
CD
R
CBL/SAT
TAPE
L
COAXIAL
OUT
OPTICAL
OUT
Connect one or the other
Connection c must be assigned (see page 41)
32
Y
PB
PR
COMPONENT VIDEO OUT
VCR/DVR
DVD
SUB
WOOFER
a
R
AUDIO
OUT
S VIDEO
OUT
VIDEO
OUT
Satellite, cable, set-top box, etc.
FRO
SPEAK
HT-SR800_En.book Page 33 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting a CD Player or Turntable
■ CD Player or Turntable (MM) with Built-in Phono Preamp
Step 1:
Choose a connection that matches your CD player ( a , b , or c ). Use connection a for a turntable with a built-in
phono preamp.
IN 2
COAXIAL
OUT
ANTENNA
AM
FM 75
IN
L
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
VCR/DVR
OPTICAL
1
(VCR/DVR)
2
CBL/SAT IN VCR/DVR IN
DVD IN
CR/PR
S
L
L
R
R
OUT
COMPONENT VIDEO
2
IN
(CD)
IN
OUT
IN
L
L
R
REMOTE
CONTROL
CD
TAPE
L
R
R
R
S
OPTICAL
(CD)
L
MONITOR
OUT V
DVD
V
CB/PB
(CBL/SAT)
c
ASSIGNABLE
DIGITAL IN
2
(CBL/SAT)
Connect one
or the other
Connection b
must be
assigned (see
page 41)
IN 1
XM
SIRIUS
HDMI
b
AUDIO
OUTPUT
SURROUND BACK
SPEAKERS
CD
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND CENTER SURR BACK
L
a
R
CBL/SAT
VCR/DVR
DVD
SUB
WOOFER
R
CD
COAXIAL
OUT
a
L
OPTICAL
OUT
R
AUDIO
OUT
Turntable (MM) with
built-in phono preamp
CD player
• With connection a , you can listen to and record audio from your CD player or turntable and listen via speaker set
B.
• To connect the CD player digitally, use connection b or c . (For recording, use a and b , or a and c .)
Connection
AV receiver
Signal flow
a
CD IN L/R
b
DIGITAL IN COAXIAL 2
c
DIGITAL IN OPTICAL 2
■ Turntable (MM) with no Phono Preamp Built-in
A phono preamp is necessary to connect a turntable that
doesn’t have a phono preamp built-in.
IN 1
OUT
ASSIGNABLE
AM
DVD
CBL/SAT
MONITOR
OUT V
2
R
1
CR/PR
CBL/SAT IN VCR/DVR IN
DVD IN
REMOTE
CONTROL
IN
OUT
OUT
IN
IN
OUT
IN
IN
IN
OUT
IN
FRONT
L
L
L
L
R
R
R
R
S
L
L
R
R
R
R
CBL/SAT
VCR/DVR
AUDIO
OUTPUT
L
L
DVD
REMOTE
CONTROL
SUB
WOOFER
IN
Phono preamp
R
R
IN
AUDIO
OUTPUT
CD
OUT
IN
IN
OUT
IN
IN
IN
OUT
IN
FRONT
CBL/SAT
TAPE
SURROUND BACK
SPEAKERS
SURROUND CENTER SURR BACK
VCR/DVR
DVD
SUB
WOOFER
AUDIO
OUTPUT
L
L
R
R
CD
CD
OUT
DVD IN
COMPONENT VIDEO
2
L
TAPE
R
S
CBL/SAT IN VCR/DVR IN
SURROUND CENTER SURR BACK
L
CD
MONITOR
OUT V
CR/PR
(VCR/DVR)
SURROUND BACK
SPEAKERS
(CD)
IN
DVD
V
1
S
COMPONENT VIDEO
2
(CD)
VCR/DVR
CB/PB
(CBL/SAT)
OPTICAL
S
(VCR/DVR)
L
Y
(DVD)
VCR/DVR
V
OPTICAL
FM 75
ASSIGNABLE
COAXIAL
1
CBL/SAT
CB/PB
ANTENNA
OUT ASSIGNABLE
IN 1
DIGITAL IN
L
XM
SIRIUS
HDMI
IN 2
FM 75
Y
2
Digital optical output
ANTENNA
AM
(DVD)
Digital coaxial output
■ Turntable with an MC (Moving Coil) Cartridge
An MC head amp and phono preamp are necessary to
connect a turntable with an MC (Moving Coil) cartridge.
ASSIGNABLE
(CBL/SAT)
Analog audio L/R output
XM
SIRIUS
HDMI
IN 2
DIGITAL IN
COAXIAL
1
CD or turntable
⇐
⇐
⇐
AUDIO
INPUT
AUDIO
OUTPUT
L
L
R
R
Phono
preamp
MC head amp or
MC transformer
AUDIO
INPUT
L
L
R
R
AUDIO
OUTPUT
AUDIO
INPUT
L
L
R
R
33
HT-SR800_En.book Page 34 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting an RI Dock
■ RI Dock with video
Connect your RI Dock’s analog audio output jacks
and S-Video output jack to the AV receiver’s
CBL/SAT IN L/R jacks and CBL/SAT IN S jack.
S VIDEO
OUT
AUDIO
OUT
L
■ RI Dock without video
Connect your RI Dock’s analog audio output jacks to
the AV receiver’s TAPE IN L/R jacks (1).
R
SIRIUS
HDMI
IN 2
IN 1
ANTENNA
ASSIGNABLE
OUT
AM
FM 75
DIGITAL IN
ASSIGNABLE
COAXIAL
1
Notes:
• Connect the Remote Interactive Dock with an
cable (see page 35).
• Set the Remote Interactive Dock’s RI MODE switch
to HDD or HDD/DOCK.
• Set the AV receiver’s Input Display to DOCK (see
page 41).
• Refer to the Remote Interactive Dock’s instruction
manual.
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
L
L
VCR/DVR
S
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
OUT
IN
L
R
REMOTE
CONTROL
R
CD
OUT
IN
IN
OUT
IN
FRONT
CBL/SAT
VCR/DVR
Step 1:
Choose a connection that matches the recorder ( a , b , or c ), and then make the connection.
HDMI
IN 2
IN 1
OUT
ASSIGNABLE
DIGITAL IN
ASSIGNABLE
COAXIAL
1
(CBL/SAT)
Y
(DVD)
2
CB/PB
(CBL/SAT)
OPTICAL
CR/PR
1
(VCR/DVR)
c
CBL/SAT IN VCR/DVR IN
OPTICAL
1
DVD IN
IN
OUT
a
IN
L
L
R
REMOTE
CONTROL
OUT
IN
L
(VCR/DVR)
Connect one or the
other
These connections
must be assigned
(see page 41)
OUT
COMPONENT VIDEO
2
(CD)
R
CD
TAPE
R
TAPE
COAXIAL
OUT
OPTICAL
OUT
L
L
R
R
IN
OUT
REC PLAY
Cassette recorder, CDR, etc.
• With connection a , you can listen via speaker set B.
• To connect the recorder digitally, use connections a and b , or a and c .
Connection
34
AV receiver
a
TAPE IN L/R
TAPE OUT L/R
b
DIGITAL IN COAXIAL 2
c
DIGITAL IN OPTICAL 1
Signal flow
⇐
⇒
⇐
⇐
SURROUND
R
1
TAPE
IN
IN
Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
b
MONITOR
OUT V
OPTICAL
(DS-A1 hookup shown here.)
COAXIAL
2
DVD
Cassette/CDR/MD/DAT recorder
Analog audio L/R output
Analog audio L/R input
Digital coaxial output
Digital optical output
DVD
HT-SR800_En.book Page 35 Thursday, January 25, 2007 10:28 AM
Connecting Your Components—Continued
Connecting Onkyo
Components
Step 1: Make sure that each Onkyo component is connected to the AV receiver with an analog audio cable (connection a in the hookup examples) (see pages 27 to 34).
Step 2: Make the
connection.
Step 3: If you’re using an MD, CDR, or RI Dock, change the input Display (see page 41).
With
(Remote Interactive), you can use the following special functions:
■ Auto Power On/Standby
When you start playback on a component connected via
, if the AV receiver is on Standby, it will automatically
turn on and select that component as the input source. Similarly, when the AV receiver is set to Standby, all components connected via
will also go on Standby. This function will not work on components connected to an AC
OUTLET on the AV receiver.
■ Direct Change
When playback is started on a component connected via
, the AV receiver automatically selects that component
as the input source. If your DVD player is connected to the AV receiver’s multichannel DVD input, you’ll need to
press the [MULTI CH] button to hear all channels (see page 43), as the Direct Change
function only selects the
FRONT DVD IN jacks.
■ Remote Control
You can use the AV receiver’s remote controller to control your other
-capable Onkyo components, pointing the
remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (page 63).
Notes:
• Use only
cables for
connections.
cables are supplied with Onkyo players (DVD,
CD, etc.).
• Some components have two
jacks. You can
connect either one to the AV receiver. The other
jack is for connecting additional
-capable
components.
• Connect only Onkyo components to
jacks.
Connecting other manufacturer’s components
may cause a malfunction.
• Some components may not support all
functions. Refer to the manuals supplied with your
other Onkyo components.
IN
L
R
IN 1
OUT
XM
SIRIUS
HDMI
IN 2
ANTENNA
ASSIGNABLE
AM
FM 75
CD
L
DIGITAL IN
L
ASSIGNABLE
COAXIAL
1
Y
(DVD)
CBL/SAT
2
REMOTE
CONTROL
CB/PB
(CBL/SAT)
VCR/DVR
DVD
MONITOR
OUT V
R
V
R
S
OPTICAL
1
CR/PR
S
L
L
R
R
FRONT
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
IN
(CD)
IN
OUT
L
IN
OUT
IN
IN
IN
OUT
IN
FRONT
SURROUND BACK
SPEAKERS
SURROUND CENTER SURR BACK
L
SURROUND
SPEAKERS
FRONT
SPEAKERS A
PRE OUT
CENTER
SPEAKER
L
L
SUB
WOOFER
R
R
REMOTE
CONTROL
CD
TAPE
R
CBL/SAT
VCR/DVR
DVD
SUB
WOOFER
R
FRONT
SPEAKERS B
DVD
e.g., CD player
R
L
ANALOG
AUDIO OUT
e.g., DVD player
R
L
ANALOG
AUDIO OUT
Connecting the Power Cord
• Connect the AV receiver’s power cord to a suitable wall outlet.
Notes:
• Before connecting the power cord, connect all of your speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment
on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.
35
HT-SR800_En.book Page 36 Thursday, January 25, 2007 10:28 AM
Turning On the AV Receiver
STANDBY/ON
STANDBY/ON
STANDBY indicator
REMOTE MODE
STANDBY/ON
DVD
RECEIVER
TAPE/AMP
INPUT SELECTOR
RECEIVER
1
2
VCR/DVR
CBL/SAT
M D/CDR
CD
3
DOCK
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
4
5
6
AUX
MULTI CH
DVD
7
STANDBY
8
TAPE
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
CD
11
12
+10
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
D TUN
RETURN
VCR
9
TUNER
10
TV
CLR
CABLE
SAT
ENT
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
TV
CH
VOL
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
Turning On and Standby
1
Remote
controller
AV receiver
STANDBY/ON
RECEIVER
Press the [STANDBY/ON] button.
Alternatively, press the remote controller’s [RECEIVER] button, followed
by the [STANDBY/ON] button.
The AV receiver comes on, the display lights up, and the STANDBY indicator goes off.
or
STANDBY/ON
To turn the AV receiver off, press the [STANDBY/ON] button again. The AV receiver
will enter Standby mode. To prevent any loud surprises when you next turn on the AV
receiver, always turn down the volume before you turn it off.
To turn on the subwoofer, press its [POWER] switch to the ON position (not North
American models).
Smooth Operation in a Few Easy Steps
To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the
very first time. These settings only need to be made once.
■ Do the automatic speaker setup—this is essential!
See “Automatic Speaker Setup (Audyssey 2EQ/HTIB)” on
page 37.
■ Have you connected a component to an HDMI IN?
If you have, see “HDMI Video Setup” on page 40.
■ Have you connected a component to a digital audio input?
If you have, see “Digital Audio Input Setup” on page 41.
HDMI
COAXIAL
OPTICAL
■ Have you connected an Onkyo MD recorder, CD recorder,
or RI Dock?
If you have, see “Changing the Input Display” on page 41.
OUT
TAPE
36
IN
CD recorder, MD recorder,
RI Dock
HT-SR800_En.book Page 37 Thursday, January 25, 2007 10:28 AM
First Time Setup
This section explains the settings that you need to make before using the AV receiver for the very first time.
Automatic Speaker Setup (Audyssey 2EQ/HTIB)
With the supplied speaker setup microphone, the Audyssey 2EQ/HTIB function can measure the number of speakers
connected, their sizes, crossover frequencies, and distances from the listening position, and then calculate the optimal
speaker settings for your listening environment.
Before using this function, connect and position all of the supplied speakers.
Measurement Points
To create a listening area in which several people can enjoy home theater simultaneously, the Audyssey 2EQ/HTIB
function takes measurements at three points within the listening area:
A First measurement point
This is the center point of the listening area, or the listening position if it’s just one person.
B Second measurement point
The right side of the listening area.
C Third measurement point
The left side of the listening area.
The distances between points 1 and 2 and points 1 and 3 must be at least 1 meter.
From the examples below, choose the listening area that best matches yours and place the microphone accordingly when
prompted.
TV
TV
TV
TV
TV
TV
TV
TV
TV
: Listening area
: Listening position
37
HT-SR800_En.book Page 38 Thursday, January 25, 2007 10:28 AM
First Time Setup—Continued
Using Audyssey 2EQ/HTIB
1
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
2, 6
Notes:
• If the AV receiver was previously muted, it will
be unmuted.
• Automatic speaker setup cannot be performed
while a pair of headphones is connected.
• It takes about 10 minutes to complete the automatic speaker setup.
SETUP MIC
4
1
Turn on the AV receiver.
2
Put the speaker setup microphone at
measurement point 1 (page 37), and
connect it to the SETUP MIC jack.
Audyssey 2EQ/HTIB performs more measurements.
This takes a few minutes.
SETUP MIC
5
Notes:
• Make sure the microphone is horizontal.
• If there’s an obstacle between the microphone and any speaker, the automatic setup
will not work correctly. Set up the room as
you would when enjoying a DVD.
• Positioning the microphone close to where
your ears would normally be will provide
better results. You can adjust the height of the
microphone by using a tripod or level table.
3
When the following display appears,
move the speaker setup microphone to
measurement point 3 (page 37), and
then press [ENTER].
Audyssey 2EQ/HTIB performs more measurements.
This takes a few minutes.
When the measurements are complete, the
results are calculated and saved automatically.
Press [ENTER].
The automatic speaker setup starts.
A test tone is output by each speaker in turn, as
the Audyssey 2EQ/HTIB function determines
which speakers are connected. This takes a few
minutes.
Note:
• If any extraneous noise is picked up by the
microphone, the automatic setup may not
work correctly, so don’t make any noise.
38
When the following display appears,
move the speaker setup microphone to
measurement point 2 (page 37), and
then press [ENTER].
6
When the automatic speaker setup is
complete, disconnect the speaker setup
microphone.
Notes:
• When the automatic speaker setup is complete, the
Equalizer Settings (page 60) will be set to “Audyssey.”
• You can cancel the automatic speaker setup at any
point in this procedure simply by disconnecting the
setup microphone.
HT-SR800_En.book Page 39 Thursday, January 25, 2007 10:28 AM
First Time Setup—Continued
Error Messages
Changing the Speaker Settings Manually
While the automatic speaker setup is in progress, one of
the following error messages may appear:
In some situations, the measurements taken by the automatic speaker setup may not provide usable results. If
running the speaker setup a second time still doesn’t provide usable results, you’ll have to set the speaker settings
manually (see pages 56–60).
Ambient noise is too high
This message appears if there’s too much background
noise and the measurements cannot be performed properly. Remove the source of the noise and try again.
Speaker Detect Errors
This message appears if one of the speaker-related errors
below occurs.
• One of the front speakers has not been detected.
• One of the surround speakers has not been detected.
• The surround back speakers have been detected but
the surround speakers haven’t.
• The right surround back speaker has been detected but
the left surround back speaker hasn’t.
• The number of speakers detected on the second or
third measurment was different to the number detected
on the first measurement.
Using a Powered Subwoofer
If you’re using a powered subwoofer, because it outputs
very low-frequency sound and its position is usually low
down, it may not be detected by the automatic speaker
setup. In this case, increase the subwoofer’s volume, set
it to its highest crossover frequency, and then try running
the automatic speaker setup again. Note that if the volume is set too high and the sound distorts, it may not be
detected, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct.
Refer to your subwoofer’s instruction manual for details.
Write Error
This message appears if saving fails.
To Retry the Automatic Speaker Setup
Press the [ENTER] button.
Make sure speakers that cannot be
detected are connected properly.
39
HT-SR800_En.book Page 40 Thursday, January 25, 2007 10:28 AM
First Time Setup—Continued
HDMI Video Setup
If you connect a video component to HDMI IN 1 or 2, use this setting to assign that input to an input selector.
1
RECEIVER
STANDBY/ON
Press the [RECEIVER] button,
followed by the [SETUP] button.
REMOTE MODE
RECEIVER
DVD
RECEIVER
TAPE/AMP
INPUT SELECTOR
1
2
VCR/DVR
CBL/SAT
M D/CDR
CD
3
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
VCR
9
TUNER
10
+10
TV
CD
11
12
0
CLR
D TUN
CABLE
SAT
SETUP
2
Use the Up and Down [ ]/[ ]
buttons to select “Video Input,”
and then press [ENTER].
3
Use the Up and Down [ ]/[ ]
buttons to select “HDMI DVD,”
“HDMI VCR,” or “HDMI CBL” and
use the Left and Right [ ]/[ ]
buttons to change the setting.
If you connect a video component to
HDMI IN 1 or 2, you must assign that
input to an input selector. For example,
if you connect your DVD player to
HDMI IN 1, you must assign HDMI
DVD setting to IN1.
IN1: Select if the video component
is connected to HDMI IN 1.
IN2: Select if the video component
is connected to HDMI IN 2.
No: Select if you’re not using the
HDMI OUT.
ENT
--/---
TV
DIMMER
SLEEP
VOL
DISC
ALBUM
CH
VOL
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
ENTER
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
SETUP
SETUP
RETURN
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
DISPLAY
VCR
RC-681M
HDMI
video
4
SETUP
40
Input
Press the [SETUP] button.
Setup closes.
HT-SR800_En.book Page 41 Thursday, January 25, 2007 10:28 AM
First Time Setup—Continued
Digital Audio Input Setup
1
Changing the Input Display
2, 3
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
If you connect an
-capable Onkyo MiniDisc
recorder, CD recorder, or RI Dock to the TAPE IN/OUT
or CBL/SAT IN jacks, for
to work properly, you
must change this setting.
This setting can only be changed on the AV receiver.
RETURN
1, 2
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
1, 2
CLEAR
MASTER VOLUME
TUNING
STANDBY/ON
To enjoy Dolby Digital and DTS, you must connect your
DVD player to the AV receiver digitally (coaxial or optical).
These are the default digital audio input assignments.
Input selector
Default assignment
DVD
VCR/DVR
CBL/SAT
TAPE
CD
AUX
COAX 1
OPT 1
COAX 2
---OPT 2
----
You can change the digital audio input assignments if
necessary. For example, if you connect your DVD player
to the OPTICAL 1 DIGITAL IN (OPT1), you must
assign that input to the DVD input selector, as follows.
1
DVD
VCR/DVR
AUX
TAPE
CBL/SAT
Press the input selector button
for the input selector that you
want to assign.
(Digital inputs cannot be assigned to
the TUNER input selector.)
STANDBY
DIGITAL INPUT
3
DIGITAL INPUT
Press the [DIGITAL INPUT] button repeatedly to select COAX1,
COAX2, OPT1, OPT2, or “– – – –”
(analog).
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
1
TAPE
Press the [TAPE] or [CBL/SAT]
input selector button so that
“TAPE” or “CBL/SAT” appears on
the display.
or
CBL/SAT
2
TAPE
or
Press and hold down the [TAPE]
or [CBL/SAT] input selector button (about 2 seconds) to change
the setting.
Repeat this step to select MD, CDR, or
DOCK.
For the TAPE input selector, the setting
changes in this order:
TAPE → MD → CDR → DOCK
→
CBL/SAT
Press the [DIGITAL INPUT]
button.
The current assignment appears.
DVD
MULTI CH
PHONES
CD
2
PRESET
For the CBL/SAT input selector, the
setting changes in this order:
CBL/SAT ↔ DOCK
Note:
DOCK can be selected for the TAPE input selector or
CBL/SAT input selector, but not both at the same time.
Note:
Make sure that components connected digitally are configured to output digital audio. Refer to the relevant manuals.
41
HT-SR800_En.book Page 42 Thursday, January 25, 2007 10:28 AM
Playing Your AV Components
Basic AV Receiver Operation
4
1
MULTI CH
STANDBY/ON
REMOTE MODE
DVD
RECEIVER
TAPE/AMP
MASTER VOLUME
TUNING
STANDBY/ON
1
INPUT SELECTOR
1
M D/CDR
1
2
VCR/DVR
CBL/SAT
4
5
6
AUX
MULTI CH
DVD
Subwoofer’s
rear panel
CD
3
DOCK
PRESET
TV
STANDBY
7
8
TAPE
TUNER
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
CD
11
+10
0
--/---
DIMMER
12
CLR
D TUN
AUX INPUT
SETUP MIC
PHONES
VCR
9
10
VCR/DVR
DVD
MULTI CH
CABLE
4
SAT
ENT
SLEEP
R
MEMORY TUNING MODE
CLEAR
TV
VOL
CH
DISC
ALBUM
VOL
4
MIN
MAX
INPUT
2
DISPLAY
2
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
OUTPUT LEVEL
MUTING
ENTER
PLAYLIST/CAT
1
Remote
controller
RECEIVER
AV receiver
DVD
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
1
2
VCR/DVR
CBL/SAT
AV receiver
A SPEAKERS
4
6
DVD
7
8
9
TAPE
TUNER
CD
Remote
controller
B
Use the AV receiver’s input selector buttons to select the input source.
To select the input source with the remote controller, press the
[RECEIVER] REMOTE MODE button, and then use the INPUT SELECTOR
buttons.
AUX
2
PLAYLIST/CAT
To turn the speakers on or off, use the AV receiver’s SPEAKERS [A] and
[B] buttons, or use the remote controller’s [SP A/B] button.
Pressing the remote controller’s [SP A/B] button cycles through the following settings:
Speaker Set A → Speaker Set A&B → Speaker Set B → Off.
Note that while speaker set B is on,
speaker set A is reduced to 5.1-channel
Indicators
playback.
See page 5 for more information about speaker sets A and B.
3
Start playback on the source component.
To watch a DVD or other video source, on your TV, select the video input that’s connected to the AV receiver’s MONITOR OUT jack.
If your TV is connected to the HDMI OUT, see the tip on page 29.
4
AV receiver
Remote
controller
MASTER VOLUME
VOL
To adjust the volume, use the MASTER VOLUME control, or the remote
controller’s [VOL] button.
The volume can be set to MIN, 1 through 79, or MAX. Since the AV receiver is
designed for home theater enjoyment, it has a wide volume range for precise adjustment.
To set the level of the subwoofer, use the OUTPUT LEVEL control.
Because our ears are less sensitive to very low bass sounds, there’s a temptation to set
the level of the subwoofer too high. As a rule of thumb, set the subwoofer level to what
you think is the optimal level, and then back it off slightly.
5
42
Select a suitable listening mode and enjoy!
See “Using the Listening Modes” on page 48.
HT-SR800_En.book Page 43 Thursday, January 25, 2007 10:28 AM
Playing Your AV Components—Continued
Displaying Source Information
STANDBY/ON
REMOTE MODE
DVD
RECEIVER
TAPE/AMP
INPUT SELECTOR
1
2
VCR/DVR
CBL/SAT
RECEIVER
M D/CDR
You can display various information about the current
input source as follows.
CD
3
DOCK
MULTI CH
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
TV
VCR
9
TUNER
10
CD
11
+10
0
--/---
DIMMER
12
CLR
D TUN
RECEIVER
CABLE
SAT
ENT
TV
VOL
SLEEP
CH
DISC
ALBUM
DISPLAY
Press the [RECEIVER] REMOTE
MODE button, and then press the
[DISPLAY] button repeatedly to
cycle through the available information.
VOL
The following information can typically be displayed:
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
DISPLAY
DISPLAY
VCR
Input source &
volume*1
Signal format*2
or sampling
frequency
RC-681M
Input source &
listening mode
Using the Multichannel DVD Input
The multichannel DVD input is for connecting a component with a 7.1-channel analog audio output, such as a
DVD-Audio or SACD-capable DVD player, or an
MPEG decoder. See page 28 for hookup information.
RECEIVER
Press the [RECEIVER] REMOTE
MODE button, followed by the
[MULTI CH] button.
The MULTI CH indicator appears on
the display.
MULTI CH indicator
*1 When AM or FM radio is used, the band, preset number, and frequency are displayed.
*2 If the input signal is analog, or AM or FM radio is
selected, no format information is displayed. If the
input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the
signal format is displayed. Information is displayed
for about 3 seconds, then the previous display reappears.
Note:
• The listening mode is displayed only when speaker set
A is on.
Interpreting Surround Channel Information
MULTI CH
A
Audio from the multichannel DVD
input will now be used for the DVD
input source.
Note:
• While the multichannel DVD input is selected, the
Speaker Configuration settings on page 56 are
ignored, and signals from the multichannel input are
fed to the speakers as they are.
B C
A: The number of front channels (front left, front right,
and center).
B: The number of surround channels (surround left and
surround right). If there’s surround back channel
information, this number will be 3.
C: LFE channel for subwoofer (1 means yes).
43
HT-SR800_En.book Page 44 Thursday, January 25, 2007 10:28 AM
Listening to the Radio
Tuning into AM/FM Radio Stations
Listening to AM/FM Stations
■ Auto Tuning Mode
TUNER
TUNING
1
TUNING MODE
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
Press the [TUNING MODE] button
so that the AUTO indicator
appears on the display.
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
2
TUNING
PRESET
TUNING MODE
Press the TUNING Up or Down
[ ]/[ ] button.
Searching stops when a station is
found.
With the built-in tuner, you can enjoy AM and FM radio
stations.
1
Use the [TUNER] input selector
button to select AM or FM.
In this example, FM has been selected.
TUNER
■ Manual Tuning Mode
1
Band
TUNING MODE
Frequency
Press the [TUNING MODE] button
so that the AUTO indicator disappears from the display.
(Actual display depends on country.)
2
TUNING
■ AM Frequency Step Setup (not North America)
You must specify the AM frequency step used in your
area. Note that when this setting is changed, all radio
presets are deleted.
1
Press the [SETUP] button, use the Up
and Down [ ]/[ ] buttons to select “0.
Hardware Setup,” and then press
[ENTER].
2
Use the Up and Down [ ]/[ ] buttons
to select “AM Freq,” and then use the
Left and Right [ ]/[ ] buttons to
select:
10 kHz: Select if 10 kHz steps are used in
your area.
9 kHz: Select if 9 kHz steps are used in
your area.
3
Press the [SETUP] button.
Setup closes.
PRESET
Press and hold the TUNING Up or
Down [ ]/[ ] button.
The frequency stops changing when
you release the button.
Press the buttons repeatedly to change
the frequency one step at a time.
The American model changes FM frequency in 0.2 MHz
steps, 10 kHz steps for AM. For other models it’s
0.05 MHz steps for FM and 9 kHz (or 10 kHz) steps for
AM.
When tuned into a station, the TUNED indicator
appears. When tuned into a stereo FM station, the FM
STEREO indicator also appears.
FM STEREO
AUTO
TUNED
Tuning into Weak FM Stereo Stations
If the signal from a stereo FM station is weak, it may be
impossible to get good reception. In this case, switch to
Manual Tuning mode and listen to the station in mono.
Note:
• You can also use the remote controller’s Up and Down
[ ]/[ ] buttons to tune the radio.
44
HT-SR800_En.book Page 45 Thursday, January 25, 2007 10:28 AM
Listening to the Radio—Continued
■ Tuning into Stations by Frequency
You can tune into AM and FM stations directly by entering the appropriate frequency.
STANDBY/ON
1
Press the [MEMORY] button.
The preset number flashes.
RECEIVER
DVD
2
M D/CDR
3
CD
3
DOCK
VCR/DVR
CBL/SAT
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
TUNER
TV
TUNING
CD
11
12
+10
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
PRESET
VCR
9
10
D TUN
MEMORY
REMOTE MODE
RECEIVER
TAPE/AMP
INPUT SELECTOR
Number
buttons
2
CABLE
SAT
While the preset number is flashing (about 8 seconds), use the
PRESET [ ]/[ ] buttons to
select a preset from 1 through 40.
ENT
TV
CH
CH +/–
VOL
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
4
MUTING
MEMORY
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
SETUP
1
RETURN
Press the [RECEIVER] button,
followed by the [D TUN] button.
RECEIVER
Press the [MEMORY] button
again to store the station or
channel.
The station or channel is stored and the
preset number stops flashing.
Repeat this procedure for all of your
favorite AM/FM radio stations.
■ Selecting Presets
D TUN
(Actual display depends on country.)
The [RECEIVER] button flashes.
2
1
2
3
4
5
6
MULTI CH
DVD
7
8
9
TAPE
TUNER
CD
10
11
+10
0
--/---
DIMMER
12
CLR
D TUN
TUNING
Within 8 seconds, use the number buttons to enter the frequency of the radio station.
For example, to tune to 87.5 (FM),
press 8, 7, 5.
Note: While the [RECEIVER] button is
flashing, the input source cannot be
changed by using the remote controller.
VCR/DVR CBL/SAT
AUX
1
ENT
SLEEP
PRESET
To select a preset, use the PRESET [ ]/[ ] buttons, or the
remote controller’s CH [+/–] button.
CH
DISC
ALBUM
■ Deleting Presets
1
Select the preset that you want to
delete.
See the previous section.
2
While holding down the [MEMORY] button, press the
[TUNING MODE] button.
The preset is deleted and its number
disappears from the display.
Presetting AM/FM Stations
PRESET
MEMORY TUNING MODE
MASTER VOLUME
TUNING
STANDBY/ON
CLEAR
PRESET
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
MEMORY
TUNING MODE
You can store a combination of up to 40 of your favorite
AM/FM radio stations as presets.
1
Tune into the AM/FM station that
you want to store as a preset.
45
HT-SR800_En.book Page 46 Thursday, January 25, 2007 10:28 AM
Common Functions
This section explains functions that can be used with any
input source.
STANDBY/ON
REMOTE MODE
Press
[RECEIVER]
first
DVD
RECEIVER
TAPE/AMP
INPUT SELECTOR
M D/CDR
1
2
CD
VCR/DVR
CBL/SAT
3
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
DIMMER
+10
0
--/---
DIMMER
12
CLR
D TUN
SLEEP
SAT
2
SLEEP
CH
VOL
TONE
Press the AV receiver’s [TONE]
button repeatedly to select either
Bass or Treble.
CABLE
ENT
TV
1
VCR
CD
11
You can adjust the bass and treble for the front speakers,
except when the Direct or Pure Audio (not North American models) listening mode is selected.
TV
9
TUNER
10
Adjusting the Bass and Treble
Use the TONE [–]/[+] buttons to
adjust.
VOL
DISC
ALBUM
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
MUTING
ENTER
PLAYLIST/CAT
■ Bass
You can boost or cut low-frequency sounds output by the
front speakers from –10 dB to +10 dB in 2 dB steps.
PLAYLIST/CAT
SETUP
RETURN
■ Treble
You can boost or cut high-frequency sounds output by
the front speakers from –10 dB to +10 dB in 2 dB steps.
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
CH SEL
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
LEVEL – +
PLAY MODE
DISPLAY
VCR
RC-681M
Note:
• To bypass the bass and treble tone circuits, select the
Direct or Pure Audio (not North American model) listening mode.
Muting the AV Receiver
TONE, –, +
You can temporarily mute the output of the AV receiver.
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
PHONES
DIMMER
Setting the Display Brightness
You can adjust the brightness of the display.
DIMMER
46
MUTING
Press the remote controller’s
[MUTING] button.
The output is muted and the MUTING
indicator flashes on the display.
Press the remote controller’s
[DIMMER] button repeatedly to
select: dim, dimmer, or normal
brightness.
Alternatively, you can use the AV
receiver’s [DIMMER] button.
To unmute the AV receiver, press the remote controller’s [MUTING] button again, or adjust the volume. The
output is unmuted and the MUTING indicator goes off.
Muting is cancelled when the AV receiver is set to
Standby.
HT-SR800_En.book Page 47 Thursday, January 25, 2007 10:28 AM
Common Functions—Continued
Using the Sleep Timer
Adjusting Speaker Levels
With the sleep timer, you can set the AV receiver so that
it turns off automatically after a specified period.
SLEEP
Press the remote controller’s
[SLEEP] button repeatedly to
select the required sleep time.
You can set the sleep time from 90 to 10
minutes in 10 minute steps.
The SLEEP indicator appears on the
display when the sleep timer has been
set, as shown. The specified sleep time
appears on the display for about 5 seconds, then the previous display reappears.
You can adjust the volume of each speaker in speaker set
A. These temporary adjustments are cancelled when the
AV receiver is set to Standby.
1
CH SEL
LEVEL-
LEVEL+
Use the remote controller’s
[CH SEL] button to select each
speaker, and use the [LEVEL–]
and [LEVEL+] buttons to adjust
the volume.
You can adjust the volume of each
speaker from –12 dB to +12 dB
(–15 dB to +12 dB for the subwoofer).
SLEEP indicator
To cancel the sleep timer, press the [SLEEP] button
repeatedly until the SLEEP indicator disappears.
To check the remaining sleep time, press the [SLEEP]
button. Note that if you press the [SLEEP] button while
the sleep time is being displayed, you’ll shorten the sleep
time by 10 minutes.
Using Headphones
For private listening, you can connect a pair of stereo
headphones (1/4-inch phone plug) to the AV receiver’s
PHONES jack.
STANDBY/ON
STANDBY
Notes:
• You cannot use this function while the AV receiver is
muted.
• Speakers that are set to No or None in the Speaker
Configuration cannot be adjusted.
■ Speaker Set B
While speaker set B is on, you can adjust the volume of
the left and right speakers, from –12 dB to +12 dB.
• These settings are stored when the AV receiver is set
to Standby.
• While speaker set B is on, you cannot adjust the levels
of speaker set A’s surround back speakers.
■ Headphones
While a pair of headphones is connected, you can adjust
the volume of each headphone speaker, from –12 dB to
+12 dB each.
PHONES
Notes:
• Always turn down the volume before connecting your
headphones.
• Speaker sets A and B are turned off while the headphones plug is inserted in the PHONES jack.
• When you connect a pair of headphones, the listening
mode is set to Stereo, unless it was set to Pure Audio,
Mono, Stereo, or Direct, in which case it stays the
same.
• When the multichannel DVD input is selected, only
the front left and front right channels can be heard in
the headphones.
• These settings are stored when the AV receiver is set
to Standby.
47
HT-SR800_En.book Page 48 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes
Selecting with the Remote Controller
Selecting Listening Modes
TV
For a description of each listening mode, see “About the
Listening Modes” on page 50.
• While a pair of headphones is connected,
you can select only the Pure Audio (not
North American model), Mono, Direct, or
Stereo listening mode.
VOL
PREVIOUS
MENU
SP A / B
MUTING
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
SETUP
RETURN
SURROUND
LISTENING MODE
STEREO
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
,
PLAY MODE
DISPLAY
• The listening modes cannot be selected
while speaker set A is off.
CH
DISC
ALBUM
GUIDE
TOP MENU
• The Dolby Digital and DTS listening modes
can only be selected if your DVD player is
connected to the AV receiver with a digital
audio connection (coaxial or optical).
• Listening mode availability depends on the
format of the current input signal.
VOL
INPUT
VCR
RC-681M
■ [STEREO] button
This button selects the Stereo listening mode.
Selecting on the AV Receiver
MASTER VOLUME
TUNING
STANDBY/ON
PRESET
STANDBY
PURE AUDIO
PURE AUDIO
MULTI CH
DVD
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
VIDEO
L
AUDIO
R
■ [SURROUND] button
This button selects the Dolby Digital and DTS listening modes and the Neural Surround* listening mode
(* North American model only).
RT/PTY/TP MEMORY TUNING MODE
CLEAR
PURE AUDIO
STEREO
LISTENING MODE
■ [PURE AUDIO] button (not North American
model)
This button selects the Pure Audio listening mode.
When this mode is selected, the AV receiver outputs
no video signals and its display is turned off.
Pressing this button again will select the previous listening mode.
Video received by the HDMI IN 1 and 2 inputs is
passed through to the HDMI OUT even if the Pure
Audio listening mode is selected.
■ [STEREO] button
This button selects the Stereo listening mode.
■ LISTENING MODE [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all
of the listening modes that can be used with the current input source.
48
■ LISTENING MODE [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all
of the listening modes that can be used with the current input source.
4_Basic_En Page 49 Monday, January 29, 2007 9:14 AM
Using the Listening Modes—Continued
The following table shows which listening modes can be used with each input signal format.
Source format
3/2.1
2/2.1
CD, TV,
radio,
cassette,
etc.
Listening mode
DTS/DTS 96/24*2
Dolby Digital
Analog,
PCM*1
2/0
1/0, 1+1
Other
3/2.1
2/2.1
DVD, DTV, etc.
DTS-ES
2/0
Discrete
Matrix
DVD, CD, etc.
DVD
Pure Audio (Not North
American models)
Direct
✔
✔
✔
✔
✔
✔
✔
✔
Stereo
Mono
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
Multich
✔
Neural Surround (North
American models only)
✔*4
Dolby
PLIIx Movie/Music/Game *3
Neo:6 Cinema
Neo:6 Music
✔
Dolby D
✔
Dolby D + Neo:6
Dolby D EX
Dolby D+PLIIx Music
✔
Dolby D+PLIIx Movie
✔
✔
✔
✔
DTS, DTS 96/24
✔*5
✔
DTS
DTS-ES Discrete
✔
DTS-ES Matrix
DTS+Neo:6
DTS+Dolby EX
DTS+PLIIx Music
✔
✔
DTS+PLIIx Movie
T-D
Onkyo
Original
DSP
Multich
analog
Mono Movie
Orchestra
Unplugged
Studio-Mix
TV Logic
All Ch Stereo
Full Mono
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
*6
*1. In the Pure Audio and Direct listening modes, 32 kHz, 44.1 kHz, and 48 kHz PCM is processed at 64 kHz, 88.2 kHz, and 96 kHz respectively. In
listening modes other than Pure Audio, Direct, and Stereo, 64 kHz, 88.2 kHz, and 96 kHz PCM is processed at 32 kHz, 44.1 kHz, and 48 kHz
respectively.
*2. In listening modes other than Pure Audio, Direct, Stereo, and DTS 96/24, DTS 96/24 sources are processed as normal DTS.
*3. If the Surr Back parameter is set to None, or speaker set B is on, normal Pro Logic II is used.
*4. Not available for 88.2 kHz and 96 kHz PCM input signals.
*5. If the Surr Back setting is set to None, or speaker set B is on, normal DTS is used.
*6. Available only when surround speakers are connected.
: Only available on 6.1/7.1-channel playback systems. Not available while speaker set B is on.
: Only available on 7.1-channel playback systems. Not available while speaker set B is on.
Tip: To check the format of the digital input signal, see “Displaying Source Information” on page 43.
49
HT-SR800_En.book Page 50 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes—Continued
About the Listening Modes
The AV receiver’s listening modes can transform your
listening room into a movie theater or concert hall, with
high fidelity and stunning surround sound.
The illustration shows which speakers are active in
each listening mode with 7.1 channel speaker system.
Front left
Center
Front right
Subwoofer
Surround left
Surround
back left/ right
Surround right
Pure Audio (not North American models)
In this mode, the display and video circuitry are turned
off, minimizing possible noise sources for the ultimate in
high-fidelity reproduction. (As the video circuitry is
turned off, no video signals are output in this mode.)
Direct
In this mode, audio from the input source is output
directly with minimal processing, providing high-fidelity reproduction. All of the source’s audio channels are
output as they are.
Stereo
Sound is output by the front left and right speakers and
subwoofer.
Mono
Use this mode when watching an old movie with a mono
soundtrack, or use it with the foreign language
soundtracks recorded in the left and right channels of
some movies. It can also be used with DVDs or other
sources containing multiplexed audio, such as karaoke
DVDs.
Dolby Pro Logic IIx
Dolby Pro Logic II
Dolby Pro Logic IIx expands any 2-channel source for
7.1-channel playback. It provides a very natural and
seamless surround-sound experience that fully envelops
the listener. As well as music and movies, video games
can also benefit from the dramatic spatial effects and
vivid imaging. If you’re not using any surround back
speakers, Dolby Pro Logic II will be used instead of
Dolby Pro Logic IIx.
•
PLIIx Movie
Use this mode with any stereo or Dolby Surround
(Pro Logic) movie (e.g., TV, DVD, VHS).
•
PLIIx Music
Use this mode with any stereo or Dolby Surround
(Pro Logic) music source (e.g., CD, radio, cassette,
TV, VHS, DVD).
•
PLIIx Game
Use this mode with video games, especially those that
bear the Dolby Pro Logic II logo.
50
Dolby Digital
Use this mode with DVDs that bear the
Dolby Digital logo, and Dolby Digital TV
broadcasts. This is the most common digital surroundsound format, and it’ll put you right in the middle of the
action, just like being in a movie theater or concert hall.
Dolby Digital EX
DTS+Dolby EX
These modes expand 5.1-channel Dolby
Digital and DTS sources for 6.1/7.1-channel playback. They’re especially suited to
Dolby Digital EX soundtracks that include
a matrix-encoded surround back channel. The additional
channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating
and fly-by sound effects. Use them with DVDs that bear
the Dolby Digital or DTS logo.
Dolby Digital+PLIIx Music
DTS+PLIIx Music
These modes use the Pro Logic IIx Music
mode to expand 5.1-channel Dolby Digital
and DTS sources for 6.1/7.1-channel playback. Use them with Dolby Digital or
DTS 5.1 music sources (e.g., DVD and Dolby Digital TV
broadcasts).
Dolby Digital+PLIIx Movie
DTS+PLIIx Movie
These modes use the Pro Logic IIx Movie
mode to expand 5.1-channel Dolby Digital
and DTS sources for 7.1-channel playback. Use them with Dolby Digital and
DTS 5.1 movies (e.g., DVD and select digital TV broadcasts).
DTS
The DTS digital surround-sound format supports
up to 5.1 discrete channels and uses less compression for high-fidelity reproduction. Use it
with DVDs and CDs that bear the DTS logo.
DTS 96/24
This mode is for use with DTS 96/24
sources. This is high-resolution DTS with a
96 kHz sampling rate and 24-bit resolution, providing
superior fidelity. Use it with DVDs that bear the DTS
96/24 logo.
DTS-ES Discrete
This mode is for use with DTS-ES Discrete
soundtracks, which use a discrete surround
back channel for true 6.1/7.1-channel playback. The
seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect
for sounds that pan across the surround channels. Use it
with DVDs that bear the DTS-ES logo, especially those
with a DTS-ES Discrete soundtrack.
HT-SR800_En.book Page 51 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes—Continued
DTS-ES Matrix
This mode is for use with DTS-ES Matrix
soundtracks, which use a matrix-encoded
back-channel for 6.1/7.1-channel playback. Use it with
DVDs that bear the DTS-ES logo, especially those with
a DTS-ES Matrix soundtrack.
Onkyo Original DSP Modes
Mono Movie
This mode is suitable for old movies and other mono
sources. The center speaker outputs the sound as it is,
while reverb is applied to the sound output by the other
speakers, giving presence to even mono material.
DTS Neo:6
This mode expands any 2-channel source for 6.1-channel playback. It uses six full-bandwidth channels of
matrix decoding for matrix-encoded material, providing
a very natural and seamless surround sound experience
that fully envelops the listener.
•
•
Orchestra
Suitable for classical or operatic music, this mode
emphasizes the surround channels in order to widen the
stereo image, and simulates the natural reverberation of
a large hall.
Neo:6 Cinema
Unplugged
Use this mode with any stereo movie (e.g., TV, DVD,
VHS).
Neo:6 Music
Suitable for acoustic instruments, vocals, and jazz, this
mode emphasizes the front stereo image, giving the
impression of being right in front of the stage.
Use this mode with any stereo music source (e.g.,
CD, radio, cassette, TV, VHS, DVD).
Studio-Mix
Dolby Digital + Neo:6
DTS+Neo:6
This mode uses Neo:6 to expand 5.1-channel Dolby Digital and DTS sources for
6.1/7.1-channel playback. Use it with
DVDs that bear the Dolby Digital or DTS
logo and feature a 5.1-channel soundtrack.
Neural Surround
(North American models only)
Neural Surround represents the latest advancement in
surround technology developed for music and is adopted
by XM Satellite Radio for digital radio broadcast of surround recordings and live events in surround sound.
Neural Surround employs psychoacoustic frequencydomain processing, which allows delivery of a more
detailed sound stage, with superior channel separation
and localization of audio elements. System playback is
scalable from 5.1 to 7.1 multichannel surround playback.
Suitable for rock or pop music, listening to music in this
mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.
TV Logic
This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire
sound, and clarity to voices.
All Ch Stereo
Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround,
and surround back speakers.
Full Mono
In this mode, all speakers output the same sound in
mono, so the sound you hear is the same regardless of
where you are within the listening room.
T-D (Theater-Dimensional)
or
With this mode, you can enjoy virtual 5.1 surround
sound even with only two or three speakers. This works
by controlling how sounds reach the listener’s left and
right ears. Good results may not be possible if there’s too
much reverb, so we recommend that you use this mode
in an environment with little or no natural reverb.
51
HT-SR800_En.book Page 52 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes—Continued
Using the CinemaFILTER
STANDBY/ON
REMOTE MODE
DVD
RECEIVER
RECEIVER
TAPE/AMP
INPUT SELECTOR
1
2
VCR/DVR
CBL/SAT
M D/CDR
CD
3
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
TV
VCR
9
TUNER
10
CD
11
12
+10
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
CABLE
SAT
ENT
TV
CH
VOL
1
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
With the CinemaFILTER, you can soften overly bright
movie soundtracks, which are typically mixed for reproduction in a movie theater.
CinemaFILTER can be used with the following listening
modes: Dolby Digital, Dolby Digital EX, PLII/IIx
Movie, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24,
Dolby/DTS+PLIIx Movie, Dolby/DTS+Neo:6, and
DTS+Dolby EX.
RECEIVER
MUTING
ENTER
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
SETUP
CINE FLTR
SETUP
RETURN
Press the [RECEIVER] REMOTE
MODE button, and then press the
[CINE FLTR] button repeatedly to
select:
On: CinemaFILTER on.
Off: CinemaFILTER off.
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
Using the Audio Adjust Settings
PLAY MODE
DISPLAY
VCR
CINE FLTR
The Audio Adjust settings only affect speaker set A.
L NIGHT
RC-681M
1
RECEIVER
Using the Late Night Function
(Dolby Digital only)
With the Late Night function, you can reduce the
dynamic range of Dolby Digital material so that you can
still hear quiet parts even when listening at low volume
levels—ideal for watching movies late at night when you
don’t want to disturb anyone.
1
RECEIVER
L NIGHT
Press the [RECEIVER] REMOTE
MODE button, and then press the
[L NIGHT] button repeatedly to
select:
Off: Late Night function off.
Low: Small reduction in dynamic
range.
High: Big reduction in dynamic
range.
Notes:
• The effect of the Late Night function depends on the
Dolby Digital material that you are playing, and with
some material there will be little or no effect.
• The Late Night function is set to Off when the AV
receiver is set to Standby.
52
Press the [RECEIVER] button followed by the [SETUP] button.
SETUP
2
Use the Up and Down [ ]/[ ]
buttons to select “Audio Adjust,”
and then press [ENTER].
3
Use the Left and Right [ ]/[ ]
buttons to change the setting.
Press the Down [ ] button to
select the next setting.
Repeat this step for the other settings.
HT-SR800_En.book Page 53 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes—Continued
4
Press the [SETUP] button.
Setup closes.
SETUP
The Audio Adjust settings are explained below.
Input Channel Settings
■ Multiplex
This setting determines which channel is output from a
stereo multiplex source. Use it to select audio channels
or languages with multiplex sources, multilingual TV
broadcasts, and so on.
Main: The main channel is output (default).
Sub: The sub channel is output.
M/S: Both the main and sub channels are output.
■ Mono Input Ch
This setting determines which channel is output when
the Mono listening mode is used with a stereo source.
L+R: Both the left and right channels are output
(default).
L: Only the left channel is output.
R: Only the right channel is output.
PLII and PLIIx Music Mode Settings
■ Center Width
With this setting, you can adjust the width of the sound
from the center speaker when using the Pro Logic II
Music or Pro Logic IIx Music listening mode. Normally,
the center channel sound is output by only the center
speaker. (If you’re not using a center speaker, the center
channel sound will be distributed to the front left and
right speakers to create a phantom center). This setting
adjusts the front left, right, and center mix, allowing you
to adjust the weight of the center channel sound. It can
be adjusted from 0 to 7 (default value is 3).
DTS Neo:6 Music Mode Setting
■ Center Image
The DTS Neo:6 Music listening mode creates 6-channel
surround sound from 2-channel (stereo) sources. With
this setting, you can specify by how much the front left
and right channel output is attenuated in order to create
the center channel. It can be adjusted from 0 to 5 (default
value is 2). This setting has no effect if no center speaker
is connected.
When set to 0, the front left and right channel output is
attenuated by half (–6 dB), giving the impression that the
sound is located centrally. This setting works well when
the listening position is considerably off center. When
set to 5, the front left and right channels are not attenuated, maintaining the original stereo balance.
These settings apply to only 2-channel (stereo) sources.
Dolby Digital EX Input Signal Setting
■ Panorama
With this setting, you can broaden the width of the front
stereo image when using the Pro Logic II Music or Pro
Logic IIx Music listening mode.
On: Panorama function on.
Off: Panorama function off (default).
■ Dolby EX
This setting determines how Dolby Digital EX signals
are handled. This setting is unavailable if no surround
back speakers are connected or speaker set B is on.
Auto: If the source signal contains a Dolby Digital
EX flag, the Dolby Digital EX listening mode
is used (default).
Manual: You can select Pro Logic IIx Movie, Pro
Logic IIx Music, Dolby Digital, or Dolby
Digital EX.
■ Dimension
With this setting, you can move the sound field forward
or backward when using the Pro Logic II Music or Pro
Logic IIx Music listening mode. The default value is 0.
It can be adjusted from –3 to +3. Higher settings move
the sound field forward. Lower settings move it backward.
If the stereo image feels too wide, or there’s too much
surround sound, move the sound field forward to
improve the balance. Conversely, if the stereo image
feels like it’s in mono, or there’s not enough surround
sound, move it backward.
53
HT-SR800_En.book Page 54 Thursday, January 25, 2007 10:28 AM
Using the Listening Modes—Continued
T-D Listening Angle Setting
■ Lstn Angl (Listening Angle)
With this setting, you can specify the angle of the front
left and right speakers relative to the listening position.
Processing for the Theater-Dimensional listening mode
is based on this setting. Ideally, the front left and right
speakers should be equidistant from the listening position and at an angle close to one of the three available
settings.
Front left speaker
Front right speaker
20/30/40 ˚
Narrow: Select if the listening angle is 20 degrees.
Middle: Select if the listening angle is 30 degrees
(default).
Wide: Select if the listening angle is 40 degrees.
Multichannel Subwoofer Setting
■ SW Sens
On some DVD players, the signal from the multichannel
subwoofer output is 15 dB higher than normal. You can
change the subwoofer sensitivity to match your DVD
player. Note that this setting only affects signals connected to the SUBWOOFER input jack of the multichannel DVD input.
You can select 0 dB (default), +5 dB, +10 dB, or +15 dB.
If you find that your subwoofer is too loud, try the
+10 dB or +15 dB setting.
54
HT-SR800_En.book Page 55 Thursday, January 25, 2007 10:28 AM
Recording
This section explains how to record the selected input
source to a component with recording capability, and
how to record audio and video from different sources.
Recording the Input Source
You can only record to a component that’s connected to
the TAPE OUT or VCR/DVR OUT jacks.
See pages 24–35 for information on connecting your AV
components.
1
DVD
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
Remote
controller
1
2
VCR/DVR
CBL/SAT
4
6
AUX
DVD
7
8
Use the input selector buttons to
select the component that you
want to record.
Audio signals from the selected input
source are output by the TAPE OUT
and VCR/DVR OUT jacks.
You can listen to the source while
recording. The AV receiver’s VOLUME control has no effect on recording.
Recording Audio and Video from
Separate Sources
You can overdub audio onto your video recordings by
simultaneously recording audio and video from two separate sources. This is possible because only the audio
source is switched when an audio-only input source,
such as TAPE, TUNER, or CD, is selected, the video
source remains the same.
In the following example, audio from the CD player connected to the CD IN jacks, and video from the camcorder
connected to the AUX INPUT VIDEO jack are recorded
by the VCR connected to the VCR/DVR OUT jacks.
AUX INPUT
VIDEO
L
AUDIO
R
Camcorder
video signal
audio signal
IN 1
OUT
XM
SIRIUS
HDMI
IN 2
ANTENNA
ASSIGNABLE
AM
9
FM 75
L
DIGITAL IN
ASSIGNABLE
TAPE
TUNER
COAXIAL
1
CD
Y
(DVD)
CBL/SAT
2
(CBL/SAT)
CB/PB
V
CR/PR
S
VCR/DVR
DVD
MONITOR
OUT V
R
S
OPTICAL
1
(VCR/DVR)
CBL/SAT IN VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
2
2
On your recorder, start recording.
IN
(CD)
REMOTE
CONTROL
3
OUT
IN
L
L
L
R
R
R
CD
TAPE
IN
OUT
IN
IN
IN
OUT
IN
FRONT
CBL/SAT
VCR/DVR
SURROUND B
SPEAKER
SURROUND CENTER SURR BAC
DVD
SUB
WOOFER
Start playback on the source
component.
Notes:
• You cannot record from a component that’s connected
to a digital input. Only analog inputs can be recorded.
• The surround sound effects provided by the listening
modes cannot be recorded.
• You cannot record from a component that’s connected
to the multichannel DVD input.
• If you select another input source while recording, that
input source will be recorded instead.
• While the Pure Audio listening mode is selected, the
VCR/DVR OUT V and S jacks don’t output video signals, so select another mode when recording.
CD player
VCR
1. Prepare the camcorder and CD player
for playback.
2. Prepare the VCR for recording.
3. Press the [AUX] input selector button.
4. Press the [CD] input selector button.
This selects the CD player as the audio source, but
leaves the camcorder as the video source.
5. Start recording on the VCR, then start
playback on the camcorder and CD
player.
Video from the camcorder and audio from the CD
player are recorded by the VCR.
55
HT-SR800_En.book Page 56 Thursday, January 25, 2007 10:28 AM
Advanced Setup
Advanced Speaker Settings
4
This section explains how to check the speaker settings
and how to set them manually, which is useful if you
change a speaker after performing the automatic speaker
setup.
Some speaker settings are set automatically by the Automatic Speaker Setup function (see page 37).
Speaker Configuration
Note:
• If the Subwoofer setting in step 3 is
set to No, this setting is fixed at Large
and does not appear.
These settings are set automatically by the Automatic
Speaker Setup function (see page 37).
This section explains how to specify which speakers are
connected and their sizes.
For speakers with a cone diameter
larger than 6-1/2 inches (16 cm),
specify Large (full band). For those
with a smaller diameter, specify
Small (default crossover 100 Hz).
The crossover frequency can be
Cone diameter
changed on page 57.
1
RECEIVER
5
6
2
3
56
Use the Up and Down [ ]/[ ]
buttons to select “Sp Config,”
and then press the [ENTER] button.
While the Subwoofer setting is
selected, use the Left and Right
[ ]/[ ] buttons to select Yes or
No.
Yes: Select if a subwoofer is connected.
No: Select if no subwoofer is connected.
Use the Down [ ] button to
select “Center,” and then use the
Left and Right [ ]/[ ] buttons to
select Small, Large, or None.
Small: Select if the center speaker is
small.
Large: Select if the center speaker is
large.
None: Select if no center speaker is
connected.
Note:
• If the Front setting in step 4 is set to
Small, the Large option cannot be
selected.
Press the [RECEIVER] button followed by the [SETUP] button.
SETUP
Use the Down [ ] button to
select “Front,” and then use the
Left and Right [ ]/[ ] buttons to
select Small or Large.
Small: Select if the front speakers are
small.
Large: Select if the front speakers are
large.
Use the Down [ ] button to
select “Surround,” and then use
the Left and Right [ ]/[ ] buttons to select Small, Large, or
None.
Small: Select if the surround speakers are small.
Large: Select if the surround speakers are large.
None: Select if no surround speakers
are connected.
Note:
• If the Front setting in step 4 is set to
Small, the Large option cannot be
selected.
HT-SR800_En.book Page 57 Thursday, January 25, 2007 10:28 AM
Advanced Setup—Continued
7
8
Use the Down [ ] button to
select “Surr Back,” and use the
Left and Right [ ]/[ ] buttons to
select Small, Large, or None.
Small: Select if the surround back
speakers are small.
Large: Select if the surround back
speakers are large.
None: Select if no surround back
speakers are connected.
Notes:
• If the Surround setting in step 6 is set
to None, this setting does not appear.
• If the Surround setting in step 6 is set
to Small, the Large option cannot be
selected.
Use the Down [ ] button to
select “Surr Back Ch,” and use
the Left and Right [ ]/[ ] buttons to select 2ch or 1ch.
2ch: Select if two (left and right)
surround back speakers are
connected.
1ch: Select if one surround back
speaker is connected.
Note:
• If the Surround and Surr Back settings in steps 6 and 7 are set to None,
this setting does not appear.
Continue with step 9 of the “Crossover
Frequency” setting.
Crossover Frequency
This setting is set automatically by the Automatic
Speaker Setup function (see page 37).
This setting only applies to the speakers that you specified as Small in the “Speaker Configuration” on page 56.
To get the best bass performance from your speaker system, you need to set the crossover frequency according
to the size and frequency response of your speakers
9
Use the Down [ ] button to
select “Crossover,” and then use
the Left and Right [ ]/[ ] buttons to select a crossover frequency.
Use the diameter of the smallest
speaker in your system when choosing
the crossover frequency.
Speaker cone
diameter
Crossover
frequency
Over 8 in.
(20 cm)
40/50/60Hz*
6-1/2 to 8 in.
(16–20 cm)
80Hz
5-1/4 to 6-1/2 in.
(13–16 cm)
100Hz (default)
3-1/2 to 5-1/4 in.
(9–13 cm)
120Hz
Under 3-1/2 in.
(9 cm)
150/200Hz*
*Choose the setting suitable for the speaker.
Note:
• These settings cannot be changed while headphones
are connected, speaker set B is on, or the multichannel
DVD input is being used.
Continue with step 10 of the “Double
Bass” setting on the next page.
Notes:
• For a more accurate setting, look up the frequency
response in the manuals supplied with your speakers
and set accordingly.
• Choose a higher crossover frequency if you want more
sound from your subwoofer.
• These settings cannot be changed while headphones
are connected, speaker set B is on, or the multichannel
DVD input is being used.
57
HT-SR800_En.book Page 58 Thursday, January 25, 2007 10:28 AM
Advanced Setup—Continued
Double Bass
This setting is not set automatically by the Automatic
Speaker Setup function (see page 37).
With the Double Bass function, you can boost bass output by feeding bass sounds from the front left and right
channels to the subwoofer. This function can be set only
if the Subwoofer setting (step 3) is set to Yes, and the
Front setting (step 4) is set to Large in the Speaker Configuration on page 56.
10
11
Use the Down [ ] button to
select “Double Bass,” and then
use the Left and Right [ ]/[ ]
buttons to select:
On: Double Bass function on.
Bass from the front left and
right channels is also fed to
the subwoofer (default).
Off: Double Bass function off.
Speaker Distance
These settings are set automatically by the Automatic
Speaker Setup function (see page 37).
With these settings, you can specify the distance from
each speaker to the listening position.
1
2
Measure and make a note of the
distance from each speaker to
the listening position.
RECEIVER
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
SETUP
3
Use the Up and Down [ ]/[ ]
buttons to select “Sp Distance,”
and then press [ENTER].
4
While “Unit” is displayed, use the
Left and Right [ ]/[ ] buttons to
select “feet” or “meters”.
feet: Distances can be set in feet.
Range: 1 to 30 feet in 1-foot
steps.
meters: Distances can be set in
meters. Range: 0.3 to 9
meters in 0.3-meter steps.
5
Use the Down [ ] button to
select “Front,” and use the Left
and Right [ ]/[ ] buttons to
specify the distance for the front
speakers, then press the Down
[ ] button to select the next
speaker.
6
Repeat step 5 for all speakers.
Note:
Speakers that you set to No or None in
the Speaker Configuration (page 56)
cannot be selected.
Press the [SETUP] button.
Setup closes.
SETUP
Note:
• These settings cannot be changed while headphones
are connected, speaker set B is on, or the multichannel
DVD input is being used.
58
HT-SR800_En.book Page 59 Thursday, January 25, 2007 10:28 AM
Advanced Setup—Continued
7
Press the [SETUP] button.
Setup closes.
3
Turn up the volume so that you
can hear the test tone sufficiently.
As each speaker outputs the test tone,
its name appears on the display.
4
Use the Left and Right [ ]/[ ]
buttons to adjust the speaker
level, and use the Down [ ] button to select the next speaker.
The levels can be adjusted from –12 to
+12 dB in 1 dB steps (–15 to +12 dB
for the subwoofer).
5
Repeat step 4 so that the level of
the test tone coming from each
speaker is the same.
Speakers that you set to No or None in
the Speaker Configuration (page 56) do
not output the test tone.
6
Press the [SETUP] button.
Setup closes.
Don’t forget to turn down the volume if
you turned it up while setting the levels.
SETUP
Notes:
• The Center and Subwoofer distances can be set up to
5 ft. (1.5 m) more or less than the Front distance. For
example, if the Front distance is set to 20 ft. (6 m), the
Center and Subwoofer distances can be set between 15
and 25 ft. (4.5 and 7.5 m).
• The Surround and Surround Back distances can be set
up to 5 ft. (1.5 m) more or 15 ft. (4.5 m) less than the
Front distance. For example, if the Front distance is set
to 20 ft. (6 m), the SurrRight, Surr Left, Surr Back R,
and Surr Back L distances can be set between 5 and 25
ft. (1.5 and 7.5 m).
• The speaker distance cannot be adjusted while a pair
of headphones is connected, speaker set B is on, or the
multichannel DVD input is being used.
Speaker Levels
These settings are set automatically by the Automatic
Speaker Setup function (see page 37).
You can set the volume level of each speaker so that all
speakers can be heard equally at the listening position.
1
RECEIVER
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
SETUP
2
Use the Up and Down [ ]/[ ]
buttons to select “Level Cal,” and
then press [ENTER].
A pink noise test tone is output by the
front left speaker.
SETUP
Notes:
• A quick way to adjust the speaker levels is to press the
remote controller’s [TEST TONE] button to turn on
the test tone, use the [LEVEL–] and [LEVEL+] buttons to adjust the levels, and use the [CH SEL] button
to select the speakers.
• The speaker levels cannot be adjusted while a pair of
headphones is connected, speaker set B is on, or the
AV receiver is muted.
59
HT-SR800_En.book Page 60 Thursday, January 25, 2007 10:28 AM
Advanced Setup—Continued
Equalizer Settings
5
Use the Up and Down [ ]/[ ]
buttons to select a frequency.
Use the Left and Right [ ]/[ ]
buttons to adjust the level at that
frequency.
These settings are set automatically by the Automatic
Speaker Setup function (see page 37).
Here you can adjust the tone of individual speakers. To
set the volume of individual speakers, see page 59.
1
RECEIVER
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
The volume at each frequency can be
adjusted from –6 to +6 dB in 1 dB
steps.
Tip: Low frequencies (e.g., 80 Hz)
affect bass sounds; high frequencies
(e.g., 8000 Hz) affect treble sounds.
SETUP
2
Use the Up and Down [ ]/[ ]
buttons to select “Equalizer,” and
then press [ENTER].
3
Use the Left and Right [ ]/[ ]
buttons to select:
Off: Tone off, response flat.
Audyssey: The tone for each speaker
is set automatically by the
Automatic Speaker Setup
function. Be sure to select
this setting after having
performed the Automatic
Speaker Setup.
Manual: You can adjust the equalizer for each speaker
manually.
If you selected Manual, continue with
this procedure. If you selected Off or
Audyssey, go to step 7.
4
60
Press the Down [ ] button, and
then use the Left and Right
[ ]/[ ] buttons to select a
speaker.
6
Use the Up [ ] button to select
“Ch,” and then use the Left and
Right [ ]/[ ] buttons to select
another speaker.
Repeat steps 5 and 6 for each speaker.
Speakers that you’ve set to No or None
in the Speaker Configuration (page 56)
cannot be selected.
7
Press the [SETUP] button.
The setup menu closes.
SETUP
Notes:
• The front, center, surround, and surround back speakers can be adjusted at 80 Hz, 250 Hz, 800 Hz,
2500 Hz, and 8000 Hz. The subwoofer can be adjusted
at 40 Hz, 80 Hz, and 160 Hz.
• While the Direct or Pure Audio listening mode is
selected, the equalizer settings have no effect.
• This procedure can also be performed on the AV
receiver by using its [SETUP], [ENTER], and arrow
buttons.
HT-SR800_En.book Page 61 Thursday, January 25, 2007 10:28 AM
Advanced Setup—Continued
Digital Input Signal Formats
Correcting Sound and Picture Sync
The following table shows the display indicator for each
digital signal format.
Format
Display
Dolby Digital
When using progressive scanning on your DVD player,
you may find that the picture and sound are out of sync.
With this setting, you can correct this by delaying the
audio signals. You can set it from 0 to 100 milliseconds
(ms) in 20 millisecond steps.
DTS
PCM
PCM
STANDBY/ON
REMOTE MODE
DVD
RECEIVER
Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you
can specify the signal format as either PCM or DTS:
• If the beginnings of tracks from a PCM source are cut
off, try the PCM setting.
• If noise is produced when fast forwarding or reversing
a DTS CD, try the DTS setting.
TAPE/AMP
INPUT SELECTOR
INPUT
SELECTOR
1
2
RECEIVER
M D/CDR
CD
3
DOCK
VCR/DVR
CBL/SAT
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
10
CD
11
12
+10
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
TV
VCR
CABLE
SAT
ENT
TV
CH
VOL
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
MASTER VOLUME
TUNING
STANDBY/ON
SETUP
PRESET
RETURN
STANDBY
DVD
MULTI CH
VCR/DVR
CBL/SAT
AUX
TAPE
TUNER
CD
SETUP
ENTER
RETURN
AUX INPUT
SETUP MIC
PHONES
A
SPEAKERS
B
TONE
STEREO
LISTENING MODE
DISPLAY DIGITAL INPUT
DIMMER
VIDEO
L
AUDIO
R
MEMORY TUNING MODE
CLEAR
1
Press the [RECEIVER] REMOTE
MODE button.
RECEIVER
DIGITAL INPUT
1
DIGITAL INPUT
2
DIGITAL INPUT
Press and hold the AV receiver’s
[DIGITAL INPUT] button for about
3 seconds.
While “Auto” is displayed (about
3 seconds), press the [DIGITAL
INPUT] button repeatedly to
select: PCM, DTS, or Auto.
PCM: Only PCM format input signals will be heard. If the input
signal is not PCM, the PCM
indicator will flash and there
will be no sound.
DTS: Only DTS format input signals will be heard. If the input
signal is not DTS, the DTS
indicator will flash and there
will be no sound.
Auto (default): The format is
detected automatically. If no
digital input signal is present,
the corresponding analog input
is used instead.
2
1
2
VCR/DVR
CBL/SAT
4
6
AUX
DVD
3
Press and hold, for more than 4
seconds, the input selector button for the input source that you
want to correct.
This can be the [DVD], [VCR/DVR],
[CBL/SAT], or [AUX] input source.
Use the Left and Right [ ]/[ ]
buttons to adjust the delay from 0
to 100 milliseconds in 20 millisecond steps.
Note:
• This setting is not available when the Pure Audio listening mode is used, or the Direct listening mode is
used with an analog input signal.
61
HT-SR800_En.book Page 62 Thursday, January 25, 2007 10:28 AM
Controlling Other Components
You can use the AV receiver’s remote controller
(RC-681M) to control your other AV components,
including those made by other manufacturers. This section explains how to enter the necessary remote control
code for the component that you want to control (e.g.,
DVD player, TV, or VCR).
1
Look up the appropriate remote
control code in the separate
Remote Control Codes list.
The codes are organized by category
(e.g., DVD player, TV, etc.).
2
While holding down the REMOTE
MODE button that you want to
set, press the [DISPLAY] button
for 3 seconds.
The REMOTE MODE button lights up.
REMOTE MODE
Entering Remote Control Codes
DVD
M D/CDR
To control another component, you must first enter the
appropriate remote control code to a REMOTE MODE
button. You’ll need to enter a code for each component
that you want to control.
CD
DOCK
TV
VCR
CABLE
STANDBY/ON
REMOTE MODE
RECEIVER
DVD
RECEIVER
TAPE/AMP
INPUT SELECTOR
M D/CDR
1
2
VCR/DVR
CBL/SAT
4
5
6
AUX
MULTI CH
DVD
7
8
CD
3
SAT
REMOTE
MODE
DOCK
Number
buttons
TAPE
VCR
9
TUNER
10
CD
11
12
+10
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
DISPLAY
TV
CABLE
SAT
3
ENT
TV
CH
VOL
INPUT
GUIDE
TOP MENU
PREVIOUS
MENU
SP A / B
MUTING
ENTER
1
2
VCR/DVR
CBL/SAT
3
4
5
6
AUX
MULTI CH
DVD
7
8
TAPE
TUNER
Within 30 seconds, use the number buttons to enter the 4-digit
remote control code.
The REMOTE MODE button flashes
twice.
9
CD
11
PLAYLIST/CAT
0
PLAYLIST/CAT
ENT
DIMMER
SETUP
RETURN
4
LISTENING MODE
STEREO
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
DISPLAY
DISPLAY
VCR
RC-681M
L NIGHT
Press the REMOTE MODE button
again to select the remote controller mode, point the remote
controller at the component, and
check the operation.
If the remote controller doesn’t work as
expected, and several remote codes are
listed, try each one in turn and use the
one that works best.
Notes:
• A remote control code cannot be entered for the
[RECEIVER] REMOTE MODE button.
• The remote control codes provided are correct at the
time of printing, but are subject to change.
62
HT-SR800_En.book Page 63 Thursday, January 25, 2007 10:28 AM
Controlling Other Components—Continued
Remote Control Codes for Onkyo
Components Connected via
Onkyo components that are connected via
are controlled by pointing the remote controller at the AV
receiver, not the component. This allows you to control
components that are out of view, in a rack, for example.
Resetting REMOTE MODE Buttons
You can reset a REMOTE MODE button to its default
remote control code.
1
REMOTE MODE
DVD
1
2
Make sure the Onkyo component is connected with an
cable and an analog
audio cable (RCA).
See page 35 for details.
M D/CDR
CD
DOCK
TV
VCR
Enter the appropriate remote control code
for the [DVD] or [CD] REMOTE MODE button.
[DVD] REMOTE MODE button
1612: Onkyo DVD player with
[CD/MD/CDR/DOCK] REMOTE MODE button
1327: Onkyo CD player with
1808: Onkyo MD recorder with
1322: Onkyo CD recorder with
1993: Onkyo RI Dock with
See the previous page for how to enter remote
control codes.
While holding down the REMOTE
MODE button that you want to
reset, press the [L NIGHT] button
for 3 seconds.
The REMOTE MODE button lights up.
CABLE
SAT
L NIGHT
2
REMOTE MODE
DVD
M D/CDR
Press the REMOTE MODE button
again.
The REMOTE MODE button flashes
twice, indicating that it’s been reset.
CD
3
DOCK
Press the [DVD] or [CD] REMOTE MODE
button, point the remote controller at the
AV receiver, and operate the component.
TV
VCR
If you want to control an Onkyo component by pointing
the remote controller directly at it, or you want to control
an Onkyo component that’s not connected via
, use
the following remote control codes:
• [DVD] REMOTE MODE button
0627: Onkyo DVD player without
(default)
• [CD/MD/CDR/DOCK] REMOTE MODE button
1817: Onkyo CD player without
(default)
0868: Onkyo MD recorder without
1323: Onkyo CD recorder without
2990: Onkyo RI Dock without
CABLE
SAT
The [DVD] and [CD] REMOTE
MODE buttons are preprogrammed
with remote control codes for controlling Onkyo DVD players and CD players respectively. When these buttons
are reset, the preprogrammed code is
restored.
Resetting the Remote Controller
You can reset the remote controller to its default settings.
1
Note:
If you connect an
-capable Onkyo MD recorder, CD
recorder, or RI Dock component to the TAPE IN/OUT or
CBL/SAT jacks, for remote operation to work properly,
you must set the Input Display to MD, CDR, or DOCK
(see page 41).
RECEIVER
L NIGHT
2
RECEIVER
While holding down the
[RECEIVER] REMOTE MODE button, press the [L NIGHT] button
for 3 seconds.
The [RECEIVER] button lights up.
Press the [RECEIVER] REMOTE
MODE button again.
The [RECEIVER] button flashes twice,
indicating that it’s been reset.
63
HT-SR800_En.book Page 64 Thursday, January 25, 2007 10:28 AM
Controlling Other Components—Continued
To control another component, point the remote controller at it and use the buttons explained below. (You must
select the appropriate remote control mode first.) With some AV components, certain buttons may not work as
expected, and some may not work at all.
■ Controlling a VCR
■ Controlling a TV
A
STANDBY/ON
STANDBY/ON
REMOTE MODE
REMOTE MODE
TAPE/AMP
2
CBL/SAT
M D/CDR
CD
3
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
10
+10
0
--/---
DIMMER
TV
12
CLR
D TUN
Press [TV]
first
VCR
CD
11
CABLE
SAT
ENT
TV
VOL
SLEEP
CH
DISC
ALBUM
2
3
2
CBL/SAT
M D/CDR
CD
3
DOCK
4
5
6
AUX
MULTI CH
DVD
7
8
9
TAPE
TUNER
10
VCR
12
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
D TUN
CABLE
PREVIOUS
MENU
SP A / B
MUTING
ENTER
4
5
6
CH
5
6
MULTI CH
DVD
7
8
TAPE
TV
VCR
CD
11
12
0
--/---
DIMMER
SLEEP
VOL
DISC
ALBUM
CLR
CABLE
SAT
PREVIOUS
MENU
SP A / B
MUTING
ENT
TV
CH
4
GUIDE
TOP MENU
VOL
PREVIOUS
MENU
SP A / B
MUTING
ENTER
PLAYLIST/CAT
PLAYLIST/CAT
SETUP
PLAYLIST/CAT
SETUP
RETURN
RETURN
5
7
6
LISTENING MODE
STEREO
SURROUND
SURROUND
SURROUND
AUDIO SUBTITLE RANDOM REPEAT
AUDIO SUBTITLE RANDOM REPEAT
TEST TONE
LEVEL-
LEVEL+
TEST TONE
L NIGHT
CINE FLTR
DISPLAY
VCR
DVD
HDD
LEVEL-
LEVEL+
TEST TONE
L NIGHT
CINE FLTR
DISPLAY
VCR
DVD
HDD
A [STANDBY/ON], TV [
]*
Sets the TV to On or Standby.
A [STANDBY/ON]
Sets the VCR to On or Standby.
B Number buttons
B Number buttons
Enter numbers.
Select channels.
C [CLR]
C TV VOL [ ]/[ ]*
Cancels functions.
Adjusts the TV’s volume.
D [CH +/–]
D [CH +/–]
Selects channels on the TV.
Selects the previous channel.
Pause, Play, Stop.
F [
F [TV INPUT]*
Selects the TV’s VCR input.
G [ ], [ ], [ ], [
Selects channels on the VCR.
E [ ], [ ], [ ]
E [PREVIOUS]
], [
]
Operates the VCR.
* Buttons marked with an asterisk
(*) are exclusively for controlling a TV and can be used at anytime regardless of the current
remote controller mode.
CH SEL
LEVEL-
LEVEL+
L NIGHT
CINE FLTR
DVD
HDD
PLAY MODE
PLAY MODE
PLAY MODE
DISPLAY
CH SEL
3
4
5
6
7
8
9
LISTENING MODE
STEREO
AUDIO SUBTITLE RANDOM REPEAT
CH SEL
Press [SAT]
first
INPUT
PLAYLIST/CAT
RETURN
CD
9
TUNER
10
+10
VOL
GUIDE
TOP MENU
LISTENING MODE
64
4
AUX
D TUN
3
2
M D/CDR
3
DOCK
ENTER
PLAYLIST/CAT
SETUP
2
CBL/SAT
SAT
ENT
TV
DVD
INPUT SELECTOR
1
VCR/DVR
Press [VCR]
first
INPUT
GUIDE
TOP MENU
STEREO
2
TV
CD
11
+10
A
REMOTE MODE
RECEIVER
TAPE/AMP
INPUT SELECTOR
1
VCR/DVR
VOL
INPUT
PLAYLIST/CAT
STANDBY/ON
TAPE/AMP
INPUT SELECTOR
1
VCR/DVR
A
DVD
RECEIVER
DVD
RECEIVER
■ Controlling a Satellite or
Cable Receiver
], [ ]
Rewind and Fast forward.
VCR
A [STANDBY/ON]
Sets the satellite/cable receiver
to On or Standby.
B Number buttons
Enter numbers.
C [CLR]
Cancels functions.
D [CH +/–]
Selects satellite/cable channels.
E [PREVIOUS]
Selects the previous channel.
F [GUIDE]
Displays the program guide.
G [ENTER]
Confirms the selection.
H [ ]/[ ]/[ ]/[ ]
Selects menu items.
I [ ], [ ], [ ], [
Operates the VCR.
], [
]
HT-SR800_En.book Page 65 Thursday, January 25, 2007 10:28 AM
Troubleshooting
If you have any trouble using the AV receiver, look for a
solution in this section.
If you can’t resolve the issue yourself, try resetting
the AV receiver before contacting your Onkyo dealer.
To reset the AV receiver to its factory defaults,
turn it on and, while holding down the [VCR/DVR]
button, press the [STANDBY/ON] button. “Clear”
will appear on the display and the AV receiver will
enter Standby mode.
STANDBY/ON
VCR/DVR
Note that resetting the AV receiver will delete your
radio presets and custom settings.
Power
Can’t turn on the AV receiver
• Make sure that the power cord is plugged into the wall
outlet properly.
• Unplug the power cord from the wall outlet, wait 5
seconds or more, then plug it in again.
The AV receiver turns off as soon as it’s turned
on
• The amp protection circuit has been activated.
Remove the power cord from the wall outlet immediately. Disconnect all speaker cables and input sources,
and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord
and set the volume to maximum. If the AV receiver
stays on, set the volume to minimum, disconnect the
power cord, and reconnect your speakers and input
sources. If the AV receiver turns off when you set the
volume to maximum, disconnect the power cord, and
contact your Onkyo dealer.
Audio
There’s no sound or it’s very quiet
• Make sure that the digital input source is selected
properly (page 41). Press the [DIGITAL INPUT] button repeatedly.
• Make sure the speaker set A or B is on (page 5).
• Make sure that all audio connecting plugs are pushed
in all the way (page 24).
• Make sure that the polarity of the speaker cables is
correct, and that the bare wire is in contact with metal
part of each speaker terminal (page 20)
• Make sure that the speaker cables are not shorting.
• Check the volume. It can be set to MIN, 1 through 79,
or MAX (page 42). The AV receiver is designed for
home theater enjoyment and has a wide volume range
for precise adjustment.
• If the MUTING indicator is shown on the display,
press the remote controller’s [MUTING] button to
unmute the AV receiver (page 46).
• While a pair of headphones is connected, no sound is
output by the speakers (page 47).
• Check the digital audio output settings on the connected device. On some games consoles, such as those
that can play DVDs, the default setting is off.
• With some DVD-Video discs, you need to select an
audio format from a menu.
• If your turntable doesn’t have a phono preamp built-in,
you must connect one between it and the AV receiver.
If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer and a
phono preamp.
• Make sure that the speaker setup microphone is not
still connected.
• Specify the speaker distances and adjust the individual
speaker levels (pages 58, 59).
• The input signal format is set to PCM or DTS. Set it to
Auto (page 61).
• Audio from a DVD player connected via HDMI is not
output by the speakers connected to the AV receiver.
To listen to this audio through the speakers, in addition
to an HDMI connection, you’ll also need to make a
separate analog or digital audio connection (page 29).
• If your DVD player is connected via HDMI and your
TV produces no sound, check your DVD player’s
audio output settings, and be sure to select an audio
format that’s supported by your TV.
Only the front speakers produce sound
• When the Stereo or Mono listening mode is selected,
only the front speakers and subwoofer produce sound.
• Make sure the speakers are configured correctly
(page 56).
Only the center speaker produces sound
• If you use the Pro Logic IIx Movie, Pro Logic IIx
Music, or Pro Logic IIx Game listening mode with a
mono source, such as an AM radio station or mono TV
program, the sound is concentrated in the center
speaker.
• Make sure the speakers are configured correctly
(page 56).
The surround speakers produce no sound
• When the Stereo or Mono listening mode is selected,
the surround speakers produce no sound (page 50).
• Depending on the source and current listening mode,
not much sound may be produced by the surround
speakers. Try selecting another listening mode.
• Make sure the speakers are configured correctly
(page 56).
65
HT-SR800_En.book Page 66 Thursday, January 25, 2007 10:28 AM
Troubleshooting—Continued
The center speaker produces no sound
• When the Stereo or Mono listening mode is selected,
the center speaker produces no sound (page 50).
• Make sure the speakers are configured correctly
(page 56).
The surround back speakers produce no sound
• While speaker set B is on, speaker set A is reduced to
5.1-channel playback and the surround back speakers
produce no sound.
• The surround back speakers are not used with all listening modes. Select another listening mode
(page 50).
• Not much sound may be produced by the surround
back speakers with some sources.
• Make sure the speakers are configured correctly
(page 56).
The subwoofer produces no sound
• The subwoofer outputs no sound while only speaker
set B is on. Turn on speaker set A.
• When you play source material that contains no information in the LFE channel, the subwoofer produces
no sound.
• Make sure the speakers are configured correctly
(page 56).
Speaker set B produces no sound
• Speaker set B only outputs sources that are connected
to an analog input. Make sure that the analog audio
cables are connected properly.
There’s no sound with a certain signal format
• Check the digital audio output setting on the connected device. On some games consoles, such as those
that can play DVDs, the default setting is off.
• With some DVD-Video discs, you need to select an
audio output format from a menu.
Can’t get 6.1- or 7.1-channel playback
• While speaker set B is on, speaker set A is reduced to
5.1-channel playback.
The volume cannot be set to 79
• When the volume level of each speaker has been
adjusted (pages 47, 59), the maximum possible volume may be reduced.
Noise can be heard
• Using cable ties to bundle audio cables with power
cords, speaker cables, and so on may degrade the
audio performance, so don’t do it.
• An audio cable may be picking up interference. Try
repositioning your cables.
The Late Night function doesn’t work
• Make sure the source material is Dolby Digital
(page 52).
66
The multichannel DVD input doesn’t work
• Check the multichannel DVD input connections
(page 28).
• To select the multichannel DVD input, press the
[MULTI CH] input selector button.
• Check the audio output settings on your DVD player.
About DTS signals
• When playing DTS program material, using the pause,
fast forward, or fast reverse function on your player
may produce a short audible noise. This is not a malfunction.
• When DTS program material ends and the DTS bitstream stops, the AV receiver remains in DTS listening mode and the DTS indicator remains on. This is to
prevent noise when you use the pause, fast forward, or
fast reverse function on your player. If you switch your
player from DTS to PCM, because the AV receiver
does not switch formats immediately, you may not
hear any sound, in which case you should stop your
player for about 3 seconds, and then resume playback.
• With some CD players, you won’t be able to playback
DTS material properly even though your player is connected to a digital input on the AV receiver. This is
usually because the DTS bitstream has been processed
(e.g., output level, sampling rate, or frequency
response changed) and the AV receiver doesn’t recognize it as a genuine DTS signal. In such cases, you
may hear noise.
Video
There’s no picture
• Make sure that all video connecting plugs are pushed
in all the way (page 24).
• Make sure that each video component is properly connected.
• The AV receiver does not convert between formats, so
if a video source component is connected to a component video input, your TV must be connected to the
component video output (page 25).
• If a video component is connected to an HDMI input,
your TV must be connected to the HDMI OUT
(page 29).
• On your TV, make sure that the video input to which
the AV receiver is connected is selected.
• While the Pure Audio listening mode (not North
American model) is selected, the video circuits are
turned off and the AV receiver outputs no video signals.
• Reliable operation with an HDMI-to-DVI adapter is
not guaranteed. In addition, video signals from a PC
are not supported (page 29).
HT-SR800_En.book Page 67 Thursday, January 25, 2007 10:28 AM
Troubleshooting—Continued
Tuner
Reception is noisy, stereo FM reception suffers
from hiss, or the FM STEREO indicator doesn’t
appear
• Relocate your antenna.
• Move the AV receiver away from your TV or computer.
• Listen to the station in mono (page 44).
• When listening to an AM station, operating the remote
controller may cause noise.
• Passing cars and airplanes can cause interference.
• Concrete walls weaken radio signals.
• If nothing improves the reception, install an outdoor
antenna.
Remote Controller
The remote controller doesn’t work
• Make sure that the batteries are installed with the correct polarity (page 13).
• Make sure that the remote controller is not too far
away from the AV receiver, and that there’s no
obstruction between the remote controller and the AV
receiver’s remote control sensor (page 13).
• Make sure you’ve selected the correct remote controller mode (page 14).
• Make sure you’ve entered the correct remote control
code (page 62).
Can’t control other components
• Make sure you’ve selected the correct remote controller mode (page 14).
• If you’ve connected an
-capable Onkyo MD
recorder, CD recorder, or RI Dock to the TAPE
IN/OUT jacks or CBL/SAT jacks, for the remote controller to work properly, you must set the Input Display to MD, CDR, or DOCK (page 41).
• The entered remote control code may not be correct. If
more than one code is listed, try each one.
• With some AV components, certain buttons may not
work as expected, and some may not work at all.
• To control an Onkyo component that’s connected via
, point the remote controller at the AV receiver. Be
sure to enter the appropriate remote control code first
(page 62).
• To control an Onkyo component that’s not connected
via
, or another manufacturer’s component, point
the remote controller at the component. Be sure to
enter the appropriate remote control code first
(page 62).
Recording
Can’t record
• On your recorder, make sure the correct input is
selected.
• To prevent signal loops and damage to the AV
receiver, input signals are not fed through to outputs
with the same name (e.g., TAPE IN to TAPE OUT, or
VCR/DVR IN to VCR/DVR OUT).
• When the Pure Audio listening mode is selected,
recording is not possible because no video signals are
output. Select another listening mode.
Others
The sound changes when I connect my headphones
• When a pair of headphones is connected, the listening
mode is set to Stereo, unless it’s already set to Stereo,
Mono, Direct, or Pure Audio (not North American
model).
The display doesn’t work
• The display is turned off when the Pure Audio (not
North American model) listening mode is selected.
How do I change the language of a multiplex
source
• Use the “Multiplex” setting on the “Audio Adjust”
menu to select Main or Sub (page 53).
The
functions don’t work
• To use
, you must make an
connection and an
analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally (page 35).
During automatic speaker setup, measurement
fails and the message “Noise Error!” appears
• This can be caused by a speaker malfunction. Make
sure all of your speakers are working properly.
67
HT-SR800_En.book Page 68 Thursday, January 25, 2007 10:28 AM
Troubleshooting—Continued
The AV receiver contains a microcomputer for signal
processing and control functions. In very rare situations, severe interference, noise from an external
source, or static electricity may cause it to lockup. In the
unlikely event that this happens, unplug the power cord
from the wall outlet, wait at least five seconds, and then
plug it back in again.
Onkyo is not responsible for damages (such as CD
rental fees) due to unsuccessful recordings caused by
the unit’s malfunction. Before you record important
data, make sure that the material will be recorded correctly.
Before disconnecting the power cord from the wall outlet, set the AV receiver to Standby.
Memory Backup
The AV receiver uses a battery-less memory backup
system in order to retain radio presets and other settings when it’s unplugged or in the case of a power failure. Although no batteries are required, the AV receiver
must be plugged into an AC outlet in order to charge the
backup system. Once it has been charged, the AV
receiver will retain the settings for several weeks,
although this depends on the environment and will be
shorter in humid climates.
68
HT-SR800_En.book Page 69 Thursday, January 25, 2007 10:28 AM
Specifications
Amplifier Section
General
Rated Output Power (FTC)
All channels:
110 watts minimum continuous power
per channel, 8 ohm loads, 2 channels
driven at 1 kHz, with a maximum total
harmonic distortion of 0.9%
Rated Output Power (IEC)
7 ch × 130 W at 8 ohms, 1 kHz, 1 ch
driven
Maximum Output Power (JEITA)
7 ch × 160 W at 8 ohms, 1 kHz, 1 ch
driven
Dynamic Power
210 W (3Ω, 1 ch driven)
190 W (4Ω, 1 ch driven)
130 W (8Ω, 1 ch driven)
THD (Total Harmonic
Distortion)
0.08% (Power Rated)
Damping Factor
60 (Front, 1kHz, 8Ω)
Input Sensitivity and
Impedance
200 mV/ 47 kΩ (LINE)
Output Level and
Impedance
200 mV/ 470 Ω (REC OUT)
Frequency Response
5 Hz–100 kHz/ +1 dB–3 dB
(Direct mode)
Tone Control
±10 dB, 50 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio
100 dB (LINE, IHF-A)
Speaker Impedance
8Ω–16Ω
Power Supply
Video Section
Standby Power
Consumption
Dimensions
(W × H × D)
Weight
Tuner Section
North American: 87.5 MHz– 107.9 MHz
Other: 87.5 MHz– 108.0 MHz
AM Tuning Frequency
Range
North American: 530 kHz–1710 kHz
Others: 522/530 kHz–1611/1710 kHz
Radio Presets
40
North American: 0.1 W
Others: 0.5 W
435 × 150 × 377 mm
17-1/8" × 5-7/8" × 14-13/16"
10.2 kg
22.5 lbs.
■ Video Inputs
HDMI
Component
S-Video
Composite
IN1, IN2
DVD, VCR/DVR, CBL/SAT
DVD, VCR/DVR, CBL/SAT
DVD, VCR/DVR, CBL/SAT, AUX
■ Video Outputs
HDMI
Component
S-Video
Composite
OUT
OUT
MONITOR, VCR/DVR
MONITOR, VCR/DVR
■ Audio Inputs
Digital Inputs
Analog Inputs
Input Sensitivity/Output
Level and Impedance
1 Vp-p /75Ω (Component and S-Video Y)
0.7 Vp-p /75Ω (Component PB/CB, PR/CR)
0.28 Vp-p /75Ω (S-Video C)
1 Vp-p /75Ω (Composite)
Component Video
Frequency Response
5 Hz – 50 MHz
FM Tuning Frequency
Range
Power Consumption
North American: AC 120 V, 60 Hz
Others: AC 230 V, 50 Hz
North American: 5.9 A
Others: 670 W
Multichannel Inputs
Optical: 2
Coaxial: 2
DVD (MULTICHANNEL), VCR/DVR,
CBL/SAT, AUX, TAPE, CD
7.1
■ Audio Outputs
Analog Outputs
TAPE, VCR/DVR
Subwoofer Pre Outputs 1
Speaker Outputs
SP A (L, R, C, SL, SR, SBL, SBR)
SP B (L, R)
Phones
1
Specifications and features are subject to change without
notice.
69
HT-SR800_En.book Page 70 Thursday, January 25, 2007 10:28 AM
Specifications—Continued
7.1ch Home Theater Speaker Package
■ Powered Subwoofer (SKW-550)
■ Center Speaker (SKC-550C)
Type:
Bass-reflex
Input sensitivity/
impedance:
140 mV / 20 kΩ
Maximum output power: 230 W (Dynamic Power)
Frequency response:
25 Hz–150 Hz
Cabinet capacity:
1.34 cubic feet (38 L)
Dimensions
(W × H × D):
10-7/8" × 20-1/16" × 16-7/16"
(276 × 510 × 417 mm)
Weight:
25.1 lbs. (11.4 kg)
Drivers unit:
10" (25 cm) Cone Woofer
Power supply:
North American: AC 120 V, 60 Hz
Others: AC 230-240 V, 50 Hz
Power consumption:
North American: 140 W
Others: 137 W
Other:
Auto Standby function
Type:
Impedance:
Maximum input power:
Output sound pressure
level:
Frequency response:
Crossover frequency:
Cabinet capacity:
Dimensions
(W × H × D):
Weight:
Drivers unit:
Terminal:
Wall bracket:
Grille:
Other:
2 Way Bass-reflex
8Ω
130 W
87.5 dB/W/m
60 Hz–50 kHz
4.5 kHz
0.28 cubic feet (8 L)
17-1/16" × 6-3/16" × 7-5/8"
(433 × 157 × 194 mm)
8.58 lbs. (3.9 kg)
5" (12 cm) OMF Cone (Woofer) × 2
1" (2.5 cm) Balanced Dome (Tweeter)
Spring type color coded
2
Detachable
Magnetic shielding
■ Front Speaker (SKF-550F)
Type:
Impedance:
Maximum input power:
Output sound pressure
level:
Frequency response:
Crossover frequency:
Cabinet capacity:
Dimensions
(W × H × D):
Weight:
Drivers unit:
Terminal:
Wall bracket:
Grille:
Other:
2 Way Bass-reflex
8Ω
130 W
87.5 dB/W/m
60 Hz–50 kHz
4.5 kHz
0.28 cubic feet (8 L)
6-3/16" × 17-1/16" × 7-5/8"
(157 × 433 × 194 mm)
8.58 lbs. (3.9 kg)
5" (12 cm) OMF Cone (Woofer) × 2
1" (2.5 cm) Balanced Dome (Tweeter)
Spring type color coded
1
Detachable
Magnetic shielding
■ Surround Speaker (SKM-550S/SKB-550)
Type:
Impedance:
Maximum input power:
Output sound pressure
level:
Frequency response:
Cabinet capacity:
Dimensions
(W × H × D):
Weight:
Drivers unit:
Terminal:
Wall bracket:
Grille:
Full-range closed box
8Ω
130 W
82 dB/W/m
160 Hz–20 kHz
0.057 cubic feet (1.6 L)
6-1/8" × 10-1/2" × 3-7/8"
(155 × 266 × 98 mm)
2.86 lbs. (1.3 kg)
3-1/4" (8 cm) Cone
Spring type color coded
1
Fixed
Specifications and appearance are subject to change
without prior notice.
70
HT-SR800_En.book Page 71 Thursday, January 25, 2007 10:28 AM
Memo
71
HT-SR800_En.book Page 72 Thursday, January 25, 2007 10:28 AM
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8124
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/
ONKYO EUROPE UK Office
Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ
UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452
ONKYO CHINA LIMITED
Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.ch.onkyo.com/
HOMEPAGE
http://www.onkyo.com/
I0702-1
SN 29344416
(C) Copyright 2007 ONKYO CORPORATION Japan. All rights reserved.
72
* 2 9 3 4 4 4 1 6 *
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
