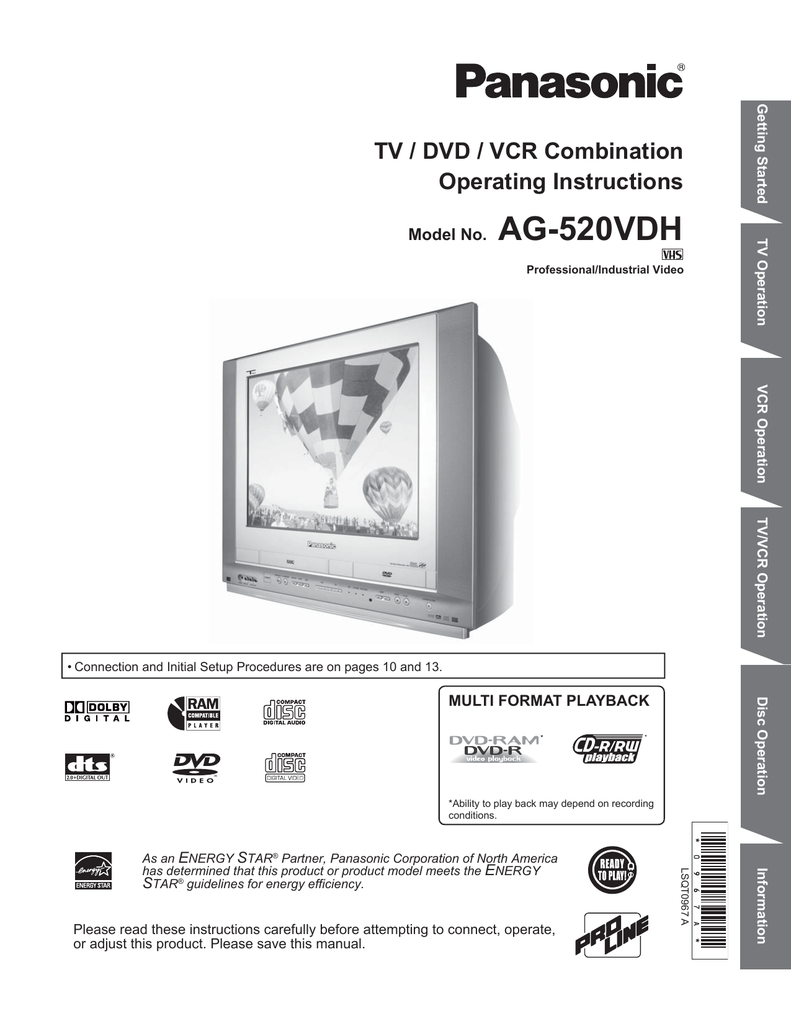

Panasonic AG-520VDH TV DVD Combo User Manual

TV / DVD / VCR Combination

Operating Instructions

Model No.

AG-520VDH

Professional/Industrial Video

• Connection and Initial Setup Procedures are on pages 10 and 13.

MULTI FORMAT PLAYBACK

*Ability to play back may depend on recording conditions.

As an

NERGY

TAR

Partner, Panasonic Corporation of North America has determined that this product or product model meets the

TAR

guidelines for energy efficiency.

NERGY

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual.

Before Using

Congratulations

On your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below.

The serial number is on the tag located on the back of your unit.

Safety Precaution

Be sure to read the following cautions carefully.

WARNING

Never pick unit up by VCR cassette opening.

Date of Purchase _____________________

Dealer Purchased From ________________

Dealer Address _______________________

Dealer Phone No. _____________________

Serial No. ___________________________

U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093;

5,315,448; and 6,516,132.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

This television receiver provides display of television closed captioning.

Accessories

1 Remote Control

(EUR7724020R)

2 Batteries “AA”

Safety Precautions/Mesures de sécurité

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT IN WALL

SOCKET. FULLY INSERT.

AVERTISSEMENT :

AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU DE CHOCS ÉLECTRIQUES, NE PAS

EXPOSER CET APPAREIL À LA PLUIE OU À UNE HUMIDITÉ EXCESSIVE.

Attention :

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

FCC WARNING :

ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT WOULD VOID THE

USER’S AUTHORITY TO OPERATE IT.

FCC NOTICE:

This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver. If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, “Something About Interference”, available from FCC local regional offices, helpful.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance: <http://www.eiae.org.>

This video recorder, equipped with the HQ (High Quality)

System, is compatible with existing VHS equipment. Only use those tapes with the mark. It is recommended that only cassette tapes that have been tested and inspected for use in 2,

4, 6, and 8 hour VCR machines be used. This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

CAUTION:

UNIT IS A CLASS I LASER PRODUCT.

HOWEVER, THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE

UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR

EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO

LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

LASER RADIATION WHEN OPEN.

DO NOT STARE INTO BEAM.

ATTENTION:

RAYONNEMENT LASER EN CAS

D’OUVERTURE.

NE PAS REGARDER DANS LE

FAISCEAU.

(Inside of product)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and main tenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

IMPORTANT SAFEGUARDS AND PRE CAUTIONS

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR DAMAGE TO

THIS PRODUCT, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL

WARNINGS IN THE MANUAL AND ON THE PRODUCT.

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility Service Company or Video Products Dealer verify your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug. Always hold the plug firmly and make sure your hands are dry when plugging in or unplugging the AC power cord. Regularly remove dust, dirt, etc. on the plug.

POLARIZED PLUG CAUTION:

The plug fits into outlet only one way. If it cannot be fully inserted, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not tamper with the plug.

GROUNDING PLUG CAUTION:

The plug requires a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against electrical shock, fire or personal injury:

• Keep power cord away from heating appliances and walking traffic. Do not rest heavy objects on, or roll such objects over the power cord.

• Do not tamper with the cord in any way.

• An extension cord should have the same type plug (polarized or grounding) and must be securely connected.

• Overloaded wall outlets or extension cords are fire hazards.

• Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fire hazard or heat damage to cassettes or discs.

For your protection: a. Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless properly ventilated.

5 AVOID EXTREMELY HOT LOCATIONS OR SUDDEN TEMPERATURE CHANGES

Do not place unit over or near a heater or radiator, in direct sunlight, inside closed vehicles, in high temperature locations [over 95 °F (35 °C)], or in over 75 % humidity.

If unit is suddenly moved from a cold place to a warm one, moisture may con dense in unit and on the tape causing damage. Never subject unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously dam aged.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or stand that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.

• Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn.

• Carefully follow all operating instructions.

USING THE UNIT

Before unit is brought out of storage or moved to a new location, refer again to the

INSTALLATION section of these safe guards.

1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE,

such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT,

unplug unit and have it inspected by a qualified service technician before use.

During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERATE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, odours, or noises. Immediately unplug unit, and have it inspected by a service technician to avoid potential fire and shock hazards.

• Never drop or push any object through openings in unit. Touching internal parts may cause electric shock or fire hazard. Do not put any foreign object on the tray.

• Keep magnetic objects, such as speakers, away from unit to avoid electrical interference.

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could overspray, or seep into unit and cause electrical shock. Any substance such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to provide some protection against built up static charges and voltage. Section 810 of the

National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian

Electrical Code) provides information regarding proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, con nection to grounding electrodes, and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR CIRCUITS

Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power

GROUND

CLAMP

ANTENNA

LEAD IN

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal.

ELECTRIC

SERVICE

EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF

If, after carefully following detailed operating in structions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug unit and contact a qualified service tech nician.

2 REPLACEMENT OF PARTS

Make sure the service technician uses only parts specified by the manufacturer, or that have equal safety char acteristics as original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING

After unit is serviced or repaired, request that a thorough safety check be done as described in the manufacturer’s service literature to ensure video unit is in safe operating condition.

Getting

Started

Before Using ............................................................................................................................ 2

Safety Precautions/Mesures de sécurité .............................................................................. 3

IMPORTANT SAFEGUARDS AND PRECAUTIONS ............................................................... 4

Information ............................................................................................................................... 6

TV and VCR

Operation

Location of Controls ............................................................................................................... 8

Connections ........................................................................................................................... 10

Tuning TV ............................................................................................................................... 13

TV Operation .......................................................................................................................... 16

MTS Broadcast / TV Stereo System ..................................................................................... 18

TV Timer Features ................................................................................................................. 19

Closed Caption System ........................................................................................................ 20

Video / Audio Setting ............................................................................................................ 22

Before using the VCR ............................................................................................................ 24

Recording Television Programs .......................................................................................... 25

Playing VCR ........................................................................................................................... 27

Copy Your Tapes (Dubbing) ................................................................................................. 30

V-Chip Control Features ....................................................................................................... 31

Display Features .................................................................................................................... 35

Disc

Operation

Information

Basic Disc Operation ............................................................................................................ 36

DVD-RAM Operation .............................................................................................................. 40

Disc Operation -Using Information Screen- ........................................................................ 42

Special Disc Operation ......................................................................................................... 45

Settings for DVD Operation .................................................................................................. 48

Warning and Instruction Displays ....................................................................................... 52

Glossary ................................................................................................................................. 52

Before Requesting Service ................................................................................................... 53

Specifications ........................................................................................................................ 54

Index ....................................................................................................................................... 55

Information

Information (Unit, Cassette)

Loading the Batteries

Open the cover.

Insert batteries as marked.

Close the cover.

• Insert so the poles (+ and - ) match those in the remote control.

• Do not use rechargeable type batteries.

Do not:

• Mix old and new batteries.

• Use different types at the same time.

• Heat or expose to flame.

• Take apart or short circuit.

• Attempt to recharge alkaline or manganese batteries.

• Use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Prevent Accidental Tape Era sure

Break off the tab to protect.

Record Tab

Screw driver

To record again.

Cover the hole with cellophane tape.

DST (Daylight Saving Time)

Unit auto adjusts clock for DST (Daylight Saving Time.)

■

Spring (First Sunday in April)

DST: ON ➞ Sets clock ahead one hour.

■

Autumn (Last Sunday in October)

DST: ON ➞ Turns clock back one hour.

• If your area does not observe Daylight Saving Time, select DST : OFF

(see “Manual Clock Setting” on page 14).

• Keep these time changes in mind when pro gramming the unit for timer recording.

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Head Clog Sensor

During playback this screen appears if clogging is detected. To clear message from screen, press PLAY on the remote or unit.

VIDEO HEADS MAY

NEED CLEANING

PLEASE INSERT HEAD

CLEANING CASSETTE

OR REFER TO MANUAL

END:PLAY

• Use “dry” type head cleaning cassette only. (Part No. NV-TCL30PT is recommended.)

• Follow cleaning tape directions carefully. Excessive use of head cleaning tape can shorten the video head life.

Information (Disc)

Discs that can be played

Disc type Disc Logo

Indication in these operating instructions

DVD-Video

DVD-V

(DVD-Video)

DVD-R*

DVD-RAM* 2

Video CD

RAM

CD

(CD-DA)

VCD

CD-R

CD-RW

CD

VCD

Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.

* 1 DVD-Video formatted discs [finalized].

Discs recorded using Version 1.1 of the Video Recording Format.

Discs that cannot be played

DVD with Region No. other than “1” or “ALL”, DVD from PAL system, DVD-ROM, DVD+R, DVD-AUDIO, DVD-RW, DVD+RW,

CD-ROM, CDV, CVD, CD-G, CD-TEXT, SACD, Photo-CD.

Note:

• The digital audio content side of DualDiscs do not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so may not play back in this unit.

• It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.

DVDs that can be played

You can play discs with these symbols.

Playing DVDs

The producer of these discs can control how they are played so you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

DVD-R discs

Panasonic DVD-R recorded and finalized* on a Panasonic DVD video recorder are played as DVD-Video on this unit.

DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able to play them.

Type

Capacity

• Non-cartridge discs

• Discs that can be removed from their cartridges (TYPE 2 and 4)

• 12 cm (5Ǝ) 9.4 GB (double-sided) and 4.7 GB (single-sided)

• 8 cm (3Ǝ) 2.8 GB (double-sided)

Disc Handling

Handling precautions

• Sticking a label on the disc may impair DVD-

R playback.

• Do not attach sticker to disc. (Do not use discs with exposed adhesive from tape or left over peeled-off stickers.)

• Only hold disc by edges as shown at right.

Fingerprints, dirt and scratches can cause skipping and distortion.

• Do not write on label side of disc.

• Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent.

• Do not try to close disc tray when disc is not properly placed.

• Remove TYPE 2 and 4 discs from their cartridges before use, then return them when you are finished. Read the instructions for the disc carefully.

TYPE 2 or 4 disc

Non-cartridge disc

Disc tray

Disc

To clean disc surface

With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.)

DVD-RAM, DVD-R :

Clean only with DVD-RAM disc cleaner. Never use cloths or cleaners for CDs, etc.

• Some parts of the disc, for example where one program ends and another begins, may not play smoothly.

CD-R and CD-RW discs

This unit can play CD-R and CD-RW if they are formatted as CD-

DA (digital audio) and finalized*.

* A process that allows play on compatible equipment.

If disc is brought from a cold to a warm environment, moisture may form on the disc

Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.)

Improper disc storage

Discs can be damaged if stored or left in areas:

• Exposed to direct sunlight.

• That are humid or dusty.

• Near heat (i.e. heater, radiator, etc.).

Region Management Information

This unit is designed and man ufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the

Region number described on the DVD disc does not cor respond to the Region number of this unit, this unit cannot play this disc.

For U.S.A. and Canada

• The region number of this player is “1”.

• The player will play DVD-Video marked with labels bearing “1” or “ALL”.

Example:

ALL

Information (MAIN MENU Screen)

In the Main Menu display, only icons which can be selected appear normally while those not available appear dark.

Example:

When the unit is used for the first time, the DVD icon is dark because it cannot be selected in this condition (see right).

However, when DVD is pressed to enter

DVD mode, the DVD icon becomes selectable.

MAIN MENU

LOCK LANGUAGE

TV CLOCK CH

SELECT: SET:SET

END :ACTION

Location of Controls

Remote Control Buttons

OPEN / CLOSE /

EJECT

POWER

DISPLAY

4 RAPID TUNE

5 MUTE

6 INPUT

When this button is pressed in TV / VCR mode, the tape is ejected. This button is inoperative if pressed during recording. If pressed in DVD mode, the disc tray opens or closes.

Turns the unit on or off.

Displays the TV status and clock. In DVD mode, displays disc and unit information.

Displays the last channel you were watching.

Mutes the sound instantly.

Changes input source.

7 ACTION

10 REW/SLOW-

Displays Main Menu.

8 SELECT ŸźŻŹ

Controls navigation around on-screen menu.

CHANNEL UP/

DOWN

Selects a channel.

Rewinds tape and searches previous scene.

Decreases slow motion speed in Still mode.

11 STOP

12 STILL/PAUSE

SKIP- ǿŻŻ /

SEARCH

Stops recording or playback.

Pauses picture in Playback mode and frame advance picture in Still mode.

Skips back one chapter or track. Goes to previous menu screen. Goes directly to the desired recording.

14 AUDIO

15 ANGLE

16 REC

17 PROGRAM

18 DVD

Selects the desired audio mode.

Selects the desired angle in DVD mode.

Records a program.

Displays SET PROGRAM screen. You can set

Timer Program and On-Timer.

Set to DVD mode.

19 TV/VCR

Sets to TV/VCR mode.

TRACKING UP /

DOWN

21 NUMBER Keys

ADD/DELETE/

CLEAR

Reduces picture noise during Playback and

Slow Motion.

Selects a channel directly.

Adds or deletes a channel. Cancels an item on the screen.

23 MENU / PLAY LIST

24 SET

Displays DVD menu. Displays Play List. (DVD-

RAM)

Sets selected menu.

VOLUME UP/

DOWN

26 PLAY

Adjusts volume.

27 FF/SLOW+

Begins playback.

Fast forwards tape and searches next scene.

Increases slow motion speed in Still mode.

28 TITLE / D.NAVI

SKIP+ ŹŹǿ /

CM SKIP / ZERO

SEARCH

Selects the desired title by number on some

DVDs. Displays Direct Navigator. (DVD-RAM).

Skips one chapter or track. Goes to next menu screen. In Stop mode, goes to counter position

“0:00:00”. In Playback mode, skips over 1 to 3 minutes of tape.

30 SURROUND / VSS Creates a deeper, 3-D sound effect.

31 SUB TITLE

ZOOM/

COUNTER RESET

Selects a different subtitle language.

Enlarges specific portions of DVD picture.

Resets to “0:00:00” at desired portion of tape.

33 SPEED / RETURN

Returns to DVD and Video CD (Playback

Control) menu screen. Selects recording speed of tape.

Unit Buttons

Front View

2 3 4

5 6

7 8 9 10

12 13 14 15

Built In Speakers Equipped with 2 front speakers.

Audio Input

Connector 2

Cassette

Compartment

Disc Tray

Connect from other component.

(LINE 2)

Insert VHS tapes here.

Phones Jack

Video Input

Connector 2

POWER

Place compatible discs here.

Connect an ear phone or headphones.

Connect from other component.

(LINE 2)

Turns the unit on or off.

STOP/

EJECT

PLAY

REWIND/

SEARCH

FAST

FORWARD/

SEARCH

REC

VOLUME UP/

DOWN

CHANNEL UP/

DOWN or

TRACKING UP/

DOWN

STOP:

Stops playback.

EJECT:

Ejects the tape.

PLAY:

Begins playback.

REPEAT:

Set to see a recording over and over.

Rewinds tape and searches previous scene. Decreases slow motion speed in Still mode.

Fast forwards tape and searches next scene. Increases slow motion speed in Still mode.

Records a program.

Adjusts volume.

Selects a channel.

Reduces picture noise during

Playback and Slow Motion.

REC Indicator

(RED)

Lights up during recording. In

Rec Pause or OTR Pause mode, the Indicator flashes.

ON TIMER

Indicator

(ORANGE)

Lights when the On Timer is set.

PROG TIMER

Indicator

(GREEN)

Remote Sensor

SKIP ŻŻ

SKIPŹŹ

STOP

PLAY

Lights up when the unit is set for

Timer Recording. It flashes when a Timer Recording has been set with no tape inserted, the clock is not set, or the tape is in motion. Lights up when the On

Timer is set.

Receives infrared signal from remote control.

Skips back one chapter or track.

Goes to previous menu screen.

Skips one chapter or track. Goes to next menu screen.

Stops playback.

Begins playback.

OPEN/CLOSE Opens or closes the disc tray.

Rear View

1 2 3 4 5 6

1 AC Power Plug

When plugged into an

AC outlet, this unit consumes 0.8 W of electric power in OFF condition.

Optical digital audio output connector

Outputs audio signal.

(Digital)

Audio Output Connector

(L/R)

Outputs audio signal.

(Analog)

4 Audio Input Connector 1

5 Video Input Connector 1

VHF/UHF Antenna

Input Terminal

Connect from other component. (LINE 1)

Input terminal for an antenna or cable box signal.

Connections

Notes on con nections

• Turn off the power supply for all com ponents before making any connections.

• If the cables necessary for connecting a component to the system are not included with the component or available as an option, you may need to fashion a cable to suit the component concerned.

• Read the instruction manual for each system component care fully before connecting it.

Connecting the RF in Terminal

CAUTION

Overtightening “Nut type” RF coaxial cables may damage jacks. Finger tighten only.

Antenna Connection

Connect the cable from the Antenna to the VHF/UHF terminal on the unit.

Connecting the “1, 2” AV Input Terminals

Connects VCRs and other peripheral equipment

AV Input terminal 1 is used

VHF

Antenna

UHF

Antenna

6IDEO

/54

!UDIO

/54

Mixer

Cable Connection

Connect the cable supplied by your local cable company to the VHF/UHF terminal on the unit.

Notes:

• Similar connections are available at the “1, 2” AV input terminals.

• AV Input terminal 2 is located on the front of the unit.

Cable Box

In from CABLE

Or

Note to CABLE system installer:

This re minder is pro vided to call the CABLE (Cable TV) System

Installer’s at tention to Article 820-40 of the NEC that pro vides guidelines for proper grounding and, in par ticular, specifies that the cable ground shall be con nected to the ground ing system of the build ing, as close to the point of cable entry as practical.

Connecting the Audio Output Terminal

Enjoy the powerful movie theater and hall-like sound available with multiple channel audio found on DVDs by connecting an amplifier and speakers. There are two types of connection, digital and analog.

WARNING

Don’t place the unit on amplifier or equipment that may become hot.

The heat can damage the unit.

Digital connection

Firmly connect the cable to the connector.

Connect an AV amplifier with Dolby Digital or DTS decoders

Enjoy “Dolby Digital” or “DTS” surround sound.

OPTICAL

Amplifier with built in Dolby Digital or DTS decoders.

Speakers (example)

Please see amplifier manual for speaker requirements.

Connect a Digital amplifier

Smart one-line connection is possible.

OPTICAL

Analog connection

Connect an analog amplifier to enjoy high-quality stereo sound with sampling frequencies of 96 kHz.

IMPORTANT NOTE:

Caution for optical digital audio output connector:

• Be sure to refer to page 50 regarding output settings of Dolby Digital,

DTS, and PCM.

• CDs and Video CDs can be played as usual.

• Audio from the Digital Audio Out terminal is only output during playback.

• When connecting an amplifier which contains the Dolby Digital or DTS decoder, be sure to select “Bitstream”. When connecting an amplifier which does not contain the Dolby Digital or DTS decoder, be sure to select “PCM”. (See page 50.) Otherwise, attempting to play a DVD may cause such a high level of noise that it may harm your hearing and damage your speakers.

Notes:

• Some DTS decoders which do not support DVD-DTS Interface may not work properly with the unit.

• Avoid bending/twisting the optical digital cable when connecting.

For your reference:

• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.

• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit, DVDs are recorded in 48 kHz/16 bit up to

96 kHz/24 bit.

• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full

5.1 channel Dolby Digital soundtracks, as well as from titles with the

Dolby Surround mark. For information on Panasonic or Technics Dolby

Pro Logic Surround Sound Decoders please contact your local dealer.

Manufactured under license from Digital Theater Systems, Inc.

US Pat. No’s. 5,451,942, 5,956,674, 5,974,380, 5,978,762,

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

Tuning TV

EJECT

POWER

ACTION

SELECT

ŸźŻŹ/

SET

CH Ÿź

STOP

NUMBER Keys

ADD/DLT

Case 2

If setup is incomplete, the following screen appears. Check connection of

Antenna/Cable to the RF in Terminal, then try to manually set the clock as follows.

AUTO CLOCK SET

IS INCOMPLETE

PLEASE SET CLOCK BY

PRESSING ACTION KEY

. Press ACTION on the Remote Control to display

SET CLOCK Menu screen.

SET CLOCK

1/ 1/2005 SAT 12:00AM

DST:ON

SELECT: SET:SET

START :ACTION

. Press Ÿź to select the month and press SET to set. In the same manner, select and set the date, year, time, and DST (Daylight Saving Time).

• Press Ż repeatedly to move the cursor. Press Ÿź to make a correction.

SET CLOCK

10/25/2005 TUE 11:45AM

DST:ON

SELECT: SET:SET

START :ACTION

. Press ACTION twice to start CLOCK and exit.

POWER STOP/EJECT PLAY FF

Initial Setup (Ready to Play)

Please make all cable or antenna connections before powering on.

Plug the unit power cord into an AC wall outlet.

Press POWER on the Remote Control or unit. Auto channel and clock set start.

• If you use a cable box, turn it on and set it to the Public Broadcasting

Service (PBS) channel in your time zone. If you use a DSS receiver, it must be turned off.

CH AUTO SET PROCEEDING

Automatic Channel Setting

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK CH

SELECT:

END :ACTION

Press SET to display SET UP CHANNEL screen.

SET:SET

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

WEAK SIGNAL DISPLAY:OFF

AUTO CLOCK SET

PROCEEDING

SELECT:

END :ACTION

Press set your antenna system (“TV” or “CABLE”).

SET:SET

CANCEL:STOP

• Function buttons are void during Initial Setup.

• To eject a tape during Auto Set, press the unit STOP/EJECT button twice.

Then, make settings manually. (See pages 14-15.)

• If Auto Clock Set takes more than 30 minutes, press STOP and perform settings manually. (See pages 14-15.)

Case 1

Settings are made automatically. When complete, this screen appears.

10/25/2005 TUE 11:45AM

DST:ON

SETTING : CH 10

AUTO CLOCK SET

COMPLETED

Press

Note:

• After Channel Auto Set is finished, Clock Auto Set will be performed. (If clock is set manually, Clock Auto Set will not be performed.)

Add or Delete a Chan nel

To add channel:

Select channel with NUMBER keys and press ADD/DLT.

CHANNEL 08 ADDED

To delete channel:

Select channel with CH Ÿź or NUMBER keys and press ADD/

DLT.

CHANNEL 08 DELETED

Automatic Clock Setting

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press SET to display SET CLOCK screen.

SET CLOCK

AUTO CLOCK SET

MANUAL

Press

SET CLOCK

10/25/2005 TUE 11:45AM

DST:ON

SELECT: SET:SET

END :ACTION

Press month, date, year, time, and DST (Daylight Saving

Time).

To Make Corrections, repeatedly press Ż to move to error, then correct.

SELECT:

END :ACTION

SET:SET

Press ACTION twice to start the clock and exit this mode.

Press press SET.

Manual Clock Setting

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press SET to display SET CLOCK screen.

(“TIME ZONE ADJUST” appears only when auto clock is set.)

SET CLOCK

AUTO CLOCK SET

MANUAL

TIME ZONE ADJUST : 0

SELECT:

END :ACTION

SET:SET

Time Zone Adjust

(Only when Auto Clock is set.)

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press SET to display SET CLOCK screen.

SET CLOCK

AUTO CLOCK SET

MANUAL

TIME ZONE ADJUST : 0

SET:SET SELECT:

END :ACTION

Press press SET to subtract or add hour(s) as necessary.

SET CLOCK

AUTO CLOCK SET

MANUAL

TIME ZONE ADJUST :+1

SELECT:

END :ACTION

SET:SET

+1 -1

Press ACTION twice to exit.

Note:

• If set manually time zone does not appear.

Change Language Setting

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press SET repeatedly.

English Spanish

French

For English

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

For Spanish

MENU PRINCIPAL

DVD BLOQUEO IDIOMA

TV RELOJ CANAL

ELEGIR:

TERMINAR:ACTION

FIJAR:SET

For French

DVD BLOCAGE LANGUE

TELE HORLOGE CANAL

SEL.:

FIN :ACTION

REGLER:SET

Press ACTION to exit.

Reset all unit Memory Func tions

Returns to factory setting. Use if relocating unit, or if Initial Setup needs to be redone.

• Make sure a tape and/or disc is not inserted in unit.

Turn the unit Power on.

Hold down both PLAY and FF on the unit for more than 5 seconds.

• The power will shut off.

• Please ignore “NO CASSETTE” warning.

Perform “Initial Setup” on page 13.

TV Operation

RAPID

TUNE

MUTE

INPUT

ACTION

SELECT

ŸźŻŹ/

SET

CHŸź

AV Input Terminal 2

Selecting Input Mode

Method 1:

Press CH Ÿź. The display will change as follows.

Notes:

• The diagram at right is an example.

• TV CH 2 and CABLE CH 1 represent the lowest channels in memory, while TV CH

69 and CABLE CH 125 represent the highest channels in memory.

(TV)

CH2

(CABLE)

CH1

(TV)

CH69

(CABLE)

CH125

NUMBER keys

100 key

VOL+/-

LINE2

LINE1

Method 2:

Press INPUT. The display will change as follows.

LINE1 LINE2 TUNER

Method 3:

Press ACTION for MAIN MENU.

Press

SET UP TV screen.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press press SET to select “TUNER”, “LINE 1”, or “LINE 2.”

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SELECT:

END :ACTION

SET:SET

Press ACTION twice to exit this mode.

LINE 1:

Signal of source connected to AV Input terminal 1 is displayed.

(Rear of the unit.)

LINE 2:

Signal of source connected to AV Input terminal 2 is displayed.

TUNER:

Signal of source connected to VHF/UHF terminal is displayed.

Using the CH/VOL Button

Select desired channel:

Press CH Ÿź or NUMBER keys.

Adjust desired volume level:

Press VOL + or VOL -.

Using the Number and 100 keys

When selecting CABLE channels 100 to 125 with the NUMBER keys, first press the 100 key, and then enter the remaining two digits.

Example 1:

To select channel 125, first press the 100 key, then 2, then 5.

Example 2:

To select channel 12, first press the 1 key, then 2.

Example 3:

To select channel 2, first press the 0 key, then 2.

Rapid Tune

Press R-TUNE to display the last channel you were watching.

Audio Mute

Press MUTE to instantly mute the sound. Press again to restore the previous sound level.

Surround Sound System

You can hear a deeper, 3-D sound effect using just the unit’s two front speakers.

Press

•”SURROUND ON” is displayed.

To Cancel, press SURROUND.

Notes:

• Surround sound effect is not available for normal (mono) broadcasts.

• The surround effect (TV, VCR mode only) is not output to Audio Output

L/R Connector.

Weak Signal Display Feature

When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent.

Press ACTION to display MAIN MENU.

Press

Press SET to display SET UP CHANNEL screen.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “ON” or “OFF.”

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

WEAK SIGNAL DISPLAY:OFF

SELECT:

END :ACTION

SET:SET

ON:

Picture is displayed regardless of signal condition, and may not always be clearly visible.

OFF:

Screen turns solid blue when signal is absent or weak.

Note:

• If the unit is connected to equipment which has a blue screen feature, selecting “ON” will have no effect on the other equipment.

Press ACTION twice to return to the normal screen.

MTS Broadcast / TV Stereo System

DISPLAY

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays. The signal being received is indicated with a “ ” mark while the selected audio mode is indicated with an arrow. To change the audio mode for these broadcasts, see the “Audio Mode for TV Viewing” section.

AUDIO

Press DISPLAY to display the broadcast signal being received.

MTS Stereo broadcast:

Multi-channel Television Sound Stereo broadcast. Select

STEREO audio mode.

• If stereo broadcast is weak and the display flickers, select

MONO audio mode for possible improvement.

12:00AM CH 08

STEREO

SAP

MONO

SAP broadcast:

Secondary Audio Program (sub language).

Select SAP audio mode for the sub language.

STEREO

SAP

MONO

12:00AM CH 08

Equipped with -TV Noise Reduction for true MTS reproduction.

-TV Noise Reduction is required for good stereo separation and audio fidelity. is a registered trademark, and is licensed by Technology Licensing.

Audio Mode for TV Viewing

Press AUDIO to select the desired audio mode as described above. (Arrow shows selection.)

• Each press of AUDIO will change the audio mode as shown below.

• “SAP” is selected with first press of AUDIO.

< Example >

STEREO

SAP

MONO

12:00AM

CH 08

STEREO

SAP

MONO

STEREO

SAP

MONO

12:00AM CH 08

MTS Stereo and SAP broadcast:

Multi-channel Television Sound Stereo (main language) and

Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select the STEREO or SAP audio mode.

CH 08

STEREO

SAP

MONO

12:00AM

MONO broadcast:

Normal monaural sound broadcast.

STEREO

SAP

MONO

12:00AM CH 08

TV Timer Features

DISPLAY

SELECT

ŸźŻŹ/

SET

ADD/DLT

• Make sure a tape is inserted if Playback mode is selected.

• Make sure a disc is inserted if Disc (DVD/

CD/Video CD) mode is selected.

ON-TIMER mode selection order

Lowest channel

CH01 Disc

Highest channel

CH125 VCR

To Make Corrections, use Ÿź and Ż Ź to move back and correct.

Press PROG to set ON TIMER.

• “ON TIMER SET” is displayed.

• PROG TIMER Indicator lights up on the unit.

ON TIMER

10:00AM CH 05

PROG

CANCEL:ADD/DLT

SELECT:

END :PROG

SET:SET

To Cancel ON-TIMER,

Repeat steps 1-3. Then, press ADD/DLT to clear the time in steps 4-5. Now, press PROG to end. “ON TIMER END” briefly appears on-screen.

Note:

• If no button on the remote or unit is pressed within 60 minutes after unit turns itself on, it will turn itself back off.

ON-TIMER

Indicator

ON-TIMER

This unit can be set to automatically power on in one of 3 modes

(TV, VCR Playback, or Disc.)

Press PROG to display SET PROGRAM screen.

Press

Press SET to display ON TIMER screen.

SET PROGRAM

TIMER PROGRAMMING

ON TIMER

SLEEP TIMER: 0

Sleep Timer

This unit can be set for auto power off.

Press PROG to display SET PROGRAM screen.

Press

Press SET repeatedly to select the desired time.

SET PROGRAM

TIMER PROGRAMMING

ON TIMER

SLEEP TIMER: 0

SET:SET SELECT:

END :PROG

Press

Press SET to set the ON-TIMER time and ON-TIMER mode.

ON TIMER

6:--AM CH --

To cancel, press SET repeatedly until 0 appears.

SELECT:

END :PROG

SET:SET

Press PROG to return to the normal screen.

• Pressing DISPLAY with sleep timer set displays remaining time.

SELECT: SET:SET

END :PROG

Closed Caption System

MUTE

ACTION

SELECT

ŸźŻŹ/

SET

Press

Press SET to display CAPTION screen.

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SET:SET SELECT:

END :ACTION

Press

Press SET repeatedly to select mode.

CAPTION

CAPTION MODE : OFF

CC ON MUTE : CAP C1

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also allows one to watch programs with the volume muted.

Closed Caption Mode Feature

Press ACTION to display MAIN MENU.

Press

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press SET to display SET UP TV screen.

OFF

TEXT C2 CAP C2

SELECT:

END :ACTION

SET:SET

CAP C1

TEXT C1

Caption Mode: CAP C1 or C2

A narration of selected TV programs is displayed.

Check TV program listings for CC (Closed Caption) broadcasts.

Caption Mode: TEXT C1 or C2

Most of the screen will be blocked out. When the TV station broadcasts information, such as program listings, it will appear in this space.

Caption Mode: OFF

Closed Caption/Text narration will not be displayed.

Press ACTION three times to return to the normal screen.

Notes:

• The closed caption or text signal may be broadcast over C1, C2, or both.

Also, text contents can vary so you may wish to try different settings.

• The closed caption display may overlap the display of a Disc.

Caption On Mute Feature

Closed Caption narration, if available, is displayed when MUTE button is pressed for silence.

Press ACTION to display MAIN MENU.

Press

Press SET to display SET UP TV screen.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET to display CAPTION screen.

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SELECT:

END :ACTION

SET:SET

Press

Press SET repeatedly to select “OFF.”

CAPTION

CAPTION MODE : OFF

CC ON MUTE : CAP C1

Press ACTION three times to return to the normal screen.

Press MUTE to mute the sound and display closed captioning.

• To cancel, press MUTE again.

Note:

• When a disc supporting closed captions is used, the subtitle and the closed caption may overlap. In this case, turn the subtitle or caption mode off. (See page 39.)

Press

SELECT:

END :ACTION

SET:SET

Press SET repeatedly to select desired mode.

• The caption may be broadcast over CAP C1 or C2.

CAPTION

CAPTION MODE : OFF

CC ON MUTE : CAP C1

Recording and Playing Back a Closed Caption/Text Program

Record:

Record normally. Closed Caption/Text signal, if present, is recorded automatically.

Playback:

Start playback. Perform steps to select desired caption mode.

SELECT:

END :ACTION

SET:SET

NO

CAP C2

CAP C1

CC ON MUTE: CAP C1 or C2

A narration of selected TV programs is displayed when

MUTE button is pressed for silence.

CC ON MUTE: NO

A narration will not be displayed when MUTE button is pressed for silence.

Video / Audio Setting

ACTION

SELECT

ŸźŻŹ/

SET

Press

Press SET repeatedly to select desired mode.

SET UP VIDEO/AUDIO

VIDEO MENU

VIDEO ADJUST

AUDIO MENU

AUDIO ADJUST

:NORMAL

:MUSIC

SELECT:

END :ACTION

SET:SET

NORMAL

Factory setting.

MOVIE

NIGHT

Picture is adjusted for a movie-like feel.

Color and picture intensity are adjusted to be easier on the eyes for night viewing.

Press ACTION three times to end setup.

This feature allows easy setting of picture and sound suitable for each program source.

Video Menu

Press ACTION to display MAIN MENU.

Press

Press SET to display SET UP TV screen.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET to display SET UP VIDEO/AUDIO screen.

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SELECT:

END :ACTION

SET:SET

Audio Menu

Perform steps 1 - 5 at left.

Press

Press SET to select desired mode.

SET UP VIDEO/AUDIO

VIDEO MENU

VIDEO ADJUST

AUDIO MENU

AUDIO ADJUST

:NORMAL

:MUSIC

SELECT:

END :ACTION

SET:SET

MUSIC

SPEECH

NORMAL

AUTO

Sound suited to music.

(Factory setting)

Sound suited to dialogue.

[Audio AGC (Auto Gain Control)] The sound level is automatically adjusted to suit the program source.

Volume level

High

Volume level

High

Standard

TV TV

Standard

TV TV

Low Low

AUDIO MENU : NORMAL AUDIO MENU : AUTO

<Audio AGC Example>

MOVIE

Sound suited to movies.

Press ACTION three times to end setup.

Notes:

• The effects of this feature on the signal are not output to the Audio/Video

Output Connector.

• When AUDIO MENU mode is “AUTO,” the AUDIO ADJUST setting will be

“STANDARD.”

• AUDIO MENU settings remain in memory.

• VIDEO MENU settings do not remain in memory.

Video Adjustment

Press ACTION to display MAIN MENU.

Press

Press SET to display SET UP TV screen.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Audio Adjustment

Press ACTION to display MAIN MENU.

Press

Press SET to display SET UP TV screen.

DVD

MAIN MENU

LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET to display SET UP VIDEO/AUDIO screen.

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SET:SET SELECT:

END :ACTION

Press

Press SET to display VIDEO ADJUST screen.

SET UP VIDEO/AUDIO

VIDEO MENU

VIDEO ADJUST

AUDIO MENU

AUDIO ADJUST

:NORMAL

:MUSIC

SELECT:

END :ACTION

SET:SET

Press

VIDEO ADJUST

COLOR

TINT

BRIGHTNESS


SHARPNESS

STANDARD

SELECT:

END :ACTION

ADJUST:

COLOR Control

Adjust color intensity.

TINT Control

Adjust for natural flesh tones.

BRIGHTNESS

Control

Adjust picture brightness.

PICTURE Control

Adjust picture intensity by adjusting both contrast and color level in the proper balance.

SHARPNESS

Control

Increases or decreases the level of detail in the image.

To Reset VIDEO Controls.

Press Ÿź and SET to select and set “STANDARD.” All controls return to their factory settings.

Press ACTION four times to end setup.

Press

Press SET to display SET UP VIDEO/AUDIO screen.

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SET:SET SELECT:

END :ACTION

Press

Press SET to display AUDIO ADJUST screen.

SET UP VIDEO/AUDIO

VIDEO MENU

VIDEO ADJUST

AUDIO MENU

AUDIO ADJUST

:NORMAL

:MUSIC

SELECT:

END :ACTION

SET:SET

Press

AUDIO ADJUST

BASS

TREBLE

BALANCE

STANDARD

SELECT:

END :ACTION

ADJUST:

BASS Control

To adjust the intensity of low frequency sound.

TREBLE Control

To adjust the intensity of high frequency sound.

BALANCE

Control

Controls the difference in audio level between the left and right speaker.

• The levels set here do not affect other audio equipment when connected to the Audio Output L/R Connector.

To Reset AUDIO Controls.

Press Ÿź and SET to select and set “STANDARD.” All controls return to their factory settings.

Press ACTION four times to end setup.

Before using the VCR

EJECT

DISPLAY

TV/VCR

NUMBER keys

ADD/DLT

CHŸź

STOP

STILL/

PAUSE

AUDIO

REC

PROG

SPEED

Insert a tape

STOP /

EJECT

REC CHŸź REC Indicator

Before using VCR Functions

Confirm that tape is inserted.

Press

Inserting a Tape

Insert a tape.

• The unit power comes on automatically.

To prevent tape jam,

remove loose or peeling labels from tapes.

Record tab

Eject tape

Press EJECT on the remote or STOP/EJECT on the unit.

Recording Television Programs

Record On a Tape

Insert a tape with record tab.

• The unit power comes on automatically.

Press

Ÿź or NUMBER keys to Select Channel.

• For “LINE” input, see page 16.

Press SPEED to select recording speed.

• Selected speed is displayed.

SP = Standard Play

SLP = Super Long Play

Recording modes and approximate recording times

Only use tapes with the mark in this unit.

Tape Speed Setting

SP (Standard Play)

T60

1 Hour

Type of Video Cassette

T120

2 Hours

T160

2 Hours

40 Minutes

SLP (Super Long

Play)

3 Hours 6 Hours 8 Hours

Press REC to start recording.

• You cannot view another channel during recording.

Stop Recording

Press STOP to stop recording.

Audio Mode for Recording

With the proper audio mode setting, your unit can:

• Record and playback MTS stereo broadcast (main language) in stereo Hi-Fi. Stereo sound is recorded on the left and right audio tracks and on the video portion of a tape.

• Record and playback a monaural broadcast (main language) or SAP

(Secondary Audio Program, usually in a second language) on the Hi-

Fi tracks for better quality monaural sound.

• Playback non-Hi-Fi tapes in monaural.

One Touch Recording (OTR)

Press REC repeatedly to set the recording length (30 min - 4 hours.)

• The unit stops recording at a preset time.

• PROG TIMER Indicator lights on the unit.

Normal Rec

4:00 3:00

0:30

2:00

Pause a Recording

a. Press STILL/PAUSE.

b. Press STILL/PAUSE to resume recording.

1:00

1:30

Notes:

• It is not possible to record from DVD/CD/Video CD to VHS tape using the unit.

• After the unit has been in Rec Pause mode for 5 minutes, it will stop automatically to protect the tape and the video head.

• The remaining recording time of an OTR can be displayed by pressing

DISPLAY.

• When an OTR is paused, the pause time is also factored into the total recording length.

Choose audio mode to match recording type.

Press AUDIO repeatedly to select the audio mode according to the type of broadcast to be recorded.

• The Audio mode selected stays in effect until it is changed.

• Refer to “MTS Broadcast / TV Stereo System” on page 18.

STEREO

SAP

MONO

See the “Record On a Tape” section to do a recording.

Notes:

• Refer to “Audio Mode for Playback” on page 28.

• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound.

Standard stereo tapes will playback with monaural sound.

• To listen to Hi-Fi stereo playback, the unit AUDIO (L/R) jacks must be connected to a stereo amp and speakers.

• There may be a difference in audio level between Hi-Fi and normal audio playback.

Timer Recording

Set up to 8 Programs

You can set up to 8 programs to be recorded while you are away.

Press PROG to display SET

PROGRAM screen.

Press

PROGRAMMING.”

SET PROGRAM

TIMER PROGRAMMING

ON TIMER

SLEEP TIMER: 0

SELECT:

END :PROG

SET:SET

Press SET to display screen.

• If a program is already in memory, press Ÿź, and SET to select an unused program number.

Press

ŻŹ to set the recording DATE.

• 1~31 = One time

• DAILY (day) = Monday~Friday

• WEEKLY (SU~SA) = Same time once a week

Repeat step 4 to set:

• Start time, stop time

• Channel (or LINE for outside source)

• Speed (SP, SLP)

P DT START STOP CH SPD

1 -- --:-- --:----

2 -- --:-- --:----

3 -- --:-- --:----

4 -- --:-- --:----

SELECT:

END :PROG

SET:SET

Example:

Today’s Date 7

WEEKLY

(SA)

WEEKLY

(MO)

WEEKLY

(SU)

DAILY

(day)

8

31

1

6 Review, Replace or

Clear Program Con tents :

(Recording is not in progress)

Press PROG to display SET

PROGRAM screen.

Press

PROGRAMMING.”

Press SET to display screen.

Press program.

SET PROGRAM

TIMER PROGRAMMING

ON TIMER

SLEEP TIMER: 0

SELECT:

END :PROG

SET:SET

P DT START STOP CH SPD

1 10 9:00a12:00p 08 SP

2day 11:00a11:30a125 SP

3 12 8:00p 9:30p L1 SLP

4 -- --:-- --:----

To Replace program...

a. Press SET to display.

b. Press Ÿź to select and press

SET or ŻŹ to set new program contents.

c. Press PROG.

To Clear program...

Press ADD/DLT.

CANCEL:ADD/DLT

SELECT:

END :PROG

SET:SET

P DT START STOP CH SPD

1 10 9:00a12:00p 08 SP

2day 11:00a11:30a125 SP

3 12 8:00p 9:30p L1 SLP

4 -- --:-- --:----

CANCEL:ADD/DLT

SELECT:

EXIT :PROG

SET:SET

P DT START STOP CH SPD

1 -- --:-- --:----

2day 11:00a11:30a125 SP

3 12 8:00p 9:30p L1 SLP

4 -- --:-- --:----

SET:SET SELECT:

END :PROG

Press PROG twice to exit this mode.

Notes:

• 2 minutes before Timer recording is performed, “PLEASE PREPARE FOR

TIMER REC” appears and/or the PROG TIMER Indicator flashes. Be sure a cassette with record tab is loaded and the unit is in Stop mode.

• If the start times of two programs overlap, the lower numbered program will have priority.

• If the start time for a Timer Recording comes up during a normal recording or One Touch Recording (page 25), the Timer Recording will not be performed.

• If there is a power interruption of more than one minute, the recording may not be performed or continued.

• If “INCOMPLETE” appears after all items have been set, check all entries and make necessary corrections.

Press PROG to set the program. To Enter More

Programs, press Ÿź to select and SET to set a blank program number, and then repeat step

P DT START STOP CH SPD

1 10 9:00a12:00p 08 SP

2 -- --:-- --:----

3 -- --:-- --:----

4 -- --:-- --:----

SET COMPLETED

CANCEL:ADD/DLT

SELECT:

END :PROG

SET:SET

Press PROG twice to exit this mode.

• If you’re using a cable box, make sure that it is tuned to the desired channel and the power is left on for timer recording.

• PROG TIMER indicator lights up on the unit.

Cancel a Timer Re cording:

(Recording is in progress)

Hold down STOP for a few seconds to cancel the

Timer Recording.

• Any future daily or weekly recordings will be performed as programmed.

Playing VCR

EJECT

ACTION

TV/VCR

TRACKING

NUMBER keys

Slow Motion picture

a. Press STILL/PAUSE.

b. Press FF/SLOW+ (increases speed) or REW/SLOW-

(decreases speed) in Still mode.

c. Press PLAY to release.

Frame by Frame picture

a. Press STILL/PAUSE.

b. Press STILL/PAUSE in Still mode.

c. Press PLAY to release.

Notes:

• These features work best in SLP mode.

• After 3 minutes in Still or Slow mode, unit stops to protect the tape and the video heads.

REW/SLOW-

STOP

STILL/PAUSE

AUDIO

PLAY

FF/SLOW+

CM / ZERO

COUNTER

RESET

Insert a tape

STOP /

EJECT

PLAY REC CHŸź

Playback a Tape

Insert a tape with record tab. (p. 24)

• The unit power comes on automatically.

Press PLAY to play a tape.

• If tape has no record tab (see page 6), auto play begins.

Stop a Tape

Press STOP.

Rapid Rewind tape

Press REW/SLOW- in Stop mode.

Rewinds a T-120 tape in approx. 1 minute.

Rapid Fast forward tape

Press FF/SLOW+ in Stop mode.

Eject tape

Press EJECT on the Remote Control or STOP/EJECT on the unit.

Repeat Play

Set to see a recording over and over.

PLAY

REPEAT ON

Note:

• To reduce picture noise, see “Manual Tracking Control” on page 29.

Forward/Reverse scene search

a. Press FF/SLOW+ or REW/SLOW-.

b. Press PLAY to release.

• FF and REW search speed may vary depending on current tape position.

• After 10 minutes in search mode, unit returns to Play mode to protect the tape and the video heads.

To turn “ON”

Press PLAY on the unit repeatedly in Play mode to select

“REPEAT ON.”

To turn “OFF”

Repeat above to select “REPEAT OFF.”

Still (Freeze) picture

a. Press STILL/PAUSE.

b. Press PLAY to release.

Notes:

• Playback repeats when tape end is reached or an unrecorded portion longer than 30 seconds is detected.

• For repeat play in disc mode, see pages 42-44.

Zero Search

To quickly return to a specific tape counter location.

Press DISPLAY during playback to display the

Counter.

Press COUNTER RESET at the desired position to reset to “0:00:00.”

PLAY 12:00PM

0:00:00

SLP

Continue to record, playback, etc.

Press

Press CM/ZERO in Stop mode to start ZERO

SEARCH.

• Unit will go into FF or REW mode and stop at the last point the

Counter was set to 0:00:00.

Index Search

Search System is ...

Each time a recording is made, an invisible index mark is placed on the tape. When timer recordings are made, program index and information are also included. These index marks can be used to access or scan recordings.

Go directly to the desired recording.

Press SEARCH in Playback or Stop mode to display

INDEX SEARCH screen, and then press NUMBER keys to select the recording number.

INDEX SEARCH

ENTER INDEX NUMBER :1

USING 1-9 KEYS

Press FF or REW to start search.

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

FORWARD SEARCH :FF

REVERSE SEARCH :REW

EXIT :SEARCH

1 2 3 4 5 6

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

1 2 3 4 5 6

NOTE: Ļ indicates start points of each recording.

Note:

• If Index Search is started very close to an index mark, that index mark may not be counted in the search.

Audio Mode for Playback

Choose the type of sound track for playback.

See the “Playback a Tape” section on page 27 to playback the tape.

Press AUDIO repeatedly (each press within 5 seconds) to select desired mode.

• Select “HIFI (L/R),” to listen to a regular Hi Fi Stereo recording.

Select “HIFI (L)” or “HIFI (R)” to listen only to the left or right channel of a stereo recording. This is commonly used for Karaoke, music on one channel and vocals on the other. Select “NORMAL” for linear stereo playback from a recorded tape with Hi Fi disabled.

• This screen appears when you press AUDIO during playback.

Play begins at search end. To search forward or back 1 index, press FF or REW while screen below is displayed (10 seconds).

To cancel,

press STOP.

INDEX SEARCH

FORWARD SEARCH :FF

REVERSE SEARCH :REW

HIFI(L/R)

HIFI(L)

HIFI(R)

NORMAL

Commercial Skip

By pressing CM/ZERO in Playback mode you can skip over 1, 2, or 3 minutes of recorded tape as desired.

Press CM/ZERO repeatedly to select skip time in

Playback mode.

Manual Tracking Control

Use during Playback and Slow Motion mode to reduce picture noise. Press the 3 or 6 number key on the remote control or

CH Ÿź on the unit until the picture clears up. To return to Auto

Tracking, press POWER off, then on again a few seconds later.

1st Press

1 min skip

OFF

2nd Press

2 min skip

3rd Press

3 min skip

Note:

• No indication appears.

Auto Playback

Insert a tape in Power off mode.

Power turns on, ĺ Play.

Note:

• Playback begins if tape has no record tab.

V-Lock Control

In Still mode, the 3 or 6 number key on the remote control or

CH Ÿź on the unit operate as a V-Lock control to reduce jitter.

Auto Rewind

(except for Recording)

Tape reaches its end

Rewind, ĺ Stop.

VCR Lock

All operations are prohibited except Timer recording and tape eject.

Useful for families with small children.

In Stop mode, hold down REC on the unit without a cassette inserted for 7 seconds to turn “ON.”

(Please ignore “NO CASSETTE” warning.)

Playback Auto Eject

(Repeat Play must be “OFF”)

Tape with no record tab reaches its end

Rewind, ĺ Stop, ĺ Eject.

VCR LOCK ACTIVATED

Repeat above with or without cassette to turn “OFF.”

VCR LOCK OFF

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Note:

• VCR Lock is canceled automatically after about 24 hours if clock is set.

Copy Your Tapes (Dub bing)

Refer to page 10 “Connecting the “1, 2” Input Terminal” before you perform this operation.

IMPORTANT

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Note:

• Please note that some tapes cannot be dubbed on this unit. Also, it is not possible to dub DVD/CD/Video CD to VHS tape using this unit.

Playback (Source) unit

Recording (Editing) unit

Insert pre- recorded tape.

Insert blank tape with record tab.

• Dubbing tapes protected with Copy Guard will have poor quality results.

Select “LINE” mode.

See page 16 “Selecting Input Mode”.

Press PLAY, then press PAUSE at starting point to put in Standby mode.

Press REC, then press STILL/PAUSE immediately to put in

Standby mode.

(Perform operation of steps 3 and 4 on both units at same time.)

Press PLAY to start dubbing.

Playing Source unit starts playback.

Press STILL/PAUSE to start dubbing.

Editing unit starts recording.

Press STOP to stop dubbing.

V-Chip Control Features

Press NUMBER keys to enter your secret code.

• Take care that you are not observed entering the secret code.

LOCK

ENTER 4-DIGIT CODE

**--

ACTION

SELECT

ŸźŻŹ/

SET

NUMBER keys

ADD/DLT

(CLEAR)

ENTER :0-9

END :ACTION

Enter same code again for confirmation.

LOCK

CONFIRM 4-DIGIT CODE

****

RECOGNIZED

CHANGE CODE:ADD/DLT

CONTINUE:SET

END :ACTION

To Make Corrections

a. Press Ż repeatedly to move the cursor.

b. Press NUMBER keys to make the correction.

Press SET to display Ratings menu (see pages

32-34). Or press ACTION twice to exit.

Notes:

• Some rental movies do not include V-Chip data.

• Do not forget your secret code.

• Once ratings are set, restricted tapes or programs cannot be accessed unless the secret code is entered.

• Step 5 not necessary when changing rating.

V-Chip Control Feature is...

This unit has a built-in V-Chip Control which allows you to block unwanted TV usage based on US MOVIES, US TV PROGRAMS

Ratings, Canadian English Language Ratings and Canadian

French Language Ratings.

Enter Secret Code

A 4-digit code must be entered to view a blocked program or change rating settings.

Press ACTION to display MAIN MENU.

Press

Press SET to display LOCK screen.

MAIN MENU

DVD LOCK LANGUAGE

SELECT:

END

CLOCK CH

SET:SET

:ACTION

Changing your secret code

You will need your current code.

While this OSD (on screen display) is displayed, press ADD/DLT (CLEAR) to clear current code.

LOCK

ENTER 4-DIGIT CODE

****

RECOGNIZED

CHANGE CODE:ADD/DLT

CONTINUE:SET

END :ACTION

Enter new secret code.

If LOCK menu is not displayed, perform “Enter Secret

Code” steps on page 31.

US MOVIES Ratings

Press

• “NEXT PAGE” displays CANADIAN V-Chip settings menu. Please refer to page 33 for more details on Canadian tapes or broadcasts.

US TV PROGRAMS Ratings

Press

• “NEXT PAGE” displays CANADIAN V-Chip setting menu. Please refer to page 33 for more details on Canadian tapes or broadcasts.

Press SET to set “ON” or “OFF.”

ON:

V-Chip Control is activated.

OFF:

V-Chip Control is deactivated.

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to display screen.

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “YES” or “NO.”

NR (Not Rated) PROGRAMS:

Some movies, such as old movies or foreign movies, have no ratings.

VIEW NR PROGRAMS? : YES

UNLOCKED

PG-13

NC-17

CONTAINS NO RATING

SELECT:

END :ACTION

SET:SET

Press blocked.

• See “US MOVIES Ratings Chart” on page 34.

VIEW NR PROGRAMS? : YES

UNLOCKED

PG-13

NC-17

GENERAL AUDIENCE

SELECT:

END :ACTION

SET:SET

Press ACTION to redisplay LOCK menu and continue with US TV PROGRAMS Ratings. Or, press

ACTION three times to exit.

Press SET to set “ON” or “OFF.”

ON:

V-Chip Control is activated.

OFF:

V-Chip Control is deactivated.

Press

Press SET to display screen.

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “YES” or “NO.”

NR (Not Rated) PROGRAMS:

Some TV shows, such as news, sports, weather, bulletins, emergency information have no ratings.

VIEW NR PROGRAMS? : YES

TV-Y UNLOCKED

TV-Y7 FV

TV-G

TV-PG

TV-14

TV-MA V S L

CONTAINS NO RATING

SELECT:

END

V S L D

:ACTION

SET:SET

Press blocked.

• See “US TV PROGRAMS Ratings Chart” on page 34.

• You may select from standard TV ratings (chart 1), or customize to a specific content rating (chart 2).

• Ratings highlighted in green will be blocked. Ratings in white letters will not be blocked.

VIEW NR PROGRAMS? : YES

TV-Y UNLOCKED

TV-Y7 FV

TV-G

TV-PG

TV-14

TV-MA

V S L D

V S L

FOR ALL CHILDREN

SELECT: SET:SET

END :ACTION

Press ACTION three times to exit this mode.

Canadian English Language Ratings

Press

Press SET to display screen.

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “ON” or “OFF.”

ON:

V-Chip Control is activated.

OFF:

V-Chip Control is deactivated.

LOCK

CANADIAN ENGLISH :OFF

CHANGE SETTINGS

CANADIAN FRENCH :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to display screen.

LOCK

CANADIAN ENGLISH :OFF

CHANGE SETTINGS

CANADIAN FRENCH :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “YES” or “NO.”

E (Exempt) PROGRAMS:

Some TV shows, such as news, sports, weather, bulletins, and emergency information have no ratings.

VIEW E PROGRAMS? : YES

C8+

UNLOCKED

14+

18+

EXEMPT

SELECT:

END :ACTION

SET:SET

Canadian French Language Ratings

Press

Press SET to display screen.

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “ON” or “OFF.”

ON:

V-Chip Control is activated.

OFF:

V-Chip Control is deactivated.

LOCK

CANADIAN ENGLISH :OFF

CHANGE SETTINGS

CANADIAN FRENCH :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to display screen.

LOCK

CANADIAN ENGLISH :OFF

CHANGE SETTINGS

CANADIAN FRENCH :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

Press

Press SET to set “YES” or “NO.”

E (Exempt) PROGRAMS:

Some TV shows, such as news, sports, weather, bulletins, and emergency information have no ratings.

VIEW E PROGRAMS? : YES

8 ANS+

UNLOCKED

13 ANS+

16 ANS+

18 ANS+

EXEMPT

SELECT:

END :ACTION

SET:SET

Press blocked.

• See “Canadian English Language Ratings Chart” on page 34.

VIEW E PROGRAMS? : YES

C UNLOCKED

C8+

14+

18+

FOR CHILDREN

SELECT:

END :ACTION

SET:SET

Press ACTION to redisplay LOCK menu and continue with Canadian French Language Ratings.

Or, press ACTION three times to exit.

Repeatedly

Ÿź to select and SET to set ratings to be blocked.

• See “Canadian French Language Ratings Chart” on page 34.

VIEW E PROGRAMS? : YES

G UNLOCKED

8 ANS+

13 ANS+

16 ANS+

18 ANS+

GENERAL AUDIENCE

SELECT:

END :ACTION

SET:SET

Press ACTION three times to exit this mode.

US MOVIES Ratings Chart

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

Some material may not be suitable for children.

PG-13

PARENTS CAUTIONED:

Some material may be inappropriate for children under 13.

RESTRICTED:

Children under 17 must be accompanied by a parent or adult.

NC-17

OVER AGE 17 ONLY:

No one 17 and under admitted.

X ADULTS ONLY:

Canadian French Language Ratings Chart

8 ANS +

13 ANS +

16 ANS +

18 ANS +

General Audience

Not recommended for young children

Programming may not be suitable for children under the age of 13

Programming is not suitable for children under the age of 16

Programming restricted to adults

US TV PROGRAMS Ratings Chart

Chart 1

TV-Y

FOR ALL CHILDREN:

Content specifically geared to young viewers ages 2-6.

TV-Y7

TV-G

FOR AGE 7 AND OLDER:

May contain mild physical or comedic violence which may frighten children under 7.

GENERAL AUDIENCE:

Contains little or no violence, strong language, or sexual dialogue or situations.

TV-PG

PARENTAL GUIDANCE:

May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

TV-14

PARENTS CAUTIONED:

May contain sophisticated themes, sexual situations, strong language, and more intense violence.

TV-MA

MATURE AUDIENCE:

May contain mature themes, profane language, graphic violence, and sexual situations.

Chart 2

Fantasy Violence

Violence

Sexual Situations

Adult Language

Sexually Suggestive Dialogue

Canadian English Language Ratings Chart

C8+

14+

18+

Children

Children 8 years and older

General Audience

Parental Guidance

Viewers 14 years and older

Adult Programming

Blocking Message

<When V-Chip Control is activated>

If a program or movie exceeds the ratings you have set, a message will appear on a black background and sound is muted.

CH 08 CH 08

PROGRAM RATING EXCEEDED

RATING:PG-13

ACCESS CODE

ENTER :0-9

----

PROGRAM RATING EXCEEDED

RATING:13ANS+

ACCESS CODE ----

ENTER :0-9

To View a Blocked Program/Movie

Temporarily Deactivate

V-Chip Control

Press NUMBER keys to enter your secret code in the Blocking Message screen.

• V-Chip Control is reactivated when power is turned off or power failure occurs.

Deactivate V-Chip Control

Enter your secret code.

(See page 31.)

LOCK

ENTER 4-DIGIT CODE

**--

CH08

PROGRAM RATING EXCEEDED

RATING:PG-13

ACCESS CODE

ENTER :0-9

*---

<Example: US Rating>

ENTER :0-9

END :ACTION

Then, set US MOVIES and/or US TV PROGRAMS and/or CANADIAN ENGLISH LANGUAGE and/or

CANADIAN FRENCH LANGUAGE to “OFF” using

Ÿź and SET. (Ratings set on pages 31-34 are retained and will be in effect when V-Chip Control is activated again.)

LOCK

US MOVIES :OFF

CHANGE SETTINGS

US TV PROGRAMS :OFF

CHANGE SETTINGS

LOCK

CANADIAN ENGLISH :OFF

CHANGE SETTINGS

CANADIAN FRENCH :OFF

CHANGE SETTINGS

SELECT:

END :ACTION

SET:SET

SELECT:

END :ACTION

SET:SET

Display Features

DISPLAY

TV/VCR Status & Clock Display

Press

to display or remove the overlay.

REC

0:25

STEREO

SAP

12:00PM

MONO

RATING:PG-13

CH 08

-0:12:34

1 Function Status

2 Rec Time Remaining

(OTR mode only, see page 25.)

3 Receivable Broadcast Types

(See page 18.)

4 Rating level

5 Current Time

6 Channel

7 Counter

8 Tape Speed

(See page 25.)

Channel & Function Display

When a function button is pressed (PLAY, FF, etc.) or you change channels, the unit mode or channel number will be displayed.

PLAY

Auto Shut Off

No broadcast signal in TV mode (Only when Weak Signal Display is set to OFF (See page 17)), or blank tape is played for 5 minutes.

Power turns off.

Note:

• This feature is canceled if any button is pressed during above conditions.

Blue Screen Display

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with the Weak

Signal Display Feature set to “OFF” (see page 17), the screen will turn solid blue.

Basic Disc Operation

OPEN /

POWER

DISPLAY

SELECT

ŸźŻŹ/

SET

REW /

SLOW-

STOP

STILL /

PAUSE

SKIP- ǿŻŻ

AUDIO

DVD

NUMBER keys

PLAY

FF/SLOW+

TITLE

SKIP+ ŹŹǿ

SUB TITLE

ZOOM

POWER

Insert disc STOP

PLAY

OPEN /

If a remote control button does not work when pressed, press the

DVD button on the remote and try the button again.

Play Disc

Press POWER on the remote or unit.

Press DVD to set remote to DVD mode.

Press

• If a disc is already inserted, go to step 5. (Depending on the disc, playback may start automatically.)

Place disc into disc tray.

• Hold disc by its edges only (page 7) with printed side up and use guides to place into tray. Use

3Ǝ(8 cm) or

5Ǝ (12 cm) disc.

Press PLAY to start play. Disc tray closes automatically.

• You may also close the tray by pressing OPEN/CLOSE.

• Data reading time differs with each disc.

READING

If an interactive DVD*

or a Video CD with playback control*

is used and a Main MENU of disc appears, go to step 6.

LOVE STORY

* 1 Interactive DVD...

May include multiple camera angles, stories, etc.

* 2 Video CD with playback control...

Particular scenes or information can be interactively selected from a menu that appears on the screen.

1 MAIN STORY

2 SUBTITLE

3 AUDIO SOUNDTRACK

4 INFORMATION

While Main MENU is displayed, press SKIP+ ŹŹǿ or SKIP- ǿŻŻ to go to next or previous Main MENU of disc screen.

• SKIP function not available with all discs. Please refer to disc jacket for operation information.

Press start play. Or, pressing NUMBER keys starts play automatically.

• The number of available titles varies with each disc.

To return to Main MENU of DVD (play stops):

Press TITLE, MENU, or RETURN.

To return to Main MENU of Video CD (play stops):

Press RETURN.

Press STOP to stop playing.

Press OPEN/CLOSE to eject the disc.

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Auto-Power Off function

DVD-V CD VCD

RAM

Power turns off after unit is in stop mode with wallpaper displayed for about 5 minutes.

Using the NUMBER keys

DVD-V CD VCD RAM

When a NUMBER key is used in disc mode, it performs a different operation from TV mode.

Example 1:

To select 12, first press the 10 key, then 1, then 2.

Example 2:

To select 2, press the 2 key.

Enjoy Video CDs featuring playback control without using menus

VCD

Do steps 1-5 (previous page).

When menu appears, press STOP.

Press NUMBER key(s) to select desired track (play begins).

• Check disc for track numbers.

• Press “1” to start at beginning of disc.

To Resume Menu use,

Press STOP, and press PLAY, then the menu appears. Now, go to step 6 (previous page).

Note:

• Please read the disc jacket for operation information.

• If a single sided disc is placed in upside down, “THIS TYPE OF DISC

CANNOT BE PLAYED. PLEASE INSERT A DIFFERENT DISC” is displayed.

• Remove disc and press unit POWER off when not in use.

• Disc continues to rotate with menu displayed even after play is done.

Press STOP to clear menu display when finished with menu.

Forward/Reverse Rapid Scene Search

DVD-V CD VCD RAM

Press FF/SLOW+ or REW/SLOW- during play.

• Search speed, slow at first, increases with each additional press of the button up to 5 levels.

• Starting forward/reverse search during play started from menu on

Video CDs may recall menu.

Press PLAY to release.

Forward/Reverse Chapter/Track Skip

DVD-V CD VCD

RAM

Press

DVD and CD/Video CD

• Pressing SKIP- ǿŻŻ once midway through a chapter/track returns to start of that chapter/track. Each additional press skips back one chapter/track.

• Pressing SKIP+ ŹŹǿ or SKIP- ǿŻŻ during play started from menu on Video CDs may recall menu.

Current playback position

Chapter/Track Chapter/Track Chapter/Track

Reverse Skip

Forward Skip

DVD-RAM

• Pressing SKIP- ǿŻŻ once midway through a program/play list returns to start of that program/play list. Each additional press skips back one program/play list.

Current playback position

Marker

Program/Play List Program/Play List Program/Play List

Reverse Skip Forward Skip

Each press skips a chapter (DVD), track (CD/Video

CD) or Program/Play List/Marker (DVD-RAM).

• Pressing SKIP- ǿŻŻ within 3 seconds of a track/chapter/program/play list start point skips to the previous start point.

Slow Motion Picture

DVD-V VCD

RAM

Press FF/SLOW+ or REW/SLOW- in Still mode.

• Slow motion speed, slow at first, is increased with each additional press of the button up to 5 levels.

• Reverse slow motion is not available for video CDs.

Press PLAY to release.

Still (Pause) Picture

DVD-V CD VCD

RAM

Press STILL/PAUSE during play.

• DVD/Video CD:

The unit will enter Still picture mode.

• CD:

The unit will enter Pause mode.

Press PLAY to release.

Frame by Frame Picture

DVD-V VCD

RAM

Press STILL/PAUSE in Still mode.

• Each press advances picture one frame.

• Hold down for consecutive frame advance.

Press PLAY to release.

Note:

• Whether pictures are advanced by “FRAME” or “FIELD” is selected automatically (see page 51).

RESUME Function

DVD-V CD

RAM

The unit memorizes the point where STOP is pressed (STOP Ź display on screen).

Press PLAY to resume play from this point.

Pressing STOP again or opening the tray cancels RESUME.

However, RESUME is not canceled when power is turned off and on.

Notes:

• RESUME works only with discs for which elapsed play time is displayed during play.

• When a DVD-RAM still picture is played back, the counter will not be displayed; however, RESUME will function.

Main Menu of DVD

DVD-V

DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic steps for using menus.

Press MENU in Play mode to display main menu of

DVD.

Press keys to select an item.

LOVE STORY

Press SET or PLAY to access.

• Step 3 not necessary when using

NUMBER keys.

1 MAIN STORY

2 SUBTITLE

3 AUDIO SOUNDTRACK

4 INFORMATION

Note:

• Repeat steps 2-3 if there is more than one menu.

Audio Soundtrack Language

DVD-V

You can change the audio soundtrack language, selected at

Settings for DVD Operation, to a different language if available.

(See page 48.)

(This operation works only with discs on which multiple audio soundtrack languages are recorded.)

Press AUDIO in Play mode to display the audio selection on-screen.

• Display disappears after 5 seconds.

Information on the audio stream currently being played back is displayed.

(See page 50.)

LPCM

96 kHz or

48 kHz

16 bit

20 bit

24 bit

Linear PCM disc

Dolby

Digital dts

1 ch - 5.1 ch Dolby Digital disc

1 ch - 5.1 ch dts disc

Note:

• With DVD-RAM, Audio Soundtrack

Language cannot be set. Audio stream and Audio mode (LR/L/R) settings can be made. Audio stream operation method is the same as for

Audio Soundtrack Language. Press

Ź to move the cursor to Audio mode, then press AUDIO or Ÿź to select LR/ L/ R.

A U D I O : 1 E N G

D o l b y D i g i t a l 3 / 2 . 1 c h

I love you.

S E L E C T : A U D I O

A U D I O : 1 L R

D o l b y D i g i t a l 3 / 2 . 1 c h

S E L E C T : A U D I O / ɳ ɱ

Title Menu of DVD

DVD-V

Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.)

Press TITLE in Play mode to display title screen.

TITLE MENU

1 PROLOGUE 2 A PAINFUL

SEPARATION

4 EPILOGUE 3 MEETING

AGAIN

TITLE MENU

Press keys to select a title.

Press SET or PLAY to access.

• Step 3 not necessary when using

NUMBER keys.

1 PROLOGUE

3 MEETING

AGAIN

2 A PAINFUL

SEPARATION

4 EPILOGUE

Press AUDIO repeatedly,

Ÿź, or NUMBER keys to select desired language.

Audio soundtrack language being played back.

A U D I O : 3 E S P

D o l b y D i g i t a l 3 / 2 . 1 c h

Te amo.

S E L E C T : A U D I O

ENG

FRA

DEU

ITA

ESP

NLD

English

French

German

Italian

Spanish

Dutch

SVE

NOR

DAN

POR

RUS

JPN

Swedish

Norwegian

Danish

Portuguese

Russian

Japanese

CHI

KOR

MAL

VIE

THA

Chinese

Korean

Malay

Vietnamese

Thai

Other

Notes:

• If, after several presses of the AUDIO button, the language does not change, language selection is not offered on the disc.

• When disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.

3 MEETING

AGAIN

CHAPTER 1

CHAPTER 2

CHAPTER 3

CHAPTER 4

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Vocal selection for Karaoke discs

DVD-V VCD

Press AUDIO in Play mode to display the audio screen.

Press

“VOCAL.”

Press AUDIO or Ÿź to set.

A U D I O :

2 E N G V O C A L O N

Yeah !

S E L E C T : A U D I O / ɳ ɱ

DVD Karaoke (1 vocal)

VOCAL ON VOCAL OFF

DVD Karaoke (2 vocals)

VOCAL V1 VOCAL V2

VOCAL OFF VOCAL V1 + V2

Information Display

DVD-V CD RAM

When DISPLAY is pressed, On-Screen Displays show disc information and unit information.

Press DISPLAY in Play or Stop mode to display “On-

Screen Display.”

• Each press of DISPLAY changes the on-screen display as follows.

(Please refer to pages 42-44.)

Selected disc information

T I T L E : 2

C H A P T E R : 1 2

T I M E : 0 1 : 1 2 : 5 5

T R A C K : 1 2

T I M E : 0 0 : 0 0 : 2 3

<Example of

DVD-RAM>

P R O G R A M : 2

T I M E : 0 1 : 1 2 : 5 5

Video CD

LR L

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y S E T : S E T N E X T : D I S P L A Y

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y

Subtitle Language

DVD-V RAM

You can select a different subtitle language (if offered) than the one set at Settings for DVD Operation. (See page 48.)

Press SUB TITLE in Play mode to display the subtitle selection on-screen.

• Display disappears after 5 seconds.

Press SUB TITLE repeatedly,

Ÿź, or NUMBER keys to select desired language.

Note:

• With DVD-RAM, the subtitle can only be set to ON/OFF. The subtitle language cannot be selected.

S U B T I T L E : 1 E N G

I love you.

S E L E C T : S U B T I T L E

Number of subtitle language being played back.

S U B T I T L E : 3 E S P

Te amo.

I love you.

S E L E C T : S U B T I T L E

I love you.

ENG

FRA

DEU

ITA

ESP

NLD

English

French

German

Italian

Spanish

Dutch

SVE

NOR

DAN

POR

RUS

JPN

Swedish

Norwegian

Danish

Portuguese

Russian

Japanese

CHI

KOR

MAL

VIE

THA

Chinese

Korean

Malay

Vietnamese

Thai

Other

Notes:

• When closed captioning is used along with subtitles, they may overlap. If so, turn one function off. (See pages 20-21.)

• If, after several presses of the button, the language does not change, language selection is not offered on the disc.

• Subtitles may not change to the selected language immediately.

• When disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc’s priority language will appear.

Selected unit information

R E P E A T : O F F

S U R R O U N D : O F F

R E P E A T : O F F

S U R R O U N D : O F F

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

<Example of

DVD-RAM>

R E P E A T : O F F

S U R R O U N D : O F F

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

Normal Screen

Note:

• When DISPLAY is pressed during play of a Video CD with Play control, the NUMBER keys are not available on the displayed screen. In this case, press DISPLAY again to remove the displayed screen.

• DISPLAY button does not function while main menu of DVD, title menu of

DVD, Direct Navigator, or Play List is displayed.

Picture Zoom

DVD-V RAM

You can enlarge specific portions of a picture and select the zoom ratio using the ZOOM button on the remote during DVD playback.

Press repeatedly to change display as follows.

• You can enlarge the center portion of the image to one of 2 magnifications.

×1.0

(ORIGINAL)

1st press

×1.5

(ZOOM1)

Z O O M 1

3rd press

2nd press

×2.0

(ZOOM2)

Z O O M 2

Use position up, down, left and right.

Notes:

• The subtitle cannot be enlarged nor can its position be changed.

• During picture zoom, “ZOOM1” or “ZOOM2” appears on-screen for 5 seconds.

• Zooming, on some discs, may result in poor picture quality, or may not operate at all.

• The picture zoom feature does not work with a Video CD.

DVD-RAM Operation

POWER

SELECT

ŸźŻŹ/

SET

STOP

OPEN /

DVD

NUMBER keys

PLAYLIST

PLAY

D.NAVI

Press PLAYLIST or D.NAVI to display Play List or Direct Navigator menu for easy title or scene selection.

Example: Play List menu

Play List No.

Recorded time length

Page No.

Play List Page1/5

No. Date Length Title

2002/12/24

5:15:41AM

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

2002/12/25

12:45:00AM

00:01:00

00:03:12

00:15:01

00:03:00

Movie Picture

Playback

Still Picture

Playback

Hybrid Playback

Partial Playback

SELECT:

SET :SET END:MENU

Recording time and date

Titles

You can enjoy playing your personally recorded/edited DVD-

RAM discs on this unit.

Note:

• This unit was designed for playback only. DVD-RAM recording is not possible.

Play a DVD-RAM

RAM

Press POWER on the remote or unit.

Press DVD to set remote to DVD mode.

Press

Place disc into disc tray.

Press PLAY to start play. Disc tray closes automatically.

• Play begins from the first program title recorded on the DVD-RAM.

Example: Direct Navigator menu

Program No.

Recorded time length

Page No.

Direct Navigator Page1/4

No. Date Length Title

2002/12/24

5:15:41AM

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

2002/12/25

12:45:00AM

01:00:00

00:30:00

01:30:25

02:00:50

Drama

Pana NEWS

Tigers vs. Giants

Dinosaur

SELECT:

SET :SET END:TITLE

Recording time and date

Titles

Press STOP to stop playing.

Press OPEN/CLOSE to eject the disc.

Notes:

• Titles in Direct Navigator and Play List cannot be changed using this unit.

• With Direct Navigator, up to 99 programs can be displayed. With Play

List, up to 99 titles (999 scenes) can be displayed.

• While DVD MAIN MENU is displayed, Play List and Direct Navigator display will not appear even if PLAYLIST or D.NAVI is pressed.

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Play List

RAM

If the DVD-RAM features a Play List, your preselected list of favorite scenes is displayed for easy access. (Operation can vary according to how you edited the DVD-RAM.)

Direct Navigator

RAM

If the DVD-RAM features Direct Navigator, a list of recorded titles is displayed. Simply select a title number and start playback.

(Operation can vary with disc used.)

Press PLAYLIST in Play/Stop mode to display the

Play List menu.

Play List Page1/5

No. Date Length Title

2002/12/24

5:15:41AM

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

00:01:00

00:03:12

00:15:01

Movie Picture

Playback

Still Picture

Playback

Hybrid Playback

4 2002/12/25

12:45:00AM

00:03:00

Partial Playback

SELECT:

SET :SET END:MENU

Press

NUMBER keys to select a title (Play List No.).

Press D.NAVI in Play/Stop mode to display the

Direct Navigator menu.

Direct Navigator Page1/4

No. Date Length Title

2002/12/24

5:15:41AM

01:00:00

Drama

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

2002/12/25

12:45:00AM

00:30:00

01:30:25

02:00:50

Pana NEWS

Tigers vs. Giants

Dinosaur

SELECT:

SET :SET END:TITLE

Press

NUMBER keys to select a title (Program No.).

Play List Page1/5

No. Date Length Title

2002/12/24

5:15:41AM

00:01:00

Movie Picture

Playback

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

2002/12/25

12:45:00AM

00:03:12

00:15:01

00:03:00

Still Picture

Playback

Hybrid Playback

Partial Playback

SELECT:

SET :SET END:MENU

Press SET or PLAY to start playing.

• Pressing SET or PLAY is not necessary when using NUMBER keys.

Direct Navigator Page1/4

No. Date Length Title

2002/12/24

5:15:41AM

01:00:00

Drama

2002/12/25

4:31:49AM

2002/12/25

8:24:25AM

00:30:00

01:30:25

Pana NEWS

Tigers vs. Giants

2002/12/25

12:45:00AM

02:00:50

Dinosaur

SELECT:

SET :SET END:TITLE

Press SET or PLAY to start playing.

• Pressing SET or PLAY is not necessary when using NUMBER keys.

Using NUMBER keys starts play automatically.

• The number of available titles varies with each disc.

Example 1:

To select No. 12, first press the 10 key, then 1, then 2.

Example 2:

To select No. 2, press 2.

Using NUMBER keys starts play automatically.

• The number of available titles varies with each disc.

Example 1:

To select No. 12, first press the 10 key, then 1, then 2.

Example 2:

To select No. 2, press 2.

Press PLAYLIST to clear Play List menu.

Press D.NAVI to clear Direct navigator menu.

Disc Operation -Using Information Screen-

DISPLAY

SELECT

ŸźŻŹ/

SET

NUMBER keys

c.Disc currently being played:

The type of disc currently inserted is displayed.

d.Elapsed playing time:

Go to a different scene by entering an elapsed playing time, then

SET.

• This function does not work with some discs.

• If SET is pressed while making entries, unit returns to the condition before entries were made.

Example:

12 : 34 : 56 1 ĺ 2 ĺ 3 ĺ 4 ĺ 5 ĺ 6

00 : 20 : 00 2 ĺ 0 ĺ 0 ĺ 0 ĺ SET

Disc information screen 1

DVD-V

Press DISPLAY in Play or Stop mode to display “On-

Screen Display.”

Press

b d a

T I T L E : 2

C H A P T E R : 1 2

T I M E : 0 1 : 1 2 : 5 5

Unit information screen 1

DVD-V

Press DISPLAY twice in Play or Stop mode to display “On-Screen Display.”

Press SET to enter. Change the item by pressing

Ÿź and press SET.

R E P E A T : O F F

S U R R O U N D : O F F b

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

a.REPEAT MODE:

REPEAT MODE can be selected

Example:

CURRENT PLAYBACK POSITION

TITLE chapter chapter chapter

REPEAT:

CHAPTER

REPEAT:TITLE

REPEAT:OFF b.SURROUND MODE:

See page 47.

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y

Press SET to enter selected item. Change the item by pressing Ÿź or the

NUMBER keys, and press

SET.

T I T L E : 2

C H A P T E R : 1 2

T I M E : 0 1 : 1 2 : 5 5

T I T L E : 2

C H A P T E R : 1 2

T I M E : 0 1 : 1 2 : 5 5

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

a.TITLE:

Go directly to a preset title number.

b.Chapter:

Go directly to a preset chapter number.

• This function does not work with some discs.

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Disc information screen 2

Press DISPLAY in Play or

Stop mode to display “On-

Screen Display.”

T R A C K : 1 2

T I M E : 0 0 : 0 0 : 2 3 a

P R O G R A M P L A Y

N E X T : D I S P L A Y

Disc information screen 3

VCD

Press DISPLAY in Play or

Stop mode to display “On-

Screen Display.”

T R A C K : 1 2

T I M E : 0 0 : 3 5 : 1 2

P B C O F F a

P R O G R A M P L A Y

N E X T : D I S P L A Y

Press SET to enter selected item. Change the item by pressing Ÿź or the

NUMBER keys, and press

SET.

T R A C K : 1 2

T I M E : 0 0 : 0 0 : 2 3 c d

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

a.Play mode:

When Play mode is set (see pages 45-46), the mode name is displayed.

b.TRACK:

Go directly to a preset track number.

c.Elapsed playing time:

When disc information screen 2 is displayed, it is not possible to enter an elapsed playing time.

d.Disc currently being played:

The type of disc currently inserted is displayed.

Press SET to enter selected item. Change the item by pressing Ÿź or the

NUMBER keys, and press

SET.

b d

T R A C K : 1 2

T I M E : 0 0 : 3 5 : 1 2

P B C O F F c e

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

a.Play mode:

When Play mode is set (see pages 45-46), the mode name is displayed.

b.TRACK:

Go directly to a preset track number.

c.Elapsed playing time:

When disc information screen 3 is displayed, it is not possible to enter an elapsed playing time.

d.Disc currently being played:

The type of disc currently inserted is displayed.

e.Playback control ON/OFF:

ON: Video CD menu play is displayed.

OFF: Video CD menu play is not displayed.

Unit information screen 2

Press DISPLAY twice in Play or Stop mode to display “On-Screen Display.”

Press SET to enter. Change the item by pressing Ÿź, and press SET.

R E P E A T : O F F

S U R R O U N D : O F F b

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

a.REPEAT MODE:

REPEAT MODE can be selected.

Example:

CURRENT PLAYBACK POSITION

track

REPEAT:TRACK

REPEAT:DISC

REPEAT:OFF b.SURROUND MODE:

See page 47.

track track

Unit information screen 3

VCD

Press DISPLAY twice in Play or Stop mode to display “On-Screen Display.”

Press SET to enter. Change the item by pressing Ÿź, and press SET.

R E P E A T : O F F

S U R R O U N D : O F F b

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

a.REPEAT MODE:

REPEAT MODE can be selected.

Example:

CURRENT PLAYBACK POSITION

track

REPEAT:TRACK

REPEAT:DISC

REPEAT:OFF b.SURROUND MODE:

See page 47.

track track

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Disc information screen 4

RAM

Press DISPLAY in Play or Stop mode to display “On-

Screen Display.”

Press

P R O G R A M : 2

T I M E : 0 1 : 1 2 : 5 5

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y

Press SET to enter selected item. Change the item by pressing Ÿź or the NUMBER keys, and press

SET.

P R O G R A M : 2

T I M E : 0 1 : 1 2 : 5 5

P R O G R A M : 2

T I M E : 0 1 : 1 2 : 5 5

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

E N T E R : 0 - 9

S E T : S E T N E X T : D I S P L A Y

Example:

Direct Navigation (PROGRAM) a b

P R O G R A M : 2

T I M E : 0 1 : 1 2 : 5 5 c

Unit information screen 4

RAM

Press DISPLAY twice in Play or Stop mode to display “On-Screen Display.”

Press SET to enter. Cursor moves to the right.

Change the item by pressing Ÿź and press SET.

R E P E A T : O F F

S U R R O U N D : O F F b

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

a.REPEAT MODE:

REPEAT MODE can be selected.

Example: Direct Navigation

(PROGRAM)

CURRENT PLAYBACK POSITION

PROGRAM PROGRAM PROGRAM

REPEAT:

PROGRAM

REPEAT:DISC

REPEAT:OFF

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y

Example:

PLAY LIST a

P L A Y L I S T : 2

T I M E : 0 1 : 1 2 : 5 5 c b

Example: PLAY LIST

CURRENT PLAYBACK POSITION

PLAY LIST PLAY LIST PLAY LIST

REPEAT:PLAY

LIST

REPEAT:ALL

PLAY LISTS

REPEAT:OFF

S E L E C T : ɰ ɲ

S E T : S E T N E X T : D I S P L A Y

b.SURROUND MODE:

See page 47.

a.Direct Navigation (PROGRAM) or PLAY LIST No.:

Go directly to a preset title number.

b.Disc currently being played:

The type of disc currently inserted is displayed.

c.Elapsed playing time:

Go to a different scene by entering an elapsed playing time, then SET.

• This function does not work with some discs.

• If SET is pressed while making entries, unit returns to the condition before entries were made.

Example:

12 : 34 : 56 1 ĺ 2 ĺ 3 ĺ 4 ĺ 5 ĺ 6

00 : 20 : 00 2 ĺ 0 ĺ 0 ĺ 0 ĺ SET

Special Disc Operation

ACTION

SELECT

ŸźŻŹ/

SET

NUMBER keys

CLEAR

Press

Press SET to display screen.

P L A Y M O D E

P R O G R A M P L A Y

R A N D O M P L A Y

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

Press

(Track numbers on disc are displayed.)

Press SET to set.

• Repeat steps 8-9 to select another track.

• The selected track is added on the right side.

P R O G R A M P L A Y

D I S C P R O G R A M ɳ 1 2 3 4 1 2 3 5 2

5 6 7 8 1 6

9 1 0 1 1 1 2

1 3 1 4 1 5 1 6 ɱ

C L E A R L A S T

C L E A R A L L S T A R T

S E L E C T : ɰ ɲ ɳ ɱ

S E T : S E T

E N D : A C T I O N

Program Play

CD VCD

You can program specific tracks and order of play.

Press ACTION in Stop mode to display MAIN MENU.

Press

“DVD.”

Press SET to display DVD

MAIN MENU.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press ŸźŻŹ to select “START.”

Press SET to start play of programs in the sequence selected.

To cancel, press STOP during play, then press CLEAR.

P R O G R A M P L A Y

D I S C P R O G R A M ɳ 1 2 3 4 1 2 3 5 2

5 6 7 8 1 6

9 1 0 1 1 1 2

1 3 1 4 1 5 1 6 ɱ

C L E A R L A S T

C L E A R A L L S T A R T

S E L E C T : ɰ ɲ ɳ ɱ

S E T : S E T

E N D : A C T I O N

Notes:

• Up to 16 tracks can be programmed.

• “Ż” or “Ź” (depending on disc) indicates additional PROGRAM PLAY screen. Press ŸźŻŹ for next or previous screen.

• To clear the last programmed track, press ŸźŻŹ to move to “CLEAR

LAST” and press SET. (Pressing CLEAR also clears.)

• To clear all programs, Press ŸźŻŹ to move to “CLEAR ALL” and press

SET. (Programs are also cleared when the power is turned off or the disc is removed.)

Press

MODE.”

Press SET to display PLAY

MODE screen.

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

P L A Y M O D E

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

Program Repeat Play

CD VCD

Do steps 1-11 on page 45.

Press DISPLAY to display Disc Information screen.

(Disc Information Screen)

T R A C K : 1 2

T I M E : 0 0 : 0 0 : 2 3

Random Play

CD VCD

Tracks are played in random order.

Press ACTION in Stop mode to display MAIN MENU.

Press

Press SET to display DVD MAIN MENU.

MAIN MENU

P R O G R A M P L A Y

N E X T : D I S P L A Y

Press DISPLAY again to display Unit Information screen.

(Unit Information Screen)

R E P E A T : O F F

S U R R O U N D : O F F

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

Press SET to enter Select mode.

(Unit Information Screen)

R E P E A T : O F F

S U R R O U N D : O F F

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET to display PLAY MODE screen.

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

P L A Y M O D E

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

Press

Press SET to begin random play.

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

P L A Y M O D E

P R O G R A M P L A Y

R A N D O M P L A Y

Press

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

(Unit Information Screen)

R E P E A T : D I S C

S U R R O U N D : O F F

To cancel, press STOP during play, then press CLEAR.

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

Press SET to set mode.To cancel, select “REPEAT

OFF” in step 5, then press SET.

(Unit Information Screen)

R E P E A T : D I S C

S U R R O U N D : O F F

S E L E C T : ɰ ɲ

S E T : S E T E N D : D I S P L A Y

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

DVD Volume Adjust

DVD-V

Some DVDs are recorded at lower than average volume levels.

For these DVDs, this unit can be set so that the average volume is increased automatically.

Press ACTION to display MAIN MENU.

Press

“TV.”

Press SET to display SET

UP TV screen.

DVD

MAIN MENU

LOCK LANGUAGE

CLOCK

SELECT:

END :ACTION

SET:SET

Press

VOL ADJUST.”

Press SET to set the level

(0, +1, or +2).

SET UP TV

CAPTION

INPUT SELECT :TUNER

SET UP VIDEO/AUDIO

DVD VOL ADJUST :+2

SELECT:

END :ACTION

SET:SET

Press ACTION twice to return to the normal screen.

Note:

• DVD Volume Adjust works only when sound is in Dolby Digital.

V.S.S. (Virtual Surround Sound)

DVD-V CD RAM

Enjoy a surround-like effect if you are using two front speakers only.

The effect is broadened and sound seems to come from virtual speakers on either side if the disc has surround signals recorded on it.

Press VSS in Disc mode.

• The Surround sound effects can be changed by pressing VSS repeatedly as shown in the figure below.

Default

S U R R O U N D : O F F

S U R R O U N D : 1

S U R R O U N D : 2

S U R R O U N D : 3

Notes:

• Turn off the surround effects on the other equipment.

• V.S.S. will not work, or will have less effect, with some discs.

• Turn V.S.S. off if it causes distortion.

Multiple Angle Viewing

DVD-V

DVDs may contain scenes shot from multiple camera angles allowing the same scene to be viewed from different angles. You can view these angles, if available, using the ANGLE button.

Press ANGLE in Play mode to display the angle selection on-screen.

A N G L E : 1 / 2

S E L E C T : A N G L E

Press ANGLE repeatedly,

Ÿź, or NUMBER keys to select the desired angle.

• Display disappears after 5 seconds.

Number of angle being played back.

A N G L E : 2 / 2

S E L E C T : A N G L E

Notes:

• This function not available with DVD-RAM.

• ANGLE Indicator lights up on the unit when a scene recorded from different angles is detected.

• The angle number can be set beforehand so that the angle is switched whenever ANGLE Indicator lights up.

Settings for DVD Operation

ACTION

SELECT

ŸźŻŹ/

SET

NUMBER keys

Press

Press SET repeatedly for desired language.

D I S C L A N G U A G E S

A U D I O : E n g l i s h

S U B T I T L E : A U T O

M E N U S : E n g l i s h

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

AUDIO

To select the audio soundtrack language.

(Factory preset: English)

English/Spanish/French/Japanese

Original: Original disc language

Other

:Other language selection*

SUBTITLE

To select the subtitle language.

(Factory preset: AUTO)

AUTO: Same language as selected for “AUDIO”

• If language set for “AUDIO” is used in playback, subtitles will not appear.

• If another language is used during playback, the subtitles will appear in the language selected at “AUDIO” setup.

English/Spanish/French/Japanese

Other

:Other language selection*

Disc Languages

DVD-V

To select and set the language of the audio soundtrack, subtitles, or title/DVD menus for all discs to be played.

Press ACTION in Stop mode to display MAIN MENU.

Press

Press SET to display DVD MAIN MENU.

MAIN MENU

MENUS

To select the language used in title menus or DVD menus.

(Factory preset: English)

English/Spanish/French/Japanese

Other

:Other language selection* 1

* 1 If the selected language is not offered, the original disc language is selected.

To enter OTHER code number,

Press NUMBER keys (Please refer to next page).

To make corrections, press Ż repeatedly to delete language code number, and correct.

DVD LOCK LANGUAGE

TV CLOCK CH

SELECT:

END :ACTION

Press

Press SET to display DISC LANGUAGES screen.

SET:SET

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

• Once initial settings are done, they remain in memory (even after the power is off) until changed. This means the unit will always operate under the same conditions (especially DVDs) each time.

Press ACTION twice to exit this mode.

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Language Code List

Language

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Abkhazian

Afar

Afrikaans

Albanian

Ameharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque

Bengali;Bangla

Bhutani

Bihari

Estonian

Faroese

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Code

6779

7282

6783

6865

7876

6978

6979

6682

6671

7789

6669

7577

6765

9072

6588

6590

6665

6985

6678

6890

6672

6566

6565

6570

8381

6577

6582

7289

6583

7565

6869

6976

7576

7178

7185

7265

7387

6984

7079

7074

7073

7082

7089

7176

Code

7783

7776

7784

7773

7782

7779

7778

7679

7665

7686

7678

7684

7775

7771

7487

7578

7583

7575

7589

7579

7585

7273

7285

7383

7378

7365

7165

7384

7465

8084

8065

8185

8277

8279

8285

8377

8365

7865

7869

7879

7982

8083

7065

8076

Language

Laotian

Latin

Latvian, Lettish

Lingala

Lithuanian

Macedonian

Malagasy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Hindi

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Nauru

Nepali

Norwegian

Oriya

Pashto, Pushto

Persian

Polish

Portuguese

Punjabi

Quechua

Rhaeto-Romance

Romanian

Russian

Samoan

Sanskrit

Language

Tamil

Tatar

Telugu

Thai

Tibetan

Tigrinya

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Scots Gaelic

Serbian

Serbo-Croatian

Shona

Sindhi

Singhalese

Slovak

Slovenian

Somali

Spanish

Sundanese

Swahili

Swedish

Tagalog

Tajik

Volapük

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

Code

8482

8475

8487

8575

8582

8590

8673

8465

8484

8469

8472

6679

8473

8479

8679

6789

8779

8872

7473

8979

9085

8379

6983

8385

8387

8386

8476

8471

7168

8382

8372

8378

8368

8373

8375

8376

Selecting AUDIO OUTPUT

DVD-V

Select the digital output to be output from the optical digital audio output connector of the unit.

Press ACTION in Stop mode to display MAIN MENU.

Press

“DVD.”

Press SET to display DVD

MAIN MENU.

DVD

MAIN MENU

LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

DRC (Dynamic Range Compression)

OFF:

Normal audio range is selected. (Factory preset)

ON:

For dynamic sound even at low volume. This is useful for latenight listening. [Dolby Digital DVDs only].

Type of amplifier to be connected

LPCM

(DVD)

Recommended setting

Dolby

Digital dts

Press

OUTPUT.”

Press SET to display AUDIO

OUTPUT screen.

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

No amplifier is connected

AV amplifier without

Dolby Digital/dts decoder

AV amplifier including

Dolby Digital decoder

PCM

PCM* 1

Bitstream*

PCM* 1

PCM

A U D I O O U T P U T

L P C M ( D V D ) : O F F

D o l b y D i g i t a l : B i t s t r e a m d t s : B i t s t r e a m

D R C : O F F

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

AV amplifier including

Dolby Digital/dts decoder

PCM Bitstream* 3 Bitstream* 2

Press

Press SET repeatedly for desired output.

LPCM (DVD)

OFF:

Linear PCM of less than 48 kHz/16 bit is output. When playing

DVDs recorded in linear PCM of over 48 kHz/20 bit, no digital audio is output. (Factory preset)

PCM:

When playing DVDs recorded in linear PCM of 48 kHz/20 bit/24 bit or more, digital audio converted to 44.1 kHz/16 bit or 48 kHz/16 bit is output.

(Digital output of PCM audio is restricted to 48 kHz/16 bit or below for copyright protection.)

When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or dts decoder, be sure to select “PCM.” If “Bitstream” is selected, starting DVD play may cause such a high level of noise as to be harmful to your ears and damage the speakers.

* 2 When a dts decoder is connected, please select “Bitstream” in “dts.” If

“PCM” is selected, there will be stereo sound.

* 3 When a Dolby Digital decoder is connected, please select “Bitstream” in “Dolby Digital.” If “PCM” is selected, there will be stereo sound.

Note:

• Make settings according to amplifier connected to optical audio output as shown in above table.

Press ACTION to redisplay DVD MAIN MENU and go to step 4 to set up another item. Or, press ACTION three times to exit.

Dolby Digital

Bitstream:

Dolby Digital bitstream (1ch-5.1ch) is output. (Factory preset)

PCM:

When you have connected an amplifier that doesn’t have a builtin Dolby Digital decoder.

dts selection

Bitstream:

dts bitstream is output. (Factory preset)

PCM:

When you have connected an amplifier that doesn’t have a builtin dts decoder.

• When appears on the screen while a button is being pressed, it means that the corresponding operation is prohibited by the unit or the disc.

Selecting STILL MODE

DVD-V

Set to reduce jitter in a displayed still picture or a motion picture.

Press ACTION in Stop mode to display MAIN MENU.

Press

Press SET to display DVD MAIN MENU.

MAIN MENU

Selecting TV MODE

DVD-V

Set the screen display style for widescreen video material playback.

Press ACTION in Stop mode to display MAIN MENU.

Press

Press SET to display DVD MAIN MENU.

MAIN MENU

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

DVD LOCK LANGUAGE

TV CLOCK

SELECT:

END :ACTION

SET:SET

Press

Press SET repeatedly for mode.

Press

Press SET repeatedly for mode.

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

D V D M A I N M E N U

D I S C L A N G U A G E S

A U D I O O U T P U T

S T I L L M O D E : A U T O

T V M O D E : 4 : 3 P a n & S c a n

S E L E C T : ɰ ɲ

S E T : S E T

E N D : A C T I O N

AUTO:

“FIELD” (Field still) or “FRAME” (Frame still) is automatically selected during still mode. (Factory preset)

Field:

“FIELD” (Field still) is always selected. This setting will reduce jitter when compared with “AUTO” on some discs.

4:3 Pan & Scan:

Widescreen video data is played in Pan & Scan style (left and right of screen are trimmed.)

• Video data not formatted in Pan & Scan will play in letterbox style.

(Factory preset)

Frame:

“FRAME” (Frame still) is always selected. Some texts and fine patterns will be seen clearly when compared with

“AUTO” on some discs.

Press ACTION twice to exit this mode.

4:3 Letterbox:

Widescreen video data is played in Letterbox style (top and bottom of screen display a black margin).

Press ACTION twice to exit this mode.

Warning and Instruction Displays

These displays will alert you to a missed operation or provide further instructions.

OSD

PLEASE SET CLOCK BY

PRESSING ACTION KEY

CHECK CASSETTE

RECORD TAB

TO CANCEL TIMER REC

HOLD DOWN STOP KEY

FOR APPROX 3 SEC

NO CASSETTE

PLEASE PREPARE

FOR TIMER REC

VIDEO HEADS MAY

NEED CLEANING

PLEASE INSERT HEAD

CLEANING CASSETTE

OR REFER TO MANUAL

CAUTION

If you attempt to set or review a Timer Recording or set the On-Timer and the Clock is not set...

If you press REC, and a cassette is inserted with no record tab...

If you press STOP during a Timer Recording...

If you press PLAY, FF, REW, or REC without a cassette inserted...

If the unit is not in Stop mode, or cassette is not inserted, or cassette has no record tab, or tape is at its end two minutes before a Timer Recording is about to begin...

If head cleaning becomes necessary while playing back a tape...

END: PLAY

VCR LOCK ACTIVATED

PLEASE CHECK THE DISC,

AND FOR STAINS OR SCRATCHES

ON DISC

THIS DISC MAY NOT BE PLAYED

IN YOUR REGION

THIS TYPE OF DISC CANNOT BE

PLAYED. PLEASE INSERT A

DIFFERENT DISC

If you press a function button other than STOP/EJECT or POWER while the unit is in VCR

Lock mode...

If you press PLAY, or the unit reads data from a stained or scratched disc in DVD mode.

Also, if the type of disc is other than DVD, CD or Video CD...

Playback of a disc with different region number was attempted. Only discs marked region “1,”

“ALL,” or those that include “1” are playable on this unit.

An unusable disc is inserted in the unit, or the disc is not inserted with label side up.

Page

6, 24

Glossary

Angle

Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights up on the unit when a scene recorded from different angles is detected.)

Bitstream

This is the digital form of multi-channel audio data (e.g., 5.1 channel) before it is decoded into its various channels.

Chapter Number

Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers.

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo

(2-channel) audio, these signals can also be multichannel audio. A large amount of audio information can be recorded on one disc using this method.

Dolby Pro Logic

A surround system where a 4-channel audio track is recorded as 2 channels and then is restored to 4 channels for play. The surround channel is monaural and can reproduce up to 7 kHz.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

DVD

A high-density optical disc on which high-quality pictures and sound have been digitally recorded. DVD incorporates new video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality.

Film and video

DVD-Videos are recorded using either film or video. Usually, film is recorded at 24 frames per second, the rate movies are filmed at, while video is recorded at 30 frames per second.

Frame still and field still

Frames are the still pictures that go together to make a moving picture. There are about 30 frames shown each second. One frame is made up of two fields. A regular television shows these fields one after the other to create frames.

A still is shown when you pause a moving picture. A frame still is made up of two alternating fields, so the picture may appear blurred, but overall quality is high. A field still is not blurred, but it has only half the information of a frame still so picture quality is lower.

Linear PCM (pulse code modulation)

These are uncompressed digital signals, similar to those found on CDs.

Playback Control

With Video CD (version 2.0), scenes or information may be selected for viewing or listening from an interactive menu that appears on the TV screen.

Regional Code

This is a copyright protection measure unique to DVD-Video. There are 6 regional codes worldwide. In order to play a disc encoded with a regional code, the DVD player must be equipped with the same code.

Sampling bit number

This is the resolution shown in number of bits to determine how faithfully the sampled analog frequency was expressed at the time the signal was converted from analog to digital.

Sampling Frequency

This is the number of times sampling is performed in (1) second shown in Hz units at the time the signal is converted from analog to digital using the PCM method. The greater the number, the higher the sound quality.

Subtitles

Written dialogue which appears at the bottom of the screen.

Time Number

The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.)

Title Number

For DVD discs with two or more titles, the titles are numbered as title 1, title 2, etc.

Track Number

Numbers assigned to tracks on Video CDs and CDs to allow specific tracks to be quickly located.

Video CD

CD containing picture and sound with same quality level as video tape. This unit also supports

Video CDs with playback control (version 2.0).

V.S.S. Feature

Virtual surround sound playback is possible even with only 2 speakers. For example, using this unit’s built-in speakers, the 2 speakers of a connected stereo, etc., you can enjoy a surround sound effect. If the disc was recorded in Dolby Digital 5.1 ch, with just the two front L/R speakers, you will feel as if you are hearing sound from nonexistent speakers on both sides of you. This effect also works with Dolby Digital 2-channel discs.

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

PROBLEM

No power…

Power turns itself off...

Completely insert Power Plug into an AC outlet.

Set POWER button to ON.

CORRECTION

Auto power-off (shut off) occurs after about 5 min. in DVD mode with no operation, or if there is no broadcast signal in TV or Playback mode. Turn the power back on.

Page

8-9

35, 37

No picture or sound...

Poor picture with normal sound...

Poor sound with normal picture...

Poor TV reception...

No color or poor color...

Ghost (multiple) images...

TV programs cannot be watched...

Channel cannot be selected...

TV program cannot be recorded...

Timer recording cannot be performed…

No playback picture, or the playback picture is noisy or contains streaks...

VCR cannot be controlled...

Unit cannot be controlled...

ACTION, PLAY, SELECT, SET POWER, etc. buttons cannot be selected...

Play fails to start even when PLAY is pressed...

Picture is distorted during rapid advance or rapid reverse...

No Forward/Reverse search play...

Audio soundtrack and/or subtitle language is not the one selected at the initial settings...

No subtitles...

Alternative audio soundtrack

(or subtitle) language cannot be selected...

Angle cannot be changed...

Make sure your antenna system (TV or CABLE) is correctly set.

Completely insert Power Plug into an AC outlet.

Set POWER button to ON.

Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP Video

Adjustment.

Adjust VOLUME control.

Adjust SHARPNESS and PICTURE controls in the SET UP Video Adjustment.

Adjust TINT and COLOR controls in the SET UP Video Adjustment.

Install a directional antenna.

Make sure the selected channel is in unit’s memory.

Only the channel being recorded can be viewed on this unit.

Make sure your antenna system (TV or CABLE) is correctly set.

Make sure cassette record tab is intact.

Check that clock is set to current time and date.

Make sure DSS/CABLE box (if used) is left on and tuned to channel to be recorded.

Set recording Start/Stop times correctly.

Timer recording may not be performed or continued if a power interruption of more than

1 minute occurs before or during a Timer Recording, even after power is restored.

Adjust TRACKING control in either direction.

Try Head Cleaning.

Make sure VCR LOCK is set to off.

Aim Remote directly at the remote sensor on the unit. Avoid any object blocking signal path.

Inspect the remote batteries.

Make sure VCR LOCK is set to off.

Exposing unit remote sensor to direct fluorescent or outdoor light may cause signal interference.

Press TV/VCR for TV-VCR mode.

Press DVD for DVD mode.

Check remote batteries.

8-9

22-23

This unit cannot play discs other than DVDs, CDs and Video CDs.

The disc may be dirty and require cleaning.

The picture will be somewhat distorted at times; this is normal.

Some discs may have sections which prohibit Forward/Reverse search.

The audio soundtrack and/or subtitle language selected at DVD initial settings must exist on the disc.

Subtitles appear only when available on disc.

Select “ON” at the “Subtitle language” section to display subtitles.

38-39

Alternative language cannot be selected with discs which do not contain more than one language.

For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button. Try selecting it from the DVD menu if available.

38-39

This function is dependent on software availability. Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE Indicator on unit lights up).

Video cassette cannot be inserted...

Video cassette cannot be removed...

Eject does not function or insertion cannot be done...

Video cassette ejects when a recording is started, or the power is turned off for timer recording...

In Stop mode, the VCR motor (CYLINDER) continues to rotate...

Insert the cassette window side up, record tab facing you.

Completely insert Power Plug into an AC outlet.

Turn the POWER off and then on, and try ejecting or inserting the tape again.

Make sure cassette record tab is intact.

To enable Quick Play mechanism, the VCR cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode and from Play to Rewind Search mode.

Specifications

Display

Picture Tube

VCR

Video Recording System

Audio Track

Tuner

Broad cast Channels

CA BLE Channels

General

Power Source

Power

Consumption

Power On

Power Off

Television System

Speak er

Op erat ing Temperature

Op erat ing Humidity

Weight

Dimen sions

(W × H × D)

Discs played

20 inch, measured diagonally pure flat Picture Tube

4 rotary heads helical scanning system

1 track (Normal)

2 channel (Hi-Fi Audio Sound)

VHF 2 ~ 13, UHF 14 ~ 69

Midband A through I (14 ~ 22)

Superband J through W (23 ~ 36)

Hyperband AA ~ EEE (37 ~ 64)

Lowband A-5 ~ A-1 (95 ~ 99)

Special CABLE channel 5A (01)

Ultraband 65 ~ 94, 100 ~ 125

120 V AC, 60 Hz

Approx. 112 W

Approx. 0.8 W

EIA Standard NTSC color

2 pieces 3 W

5 °C ~ 35 °C (41 °F ~ 95 °F)

10 % ~ 75 %

28 kg (61.7 lbs.)

604 mm (23-3/4Ǝ) × 520 mm (20-1/2Ǝ) × 496 mm (19-1/2Ǝ)

DVD disc (DVD-Video, DVD-R)

DVD-RAM

Compact disc (CD-DA, Video CD, CD-R,

CD-RW)

Digital audio output

Optical digital output

Pickup

Wavelength

12 cm (5Ǝ) single-sided, single-layer

12 cm (5Ǝ) single-sided, double-layer

12 cm (5Ǝ) double-sided, double-layer

(one layer per side)

8 cm (3Ǝ) single-sided, single-layer

8 cm (3Ǝ) single-sided, double-layer

8 cm (3Ǝ) double-sided, double-layer

(one layer per side)

12 cm (5Ǝ) 9.4 GB (double-sided) and 4.7 GB (single-sided)

8 cm (3Ǝ) 2.8 GB (double-sided)

12 cm (5Ǝ) disc

8 cm (3Ǝ) disc

Optical connector

655 nm (DVD)

790 nm (CD, Video CD)

Laser power: CLASS II

Note:

• Designs and spec ifi ca tions are sub ject to change without no tice.

Index

Accessories ............................................. 2

ACTION button ........................................ 8

AC Power Plug ........................................ 9

ADD/DELETE/CLEAR button ................. 8

Add or Delete a Channel ........................14

ANGLE button ......................................... 8

Audio Adjustment .................................. 23

AUDIO button .......................................... 8

Audio Input Connector 1 ......................... 9

Audio Input Connector 2 ......................... 9

Audio Menu ........................................... 22

Audio Mode for Playback ...................... 28

Audio Mode for Recording .................... 25

Audio Mode for TV Viewing ...................18

Audio Mute .............................................17

AUDIO OUTPUT ................................... 50

Audio Output Connector (L/R) ................ 9

Audio Output Terminal ...........................11

Audio Soundtrack Language ................. 38

Auto-Power Off function .........................37

Automatic Channel Setting ....................13

Automatic Clock Setting .........................14

Auto Playback ....................................... 29

Auto Rewind .......................................... 29

Auto Shut Off ......................................... 35

AV Input Terminals .................................10

Batteries .................................................. 6

Before Requesting Service ................... 53

Before using VCR Functions ..................24

Blocking Message ................................. 34

Blue Screen Display .............................. 35

Built In Speakers ..................................... 9

Canadian English Language Ratings .... 33

Canadian English Language Ratings Chart . 34

Canadian French Language Ratings .... 33

Canadian French Language Ratings Chart . 34

Cancel a Timer Recording:

(Recording is in progress) ..................... 26

Caption On Mute Feature .......................21

Cassette Compartment ........................... 9

CH/VOL Button ......................................16

Change Language Setting .....................15

Changing your secret code ....................31

Channel & Function Display .................. 35

CHANNEL UP/DOWN button ................. 8

Cleaning disc surface .............................. 7

Clock Setting (Manual) ...........................14

Closed Caption Mode Feature .............. 20

Commercial Skip ................................... 29

Copy Your Tapes (Dubbing) .................. 30

Digital Auto Tracking ............................. 29

Direct Navigator .....................................41

Discs that can be played ......................... 6

Disc Handling .......................................... 7

Disc languages ...................................... 48

Disc Operation -Using Information Screen- ..42

DISPLAY button ...................................... 8

DST (Daylight Saving Time) .................... 6

DVD button .............................................. 8

DVD Volume Adjust ................................47

Eject tape .............................................. 27

FF/SLOW+ button ................................... 8

Forward/Reverse Chapter/Track Skip [Disc] .37

Forward/Reverse Rapid Scene Search [Disc].37

Forward/Reverse scene search [Tape] . 27

Frame by Frame Picture [Disc] ..............37

Frame by Frame picture [Tape] ............. 27

Glossary ................................................ 52

Head Cleaning ........................................ 6

Important Safeguards and Precautions .. 4

Index Search ......................................... 28

Information (Disc) .................................... 6

Information (MAIN MENU Screen) ......... 7

Information (Unit, Cassette) .................... 6

Information Display ............................... 39

Initial Setup (Ready to Play) ...................13

INPUT button .......................................... 8

Input Mode .............................................16

Inserting a Tape .....................................24

Language Code List .............................. 49

Location of Controls ................................ 8

Main Menu of DVD ................................ 38

Manual Tracking Control ....................... 29

MENU/PLAY LIST button ........................ 8

Multiple Angle Viewing ...........................47

MUTE button ........................................... 8

Number and 100 keys ............................16

NUMBER Keys ........................................ 8

NUMBER Keys [Disc] ............................37

ON-TIMER ..............................................19

One Touch Recording (OTR) ................ 25

ON TIMER Indicator ................................ 9

OPEN/CLOSE/EJECT button ................. 8

Optical digital audio output connector ..... 9

Pause a Recording ................................ 25

Phones Jack ............................................ 9

Picture Zoom ......................................... 39

Playback Auto Eject .............................. 29

Playback a Tape .................................... 27

Play a DVD-RAM .................................. 40

PLAY button ............................................ 8

Play Disc ............................................... 36

Play List ..................................................41

POWER button ........................................ 8

Prevent Accidental Tape Erasure ............ 6

PROGRAM button .................................. 8

Program Play ......................................... 45

Program Repeat Play ............................ 46

PROG TIMER Indicator ........................... 9

Random Play ......................................... 46

Rapid Fast forward tape ........................ 27

Rapid Rewind tape ................................ 27

Rapid Tune .............................................17

RAPID TUNE button ............................... 8

Receivable Broadcast Types .................18

Recording and Playing Back a Closed

Caption/Text Program ............................21

Record On a Tape ................................. 25

REC button .............................................. 8

REC Indicator .......................................... 9

Region Management Information ............ 7

Remote Control Buttons .......................... 8

Remote Sensor ....................................... 9

Repeat Play ........................................... 27

Reset all unit Memory Functions ............15

RESUME Function ................................ 38

Review, Replace or Clear Program

Contents :(Recording is not in progress) ..... 26

REW/SLOW- button ................................ 8

RF in Terminal ........................................10

Safety Precaution .................................... 2

Safety Precautions .................................. 3

Secret Code ...........................................31

SELECT ŸźŻŹ button .......................... 8

SET button .............................................. 8

Set Up to 8 Programs ............................ 26

SKIP+/CM SKIP/ZERO SEARCH button ...... 8

SKIP-/SEARCH button ........................... 8

Sleep Timer ............................................19

Slow Motion Picture [Disc] .....................37

Slow Motion picture [Tape] .................... 27

SPEED/RETURN button ......................... 8

STILL/PAUSE button .............................. 8

Still (Freeze) picture [Tape] ................... 27

Still (Pause) Picture [Disc] .....................37

STILL MODE ..........................................51

Stop a Tape ........................................... 27

STOP button ............................................ 8

Stop Recording ..................................... 25

Subtitle Language ................................. 39

SUB TITLE button ................................... 8

SURROUND/VSS button ........................ 8

Surround Sound System ........................17

Table of Contents .................................... 5

Timer Recording .................................... 26

Time Zone Adjust ...................................15

TITLE/D.NAVI button .............................. 8

Title Menu of DVD ................................. 38

TRACKING UP/DOWN button ................ 8

TV/VCR button ........................................ 8

TV/VCR Status & Clock Display ........... 35

TV MODE ...............................................51

Unit Buttons ............................................. 9

US MOVIES Ratings ............................. 32

US MOVIES Ratings Chart ................... 34

US TV PROGRAMS Ratings ................ 32

US TV PROGRAMS Ratings Chart ...... 34

V-Lock Control ...................................... 29

V.S.S. (Virtual Surround Sound) ............47

VCR Lock .............................................. 29

VHF/UHF Antenna Input Terminal .......... 9

Video Adjustment .................................. 23

Video CDs ..............................................37
