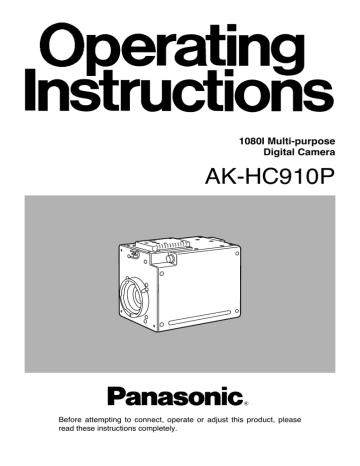

1080I Multi-purpose
Digital Camera
AK-HC910P
Before attempting to connect, operate or adjust this product, please
read these instructions completely.
For Your Safety
FCC Note:
This device complies with Part 15 of the
FCC Rules. To assure continued
compliance follow the attached installation instructions and do not make any
unauthorized modifications.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
This equipment has been tested and
found to comply with the limits for a
class A digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
when the equipment is operated in a
commercial
environment.
This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instruction manual, may cause
harmful
interference
to
radio
communications. Operation of this
equipment in a residential area is likely
to cause harmful interference in which
case the user will be required to correct
the interference at his own expense.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance (service) instructions in
the literature accompanying the
appliance.
For CANADA
WARNING:
This class A digital apparatus complies
with Canadian ICES-003.
Cet appareil numéique de la classe A
est conforme à la norme NMB-003 du
Canada.
TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD AND ANNOYING
INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
The serial number of this product may
be found on the bottom of the unit.
1 indicates safety information.
2
CONTENTS
For Your Safety...................................2
Preface ...............................................4
Features..............................................4
Precautions.........................................5
Major Operating Controls and
Their Functions .............................6, 7
How to Install ......................................8
_ How to set the lens .......................8
_ How to install on the camera
housing, pan/tilt head,
tripod, etc. .....................................8
How to Set Up the System
(Connection) .....................................9
Multi-purpose Digital Camera
Control System Configuration 1........10
Multi-purpose Digital Camera
Pan/Tilt Head Compatible
System Configuration 1....................11
Multi-purpose Digital Camera
Control System Configuration 2........12
Multi-purpose Digital Camera
Pan/Tilt Head Compatible
System Configuration 2....................13
Operation Procedure ........................14
How to Adjust...........................15 to 17
_ Flange back adjustment
(for zoom lens)............................15
_ Lens iris gain volume
adjustment ..................................15
_ White balance adjustment ..........16
_ Color temperature and
white balance adjustment
(reference) ..................................16
_ Black balance adjustment...........17
_ Gen lock adjustment ...................17
Setting of Menu Items..............18 to 29
_ Configuration of menu display
screen .........................................18
_ USER menu (Initial screen) ........19
! Maintenance menu ............20 to 26
1 Black shading correction
menu.......................................20
2 Pedestal, gamma, flare
adjustment menu ....................21
3 Knee&white clip
adjustment menu ....................22
4 Gain adjustment menu............23
5 Detail adjustment menu ....23, 24
6 Master gain, auto iris setting
menu.......................................24
7 Super gain, Detail, Pedestaloffset level setting menu .........25
8 Matrix menu ............................26
9 Color correction 1 menu .........26
qZ Color correction 2 menu .........26
@ Setting menu.........................27, 28
1 Camera mode setting
menu.................................27, 28
2 Electronic shutter setting
menu.......................................28
3 Horizontal phase adjustment
menu for external reference
signal ......................................28
# Camera ID setting menu.............29
$ File managing and renewing
menu.....................................29, 30
- File operation menu ..........29, 30
Outside Dimension Diagram.............31
Specifications & Accessories............32
3
Thank you very much for purchasing the multi-purpose digital
camera.
Preface
This camera employs new 2/3q 2.2 million-pixel FIT CCD [1920(H)k1080(V)], realizing a
compact light-weight system including the optical system.
Also, the newly developed CCD having an FIT configuration suited for higher picture
quality and the development of low-noise, high-speed amplifiers have enabled the
realization of high sensitivity, high S/N ratio, and wide dynamic range.
With the newly developed digital signal processing LSI mounted on the camera head, it
performs signal processing such as GAMMA, KNEE and DTL matrix, and CCD flaw
correction based on a new system, intending to improve the maneuverability with
multifunction, high-quality, and high stability peculiar to a digital system.
Making the best use of the features of a small-sized self-contain camera, it is
accommodated in the camera housing and able to provide high-quality HD pictures as an
multi-purpose digital camera.
Features
Performance improvement by newgeneration FIT
New 2/3q 2.2 million-pixel CCD is
employed.
[1920(H) k1080(V)]
• High sensitivity, wide dynamic range and
low smear are realized by CCD most
suited for high-quality pictures.
• 2.2 million-pixel CCD is 2/3q size, being
compact and light-weight.
• High response and high resolution are
realized by driving H-CCD at 74 MHz.
The camera section is equipped with a
high picture quality digital signal
processing LSI.
Multiple functions
• 10 Bit, 74 MHz high picture quality digital
processing after the process circuit.
• Multi-function DTL such as highluminance DTL and skin DTL.
• New type CCD flaw correcting function.
• Two HD-SDI output lines.
• High reliability, multi-function, and
improvement of maneuverability are
realized.
• Max. +48 dB gain-up is possible.
(Memory addition, CCD pixel addition
mode included)
4
Precautions
DON’TS
DO’S
• Refer any servicing to qualified service
personnel.
• Do not attempt to disassemble the
camera or other units. In order to prevent
electric shock, do not remove screws or
covers. There are no user-serviceable
parts inside.
• Handle the camera with care.
• Protect the precision made lens by
placing the lens cap over when the
camera is not in use. If the lens is not
installed, protect the surface of the prism
by placing the body cap into the lens
mount hole.
• Do not abuse the camera. Avoid striking,
shaking, etc. The camera contains
sensitive components which could be
damaged by improper handling or
storage.
• Use a mild blower or lens cleaning tissue
designed for coated lenses, to clean the
surface of the lens or prism in the event
that it should become dirty.
• Do not let the lens remain uncapped
when the camera is not use. If the lens is
not installed, do not leave the lens mount
hole uncovered.
• Use a dry cloth to clean the camera if it is
dirty. In case the dirt is hard to remove,
use mild detergent and wipe gently.
• Do not touch the surface of the lens or
prism.
• Do not use strong of abrasive detergents
when cleaning the camera body.
• Do not aim the camera toward the sun,
no matter whether it is turned on or not.
• Use caution when operating the camera
in the vicinity of spot lights or bright
lights, as well as light reflecting objects
and surfaces.
• Do not expose the camera to rain or
moisture, and do not try to operate the
equipment in wet conditions. Do not
operate the camera if it becomes wet.
• Take immediate action if ever the camera
should become wet. Turn the power off
and have the unit checked by an
authorized service facility.
• Do not operate the camera outdoors
during a lightning storm.
• Follow normal safety precaution to avoid
personal injury.
• Do not use the camera in an extreme
environment where high temperatures or
high humidity exist.
• Use the camera in an environment where
the temperature is within 32°F to +104°F
(0°C to +40°C), and the relative humidity
is within 30% to 90% (no condensation).
• Do not leave the camera turned on when
not in use. Do not unnecessarily turn the
camera power on and off repeatedly. Do
not block the ventilation slots.
• Always turn the power off when the
camera is not going to be used. Operate
the camera only when there is adequate
ventilation.
• Do not cover the port otherwise block
ventilation during operation. Internal heat
buildup can cause a fire.
• Cooling fan
There is internally provided a cooling fan.
Since the cooling fan is a consumable
part, replace it after about 50,000 hours
of operation.
(Be sure to ask the dealer for the
replacement.)
5
Major Operating Controls and Their Functions
_ Front Panel
3
4
1
2
1 Lens Mount
2/3q standard bayonet type (B4 mount) lens is installed.
2 Lens Fixing Ring Knob
Lens is fixed by turning the knob counterclockwise.
3 Cable Clamp
Used to clamp the lens cable.
4 Lens Connector [LENS]
Used to connect the camera cables of the lens.
Pin No.
9
8
1
2
10
7 12
6
3
11
5
4
Signal
Pin No.
Signal
1
Return control
7
Iris follow
2
VTR-S/S
8
Iris auto selection
3
UNREG GND
9
——
4
Iris manual selection
10
——
5
Iris control
11
——
6
UNREG 12V
12
NC
_ Top and Bottom Panels
5
6
6
LENS
7
5 Cooling Fan
• Do not block or obstruct the ventilation during operation. It may otherwise cause
internal heating or fire.
• The life of this fan is approximately 50,000 hours (at room temp. 25°C). Replace the
fan as needed.
(When the room temperature is higher than 35°C, replace the fan earlier.)
Be sure to ask the dealer for the replacement.
6
Major Operating Controls and Their Functions
6 Camera mounting hole (1/4-20UNC)
7 Camera mounting hole (3/8-16UNC)
The screw holes can be used to secure the camera for installing it on camera housing,
and when using a pan/tilt head or a tripod.
_ Side Panel
8
9
BREAKER
ZOOM/
FOCUS
1
:
SDI OUT
2
;
1/ F
8 Breaker [BREAKER]
If the breaker is operated due to over-current or the like, check the cause and eliminate
the trouble, then press the breaker button.
9 Zoom/Focus Connector [ZOOM/FOCUS]
Used to connect the zoom/focus control cables of lens.
Signal
Pin No.
9
8
1
2
10
7 12
6
3
11
5
4
Signal
Pin No.
1
Focus control selection
7
COM
2
Zoom control selection
8
Focus control
3
GND
9
Zoom control
4
Forcible iris closing
10
Iris control selection
5
Iris control
11
COM +Voltage
6
+Voltage
12
COM –Voltage
: SDI Output Connectors [SDI OUT 1, 2]
SDI signal output is given by two lines.
; Interface Connector [I/F]
Signal
Pin No.
15
7
14
6
13
5
12
4
11
3
10
2
9
1 8
1
Y signal output
2
3
Signal
Pin No.
8
Y signal GND
Pb signal output
9
Pb signal GND
Pr signal output
10
Pr signal GND
4
Sync signal input
11
Sync signal GND
5
DC 12V
12
DC GND
6
Frame GND
13
TXD (C)
7
TXD (H)
14
RXD (H)
15
RXD (C)
TXD: Data from Camera to remote controller
RXD: Data from remote controller to camera
7
How to Install
Be sure to ask the dealer for the installation,
adjustment and connection of this equipment.
_ How to set the lens
• Standard 2/3q bayonet type (B4 mount) lens of any makers can be used*.
1 Turn the lens fixing ring knob counterclockwise to remove the lens mount cap.
2 Set the lens in place, and turn the lens fixing ring knob clockwise to precisely fix the
lens.
3 Connect the lens cable to the lens connector.
4 Connect the remote (zoom/focus control) cable to the zoom/focus connector on the
rear panel.
* Note that there are some lenses uncontrollable with respect to zoom, focus function.
Remote (zoom/focus control) Cable
(When a pan/tilt head is used, connect
the cable to the pan/tilt head.)
BREAKER
ZOOM/
FOCUS
1
SDI OUT
2
Camera Cable
(To Lens Connector)
720
PROGRESSIVE
1/ F
Lens Fixing Ring Knob
_ How to install on the camera housing, pan/tilt head, tripod, etc.
1 Precisely set the camera on the camera housing, pan/tilt head, tripod, etc. by using
the camera set-screw hole (1/4-20UNC, 3/8-16UNC).
2 When mounting the camera on a pan/tilt head, be sure to use proper tools and
make sure that there is no fear of falling off.
8
How to Set Up the System (Connection)
_ Connection of remote control box
• Use multi-cable for the connection of HD controller AK-HRP900 and this unit.
BREAKER
Coaxial Cable
HD-SDI (5C-FB)
ZOOM/
FOCUS
1
SDI OUT
2
D-sub 15-pin
HD Monitor
1/ F
AK-HC910P
Video
Input
Signal
Multi-cable (5m)
AK-HDMLTCA05
HD Monitor
YPbPr
O I
AC Adaptor
AW-PS505
NOTE
Note that the monitor output is
attenuated and deteriorated if
the cable is too long.
External
sync
signal
(3 value
sync)
DC Power
Cable
D-sub 15-pin
HD Controller
AK-HRP900
1 Before connecting the cables, be sure to set the Power Switch of AC Adaptor and HD
Controller to OFF.
2 Connect the multi-cable to the interface connector of the camera, and the opposite side
to HD Controller.
3 Set the AC Adaptor Power Switch to ON, and the HD Controller Power Switch to ON,
then the camera can be controlled.
4 After shooting, set the HD Controller Power Switch to OFF, and the AC Adaptor Power
Switch to OFF.
9
Multi-purpose Digital Camera Control System Configuration 1
Remote (zoom/focus
control) cable
BREAKER
HD-SDI
ZOOM/
FOCUS
Coaxial Cable (5C-FB)
1
SDI OUT
2
1/ F
Remote
controllable
lens
D-sub 15-pin
Multi-purpose
Digital Camera
AK-HC910P
Multi-cable (5m)
AK-HDMLTCA05
HD Monitor
O I
AC Adaptor
AW-PS505
External sync signal
(3 value sync)
DC
Power
Cable
D-sub 15-pin
HD Controller
AK-HRP900
10
Multi-purpose Digital Camera Pan/Tilt Head
Compatible System Configuration 1
Remote
controllable
lens
Coaxial Cable (5C-FB)
HD-SDI
BREAKER
ZOOM/
FOCUS
1
SDI OUT
2
1/ F
Remote
(zoom/focus
control) cable
Multi-cable (5m)
AK-HDMLTCA05
Multi-purpose Digital
Camera AK-HC910P
O I
AC Adaptor
AW-PS300
ND/EXT
SDI
IN
LENSE I/F CAMERA I/F
1394
G/L I N
CONTROL IN
IP/RP
Pb OUT
DC Power
Cable
HD Monitor
DC12V
IN
C S OP
Pr /SDI
OUT
Y/VIDEO
OUT
Pan/Tilt Head
AW-PH300A
O I
AC Adaptor
AW-PS505
External sync signal
(3 value sync)
NOTE:
Pan/Tilt Head is also
compatible with AW-PH500/
PH600.
DC
Power
Cable
Pan/Tilt Head Controller
AW-RP301
AC Adaptor
AW-PS301
11
HD Controller
AK-HRP900
Multi-purpose Digital Camera Control System Configuration 2
(System for remotely monitoring picture control)
Remote (zoom/focus
control) cable
Multi-cable (5m)
AK-HDMLTCA05
BREAKER
HD-SDI
ZOOM/
FOCUS
Coaxial Cable (5C-FB)
1
SDI OUT
2
1/ F
Remote
controllable
lens
Relay box
AK-HTF900
Multi-purpose
Digital Camera
AK-HC910P
Transfer
DC Power
Cable
O I
AC Adaptor
AW-PS505
Multi-cable (5m)
AK-HDMLTCA05
HD Monitor
O I
AC Adaptor
AW-PS505
DC
Power
Cable
HD Controller
AK-HRP900
12
Multi-purpose Digital Camera Pan/Tilt Head
Compatible System Configuration 2
(System for remotely monitoring picture control)
Remote
controllable
lens
Multi-cable (5m)
AK-HDMLTCA05
BREAKER
HD-SDI
ZOOM/
FOCUS
Coaxial Cable (5C-FB)
1
SDI OUT
Relay box
AK-HTF900
2
1/ F
Multi-purpose Digital
Camera AK-HC910P
Remote
(zoom/focus
control) cable
Transfer
O I
AC Adaptor
AW-PS505
ND/EXT
SDI
IN
Multi-cable (5m)
AK-HDMLTCA05
LENSE I/F CAMERA I/F
1394
G/L I N
CONTROL IN
IP/RP
Pb OUT
HD Monitor
DC12V
IN
C S OP
Pr /SDI
OUT
DC Power
Cable
Y/VIDEO
OUT
Pan/Tilt Head
AW-PH300A
O I
O I
AC Adaptor
AW-PS505
AC Adaptor
AW-PS300
NOTE:
Pan/Tilt Head is also
compatible with AW-PH500/
PH600.
DC
Power
Cable
Pan/Tilt Head Controller
AW-RP301
AC Adaptor
AW-PS301
13
HD Controller
AK-HRP900
Operation Procedure
1 Turn on the power of each
5 Adjust the black balance.
equipment.
2 Properly adjust the light for the
• This adjustment is needed when the
camera is used for the first time or
after leaving unused for a long time.
3 Adjust the flange back of the lens,
• The adjustment is necessary when
the ambient temperature is greatly
changed or at the change of season.
object.
the iris and the focus.
• After adjusting the black balance
once, re-adjustment is not needed
under the same condition.
• Flange back must be adjusted when
the camera is used for the first time or
after replacement of the lens.
6 Start shooting.
4 Adjust the white balance.
(After shooting, be sure to turn off the
power of each equipment connected.)
• This adjustment is needed when the
camera is used for the first time or
after leaving unused for a long time.
• The adjustment is necessary when
the lighting condition or brightness is
changed.
• After adjusting the white balance
once, re-adjustment is not needed
under the same condition.
14
How to Adjust
_ Flange back adjustment (for zoom lens)
The adjustment is to adjust the focus in all the range from the maximum zoom to the
widest angle of the zoom lens.
1 Shoot a dark object to open the iris.
2 Adjust the distance from the object to 6.6 ft. (2 m) at least, then loosen the flange
back fixing knob of the lens.
3 Set the lens to the maximum zoom and adjust the focus by turning the focus ring.
4 Set the lens to the widest angle and adjust the focus by turning the flange back
adjust ring.
5 Repeat adjusting the focus ring and flange back adjust ring until the focus is
adjusted within the zooming range.
After finishing the adjustment, tighten the flange back fixing knob.
Focus Ring
Flange Back Fixing Knob
BREAKER
ZOOM/
FOCUS
1
SDI OUT
2
1/ F
Flange Back Adjust Ring
_ Lens iris gain volume adjustment
• Iris gain adjust hole (G or S) is provided at front of the lens housing. Adjust the iris
according to the following procedure by using a screwdriver.
1 Set the iris select switch of the lens to A “AUTO” side.
2 Turn the iris gain adjust volume to maximize the gain in such extent that no hunting
takes place.
* Iris PEAK/AVE of camera menu can also be used for the adjustment.
Iris Gain Adjust Volume
Auto Iris Power Zoom Lens
15
How to Adjust
_ White balance adjustment
Adjust the white balance after shooting a white object by at least 50% of the screen.
NOTE: If the white signal level is over 100% or less than 50%, the white balance may
not be normally adjusted.
_ Color temperature and while balance adjustment (reference)
When carbon is burnt, it develops
10000K
Blue sky
various colors of light depending on the
temperature. Natural light can be
9000K
Rainy
specified by color temperature reflecting
to the color developed when carbon is
8000K
Cloudy
burnt.
AWC
The light of 3,200K (K=Kelvin, –273°C
Partly cloudy
7000K
equals to absolute zero temperature 0K)
represents the same value (color) as
6000K
Fine
what develops when carbon is burnt at
3,200K (2,927°C). The relationship
Fluorescent lamp
5000K
between the color temperature of the
light source and weather condition is
Halogen lamp
4000K
indicated in the right figure. Let’s study
Tangsten lamp
the difference of shooting an indoor
3000K
object from shooting one outdoors.
Studios are usually lighted with
2000K
incandescent lamps and the color
temperature of a white object in a studio
Candle
1000K
is around 3,200K. The color temperature
of a white object outdoors is around
Color temperature values
6,500K. The former may look a little
yellowish while the latter appears
somewhat bluish when they are shot by a camera. However, the human eye does not
recognize color differences among these objects even under different ambient lighting
conditions, because of their adaptability to light.
The video camera reproduces color differences with high fidelity and the color of an
object somewhat different from what appears to the human eye.
Therefore, there is a need to adjust the white balance in order to correct differences
between color temperatures.
NOTE
Color temperature outdoors may vary depending on weather conditions.
16
How to Adjust
_ Black balance adjustment
• Adjust it with the lens closed.
When the motor drive lens is controlled from the camera, adjusting the black balance
causes the lens to be automatically closed.
_ Gen lock adjustment
When multiple cameras are used or the camera is combined with other equipment, it is
necessary to adjust the phase for phase matching by external synchronization.
• Horizontal phase adjustment
Observe the waveforms of externally synchronizing signal input (black burst signal)
and video signal output by a two-phenomenon oscilloscope, and make the horizontal
phase according to the camera menu.
Adjustment with H.PHASE of
SETTING menu
1 Roughly adjust the synchronizing
signal input and video signal
output phases by H.PHASECOARSE.
2 Finely adjust the synchronizing
signal input and video signal
output phases by H.PHASE-FINE.
°° H.PHASE °°
H.PHASE-COARSE
H.PHASE-FINE
:03
:40
H.Phase adjustment is executed by
the HD Controller AK-HRP900.
17
Setting of Menu Items
_ Configuration of menu display screen
USER MENU
1.MAINTENANCE
2.SETTING
3.CAM ID
4.FILE MENU
Maintenance menu
°
MAINTENANCE
°
1.BLACK SHADING
2.PED,GAMMA,FLARE
3.KNEE,WHITE CLIP
4.R/B GAIN
5.DTL
6.GAIN,AUTO IRIS
7.S.GAIN 1
8.S.GAIN 2
9.S.GAIN 3
10.MATRIX
11.COLOR CORRECTION1
12.COLOR CORRECTION2
USER MENU
Using condition setting menu
°° SETTING°°
1.MODE
2.SHUTTER
3.H.PHASE
Camera ID setting menu
°°CAM
ID
°°
ID:AKHC900
File managing & renewing menu
H FILE MENU
°
°
FILE
(DATA REF
SAVE FILE?
SAVE
18
:USER1
:PRESET)
:USER1
:
Setting of Menu Items
_ USER menu (Initial screen)
The readout data at start of power supply
is the data just before cutting off the power
supply, and the operation is started with
the data.
USER MENU
1.MAINTENANCE
2.SETTING
3.CAM ID
4.FILE MENU
1. MAINTENANCE
It sets various adjusting data.
2. SETTING
It sets various modes.
3. CAM ID
It sets the camera ID.
4. FILE MENU
It executes file loading and saving, and
makes the basic setting of data display.
Menu operation is executed by the HD Controller AK-HRP900.
19
Setting of Menu Items
! Maintenance menu
• Move the cursor (arrow mark) to the item
to be adjusted and press the MENU key,
then it enters the adjustment menu
thereunder.
°MAINTENANCE°
1.BLACK SHADING
2.PED,GAMMA,FLARE
3.KNEE,WHITE CLIP
4.R/B GAIN
5.DTL
6.GAIN,AUTO IRIS
7.S.GAIN 1
8.S.GAIN 2
9.S.GAIN 3
10.MATRIX
11.COLOR CORRECTION1
12.COLOR CORRECTION2
• Move the cursor to MAINTENANCE and
press the MENU key, then it returns to
USER MENU.
1 Black shading correction menu
°BLACK
SHADING
°
DETECTION
CORRECT(DIG)
CORRECT(ANA)
• When MENU key is pressed at
DETECTION, (BLK-SHD:ACTIVE)
appears, then the lens is automatically
stopped down and ABB operation is
executed.
:ON
:ON
• When CORRECT (DIG) is turned ON,
horizontal and vertical shading
correction is automatically executed.
When it is turned OFF, the current
value is maintained.
• Move the cursor to “BLACK
SHADING” and press the MENU key,
then it returns to MAINTENANCE
MENU.
• When CORRECT (ANA) is set to ON,
vertical shading correction (SAW tooth)
is automatically corrected.
Note:
It takes about 90 sec. until completion
of black shading correction.
20
Setting of Menu Items
! Maintenance menu
2 Pedestal, gamma, flare adjustment
menu
°° PED,GAMMA,FLARE°°
M PED
R PED
B PED
M GAMMA
R GAMMA
B GAMMA
R FLARE
G FLARE
B FLARE
GAMMA
FLARE
:+027
:+000
:+000
:0.45
:+00
:+00
:010
:000
:017
:ON
:ON
M PED: Master pedestal can be
adjusted only by turning the control
panel VR.
The R, G, B pedestal can be totally
adjusted.
R, B PED: R, B pedestal adjustment.
Besides the master pedestal
adjustment, R, B pedestal can be
independently adjusted. It is not related
to DATA REF. The numeral display
after normal ending of ABB is “0” for
both of R, B.
M GAMMA: Master gamma adjustment.
The R, G, B gamma can be totally
adjusted.
R, B GAMMA: R, B gamma adjustment.
Besides the master gamma adjustment,
R, B gamma can be independently
adjusted.
R FLARE: R flare adjustment
G FLARE: G flare adjustment
B FLARE: B flare adjustment
GAMMA: Gamma ON/OFF setting
FLARE: Flare ON/OFF setting
21
Setting of Menu Items
! Maintenance menu
°° KNEE,WHITE
CLIP
M KNEE POINT
R KNEE POINT
B KNEE POINT
M KNEE SLOPE
R KNEE SLOPE
B KNEE SLOPE
A.KNEE POINT
A.KNEE LVL
WHITE CLIP LVL
KNEE
WHITE CLIP
3 Knee&white clip adjustment menu
°°
M KNEE POINT: Master knee point
adjustment.
G, B, R knee point can be totally
adjusted.
:95.00%
:+00.00%
:+00.00%
:95.00%
:+000
:+000
:95.00%
:108
:109%
:MANU
:ON
R, B KNEE POINT: R, B knee point
adjustment.
Besides the master knee point
adjustment, R, B knee point can be
independently adjusted.
M KNEE SLOPE: Master knee slope
adjustment.
G, B, R knee slope can be totally
adjusted.
R, B KNEE SLOPE: R, B knee slope
adjustment.
Besides the master knee slope
adjustment, R, B knee slope can be
independently adjusted.
A. KNEE POINT: Auto knee point
setting. Knee point in auto knee mode is
set.
A. KNEE LVL: Auto knee level.
WHITE CLIP LVL: White clip level
adjustment.
Video level with white clipped is set.
KNEE: KNEE mode
(OFF/MANU/AUTO)
OFF: Knee function is turned OFF.
MANU: Knee function is adjustable with
menu.
AUTO: Auto knee function is executed.
WHITE CLIP: White clip operation
setting.
With it ON, white clip is effective.
22
Setting of Menu Items
! Maintenance menu
°° R/B
GAIN
4 Gain adjustment menu
°°
R GAIN
B GAIN
The gain of R, B GAIN is adjusted.
The difference from the state of being
white-balanced can be adjusted.
:+000
:+000
• The numeral value displayed after
normal ending of AWB is “0” for both
of R, B.
5 Detail adjustment menu
°° DTL °°
DTL
TOTAL DTL LVL
H DTL LVL
CRISP
LVL DEPENDENT
PEEK FREQUENCY
KNEE APERTURE
KNEE APA.LVL
SLIM DTL
DTL(+)
DTL(-)
DTL CLIP
DTL SOURCE
DTL: Setting of valid/invalid of detail
function.
:ON
:+00
:11
:02
:2
:10
:ON
:10
:OFF
:+00
:+00
:0
:(B+G)/2
TOTAL DTL LVL: Horizontal and
vertical detail level adjustment.
H DTL LVL: Horizontal DTL component
is adjusted independently of DTL
adjusted by TOTAL DTL.
CRISP: It functions to eliminate slight
detail component and to reduce the
noise level.
LVL DEPENDENT: It suppresses the
detail of low brightness level. The
brightness level to be suppressed is
adjusted here.
PEAK FREQUENCY: It lifts up the
detail component, and selects the
central frequency.
KNEE APERTURE: It functions to
emphasizes the detail component of the
portion with knee applied.
KNEE APA.LVL: It sets the degree of
knee aperture.
SLIM DTL: It validates the function of
slimming the portion where the detail is
thick and emphasized.
23
Setting of Menu Items
! Maintenance menu
5 Detail adjustment menu
(continued from previous page)
°° DTL °°
DTL
TOTAL DTL LVL
H DTL LVL
CRISP
LVL DEPENDENT
PEEK FREQUENCY
KNEE APERTURE
KNEE APA.LVL
SLIM DTL
DTL(+)
DTL(-)
DTL CLIP
DTL SOURCE
°° GAIN,AUTO
IRIS
:ON
:+00
:11
:02
:2
:10
:ON
:10
:OFF
:+00
:+00
:0
:(B+G)/2
DTL (+): Setting of DTL at the edge in
positive direction.
DTL (–): Setting of DTL at the edge in
negative direction.
DTL CLIP: Setting of clip level of DTL
edge.
DTL SOURCE: Setting of video source
[G, R, (3G+R) /4, (2G+R+B) /4,
(G+B/2)] to create the detail.
6 Master gain, auto iris setting menu
°°
LOW GAIN
MID GAIN
HIGH GAIN
A.IRIS LVL
A.IRIS PEAK/AVG
A.IRIS WINDOW
IRIS MODE
IRIS GAIN
LOW GAIN: LOW setting of master
gain.
:0dB
:9dB
:18dB
:082
:075
:NORM1
:LENS
:06
MID GAIN: MID setting of master gain.
HIGH GAIN: HIGH setting of master
gain.
• The above GAIN setting is able to set
–6 to +18 dB in 3 dB step.
A.IRIS LVL: Setting of the intended
convergence level of auto iris.
A.IRIS PEAK/AVG: Setting of the
detection ratio of peak value and
average value of the quantity of light
when auto iris is operated.
A.IRIS WINDOW: Setting of the
detecting position of auto iris.
IRIS MODE: Auto iris mode setting:
(LENS/CAM).
IRIS GAIN: Iris loop gain adjustment.
24
Setting of Menu Items
! Maintenance menu
°° S GAIN 1°°
GAIN
° TOTAL
ANLG GAIN
PIX MIX
H DTL LVL
CRISP
LEVEL DEPENDENT
PEAK FREQUENCY
M GAMMA
MASTER PED OFFSET
R PED OFFSET
B PED OFFSET
7 Super gain, Detail, Pedestal-offset
level setting menu
TOTAL GAIN: Total gain in analog,
pixel addition, and memory addition is
displayed.
ANLG GAIN: Gain setting in analog.
PIX MIX: Gain setting in horizontal pixel
addition. Capable of setting 0/6 dB.
H DTL LVL: DTL level setting of super
gain.
CRISP: Setting the function of reducing
noise level of super gain. It is invalid
when DTL level is “0”.
LEVEL DEPENDENT: Setting of DTL
suppression at low lighting intensity of
super gain.
PEAK FREQUENCY: Setting of DTL
boost frequency of super gain.
M GAMMA: Gain setting in super gain.
Capable of setting 0/6 dB.
MASTER PED OFFSET: Setting of
master pedestal offset of super gain 1.
R PED OFFSET: Setting of R pedestal
offset of super gain.
B PED OFFSET: Setting of B pedestal
offset of super gain.
:42dB
:36dB
:06dB
:00
:0
:5
:2
:0.45
:-043
:-046
:-045
(Super gain 1, 2, 3 are same menu.)
25
Setting of Menu Items
! Maintenance menu
8 Matrix menu
Selection of table A, B or OFF.
Adjustment of gain of each color.
< MATRIX >
MATRIX
MATRIX
MATRIX
MATRIX
MATRIX
MATRIX
MATRIX
TABLE
R-G
R-B
G-R
G-B
B-R
B-G
:A
:+00
:+00
:+00
:+00
:+00
:+00
9 Color correction 1 menu
< COLOR CORRECTION1 >
SAT
PHASE
R
+00
+00
Mg
+00
+00
B
+00
+00
Cy
+00
+00
G
+00
+00
Y1
+00
+00
Adjustment of gain (saturation) and
phase of each color.
qZ Color correction 2 menu
< COLOR CORRECTION2 >
SAT
PHASE
R - Mg
+00
+00
Mg - B
+00
+00
B - Cy
+00
+00
Cy - G
+00
+00
G - Y1
+00
+00
Y1 - R
+00
+00
Adjustment of gain and phase of matrix.
26
Setting of Menu Items
@ Setting menu
- Menu for various settings.
°° SETTING°°
1.MODE
2.SHUTTER
3.H.PHASE
1 Camera mode setting menu
°° MODE°°
BLACK STRETCH
D5600K
CABLE COMPE
SUP GAIN
CAM ID
CAM ID POSI
MATRIX TABLE
COLOR CORRECTION
STATUS
BLACK STRETCH: Setting of the
function of expanding low-brightness
analog video level.
It is set by ON/OFF.
:OFF
:OFF
:0m
:OFF
:BAR
:0
:OFF
:OFF
:ON
D5600K: It is able to make color
temperature correction of about 5600
degrees of electric color temperature
correcting file.
It is set by ON/OFF.
CABLE COMPE: Setting of video cable
compensation. It is able to set
0/25/50m.
SUP GAIN: It sets OFF/1/2/3 of MAX
GAIN.
CAM ID: Setting of camera ID display.
It is set by OFF/BAR/ON.
In BAR setting, CAM ID is displayed
only in BAR mode.
27
Setting of Menu Items
@ Setting menu
1 Camera mode setting menu
(continued from previous page)
°° MODE°°
BLACK STRETCH
D5600K
CABLE COMPE
SUP GAIN
CAM ID
CAM ID POSI
MATRIX TABLE
COLOR CORRECTION
STATUS
:OFF
:OFF
:0m
:OFF
:BAR
:0
:OFF
:OFF
:ON
CAM ID POSI: It sets the display
position of camera ID.
0: top left, 1: top right, 2: down left,
3: down right.
MATRIX TABLE: It sets A, B or OFF of
Matrix table.
COLOR CORRECTION: Setting of
matrix ON/OFF.
STATUS: It sets displaying/not
displaying the status when AWB/ABB is
executed.
2 Electronic shutter setting menu
°° SHUTTER°°
SHUTTER MODE
SHUTTER SPEED
SYNCHRO SCAN
SHUTTER MODE: It selects the shutter
operation. ON/SYNCHRO/OFF can be
selected.
ON Setting of normal discrete shutter
speed.
SYNCHRO Setting of synchro scan
mode.
:OFF
:1/100
:75.1
SHUTTER SPEED: Setting of normal
shutter speed.
SYNCHRO SCAN: Setting of synchro
scan mode.
Shutter speeds of 60 Hz to 120 Hz can
be continuously changed.
3 Horizontal phase adjustment menu
for external reference signal
°° H.PHASE °°
H.PHASE-COARSE
H.PHASE-FINE
:09
:40
H.PHASE-COARSE: It is able to set the
horizontal phase in 15µ step.
H.PHASE-FINE: Setting of 1-step fine
adjustment in the above phase
adjustment.
28
Setting of Menu Items
# Camera ID setting menu
°°CAM
ID
°°
ID:AKHC900
$ File managing and renewing menu
- File operation menu
H FILE MENU
°
°
FILE
SAVE FILE?
SAVE
: blinking display.
:USER1
:USER1
:
1 The file selected by FILE is loaded.
It can be selected from
[PRESET/USER1 / USER2
/CURRENT].
When desired to return to the
previous data after loading other file,
select “CURRENT”.
H FILE MENU
°
°
FILE
SAVE FILE?
SAVE
:USER1
:USER1
:
29
Setting of Menu Items
$ File managing and renewing menu
- File operation menu
(continued from previous page)
H FILE MENU
°
FILE
SAVE FILE?
SAVE
:USER1
:USER1
:
2 When saving the current data, two
files (USER1 /USER2) can be saved.
Select the file by “SAVE FILE?”
Select “USER1” and move the cursor
to SAVE and press the MENU key,
then the item menu is displayed.
3 SAVE IN USER1. OK?
“YES” and “NO” are displayed.
Move the cursor from “NO” to “YES”
and check that “YES” blinks.
°
FILE MENU
°
FILE
SAVE FILE?
SAVE IN USER1.OK?
YES
NO
°FILE
MENU
4 When the menu key is pressed,
“SAVE COMPLETE” appears, then
“SAVE” of the file is completed.
:USER1
:USER1
°
FILE
SAVE FILE?
SAVE IN USER1.OK?
SAVE COMPLETE
:USER1
:USER1
30
Outside Dimension Diagram
7/16q
(10)
LENS
( ): mm
BREAKER
4-15/16q (125)
ZOOM/
FOCUS
1
SDI OUT
2
1/2q
(12)
1/ F
6-5/16q (160)
4-3/8q (110)
5/8q
(15)
13/16q
(20)
31
Specifications & Accessories
_ Specifications
Supply voltage:
DC 12V (supplied from D-SUB 15 pins)
Power consumption: 22 W
1 indicates safety information.
Image pickup device:
System:
Resolving optical system:
Optical filter:
2/3q 2.2 million-pixel FIT CCDk3
GBR image pickup system
F1.4 prism
CC: clear, 4300K, 6300K, cross
ND: 100%, 25%, 6.3%, 3.2%
Lens mount:
Bayonet type
Output spec.:
SMPTE 292M
Sensitivity:
F10, 2000Ix, 3200K, white reflection rate 89.9%
S/N:
54 dB (Y signal 30 MHz)
Horizontal frequency:
33.716 kHz (1125 lines/frame)
Vertical frequency:
59.94 Hz (interlace)
Ambient temp. for operation: 0°C to i40°C
Ambient temp. for storage: –20°C to +60°C
Weight:
Approx. 4.07 lbs (1.85 kg)
Dimensions:
4-3/8q (W)k5-13/16q (H) k7-1/8q (D)
110k147k180 mm
Input/output signal
Video output:
SYNC input:
Camera connector:
Control system:
HD-SDI:
Lens connector 1:
Lens connector 2:
Y, PB, PR, each 75 ohm output (signal band 30 MHz)
SYNC input (GL input 3 value SYNC)
D-SUB 15-pin connector seat (JAE: DAU-15PF-FO)
Synchronous (RS422, 38.4Kbps)
BNC 2 system
Iris control (HIROSE: HR10A-10R 12SC)
Zoom, focus control (HIROSE: HR10A-10R12PC)
_ Accessories
• Lens cap (1)
• Instruction manual (1)
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
32
PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
UNIT COMPANY OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA
Executive Office:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Southeast Region:
1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-6835
Central Region:
1707 N Randall Road E1-C-1, Elgin, IL 60123 (847) 468-5200
WESTERN ZONE:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880
Emergency after hour parts orders (800) 334-4881
TECHNICAL SUPPORT:
Emergency 24 Hour Service (800) 222-0741
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic de Mexico S.A. de C.V.
Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico Inc.
San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico 00630 (787) 750-4300
Printed in Japan
VQT0H34
F1003I0 D
P
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
