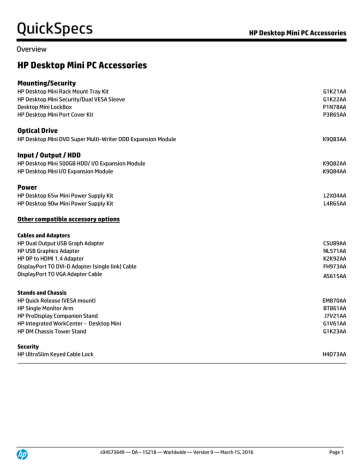

QuickSpecs HP Desktop Mini PC Accessories Overview

QuickSpecs HP Desktop Mini PC Accessories  Overview
QuickSpecs
HP Desktop Mini PC Accessories
Overview
HP Desktop Mini PC Accessories
Mounting/Security
HP Desktop Mini Rack Mount Tray Kit
HP Desktop Mini Security/Dual VESA Sleeve
Desktop Mini LockBox
HP Desktop Mini Port Cover Kit
G1K21AA
G1K22AA
P1N78AA
P3R65AA
Optical Drive
HP Desktop Mini DVD Super Multi-Writer ODD Expansion Module
K9Q83AA
Input / Output / HDD
HP Desktop Mini 500GB HDD/ I/O Expansion Module
HP Desktop Mini I/O Expansion Module
K9Q82AA
K9Q84AA
Power
HP Desktop 65w Mini Power Supply Kit
HP Desktop 90w Mini Power Supply Kit
L2X04AA
L4R65AA
Other compatible accessory options
Cables and Adapters
HP Dual Output USB Graph Adapter
HP USB Graphics Adapter
HP DP to HDMI 1.4 Adapter
DisplayPort TO DVI-D Adapter (single link) Cable
DisplayPort TO VGA Adapter Cable
C5U89AA
NL571AA
K2K92AA
FH973AA
AS615AA
Stands and Chassis
HP Quick Release (VESA mount)
HP Single Monitor Arm
HP ProDisplay Companion Stand
HP Integrated WorkCenter - Desktop Mini
HP DM Chassis Tower Stand
EM870AA
BT861AA
J7V21AA
G1V61AA
G1K23AA
Security
HP UltraSlim Keyed Cable Lock
H4D73AA
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 1
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
Mounting
HP Desktop Mini Rack Mount Tray Kit
Put your HP Desktop Mini PCs to work behind the scenes with HP Desktop Mini Rack Mount Tray Kit, which holds up to eight PCs
and fit into the HP 100kg Sliding Shelf.1
Dimensions (H x W x D)
123.5 x 201.8 x 286.9mm (4.9 x 7.9 x 11.3in)
7U for installation space leaving 2in for airflow
Compatible with industry-standard size rack shelf
Weight
953g (33.62oz) 1,906g for full kit (67.23 oz for full kit)
Exterior color
Jack Black – Dual unit holder
Silver – Fixed mounting tray
Maximum capacity
Holds up to eight PCs and fit into the HP 100kg Sliding Shelf. 1
Rack configuration
2 Kits populate one entire shelf
Option kit contents
4 Dual Unit Holders, 2 Fixed Mounting Trays, Installation guide, Warranty,
Dependent upon rack shelf being used, customer may have option to secure
mounting trays to shelves using hardware that must be purchased separately
Compatibility
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini,
HP EliteDesk 705 Desktop Mini, HP EliteDesk 800 Desktop Mini, ThinkCentre m53
Tiny Desktop, ThinkCentre m73 Tiny Desktop, ThinkCentre m83 Tiny Desktop,
ThinkCentre m93 Tiny Desktop, HP ProDesk 400 G2 Desktop Mini, HP ProDesk 600
G2 Desktop Mini.
1. Each Kit holds eight HP Desktop Mini PCs. Up to two Kits will fit into the HP 100kg Sliding Shelf, sold separately. To leave room for cabling, all
eight slots may not be available in each kit.
HP Desktop Mini Security/Dual VESA Sleeve
Wrap your HP Desktop Mini PC in the HP Desktop Mini Security/Dual VESA Sleeve to securely mount your PC behind monitor or
display, wall mount, or attached to almost any flat surface, position your solution on a wall , under a desk, on a display arm, and
lock it down with the optional HP Ultra-Slim Cable Lock.
Dimensions (H x W x D)
45.8 x 181 x 161mm (1.8 x 7.1 x 6.3in)
Weight
390g (13.76oz)
Exterior color
Jack Black
VESA pattern
100 mm VESA standard
Possible configurations
Behind monitor or display, attached to almost any flat surface, position your
solution on a wall, under a desk, or on a display arm
Option kit contents
Security/Dual VESA Sleeve, 1 security bracket to use with HP EliteDesk 800/705
Desktop Mini, HP ProDesk 600/400 Desktop Mini, 1 Security bracket to use with HP
260 Desktop Mini, 4 8mm ladder screws, Installation guide, Warranty, 7mm Spacer,
20mm screws
Compatibility
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini,
HP EliteDesk 705 Desktop Mini, HP EliteDesk 800 Desktop Mini
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 2
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
Desktop Mini LockBox
Fortify your HP Desktop Mini in a range of settings with the HP Desktop Mini LockBox, HP’s most
secure enclosure for your PC, power brick, and cable connections.
Dimensions (H x W x D)
57.2 x 272 x 268 mm (2.3 x 10.7 x 10.6 in)
Weight
2163.6 g (4.77 lb)
Exterior color
Jack Black
VESA pattern
100 mm VESA standard and 75mm VESA standard
Possible configurations
 Securely enclosing the desktop and power brick, attach the box to almost
any flat surface, position your solution on a wall, or under a desk.
 Includes space within lock box for desktop mini, power brick and all cable
connections.
 Also locks with physical padlock/ and or HP UltraSlim Cable Lock.
Optional Wifi Enablement
If a customer desires to use an internal wireless card, they must install a Mini PC
with the preinstalled WLAN card and external antennas installed via factory
services
Desktop Mini LockBox (includes lid and front port protection plate ), Screws for
securing the lid and mounting the Mini in the LockBox, Installation guide, Warranty
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini G1 and G2, HP ProDesk 600
Desktop Mini G1 and G2, HP EliteDesk 705 Desktop Mini G1 and G2, HP EliteDesk
800 Desktop Mini G1 and G2
*Customer must provide mounting hardware
Option kit contents
Compatibility
Desktop Mini Port Cover Kit
Dimensions (H x W x D)
Weight
Exterior Color
Possible configurations
Compatibility
31.75 x 101.6 x 177.8 mm (1.25 x 4 x 7 in)
113 g (.25 lb)
Jack Black
Can be used in vertical and horizontal DM orientations
HP ProDesk 400 G2 Desktop Mini, HP ProDesk 600 G2 Desktop Mini,
HP EliteDesk 705 G2 Desktop Mini, HP EliteDesk 800 G2 Desktop Mini
Note: Not designed to be used with an expansion module
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 3
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
Optical Drive
HP Desktop Mini DVD Super Multi-Writer ODD Expansion Module
Add a DVD Super-Multi Writer to your HP Desktop Mini PC with HP Desktop Mini DVD Super Multi-Writer ODD Module.1
Dimensions (H x W x D)
0.9 x 7 x 6.9 in (22.8 x 177 x 174.6 mm)
Weight
712g (25.12oz)
Color
Jack Black
Disc capacity
Up to 8.5 GB DVD double-layer or 4.7 GB standard single-layer
Write / Read speeds
DVD-RAM
Up to 5X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 6X
DVD-R DL
Up to 6X
DVD-R
Up to 8X
DVD-RW
Up to 6X
CD-R
Up to 24X
CD-RW
Up to 24X
Host Interface
USB 3.0 Type B female connector
Connectors Single output
USB 3.0 Type B
Access times
Random
DVD-ROM: 160 ms (typical), CD-ROM: 140 ms
(typical reads, including setting)
(typical)
Full Stroke
DVD-ROM: 280 ms ( typical), CD-ROM: 280 ms
(typical)
Power
Source
USB 3.0 Type B female connector
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC - 1000 mA typical, 1600 mA maximum
Environmental
Temperature (operating)
41° to 122° F (5° to 50° C)
(all conditions non-condensing)
Relative Humidity (operating)
10% to 80%
Maximum Wet Bulb Temperature
86° F (30° C)
(operating)
VESA mount
Yes, 100mm
Option kit contents
3 4mm ladder screws, 3 8mm ladder screws, 1 29mm secured torx screw, 1 54mm
secured torx screw, 1 29mm torx screw, 1 54mm torx screw, 1 50mm USB 3.0 Type
AB USB to Type A cable, , 1 80mm USB 3.0 Type AB USB to Type A cable, Installation
guide, Warranty
Compatibility
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini,
HP EliteDesk 705 Desktop Mini, HP EliteDesk 800 Desktop Mini
1.
The DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Don’t copy copyright-protected
content.
* These modules can be mounted to the DM directly and to another module with screws in the kit that allow the module to slide into
place. All modules can be used with the PC that is wrapped in the Security/Dual VESA Sleeve, and all can be mounted onto a standard
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 4
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
VESA mount (100mm sizing). Both options can be secured in place with a tamper-resistant screw. They are powered by a single USB
connection cable. The HP 260 and ProDesk 400 can support 2 expansion modules at a time using 2 USB Type A ports on the back of the
unit.
Input / Output / HDD
HP Desktop Mini 500GB HDD/ I/O Expansion Module
Add an extra hard drive to your HP Desktop Mini PC and enable compatibility with your existing and legacy peripherals with the HP
Desktop Mini 500GB HDD/I/O Module.
Dimensions (H x W x D)
Weight
Color
Host Interface
Ports included on
module
Power
VESA mount
Connectors
Capacity
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
0.9 x 7 x 6.9 in (22.8 x 177 x 174.6 mm)
729g (27.71oz)
Jack Black
USB 3.0 Type B female connector
PS/2, Serial, USB 3.0 Type AB connector on the ODD, HDD/ I/O, and I/O modules*
*NOTE: PC will recognize PS/2 and Serial as a USB to serial connection and is not intended use with
peripherals that require native serial connectivity.
USB 3.0 Type B
Yes, 100mm
Signal output: USB 3.0 Type A
500,107,862,016 bytes
Serial ATA (6.0 Gb/s)
Up to 6 Gb/s
16 MB
Single Track
2 ms
Average
11 ms
Full-Stroke
21 ms
Rotational Speed
Logical Blocks
System Requirements
Software
7200 rpm
625,142,448
Windows 8.1, Driver located on HP.com for HP EliteDesk 800 Desktop Mini, HP EliteDesk 705 Desktop
Mini, HP ProDesk 600 Desktop Mini
Option kit contents
Expansion module, 3 4mm ladder screws, 3 8mm ladder screws, 1 29mm secured torx screw, 1 54mm
secured torx screw, 1 29mm torx screw, 1 54mm torx screw, 1 50mm USB 3.0 Type B USB to Type BA
cable, , 1 80mm USB 3.0 Type B USB to Type A cable, Installation guide, Warranty
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini, HP EliteDesk 705
Desktop Mini, HP EliteDesk 800 Desktop Mini
Compatibility
HP Desktop Mini I/O Expansion Module
Keep working with your existing peripherals and add legacy ports to your HP Desktop Mini PC with the HP Desktop Mini I/O Module.
Dimensions (H x W x D)
0.9 x 7 x 6.9 in (22.8 x 177 x 174.6 mm)
Weight
623g (21.98oz)
Color
Jack Black
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 5
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
Host Interface
Ports included on
module
USB 3.0 Type B female connector
PS/2, Serial, USB 3.0 Type AB connector on the ODD, HDD/ I/O, and I/O modules, 2 USB 2.0 ports
* NOTE: PC will recognize PS/2 and Serial as a USB to serial connection and is not intended use with
peripherals that require native serial connectivity.
Host Interface
Power
Operating Temperature
Storage Temperature
System Requirements
Software
VESA mount
Option kit contents
Compatibility
USB 3.0 Type B
0-35°C (32-95°F)
-20~60°C (4~140°F)
Windows 8.1, Driver located on HP.com for HP EliteDesk 800 Desktop Mini, HP EliteDesk 705 Desktop
Mini, HP ProDesk 600 Desktop Mini
Yes, 100 mm
Expansion module, 3 4mm ladder screws, 3 8mm ladder screws, 1 29mm secured torx screw, 1 54mm
secured torx screw, 1 29mm torx screw, 1 54mm torx screw, 1 50mm USB 3.0 Type AB USB to Type A
cable, , 1 80mm USB 3.0 Type B USB to Type A cable, Installation guide, Warranty
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini, HP EliteDesk 705
Desktop Mini, HP EliteDesk 800 Desktop Mini
Power
HP Desktop 65w Mini Power Supply Kit
Dimensions (H x L x W)
External Power Adapter
Total cord length
Standard Efficiency
2.2 x 1.2 x 4.5 in (55 x 30 x 113.5 mm)
12 ft. 8 in
65W active PFC
87% efficient
Operating Voltage Range 90 - 264 VAC
Rated Voltage Range
100 - 240 VAC
Rated Line Frequency
50/60 Hz
Current Leakage
< 250 µA
(NFPA 99)
Option kit contents
Power supply, Power
cable, Warranty
Compatibility
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini, HP EliteDesk 800
Desktop Mini
*specific parts need to be localized
HP Desktop 90w Mini Power Supply Kit
Dimensions (H x L x W)
External Power Adapter
Total cord length
Standard Efficiency
2.2 x 1.2 x 4.5 in (55 x 30 x 113.5 mm)
12 ft. 8 in
65W active PFC
87% efficient
Operating Voltage Range 90 - 264 VAC
Rated Voltage Range
100 - 240 VAC
Rated Line Frequency
50/60 Hz
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 6
QuickSpecs
HP Desktop Mini PC Accessories
Technical Specifications
Current Leakage
(NFPA 99)
Option kit contents
Compatibility
< 250 µA
Power supply, Power
cable, Warranty
HP EliteDesk 705
Desktop Mini
*specific parts need to be localized
Service and support
Each accessory carries a one-year limited warranty. Technical support is available seven days a week, 24 hours a day, by phone, as
well as online support forums. Certain restrictions and exclusions apply.
Copyright © 2015 Hewlett-Packard Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. All other trademarks are the property of their respective owners.
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 7
QuickSpecs
HP Desktop Mini PC Accessories
Summary of Changes
Date of change:
Version
History:
V1
From v1 to v2
Created
Added
Created the document
Added the other accessories chart
From v2 to v3
Changes
July 1, 2015
From v3 to v4
Added
August 20, 2015
Fromv4 to v5
August 31, 2015
December 1,
2015
December 3
2015
March 15,2016
From v5 to v6
From v6 to v7
Change
Added
Changed
Added
Added new options in the first page
Added a note at the end of “ HP Desktop Mini 500GB HDD/ I/O Expansion
Module”
Added 7mm Spacer, 20mm screws under HP Desktop Mini Security/Dual
VESA Sleeve
Change “Mounting” to “Mounting/Security” on the 1st page
Added “Desktop Mini LockBox” and it’s specs under “Mounting”
Desktop Mini LockBox weight
“Desktop Mini Port Cover Kit” and it’s specs under Mounting
From v7 to v8
Added
Specs for the Desktop Mini Port Cover Kit
January 9, 2015
February 17,
2015
February 24,
2015
From v8 to v9
Description of change:
Updated compatiblity
c04573649 — DA – 15218 — Worldwide — Version 9 — March 15, 2016
Page 8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
