545E_E_01.fm
Page 1
Friday, August 29, 2003
1:24 PM

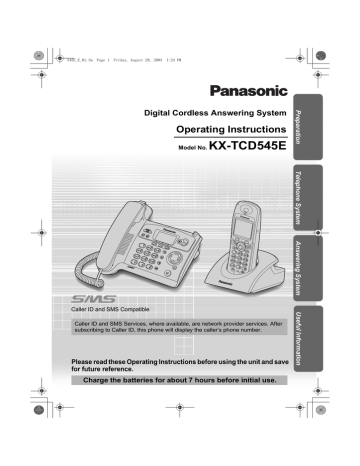

Operating Instructions
Model No.
KX-TCD545E
Preparation
Digital Cordless Answering System
Telephone System
Answering System
Caller ID and SMS Services, where available, are network provider services. After
subscribing to Caller ID, this phone will display the caller’s phone number.
Please read these Operating Instructions before using the unit and save
for future reference.
Charge the batteries for about 7 hours before initial use.
Useful Information
Caller ID and SMS Compatible
545E_E_02.fm
Page 2
Monday, September 1, 2003
10:11 AM
Before Initial Use
Features
Digital Answering System
Up to 30 minutes recording time or up to 64 messages, with time/day
stamp that records when messages were received and counts the total
number.
SMS (Short Message Service) compatibility
Now the convenience of sending and receiving text messages
performed with the cordless handset is available from a home
telephone.
Polyphonic Ringer Tones for Cordless Handset
A variety of high-quality sounds can be reproduced for your ringer
tones.
You can choose from 9 pre-set melodies and 6 ringer tones.
Hands-Free Speakerphone
You can talk without holding cordless handset.
Convenient for talking while doing something else.
This feature is also available for the base unit.
Headset Socket
Plug in the optional headset for hands-free ease and freedom of use.
1
4
7
2
3
5
6
8
9
0
Illuminated Keypad
Lights up when there is an incoming call or any time you touch a key for
easy operation even in the dark.
200+20-Station Phonebook
Store up to 200 (for Handset Phonebook) plus 20 (for Base
Unit Phonebook) names and numbers in the built-in
telephone directory for easy access.
Multiple Cordless Handsets
Up to 6 cordless handsets can be registered with a single base unit for
added convenience. (Optional cordless handset/charger is available
separately.)
Voice Search
You can record up to 20 voice tags for the handset phonebook items,
then you can search an item in the handset phonebook with your
voice.
2
545E_E_02.fm
Page 3
Monday, September 1, 2003
10:11 AM
Before Initial Use
Contents
Handset Settings ............................. 66
Base Unit Settings............................ 77
Operations Performed with the
Base Unit........................................... 82
Multi-Unit User Operations ................ 88
Walkie-Talkie.................................... 97
Answering System
Answering System........................... 100
Useful Information
Using the Belt Clip.......................... 114
Optional Headset............................ 114
Desktop Use................................... 115
Wall Mounting................................. 117
Before Requesting Help ................. 120
Character Table.............................. 124
Index .............................................. 126
Technical Information ..................... 127
Guarantee ...................................... 128
For your information
Throughout these Operating Instructions,
and
are used to
indicate with which unit an operation can be performed.
: Perform with cordless handset.
: Perform with the base unit.
: Perform with the cordless handset or base unit separately.
&
: Perform with the cordless handset and base unit together.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
3
Preparation
Preparation
Before Initial Use................................. 2
Important Information........................... 6
Location of Controls ............................. 7
Icons above the SOFT KEYS ........... 10
Symbols Used for Operations ........... 11
Display .............................................. 13
Setting up.......................................... 15
Telephone System
Using the Telephone......................... 21
Caller ID ............................................ 30
List Menu .......................................... 32
Using the Phonebook ........................ 36
Voice Search for the Handset
Phonebook ....................................... 48
Phonebook Copy .............................. 50
SMS Feature (Text Message) ........... 52
Settings Menu Chart ......................... 64
545E_E_02.fm
Page 4
Monday, September 1, 2003
10:11 AM
Before Initial Use
Thank you for purchasing your new Panasonic digital cordless telephone.
Sales and Support Information Customer Care Centre
• For UK customers: 08700 100 076
• For Republic of Ireland customers:
01289 8333
• Visit our website for product information:
http://www.panasonic.co.uk
• E-mail:
customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease and confidence by
phoning our Customer Care Centre Monday - Friday
9:00am - 5:30pm.
(Excluding public holidays)
Or go order online with our Internet Accessory ordering application available at
Shop@Panasonic http://www.panasonic.co.uk
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are handled directly by Panasonic
UK Ltd.
• It couldn't be simpler!
• Browse or order a wide range of Panasonic products online!
Visit http://www.panasonic.co.uk for details.
Dear purchaser,
You have acquired a KX-TCD545E, which is a product made in accordance with the
Digital Enhanced Cordless Telecommunications (DECT). DECT technology is
characterized by high-security protection against interceptions as well as high-quality
digital transmission. This telephone was designed for a wide range of applications.
For example, this telephone can be used within a network of base units and cordless
handsets, constituting a telephone system which:
• operates up to 6 cordless handsets at one base unit.
• allows an intercom between 2 registered units.
• allows the operation of a cordless handset at up to 4 base units, expanding the
communication radio area.
Caller ID and SMS Services, where available, are network provider services. After
subscribing to Caller ID, this phone will display the caller’s phone number.
4
545E_E_02.fm
Page 5
Monday, September 1, 2003
10:11 AM
Before Initial Use
Accessories (specific to product type)
Telephone Line Cord
Order No.
PQJA87S (for UK)
one
Handset Cord
Order No.
PQJA212K
one
Belt Clip
Order No.
PQKE10355Z1
(Metallic Grey)
one
Rechargeable Batteries
(AAA size)
Order No.
HHR-4EPT/BA2
(P03P)
Handset
Order No.
PQJXH0128Y
Preparation
AC Adaptor
(for Base Unit)
Order No. PQLV19EZ
(PQLV19E)
one
Battery Cover
Order No.
PQKK10134Y6
(Metallic Grey)
one
one
Charger Unit
AC Adaptor (for Charger): Order No. PQLV200EZ
(PQLV200E)
Charger: Order No. PQLV30018ZM1
two
one
Operating Instructions...one
Quick Guide..................one
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
5
545E_E_02.fm
Page 6
Monday, September 1, 2003
10:11 AM
Important Information
Use only the power supply included with
the product.
Do not connect the AC adaptor to any
AC outlet other than the standard
AC220-240 V.
(For Base Unit)
The apparatus is approved for use with
PQLV19E (Order No. PQLV19EZ)
power supply.
(For Charger)
The apparatus is approved for use with
PQLV200E (Order No. PQLV200EZ)
power supply.
This apparatus is unable to make calls
under the following conditions:
• The portable cordless handset
batteries need recharging, or have
failed.
• During a mains power failure.
• When the Key Lock is set to ON.
• When the unit is in Call Bar mode (only
the emergency Numbers can be
made).
Do not open the base unit, cordless
handset or charger (other than to change
the batteries).
This apparatus should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
Care should be taken that objects do not
fall onto, and liquids are not spilled into
the unit. Do not subject this unit to
excessive smoke, dust, mechanical
vibration or shock.
Environment
Do not use this unit near water.
This unit should be kept away from heat
sources such as radiators, cookers, etc. It
should also not be placed in rooms where
the temperature is less than 5 °C or
greater than 40 °C.
The AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is located/installed near the unit and
is accessible.
6
WARNING:
TO PREVENT THE RISK OF
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR ANY OTHER TYPE OF
MOISTURE.
Battery Caution
1.
2.
3.
4.
Use only the specified batteries.
Use only rechargeable batteries.
Do not mix old and new batteries.
Do not dispose of batteries in a fire, as
they may explode.
Check local waste management codes
for special disposal instructions.
5. Do not open or mutilate the batteries.
Released electrolyte from the batteries is
corrosive and may cause burns or injury
to the eyes or skin.
The electrolyte may be toxic if swallowed.
6. Exercise care in handling the batteries in
order not to short circuit the batteries with
conductive materials such as rings,
bracelets and keys.
The batteries and/or conductor may
overheat and cause burns.
7. Charge the batteries in accordance with
the information provided in this operating
guide.
Location
• For maximum distance and noise-free
operation, place your base unit:
- Away from electrical appliances such
as TVs, radios, personal computers or
other phones.
- In a convenient, high, and central
location.
545E_E_02.fm
Page 7
Monday, September 1, 2003
10:11 AM
Location of Controls
Cordless Handset
Receiver
Display
1
Headset
Socket
6
2
7
8
3
4
5
Charge
Contact
3
4
5
6
7
8
9
0
Rear side
Speaker
2
1
Preparation
1-
Ringer/Charge
LED
LEFT SOFT KEY
2-
TALK Button
3-
JOYSTICK
4-
SPEAKERPHONE Button
5-
RECALL Button
6-
RIGHT SOFT KEY
7-
POWER/TALK OFF Button
9
8-
CLEAR Button
Charge
Contact
Microphone
9-
INTERCOM/HOLD Button
How to Use the Cordless Handset Soft Keys
The 3 soft keys are used to select functions displayed directly
above the keys.
Functions displayed above the keys will change depending
on the state of use.
For example, on the standby mode display, “
”,
“
” and “
” are displayed above the soft keys.
Example: Standby
Mode Display
25.2 21:05
To operate “
” (Phonebook),
press LEFT SOFT KEY.
To operate “
” (Menu), press
the centre of the JOYSTICK, used as
the middle soft key.
To operate “
” (Redial), press
RIGHT SOFT KEY.
When “
” is displayed above a
soft key, the soft key has no function.
• “
” (Menu) can be selected when in the standby
mode by moving JOYSTICK up, down, left or right.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
7
545E_E_02.fm
Page 8
Monday, September 1, 2003
10:11 AM
Location of Controls
Base Unit
132
Ringer/In Use LED
Display
4
5
7
6
8
9
10
11
12
15
13
Mic
14
1-
ERASE Button
2-
GREETING Button
3-
ANSWER ON Button and
Indicator
4-
LEFT SOFT KEY
5-
MIDDLE SOFT KEY
6-
RIGHT SOFT KEY
7-
STOP Button
8-
PLAYBACK Button
9-
PAGE/INTERCOM/HOLD
Button
10 -
NAVIGATOR KEY
11 -
RECALL Button
12 -
CLEAR Button
13 -
SPEAKERPHONE Button
14 -
REDIAL Button
15 -
MUTE Button
How to Use the Base Unit Soft Keys
The 3 soft keys are used to select functions displayed directly above the keys.
Functions displayed above the keys will change depending on the state of use.
For example, on the standby mode display, “
”, “
” and
“
” are displayed above the soft keys.
Example: Standby Mode Display
25.2 21:05
To operate “
” (Phonebook),
press LEFT SOFT KEY.
To operate “
” (Menu),
press MIDDLE SOFT KEY.
To operate “
” (Caller ID List),
press RIGHT SOFT KEY.
When “
” is displayed above a soft
key, the soft key has no function.
8
545E_E_02.fm
Page 9
Monday, September 1, 2003
10:11 AM
Location of Controls
How to Use the Navigator Key
Preparation
This key has four active areas.
UP
Base unit
UP
RIGHT
DOWN
RIGHT
DOWN
LEFT
LEFT
• Scrolls up through the function menu, Caller
List and the Base Unit Phonebook.
• Increases the volume.
• Scrolls down through the function menu, Caller
List and the Base Unit Phonebook.
• Decreases the volume.
• Selects your menu choices.
• Returns to the previous display.
Charger
Charge Contacts
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
9
545E_E_02.fm
Page 10
Monday, September 1, 2003
10:11 AM
Icons above the SOFT KEYS
Icons above the Cordless Handset Soft Keys
Icons
Functions
Icons
Functions
Go Back
LetterWise®
Menu
Alphabet
Sub-Menu
Numeric
OK
Greek
Redial
Extended 1
Phonebook
Extended 2
New Phonebook
Russian
Search
Select
Key Lock
Pause
12/24 Hour Clock
Mute
Stop
Delete
No Function
Icons above the Base Unit Soft Keys
Icons
Functions
Functions
Go Back
Pause
Menu
Intercom/Paging
OK
Caller ID List
Phonebook
Repeat Message
No Function
Skip Message
Delete
10
Icons
545E_E_02.fm
Page 11
Monday, September 1, 2003
10:11 AM
Symbols Used for Operations
Symbols Used for Cordless Handset Operations
Preparation
Symbol
Meaning
Move the JOYSTICK up, down, left or right.
e.g., Search for the main menu.
e.g., OK
e.g., Display of menu items
Press JOYSTICK
directly in the centre.
Press Directly
In this example, the
desired item is
selected.
e.g., Redial
e.g., Standby Mode Display
Press RIGHT SOFT KEY.
In this example, the telephone number
last dialled is displayed.
e.g.,
Go Back
e.g., Display of menu items
Press LEFT SOFT KEY.
In this example, the display returns to the
previous menu.
has the same function as go back.
Press POWER/TALK OFF Button.
Press this button at any time to return the display to the standby
display mode.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
11
545E_E_02.fm
Page 12
Monday, September 1, 2003
10:11 AM
Symbols Used for Operations
Symbols Used for Base Unit Operations
Symbol
Meaning
Press NAVIGATOR KEY up or down.
e.g., Search for the desired item.
e.g., OK
e.g., Display of menu items
Press MIDDLE SOFT KEY.
In this example, the desired
item is selected.
e.g., Caller
ID List
e.g., Standby Mode Display
Press RIGHT SOFT KEY.
In this example, the newest
caller information is
displayed.
e.g.,
Go Back
e.g., Display of menu items
Press LEFT SOFT KEY.
In this example, the display
returns to the previous
menu.
Symbols Used for Cordless Handset/Base Unit
Operations
Symbol
Meaning
Go to the next step.
“
”
The words in “
” indicate the text shown on the display.
The phone is ringing.
12
545E_E_02.fm
Page 13
Monday, September 1, 2003
10:11 AM
Display
Handset Display Icons
Preparation
Within range of a base unit
IN USE
Out of range/No registration/
No power on base unit
H/set 1
Intercom/Paging/
While connecting with base unit
Making or answering calls
Call Bar ON
Phonebook Mode
Answering System ON
Message indication
New call (Caller ID only)
H/set 1 Cordless Handset Name (e.g., Cordless
Handset 1)
Battery strength
Direct Call ON
SMS mail (text messages) indication
IN USE
Ringer Volume OFF
The line is being used by another unit.
Voice Tag indication
Main Menu Display
To go to the Main Menu, press JOYSTICK
directly in the centre (or move
)
while in the standby mode display. The selected menu icon is turned over, and its title is
displayed.
Example: “Caller ID” is selected.
“Caller ID”
“SMS”
“TAM Operation”
“Setting Handset”
Caller ID
“Setting Base”
“Walkie-Talkie”
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
13
545E_E_02.fm
Page 14
Monday, September 1, 2003
10:11 AM
Display
Base Unit Display Icons
Intercom/Paging
H/set 1
Making or Answering calls
Call Bar ON
Phonebook Mode
Ringer Volume OFF
---IN USE ---
New call (Caller ID only)
---IN USE--- The line is being used by another unit.
H/set 1
Intercom Mode
Cordless Handset Name (e.g.,
Cordless Handset 1)
Message indication
14
545E_E_02.fm
Page 15
Monday, September 1, 2003
10:11 AM
Setting up
Connection
(For Base Unit)
Plug in the AC adaptor and the telephone
line cord in order 1, 2, 3, 4.
The cords can be hidden from view when
using the base unit on a desktop by
tucking them under the wall mounting
adaptor (p.115, 116).
Hook
Fasten the AC adaptor
cord to prevent it from
being disconnected.
Handset
Hooks
Fasten the AC
adaptor cord to
prevent it from
being disconnected.
• The AC adaptor must remain
connected at all times (It is normal for
the adaptor to feel warm during use).
• USE ONLY WITH Panasonic
AC ADAPTOR PQLV200E (Order No.
PQLV200EZ).
Battery Installation
Please ensure the batteries are inserted
as shown.
part should be inserted first.
Close the cover as indicated by the arrow.
• When you replace the batteries, part
should be removed first.
3
1
2
4
Handset Cord
• The AC adaptor must remain
connected at all times (It is normal for
the adaptor to feel warm during use).
• Never install telephone wiring during a
lightning storm.
• USE ONLY WITH Panasonic
AC ADAPTOR PQLV19E (Order No.
PQLV19EZ).
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
15
Preparation
The telephone will not work during a
power failure. We therefore
recommend you use a standard
telephone and T adaptor to connect
this Digital Cordless Phone to the line.
Your Panasonic Sales Shop can offer
you more information about connection
possibilities.
(For Charger Unit)
The batteries must be fully charged
before initial use of the cordless handset.
545E_E_02.fm
Page 16
Monday, September 1, 2003
10:11 AM
Setting up
Battery Charge
At the time of shipment, the batteries are
not charged. To charge, place the
cordless handset on the charger. Please
charge the batteries for about 7 hours
before initial use.
handset batteries at least 15 minutes.
Battery Information
After your Panasonic batteries are fully
charged:
Ni-MH Batteries (typical 700 mAh)
Operation
Operating Time
While in use (TALK)
10 hrs approx.
While not in use
(Standby)
180 hrs approx.
Ni-Cd Batteries (typical 250 mAh)
During charging, the charge LED will light
as shown below.
During charging
Fully charged
Red
Display icon
Green
Battery strength
High
Medium
Low
Needs to be
charged
The cordless handset, even when
switched off, will be turned on
automatically when it is placed on the
charger.
The cordless handset will not operate
while it is on the charger.
If the handset display flashes
when
the cordless handset is lifted off the
charger, please charge the cordless
16
Operation
Operating Time
While in use (TALK)
4 hrs approx.
While not in use
(Standby)
60 hrs approx.
• Times indicated are for peak
performance.
• The battery operating time may be
shortened depending on usage
conditions and ambient temperature.
• Clean the charge contacts of the
cordless handset and the charger
with a soft, dry cloth once a month.
Clean more often if the unit is
subject to grease, dust or high
humidity. Otherwise the battery may
not charge properly.
• The batteries cannot be overcharged
unless they are repeatedly removed
and replaced.
• For maximum battery life, it is
recommended that the cordless
handset not be recharged until the
battery icon flashes
.
545E_E_02.fm
Page 17
Monday, September 1, 2003
10:11 AM
Setting up
Preparation
Replacing the
Batteries
If the
icon flashes after a few
telephone calls even when the cordless
handset batteries have been fully
charged, both batteries must be replaced.
• Charge new batteries for
approximately 7 hours before initial
use.
• When replacing the batteries, be
sure to set up the battery type even
if you install the same type of
batteries to initialise battery
remaining memory of your cordless
handset. (See Setting the Battery
Type on page 75.)
• Do not use non-rechargeable
batteries. If non-rechargeable
batteries are installed and start
charging, battery electrolyte may
leak from the unit.
• Open the battery cover by pressing
down firmly on the notch and sliding it
as indicated by the arrow below.
Replace both batteries (p.15) and
close the cover. Charge the cordless
handset for about 7 hours.
Please order Panasonic P03P (NiMH) or P03H (Ni-Cd) batteries.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
17
545E_E_02.fm
Page 18
Monday, September 1, 2003
10:11 AM
Setting up
Power ON/OFF
Power ON
Power OFF
Press and hold
POWER.
When POWER is
released, the
display changes
to the standby
mode.
Press and hold
POWER.
The display goes
blank.
Selecting the Display Language
You can select one of 19 languages on the cordless handset and the base unit
separately. The factory preset is English.
Selecting the Display Language on the Cordless Handset
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
Setting
Handset”.
4
Select “Select
Language”.
5
Select the desired
language.
3
Select “Display
Option”.
• If you set a language you cannot read, reset the display language to your desired
language.
Press
Move
18
Press
twice
Press
Move
Press
Move
Select the desired language
four times
Press
Press
.
545E_E_02.fm
Page 19
Monday, September 1, 2003
10:11 AM
Setting up
Preparation
Selecting the Display Language on the Base Unit
To exit the operation, press
1
at any time.
2
Press
MIDDLE SOFT KEY.
Select “Select
Language”.
3
Select the desired
language.
• If you set a language you cannot read, reset the display language to your desired
language.
Press
language
Press
Press
(DOWN) 3 times
Press
Select the desired
.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
19
545E_E_02.fm
Page 20
Monday, September 1, 2003
10:11 AM
Setting up
Setting the Date and Time
After a mains power failure, the clock needs to be set. Ensure that the
icon is not
flashing. After the date and time are set, the base unit display also shows the date and
time. This feature can be operated with the cordless handset only.
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
Setting
Handset”.
3
4
Enter the date
(see below).
5
Enter the time
(see below).
6 Press JOYSTICK.
Select “Set Date/
Time”.
Example: To set 16 February, 2003, 7:15 pm.
Date
Day
Month
Time
Year
Hour
Minute
12/24 hour clock
Selecting 12/24 Hour Clock
Press RIGHT SOFT KEY repeatedly.
20
24 hour
clock
12 hour
clock (AM)
12 hour
clock (PM)
545E_E_03.fm
Page 21
Monday, September 1, 2003
1:51 PM
Using the Telephone
Making a Call
Pre-Dialling
1
Post-Dialling
Enter Phone
Number.
2
Press TALK.
1
Press TALK.
2
Enter Phone
Number.
Pre-Dialling
1
Post-Dialling
Enter Phone
Number.
2
Lift the handset.
1
Lift the handset.
2
Enter Phone
Number.
• If you need to make a correction while entering the phone number when using PreDialling, press
. The digit is cleared to the left, then you can enter new digits. All
digits are cleared if you press and hold
.
• You can also press
to make a call.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
21
Telephone System
• If you need to make a correction while entering the phone number when using PreDialling, press
. The digit is cleared to the left, then you can enter new digits. All
digits are cleared if you press and hold
.
• You can also press
to make a call.
545E_E_03.fm
Page 22
Monday, September 1, 2003
1:51 PM
Using the Telephone
Answering a Call
Answering a Call
Terminating a Call
Press TALK.
Press TALK
OFF.
(During a call)
• You can also answer a call by pressing
Talk).
Answering a Call
to
,
,
,
or
(Any Key
Terminating a Call
Lift the handset
or press
.
• You can also answer a call by pressing
(During a call)
To hang up, place
the handset on the
cradle or press
.
.
Auto Talk
If you set Auto Talk to ON, you can answer a call by lifting the cordless handset off the
charger. (See Setting Auto Talk ON/OFF on page 75.)
22
545E_E_03.fm
Page 23
Monday, September 1, 2003
1:51 PM
Using the Telephone
Receiver (or Headset Receiver)/Speaker Volume
The choices for the receiver (or headset receiver) volume are 3 levels, and 6 levels for
the speakerphone volume.
(During a call)
To increase volume, move the JOYSTICK up.
To decrease volume, move the JOYSTICK down.
Telephone System
• The factory preset is medium (receiver volume) and level 3 (speaker volume).
The choices for the handset receiver volume are 3 levels, and 8 levels for the
speakerphone volume.
To increase volume, press NAVIGATOR KEY up.
To decrease volume, press NAVIGATOR KEY down.
(During a call)
• The factory preset is medium (receiver volume) and level 5 (speaker volume).
Have a Hands-Free Phone Conversation (using
Digital Speakerphone)
Speakerphone allows you to talk to your caller without holding the cordless handset and
allows other persons in the room to listen to the conversation.
Returning to Receiver
(During a call)
Press
SPEAKERPHONE.
Press TALK.
• For best performance, please note the following:
- Talk alternately with the caller in a quiet environment.
- If either party has difficulty hearing, move the JOYSTICK up or down for the cordless
handset to change the volume accordingly. The choices for the speakerphone volume
are 6 levels.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
23
545E_E_03.fm
Page 24
Thursday, September 18, 2003 9:44 AM
Using the Telephone
Speakerphone allows you to talk to your caller without holding the handset and allows
other persons in the room to listen to the conversation.
Press SPEAKERPHONE.
(Receiving a call)
• For best performance, please note the following:
- Talk alternately with the caller in a quiet environment.
- If either party has difficulty hearing, press NAVIGATOR KEY up or down to change
the volume accordingly. The choices for the speakerphone volume are 8 levels for the
base unit.
Muting Your Conversation
During a call, you can mute your phone so the other party cannot hear you, but you can
hear them.
Muting
(During a call)
Returning to the Conversation
Press LEFT SOFT
KEY, then Icon
flashes.
Muting
Returning to the Conversation
Press MUTE.
(During a call)
24
Press LEFT SOFT KEY once again.
Icon stops flashing.
Press MUTE once again.
545E_E_03.fm
Page 25
Monday, September 1, 2003
1:51 PM
Using the Telephone
Key Lock
You lock the cordless handset dialling buttons. While locked, the buttons cannot be used
and therefore calls cannot be made. Incoming calls can be answered while the key lock
is ON. When the key lock is ON, the menu icon
changes to
.
When the key lock is ON, emergency calls (p.78) cannot be made until key lock is
cancelled.
Key Lock ON
Key Lock OFF
Press and hold JOYSTICK directly for
more than 2 seconds once again.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
Telephone System
(Standby Mode
Display)
Press and hold
JOYSTICK directly
for more than 2
seconds.
25
545E_E_03.fm
Page 26
Monday, September 1, 2003
1:51 PM
Using the Telephone
Redialling
The last 10 numbers dialled on the cordless handset and the base unit are automatically
stored in the redial list separately.
Dialling with the Redial List
1
Press RIGHT SOFT KEY.
for the desired
2 Search
dialled item.
3 Press TALK.
• If there are no items stored in the redial list when
is pressed, the handset display
shows “Memory Empty”.
• When scrolling reaches the end of the list, an end tone will sound.
• You can also press
to make a call.
• To save the numbers from the redial list into the handset phonebook, or to edit or
delete from memory, see pages 34 and 35.
Dialling the Last Number Dialled
1 Press TALK.
2 Press RIGHT SOFT KEY.
Auto Redial
If you press
then
and the number is engaged, the unit will automatically redial
the number every 40 seconds, up to 12 times. When using Auto Redial, press
after
pressing
if the muting has not been cancelled.
26
545E_E_03.fm
Page 27
Monday, September 1, 2003
1:51 PM
Using the Telephone
Dialling with the Redial List
1
Press REDIAL.
2
Search for the desired
dialled item.
3 Lift the handset.
Dialling the Last Number Dialled
1 Lift the handset.
2 Press REDIAL.
Auto Redial
If you press
then
and the number is engaged, the unit will automatically redial
the number every 40 seconds, up to 12 times. When using Auto Redial, press
after
pressing
if the muting has not been cancelled.
Recall Feature
RECALL
(on the cordless handset) or
(on the base unit) is used to access
special telephone services. Contact your network provider for details. If your unit is
connected to a PBX, pressing
(on the cordless handset) or
(on the base unit)
allows you to access certain features of your host PBX, such as transferring an
extension call.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
27
Telephone System
• If there is no item stored in the redial list when
is pressed, the base unit display
shows “Memory Empty”.
• When scrolling reaches the end of the list, an end tone will sound.
• You can also press
to make a call.
• To edit or delete from memory, see page 84.
545E_E_03.fm
Page 28
Monday, September 1, 2003
1:51 PM
Using the Telephone
Dialling Pause (for PBX line/long distance service
users)
A dialling pause can be entered when a pause in the dialling of a phone number is
necessary when using a PBX or accessing a long distance service.
For example, if using the unit with a PBX and a line access number (9, in this example
must be dialled before the telephone number:
1
Press 9.
2
Press RIGHT SOFT
KEY.
3
Enter Phone
Number.
4
Press TALK.
2
Press RIGHT SOFT
KEY.
3
Enter Phone
Number.
4
Lift the
handset.
9
1
Press 9.
9
• You can also press
(for cordless handset) or
(for base unit) to make a call.
• Entering a pause can prevent misdialling when you redial or dial a stored number.
• Pressing RIGHT SOFT KEY more than once increases the length of the pause
between numbers.
• To change the pause time, see page 78.
28
545E_E_03.fm
Page 29
Monday, September 1, 2003
1:51 PM
Using the Telephone
Call Waiting
Call Waiting is a service of your network provider and will operate only if you have
subscribed to this service. If you subscribe to Call Waiting, a tone will notify you when
another person calls you while you are already talking on the phone. You can answer
the second call, keeping the first call on hold.
(Call waiting tone
sounds during a call)
Press RECALL.
The first call is put on hold and
the second call is answered.
Telephone System
Returning to the First Caller
Press RECALL once again.
(Call waiting tone
sounds during a call)
Press RECALL.
The first call is put on hold and
the second call is answered.
Returning to the First Caller
Press RECALL once again.
• If you subscribe to both Caller ID and Call Waiting, the units will display the second
caller's phone number when you hear the call waiting tone. If the phone number of the
second caller is stored in the unit's phonebook along with a name, the caller's name
will be displayed.
• If the phone number is stored in the base unit phonebook with its name, the caller’s
name will also be displayed.
• Please consult your Network provider for details of this service.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
29
545E_E_03.fm
Page 30
Monday, September 1, 2003
1:51 PM
Caller ID
Caller ID Service
Caller ID is a service of your Network provider and will operate only if you have
subscribed to this service.
After subscribing to Caller ID, this phone can display the phone number of the
caller when you receive a call. If the telephone number received by Caller ID is
stored in the unit's phonebook along with a name, the caller's name will be
displayed.
The last 50 callers’ phone numbers are stored in the order the calls were received. When
the 51st call is received, the oldest caller information is cleared. If the caller's name has
been stored with the number in the phonebook (see Storing Caller Information in the
phonebook on page 37, 38), the caller’s name will also be displayed.
If your unit is connected to a PBX or a telephone line that does not support this service,
you will not be able to use it.
When new calls have been received, the display shows the number of calls.
In the example below, 10 new calls have been received.
Please see Caller ID List (p.82) for base unit operation.
Standby Mode Display
H/set 1
10 Calls
17.8 14:59
30
Standby Mode Display
10 Calls
17.8 14:59
545E_E_03.fm
Page 31
Monday, September 1, 2003
1:51 PM
Caller ID
Making a Call from the Caller ID List
To exit the operation, press
at any time.
1
Press JOYSTICK (or move).
2
Select “
3
The newest caller information is
displayed.
4
Search for the
desired item.
Caller ID”.
5 Press TALK.
Time Received
Name
Tel No.
17.8
14:59
JOHN SMITH
0123456789
• You can also press
to make a call.
• “ ” indicates you have already viewed this caller information, or answered the call.
It also indicates the other registered unit user has already viewed this caller
information, or answered the call.
• If the caller has requested not to display his/her information, the display shows
“Private Caller”.
• If the caller dialled from an area which does not provide Caller ID service, the display
shows “Out of Area”.
• When scrolling reaches the end of the list, an end tone will sound.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
31
Telephone System
Date Received
545E_E_03.fm
Page 32
Monday, September 1, 2003
1:51 PM
List Menu
Caller ID List Menu
You can save the numbers from the Caller ID list into the handset phonebook, and you
can edit (for calling) or delete item(s) in the Caller ID List.
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
ID”.
Caller
3
Select the desired
item.
Go to step 4.
• When scrolling reaches the end of the list, an end tone will sound.
• If there are no items stored in the caller list when “Caller ID” is selected, the
handset display shows “Memory Empty”.
Storing a Number in the Handset Phonebook
Follow steps 1 to 3 shown above, then:
4
Select “Save
Phonebook”.
5
Enter Name (p.39, 40),
then press
.
(max. 16 characters)
If required, edit phone
number. (max. 24
digits)
7
32
Select the desired
category or “Off” (p.36).
8
Select “Save”, then
“Saved” is displayed.
6
Press JOYSTICK.
545E_E_03.fm
Page 33
Monday, September 1, 2003
1:51 PM
List Menu
Editing the Received Number for Calling
Follow steps 1 to 3 on the previous page, then:
4
Select “Edit for
Call”.
5
Edit Phone
Number.
(max. 24 digits)
6
Press TALK or press
JOYSTICK to call.
OR
• You can also press
to make a call.
Deleting One/All Caller ID Item(s)
Telephone System
Follow steps 1 to 3 on the previous page, then:
4
Select “Delete” or “Delete All”.
5
Select “Yes”, then “Deleted” is
displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
33
545E_E_03.fm
Page 34
Monday, September 1, 2003
1:51 PM
List Menu
Redial List Menu
You can save numbers from the redial list into the handset phonebook, and you can edit
(for calling) or delete item(s) in the redial list.
To exit the operation, press
at any time.
1
2
Press RIGHT SOFT KEY.
Select the desired item.
Go to step 3.
• If there are no items stored in the redial list when
shows “Memory Empty”.
is pressed, the handset display
Storing the Number in the Handset Phonebook
Follow steps 1 and 2 shown above, then:
3
Select “Save
Phonebook”.
4
Enter Name (p.39, 40).
(max. 16 characters)
5
Press JOYSTICK
twice.
twice
6
34
Select the desired
category or “Off” (p.36).
7
Select “Save”, then
“Saved” is displayed.
545E_E_03.fm
Page 35
Monday, September 1, 2003
1:51 PM
List Menu
Editing the Dialled Number for Calling
Follow steps 1 and 2 on the previous page, then:
3
Select “Edit for
Call”.
4
5
Edit Phone
Number.
(max. 24 digits)
Press TALK or press
JOYSTICK to call.
OR
• You can also press
to make a call.
Deleting One/All Redial Item(s)
Telephone System
Follow steps 1 and 2 on the previous page, then:
3
Select “Delete” or “Delete All”.
4
Select “Yes”, then “Deleted” is
displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
35
545E_E_03.fm
Page 36
Monday, September 1, 2003
1:51 PM
Using the Phonebook
You can store up to 200 caller information in the handset phonebook and up to 20 caller
information in the base unit phonebook. If you subscribed to Caller ID and you received
a call from the same phone number you stored with name in each phonebook, the
display will show the caller’s name.
When same phone number has been registered to the handset and the base unit
phonebook with different names, each display will show each registered caller’s name.
Private Category Feature
You can categorise caller information in the handset phonebook. There are 9 categories
available. For example, category 1 can be used to save all friends numbers. For each
category, you can rewrite the category names (max. 10 characters: see Changing the
Category Name on page 71), you can select one of 3 Ringer LED colours (see Setting
the Private Colour on page 71) and one of 15 ringer types (see Ringer Options on
page 68).
This feature is available only after subscription to Caller ID Service. Please contact
your network provider for further information.
Example
Private
Category No.
Ringer LED Colour*
Private
Ringer Type
Category
Name
1
3
Friends
3
2
Customers
Green
Orange
Red
* The factory preset LED colour is green.
• The unit will indicate an incoming call using the factory preset LED colour (green) and
the ringer pattern assigned to external calls (p.69) momentarily until Caller ID
information is received from the network provider.
Audible Caller ID
To use this feature, you need to subscribe to Caller ID service. For further information,
please contact your network provider. You need to store caller information and to record
the name into the base unit phonebook (p.38).
When a call comes in, the unit will ring and the caller information will be received. If you
receive a call from one of the same phone numbers stored in the base unit phonebook,
the recorded name will be announced.
• If the ringer volume of the cordless handset is OFF, recorded names will not be
announced. Announcement volume depends on the cordless handset ringer setting
(p.69).
• If the ringer volume of the base unit is OFF, recorded names will not be announced.
Announcement volume depends on the base unit ringer setting (p.86).
• Your unit may mute one or more of rings in order to announce the name of the caller,
as announcement is prior to rings.
36
545E_E_03.fm
Page 37
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Storing Caller Information in the Handset
Phonebook
To exit the operation, press
1
at any time.
Press JOYSTICK.
3
Select “H/set
Phonebook”, then
the display shows the
number of empty
phonebook entries.
Name (p. 39).
4 Enter
(max. 16 characters)
5
Press JOYSTICK.
6
Enter Phone
Number.
(max. 24 digits)
7
8
Select the desired
category or “Off”.
9
Select “Save”, then
“Saved” is displayed.
Press JOYSTICK.
• If “Memory Full” is displayed in step 3, the phonebook is full. To store, delete other
stored items in the phonebook.
• To continue storing other caller information, repeat from step 4.
• If you need to go back to entering name during entering phone number, move the
JOYSTICK up.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
37
Telephone System
2
Press LEFT SOFT
KEY.
545E_E_03.fm
Page 38
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Storing Caller Information in Base Unit
Phonebook
This feature can be operated with the cordless handset only.
To use an Audible Caller ID feature (p.36), you must store caller information into the
base unit phonebook.
To exit the operation, press
at any time.
1
2
Press JOYSTICK.
3
Select “Base
Phonebook”, then
the display shows the
number of empty
phonebook entries.
Name (p.39).
4 Enter
(max. 16 characters)
5
Press JOYSTICK.
6
Enter Phone
Number.
(max. 24 digits)
7
Press JOYSTICK.
8
Select “Start
Recording”.
9
Record the name
within 1 minute.
10
Press JOYSTICK.
11
Press LEFT SOFT
KEY.
Select “Save”, then
“Saved” is displayed.
• If “Memory Full” is displayed in step 3, the phonebook is full. To store, delete other
stored items in the phonebook.
• If “Memory Full” is displayed in step 8, the remaining recording time is 0. To store,
delete unnecessary incoming/memo messages (p.105, 107).
• To continue storing other caller information, repeat from step 4.
• If you do not use Audible Caller ID feature, select “Skip Recording” at step 8 and
go to step 11.
• If you need to go back to entering name during entering phone number, move the
JOYSTICK up.
38
545E_E_03.fm
Page 39
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Entering Names/Characters
Keys
Operations
Move the JOYSTICK up, down, left or right to move the cursor.
to
9
Press to enter letters/numbers. (Items are added to the left of the
cursor. If the cursor is at the beginning of a line, the item is added
at the beginning.)
Press to change between upper and lower case.
0
Press to insert a blank space (except when in Numeric input
mode).
1
Press to insert a symbol (
input mode).
, #, /, etc.) (except when in Numeric
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
39
Telephone System
Press to delete characters. (Character on the cursor is deleted. To
delete all characters, press and hold.)
x
0
545E_E_03.fm
Page 40
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Selecting the Input Mode
You can select one of 7 input modes by pressing RIGHT SOFT KEY while entering a
name. The function icon above the key displays the current input mode. The factory
preset is “LetterWise®”. LetterWise® is a simplified text entry system. This system
suggests to the user the most likely letter to follow the text entered previously. To enter
texts in this mode, see page 56.
For the full character map, see Phonebook Character Table (p.124).
To switch the input mode while editing the name in the phonebook, press RIGHT SOFT
KEY.
LetterWise® Alphabet
Numeric
Greek
Extended 1 Extended 2
Russian
• If LetterWise® is selected, select a language you require (p.75).
Example (Alphabet Mode)
Enter the name using the letters on the keypad. For example, to enter “Anne” in Alphabet Mode:
2
40
6
6
6
6
3
3
545E_E_03.fm
Page 41
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Finding Items in the Handset/Base Unit Phonebook
All phonebook items are stored in the following order: Alphabet letter/Symbol/Number/
Telephone Number (when a name is not stored).
To exit the operation, press
at any time.
(For Handset Phonebook)
• If voice tag is recorded,
item.
2
Press LEFT SOFT KEY.
Move the JOYSTICK up or down to
search for the desired item.
(For Base Unit Phonebook)
Please see page 85 for the operation performed with the base unit.
1
2
Press LEFT SOFT KEY twice.
Move the JOYSTICK up or down to
search for the desired item.
twice
Searching for a Name by Initial
Example: To find “Felix”
(For Handset Phonebook)
1
2
(For Base Unit Phonebook)
Press LEFT SOFT KEY.
OR
Press 3 repeatedly until the first
item under “F” is displayed.
1
Press LEFT SOFT KEY twice.
twice
3
Move the JOYSTICK down until
“Felix” is displayed.
3
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
41
Telephone System
1
will appear on the display of the handset phonebook
545E_E_03.fm
Page 42
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Searching by Private Category (For Handset Phonebook)
1
Press LEFT SOFT
KEY.
2
Press RIGHT SOFT
KEY.
4
Select the desired
category.
5
Select the desired
item to display.
3
Select “Category”.
Searching by Index Search Mode
Example: To find “ΣΟΦΙΑ” (SOPHIA).
(For Handset Phonebook)
1
Press LEFT SOFT KEY.
2
Press RIGHT SOFT
KEY.
3
Select “Index
Search”.
4
Press RIGHT SOFT KEY
repeatedly until the
desired input mode
(Greek) appears.
5
Select the desired
initial character “Σ”.
6
Move the JOYSTICK
down until “ΣΟΦΙΑ” is
displayed.
2
Press RIGHT SOFT
KEY.
RIGHT SOFT
3 Press
KEY repeatedly until
(For Base Unit Phonebook)
1
Press LEFT SOFT KEY
twice.
the desired input mode
(Greek) appears.
twice
4
42
Select the desired initial
character “Σ”.
5
Move the JOYSTICK
down until “ΣΟΦΙΑ” is
displayed.
545E_E_03.fm
Page 43
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Searching an Item in the Voice Tag List
Please see Voice Search for the Handset Phonebook for recording voice tag. (p.48)
1
Press LEFT SOFT
KEY.
4
Select the desired
item to display.
2
Press RIGHT SOFT
KEY.
3
Select “Voice Tag”.
Telephone System
Dialling from the Handset/Base Unit Phonebook
(For Handset Phonebook)
1
Press LEFT SOFT
KEY.
2
Select the desired
item (see page 41
and 42).
TALK or
3 Press
SPEAKERPHONE.
OR
(For Base Unit Phonebook)
Please see page 85 for the operation performed with the base unit.
1
Press LEFT SOFT
KEY twice.
2
Select the desired
item (see page 41
and 42).
TALK or
3 Press
SPEAKERPHONE.
twice
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
OR
43
545E_E_03.fm
Page 44
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Editing Caller Information in the Handset/Base Unit
Phonebook
This feature can be operated with the cordless handset only.
To exit the operation, press
at any time.
(For Handset Phonebook)
1
Press LEFT SOFT
KEY.
2
Select the desired item.
3
Select “Edit”.
4
Edit Name.
(max. 16 characters)
5
Press JOYSTICK.
6
Edit Phone Number.
(max. 24 digits)
7
Press JOYSTICK.
8
Select the desired
category or “Off”.
“Save”, then
9 Select
“Saved” is displayed.
• To continue editing other caller information, repeat from step 2.
44
545E_E_03.fm
Page 45
Monday, September 1, 2003
1:51 PM
Using the Phonebook
(For Base Unit Phonebook)
1
Press LEFT SOFT
KEY twice.
2
Select the desired item.
3
Select “Edit”.
6
Edit Phone Number.
(max. 24 digits)
twice
Edit Name.
(max. 16 characters)
5
Press JOYSTICK.
7
Press JOYSTICK.
8
Select “Start Recording”. If you do not change
the recorded name, select “Skip Recording”, then
go to step 11. If you delete the recorded name, select
“Delete” , then go to step 11.
9
Record the name
within 1 minute.
10
Press JOYSTICK.
Select “Save”. then
11 “Saved”
is displayed.
• To continue editing other caller information, repeat from step 2.
• If you confirm the recorded name, select “Audible Call”, then press
at step 3.
Deleting Caller Information in the Handset/Base Unit
Phonebook
This feature can be operated with the cordless handset only.
To exit the operation, press
at any time.
(For Handset Phonebook)
1
Press LEFT SOFT
KEY.
4
Select “Yes”, then
“Deleted” is displayed.
2
Select the desired
item.
3
Select “Delete”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
45
Telephone System
4
545E_E_03.fm
Page 46
Monday, September 1, 2003
1:51 PM
Using the Phonebook
(For Base Unit Phonebook)
1
Press LEFT SOFT
KEY twice.
2
Select the desired
item.
3
Select “Delete”.
twice
4
Select “Yes”, then
“Deleted” is displayed.
• To continue deleting other caller information, repeat from step 2.
• If there are no items stored in the handset/base unit phonebook when selecting the
desired item, the display shows “Memory Empty”.
Hot Keys
You can assign 9 hot keys. You can choose 9 phone numbers from the handset
phonebook.
To exit the operation, press
at any time.
Registering a Phone Number as a Hot Key
1
Press LEFT SOFT
KEY.
2
Select the desired
item.
4
Select the desired
dialling button
number.
5
Select “Save”, then
“Saved” is displayed.
3
Select “Reg. to
Hot Key”.
• If there are no items stored in the handset phonebook when searching for the desired
item, the handset display shows “Memory Empty”.
• If an item is already stored to a hot key, “ ” will be displayed on the left of the key
number. If a hot key number with “ ” is selected, press
46
to select “Overwrite”.
545E_E_03.fm
Page 47
Monday, September 1, 2003
1:51 PM
Using the Phonebook
Dialling with a Hot Key
and hold the dialling button
1 Press
registered as a hot key until a phone
2 Press TALK or SPEAKERPHONE.
OR
number is displayed.
Deleting the Hot Key Registration
Press and hold the
dialling button
registered as a hot key
until a phone number
is displayed.
4
Select “Yes”, then
“Deleted” is displayed.
2
Press JOYSTICK.
3
Select “Delete”.
Telephone System
1
• Handset phonebook registration will not be erased when hot key registration is
deleted.
Chain Dial
For example, when you use PIN code or Password according to guidance of bank
service or another, this function is useful.
1
Press JOYSTICK.
4
Select the desired item.
(During a call)
the JOYSTICK up
3 Move
or down to search for the
2
Press RIGHT SOFT
KEY.
desired item.
Dialling
• To continue entering code, repeat from step 1.
• To search for the desired item by Name by Initial, Private Category, Index ,Voice
Tag List at step 3, please refer to page 41 - 43.
• Searching for the desired item with Voice Search is not available.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
47
545E_E_03.fm Page 48
Thursday, September 11, 2003
12:01 PM
Voice Search for the Handset Phonebook
Voice Search
You can record up to 20 voice tags for the handset phonebook items, then you can
search an item in the handset phonebook with your voice. If you set the Auto Voice Dial
ON (p.75), the selected item with your voice is automatically dialled out.
Ensure that the
icon is not flashing.
To exit the operation, press
at any time.
Recording Voice Tag for Voice Search
You must record voice tag 2 times.
LEFT SOFT
1 Press
KEY.
4 Select “Record”.
the desired
2 Select
item.
“Voice
3 Select
Tag”.
(Beep)
recording
5 Start
• Record voice tag within 2 seconds
after “Voice Tag Record” is
displayed.
• 20 cm away from the Mic.
• Speak clearly in the quiet room.
(Beep)
Repeat recording
• Record voice tag again for
confirmation.
• If voice tag recording is
completed, “Saved” will
appear on the display.
•
button lights after step 4.
• Please try recording a different voice tag if similar voice tag is already recorded.
• “Timeout Please Try Again” is displayed if recording time is over 10 seconds.
• “Too Long Please Try Again” is displayed if voice tag is recorded more than 2
seconds.
• “Too Different Please Try Again” is displayed if the 2nd voice tag was
recorded too different from the 1st one.
• “Already Exists Please Try Again” is displayed after the 2nd recording if
similar voice tag exists already.
• If key Tone is OFF (p.70), a beep will not sound.
• Voice Search performs the best when used by the same person who recorded the
voice tag. If a different person tries to perform a voice search, this feature may not
function properly.
• If voice tag is recorded,
will appear on the display of the handset phonebook
item.
48
545E_E_03.fm
Page 49
Saturday, September 13, 2003 3:35 PM
Voice Search for the Handset Phonebook
Searching with Your Voice
1 Press and hold LEFT SOFT KEY.
a name of item in the Voice
2 Speak
Tag List.
• If there are no voice tags stored in the handset phonebook when
is pressed and
held, “Voice Tag Memory Empty” is displayed.
• If the matched voice tag is found, the recorded voice tag is played and the item in the
handset phonebook with the voice tag is displayed, then you can make a call if you
. If Auto Voice Dial is On (p.75), it is automatically dialled out.
• “No Match Please Try Again” is displayed if there are no matched voice tag,
then the unit will retry up to 5 times automatically.
• “Timeout Please Try Again” is displayed if searching time is over 10 seconds.
• Voice Search performs the best when used by the same person who recorded the
voice tag. If a different person tries to perform a voice search, this feature may not
function properly.
• If a desired voice tag is often not found, delete the voice tag and try recording
a different voice tag.
Playing a Voice Tag
LEFT SOFT
1 Press
KEY.
the desired
2 Select
item.
3 Select “Voice
Tag”.
3 Select “Voice
Tag”.
4 Select “Play”.
•
button lights after step 4.
Deleting a Voice Tag
LEFT SOFT
1 Press
KEY.
the desired
2 Select
item.
4 Select “Delete”.
5 Select “Yes”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
49
Telephone System
press
545E_E_03.fm
Page 50
Monday, September 1, 2003
1:51 PM
Phonebook Copy
Phonebook Copy
You can copy handset phonebook information between cordless handsets registered to
the same base unit. The handset phonebook copy must be performed while in intercom
mode (see Intercom Between Registered Units on page 92).
To exit the operation, press
at any time.
Example: Copying a Handset Phonebook Item to Another Handset
Phonebook
<Cordless Handset 1: Receiver>
1
<Cordless Handset 2: Sender>
Press INTERCOM
, then press the
desired cordless handset number
.
2
Press TALK
.
(During an intercom call)
3
Press JOYSTICK.
4
Select “Recv Phonebook”.
“Start Copying” is displayed.
5
Press JOYSTICK.
6
Select “Send Phonebook”.
7
Select the desired item to copy.
8
Select “Copy One Item” then “Start
Copying” is displayed.
50
545E_E_03.fm
Page 51
Monday, September 8, 2003
2:36 PM
Phonebook Copy
Example: Copying All Handset Phonebook Items to Another Handset
Phonebook
To exit the operation, press
at any time.
Follow steps 1 to 6 on the previous page, then:
<Cordless Handset 1: Receiver>
<Cordless Handset 2: Sender>
Press JOYSTICK.
8
Select “Copy All Items” then “Start
Copying” is displayed.
• When copying is completed, a beep sounds and “Copy Complete” is displayed.
After a few seconds, the handset display will return to the intercom call. “Copy
Incomplete” will be displayed on the sender handset if the receiver handset
memory is full. If “Copy Failure” is displayed on the sender handset, the receiver
did not prepare for copying.
• If you move the JOYSTICK up or down before pressing JOYSTICK on step 7, all
items will not be copied. The items, from the item indicated now to the last item, are
copied.
Example: Copying a Handset Phonebook Item to the Base Unit Phonebook
1
Press INTERCOM.
4
Select the desired
item.
2
Press JOYSTICK.
3
Select “Copy to
Base”.
• If “Memory Full” is displayed when you select “Copy to Base”, the base unit
phonebook is full.
• Items in the handset phonebook can be copied one at a time.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
51
Telephone System
7
545E_E_03.fm
Page 52
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
You can send and receive text messages between other fixed and mobile phones that
also support a compatible SMS feature and network.
The SMS feature is available only after subscribing to Caller ID.
Before sending your first text message, or to find out more information on SMS conditions and
registration, please read your SMS Conditions (Text Messaging) for Bizzyline (Direct) Ltd.
If you have any questions relating to the SMS Service Help, please call 09063020069. Calls
are charged at 50p per minute. The helpdesk is open from 9.00am-5.30pm (Mon-Fri).
The SMS Network Provider described in these Operating Instructions is not available within
the Republic of Ireland.
For further information, please contact the Customer Care Helpline No.: R.O.I. 01289 8333
Please note the following instructions when sending text messages from fixed lines to all
mobile networks.
Sending a Text Message from Fixed Line to Fixed Line
There are no special requirements when sending a text message between fixed lines.
Please follow the instructions under Writing and Sending a New Message.
Sending a Text Message from Fixed Line to Mobile
There are no special requirements when sending a text message from fixed line to
mobile. Please follow the instructions under Writing and Sending a New Message. To
enable the person receiving your message to reply, the server will insert your telephone
number, within hash symbols, at the very end of your message. E.g. #01234 567899#.
Please note: If you have used up the full 160 characters for your text message, your
telephone number will overwrite the last letters of your message.
Sending a Text Message from Mobile to Fixed Line
There are special requirements when sending a text message from a mobile to a fixed
line. If the mobile sender is unaware of the fixed line SMS providers requirements for
sending a text message to a fixed line, please inform them of the following procedures.
Example: A Mobile is Replying to a Fixed Line Text Message
- Select reply to message.
- Input your text message.
- Within the text message, enter the fixed line phone number.
The number can be added anywhere within the message but it must be entered with
a hash at the beginning and end of the number.
E.g. #01234 567899#
- Select send.
Example: Mobile is Writing/Sending a New Text Message to a Fixed Line
- Input your text message.
- Within the text message, enter the fixed line phone number.
The number can be added anywhere within the message but it must be entered with
a hash at the beginning and end of the number.
E.g. #01234 567899#
- Send the message (including number) to Big Mobile on: 07786 201010.
52
545E_E_03.fm
Page 53
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
All SMS features must be accessed with the cordless handset. The base unit display does not
show any text message. It shows only “Receiving New SMS” when a message is being
received, and “Transferring Message” when a message is being transferred.
You can send and receive text messages between other fixed and mobile phones that
also support a compatible SMS feature and network. The SMS feature is available only
after subscribing to Caller ID.
Writing and Sending a New Message
You can write and send a new message. Each message can contain up to 160
characters. To exit the operation, press
at any time.
Press JOYSTICK
(or move).
2
Select “
3 Select “Create”.
4
Enter Message.
(p.55)
5
Press JOYSTICK, then
“Destination” is displayed.
SMS”.
Go to step 6.
Entering a Number Manually
Follow steps 1 to 5 shown above, then:
6
Enter Phone Number.
(max. 20 digits)
Press JOYSTICK.
Go to step 7 on the next page.
Entering a Number from the Handset Phonebook
You cannot select items stored in the base unit phonebook.
Follow steps 1 to 5 shown above, then:
6
Press LEFT SOFT
KEY.
Select the desired item (p.41 - 43).
twice
Go to step 7 on the next page.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
53
Telephone System
1
545E_E_03.fm
Page 54
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Entering a Number from the Caller ID List
Follow steps 1 to 5 on the previous page, then:
6
Select the desired item.
twice
Go to step 7.
Entering a Number from the Redial List
Follow steps 1 to 5 on the previous page, then:
6
Press RIGHT SOFT
KEY.
Select the desired item.
twice
Go to step 7.
Follow steps 1 to 6 on the previous page and above, then:
7
“Save?” is displayed, then select
“Yes” or “No”. (If “Yes” is selected,
“Saved Message” is displayed.)
8
Select “Send”.
• “Sending Message” is displayed after step 8. The display returns to the standby
mode, then “Transferring Message” is displayed on both cordless handset and
base unit display.
• Once you have created a SMS message, the unit will display “WUse Last Text?”
each time you select “Create”. If you want to use the text of the last message sent
once again, move the JOYSTICK up to recall the last message.
• If you try to send a message using a phone number (Destination) over 20 digits long
from one of the Handset Phonebook, Caller ID or Redial lists, “Invalid Number” is
displayed and the display returns to “<Enter Phone No>”.
• The maximum message length is 160 characters. Please consult your SMS service
provider for further details.
• 69 messages can be memorized when you enter 80 characters/1 message.
• If your phone is connected to PBX (Private Branch eXchange: private branch
exchange), see page 63 to enter the destination number.
54
545E_E_03.fm
Page 55
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Text Entry
Keys
Operations
Move the JOYSTICK up, down, left or right to move the cursor.
0
to
9
Press to enter letters/numbers. (Items are added to the left of the
cursor. If the cursor is at the beginning of a line, the item is added
at the beginning.)
Press to switch between upper and lower case.
0
Press to insert a blank space (except when in Numeric input
mode).
1
Press to insert symbol (
mode).
x
, #, /, etc.) (except when in Numeric input
Selecting the Input Mode
There are 5 text input modes: LetterWise® (default mode), Alphabet (ABC), Numeric (09), Greek (ΑΒΓ) and Extended (AÄÅ). The function icon above the key displays the
current input mode. For the full character map, see SMS Character Table (p.125).
To change the input mode while inputting a message, press RIGHT SOFT KEY.
LetterWise®
Alphabet
Numeric
Greek
Extended
• If LetterWise® (see next page) is selected, select a language you require (p.75).
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
55
Telephone System
Press to delete characters. (Character on the cursor is deleted. To
delete all characters, press and hold.)
545E_E_03.fm
Page 56
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Entering Text in LetterWise® Mode
LetterWise® is the default input mode. LetterWise® is a simplified text entry system.
This system suggests to the user the most likely letter to follow the text entered
previously.
Inserting Operations
Enter letters by pressing
-
.
If the letter displayed is not correct, change the letter by pressing
times).
(possibly several
Continue writing the word always checking that the letters displayed are correct and
change them if necessary.
To insert symbols, use
. If the symbol you want does not appear, press
repeatedly until the required symbol appears.
Example (When the language choice is English.): To enter “hello”.
1
Press
2
Press
3
Press
to display the next candidate letter. “h” is the
second most frequent letter.
4
Press
. “e” is the most frequent letter.
5
Press
. “l” is the most frequent letter.
6
Press
. “l” is the most frequent letter.
7
Press
. “o” is the most frequent letter.
56
to change to the lower case letter.
4 . “i” is the most frequent first letter of a word.
<Enter Message>
i
h
he
hel
hell
hello
545E_E_03.fm
Page 57
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Reading/Displaying a Message in the Outgoing List
You can display message saved in date/time order.
To exit the operation, press
at any time.
Reading/Displaying a Message
1
2
Select “
the desired
4 Select
message.
5
Scroll through the
message to read/display.
SMS”.
3
Select “Send List”.
6
Press JOYSTICK.
Go to step 7.
Sending a Message
Follow steps 1 to 6 shown above, then:
7
Select “Send”.
Follow steps from 6 of Writing and Sending a New
Message (p.53, 54).
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
57
Telephone System
Press JOYSTICK
(or move).
545E_E_03.fm
Page 58
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Deleting a Message
Follow steps 1 to 6 on the previous page, then:
7
8
Select “Delete”.
Select “Yes”, then “Deleted” is displayed.
• You can also delete by pressing
then selecting “Yes” on step 4.
Editing a Message
Follow steps 1 to 6 on the previous page, then:
7
10
Select “Edit Message”.
8
Edit Message.
9
Press JOYSTICK.
When you send to the same destination, press JOYSTICK then follow steps from
7 of Writing and Sending a New Message (p.54).
OR
Press and hold
then follow steps from 6 of Writing and Sending a New
Message (p.53 to 54).
Receiving a Text Message
When a message has been received, cordless handset display will show the following
and a tone will sound. A tone will not sound if the ringer volume setting of the cordless
handset is OFF. The base unit display will show only “Receiving New SMS”.
Example: Handset Display
Receiving
New SMS
H/set 1
1 SMS
17.8 14:59
The number indicates how many mails were received. When the SMS message
memory is full, “Full” is displayed. No messages can be received if the memory is full.
58
545E_E_03.fm
Page 59
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Reading/Displaying a Message in the Incoming List
To exit the operation, press
at any time.
1
Press JOYSTICK (or move).
3
Select “Receive List”.
2
Select “
4
2
10
Move the JOYSTICK down.
• The most recent sender’s details are
displayed.
• If the name and number have been
stored in the phonebook, the name is
also displayed.
• You can delete a message by
pressing
then selecting “Yes”.
5 Select the desired message.
Telephone System
New
Total
SMS”.
Date Received
17.8
14:59
JOHN SMITH
0123456789
6
Time Received
Name
Tel. No.
Scroll through the message to read/
display.
Go to step 7 on pages 60 and 61.
• If there is a “ ” icon placed against the time, this means the message has been read
or displayed previously.
It also indicates the other registered cordless handset user have already viewed the
message.
• If the list is accessed and no messages have been received, “Receive List
Memory Empty” is displayed.
• Some SMS service providers may attach a 1-digit number to the sender’s phone
number, the name will not be displayed even if the name and number have been
stored in the phonebook.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
59
545E_E_03.fm
Page 60
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Replying to a Message
Follow steps 1 to 6 on the previous page, then:
7
Press JOYSTICK.
8
10
Press JOYSTICK
twice.
11
twice
9
Select “Reply”.
“Save?” is displayed,
then select “Yes” or “No”.
(If “Yes” is selected,
“Saved Message” is
displayed.)
12
Enter Message.
Select “Send”.
• “Sending Message” is displayed after step 12. The display returns to the standby
mode, then “Transferring Message” is displayed on both cordless handset and
base unit display.
Deleting a Message
Follow steps 1 to 6 on the previous page, then:
7
60
Press JOYSTICK.
8
Select “Delete”.
9
Select “Yes”, then
“Deleted” is displayed.
545E_E_03.fm
Page 61
Tuesday, September 2, 2003
12:34 PM
SMS Feature (Text Message)
Editing a Message
Follow steps 1 to 6 on page 59, then:
7
11
Press JOYSTICK.
8
9
Select “Edit
Message”.
Edit Message.
10
Press
JOYSTICK.
Storing the Sender’s Phone Number in the Handset Phonebook
.
Follow steps 1 to 6 on page 59, then:
7
Press JOYSTICK.
“Save
8 Select
Phonebook”.
9
Follow steps from 4
to 9 of Storing Caller
Information in the
Handset
Phonebook (p.37).
Editing the Sender’s Phone Number for Call
Follow steps 1 to 6 on page 59, then:
7
Press JOYSTICK.
9
Edit Phone Number.
(max. 24 digits)
8
10
Select “Edit for Call”.
Press JOYSTICK, TALK or
SPEAKERPHONE.
OR
OR
Calling the Message Sender
Follow steps 1 to 5 (or 4) on page 59, then:
6
Press TALK or SPEAKERPHONE.
OR
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
61
Telephone System
When you send to the same destination, press JOYSTICK then follow steps from
7 of Writing and Sending a New Message (p.54).
OR
Press and hold
then follow steps from 6 of Writing and Sending a New
Message (p.53 to 54).
545E_E_03.fm
Page 62
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Changing the SMS Message Centre Numbers
To send and receive SMS text messages, you need your SMS Message Centre
telephone numbers.
Two numbers have been preset in your unit.
Message Centre 1 number is automatically dialled when sending messages through
your network provider.
Message Centre 2 number is automatically dialled when receiving messages through
the network provider.
You can change the pre-set numbers if required.
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
4
Enter 4-digit Base Unit
PIN.
(Factory Preset 0000)
5
Select Message Centre
1 or 2.
Press JOYSTICK.
8
7
SMS”.
3 Select
“Parameters”.
the current
6 Erase
number by
pressing
,
then enter the
new Message
Centre number.
Select “Save”, then
“Saved” is displayed.
For your reference, these are the numbers that have been preset in your phone.
Message Centre 1: 0911 023 5029
Message Centre 2: 0161274599
• If your phone is connected to a PBX, you need to add the PBX line access number
(and a dialling pause) only to the Message Centre 1 phone number.
62
545E_E_03.fm
Page 63
Monday, September 1, 2003
1:51 PM
SMS Feature (Text Message)
Setting the PBX Line Access Number
This feature is only for the phones connected to a PBX. This allows you to delete
automatically the PBX line access number (max. 4 digits) when you enter the destination
phone number of an SMS outgoing message from Handset Phonebook, Redial or Caller
ID lists.
To exit the operation, press
at any time.
Press JOYSTICK
(or move).
2
Select “
3
Select “Parameters”.
4
Enter 4-digit Base
Unit PIN.
(Factory Preset
0000)
5
Select “PBX Prefix”.
6
Select “On”.
7
Enter Line Access
Number.
(max. 4 digits)
8
Press JOYSTICK.
9
Select “Save”, then
“Saved” is displayed.
SMS”.
Telephone System
1
• The factory preset is no entry of line access number.
Turning the SMS Feature On/Off
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
4
Enter 4-digit Base Unit
PIN.
(Factory Preset 0000)
5
Select “SMS On/Off”.
SMS”.
3
Select
“Parameters”.
6
Select “On” or “Off”.
When the SMS feature is turned off;
• If you send a message, a tone sounds and the message will return to the SMS incoming
list with “FD” attached.
• If you receive from SMS centre call, the message will not be received but SMS centre
phone number will remain in the Caller ID list.
• If you turn the SMS feature on, the unit will begin ringing (one ring) after other
connected telephones.
• The factory preset is “On”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
63
545E_E_03.fm
Page 64
Monday, September 1, 2003
1:51 PM
Settings Menu Chart
Handset Settings Menu Chart
1st Menu
Setting Handset
2nd Menu
3rd Menu
Set Date/Time
Memo Alarm
Ringer Option
Ringer Volume
EXT Ringer Type
INT Ringer Type
Paging Tone
Private Ring
Tone Option
Key Tone
Display Option
Standby Display
Talk Display
Select Language
Private Colour
Category Name
Call Option
Call Bar
Direct Call No.
Direct On/Off
Registration
Register H/set
Cancel Base
Select Base
Auto
Base 1
Base 4
Other Option
Change H/S PIN
Change H/S Name
Auto Talk
Auto Voice Dial
LetterWise
Battery Type
Reset Handset
64
545E_E_03.fm
Page 65
Monday, September 1, 2003
1:51 PM
Settings Menu Chart
Base Unit Settings Menu Chart
1st Menu
Setting Base
2nd Menu
Call Option
3rd Menu
Recall
Pause Time
Emergency Call
Call Restricted
Cancel Handset
Change Base PIN
Telephone System
Other Option
Reset Base
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
65
545E_E_03.fm
Page 66
Monday, September 1, 2003
1:51 PM
Handset Settings
All Handset Settings must be operated with the cordless handset.
Memo Alarm
Set the date and time before setting the memo alarm (p.20).
To exit the operation, press
at any time.
1
Press JOYSTICK (or move).
2
Select “
3
Select “Memo Alarm”.
4
Select the desired alarm number
(1-3).
Setting Handset”.
Go to step 5.
Setting the Alarm Mode “Once” or “Daily”
Follow steps 1 to 4 shown above, then:
5
Select “Once” or
“Daily”.
6
“Once”: Enter the
date and time.
“Daily”: Enter
time.
a memo
8 Enter
message (max. 32
9
Select the desired
ringer pattern.
7 Press JOYSTICK.
10
Select “Save”, then
“Saved” is displayed.
characters), then press
JOYSTICK.
• When setting the time, remember to select 12 or 24 hour clock (p.20).
• Memo Alarm volume depends on cordless handset ringer volume. Even if you set
ringer to off, Memo Alarm still rings.
• The factory preset of ringer pattern is 1.
• When in talk or intercom mode, the alarm will not sound until the call is ended.
66
545E_E_03.fm
Page 67
Monday, September 1, 2003
1:51 PM
Handset Settings
Setting the Alarm “Off”
Follow steps 1 to 4 shown on the previous page, then:
5
Select “Off”.
6
Select “Save”, then “Saved” is displayed.
• The factory preset is “Off”.
• To delete the displayed memo alarm, press
previous page.
then select “Yes” on step 4 on the
(The Alarm sounds: Max. 3 minutes)
Press
.
• You can also stop the alarm by pressing
,
,
to
• If “Once” is selected, the setting is turned off after the alarm.
,
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
,
or
.
67
Telephone System
Stopping the Alarm
545E_E_03.fm
Page 68
Monday, September 1, 2003
1:51 PM
Handset Settings
Ringer Options
There are 15 ringer patterns available on each ringer. “Ringer 1” to “Ringer 6” are
the bell ringer patterns. “Ringer 7” to “Ringer 15” are the preset melody patterns as
below. The music data in this product belongs to M-ZoNE Co., Ltd.
To exit the operation, press
at any time.
Ringer No.
1~6
Ringer Pattern or Name
Bell Patterns
Ringer Pattern 7 to 15: Preset Melody Patterns
7
Symphony No.5 in C minor
8
Air on G String
9
Wholetemperiere Clavier 1 Teil No 1 Fuga Das
10
Fantaisie Impromptu
11
Allegro Spring/The Four Seasons
12
Also Sprach Zarathustra
13
Liebestraum
14
Polovetsian Dance
15
24 Caprices
*
* © 2003 M-ZoNE Co., Ltd.
• If you select one of the melody ringer patterns, the phone will ring for 10 seconds even
if a caller has hung up. Therefore, you may hear a dial tone or no one on the line after
you answer a call.
68
545E_E_03.fm
Page 69
Monday, September 1, 2003
1:51 PM
Handset Settings
Setting the Ringer Volume
The choices are 6 levels and off. If you set the volume to OFF, “
” is displayed,
however, the volume of a paging and intercom call is still at level 1.
Press JOYSTICK
(or move).
2
Select “
Handset”.
4
Select “Ringer
Volume”.
5
To increase volume, move
the JOYSTICK up.
To decrease volume,
move the JOYSTICK
down.
Setting
3
Select “Ringer
Option”.
6
Press
JOYSTICK.
Telephone System
1
• The factory preset is 6.
Selecting the Ringer Pattern for External Call/Internal Call/Paging
Follow steps 1 to 3 shown above, then:
4
Select “EXT Ringer Type”, “INT
Ringer Type” or “Paging Tone”.
5 Select the desired ringer pattern.
• The factory preset is 1.
Selecting the Ringer Pattern for Private Ring
Follow steps 1 to 3 shown above, then:
4
Select “Private
Ring”.
the desired
5 Select
category.
the desired
6 Select
ringer pattern.
• The factory preset of each ringer pattern is 1.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
69
545E_E_03.fm
Page 70
Monday, September 1, 2003
1:51 PM
Handset Settings
Setting the Handset Key Tone ON/OFF
You can turn the key tone ON/OFF.
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
Setting
Handset”.
4
Press JOYSTICK to
select “Key Tone”.
5
Select “On” or “Off”.
3
Select “Tone
Option”.
3
Select “Display
Option”.
• The factory preset is “On”.
Display Options
To exit the operation, press
1
Press JOYSTICK
(or move).
at any time.
2
Select “
Setting
Handset”.
Go to step 4.
Selecting the Standby Mode Display
Follow steps 1 to 3 shown above, then:
4
Select “Standby Display”.
• The factory preset is “Handset Name”.
70
5
Select “Base Number”, “Handset
Name” or “Off”.
545E_E_03.fm
Page 71
Monday, September 1, 2003
1:51 PM
Handset Settings
Selecting the Talk Mode Display
Follow steps 1 to 3 of Display Options on the previous page, then:
4
Select “Talk Display”.
5
Select “Talk Time” or “Phone
Number”.
Setting the Private Colour
Follow steps 1 to 3 of Display Options on the previous page, then:
4
Select “Private Colour”.
6
Select Private Colour “Green”, “Red” or
“Orange” for each category.
5
Select the desired category.
• The factory preset is “Green”.
• When you select the private colour on step 6, the Ringer LED will flash at the selected
colour.
Changing the Category Name
Follow steps 1 to 3 of Display Options on the previous page, then:
4
Select “Category Name”.
5
Select the desired category.
6
Edit Category Name.
(max. 10 characters: p.39)
7
Press JOYSTICK.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
71
Telephone System
• Even if you select “Phone Number”, the length of the call will appear on your display
when you receive calls.
• The factory preset is “Talk Time”.
545E_E_03.fm
Page 72
Monday, September 1, 2003
1:51 PM
Handset Settings
Call Options
To exit the operation, press
1
Press JOYSTICK
(or move).
at any time.
2
Select “
Setting
Handset”.
3
Select “Call
Option”.
Go to step 4.
Call Bar ON/OFF
When this feature is set to ON, outgoing calls cannot be made. Intercom calls and calls
to numbers assigned as emergency numbers can be made (see Setting the
Emergency Call Numbers on page 78).
Follow steps 1 to 3 shown above, then:
4
Select “Call Bar”.
5
Enter 4-digit Handset
PIN.
(Factory Preset
0000)
• The factory preset is “Off”.
• While the call prohibition mode is turned on, “
6
Select “On” or “Off”.
” is displayed.
Setting the Direct Call Number
After a direct call number has been set and the feature has been turned on, you can dial
only the direct call number by pressing
or
, when this feature is ON, emergency
call cannot be made. However, incoming calls can be answered.
Follow steps 1 to 3 shown above, then:
4
Select “Direct Call
No.”.
5
Enter Direct Call
Number.
(max. 24 digits)
7
Select “Save”.
8
Select “On”.
• While the direct call mode is turned on, “
72
” is displayed.
6
Press JOYSTICK.
545E_E_03.fm
Page 73
Monday, September 1, 2003
1:51 PM
Handset Settings
Setting the Direct Call ON/OFF
Follow steps 1 to 3 of on the previous page, then:
4
Select “Direct On/Off”.
5
Select “On” or “Off”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
73
Telephone System
• The factory preset is “Off”.
• If the direct call mode is turned off, “
” will disappear.
• If you did not set the Direct Call Number and select “On” in step 5, “Enter Phone
No” will be displayed. Enter the number then press
twice.
545E_E_03.fm
Page 74
Monday, September 1, 2003
1:51 PM
Handset Settings
Other Options
To exit the operation, press
1
at any time.
2
Press JOYSTICK
(or move).
Select “
Setting
Handset”.
3
Select “Other
Option”.
Go to step 4.
Changing Handset PIN (Personal Identification Number)
The factory preset is 0000.
Once you have programmed the handset PIN, you cannot confirm it. We recommend
you write down the handset PIN. If you forget it, please consult our Panasonic
Customer Care Helpline. U.K. 08700 100 076 R.O.I. 01289 8333
Follow steps 1 to 3 shown above, then:
4
Select “Change H/S PIN”.
5
Enter current 4-digit Handset PIN.
6
Enter new 4-digit Handset PIN.
7
Enter new 4-digit Handset PIN again
to verify.
Changing Handset Name
Follow steps 1 to 3 shown above, then:
“Change
4 Select
Name”.
74
H/S
5
Edit Handset Name.
(max. 10 characters)
6
Press JOYSTICK.
545E_E_03.fm
Page 75
Monday, September 1, 2003
1:51 PM
Handset Settings
Setting Auto Talk ON/OFF
Follow steps 1 to 3 on the previous page, then:
4
5
Select “Auto Talk”.
Select “On” or “Off”.
• The factory preset is “Off”.
Auto Voice Dial ON/OFF
4
Select “Auto Voice Dial”.
5
Telephone System
Follow steps 1 to 3 on the previous page, then:
Select “On” or “Off”.
• The factory preset is “Off”.
Changing the LetterWise® Language
Follow steps 1 to 3 on the previous page, then:
4
Select “LetterWise”.
5
Select the desired language.
• The factory preset is “English”.
Setting the Battery Type
Follow steps 1 to 3 on the previous page, then:
4
Select “Battery Type”.
• The factory preset is “Ni-MH”.
• After you set the battery type,
5
Select “Ni-Cd” or “Ni-MH”.
is shown on the handset display.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
75
545E_E_03.fm
Page 76
Monday, September 1, 2003
1:51 PM
Handset Settings
Reset the Handset Settings
You can reset all of the handset settings to their initial settings.
1
Press JOYSTICK
(or move).
2
Select “
Setting
Handset”.
3
Select “Other Option”.
4
Select “Reset
Handset”.
5
Enter 4-digit Handset
PIN.
(Factory Preset 0000)
6
Select “Yes”, then
“Deleted” is displayed.
Initial Settings for Cordless Handset
Functions
Initial Settings
Display Language
English
4-Digit Handset PIN
0000
Phonebook List
Remain
Voice Tag
Remain
Select Base
Automatic Base Unit Selection
Redial Memory
Delete All
Walkie-Talkie Setting
Group
Private Colour
Green
Category Name
Remain
Handset Name
Remain
Date/Time
Remain
• All of the other handset settings are cleared or turned to their factory preset when you
reset the handset settings.
76
545E_E_04.fm
Page 77
Saturday, August 30, 2003
5:57 PM
Base Unit Settings
Call Options and Other Options of Base Unit Settings must be operated with the
cordless handset.
Call Options
To exit the operation, press
Press JOYSTICK
(or move).
4
Select “Call Option”.
2
Select “
Base”.
Setting
3
Enter 4-digit Base
Unit PIN.
(Factory Preset 0000)
Go to step 5.
Selecting the Flash/Earth Mode
You can change the duration of the recall time depending on the requirements of your
network provider or PBX.
Follow steps 1 to 4 shown above, then:
5
Select “Recall”.
6 Select “Flash” or “Earth”.
When “Flash” is selected;
7
Select the desired flash type. (see below)
• The factory preset is “Flash”.
“Type 1”: 700 ms, “Type 2”: 80 ms, “Type 3”: 400 ms. The factory preset is “Type 2”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
77
Telephone System
1
at any time.
545E_E_04.fm
Page 78
Saturday, August 30, 2003
5:57 PM
Base Unit Settings
Selecting the Pause Time
You can select the pause time to 3 or 5 seconds, depending on your PBX requirements.
Follow steps 1 to 4 on the previous page, then:
5
Select “Pause Time”.
6 Select “Short” (3 sec.) or “Long” (5 sec.).
• The factory preset is “Short”.
Setting the Emergency Call Numbers
This is to enable you to make an emergency call even in call bar mode.
Follow steps 1 to 4 on the previous page, then:
5
Select “Emergency Call”.
6
Select “Emergency Call1” to
“Emergency Call5”.
7
Enter Emergency Call Number.
(max. 24 digits)
8
Press JOYSTICK.
• The factory presets are 112 and 999.
78
545E_E_04.fm
Page 79
Saturday, August 30, 2003
5:57 PM
Base Unit Settings
Call Restriction
You can restrict selected cordless handset(s) or the base unit from dialling selected
phone numbers. You can assign up to 6 call restriction numbers (up to 8 digits). If you
dial a restricted number, the call does not connect and the restricted number flashes.
Follow steps 1 to 4 on Call Options (p.77), then:
Select “Call
Restricted”.
6
Search and press RIGHT
SOFT KEY to attach (or
cancel) “ ” to the desired
Cordless Handset(s) or Base
Unit to restrict.
8
Select the restricted
Number item (1-6).
9
Enter the restricted phone
number (up to 8 digits).
7
Press
JOYSTICK.
Telephone System
5
10 Press
JOYSTICK.
NOTE: When you put a first digit on step 9, it must overwrite the current displayed
numbers. We recommend you to write down the restricted phone number
you entered.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
79
545E_E_04.fm
Page 80
Saturday, August 30, 2003
5:57 PM
Base Unit Settings
Other Options
To exit the operation, press
1
Press JOYSTICK
(or move).
4
Select “Other Option”.
at any time.
2
Select “
Base”.
Setting
3
Enter 4-digit Base
Unit PIN.
(Factory Preset
0000)
Go to step 5.
Changing the Base Unit PIN (Personal Identification Number)
The factory preset is 0000.
Once you have programmed the base unit PIN, you cannot confirm it. We recommend
you write down the base unit PIN. If you forget it, please consult our Panasonic
Customer Care Helpline. U.K. 08700 100 076 R.O.I. 01289 8333
Follow steps 1 to 4 shown above, then:
5
Select “Change Base
PIN”.
new 4-digit Base
6 Enter
Unit PIN.
new 4-digit
7 Enter
Base Unit PIN again
to verify.
Reset the Base Unit Settings
You can reset all of the base unit settings to their initial settings.
Follow steps 1 to 4 shown above, then:
5
80
Select “Reset Base”.
“Yes”, then “Deleted” is
6 Select
displayed.
545E_E_04.fm
Page 81
Saturday, August 30, 2003
5:57 PM
Base Unit Settings
Initial Settings for Base Unit
Function
Initial Setting
0000
Base Unit External Ringer Pattern
1
Base Unit Receiver Volume
Medium
Call Bar Mode
OFF
Display Language
English
Redial Memory
Delete All
Phonebook List
Remain
SMS Message Centre Number 1
0911 023 5029
SMS Message Centre Number 2
0161274599
Caller ID List
Delete All
SMS Message Lists
Delete All
SMS PBX Line Access Number Support ON/OFF
OFF
SMS PBX Line Access Number
Delete All
SMS Feature
ON
Date/Time
31-12-03/00:00
Answering System
ON
Your Own Greeting Message
Remain
Caller’s Recording Time
No Limit
Number of Rings
4 Rings
Greeting Monitor
ON
Remote Code
Delete (OFF)
Incoming/Memo Message(s)
Remain
Telephone System
4-Digit Base Unit PIN
• All of the other base unit settings are cleared or turned to their factory preset when
you reset the base unit settings.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
81
545E_E_04.fm
Page 82
Saturday, August 30, 2003
5:57 PM
Operations Performed with the Base Unit
Making a Call from the Caller ID List
Please see page 30 for more feature description.
To exit the operation, press
at any time.
1
Press
RIGHT SOFT KEY.
3
Lift the handset.
The newest caller
information is displayed.
2
Select the desired item.
• You can also press
to make a call.
• “ ” indicates you have already viewed this caller information, or answered the call.
It also indicates the registered cordless handset user has already viewed this caller
information, or answered the call.
• If the caller has requested not to display his/her information, the display shows
“Private Caller”.
• If the caller dialled from an area which does not provide Caller ID service, the display
shows “Out of Area”.
• When scrolling reaches the end of the list, an end tone will sound.
Caller ID List Menu
You can edit (for calling) or delete item(s) in the Caller ID List.
To exit the operation, press
at any time.
1
Press
RIGHT SOFT KEY.
The newest caller
information is displayed.
2
Select the desired item.
Go to step 3.
• When scrolling reaches the end of the list, an end tone will sound.
• If there are no items stored in the caller list when
is pressed, the base unit
display shows “Memory Empty”.
82
545E_E_04.fm
Page 83
Tuesday, September 16, 2003 1:42 PM
Operations Performed with the Base Unit
Editing the Received Number for Calling
Follow steps 1 to 2 of Caller ID List Menu on the previous page, then:
“Edit
3 Select
Call”.
• You can also press
MIDDLE SOFT
5 Press
KEY.
to make a call.
to
or
after step 3, the first digit of the phone number will be
Telephone System
• If you press
inserted.
Phone Number.
4 Edit
(max. 24 digits)
for
Deleting One/All Caller ID Item(s)
Follow steps 1 to 2 of Caller ID List Menu on the previous page, then:
“Delete”
3 Select
“Delete All”.
or
4 Select “Yes”
• To delete the displayed item, press
List Menu (p.82).
then “Deleted” is displayed.
then select “Yes” on step 2 of Caller ID
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
83
545E_E_04.fm
Page 84
Saturday, August 30, 2003
5:57 PM
Operations Performed with the Base Unit
Redial List Menu
You can edit (for calling) or delete item(s) in the redial List.
To exit the operation, press
at any time.
1
Press REDIAL.
The last number dialled
is displayed.
2
Search for the desired
dialled item.
Go to step 3.
Editing the Dialled Number for Calling
Follow steps 1 to 2 shown above, then:
3
Select “Edit for
Call”.
4
Edit Phone Number.
(max. 24 digits)
5
Lift the handset or press
MIDDLE SOFT KEY.
Deleting One/All Redial Item(s)
Follow steps 1 to 2 shown above, then:
3
Select “Delete” or
“Delete All”.
4
Select “Yes”, then “Deleted” is displayed.
• To delete the displayed item, press
84
then select “Yes” on step 2.
545E_E_04.fm
Page 85
Friday, September 5, 2003
6:30 PM
Operations Performed with the Base Unit
Finding Items in the Base Unit Phonebook
Storing (p.38)/Editing (p.45)/Deleting (p.46) items in the base unit phonebook can be
operated with cordless handset.
To exit the operation, press
at any time.
1
Press
LEFT SOFT KEY.
The first base unit
phonebook item is
displayed.
2
Select the desired
item.
To exit the operation, press
1
Press
LEFT SOFT KEY.
3
Lift the handset.
• You can also press
Telephone System
Dialling from the Base Unit Phonebook
at any time.
The first base unit
phonebook item is
displayed.
2
Select the desired
item.
to make a call.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
85
545E_E_04.fm
Page 86
Saturday, August 30, 2003
5:57 PM
Operations Performed with the Base Unit
Ringer Options
The choices for the base unit ringer volume are 3 levels and off.
If you set the volume to OFF, “
” is displayed.
To exit the operation, press
at any time.
Setting the Base Unit Ringer Volume
1
Press
MIDDLE SOFT KEY.
2
4
To increase volume, press NAVIGATOR KEY up.
To decrease volume, press NAVIGATOR KEY down.
Select “Ringer
Option”.
3
Select “Ringer
Volume”.
5
Press
MIDDLE SOFT KEY.
• The factory preset is medium.
Setting the Base Unit Ringer Pattern for External Call
The choices for the base unit ringer pattern for external call are 6 patterns.
1
Press
MIDDLE SOFT KEY.
4
Select the desired ringer pattern.
• The factory preset is 1.
86
2
Select “Ringer Option”.
3
Select “EXT Ringer
Type”.
545E_E_04.fm
Page 87
Saturday, August 30, 2003
5:57 PM
Operations Performed with the Base Unit
Call Bar ON/OFF
When this feature is set to ON, outgoing calls cannot be made. Intercom calls and calls
to numbers assigned as emergency numbers can be made (see Setting the
Emergency Call Numbers on page 78).
To exit the operation, press
at any time.
Press
MIDDLE SOFT KEY.
4
Select “On” or “Off”.
2
Select “Call Bar”.
3
Enter 4-digit
Base Unit PIN.
(Factory Preset 0000)
Telephone System
1
• The factory preset is “Off”.
• While the call prohibition mode is turned on, “
” is displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
87
545E_E_04.fm
Page 88
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Operating Additional Cordless Handsets
Additional KX-TCA151E or KX-TCA154E cordless handsets are available for purchase
separately. Up to 6 cordless handsets can be registered to a single base unit. Using
additional cordless handsets allows you to have an intercom call while simultaneously
conducting a call to an outside line.
KX-TCA151E does not have Voice Search feature.
Operating Additional Base Units
You can register and operate your cordless handset with up to 4 base units. Each base
unit forms 1 radio cell. If the individual bases are linked to the same telephone line then
you can extend the operating range of the system by positioning the bases so that the
cordless two radio cells overlap. If the cordless handset is set to auto base selection,
then in standby mode the cordless handset will automatically swap to the second base
if the range on the first base is exceeded. It is not possible to transfer calls between
bases (only between cordless handsets linked to the same base unit).
1
2
4
3
Radio Cell
5
Example:
Additional cordless
handsets (KX-TCA154E)
registered with 2 base units.
NOTE: Calls are disconnected when the cordless handset moves from one radio
cell to another.
88
545E_E_04.fm
Page 89
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Cordless Handset Registration to a Base Unit
&
The cordless handset supplied with the base unit is already registered. If an optional
cordless handset is purchased, it must be registered as follows.
Charge the optional cordless handset batteries for 7 hours before initial use.
Cordless handset registration must be completed within 1 minute after pressing
. If over 1 minute, press
then start over again.
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
Select “
Setting
Handset”.
3
4
Select “Register
H/set”.
5
Press and hold
button on the Base Unit (for
about 3 seconds) until the tone sounds.
6
Select the desired
base unit.
4-digit Base Unit
7 Enter
PIN.
Select
“Registration”.
Telephone System
8 Press JOYSTICK.
(Factory Preset 0000)
When a cordless handset is registered successfully, a confirmation tone sounds and the
“ ” icon is displayed.
• If you enter the incorrect Base Unit PIN, an error tone sounds. Repeat from step 1.
• To register a cordless handset to more than one base unit, repeat from step 1 with
the other base unit(s).
• The cordless handset main menu may changes depending on the base unit that the
cordless handset is registered to.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
89
545E_E_04.fm
Page 90
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Cancelling a Cordless Handset
Each cordless handset can cancel itself or another cordless handsets. This feature is
usually used to cancel a link between Cordless Handset and Base Unit.
To exit the operation, press
at any time.
1
Press JOYSTICK (or move).
2
Select “
3
Enter 4-digit Base Unit PIN.
(Factory Preset 0000)
4
Select “Cancel Handset”.
5
Search and press RIGHT SOFT
KEY to attach “ ” to the handset(s)
to cancel.
6 Press JOYSTICK.
Setting Base”.
Cancelling a Base Unit
If a cordless handset is out of range and/or power is OFF when Cancelling a Cordless
Handset, the previous base unit number will still remain in the cancelled cordless
handset. Therefore, you need to cancel the base unit registered in the cancelled
cordless handset.
To exit the operation, press
at any time.
Follow steps 1 to 3 on the previous page, then:
4
Select “Cancel Base”.
5
6
Search and press RIGHT SOFT KEY
to attach “ ” to the base unit to cancel.
7 Press JOYSTICK.
8
Select “Yes”, then “Deleted” is
displayed.
90
Enter 4-digit Handset PIN.
(Factory Preset 0000)
545E_E_04.fm
Page 91
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Base Unit Selection
When “Auto” (Automatic Base Unit Selection) is selected, the cordless handset
automatically searches for other registered base units if you move outside of the radio
range of the current base unit.
When a specified base unit is selected, the cordless handset will access that base unit
only.
Calls (both incoming and outgoing) can be conducted only via the selected base unit,
even if the radio cells overlap with neighbouring base units.
To exit the operation, press
at any time.
Press JOYSTICK (or move).
2
Select “
3
Select “Select Base”.
4
Select “Auto” or desired base unit.
Setting Handset”.
• The factory preset is “Auto”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
91
Telephone System
1
545E_E_04.fm
Page 92
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Intercom Between Registered Units
&
You can use your cordless handsets and base unit as a 2-way intercom.
Intercom calls can be conducted within the radio cell of the current base unit, but
not with units in neighbouring radio cells.
To exit the operation, press
at any time.
Example: Cordless Handset 1 calls Cordless Handset 2
<Cordless Handset 1>
1
<Cordless Handset 2>
Press INTERCOM
, then press the
desired cordless handset number
.
2
Press TALK
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
.
,
or
instead of
Terminating a Call
<Cordless Handset 1 or 2>
3
Press TALK OFF
.
Example: Cordless Handset 1 calls Base Unit
<Cordless Handset 1>
1
Press INTERCOM
base unit number
<Base Unit>
, then press the
.
2
Lift the handset.
• You can also answer a call by pressing
or
.
Terminating a Call
<Cordless Handset 1>
3
92
Press TALK OFF
.
<Base Unit>
OR
To hang up, place the handset on the
cradle or press
.
545E_E_04.fm
Page 93
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Example: Base Unit calls Cordless Handset 1
<Base Unit>
<Cordless Handset 1>
1
Press INTERCOM
2
Select the desired cordless handset
number
.
.
3
Press TALK
.
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
,
or
instead of
Terminating a Call
<Base Unit>
4
To hang up, place the handset on the
cradle or press
.
<Cordless Handset 1>
OR
Press TALK OFF
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
.
93
Telephone System
• You can call all cordless handsets from the base unit at once if you press
on step
2 (Selecting the Ringer Pattern for Paging: see page 69), then the cordless
handset user who answers first can talk to the base unit user.
545E_E_04.fm
Page 94
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Transferring a Call to Another Registered Unit
&
The intercom can be used during a call to transfer an external call between registered
units.
To exit the operation, press
at any time.
Example: Cordless Handset 1 transfers a call to Cordless Handset 2
<Cordless Handset 1>
<Cordless Handset 2>
(During a call)
1
Press INTERCOM
, then press the
desired cordless handset number
.
2
Press TALK
.
(Conversation between Cordless Handset 1 and 2)
3
Press TALK OFF
.
(Conversation between outside line and
Cordless Handset 2)
• When you press
on the cordless handset during a call, an outside line will be
held. To return to the conversation, press
again.
• During an outside line is put on hold, and if the transferred call is not answered, you
can return to the conversation by pressing
again.
• You can also answer a call by pressing
,
to
,
,
or
instead of
pressing
(Any Key Talk).
• If you press
after pressing the desired cordless handset number, a call can be
transferred to another cordless handset without speaking to another cordless
handset.
If the transferred call is not answered within 60 seconds, Cordless Handset 1 will ring
again.
• When Cordless Handset 2 answers a transferred call, press
to establish a
conference call or press
to complete a call transfer.
94
545E_E_04.fm
Page 95
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
To exit the operation, press
at any time.
Example: Cordless Handset 1 transfers a call to Base Unit
<Cordless Handset 1>
<Base Unit>
(During a call)
1
Press INTERCOM
base unit number
, then press the
.
2
Lift the handset.
3
Press TALK OFF
.
(Conversation between outside line and
Base Unit)
• When you press
on the cordless handset during a call, an outside line will be
held. To return to the conversation, press
again.
• During an outside line is put on hold, and if the transferred call is not answered, you
can return to the conversation by pressing
again.
• You can also answer a call by pressing
or
.
• If you press
after pressing the base unit number, a call can be transferred to base
unit without speaking to base unit.
If the transferred call is not answered within 60 seconds, Cordless Handset 1 will ring
again.
• When Base Unit answers a transferred call, press
to establish a conference call
or press
to complete a call transfer.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
95
Telephone System
(Conversation between Cordless Handset 1 and Base Unit)
545E_E_04.fm
Page 96
Saturday, August 30, 2003
5:57 PM
Multi-Unit User Operations
Example: Base Unit transfers a call to Cordless Handset 1
<Base Unit>
<Cordless Handset 1>
(During a call)
1
Press INTERCOM
, then press the
desired cordless handset number
.
2
Press TALK
.
(Conversation between Base Unit and Cordless Handset 1)
3
To hang up, place the handset on the
cradle or press
.
(Conversation between outside line and
Cordless Handset 1)
• When you press
on the base unit during a call, an outside line will be held. To
return to the conversation, press
again.
• During an outside line is put on hold, and if the transferred call is not answered, you
can return to the conversation by pressing
again.
• You can also answer a call by pressing
,
to
,
,
or
instead of
pressing
(Any Key Talk).
• If you hang up after pressing the desired cordless handset number, a call can be
transferred to the cordless handset without speaking to the cordless handset.
If the transferred call is not answered within 60 seconds, Base Unit will ring again.
• When Cordless Handset 1 answers a transferred call, press
to establish a
conference call or hang up to complete a call transfer.
96
545E_E_04.fm
Page 97
Saturday, August 30, 2003
5:57 PM
Walkie-Talkie
The Walkie-Talkie feature allows cordless handsets to communicate with each
other outside the range of the base unit. When the cordless handsets are in
Walkie-Talkie mode, external calls cannot be received. Only KX-TCA151E and
KX-TCA154E with Walkie-Talkie feature can communicate with one another.
Talk time in this mode is approximately 6 hours. Standby time in this mode is
approximately max. 15 hours. (It changes by the use conditions.) When using the
cordless handset in Walkie-Talkie mode, we recommend keeping the cordless
handset turned off, turning it on only when talking in Walkie-Talkie mode. Turning the
cordless handset off immediately after use will improve battery operating time.
Setting the Walkie-Talkie Mode
You can set the Walkie-Talkie mode. There are two types: Common Base Station mode
and Group mode. The factory preset is Group mode.
- In Common Base Station mode, communication is possible between cordless
handsets registered to a common base unit. If the cordless handsets are registered
to more than one base unit, the same base unit must be selected.
Please note, the feature will not operate if AUTO is set in the base unit selection.
If Common Base Station mode is selected and the cordless handset is not registered
to a base unit, an error tone sounds.
- In Group mode, communication is possible between cordless handsets that are both
set to Walkie-Talkie mode and have the same common Group ID.
This allows cordless handsets to communicate in Walkie-Talkie mode regardless of
which base unit they are registered to.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
97
Telephone System
Range:
The maximum range between two cordless handsets while in Walkie-Talkie mode
is up to 300 metres outdoors.
545E_E_04.fm
Page 98
Saturday, August 30, 2003
5:57 PM
Walkie-Talkie
To exit the operation, press
at any time.
1
Press JOYSTICK
(or move).
2
3
Select “Setting”.
4 Select “Common” or “Group”.
Select “
.
Walkie-Talkie”.
When “Group” is selected;
5
Enter 3-digit Group Code.
(Factory Preset 000)
6
Press JOYSTICK.
7
Enter Cordless Handset Number.
(1-9: Factory Preset is 1)
8
Press JOYSTICK twice.
twice
• If you select “Group”, enter Group Code (this can be 3 digits of your choice - the
factory preset is 000). Make note of your code.
• The factory preset of Cordless Handset Number is 1.
IMPORTANT: Each cordless handset should have its own unique number.
98
545E_E_04.fm
Page 99
Friday, September 5, 2003
6:30 PM
Walkie-Talkie
Turning the Walkie-Talkie Mode On/Off
To use the Walkie-Talkie feature, all cordless handsets in conversation must be in
Walkie-Talkie mode.
To exit the operation, press
at any time.
Turning the Walkie-Talkie Mode On
1
Press JOYSTICK
(or move).
2
Select “
Talkie”.
3
Walkie-
Select “On”.
Turning the Walkie-Talkie Mode Off
1
2
Press JOYSTICK.
Select “Off”.
• This feature is also turned off if you turn power off then on.
Talking in Walkie-Talkie Mode
Before proceeding with this function, please ensure Walkie-Talkie mode is turned on,
and the appropriate Walkie-Talkie mode has been selected.
For example, Cordless Handset 1 is calling Cordless Handset 2.
To exit the operation, press
at any time.
<Cordless Handset 1>
1
<Cordless Handset 2>
Press INTERCOM
,
or
,
then press the desired cordless handset
number
.
2
Press TALK
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
.
,
or
instead of
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
99
Telephone System
• When the Walkie-Talkie mode is ON, the cordless handset number is displayed after
“Walkie-Talkie” appears on the display.
545E_E_05.fm
Page 100
Monday, September 1, 2003
2:02 PM
Answering System
If you set the current date and time (p.20) and set the answering system ON, a
synthesized voice announce the date and time an/a incoming/memo message was
recorded after playback-Voice Date/Time Stamp.
The total recording capacity is approximately 30 minutes or 64 messages. The greeting
recording time is limited to 2 minutes and 30 seconds. We recommend you to record a
brief greeting message in order to leave more time for recording new incoming/memo
messages. All messages (greeting, incoming and memo) are stored indefinitely on a
“Flash memory” IC chip-even if a power failure occurs. All of the messages are saved
until you erase them-Flash Memory Message Backup.
Answering System ON/OFF
When you set the answering system ON, a caller can leave her/his messages.
Setting ON
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
Select “Answer On”,
then
is displayed.
2
Select “
TAM
Operation”.
3
Select “Answer Off”,
then
is disappeared.
Setting OFF
1
Press JOYSTICK
(or move).
Setting ON
Press ANSWER ON.
Indicator lights on.
Setting OFF
Press ANSWER ON again.
100
Indicator lights off.
545E_E_05.fm
Page 101
Monday, September 1, 2003
2:02 PM
Answering System
Greeting Message
Playing Back Pre-Recorded/Your Own Greeting Message
If you do not record your own greeting message, one of two pre-recorded greeting
messages will be played. A pre-recorded greeting message depends on the selecting of
same phone caller's recording time.
When the recording time is set to “1 Minute” or “No Limit” (30 minutes).
- “Hello, we are not available now. Please leave your name and phone number after the beep.
We will return your call.”
When the recording time is set to “Greeting Only”.
- “Hello, We are not available now. Please call again. Thank you for your call.”
Recording Your Own Greeting Message
Press JOYSTICK
(or move).
“
TAM
2 Select
Operation”.
3
Select “Record”.
4
Select “Record
OGM”.
Greeting
5 Record
Message. 20 cm
6
Press JOYSTICK to
finish recording then the
recorded message is
playback.
5
Select “1 Minute” or
“No Limit” (up to 30
minutes) or “Greeting
Only” (no incoming
message will be
recorded).
away from the Mic.
Selecting the Caller’s Recording Time
Follow steps 1 to 2 shown above, then:
3
Select “Setting
TAM”.
4
Select “Msg Rec
Time”.
• The factory preset is “No Limit”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
101
Answering System
1
545E_E_05.fm
Page 102
Monday, September 1, 2003
2:02 PM
Answering System
Recording Your Own Greeting Message
1
Press and hold
GREETING.
2
Record Greeting
Message. 20 cm
away from the Mic
(p.8).
3
Press GREETING to
finish recording.
• The recorded your own greeting message will be played after step 3.
• You can also finish recording by pressing
.
Playing Back a Greeting Message
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
Select “Play OGM”.
Playing Back a Greeting Message
Press GREETING.
A greeting message playback.
• You can delete your own greeting message by pressing
greeting message.
102
during playing your own
545E_E_05.fm
Page 103
Monday, September 1, 2003
2:02 PM
Answering System
Deleting Your Own Greeting Message
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
4
Select “Delete
OGM”.
5
Select “Yes”, then “Deleted” is displayed.
Select “Delete
Message”.
• You can also delete your own greeting message by pressing
during playing your own greeting message.
then select “Yes”
Selecting the Number of Rings
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
4
Select “Number of
Rings”.
5
Select “Auto” or “2 Rings” to “7 Rings” to select the
number of rings.
Select “Setting TAM”.
• The factory preset is “4 Rings”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
103
Answering System
You can select the number of times the unit rings before the answering system answers
a call, from 2 to 7 or Auto (for Toll Saver; as below).
Toll Saver (When set to “Auto”)
When you call the unit from a touch tone telephone:
If the unit answers on the 2nd or 3rd ring, there is at least one new message.
If the unit answers on the 5th or 6th ring, there are no new messages.
Hang up when you hear the 4th ring. This will save you the toll charge for the call.
545E_E_05.fm
Page 104
Monday, September 1, 2003
2:02 PM
Answering System
Incoming/Memo Messages
Incoming messages and memo messages are stored in chronological order. New
messages cannot be recorded when “Full” is displayed and
indicator on the
base unit flashes rapidly. We recommend you erase unnecessary messages after each
playback to leave more time for recording new message(s).
If new message(s) is (are) recorded,
icon and the
number of new messages will be displayed.
H/set 1
1 Messages
17.8 14:59
Playing New Incoming/Memo Message(s)
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
Select “Play New
Msg.”.
3
Select “Play All
Msg.”.
Playing All Incoming/Memo Messages
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
Repeating a Message During Playback
Move the JOYSTICK to LEFT.
(During Playing
Message)
• If you press within 5 seconds from the start of playback, the previous message will be
played. If you press after 5 seconds from the start of playback, the current message
will be played.
Skipping a Message During Playback
Move the JOYSTICK to RIGHT.
(During Playing
Message)
104
545E_E_05.fm
Page 105
Monday, September 1, 2003
2:02 PM
Answering System
Stopping a Message During Playback
Press LEFT SOFT KEY.
(During Playing
Message)
Selecting the Receiver Volume During Playback
Move the JOYSTICK to UP or DOWN.
(During Playing
Message)
Clearing One Incoming/Memo Message
(During Playing
Message)
3
1
Press JOYSTICK.
2
Select “Delete”.
Select “Yes”, then “Deleted” is displayed.
during playing message (p.104).
Clearing All Incoming/Memo Messages
1
Press JOYSTICK.
2
Select “
TAM
Operation”.
3
4
Select “Delete
All”.
5
Select “Yes”, then “Deleted” is displayed.
Select “Delete
Message”.
Calling back to the Caller
(During Playing
Message)
1
Press JOYSTICK.
2
Select “Call Back”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
105
Answering System
• You can also delete the message by pressing
545E_E_05.fm
Page 106
Monday, September 1, 2003
2:02 PM
Answering System
Editing a Number for Call
(During Playing
Message)
3
Edit Phone
Number.
(max. 24 digits)
1 Messages
17.8 14:59
1
Press JOYSTICK.
2
4
Press JOYSTICK, TALK or SPEAKERPHONE.
OR
Select “Edit for
Call”.
OR
If new message(s) is (are) recorded,
icon and the
number of new messages will be displayed and
indicator on the base unit flashes.
Playing New Incoming/Memo Message(s)
Press PLAYBACK.
New message(s) will be played if recorded.
• If there are no new incoming/memo messages, all recorded incoming/memo
messages will be played if recorded.
• If there are no recorded incoming/memo messages, “No message” will be announced.
Repeating a Message During Playback
(During Playing
Message)
Press LEFT SOFT KEY.
Press NAVIGATOR KEY left.
OR
• If you press within 5 seconds from the start of playback, the previous message will be
played. If you press after 5 seconds from the start of playback, the current message
will be played.
106
545E_E_05.fm
Page 107
Monday, September 1, 2003
3:36 PM
Answering System
Skipping a Message During Playback
Press RIGHT SOFT KEY.
(During
Playing
Message)
Press NAVIGATOR KEY right.
OR
Stopping a Message During Playback
Press STOP.
To return to the
To finish the
message playback,
message playback,
press PLAYBACK. OR press STOP again.
(During
Playing
Message)
Selecting the Receiver Volume During Playback
(During Playing
Message)
To increase volume, press NAVIGATOR KEY up.
To decrease volume, press NAVIGATOR KEY down.
Clearing One Incoming/Memo Message
Answering System
(During Playing
Message)
Press ERASE.
Clearing All Incoming/Memo Messages
All recorded messages, except the greeting message, can be erased at one time.
1
Press ERASE.
2
Within 5 seconds after the guidance, press
ERASE.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
107
545E_E_05.fm
Page 108
Monday, September 1, 2003
2:02 PM
Answering System
Editing a Number for Call
(During Playing
Message)
3
Edit Phone
Number.
(max. 24 digits)
1
Press MIDDLE SOFT
KEY.
2
4
Lift the handset or press SPEAKERPHONE.
Select “Edit for
Call”.
Calling Back to the Caller
(During Playing
Message)
1
Press MIDDLE SOFT KEY.
2
Select “Call Back”.
Monitor Function ON/OFF
If Monitor Function is OFF, you can listen to only the caller’s message which is being
recorded.
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
4
Select “Greet
Monitor”.
5
Select “On” or “Off”.
• The factory preset is “On”.
108
3
Select “Setting
TAM”.
545E_E_05.fm
Page 109
Monday, September 1, 2003
2:02 PM
Answering System
Answering System Direct Command
You can operate the answering system by pressing dialling button as direct
command.
1
Press JOYSTICK
(or move).
“
TAM
2 Select
Operation”.
3
Select “Play New Msg.”
or “Play All Msg.”.
Follow steps 1 to 3 shown above, then:
Press
1
To repeat a message.
Press
2
To skip a message.
Press
9
To stop a message playback.
Press
4
To delete one incoming/memo message. *1
Press
5
To delete all incoming/memo message.
Answering System
Follow steps 1 to 2 shown above, then:
Press
3
To enter the answering system setting menu.
Press
4
To playback new incoming/memo message(s).
Press
5
To playback all incoming/memo message(s).
Press
6
To playback a greeting message.
Press
7
4
To record a memo message.
Press
7
6
To record your own greeting message.
Press
8
To set the answering system ON.
Press
9
To stop playing back or recording message.
Press
0
To set the answering system OFF.
Press
6
To delete your own recorded greeting message.
*1 This function is available only during incoming/memo message playback.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
109
545E_E_05.fm
Page 110
Monday, September 1, 2003
2:02 PM
Answering System
Remote Operation from a Touch Tone Phone
You can operate the answering system from any touch tone phone.
Firstly you must store your remote code using the handset near the base unit.
The 3-digit remote code prevents unauthorised use of your answering system for
listening to recorded messages.
Setting the Remote Code ON
1
Press JOYSTICK
(or move).
2
Select “
TAM
Operation”.
3
Select “Setting
TAM”.
4
Select “Remote
Code”.
5
Enter 3-digit Remote
Code.
6
Press JOYSTICK.
Setting the Remote Code OFF
Follow steps 1 to 4 of Setting the Remote Code ON, then:
5
Press x.
6
Press JOYSTICK.
• The factory preset is Remote Code OFF.
Turning ON the Answering System Remotely
You can Turning on the answering system from any touch tone phone.
1
Call from a touch tone phone
then wait for 20 rings.
2
Enter remote code within 10 seconds after a long
beep.
3
Enter remote code after
greeting message playback.
4
Voice menu starts after 3 seconds.
Follow the guidance (p.112).
OR
Enter your desired direct remote command
(See next page).
• If your remote code is not stored, you cannot turn on the answering system remotely.
110
545E_E_05.fm
Page 111
Monday, September 1, 2003
2:02 PM
Answering System
Summary of Remote Operation
You can operate the answering system from any touch tone phone.
1
Call from a touch tone
phone.
2
Greeting message
playback.
3
4
Number of new message is
played.
5
Voice menu is started after 3 seconds.
Follow the guidance (See next page).
Enter remote code.
OR
Enter your desired direct remote command
(See below).
Direct Remote Commands
After entering the remote code, you can choose to operate your answering system using
direct commands as below, in place of listening to the voice menu. Hang up to end the
remote operation at any time.
Command
1
Repeat message (during playback)
2
Skip message (during playback)
4
New message playback
5
All message playback
6
Check greeting message
Record
Answering System
7
Function
Greeting message recording
9
Stop operating
0
Answering system off
4
Deleting specific message (during playback)
5
Deleting all messages
6
Deleting greeting message (during playback)
Disconnect
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
111
545E_E_05.fm
Page 112
Monday, September 1, 2003
2:02 PM
Answering System
Voice Menu
The words in “ ” means a voice guidance.
Press
Press
2
Press
2
Press
2
Press
2
Press
2
1
.
“Press 1 to playback all messages.
Press 2 for other functions.”
“All message playback.” At the end
of the last message, “End of final
message” is announced.
When the remaining recording
time becomes less than 5
minutes, the remaining
recording time is announced.
“Press 1 to playback new messages.
Press 2 for other functions.”
“New message playback.”
“Press 1 to record your message.
Press 2 for other functions.”
“Please leave your message.” Talk
after you hear this message.
Hang up to finish recording.
“Press 1 to erase all messages. Press 2 “No message.”
for other functions.”
“Press 1 to record your greeting.
Press 2 for other functions.”
“Press 7 to record your greeting.
Press 9 to end recording.”
Press
7
to start recording.
Talk after the long beep.
Press
9
to finish recording.
• After playback, the voice menu will start again from the beginning.
• If you hear “Memory full” after playback, erase some or all of the messages (p.105).
112
545E_E_05.fm
Page 113
Monday, September 1, 2003
2:02 PM
Answering System
Recording a Memo Message
1
Press JOYSTICK
(or move).
“
TAM
2 Select
Operation”.
3
Select “Record”.
4
Select “Record
Memo”.
Memo
5 Record
Message. 20 cm
6
Press JOYSTICK.
away from the Mic.
Press MIDDLE
SOFT KEY.
4
Press STOP.
2
Select “Record Memo”.
3
Record Memo Message.
20 cm away from the Mic
(p.8).
Recording Your Telephone Conversation
When you record your 2-way telephone conversation, you should inform the other party
that the conversation is being recorded.
During recording, a beep will sound approximately every 15 seconds.
This feature is available only for cordless handset.
1
(During a call)
Press JOYSTICK twice to
start recording, then
“Recording” is displayed.
2
Press JOYSTICK to
stop recording.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
113
Answering System
1
545E_E_06.fm
Page 114
Monday, September 1, 2003
1:56 PM
Using the Belt Clip
To remove
the belt clip.
You can hang the cordless handset on
your belt or pocket using the belt clip.
Optional Headset
Plugging an optional headset into the cordless handset allows hands-free phone
conversations. Please use only the Panasonic KX-TCA89EX headset. To order, call
the accessories telephone number on page 4. While using the headset,
speakerphone is not available. To switch to speakerphone, disconnect the headset.
Connecting the Optional Headset to the Cordless Handset
Open the headset socket cover, and connect the optional headset to the headset socket
as shown.
Headset Socket
114
545E_E_06.fm
Page 115
Monday, September 1, 2003
1:56 PM
Desktop Use
1
Press the tabs in the direction of the arrows ( 1 ), then remove
the wall mounting adaptor ( 2 ).
2
1
1
2
Connect the AC adaptor and the telephone line cord.
3
Put the wall mounting adaptor back.
• The word “UP DESK” should be upward.
Useful Information
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
115
545E_E_06.fm
Page 116
Monday, September 1, 2003
1:56 PM
Desktop Use
4
Fasten the AC adaptor and the telephone line
cord on the wall mounting adaptor.
5
Place the base unit on the desk.
116
545E_E_06.fm
Page 117
Monday, September 1, 2003
1:56 PM
Wall Mounting
Base Unit
This base unit can be mounted on the wall.
Pull down the handset hook until it locks, so
the tab holds the handset.
1
2
Press the tabs in the direction of the arrows ( 1 ), then remove
the wall mounting adaptor ( 2 ).
2
1
3
1
Connect the AC adaptor, then push the wall mounting adaptor in the direction of the
arrows ( 1 ) and ( 2 ).
• The word “UP WALL” should face upward.
2
1
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
2
1
117
Useful Information
To Power
Outlet
545E_E_06.fm
Page 118
Friday, September 5, 2003
6:31 PM
Wall Mounting
4
Connect the telephone line cord.
Install screws using the wall template,
then mount the base unit.
Screws
8 cm
To temporarily set the handset down
during a conversation, place it as shown
here.
Wall Template
8 cm
118
545E_E_06.fm
Page 119
Monday, September 1, 2003
1:56 PM
Wall Mounting
Charger unit
The charger can be mounted on the wall.
Connect the AC adaptor.
1
To Power Outlet
2
Install screws using the wall template, then mount the charger.
2.8 cm
Screws
Hooks
Fasten the AC adaptor
cord to prevent it from
being disconnected.
Wall Template
2.8 cm
Useful Information
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
119
545E_E_06.fm
Page 120
Monday, September 1, 2003
1:56 PM
Before Requesting Help
If you experience any problems with the normal use of your apparatus, you should
unplug it from the telephone outlet and connect a known working telephone in its place.
If the known working telephone still has problems, then please contact the customer
service department of your Network provider.
If it operates correctly, then the problem is likely to be a fault in your apparatus.
In this case, contact your supplier for advice. Your Network provider may charge you if
they attend a service call that is not due to an apparatus supplied by them.
Turn the power OFF then ON (Handset)/Disconnect then connect the AC adaptor
(Base Unit).
Problem
Possible cause
Solution
Page
The unit does not work.
• Batteries not installed
• Re-install batteries
properly.
properly.
• AC adaptor of base unit • Disconnect and then
not connected properly.
connect AC adaptor.
p.15
Display is blank.
• Cordless handset not
• Turn on power.
p.18
Cordless handset will not
turn on.
• Batteries not inserted.
• Insert the 2 rechargeable p.15
• Batteries not charged.
• Place cordless handset
• Dirty charge contact.
• Clean charge/battery
Battery charge icon not
counting up.
icon flashes.
turned on.
batteries supplied.
on charger and connect
AC adaptor to charger
and AC outlet (full charge
period 7 hrs).
p.16
contact and retry charge.
• Charger not powered up. • Connect AC adaptor to p.15
charger and AC outlet.
• Cordless handset not
p.89
• Register cordless
registered to base unit.
handset to base unit.
• Cordless handset out of • Move cordless handset
range of base unit.
closer to base unit.
• No power into base unit. • Connect AC adaptor to p.15
base unit and AC outlet.
Cordless handset busy
tone heard when
is
pressed.
• Cordless handset out of • Move cordless handset
• Another unit in use.
• Wait for the other user to
No dial tone.
• Telephone line not
• Insert telephone line cord p.15
range of base unit.
connected.
closer to base unit.
complete call.
to network.
• Turn power OFF then
ON.
120
p.18
545E_E_06.fm
Page 121
Monday, September 1, 2003
1:56 PM
Before Requesting Help
Problem
Possible cause
• Call Bar mode set.
Solution
• Turn feature off.
Page
• Particular dialled number • Remove number from
p.72
p.87
p.79
• Key lock mode ON.
• Turn key lock OFF.
p.25
Cordless handset will not
ring.
• Ringer switched off.
• Set ringer to one of 6
p.69
Last number redial does
not work.
• Number exceeded 24
• Redial manually.
p.26
• Shorten recording time
p.45
Cannot dial out.
is restricted.
digits.
Audible Caller sounds late. • Recording time is long.
No Caller ID number
displayed.
icon flashes
Cannot register cordless
handset to base unit.
call restricted list.
volume levels.
• Service not supplied.
• Caller ID service must be p.30
arranged with Network
• Caller has withheld info.
provider.
• Battery low.
• Recharge batteries.
• Max. number of base
• Delete unused base unit
units already registered
registrations from
to cordless handset.
cordless handset.
• Max. number of cordless • Delete unused cordless
handsets already
handset registrations
registered to base unit.
from base unit.
• Wrong PIN number
• If PIN number is lost,
entered (Default 0000).
contact the Panasonic
Customer Care Helpline.
• Electrical noise in local • Move base unit/cordless
handset away from
area.
sources of electrical
noise (e.g., TVs, radios,
etc.).
p.16
p.90
p.90
p.80
p.6
• The SMS feature is
• Turn the SMS feature off, p.63
The display is blank even
if the unit is charged.
• Battery low.
• Recharge batteries more p.16
Date and time
disappeared.
• Power failure.
• Set the date and time.
Clock is slow (fast).
• Power failure.
• Readjust date/time from p.20
turned on.
if you do not use an SMS
service.
than about 15 minutes.
p.20
cordless handset 1.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
121
Useful Information
The unit begins ringing
(one ring) after other
connected telephones.
545E_E_06.fm
Page 122
Monday, September 1, 2003
1:56 PM
Before Requesting Help
Problem
Possible cause
Solution
• Another unit in use.
• Wait for the other user to
A beep sounds when
• Another unit in use.
entering caller list or base
unit phonebook with
cordless handset.
• Wait for the other user to
The unit picks up the wrong • Similar voice tag exists.
voice tag.
• Record different voice
A beep sounds when
or
on the
Page
complete the operation.
base unit is pressed.
complete the operation.
tag.
p.48
Answering System
Problem
Possible cause
Solution
Page
The answering system is • The recording time is set • Select “1 Minute” or “No p.101
on, but incoming messages to “Greeting Only”.
Limit (see “Answering
are not recorded.
System”).
• Erase some or all of the p.105
• Memory is full (30
p.107
minutes or 64 messages). messages.
You cannot operate the
answering system from a
touch tone phone.
• Incorrect remote code
• Enter the correct remote p.110
entered.
code.
• Tone are too short to
• Press each button firmly.
activate the unit.
• The answering system is • Turn on the answering p.100
p.110
off.
system.
You cannot operate the
• Someone is operating
answering system with the the answering system
unit.
• Retry when other user
has finished operation.
While recording a greeting • A call is being received. • Answer the call. Retry
message, the unit starts to
recording after
ring and stops recording.
conversation is finished.
During playback, the unit
starts to ring and stops
playback.
122
• A call is being received. • Answer the call. Retry
playback after
conversation is finished.
545E_E_06.fm
Page 123
Monday, September 1, 2003
1:56 PM
Before Requesting Help
SMS-Text Messaging
Problem
Cannot send a message.
Possible cause
Solution
• You have not subscribed • Caller ID service must be p.53
to Caller ID.
• SMS Centre number is
arranged with Network
provider.
• Store the number.
• Memory is full.
• Delete messages in the p.58
not stored in your
telephone.
• Message was interrupted • Wait until the message
during sending.
has been sent before
using any other
telephone functions.
Cannot send or receive a
message.
Error Code
FD
Page
p.62
Outgoing/Incoming lists. p.60
Description
Page
• Could not connect to the SMS Centre. Check that you p.62
have the correct SMS Centre numbers or turn the
SMS feature on.
p.63
FE
• There was a problem sending the message.
EO
• Your number is permanently withheld or you have not p.52
subscribed to a Caller ID service.
Useful Information
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
123
545E_E_06.fm
Page 124
Monday, September 1, 2003
1:56 PM
Character Table
Phonebook Character Table
x
9
8
4
x
124
545E_E_06.fm
Page 125
Monday, September 1, 2003
1:56 PM
Character Table
SMS Character Table
“LetterWise®” Character Table
Buttons
2
1
3
4
5
6
7
8
9
x
Character Space . @ / : ; #
ABC 2 DEF 3 GHI 4 JKL 5 MNO 6 PQRS 7 TUV 8 WXYZ 9
Displayed + - 1 " ’ , ! ¡ ? ¿ _ €
£ $ ¥ () [ ] { } & % \
abc 2 def 3 ghi 4 jkl 5 mno 6 pqrs 7 tuv 8 wxyz 9
^~|<>=¤§
• Press
• Press
• Press
for space or 0.
to change letter size; Capital > Small, Small > Capital.
to show the next suggested character.
“Alphabet”, “Numeric”, “Greek” and “Extended” Character Table
1
2
3
4
5
6
7
8
9
0
Space 0
Greek (ΑΒΓ)
Extended (AÄÅ)
1
2
3
4
5
6
7
8
9
0
Space 0
x
Space . @ / : ; # + - Space . @ / : ; # + - 1 "
1 " ’ , ! ¡ ? ¿ _ € £ $ ¥ ’ , ! ¡ ? ¿ _ € £ $ ¥ () [ ] { }
() [ ] { } & % \ ^ ~ | < > & % \ ^ ~ | < > = ¤ §
=¤§
AÀÁÂÃÄÅÆBCÇ2
ΑΒΓ 2
aàáâãäåæbcç2
DEÈÉÊËE F3
∆ΕΖ 3
deèéêë e f3
G HIÌÍÎÏ I I 4
ΗΘΙ 4
g hiìíîï 4
JKL5
ΚΛΜ 5
jkl5
MNÑOÒÓÔÕÖø6
Ν Ο6
mnñoòóôõöø6
PQRSŞß7
ΠΡΣ 7
pqrsŞß7
TUÙÚÛÜ U V8
ΤΥΦ 8
tuùúûüuv8
WXYZ9
ΧΨΩ 9
wxyz9
Space 0
The following small (or capital) are not available. The same letter as capital (or small)
will be displayed.
Press
to change letter size; Capital > Small, Small > Capital.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
125
Useful Information
Space . @ / : ; # + 1"’,!¡?¿_€£$¥
() [ ] { } & % \ ^ ~ | < >
=¤§
ABC 2
abc 2
DEF 3
def 3
GHI 4
ghi 4
JKL 5
jkl 5
MNO 6
mno 6
PQRS 7
pqrs 7
TUV 8
tuv 8
WXYZ 9
wxyz 9
Numeric
(0–9)
x
Alphabet (ABC)
x
Buttons
545E_EIX.fm
Page 126
Saturday, August 30, 2003
5:59 PM
Index
AC Adaptor ........................................ 5, 15
Accessories.............................................. 5
Answering a Call .................................... 22
Answering System ............................... 100
Any Key Talk .......................................... 22
Audible Caller ID .................................... 36
Auto Talk .......................................... 22, 75
Base Unit
Display .............................................. 14
Operations ........................................ 82
PIN .................................................... 80
Reset................................................. 80
Ringer Pattern................................... 86
Ringer Volume .................................. 86
Selection ........................................... 91
Base Unit Phonebook
Deleting............................................. 45
Dialling .............................................. 43
Editing ............................................... 44
Storing............................................... 38
Battery
Caution................................................ 6
Charge .............................................. 16
Information ........................................ 16
Installation......................................... 15
Call Bar ............................................ 72, 87
Call Restriction ....................................... 79
Call Waiting ............................................ 29
Caller ID List Menu (Base Unit)
Deleting............................................. 83
Editing ............................................... 83
Caller ID List Menu (Cordless Handset)
Deleting............................................. 33
Editing ............................................... 33
Storing............................................... 32
Cancelling a Base Unit........................... 90
Cancelling a Cordless Handset.............. 90
Chain Dial............................................... 47
Conference Call ......................... 94, 95, 96
Cordless Handset
Display .............................................. 13
PIN .................................................... 74
Registration....................................... 89
Reset................................................. 76
Ringer Pattern................................... 69
Ringer Volume .................................. 69
Date and Time........................................ 20
Dialling Pause .................................. 28, 78
Direct Call Number................................. 72
126
Display
Standby Mode................................... 70
Talk Mode ......................................... 71
Emergency Calls.................................... 78
Flash/Earth ............................................ 77
Guarantee............................................ 128
Handset phonebook
Dialling ..............................................
Hot Keys ...........................................
Storing ..............................................
Hands-Free Phone
Base Unit ..........................................
Cordless Handset .............................
43
46
37
24
23
Intercom Between Registered Units ...... 92
Key
Lock .................................................. 25
Tone.................................................. 70
Making a Call ......................................... 21
Memo Alarm .......................................... 66
Memo Message ........................... 104, 113
Mute....................................................... 24
Phonebook
Copy ................................................. 50
Storing ........................................ 37, 38
Power ON/OFF ...................................... 18
Private Category .................................... 36
Recall ............................................... 27, 77
Receiver Volume ................................... 23
Recording Telephone Conversation .... 113
Redial List Menu (Base Unit)
Deleting............................................. 84
Editing............................................... 84
Redial List Menu (Cordless Handset)
Deleting............................................. 35
Editing............................................... 35
Storing .............................................. 34
Redialling ............................................... 26
Setting up............................................... 15
SMS Feature.......................................... 52
Specifications....................................... 127
Transferring a Call ................................. 94
Voice Search ......................................... 48
Walkie-Talkie ......................................... 97
545E_E_07.fm
Page 127
Friday, September 5, 2003
1:16 PM
Technical Information
Specifications
Standard:
Number of channels:
Frequency range:
Duplex procedure:
Channel spacing:
Bit rate:
Modulation:
RF Transmission Power:
Voice coding:
Power source:
Power consumption:
Operating conditions:
Dimensions, Base Unit:
Dimensions, Cordless Handset:
Dimensions, Charger:
DECT=(Digital Enhanced Cordless
Telecommunications)
GAP=(Generic Access Profile)
120 Duplex Channels
1.88 GHz to 1.9 GHz
TDMA (Time Division Multiple Access)
1728 kHz
1152 kbit/s
GFSK
approx. 250 mW
ADPCM 32 kbit/s
(For Base Unit)
AC Adaptor 220 - 240 V, 50 Hz
(For Charger Unit)
AC Adaptor 220 - 240 V, 50 Hz
(For Base Unit)
Standby: Approx. 2.6 W
Maximum: Approx. 9.2 W
(For Charger Unit)
Standby: Approx. 2.3 W
Maximum: Approx. 6.8 W
5 - 40 °C, 20 - 80 % relative air humidity (dry)
About (53 mm x 205 mm x 197 mm) x 670 g
About (143 mm x 48 mm x 32 mm) x 125 g
About (60 mm x 86 mm x 84 mm) x 113 g
• Specifications are subject to change.
• The illustrations used in this manual may differ slightly from the original device.
“Eatoni and LetterWise are trademarks of Eatoni Ergonomics, Inc.”
Useful Information
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
127
545E_E_07.fm
Page 128
Saturday, August 30, 2003
5:59 PM
Guarantee
CONDITIONS OF GUARANTEE
This guarantee is in addition to and does not in any way affect any statutory or other rights of
consumer purchasers. If within the applicable guarantee period, the appliance proves to be
defective by reason of faulty design, workmanship or materials, we undertake subject to the
following conditions to have the defective appliance (or any part or parts there of) repaired or
replaced free of charge.
1. The appliance shall have been purchased and used solely within either the UK or ROI and
in accordance with standard operating instructions and the technical and/or Safety
Standards required in the UK.
2. The appliance should be returned together with this guarantee and proof of date of
purchase promptly on being found defective at the purchaser's risk and expense to the
authorised dealer from whom the appliance was purchased or to the nearest authorised
dealer. All enquires must be through such dealers.
3. This guarantee shall not apply to damage caused through fire, accident, lightning, misuse,
wear and tear, neglect, incorrect adjustment or repair, to damage caused through
installation, adaption, modification or use in an improper manner or inconsistent with the
technical and/or safety standards required in the country where this appliance is used, or
to damage occurred during transit to or from the purchaser.
4. If at any time during the guarantee period any part or parts of the appliance are replaced
with a part or parts not supplied or approved by us or of an objective quality safe and
suitable for the appliance, or the appliance has been dismantled or repaired by any person
not authorised by us, we shall have the right to terminate this guarantee in whole or in part
immediately without further notice.
5. The purchaser's sole and exclusive remedy under this guarantee against us is for the
repair or replacement of the appliance or any defective part or parts and no other remedy,
including, but not limited to, incidental or consequential damage or loss of whatsoever
nature shall be available to the purchaser.
6. This guarantee shall not apply to batteries and any other items of limited natural life.
7. Our decision on all matters relating to complaints shall be final. Any appliance or defective
part which has been replaced shall become our property.
8. The guarantee period applicable to this product shall be 12 months.
Please keep these Operating Instructions with your receipt.
Panasonic Business Systems U.K.
Receipt No.
Date of Purchase
Model No. KX-TCD545E
Serial No.
128
545E_E_07.fm
Page 132
Tuesday, September 16, 2003 1:43 PM
Hereby, Panasonic Communications Co., Ltd., declares that this Dect Cordless Telephone is
in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the manufacturer's declaration of conformity to the essential requirements of the
R&TTE Directive is available at the following web address:
http://doc.panasonic-tc.de
For your future reference
Serial No.
(found on the bottom of the unit)
Date of purchase
Name and address of dealer
Attach or keep original receipt to assist with any repair under warranty.
Customer Care Helpline Tel. No. : U.K. 08700 100 076
R.O.I. 01289 8333
0436
1999/5/EC
This equipment is designed for use in the United Kingdom only.
In the event of problem, you should contact your equipment supplier in the first
instance.
Technical specifications are subject to change.
Sales Department:
Panasonic Business Systems U.K.
Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP
Panasonic Communications Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
PQQX13749YA
D0703-1093
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
