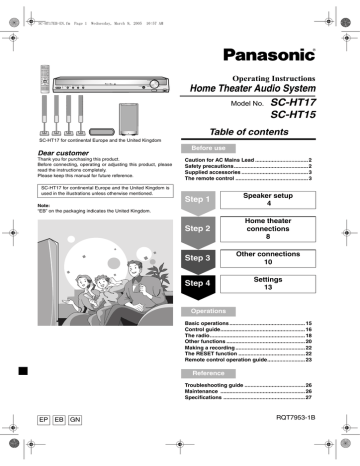

SC-HT17EB-EN.fm
Page 1
Wednesday, March 9, 2005
10:57 AM
Operating Instructions
VOLUME
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
Home Theater Audio System
Model No. SC-HT17
SC-HT15
Table of contents
SC-HT17 for continental Europe and the United Kingdom
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please
read the instructions completely.
Please keep this manual for future reference.
SC-HT17 for continental Europe and the United Kingdom is
used in the illustrations unless otherwise mentioned.
Note:
“EB” on the packaging indicates the United Kingdom.
Before use
Caution for AC Mains Lead ................................... 2
Safety precautions................................................. 2
Supplied accessories ............................................ 3
The remote control ................................................ 3
Step 1
Speaker setup
4
Step 2
Home theater
connections
8
Step 3
Other connections
10
Step 4
Settings
13
Operations
Basic operations .................................................. 15
Control guide........................................................ 16
The radio............................................................... 18
Other functions .................................................... 20
Making a recording .............................................. 22
The RESET function ............................................ 22
Remote control operation guide......................... 23
Reference
Troubleshooting guide ........................................ 26
Maintenance ........................................................ 26
Specifications ...................................................... 27
EP EB GN
RQT7953-1B
SC-HT17EB-EN.fm
Page 2
Wednesday, March 9, 2005
10:57 AM
Caution for AC Mains Lead
(For United Kingdom)
Placement
(“EB” area code model only)
Before use
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of
the fuse.
If the plug contains a removable fuse cover you must ensure that
it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY 13AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL
OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and
follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure B
Figure A
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
RQT7953
Figure A
2
Figure B
Fuse
(5 ampere)
Safety precautions
Fuse
(5 ampere)
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions
can damage the cabinet and other components, thereby shortening the
unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock. Do not
pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the power
supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is not
covered in these operating instructions occurs, disconnect the AC mains
lead and contact your dealer or an authorized service center. Electric
shock or damage to the unit can occur if the unit is repaired, disassembled
or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it
is not to be used for a long time.
n Sales and Support Information
(For the United Kingdom and the Republic of Ireland)
Customer Care Centre
• For UK customers: 08705 357357
• For the Republic of Ireland customers: 01 289 8333
• Visit our website for product information
• E-mail: [email protected]
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with
ease and confidence by phoning our Customer Care Centre
Monday-Friday 9:00am-5:30pm. (Excluding public holidays)
• Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a
wide range of finished products, take a browse on our website
for further details.
Page 3
Wednesday, March 9, 2005
10:57 AM
Supplied accessories
Please check and identify the supplied
accessories.
AC mains lead
For the United
Kingdom
For continental
Europe
(RJA0053-3X)
(RJA0019-2X)
System cable
For Australia and
New Zealand
(K2CJ2DA00010)
System
SC-HT17
SC-HT15
Main unit
SA-HT17
SA-HT15
Front speakers
SB-FS930
SB-FS880
Surround speakers
SB-FS880
SB-FS15
Center speaker
SB-PC930
SB-PC15
Subwoofer
SB-WA17
SB-WA15
The remote control
1
(K1HA25HA0001)
3
FM indoor antenna
R6/LR6, AA, UM-3
(RSA0007-L)
Before use
SC-HT17EB-EN.fm
2
2
AM loop antenna
(N1DAAAA00002)
Remote control transmitter
SC-HT17
(EUR7722KL0)
SC-HT15
(EUR7722KJ0)
Batteries
(x 2)
Speaker cable(s)
• Insert so the poles (+ and –) match those in the remote
control.
• Do not use rechargeable type batteries.
Use
Aim at the sensor, avoiding obstacles, at a maximum range of
7 m directly in front of the unit.
Remote control signal sensor
SC-HT17
(REE1203A) (4 m x 1)
SC-HT15
(REE1203A) (4 m x 1)
(REE1203C) (10 m x 2)
VOLUME
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
Rubber pads (RKA0072-KJ)
SC-HT17
2
xxx
1
xxx
xxxxxx
xxxxxx
4
xxx
xxxxxx
5
xxx
5
xxx
xxxxxx
xxxxxx
xxxxxx
xxx
4
xxx
3
3
3
xxx
xxxxxx
2
xxx
xxxxxx
1
xxx
xxxxxx
xxx
xxxxxx
xxxxxx
xxx
xxxxxx
xxxxxx
4
xxx
xxx
xxx
2
xxxxxx
xxxxxx
3
4
plug
xxx
xxxxxx
Antenna
xxxxxx
2
xxx
xxxxxx
xxx
1
xxxxxx
xxx
5
Sticker sheet
1
7 meters
SC-HT15
xxxxxx
5
xxx
adapter
(For the United Kingdom)
Speaker stands
Transmission window
(RQCA1029)
(K1YZ02000013)
(RYQV0060) (x 2)
Speaker stands with long cables
SC-HT17
(RYQV0060A) (x 2)
(RYQV0059-S)
Screws
SC-HT17 (x 4)
SC-HT15 (x 2)
SC-HT17 (XTN5+32FFN) (Large x 8)
(XTN4+8FFN) (Small x 8)
SC-HT15 (XTN5+32FFN) (Large x 4)
(XTN4+8FFN) (Small x 4)
Use the numbers indicated in parentheses when asking for
replacement parts. (As of February 2005)
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
“DTS” and “DTS Digital Surround” are registered trademarks
of Digital Theater Systems, Inc.
RQT7953
Stand bases
Note
• Keep the transmission window and the unit’s sensor free from
dust.
• Operation can be affected by strong light sources, such as
direct sunlight, and the glass doors on cabinets.
3
SC-HT17EB-EN.fm
Page 4
1
Step
Supplied
accessories
Wednesday, March 9, 2005
10:57 AM
Speaker setup
Speaker stands with long cables
Stand bases
Speaker stands
SC-HT17 (x 2)
SC-HT17 (x 2)
SC-HT17 (x 4)
SC-HT15 (x 2)
SC-HT15 (x 2)
Speaker setup
Step 1
Front and surround speaker assembly
• To prevent damage or scratches, lay a soft cloth and perform assembly on it.
• For assembly, use a Phillips-head screwdriver.
1
1
Attach the pipe to the base.
Thread the speaker cable through the base.
• Untie the cable before threading.
3
Secure the pipe to the base.
Small screws
(included)
2
Ensure the screws are securely fastened by lightly tightening
the left and right side screws alternately until fully tightened.
Insert the pipe.
Match the holes.
The supplied stands are specially designed for use with
this unit’s speakers.
Only use as indicated in this setup.
2
Attach the stand to the speaker.
SC-HT17 Before attaching, check the speaker label.
• SB-FS930: Use as front speakers. Attach the stands with the short cables.
• SB-FS880: Use as surround speakers. Attach the stands with the long cables.
RQT7953
Large screws
(included)
4
You can also attach to the upper rear of the speaker.
Ensure the stand is fastened on straight by lightly tightening the top and bottom
screws alternately until fully tightened.
• There is no difference between the right and left speakers.
Speaker height
Front Speakers
Try to line up the middle of the
speakers with the middle of the
television.
Surround speakers
It is usually better to position the
surround speakers a little higher.
Sticker sheet
1
xxxxxx
xxx
2
xxxxxx
xxx
1
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
4
xxxxxx
xxx
5
(x 1)
Step 1
5
1
Connect the speaker cables.
2
Press the speaker cable into the groove.
3
Thread the excess cable.
Speaker setup
Copper
Silver
4
xxxxxx
xxx
4
xxxxxx
xxx
3
3
Connect the speaker cables.
xxxxxx
xxx
2
xxxxxx
xxx
3
xxxxxx
xxx
3
xxxxxx
xxx
2
xxxxxx
xxx
xxxxxx
xxx
1
xxxxxx
xxx
1
4
SC-HT15 (4 m x 1) (10 m x 2)
2
SC-HT15 (x 4)
xxxxxx
xxx
SC-HT15 (x 4)
xxxxxx
xxx
SC-HT17 (4 m x 1)
5
Speaker cable(s)
SC-HT17 (x 8)
3
Small screws
SC-HT17 (x 8)
xxxxxx
xxx
Large screws
10:57 AM
4
Wednesday, March 9, 2005
xxxxxx
xxx
Page 5
5
SC-HT17EB-EN.fm
Fasten the speaker cable to the base.
Slot
5
Attach the stickers to the speaker cables.
5
4
2
1
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
1
2
3
4
5
5
4
3
2
1
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
1
2
3
4
5
1
2
Front speaker (L)
Front speaker (R)
3
Surround speaker (L)
4
Surround speaker (R)
5
SC-HT17
SC-HT15
Front and surround speakers
Use the speakers with long cables for the surround
speakers (SB-FS880).
Front speakers
About 10 cm
Center speaker
About 10 cm
FRONT
Lch
FRONT
Lch
1
1
FRONT
Lch
FRONT
Lch
1
1
Center speaker
About 10 cm
CENTER
5
Surround and center speakers
Use the long speaker cables for the surround
speakers (SB-FS15).
About 10 cm
CENTER
5
SURROUND
Lch
3
SURROUND
Lch
3
RQT7953
3
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
xxxxxx
xxx
5
SC-HT17EB-EN.fm
Page 6
Wednesday, March 9, 2005
Speaker setup
10:57 AM
Supplied
accessories
Rubber pads
SC-HT17
SC-HT15
Placement and connections of speakers
1
Place the speakers.
Step 1
e.g., SC-HT17
Front
speaker (L)
Center speaker
SC-HT15
Front speaker (R)
Surround speakers
Speaker setup
Subwoofer
Surround speaker
(L)
Surround
speaker (R)
Place on a shelf or
rack.
Place the front, center, and surround speakers at approximately the same distance
from the seating position.
The angles in the diagram are approximate.
Front speakers (left, right)
Place on the left and right of the TV at seated ear height so that there is good
coherency between the picture and sound.
Center speaker
Place underneath or above the center of the TV. Aim the speaker at the seating
area.
Surround speakers (left, right)
Place on the side of or slightly behind the seating area, higher than ear level.
Subwoofer
The subwoofer can be placed in any position as long as it is at a reasonable
distance from the TV.
Note that some experimentation can yield the smoothest low frequency
performance. Placement near a corner can increase the apparent output level, but
can result in unnatural bass.
Positioning for best effect
How you set up your speakers can affect the
bass and the sound field.
Note the following points.
• Attach the included rubber pads to the base
of the center speaker (SC-HT15: center and
surround speakers). This prevents vibration
from causing the speakers to move or fall
over. Use 4 pads per speaker.
• Place speakers on flat secure bases.
• Placing speakers too close to floors, walls,
and corners can result in excessive bass.
Cover walls and windows with a thick
curtain.
Attaching the rubber pads
Bottom of surround speaker (SC-HT15)
Rubber pads
Bottom of center speaker
Rubber pads
Note
Keep your speakers at least 10 mm away from
the system for proper ventilation.
Preventing the speakers from falling over
Attach screw eyes (not included) to secure the speakers to a wall
(diagram on the right).
• Obtain the screws appropriate to the walls and pillars to which they are
going to be fastened.
• Consult with a qualified housing contractor concerning the appropriate
procedure when attaching to a concrete wall or a surface that may not
have strong enough support. Improper installation may result in
damage to the wall or speakers.
screw eyes
(not included)
Speaker
RQT7953
Wall
6
If irregular colouring occurs on your television
The supplied speakers are designed to be used close to a
television, but the picture may be affected with some televisions
and setup combinations.
If this occurs, turn the television off for about 30 minutes.
The television's demagnetising function should correct the
problem. If it persists, move the speakers further away from the
television.
Caution
• The main unit and supplied speakers are only to be
used as indicated in this manual. Failure to do so may
lead to damage to the receiver and/or the speakers,
and may result in the risk or fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
• Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
SC-HT17EB-EN.fm
2
Page 7
Wednesday, March 9, 2005
10:57 AM
Connect the speaker cables to the subwoofer.
Subwoofer
Speaker setup
Step 1
SC-HT17
SC-HT15
Copper
Silver
4
1
FRONT (L)
FRONT (R)
6Ω
FRONT
2
4Ω
SURROUND
4Ω
CENTER
3
Copper
Silver
5
2
1
4
3
R
L
R
L
SURROUND
(R)
SURROUND
(L)
Note
CENTER
Never short-circuit positive (+)
and negative (–) speaker wires.
5
Other speaker setup options
Fitting optional speaker stands
Attaching to a wall
SC-HT15
Surround speakers
SC-HT15 Surround speakers
5 mm, Pitch 0.8 mm
60 mm
180 mm
7.5 - 9.4 mm
Speaker
stands (not
included)
174 mm
30 - 35 mm
Wall or pillar
Plate thickness +7 to 10 mm
Screw
(not included)
• The wall or pillar on which the speakers are to be attached should be capable of
supporting 10 kg per screw. Consult a qualified building contractor when attaching
the speakers to wall. Improper attachment may result in damage to the wall and
speakers.
• When mounting the speakers to walls, use a string (not included) to prevent them
from falling (è page 6).
• (SC-HT17 front and surround speakers, SC-HT15 front speakers) Use of optional
speaker cables are recommended when mounting. (You can also remove the
speaker cables from the pipes supplied with this system.)
• Observe the diameter and length of the
screws and the distance between screws
as shown in the diagram.
• The stands must be able to support over
10 kg.
• The stands must be stable even if the
speakers are in a high position.
RQT7953
7 - 9 mm
3.0 - 4.0 mm
7
SC-HT17EB-EN.fm
Page 8
Wednesday, March 9, 2005
2
Step
10:57 AM
Home theater connections
Other
accessories
Stereo phono cable
(not included)
Left
Right
Video connection cable
(not included)
Coaxial cable
(not included)
S-Video cable
(not included)
Turn off all components before making any connections.
To connect equipment, refer to the appropriate operating instructions.
Step 2
DVD player
SC-HT17
S-VIDEO terminals
Home theater connections
TV (Monitor)
Use this connection for better picture quality than with the VIDEO
terminals.
S-VIDEO
MONITOR OUT
TV
VIDEO
IN
AM
ANT
IN
DVD
S-VIDEO
IN
LOOP
ANT
GND
TV
L
L
L
L
L
L
R
R
R
R
R
R
IN
GAME/AUX
IN
TV
FRONT
(L, R)
SURROUND
(L, R)
OUT
IN
DVR / VCR
AUDIO
CENTER
FRONT SURROUND SUBWOOFER
DVD / DVD 6CH
SUBWOOFER
AUDIO OUT
RQT7953
IN
DVR / VCR
TV (Monitor)
FM
ANT
8
IN
S-VIDEO
OUT
CENTER
MONITOR OUT
Y
Y
Y
PB
PB
PB
PR
PR
PR
S-VIDEO
DVD
IN
IN
OUT
IN
IN
OUT
IN
IN
GAME/AUX TV MONITOR
DVR
TV
DVR / VCR
VIDEO
COMPONENT VIDEO
VIDEO
OUT
DIGITAL
AUDIO
OUT
DVD Player
MONITOR OUT
TV
(TV) IN
OPT 1
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
IN
IN
DVR / VCR
IN
DVD
Page 9
Wednesday, March 9, 2005
Supplied
accessories
11:07 AM
System cable
AC mains lead
or
(x 1)
Changing the digital input settings
You can change the input settings for the digital terminals if
necessary. Note the equipment you have connected to the
terminals, then change the settings (è page 13).
or
(x 1)
Notes on digital input
This unit can decode the following signals:
• Dolby Digital, DTS
• PCM, including PCM with sampling frequencies of 96
or 88.2 kHz
It cannot decode:
• Other digital signals, such as MPEG
• Dolby Digital RF signals from a laser disc player
Note
• The included AC mains lead is for use with this unit only. Do
not use it with other equipment.
• Do not use an AC mains lead from any other type of
equipment with this unit.
• Use digital connection to enjoy Dolby Digital or DTS.
DVD player
AM
ANT
Step 2
LOOP
ANT
GND
L
L
L
L
L
R
R
R
R
R
IN
GAME/AUX
IN
TV
OUT
IN
DVR / VCR
AUDIO
(TV) IN
OPT 1
IN
DVD
Home theater connections
FM
ANT
SC-HT15
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
Connect the video
cable directly to the TV.
FRONT (L, R)
AUDIO OUT
DIGITAL AUDIO
OUT
VIDEO
OUT
VIDEO IN
TV (Monitor)
DVD player
Subwoofer and AC mains lead
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 2 BEFORE
CONNECTION.
Subwoofer
SC-HT17
Insertion of connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front
part of the connector may jut out as shown in
the drawing. However there is no problem using
the unit.
Appliance inlet
Connector
SC-HT15
Conserving power
The unit consumes a small amount
of power even when it is turned off
with [8]. To save power when the
unit is not to be used for a long time,
unplug it from the household AC
mains socket. You will need to reset
some memory items after plugging in
the unit.
Approx. 6 mm
è To household AC mains socket
AC mains lead (included)
Connect this cord after all other cables are connected.
To disconnect
Press the catch and pull out.
75 Ω
Catch
AC IN~
TO SB-WA17
LOOP
FM
ANT
AM
ANT
L
R
EXT
A
To SA-HT17
System cable (included)
A
GAM
RQT7953
SC-HT17EB-EN.fm
9
SC-HT17EB-EN.fm
Step
Page 10
Wednesday, March 9, 2005 10:57 AM
3
Other connections
Other
accessories
Stereo phono cable
(not included)
Left
Right
Video connection cable
(not included)
Optical fibre cable
(not included)
S-Video cable
(not included)
DVD recorder or VCR
SC-HT17
S-VIDEO terminals
Use this connection for better picture quality
than with the VIDEO terminals.
COMPONENT VIDEO terminals
This connection provides high quality pictures by separating the colour
(PB and PR) and the luminance (Y) signals.
Y
Y
Y
PB
PB
PB
PR
PR
PR
Y
PB COMPONENT
VIDEO OUT
PR
Other connections
Step 3
OUT
IN
IN
TV MONITOR DVR
TV
COMPONENT VIDEO
S-VIDEO
S-VIDEO OUT
MONITOR OUT
TV
PR
PB COMPONENT
VIDEO IN
Y
75 Ω
TO SB-WA17
LOOP
FM
ANT
AM
ANT
EXT
LOOP
ANT
GND
L
L
L
L
L
R
R
R
R
R
R
IN
GAME/AUX
A
IN
TV
OUT
IN
DVR / VCR
AUDIO
CENTER
FRONT SURROUND SUBWOOFER
DVD / DVD 6CH
IN
DVR / VCR
IN
DVD
S-VIDEO IN
TV (Monitor)
TV
L
IN
MONITOR OUT
TV (Monitor)
Y
Y
Y
PB
PB
PB
PR
PR
PR
S-VIDEO
DVD
IN
IN
OUT
IN
IN
OUT
IN
IN
GAME/AUX TV MONITOR
DVR
TV
DVR / VCR
COMPONENT VIDEO
VIDEO
MONITOR OUT
TV
(TV) IN
OPT 1
IN
IN
DVR / VCR
IN
DVD
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
21-pin scart cable connection
also possible.
AUDIO OUT
VIDEO OUT
AUDIO IN
VIDEO IN
DIGITAL AUDIO
OUT
DVD recorder or VCR
DVD recorder or VCR
75 Ω
LOOP
TO SB-WA15
EXT
A
FM
ANT
AM
ANT
SC-HT15
LOOP
ANT
GND
L
L
R
R
IN
GAME/AUX
IN
TV
L
L
L
R
R
R
OUT
IN
DVR / VCR
AUDIO
(TV) IN
OPT 1
IN
DVD
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
DVD recorder or VCR
AUDIO OUT
RQT7953
AUDIO IN
10
VIDEO OUT
DIGITAL AUDIO
OUT
Connect the video cable directly
to the TV.
VIDEO IN
TV (Monitor)
SC-HT17EB-EN.fm
Page 11
Wednesday, March 9, 2005 10:57 AM
Changing the digital input settings
You can change the input settings for the digital terminals if
necessary. Note the equipment you have connected to the
terminals, then change the settings (è page 13).
Note
• Use digital connection to enjoy Dolby Digital or DTS.
• Do not bend the optical fibre cable.
TV (Input source)
SC-HT17
S-VIDEO terminals
COMPONENT VIDEO terminals
This connection provides high quality pictures by separating the colour
(PB and PR) and the luminance (Y) signals.
Y
Y
PB
PB
PB
PR
PR
PR
S-VIDEO
Y
PB COMPONENT
VIDEO OUT
PR
OUT
IN
IN
TV MONITOR DVR
TV
COMPONENT VIDEO
S-VIDEO OUT
MONITOR OUT
TV
IN
IN
DVR / VCR
IN
DVD
S-VIDEO IN
Step 3
Y
Use this connection for better picture quality
than with the VIDEO terminals.
75 Ω
TO SB-WA17
LOOP
LOOP
ANT
GND
FM
ANT
AM
ANT
EXT
L
L
L
L
L
L
R
R
R
R
R
R
IN
GAME/AUX
A
TV
IN
TV
OUT
IN
DVR / VCR
AUDIO
CENTER
FRONT SURROUND SUBWOOFER
DVD / DVD 6CH
MONITOR OUT
Y
Y
Y
PB
PB
PB
PR
PR
PR
Other connections
PR
PB COMPONENT
VIDEO IN
Y
S-VIDEO
DVD
IN
IN
OUT
IN
IN
OUT
IN
IN
GAME/AUX TV MONITOR
DVR
TV
DVR / VCR
VIDEO
COMPONENT VIDEO
MONITOR OUT
TV
(TV) IN
OPT 1
IN
IN
DVR / VCR
IN
DVD
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
21-pin scart cable connection
also possible.
AUDIO
OUT
VIDEO OUT
DIGITAL AUDIO
OUT
VIDEO IN
TV (Input source)
75 Ω
FM
ANT
LOOP
AM
ANT
TO SB-WA15
TO SB-WA15
A
A
FM
ANT
LOOP
EXT
EXT
AM
ANT
L
SC-HT15
LOOP
ANT
GND
LOOP
ANT
L GND
L
L
L
L
L
L
L
L
R
R
R
R
R
R
R
IN
IN
GAME/AUX
TV
IN
IN
GAME/AUX
TV
R
R
OUT
IN
DVR / VCR
AUDIO
OUT
IN
DVR / VCR
AUDIO
R
IN
DVD
IN
DVD
AUDIO
OUT
AUDIO
OUT
(TV) IN
OPT 1
(TV) IN
OPT 1
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
(DVR) IN (DVD) IN
OPT 2 COAXIAL
DIGITAL IN
DIGITAL AUDIO
OUT
DIGITAL AUDIO
OUT
TV
RQT7953
75 Ω
TV
11
SC-HT17EB-EN.fm
Page 12
Wednesday, March 9, 2005 10:57 AM
AM loop antenna
FM indoor antenna
Supplied
accessories
Other connections
(x 1)
(x 1)
Stereo phono cable (not included)
Left
Right
Other
accessories
Antenna plug adapter
(For the United Kingdom)
(x 1)
Video connection cable (not included)
Antennas
FM indoor antenna
(included)
For best reception
FM outdoor antenna (not included)
• Disconnect the FM indoor antenna.
• The antenna should be installed by a
competent technician.
Adhesive tape
Fix the end of the antenna
where reception is best.
FM outdoor antenna
2
1
AM loop antenna
(included)
Step 3
3
LOOP
ANT
GND
FM
ANT
Other connections
75 Ω
AM
ANT
LOOP
TO SB-WA17
LOOP
ANT
GND
EXT
L
L
L
R
R
R
IN
GAME/AUX
A
Y
Black
IN
TV
L
Red
R
White
OUT
IN
DVR / VCR
AUDIO
L
L
R
R
CENTER
IN
FRONT SURROUND SUBWOOFER
DVD / DVD 6CH
OUT
IN
LOOP
75 Ω coaxial
cable
Y
PB
PB
PB
PR
AM
ANT PR
PR
FM
ANT
EXT
IN
IN
OUT
IN
GAME/AUX TV MONITOR
DVR
DVR / VCR
For the
United
VIDEO Kingdom COMPONENT VIDE
Antenna plug adaptor
75 Ω
(included)
Click!
2
MONITOR OUT
Y
75 Ω
DVD
TV
1
FM ANT
Keep the antenna cord away from DVD players and other cords.
Game machine or other AV equipment
SC-HT17
75 Ω
-WA17
LOOP
EXT
A
SC-HT15
FM
ANT
AM
ANT
LOOP
ANT
GND
TV
L
L
L
L
L
L
R
R
R
R
R
R
IN
GAME/AUX
IN
TV
OUT
IN
DVR / VCR
AUDIO
CENTER
FRONT SURROUND SUBWOOFER
DVD / DVD 6CH
MONITOR OUT
Y
Y
Y
PB
PB
PB
PR
PR
PR
DVD
IN
IN
FM
ANT
AM
ANT
OUT
IN
IN
OUT
IN
IN
GAME/AUX TV MONITOR
DVR
TV
DVR / VCR
COMPONENT VIDEO
VIDEO
LOOP
ANT
GND
L
L
R
R
IN
GAME/AUX
IN
TV
L
L
L
R
R
R
OUT
IN
DVR / VCR
AUDIO
RQT7953
AUDIO OUT
VIDEO OUT
12
(TV) IN
OPT 1
IN
DVD
(DVR) IN
OPT 2
DIGITAL IN
Connect the video cable
directly to the TV.
VIDEO IN
VIDEO OUT
AUDIO OUT
Game machine
Game machine
TV (Monitor)
SC-HT17EB-EN.fm
Step
Page 13
4
Wednesday, March 9, 2005 10:57 AM
Settings
Change the settings to suit your equipment to the environment in which you are using it. Before making any changes, read the
descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions.
DR COMP è See page 21
A/D ATT è See page 21
INPUT SELECTOR
2 TUNE
MENU
2
DISTANCE è See below
D-INPUT è See below
Switch on.
VOLUME
%DIGITAL %PL
2
2 TUNE
INPUT SELECTOR
MENU
H. BASS
UP
DOWN
PHONES
D-INPUT (digital input)
1
Enter the setup mode.
SETUP
Press at the same time.
2
Select “DISTANCE”.
INPUT SELECTOR
Select the speaker.
MENU
2 TUNE
SETUP
Press at the same time.
DISTANCE
DISTANCE
D-INPUT
3
Enter the setup mode.
2
Select “D-INPUT”.
INPUT SELECTOR
DR COMP
A/D ATT
FRONT
D-INPUT
3
Select the input position.
MENU
TV
TV
FRONT CENTER
SURROUND
Change the setting.
OR
3.0 m
1.0 m
Repeat steps 3 and 4
Exit the setup mode.
2 TUNE
2
5
2 TUNE
OR
10.0 m
DVR
DVD
Change the setting.
OPT
OPT 1
1
OPT 2
COAX
Repeat steps 3 and 4
COMPLETE
5
Exit the setup mode.
2 TUNE
2
2
2 TUNE
4
2
4
DR COMP
A/D ATT
DISTANCE
D-INPUT
COMPLETE
Press at the same time.
Press at the same time.
Note
You can allocate only one piece of equipment per terminal. So
for example if you change “TV” from “OPT1” to “OPT2”, “DVR”
will automatically switch to “OPT1”.
RQT7953
2 TUNE
2
1
3.0 m
3.0 m
1.5 m
Step 4
The factory settings are: FRONT:
CENTER:
SURROUND:
Change the setting for the DIGITAL IN terminals (OPT1, OPT2,
COAXIAL) on the rear of the unit if the equipment you have
connected is different to that labelled.
The factory settings are: TV:
OPT1
DVR: OPT2
DVD: COAX
Settings
Enter the distance of the front, center and surround speakers
from the seating position.
2
DISTANCE
13
SC-HT17EB-EN.fm
Page 14
Wednesday, March 9, 2005 10:57 AM
Settings
Adjusting speaker output level
RECEIVER AV SYSTEM
^
^
DVD
PLAYER
TV
ANALOG 6CH
DVD
DRIVE
SELECT RECORDER
- TUNER/
-BAND
VCR
1
2
3
4
5
6
CH
VOLUME
7
8
9
-/--
DIRECT TUNING
> 10
0
DISC
=
SLOW/SEARCH
SKIP
u
i
t
y
STOP
PAUSE
PLAY
g
h
q
FUNCTIONS
DIRECT NAVIGATOR
TOP MENU
ENTER
SUB MENU/
PLAY LIST
RETURN
TV VOL
DVD REC
REC REC MODE
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
TONE/
BALANCE
Step 4
OFF
1
2
/R
SFC
MUSIC
AV/MOVIE
3
4
5
VOLUME
-LEVEL/
-TEST
Settings
/L
EFFECT
%PL
-LEVEL/
-TEST
-LEVEL/
-TEST
/L
/R
Press and hold
Output the
signal.
-LEVEL/
-TEST
Press and hold
Adjust the main
volume.
Select the
speaker
channel.
Adjust the level.
Stop the test
signal.
Repeat steps 3 and 4
C (center), RS (right surround) and LS (left surround) can be adjusted between –10 dB and +10 dB, with 0 dB being the level of
the front speakers. Adjust center and surround output to the same apparent level of the front speakers.
RQT7953
For SW (subwoofer), you can select “- - -” so there is no output, “MIN” for minimum output, a level between 1 and 19, or “MAX” for
maximum output. Adjust subwoofer output so it is balanced with the front speakers.
Subwoofer output is easily influenced by the source. You can also change its level while playing something for better effect
(è page 20).
14
SC-HT17EB-EN.fm
Page 15
Wednesday, March 9, 2005 10:57 AM
Basic operations
ENTER
SUB MENU/
PLAY LIST
VOLUME
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
UP
DOWN
TONE/
BALANCE
2
3
INPUT SELECTOR
Switch on.
Select input.
TUNER
GAME/AUX
DVD
TV
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
PHONES
1
RETURN
TV VOL
DVD REC
REC REC MODE
EFFECT
OFF
4
-LEVEL/
-TEST
/L
/R
SFC
MUSIC
%PL
AV/MOVIE
VOLUME
Start play of the
source.
The unit sets the
sound mode to suit
the input signal.
SFC
MUSIC AV/MOVIE
DOWN
UP
%PL
Adjust the
volume.
OFF
DVR/VCR
(SC-HT17) When playing video sources connected to DVD
The picture remains on the screen even if you select TUNER.
Adding surround effects to stereo sources
MOVIE
Use this mode when playing movie software, especially
videotapes, recorded in Dolby Surround.
Using Dolby Pro LogicII
%PL
%PL
MUSIC
Adds surround effects to stereo sources.
PANORAMA
Sound is spread out more so you feel like you are surrounded by
music.
Press to select a mode from the table at right.
• To cancel, press [OFF].
You can make fine surround settings when in the
MUSIC or PANORAMA mode. (è page 22)
Using the Sound Field Control (SFC)
LIVE
Brings you up close for “live” stage performance and smoother
vocals.
Enjoy an enhanced sound experience with greater
presence and spread by using these SFC modes
with PCM or analogue stereo sources.
POP/ROCK
For pop, rock, and other music that has a punch to it.
SFC
MUSIC AV/MOVIE
MUSIC
Press to select a mode from the tables at right.
• To cancel, press [OFF].
You can adjust SFC effects. (è page 22)
VOCAL
For adding gloss to vocals.
JAZZ
Conveys the exciting and intimate atmosphere of a jazz club.
DANCE
For dance music and other sounds with a strong beat.
Operations
Dolby Pro LogicII processor works not only on
sources recorded with Dolby Surround, but also on
any stereo source.
PARTY
This mode uses the front and surround speakers so that sound is in
stereo regardless of the direction you are facing.
DRAMA
For dramas and other material where dialog is important.
ACTION
For action movies and other material where impact is important.
• Dolby Pro LogicII and SFC modes remain in
effect until you turn the mode off.
• When input is PCM with sampling frequencies of
96 or 88.2 kHz, you cannot add surround effects
with Dolby Pro LogicII or SFC.
• When input is Dolby Digital or DTS, you cannot
use SFC.
AV/MOVIE
SPORTS
To make you feel like you were in the stadium.
MUSICAL
For musicals and other material where music is important.
GAME
Enjoy gaming with more impact.
MONO
For monaural sound.
RQT7953
Note
15
SC-HT17EB-EN.fm
Page 16
Wednesday, March 9, 2005 10:57 AM
Control guide
Main unit
Standby indicator [^]
[% DIGITAL, % PL II, dts]
[H.BASS]
When the unit is connected to the AC
mains supply, this indicator lights up in
standby mode and goes out when the
unit is turned on.
Lights to indicate the source’s input signal
and decoding format used.
% DIGITAL: Dolby Digital sources
% PL II: Dolby Pro LogicII decoder is
being used
dts: DTS sources
For enhancing the bass sound.
The indicator lights when the feature
is on.
Standby/on switch [8]
Press to switch the unit from on to
standby mode or vice versa. In standby
mode, the unit is still consuming a small
amount of power.
[VOLUME]
Volume control.
VOLUME
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
Remote control
signal sensor
[INPUT SELECTOR]
[2 TUNE 1]
[MENU]
[PHONES]
For selecting input.
The display changes as
follows:
For tuning the radio and
presetting channels.
• For entering various
settings.
• Press and hold to exit the
MENU mode.
Headphone jack
Plug type: 3.5 mm stereo
• Sound does not come from the
speakers if you connect
headphones.
• Avoid listening for prolonged
periods of time to prevent hearing
damage.
TUNER
GAME/AUX
DVD
TV
DVR/VCR
Operations
Display
[DIGITAL INPUT]
[TUNED, ST, MONO]
[SLEEP]
[M]
Program format indicators
Show the channels contained in the digital
input signal.
They do not light when input is analogue.
L: Front left channel
C: Center channel
R: Front right channel
LS: Surround left channel
S: If the surround channel is monaural
RS: Surround right channel
LFE (Low Frequency Effects): Deep-bass
effect.
Radio indicators
TUNED: A station is tuned.
ST: A stereo FM broadcast
is tuned.
MONO: You have switched
to monaural mode to
improve reception.
Sleep timer indicator.
Flashes or lights
during presetting.
DIGITAL INPUT
L
LS
LFE
C
S
TUNED
ST
[RDS, PS, PTY]
(For continental Europe
and the United Kingdom)
Shows the current RDS
display mode.
MONO
RDS
PS
PTY SLEEP
R
RS
RQT7953
10kHz
M
C.FOCUS
2CH MIX SFC
16
100Hz
kHz
MHz
[C.FOCUS, 2CH MIX, SFC]
General display
[kHz, MHz]
C.FOCUS: Appears when you are using
Center Focus
2CH MIX: Appears when you are listening to a
multi-channel source with headphones
SFC: Appears when you are using an SFC
mode
Shows the input mode, radio
frequency and other general
information.
Frequency unit
indicators
kHz: AM, or PCM
sampling frequency
MHz: FM
Spectrum
analyzer display
SC-HT17EB-EN.fm
Page 17
Wednesday, March 9, 2005 10:57 AM
Remote control and Subwoofer
This page describes the buttons used to control this unit.
See the guide starting page 23 for the buttons that control other units.
[^, RECEIVER]
SC-HT17
Standby/on button.
[DVD PLAYER, –ANALOG 6CH]
[TV] [DVD RECORDER] [VCR]
[1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
radio
frequencies
SC-HT15
and
[ ≧ 10, -/--]
To enter two digit channels.
[DISC, DIRECT TUNING]
To enable selection of radio stations
by frequency.
RECEIVER AV SYSTEM
^
^
DVD
PLAYER
TV
ANALOG 6CH
DVD
DRIVE
SELECT RECORDER
- TUNER/
-BAND
VCR
[1, CH, 2]
1
2
3
For selecting preset radio channels.
4
5
6
7
8
CH
VOLUME
[SUBWOOFER]
For selecting subwoofer level.
[-H.BASS/–C.FOCUS]
• For enhancing the bass sound.
• Press and hold to select center
focus mode.
9
-/--
DIRECT TUNING
0
DISC
u
> 10
=
SLOW/SEARCH
SKIP
i
t
y
STOP
PAUSE
PLAY
g
h
q
FUNCTIONS
DIRECT NAVIGATOR
[INPUT MODE]
TOP MENU
For selecting AUTO, ANALOG or
DIGITAL.
[TONE/BALANCE]
To adjust the bass, treble and front
speaker balance.
[OFF]
To cancel surround effect.
[% PL II]
For selecting a Dolby Pro LogicII
mode: MOVIE, MUSIC or
PANORAMA.
[MUSIC]
For selecting SFC modes: LIVE, POP/
ROCK, VOCAL, JAZZ, DANCE or
PARTY.
[DVD PLAYER, –ANALOG 6CH]
(SC-HT17)
Press and hold and DVD input
switches between 6-channel and
2-channel.
[-TUNER/–BAND]
For selecting TUNER.
After selecting TUNER, press and
hold to switch between FM and AM.
[+, –, VOLUME]
[MUTING]
SUB MENU/
PLAY LIST
RETURN
TV VOL
DVD REC
REC REC MODE
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
OFF
Input mode and remote control mode
buttons.
To adjust the volume.
ENTER
TONE/
BALANCE
[DVD PLAYER] [TV]
[DVD RECORDER] [VCR]
EFFECT
%PL
-LEVEL/
-TEST
/L
/R
SFC
MUSIC
AV/MOVIE
To mute the volume.
[-LEVEL/–TEST]
• Use when adjusting speaker level.
• Press and hold to start the speaker
test signal.
[EFFECT]
Use when adjusting Dolby Pro LogicII
or SFC effects.
[–/L, +/R]
First select EFFECT, LEVEL, TONE
or BALANCE, then press [–/L] or [+/R]
to adjust.
[AV/MOVIE]
For selecting SFC modes: DRAMA,
ACTION, SPORTS, MUSICAL, GAME
or MONO.
Operations
To enter
channels.
AC supply indicator [AC IN]
(SC-HT17) When DVD ANALOG 6CH input is selected:
Set your DVD player speaker output to "small", provided it has a speaker output setting function.
RQT7953
This indicator lights when the unit is
connected to the AC mains supply.
17
SC-HT17EB-EN.fm
Page 18
Wednesday, March 9, 2005 10:57 AM
The radio
MENU
RECEIVER AV SYSTEM
^
^
DVD
PLAYER
TV
ANALOG 6CH
2
3
4
5
6
7
8
9
-/--
DIRECT TUNING
DISC
0
CH
> 10
=
VCR
1
2
3
4
5
6
7
8
- TUNER/
-BAND
VOLUME
CH
%DIGITAL %PL
VOLUME
0
DISC
2 TUNE
t
PAUSE
PHONES
g
h
y
q
FUNCTIONS
TOP MENU
1
2
- TUNER/
-BAND
RETURN
TV VOL
DVD REC
REC REC MODE
TV VOL
TV
TV/AV
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
EFFECT
/L
Select “TUNER”.
MUTING
Select “FM” or
“AM”.
-LEVEL/
-TEST
3
2 TUNE
Select the frequency.
Auto tuning starts if you press
and hold the button.
/R
Direct tuning
Input the frequency of the station.
Remote control
1. Press [-TUNER/–BAND] to select “TUNER”.
2. Press and hold [-TUNER/–BAND] to select “FM” or
“AM”.
3. Press [DISC, DIRECT TUNING].
4. Press the numbered buttons to enter the frequency.
e.g. To select 107.90 MHz, press [1] → [0] → [7] → [9]→ [0]
• If you do not press a button while the cursor is flashing, the
display returns to the frequency being received.
• If the frequency has not been input correctly, “ERROR” will be
displayed.
Automatic presetting
The FM stations the unit can receive are preset in channels 1 to
30. The AM stations the unit can receive are preset in channels
21 to 30. (FM stations are replaced if any were preset in these
channels.)
Preparation: Select “FM” or “AM”.
Main unit
Operations
- TUNER/
-BAND
Press and hold
ENTER
SUB MENU/
PLAY LIST
1. Press [MENU] to select “MEMORY”.
2. Press and hold [TUNE 2].
The tuner presets all the stations it can receive into the channels
in ascending order.
If you press and hold [TUNE 1], it starts from the current
frequency.
During automatic presetting, the memory indicator (M) flashes
and the frequency scrolls. The memory indicator and channel
numbers are displayed for a second when a station is preset.
The last station to be preset is displayed when presetting
finishes.
To cancel
Press and hold [MENU].
RQT7953
UP
DOWN
PLAY
DIRECT NAVIGATOR
18
H. BASS
SLOW/SEARCH
i
STOP
TONE/
BALANCE
MENU
> 10
=
SKIP
u
INPUT SELECTOR
9
-/--
DIRECT TUNING
2
1
2
DVD
DRIVE
SELECT RECORDER
To switch between FM and AM on the main unit
1. Press [MENU] to select “BAND”.
2. Press [TUNE 2 or 1] to select “FM” or “AM”.
3. Press [MENU].
Manual presetting
Preset the stations one at a time.
Preparation: Tune to the station you want to preset.
Main unit
1. Press [MENU] to select “MEMORY”.
2. Press [TUNE 2 or 1] to select the channel.
3. Press [MENU] to store.
To cancel
Press and hold [MENU].
For your reference
FM stations can also be preset in the MONO mode.
Selecting channels
Remote control
Press [1, CH, 2].
or
Press the numbered buttons.
For channels 1 to 9, press the corresponding number.
For channels 10 or over, press [ ≧ 10, -/--], then the two digits.
e.g. To select channel 21: [ ≧ 10, -/--] → [2] → [1]
FM mode
You can improve FM reception by switching reception to
monaural.
Main unit
1. Press [MENU] to select “FM MODE”.
2. Press [TUNE 2 or 1] to select “MONO”.
Select “AUTO” to cancel.
3. Press [MENU].
“MONO” lights.
To change the AM frequency step
If the correct AM frequency cannot be tuned in, change the
frequency step to suit your area.
On the main unit
1. Press [MENU] to select “AM ALLOC”.
2. Press [TUNE 2 or 1] to select “9” or “10”.
3. Press [MENU].
(The frequency step changes from 9 kHz to 10 kHz.).
SC-HT17EB-EN.fm
Page 19
Wednesday, March 9, 2005 10:57 AM
The radio
MENU
2
2 TUNE
VOLUME
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
RDS broadcasts
1. Press [MENU] to select “DISPLAY”.
2. Press [TUNE 2 or 1] to select “FREQ”, “RDS PS”,
or “RDS PTY”.
3. Press [MENU].
FREQ: Frequency display
RDS PS: Pogram service, the station name (default setting)
RDS PTY: Program type
Note
This unit does not have the emergency broadcast system (EBS)
that tunes automatically into emergency broadcasts.
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M. O. R. M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATIONAL
OLDIES
FOLK M
DOCUMENT
TEST
ALARM
News
Current affairs
Information
Sport
Education
Drama
Culture
Science
Varied
Pop music
Rock music
Middle-of-the-road Music
Light classical
Serious classical
Other music
Weather information
Finance
Children
Social affairs
Religion
Phone in
Travel
Leisure
Jazz music
Country music
National music
Oldies
Folk music
Documentary
Test broadcast
Emergency announcement
Operations
Main unit
PTY Displays
RQT7953
(For continental Europe and the United Kingdom)
This unit can display the text data transmitted by the radio data
system (RDS) available in some areas.
“RDS” lights while RDS signals are being received.
RDS displays may not be available if reception is poor.
19
SC-HT17EB-EN.fm
Page 20
Wednesday, March 9, 2005 10:57 AM
Other functions
7
8
9
-/--
DIRECT TUNING
> 10
0
DISC
=
SLOW/SEARCH
SKIP
u
i
t
y
STOP
PAUSE
PLAY
g
h
q
FUNCTIONS
DIRECT NAVIGATOR
TOP MENU
ENTER
SUBWOOFER
H. BASS
MUTING
SUB MENU/
PLAY LIST
RETURN
TV VOL
DVD REC
REC REC MODE
INPUT MODE
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
TONE/
BALANCE
VOLUME
TV VOL
TV
TV/AV
OFF
EFFECT
%PL
-LEVEL/
-TEST
/L
- H.BASS/
-C.FOCUS
/R
SFC
MUSIC
AV/MOVIE
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
Input mode
This unit automatically detects whether input is digital or
analogue, but you can fix the input mode.
Remote control
Press [INPUT MODE] to select "AUTO", "ANALOG" or
"DIGITAL".
TONE/
BALANCE
/L
/R
H.Bass
You can enhance low-frequency sound so that heavy bass
sound can be heard clearly, even if the acoustics of your room
are not optimal.
Remote control
Press [-H.BASS/–C.FOCUS].
Main unit
Tone
You can adjust the level of the bass and treble.
Remote control
1. Press [TONE/BALANCE] to select “BASS” or
“TREBLE”.
2. Press [–/L] or [+/R] to adjust bass/treble.
Press [H.BASS].
The indicator lights.
To cancel
Press [-H.BASS/–C.FOCUS] or [H.BASS] again.
Note
• You cannot use H.Bass when you are using headphones.
• Actual effect depends on the disc.
Note
Operations
• Input signals must be either analogue or PCM, and Dolby Pro
LogicII and SFC must be off.
• (SC-HT17) You cannot adjust the tone if DVD ANALOG 6CH
is selected.
Balance
You can adjust the balance of the front speakers.
Remote control
1. Press [TONE/BALANCE] to select “BALANCE”.
2. Press [–/L] or [+/R] to adjust.
Subwoofer level
Remote control
Press [SUBWOOFER].
Adjust the level in 5 steps:
SW MIN, SW 5, SW 10, SW 15, and SW MAX.
Select SW - - - to stop output.
RQT7953
Note
20
• Sound can be distorted if you raise the volume while
subwoofer level is high. Reduce subwoofer level if this occurs.
• (SC-HT17) You cannot adjust the subwoofer level if DVD
ANALOG 6CH is selected.
Center focus
(Disc where the dialogue is recorded in the center channel)
You can make the sound of the center speaker seem like it is
coming from within the television.
Remote control
Press and hold [-H.BASS/–C.FOCUS].
“C.FOCUS” lights.
The factory setting is off.
The center focus cannot be used in the following cases:
• When input signal is PCM or analogue stereo.
• (SC-HT17) When DVD ANALOG 6CH is selected.
Muting
Remote control
Press [MUTING].
To cancel
Press [MUTING] again.
Muting is also cancelled when the unit is turned off.
SC-HT17EB-EN.fm
Page 21
Wednesday, March 9, 2005 10:57 AM
Other functions
TOP MENU
2 TUNE
2
INPUT SELECTOR
ENTER
MENU
INPUT MODE
SUB MENU/
PLAY LIST
RETURN
TV VOL
DVD REC
REC REC MODE
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
TONE/
BALANCE
VOLUME
OFF
EFFECT
%PL
-LEVEL/
-TEST
/L
/R
SFC
MUSIC
AV/MOVIE
%DIGITAL %PL
2 TUNE
2
INPUT SELECTOR
MENU
H. BASS
DOWN
UP
PHONES
Turn the A/D attenuator on if “OVERFLOW” lights frequently
when using 2-channel analogue input.
Main unit
1. Press [TUNE 2 and 1] at the same time to enter the
setup mode.
2. Press [INPUT SELECTOR] to select “A/D ATT”.
3. Press [TUNE 2 or 1] to select “ON” or “OFF”.
4. Press [TUNE 2 and 1] at the same time to exit the
setup mode.
Dynamic range compression
Change this setting to listen to software recorded with Dolby
Digital at low volume (such as late at night) and maintain audio
clarity. It reduces the peak level in loud scenes without affecting
the sound field.
Main unit
1. Press [TUNE 2 and 1] at the same time to enter the
setup mode.
2. Press [INPUT SELECTOR] to select “DR COMP”.
3. Press [TUNE 2 or 1] to select “OFF”, “STANDARD”
or “MAX”.
4. Press [TUNE 2 and 1] at the same time to exit the
setup mode.
OFF:
The software is played with the original dynamic range (factory
setting).
STANDARD:
The level recommended by the producer of the software for
household viewing.
MAX:
The maximum allowable compression (recommended for night
viewing).
Dimmer
Sleep timer
The SLEEP timer can turn the unit off after a set time.
It does not control any other components.
Main unit
1. Press [MENU] to select “SLEEP”.
2. Press [TUNE 2 or 1] to select the desired time.
The display changes as follows:
OFF v SLEEP 30 v SLEEP 60 v SLEEP 90 v
SLEEP 120 (minutes)
3. Press [MENU].
The display dims even when the dimmer is “OFF”.
To check the setting
1. Press [MENU] to select “SLEEP”.
2. Press [TUNE 2 or 1] once. The time remaining appears.
3. Press [MENU].
To change a setting
Repeat the procedure from the beginning.
PCM/DTS fix mode
In rare cases, the unit may have trouble recognizing the digital
signals on discs.
• With the PCM signals on CDs, this may cause the beginning
of a track to be cut off. Engage the PCM FIX mode if this
occurs.
• With DTS, the signals may not be recognized at all. Engage
the DTS FIX mode if this occurs.
While the input source is selected:
Remote control
1. Press [INPUT MODE] to select “DIGITAL”
2. Press and hold [INPUT MODE] for four seconds.
The current mode is displayed. Press again to change the mode.
Each time you press the button:
Operations
A/D attenuator
AUTO → PCM FIX → DTS FIX
When a FIX mode is on, the unit cannot process other signals.
This may cause noise to be output. Select “AUTO” if this occurs.
The mode returns to AUTO when you switch the unit to standby.
Main unit
1. Press [MENU] to select “DIMMER”.
2. Press [TUNE 2 or 1] to select “OFF” or “ON”.
3. Press [MENU].
For your reference
If you are playing a DTS CD that contains both DTS and PCM,
but it isn’t playing properly, then do the following after step 1
above:
On the Main unit
1. Press [MENU] to select “DTS-PCM”.
2. Press [TUNE 2 or 1] to select “ON”.
3. Press [MENU].
If this causes noise to occur, return the setting to “OFF”. (This
setting is effective for each digital source.)
RQT7953
Dim the display for better viewing in a darkened room.
21
SC-HT17EB-EN.fm
Page 22
Wednesday, March 9, 2005 10:57 AM
Making a recording
Other functions
TOP MENU
ENTER
INPUT SELECTOR
SUB MENU/
PLAY LIST
RETURN
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
TONE/
BALANCE
OFF
EFFECT
%PL
/L
-LEVEL/
-TEST
/R
SFC
MUSIC
%DIGITAL %PL
AV/MOVIE
/L
INPUT SELECTOR
/R
Center Width Control "C-WDTH"
You can adjust the effect of MUSIC and PANORAMA with the
center width control.
This adjustment helps you realise a more natural sound image
when listening to music. Move sound out into the front speakers
to improve the overall front image, or add sound to the center
speaker to fix the center image.
You can choose a level between 0 (the center speaker is
dominant) and 7 (center sound is spread out).
The default level is 3.
Remote control
1. Press [EFFECT] to select “C-WDTH”.
2. Press [–/L] or [+/R] to adjust the effect.
Dimension Control "DIMEN"
You can adjust the effect of MUSIC and PANORAMA with the
dimension control.
You can make up for differences in the output level of the front
and surround speakers.
You can choose a level between –3 and +3 — Increase the level
to move sound to the front speakers, decrease to move it to the
surround speakers.
The default is level 0.
Remote control
2 TUNE
MENU
H. BASS
Recording on other equipment
You can record to a unit connected to DVR/VCR OUT.
You can record any analogue source except DVR/VCR IN.
1. Press [INPUT SELECTOR] to select the source to be
recorded.
2. Begin recording.
Follow your recording unit’s operating instructions.
3. Start the source to be recorded.
Note
• (SC-HT17) When you select DVD ANALOG 6CH mode, only
sound from the front left and right channels is recorded.
• This unit cannot record digital sources. Connect through the
analogue terminals and select "ANALOG" input.
The RESET function
2 TUNE
MENU
2
EFFECT
-LEVEL/
-TEST
2
TV VOL
DVD REC
REC REC MODE
Adjusting SFC effects
%DIGITAL %PL
You can adjust the sound field by adjusting the level of the
speakers and the delay time of the surround speakers. These
adjustments can be made for each SFC mode.
To adjust the speaker level
Remote control
1. Press [-LEVEL/–TEST] to select the speaker
channel.
Each time you press the button:
C →RS→ LS→ SW
2. Press [–/L] or [+/R] to adjust the level.
C, RS, and LS:–10 dB to +10 dB
SW:– – – (off) ↔ MIN ↔ 1 – 19 ↔ MAX
To adjust the delay time
RQT7953
Remote control
22
1. Press [EFFECT].
2. Press [–/L] or [+/R] to change the delay time.
The default is 50 mSEC. (10 mSEC – 100 mSEC)
INPUT SELECTOR
2 TUNE
2
Operations
1. Press [EFFECT] to select “DIMEN”.
2. Press [–/L] or [+/R] to adjust the effect.
MENU
H. BASS
The operation settings for the unit will be initialised to the
settings made at the time of shipment.
However, any preset radio stations will not be erased.
1. Press [MENU] to select “RESET”.
2. Press [TUNE 2 or 1] to select “YES”.
To cancel, select “NO”.
3. Press [MENU].
SC-HT17EB-EN.fm
Page 23
Wednesday, March 9, 2005 10:57 AM
Remote control operation guide
This remote control can operate Panasonic and Technics audiovisual components that have remote control sensors.
You may need to change the remote control code. (è page 25)
Note that this remote control cannot operate some equipment and that it may not be able to perform some operations.
DVD
Watching DVDs
RECEIVER AV SYSTEM
^
^
DVD
PLAYER
TV
Switch on
AV SYSTEM
TV
DVD
DRIVE
SELECT RECORDER
- TUNER/
-BAND
VCR
TV
TV/AV
^
ANALOG 6CH
Switch on the television and select input
1
2
3
4
5
6
7
8
-/--
0
SC-HT17
VOLUME
DVD
PLAYER
DVD
PLAYER
> 10
DVD
RECORDER
AV SYSTEM
PLAY
^
q
Switch on the player and start play
=
i
or
ANALOG 6CH
SLOW/SEARCH
SKIP
u
SC-HT15
9
DIRECT TUNING
DISC
CH
t
y
STOP
PAUSE
PLAY
g
h
q
Switch off
SC-HT15
SC-HT17
DVD
PLAYER
DVD
PLAYER
ANALOG 6CH
FUNCTIONS
DIRECT NAVIGATOR
TOP MENU
DVD
RECORDER
or
AV SYSTEM
AV SYSTEM
TV
^
^
Operating the DVD player/DVD recorder
ENTER
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
OFF
EFFECT
%PL
TOP MENU
TV VOL
/R
4
5
6
7
8
-/--
9
> 10
=
Start play from a
selected item
SUB MENU/
PLAY LIST
MENU
ENTER
AV/MOVIE
u
Show disc menus
Select and enter
menu items
FUNCTIONS
DRIVE
SELECT
PAUSE
h
RETURN
MENU
Clear menus or return to
previous menus
i
SLOW/SEARCH
t
Show player menus
MENU
Skip items
during play
SKIP
TV VOL
Switch between DVD
and HDD
[DVD recorder with HDD]
3
0
SFC
MUSIC
2
Show disc menus
-LEVEL/
-TEST
/L
1
y
Search through
the disc
SLOW/SEARCH
t
y
Start slow-motion play
PAUSE
TV VOL
h
When you cannot switch
to the disc or hard disk
drive, after performing
the following operations,
press the button again.
1. While pressing
[ENTER], press and
hold [8] or [9] for
approximately 2
seconds.
2. Press [DVD
RECORDER].
The factory setting is [9].
Operations
TV VOL
DVD REC
REC REC MODE
TONE/
BALANCE
DIRECT NAVIGATOR
RETURN
To view frame-by-frame
DIRECT TUNING
DISC
1
2
4
5
Specify a disc [5-disc changer]
REC MODE
Select a recording
mode
3
STOP
PAUSE
g
h
Stop play
Pause play
REC
Start recording
(Press and hold)
When using a Panasonic DVD recorder
Change the unit’s remote control code to match the remote control code of the DVD recorder.
Preparations: Check the remote control code of the DVD recorder.
For about one second hold down both [ENTER] and the button ([1], [2] or [3]) which the same number as the remote control
code set by the DVD recorder.
The factory setting is [1].
RQT7953
SUB MENU/
PLAY LIST
23
SC-HT17EB-EN.fm
Page 24
Wednesday, March 9, 2005 10:57 AM
Remote control operation guide
TV/VCR
Watching TV
RECEIVER AV SYSTEM
^
^
DVD
PLAYER
TV
Switch on
ANALOG 6CH
DVD
DRIVE
SELECT RECORDER
- TUNER/
-BAND
VCR
AV SYSTEM
TV
TV
TV/AV
^
1
2
3
4
5
6
7
8
9
Switch on the television and select input
CH
VOLUME
-/--
DIRECT TUNING
0
DISC
u
> 10
=
SLOW/SEARCH
SKIP
i
t
y
STOP
PAUSE
PLAY
g
h
q
Switch off
AV SYSTEM
TV
^
FUNCTIONS
DIRECT NAVIGATOR
TOP MENU
Operating the TV
ENTER
SUB MENU/
PLAY LIST
RETURN
TV VOL
DVD REC
REC REC MODE
TV VOL
TV
TV/AV
MUTING
- H.BASS/
INPUT MODE SUBWOOFER -C.FOCUS
TONE/
BALANCE
OFF
EFFECT
%PL
-LEVEL/
-TEST
/L
1
2
3
4
CH
Change channels
sequentially
1
2
3
4
5
6
7
8
0
Select channels
directly
9
-/-> 10
=
/R
SUB MENU/
PLAY LIST
RETURN
TV VOL
TV VOL
Adjust the volume
SFC
MUSIC
AV/MOVIE
Watching videotapes
Switch on
AV SYSTEM
TV
TV
TV/AV
^
Operations
Switch on the television and select input
VCR
AV SYSTEM
PLAY
^
q
Switch on the player and start play
Switch off
AV SYSTEM
VCR
TV
AV SYSTEM
^
^
Operating the video deck
RQT7953
1
24
2
3
4
CH
Change channels
sequentially
STOP
g
1
2
3
4
5
6
7
8
0
Stop play
9
-/-> 10
=
Select channels
directly
SLOW/SEARCH
t
y
Rewind or fast-forward
PAUSE
h
Pause play
SC-HT17EB-EN.fm
Page 25
Wednesday, March 9, 2005 10:57 AM
Using this remote control to operate equipment manufactured by Panasonic, Technics, and
other companies
It can also operate some other brands of televisions, video cassette players, and DVD players. Check the table for the brand and enter
the code as follows.
^
Changing the codes
TV
TV
ANALOG 6CH
DVD
DRIVE
SELECT RECORDER
VCR
- TUNER/
-BAND
VCR
DVD player
SC-HT15
TV
1
2
3
4
5
6
7
8
9
u
> 10
=
i
t
STOP
PAUSE
The remote control outputs the on/off signal.
If the code is correct, the equipment turns on or off.
If it doesn’t, try entering another code.
g
h
y
PLAY
q
Code table
TOPMENU
MENU
TOP
ENTER
ENTER
ALBA
TV VOL
DVD REC
APEX
REC REC MODE
B AIRD
BAUR
INPUT MODE SUBWOOFER
EFFECT
/L
07,11,28,36
RETURN
37
05,11,12
TV VOL
06,08,16,17
19,37
02,06,23
MUTING
28,36
/R
SFC
26,41
AV/MOVIE
02,05,10,11
12,32,38
11,12,32
MUSIC
DAEWOO
DENON
DUAL
FERGUSON
FINLUX
FISHER
FUNAI
GOLDSTAR
GOLDSTAR/LG
GOODMANS
GO-VIDEO
GRUNDIG
HARMAN KARDON
HCM
HITACHI
ICE
INNO HIT
ITT
ITT/NOKIA
JVC
KENDO
KENWOOD
KLH
KONIKA
KOSS
LOEWE
LOEWE OPTA
LUXOR
METZ
MINTEK
MITSUBISHI
01,29,30
- H.BASS/ -LEVEL/
-C.FOCUS
32 -TEST
BOSE
BRANDT
OFF
%PL
BUSH
VCR
01,29,30,31
TV
TV/AV
BLAUPUNKT
TONE/
MATSUI
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
0
0
Enter the first digit
Enter the second digit
• Re-enter the codes after you change the batteries.
TV
PANASONIC
AIWA
SUB MENU/
AKAI
PLAY LIST
1
FUNCTIONS
DIRECT NAVIGATOR
BALANCE
Press and hold the button corresponding to
the equipment
SLOW/SEARCH
SKIP
DVD
PLAYER
ANALOG 6CH
-/--
0
DISC
DVD
PLAYER
CH
VOLUME
DIRECT TUNING
VCR
SC-HT17
DVD player
23
NEC
NEXTBASE
NOKIA
20,35,36
NORDMENDE
OCEANIC
OKANO
ONKYO
ORION
01
08,10,37
01,26,29,30,33
39
02,09,23
15
01,17
32
11,12
11,12,22,23
24,25,40
37
02,38
11,12
11,12,25,32
28,36
31
02
05,07,10,11,12
18
03,04,36,37
02,03,18,23
27,33
12
02,23,26,28
32,33
34
01,09,26,41
21,39
34
05,07,37
18
40
02,23
13,14
08,10,11,37
18,27,37
20,21
08,09,37
11
09
15,29
32
19
31
14,33
32
37
02,05,06,07,10
11,12,25,37,38
14,19,28,36
03,32
08,10,11,17
19,37
03,05,09
01
17,19,21,32
38
06
ORITRON
PHILIPS
PHONOLA
PIONEER
POLKAUDIO
RADIOLA
RAITE
RCA
RFT
ROADSTAR
SABA
SALORA
SAMPO
SAMSUNG
TV
VCR
04,21,36,37
05,07,37
08,10,11,18
22,27,37
20,21
26,41
27,35
06
02,03,05,10
11,12,38
05,09
11,12,13,15
11,12
22,32,33,34,35
32
11,12,15,21
25,34,39
07,17,25,37
SANYO
SCHAUB LORENZ
SCHNEIDER
SEG
11,12
39,40
SELECO
11,24
SHARP
SIEMENS
SILVANIA
SINUDYNE
17,20
11,12,17,28,36
SMC
SONY
TECHNICS
THOMSON
THORN
TOSHIBA
UNIVERSUM
VENTURER
VIALTA
WHITE WESTIN
HOUSE
YAMAHA
ZENITH
37
02
21,33
24
04,16
03
16
11,12
39
26,41
07,37
DVD player
33
02,03,18,23,27
21
08,11,17,19,37
15,16,18,27
13
02
02
14
10
07,10,11
10
02,03,18,23,27,32
02,18,23,27
22
03,10,11,32
Operations
^
DVD
PLAYER
08
18
02,05,11,12
22,24,38,40
25
16
24,25,26
05,26,27,28
05,26,41
06,08,11,12
14,16,25,32
03,04,06,08
39
21
10
02
15,17,19,32
03,08,32,37
04
01
32
31
11,12,22,40
01,22,30
07,12
RQT7953
RECEIVER AV SYSTEM
25
SC-HT17EB-EN.fm
Page 26
Wednesday, March 9, 2005 10:57 AM
Troubleshooting guide
Before requesting service, make the below checks.
If you can’t fix the unit as described or if something not listed here occurs, contact your dealer.
Common problems
No power.
• Ensure the AC mains lead and system cable are connected.
9
No sound.
•
•
•
•
•
•
15
7-12
15
13
9
21
“F76” appears on the
display, and the unit turns
off.
“FAN LOCK” appears on
the display.
“F 70” appears on the
display.
Turn the volume up.
Check connections to speakers and other equipment.
Select the correct source.
Change the D-INPUT setting to suit the type of connection you have made.
Check that the digital signals can be decoded by this unit.
Turn PCM FIX or DTS FIX off.
• Determine and correct the cause, then turn the unit on.
Causes include:
− Shorting (bare wires touching) of positive and negative speaker wires.
− Using the subwoofer in a hot environment without proper ventilation.
Consult your dealer if the problem occurs again after turning the unit on.
7
–
• Turn the unit off, disconnect the AC mains lead, and consult your dealer.
–
Sound
• The source may be stereo. Use Dolby Pro LogicII or SFC.
15
Cannot use Dolby Pro
LogicII or SFC.
• You cannot use Dolby Pro LogicII or SFC when input is PCM with
sampling frequencies of 96 or 88.2 kHz.
15
The radio cannot be tuned
in or there is a lot of noise
and interference.
There is a lot of noise
when listening to AM.
Reference
The correct AM frequency
cannot be tuned in.
Pages
• Connect the appropriate antenna. (You may need an outdoor antenna or
one with more elements.)
• Adjust the position of the FM or AM antenna.
• Reduce the treble.
• Turn off nearby televisions, video decks and DVD players.
• Separate the antenna from other cables, leads, and appliances.
12
• Press and hold [H.BASS] on the main unit so “DEFEAT” appears (the DSP
is defeated). This should reduce noise. The unit cannot play multiple
channel sound while the DSP is defeated, so repeat this to reengage the
DSP.
20
• Change the frequency step.
18
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, carefully read the instructions that came with the cloth.
RQT7953
Pages
Sound is not heard from
the center, surround, or
subwoofer speakers.
Radio
26
Pages
12
20
–
–
SC-HT17EB-EN.fm
Page 27
Wednesday, March 9, 2005 10:57 AM
Specifications (DIN 45 500)
n AMPLIFIER SECTION
Input power (IEC)
OPTICAL
COAXIAL
2
1
n VIDEO SECTION (SC-HT17)
Output voltage at 1 V input (unbalanced)
Maximum input voltage
Input/output impedance
n FM TUNER SECTION
Frequency range
Sensitivity
S/N 30 dB
S/N 26 dB
S/N 20 dB
IHF usable sensitivity
IHF 46 dB stereo quieting sensitivity
Total harmonic distortion
MONO
STEREO
S/N
MONO
STEREO
Frequency response
Image rejection at 98 MHz
IF rejection at 98 MHZ
Stereo separation (1 kHz)
Antenna terminal
n AM TUNER SECTION
Frequency range
Sensitivity
Selectivity (at 999 kHz)
n SPEAKER SECTION
1±0.1 Vp-p
1.5 Vp-p
75 Ω
87.50-108.00 MHz
1.5 µV/75 Ω
1.3 µV/75 Ω
1.2 µV/75 Ω
(IHF’58) 1.5 µV/75 Ω
22 µV/75 Ω
0.2 %
0.3 %
60 dB (71 dB, IHF)
58 dB (65 dB, IHF)
20 Hz-15 kHz, +1 dB, -2 dB
40 dB
70 dB
40 dB
75 Ω (unbalanced)
522-1611 kHz (9 kHz steps)
530-1620 kHz (10 kHz steps)
450 µV/m
35 dB
Front speaker (SC-HT17:SB-FS930) (SC-HT15:SB-FS880)
Type
[SC-HT17] 2 Way, 3 Speakers, Bass-ref.
[SC-HT15] 2 Way, 2 Speaker, Bass-ref.
Speaker unit
Full range
[SC-HT17] 8 cm cone type x 2, 6 Ω
[SC-HT15] 8 cm cone type, 4 Ω
Super tweeter
[SC-HT17] 6 cm Ring Shaped Dome type, 6 Ω
[SC-HT15] 6 cm Ring Shaped Dome type, 4 Ω
n GENERAL
Power supply
For the United Kingdom, Australia and New Zealand
AC 230-240 V, 50 Hz
For continental Europe
AC 230 V, 50 Hz
Power consumption
(Main unit)
25 W
(Subwoofer)
[SC-HT17] 390 W
[SC-HT15] 340 W
Dimensions (W x H x D) (Main unit)
430 x 63 x 260 mm
Mass (Main unit)
[SC-HT17] 1.85 kg
[SC-HT15] 1.8 kg
Power consumption in standby mode:
1W
Reference
Digital input
[SC-HT17] 170 W (Max)
[SC-HT15] 70 W (Max)
Output sound pressure level
[SC-HT17] 84 dB/W (1.0 m)
[SC-HT15] 81 dB/W (1.0 m)
Crossover frequency
7 kHz
Frequency range
[SC-HT17] 75 Hz-50 kHz (-16 dB)
90 Hz-45 kHz (-10 dB)
[SC-HT15] 78 Hz-50 kHz (-16 dB)
90 Hz-45 kHz (-10 dB)
Dimensions (W x H x D)
260 x 1172 or 1233 x 269 mm
Mass
[SC-HT17] 4.4 kg
[SC-HT15] 3.9 kg
Surround speaker (SC-HT17:SB-FS880) (SC-HT15:SB-FS15)
Type
2 Way, 2 Speaker, Bass-ref.
Speaker unit
Full range
8 cm cone type, 4 Ω
[SC-HT17] Super tweeter
6 cm Ring Shaped Dome type, 4 Ω
[SC-HT15] Tweeter
Piezo type, 4 Ω
Input power (IEC)
70 W (Max)
Output sound pressure level
[SC-HT17] 81 dB/W (1.0 m)
[SC-HT15] 80 dB/W (1.0 m)
Crossover frequency
[SC-HT17] 7 kHz
[SC-HT15] 5 kHz
Frequency range
[SC-HT17] 78 Hz-50 kHz (-16 dB)
90 Hz-45 kHz (-10 dB)
[SC-HT15] 85 Hz-30 kHz (-16 dB)
95 Hz-27 kHz (-10 dB)
Dimensions (W x H x D)
[SC-HT17] 260 x 1172 or 1233 x 269 mm
[SC-HT15] 100 x 324 x 111 mm
Mass
[SC-HT17] 3.9 kg
[SC-HT15] 0.9 kg
Center speaker (SC-HT17:SB-PC930) (SC-HT15:SB-PC15)
Type
2 Way, 3 Speakers, Bass-ref.
Speaker unit
Full range
6.5 cm cone type x 2, 4 Ω
[SC-HT17] Super tweeter
6 cm Ring Shaped Dome type, 4 Ω
[SC-HT15] Tweeter
6 cm cone type, 4 Ω
Input power (IEC)
260 W (Max)
Output sound pressure level
82 dB/W (1.0 m)
Crossover frequency
5 kHz
Frequency range
[SC-HT17] 110 Hz-50 kHz (-16 dB)
140 Hz-45 kHz (-10 dB)
[SC-HT15] 110 Hz-45 kHz (-16 dB)
140 Hz-35 kHz (-10 dB)
Dimensions (W x H x D)
320 x 84 x 95.5 mm
Mass
1.4 kg
Active subwoofer (SC-HT17:SB-WA17) (SC-HT15:SB-WA15)
Type
1 Way, 2 Speaker, Bass-ref.
Speaker unit (Woofer)
[SC-HT17] 15 cm cone type, 4 Ω
[SC-HT15] 13 cm cone type, 4 Ω
Output sound pressure level
[SC-HT17] 84 dB/W (1.0 m)
[SC-HT15] 80 dB/W (1.0 m)
Frequency range
[SC-HT17] 34 Hz-220 Hz (-16 dB)
38 Hz-190 Hz (-10 dB)
[SC-HT15] 40 Hz-220 Hz (-16 dB)
45 Hz-180 Hz (-10 dB)
Dimensions (W x H x D)
[SC-HT17] 202 x 410 x 500 mm
[SC-HT15] 200 x 367.5 x 492 mm
Mass
[SC-HT17] 13.7 kg
[SC-HT15] 11.3 kg
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum analyzer.
For main unit
Marking sign is located on bottom of the unit.
RQT7953
RMS output power of each channel driven
(at 240 V for areas other than continental Europe)
10 % total harmonic distortion
1 kHz front CH
[SC-HT17] 170 W per channel (6 Ω)
[SC-HT15] 60 W per channel (4 Ω)
1 kHz surround CH
[SC-HT17] 70 W per channel (4 Ω)
[SC-HT15] 60 W per channel (4 Ω)
1 kHz center CH
[SC-HT17] 260 W per channel (4 Ω)
[SC-HT15] 220 W per channel (4 Ω)
100 Hz subwoofer CH
[SC-HT17] 260 W per channel (4 Ω)
[SC-HT15] 240 W per channel (4 Ω)
Total RMS output power
[SC-HT17] 1000 W
[SC-HT15] 700 W
DIN power output: Dolby Digital Mode
(at 240 V for areas other than continental Europe)
T.H.D. 1% (Each channel driven)
1 kHz front CH
[SC-HT17] 100 W per channel (6 Ω)
[SC-HT15] 35 W per channel (4 Ω)
1 kHz surround CH
[SC-HT17] 45 W per channel (4 Ω)
[SC-HT15] 35 W per channel (4 Ω)
1 kHz center CH
150 W per channel (4 Ω)
100 Hz subwoofer CH
160 W per channel (4 Ω)
Total DIN output power
[SC-HT17] 600 W
[SC-HT15] 450 W
DIN power output: Stereo Mode
(at 240 V for areas other than continental Europe)
T.H.D. 1 %
1 kHz front CH
[SC-HT17] 90 W per channel (6 Ω)
[SC-HT15] 35 W per channel (4 Ω)
100 Hz subwoofer CH
160 W per channel (4 Ω)
Total DIN output power
[SC-HT17] 340 W
[SC-HT15] 230 W
Total harmonic distortion
Half power at 1 kHz (Front CH)
[SC-HT17] 0.1 % (6 Ω)
[SC-HT15] 0.1 % (4 Ω)
Input sensitivity
DVD, DVR/VCR, TV, GAME/AUX
400 mV, IHF’66
[SC-HT17] S/N at rated power (6 Ω)
DVD, DVR/VCR, TV, GAME/AUX
75 dB (85 dB, IHF’66)
[SC-HT15] S/N at rated power (4 Ω)
DVD, DVR/VCR, TV, GAME/AUX
75 dB (85 dB, IHF’66)
Input impedance
47 kΩ
DVD, DVR/VCR, TV, GAME/AUX
Tone controls
BASS
50 Hz, +10 to -10 dB
TREBLE
20 kHz, +10 to -10 dB
27
SC-HT17EB-EN.fm
Page 28
Wednesday, March 9, 2005 10:57 AM
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler
shall remain readily operable.
CAUTION!
Do not place anything on top of this unit or block the heat
radiation vents in any way. In particular, do not place tape
decks or CD/DVD players on this unit as heat radiated from it
can damage your software.
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
En
RQT7953-1B
H0205MT1035
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
