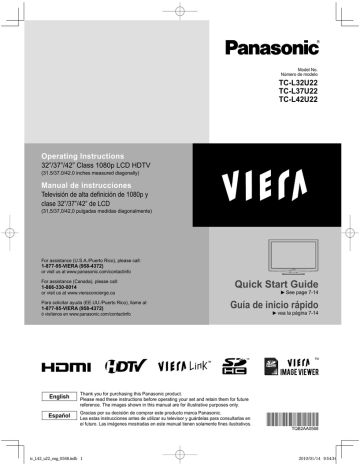

Model No.

Número de modelo

TC-L32U22

TC-L37U22

TC-L42U22

Operating Instructions

32”/37”/42” Class 1080p LCD HDTV

(31.5/37.0/42.0 inches measured diagonally)

Manual de instrucciones

Televisión de alta definición de 1080p y clase 32”/37”/42” de LCD

(31,5/37,0/42,0 pulgadas medidas diagonalmente)

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

or visit us at www.panasonic.com/contactinfo

For assistance (Canada), please call:

1-866-330-0014

or visit us at www.vieraconcierge.ca

Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

ó visítenos en www.panasonic.com/contactinfo

Quick Start Guide

See page 7-14

Guía de inicio rápido

vea la página 7-14

TM

English

Español

Thank you for purchasing this Panasonic product.

Please read these instructions before operating your set and retain them for future

reference. The images shown in this manual are for illustrative purposes only.

Gracias por su decisión de comprar este producto marca Panasonic.

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0568

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

VCR

Amplifier

Home theater system

DVD recorder/

Blu-ray Disc recorder

DVD player/

Blu-ray Disc player

2

HDMI, the HDMI logo and High-

Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

VIERA Link™ is a trademark of

Panasonic Corporation.

HDAVI Control™ is a trademark of

Panasonic Corporation.

Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

SDHC Logo is a trademark of

SD-3C, LLC.

Contents

SD memory card

Personal computer

Camcorder

Set Top Box

Please read before using the unit

Safety Precautions ········································· 4

Quick Start Guide

● Accessories/Optional Accessory ····················7

● Basic Connection ···········································9

● Identifying Controls ······································ 11

● First Time Setup ···········································12

Enjoy your TV!

Basic Features

Watching TV

Using VIERA TOOLS ··································· 17

Viewing with VIERA IMAGE VIEWER ·········· 18

Watching Videos and DVDs ························· 20

Displaying PC Screen on TV························ 22

Advanced Features

How to Use Menu Functions

(picture, sound quality, etc.) ························· 23

VIERA Link

TM

“HDAVI Control

TM

” ·················· 26

Lock ····························································· 32

Editing and Setting Channels ······················· 34

Closed Caption ············································ 36

Input Labels ················································· 37

Using Timer ·················································· 38

Recommended AV Connections ·················· 39

This product qualifies for ENERGY STAR in the

“Home Use” setting and this is the setting in which energy savings will be achieved.

Any modifications to the “Home Use” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.

FAQs, etc.

Ratings List for Lock ···································· 40

Technical Information ··································· 41

Care and Cleaning ······································· 45

FAQ ······························································ 46

Specifications ··············································· 48

Limited Warranty

(for U.S.A. and Puerto Rico only) ················· 49

Customer Services Directory

(for U. S. A. and Puerto Rico) ························ 50

Limited Warranty (for Canada) ····················· 51

3

4

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD

TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface.

This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.

18) If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

In the U.S. Section 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA

GROUNDING AS PER

(NEC) NATIONAL

ELECTRICAL

CODE

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

LEAD-IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the LCD TV.

c. If the LCD TV has been exposed to rain or water.

d. If the LCD TV does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the

LCD TV to normal operation.

e. If the LCD TV has been dropped or the cabinet has been damaged.

f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING.

DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET

(INCLUDING ON SHELVES ABOVE, ETC.).

23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

PARTS AWAY FROM YOUNG CHILDREN.

DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS

AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,

CREATING THE POTENTIAL RISK OF SUFFOCATION.

24) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power.

Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

25) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

26) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

27) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

OR EQUIVALENT TYPE.

28) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation)

• Wall-hanging bracket: TY-WK3L2RW

Always be sure to ask a qualified technician to carry out set-up.

NOTE:

This equipment is designed to operate in North America and other countries where the broadcasting system and AC house current are exactly the same as in North America.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by

Panasonic Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TC-L32U22, TC-L37U22, TC-L42U22

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-877-95-VIERA (958-4372) email: [email protected]

5

6

Safety Precautions

(Continued)

CEA CHILD SAFETY NOTICES: Flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause personal injury or even death.

The consumer electronics industry (of which Panasonic is a member) is committed to making home entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:

TUNE INTO SAFETY:

One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

Carefully read and understand all enclosed instructions for proper use of this product.

Don’t allow children to climb on or play with furniture and television sets.

Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

Remember that children can become excited while watching a program, especially on “larger than life” flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over, or knocked down.

Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

Follow all instructions supplied by the display and wall mount manufacturers.

If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

A minimum of two people are required for installation. Flat panel displays can be heavy.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

This product incorporates the following software:

(1) software developed independently by or for Panasonic Corporation,

(2) software owned by a third party and licensed to Panasonic Corporation,

(3) software licensed under the GNU General Public License, Version 2 (GPL v2),

(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,

(5) open source software other than software licensed under the GPL and/or LGPL

For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the case may be. at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is copyrighted by several individuals and/or entities. Please refer to the copyright notice of those individuals at http://www.am-linux.jp/dl/DTV10UT/.

GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY

WARRANTY, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the address provided below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL.

Contact Information [email protected]

Source code is also freely available to you and any other member of the public via our website below.

http://www.am-linux.jp/dl/DTV10UT/

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control

Transmitter

N2QAYB000485

Batteries for the

Remote Control

Transmitter (2)

AA Battery

Pedestal

TBL4GA0042 (TC-L32U22)

TBL2AX0029 (TC-L37U22)

TBL2AX0031 (TC-L42U22)

Operating Instructions

VIERA Concierge and Quick Start

Guide

How to assemble (p. 8)

Product Registration Card (U.S.A)

Optional Accessory

Wall-hanging bracket

TY-WK3L2RW

Please contact your nearest Panasonic dealer to purchase the recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

Back of the TV

7.9 ”

(200 mm)

7.9 ”

(200 mm)

Screw for fixing the TV onto the wall-hanging bracket

(not supplied with the TV)

Depth of screw:

Minimum: 0.39” (10.0 mm)

Maximum: 0.47” (12.0 mm)(32”/37”)

1.57” (40.0 mm) (42”)

M6

Holes for wall-hanging bracket installation

(View from the side)

WARNING

Customers assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting from not having a professional installer mount your unit will void your warranty.

Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage.

Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables so that they do not to press against the wall when the TV is tilted forward.

For safety reasons, remove units no longer being used from their wall-mounted locations.

Hook

Open

Installing the remote’s batteries

Close

Note the correct polarity

(+ or -).

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

Do not mix old and new batteries.

Do not mix different battery types (such as alkaline and manganese batteries).

Do not use rechargeable (Ni-Cd) batteries.

Do not burn or break batteries.

7

Accessories/Optional Accessory

(Continued)

Attaching the pedestal to TV

Assembling the pedestal

Fix securely with assembly screws

A

. (Total 4 screws)

Tighten screws firmly.

A

Bracket

Front

(Image: TBL2AX0029)

Set-up

Base

Fix securely with assembly screws . (Total 4 screws)

Tighten screws firmly.

B

Accessories

Assembly screws

(4 of each)

A

B

XSS4+16FJK

M4 × 16

XYN4+F12FJK

M4 × 12

Bracket (1)

B

Base (1)

8

Foam mat or thick soft cloth

WARNING

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Reference of connection

Antenna terminal Pin terminals HDMI terminal

Firmly tighten by hand.

red blue green green

Match colors of plugs and terminals.

Insert firmly.

Insert firmly.

TV

Basic Connection

Example

Connecting Antenna (To watch TV)

VHF/UHF Antenna

Cable TV

VHF/UHF Antenna

NTSC (National Television System Committee):

Conventional broadcasting

ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television (HDTV), standard-definition television (SDTV), data broadcasting, multichannel surround-sound audio and interactive television.

To connect the antenna terminal

VHF/UHF Antenna

AC 110-127 V

60 Hz

Cable TV or

Power Cord

(Connect after all the other connections.)

Back of the TV

Cable

You need to subscribe to a cable TV service to enjoy viewing their programming.

You can enjoy high-definition programming by subscribing to a high-definition cable service.

The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 10)

To view high-definition programming select the correct video input. (p. 20)

Note

Not all cables and external equipment shown in this book are supplied with the TV.

For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

For additional assistance, visit us at: www.panasonic.com

www.panasonic.ca

9

10

Basic Connection

(Continued)

AV cable connections

To use HDMI terminals

HDMI

AV OUT

AV Equipment e.g. Blu-ray Disc player

Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.

The HDMI connection is required for a 1080p signal.

For “VIERA Link

TM

connections”, please refer to p. 27.

To use COMPONENT terminals

green blue red white red green blue green

P

B blue

P

R

COMPONENT

VIDEO OUT red red

Y

L white white

R

AUDIO

OUT red red

AV Equipment e.g. Blu-ray Disc player

To use COMPOSITE terminals

yellow white red

AV Equipment

yellow white red yellow

L

COMPOSITE

OUT white

R red

e.g. DVD Recorder

or

e.g. VCR

Note

For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

Identifying Controls

TV controls/indicators

Front of the TV

Selects channels in sequence

Volume up/down

Remote control sensor within about 23 feet

(7 meters) in front of the

TV set

Power indicator

( on: red, off: no light)

C.A.T.S (Contrast Automatic Tracking System)

Menu navigations

Changes the input mode

Chooses menu and submenu entries

POWER button

Note

The TV consumes a small amount of electric energy even when turned off.

Do not place any objects between the TV remote control sensor and remote control.

Remote control

Switches TV On or Off (Standby)

Changes the input mode (p. 20)

Displays Main Menu (p. 23)

Displays Sub Menu (p. 15, 25)

Colored buttons

(used for various functions)

(for example, p. 14, 18, 31)

Volume up/down

Closed Caption On/Off (p. 15)

Selects Audio Mode for TV viewing (p. 15)

Exits from menu screen

VIERA Link menu (p. 30-31)

Display VIERA TOOLS (p. 17)

Viewing from SD Card (p. 18-19)

Selects/OK/Change

Returns to previous menu

Channel up/down

Sound mute On/Off

Changes aspect ratio (p. 16, 41)

Switches to previously viewed channel or input modes

External equipment operations

(p. 31)

Displays or removes the channel banner (p. 16)

Operates the Favorite channel list function (p. 16)

Numeric keypad to select any channel

(p. 15) or press to enter alphanumeric input in menus

(p. 14, 20, 22, 30, 32, 34, 37, 38)

Use for digital channels. (p. 15)

11

12

First Time Setup

First time setup screen is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 25) is set to “No”.

Turn the TV On with the POWER button

(TV) (Remote) or or

Configure your viewing mode

Select your language

Language / Idioma / Langue

English Español Français

select

OK

Select your viewing mode

(Be sure to select “Home use”)

Set viewing mode Step 2 of 6

Home Use Store Demonstration

select

OK

Select

OK

RETURN

Please select your viewing environment.

Select “Home Use” when using this TV in your home.

Please confirm your selection (Home Use) before pressing OK button.

If you select “Store Demonstration” by mistake in , confirmation screen will be displayed.

You are selecting the store demonstration mode.

Yes No

If you select “Yes”, the picture mode will regularly reset to “Vivid” and a Picture Refresh message will be displayed on the screen.

select

OK

Select “No” and return to previous screen .

If you select “Yes”, Screen enters the store demonstration mode.

To display the “Set viewing mode” screen again as shown above and select

“Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

Note

is not available on -

is not available on .

.

When you have used to turn the TV off, the next time you turn the TV on the

“Language” settings will be displayed.

If you use any other step other than to turn the TV off, or if you used the EXIT button to quit before completing the settings, the next time you turn the TV on “First time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can reset the settings using “First time setup”. (p. 25)

To change the setting (Language, ANT/Cable setup, Input labels, Clock) later, go to the Menu screen (p. 25)

Auto channel setup (ANT/Cable setup)

Select the connected Antenna in terminal

ANT/Cable setup

Cable Antenna Not used

Step 3 of 6

Not used: Go to

ANTENNA

Cable In

select

OK

Select

OK

RETURN

ANTENNA

Cable In

Select “Not used” when viewing TV via

Satellite receiver or Cable box. Note: Select

“Cable” when viewing via Cable DTA Box.

Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.

Typical when a Cable/Satellite box is connected to a TV input.

Prevents accidental tuning to an unavailable signal.

Select “Start”

Auto program

Start Skip

Step 4 of 6

Skip: Go to

select

OK

Select

OK

RETURN

Start scanning for channels via the TV’s built-in tuner. Select “Skip” when viewing TV channels via Satellite receiver or Cable box.

Press to return to the previous screen

Start scanning the channels

(Available channels are automatically set.)

Auto program

Progress

Number of analog channels

Number of digital channels

Press RETURN to quit

10

0

8%

RETURN

Complete the Auto program setup

Completion message is displayed when the Auto program scan is successfully completed.

Auto program

Number of analog channels

Number of digital channels

10

0

OK

If there is no available channel, return to -

(ANT/ Cable setup).

“Not used” will be selected.

Auto program completed.

Press OK to continue.

OK

RETURN

Operation of the EXIT button during “First time setup”

Press the button once to display confirmation screen. Press again to close confirmation screen.

[EXIT confirmation screen]

Are you sure you want to exit the First Time Setup?

Yes No

To repeat the First Time Setup, select

“First time setup” in the Setup Menu.

Yes Exit “First time setup”

No Return to the original screen.

13

14

First Time Setup

(Continued)

Select the Input labels (Label inputs)

Select NEXT then press OK to go to next step.

Label inputs

HDMI 1

HDMI 2

HDMI 3

Component

Video 1

Video 2

PC

Next

Blu-ray, DVD ...

Step 5 of 6

select or

set

HDMI HDMI

Select

Change

R

Edit

RETURN

G ABC

1

4

@.

GHI

7

PQRS

LAST

2

5

8

ABC

JKL

TUV

0 - ,

3

6

DEF

9

MNO

WXYZ abc B Y Delete

Press RIGHT to select a label for each input.

Example: DVD, Blu-ray, etc. or “Not used”.

Press OK to customize the label.

Video 2

NEXT

Select

OK

GA GA

RETURN

1

@.

4

GHI

LAST

2

ABC

5

JKL

8

TUV

0 - ,

3

DEF

Blu-r

R G ABC abc B Y

Follow the instructions on screen to complete the following operations.

Delete

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/

VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA

CTR/MEDIA EXT/OTHER

Adjust the Clock (Set clock)

Select NEXT then press OK to go to next step.

Set clock

Year

Month

Day

Hour

Minute

Next

--

--

--

--

--

Step 6 of 6

select or

set

Minute

Next

Select

10 10

OK

RETURN

0 9

Select

Change

Edit

RETURN

0 9

Current year.

Follow the instructions on screen to complete the following operations.

Complete the First time setup

Completion message is displayed when you successfully completed the First time setup.

OK

RETURN

Setup is complete. Enjoy your

Panasonic VIERA TV.

Press OK to exit.

Note

About broadcasting systems

Conventional broadcasting

(ATSC):

New programming that allows you to view more channels featuring high-quality video and sound

Watching TV

Basic connection (p. 9-10)

To watch TV and other functions

Turn power on

(Remote) (TV)

Note

If the mode is not TV, press and select TV. (p. 20) or

Select a channel number

(Remote) up or down

(TV)

To directly enter the digital channel number

When tuning to a digital channel, press the button to enter the minor number in a compound channel number.

example: CH15-1:

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal reception between cable TV and antenna. (p. 13, 35)

The channel number and volume level remain the same even after the TV is turned off.

Other Useful Functions

(Operate after )

Listen with SAP

(Secondary

Audio

Program)

Closed caption

Select Audio mode for watching TV

Digital mode

Press SAP to select next audio track (if available) when receiving a digital channel.

Audio track 1 of 2

(English)

Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

Switches the Closed caption mode On or Off

Closed caption Off Closed caption On Closed caption On mute

Display the

SUB MENU

Press SUB MENU to show the sub menu screen

(p. 25)

This menu consists of shortcuts to convenient functions.

SUB

MENU

Setup SUB MENU

Channel surf mode

All

Set favorite

Edit CH caption

Signal meter

15

16

Watching TV

(Continued)

Information recall

Change aspect ratio

Displays or removes the channel banner

Channel Clock

15-2

ABC-HD

THE NEWS

CC SAP TV-G 1080i Standard 4:3

12:30 PM

30

Station identifier

SAP indication

Closed caption

Signal resolution

Rating level

Picture mode

Sleep timer remaining time

Aspect ratio

Press FORMAT to cycle through the aspect modes

(p. 41)

• 480i, 480p: FULL/JUST/4:3/ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Call up a favorite channel

FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen.

Select the desired broadcast station with the cursor or use number buttons. (see below)

Set the Favorite Feature

1

Display the SUB MENU.

SUB

MENU

Favorite Feature

Use the Favorite Feature

1

Display “Favorite channels”

2

Select “Set favorite”

Setup SUB MENU

Channel surf mode

All

Set favorite

Edit CH caption

Signal meter

3

Set the displayed channel

Set favorite 1/3

26-1

1

2

3

4

5

or

select

OK

select the list number

save the displayed channel select the list number

(to save the channel without pressing OK)

2

Select the channel

Favorite channels 1/3

26-1

1

2

3

4

5

3

Set Favorite channel

Favorite channels 1/3

26-1

1

4

5

2

3

select or

OK

To change the page

Press repeatedly to change between pages(1/3, 2/3, 3/3 or exit)

Delete a favorite channel

Set favorite

1

26-1

4

5

2

3

1/3

select

delete

(while holding down)

Changes the page forward/backward

Using VIERA TOOLS

VIERA TOOLS is the easy way to access frequently-used menu items. They are displayed as shortcut icons on the TV screen.

Unlike a conventional menu, you can enjoy using, playing or setting a function quickly.

Display VIERA TOOLS

Select the item

Press to exit from a menu screen

Press to return to the previous screen

VIERA Link

Set each item

VIERA Link

VIERA Link (p.30-31)

Slideshow

Slideshow (p. 18-19)

Photo viewer

Photo viewer (p. 18-19)

Eco mode

ECO/energy saving (p. 25)

select

next

17

18

Viewing with VIERA IMAGE VIEWER

The VIERA Image Viewer is a function that lets you easily view still images on a VIERA television by simply inserting an

SD card into the VIERA SD card slot.

(Media other than SD Cards will not work.)

Photo viewer

Insert the SD card

* This setting will be skipped next time unless you select “Set later”.

Set “Image viewer settings” and select “Play image viewer now”

“Image viewer settings” will be displayed automatically each time an SD card is inserted for the first time.

Image viewer settings

Image viewer auto play

Set later

Play image viewer now

select

change

set

Slideshow:

A Slideshow will start automatically next time.

Thumbnail:

The Photo viewer menu will be displayed automatically next time.

Set later:

“Image viewer settings” menu will be displayed repeatedly.

Off:

The data can be played manually.

Manual operation

(“Image viewer auto play” is “Off”)

Display “Photo viewer” Start the Slideshow

select

next

Slideshow

Press to exit from a menu screen

Press to return to the previous screen

Select the data to be viewed

Thumbnail view

Photo viewer

All photos

Total 238

Name

Pana0001

Date

03/04/2010

Size

1029×1200

Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

select

view

Select

R

Slideshow

OK

RETURN

Pana0009

G

Folders

Pana0010

B

Pana0011

Sort by month

Pana0012

Y

Sort by date

To launch Slideshow

Selected picture information is displayed.

Total number of images.

Note

Depending on the JPEG format, “Information” contents may not be displayed correctly. Refer to p. 42 (Data format for SD card browsing) for details.

View

Navigation area

Accessing

Present status

(While reading the data)

Accessing

Accessing

Rotate

Prev.

Play

Next

RETURN

Prev.

Pause

Next

RETURN

Rotate

Prev.

Play

Next

RETURN

Displays one at a time

To display/hide the Navigation area

Return to the Thumbnail view

Single photo view

Slideshow

Rotate 90 degrees (counter-clockwise)

To next photo

Rotate 90 degrees (clockwise)

To previous photo

SD Card

Sort

Photo settings

Insert the card

Gently insert the SD Card label surface facing front.

Label surface

Push until a click is heard

Remove the card

Press in lightly on SD Card, then release.

Cutout

Compliant card type (maximum capacity): SDHC Card (32 GB), microSDHC Card (16 GB), SD Card

(2 GB), miniSD Card (2 GB), microSD

Card (2 GB) (requiring microSDHC Card/ miniSD Card/microSD Card adapter)

If a microSDHC Card, miniSD Card or microSD Card is used, insert / remove it together with the adapter.

For cautions and details on SD

Cards (p. 42)

To sort by Folder, month or date

In

Select the sort type

Folders (ascending order of numeric/alphabetical)

Photo viewer

All photos

Total 238

Name

Pana0001

Date

03/04/2010

Size

1029×1200

Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

Sort by month (ascending order of the month)

Sort by date (ascending order of the date )

Select

R Slideshow

OK

RETURN

Pana0009

G Folders

Pana0010 Pana0011

B Sort by month

Pana0012

Y Sort by date

Select the directory.

select

Photo viewer

All photos

Sort by date

15

Date

09/23/2009

Number of photos

28 photos

Accessing

Select

R Slideshow

OK

RETURN

09/23/2009

28 photos

09/28/2009

58 photos

10/10/2009

3 photos

11/20/2009

8 photos

G

12/25/2009

24 photos

01/01/2010

10 photos

02/15/2010

16 photos

03/04/2010

32 photos

B Y

OK

Photo viewer

All photos

09/23/2009

Total 28

Name

Pana0001

Date

09/23/2009

Size

1029×1200

Accessing

Select

R Slideshow

OK

RETURN

Pana0001 Pana0002 Pana0003 Pana0004

Pana0011 Pana0012 Pana0013 Pana0014

G

Pana0055 Pana0056

B

Pana0057

Y

Pana0058

Return to previous screen

In or

Display “Photo settings”

Adjust the picture/Audio


Reset to defaults

Picture mode

Back light +20

Vivid

1/2

example :Picture menu

Picture menu/Audio menu (p. 24)

Select

Adjust

Select the item

Photo settings


Audio

Slideshow settings

Soundtrack

Off

select

change

next

Set the Soundtrack

Soundtrack Off

select

change

Select the music from 5 types.

(Off/Music 1/Music 2/Music 3/Music 4/Music 5)

Slideshow settings

Slideshow settings

Display interval Fast

Off Repeat playback

Transition effect

Photo effect

Off

Sepia

Select

Adjust

Note

To stop in mid-cycle Press

Display interval

You can set how many seconds each image is displayed in the Slideshow mode. (Short/Fast/Normal/Slow/Very slow)

Repeat playback

Turn the slideshow Repeat function on or off (Off/On).

Transition effect

Select the transition effect (Off /Wipe ↓/Wipe ↑/Wipe →/Wipe ←/Comb ↑↓

/Comb

→←/Dissolve/Checker wipe/Random/Array/Collage)

Photo effect

Select the conversion effect (Off/Sepia/Gray scale)

19

20

Watching Videos and DVDs

If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV screen.

Input Select

You can select the external equipment to access.

With the connected equipment turned On

Display the Input select menu

To return to TV

Select the input mode

Input select

1

TV

2

3

4

5

6

7

8

HDMI 1

HDMI 2

HDMI 3

Component

Video 1

Video 2

PC

HDMI 1

DVD

DVD

AUX

(example)

Terminal

Label

(example) or

Press the corresponding NUMBER button on the remote control to select the input of your choice.

select

Select the input of your choice, then press OK.

enter

During the selection, if no action is taken for several seconds, the

“Input select” menu disappears.

The terminal and label of the connected equipment are displayed.

To label each of the inputs, please refer to p. 37.

Note

The input label will be displayed on the “Input select” screen if the Input label is set on p. 37.

For more details on “Input labels”, refer to p. 37.

Operate the connected equipment using the remote control supplied with the equipment

Note

For details, see the manual for the connected equipment.

VIERA Link

TM

Setting

If you connect equipment that has the “HDAVI Control” function to the TV using an HDMI cable, you will find it easier to use. Please refer to p. 26-31. Before using these functions, you need to set “VIERA Link” setting to “On” as shown below.

Display the menu

Select “Setup”

Menu

Setup

VIERA Link settings

ECO / energy saving

Advanced setup

First time setup

About

Reset to defaults

2/2

select

next

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Select “VIERA Link settings”

Menu 2/2 Setup

VIERA Link settings

ECO / energy saving

Advanced setup

Repeat 1st time setup

select

next

Select “VIERA Link”

Menu VIERA Link settings

VIERA Link On

Power on link

Power off link

Energy saving mode

Quick start

No

Yes

Unselected device energy save

No (stay on)

Default speakers

TV

Enables or disables interoperability of

“HDAVI Control” compliant HDMI devices.

select

Press to exit from a menu screen

Select “On”

(default is On) change

Press to return to the previous screen

Now you can set each “VIERA Link” function according to your preference

(p. 28-31).

Note

If no HDMI equipment is connected or standard HDMI equipment (non- “VIERA

Link”) is used, set it to “Off”.

For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

21

Displaying PC Screen on TV

The screen of the PC connected to the unit can be displayed on the TV.

You can also listen to PC sound with the audio cable connected. To connect PC (p. 39)

Display the Input select menu

Input select

1

TV

2

3

4

5

6

7

8

HDMI 1

HDMI 2

HDMI 3

Component

Video 1

Video 2

PC

DVD

AUX

(example)

Select “PC”

PC

Corresponding signals

(p. 44)

Displays

PC screen

To return to TV

/

22

PC menu setting

(change as desired)

Making settings “How to Use Menu Functions” to (p. 23)

Menu Item Adjustments/Configurations (options)

Reset to defaults Resets PC adjustments. Confirmation screen is displayed. Select “Yes” and press OK to reset.

Sync

Dot clock

H & V: The H and V sync signals are input from the HD/VD connector. (p. 45)

On green: Uses a synchronized signal on the Video G signal, which is input from the

G connector. (p. 45)

Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred.

Adjusts the horizontal position.

H-position

Adjusts the vertical position.

V-position

PC adjustments

Clock phase

Input resolution

H-frequency

V-frequency

Alleviates the problem if the whole picture appears to flicker or is blurred.

First adjust the Dot Clock to get the best possible picture, then adjust the

Clock Phase so that a clear picture appears.

Note

It may not be possible to display a clear picture due to poor input signals.

Switches to wide display.

Input signal switched from 640×480 to 852×480

Input signal switched from 1024×768 to 1280×768 or 1366×768

Displays the H (Horizontal)/V (Vertical) frequencies.

Display range

Horizontal: 15 - 110 kHz

Vertical: 48 - 120 Hz

Audio menu (p. 24)

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display the menu

Shows the functions that can be adjusted.

Some functions will be disabled depending on the type of input signal.

Press to exit from a menu screen

Press to return to the previous screen

Menu structure

Menu

Input labels

HDMI 1

HDMI 2

HDMI 3

Component

Video 1

Video 2

PC

Menu bar

Press OK to move to the Menu items.

Menu items

Press OK to proceed to next screen if available.

Select or enter the name of the device connected to the HDMI 1 terminal.

Help information

R

Select

Change

Edit

RETURN

1

@.

2

ABC

3

DEF

4

GHI

7

PQRS

5

JKL

8

TUV

6

MNO

LAST 0 - ,

G ABC abc B Y Delete

(example: Input labels)

Select the menu

Menu


Reset to defaults

Picture mode

Back light

Contrast

Custom

+20

0

1/2

Operation guide

select

next

Select the item

Menu Picture

Reset to defaults

Picture mode

Back light

Contrast

Brightness

Color

Tint

Sharpness

0

0

0

0

0

Custom

+20

1/2

Resets all picture adjustments to factory default settings except for “Advanced picture”.

(example: Picture menu)

Adjust or select

Menu


Reset to defaults

Picture mode

Back light

Contrast

Brightness

Color

Tint

Sharpness

0

0

0

0

0

Vivid

+20

1/2

Selects from preset picture modes.

select adjust or select

(example: Picture menu)

23

How to Use Menu Functions

Menu list

Menu Item

Reset to defaults*

Adjustments/Configurations (alternatives)

Resets all picture adjustments to factory default settings except for “Advanced picture”.

Basic picture mode (Vivid/Standard/Cinema/Custom) (p. 43)

Picture mode

Back light

Contrast, Brightness,

Color, Tint, Sharpness

Adjusts the luminance of the back light.

Adjusts color, brightness, etc. for each picture mode to suit your taste

Display range

Contrast/Brightness/Color/Sharpness: 0 - 100

Tint: -50 +50

Color temp.

A.I. picture

C.A.T.S.

Selects a choice of Cool (blue), Normal, or Warm (red) color. (Cool/Normal/Warm)

Controls dark areas without affecting the black level or brightness in the overall picture

(Off/On)

Adjusts the brightness and gradation according to the ambient lighting condition. (Off/On)

Video NR

Screen format

HD size

H size

Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)

Changes the format (aspect ratio). (FULL/H-FILL/JUST/4:3/ZOOM)

Lets you choose the aspect depending on the format of received signal. (p. 41)

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. (Size 1/Size 2)

Select “Size 1” if noise is generated on the edges of the screen.

Size 1: Selected item for “HD size”. Scanning 95 %

Size 2: Selected item for “HD size”. Scanning 100 %

Adjusts the horizontal display range to reduce noise of both side edges of an image. (Size 1/Size 2)

Size 2: Adjusts the image size according to the aspect mode for to reduce noise. (p. 44)

Zoom adjustments

Adjusts vertical alignment and size when aspect setting is “ZOOM”

PC adjustments

3D Y/C filter

Color matrix

MPEG NR

Sets PC display (p. 22)

Minimizes noise and cross-color in the picture. (Off/On)

Selects image resolution of component-connected devices (SD/HD)

SD: Standard Definition HD: High Definition

Only used with 480p video signal.

Reduces noise of specific digital signals of DVD, STB, etc. (Off/On)

Selects Dark or Light. Valid only for external input signals. (Dark/Light)

Black level

3:2 pulldown

Reset to defaults*

Adjusts the picture recorded in 24 fps for optimum quality. (Off/On/Auto)

Resets Bass, Treble, and Balance adjustments to factory default settings.

Bass

Increases or decreases the bass response.

Treble

Increases or decreases the treble response.

Balance

Emphasizes the left / right speaker volume.

Surround

Timer

Sleep, Timer 1-5

Enhances audio response when listening to stereo. (Off/On)

Volume leveler

Minimizes volume disparity after switching to external inputs.

TV speakers

HDMI 1 in

HDMI 2 in

HDMI 3 in

Switches to “Off” when using external speakers (Off/On)

“Surround” and “Volume leveler” do not work if “Off” is selected.

The default setting is “Digital” for the HDMI connection. (Digital input signal)

Select audio input terminal when DVI cable is connected. (Analog audio input signal)

(Digital/Component/Video 1/Video 2)

The TV can automatically turn On/Off at the designated date and time

Lock

Locks the channels and programs. (p. 32)

Closed caption

Displays subtitles (Closed caption). (p. 36)

24

In the AV mode, the Audio and Setup menus give fewer options.

* Confirmation screen is displayed. Select “Yes” and press OK to reset.

(Continued)

Menu list

Menu Item

Channel surf mode

Language

Clock

ANT/Cable setup

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with the Channel up/down button.

(All/Favorite/Digital only/Analog only)

Favorite: Only channels registered as FAVORITE. (p. 16)

Selects the screen menu language.

Adjusts the clock. (p. 14)

Sets channels. (p. 13)

Input labels

Selects the terminal and label of the external equipment. (p. 37)

VIERA Link

Power on link

Power off link

Energy saving mode

Controls the equipment connected to HDMI terminals (Off/On) (p. 28)

“Power off link”, “Power on link”, “Energy saving mode”, “Unselected device energy save” and “Default speakers” cannot be selected if “Off” is set.

Sets “Power on link” of the HDMI connected equipment (No/Yes) (p. 28)

Sets “Power off link” of the HDMI connected equipment (No/Yes) (p. 28)

Sets “Energy saving mode” of the HDMI connected equipment. (Quick start/Save) (p. 28)

Unselected device energy save

Image viewer auto play

Sets “Unselected device energy save” of the HDMI connected equipment. (p. 28)

(No (stay on)/Yes (with prompt)/Yes (no prompt))

Default speakers

Selects the default speakers (TV/Theater) (p. 28)

Power save

Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark room. (Standard/Saving)

To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION continue for more than 10 minutes. (Stay on/Power TV off)

No signal for 10 minutes

No activity for 3 hours

Auto power on

Note

Not in use when “Auto power on”, “On/Off Timer” or “Lock” is set, or while “SD mode” or

“Digital Channel” is selected.

“No signal for 10 minutes was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after the power was turned off by “No signal for 10 minutes”.

The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

To conserve energy, the TV automatically turns off when no operation of remote and side panel key continues for more than 3 hours. (Stay on/Power TV off)

Note

Not in use when “Auto power on” or “On/Off Timer” is set, or while “PC input” is selected.

“No activity for 3 hours was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after the power was turned off by “No activity for 3 hours”.

The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

Turns TV On automatically when the cable box or a connected device is turned On (No/Yes)

TV AC cord must be plugged into this device. TV comes on every time the power is restored.

The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set.

(p. 38)

Set “Thumbnail” or “Slideshow” to play back SD cards automatically.

(Slideshow/Thumbnail/Set later/Off)

First time setup

About

Restart first time setup from “Language” setting. (p. 12)

Displays TV version and software license.

Reset to defaults

Performing Reset will clear all items set with Setup, such as channel settings.

Sub menu list

Menu Item

Channel surf mode

Set favorite

Edit CH caption

Signal meter

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with Channel up/down button.

(All/Favorite/Digital only/Analog only)

Sets favorite channels. (p. 16)

Changes the station identifier. (p. 35)

Checks the signal strength if interference or freezing occurs on a digital image.

25

26

VIERA Link

TM

“HDAVI Control

TM

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.

Enjoy additional HDMI Inter-Operability with Panasonic products which have the “HDAVI Control” function.

This TV supports “HDAVI Control 5” function.

Connections to the equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables allow you to interface with them automatically.

Equipment with the “HDAVI Control” function enables the following operations:

Version

HDAVI Control or later

HDAVI Control 2 or later

HDAVI Control 3 or later

HDAVI Control 4 or later

HDAVI Control 5

Automatic Input Switching (p. 29)

Power on link (p. 29)

Power off link (p. 29)

Default speakers (p. 29)

One-touch theater playback (p. 29)

Speaker control (p. 31)

Operations

VIERA Link control only with the TV’s remote control (p. 31)

Unselected device energy save (for available equipment only) (p. 29)

Provides setting information (p. 29)

Automatic lip-sync function (p. 29)

Energy saving mode (with Quick Start mode) (p. 29)

Audio Return Channel

Audio Return Channel (ARC) is a function that enables digital sound signals to be sent via an HDMI cable.

For the first time/When adding new equipment, reconnecting equipment or changing the setup after the connection, turn the equipment on and then switch the TV on. Set the input mode to

HDMI1, HDMI2 or HDMI3 (p. 20), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)

* For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

VIERA Link

TM

Connections

Follow the connection diagrams below for HDAVI control of a single piece of AV equipment such as a DVD recorder

(DIGA), Home theater system.

Refer to page 28-31 for Setup Menu settings and additional control information.

Optional HDMI and/or optical cables are not included.

If connection (or setting) of equipment compatible with

HDAVI control is changed, switch the power of this unit

Off and On again while the power of all equipment is On

(so that the unit can correctly recognize the connected equipment) and check that the DVD recorder (DIGA), Home theater system playback operate.

Note

HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 20) initially before connecting to HDMI

2/HDMI 3. After connection, confirm the HDMI control functions (p. 28-31).

Connecting this unit to the DVD recorder (DIGA), Home Connecting this unit to a DVD theater system

For DVD recorder (DIGA): Connect with HDMI cable

For Home theater system

Connect with the HDMI and audio cables.

If audio cable is not connected, you cannot listen to the TV program through the theater system.

* No optical cable is necessary for the equipment that has “HDAVI control 5” and is connected with an HDMI cable (HDMI 1 only).

recorder (DIGA) and AV amp

When using a “VIERA Link” audiovideo amplifier and a compatible DVD recorder (DIGA) use a daisy chain connection as shown below.

Digital Audio out

Back of the TV or

* or or or

HDMI cable

HDMI

(AV IN)

HDMI

(AV OUT)

HDMI

(AV OUT)

HDMI

(AV OUT)

HDMI

(AV OUT)

HDMI

(AV OUT) or

DVD recorder (DIGA) with VIERA Link function

AV amp with

VIERA Link function

Home Theater

Systems with VIERA

Link function

HD Camcorder with VIERA Link function

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

LUMIX with VIERA

Link function

DVD recorder (DIGA) with VIERA Link function

Setting of this unit after connection

After making connections as shown above, set “VIERA Link” (under “VIERA Link settings”) to “On” using the Setup menu. (p. 21, 28-29).

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective operating instruction manuals.

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

For details about HDMI cables for connecting a Panasonic HD camcorder, read the manual for the equipment.

27

28

VIERA Link

TM

“HDAVI Control

TM

Display the menu

Automatic

Input

Switching

Power on link

Select “Setup”

Menu Setup

VIERA Link settings

ECO / energy saving

Advanced setup

First time setup

About

Reset to defaults

2/2

select

next

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Select “VIERA Link settings”

Menu 2/2 Setup

VIERA Link settings

ECO / energy saving

Advanced setup

Repeat 1st time setup

select

next

Select “VIERA Link”

Menu VIERA Link settings

VIERA Link On

Power on link

Power off link

No

Yes

Energy saving mode

Quick start

Unselected device energy save

No (stay on)

Default speakers TV

Enables or disables interoperability of

“HDAVI Control” compliant HDMI devices.

select

Power off link

Energy saving mode

(for “HDAVI Control

4 or later” (with

Quick Start mode))

Unselected device energy save

(for “HDAVI

Control 2 or later”)

Default speakers

One-touch theater playback

Select “On”

(default is On) change

Press to exit from a menu screen

Press to return to the previous screen

Select settings

Menu VIERA Link settings

VIERA Link On

Power on link No

Power off link

Energy saving mode

Quick start

Yes

Unselected device energy save

No (stay on)

Default speakers

TV

Selects either the TV’s speakers or external home theater as default audio output.

Set

Menu

VIERA Link settings

VIERA Link

On

Power on link

Power off link

Energy saving mode

No

Yes

Quick start

Unselected device energy save

No (stay on)

Default speakers Theater

Selects either the TV’s speakers or external home theater as default audio output.

select change

Provides setting information

(for “HDAVI

Control 3 or later”)

Automatic lipsync function

(for “HDAVI Control

3 or later”)

(Continued)

When using Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to the appropriate input, when playback begins on one of those devices.

For a Home theater system, the speakers automatically switch to the theater system.

When “Yes” is selected (p. 25), TV is turned on automatically and switches to the appropriate HDMI input whenever a

VIERA Link compatible equipment is initially turned on and the Play mode is selected.

When “Yes” is selected (p. 25) and the TV is turned off, all connected VIERA Link compatible equipment is also automatically turned off.

A Panasonic DVD Recorder will not turn off if it is still in rec mode.

Caution:

The TV remains on even if the VIERA Link compatible equipment is turned off.

Condition

Power off link: Yes; Energy saving mode: Quick start

The equipment has “HDAVI Control 4 or later (with Quick Start mode)” connected with an HDMI cable.

When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO standby mode* automatically under above conditions.

* Minimum power consumption of standby condition for the equipment.

Condition

Unselected device energy save: Yes

The equipment has “HDAVI Control 2 or later” (for available equipment only) connected with an HDMI cable.

[ Examples of timing for operation ]

• When the input is switched from the HDMI.

• When the “Speaker output” is changed from “Home theater” to “TV”.

The connected VIERA Link compatible equipment will be turned off automatically when not in use.

“TV” is the default setting. To set the Home Theater system as Default speakers, change the Default speakers setting from “TV” to “Theater”. Sound will be output from the Home Theater whenever the TV is powered on.

If the “ONE TOUCH PLAY” key is pressed on the remote control for a Panasonic Home Theater system, the following sequence of operations is performed automatically.

Home Theater power switches On, and playback begins.

TV power switches On, and the playback screen is displayed.

Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each piece of an equipment (Recorder/Home theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with HDMI cable.

Recorder Home theater Player Transmittable data

On Screen Display Language setting

(English/Español/Français)

Panel Aspect Ratio

(16:9 fixed)

Closed caption information

(Mode/CC type/Digital setting)

Channel information

(Input signal/Channel list/Caption information)

---

---

---

---

Note

There is a possibility that all the GUI language information might be set from the equipment that has an HDMI CEC function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for each piece of equipment, the setting may or may not be applied.

For more details on the external equipment’s operation, please refer to the operating manuals for the equipment.

[For Recorder]

You cannot operate other functions while transmitting TV’s information above except Power On/Off key operation.

When you turn off this unit, the transmission will be interrupted (only when you are transmitting Channel information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

Amplifier.

29

30

VIERA Link

TM

“HDAVI Control

TM

You can enjoy more convenient operation with the “HDAVI Control” function in the “VIERA Link” menu.

For more details on the “HDAVI Control” function, refer to p. 26

Display the VIERA Link menu

Speaker control

or

select

next

VIERA Link

Select the item

VIERA Link control

Recorder

Speaker output

TV

Back to TV

select

Select

VIERA Link control

Home theater

Speaker output

TV

Back to TV

change

VIERA Link control only with the

TV’s remote control

(for “HDAVI

Control 2 or later”)

Set

Press to exit from a menu screen

Press to return to the previous screen

Back to TV

(Continued)

You can select the Home theater or TV speakers for audio output.

Control the theater speakers with the TV’s remote control.

This function is available only when a Panasonic Amplifier or Player theater is connected.

Home theater:

Adjustment for the equipment

Volume up / down

Mute

Select “Speaker output”

Select “Home theater” or “TV”

select

VIERA Link control

Recorder

Speaker output

TV

Back to TV

change

The sound of the TV is muted.

When the equipment is turned off, the TV speakers take over.

Selecting “Home theater” turns the equipment on automatically if it is in standby mode.

TV:

The TV speakers are on.

In the VIERA Link menu, you can select an HDMI connected equipment and access it quickly. Continue using your TV’s remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control”

If there is more than one equipment item, a number after the name indicates the number of

Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/

Digital camera)

select items. (e.g. Recorder 1/Recorder 2/Recorder 3...)

The number of equipment items that can be connected is three for recorders, and a total of three for Home theater/Player/Camcorder/LUMIX/

Digital camera.

VIERA Link control

change

Speaker output

Back to TV

Recorder

TV

You can select available items only.

Note

There is a limit to the number of HDMI connectors.

Operate the equipment with the TV’s remote control, pointing it at the TV

To operate the equipment, read the manual of the equipment.

Available TV’s remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play

Stop

Reverse/Forward

SUB

MENU

-

Set/Access

Return to previous menu

Display the functions menu on the equipment

Available when the purpose of the keys is displayed on screen

Exit

Channel Up/Down

0-9

Skip Reverse/Forward

Pause

Closed caption

SAP (Select Audio Mode)

Select digital subchannel

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

select

VIERA Link control

Recorder

Speaker output

TV

Back to TV

OK

31

Lock

You can lock specified channels or shows to prevent children from watching objectionable content.

Display the menu

32

Press to exit from a menu screen

Caution

Make a note of your password in case you forget it. (If you have forgotten your password, consult your local dealer.)

Note

When you select a locked channel, a message will be displayed that allows you to view the channel if you input your password.

Channel lock

Select “Lock”

Menu Password

Enter password.

- - - -

next

select

You will be asked to enter your password each time you display the Lock menu.

Blocks access, with password protection, to channels, programs or inputs.

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating settings.

Menu Password

Enter password.

* * * -

Game lock

If it is your first time entering the password, enter the password twice in order to register it.

Select the Lock mode

Menu Lock

Mode

Channel

Game

Program

Change password

Off

Off

Off

Off

set

select

Program lock

Off:

All:

Unlocks all the lock settings of “Channel”, “Game” and “Program”.

Locks all the inputs regardless of the lock settings of

“Channel”, “Game” and “Program”.

Custom: Locks specified inputs of “Channel”, ”Game” and “Program”.

Select the item

Menu Lock

Mode

Channel

Game

Program

Change password

Custom

Off

Off

Off

select

Change password

“Channel”, ”Game” and “Program” are not accessible unless

“Custom” is selected in “Mode”.

Set

set

To select the channel or the rating of the program to lock

Select up to 7 (1-7) channels to block. These channels will be blocked regardless of the program rating.

Select “Mode” and set to “Custom”

Select a channel to lock

Menu

Channel lock

Mode

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

Custom

-

-

-

-

-

-

-

Selects the lock mode.

select

set

To lock/unlock all channels:

Select “Mode” and set to “All” or “Off”.

All: Locks all channels

Off: Unlocks all channels

Locks Channel 3, Channel 4, and external inputs.

Select “Game” in

5

and set to “On”

select

On: Locks

Off: Unlocks

set

To set a rating level

“V-chip” technology enables restricted shows to lock according to TV ratings.

Select “Mode” and set to “On”

Menu Program lock

Mode

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

On

Off

Off

Off

Off

set

select

Select the rating to lock

select

Enables or disables the programs’ locks.

Select the rating category you wish to follow

Menu Program lock

Mode

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

On

Off

Off

Off

Off

next

select

Example of “MPAA” (U.S. movie ratings)

NR No rating

G General Audience: All ages admitted

PG Parental Guidance Suggested

PG-

13

Parents Strongly Cautioned:

Inappropriate for children under 13

R

Restricted: Under 17 requires accompanying parent or adult guardian

NC-

17

No one 17 and under admitted

X Adults only

To get more information (p. 40)

Customizes programs lock based on U.S.

MPAA: U.S. movie ratings

U.S.TV: U.S. TV program ratings

C.E.L.R.: Canadian English ratings

C.F.L.R.: Canadian French ratings

To change the password

In , select “Change password” and press OK

Input the new 4-digit password twice

Menu Lock

Mode

Channel

Game

Program

Change password

Off

Off

Off

Off

Menu Change password

Enter new password.

- - - -

Note

This television is designed to support the “Downloadable U.S. Region Rating System” when available.

(Available only in U.S.A.)

The Off rating is independent of other ratings.

When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.

33

34

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception conditions.

Display the menu

Auto program

Set automatically

Select “Setup”

Menu Setup

Channel surf mode

All

Language

Clock

ANT/Cable setup

Input labels

1/2

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Select “ANT/Cable setup”

Menu 1/2 Setup

Channel surf mode

All

Language

Clock

ANT/Cable setup

Input labels

Scans for Antenna or Cable channels.

Specify when using Cable or Satellite box.

Select the function

Menu ANT/Cable setup

ANT in Cable

Auto program

Manual program

Signal meter

next

select

next

select

next

select

Manual program

Set manually

Press to exit from a menu screen

Automatically searches and saves available channels to memory.

Set

To reset the settings of the Setup menu

Select “Reset to defaults” in the Setup menu ( ) and press OK

Input your 4-digit password with number buttons

Select “YES” on the confirmation screen and press OK

Signal meter

Check signal strength

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select “Cable” or “Antenna”

Or select “Not used” (p. 13).

Select a scanning mode (p. 13)

Menu Auto program

All channels

Analog only

OK

Select “Auto program”

Digital only

Menu

select

ANT/Cable setup

ANT in Cable

Auto program

Manual program

Signal meter

next

select

Settings are made automatically

After the scanning is completed, select “Apply”.

(see below ).

All previously saved channels are erased.

Use this procedure when changing the channel setup or changing the channel display.

Also, use this to add or skip channels from the channel list manually.

You can select a channel tuning mode (Digital only/Analog only) in “Channel surf mode”(p. 25)

Select “Edit”

Manual program

3

4

5

Edit

Channel

2

...

...

...

Apply

Caption

...

...

...

...

Favorite

...

Cancel

Add

Yes

Yes

Yes

Yes

Select the item to edit

5

6

7

8

9

3

4

Edit

Channel

2

Manual program

...

...

...

...

...

Apply

Caption

...

...

Select

R Prev.page

OK

RETURN

G Next page

...

...

...

...

...

...

Cancel

Favorite

...

Add

Yes

Yes

Yes

Yes

Yes

Yes

Yes

B Y

Proceed to next page

Go back to the previous page

select

next

select the item to edit (Caption/

Favorite/Add)

next

Caption:

Changes the station identifier

Favorite:

Registers channels to the

Favorite List

Add:

Adds or skips channels

Edit

Caption

Edit CH caption

Channel

Caption

Select

OK

RETURN

80-101

R G

ABC

→ abc

B Y

Delete

Caption

Select or edit the station identifier.

(maximum 7 characters available)

Favorite

Set favorite

1

26-1

1/3

2

change

set

select

set

Set favorite Select the number

Add

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit

Channel

2

3

Apply

Caption

...

...

Cancel

Favorite

...

Add

Yes

...

Yes

select

Press OK to tune to the channel.

Select “Apply”

program el

Apply

Caption

...

Cancel

Favorite

...

Add

Yes

OK or

select

To cancel the Edit

Manual program

3

4

Edit

Channel

2

Apply

Caption

...

...

...

5

...

Cancel

Favorite

...

Add

Yes

...

...

Yes

Yes

...

Yes

select

next

Changes will be lost. Continue?

Yes No

OK

(returns to “ANT/

Cable setup”)

select “Yes”

Check the signal strength if interference is found or freezing occurs on a digital image.

Menu

Signal meter

Channel --

If the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

Signal strength

Current 86%

or

change channel

OK

Note

Peak level 98%

Selects which channel to be tested for signal strength.

Signal intensity

Not available if “Cable” is selected in “ANT in” (see above).

Available only for digital antenna channels.

If “Lock” (p. 32) is activated and “ANT/Cable setup” is selected, “Enter password.” will be displayed.

35

Closed Caption

Display the menu

Press to exit from a menu screen

Select “Closed caption”

Menu

Closed caption

Reset to defaults

Mode

Analog

Digital

On

CC1

Primary

Digital setting

Display broadcast TV’s Closed Caption (CC) text when available.

next

select

36

The television includes a built-in decoder that is capable of providing a text display of the audio. The program being viewed must be transmitting the Closed Caption (CC) information. (p. 41)

Select the item and set

Menu

Closed caption

Reset to defaults

Mode

Analog

On

CC1

Primary

Digital

Digital setting

select

set

Mode

On: To display Closed captions.

CC on mute: To display Closed captions when the audio is muted.

(when not using, select “Off”).

Closed caption

Display

Closed caption

Selects style and language for displaying digital Closed Caption.

The settings in “Analog” or “Digital” depend on the broadcaster.

CC1-4: Information related to pictures

(Appears at the bottom of the screen)

T1-4: Textual information

(Appears over the entire screen)

Digital

(The Digital Closed caption menu lets you configure the way you choose to view the digital captioning.)

Select the setting.

“Primary”, “Second.”, “Service 3”, “Service 4”,

“Service 5”, “Service 6”

To make more in-depth display settings in digital programs

Select “Digital setting” and press OK

Select the item and set

Menu Digital setting

Size Small

select

Size

Text size

Font

Style

Default

None

set

Font

Text font

Foreground Black

Fore. opacity Solid Style

Text style (Raised, Depressed, etc.)

Background Black

Back. opacity

Outline

Solid

Black

Foreground Color of text

Selects the text size.

Fore. opacity Opacity of text

Background Color of text box

Back. opacity Opacity of text box

Outline

Outline color of text (Identify the setting options on the screen.)

To reset the settings

Select “Reset to defaults”. Confirmation screen is displayed.

Select “Yes” and press OK.

Input Labels

Display the menu

Press to exit from a menu screen

Select “Setup”

Menu Setup

Channel surf mode

All

Language

Clock

ANT/Cable setup

Input labels

1/2

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Select “Input labels”

Menu 1/2 Setup

Channel surf mode

All

Language

Clock

ANT/Cable setup

Input labels

Customize TV inputs with the names of your connected devices. For easier input selections.

next

select

next

select

Input labels

Display labels of

Connected devices

Devices connected to external input terminals can be labeled for easier identification during the input selection. (In selecting the input mode from p. 20 )

Select the terminal and label of the external equipment

Menu

Input labels

HDMI 1

select

HDMI 2

HDMI 3

Component

Video 1

Video 2

PC

set or

R

Select

OK

RETURN

G ABC abc B

@ A D

Select if a computer is connected to the

TV’s PC input.

1

@.

4

GHI

7

PQRS

LAST

2

5

ABC

JKL

8

TUV

0 - ,

3

DEF

6

MNO

9

WXYZ

Y Delete

Select or enter the name of the device connected to the HDMI 1 terminal.

Follow the instructions on screen to complete the following operations.

Label Terminal

Video 1

VCR

[example]

Terminals: HDMI 1-3/Component/Video 1-2/PC

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME

THTR/GAME/COMPUTER/VCR/CABLE/SATELLITE/

DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA

CTR/MEDIA EXT/OTHER

For the PC terminal, only “Not used” is available.

If “Not used” is selected, the INPUT button press will skip its input.

Each selected label will be displayed on the “Input select” screen. (p. 20)

37

Using Timer

The TV can automatically turn On/Off at the designated date and time.

The Clock must be set before On time/Off time settings. (p. 14)

The “Sleep” timer and “On / Off timer” will not work if the “Auto power on” (p. 25) is set.

Display the menu

38

Press to exit from a menu screen

Press to return to the previous screen

Note

The TV automatically turns Off after 90 minutes when turned

On by the Timer.

This operation will be cancelled if the Off time is selected or if a key is pressed.

Select “Timer”

Menu Timer

Sleep

Timer 1

Timer 2

Timer 3

Timer 4

Timer 5

next

select

Set the TV to turn on or off automatically at the designated date and time.

Select the timer to set

Menu Timer

Sleep

Timer 1

Timer 2

Timer 3

Timer 4

Timer 5

Turns the TV off after selected time.

Sleep

Timer 1

select

next

Turns Off automatically

Turns On/Off automatically

(5 timers can be set.)

Timer 5

Set the timer

To set “Sleep” (Off Timer)

Set to shut the unit off after a pre-selected amount of time.

Menu Sleep

Sleep (minutes) 0

0/15/30/60/90 (minutes) set

To set “Timer 1-5” (On/Off Timer)

Select the item and set

Menu

Timer 1

Timer set

Inputs

Off

TV

select

set

Channel

Day

On time

--

4/18[SUN]

--:--

Off time --:--

or

Sets the time when the TV turns on. The TV will turn off after 90 minutes or as specified.

Day

On time

Off time

4/18

[SUN]

12

--:--

Select

Sets the time when the TV turns on. The TV will turn off after 90 minutes or as specified.

OK

RETURN

0

LAST

9

AM/PM

Clear

Timer set

Timer setting (Off/On)

Select the inputs

Inputs

Channel

Select the channel

Day

Select the day

SUN/MON/TUE/WED/THU/FRI/SAT

(displays the nearest future date)

MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/

Every TUE/Every WED/Every THU/Every FRI/ Every SAT

On time

The time to turn On

Off time

The time to turn Off

Recommended AV Connections

These diagrams show our recommendations on how to connect the TV unit to your various equipment.

For other connections, consult the instructions for each piece of equipment and its specifications.

For additional assistance, please visit our website at: www.panasonic.com

www.panasonic.ca

Back of the TV AC 110-127 V 60 Hz

AC Cord

(Connect after all the other connections are complete.)

Cable TV or

Cable Box

Connect with

or or or

RGB PC cable

To watch

Conversion adapter

(if necessary)

camcorder images

Camcorder

VCR

DVD Player

HDMI connection,

HDMI compatible equipment only.

For connection using an HDMI-DVI

Conversion cable, see HDMI 1 or HDMI

2 connection on this page.)

Optical digital audio cable

Audio cable

PC

OPTICAL

IN

Amplifier

To watch DVDs

Player/

Blu-ray Disc player/

Set Top Box

To listen to the TV through speakers

Audio cable

* Please see p. 24 for the setup when using an external analog audio cable with an HDMI to DVI cable.

or or

DVD Recorder/

VCR

HDMI cable

HDMI-DVI

Conversion cable +

Audio cable*

39

40

Ratings List for Lock

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the entertainment industry. (p. 33)

U.S. MOVIE RATINGS (MPAA)

NR

G

PG

PG-13

R

NC-17

X

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.

GENERAL AUDIENCES. All ages admitted.

PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NO ONE 17 AND UNDER ADMITTED.

ADULTS ONLY.

U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based

Group

NR

(Not Rated)

Youth

Guidance

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

Viewable

Blocked

Viewable

Blocked

FV Blocked

Viewable

Blocked

Viewable

Blocked

D,L,S,V (all selected)

Any combination of

D, L, S, V

D,L,S,V (all selected)

Any combination of

D, L, S, V

L,S,V (all selected)

Any combination of

L, S, V

Not Rated.

Description

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6.

Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

CANADIAN ENGLISH RATINGS (C. E. L. R.)

E

C

C8+

G

PG

14+

18+

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming intended for children under age 8. No offensive language, nudity or sexual content.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

General programming, suitable for all audiences.

Parental Guidance suggested. Some material may not be suitable for children.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

CANADIAN FRENCH RATINGS (C. F. L. R.)

E

G

8 ans+

13 ans+

16 ans+

18 ans+

Exempt - Exempt programming.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

Technical Information

Closed caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3; characters might be cut off).

The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On using the Component or HDMI connection to the TV.

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC may overlap on the TV.

If a digital program is being output in analog format, the CC data will also be output in analog format.

If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 16)

(e.g.: in case of 4:3 image)

FULL JUST

FULL JUST

Enlarges the 4:3 image horizontally to the screen’s side edges.

(Recommended for anamorphic picture)

H-FILL

Stretches to justify the 4:3 image to the four corners of the screen.

(Recommended for normal TV broadcast)

4:3

H-FILL

Side bar

Enlarges the 4:3 image horizontally to the screen’s side edges. The side edges of the image are cut off.

Standard

(Note that “Image retention” of the side bar may occur from displaying it for a long time.)

ZOOM

ZOOM

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Enlarges the 4:3 image to the entire screen.

(Recommended for Letter Box)

Zoom adjustments

Vertical image position and size can be adjusted in “ZOOM”.

Select “Zoom adjustments” on the “Picture” menu. (p. 24)

V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio (OK)

41

42

Technical Information

(Continued)

Data format for SD Card browsing

Photo:

Data format:

Max. number of files:

Image resolution:

Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF** standards

Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)

9,999

160 x 120 to 20,000,000

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

** EXIF (Exchangeable Image File Format)

Caution

A JPEG image modified with a PC may not be displayed.

Partly degraded files might be displayed at a reduced resolution.

Note

Folder structure viewed in PC

DCIM

100_P ANA

Created automatically

3-digit folder number + 5-digit arbitrary characters



4-digit arbitrary characters + 4-digit file number

Usable characters: 1-byte “a to z”, “A to Z”, “0 to 9,” and “_”



The folder and file names may be different depending on the digital camera used.

For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs (This site is in English only)

Cautions in handling SD Card:

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

Do not remove the card while the unit is accessing data (this can damage card or unit).

Do not touch the terminals on the back of the card.

Do not subject the card to high pressure or impact.

Insert the card in the correct direction (otherwise, card or unit may be damaged).

Electrical interference, static electricity or erroneous operation may damage the data or card.

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

2.1 mm

Message

SD card slot is empty.

No photos

Cannot read file

SD Card warning messages

Meaning

The card is not inserted.

The card has no data or this type of data is not supported.

The file is broken or unreadable.

The TV does not support the format.

24 mm

VIERA Link

TM

“HDAVI Control

TM

HDMI connections to some Panasonic equipment allows you to interface automatically. (p. 26)

This function may not work normally depending on the equipment condition.

The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.

Image or sound may not be available for the first few seconds when the playback starts.

Image or sound may not be available for the first few seconds when Input mode is switched.

Volume function will be displayed when adjusting the volume of the equipment.

If you connect equipment that has “HDAVI Control 2 or later” function to the TV with HDMI cable, the sound from DIGITAL

AUDIO OUT terminal can be output as multi channel surround.

“HDAVI Control 5” is the newest standard (current as of December, 2009) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and the devices.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” menu screen. (p. 24)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device.

(*2): Enquire at your local digital equipment retailer shop.

Caution

Use with a PC is not assumed.

All signals are reformatted before being displayed on the screen.

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

These HDMI connectors are “type A”.

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT” or “VIDEO” to receive analog signals.

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i, 1080p.

Match the output setting of the digital device.

For details of the applicable HDMI signals, see p. 44.

DIGITAL AUDIO OUT terminals

You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the

DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output.

When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC channel is selected, the output will be PCM.

Picture mode

Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

Standard: Recommended for normal viewing conditions with subdued room lighting.

Cinema: For watching movies in a darkened room. It provides a soft, film-like picture.

Customizes each item according to your taste.

Photo is displayed in JPEG menu.

43

44

Technical Information

(Continued)

H size

Aspect Ratio: 4:3

Size 1 Size 2

The width will be decreased on both sides to reduce noise.

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

Size 1 Size 2

The width will be increased on both sides to reduce noise.

See page 24 for more information

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, P

B

, P

R

), HDMI and PC

525 (480) / 60i

525 (480) /60p

750 (720) /60p

1,125 (1,080) /60i

1,125 (1,080)/60p

1,125 (1,080)/60p

1,125(1,080)/24p

1,125(1,080)/24p

640 × 400 @70

640 × 480 @60

Macintosh13” (640 × 480)

640 × 480 @75

852 × 480 @60

800 × 600 @60

800 × 600 @75

800 × 600 @85

Macintosh16” (832 × 624)

1,024 × 768 @60

1,024 × 768 @70

1,024 × 768 @75

1,024 × 768 @85

Macintosh 21” (1,152 × 870)

1,280 × 768 @60

1,280 × 1,024 @60

1,366 × 768 @60

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI

46.88

53.67

49.73

48.36

56.48

60.02

68.68

68.68

47.78

63.98

48.39

15.73

31.47

45.00

33.75

67.43

67.50

26.97

27.00

31.47

31.47

35.00

37.50

31.44

37.88

75.00

85.08

74.55

60.00

70.07

75.03

85.00

75.06

59.87

60.02

60.04

59.94

59.94

59.94

59.94

59.94

60.00

23.98

24.00

70.08

59.94

66.67

75.00

59.89

60.32

*

*

*

*

*

*

*

*

*

*

*

*

Note

Signals other than above may not be displayed properly.

The above signals are reformatted for optimal viewing on your display.

PC

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

PC Input Terminals Connection

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

Some PC models cannot be connected to the set.

There is no need to use an adapter for computers with IBM PC/AT compatible D-sub 15P terminal.

The maximum resolution: 1,280 × 1,024

If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

Signal Names for D-sub 15P Connector

11 12 13 14 15

6 7 8

1 2 3

9 10

4 5

Pin Layout for PC Input Terminal

Pin No.

Signal Name

R

G

B

NC (not connected)

GND (Ground)

Pin No.

Signal Name

GND (Ground)

GND (Ground)

GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

Signal Name

NC (not connected)

NC

HD/SYNC

VD

NC

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lintfree cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV.

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Pedestal

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating.

(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Power cord plug

Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)

45

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem.

If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance. For details (p. 50, 51)

For additional assistance, please contact us via the website at: www.panasonic.com/contactinfo www.panasonic.ca

White spots or shadow images

(noise)

Check the position, direction, and connection of the antenna.

Interference or frozen digital channels

(intermittent sound)

46

Change the direction of antenna for digital channels.

Check “Signal meter” (p. 35).

If the signal is weak, check the antenna and consult your local dealer.

The LCD panel moves slightly when it is pushed with a finger.

A clattering sound might be heard

This is not a malfunction.

There is some looseness around the panel to prevent damage to the panel.

Pictures from external equipment are distorted when the unit is connected via HDMI

Is the HDMI cable connected properly?

(p. 27, 39)

Turn Off the TV unit and equipment, then turn them On again.

Check an input signal from the equipment.

(p. 44)

Use equipment compliant with

EIA/CEA-861/861B.

When the channel is changed on an STB that is connected with

HDMI, “HDMI” may be displayed on the top left of the screen

This is not a malfunction.

Recording does not start immediately

Check the settings of the recorder. For details, read the manual of the recorder.

The remote control does not work

Are the batteries installed correctly? (p. 7)

Are the batteries new?

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).

Problem

Some spots remain bright or dark

Actions

The LCD panel is made up of a few million pixels and is produced with advanced technology through an intricate process. Sometimes a few pixels may be bright or dark.

These pixels do not indicate a defective panel and will have no impact on the performance of the TV.

Chaotic image, noisy

No image is displayed on screen

Only spots are displayed instead of images

Neither image nor sound is produced

Black Box appears

Check nearby electrical products.

(car or motorcycle ignition systems, fluorescent lamp, etc.)

Check Picture menu (p. 24)

Check the cable connections.

Check that the correct input has been selected.

Check the channel settings. (p. 34)

Check the antenna cables.

Is the power cord plugged into the outlet?

Is the TV unit turned On?

Check Picture menu (p. 24) and volume.

Check the AV cable connections. (p. 9-10)

Check that the correct input has been selected. (p. 20)

Change settings of Closed caption (CC). (p. 36)

No sound is produced

Sound is unusual

Unknown sound heard

1- Sounds from TV cabinet

2- Tick/Click sound

3- Buzzing sound

The main unit is hot.

Are the speakers’ cables connected correctly? (p. 39)

Is “Sound Mute” active? (p. 11)

Is the volume set to the minimum?

Is “TV speakers” set to “Off”? (p. 24)

Change “SAP” settings. (p. 15)

Check “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” settings.

(p. 24)

Set “SAP” setting to “Stereo” or “Mono”.

Check the HDMI device connected to the unit.

Set the audio setting of the HDMI device to

“Linear PCM”.

If digital sound connection has a problem, select analog sound connection.

1- Changes in the temperature and humidity of the room may cause the TV’s cabinet to expand or contract and produce metallic sounds. This is not a sign of faulty operation or a malfunction.

2- When the TV is powered on, an electrical component in the

TV activates producing a tick/click sound. This is not a sign of faulty operation or a malfunction.

3- Electrical circuits are active while the TV set is on.

This is not a sign of faulty operation or a malfunction.

The main unit radiates heat and some of the parts may become hot. This is not a problem for performance or quality.

Set up in a location with good ventilation.

Do not cover the ventilation holes of the TV with a tablecloth, etc., and do not place on top of other equipment.

47

Specifications

Power Source

Maximum

Standby condition

Aspect Ratio

Visible screen size

(W × H × Diagonal)

(No. of pixels)

Speaker

Audio Output

PC signals

Channel Capability-

ATSC/NTSC (Digital/Analog)

Operating Conditions

VIDEO IN 1-2

COMPONENT IN

HDMI 1-3

PC

Card slot

DIGITAL AUDIO OUT

FEATURES

Including TV stand

TV Set only

Including TV stand

TV Set only

TC-L32U22

AC 110-127 V, 60 Hz

102 W

0.3 W

151 W

0.3 W

TC-L37U22

199 W

0.3 W

TC-L42U22

16:9

32” class

(31.5 inches measured diagonally)

27.5 ” × 15.4 ” × 31.5 ”

(698 mm × 392 mm × 800 mm)

37” class

(37.0 inches measured diagonally)

32.2 ” × 18.1 ” × 37.0 ”

(819 mm × 460 mm × 940 mm)

2,073,600 (1,920 (W) × 1,080(H)) [5,760 × 1,080 dots]

1-way 2 speakers slim under SP System

42” class

(42.0 inches measured diagonally)

36.6 ” × 20.6 ” × 42.0 ”

(930 mm × 523 mm × 1, 067 mm)

20 W [10 W + 10 W] (10 % THD)

VGA, SVGA, XGA, WXGA, SXGA

Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

VHF/ UHF: 2 - 69, CATV: 1 - 135

Temperature: 32 °F – 95 °F (0 °C – 35°C)

Humidity: 20 % – 80 % RH (non-condensing)

VIDEO:

AUDIO L - R:

RCA PIN Type × 1 1.0 V[p-p] (75 Ω)

RCA PIN Type × 2 0.5 V [rms]

Y:

P

B

, P

R

:

AUDIO L-R:

1.0 V [p-p] (including synchronization)

±0.35 V [p-p]

RCA PIN Type × 2 0.5 V [rms]

TYPE A Connector × 3

This TV supports “HDAVI Control 5” function.

D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

SD CARD slot × 1

PCM / Dolby Digital, Fiber Optic

3D Y/C FILTER, CLOSED CAPTION,

V-Chip, HDAVI Control 5

Vesa compatible, VIERA IMAGE VIEWER

31.5 ” × 21.7 ” × 8.6 ”

(798 mm × 551 mm × 217 mm)

31.5 ” × 20.2 ” × 3.3 ”

(798 mm × 511 mm × 83 mm)

36.1 ” × 24.5 ” × 11.3 ”

(915 mm × 620 mm × 287 mm)

36.1 ” × 22.8 ” × 3.5 ”

(915 mm × 577 mm × 87 mm)

24.3 lb. (11.0 ) NET

21.0 lb. (9.5 ) NET

34.2 lb. (15.5 ) NET

29.8 lb. (13.5 ) NET

40.2 ” × 26.8 ” × 12.2 ”

(1, 021 mm × 680 mm × 310 mm)

40.2 ” × 25.1 ” × 4.2 ”

(1, 021 mm × 637 mm × 105 mm)

45.2 lb. (20.5 )

39.7 lb. (18.0 )

[TC-L32U22]

31.5 ” (798 mm)

3.3 ”

(83 mm)

[TC-L37U22]

36.1 ” (915 mm)

3.5 ”

(87 mm)

[TC-L42U22]

40.2 ” (1,021 mm)

4.2 ”

(105 mm)

48

14.2 ”

(359 mm)

8.6 ” (217 mm)

15.8 ”

(399 mm)

11.3 ” (287 mm)

17.8 ”

(450 mm)

12.2 ” (310 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Limited Warranty

(for U.S.A. and Puerto Rico only)

PANASONIC CONSUMER ELECTRONICS COMPANY,

DIVISION OF:

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

Panasonic LCD Televisions

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer

Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price.

The decision to repair, replace or refund will be made by the warrantor.

LCD TV CATEGORIES

Up to 42” (diagonal)

46” (diagonal) and larger

PARTS

1 (ONE) YEAR

LABOR

1 (ONE) YEAR

SERVICE

Carry-In

On-Site

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts.

You must carry-in your product or arrange for on-site service during the Limited warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the

United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

On-Site or Carry-in Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372)

On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not be completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the LCD panel resulting from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED

WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have others rights which vary from state to state.

If a problem with this product develops during or after the warranty period, you may contact your dealer or

Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs

Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH

ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

49

50

Customer Services Directory

(for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web

Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-877-95-VIERA (958-4372)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web

Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[email protected]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Limited Warranty

(for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Viera TV (42” & over)

Viera TV (under 42”)

In-home service

Carry-in service

One (1) year, parts (including panel) and labour.

One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.

In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential damages.

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR

OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS

REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY

EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the

Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation and information assistance,

please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014

For product repairs,

please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

51

This product has a fluorescent lamp that contains mercury.

Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org.

Este producto tiene una lámpara fluorescente que contiene mercurio.

Debido a consideraciones ambientales, puede que deshacerse de este material esté regulado en su comunidad. Para obtener información sobre cómo deshacerse o reciclar este material, póngase en contacto con las autoridades de su localidad o con Electronics Industries Alliance:

http://www.eiae.org.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los servicios que le ofrece la garantía.

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus

New Jersey 07094 U.S.A.

© 2010 Panasonic Corporation of North America. All Rights Reserved.

© 2010 Panasonic Corporation of North America. Todos los Derechos Reservados.

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
