HP Tower UPS T750 G2, T1000 G3, T1500 G3

HP Tower Uninterruptible Power Systems (UPS) provide advanced power protection and secure your computer equipment and your critical data against damage due to inconsistent and fluctuating power. Designed for small/medium businesses, HP UPSs lower your power protection cost by allowing you to safeguard all of your equipment. Key benefits include increased power rating, an intuitive front panel display, Enhanced Battery Management (EBM), prioritized shut-down, hot-swappable battery, Network Transient

Protection, and a serial and USB ports for data exchange with the host computer

HP Power Manager software (free with all HP UPSs) provides the flexibility to monitor power conditions and control the HP UPS locally or remotely, enables you to broadcast alarms, perform orderly shutdowns in the event of power failures, and allows you to schedule power-on and power-off to the UPS and attached equipment.

With HP Care Pack Services, have the security of knowing that your HP UPS will be covered at the same service level and coverage period as your HP server. HP UPSs are backed by a 3-year limited warranty and our exclusive 30-day Battery Pre-Failure Warning.

1. On/Off

4. On Battery

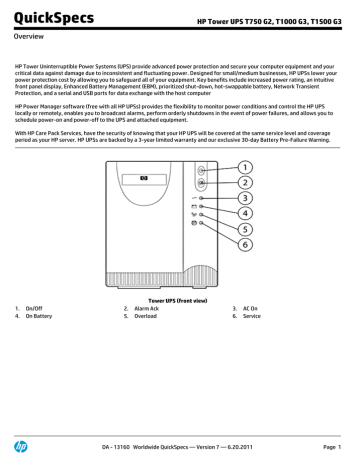

Tower UPS (front view)

2. Alarm Ack

5. Overload

3. AC On

6. Service

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 1

QuickSpecs

Overview

HP Tower UPS T750 G2, T1000 G3, T1500 G3

HP T750 G2 UPS INTL

1. Network Transient Protector

HP T1000 G3 UPS INTL

1. Network Transient Protector

HP T1500 G3 UPS INTL

1. Network Transient Protector

2. (4) IEC C-13 Output Power Receptacles 2. (4) IEC C-13 Output Power Receptacles 2. (6) IEC C-13 Output Power Receptacles

3. IEC 320 C-14 Input Power Receptacle 3. IEC 320 C-14 Input Power Receptacle 3. IEC 320 C-14 Input Power Receptacle

4. Site wiring fault indicator

5. Serial Port

4. Site wiring fault indicator

5. Serial Port

4. Site wiring fault indicator

5. Serial Port

6. Voltage Configuration

7. USB Port

6. Voltage Configuration

7. USB Port

6. Voltage Configuration

7. USB Port

HP T750 G2 UPS NA

1. Network Transient Protector

2.

(4) NEMA 5-15 Output Power

Receptacles

3. NEMA 5-15 Input Power Cord

4. Site wiring fault indicator

5. Serial Port

6. Voltage Configuration

7. USB Port

HP T1000 G2 UPS NA and T750J UPS Japan

1. Network Transient Protector

HP T1500G2 UPS NA, T100J Japan, and

T1500J Japan

1. Network Transient Protector

2.

(6) NEMA 5-15 Output Power

Receptacles

3. NEMA 5-15 Input Power Cord

4. Site wiring fault indicator

5. Serial Port

6. Voltage Configuration

7. USB Port

2.

(6) NEMA 5-15 Output Power

Receptacles

3. NEMA 5-15 Input Power Cord

4. Site wiring fault indicator

5. Serial Port

6. Voltage Configuration

7. USB Port

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 2

QuickSpecs

Overview

Models

HP T750 G2 UPS Models

HP T750 G2 750VA NA Tower Uninterruptible Power System

HP T750 G2 750VA INTL Tower Uninterruptible Power System

HP T750J JP Uninterruptible Power System

HP T1000 G3 UPS Models

HP T1000 G3 1000VA NA Tower Uninterruptible Power System

HP T1000 G3 1000VA INTL Tower Uninterruptible Power System

HP T1000J JP Uninterruptible Power System

HP T1500 G3 UPS Models

HP T1500 G3 1400VA NA Tower Uninterruptible Power System

HP T1500 G3 1400VA INTL Tower Uninterruptible Power System

HP T1500J JP Uninterruptible Power System

Kit Contents

HP Tower UPS T750 G2, T1000 G3, T1500 G3

HP UPS T750 G2, T750J, T1000 G3, T1000J, T1500 G3, or T1500J

Read This First Card

Power Manager Software CD. Software can also be downloaded at: www.hp.com/products/powermanager

Power Products Documentation CD

6' (1.83 Meters) UPS to computer serial interface cable

6' (1.83 Meters) UPS to computer USB interface cable

NOTE: The International model includes 2 IEC power cords in addition to the above.

AF446A

AF447A

AF456A

AF448A

AF449A

AF457A

AF450A

AF451A

AF458A

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 3

QuickSpecs

Standard Features

Key Features

HP Tower UPS T750 G2, T1000 G3, T1500 G3

Manageability through USB and Serial ports

Ease of configuration via enhanced front panel display.

Long-term battery reliability with Enhanced Battery Management.

Intelligent manageability with bundled Power Manager software.

Hot-Swappable battery.

Network Transient Protector

Backed by a three-year warranty, with the first year including parts and labor. HP Battery Pre-

Failure Warranty and a $250,000 load protection guarantee

NOTE: Certain restrictions and exclusions apply. Consult the HP Computer Support Center for details.

Easy Configuration via

Intuitive Front Panel

Display

Please see the line art drawing previously shown to identify the front panel with noted button functionality.

Investment Protection with Enhanced Battery

Management

HP UPSs incorporate Enhanced Battery Management; an exclusive, patented technology that doubles battery service life, optimizes battery recharge time, and provides advance notice of pending battery failure. With Enhanced Battery Management, you have a lower overall cost of ownership and receive the best in the industry protection for your critical equipment.

Intelligent Manageability HP UPSs ship with HP Power Manager management software, which enables you to monitor and control

HP UPSs locally or remotely. This software is a versatile, fully configurable, alert response tool that gives system administrators a full overview of the network's conditions. It enables you to monitor system status and power conditions, configure shut down timing, customize alert messages, and perform UPS diagnostic checks quickly and easily.

Ease of Maintenance with

Hot-Swappable Battery

HP UPSs are designed with hot-swappable battery packs. With simple access through the front panel.

Users can safely install a new battery without ever powering down connected computer equipment.

Advanced Protection with

Network Transient

Protector

HP UPSs come standard with Network Transient Protection that guards your network communication equipment from surges. Low voltage models can also protect modems, fax machines, or other telecommunications equipment.

Compatibility

Compatible with all HP ProLiant computer systems and servers ranging from individual workstations to distributed enterprise and other HP equipment (in tower form factor) based on the equipment load to be protected.

Tailored for ProLiant /

Integrity

With HP Qualified Options you can focus on growing your business when you optimize your infrastructure with HP options designed for servers and storage. HP Qualified Options strengthen the foundation of your data center with high caliber products that are easy to maintain and tailored for ProLiant and

Integrity giving you confidence in your whole infrastructure.

HP Quality

Chose an HP UPS, an HP qualified option, and have confidence that HP hardware qualification is the toughest in the industry. Extensive evaluation, testing, product improvement, and an unsurpassed warranty guarantee the highest level of system protection, electrical performance, product quality and compatibility. All products are RoHS compliant.

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 4

QuickSpecs

Standard Features

Warranty

HP Tower UPS T750 G2, T1000 G3, T1500 G3

When you need it, use outstanding HP support services for your whole data center environment. With HP

Care Pack Services, have the security of knowing that your HP UPS will be covered at the same service level and coverage period as your HP server. HP UPSs are backed by a 3-year limited warranty, with the first year including parts and labor. Also, standard on all HP UPS units is our exclusive 30-day Battery

Pre-Failure Warranty, which ensures that when customers receive notification from HP Power Manager

Software that the battery may fail, the battery is replaced free of charge under the warranty. This warranty is offered worldwide.

NOTE: $250,000 Computer/Load Protection Guarantee is also provided (applicable in North America only).

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 5

QuickSpecs

Service and Support

HP Tower UPS T750 G2, T1000 G3, T1500 G3

HP Care Pack Installation

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

Installation and start up

Education courses

Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4 hour response or 6-hour Call To Repair

Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMware-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.

System Management, Performance Services and Mission Critical Support Solution.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices, resellers or visit our worldwide website at: http://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit is at: http://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

NOTE: For additional information on Server Services, Rack and Power Options, please visit: http://h20219.www2.hp.com/services/cache/111072-0-0-225-121.html

NOTE: The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.

NOTE: The warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services.

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 6

QuickSpecs

Related Options

HP Care Pack

HP Tower UPS T750 G2, T1000 G3, T1500 G3

HP Install Universal Power Supply Less Than 3KVA Service U4690E

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 7

QuickSpecs

Technical Specifications

HP Tower UPS T750 G2, T1000 G3, T1500 G3

UPS T750 G2 Specifications

T750 G2, NA

AF446A

Unit Dimensions (WxDxH) 5.9 x 13.1 x 7.6 inch (150 x 333 x 193 mm)

Shipping Dimensions

12.2 x 9.9 x 17.4 inch (310 x 257 x 442 mm)

T750 G2, INTL

AF447A

T750J, Japan

AF456A

Unit Weight

28.1 lbs (12.7kg)

Shipping Weight

Operating Voltage

Settings

30.9 lbs (14 kg)

100V, 110V, 120V

NOTE: Part Number AF446A is user selectable for 100V, 110V, or 120V via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 750VA/500W

Input Connection

Attached 6 foot power cord with

NEMA 5-15P

Output Connection

(4) NEMA 5-15R

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

220V, 230V, 240V

NOTE: Part Number AF447A is user selectable for 220V, 230V, or 240V via dip switch setting on the back of the unit.

Power Out

(VA/Watts) 750VA/500W

Input Connection

IEC- 60320 C13

Output Connection

Load Segments

(4) IEC 320 C14

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

100V or110V,

NOTE: Part Number AF456A is user selectable for 100V, or 110V, via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 750VA/500W

Input Connection

Attached 6 foot power cord with

NEMA 5-15P

(6) NEMA 5-15R

Output Connection

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 8

QuickSpecs

HP Tower UPS T750 G2, T1000 G3, T1500 G3

Technical Specifications

UPS T1000 G3 Specifications

T1000 G3, NA

AF448A

Unit Dimensions (WxDxH) 5.9 x 13.1x 7.6 inch (150 x 333 x 193 mm)

Shipping Dimensions

12.2 x 9.9 x 17.4 inch (310 x 257 x 442 mm)

Unit Weight

28.1 lbs (12.7kg)

T1000 G2, INTL

AF449A

T1000J, Japan

AF457A

Shipping Weight

30.9 lbs (14 kg)

Operating Voltage

Settings

100V, 110V, 120V

NOTE: Part Number AF448A is user selectable for 100V, 110V, or 120V via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 1000VA/670W

Input Connection

Output Connection

Attached 6 foot power cord with

NEMA 5-15P

(6) NEMA 5-15R

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

220V, 230V, 240V

NOTE: Part Number AF449A is user selectable for 220V, 230V, or 240V via dip switch setting on the back of the unit.

Power Out (VA/Watts) 1000VA/670W

Input Connection

IEC 320 C13

Output Connection

(6) IEC 320 C14

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

100V or 110V,

NOTE: Part Number AF457A is user selectable for 100V or 110V, via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 1000VA/670W

Input Connection

Output Connection

Load Segments

Attached 6 foot power cord with

NEMA 5-15P

(6) NEMA 5-15R

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 9

QuickSpecs

HP Tower UPS T750 G2, T1000 G3, T1500 G3

Technical Specifications

UPS T1500 G3 Specifications

T1500 G3, NA

AF450A

Unit Dimensions (WxDxH) 5.9 x 15.4 x 7.6 inch (150 x 390 x 193 mm)

Shipping Dimensions

12.2 x 9.9 x 17.4 inch (310 x 257 x 518 mm)

Unit Weight

37.4 lbs (17.0 kg)

T1500 G3, INTL

AF451A

T1500J, Japan

AF458A

Shipping Weight

40.5 lbs (18 kg)

Operating Voltage

Settings

100V, 110V, 120V

NOTE: Part Number AF450A is user selectable for 100V, 110V, or 120V via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 1400VA/950W

Input Connection

Output Connection

Attached 6 foot power cord with

NEMA 5-15P

(6) NEMA 5-15R

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

220V, 230V, 240V

NOTE: Part Number AF451A is user selectable for 220V, 230V, or 240V via dip switch setting on the back of the unit.

Power Out (VA/Watts) 1400VA/950W

Input Connection

IEC 320 C13

Output Connection

(6) IEC 320 C14

Load Segments

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

Operating Voltage

Settings

100V, 110V,

NOTE: Part Number AF458A is user selectable for 100V or 110V via dip switch setting on the back of the unit.

Power Out (VA/Watts) NA: 1400VA/950W

Input Connection

Output Connection

Load Segments

Attached 6 foot power cord with

NEMA 5-15P

(6) NEMA 5-15R

1

NOTE: Locate which Operating Systems are supported at: www.hp.com/products/powermanager .

HP UPS T750 G2, T1000 G3, and T1500 G3, Models Specifications

Electrical Input Voltage Range

100V-120V and 208V-230V models

Electrical Output

Battery

Frequency

Connections

Online Efficiency

See Model Specifications for nominal and user selectable voltage settings

50/60 Hz

Surge Suppression

Online Regulation

See Model Selection Matrix

95%

High Energy 6500A peak

-10% to +6% of nominal voltage

On battery Regulation

±5% of nominal voltage

Voltage Wave Form

Sine wave

Connections

See Model Specifications

Output Protection

Type

Re-settable circuit protectors

Maintenance-free, sealed, valve-regulated lead acid (VRLA)

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 10

QuickSpecs

HP Tower UPS T750 G2, T1000 G3, T1500 G3

Technical Specifications

Communications

Environmental and

Safety/EMC

Recharge Time

<3 hours to 90% usable capacity; <24 hours for complete recharge

Battery String Voltage

T750 G2 and T750J: 24V (2x12V)

T1000 G3: 24V (2X12V)

T1000J: 36V (3x12V)

T1500 G3 and T1500J: 36V (3X12V)

Battery Ampere Hour (ah) T750 G2: 7.2ah

T750J: 9ah

T1000 G3 and T1000J: 9ah

T1500 G3 and T1500J: 9ah

Serial Ports

Standard communication port (ships with 6' Serial communication cable)

USB Port

Standard communication port (ships with 6' USB communication cable)

LED Indicators

Power On/Off button

Alarm Acknowledgement - Turns off the alarm buzzer.

Power LED

Green- AC is present

Battery LED

Amber- The unit is running off of the battery.

Overload LED

Red - Output is overloaded.

Service LED

Red- Faulty battery or battery failed test.

Audible Alarm- The unit detects an operational fault or changes in the battery mode.

Operating Temperature

32° to 104° F (0° to 40° C)

-5° to 131° F (-15° to 55° C)

Transit and Storage

Temperature

Relative Humidity

(Operating)

Operating Altitude

5% to 95% (non-condensing)

Up to 4921 feet (1500 Meters) above sea level

Audible Noise

Safety Markings

EMC Markings

Surge Suppression

Emissions

Immunity

Less than 45 dBA max

UL, GS, S Mark, NOM, EK, GOST, TISI

CE, FCC, ICES, C-Tick, VCCI

Conforms to IEC 61000-4-5, Level 3EEE 587B and ANSI C62.41

FCC CFR 47, Part 15 Class B, CISPR 22, EN55022

EN55024, EN62040-2

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 11

QuickSpecs

HP Tower UPS T750 G2, T1000 G3, T1500 G3

Technical Specifications

Estimated Backup Times Chart (In Minutes)

T750 G2 and T750J

Load, percent

50%

100%

T1000 G3 and T1000J

Load, Watts

250

500

Estimated battery runtime at 100% battery charge

15 minutes

5 minutes

Load, percent

50%

100%

Load, Watts

335

670

Estimated battery runtime at 100% battery charge

15 minutes

5 minutes

T1500 G3 and T1500J

Load, percent

50%

100%

Load, Watts

475

950

Estimated battery runtime at 100% battery charge

15 minutes

5 minutes

NOTE: Backup times are estimated for typical applications. Actual performance will depend on load and battery conditions.

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

© Copyright 2011 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation. Unix is a registered trademark of The Open Group.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13160 Worldwide QuickSpecs — Version 7 — 6.20.2011

Page 12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
