QuickSpecs HP ZBook 15 G2 Mobile Workstation Overview

QuickSpecs HP ZBook 15 G2 Mobile Workstation Overview
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview

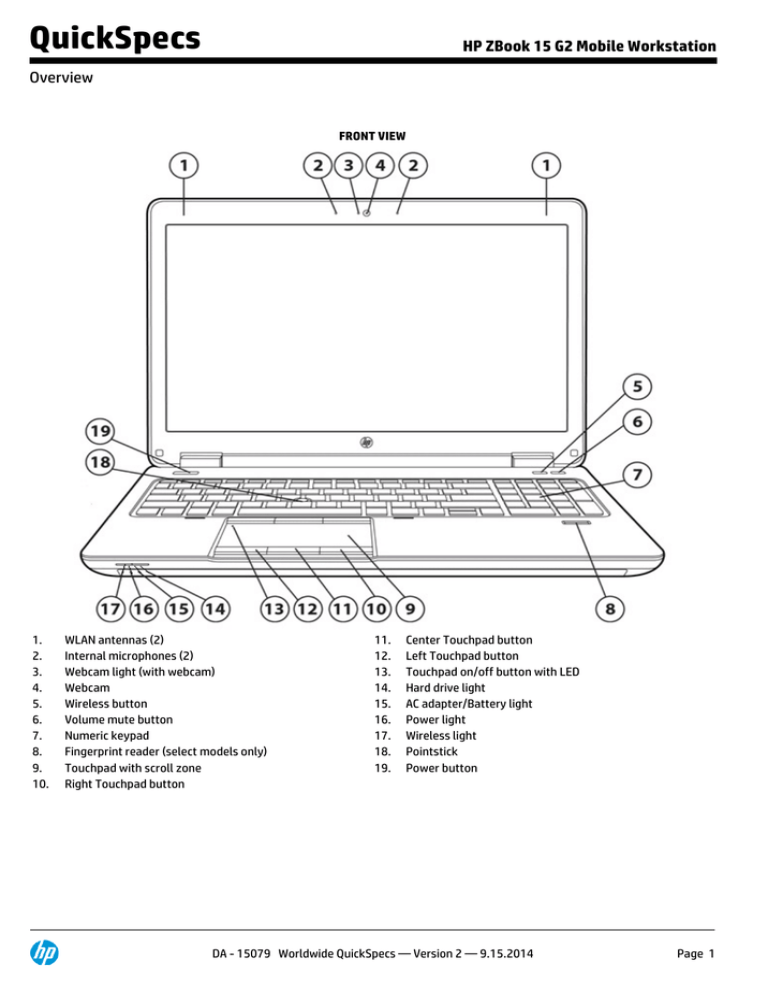

FRONT VIEW
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WLAN antennas (2)
Internal microphones (2)
Webcam light (with webcam)
Webcam
Wireless button
Volume mute button
Numeric keypad
Fingerprint reader (select models only)
Touchpad with scroll zone
Right Touchpad button
11.
12.
13.
14.
15.
16.
17.
18.
19.
Center Touchpad button
Left Touchpad button
Touchpad on/off button with LED
Hard drive light
AC adapter/Battery light
Power light
Wireless light
Pointstick
Power button
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 1
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview
1.
Security cable slot
9.
Audio-out (headphone) jack/Audio in (microphone) jack
2.
USB 2.0 port
10. USB 3.0 port
3.
Thunderbolt port*
11. Optical drive (select models only)
4.
DisplayPort
12. External monitor port
5.
USB 3.0 charging port
13. USB 3.0 port
6.
Smart card reader
14. Power connector
7.
ExpressCard port
15. RJ-45 (network) jack/lights (2)
8.
Memory card reader
* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the
Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine
whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
At A Glance
Windows 8.1 versions, Windows 7 versions, Ubuntu Linux, or FreeDOS
Thin and light form factor and industrial design. Durable HP Duracase with magnesium-reinforced chassis, HP DuraFinish
with brushed aluminum on top cover and smooth aluminum around top, right, and left sides chassis with hematite /graphite
color, HP DisplaySafe frame, latch-less design with precision aluminum-alloy hinges, backlight keyboard in full aluminum
deck, chemically strengthened glass touchpad, and updated system functions indicators
Designed to meet the military standard Mil-Std-810G for drop, vibration, shock, high temperature, low temperature,
temperature shock, dust, altitude, and humidity*
Workstation-caliber NVIDIA® Quadro® discrete graphics: NVIDIA Quadro K610M (1GB GDDR5), NVIDIA Quadro K1100M (2GB
GDDR5), AMD FirePro™ W5170M (2GB GDDR5), NVIDIA Quadro K2100M (2GB GDDR5); NVIDIA Optimus or AMD Enduro™
technology enabled for improved battery life.
ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D textures
Choice of 4th generation Intel® Core™ i7 and i5 processors
Intel Core i7 with vPro and Core i5 with vPro technology (optional) ****
Intel Smart Response Technology support for higher system performance with a hard drive
HP Performance Advisor for optimal configuration, compatibility and performance
Up to four SODIMMs on configurations with quad-core processor, for system memory up to 32 GB
Supports multi-display, including up to four without a docking station (both with and without hybrid graphics enabled), up to
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 2
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview
four with HP Advanced Docking Station (sold separately) without hybrid graphics enabled and up to five with HP Advanced
Docking Station (sold separately) and hybrid graphics enabled
New Thunderbolt 2 port** for high speed data/video/audio transfer support
Thunderbolt 2 port can be connected to monitors supporting DisplayPort 1.2 to achieve HBR2 and MST functionality.
DTS Studio Sound HD audio optimized for high fidelity audio with immersive surround sound with deep, rich bass and crystal
clear dialog without distortion at high volume
Choice of battery solutions: 8-cell (83 WHr) or 8-cell (75 WHr) HP Long Life Battery, combined with optional external
batteries for extended life.
2 discrete buttons with LED indicator for convenient one touch access - Wireless On/Off, Volume Mute
Widescreen 15.6-inch diagonal anti-glare LED-backlit display:
HD (1920x1080) eDP with standard viewing angle, FHD (1920x1080) eDP with PSR (Panel Self Refresh) with ultrawide
viewing angle, QHD+ (3200x1800) eDP with ultrawide viewing angle or FHD ultrawide viewing angle
Upgrade Bay for optional second hard drive or weight saver
Flexible wireless connectivity options:
Intel Dual Band Wireless-N 7260 802.11 a/b/g/n (2x2) WiFi ; Intel Dual Band Wireless-AC 7260 802.11 a/b/g/n/ac
(2x2) WiFi and Bluetooth 4.0 combo; Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi and Bluetooth 4.0
combo
Optional integrated wireless 3G or 4G (LTE) mobile broadband module support
Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection,
or SATA 6 Gb/s 128/180/240/256/512*** GB Solid State Drive, 256 GB Z Turbo Drive (PCIe SSD)
Security features including HP Client Security Manager, managed via single console
Low halogen***
HP BIOS technology, including HP Sure Start to identify and recover from known and unknown BIOS attacks.
* MIL-STD-810G testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contracts or for
military use. Test results are not a guarantee of future performance under these test conditions.
** Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the
Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine
whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
*** External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may
not be low halogen.
**** Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing system required. Performance will vary depending on your
hardware and software configurations. Intel's numbering is not a measurement of higher performance. Some vPro functionality,
such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order
to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software
providers. Microsoft Windows required.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 3
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
OPERATING SYSTEM
Preinstalled
Supported
Windows 8.1 Pro 64*
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro)**
Windows 8.1 64*
Windows 7 Professional 64**
Ubuntu Linux***
FreeDOS
Windows 8.1 Enterprise 64*
Windows 7 Enterprise 64**
Certified
* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers and/or software to take full advantage of Windows functionality. See http://www.microsoft.com
for details.
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro
software. You may only use one version of the Windows software at a time. Switching between versions will require you to
uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and
installing operating systems to avoid loss of your data.
*** Not available with WWAN
PROCESSOR*
4th Generation Intel® Core™ i7-4910MQ (2.9 GHz, 1600MHz, 8 MB L3 cache, 4 cores, 47W)*
Up to 3.90 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4810MQ (2.8 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W)*
Up to 3.80 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4710MQ (2.5 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W) (no vPro support)*
Up to 3.50 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4610M (3.00 GHz, 1600 MHz, 4 MB L3 Cache, 2 cores, 37W)
Up to 3.70 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i5-4340M (2.90 GHz, 1600 MHz, 3 MB L3 Cache, 2 cores, 37W)
Up to 3.60 GHz with Intel Turbo Boost Technology
Intel Dual-Core i5-4210M (3.20 GHz, 1600 MHz, 3 MB L3 Cache, 4 threads, 37W)
Up to 3.20 GHz with Intel Turbo Boost Technology
* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing system required. Performance will vary depending on your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
NOTE: NVIDIA Optimus is enabled by default. If you choose to disable this functionality, Intel® integrated graphics will not be
used.
CHIPSET
Mobile Intel® QM87
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 4
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
INTEL® CORE™ I5 WITH VPRO/CORE™ I7 WITH VPRO TECHNOLOGY CAPABLE
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select
processors, a qualified Intel Centrino® WLAN module and a preinstalled Windows operating system. It provides advances in
remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management
Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked mobile workstations, even when
they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network,
isolate infected systems, and update mobile workstations regardless of their power state.
*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (nonVPN) corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management
technology and Intel Virtualization technology, requires additional third- party software in order to run. Availability of future
"virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on third- party software
providers. Compatibility with future "virtual appliances" is yet to be determined.
GRAPHICS
NVIDIA Quadro K610M with 1 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K1100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
AMD FirePro™ W5170M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K2100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Optimus Technology and AMD Enduro™ Technology supported
NOTE: NVIDIA Quadro mobile professional graphics support up to five independent displays when using an HP Advanced
Docking station (sold separately). AMD FirePro™ professional graphics support up to five independent displays when using an
HP Advanced Docking station (sold separately).
Multi-Display Support
Without Docking Station:
HP ZBook 15 without the use of a Docking Station supports up to a maximum of four independent displays. These four
displays are the internal panel plus three external displays connected to the VGA, the DisplayPort (DP), and the Thunderbolt™
Port connectors.
With Docking Station*:
The Advanced Docking Station has VGA and four digital display output connectors (two DVI and two DP). Of those four digital
display connectors, only two may be used at a time (two DVI, two DP or one DP and one DVI). When used together with the HP
ZBook 15, a maximum of five independent displays are supported. These five displays are the internal panel plus four
external displays connected to three display outputs connectors from the standard or Advanced Docking Station*, and the
Thunderbolt™ connector from the ZBook.
DP 1.2 "daisy-chain" feature:
On HP ZBook 15, the maximum number of independent displays is increased to six with the use of DP1.2 "daisy-chain"
feature. This requires Hybrid Graphics to be enabled, one monitor connected to the dock VGA, and at least one daisy chain
connection on (A) System DP, (B) Docking Station DP 1, (C) Docking Station DP 2.
* Advanced docking station sold separately.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 5
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
DISPLAY
Internal
15.6" diagonal LED-backlit FHD SVA eDP anti-glare (1920 x 1080)
15.6" diagonal LED-backlit FHD UWVA IPS eDP anti-glare + Panel Self Refresh (PSR) (1920 x 1080)
15.6" diagonal RGB LED-backlit FHD UWVA IPS eDP anti-glare (1920 x 1080)
External
Up to 32-bit per pixel color depth
Thunderbolt™ 2*
Supported as part of the daisy chain connected with Intel approved thunderbolt cables. For additional information, please visit
https://thunderbolttechnology.net/.
Thunderbolt™ Features
Legacy: DP 1.1a, DVI-A/D, HDMI and VGA displays attached to the end of the thunderbolt daisy chain via Intel certified
dongles
DP 1.2 redrive: DisplayPort monitors capable of supporting DP 1.2 may be directly attached to the Thunderbolt port to
achieve HBR2 and MST functionality.
DP display with miniDP connector may be attached directly to TB (Thunderbolt) port.
DP display with standard DP connector and other legacy displays (HDMI, DVI, VGA) may be attached to TB with the use
of a dongle.
DP1.2 MST feature ("daisy-chain" feature) is supported through TB port.
* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
DisplayPort w/MST (Multi-stream Transport)
Supports resolutions up to QFHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit
color depth at 120 Hz.
DisplayPort Feature
Multi-stream Transport (MST): Multi-stream Transport is a DP 1.2 feature that allows daisy chaining of DP 1.2 monitors
(requires built in support of DP 1.2 MST in monitor), or the use of DP 1.2 hubs with MST to achieve 4 active displays
without a docking station.
VGA
Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz
DVI-D (single link)
Video signal available through DVI port in optional HP Docking Station (sold separately), as well as through DisplayPort to
DVI-D; DisplayPort to DVI-D (dual link); and DisplayPort to HDMI adapters.
Supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 6
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
STORAGE AND DRIVES
Z Turbo Drive Storage Bay
256 GB Z Turbo Drive (PCIe Solid State Drive)
Primary Storage Bay
Hard Drives*
500/750 GB, 1 TB 7200 rpm SMART SATA II
500 GB 7200 rpm SMART SATA II Self Encrypting Drive
500 GB 5400 rpm SMART SATA II Self Encrypting Drive FIPS 140-2 compliant
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses threeaxis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and
vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is
detected.
Solid State Drive*
128/180/240/256/512 GB SATA 6 Gb/sec
NOTE: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows
7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.
DRIVE CONTROLLERS
Primary drive and upgrade bay:
Z Turbo Drive:
RAID:
SATA-3 or SATA-2 for HDD and SATA-3 for SSD
PCIe SSD
0 and 1 supported
OPTICAL DRIVES
Fixed 9.5 mm SATA optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive*,**
Blu-ray ROM DVD+/-RW SuperMulti DL Drive *,**
DVD+/-RW SuperMulti DL Drive**
*With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute
defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may
require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played.
**Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not
be compatible with many existing single-layer DVD drives and players The DVD-RAM cannot read or write to 2.6GB Single
Sided/5.2 GB Double Sided - Version 1.0 media.
Second hard drive
750 GB 7200 rpm SMART SATA II Hard Drive
512 GB SATA 6 Gb/sec Solid Sate Drive
256 GB SATA 6 Gb/sec Self Encrypting Drive
RAID 0 and 1 supported
Weight saver
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 7
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
MEMORY
Standard
DDR3L 1.35V SDRAM (1600 MHz)
Two SODIMM slots (Dual-core processor) or four SODIMM slots (Quad-core processor) supporting dual-channel memory
2 GB, 4 GB, and 8 GB SODIMMs
Maximum
Upgradeable to 16384 MB with optional 8192 MB SODIMMs in both slots (Dual-core processor)
Upgradeable to 32768 MB with optional 8192 MB SODIMMs in all 4 slots (Quad-core processor)
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory
to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Maximum memory capacities assume Windows 64-bit operating systems or Linux.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest
industry standards. Optional broadband Wireless (WWAN) requires a Windows operating system and is available in select
countries as a standard, factory configurable feature only. Integrated Bluetooth® is also available (factory configurable only)
and can be combined with any of the supported wireless LAN and wireless WAN options.
Mobile Broadband options
HP hs3110 HSPA+ Mobile Module
HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Module
HP lt4211 LTE/EV-DO/HSPA+ Gobi 4G Module
All 802.11 integrated wireless LAN options
Intel Dual Band Wireless-NB 7260 802.11 a/b/g/n (2x2) WiFi
Intel Dual Band Wireless-AC 7260 802.11 a/b/g/n/ac (2x2) WiFi and Bluetooth 4.0 combo
Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi and Bluetooth 4.0 combo
Communications
Integrated Integrated Intel® I217-LM Gigabit** Network Connection (vPro configurations)
* Broadband wireless is an optional feature and requires separately purchased service contract. Check with your local vendor
for coverage area and availability in your area. Connection and speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products, in all regions.
** The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and
does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and
network infrastructure is required.
*** Integrated Intel® Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or
computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or
computer monitor via a standard HDMI cable, also sold separately.
****802.11 requires access point and internet service. Availability of public wireless access points limited.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 8
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
AUDIO/MULTIMEDIA
Audio
DTS Studio Sound HD audio (Windows OS only)
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Combo mic-in / stereo headphone-out jack
Webcam
Optional 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that
funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components
underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as
editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-to-center
spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to power
conservation and brightness.
Pointing Devices
Touchpad with On/Off button, two-way scroll, gestures, three pick buttons
Pointstick with three additional pointstick buttons
Image sensor touchpad for enhanced performance and improved precision on scroll and gesture
Buttons and Function Keys
Separate launch buttons provide easy access to the following features: wireless on/off, volume mute. Function keys provide
control of the following features: standby mode, external display, volume down, volume up, HP Power Assistant (Windows 7
only), and display brightness.
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
Windows 8
Windows 7
Security
Security
HP Device Access Manager with Just In Time Authentication
DigitalPersona Fingerprint Driver
HP Drive Encryption1
HP File Sanitizer2
HP Client Security Manager
HP SpareKey
Microsoft Defender
Validity Fingerprint Driver
HP Device Access Manager with Just In Time Authentication
HP Drive Encryption
HP File Sanitizer
HP Client Security Manager
HP SpareKey
Microsoft Security Essentials
Validity Fingerprint Driver
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 9
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
BIOS Features
BIOS Features
Absolute Persistence Module3
Absolute Persistence Module
HP Sure Start
HP Automatic Drive Lock
HP BIOS Protection
HP Disk Sanitizer (Not for SSD)
HP DriveLock
HP SpareKey
Hybrid Boot
Master Boot Record Security
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Erase (SSD & HDD)
BIOS Update via Network
HP Sure Start
HP Automatic Drive Lock4
HP BIOS Protection
HP Disk Sanitizer (Not for SSD)5
HP DriveLock6
HP SpareKey
Hybrid Boot
Master Boot Record Security
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Boot
Secure Erase (SSD & HDD)7
BIOS Update via Network
MultiMedia
MultiMedia
Cyberlink Power2Go
Cyberlink PowerDVD
Cyberlink Power2Go
Cyberlink PowerDVD
Cyberlink YouCam BE
HP Value Add
HP Value Add
Getting Started with Windows 8
HP 3D DriveGuard8
HP ePrint Driver9
HP Hotkey Support
HP Manageability
HP PageLift App10
HP Support Assistant
Box 50GB Offer11
Foxit PhantomPDF Express for HP
Skype
HP 3D DriveGuard
HP ePrint Driver
HP Hotkey Support
HP Manageability
HP PageLift
HP Recovery Manager
HP Support Assistant
HP Recovery Disc Creator (HPRDC)
Box 50GB
Foxit PhantomPDF Express for HP
Skype
Microsoft Products
Microsoft Products
Buy Office
Buy Office
Additional Software Available from the Web
HP SoftPaq Download Manager
HP Software System Manager
Workstation ISV Certifications
See the latest list of certifications at: http://www.hp.com/united-tates/campaigns/workstations/partnerships.html
HP Remote Graphics Software
The remote desktop solution for serious workstation users and their most demanding applications.
Download at: www.hp.com/go/RGS
HP Performance Advisor
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 10
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance.
HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to
user requirements.
Download at: www.hp.com/go/performanceadvisor
HP Recovery Manager
Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory
preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 36 GB (for
Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.
Security
See Software section above.
Other Standard Security Features
Integrated Smart Card Reader
HP Spare Key (requires initial user setup)
One-Step Logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip
Security lock slot
Support for Intel AT12
Optional Security Features
HP Fingerprint Sensor (optional)
Computrace* with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical recovery,
conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality requires HP
Mobile Broadband Module.
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription.
Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability
outside the U.S.
1 HP Drive Encryption requires Windows. Data is protected prior to login. Turning the PC off or into hibernate logs out of Drive
Encryption and prevents data access.
2 File Sanitizer requires Windows. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State
Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user
enabled. With Windows 8.1, user must turn off Enhanced Protection Mode in IE11 for shred on browser close feature.
3 BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate a
subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional subscription service of
Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized, the Recovery
Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization
Agreement and either create a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
4 HP Automatic DriveLock will work on another HP Business PC when the BIOS passwords are the same. Requires user set up.
5 For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs).
6 HP DriveLock does not support Self Encrypting HDs (SEDs) if the encryption PIN is enabled.
7 HP Secure Erase is for the methods outlined in the National Institute of Standards and Technology Special Publication 80088.
8 HP 3D DriveGuard requires Windows.
9 HP ePrint requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible
printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/businessmobileprinting
10 HP PageLift requires Windows 7 or higher.
11 Box offer requires Box registration. Offer available to new Box users only. Offer subject to change without notice. Box app
requires Windows 8 or 8.1.
12 Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and
configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 11
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/
HP CENTRAL MANAGEMENT
HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your organization
against viruses and other threats. These integrated security features safeguard what matters to you the most - your data,
device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP Client Security protection.
HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And if the
BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.
HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is
accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an IT
administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected nonvolatile
memory providing redundant, hardware-based protection against a new generation of attacks. This helps to future-proof
your technology and business.
An optional fingerprint reader and integrated Smart Card Reader help keep your identity secure. The security cable slot helps
keep your notebook physically secure.
HP Drive Encryption+ with TPM enhanced security protects your data on your hard drive from unauthorized access.
Authentication is required before Windows will even start.
Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment with
Secure Erase.
This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported by HP
Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.
+ Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive
Encryption and prevents data access.
HP provides a separate management solution, targeted at the enterprise and the SMB:
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active Directory
version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5 seats is completely
free.
For more information on Central Management for HP ProtectTools, refer to: http://www.hp.com/products/security
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 12
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
POWER
Power Supply
External HP 150W Slim Smart AC adapter
(167.0 x 82.0 x 25.4mm)
External HP 200W Slim Smart AC adapter
(172 x 96 x 25.4mm)
Power cord included is 6-foot (1.8 meter).
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
Primary Battery
HP 8-cell Lithium-Ion Battery (83 WHr)
HP Long Life 8-cell Lithium-Ion Battery (75 WHr) **
Secondary Battery
HP BB09 Ultra Extended Life Notebook Battery (9-cell/100 WHr)
HP ST09 Extended Life Notebook Battery (9-cell/73 WHr)
Battery Life
Battery life up to xx hours and xx minutes***
System Standby Time
In sleep mode 1 week
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply
to the HP ST09 Extended Life Notebook Battery or HP BB09 Ultra Extended Life Notebook Battery.
** Available with 3-year warranty only
***Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless
functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and
usage. See MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional details.
Power Conservation
NVIDIA Optimus technology
Hibernation
Standby
ACPI compliance
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT®
WEIGHTS & DIMENSIONS
Weight
Starting at 6.13 lb (2.78 kg) with Z Turbo Drive and weight saver (no optical drive)
Starting at 6.45 lb (2.93 kg) with hard drive and DVD-R/W drive
Dimensions (w x d x h)
1.2 in (at front)/1.4 in (at rear) x 15.0 in x 10.1 in
30.5 mm (at front)/35.5 mm (at rear) x 381.5 mm x 257.0 mm
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and
components. Weight includes 8-cell battery, hard drive, 1 GB memory, and no optical drive. Weight varies by configuration and
components.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 13
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
PORTS/SLOTS
Ports
VGA - One
DisplayPort v1.2- One
Thunderbolt™ 2* - One
Stereo microphone in / headphone-out combo jack - One
Power Connector - One
Secondary Battery Connector - One
Docking Connector - One
RJ-45 (Ethernet) - One
USB 3.0 - Two
USB 3.0 Charging Port - One
USB 2.0 - One
Security lock slot - One
Digital Media Slots
ExpressCard/54 slot – One (Supports ExpressCard/54)
SD UHS-II Flash Media slot – One (Supports next generation SD (Secure Digital), backward compatible to SDHC, SDXC,
Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support)
* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products
SERVICE AND SUPPORT
HP Services offers 3-year and 1-year limited warranty options depending on country.
On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go
beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/lookuptool.
Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 14
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
SYSTEM UNIT
Stand-Alone Power
Nominal Operating
Requirements (AC Power) Voltage
19.5 V
Average Operating Power
Non-operating
NVIDIA Graphics
< 150 W
or
< 200 W
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
-4° to 140° F (-20° to 60° C)
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Operating
0.75 grms
Non-operating
1.50 grms
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models*
EPEAT
< 150 W
or
< 200 W
Yes
Max Operating Power
Temperature
Relative Humidity
Shock
Random Vibration
Altitude (unpressurized)
Planned Industry
Standard
Certifications
Windows 7 (64-bit)
Operating
ICES
Australia /
NZ A-Tick Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
16.8 W
* Configurations of the HP ZBook 15 that are ENERGY STAR qualified are identified as HP ZBook 15 ENERGY STAR on HP websites and
on www.energystar.gov.
** EPEAT registration varies by country. See www.epeat.net for registration status by country.
EPEAT status listed above applies to U.S.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
DISPLAY
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 15
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
15.6" diagonal LEDbacklit FHD UWVA IPS eDP
anti-glare + Panel Self
Refresh (PSR)
(1920 x 1080)
Active Area (W x H)
13.54 x 7.59 in (34.4 x 19.4 cm)
Dimensions (W x H)
15.6 in (39.6 cm)
Weight
420 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
600:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nit typical
Pixel Resolution
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
Backlight
LED
PPI
142
Viewing Angle
UWVA 85/85/85/85
15.6" diagonal LEDActive Area (W x H)
backlit FHD SVA eDP anti- Dimensions (W x H)
glare (1920 x 1080)
Weight
15.6" diagonal LEDbacklit QHD+ UWVA eDP
anti-glare (3200 x 1800)
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
380 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nit typical
Pixel Resolution
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
Backlight
LED
PPI
142
Viewing Angle
SVA 45/45/25/35
Active Area (W x H)
13.60 x 7.59 in (34.56 x 19.44 cm)
Dimensions (W x H)
15.6 in (39.6 cm)
Weight
360 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
600:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nit typical
Pixel Resolution
Format
3200 x 1800 (QHD+)
Configuration
RGB Stripe
Backlight
LED
PPI
235
Viewing Angle
UWVA 85/85/85/85
STORAGE AND DRIVES
Internal Storage
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 16
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
1 TB 7200 rpm SATA Hard Drive Weight
Drive
Capacity
750 GB 7200 rpm SATA
Hard Drive
0.25 lbs (115g)
1 TB
Height
0.37 in (9.5 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0,
Transfer Rate
Synchronous (maximum) 600 MB/s
Seek Time
(typical reads, including
settling)
Single Track
2 ms
Average
13 ms
Maximum
15 ms
Cache
32 MB
Rotational Speed
7200 rpm
Logical Blocks
1,953,525,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
Drive Weight
0.25 lbs (115g)
Capacity
750 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum) 600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms ~ 2 ms
Average
11 ms ~ 13 ms
Maximum
15 ms ~ 21 ms
Up to 32 MB
Cache
Up to 32 MB
Rotational Speed
7200 rpm
Logical Blocks
1,465,149,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, NCQ, S.M.A.R.T., Ultra DMA
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 17
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
500 GB 7200 rpm SATA
Hard Drive
500 GB 5400 rpm SATA
FIPS* Hard Drive
Drive Weight
0.20 lbs. (92 g) ~ 0.25 lbs (115 g)
Capacity
500 GB
Height
0.28 in (7 mm)/0.38 in (9.7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum) 600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms ~ 2 ms
Average
11 ms ~ 13 ms
Maximum
18 ms ~ 22 ms
Cache
Up To 32 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, NCQ, S.M.A.R.T., Ultra DMA
Drive Weight
0.21 lbs. (95 g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum) 600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Cache
16 MB
Rotational Speed
5400 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, TCG Opal SSC 2.0 and FIPS 140-2-level2
* FIPS-certified, hardware-based AES-256 encryption image.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 18
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
500 GB 7200 rpm SMART
SATA II Self Encrypting
Drive
SATA 6 Gb/s 512 GB, 2.5inch Solid State Drive
SATA 6 Gb/s 240 GB, 2.5inch Solid State Drive
Drive Weight
0..21 lbs. (95 g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 2.6
Transfer Rate
Synchronous (maximum) 300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1 ms
Average
13 ms
Maximum
18 ms
Cache
32 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security; TCG OPAL v1.00, S.M.A.R.T., NCQ, Ultra DMA
Drive Weight
0.17 lb. (78 g)
Capacity
512 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential
Read
Maximum Sequential Write
260 MB/s
Logical Blocks
460 MB/s
1,000,215,216
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
Drive Weight
0.17 lb. (78g)
Capacity
240 GB
NAND Type
MLC
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential
Read
Maximum Sequential Write
Up to 490 MB/s
Logical Blocks
Up to 540 MB/s
468,862,128
Operating Temperature
32° to 158° F (0° to 70° C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 19
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
SATA 6 Gb/s 180 GB, 2.5inch Solid State Drive
SATA 6 Gb/s 128 GB, 2.5inch Solid State Drive
Drive Weight
0.17 lb. (78g)
Capacity
180 GB
NAND Type
MLC
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential
Read
Maximum Sequential Write
Up to 540 MB/s
351,651,888
Up to 490 MB/s
Logical Blocks
Operating Temperature
32° to 158° F (0° to 70° C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
Drive Weight
0.17 lb. (78 g)
Capacity
128 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential
Read
Maximum Sequential Write
Up to 350 MB/s
Logical Blocks
Up to 550 MB/s
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
Z Turbo Drive 256 GB, PCIe Drive Weight
Solid State Drive
Capacity
0.02 lb. (10 g)
256 GB
Height
0.24 in (60 mm)
Width
0.87 in (22 mm)
Interface
ATA-8, PCIe 2.0
Performance
Maximum Sequential
Read
Maximum Sequential Write
730 MB/s
500,118,192
620 MB/s
Logical Blocks
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.
Optical Drives
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 20
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
DVD+/-RW SuperMulti DL Access Times
Drive
Max Data Transfer Rate
Random
Transfer Mode
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
UDMA Mode 5
Interface
Gen 1 SATA
<140ms CD (typical)
< 160 ms DVD (typical)
Supported Media (read)
CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media (write) CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL, DVD-R
DL
Max Media Capacity (read) 8.5 GB
Blu-ray ROM DVD+/-RW
SuperMulti DL Drive
Max Media Capacity
(write)
Transport
8.5 GB
Access Times
Random
Max Data Transfer Rate
Transfer Mode
24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read)
CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Tray Loading
<190 ms CD-ROM (typical)
< 180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 21
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Supported Media (write)
CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVDRAM
Max Media Capacity (read) 50.0 GB
Blu-ray R/RE DVD+/-RW
SuperMulti DL Drive
Max Media Capacity
(write)
Transport
8.5GB
Access Times
Random
Max Data Transfer Rate
Transfer Mode
24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD+R Dual Layer
6X DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
6X BD-R
2X BD-RE
UDMA Mode 5
Interface
Gen 1 SATA
Tray Loading
<165 ms CD-ROM (typical)
<185 ms DVD-ROM (typical)
<205 ms BD-ROM (typical)
Supported Media (read)
CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media (write) CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVDRAM, BD-R, BD-RE
Max Media Capacity (read) 50.0 GB
Max Media Capacity
(write)
Transport
50.0 GB
Tray Loading
SECURITY
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 22
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP Fingerprint Sensor
Mobile Voltage Operation 3.0V-3.6V Single Supply
Operating Temperature
14° - 167°F (-10° - 75°C)
Current consumption
36mA
Low latency wait for
finger
950 uA
Capture rate
3000 lines/sec
ESD Resistance
IEC 6100-4-2 4B (+/-15KV)
Detection Matrix
200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm
NETWORKING/COMMUNICATIONS
Intel® I217-LM Gigabit
Network Connection
Ethernet Features
Power
Management
Performance
Features
Manageability
Interface
NIC Device Driver Name
10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023. Clauses 40)
IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
IEEE 802.1as/1588 conformance
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel vPro
iSCSI Boot
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
NOTE: Intel® I217-LM Gigabit interface is not PCIe compliant. It operates at
half of PCIe specification V1.1 (2.5GT/S) speed.
Intel Ethernet Network Connection I217-LM
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 23
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP hs3110 HSPA+ Mobile
Module*
Technology/Operating
Bands
HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 700 (Band 17) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz
Wireless Protocol
Standards
GPS
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 MSC9
Standalone, A-GPS
GPS Bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
Maximum data rates
Maximum Power
Consumption
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
6g
Maximum Output Power
Dimensions
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
(Length x Width x
Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network
support, and is not available in all areas. Contact service provider to determine the coverage area and
availability. Connection speeds will vary due to location, environment, network conditions, and other
factors. 4G LTE not available on all products or in all countries.
HP lt4112 LTE/HSPA+
Qualcomm® Gobi™ 4G
Module *
Technology/Operating
Bands
GPS
LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 2600 (Band 7),
900 (Band 8), 800 MHz (Band 20, DD800) MHz
HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz
3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 MSC9
Standalone, A-GPS
GPS Bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
Maximum data rates
LTE: 100 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
LTE: 23 dBm
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
Wireless Protocol
Standards
Maximum Output Power
Maximum Power
Consumption
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 24
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Form Factor
M.2, 3042-S3 Key B
Weight
6g
Dimensions
(Length x Width x
Thickness)
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network
support, and is not available in all areas. Contact service provider to determine the coverage area and
availability. Connection speeds will vary due to location, environment, network conditions, and other
factors. 4G LTE not available on all products or in all countries.
HP lt4211 LTE/EVTechnology/Operating
DO/HSPA+ Gobi 4G Module bands
GPS
LTE: 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 700 (Band 13 upper
SMH), 700 (Band 17 lower SMH), 1900 MHz (Band 25, extended PCS) MHz
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900
(Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz
EV-DO: 800 (BC0), 1900 (BC1) MHz
3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 MSC9
EVDO Release 0 and Release A
Standalone, A-GPS
GPS bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
Maximum data rates
Form Factor
LTE: 100 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
CDMA 1x: DL 153.6 kbps/UL 153.6 kbps
EVDO Rev.A: DL 3.1 Mbps/UL 1.8 Mbps
LTE: 23 dBm
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
CDMA/EVDO: 24dBm
LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
EVDO: 1000mA (peak); 720mA (average)
M.2, 3042-S3 Key B
Weight
6g
Wireless protocol
standards
Maximum output power
Maximum power
consumption
Dimensions
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
(Length x Width x
Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network
support, and is not available in all areas. Contact service provider to determine the coverage area and
availability. Connection speeds will vary due to location, environment, network conditions, and other
factors. 4G LTE not available on all products or in all countries.
Intel® Dual Band Wireless- Wireless LAN Standards
IEEE 802.11a
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 25
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Interoperability
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi certified
Frequency Band
802.11b/g/n
NB 7260 802.11 a/b/g/n
(2x2) WiFi Adapter*
2.402 - 2.482 GHz
802.11a/n
Network Architecture
Models
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2.402 - 2.482 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Maximum output power must be able to achieve modular regulatory
certification with notebooks that have antennas >20cm from the user
and peak gain of +3dBi at 2.4GHz and +4dBi at 5GHz
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio disabled: 75 mW
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)
Data Rates
Modulation
Security1
Power Consumption
Power Management
Receiver Sensitivity3
802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 26
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Antenna type
Form Factor
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications
PCI-Express Half-MiniCard
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Weight
3.1g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Off - Radio OFF; Solid LED On - Radio ON
Humidity
Altitude
LED Activity
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
Bluetooth Specification
Bluetooth Specification
V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and 2.0
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
Transmit Power
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Antenna
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW
Internally integrated within module
Range
Up to 33 ft (10 m)
Electrical Interface
Link Topology
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Software
Supported
Certifications
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 27
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Bluetooth Profiles
Supported
Generic Access Profile (GAP)
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
* Wireless access point and internet service required. Availability of public wireless access points limited.
The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to communicate
with other 802.11ac WLAN devices
Intel® Dual Band Wireless- Wireless LAN Standards
AC 7260 802.11
a/b/g/n/ac (2x2) WiFi +
Bluetooth 4.0 Combo
Adaptor*
Interoperability
Frequency Band
Antenna Structure
Data Rates
Modulation
Security1
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows 7,
Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN)
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2 transmit; 2 receive (2x2)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20
and 40 MHz channels. Short and long guard interval shall be supported.
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 28
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Network Architecture
Models
WAPI
Multinational support with frequency bands and channels compliant to local
regulations.
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
Sub-channels
Power Consumption
Power Management
Receiver Sensitivity4
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
Antenna Connections
802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)
2 U.FL type connectors (output impedance of 50 ± 2 ohms)
Form Factor
PCI-Express Half-MiniCard
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Weight
3.1g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Off - Radio OFF; Solid LED On - Radio ON
Humidity
Altitude
LED Activity
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier
IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.
HP Integrated Module
with Bluetooth 4.0+EDR
Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 29
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
Transmit Power
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
-1.5 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -20 dBM at 0.1 % raw bit error rate
Power Consumption
Antenna
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Range
Up to 33 ft (10 m)
Electrical Interface
Link Topology
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Bluetooth Software
Supported
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Supported
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. indicates the profile is supported by Microsoft Windows XP SP2
2. indicates the profile is part of Windows Vista
* Wireless access point and internet service required. Availability of public wireless access points limited.
AUDIO/MULTIMEDIA
AUDIO/MULTIMEDIA - DTS SOUND+
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 30
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Hardware
Audio Output Quality
Implementation
IDT 92HD91
Function Key
Volume Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, dual digital microphone array when equipped with optional webcam
Frequency Response
20 Hz - 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion 0.01%
Internal Stereo Speaker
Noise Floor
-110 dB
Play/Record Sampling
Rate(s)
8 kHz - 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Power Rating
2 Watts
Impedance
4 ohms
Dimensions
6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm)
Weight
1.65 lb (748 g)
Input
100 to 240 VAC
Input Efficiency
Input frequency range
Input AC current
Output power
DC output
Hold-up time
Output current limit
POWER
HP 200W Slim Smart AC
Adapter
Output
Connector
Environmental Design
EMI and Safety
Certifications
87% min at 115 VAC
47 to 63 Hz
2.9 A at 90 VAC, 1.45 A at 180 VAC
200W
19.5V
5 msec at 115 VAC input
<16A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating
32° to 104° F (0° to 40° C)
temperature
Non-operating (storage) -4° to 149° F (-20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
CE Mark- full compliance with LVD and EMC directives; Worldwide safety
standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- C-ULUS, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCIB,
NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 31
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP 150W Slim Smart AC
adapter
Dimensions
6.59 x 3.23 x 1.0 in (167.5 x 82 x 25.4 mm)
Weight
1.25 lb (565 g)
Input
100 to 240 VAC
Input Efficiency
Input frequency range
Input AC current
Output power
DC output
Hold-up time
Output current limit
Output
Connector
Environmental Design
EMI and Safety
Certifications
HP 8-cell Lithium-Ion
Battery (83 WHr)
87% min at 115 VAC
47 to 63 Hz
<2.7 A at 90 VAC
150W
19.50V +5.0%/-5.0%
5 msec at 115 VAC input
<15A, Over voltage protection- 29V max
automatic shutdown
3 pin/grounded, mates with interchangeable cords
Operating
41° to 95° F (5° to 35° C)
temperature
Non-operating (storage) -4° to 185° F (-20° to 85° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
10% to 95%
Storage Humidity
10% to 95%
Worldwide safety and EMC approvals including CE, UL, CSA or cUL, GS,
Australian Electric Permit, C-tick, NOM, CCC, KC, GOST, SABS, S mark, BSMI, ISC,
PSE, PSB and SII.
Dimensions (H x W x L)
0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
Weight (max)
0.99lb (0.442 kg)
Cells/Type
Lithium-Ion
Energy
Fuel Gauge LED
Voltage
Amp-hour capacity
Watt-hour capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF or Standby
Mode
System ON
No
Warranty
1 year
Temperature
Battery Re-Charge Time
14.8V
5.6Ah
83Wh
32° to 113° F (0° to 45° C)
14° to 122° F(-10° to 50° C)
-4° to 122° F (-20° to 50° C)
2.5 hours
3 to 5 hours
Compatible with optional Yes
Travel Battery
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 32
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP Long Life 8-cell
Lithium-Ion Battery (75
WHr)
Dimensions (H x W x L)
0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
Weight (max)
0.99lb (0.442 kg)
Cells/Type
8-cell; Lithium-Ion
Energy
Fuel Gauge LED
Voltage
Amp-hour capacity
Watt-hour capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF or Standby
Mode
System ON
No
Warranty*
3 year
Temperature
Battery Re-Charge Time
14.4V
5.1Ah
75Wh
32° to 113° F (0° to 45° C)
14° to 140° F (-10° to 60° C)
-4° to 140° F (-20° to 60° C)
2.5 hours
3 to 5 hours
Compatible with optional Yes
Travel Battery
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.
Optional HP BB09 Ultra
Extended Life Notebook
Battery (secondary
battery)
Dimensions (H x W x L)
1.2 x 5.9 x 11.4 in (3x15x29cm)
Weight (max)
1.5lb, (.682kg)
Cells/Type
Lithium-Ion
Energy
Voltage
11.25V
Amp-hour capacity
8.85Ah
Watt-hour capacity
100Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Temperature
Battery Re-Charge Time
System in OFF or Standby 3.5 to 5 hours
Mode
System ON
Fuel Gauge LED
Yes
Warranty
1 year
4 to 7 hours
Compatible with optional No
Travel Battery
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 33
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Optional HP ST09
Dimensions (H x W x L)
Extended Life Notebook Weight (max)
Battery ("Travel Battery")
Cells/Type
(secondary battery)
Energy
Temperature
Battery Re-Charge Time
1.2 x 6.1 x 12 in (3x15.5x30.5cm)
1.2lb, (.550kg)
Lithium-Ion Polymer
Voltage
11.1V
Amp-hour capacity
6.6Ah
Watt-hour capacity
73Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
System in OFF or Standby 3.5 to 5 hours
Mode
System ON
Fuel Gauge LED
Yes
Warranty
1 year
4 to 7 hours
Compatible with optional Yes
Travel Battery
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT®
COUNTRY OF ORIGIN
China
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 34
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Type
Description
Memory
HP 4 GB DDR3L-1600 1.35V SODIMM
H6Y75AA#xxx
HP 8 GB DDR3L-1600 1.35V SODIMM
H6Y77AA#xxx
Cases
HP Business Top Load Case (fits up to 15.6")
HP Business Backpack (fits up to 17.3")
HP Essential Top Load Case (up to 15.6")
HP Professional Leather Case (up to 17.3")
HP Business 4 Wheel Roller Case (fits up to 17.3")
H5M92AA
H5M90AA
H2W17AA#xxx
H4J94AA
H5M93AA
Docking
HP Adjustable Dual Monitor Stand
HP Adjustable Display Stand
HP Dual Hinge II Notebook Stand
HP Display and Notebook II Stand
HP 230W Docking Station
HP 230W Advanced Docking Station
HP 3005pr USB 3.0 Port Replicator
HP 3001pr USB 3 Port Replicator
HP Universal Port Replicator
AW664AA#xxx
AW663AA#xxx
E8F99AA
E8G00AA
A7E34AA#xxx
A7E38AA#xxx
H1L08AA
F3S42AA
E6D70AA#xxx
Input/Output - Mice
Comfort Grip Mouse
HP Stylish USB KB/Mouse
HP Slim Bluetooth Keyboard
HP 3-Button Laser Mouse
HP USB Essential Keyboard and Mouse
HP Ultra Mobile Wireless Mouse
HP Wireless Keyboard and Mouse
HP X4000 Bluetooth Mouse
USB Graphics Adapter
HP Slim Bluetooth Mouse
HP USB Smart Card Reader
H2L63AA
H4B80AA#xxx
H4Q44AA#xxx
H4B81AA#xxx
H6L29AA#xxx
H6F25AA#xxx
G1K29AA#xxx
H3T50AA#xxx
NL571AT
F3J92AA#xxx
F6V67AA
Power Adapters
HP 90W Slim AC Adapter
HP 150W Smart AC Adapter (slim)
HP 90W Slim Combo Adapter w/USB Adapter
90W Smart AC/Auto/Air Combo Adapter
90W Smart Auto/Truck Adapter
90W Slim Adapter
HP Smart 230W AC Adapter
HP 230W Slim Adapter
HP 65W Smart AC Adapter
HP 90W Smart AC Adapter
HP 65W Slim AC Adapter
H6Y83AA#xxx
AL192AA#xxx
H6Y84AA#xxx
AJ652AA#xxx
ED493AA
BT796AA#XXX
AT895AA#xxx
H1D36AA#xxx
H6Y89AA#xxx
H6Y90AA#xxx
H6Y82AA#xxx
Adapters
HP Wireless display adapter
USB dual output graphics adapter
DisplayPort to DVI Adapter
DisplayPort to VGA Adapter
DisplayPort to HDMI Adapter
Adapter, USB Graphics - dual output (Monitor Accy)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Part #
J1V25AA#xxx
C5U89AA
F7W96AA
F7W97AA
F3W43AA
C5U89AA/AT
Page 35
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Storage - External
Storage
HP 2013 MWS Upgrade Bay DVD
HP 2013 MWS Upgrade Bay 750GB HDD
HP External USB Optical Drive
HP 500GB 7200rpm HDD
HP 750GB 7200rpm HDD
HP 128GB Solid State Drive
HP 180GB Solid State Drive
G1Y57AA
G1Y56AA
F2B56AA
F3B97AA
H2P67AA
F4P50AA
H4T75AA
HP 512GB Solid State Drive
HP MWS HDD/SDD Bracket Only
J2V75AA
J2D73AA
Batteries
HP ST09 Extended Life Notebook Battery
HP BB09 Ultra Extended Life Notebook Battery
HP AR08XL Notebook Battery
QK639AA
QK640AA
E7U26AA
Health and Education
HP 20-Notebook Managed Charging Cart
HP 20-Notebook Charging Cart
HP 30-Notebook Managed Charging Cart
HP 30-Notebook Charging Cart
QL489AA#xxx
QL488AA#xxx
QL490AA#xxx
H4F31AA#xxx
Security
HP Docking Station Cable Lock
AU656AA#xxx
HP UltraSlim Keyed Cable Lock
H4D73AA
HP hs3110 HSPA+ Mobile Module
J8F05AA
HP lt4211 LTE/EV-DO/HSPA+ WWAN
J8F06AA
HP lt4112 LTE/HSPA+ W8.1 WWAN
J8F07AA
Wireless
Copyright © 2014 Hewlett-Packard Development Company, L.P.
All rights reserved. All trademarks are the property of their respective owners. Intel, Core, and Celeron are registered trademarks or
trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S.
and other countries. Adobe is a trademark of Adobe Systems Incorporated. All other product names mentioned herein may be
trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 36
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
