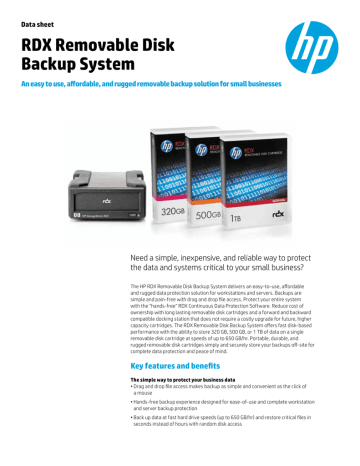

Data sheet
RDX Removable Disk
Backup System
An easy to use, affordable, and rugged removable backup solution for small businesses
Need a simple, inexpensive, and reliable way to protect
the data and systems critical to your small business?
The HP RDX Removable Disk Backup System delivers an easy-to-use, affordable
and rugged data protection solution for workstations and servers. Backups are
simple and pain-free with drag and drop file access. Protect your entire system
with the “hands-free” RDX Continuous Data Protection Software. Reduce cost of
ownership with long lasting removable disk cartridges and a forward and backward
compatible docking station that does not require a costly upgrade for future, higher
capacity cartridges. The RDX Removable Disk Backup System offers fast disk-based
performance with the ability to store 320 GB, 500 GB, or 1 TB of data on a single
removable disk cartridge at speeds of up to 650 GB/hr. Portable, durable, and
rugged removable disk cartridges simply and securely store your backups off-site for
complete data protection and peace of mind.
Key features and benefits
The simple way to protect your business data
•Drag and drop file access makes backup as simple and convenient as the click of
a mouse
•Hands-free backup experience designed for ease-of-use and complete workstation
and server backup protection
•Back up data at fast hard drive speeds (up to 650 GB/hr) and restore critical files in
seconds instead of hours with random disk access
Data sheet | RDX Removable Disk Backup System
•Flexibly meet your budget and capacity requirements with a choice of 320 GB, 500 GB, or 1 TB
removable disk cartridges. Scaling capacity is a simple matter of adding cartridges.
•Easily connect the USB docking station internally to a server or rack-mount kit or externally
as a tabletop. Insert a removable disk cartridge into the docking station and the cartridge
automatically appears as a letter drive in Windows® Explorer with no extra steps or formatting.
Reduces total cost of protecting your business data
•Lower ongoing media and upgrade costs with disk cartridges designed for long usage life
•Docking station is designed to work with all current and future higher capacity removable disk
cartridges so the system is fully multi-generational
Simply and securely store backups off-site for complete data protection
•Rugged, portable, and durable removable disk cartridges enable business-critical backup data
to be simply and securely taken off-site for disaster recovery, archive, or data transfer
•Reliable long-term data retention is enabled with docking stations specified for more
than 10,000 load and unload cycles and individual RDX cartridges specified for over 5,000 load
and unload cycles and long life expectancy
Flexibility to suit most small business environments
•Compatibility with range of hardware and software. Suits almost every small business
operating environment. (Visit HP Backup Compatibility for the latest information.)
•Available as half-height external, internal, or rack-mount models to fit both servers
and workstations.
•Optimizes rack utilization by integrating into HP ProLiant DL380/385 G6/G7 rack-optimized
server. The 1 TB DL Server Module for Gen8 provides integrated data protection for the
HP ProLiant DL380p/DL385p Gen8 rack-optimized servers.
HP RDX Removable Disk Backup System
Capacity
1 TB Native
2 TB Compressed
Maximum, depending on model
Transfer rate
200 MB/sec
Compressed 2:1; Maximum, depending on model
Load/unload cycles (Cartridge)
5000
Minimum cartridge usage life
Media compatibility
HP RDX 320GB Cartridge, HP RDX 500GB Cartridge, HP RDX 1TB Cartridge
Forward and backward compatibility to all current and future RDX Cartridges and USB 2.0
Host interface
USB 3.0 (1) Port or,
USB 3.0 (2) Port
Depending on model
Form Factor
5.25-inch half-height (internal module)
Cartridge robustness (Shock, Non-operating)
RDX 320GB, RDX 500GB, and RDX 1TB—1 m, 39.4-inch (3 feet) drop to tile over concrete floor
Warranty (parts-labor-onsite)
1/0/0
2
Data sheet | RDX Removable Disk Backup System
HP RDX320 Removable Disk Backup System
RDX320 External Removable Disk Backup System USB3.0
RDX320 Internal Removable Disk Backup System USB3.0
Model differentiator
External RDX Removable Disk Backup System, 320 GB native
storage capacity
Internal RDX Removable Disk Backup System, 320 GB native
storage capacity
Capacity
320 GB Native
640 GB Compressed
320 GB Native
640 GB Compressed
Transfer rate
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
Host interface
USB 3.0 (1) Port
USB 3.0 (1) Port
Warranty
(parts-labor-onsite)
1/0/0
1/0/0
What is in the box
RDX External Docking Station, installation poster,
HP StorageWorks CD (containing electronic user’s guide and
drivers), external USB cable, power cord/supply, HP RDX 320GB
Removable Disk Cartridge, HP RDX Continuous Data Protection
Software CD
RDX Internal Docking Station, installation poster,
HP StorageWorks CD (containing electronic user’s guide and
drivers), internal USB cable, HP RDX 320GB Removable Disk
Cartridge, HP RDX Continuous Data Protection Software CD
3
Data sheet | RDX Removable Disk Backup System
HP RDX500 Removable Disk Backup System
RDX500 External Removable Disk Backup
System USB3.0
RDX500 Internal Removable Disk Backup
System USB3.0
RDX500 Removable Disk Backup
System DL Server Module USB3.0
Model differentiator
External RDX Removable Disk Backup System,
500 GB native storage capacity
Internal RDX Removable Disk Backup System,
500 GB native storage capacity
Internal RDX Removable Disk Backup System
Module for HP ProLiant DL380/385 G6/G7
rack-optimized server, 500 GB native storage
capacity
Capacity
500 GB Native
1 TB Compressed
500 GB Native
1 TB Compressed
500 GB Native
1 TB Compressed
Transfer rate
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
Host interface
USB 3.0 (1) Port
USB 3.0 (1) Port
USB 3.0 (1) Port
Warranty
(parts-labor-onsite)
1/0/0
1/0/0
1/0/0
What is in the box
RDX External Docking Station, installation poster,
HP StorageWorks CD (containing electronic user’s
guide and drivers), external USB cable, power
cord/supply, HP RDX 500GB Removable Disk
Cartridge, HP RDX Continuous Data Protection
Software CD
RDX Internal Docking Station, installation
poster, HP StorageWorks CD (containing
electronic user’s guide and drivers), internal
USB cable, HP RDX 500GB Removable Disk
Cartridge, HP RDX Continuous Data Protection
Software CD
RDX Removable Disk Backup System DL
Server Module, installation poster/flyer,
HP StorageWorks CD (containing electronic
user’s guide and drivers), internal USB
cable, power cord/supply, HP RDX 500GB
Removable Disk Cartridge, HP RDX
Continuous Data Protection Software CD
4
Data sheet | RDX Removable Disk Backup System
HP RDX1000 Removable Disk Backup System
RDX1000 External Removable Disk
Backup System USB3.0
RDX1000 Internal Removable
Disk Backup System USB3.0
RDX1000 Removable Disk
Backup System DL Server
Module USB3.0
HP RDX1000 Gen8 DL Server
Module USB3.0
Model differentiator
External RDX Removable Disk
Backup System, 1 TB native
storage capacity
Internal RDX Removable Disk
Backup System, 1 TB native
storage capacity
Internal RDX Removable Disk
Backup System Module for
HP ProLiant DL380/385 G6/G7
rack-optimized server, 1 TB
native storage capacity
Internal RDX Removable Disk
Backup System Module for
HP ProLiant DL380p/385 G8
rack-optimized server, 1 TB
native storage capacity
Capacity
1 TB Native
2 TB Compressed
1 TB Native
2 TB Compressed
1 TB Native
2 TB Compressed
1 TB Native
2 TB Compressed
Transfer rate
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
200 MB/sec
Compressed 2:1
Host interface
USB 3.0 (1) Port
USB 3.0 (1) Port
USB 3.0 (1) Port
USB 3.0 (1) Port
Warranty
(parts-labor-onsite)
1/0/0
1/0/0
1/0/0
1/0/0
What is in the box
RDX External Docking Station,
installation poster, HP StorageWorks
CD (containing electronic user’s
guide and drivers), external USB
cable, power cord/supply, HP RDX
1TB Removable Disk Cartridge,
HP RDX Continuous Data Protection
Software CD
RDX Internal Docking
Station, installation poster,
HP StorageWorks CD (containing
electronic user’s guide and
drivers), internal USB cable,
HP RDX 1TB Removable Disk
Cartridge, HP RDX Continuous
Data Protection Software CD
RDX Removable Disk Backup
System DL Server Module,
installation poster/flyer,
HP StorageWorks CD (containing
electronic user’s guide and
drivers), internal USB cable,
power cord/supply, HP RDX
1TB Removable Disk Cartridge,
HP RDX Continuous Data
Protection Software CD
RDX External Docking Station,
installation poster,
HP StorageWorks CD (containing
electronic user’s guide and
drivers), external USB cable,
power cord/supply, HP RDX
500GB Removable Disk
Cartridge, HP RDX Continuous
Data Protection Software CD
5
Data sheet | RDX Removable Disk Backup System
HP RDX USB 3.0 Docking Stations
HP RDX External
Docking Station USB 3.0
HP RDX Internal
Docking Station USB 3.0
HP RDX Gen8 DL Server
Module USB 3.0
Model differentiator
External RDX Removable Disk Backup System
Internal RDX Removable Disk Backup System
Internal RDX Removable Disk Backup System
Module for HP ProLiant DL380p/385 G8
rack-optimized server
Capacity
No capacity included
No capacity included
No capacity included
Transfer rate
600 MB/sec
Compressed 2:1
600 MB/sec
Compressed 2:1
600 MB/sec
Compressed 2:1
Host interface
USB 3.0 (1) Port
USB 3.0 (1) Port
USB 3.0 (1) Port
Warranty
(parts-labor-onsite)
1/0/0
1/0/0
1/0/0
What is in the box
RDX Docking Station, installation poster,
HP StorageWorks CD (containing electronic
user’s guide and drivers), power cord/ supply,
HP RDX Continuous Data Protection Software
RDX Docking Station, installation poster,
HP StorageWorks CD (containing electronic
user’s guide and drivers), power cord/ supply,
HP RDX Continuous Data Protection Software
RDX Docking Station, installation poster,
HP StorageWorks CD (containing electronic
user’s guide and drivers), power cord/ supply,
HP RDX Continuous Data Protection Software
6
Data sheet | RDX Removable Disk Backup System
The total package
The RDX Removable Disk Backup System is simpler to use than other removable hard disk
drives when used in conjunction with HP RDX Continuous Data Protection Software. RDX
Continuous Data Protection Software has been specifically designed to provide you with a
hands-free backup experience and complete workstation and server backup protection.
RDX and ProLiant DL380/385 G6/G7 Servers
The new HP RDX Removable Disk Backup System DL Server Module provides an easy to use,
affordable, rugged, and integrated data protection solution for HP ProLiant DL380/385 G6/G7
servers. The solution optimizes rack utilization by integrating into ProLiant DL380/385 G6/G7
rack-optimized servers. The HP RDX 1TB DL Server Module for Gen8 provides integrated data
protection for the HP ProLiant DL380p/DL385p Gen8 rack-optimized servers.
RDX Continuous Data Protection Software
The RDX Removable Disk Backup System offers free RDX Continuous Data Protection Software
for continuous, automatic, and complete server and workstation backup protection. Key
features include continuous data protection, file deduplication, bare metal restore, seamless
cartridge rotation and archiving support, simple file recovery, complete backup coverage
(unlimited file versions, open files, application data user settings and the complete operating
system are all automatically backed up), and comprehensive backup status updates.
Tap into the HP Technology Services advantage
Backed by the strategic and technical know-how of our consulting experts—this single-source
solution makes the most of your investments.
Your product warranty protects against product defects, while services protect your business,
helping you to avoid downtime and improve performance with the right support level and
access to firmware and patch updates and upgrades. Depending on your individual support
requirements, choose from three levels of support that cover the entire product lifecycle to
better address your needs:
Optimized Care
For mission-critical environments demanding the best performance and stability:
•Support: Proactive Care 24x7, plus 20 Credits/year
•Additional options: HP Proactive Care Personalized Support (once per each new
Proactive Care support environment), HP Personalized Support Additional Day, and an
additional 10 HP Proactive Select credits per year
Standard Care
For business-critical environments that need to maintain the highest level of uptime:
•Support: Proactive Care 24x7, plus 10 Credits/year
•Additional options: HP Proactive Care Personalized Support (once per each new
Proactive Care support environment), HP Personalized Support Additional Day, and an
additional 10 HP Proactive Select credits per year per array
Basic Care
For the minimum recommended support:
•Support: HP Support Plus 24; plus 10 Proactive Select Credits per year
•Additional options: 10 Proactive Select credits per year
7
Data sheet | RDX Removable Disk Backup System
Additional discovery, planning, and design services:
Discover, plan, and design—understand your options and build it right from day one:
Acquire a new IT solution, manage existing assets,
or dispose of equipment that no longer meets
your needs. hp.com/go/hpfinancialservices
•Discovery services: HP Backup and Recovery Efficiency Analysis Service
•Planning services: HP Backup and Recovery Impact Analysis Service
Resources
•Design services: HP Backup and Recovery Modernization Service
QuickSpecs
Deployment services
• HP Installation and Startup Service for HP StoreOnce Backup Systems
Buy Online
Integration services
•HP Backup and Recovery Solution Standard Service
•HP Data Migration Services
•HP Proactive Select (VLS Health Check, StoreOnce Backup Health Check)
If none of our support recommendations meet your needs, we can tailor a service solution
for your unique support requirements. Only HP brings together deep expertise, proactive
and business-critical support and a strong partner network—plus, a full set of infrastructure
services designed to power a converged infrastructure. For more information visit
hp.com/services/storage.
HP Factory Express
HP Factory Express provides customization and deployment services along with your
storage and server purchases. You can customize hardware to your exact specifications
in the factory—helping speed deployment. hp.com/go/factoryexpress
Customer Technical Training
Gain the skills you need with ExpertOne training and certification from HP. With HP Converged
Storage training, you will accelerate your technology transition, improve operational
performance, and get the best return on your HP investment. Our training is available when
and where you need it, through flexible delivery options and a global training capability.
hp.com/learn/storage
Learn more
hp.com/go/rdx
Sign up for updates
hp.com/go/getupdated
Rate this document
© Copyright 2008–2010, 2012, 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Windows is a U.S. registered trademark of Microsoft Corporation.
4AA1-9902ENW, March 2013, Rev. 6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
