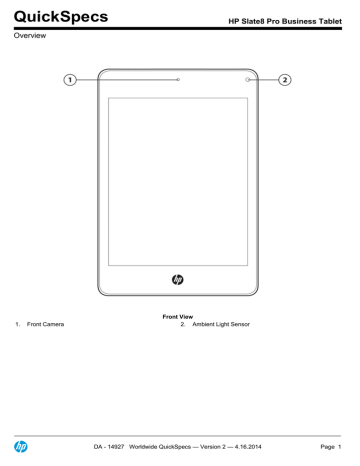

QuickSpecs HP Slate8 Pro Business Tablet Overview Front View

QuickSpecs HP Slate8 Pro Business Tablet Overview Front View
QuickSpecs
HP Slate8 Pro Business Tablet
Overview
1.
Front Camera
Front View
2. Ambient Light Sensor
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 1
QuickSpecs
HP Slate8 Pro Business Tablet
Overview
1.
2.
3.
1.
Volume up button
Volume down button
Rear Camera
Rear View
4. LED Flash
5. Micro SD card slot
6. NFC Antenna (behind HP logo)
Microphone
Top View
2. Power Button
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 2
QuickSpecs
HP Slate8 Pro Business Tablet
Overview
1.
2.
Bottom View
Speakers (x2)
3. Micro USB Port
Audio-out (headphone)/Audio-in (microphone) jack
4. Micro HDMI
At A Glance
Android™ 4.4 (Kit Kat)
Snow white, soft-touch back panel with UV coating
NVIDIA® Tegra® 4 A15 (1.8 GHz, 2 MB cache, 4 +1 cores)
8-inch diagonal capacitive multi-touch UXGA wide viewing angle TFT-LCD display (1600 x 1200) featuring Corning®
Gorilla® Glass 3
Up to 11.5 hours video playback
1GB LPDDR3 SDRAM (800 MHz)
16GB embedded Multi Media Card
Micro SD Card Slot supported up to 32GB
802.11 a/b/g/n (2x2 MIMO) (Miracast compatible)
Bluetooth® 4.0 + LE connectivity
NOTE: See important legal disclosures for all listed specs in their respective features sections.
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 3
QuickSpecs
HP Slate8 Pro Business Tablet
Features
PRODUCT
NAME
HP Slate8 Pro Business Tablet
OPERATING
SYSTEM
Preinstalled
Android™ 4.4 (Kit Kat)
PROCESSOR
NVIDIA® T40 S TEGRA® 4 A15 Quad-Core Processor (1.8 GHz, 2 MB cache, 4 +1 cores)
DISPLAY
Internal
8-inch diagonal capacitive multi-touch UXGA, wide viewing angle display (1600 x 1200**)
4:3 Wide Aspect Ratio
Capacitive multi-touch screen with Corning® Gorilla® Glass 3
Capable of displaying HD content*
Auto rotate (selectable)
External
24-bit per pixel color depth
* High definition (HD) content is required to view high-definition images.
** Resolutions are dependent upon monitor capability, and resolution and color depth settings.
INTERNAL
STORAGE
Internal Storage Device
16 GB embedded Multi Media Card*
Micro SD Card Slot supported up to 32GB**
* GB = 1 billion bytes. Actual formatted capacity is less.
** MicroSD Card Sold separately
MEMORY
Standard
1GB LPDDR3 SDRAM (800 MHz)
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 4
QuickSpecs
HP Slate8 Pro Business Tablet
Features
NETWORKING/COMMUNICATIONS
Wi-Fi
802.11 a/b/g/n (2x2 MIMO)* (Miracast compatible**)
Bluetooth®
Bluetooth® 4.0 + LE connectivity
Communication
Near Field Communication (NFC) supporting Google Play for Education and
Android Beam
* Wireless access point and Internet service required and not included.
Availability of public wireless access points limited.
** Miracast compliant devices are tested to operate with Miracast routers.
Utilization requires proximity to a Miracast router, which is not included with
the purchase of this tablet
AUDIO/MULTIMEDIA
Audio
Beats Audio™
Integrated stereo speakers, 0.5Wx2/channel
Integrated Microphone
3.5 mm Combo headphone/microphone jack*
Cameras
Front Camera: 720p embedded, 720p HD video
Rear Camera: 8MP (with auto-focus, LED flash, and HD** video recording capability)
* Headphones are sold separately
** HD content required to view HD images.
SENSORS
GPS
Ambient Light sensor
Accelerometer
e-Compass
Gyro
SOFTWARE
Android 4.4 (Kit Kat)
Google Mobility Services
Certified Google Play for Education
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 5
QuickSpecs
HP Slate8 Pro Business Tablet
Features
POWER
Power Supply
10W AC charger
USB cable
Primary Battery
5680 mAh lithium-polymer
Video Playback
Up to 11.5 hours*
Power Conservation
Standby, hibernation
* Battery testing conducted by HP consisting of full battery discharge while running a 720p HD video playback
with the speaker at default volume as the audio output device and video stored on the local embedded Multi
Media Card. Prior to testing, the system was fully charged and set to display brightness of 150 nits, Tegra
PRISM setting enabled, Bluetooth off and WLAN off. Battery life will vary depending on the product model,
configuration, loaded applications, features, use, wireless functionality and power management settings. The
maximum capacity of the battery will naturally decrease with time and usage.
WEIGHT &
DIMENSIONS
Weight
453.59 grams (1 lb)*
Dimensions (w x d x h)
220 x 141.5 x 9.9 mm (8.66 x 5.57 x 0.39 in)*
* Weight and system dimensions may fluctuate due to configuration and manufacturing variances
PORTS/SLOTS
Ports
Micro USB - One
Micro HDMI- One (up to Ultra HD* 4K display support)
3.5 mm Combo headphone/microphone jack - One**
Expansion Slots
MicroSD card slot***
* HD content required to view HD images.
** Headphones are sold separately
*** Up to 32GB of expandable storage. MicroSD card sold separately.
EXPANSION
SOLUTIONS
10W AC Adapter for Android Tablets (included with purchase of HP Slate 8 Pro)
Optional HP 10W Tablet Power Adapter Kit*
Optional Power Pack*
* Sold separately or purchased as an optional feature
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 6
QuickSpecs
HP Slate8 Pro Business Tablet
Features
IN
THE
BOX
HP Slate8 Pro Business Tablet
10W AC charger
Micro USB cable
Quick Start Guide
SERVICE
AND
SUPPORT
HP Services offers limited 1-year warranty options depending on country.
90-day limited warranty on software.
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 7
QuickSpecs
HP Slate8 Pro Business Tablet
Technical Specifications
SYSTEM
UNIT
Stand-Alone Power
Requirements (AC
Power)
Temperature
Relative Humidity
Nominal Operating
Voltage
100-240V, 50-60Hz
Operating
Operating
32° to 104° F (0° to 40° C)
10% to 90%, non-condensing
Diagonal Size
Refresh Rate
Aspect Ratio
Format
8 inch
60Hz
4:3 Wide Aspect Ratio
1600 x 1200
DISPLAY
ENVIRONMENTAL
DATA
Low Halogen*
Mercury Free display backlights and arsenic-free display glass
All HP computing products are delivered by SmartWay carriers**
Recycled Packaging
Eligible for free recycling or cash back through HP's Planet Partners Recycling and Consumer
Consumer Buyback programs
(www.hp.com/go/easybuyback)***
Hewlett-Packard Corporate Environmental Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
* External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts
obtained after purchase may not be Low Halogen.
** Designation based on actions to reduce transportation-related emissions. SmartWay: US only.
(14e) Free recycling in select countries.
***Program may not be available in your area. Check www.hp.com/go/recycling to see if HP offers
free recycling in your area
COUNTRY
OF
ORIGIN
China
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
Page 8
QuickSpecs
HP Slate8 Pro Business Tablet
Options and Accessories (sold separately and availability may vary by country)
Type
Cases / Screen
Protectors
Description
HP Slate 8 Pro Folio Stand Case
Power / Adapters
HP 10W Tablet PC USB AC Adapter for Android tablets
HP USB Charging Stand for Android tablets
Input / Output
HP Capacitive Stylus Metal
HP Capacitive Stylus Basic
Part #
TBD
G4H09AA
(#ABA only)
F2G65AA
G4Y85AA
(#ABA only)
E7U18AA
Copyright © 2014 Hewlett-Packard Development Company, L.P.
All rights reserved. All trademarks are the property of their respective owners. Android, Google, Google Play, Google logo
and other marks are trademarks of Google Inc. Bluetooth is a registered trademark of its proprietor and used by HewlettPackard Company under license. All other product names mentioned herein may be trademarks of their respective
companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The only warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 14927 Worldwide QuickSpecs — Version 2 — 4.16.2014
