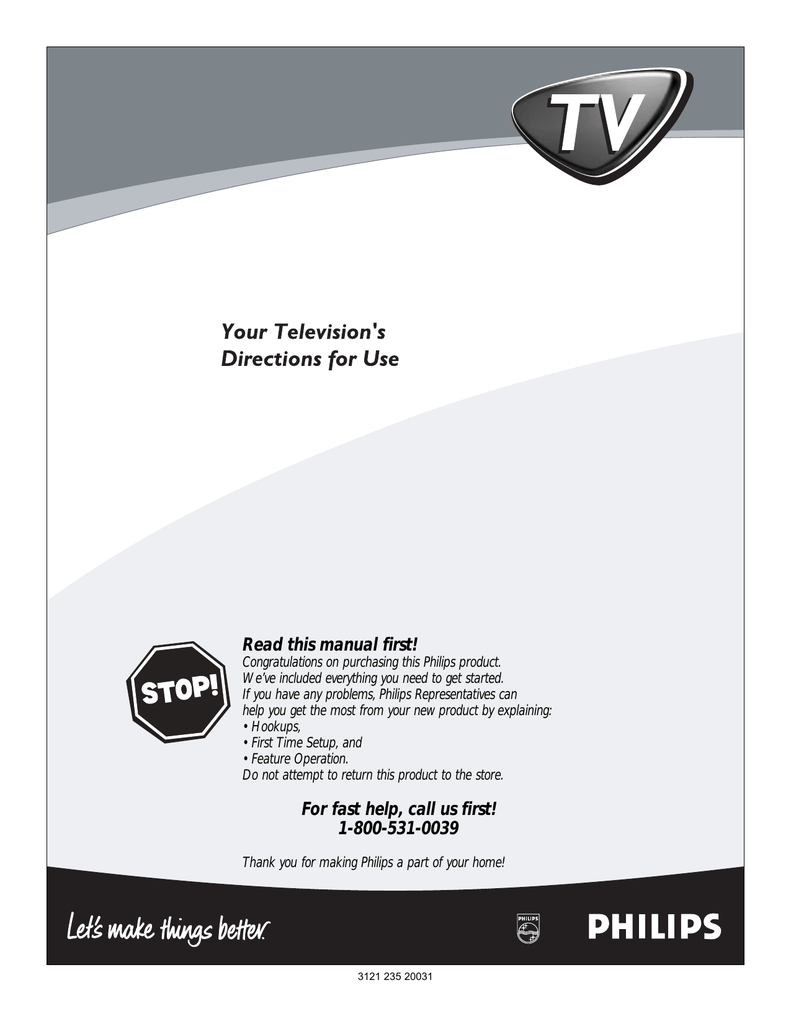

Philips 13PR12W99 CRT Television User Manual

Read this manual first!

Congratulations on purchasing this Philips product.

We’ve included everything you need to get started.

If you have any problems, Philips Representatives can help you get the most from your new product by explaining:

• Hookups,

• First Time Setup, and

• Feature Operation.

Do not attempt to return this product to the store.

For fast help, call us first!

1-800-531-0039

Thank you for making Philips a part of your home!

3121 235 20031

Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to.

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a

PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Warranty

Verification

Registering your product within

10 days confirms your right to maximum protection under the terms and conditions of your

PHILIPS warranty.

Owner

Confirmation

Your completed Warranty

Registration Card serves as verification of ownership in the event of product theft or loss.

Congratulations on your purchase, and welcome to the “family!”

Model

Registration

Returning your Warranty

Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

I S

R A

T I O N

Hurry!

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Philips Consumer Electronics Company

P.S. Remember, to get the most from your PHILIPS product, you must return your Warranty Registration Card within 10 days.

So please mail it to us right now!

Know these

safety

symbols

C A U T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

Visit our World Wide Web Site at http://www.philipsusa.com

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries

Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

The power supply cord or the plug has been damaged; or

Objects have fallen, or liquid has been spilled into the appliance; or

The appliance has been exposed to rain; or

The appliance does not appear to operate normally or exhibits a marked change in performance; or

The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No.

70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21 Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

GROUND CLAMP

ANTENNA LEAD IN WIRE

ELECTRIC SERVICE EQUIPMENT

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

Introduction

Welcome/Registration of Your TV . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Getting Started

Basic Cable TV Connection . . . . . . . . . . . . . . . . . .5

Basic Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . .6

Basic VCR to Television Connection . . . . . . . . . . . . . . . . .7

Using the Front Audio/Video Inputs . . . . . . . . . . . . . . . . . .7

Basic Television Operation . . . . . . . . . . . . . . . . . . . . . . . .8

Basic Remote Operation . . . . . . . . . . . . . . . . . . . . . . . . . .8

Description of Remote Control Buttons . . . . . . . . . . . . . . .9

Install Menu

How to Use the Language Control . . . . . . . . . . . .10

How to Use the Tuner Mode Control . . . . . . . . . . . . . . . .11

How to Auto Program TV Channels . . . . . . . . . . . . . . . . .12

How to Add or Delete Channels . . . . . . . . . . . . . . . . . . . .13

Picture Menu

How to Use the Picture Adjustment Controls . . . .14

How to Use the DNR (Digital Noise Reduction) Control . . .15

How to Use the Contrast + (Black Stretch) Control . . . . .16

Sound Menu

How to Set the Treble Boost Control . . . . . . . . . .17

How to Set the Bass Boost Control . . . . . . . . . . . . . . . . .17

How to Set the AVL Control . . . . . . . . . . . . . . . . . . . . . .18

Let's

Look

Inside!

Features Menu

Using the Timer Controls . . . . . . . . . . . . . . . . . .19

Understanding the AutoLock Controls . . . . . . . . . . . . . . .20

Setting Up the AutoLock Access Code . . . . . . . . . . . . . . .21

How to Block Channels . . . . . . . . . . . . . . . . . . . . . . . . . .22

How to Clear All Blocked Channels at the Same Time . . .23

How to Block All Channels at the Same Time . . . . . . . . .24

Blocking Programming Based on Movie Ratings . . . . . . .25

BlockingProgramming Based on TV Ratings . . . . . . . . . .26

Other AutoLock Blocking Options . . . . . . . . . . . . . . . . . .27

How to use the Closed Captioning Control . . . . . . . . . . . .28

Remote Control Use

Setting up the Sleeptimer Option . . . . . . . . . . . . . .29

Setting the Auto Picture Control . . . . . . . . . . . . . . .30

Setting the Auto Sound Control . . . . . . . . . . . . . . . . . . . .31

Using the Quadra Surf Buttons (Alternate Channel) . .32-33

General Information

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . .34

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

ABLE OF

ONTENTS

Here are a few of the special features built into this new

Color Television:

AutoLock™ feature allows you to block the viewing of certain channels or external audio/video connections where you might not want your children viewing inappropriate material.

Infrared Remote Control works your TV set, and allows you to program certain features with the press of one button.

Standard broadcast (VHF/UHF) or Cable TV (CATV)

channel capability.

Closed Captioning allows the viewer to read TV program dialogue or voice conversations as on-screen text.

Automatic Programming of Channels for quick and easy selection of favorite stations available in your area.

On-screen Features (in either English or Spanish) show helpful messages for setting of TV controls.

Audio/Video Jackpanel located on the front of the television for direct connections with a camcorder, or VCR.

Provides quality TV picture and mono sound playback.

On Timer automatically turns the TV ON at a preset time, and channel.

Sleeptimer automatically turns the TV OFF at preset times.

Auto Picture™ allows you to set the picture color, tint, contrast, etc. for various types of programming such as Sports,

Movies, Personal, Weak Signal, or Multi Media with the push of one button.

Auto Sound™ controls allow you to set the sound controls for various types of listening programs such as Personal

(sound controls the way you set them), Theatre, Music, or

Voice with the push of one button.

Bass and Treble Boost controls to enhance the television’s sound.

NOTE: It is possible that this owner's manual may be used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television system. This is normal and does not require you contacting your dealer or requesting service.

Auto Lock™, Auto Picture™, Auto Sound™ are all registered trademarks of Philips Consumer Electronics Company.

OOKING

P

OUR

TV (B

ASIC

ABLE

TV C

ONNECTIONS

)

our Cable TV input into your home may be a single (75 ohm) cable, or a Converter Box installation. In either case the connection to the TV is very easy. Just put the threaded end of the cable signal to the TV's antenna plug and screw it down finger tight.

If your Cable TV signal is a single

round cable (75 ohm) then you're ready to connect to the TV.

If you have a Cable Converter Box:

Connect the Cable TV signal to the

Cable Signal IN(put) plug on the

Converter.

Connect the Cable TV cable to the

Ω plug on the TV.

If you have a Cable Converter Box:

Connect the OUT(put) plug from the

Converter to the 75

Ω plug on the TV.

MART

ELP

Remember: Set the TV for the type signal you've just connected

(see the “Tuner Mode” section on page

11 of this manual.)

To select only the channel numbers on your Cable system see “Auto Program"

(page 12). If you use a Cable Converter box, set the TV to the same channel as the converter's CH 3/4 switch (on the rear of the converter.)

Cable TV Company

Cable TV Signal Input

OUT

Cable TV Converter

Box Connection

Round Cable

Ω

Ohm

Back of TV

OOKING

P

OUR

TV (B

ASIC

NTENNA

TV C

ONNECTIONS

)

combination antenna receives normal broadcast channels

(VHF 2-13 and UHF 14-69). Your connection is easy since there is only one 75

Ω

(ohm) antenna plug on the back of your TV - and that’s where the antenna goes.

If your antenna has a round cable

(75 ohm) on the end, then you're ready to connect it to the TV.

If your antenna has flat twin-lead wire

(300 ohm), you first need to attach the antenna wires to the screws on a 300 to

75 ohm adapter.

Push the round end of the adapter

(or antenna) onto the 75

Ω plug on the rear of the TV. If the round end of the antenna wire is threaded, screw it down finger tight.

Note: For homes with separate UHF and VHF antennas you will need an optional combiner to connect to the TV.

U/V

Combiner

75-300 Ohm Adapter

Back of TV

MART

ELP

Remember: Be sure to set the

TV for the type signal you've connected (see the “Tuner Mode” section on page 11 of this manual.)

To set the TV to select only the channel numbers in your area see how to

“Program" or "Add" channels in the

TV’s memory on page 12 (Auto

Program section).

To order any optional accessory contact your dealer or the Philips Parts Center at 1-800-851-8885.

Combination VHF/UHF

Antenna

(Outdoor or Indoor)

Twin Lead

Wire

Round Cable

Ω

300 to 75

Ω

Adapter

Back of TV

OOKING

P

OUR

TV (B

ASIC

TO

VCR C

ONNECTIONS

)

he basic Antenna, or Cable TV,

to VCR to TV connection is shown to the right. For more information on other hookups (possible when Cable Converter/Descrambler boxes are included) refer to your accessory VCR and Cable

Converter Owner's Manual for details.

Connect your Antenna or Cable

TV signal to the IN FROM

ANT(enna) plug on the VCR.

Connect the OUT TO TV plug on the VCR to the 75

Ω plug on the TV

(connecting cable supplied with the

VCR.)

300 to 75

Ω

Ohm Adapter

Outdoor

VHF/UHF

Antenna

IN FROM ANT.

OUT TO TV

Cable TV signal

Back of TV

RONT

A/V I

NPUTS

udio and Video Front Mono inputs are available for a quick connection of a VCR or to playback video from a camera. Use the AV button on the remote to tune to the Front A/V Inputs.

Connect the yellow video cable from the Video output on the VCR/Camera to the Video input located on the FRONT of the TV.

Connect the audio cables (red and

white) from the Audio outputs on the

VCR/Camera to the Audio input located on the front of the TV. Note: The use of the

“Y” adapter will have to be used if the

VCR or Camera has stereo audio outputs.

Audio Cable

Video Cable

OUT

ANTENNA

AUDIO VIDEO ANTENNA

OUT

IN IN

VCR or accessory device

Round Cable

Ω

Supplied with VCR

VIDEO AUDIO

Front A/V Mono Input Jacks

INSTALL/MENU

– VOLUME + CHANNEL

VIDEO

AUDIO

INSTALL/MENU

– VOLUME + CHANNEL

Front of TV

ASIC

TV/R

EMOTE

PERATIONS

ELEVISION

Press the POWER button to turn the TV ON.

Note: You can also press any button on the front of the TV to turn the TV ON.

Press the VOLUME + button to increase the sound level, or the VOL-

UME – button to lower the sound level.

Pressing both buttons at the same

time will display the on-screen menu.

Once in the menu, use these button to make adjustments or selections.

Press the CHANNEL UP ▲ or

DOWN ▼ button to select TV channels.

EMOTE

Point the remote control toward the remote sensor window on the TV when operating the TV with the remote.

Remote Sensor Window

VIDEO

VIDEO AUDIO INSTALL/MENU

– VOLUME + CHANNEL

MONO

VIDEO

AUDIO

Headphone Jack

Headphones can be used with this television by simply plugging them into the headphone jack located on the front of the television. Sound coming from the headphone jack is mono.

Front Audio/Video Inputs (Mono)

The Front Audio/Video Input Jacks make it real easy to watch the playback of a video tape using a camcorder

(or any accessory device) with

Audio/Video Output Jacks.

INSTALL/MENU

– VOLUME +

CHANNEL

B

ATTERY

I

NSTALLATION

o load the supplied batteries into

T the remote:

1. Remove the battery compartment

lid on the back of the remote.

2. Place the batteries (2- AA) in the

remote. Be sure the (+) and (-) ends of the batteries line up correctly (inside of case is marked.)

3. Reattach the battery lid.

MART

ELP

Remember, the tuned channel number will always briefly appear when the TV is first turned ON

(and with channel changes.)

You can also press the STATUS/EXIT button (on the remote) to see what channel the TV is ON.

Battery Lid

Battery

Compartment

2 “AA” Batteries

Bottom of Remote Shown

QUADRA SURF Buttons - (Red,

Green, Yellow, Blue) Allows you to store and surf up to 10 channels you choose for each colored button.

AV Button - Press to select an accessory signal input from the front AV

Inputs.

SMILEY Button - Press to add channels in the “Quadra Surf” lists. Works with all colored buttons.

CC Button - Press to activate the

Closed Captioning options. Repeatedly press the CC button will scroll the options available on the TV screen.

AUTO SOUND Button - Press repeatedly to choose from different factory pre-defined sound settings. Choose from

Personal (how you set the Sound Menu options), Voice (for programming with speaking only), Music (for musical type programs such as concerts), or Theatre

(used when watching movies).

MENU Button - Press to display the on-screen menu. Also can be used to back out of the on-screen menu until it disappears from the TV’s screen.

VOL(ume) + or – Buttons - Press the

VOL + button to increase the TV’s sound level. Press the VOL – button to decrease the TV’s sound level.

MUTE Button - Press the mute button to eliminate the sound being heard from the TV. “MUTE” will be displayed on the TV’s screen. Press again to restore the TV’s volume to it’s previous level.

SLEEP Button - Press the Sleep button to set the TV to automatically turn itself off after a set period of time.

Press repeatedly to select 15, 30, 45,

60, 90, 120, 180, or 240 minutes.

VOL

ESCRIPTION OF

EMOTE

ONTROL

UTTONS

POWER button - Press the Power button to turn the TV on or off.

A/CH Button - (Alternate Channel)

Press to toggle between the last view channel and the channel presently being viewed.

FROWNIE Button - Allows you to delete stored channels within the

“Quadra Surf” lists for the colored buttons.

AUTO PICTURE Button - Press repeatedly to choose from 5 different factory pre-defined picture settings.

Choose from Personal (how you set the

Picture Menu adjustment controls),

Movies (when watching movies),

Sports (for any sporting event), Weak

Signal (used when the signal being received is not the best), or Multi

Media (for use with video gaming).

STATUS/EXIT Button - Press to display the current channel number. If the on-screen menu is displayed, press the

Status/Exit button will remove it from the TV’s screen.

CURSOR , , , or Buttons -

Press to navigate, select and adjust controls within the on-screen menu.

CH(annel) + or – Buttons - Press to select channels in ascending or descending order.

NUMBERED (0-9) Buttons - Press the numbered buttons to select TV channels or to enter certain values within the on-screen menu. For single channel entries, press the numbered button for the channel you desire. the

TV will pause for a second or two before changing to the chosen channel.

CLOCK Button - Press to display the

“Timer” menu. Within this menu set the time, set the TV to tune to a certain channel at a certain time once, or daily.

SING THE

ANGUAGE

ONTROL

F or our Spanish speaking TV owners an on-screen LANGUAGE option is present. With the LANGUAGE control you can set the TV’s on-screen menu to be shown in either English or Spanish.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through the on-screen menu until the word

INSTALL is highlighted.

Press the CURSOR RIGHT

button to display the INSTALL menu features.

Press CURSOR UP ▲ or DOWN

▼ buttons to scroll the Install features until the word LANGUAGE is highlighted.

Press the CURSOR RIGHT

button repeatedly to select ENGLISH or ESPANOL (Spanish).

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Language

Tuner Mode

Auto Program

Channel Edit

Install

Language

Tuner Mode

Auto Program

Channel Edit

English

Instaler

Idioma

Sintonia

Auto Programa

Editar Canal

Español

MART

ELP

Remember: The Language control only makes the TV’s onscreen MENU items appear in English or Spanish text.

It does not change the other on-screen text features such as Closed Caption

(CC) TV shows.

OW TO

SE THE

UNER

ODE

ONTROL

he TUNER MODE control allows T you to change the TV’s signal input to either ANTENNA, CABLE or AUTO mode. It’s important for the TV to know what type of signal to look for. (From a

Cable TV signal or a normal Antenna signal.) In the AUTO mode, when the

AUTO PROGRAM feature is activated, the TV will automatically choose the correct mode.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through the on-screen menu until the word

INSTALL is highlighted.

Press the CURSOR RIGHT

button to display the INSTALL menu features.

Press CURSOR UP ▲ or DOWN

▼ buttons to scroll the Install features until the words TUNER MODE is highlighted.

Press the CURSOR RIGHT

button to select either ANTENNA,

CABLE, or AUTO mode.

When finished, press the STATUS

/EXIT button to remove the on-screen menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Language

Tuner Mode

Auto Program

Channel Edit

Install

Language

Tuner Mode

Auto Program

Channel Edit

English

Antenna

Install

Language

Tuner Mode

Auto Program

Channel Edit

English

Cable

MART

ELP

When CABLE is selected, channels 1-125 are available.

When ANTENNA is selected, channels

2-69 are available.

When AUTO is selected, the TV will automatically set itself to the correct mode based on the type of signal it detects when the AUTO PROGRAM feature is activated.

Install

Language

Tuner Mode

Auto Program

Channel Edit

English

Auto

OW TO

UTOMATICALLY

ROGRAM

TV C

HANNELS

Y our TV can automatically set itself for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area

when the CHANNEL (+), (–) buttons

are pressed.

Note: Make sure the antenna or cable signal connection has been completed before AUTO PROGRAM is activated.

Main


Sound

Features

Install

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through the on-screen menu until the word

INSTALL is highlighted.

Press the CURSOR RIGHT

button to display the INSTALL menu features.

Press CURSOR UP ▲ or DOWN

▼ buttons to scroll the Install features until the words AUTO PROGRAM are highlighted.

Press the CURSOR RIGHT

button to start the Auto Program scanning of channels. Auto Programming will store all available channels in the

TV’s memory then tune to the lowest available channel when done.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

VOL

Brightness

Color


Sharpness

Tint

More...

Main

Sound

Features

Install

Language

Tuner Mode

Auto Program

Channel Edit

Auto Program

Channel

Auto Program

Channel

Language

Tuner Mode


Auto Program

Channel Edit

Auto Program

Channel 14

MART

ELP

Try it out. Press the CHAN-

NEL (+), (–) buttons and see which channels have been added to the

TV’s memory.

If you want to delete any unwanted channels from the TV’s memory, refer to the section on adding and deleting channels

(Channel Edit) on the next page.

OW TO

DD OR

ELETE

TV C

HANNELS

C hannel Edit makes it easy for you to ADD or DELETE channels from the list of channels stored in the TV’s memory.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through the on-screen menu until the word

INSTALL is highlighted.

Press the CURSOR RIGHT

button to display the INSTALL menu features.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll the Install features until the words CHANNEL

EDIT are highlighted.

Press the CURSOR RIGHT

button to display the CHANNEL

EDIT options.

With the CHANNEL EDIT

options displayed, and CHANNEL

NO. highlighted; enter the channel number (with the NUMBERED or the

CH + or – buttons) you wish to add

(Skipped OFF), or delete (Skipped ON) from the TV’s memory.

Scroll down (using the CURSOR

DOWN ▼ button) to highlight the word SKIPPED.

Now use the CURSOR RIGHT

button to toggle between ON or OFF.

If ON is selected the channel is skipped when scrolling channels with the CH + or – buttons. If OFF is select-

ed the channel is not skipped when scrolling channels with the CH + or – buttons.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Channel Edit

Channel No.

Skipped

Channel Edit

Channel No.

Skipped

Channel Edit

Channel No.

Skipped

Language

Tuner Mode

Auto Program

Channel Edit

Install

Language

Tuner Mode

Auto Program

Channel Edit

Channel No.

Skipped

Off

OW TO

SE THE

ICTURE

DJUSTMENT

ONTROLS

o adjust your TV picture controls, T select a channel and follow the steps shown below:

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons until the word PIC-

TURE is highlighted.

Press the CURSOR RIGHT

button to display the PICTURE menu features.

Press CURSOR UP ▲ or DOWN

▼ buttons to scroll the Picture features and highlight the control you wish to adjust (Brightness, Color, Picture,

Sharpness, Tint, or Color Temp.).

Press the CURSOR RIGHT

or the CURSOR LEFT

§ buttons to adjust the selected control or to make selections for the Color Temp. control

(Normal, Warm, or Cool).

Press the CURSOR UP ▲ or

DOWN ▼ buttons to select and adjust other Picture Menu controls.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...


Brightness

Color


Sharpness

Tint

Color Temp.


Brightness

Color


Sharpness

Tint

Color Temp.

Color


Sharpness

MART

ELP

BRIGHTNESS Press the

buttons until darkest parts of the picture are as bright as you prefer.

COLOR Press the

§ buttons to add or eliminate color.

PICTURE Press the

§ buttons until lightest parts of the picture show good detail.

SHARPNESS Press the

§ buttons to improve detail in the picture.

TINT Press the

§ buttons to obtain natural skin tones.

COLOR TEMP Press the

§ buttons to select NORMAL, COOL, or WARM picture preferences. (NORMAL will keep the whites, white; COOL will make the whites, bluish; and WARM will make the whites, reddish.)

Color


Sharpness

Tint

Brightness

Color


Sharpness

Tint

Color Temp.


Brightness

Color


Sharpness

Tint

Color Temp.


Brightness

Color


Sharpness

Tint

Color Temp.

Normal

Warm or

Cool

OW TO

SE THE

DNR (N

OISE

EDUCTION

) C

ONTROL

F or reasons such as poor cable reception, the picture can sometimes appear slightly “speckled” (or has signal noise shown in the picture). The DNR

(Dynamic Noise Reduction) control can help eliminate this type of interference and improve the quality of the picture.

Main


Sound

Features

Install

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until the word PICTURE is highlighted.

Press the CURSOR RIGHT

button to display the PICTURE menu features.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button to scroll the Picture menu features until the word

DNR is highlighted.

Press the CURSOR RIGHT

button turn the DNR feature ON or

OFF.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

VOL

Brightness

Color


Sharpness

Tint

More...


Brightness

Color


Sharpness

Tint

Color Temp.


Color


Sharpness

Tint

Color Temp.

DNR


Color


Sharpness

Tint

Color Temp.

DNR

MART

ELP

“Noise” Reduction is a video adjustment feature that affects the picture quality of the TV not the sound.

NOTE: If the Sharpness control setting is under 50 (see Picture Adjustments on the previous page), the DNR control will have little or no effect to the TV’s picture when switched to ON.


Color


Sharpness

Tint

Color Temp.

DNR

Off

OW TO

SE THE

ONTRAST

+ (B

LACK

TRETCH

) C

ONTROL

he Contrast + (Black Stretch) conT trol helps to “sharpen” the picture quality. The black portions of the picture become richer in darkness and the whites become brighter.

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or CUR-

SOR DOWN ▼ button until the word

PICTURE is highlighted.

Press the CURSOR RIGHT

button to display the PICTURE menu features.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button to scroll the Picture menu features until the word

CONTRAST + is highlighted.

Press the CURSOR RIGHT

button turn the CONTRAST + feature

ON or OFF.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...


Brightness

Color


Sharpness

Tint

Color Temp.


Sharpness

Tint

Color Temp.

DNR

Contrast +


Color


Sharpness

Tint

Color Temp.

Contrast +


Color


Sharpness

Tint

Color Temp.

Contrast +

Off

OW TO

ET THE

ASS AND

REBLE

OOST

ONTROLS

B esides the normal volume level control, your TV also has Bass and

Treble Boost sound controls. The TRE-

BLE Boost effects only the high frequency sound coming from the TV enhancing the highs; while the BASS

Boost effects only the low frequency sound coming from the TV enhancing the lows.

Main


Sound

Features

Install

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or CUR-

SOR DOWN ▼ button until the word

SOUND is highlighted.

Press the CURSOR RIGHT

button to display the SOUND menu features.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button to scroll the Sound menu features until the words BASS BOOST or TREBLE

BOOST are highlighted.

Press the CURSOR RIGHT

button to turn the Bass or Treble

Boost controls ON or OFF.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

VOL

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Sound

Treble Boost

Bass Boost

AVL


Treble Boost


Sharpness

Tint

Color Temp.

Contrast +


Sharpness

Tint

Color Temp.

Contrast +

Treble Boost

Bass Boost

AVL

Off


Treble Boost

Bass Boost

Sharpness

Tint

Color Temp.

Contrast +

Treble Boost

Bass Boost

Sharpness

Tint

Color Temp.

Contrast +

Off

OW TO

SE THE

AVL (A

UTOMATIC

OLUME

EVELER

) C

ONTROL

I n most cases, the volume levels coming from broadcast programming or commercials are never the same. With the AVL (Audio Volume Leveler) control turned ON, you can have the TV level out sound that is being heard. This makes for a more consistent sound by reducing the peaks and valleys that occur during program changes or commercial breaks. To turn the AVL ON, follow these steps.

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP

▲

or CUR-

SOR DOWN ▼ button until the word

SOUND is highlighted.

Press the CURSOR RIGHT

button to display the SOUND menu features.

Press the CURSOR UP

▲

or CUR-

SOR DOWN ▼ button to scroll the

Sound menu features until the word

AVL is highlighted.

Press the CURSOR RIGHT

button to turn the AVL control ON or

OFF.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Main


Sound

Features

Install

VOL

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Sound

Treble Boost

Bass Boost

AVL

Sound

Treble Boost

Bass Boost

AVL

Treble Boost

Bass Boost

AVL

Off

Sound

Treble Boost

Bass Boost

AVL On

OW TO THE

IMER

ONTROLS

T he Timer controls allow you to use your TV as an alarm clock if set to turn itself on and off at a specific time.

It also can be set to tune to a specific channel at a specific time.

Press the CLOCK button on the remote to display the Timer on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button to highlight one of the Timer controls you wish to set

(Time, Start Time, Stop Time, Channel,

Activate, or Display).

Press the CURSOR RIGHT

button to adjust the selected option.

TIME: Enter the current time with the numbered buttons. Use the Cursor Right button to move to the AM/PM area and use the Cursor Left or Right buttons to toggle

AM or PM.

START TIME: Use the numbered buttons to enter a start-up time for the TV to turn on or to tune a specific channel.

STOP TIME: Use the numbered buttons to enter a time for the TV to shut itself off.

CHANNEL: Use the Numbered buttons to select a specific channel for the TV to tune to at the specific Start Time.

ACTIVATE: Set the Timer to preform it’s function ONCE or DAILY.

DISPLAY: Set to ON or OFF. When ON, the time will be displayed permenately while the TV is on. When OFF is selected, the time will be displayed whenever the

STATUS/EXIT button is pressed.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

10 :30 AM

VOL

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

12 :30 PM

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

0 1 :30 PM

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

0 10

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

Once

Let's

Look

Inside!

Timer

Time

Start Time

Stop Time

Channel

Activate

Display

NDERSTANDING THE

UTO

OCK

ONTROLS

T he AutoLock feature is an integrated circuit that receives and processes data sent by broadcasters, or other program providers, that contain program content advisories. When programmed by the viewer, a TV with AutoLock can respond to the content advisories and block program content that may be found objectionable (such as offensive language, violence, sexual situations, etc.). This is a great feature to censor the type of viewing children may watch.

Over the next few pages you’ll

learn how to block channels and certain rated programming. Below is a brief explanation of some terms and ratings you will find in the

AutoLock feature.

AutoLock offers various

BLOCKING controls from which to choose:

Access Code: An Access Code must be set to prevent children from unblocking questionable or censored programming set by their parents.

Channel Block: After an access code has been programmed, you can block individual channels including the A/V inputs.

Clear All: Allows you clear all channels being blocked from your viewing set with the Channel Block

Control.

Block All: Allows you to block

ALL channels and A/V inputs at one time.

Movie Ratings: Certain blocking options exist which will block programming based on ratings patterned by the Motion Pictures

Association of America.

TV Ratings: Just like the Movie

Ratings, programs can be blocked from viewing using standard TV ratings set by TV broadcasters.

To learn more about the Motion

Picture Association of America

Ratings and the TV Broadcasters

Television Ratings, refer to the definitions listed on the columns to the right.

Movie Rating

PG-13

NC-17

OVIE

ATINGS

OTION

ICTURE

SSOCIATION OF

MERICA

)

G: General Audience - All ages admitted.

Most parents would find this program suitable for all ages. This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

PG: Parental Guidance Suggested - This programming contains material that parents may find unsuitable for younger children.) It may contain one or more of the following:

Moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

PG-13: Parents Strongly Cautioned - This programming contains material that parents may find unsuitable for children under the age of 13. It contains one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

R: Restricted -This is programming is specifically designed for adults. Anyone under the age of 17 should only view this programming with an accompanying parent or adult guardian. It contains one or more of the following: intense violence, intense sexual situations, strong coarse language, or intensely suggestive dialogue.

NC-17: No one under the age of 17 will be

admitted. - This type of programming should be viewed by adults only. It contains graphic violence, explicit sex, or crude indecent language.

X: Adults Only - This type of programming contains one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, very coarse and intensely suggestive language.

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

TV P

ARENTAL

UIDELINES

(TV B

ROADCASTERS

)

TV-Y - (All children -- This program is

designed to be appropriate for all chil-

dren.) Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

TV-Y7 - (Directed to Older Children -

- This program is designed for children

age 7 and above.) It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G - (General Audience -- Most par-

ents would find this program suitable

for all ages.) This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

TV-PG - (Parental Guidance

Suggested -- This program contains

material that parents may find unsuit-

able for younger children.) This type of programming contains one or more of the following: Moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14 - (Parents Strongly Cautioned -

- This program contains some material

that many parents would find unsuitable

for children under 14 years of age.) This type of programming contains one or more of the following: intense violence (V), intense sexual situations (S), strong coarse language (L), or intensely suggestive dialogue (D).

TV-MA - (Mature Audience Only --

This program is specifically designed to be viewed by adults and therefore may

be unsuitable for children under 17.) This type of programming contains one or more of the following: graphic violence (V), explicit sexual situations (S), or crude indecent language (L).

ETTING UP THE

UTO

OCK

CCESS

ODE

O ver the next few pages you’ll learn how to block channels and get a better understanding of the rating terms for certain programming.

First, let’s start by learning how to set a personal access code:

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word FEA-

TURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until the words

AUTOLOCK are highlighted.

Press the CURSOR RIGHT

button. The screen will read,

“ACCESS CODE - - - - .”

Using the NUMBERED buttons,

enter 0, 7, 1, 1. “XXXX” appears on the Access Code screen as you press the numbered buttons.

“INCORRECT CODE” will appear on the screen, and you will need to enter 0,

7, 1, 1 again.

The screen will ask you to enter a

“New Code.” Enter a “new” 4 digit

code using the NUMBERED buttons.

The screen will then ask you to CON-

FIRM the code you just entered. Enter

your new code again. “XXXX” will appear when you enter your new code and then display the AutoLock menu options.

Proceed to the next page to learn more...

MART

ELP

Parents - it isn’t possible for your child to unblock a channel without knowing your access code or changing it to a new one. If your code changes, and you didn’t change it, then you know it’s been altered by someone else and blocked channels have been viewed.

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

Features

Timer

AutoLock

Time

Start Time

Stop Time

Channel

Activate

Display

VOL

NOTE: The 0,7,1,1 access code shown on this page is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Access Code

- - - - Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Access Code

XXXX Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Access Code

XXXX

Incorrect

Activate

Display

Features

Timer

AutoLock

New Code

- - - Stop Time

Channel

Activate

Display

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Off Stop Time

Channel

Activate

Display

Main


Sound

Features

Install

Timer

AutoLock

Features

Timer

AutoLock

Access Code

XX - Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

New Code

XXX Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Confirm Code

XXXX Stop Time

Channel

Activate

Display

The AutoLock

Access Code also can be changed anytime using the

Setup Code feature

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

OffStop Time

Channel

Activate

Display

A fter your personal access code has been set (see previous page), you are now ready to select the channels you want to block out or censor.

Press the NUMBERED (or CH +,

–) buttons to tune the channel you wish to block or censor.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word

FEATURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until the words

AutoLock are highlighted.

Press the CURSOR RIGHT

button.

Enter the correct access code

number. “XXXX” shows on the

Access Code display as you press the

NUMBERED buttons. AutoLock menu options will be displayed.

Press the CURSOR UP ▲ or

DOWN

▼

buttons until the words

BLOCK CHANNELS are highlighted.

Press the CURSOR RIGHT

button to turn blocking ON or OFF for that channel. When ON is selected the channel will be blocked.

Press the CH + or – button to select other channels you wish to block. Repeat step 9 to block the new channel.

OW TO

LOCK

HANNELS

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

Features

Timer

AutoLock

Access Code

XXXX Stop Time

Channel

Activate

Display

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Off Stop Time

Channel

Activate

Display

Main


Sound

Features

Install

Timer

AutoLock

VOL

Features

Timer

AutoLock

Time

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

NOTE: Remember, if you ever forget your Access Code, the 0,7,1,1 access code is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Access Code

- - - - Stop Time

Channel

Activate

Display

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

On Stop Time

Channel

Activate

Display

Channel 12

Blocked By AutoLock

Channel Blocking

Access Code

- - - -

Enter your Access Code to view a tuned channel that is blocked with Block Channel.

MART

ELP

If you tune to a blocked channel and enter your Access Code to view the channel, ALL blocked channels will be viewable until the TV has been turned off. When the TV is powered back ON, the previously blocked channels will be blocked again.

OW TO

LEAR

LL

LOCKED

HANELS AT THE

AME

IME

A fter blocking specific channels there may come a time when you want to clear all the channels so they can be viewed. The following steps explain how to CLEAR ALL blocked channels.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word

FEATURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until the words

AutoLock are highlighted.

Press the CURSOR RIGHT

button.

Enter the correct access code

number. “XXXX” shows on the

Access Code display as you press the

NUMBERED buttons. AutoLock menu options will be displayed.

Press the CURSOR UP ▲ or

DOWN

▼

buttons until the words

CLEAR ALL are highlighted.

Press the CURSOR RIGHT

button to clear all blocked channels.

The Clear All option will read,

“Cleared.”

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen.

VOL

NOTE: Remember, if you ever forget your Access Code, the 0,7,1,1 access code is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Time

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Access Code

- - - Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Access Code

XXXX Stop Time

Channel

Activate

Display

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

AutoLock

Block Channel

Setup Code

ClearAll

BlockAll

Movie Rating

TV Rating

Off Stop Time

Channel

Activate

Display

Main


Sound

Features

Install

Timer

AutoLock

Block Channel

Setup Code

ClearAll

BlockAll

Movie Rating

TV Rating

Clear ?

Stop Time

Channel

Activate

Display

MART

ELP

If you tune to a blocked channel and enter your Access Code to view the channel, ALL blocked channels will be viewable until the TV is powered OFf and then turned back ON.

When the TV is powered back ON, the previously blocked channels will be blocked again.

CLEAR ALL will not work with the

Movie and TV Ratings. These options must be reset individually.

AutoLock

Block Channel

Setup Code

ClearAll

BlockAll

Movie Rating

TV Rating

Cleared Stop Time

Channel

Activate

Display

The Clear All option when activated will unblock ALL blocked channels. It will not affect programming blocked by the Movie or TV Rating options.

Channel 12

Blocked ByAutoLock

Channel Blocking

Access Code

- - - -

Or, enter your Access

Code to view a tuned channel that is blocked with Block Channel.

OW TO

LOCK

LL

HANNELS AT THE

AME

IME

T here may come a time when you want to Block All the television’s channels. Maybe you don’t want your children to watch TV for a given time.

With the Block All control, ALL available channels (including the A/V

Inputs) can be set to block at the same time.

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word FEA-

TURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until the words

AutoLock are highlighted.

Press the CURSOR RIGHT

button.

Enter the correct access code

number. “XXXX” shows on the

Access Code display as you press the

NUMBERED buttons. AutoLock menu options will be displayed.

Press the CURSOR UP ▲ or

DOWN ▼ buttons until the words

BLOCK ALL are highlighted.

Press the CURSOR RIGHT

button to turn Block All ON or OFF.

When ON is selected, ALL available channels will be blocked.

When finished, press the STA-

TUS/EXIT button to remove the menu from the screen.

VOL

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

NOTE: Remember, if you ever forget your Access Code, the 0,7,1,1 access code is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Access Code

- - - -

Features

Timer

AutoLock

Access Code

XXXX

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Off

Main


Sound

Features

Install

Timer

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Channel 12

Blocked By AutoLock

Channel Blocking

Access Code

- - - -

Enter your Access Code to view a tuned channel that is blocked with Block Channel.

MART

ELP

LOCKING

ROGRAMMING

ASED ON

OVIE

ATINGS

here are two types of program ratT ings within the AutoLock feature.

One is based on the Movie Industry ratings while the other is based on the TV

Industry ratings. Both can be used to block or censor programming that has been rated in either manner.

Let’s first look at the Movie Rating options of AutoLock:

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

Main


Sound

Features

Install

Timer

AutoLock

Press the MENU button on the remote to display the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word FEA-

TURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until AutoLock is highlighted.

Press the CURSOR RIGHT

button. The screen will prompt you for your Access Code.

Using the NUMBERED buttons

on the remote, enter your 4 digit

Access Code. The AutoLock menu options will be displayed.

Press the CURSOR UP ▲ or

DOWN ▼ button to highlight the words MOVIE RATINGS.

Press the CURSOR RIGHT

button to display the MOVIE RAT-

INGS options (G, PG, PG-13, R,

NC17, or X).

Press the CURSOR UP ▲ or

DOWN ▼ button to highlight any of the Movie Ratings options. When highlighted, all these options can be turned

ON (which will allow blocking) or

OFF (which will allow viewing).

Use the CURSOR RIGHT

but-

ton on the remote to turn the rating option ON or OFF.

Each Movie Rating can be turned “ON” or “OFF.”

NOTE: Remember, if you ever forget your Access Code, the 0,7,1,1 access code is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Movie Rating

PG-13

NC-17

VOL

Access Code

XXXX Stop Time

Channel

Activate

Display

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

PG-13

NC-17

More...

Features

Timer

AutoLock

Features

Timer

AutoLock

Features

Timer

AutoLock

Movie Rating

PG-13

NC-17

Time

Start Time

Stop Time

Channel

Activate

Display

Timer

Start Time

Stop Time

Channel

Activate

Display

Access Code

- - - - Stop Time

Channel

Activate

Display

Off

Channel 12

OffStop Time

Blocked By AutoLock

Channel

Movie Rating

Activate

Access Code

Display

- - - -

MART

ELP

When a rating is set to block, all higher ratings will be automatically blocked as well. (Example: If the the PG-13 rating is set to block, the

R, NC-17, and X ratings will also be blocked.

To view a program blocked by the Movie Rating options, enter your 4 digit access code. This will disable all blocked Movie

Ratings until the TV is powered off and on again. Then the blocking options will be restored.

LOCKING

ROGRAMMING

ASED ON

TV R

ATINGS

his portion of the AutoLock features T cover program ratings based on the

TV Industry rating system. This is known as TV Ratings within AutoLock.

After selecting the Autolock feature and entering your personal access code, the

AutoLock options screen appears;

Scroll the menu using the CUR-

SOR UP ▲ or DOWN ▼ buttons until the words TV RATINGS are highlighted.

Press the CURSOR RIGHT

but-

ton to display the TV Ratings (TV-Y,

TV-Y7, TV-G, TV-PG, TV-14, or TV-

MA). When highlighted, the TV-Y and

TV-G can be turned ON (which will

allow blocking) or OFF (which will

allow viewing), of these rated programs.

The ratings of TV-Y7, TV-PG, TV-14,

TV-MA can be customized to block V

(violence), FV (fantasy violence), S

(sexual situations), L (coarse language), or D (suggestive dialogue).

Press the CURSOR UP ▲ or

DOWN ▼ button to highlight the desired rating.

Press the CURSOR RIGHT

button on the remote to turn the TV-Y or TV-G rating ON or OFF. Or, press

the CURSOR RIGHT

button to enter the sub-menus for the TV-Y7, TV-

PG, TV-14 or TV-MA ratings.

If the TV-Y7, TV-PG, TV-14 or TV-

MA sub-menu is accessed, press the

CURSOR UP ▲ or CURSOR DOWN

▼ button to select one of the options

(Block All, V, S, L, D, or FV).

Press the CURSOR RIGHT

button on the remote to turn the option

ON or OFF.

To view a program blocked by the TV Rating options, enter your 4 digit access code. This will disable all blocked TV

Ratings until the TV is powered off and on again. Then the blocking options will be restored.

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Channel 12

OffStop Time

Blocked By AutoLock

Channel

TV Rating

Activate

Access Code

Display

- - - -

Block All

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

VOL

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Block All

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

TV Rating

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Off

Block All

Off

TV Ratings and

Rating Sub-Menus

When a TV Rating is selected to block,

ALL higher ratings will be blocked also.

TV-Y - (All children -- This program is designed to be appropriate for all children.) Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

TV-Y7 - (Directed to Older Children -- This program is designed for children age 7 and above.) It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G - (General Audience -- Most parents would find this program suitable for all ages.) This type of programming contains little or no violence, no strong language and little or no sexual dialogue or situations.

TV-PG - (Parental Guidance Suggested -- This program contains material that parents may find unsuitable for younger children.)This type of programming contains one or more of the following: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).

TV-14 - (Parents Strongly Cautioned -- This program contains some material that many parents would find unsuitable for children under 14 years of age.) This type of programming contains one or more of the following: intensely suggestive dialogue (D), strong coarse language (L), intense sexual situations (S), or intense violence (V).

TV-MA - (Mature Audience Only -- This program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.) This type of programming contains one or more of the following: crude indecent language (L), explicit sexual situations (S), or graphic violence (V).

SING THE

UTO

OCK

LOCKING

PTIONS

A utoLock offers the viewer other blocking features as well. With these Blocking Options, the censoring can be turned ON or OFF.

Main


Sound

Features

Install

Brightness

Color


Sharpness

Tint

More...

Press the MENU button on the remote to show the on-screen menu.

Press the CURSOR UP ▲ or

DOWN ▼ button until the word

FEATURES is highlighted.

Press the CURSOR RIGHT

button to display the FEATURES menu options.

Press the CURSOR UP ▲ or

DOWN ▼ button until the words

AutoLock are highlighted.

Press the CURSOR RIGHT

button.

Enter the correct access code

number. “XXXX” shows on the

Access Code display as you press the

NUMBERED buttons. AutoLock menu options will be displayed.

Press the CURSOR UP ▲ or

DOWN ▼ buttons until the words

BLOCKING OPTIONS are highlighted.

Press the CURSOR RIGHT

button to display the Blocking

Options (BLOCKING, UNRATED, or NO RATING) menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to highlight the desired feature.

When highlighted, each feature can be turned ON or OFF using the CUR-

SOR RIGHT

or LEFT

buttons

on the remote.

Main


Sound

Features

Install

Timer

AutoLock

VOL

Features

Timer

AutoLock

Time

Start Time

Stop Time

Channel

Activate

Display

Features

Timer

AutoLock

Timer

Start Time

Stop Time

Channel

Activate

Display

NOTE: Remember, if you ever forget your Access Code, the 0,7,1,1 access code is the default code or a way to reset the code when the current access code is not known.

Features

Timer

AutoLock

Access Code

- - - -

Features

Timer

AutoLock

Access Code

XXXX

Blocking Options

Blocking

Unrated

No Rating

AutoLock

Block Channel

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Off Stop Time

Channel

Activate

Display

Blocking Options

Blocking

Unrated

No Rating

AutoLock

Setup Code

Clear All

Block All

Movie Rating

TV Rating

Blocking Options

Blocking

Unrated

No Rating On

BLOCKING OPTIONS:

BLOCKING: This is what might be called the “master switch” for AutoLock. When in the ON position, ALL blocking/censoring will take place. When in the OFF position, ALL blocking is disabled.

UNRATED: ALL unrated programs based on the Movie Ratings or Parental (TV) Guidelines can be blocked if this feature is set to ON and the BLOCKING feature is set to OFF.

NO RATING: ALL programming with NO content advisory data can be blocked if this feature is set to ON and the BLOCKING feature is set to OFF.

Let's

Look

Inside!

OW TO

SE THE

LOSED

APTION

ONTROL

C losed Captioning (CC) allows you to read the voice content of television programs on the TV screen.

Designed to help the hearing impaired, this feature uses on-screen “text boxes” to show dialogue and conversations while the TV program is in progress.

Press the CC button on the remote to display the current Closed Caption setting.

Press the CC button repeatedly to choose from the four Closed Caption options (CC Off, CC 1, CC 2, CC

Mute). Dialogue (and descriptions) for the action on the captioned TV program will appear on-screen if the tuned program is broadcasting CC information.

When finished, press the STATUS

/EXIT button to remove the menu from the TV’s screen or let the option time out and disappear from the TV screen.

CC Off

CC 1

CC 2

MART

ELP

Not all TV programs and

product commercials are made with Closed Caption (CC) information included. Neither are all Closed Caption modes (CC1, or CC2) necessarily being used during the transmission of a closed caption program. Refer to your area's

TV program listings for the stations and times of Closed Caption shows.

VOL

CC Mute

NOTE: The CC MUTE option can be used to set the TV to turn the Closed Caption mode

“ON” whenever the MUTE button on the remote is pressed.

This activates the CC1 option.

MUTE will appear smaller in the upper center of the screen.

ETTING

P THE

LEEPTIMER

PTION

H ave you ever fallen asleep in front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Press the SLEEP button on the remote control and the SLEEP timer display will appear on the screen.

Press the SLEEP button repeatedly to pick the amount of time (15, 30, 45,

60, 90, 120, 180, or 240 minutes) before the TV will turn itself off.

An on-screen count down will appear during the last minute before the TV shuts itself off.

15 Min

30 Min

45 Min

60 Min

VOL

MART

ELP

The on-screen menu will time out and disappear from the screen when you finish, or you can press the

STATUS/EXIT button to clear the menu from the screen.

After setting the Sleeptimer, pressing the

STATUS/EXIT button will display the time remaining before the TV will shut itself off.

During the last minute of a

SLEEP timer setting, an onscreen count down will be displayed. Pressing any button during the last minute will cancel the SLEEP timer.

During the last 10 seconds of a SLEEP timer setting, an on-screen display will read

GOOD BYE.

90 Min

120 Min

180 Min

Good Bye

9 Sec

45 Sec

240 Min

ETTING THE

UTO

ICTURE

ONTROL

W hether you’re watching a movie or a sporting event, your TV has automatic video control settings matched for your current program source or content. The Auto Picture feature quickly resets your TV’s video controls for a number of different types of programs and viewing conditions you may have in your home. Each Auto

Picture setting is preset at the factory to automatically adjust the TV’s

Brightness, Color, Picture, Sharpness,

Tint, Color Temperature, DNR and

Contrast+ levels.

Press the AUTO PICTURE button

on the remote control. The current Auto

Picture setting will appear in the middle of the screen.

Press the AUTO PICTURE button

repeatedly to select either PERSONAL,

MOVIES, SPORTS, WEAK SIGNAL, or MULTI MEDIA picture settings.

Note: The PERSONAL setting is the setting that you setup using the PIC-

TURE options within the on-screen menu. This is the only Auto Picture setting that can be changed. All other settings are setup at the factory during the time of production.

MOVIES - Preset picture options for watching Video Tapes, or DVDs.

SPORTS - Preset picture options for watching sporting events.

WEAK SIGNAL - Preset picture options for watching programs where the reception is not at its best.

MULTI MEDIA - Preset picture options for use with video gaming.

VOL

Personal

Movies

Sports

Weak Signal

Mutli Media

ETTING THE

UTO

OUND

ONTROL

he Auto Sound feature allows the T listener to select between four different factory set sound options.

Personal (which can be set by the user),

Theatre (for movie viewing), Music (for musical type programming) and Voice

(when the program is mainly dialogue).

These setting affect the Sound menu’s

Bass, Treble, AVL, and Incredible

Surround controls

To select any of the options follow the

directions below.

Press the AUTO SOUND button on the remote control. The current Auto

Sound setting will appear in the middle of the screen.

Press the AUTO SOUND button

repeatedly to toggle between the four settings.

Note: Only the PERSONAL control can be changed by the viewer. This changes the settings in the main onscreen menu's sound controls.

THEATRE - Preset sound options for watching movies.

MUSIC - Preset sound options for musical programming where there is little dialogue.

VOICE - Preset sound options for programming where heavy dialogue is present.

VOL

Personal

Theatre

Music

Voice

SING THE

UADRA

URF

UTTONS

A “list” or series of previously viewed channels can be selected with the Quadra SURF (colored) buttons on your remote control. With this feature you can easily switch between different TV programs that currently interest you. The Quadra Surf control allows you set up four different personal Surf lists using the colored buttons

(on the remote control), each holding up to ten channels in its quick viewing“list.”

Press the CHANNEL (+) or (–) but-

tons (or the NUMBER buttons) to select a channel to add to one of the SURF lists.

Press the SMILEY

button on the remote control to ADD the channel to one of the SURF lists.

Press the corresponding COL-

ORED (Red, Green, Yellow or Blue)

button to add the channel to that button’s

Surf list. (Up to ten channels per button can be stored.)

Repeat steps 1 through 3 to add additional channels (up to 10) to each of the the SURF lists.

VOL

To remove a channel from one of the

SURF lists;

Press the COLORED Quadra

Surf button until the desired channel appears. The screen will display the channel number with a colored

“Smiley” face to indicate the Colored button it relates to.

While the “Smiley” face channel indicator is displayed, press the

FROWNIE face button. The screen will read, “Remove item? -

Press .”

Press the FROWNIE face but-

ton again to confirm your decision to remove the channel from the Surf list.

Repeat steps 4-6 to remove other channels from Surf lists.

Your remote also has an A/CH (Alternate

Channel) button.

Pressing this button will toggle between the Current and one previously selected channel.

12 Added!

A/CH B

UTTON

Select List!

Remove Item? - Press

SING THE

UADRA

URF

UTTONS

T he Quadra Surf buttons on your remote control allow you to store up to 10 channels per button (40 total).

This is a great feature if you want to store all your favorite Sports channels,

Movie channels, or News channels in one surf list. Family members can have there own favorite list of channels. You can even program the A/V Input channels (AV1, AV2, SVHS, FRONT, etc.) for each button making them a

“source” button for your external accessory devices.

Assuming channels have now been added to the four Quadra Surf lists (the four colored buttons on the remote, see the previous page), let’s review how the feature works.

Press one of the pre-programmed

COLORED buttons on the remote

(Red, Green, Yellow or Blue). The screen will display a smiley face with the first programmed channel for that surf list.

While the colored “smiley” face still appears on the screen, press the same

COLORED button on the remote to tune the second channel programmed for that specific surf list.

Repeatedly pressing the same COL-

ORED button while the “smiley” face appears will tune all the programmed channels for that specific surf list. After the last channel is tuned, pressing the

COLORED button again will return you to the first channel in the list.

If the “smiley” face disappears from the screen and the same COLORED button is pressed, the surf channels will be displayed starting with the FIRST programmed channel again.

Repeat steps 1-3 for the other three

COLORED buttons (Surf lists) if desired.

Any time the “smiley” face appears with the channel number, pressing the

“frownie” face button will allow you to remove it from the list (see the previous page for more details).

VOL

Remove Item? - Press

ROUBLESHOOTING

IPS

P lease make these simple checks before calling for service. These tips can save you time and money since charges for

TV installation and adjustment of customer controls are not covered under your warranty.

No Power

CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or

TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source the pattern of the non-moving portion of the game could leave an image permanently on the picture tube. When not in use, turn the video source OFF. Regularly alternate the use of such video sources with normal TV viewing.

No Picture

No Sound

Unusual Screen

Coloring

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into outlet and push POWER button again.

• Check that outlet is not on a wall switch. Be sure fuse is not blown on AC Power strip.

• Check antenna connections. Are they properly secured to the TV's 75

Ω plug?

• Check the TUNER MODE control for CABLE or ANTENNA setting.

• Check Audio/Video Input jack connections if using a VCR or other external device.

• Check the VOLUME buttons.

• Check the MUTE button on the remote control.

• Check Audio/Video Input jack connections if using a VCR or other external device.

• Turn the TV OFF for several seconds, then power the set back ON.

• Unplug the TV for FIVE minutes. Plug the TV back into the AC outlet and power the

TV ON. This should correct the problem.

• Check the Picture menu options for proper control settings.

• Pressthe Auto Picture button on the remote to change the color options. If the color resets itself, readjust the Picture menu option control.

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary.

• Clean the remote and the remote sensor window on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into outlet and push POWER button again. Be sure fuse is not blown on AC Power strip.

• Check to be sure TV outlet is not on a wall switch.

• Repeat channel selection.

• Add desired channel numbers (CHANNEL control) into TV memory.

• Check to be sure the TUNER MODE control is set to the CABLE option.

Cleaning and Care

• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

LOSSARY TO

ELEVISION

ERMS

Auto Picture Booster • A control that will automatically amplify “weak video signals” to a point where they are acceptable for viewing.

Menu • An on-screen listing of feature controls shown on the

Television screen that are made available for user adjustments.

Auto Programming • The procedure of adding or deleting channel numbers into the Television’s memory circuits. In this way the Television “remembers’’ only the locally available or desired channel numbers and skips over any unwanted channel numbers.

Remote Sensor Window • A window or opening found on the

Television control panel through which infrared remote control command signals are received.

Quadra Surf • The feature that allows the programming of four separate Surf lists holding up to 10 channels each.

Coaxial Cable • A single solid antenna wire normally matched with a metal plug (F-type) end connector that screws (or pushes) directly onto a 75 Ohm input found on the Television or VCR.

Status/Exit • Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the Television of on screen displays or information (rather than waiting for the displays to “time out” or automatically disappear from the screen).

Closed Caption • Broadcast standard which allows you to read the voice content of television programs on the TV screen.

Designed to help the hearing impaired this feature uses onscreen "text boxes" to show dialogue and conversations while the TV program is in progress.

Surf • The action of scanning specific channel in a limited channel list.

Front Audio/Video Inputs • Located on the front of the TV these connectors (phono type plug) are used for the input of audio and video signals. Designed for easy use with VCRs or cameras.

Twin Lead Wire • The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems. In many cases this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more recent

Televisions and VCRs.

On Screen Displays (OSD) • Refers to the wording or messages generated by the television (or VCR) to help the user with specific feature controls (color adjustment, programming, etc.).

Tuner Mode • Designed for first time set up and use where the

TV is set for antenna or cable TV signal connections.

NDEX

Alternate Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Dynamic Noise Reduction (DNR) Control . . . . . . . . . . . . . . .15

Antenna TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Auto Lock Features Front A/V Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Access Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Block All Channels Control . . . . . . . . . . . . . . . . . . . . . . . . .24

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Block Channels Control . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Blocking Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Language Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Picture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Clear All Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Explanation of Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . .20

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Remote Control Operation (Basic) . . . . . . . . . . . . . . . . . . . . .8

Movie Rating Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

TV Rating Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Sharpness Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Auto Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Auto Program Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Sleeptimer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Surf/Quadra Surf Controls . . . . . . . . . . . . . . . . . . . . . . . .32-33

Auto Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Bass Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Timer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Tint Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Brightness Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Cable TV Connection (Basic Connection) . . . . . . . . . . . . . . . .5

Treble Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Channel Edit Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Closed Caption Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Tuner Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TV Operation (Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Color Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Color Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . .14

VCR Connection (Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Contrast + Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Welcome/Registration Information . . . . . . . . . . . . . . . . . . . . .2

RENEWED

90 DAY

LIMITED WARRANTY

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Philips 19ps40c Tv User guide

Philips 25PS40S99 CRT Television User Manual

Philips 3121 235 20061 CRT Television User Manual

Philips 14PT6441/37, 20PT6441/37, 20PT6341/37, 20PT5441/37, 20PT6245/37 CRT Television User Manual

Nikon 27649 Digital Camera User Manual

Philips 27PT5437 CRT Television User Manual

Philips 32PT6441/37, 26PW6341/37, 30PW6341/37 CRT Television User Manual

Philips stereo TV 20PT5441/37 User manual

Philips 27PT6441/37 User manual

Philips TV 20PT6245/37 User manual

Philips 27PT6442/37 User manual

User Manual

Philips 32PFL9705/12 Flat Panel Television User Manual

Philips 20PS40S Owner`s manual

Magnavox 27MS5402/17 User manual

Philips 14PT6441, 20PT6441, 20PT6341, 20PT5441 CRT Television User Manual

Philips 20PT6431 CRT Television User Manual

Philips 30PW850H Owner Manual

Audiovox SRXM-001 Setup guide

Philips 30PW862H 30" TV

Philips 64P8341 Projection Television User manual

Philips 43P8341 Owner`s manual

Download PDF
