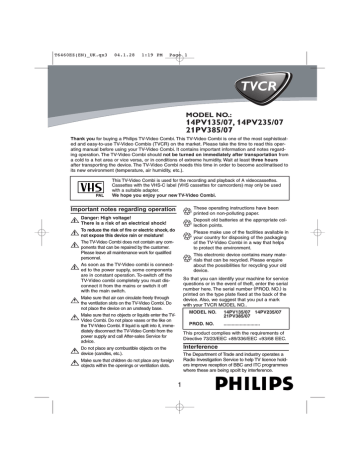

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 1

TVCR

MODEL NO.:

14PV135/07, 14PV235/07

21PV385/07

Thank you for buying a Philips TV-Video Combi. This TV-Video Combi is one of the most sophisticated and easy-to-use TV-Video Combis (TVCR) on the market. Please take the time to read this operating manual before using your TV-Video Combi. It contains important information and notes regarding operation. The TV-Video Combi should not be turned on immediately after transportation from a cold to a hot area or vice versa, or in conditions of extreme humidity. Wait at least three hours after transporting the device. The TV-Video Combi needs this time in order to become acclimatised to its new environment (temperature, air humidity, etc.).

PAL

This TV-Video Combi is used for the recording and playback of A videocassettes.

Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used with a suitable adapter.

We hope you enjoy your new TV-Video Combi.

Important notes regarding operation

"

Danger: High voltage!

There is a risk of an electrical shock!

"

To reduce the risk of fire or electric shock, do not expose this device rain or moisture!

"

The TV-Video Combi does not contain any components that can be repaired by the customer.

Please leave all maintenance work for qualified personnel.

"

As soon as the TV-Video combi is connected to the power supply, some components are in constant operation. To-switch off the

TV-Video combi completely you must disconnect it from the mains or switch it off with the main switch.

!

Make sure that air can circulate freely through the ventilation slots on the TV-Video Combi. Do not place the device on an unsteady base.

!

Make sure that no objects or liquids enter the TV-

Video Combi. Do not place vases or the like on the TV-Video Combi. If liquid is spilt into it, immediately disconnect the TV-Video Combi from the power supply and call After-sales Service for advice.

!

Do not place any combustible objects on the device (candles, etc.).

!

Make sure that children do not place any foreign objects within the openings or ventilation slots.

These operating instructions have been printed on non-polluting paper.

Deposit old batteries at the appropriate collection points.

Please make use of the facilities available in your country for disposing of the packaging of the TV-Video Combi in a way that helps to protect the environment.

This electronic device contains many materials that can be recycled. Please enquire about the possibilities for recycling your old device.

So that you can identify your machine for service questions or in the event of theft, enter the serial number here. The serial number (PROD. NO.) is printed on the type plate fixed at the back of the device. Also, we suggest that you put a mark with your TVCR MODEL NO..

MODEL NO.

14PV135/07 14PV235/07

21PV385/07

PROD. NO.

...........................

This product complies with the requirements of

Directive 73/23/EEC +89/336/EEC +93/68 EEC.

Interference

The Department of Trade and industry operates a

Radio Investigation Service to help TV licence holders improve reception of BBC and ITC programmes where these are being spoilt by interference.

1

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 2

IN BRIEF

The remote control

1

4

7

SLEEP

8

STATUS/EXIT

0

PLAY

REW

REC

VOL

MUTE p l o o l p

2

5

MENU

STOP

STILL

STANDBY/ON

3

6

9

SYSTEM

CLEAR

FWD

PROG

P

REC I To record the TV channel selected at this moment or press repeatedly to start a

One-Touch Recording.

STANDBY/ON

y

To switch off or on, interrupt menu function.

0..9

Press to select channels at TVCR.

SLEEP

To select the switch-off time in 30 minutes intervals.

SYSTEM

Doesn’t work on these models.

STATUS/EXIT

screen menus.

To access or remove the TVCR’s on-screen status display. To exit on-

CLEAR

To delete last entry. To clear a programmed recording (TIMER). To reset the elapsed time counter in the playback, recording or stop mode.

STILL

2

To stop the tape and play back a picture step by step. (except for during fast forwarding and fast rewinding)

MENU

To call up main menu of TVCR.

FWD 1- B When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stays on the screen. To store or confirm entry in the menu. Press to adjust the controls of TVCR menu.

REW0- s When tape playback is stopped, press to rewind the tape at high speed.

During playback, press to rewind the tape while the picture stays on the screen.To return the cursor in the menu. Press to adjust the controls of TVCR menu.

PLAY B- K To play back a tape, select an item in the menu of TVCR.

STOP C- L To stop the tape, select an item in the menu of TVCR.

VOL5+ VOL5 To adjust the volume.

PROG P+ PROG P–

adjust the tracking.

To select the programme number. During playback, press to

MUTE

To eliminate the TV’s sound. Press again to restore the volume.

Red button/ Green button/ Yellow button/ Blue button/ Doesn’t work on these models.

[14PV235/ 21PV385]

:

To switch FASTTEXT on or off, or transparent mode.

o l p

:

Enlarge font

:

Select FASTTEXT sub-page

:

Recall hidden information p l o

:

Stop page changes

:

Go back to start page.

2 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 3

Front of your TV-Video combo

VIDEO AUDIO

STANDBY/ON

P

STANDBY/ON: To switch TVCR on or off, interrupt menu function.

Volume: In connection with the button

+

,

to adjust the volume.

P+ P-

Programme number: To select the programme number. During playback, press to adjust the tracking. To remove vertical jitter in a Still picture.

I

Record: To record the programme currently selected.

B

Playback: To play a recorded cassette.

C

Pause/Stop, eject cassette: To stop the tape; If this key is depressed while in STOP, the cassette is then ejected from the machine.

1

When tape playback is stopped, press to fast forward the tape at hight speed.

0 When tape playback is stoped, press to rewind the tape at hight speed.

Sockets on the front:

White socket / AUDIO

input socket: To connect a camcorder or video game machine (audio).

Yellow socket /

Small socket /

VIDEO

input socket: To connect a camcorder or video game machine (video).

socket for headphones: To connect headphones.

Back of of your TV-Video combo

EXT1/AV1

Aerial input socket: To connect the aerial cable

EXT1/AV1

Scart socket :To connect a satellite receiver, decoder, video recorder, etc

Power switch: To switch the TV-Video Combi off.

Caution: If you switch off using the power switch, TIMER-recordings are impossible!

The control lights at the front of machine

STANDBY

Standby light: lights up when the TV-Video Combi has been switched on by means of the main switch.

RECORD

Recording light: lights up during recording.

Fast blink: recording pause, timer recording not stand-by.

Slow blink: timer recording is stored in a timer block.

3 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 4

Specifications

Voltage: 220-240V/50Hz

Power consumption (Standby): less than 5W

Rewind time:

less than 260 seconds (cassette E-180)

Number of video heads : 2

Recording/playback time:

3 hours (SP) (cassette E-180)

6 hours (LP) (cassette E-180)

14PV135 14PV235

Weight without packing in kg: 10.5

Dimensions in cm (HxWxD):40.1x37.9x38.0

Power consumption : 52W

21PV385

Weight without packing in kg: 20.6

Dimensions in cm(HxWxD):51.2x51.0x49.5

Power consumption : 65W

Supplied accessories

Operating instructions

Remote control and 2 batteries

1. Connecting the TV-Video Combi

Important for the United Kingdom

This apparatus is fitted with a BS1362 5 Amp inside an approved moulded 13 Amp plug.

To replace a fuse in this type of plug proceed as follows:

Preparing the remote control for operation

The remote control and its batteries are packed separately in the original TV-Video Combi packaging. You must install the batteries in the remote control before use.

ASTA or BSI approved type.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

The severed plug must be destroyed to avoid a possible shock hazard, or should it be inserted into a 13A socket elsewhere.

How to connect a plug:

The wires in the mains lead are coloured in accordance with the following code:

BLUE- ‘NEUTRAL’ (‘N’)

BROWN- ‘LIVE’ (‘L’)

nal which is marked with the letter ‘N’ or coloured BLACK.

teries (2 batteries).

ment and place the batteries in it as shown in the picture and close the battery compartment.

The remote control is now ready to use.

Its range is approximately 7 metres.

Connecting the cable

terminal which is marked with the letter ‘L’ or coloured RED.

nal in the plug which is marked with the letter

‘E’ or by the safety earth symbol or coloured green or green-and-yellow.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead-not imply over the two wires.

the back of the TV-Video Combi.

4

3.

) at the front panel of the set is not lit, please switch on the set using the main power switch. The power switch is located on the left side panel of the set.

EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 5

PLEASE CONNECT AERIAL OR

CABLE TO THE TVCR

THEN...

PUSH P+ KEY

OR...

FOR PLAY ONLY PUSH PLAY

Connecting additional devices

You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the EXT1/AV1 socket.

You can find more details in chapter 'Preparation for use'.

The respective scart socket is usually marked 'AV' or 'TV' on the decoder or satellite receiver.

Selection of the scart socket

• To select the Scart socket, please enter 0,0,1, with the keys

0..9

on the remote control. AV1 appears on the screen.

Selection of the front A/V sockets

• To select the front A/V sockets, please enter

0,0,2, with the keys

0..9

on the remote control.

'AV2' appears on the screen.

2. Important notes for operation

Switching on

You can switch on the TV-Video Combi with

.

PROG P–

, FWD 1- B the set is in Stand-by, the power will be automatically turned on.

Note that the keys

0..9

will be inactive for about 5 seconds just after having switched the

TV-Video combi off.

Power outage/no power

Channel information remains saved for up to 1 year, the time and timer information is saved for up to 1 minute.

Navigation in the screen menu

You can check/change many functions and settings of your TV-Video Combi via on-screen menu. The individual functions are selected, via the remote control as follows:

SELECT K L CHOOSE B

→TIMER

PICTURE CONTROL

RECORD SET UP

VCR SET UP

TUNER SET UP

GENERAL SET UP

END=EXIT

To select: with

PLAY B-K or

STOP C-L

.

To enter or change your selection: with the number buttons

0..9

or with

PLAY B-K or

STOP C-L

.

5 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 6

3. Installing your TV-Video Combi

Preparation for use

This chapter shows you how to prepare the TV-Video

Combi for use. The TV-Video Combi automatically seeks out and stores all available TV channels.

Connecting additional devices

After you have connected additional devices

(satellite receiver, etc.) through the aerial cable, switch them on. The automatic channel search will recognise them and save them.

1.

After you have connected the aerial or cable, confirm the picture on the TV screen with

PROG P+

.

2.

The automatic TV channel search starts.

When automatic TV channel search is complete,'AUTO TUNING COMPLETE' will appear on the TV screen.

3.

The clock setting display appears on the TV screen. [14PV235 / 21PV385]

PLEASE WAIT

START FINISH

❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚

❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚

The TV-Video Combi does not find any TV channels during the search

• Check the cable connection of the aerial

(aerial socket), TV-Video Combi, TV.

• The TV-Video Combi searches the entire frequency range in order to find and save the largest possible number of TV channels. It is possible that the TV channels in your country are broadcast in a higher frequency range. As soon as this range is reached during the search, the TV-Video Combi will find the TV channels.

4.

Check 'TIME'. If required, change the timewith the number buttons

0..9

.

TIME --:--

DATE --/--/--

SMART CLOCK [ON]

END=EXIT

5.

Check 'DAY', 'MONTH' and 'YEAR'. If required, change them with the number buttons

0..9

6.

When all information is correct, save by

.

The preparation for use is now complete.

Satellite receiver

If you are connecting a satellite receiver, please read the section 'Using the satellite receiver'.

Decoder

If you are connecting a decoder, you must install it as described in the next section.

Decoder allocation

Some TV channels transmit encoded TV signals which can only be viewed with a purchased or rented decoder. You can connect such a decoder to this TV-Video Combi. The following function will automatically activate the connected decoder for the desired TV channel.

1.

Use

P+ P-

or

0..9

to select the programme number which you would like to allocate the decoder to.

2.

Press

MENU

. The main menu will appear.

3.

Use or to

SET UP'. Then press

FWD 1- B

.

4.

Use or to

AL TUNING'. Then press

FWD 1- B

.

5.

Use

PLAY B-K

'DECODER'.

or

STOP C-L to select

MANUAL TUNING

PROG.

CHANNEL

→DECODER

SKIP

P55

055

[OFF]

[OFF]

SELECT K L CHOOSE B

END=EXIT

6.

Use

FWD 1- B to select 'ON'

(Decoder switched on).

How can I switch off the decoder?

Use

FWD 1- B switched off).

to select 'OFF' (Decoder

7.

To end, press

STATUS/EXIT

.

The decoder has now been allocated to this programme number.

6 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 7

Manual TV channel search

In some cases it can occur that all TV channels are not found and saved during the first installation. In this case, the missing or coded TV channels must be searched for and stored manually.

1.

Press

MENU

. The main menu will appear.

2.

Use or to

SET UP'. Then press

FWD 1- B

.

3.

Use or to

AL TUNING'. Then press

FWD 1- B

.

4.

Select 'PROG.' with

PLAY B-K or

STOP C-L .

Automatic Tuning

During installation, all available TV channels are searched for and saved. If the channel assignments of your cable or satellite TV provider change or if you are re-installing the TV-Video

Combi, e.g. after moving house, you can start this procedure again. This will replace all the TV channels already saved with the new ones.

1.

Press

MENU

. The main menu will appear.

2.

Select 'TUNER SET UP' with

PLAY B-K or

STOP C-L and confirm with

3.

Select 'AUTO TUNING' with

FWD 1- B

PLAY B-K

STOP C-L and confirm with

FWD 1- B

.

.

or

MANUAL TUNING

→PROG.

CHANNEL

DECODER

SKIP

P55

055

[OFF]

[OFF]

SELECT K L CHOOSE B

END=EXIT

PLEASE WAIT

START FINISH

❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚

❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚ ❚

5.

With or or

0..9

, select the desired programme number that you want to use for the TV channel, e.g. 'P01'. Then

6.

Select 'CHANNEL' with

STOP C-L

PLAY B-K

, and confirm with or

FWD

1

- B

. Then enter the desired channel with

0..9

.

If you set 'SKIP' on for a channel, this channel will be ignored when going through the channels

4.

The automatic TV channel search starts. This allows the TV-Video Combi to save all available TV channels. This procedure may take several minutes.

5.

When the TV channel search is complete, 'COM-

PLETED' will briefly appear on the TV screen.

[14PV235 / 21PV385]

Sorting of TV channels from P01 to P06 will be performed automatically as follows.

P01: BBC1

P02: BBC2

P03: ITV

P04: CH4

P05: CH5

P06: SKY NEWS

I don’t know the channels for my TV stations

In this case, press

PLAY B-K or

STOP C-L in

'CHANNEL' to start the automatic channel search.

A changing channel number will appear on the TV screen. Continue the automatic search until you have found the desired TV channel.

7.

Save the TV channel with

FWD

1

- B

.

8.

To search for other TV channels, start again at step 4.

9.

To end, press

STATUS/EXIT

.

Using the satellite receiver

You can receive channels from the satellite receiver via the scart socket EXT1/AV1.

To do this, select the channel number 'AV1' by pressing 0,0,1, with the keys

0..9

on the remote control.You will have to select the channel you want to receive on the satellite receiver itself.

7 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 8

Sorting TV channels manually

After you have performed the automatic channel search, you may not agree with the sequence in which the individual TV channels have been allocated to the programme positions (programme numbers) of the TV-Video Combi. You can use this function to individually sort the TV channels already saved.

The clock resets automatically

If you save a TV channel that transmits PDC or the FASTTEXT on programme number 'P01', date and time will constantly be updated. As a result, time changes, i.e. daylight savings time, will be set automatically.

1.

Press

MENU

2.

Select 'TUNER SET UP' with

STOP C-L

. The main menu will appear.

and confirm with

PLAY B-K

FWD 1- B

.

3.

Select 'MOVE' with and confirm with

PLAY B-K

FWD 1- B

.

or

STOP C-L

,

4.

With

PLAY B-K or

STOP C-L

, select the saved

TV channel that you want to change.

MOVE

→P01: 02 P06: 90

P02: 03 P07: 99

P03: 05 P08: 121

P04: 10 P09: 124

P05: 74 P10: 130

SELECT K L CHOOSE B

END=EXIT

5.

Confirm with

FWD 1- B

6.

Move the selected channel with

STOP C-L

.

PLAY B-K or to the programme number you want to assign.

7.

Confirm with

FWD

1

- B

.

8.

To assign other TV channels to a programme number, repeat steps 4 to 7.

9.

To end, press

STATUS/EXIT .

Setting the clock

If the display shows an incorrect time or '--:--', the time and date must be reset manually.

[14PV235 / 21PV385]

If a TV channel that transmits PDC or the FAST-

TEXT is stored under programme number 'P01', time/date will automatically be taken from the

PDC or the FASTTEXT information.

(SMART CLOCK)

1.

Press

MENU

. The main menu will appear.

2.

Select 'GENERAL SET UP' with

PLAY B-K or

STOP C-L and confirm with

FWD 1- B

.

3.

Select 'CLOCK' with

PLAY B-K and confirm with

FWD

1

- B

.

or

STOP C-L

TIME --:--

DATE --/--/--

SMART CLOCK [ON]

END=EXIT

[14PV235 / 21PV385]

4.

Check the time in 'TIME'. If required, please change the time with

0..9

.

5.

Check 'DAY', 'MONTH' and 'YEAR' in the same way.

6.

Choose 'SMART CLOCK' ON or OFF with

FWD

1

- B

. [14PV235 / 21PV385]

[14PV235 / 21PV385]

Time/date is displayed incorrectly despite manual setting

With Smart Clock, time/date is taken from the

TV channel saved on 'P01'.

If you wish to switch this automatic time correction off, select 'OFF' for Smart Clock.

You can reactivate this function at anytime by selecting 'ON' for Smart Clock.

7.

To end, press

STATUS/EXIT

.

8 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 9

4. TV set functions

Selecting a TV channel

Select the desired TV channel (= the programme number) with

PROG P+

the remote control.

PROG P–

or with

0..9

on

Selection of the scart socket

To select the Scart socket, please enter 0,0,1, with the keys

0..9

on the remote control. AV1 appears on the screen.

3.

Select an item using and then modify with

PLAY B-K

REW0- s or or

STOP C-L

,

FWD

1

- B

.

SELECT

K L

ADJUST s

/

B

BRIGHTNESS < >

CONTRAST < >

COLOUR < >

SHARPNESS < >

TINT < >

END=EXIT

4.

To end, press

STATUS/EXIT

.

Selection of the front A/V sockets

To select the front A/V sockets, please enter

0,0,2, with the keys

0..9

on the remote control.

' AV2 ' appears on the screen.

Volume control

You can adjust the volume using

VOL5 on the remote control.

VOL5+

,

Picture settings

The picture can be adjusted according to your personal preferences.

These settings are automatically stored after exiting the main menu.

1.

Press the

MENU

. The main menu will appear.

2.

Select 'PICTURE CONTROL' with

PLAY B-K

STOP C-L and confirm with

FWD 1- B

.

If you would like to change the volume on the

Combi.

If you want to mute the sound temporarily

(e.g.:during a telephone call), press

MUTE

on the remote control. When you press

MUTE

again, the sound will return at its original volume level.

How do I read FASTTEXT?

[14PV235 / 21PV385]

Many TV channels transmit FASTTEXT information along with their TV channels. With this TV-

Video Combi you can retrieve this information and display it on the screen using the built-in

FASTTEXT decoder.

1.

Press to switch the FASTTEXT decoder on. Your TV-Video Combi will now show

FASTTEXT for the TV channel you have selected. Press again to show FAST-

TEXT in transparent mode.

2.

If you want to select another page, type in the number of the page with the number buttons

0..9

on the remote control.

3.

Press to switch the FASTTEXT decoder off.

With the colour buttons on your remote control you can directly select the page numbers shown at the bottom of the TV screen.

The button takes you back to the start page.

Special FASTTEXT functions

[14PV235 / 21PV385]

In FASTTEXT mode you can use the special

FASTTEXT functions.

o l p

: enlarge font

: select FASTTEXT sub-page

: recall hidden information p l o

: stop page changes

: go back to start page

9 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 10

Switch-off function (SLEEP TIMER)

You can programme your set to switch-off automatically after a predetermined period.

1.

Press .

2.

Press

SLEEP

repeatedly to extend the time until switch-off in 30 minute increments.

The screen will show the time remaining until switch-off, e.g.: '+0:30'

The machine now counts backwards to the switchoff time.

5. Playback

The maximum time period to be set until switchoff is 2 hours.

If you would like to turn this function off, press

SLEEP

on the remote control several times until switch-off appears. '--:--' will appear on the screen.

To check the time until switch-off, press

SLEEP

on the remote control.

If a recording is in process, switch-off function will be cancelled.

Playing back cassettes Playing back NTSC cassettes

You can use this TV-Video Combi to playback recorded VHS video cassettes. You can operate the TV-Video Combi using the remote control or the buttons on the set.

Your TV-Video Combi can only record and play standard VHS cassettes.

1.

Put a cassette into the cassette slot. The cassette is inserted automatically.

This TV-Video Combi can also play back cassettes that have been recorded in SP [Standard Play] or

SLP [Super Long Play] mode in the NTSC standard (for example, American cassettes).

Searching for a tape position with picture (scanning)

1.

During playback, press

REW0- s

(reverse)

DIGITAL STUDIO PICTURE CONTROL

Philips has developed a system which produces the best possible playback quality. For old and often-used video cassettes, this system reduces interference. For new or high quality cassettes, it emphasises the details.

Picture/ sound quality is poor

When playing back rental videos or older, poorer quality cassettes, it may not be possible to completely filter out picture and sound interference. This is not a fault in your machine. Read the section 'Manual tracking'.

2.

If you want to search in super high speed, press

REW0- s

(This function will not operate for a cassette recorded in SP mode in the NTSC standard.)

3.

Press

PLAY B-K to resume playback.

Still picture

1.

During playback, press

STILL

2 tape and display a still picture.

to stop the

2.

Press

PLAY B-K to resume playback.

Scanning and still motion interferes with the picture quality. The sound is switched off. This is not a fault in your TV-Video Combi.

2.

Press

PLAY B-K to view the tape.

3.

To stop the playback, press

STOP C-L or

4.

STOP/EJECT

STOP/EJECT

on the TV-Video Combi.

To eject the cassette, press

EJECT

A or when the TV-Video Combi stops the playback.

Do I need to change the playback speed when playing back LP recordings?

During playback, the correct speed will automatically be selected. For more information, please read the section 'Selecting the recording speed (SP or LP)' in the chapter 'Manual recording'.

Searching for tape position without picture (forward wind and rewind)

1.

Stop the tape with

STOP C-L

.

2.

Press (reverse)

(forward).

Manual tracking

To manually adjust the tracking during playback,

10

Tracking will return to Automatic Tracking

Adjustment when you press

PLAY

B

-K

, or insert a tape.

STOP C-L and

To remove vertical jitter in a still picture, press

P+ P–

.

EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 11

6. Manual recording

General information

Use 'Manual recording' to make a spontaneous recording (for example, a programme currently being shown).

If you want to start and stop a recording manually, read the section 'Recording without auto-

matic switch-off'.

If you want to start a recording manually but have it stopped automatically, read the section

'Recording with automatic switch-off'. (e.g.

not to record to the end of the tape)

Recording without automatic switch-off

PROG P+ PROG P–

or

0..9

to select the programme number you want to record, for example, 'P01'.

REC I

.

STOP

C

-L

.

The message 'PROTECTED CASSETTE

CANNOT RECORD' appears briefly on the screen, then the cassette is ejected.

A cassette without its security tab had been inserted. Cover the hole with adhesive tape or insert a new cassette.

Lining up recordings (assemble cut)

When you add a further recording to a cassette, which already has a recording on it, a short blank

(flicker) can appear between the old and the new recording or the picture itself can flicker. To help reduce these from occurring, proceed as follows:

1.

Find the tape position of the old recording where you want to insert the new recording.

2.

Look at the last minute of the old recording

(playback).

3.

Press

STILL

2 at the tape position where the new recording is to go and press

REC I

.

4.

Now start recording as usual by pressing

REC I on the remote control.

5.

Stop recording with

STOP C-L

.

Selecting the recording speed (SP or LP)

LP allows to double the recording duration on tape

(for example six hours instead of three hours on an

E180 cassette).

1.

Press

MENU

. The main menu will appear.

2.

Select 'RECORD SETUP' using

STOP C-L and confirm with

PLAY B-K

FWD 1- B

.

3.

Select 'RECORD SPEED' using

STOP C-L .

PLAY B-K or or

Recording with automatic switch-off

(OTR One-Touch-Recording)

SELECT

K L

CHOOSE B

→RECORD SPEED

[SP]

1.

Insert a cassette.

2.

Use

P+ P–

or

0..9

to select the programme number you want to record.

3.

Press .

4.

Each time you press

REC I utes to the recording time.

5.

To stop recording, press you will add 30 min-

STOP C-L

.

Preventing accidental erasing

All cassettes (except rental and pre-recorded cassettes) have a security tab on the back of the cassette.

To prevent recording over important recordings (erasing), you can remove this security tab.

If you later decide to record on a protected cassette, simply cover the hole with adhesive tape or slide the tab to the right.

11

END=EXIT

4.

Select the required recording speed with

FWD 1- B

.

'SP' / 'LP'

'SP': Standard Play (normal recording speed) offers the usual first-class picture quality.

'LP': Long Play (half recording speed, double recording time). 6 hours can be recorded on a

3-hour cassette (E180) with a somewhat reduced picture quality.

5.

To end, press

STATUS/EXIT

.

EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 12

7. Programming a recording (TIMER)

General information

Use a TIMER programming to automatically start and stop a recording at a later time or date. The

TV-Video Combi will switch to the right programme number and begin recording at the correct time. With this TV-Video Combi, you can pre-programme up to eight recordings within a period of one year. To make a programmed recording, your TV-Video Combi needs to know:

* the date you want to make the recording

* the programme number of the TV channel

* the start and stop time of the recording

* PDC on or off [14PV235 / 21PV385]

This information is saved in a 'TIMER' block.

[14PV235 / 21PV385]

What is 'PDC'?

'PDC' (Programme Delivery Control) is used to control the start and duration of TV channel recordings. If a TV programme starts earlier or ends later than scheduled, the TV-Video Combi will turn on and off at the correct time.

What do I need to know about 'PDC'?

Usually the PDC time is the same as the start time. But if your TV guide shows a PDC time which is different from the programme’s scheduled start time, e.g. 20.10 (PDC 20.14), you must enter the PDC time exactly to the minute.

If you want a start time different from the PDC time, you must switch PDC off.

Programming a recording

MENU

. The main menu will appear.

PLAY B-K or

STOP C-L

.

Then press

FWD 1- B

.

FWD

1 - B

.

SELECT K L CHOOSE B

ONCE

DAILY

WEEKLY

TIMER LIST

END=EXIT

4.

Select the desired Timer block with

0..9

.

5.

Enter the Start time (START), End time

(STOP), Programme number (PROG.), PDC information and the Date (DATE) with

0..9

.

Programming a recording from the external sources

You can also programme recording from an external source via the Scart socket AV1 or the front A/V connectors AV2.

STATUS/EXIT

. The programming information is stored in a TIMER block.

(unprotected).

.

The programmed recording will only function when the TV-Video Combi is switched off with

.

Problems and solutions for programmed recordings

Cassette was ejected as soon as the button was pressed

• A cassette without the security tab was inserted. Undo the erase protection (chapter

‘Manual recording’, section ‘Preventing accidental erasing’) or insert a different cassette.

‘TURN OFF YOUR TVCR FOR TIMER

RECORDING’ flashes on the TV screen

• The TV-Video Combi is switched on several minutes before the start of a programmed recording. Switch off the TV-Video Combi with

. A programmed recording

(timer) will only function when the TV-Video

Combi is switched off.

Cassette is ejected during recording

• The end of the tape was reached during recording.

The TV-Video Combi does not react

• While a programmed recording is being made, you cannot operate your TV-Video Combi manually. If you want to cancel the programmed recording, press front panel.

STOP/EJECT

on the

Selecting ONCE/DAILY/WEEKLY recordings

'ONCE': Recording once

'DAILY': Repeated daily recordings

(Monday to Friday)

'WEEKLY': Repeated weekly recordings

(every week on the same day)

12 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 13

How to check or delete a programmed recording (TIMER)

1.

Press

MENU

2.

Select 'TIMER' with

Then press

. The main menu will appear.

PLAY B-K

FWD 1- B

.

or

STOP C-L

.

3.

Select 'TIMER LIST' with

STOP C-L

PLAY B-K

, and confirm with or

FWD 1- B .

SELECT K L CHOOSE B

ONCE

DAILY

WEEKLY

TIMER LIST

END=EXIT

4.

Select timer block with

FWD

1

- B

.

Timer block disappeared when I pressed

FWD 1- B

.

You have checked all the programmed recordings. If you want to check them again, repeat steps 1 to 4.

5.

To cancel the recording, press

6.

To end, press

STATUS/EXIT .

7.

Switch off with

.

CLEAR

.

How to change a programmed recording (TIMER)

1.

Press

MENU

2.

Select 'TIMER' with

Then press

. The main menu will appear.

PLAY B-K

FWD 1- B

.

or

STOP C-L

.

3.

Select 'ONCE', 'DAILY' or 'WEEKLY' recording with

PLAY B-K or

STOP C-L

. Then press

FWD

1

- B

.

4.

Select a TIMER block with

0..9

. (The flashing number indicates an empty TIMER block.)

ONCE

TIMER - 1 2 3 4 5 6 7 8 -

SELECT TIMER NUMBER

END=EXIT

5.

Press

CLEAR

to delete information and input correct information with

0..9

.

6.

To end, press

STATUS/EXIT

.

7.

Switch off with

.

13 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 14

8. Other functions

Switching the status display off or on

Along with the on screen menu, the status display also displays information on the current operating status (counter, playback, recording, TV channel, etc.) on the TV screen. You can switch off the information about the operating status so that the status display is not recorded when copying videocassettes.

1.

Press

MENU

. The main menu will appear.

2.

Select 'VCR SET UP' with

STOP C-L and confirm with

PLAY B-K

FWD 1- B or

.

3.

Select 'STATUS DISPLAY' with

STOP C-L

.

PLAY B-K or

SELECT K L CHOOSE B

REPEAT PLAY

→STATUS DISPLAY

[ON]

[ON]

BLUE BACKGROUND[ON]

END=EXIT

5.

To end, press

STATUS/EXIT

6.

Insert a cassette.

.

7.

Start the continuous playback with

PLAY B-K

Your TV-Video Combi will automatically rewind and

.

start playing the tape from the begining when it recognizes a non-recorded part longer 10 seconds.

Blue Background on or off

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to 'ON'. The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to 'OFF'.

1.

2.

Press

MENU

. The main menu will appear.

Select 'VCR SET UP' using

PLAY B-K or

STOP C-L and confirm with

FWD 1- B

.

SELECT

K L

CHOOSE B

REPEAT PLAY [ON]

STATUS DISPLAY [ON]

→BLUE BACKGROUND [ON]

4.

Select 'ON' or 'OFF' with

FWD

1

- B

.

Which settings can I choose?

'ON': Shows the status display for a few seconds.

'OFF': Switches off the status display.

5.

To end, press

STATUS/EXIT

.

END=EXIT

3.

Select 'BLUE BACKGROUND' using

PLAY B-K

4.

Select 'OFF' (no blue background) or 'ON'

(blue background on) with

FWD

1

- B

.

5.

To end, press

STATUS/EXIT

.

Continuous playback

This function can be used to play a cassette over and over again. When the end of the cassette is reached, it will rewind and start from the beginning again. This function is activated or deactivated as follows.

1.

Press

MENU

. The main menu will appear.

2.

Select 'VCR SET UP' using

PLAY B-K

STOP C-L and confirm with

FWD 1- B

.

3.

Select 'REPEAT PLAY' with

PLAY B-K

STOP C-L

.

SELECT

K L

CHOOSE B

→REPEAT PLAY

STATUS DISPLAY

[ON]

[ON]

BLUE BACKGROUND[ON]

END=EXIT

4.

Select 'ON' with

FWD 1- B

.

If you select 'OFF', continuous playback will be switched off.

14

Parental control (Child lock)

This function protects your TV-Video Combi from unwanted use. All button functions on the front of the machine are blocked.

Programmed recordings will be started (in spite of the parental control) and cannot be interrupted.

1.

Press

2.

Use

MENU

PLAY B-K

. The main menu will appear.

STOP C-L to select 'GENERAL

3.

SET UP'. Then press

Use

PLAY B-K

LOCK'.

STOP C-L

FWD 1- B

.

to select 'CHILD

4.

Use

FWD 1- B to select 'ON'.

'If a button at the front of the machine is pressed while parental control is active, ’CHILD LOCK

ACTIVE’ will appear on the screen for a few seconds.

EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 15

9. Before you call an engineer

If, contrary to expectation, you have any problems using this TV-Video Combi, it may be caused by the following reasons.

Your TV-Video Combi does not respond to any button being pressed:

• There is no power supply: Check the power supply.

• Parental control is on:switch the parental control off.

• A programmed recording is currently being made: If desired, cancel the programmed recording. Please see the section 'Problems and solutions for programmed recordings' in chapter 'Programming a recording (TIMER)'.

• There is a technical problem: disconnect from the mains power supply for 5 minutes, then power-up again.

If this doesn’t help, you could reset your TV-

Video Combi to the default factory settings.

Resetting devices to default factory settings

* Attention: All the information stored (time and date, TIMER) will be cleared.

1.Switch the TV-Video Combi to stand-by.

2.Press and hold

REC I and

PROG P+

same time for 2 seconds or more.

at the

Cassette is jammed in the TV-Video Combi:

• Don’t use force. Pull out the mains plug for the moment. Then, call an engineer.

Remote control does not work:

• Remote control not pointed toward the TV-

Video Combi: Point it at the TV-Video Combi.

• There is a technical problem: Take out the batteries, wait for 10 seconds and place them back.

• Batteries have run out: Change the batteries.

No picture when you play back a cassette:

• There is no recording on the cassette: Change the cassette.

Poor picture quality when you play back a cassette:

• Your TV is not properly adjusted.

• The cassette is badly worn or of poor quality:

Use new cassette.

• Tracking is not properly adjusted: Turn to section 'Manual tracking'.

• Magnetism from nearby appliances and geomagnetism might affect the colour of the TV picture. Move the TV-Video combi away from such sources. The TV-Video combi will readjust itself automatically. If you want to initiate an immediate readjustment, unplug the TV-

Video combi from the mains and plug it in again approximately 30 minutes later.

No recording possible:

• The TV channel you want to record is not stored or you selected the wrong programme number: Check TV channels stored.

• A cassette was inserted that does not have the security tab (cannot be used to record): Cover the hole with adhesive tape or use a cassette with an intact security tab. For more information, please see the section 'Preventing accidental erasing' in chapter 'Manual recording'.

[14PV235 / 21PV385]

No recording possible:

• 'PDC' switched on but 'PDC time' wrong: Enter

'PDC time' exactly to the minute. Have your aerial checked.nel on ‘P01’ with good FAST-

TEXT reception.

• You have not activated the Smart Clock function. Switch the function ‘ON’.

Smart Clock does not work:

• You have stored on programme number ‘P01’ a

TV channel that does not transmit FASTTEXT.

Store on ‘P01’ a TV channel that transmits

FASTTEXT.

• Poor FASTTEXT reception. Store a TV channel on ‘P01’ with good FASTTEXT reception.

• You have not activated the Smart Clock function. Switch the function ‘ON’.

You can also call the

customer service centre

in your country.

The telephone numbers can be found on page

16 of this operating manual. Have the model number (MODEL NO.) and the production number (PROD. NO.) of your TV-Video Combi ready.

15 EN

T6460EZ(EN)_UK.qx3 04.1.28 1:19 PM Page 16

PHILIPS NORGE AS

Sandstuveien 70,

PO Box 1, Manglerud

N-0612 Oslo

NORWAY

Phone: 2274 8250

OY PHILIPS AB

Linnoitustie 11,

02600 Espoo

FINLAND

puh. 09 615 80 250

PHILIPS AUSTRIA GMBH

Triesterstrasse 64

1101 Wien

AUSTRIA

Tel: 0810 001 203

PHILIPS INFO CENTER

Alexanderstrasse 1

20099 Hamburg

GERMANY

Tel: 0180-53 56 767

PHILIPS PORTUGUESA, S.A.

Consumer Information Centre

Rua Dr. António Loureiro Borge, nr. 5

Arquiparque, Miraflores

P-2795 L-A-VEHLA

PORTUGAL

Phone: 021-4163063

PHILIPS CE, The Philips Centre,

420 - 430 London Road,

Croydon, Surrey

CR9 3 QR

UNITED KINGDOM

Phone: 0208-665-6350

PHILIPS KUNDECENTER

Frederikskaj 6,

1780 København V

DANMARK

Tlf.: 80 88 28 14

PHILIPS KUNDTJÄNST

Kista Entré

Knarrarnäsgatan 7

164 85 Stockholm

SWEDEN

Tel: (0)8 598 52 250

SERVICE CONSOMMATEURS PHILIPS

BP 0101

75622 Paris Cédex 13

FRANCE

Phone: 0825-889 789

PHILIPS POLSKA

Al. Jerozolimskie 195B

02-222 Warszawa

POLSKA

TEL.: (022)-571-0-571

PHILIPS ELECTRONICS IRELAND LIMITED

Consumer Information Centre

Newstead, Clonskeagh

DUBLIN 14

Phone: 01-7640292

PHILIPS REPRESENTATION OFFICE

Ul. Usacheva 35a

119048 MOSCOW

RUSSIA

Phone: 095-937 9300

INFOLINKA PHILIPS

Safránkova 1

150 00 Praha 5

CZECH REPUBLIC

TEL.: (02)-330 99 330

PHILIPS Iberia, S.A.

C/Martinez Villergas, 49

28027 MADRID

SPAIN

Phone: 902-11 33 84

PHILIPS CONSUMER ELECTRONICS

Servizio Consumatori

Via Casati 23

20052 Monza - Milano

ITALY

Phone: 199 118899

PHILIPS MAGYARORSZÁG KFT.

Fehérvári út 84/a.

Budapest 1119

HUNGARY

Phone: (01)-382-1700

PHILIPS INFO CENTER

Fegistrasse 5

8957 Spreitenbach

SUISSE

Tel.: 0844-800 544

PHILIPS CUSTOMER CARE CENTER

Twee Stationsstraat 80/

80 Rue des Deux Gares

1070 BRUSSEL/BRUXELLES

BELGIUM (for BENELUX)

Tel: 070-222303

PHILIPS CONSUMENTENLIJN

Postbus 102 5600 AC Eindhoven

NEDERLAND

Tel.: 0900-8406

3143 025 21641

T6460EZ / T6550EZ / T6552EZ-PALI*****

EN

0EMN02440

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
