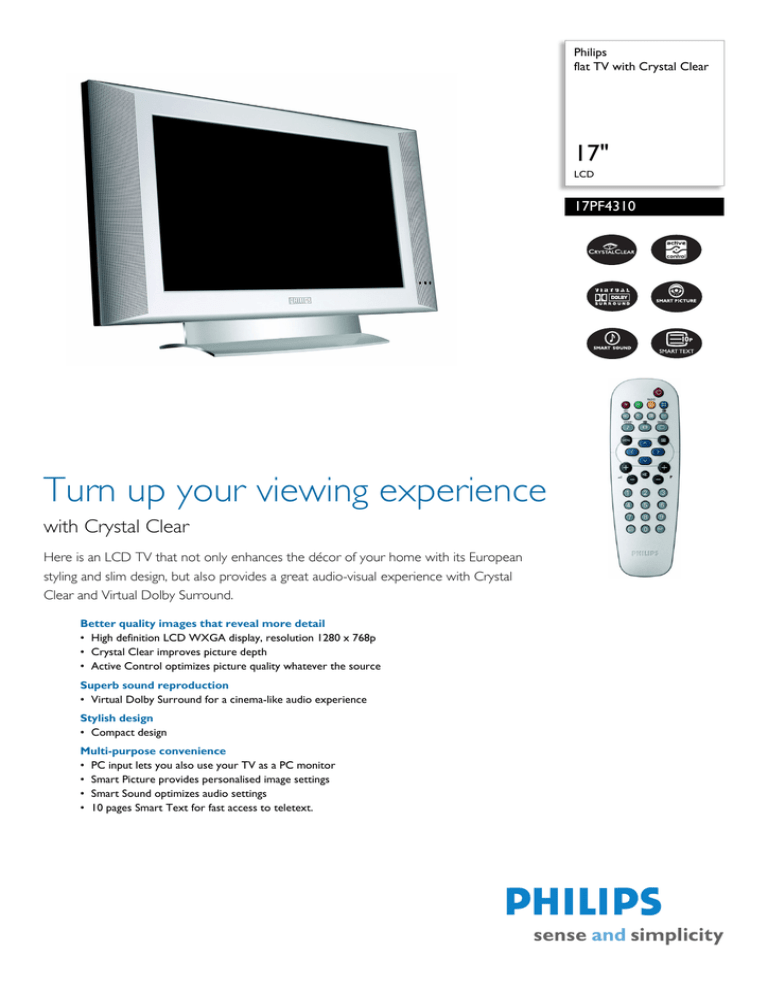

Philips
flat TV with Crystal Clear
17"
LCD
17PF4310
Turn up your viewing experience
with Crystal Clear
Here is an LCD TV that not only enhances the décor of your home with its European
styling and slim design, but also provides a great audio-visual experience with Crystal
Clear and Virtual Dolby Surround.
Better quality images that reveal more detail
• High definition LCD WXGA display, resolution 1280 x 768p
• Crystal Clear improves picture depth
• Active Control optimizes picture quality whatever the source
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Stylish design
• Compact design
Multi-purpose convenience
• PC input lets you also use your TV as a PC monitor
• Smart Picture provides personalised image settings
• Smart Sound optimizes audio settings
• 10 pages Smart Text for fast access to teletext.
17PF4310/01
Flat TV with Crystal Clear
17" LCD
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
Aspect ratio: Widescreen
Brightness: 450 cd/m²
Contrast ratio (typical): 600:1
Diagonal screen size: 17 inch / 43 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Crystal Clear, Progressive
Scan, Active Control, Sharpness Adjustment,
Colour Temperature Adjustment
Screen enhancement: Anti-Reflection coated
screen
Viewing Angle (H / V): 176 / 176 degree
Panel resolution: 1280 x 768p
Response time (typical): 25 ms
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
720 x 400
70Hz
800 x 600
56, 60, 72, 75Hz
832 x 624
75Hz
1024 x 768
60, 70, 75Hz
1280 x 768
60Hz
• Video Formats
Resolution
Refresh rate
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Mono, Nicam Stereo, Virtual
Dolby Surround
• Output power (RMS): 2X2W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Program Name,
Sorting
• Ease of Use: Auto Volume Leveller (AVL), Menu
Control, On Screen Display, Program List, Smart
Picture Control, Smart Sound Control
• Remote control type: RCFE05ZAU00
• Teletext: 10 page Smart Text
• Picture in Picture: Twin page text
• Remote Control: TV
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen, Full screen
• Clock: Sleep Timer
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, PAL B/G, PAL D/K, PAL I,
SECAM, SECAM B/G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
Connectivity
• Number of Scarts: 1
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Other connections: Antenna IEC75, DVI-D, PC
Audio in
• Front / Side connections: Audio in, CVBS in,
Headphone out, S-video in
Power
•
•
•
•
Power consumption: 53 W
Standby power consumption: < 3 W
Ambient temperature: +5°C/+45°C
Power supply: AC 90-240
Dimensions
• Product weight: 5.8 kg
• Dimensions (with base) (W x H x D):
517 x 347 x 169 mm
• Set dimensions (W x H x D): 517 x 302 x 80 mm
• Set weight: 5.8 kg
• Weight incl. Packaging: 8.04 kg
• Colour cabinet: Silver Frost
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, Table
top stand, User Manual
•
17PF4310/01
Flat TV with Crystal Clear
17" LCD
Product highlights
Crystal Clear
Combining picture enhancements like Contrast plus and
colour improvement, Crystal Clear improves picture
depth.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times per minute, Active Control Plus ensures
that the viewing experience is optimized.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
PC input
With PC input you can connect your TV to a computer
and use the TV as a PC monitor.
Smart Picture
Smart Picture provides the optimum picture settings for
colour, brightness, saturation, contrast, sharpness, etc. to
enhance your overall viewing experience at all times.
Smart Sound
Smart Sound provides the optimal sound settings for ultra
bass, bass, treble and balance so that you can get the
best entertainment experience.
10 page Smart Text
The teletext is a common system transmitted by most
broadcasters. The 10 page smart text feature gives you
fast access to information when changing pages.
Issue date 2007-12-01
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 13.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 22265
EAN: 87 10895 87557 8
www.philips.com
