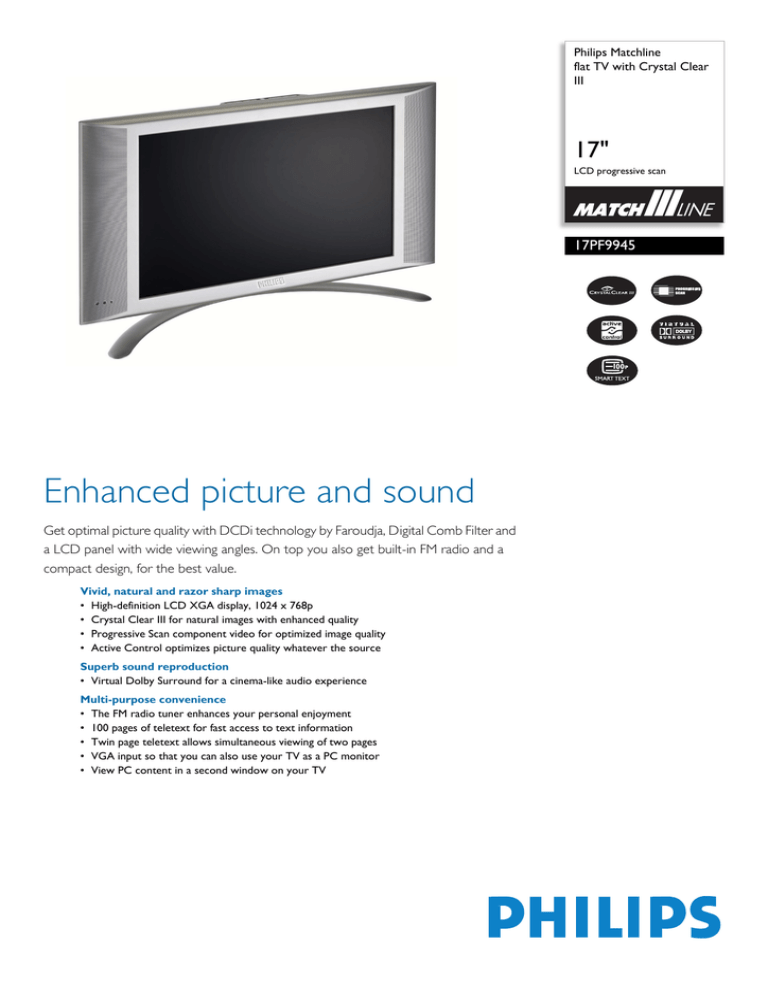

Philips Matchline
flat TV with Crystal Clear
III
17"
LCD progressive scan
17PF9945
Enhanced picture and sound
Get optimal picture quality with DCDi technology by Faroudja, Digital Comb Filter and
a LCD panel with wide viewing angles. On top you also get built-in FM radio and a
compact design, for the best value.
Vivid, natural and razor sharp images
• High-definition LCD XGA display, 1024 x 768p
• Crystal Clear III for natural images with enhanced quality
• Progressive Scan component video for optimized image quality
• Active Control optimizes picture quality whatever the source
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Multi-purpose convenience
• The FM radio tuner enhances your personal enjoyment
• 100 pages of teletext for fast access to text information
• Twin page teletext allows simultaneous viewing of two pages
• VGA input so that you can also use your TV as a PC monitor
• View PC content in a second window on your TV
For preview purpose only
17PF9945/12I
flat TV with Crystal Clear III
17" LCD progressive scan
Technical specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: Widescreen
Brightness: 450 cd/m²
Contrast ratio (typical): 400:1
Diagonal screen size: 17 inch / 43 cm
Visible diagonal screen size: 43 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: 2D Combfilter, 3/2 - 2/2
motion pull down, Active Control, Color
Transient Improvement, Color Temperature
Adjustment, Contrast Plus, Crystal Clear III,
Jagged Line Suppression, Luminance Transient
Improver, Progressive Scan, Sharpness
Adjustment
Screen enhancement: Anti-Reflection coated
screen
Viewing angle (H / V): 170 / 170 degree
Panel resolution: 1280 x 768p
Response time (typical): 25 ms
Supported Display Resolution
Product highlights
• Teletext enhancements: 4 favourite pages,
Program information Line
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: DVD, TV, VCR
• Screen Format Adjustments: Full screen, Subtitle
and Heading Shift, Superwide, Widescreen,
Zoom 14:9, Zoom 16:9
• Clock: Wake up Clock, Sleep Timer
• VESA Mount: 100 x 100 mm
• Child Protection: Child Lock
Tuner/Reception/Transmission
• Tuner bands: FM, VHF, UHF, S-Channel,
Hyperband
• TV system: PAL, PAL I, PAL B/G, PAL D/K,
SECAM, SECAM D/K, SECAM L/L', SECAM B/G
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
• Computer formats
Resolution
Refresh rate
1024 x 768
60Hz
640 x 480
60, 72, 75, 85Hz
800 x 600
56, 60, 72, 75,85Hz
1280 x 768
60Hz
• Video Formats
Resolution
Refresh rate
720 x 576i
1Fh
720 x 576p
2Fh
Connectivity
Sound
Power
• Sound Enhancement: Ultra Bass
• Sound System: Mono, Nicam Stereo, Virtual
Dolby Surround
• Total Sound Power (RMS): 12 W
Convenience
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), FM
Radio, Graphical User Interface, Program List,
Smart Picture Control, Smart Sound Control
• Remote control type: RCAE039
• Teletext: 100 page Smart Text
• Number of Scarts: 2
• Ext 1 Scart: RGB, CVBS in/out, Audio L/R
• Ext 2 Scart: S-video in, Y/C, CVBS in/out, Audio
L/R
• Other connections: Audio constant level out,
PC-in VGA + Audio L/R in, Antenna IEC75, FM
Antenna
• Front / Side connections: Audio in, CVBS in,
Headphone out, S-Video in
•
•
•
•
Power consumption: 55 W W
Standby power consumption: < 3 W
Ambient temperature: +5 -/+ 40 C
Power supply: AC 90-240
Dimensions
• Product weight: 5 kg
• Dimensions (with base) (W x H x D):
517 x 307 x 65 mm
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, RF
cable, User Manual
• AC/DC Adaptor/Charger: Multi-voltage
•
LCD XGA display, 1024 x 768p
This XGA display with state-of-the-art LCD screen
technology has a widescreen HD resolution of 1024 x
768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb
colors. This vibrant and sharp image will provide you
with an enhanced viewing experience.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include
a 2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colors.
Progressive Scan
Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead
of sending a field comprising the odd lines to the screen
first, followed by the field with the even lines, both fields
are written at one time. A full image is created
instantaneously, using the maximum resolution. At such
a speed, your eye perceives a sharper picture with no
line structure.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
FM-radio
A small FM radio is integrated into the headphone so
you always have a music source with you.
100 page Smart Text
The teletext is a common system transmitted by most
broadcasters. The 100 page smart text feature gives
you fast access to information when changing pages.
Twin page teletext
Twin page teletext allows you to simultaneously view
two teletext pages side by side
VGA input
The TV set has a VGA input which is compatible with
the display output signal from your PC. This means you
can use the set both as a TV and PC Monitor at your
convenience.
Picture in Graphics
Picture-in-Graphics is a small window in the main
picture, allowing to watch data/graphics in your main
TV screen. It provides the ability to simultaneously
watch data/graphics and the TV.
Date of issue 2006-07-07
Version: 1.0
12 NC: 8670 000 19168
EAN: 87 10895 78170 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
