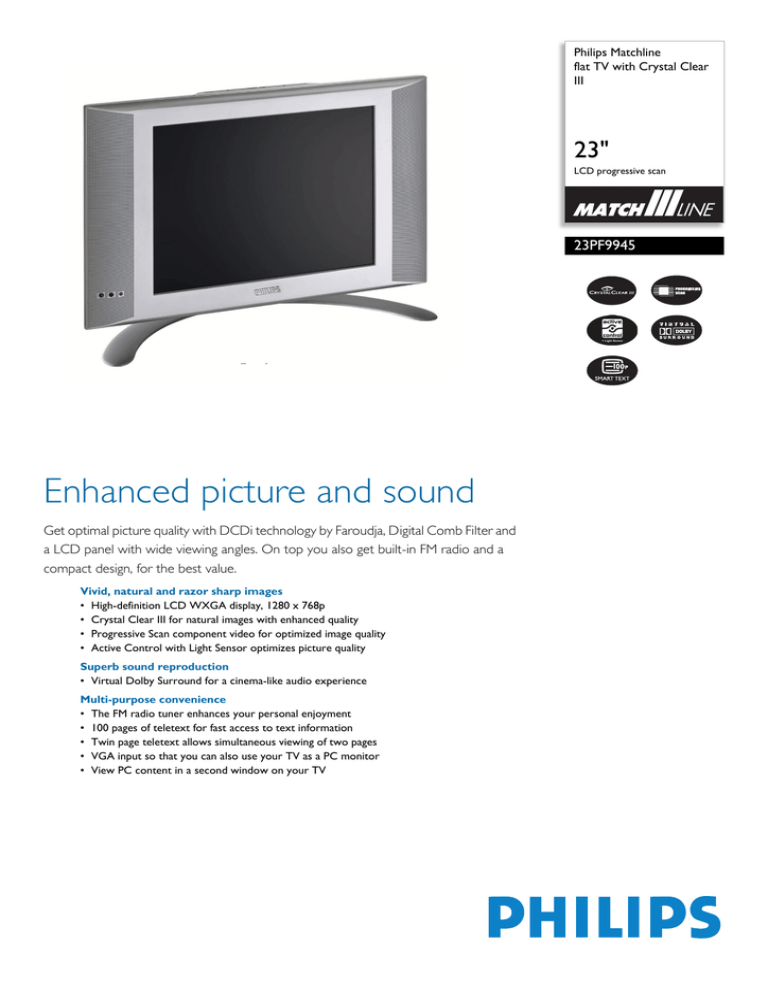

Philips Matchline
flat TV with Crystal Clear
III
23"
LCD progressive scan
23PF9945
Enhanced picture and sound
Get optimal picture quality with DCDi technology by Faroudja, Digital Comb Filter and
a LCD panel with wide viewing angles. On top you also get built-in FM radio and a
compact design, for the best value.
Vivid, natural and razor sharp images
• High-definition LCD WXGA display, 1280 x 768p
• Crystal Clear III for natural images with enhanced quality
• Progressive Scan component video for optimized image quality
• Active Control with Light Sensor optimizes picture quality
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Multi-purpose convenience
• The FM radio tuner enhances your personal enjoyment
• 100 pages of teletext for fast access to text information
• Twin page teletext allows simultaneous viewing of two pages
• VGA input so that you can also use your TV as a PC monitor
• View PC content in a second window on your TV
For preview purpose only
23PF9945/12
flat TV with Crystal Clear III
23" LCD progressive scan
Technical specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: Widescreen
Brightness: 450 cd/m²
Contrast ratio (typical): 400:1
Diagonal screen size: 23 inch / 58 cm
Visible diagonal screen size: 58 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: 2D Combfilter, 3/2 - 2/2
motion pull down, Active Control + Light
sensor, Color Transient Improvement, Color
Temperature Adjustment, Contrast Plus, Crystal
Clear III, Jagged Line Suppression, Luminance
Transient Improver, Progressive Scan, Sharpness
Adjustment
Screen enhancement: Anti-Reflection coated
screen
Viewing angle (H / V): 170 / 170 degree
Panel resolution: 1280 x 768p
Response time (typical): 25 ms
Supported Display Resolution
Product highlights
• Teletext enhancements: 4 favourite pages,
Program information Line
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: DVD, TV, VCR
• Screen Format Adjustments: Full screen, Subtitle
and Heading Shift, Superwide, Widescreen,
Zoom 14:9, Zoom 16:9
• Clock: Sleep Timer, Wake up Clock
• VESA Mount: 100 x 100 mm
• Child Protection: Child Lock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF,
FM
• TV system: PAL, PAL I, PAL B/G, PAL D/K,
SECAM, SECAM B/G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
• Computer formats
Resolution
Refresh rate
1024 x 768
60Hz
1280 x 768
60Hz
640 x 480
60, 72, 75, 85Hz
800 x 600
56, 60, 72, 75,85Hz
• Video Formats
Resolution
Refresh rate
720 x 576i
1Fh
720 x 576p
2Fh
Connectivity
Sound
Power
• Sound Enhancement: Ultra Bass
• Sound System: Mono, Nicam Stereo, Virtual
Dolby Surround
• Total Sound Power (RMS): 20 W
Convenience
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), FM
Radio, Graphical User Interface, Program List,
Smart Picture Control, Smart Sound Control
• Remote control type: RCAE039
• Teletext: 100 page Smart Text
• Number of Scarts: 2
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, Y/C, Svideo in
• Other connections: Antenna IEC75, Audio
constant level out, FM Antenna, PC-in VGA +
Audio L/R in
• Front / Side connections: Audio in, CVBS in,
Headphone out, S-Video in
• Power consumption: 96 W Normal Operation
WW
• Standby power consumption: < 3 W
• Ambient temperature: +5 -/+ 40 C
• Power supply: AC 90-240
Dimensions
• Product weight: 11.2 kg
• Dimensions (with base) (W x H x D):
704 x 373 x 80 mm
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, RF
cable, User Manual
• AC/DC Adaptor/Charger: Multi-voltage
•
LCD WXGA display, 1280 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you HD resolution of 1280 x 768p
pixels. It produces brilliant flicker-free progressive scan
pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include
a 2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colors.
Progressive Scan
Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead
of sending a field comprising the odd lines to the screen
first, followed by the field with the even lines, both fields
are written at one time. A full image is created
instantaneously, using the maximum resolution. At such
a speed, your eye perceives a sharper picture with no
line structure.
Active Control + Light Sensor
Active Control is a unique and intelligent way of
optimizing picture quality by measuring and analyzing
the incoming signal to automatically adjust picture
quality settings. Active Control with Light Sensor uses a
sensor to adjust the picture brightness depending on the
room light conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
FM-radio
A small FM radio is integrated into the headphone so
you always have a music source with you.
100 page Smart Text
The teletext is a common system transmitted by most
broadcasters. The 100 page smart text feature gives
you fast access to information when changing pages.
Twin page teletext
Twin page teletext allows you to simultaneously view
two teletext pages side by side
VGA input
The TV set has a VGA input which is compatible with
the display output signal from your PC. This means you
can use the set both as a TV and PC Monitor at your
convenience.
Picture in Graphics
Picture-in-Graphics is a small window in the main
picture, allowing to watch data/graphics in your main
TV screen. It provides the ability to simultaneously
watch data/graphics and the TV.
Date of issue 2006-07-07
Version: 1.0
12 NC: 8670 000 18218
EAN: 87 10895 78036 0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
