For preview purpose only

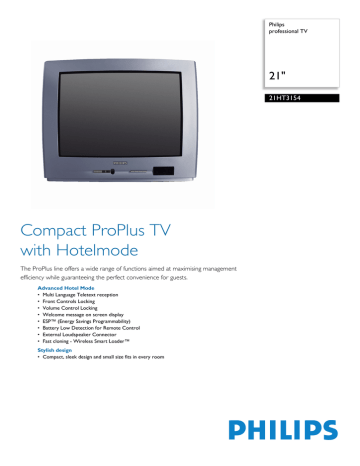

Philips
professional TV
21"
21HT3154
Compact ProPlus TV
with Hotelmode
The ProPlus line offers a wide range of functions aimed at maximising management
efficiency while guaranteeing the perfect convenience for guests.
Advanced Hotel Mode
• Multi Language Teletext reception
• Front Controls Locking
• Volume Control Locking
• Welcome message on screen display
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• External Loudspeaker Connector
• Fast cloning - Wireless Smart Loader™
Stylish design
• Compact, sleek design and small size fits in every room
For preview purpose only
21HT3154/05
professional TV
21"
Technical specifications
Picture / Display
•
•
•
•
•
•
Aspect ratio: 4:3
Diagonal screen size: 21 inch / 55 cm
Visible diagonal screen size: 51 cm
Display screen type: Blackline FX picture tube
Picture enhancement: Smart Picture
Picture processing: 50 Hz
Loudspeakers
Connectivity
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out
• Number of scarts: 1
• Headphone: 3.5 mm
• Connectivity enhancements: External
Loudspeaker connector, RJ12 Smartloader
Power
• Built-in speakers: 2
Convenience
•
•
•
•
•
•
•
Product highlights
Ease of installation: PLL digital tuning
Ease of Use: Smart picture control
Remote control type: RC2886
Teletext: 1 page Teletext
Clock: Sleep timer
Remote control: TV
Screen format adjustments: 4:3
Tuner / Reception / Transmission
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video playback: NTSC
• Aerial input: 75 ohm coaxial (IEC75)
• Antenna: FM antenna
• Power consumption: 51W W
• Standby power consumption: < 5 W
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
•
•
•
•
Product weight: 20 kg
Weight incl. packaging: 23 kg
Colour cabinet: Blue silver
Set dimensions (W x H x D):
549 x 469 x 497 mm
Sound
• Sound system: Mono
• Output power (RMS): 2 x 2W
•
Multi Language Teletext
Allows users to select their preferred language
supported by the teletext characters
Front Controls Locking
Prevents unauthorised access to TV functions
Volume Control Locking
This feature predefines the volume range in which the
TV set can operate, preventing excessive volume
adjustments avoiding disturbance of next door
neighbours.
Welcome Message
Welcome greeting displayed on screen each time the
TV set is switched on
ESP™
Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and providing extended product life
time. The selectable range is from 0 to 99 hours.
Battery Low Detection
This feature informs of the need to replace the remote
control batteries preventing unneccessary replacement
of batteries.
External Loudspeaker Connector
Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating the
need for investments in external equipment
Wireless Smart Loader™
Provides the ability to copy easily and wirelessly all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.
Compact Design
The compact set fits in every room due to its sleek
design and size. Due to limited depth of the product, it
even fits on a book shelf.
Date of issue 2006-11-02
Version: 2.0
12 NC: 8670 000 16463
EAN: 87 10895 72899 7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
