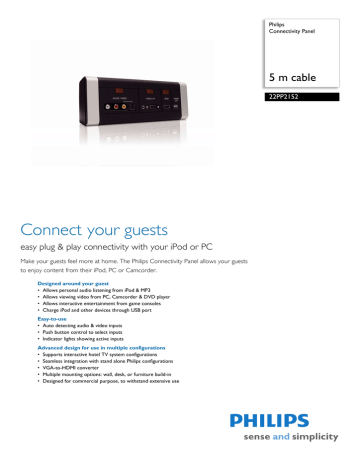

Philips
Connectivity Panel
5 m cable
22PP2152
Connect your guests
easy plug & play connectivity with your iPod or PC
Make your guests feel more at home. The Philips Connectivity Panel allows your guests
to enjoy content from their iPod, PC or Camcorder.
Designed around your guest
• Allows personal audio listening from iPod & MP3
• Allows viewing video from PC, Camcorder & DVD player
• Allows interactive entertainment from game consoles
• Charge iPod and other devices through USB port
Easy-to-use
• Auto detecting audio & video inputs
• Push button control to select inputs
• Indicator lights showing active inputs
Advanced design for use in multiple configurations
• Supports interactive hotel TV system configurations
• Seamless integration with stand alone Philips configurations
• VGA-to-HDMI converter
• Multiple mounting options: wall, desk, or furniture build-in
• Designed for commercial purpose, to withstand extensive use
22PP2152/10
Connectivity Panel
5 m cable
Specifications
Product highlights
Connectivity
• Connectivity panel connectors: Audio L/R in
(3.5mm jack), Audio L/R in (cinch), CVBS in, SVideo in, VGA PC in, HDMI in, USB (5V power)
Dimensions
• Product dimensions (WxDxH): 214 x 84 x 55 mm
• Product weight: 2.49 kg
• Bezel color: Black Front with Silver Bezel
Accessories
• Included Accessories: External power adaptor,
Cable pack (5m), HDMI cable, RJ12 cable
(SmartPort), RS232 cable, VGA/audio cable, Svideo to CVBS adaptor, CVBS to SCART adaptor,
Scart adapter, Cable ties, Screws, Rubber feet,
User Manual, Warranty Leaflet
• Optional accessories: Desktop cover cap
22PP2019
Related Products
• Compatible with: 20HF5474, 23HF5474,
26HF5444, 26HF5445, 26HF7874, 26HF7875,
32HF5444, 32HF5445, 32HF7874, 32HF7875,
37HF7444, 42HF7845
•
iPod & MP3 audio listening
Guests can listen to music from the source of their choice
(iPod, other MP3 Player, or audio output from their PC)
through plug & play connection with 3.5mm audio jack
Viewing of video media
Viewing of video media from PC, camcorder, DVD player
and various other devices is supported through VGA,
composite audio/video, S-Video and HDMI connectors
Interactive entertainment
Game consoles can be connected to the TV through
composite audio/video or HDMI connectors.
USB charging
USB 5V power socket allows guests to charge their
personal devices.
Auto detect audio/video input
Audio and video inputs are auto detecting, so that the TV
will automatically switch to the right input when a device
is plugged in.
Push button control
Guests can switch between different inputs at the touch
of a single button.
Indicator lights
Indicator lights provide easy to understand feedback to
guests, by showing which input is active.
System configurations
Connectivity Panel supports various interactive and
entertainment hotel TV system configurations, through
industry standard Philips SmartPort protocol.
Stand alone configurations
Seamless integration with Philips TVs in stand-alone
configuration is supported, see compatibility list.
VGA-to-HDMI converter
With the built-in VGA-to-HDMI converter this
Connectivity Panel is compatible with a wider range of
Philips Hospitality TV's, since a separate VGA input on the
TV is not required.
Multiple mounting options
Philips Convenience Panel can be mounted in various
ways, e.g. in the wall, on the desk or as a furniture buildin. An optional desktop kit is required to mount the panel
to a desk.
Built for commercial use
Philips Connectivity Panel is a commercial product, built
with high-quality materials for intensive daily use by hotel
guests.
Issue date 2009-02-13
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 41103
EAN: 87 12581 43345 1
www.philips.com
