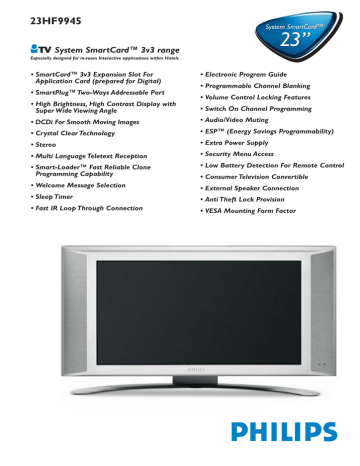

23HF9945
System SmartCard™
23’’
System SmartCard™ 3v3 range
Especially designed for in-room Interactive applications within Hotels
• SmartCard™ 3v3 Expansion Slot For
Application Card (prepared for Digital)
• SmartPlug™ Two-Ways Addressable Port
• Electronic Program Guide
• Programmable Channel Blanking
• Volume Control Locking Features
• High Brightness, High Contrast Display with
Super Wide Viewing Angle
• Switch On Channel Programming
• DCDi For Smooth Moving Images
• Audio/Video Muting
• Crystal Clear Technology
• ESP™ (Energy Savings Programmability)
• Stereo
• Extra Power Supply
• Multi Language Teletext Reception
• Security Menu Access
• Smart-Loader™ Fast Reliable Clone
Programming Capability
• Low Battery Detection For Remote Control
• Welcome Message Selection
• External Speaker Connection
• Sleep Timer
• Anti Theft Lock Provision
• Fast IR Loop Through Connection
• VESA Mounting Form Factor
• Consumer Television Convertible
System SmartCard™
23HF9945
23’’
This 23'' LCD TV brings the world of Flat, slim and
wide TV to medium screens. As with other Flat
TV's no compromise has been made on technical
content.The powerful High definition LCD screen
offers levels of brightness, sharpness and contrast
alongside the best in medium screens. Common
elements with the rest of the Philips Flat TV family
are the sleek, slim lines and the ability to mount
on a table top or hang on the wall.
The System SmartCard™ 3v3 concept is designed
and manufactured exclusively for applications
utilising interactive services and entertainment
systems.
Product Information
Colour
Precision Silver (10880)
Chassis
Type:
LC03/ICONN
Screen Type:
Visual Screen:
Display type:
Aspect ratio:
Viewing Angle:
Resolution:
Brightness:
Contrast Ratio:
Response time:
Anti Reflex Coating
DCDi by Faroudjia
Crystal Clear III
23'' WXGA Super-IPS LCD
(58cm)
58cm (23'')
LCD WXGA Super-IPS
Widescreen
176 hor. / 176 vert.
1280 x 768 (x3) pixels
450 Cd/m2
400 : 1
16ms
Sound
Sound Power:
Loudspeakers:
Smart Sound
2x5 W RMS (20W MP)
2 On Board Speakers
Reception
PLL digital tuning
UVSH tuner
127 presets
Dynamic Program Differentiation
WST 10 Page Teletext
Connections (via ICONN)
SmartCard™ slot
TV aerial Input (75 Ω coax)
Ext loudspeaker (3.5mm jack)
RJ11 connector (Smart-Loader™; STB)
Connections
(for displays/peripherals)
LCD-TV:
PC/DVD/other:
RGB out
RJ11 (IR data/control)
Video in/out (cinch)
S-Video in/out (mini DIN)
Audio L/R in/out (cinch)
External speaker (3.5mm
jack)
Miscellaneous
Power consumption ON:
110W
STANDBY: 6W
Mains:
50/60Hz
ICONN:
AC 120-240V ± 10%
(12V out)
LCD-TV:
AC 100-240V ± 10%
(24V out)
Net Weight (LCD-TV, ICONN):
12 kg, 1 kg
Dimensions
LCD-TV:
704 x 373 x 80 (WxHxD)
ICONN:
150 x 70 x 190 (WxHxD)
Ambient temperature:
+ 5º to 40ºC
Table top stand:
Included
Wall mounting:
Optional (acc.VESA
standard)
Flat, Slim and Wide Large Screen Support
True Flat Multimedia LCD-TV which can be hung on
the wall like a painting.
High Level Integration
The ICONN connectivity box integrates picture technology with extensive interactivity and control.
SmartCard™ Expansion Slot
Permits OEM or third-party decoders and controllers
to be installed inside ICONN for custom designed
component integration. Integrates system for superior
control applications. Allows expandability for future
upgrades. Prepared for digital applications.
State-of-the-Art LCD Technology
State of the art Super IPS LCD screen enabling brilliant flicker free picture with optimum brightness,
superb colours and a wide viewing angle.
DCDi
DCDi technology produces a smooth and natural looking image without visible artefacts or jagged edges by
analysing and processing angled lines and edges.
Crystal Clear
Using advanced processing technology, Crystal Clear
offers 30% more contrast, natural colours and a high
level of detail.
Stereo
Excellent picture deserves excellent sound. 2CS Stereo
Sound and Nicam Digital Sound provide clear and
detailed audio reproduction.
Smart-Loader™
Provides the ability to copy all programming settings
from one set into additional sets.This feature ensures
uniformity between sets and significantly reduces
installation time.
Advanced Hotel-Mode features
- Programmable Channel Blanking: provides a means
to force the picture to be blanked without affecting
the audio. Perfect for audio-only services (e.g. FM
radio);
- Volume Control Locking: this feature forces the TV set
to operate within a user defined volume range,
preventing volume adjustments;
- Switch On Channel: it forces the TV set to a specified
channel when turned on. Perfect for in-house
advertising of information channels.
Multi Language Teletext reception
Guests can be served in their own language. Per channel Western, Eastern European as well as Cyrillic,
Arabic,Turkish and Greek characters are available.
Audio/Video Muting
Automatically detects a loss of television signal and
optionally mutes both audio and video.
Electronic Program Guide
Provides guest with onscreen directory listing number
and network affiliation. Channel guide is accessed via
the touch of a single button on the remote control.
ESP™ (Energy Savings Programmability)
Energy saving system that powers display off after a
specified period of use. A simple countdown clock can
be selectively set to operate from 0-99 hours with
automatic clock reset at each power up.
Low Battery Detection Remote Control
This features informs hotelier of the need to replace
RC batteries to pre-empt guest complain.
External Speaker Connection
Easy installation of speaker to bathroom via rear
connector on the connectivity box.
Welcome Message
A welcome greeting (max. 2 lines with 20 characters
each) is displayed on the screen each time the set is
switched on.
Consumer Television Convertible
Easily converts to true consumer display for
after-market sales.
Type
Version
Transmission System
Stereo System
23HF9945
/22Z
PAL BG, I, DK, SECAM BG, DK, LL'
2CS BG, DK,
NICAM BGI, DK, LL'
Introduction: Q3-2003
Destination
Western Europe (incl. UK/Ireland)
+ Eastern Europe + UAE
Specifications subject to change without notice.
