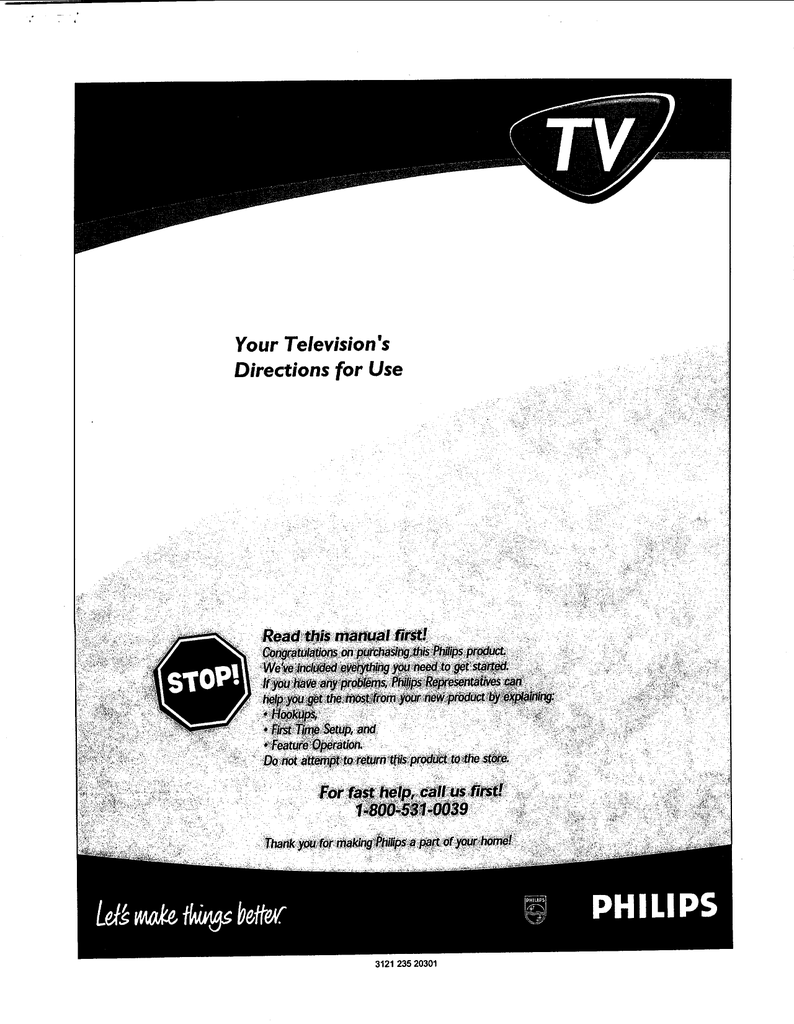

Your Television's
Directions for Use
Leté make things better
3121 235 20301
SHEE
ÆN
va III
Return your Warranty Registration card today to ensure you
receive all the benefits you're entitled to.
Once your PHILIPS purchase is registered, you're eligible to receive all the privileges of owning a
PHILIPS product. So complete and return the Warranty Registration Card enclosed with your pur-
chase at once. And take advantage of these important benefits.
. Congratulati hase, oo» o
and welcome to the “emiv PHILIPS o.
&- \
Q 0j TV
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You've selected one of the best-built, best-backed products
available today. And we'll do everything in our power to keep you happy with your purchase for many
years to come.
As a member of the PHILIPS “family,” youre entitled to protection by one of the most comprehensive
warranties and outstanding service networks in the industry.
What's more, your purchase guarantees you'll receive all the information and special offers for which
you qualify, plus easy access to accessories from our convenient home shopping network. And most
importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.
Sincerely, P.S. Remember, to get the most from your PHILIPS product, you
os . must return your Warranty Registration Card within 10 days.
Philips Consumer Electronics Company So please mail it to us “ont ROW! Y
K now t h es e A This “bolt of lightning” indicates uninsulated material within your unit may cause an electri-
| cal shock. For the safety of everyone in your household, please do not remove product covering.
S afety Sym bols A The “exclamation point” calls attention to features for which you should read the enclosed
literature closely to prevent operating and maintenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
“REMOVE COVER (08 BACK). NO UNEN es SHOGK, DO NOT ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la
INSIDE. REFER SERWCING TO QUALIFIED SERVICE PERSONNEL. | borne correspondante de la prise et pousser jusqu’au fond.
PHILIPS Visit our World Wide Web Site at http://www. philipsusa.com
о мото :>
10.
11.
12.
13.
14.
15.
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in
accordance with the manufacturers instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat. |
Do not defeat the safety purpose of the polarized or ground-
ing-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and third grounding prong. The wide blade or third prong
are provi ed for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories specified by the manu-
facturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the app-
aratus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental con-
siderations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org
16.
17.
18.
19.
Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged;
or
Objects have fallen, or liquid has been spilled into the
appliance; or
The appliance has been exposed to rain; or
The appliance does not appear to operate normally or
exhibits a marked change in performance; or
The appliance has been dropped, or the enclosure
damaged.
Tilt/Stabitity - All televisions must comply with recommend-
ed international global safety standards for tilt and stability
properties of its cabinet design.
+ Do not compromise these design standards by applying
excessive pull force to the front, or top, of the cabinet which
could ultimately overturn the product.
« Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet. Such
items could unsuspectingly fall from the top of the set and
cause product damage and/or personal injury.
Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
Power Lines - An outdoor antenna should be located away
from power lines.
m 99 ®
_ Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No.
70-1984, provides information with respect to proper
grounding of the mats and supporting structure grounding of
the lead-in wire to an antenna discharge unit, size of
grounding connectors, location of antenna-discharge unit,
connection to grounding electrodes and requirements for
the grounding electrode. See Figure below.
Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the enclo-
sure through openings.
Note to the CATV system installer: This reminder is provid
guidelines for proper grounding and, in particular, specifies
to the point of cable entry as practical.
ed to call the CATV system installer's attention to Article 820-40 of the NEC that provides
that the cable ground shall be connected to the grounding system of the building, as close
Example of Antenna Grounding
as per NEC - National Electric Code
GROUND CLAMP
— =
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (nec SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
=
ELECTRIC SERVICE EQUIPMENT
- POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
TABLE OF CONTENTS
Introduction Remote Control Operation
+ Welcome/Registration of Your TV ................. 2 + Remote Control — Using AutoPictureM ........ 39
Y Safety/Precautions ............................. 3 + Remote Control — Using AutoSound™ ,......, 40
¢Tableof Contents ........................... 4 + Remote Control — Using Channel Surf ............ 4]
Ÿ Features co. aa ana aa a. 5 | = The PIP (Picture-in-Picture) Feature
ONSCREEN MENU < PIP — Basic Connections .................. 42
Picture | < PIP — Selecting the Signal Source ................ 43
| < Adjusting the Picture ...................... 6 * PIP — Remote Control Buttons ................... 44
$ Turning ON the Dynamic Noise Reduction + PIP — Adjusting the Tint ........................ 45
Control ...............ererereseoeneaoeoraraa, 7 Y PIP — More Connections .................... 46-47
* Turning ON the ImageMax™ Control .............. 7 General Information
Features iE Y Troubleshooting ........................ 48
? Using the Closed Captioning Control ............... 8 Y Glossary of Television Terms ..................., 49
Using the Format (screen) Control ................. $ Index LL... велике влекут а nana 50
Y Activating the Blue Mute Control ..............., 10 < Factory Service Locations ...................... 51
* Using the Sleep Timer Control ............. cree 11 Y Limited Warranty ............................ 52
) The Timer Feature |
+ The Timer — Setting the Clock .............. 12
+ The Timer — Setting the Start Time .............. 13
<The Timer — Setting the Stop Time ............... 14
< The Timer — Selecting the Channel ............... 15
Y The Timer — Setting Activate to ON or OFF ........ 16
< The Timer — Turning ON the Timer Display ........ 17
The AutoLock™ Feature
Y Understanding AutoLockTM .................. 18
< AutoLock™ — Setting Up the Access Code ......... 19
< AutoLock™ — Blocking Channels ,............... 20
< AutoLock™ — Blocking by Movie Rating .......... 21
-% AutoLock™ — Blocking by TV Rating ............ 22
+ AutoLock™ — Turning Block ON or OFF .......... 23
< AutoLock™ — Blocking Unrated
Broadcasts ........................... PE 24
< AutoLock™ — Blocking Broadcasts That
HaveNoRating ................ PS 25
+ AutoLockTM — Reviewing Your Settings ........... 26 NOTE: This owner's manual is used with several the
+ AutoLockTM — Viewing Blocked ferent television models. Not all features (and draw-
Programming ................................ 27 ings) discussed in this manual will necessarily match
Ko) Sound a those found with vour television System. This is normal
Y Sound — Adjusting the Treble, Bass, and and does not require that you contact your dealer or
and Balance er ee et eer ieee, 28 request service.
* Sound — Setting the Volume .................... 29
* Sound — Using the AVL (Audio Volume
Levelen) eee sen acer a nana 30
* Sound — Using Incredible Surround ............... 31
< Sound — Setting the TV for Stereo and
SAP (Second Audio Program) ................... 32
Y Sound — Setting the Audio Out Control ............ 33
+ Sound — Using the TV Speaker Control
and Audio Output Jacks ........................ 34
+ Sound — Using the Surround Sound
External Speaker Connections ................... 35
< Sound - Using the Audio/Video
InputJacks ............................ 36-38 AutoChron, AutoLock, AutoPicture, AutoSound, M-Link, and
ImageMax are trademarks of Philips Consumer Electronics Company.
Copyright © 2001 Philips Consumer Electronics Company.
All rights reserved.
Audio/Video Jack Panel allows direct connections with VCRs, DVDs, or
other devices, providing quality TV picture and sound playback.
Audio Volume Leveler (AVL) Control keeps the TV sound at an even
level. Peaks and valleys that occur during program changes or commercial
breaks are reduced, making for a more consistent, comfortable sound.
AutoChron™ automatically sets the right time of day and maintains it
with digital precision through brownouts, power failures, and even
Daylight Savings Time adjustments.
AutoLock™ allows you to block the viewing of certain channels or pro-
grams with certain ratings if you do not want your children to view inap-
propriate materials.
Auto Programming scans (when activated) for all available channels
from regular antenna or cable signals and stores only active broadcast sta-
tions in the TV’s memory.
AutoPicture™ allows you to change the picture settings (color, tint, con-
trast, etc.) for various types of programming, such as sports, movies, multi-
media (games), or weak signals with the push of one button. |
AutoSound™ allows you to select from three factory-set controls and a
personal control that you set according to your own preferences through
the onscreen Sound menu. The three factory-set controls (Voice, Music,
and Theatre) enable you to tailor the TV sound so as to enhance the partic-
ular programming you are Watching.
Channel Edit allows you to add or delete channels from the list stored in
the TV’s memory. Channel Edit makes it easy to limit or expand the num-
ber of channels that are available to you when you press the Channel (+) or
(=) buttons on your remote control. |
Closed Captioning allows the viewer to read TV program dialogue or
voice conversations as onscreen text.
ImageMax™ helps you sharpen the picture quality by making dark por-
tions of the picture darker and light portions brighter.
Infrared Remote Control works your TV and other remote-controlled
devices, such as VCRs, DVD players, cable converters, and satellite
receivers.
Infrared Remote (IR) Blaster works with the M-Link feature to enable
your TV to “learn” the remote-control commands of new Philips devices
or multibrand devices that you have connected to your TV. After the com-
mands are learned, you can use your TV remote control to operate and
control all of the devices.
M-Link™ allows you to convert your TV into a home-cinema control
center composed of up to six devices (including an audio amplifier). You
activate the devices by pressing macro buttons and control the devices by
pressing “hot” buttons on your remote control. Choose from cable box,
digital set top box, DVD (digital video disc), laser disc (LD), satellite digi-
tal TV, VCD (video compact disc), and VCR (video cassette recorder)
devices. |
Onscreen Menu shows helpful messages and instructions for setting TV
feature controls (can be viewed in English, French, or Spanish).
Sleep Timer automatically tums the TV OFF after a set amount of time
that you choose.
Standard Broadcast (VHF/UHF) or Cable TV (CATY) channel capabil-
ity allows for viewing by antenna or cable.
Stereo capability, including a built-in audio amplifier and twin-speaker
system, allows for the reception of TV programs broadcast in stereo sound.
Surf Button allows you to easily switch among only the channels that are
of interest to you (the ones that you have programmed into the TV’s Surf
control through the onscreen menu).
Timer allows you to set your TV to tum itself ON and OFF once or daily
like an alarm clock.
5
Quick USE AND INSTALLATION GUIDE
Use the simple Quick Use and Installation
Guide (supplied with your TV information
packet) for details on: Que De ee aT
* Cable/Antenna
Hookups
< Automatic Channel
Programming
+ Channel Editing
* Setting the TV’s Clock Automatically
(AutoChron™)
+ Basic Operation of the TV and Remote
Control
Selection of the Onscreen Menu Language
M-LINK INSTRUCTIONS FOR USE
Use the simple M-Link Instructions for Use
(supplied with your TV information packet)
for details on:
* Operating Accessory
Devices (VCR, DVD, Cable
Box, and Others)
* Automatic Programming Via
the TV Remote Control
* Setting Up Personal
Commands
< Inputting Commands from the Remote
Controls of Your Accessory Devices
END-Or-LiFE DISPOSAL
Your new television and its packing contain
materials that can be recycled and reused.
Specialized companies can recycle your
product to increase the amount of reusable
materials and minimize the amounts that
need to be properly disposed.
Your product also uses batteries that should
not be thrown away when depleted, but
should be handed in and disposed of as
small chemical waste.
When you replace your existing equipment,
please find out about the local regulations
regarding disposal of your old television,
batteries, and packing materials.
TR dust your TV picture controls,
ADJUSTING THE PICTURE
Vo a channel and follow these
steps,
(BEGIN)
 Press the MENU button on the
- remote control to show the onscreen
menu. PICTURE will be highlighted.
Press the CURSOR RIGHT button
and the menu will shift to the left.
BRIGHTNESS will be highlighted and an
adjustment bar will be shown to the right.
Use the CURSOR LEFT or CUR-
SOR RIGHT button to adjust the
BRIGHTNESS level of the picture.
After adjusting the BRIGHTNESS
control, press the CURSOR DOWN
button to select another picture adjust-
ment: COLOR, PICTURE, SHARP-
NESS, TINT, OR COLOR TEMP,
Press the CURSOR LEFT or
CURSOR RIGHT button to adjust the
selected control,
NOTE: The menu will show only five
items at a time, so you will need to con-
tinue scrolling with the CURSOR
DOWN button to adjust the TINT and
COLOR TEMP.
<6> Press the STATUS/EXIT button to
remove the menu from the screen.
©
07:9
O
Mr
o
Remember, when the bar scale is cen-
tered , the control set-
tings are at normal, mid-range levels.
Picture adjustments are described here.
BRIGHTNESS - adds or subtracts
light from the darkest part of the pic-
ture. |
COLOR - adds or eliminates color
PICTURE - improves the detail of the
lightest parts of the picture.
SHARPNESS — improves the detail in
the picture.
TINT — adjusts the picture to obtain
natural skin tones,
COLOR TEMP offers NORMAL,
COOL, or WARM picture preferences.
NORMAL - keeps whites, white.
COOL — makes whites, bluish.
WARM - makes whites, reddish.
MATT
A OO ATE Le Lu LEE PL ET TE
5 0
= Ee
555"
000
® © ©
12 © ® © 5
О © OO 3
Sn KZ
Sr)
4
О
О
o
c'es
e PICTURE
* PICTURE
* TINT
« COLOR THtP
ARSE TEA
SRR
AIR
TURNING ON THE DYNAMIC NoISE REDUCTION CO
D“ fo many reasons, such as poor
cable reception, the picture can
sometimes appear slightly “speckl
(an indication of signal noise in the
picture). The DNR (Dynamic Noise
Reduction) control can help eliminate
this type of interference and improve
the quality of the picture.
BEGIN)
<L> Press the MENU button on the
| remote to show the onscreen menu.
у’
PICTURE will be highlighted.
 Press the CURSOR RIGHT but-
ton and the menu will shift to the left.
BRIGHTNESS will be highlighted.
 Press the CURSOR DOWN but-
ton repeatedly until the DNR control
is highlighted.
<4> Press the CURSOR RIGHT but-
“ton to switch DNR ON or press the
CURSOR LEFT button to switch
DNR OFF,
 Press the STATUS/EXIT button
| to remove the menu from the screen.
e SOUND COLOR
+ FEATURES PICTURE
e INSTALL SHARPNESS
TINF
NTROL
PENA —)
Tem helps you sharpen the
picture quality by making dark por-
tions of the picture darker and light
portions of the picture brighter. Follow
these steps to turn ImageMax™ ON,
Press the MENU button on the
remote control to show the onscreen
menu. PICTURE will be highlighted.
Press the CURSOR RIGHT but-
| ton and the menu will shift to the left.
BRIGHTNESS will be highlighted.
Press the CURSOR DOWN but-
| control is highlighted.
Press the CURSOR RIGHT but-
| ton to switch between ON and OFF.
Press the STATUS/EXIT button
to remove the menu from the screen.
@
ton repeatedly until the IMAGEMAX
e+ (
CORRE SES
« JRARGERAX e» (iF
USING THE CLOSED CAPTIONING CONTROL
(loved Captioning (CC) allows
you to read the voice content of
television programs on the TV
screen. Designed to help the hear-
ing impaired, this feature uses
onscreen “text boxes” to show dia-
logue and conversations while the
TV program is in progress.
Press the MENU button on
the remote control to show the on-
screen menu.
Press the CURSOR DOWN
| button twice to highlight FEA-
©
©
TURES.
 Press the CURSOR RIGHT
button and the menu will shift to
the left,
Press the CURSOR DOWN
button repeatedly until the
CLOSED CAP control is highlight-
ed.
 Press the CURSOR RIGHT
button again. The menu will shift
to the left and CAPTION MODE
will be highlighted. Then press the
CURSOR RIGHT button to high-
light CAPTION MODEs.
<6> Press the CURSOR UP or
CURSOR DOWN button to |
select a CAPTION MODE: CCl,
CC2, CC3, CC4, CMUTE, TXT],
TXT2, TXT3, or TXT4. CC DIS-
PLAY turns text OFF or ON if the
TV station broadcasting on the
channel is making CLOSED CAP-
TIONING available. With CC DIS-
PLAY highlighted, press the CUR-
SOR RIGHT button to toggle
Closed Captioning ON or OFF,
NOTE: You also can press the CC
button on the remote control to turn
the CC TEXT ON or OFF,
<7> Press the STATUS/EXIT but-
ton to remove the menu from the
©
©
screen.
NOTE: Notall TV programs and product commercials are broadcast with Closed
Captioning (CC). Nor are all Closed Captioning MODEs (CAPTION 1-4 or TEXT
1-4) necessarily being used by broadcast stations during the transmission of a pro-
gram offering Closed Captioning. Refer to your area’s TV program listings for the
stations and times of shows being broadcast with Closed Captioning.
(
* PICTURE TIMER
e SOUND AutoLock
EERIE PIP FEATURES
+ INSTALL
CNE TIME
® РР SIOP TIME
e CLOSED CAP CHANNEL
* FORMAT ACTIVATE
| FEATURES |
e TIMER CAPTION MPOE
ser * Awolock CC DISPLAY
Ó т
тика or roe me s+C1GSED CAP
e 55 e FORMAT
5555 * |
FEATURES
M © à CLOSED CAP A
| O O O CC DISPLAY | (C2
20€ ( -
O | FEATURES
CLOSED CAP
У (№ « CAPTION MODE
| CC DISPLAY Я
NOTE: The CC MUTE Ce |
8 option can be used to set the ot |
TV to tura the CLOSED «e Edil : р
CAPTIONING mode ON ak | |
N whenever the MUTE button PE |
is pressed, E |
You can press the CC
| button on the remote
control to turn the CC
text ON or OFF.
TEXT Mode Example Display -
CAPTION Mode The TV screen will be
Example Display blocked from viewing.
SELECTING THE SCREEN FORMAT SIZE œ
ou can change the screen for-
mat size to match the type of
program you ‘re watching. Select
the normal 4:3 aspect ratio or
expand the 4:3 aspect ratio to com-
pletely fill the screen. There also is
a compressed 16:9 aspect ratio,
which allows movies to be viewed
in their full width (known as letter-
box style).
Press the MENU button on
the remote control to show the on-
screen menu.
Press the CURSOR DOWN
utton twice to highlight FEA-
URES.
Press the CURSOR RIGHT
button and the menu will shift to
the left.
Press the CURSOR DOWN
utton repeatedly until the FOR-
MAT control is highlighted.
Press the CURSOR RIGHT
button repeatedly to toggle among
the three screen format sizes — 4:3,
EXPAND 4:3, or COMPRESS
16:9.
Press the STATUS/EXIT but-
ton to remove the menu from the
screen. O
©
©
3
—¢
©
©
SEI ETA
VW Without the onscreen
£ menu display showing, you
also can press the CURSOR UP or
CURSOR DOWN button on the
remote control to toggle among the
screen sizes 4:3, Expand 4:3, or
e PICTURE TIMER
PP
e INSTALL
FORMAT
e SOUND AutoLock
CLOSED CAP
Compress 16:9.
lo o
———————]
™E
START TIME
STOP TIME
e CLOSED CAP CHANNEL
e FORMAT ACTIVATE
e
FEATURES a
e Autolock
e PP
e CLOSED CAP
e BLUE MUTE
4 FORMAT
. Y
OR
LN
LO
OR
CUNA er COMPRESS 16:9
« FORMAT
« FORMAT
o> EXPARD 4:3
« РОКМАТ e»CONMPRENS 16:39
8
ACTIVATING THE BLUE MUTE CONTROL
Te Blue Mute feature will elimi-
hate annoying snow from the
screen when no video signal is pres-
ent by displaying a pleasant blue
screen. This occurs in cases such as
when a VCR tape is removed or an
antenna signal is broken. To turn the e PICTURE TIMER
Blue Mute feature ON or OFF, fol- NT
low the steps below. TI
BEGIN
FEATURES
AT TIME
=
e AutoLock START TIME
o PIP STOP TIME
 Press the MENU button on e CLOSED CAP CHANNEL
the remote control to show the on- e FORMAT ACTIVATE
screen menu, В
<2> Press the CURSOR DOWN ea
button twice to highlight FEA- e PIP
TURES. CLOSED CAP
e FORMAT
<8> Press the CURSOR RIGHT ET
button and the menu will shift to ° v
the left.
<4> Press the CURSOR DOWN oR _
button repeatedly until the BLUE
MUTE control is highlighted. L FEATURES a
 Press the CURSOR RIGHT Mn
button repeatedly to toggle the e CLOSED CAP
En Mute option ON or OFF, e FORMAT
<> Press the STATUS/EXIT but- ° '
ton to remove the menu from the
screen,
BLUE MUTE OFF
E «with no video signal; screen
BLUE MUTE ON
«with no video signal; screen is
a pleasant blue color,
10
USING THE SLEEP TIMER
— ave you ever fallen asleep in
front of the TV, only to have it
wake you up at two in the morning
with a test pattern sound screeching
in your ears? Well, your TV can
‘enable you to avoid that discomfort
by automatically turning itself off. —
With the Sleep Timer feature, you
can set a timer to automatically
switch the TV OFF after a period
of time you choose (15-minute
increments up to 60 minutes, then
30-minute increments up to 90 min-
utes, then 60-minute increments up
to 24) minutes).
D Press the SLEEP button on
the remote control. The SLEEP
timer onscreen display will appear
in the upper part of the screen.
Within five seconds, press the
SLEEP button repeatedly to pick
the amount of time (15-minute
increments up to 60 minutes, then
30-minute increments up to 90 min-
utes, then 60-minute increments up
to 240 minutes) before the TV will
turn itself off.
An onscreen countdown will appear
during the last minute before the
TV shuts itself off.
To see how many min-
B utes remain before the TV
shuts itself off, press the STA- )
TUS/EXIT button.
During the last minute of a During the last 10 seconds ofa
SLEEP timer setting, an onscreen SLEEP timer setting, an onscreen
countdown will be displayed. display will read GOOD BYE. 180 MIN
F Ny ро Fr Ny
“-
50 SEC 600D BYE 240 MIN
Y | L
41
THE TIMER — SETTING THE, CLOCK
ur television comes with an on-
screen clock. During normal oper-
ation, the clock appears on the screen
when the STATUS/EXIT button is
pressed or if the TIMER DISPLAY |
control is turned ON. > |
Press the MENU button on the « PICTURE TIMER й В В СЫ Аа ааа В В Вы.
remote control to show the onscreen e SOUND Autolock I
menu. CEE
<> Press the CURSOR DOWN but- а NIT TIME
| ton twice to highlight FEATURES. | SE
 Press the CURSOR RIGHT but- 3 CLOSED CAP CHANNEL
ton and the menu will shift to the left. а МНЕ
TIMER will be highlighted. f FEATURES NO
<4> With TIMER selected, press the — — TER a
CURSOR RIGHT button again to e i MM
shift the display left and highlight the О) * START TIME
TIME control. DA epee ° Haig
 Press the CURSOR RIGHT but- = ACTIVATE
ton again to highlight the time indica- M
| tor area,
FEATURES
TIMER A
< TIME CLIN UA
o START TIME v
e STOP TIME
Press the CURSOR LEFT or
CURSOR RIGHT button to select
the position or digit you wish to enter,
| A di e CHANNEL
<Z> Press the CURSOR UP or CUR- E AN e ACTIVATE
SOR DOWN button to select the o, > °
digits for the time. Or press the i AA
NUMBERED buttons to enterthe | (4)
correct time.
<8> Press the CURSOR RIGHT but-
on to move to the AM or PM posi-
ti
©
В
Press the CURSOR UP or
DOWN button to set AM or PM.
Te
©
AD; OTE: The TIME (Clock) fea-
ture can be accessed directly by
pressing the CLOCK button on the |
remote control, and then by simply
following steps 5 through 10 to
complete the task,
Press the STATUS/EXIT button
to remove the menu from the screen.
©
Remember, be sure to press FEATURES
0 first and then the hour num- TIMER a
ber for single-digit entries, e ____M
The Clock also can be set automati- . $100 TE
cally using the AutoChron™ feature + CHANNEL
found on page 4 of the Quick Use y ACTIVATE
and Installation Guide that came '
with your television,
The TV’s clock settings may be lost
when the TV is unplugged (or when
AC power to the set is interrupted),
12
THE TI
Je as you would an alarm clock,
you can set the TV to turn itself
ON once or at the same time every
day. Follow these steps to set the
Start Time.
Press the MENU button on the
remote control to show the
onscreen menu.
Press the CURSOR DOWN
utton twice to highlight FEA-
URES.
Press the CURSOR RIGHT
utton and the menu will shift to
e left. TIMER will be highlighted.
Press the CURSOR RIGHT
button again to shift the display
left. Then press the CURSOR
DOWN button once to highlight
the START TIME control.
Press the CURSOR RIGHT
button again to highlight the time
indicator area.
Press the CURSOR RIGHT
or CURSOR LEFT button to
move among the positions where
the time is input.
<7> Press the CURSOR UP or
CURSOR DOWN button to select
the digits for the time. Or press the
NUMBERED buttons to enter the
correct time,
Press the CURSOR RIGHT
| button to move to the AM or PM
—
©
©
2er.
=
©
E,
= =
©
©
position.
<9> Press the CURSOR UP or
| DOWN button to set AM or PM.
Press the STATUS/EXIT but-
ton to remove the menu from the
O
screen.
MER — SETTING THE START TIME
e SOUND
TULA
e INSTALL
TIMER
Autolock
PIP
CLOSED CAP
FORMAT
FEATURES
СЕН TINE
® AutoLock START TIME
e PP STOP TIME
e CLOSED CAP CHANNEL
e FORMAT ACTIVATE
r
FEATURES
TIMER a
« TIME æ AN
e SIART TIME
e SIOP TIME
e CHANNEL
: ACTIVATE
FEATURES
TIMER A
e TIME
e STOP TIME
FEATURES
TIMER
e TIME
< START TIMÉ
e STOP TIME
e CHANNEL
: ACTIVATE
”—
PET REE о»
——— —
A
LIRR
13.
US the START TIME control to
set the TV to turn itself ON
once or at the same time every day
(see page 13 for details). The fol-
lowing steps will guide you in set-
ting the TV to turn itself OFF once
or at the same time every day.
D Press the MENU button on the
remote control to show the on-
screen menu.
Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. TIMER will be highlight-
ed.
©
©
©
Press the CURSOR RIGHT
button again to shift the display
left. Then press the CURSOR
DOWN button once twice to high-
| Si the STOP TIME control.
 Press the CURSOR RIGHT
button again to highlight the time
indicator area.
<6> Press the CURSOR RIGHT
or CURSOR LEFT button to
move among the positions where
the time is input.
<Z> Press the CURSOR UP or
To press DOWN button to select
the digits for the time. Or press the
NUMBERED buttons to enter the
correct time.
Press the CURSOR RIGHT
button to move to the AM or PM
position.
 Press the CURSOR UP or
| DOWN button to set AM or PM.
 Press the STATUS/EXIT but-
ton to remove the menu from the
©
screen,
THe TIMER — SETTING THE STOP TIME
e PICTURE
e SOUND
TILE
TIMER
AutoLock
ENT TIME
e AutoLock START TIME
o PP STOP TIME
e CLOSED CAP CHANNEL
+ FORMAT ACTIVATE
f FEATURES
TIMER 4
< Hid
e START TIME
e SIOP TIME
e CHANNEL
: ACTIVATE
Аля pinto ep. E
FEATURES
TIMER
e TIME
* START TIME
TIMER
«+ TIME
e START TIME
« STOP TIME
e CHANNEL
: ACTIVATE
e» 1030 A
14
THE TIMER — SELECTING THE CHANNEL
— Y can select a specific channel
that the television will tune to
when the timer turns the set ON.
Follow these steps to select the
channel.
D Press the MENU button on the |
remote control to show the
onscreen menu. e PICTURE TIMER
e SOUND AutoLock
<> Press the CURSOR DOWN PIP FEATURES
button twice to highlight FEA- © INSTALL CLOSED CAP TIME
FORMAT ‘
TURES. * Autolock START TIME
e PIP STOP TIME
<8> Press the CURSOR RIGHT o CLOSED CAP CHANNEL
button and the menu will shift to e FORMAT ACTIVATE
the left. TIMER will be highlighted. ‘ x
FEATURES
Press the CURSOR RIGHT TIMER x
button again to shift the menu to su power o _ AM
the left. Then press the CURSOR © © ° oti
DOWN button repeatedly until the rever oun rosin mune °
e CHANNEL
CHANNEL control is highlighted. OD X 6 o ACTIVATE
D ’ v
 Press the CURSOR RIGHT oo | — S
button again to highlight the chan- em) FEATURES
nel indicator area. @ © © e
<6> Press the NUMBERED but- 1 @ © 6 5 : o Th
tons to enter the desired start-up OOO 4 ”
channel. Or, press the CURSOR > и 3 e ACTIVATE y
RIGHT button to enter the start-up 0 , .
channel you want. Numan] FEATURES
TIMER
<7> Press the STATUS/EXIT but- = © e TIME
ton to remove the menu from the | 4 e START TIME
e STOP TIME a
screen. © 9 < CHANNEL
4 - SIMUSERIT CC CIDO e ACTIVATE ой
| \
THE TIMER — SETTING ACTIVATE TO ON Or OFF
mi Afler you have set the Time, Start
Time, Stop Time, and Start
Channel, the timer must be set to
come on ONCE or DAILY, or
turned OFF through the ACTIVATE
control.
BEGIN
<D Press the MENU button on the
remote control to show the
onscreen menu.
<2> Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. TIMER will be highlight-
ed.
<4> Press the CURSOR RIGHT
button again to shift the display to
the left. Then press the CURSOR
DOWN button repeatedly until the
ACTIVATE control is highlighted.
 Press the CURSOR RIGHT
button again to set ACTIVATE to
ONCE; press the CURSOR
RIGHT button again for DAILY;
and press the CURSOR RIGHT
button again to toggle ACTIVATE
to OFF,
<6> Press the STATUS/EXIT but-
ton to remove the menu from the
screen.
SMART HELP
y Remember, before set-
Bting the TIMER controls,
the TV's clock must be set to the
correct time manually (see page
12) or by using the AutoChron™
feature described on page 4 of the
Quick Use and Installation Guide.
Try it! After following the steps on
pages 12-17, use your TV as an
alarm clock.
ER
e PICTURE TIMER
e SOUND AutoLock
CUNA PR.
e INSTALL CLOSED CAP
FORMAT
FEATURES
TIME
e AutoLock
® РР
e CLOSED CAP CHANNEL
START TIME
STOP TIME
| FEATURES
TIMER A
e START TIME
e STOP TIME
e CHANNEL
; ACTIVATE
r
FEATURES
TIMER +
® START TINE
e SIOP TIME
o CHANNEL
ENE e» ОН
e DISPLAY
« ACUVAIE
JOIE
ETES
16
THE TIMER — TURNING ON THE TIMER DISPLAY
A fter the TV's clock has been set,
you can use your TV as a clock.
The TIMER DISPLAY control
allows you to permanently display
the time in the upper right corner
of the screen.
BEGIN) f
D Press the MENU button on
| the remote to show the onscreen e PICTURE TIMER
menu. e SOUND AutoLock
PIP FEATURES
Press the CURSOR DOWN o INSTALL CLOSED CAP ETE TIME
button twice to highlight FEA- | FORMAT Aotolock START TIME
TURES. e PP STOP TIME
e CLOSED CAP CHANNEL
Press the CURSOR RIGHT e FORMAT ACTIVATE
button and the menu will shift to г ы
| the left. TIMER will be highlighted. © FEATURES
TTL > R 4
Press the CURSOR RIGHT ae ro >: M
button again to shift the menu left. “0. 6). e START TIME
Then press the CURSOR DOWN о Nr
button repeatedly until the DIS- e ACTIVATE
PLAY control is highlighted. y
Press the CURSOR RIGHT | FEATURES
or CURSOR LEFT button to turn TIMER 4
| TIMER DISPLAY ON or OFF. $ START TIME
e STOP TIME
<6> Press the STATUS/EXIT but- e CHANNEL
ton to remove the menu from the ® ACTIVATE ТТ
screen.
©
« DISPLAY e> OFF
_ Smart Herp
© Remember, be sure you
E have set the TV's clock with
the correct current time. (Refer to
page 12 to set the clock manually
or page 4 of the Quick Use and
Installation Guide to set the clock
automatically using the
AutoChron™ feature.)
lm
17
UNDERSTANDING AUTOLOCKTM
he AutoLock™ feature receives
and processes data sent by
broadcasters or other program
providers that contain program con-
tent advisories. When programmed
by the viewer, a TV with AutoLock™
can respond to the content advisories
and block program content that may
be found objectionable (such as
offensive language, violence, sexual
situations, etc.). This is a great fea-
ture to censor the type of program-
ming children may watch.
In the AutoLock™ section, you'll
learn how to block channels and pro-
gramming that is not rated, is unrat-
ed, or has no rating. You will also
find out how to turn these blocking
features ON or OFF. Following are
brief explanations of some terms and
ratings related to the AutoLock™
feature.
AutoLock™ offers various
Blocking Options from which to
choose:
BLOCKING: The BLOCKING con-
trol is what can be thought of as the
“master switch” for AutoLock™,
This control affects the settings you
have chosen for blocking programs
according to movie ratings or TV
ratings, or for blocking programs
that have no rating or are unrated.
When the BLOCKING control is
OFF, the blocking or censoring of
programs is disabled. When the
LOCKING control is ON, blocking
will occur according to the settings
you have chosen.
BLOCK UNRATED: ALL unrated
programs will be blocked if this fea-
ture is set to ON,
UNRATED programming is encoded
with information from the MPAA
(Motion Picture Association of
America) or TV broadcasters, but it
does not have a specific rating. In
other words, the MPAA or the TV
broadcasters have chosen not to
assign a rating to the programming.
NO RATING: ALL programming
with no content advisory data can be
blocked if NO RATING is set to
Programming that has No Rating is
not encoded with any rating infor-
mation from the MPAA or he
Parental Guidelines. Any program-
ming could fall into this category.
You also can block individual
channels or block programming
based on ratings of the MPAA and
TV broadcasters. (See a description
of the ratings on this page.)
AutoLock
MOVIE RATING A
® РС
e PG-13
eR
e NC-17
© т
MOVIE RATINGS
CIO UTE CNE REO КЕ RICA)
G: General Audience - All ages admitted.
Most parents would find this program-
ming suitable for all ages. This type of
programming contains little or no vio-
lence, no strong language, and little or no
sexual dialogue or sexual situations.
PG: Parental Guidance Suggested - This
programming contains material that parents
may find unsuitable for younger children. It
may contain one or more of the following:
Moderate violence, some sexual situations,
infrequent coarse language, or some sugges-
tive dialogue.
PG-13: Parents Strongly Cautioned - This
programming contains material that parents
may find unsuitable for children under the
age of 13. It contains one or more of the
following: violence, sexual situations,
coarse language, or suggestive dialogue.
R: Restricted -This programming is specifi-
cally designed for adults. Anyone under the
age of 17 should view this programming
only with an accompanying parent or adult
guardian. It contains one or more of the fol-
lowing: intense violence; intense sexual sit-
uations; strong, coarse language; or intense-
ly suggestive dialogue.
NC-17: No one under the age of 17 will be
admitted. - This type of programming
should be viewed by adults only. It contains
graphic violence; explicit sex; or crude,
indecent language.
X: Adults Only - This type of programming
contains one or more of the following: very
graphic violence, very graphic and explicit
or indecent sexual acts, very coarse and
intensely suggestive language.
yg TV-PG: (Parental Guidance
Suggested ~ This program contains
| intensely suggestive dialogue (D),
AutoLock
TV RATING A
EXT
o TV.Y7
® TV-G
* TV-PG
e TV-14
o т
TV PARENTAL GUIDELINES
(CNO EOS
EY] TY-Y: (AI children -- 7his program
is designed to be appropriate for all
children.) Designed for a very young
audience, including children ages 2-6. This
type of programming is not expected to
frighten younger children.
5372 7V-Y7: (Directed to Older
y 7 Children -- 7his program is designed
Jor children ages 7 and above.) It
may be more appropriate for children who
have acquired the development skills needed
to distinguish between make-believe and
reality. This programming may include mild
fantasy and comic violence (FV).
LY] 77-G: (General Audience — Most
parents would find this program suit-
able for all ages.) This type of pro-
gramming contains little or no violence, no
strong language, and little or no sexual dia-
logue or sexual situations.
material that parents may find unsuit-
able for younger children.) This type of pro-
gramming contains one or more of the fol-
lowing: Moderate violence (V), some sexual
situations (8), infrequent coarse language
(L), or some suggestive dialogue (D).
EY] TV-11: (Parents Strongly
1 4 Cautioned -- This program contains
some material that many parents
would find unsuitable for children under 14
years of age.) This type of programming
contains one or more of the following:
intense violence (V); intense sexual situa-
tions (S); strong, coarse language (L); or
5372 7V-MA: (Mature Audience Only --
M A This program is specifically designed
to be viewed by adults and therefore
may be unsuitable for children under 17.)
This type of programming contains one or
more of the following: graphic violence (V);
explicit sexual situations (S); or crude, inde-
cent language (L).
18
AuTOLOCK™ — SETTING UP THE ACCESS CODE
utoLock™ allows parents to
block out or “censor” any
channels they think children should
not watch. A channel blocked by
the AutoLock™ control cannot be
viewed until a correct access code
is used to unlock the channel for
viewing. First, lets set your
AutoLock access code,
Press the MENU button on
the remote control to show the
onscreen menu.
Press the CURSOR DOWN
utton twice to highlight FEA-
RES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
Press the CURSOR RIGHT
tton to highlight ACCESS
©
EF
©
©
ZW
QF
©
ps
Press 0,7,1,1 on the remote
ntrol. INCORRECT will appear
the screen.
©
с
AY
©
so
Press 0,7,1,1 on the remote con-
| again. ENTER NEW CODE
11 appear on the screen.
Enter a new four-digit code
using the number buttons. CON-
FIRM CODE will appear on the
screen.
©
tr
Ww
©
[
©
©
Enter your new four-digit
code again. CORRECT will flash
on the screen briefly and the high-
light bar goes back to AutoLock.
9> Press the STATUS/EXIT but-
ton to remove the menu from the
screen.
©
e PICTURE TIMER
e SOUND Autolock
PP
» INSTALL CLOSED CAP
ë FORMAT
NOTE TO PARENTS:
It isn’t possible for
your child to unblock a
channel without know-
ing your access code or
changing it to a new
one. If your code has
been changed without
your knowledge, then
you will become aware
that blocked channels
may have been viewed.
Remember that 0711 is the defanit
Autolock'™ code, If your access code has
been changed by someone other than you
(a child, for example) or you have forgot-
ten the code, you can always getin by
inputting the default code,
° » TRAER
e Autoloek START TIME
e PIP STOP TIME
e CLOSED CAP CHANNEL
e FORMAT ACTIVATE
|
FEATURES
e TIMER ACCESS CODE
CNEA ...
e CLOSED CAP
e FORMA
FEATURES
ALLENS (OBE
HENAN EN
O
|
Fo Y a
FEATURES
® TIMER EII MCCESS CODE TEN
$Autolock LLL a SEF
e PP INCORRECY
e CLOSED CAP
e FORMAT
“
pp r Y Po
Y
FEATURES FEATURES FEATURES
o TIMER Fa e TIMER ENTER = TIMER CU CET
#»Autolock UCA $ AutoLock NEVA CODE $AutoLock COUE
e PIP E. » РР 008 e PP NPIS
e CLOSED CAP e CLOSED CAP e CLOSED CAP
* FORMAT + FORMAT o FORMAT
> >>
\ |
Y |
FEATURES FEATURES FEATURES
e TIMER MEE MORTALES o TIMER ACCESS CODE
#>Anolock xo CODE ....
* PP LEO E. e PP
e CLOSED CAP SEE e CLOSED CAP
e FORMAT e FORMAT
\ u
19
= AUTOLOCK™ — BLOCKING CHANNELS
fier your personal access code
has been set (see the previous
page), you are ready to select the
channels or inputs you want to oa TIMER
block out or censor, EME re
e INSTALL CLOSED CAP
 Press the MENU button on
[on remote control to show the |
[oro menu. NOTE: Blocked
channels will be
 Press the CURSOR DOWN | Skipped y
press the ne
< Pr twice to highlight FEA- +/- buttons. To
TURES. view a blocked Cy 4
hannel, refer t |. >"
<3 Press the CURSOR RIGHT page 28 for details. [RR MT
button and the menu will shift to HD
the left. Then press the CURSOR i
DOWN button once to highlight
the AutoLock™ control.
<&> Press the CURSOR RIGHT
button again to highlight ACCESS
CODE.
Enter your four-digit
ACCESS CODE. CORRECT will 3
flash very briefly and the menu will <>
move to the left with BLOCK
CHANNEL highlighted.
<6> Press the CURSOR RIGHT 2 DO
| button to highlight the TV’s avail- ele
able channels.
<> Press the CURSOR UP or
CURSOR DOWN button to high-
light the channel you want to block.
Press the CURSOR RIGHT
button to block the channel, A | FEATURES Ÿ | | FEATURES
padlock image appears to the right AmoLock NsoLocí
of the channel number. ay EL AT
o CLEAR ALL
Repeat steps 7 and 8 for any chan- © MOVIE RATING
nels you want to block from view- e RING
ing. Lo ul ul I
<8> Press the STATUS/EXIT but-
ton to remove the menu from the г —
screen, FEATIRES If a channel is blocked by the
BLOCK. CHANNEL option, the
E TV will display the sereen shown Boca oy solch
to the right. To watch the channel, TV rang TVPG
enter your access code or change Access Code
the BLOCK CHANNEL option
back to off.
NOTE: You also can block out the use of the A/V extemal inputs on the rear of the TV. This stops the viewing of Ver. DVD, and other sources that can be
shown through the A/V input jacks. Select AV1, AV2, or AV3 and then select BLOCK,
20
fter your personal access code
has been set (see page 19), you
can select specific movie ratings
that you want to censor.
Press the MENU button on
the remote control to show the
onscreen menu.
Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
Press the CURSOR RIGHT
| button again to highlight
—
©
©
©
©
ACCESS CODE.
<> Enter your four-digit
ACCESS CODE. CORRECT will
flash very briefly in red and the
menu will move to the left with
AUTOLOCK™ — BLOCKING BY MOVIE RATING
e PICTURE
e SOUND
CEE
TIMER
AutoLock
RRR KY Ed
BLOCK CHANNEL highlighted.
Press the CURSOR DOWN
button repeatedly until MOVIE
RATING is highlighted. (ros y
Press the CURSOR RIGHT po
| button and the Rating menu shifts e SETUP CODE AB
. UT e CLEAR ALL
to the left with G highlighted. wwe 1
Press the CURSOR UPor | | US?
CURSOR DOWN button to high- |
light each rating you want. Then
press the CURSOR RIGHT but- ;
ton to turn the rating ON or OFF. FEATURES Ÿ Autolock
Turning the rating ON will block Autolock a WOVIE RATING a
; : °
programs with that rating from в e =
being seen. o A
 Press the STATUS/EXIT but- Smee a
ton to remove the menu from the >
screen.
. Ni | MOVIE RATING OPTIONS
: AuoL Y | ro
NOTE: When a rating is turned lok NG f , G ON or OFF
ON, all higher ratings also will be
turned on automatically. For exam-
ple, if the R rating is turned on, the
NC-17 and X ratings also will be
turned on. O
PG
PG-13
К
NC-17
X
ON or OFF
ON or OFF
ON or OFF
ON or OFF
ON or OFF
21
AUTOLOCK™ — BLOCKING BY TV RATING
y” also can select specific TV
ratings that you want to censor
by following these steps.
D Press the MENU button on the
remote control to show the
onscreen menu.
‘Press the CURSOR DOWN
| button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
<4> Press the CURSOR RIGHT
button again to highlight ACCESS
CODE.
Enter your four-digit ACCESS
CODE and the menu will move to
the left with BLOCK CHANNEL
highlighted.
Press the CURSOR DOWN
button repeatedly until TV RAT-
ING is highlighted.
<7> Press the CURSOR RIGHT
button and the menu will shift to
highlight the TV RATING options.
Press the CURSOR UP or
| DOWN button to select a rating.
 Press the CURSOR RIGHT or
LEFT button to turn the block on
the rating ON or OFF.
NOTE: More specific subratings
(for violence, sexual content, dia-
logue, or fantasy violence) are avail-
able for TV-Y7, TV-PG, TV-14, and
TV-MA.
I [> To access these subratings, press
the CURSOR RIGHT button.
Press the CURSOR UP or DOWN
button to select the subrating that
you want to block or unblock. Then
press the CURSOR RIGHT or
CURSOR LEFT button to turn the
block on the subrating ON or OFF,
Press the STATUS/EXIT but-
TV RATING .
® №07
e NG
e NPG о №56
e TV-14 о №
. Y . v
be a
TV-Y: (All children -- This program is designed to be appropriate for all children.) Designed for a very young audience, including
children ages 2-6. This type of programming is not expected to frighten younger children.
TV-Y7: (Directed to Older Children ~ This program is designed for children age 7 and above.) It may be more appropriate for chil-
dren who have acquired the development skills needed to distinguish between make-believe and reality, This programming may
include miki fantasy and comic violence (FV).
TV-G: (General Audience ~ Most parents would find this program suitable for all ages.) This type of programming contains little
or no violence, no strong language, and little or no sexual dialogue or situations,
TV-PG: (Parental Guidance Suggested - This program contains material that parents may find unsuitable for younger children.)
This type of programming contains one or more of the following: some suggestive dialogue (D), infrequent coarse language (L),
some sexual situations (8), or moderate violence (V).
TV-14: (Parents Strongly Cautioned -- This program contains some material that many parents would find unsuitable for children
under 14 years of age.) This type of programming contains one or more of the following: intensely suggestive dialogue (D); strong,
coarse language (L); intense sexual situations ($); or intense violence (V).
TV-MA: (Mature Audience Only ~ This program is specifically designed to be viewed by adults and therefore may be unsuitable for
children under 17.) This type of programming contains one or more of the following: crude, indecent language (L); explicit sexual
situations (8); or graphic violence (V).
| ton to remove the menu. |
22
AUTOLOCK™ — TURNING BLOCK ON or OFF
Tr BLOCKING control is what
can be thought of as the “mas-
ter switch” for AutoLock™. This
control affects the settings you have
chosen for blocking programs
according to movie ratings or TV
ratings, or for blocking programs
that have no rating or are unrated.
When the BLOCKING control is
OFF, the blocking or censoring of
programs is disabled. When the
BLOCKING control is ON, block-
ing will occur according to the set-
tings you have chosen. Follow
these steps to toggle BLOCKING
OFF or ON.
Press the MENU button on the
| remote control to show the
e PICTURE
LE
onscreen menu.
Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
<> Press the CURSOR RIGHT
button again to highlight ACCESS
CODE.
<> Enter your four-digit
| ACCESS CODE and the menu
ACCESS £UDL
will move to the left with BLOCK 1
CHANNEL highlighted. |
<6 > Press the CURSOR DOWN
button repeatedly until BLOCK
BLOCK UNRATED
OPTIONS is highlighted. BLOCK UNRATED | = ok IRRATED о № МКС
<7> Press the CURSOR RIGHT TAT: _
button to enter the BLOCK “ y ;
OPTIONS menu. BLOCKING will | \
be highlighted.
Press the CURSOR RIGHT or
LEFT button to toggle BLOCK-
ING ON or OFF.
BLOCKING
<9> Press the STATUS/EXIT but-
ton to remove the menu.
©
23
AUTOLOCK™
— BLOCKING U
NRATED BROADCASTS
Ï addition to blocking specific
ratings or channels, you may
choose to block all programming
that is unrated.
D Press the MENU button on the
remote control to show the
onscreen menu.
<> Press the CURSOR DOWN
| button twice to highlight FEA-
TURES.
 Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control,
<A> Press the CURSOR RIGHT
CODE,
<5> Enter your four-digit
ACCESS CODE and the menu
will move to the left with BLOCK
CHANNEL highlighted.
Press the CURSOR DOWN
button repeatedly until BLOCK
OPTIONS is highlighted.
<Z> Press the CURSOR RIGHT
button to enter the BLOCK
OPTIONS menu. BLOCKING will
be highlighted.
Press the CURSOR DOWN
[una once to select BLOCK
| button again to highlight ACCESS |
UNRATED,
Press the CURSOR RIGHT
or CURSOR LEFT button to
toggle BLOCK UNRATED ON or
OFF.
ID> Press the STATUS/EXIT but-
ton to remove the menu.
©
ALESS Cab
LEE
Atolock
BLOCK OPTIONS |
{i}
|
| FEATURES Y
AutoLock
« SETUP CODE BLOCKING
e CLEAR ALL BLOCK UNRATED
e MOVIE RATING NO RATING
* TV RATING
ho
Channe! 12
Blocked by Autolock
Unrated
Access Code
| NOTE: If the BLOCK OPTION, BLOCK UNRATED
control is turned ON, all unrated programs will display
the screon shown to the left, To watch the channel,
enter your access code or change the BLOCK UNRAT-
ED option back to OFF.
24
AUTOLOCK™ — BLOCKING BROADCASTS THAT HAVE NO RATING
me programming is not encod-
ed with content advisory data by
the MPAA (Motion Picture
Association of America) or the tele-
vision broadcasters (see the expla-
nation on page 18). To block such
programming, follow these steps.
Press the MENU button on the
remote to show the onscreen menu.
<2> Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
<4> Press the CURSOR RIGHT
button again to highlight ACCESS
CODE.
<5> Enter your four-digit ACCESS
CODE and the menu will move to
the left with BLOCK CHANNEL
highlighted.
<> Press the CURSOR DOWN
[orne repeatedly until BLOCK
TC
©
OPTIONS is highlighted.
<7> Press the CURSOR RIGHT
button to enter the BLOCK
OPTIONS menu. BLOCKING wiüll
be highlighted.
Press the CURSOR DOWN
button twice to highlight NO RAT-
ING.
<O> Press the CURSOR RIGHT
or CURSOR LEFT button to tog-
gle NO RATING ON or OFF.
Press the STATUS/EXIT but-
ton to remove the menu.
©
® PICTURE
АЧИТ:
e FORMAT ACTIVATE
FEATURES
« TIMER
ACCESS CODE
UNO
ACCESS CODE
TRUER HAH LE
NOTE: If the BLOCKING OPTION, NO RATING
control is turned ON, all programs containing NO con-
tent advisory data will display the screen shown to the
кли VW | Maolock
Autolock MOCK OPTIONS 4
e SETUP CODE BLOCKING e BLOCKING
* CAR ALL BLOCK UNRAJED * ROCK UNRATED
e MOVIE RATING NO RATING « HO RATING TT:
e TV RATING
BLOCK OPTIONS nn
a |
Channel 12
Blocked by AutoLock
No rating
Access Code
left. To watch the channel, enter your access code or
change the NO RATING option back to OFF.
25.
AUTOLOCKIM — REVIEWING YOUR SETTINGS
| T remind you which ratings you
have blocked and which Block
Options you have selected, a review
screen is available to review your
AutoLock™ settings. To access this
screen follow the steps below.
<> Press the STATUS/EXIT but- 1 BLOCK ungATED MU
ton on your remote control twice. NO RATING RUE
Your AutoLock™ settings will a,
appear on the screen,
NOTE: If you have blocked specif- em
ic subratings, such as ¥ for Violence BASE FO
in the TV-PG category, these
blocked subratings will not appear
in the review. The subratings how-
ever, are still blocked according to
your selections.
MOVIE RATING №
After a few seconds, the set-
tings will leave the screen auto-
matically, or you can press the
STATUS/EXIT button a third time
to remove them from the screen.
SMART HELP
Remember, the review
A screen will appear only if
BLOCKING is set to ON, For
details, see page 23.
MOVIE RATINGS — Shows all blocked movie ratings that were set within the MOVIE
RATING feature. Some or all may be blocked at one time. NOTE: If a lower rating is
blocked, higher ratings also will be blocked automatically (for example, if R is set to be
blocked, X also will automatically be blocked).
MOVIE RATING
TV RATINGS - Shows all blocked TV ratings that were set within the feature. Some or all
may be blocked at one time, NOTE: If a lower rating is blocked, higher ratings also will be
blocked automatically (for example, if 77-14 is set to be blocked, 77-MA also will automati-
cally be blocked). TV ratings also have subratings for Violence (V), Fantasy Violence (FV),
Sexual Situations (8), Coarse Language (L), and Suggestive Language (D), If the main rating
is tumed OFF but the subrating is tamed ON, the program will be blocked; however, the rat-
ing will not appear within the AutoLock review menu.
BLOCK UNRATED - Shows ON or OFF, depending on the status of the BLOCK UNRAT-
ED feature,
BLOCK UNRATED ON
NO RATING MUS:
BLOCK NO RATING - Shows ON or OFF, depending on the status of the BLOCK NO
RATING feature, |
26
AUTOLOCKTM
Vos onscreen messages will
appear when someone tries to
view blocked programming, The
message is determined by how the
current programming is blocked.
You may view the blocked program-
ming and turn OFF the AutoLock™
feature by clearing all blocking
options or by entering your access
code.
Press the MENU button on the
| remote to show the onscreen menu.
Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left. Then press the CURSOR
DOWN button once to highlight
the AutoLock control.
Press the CURSOR RIGHT
Y button again to highlight ACCESS
CODE.
<5> Enter your four-digit
ACCESS CODE and the menu
will move to the left with BLOCK
CHANNEL highlighted.
Press the CURSOR DOWN
button twice to highlight CLEAR
ALL.
Press the CURSOR RIGHT
button twice. The CLEAR ALL
option will display the word
CLEARED. All blocked channels
and programming are now viewable.
Press the STATUS/EXIT but-
ton to remove the menu.
If you tune to a specific channel
that has been blocked by BLOCK
CHANNEL or any of the
AutoLock™ RATING options, sim-
ply enter your four-digit access
code to view the channel. -
NOTE: this will unblock ALL
channels until the TV is shut OFF.
When powered back ON, all previ-
ously blocked channels will be
blocked again.
— VIEWING BLOCKED PROGRAMMING
И
TIMER
AutoLock
e PICTURE
e SOUND
ESTOS PIP
CLOSED CAP
FORMAT
e INSTALL
e» TMER
® РР
e CLOSED CAP
+ FORMAT
STOP TIME
CHANNEL
ACTIVATE
FEATURES
e TIMER
e PP
e CLOSED CAP
e FORMAT
ACCESS CODE
r
FEATURES
e TIMER
SAuolock
° РР
e CLOSED CAP
e FORMAT
ACCESS CODE
FEATURES
e TIMER
érAutoLock
. PIP
e CLOSED CAP
+ FORMAT
e SETUP CODE
e CLEAR ALL
e MOVIE RATING
e TV RATING
°
ACCESS CODE
PO.
AB
AU
1
2
у
FEATURES \
AutoLock
e BLOCK CHANNEL
e SETUP CODE
e MOVIE RATING
e TV RATING
A
eve J
FEATURES
Autolock
+ BLOCK CHANNEL
e SETUP CODE
PET CEN
e MOVIE RATING
e TV RATING
e
MECO
27
1
SOUND — ADJUSTING THE
[Resides the normal volume level
vidual sound-adjustment controls.
The TREBLE (high frequency),
BASS (low frequency), and Speaker
BALANCE may all be used to
adjust the sound playback of TV
programs.
<L> Press the MENU button on the
remote control to show the
onscreen menu.
<2> Press the CURSOR DOWN
| button once to highlight SOUND.
<8> Press the CURSOR RIGHT
| button and the menu will shift to
ed and an adjustment bar will be
shown to the right.
<&> Use the CURSOR RIGHT or
CURSOR LEFT button to adjust
the TREBLE (high frequency) level
of the television’s sound.
<8> After adjusting the TREBLE
control, press the CURSOR
DOWN button to select another
sound adjustment: BASS or BAL-
E ANCE.
<6> Press the CURSOR RIGHT
or CURSOR LEFT button to
adjust the selected control.
<Z> Press the STATUS/EXIT but-
ton to remove the menu from the
screen,
О
TREBLE,
BASS, AND BALANCE
control, your TV also has indi- |
the left. TREBLE will be highlight- |
В SMART HELP
o Remember, when the bar
Iscale is centered, speaker
BALANCE is centered between the
TV’s left and right side speakers.
* PICTURE
CINTA
* FEATURES
e INSTALL
TREBLE
BASS
BALANCE
М.
INCR. SURROUND
a [REFLE
e BASS
e BALANCE
® AVL
e INCR. SURROUND v
28
will be seen each time the VOLUME
buttons (on the TV or remote con-
trol) are pressed.
 Press the VOLUME (+) or (-)
button on the remote control to
show the VOLUME bar display on
the screen.
US the Volume Bar control to see
the TV's volume level settings
on the TV screen. The Volume Bar
 Press the VOLUME (+) or (-)
button to adjust the television's
sound level.
©
SOUND — ADJUSTING THE VOLUME
a N MART HELP
©) Try it out. Press the VOL
E (+) and (-) buttons. The
VOLUME bar will appear near the
bottom center of the screen.
VOLUME =———— 15
29
SOUND — USING THE AVL (
n most cases, the volume levels
AUDIO VOLUME LEVELER)
coming from broadcast program-
ming or commercials are never the
same. With the AVL (Audio Volume
Leveler) control turned ON, you can|
have the TV level out sound that is
being heard. This makes for a more
consistent sound by reducing the
eaks and valleys that occur during
rogram changes or commercial
breaks. To turn the AVL ON, follow PICTURE
these steps.
o INSTALL
D Press the MENU button on the
remote control to show the
onscreen menu.
 Press the CURSOR DOWN
| button once to highlight SOUND.
Press the CURSOR RIGHT
button and the menu will shift to
the left. TREBLE will be highlight-
ed and an adjustment bar will be
shown to the right.
Press the CURSOR DOWN
button repeatedly until AVL is
highlighted. Then press the CUR-
SOR RIGHT or CURSOR LEFT
button to toggle AVL ON or OFF.
 Press the STATUS/EXIT but-
ton to remove the menu from the
screen.
©
©
O
TREBLE
BASS ;
AVL Lo
INCR. SURROUND E BASS
e BALANCE
e AVL
8 INCR. SURROUND _
30
Tr Incredible Surround feature
adds greater depth and dimen-
sion to both monaural (MONO)
and stereo TV sound. With the
control set to INCR. SURROUND
(Incredible Surround), the TV s
speakers can add even wider
sound separation to normal broad-
casts.
<D Press the INCR. SURR. but-
ton on the remote control to turn
the Incredible Surround feature
ON.
When the TV signal is being
received in Stereo, pressing this
button will give you these options:
STEREO or INCR. SURROUND.
When the TV signal is in MONO,
the choices displayed will read
SPATIAL or MONO.
©
SOUND — USING INCREDIBLE SURROUND
Qu
f
>> SPATIAL
MONO OPTIONS ARE:
«< {NCR. SURR. SPATIAL
OR
* INCR, SURR. MONO
Onscreen menu options for Incredible
Surround in MONO mode
NOTE: If the TV signal is being
received from a mono source, press-
ing the INCR. SURR. button will
cause either MONO or SPATIAL to
appear on the the screen,
SPATIAL ~ widens the sound, simu-
lating a broader, fuller sound.
INCR. SURROUND — -«£
STEREO OPTIONS ARE:
« INCR. SURR. TE
NN STEREO
) Onscreen menu options for Incredible
Surround in STEREO mode
NOTE: If the TV signal is being
received from a stereo source, press-
ing the INCR, SURR. button will
toggle three choices: STEREO,
INCR. SURROUND.
INCR. SURROUND - widens the
sound, simulating a broader, fuller
sound.
31
AND SAP
Ki) SOUND — SETTING THE TV FOR STEREO
Yo can receive broadcast
stereo TV programs. The TV
has both an amplifier and twin
speakers through which the stereo |
sound can be heard,
° В
PICTURE TREBLE
<> Press the MENU button on
the remote control to show the
onscreen menu,
SOUND A
i ZEN
e BALANCE
e M
e INCR SURROUND
8
INSTALL AVL
<@> Press the CURSOR DOWN
| button once to highlight the
SOUND menu.
 Press the CURSOR RIGHT
button and the menu will shift to
the left.
<A> Press the CURSOR DOWN
button repeatedly until the
STEREO contro! is highlighted.
 Press the CURSOR LEFT or
CURSOR RIGHT button to
select STEREO or MONO. When
STEREO has been selected, the
television will reproduce any
stereo broadcast signal it receives.
<6> Press the STATUS/EXIT but-
ton to remove the menu from the
screen.
SMART HELP
©
Remember, if stereo is not present
Ш on a selected show and the TV is
placed in the STEREO mode, the sound
coming from the set will remain monaural.
SECOND AUDIO PROGRAM (SAP)
An SAP is an additional part of <> «тн
the stereo broadcast system. Sent r — >
as a third audio channel, an SAP |
can be heard apart from the cur- SOUND 4 SOUND 4
rent TV program sound. TV sta- $ AL "an
tions are free to use SAP for any * INCR. SURROUND
number of purposes, : ERA
If an SAP signal is not present Г y
with a selected program, the SAP
option cannot be selected. Also, if "um _
SAP is selected on a channel (with IF SECONDARY AUDIO PROGRAMING IF SECONDARY AUDIO PROGRAMING
SAP) and you select another chan- IS BEING BROADCAST: IS NOT BEING BROADCAST:
nel, when you return to the origi- | | y N
nal channel, SAP will be OFF. OR | OR
You will have to reselect the SAP CETTE HET OT |
feature.
32
SOUND — SETTING THE AUDIO OUT CONTROL
you have connected the TV's
AUDIO OUTPUT jacks to the
AUDIO INPUT jacks on a stereo
receiver, set AUDIO OUT to either
VARIABLE or FIXED to determine
whether you adjust the volume at
the stereo or at the TV. If you
select VARIABLE, change the vol-
ume at the TV using the TV'S
remote control. If you select
FIXED, adjust the volume at the
stereo using the stereo’s controls.
To select FIXED or VARIABLE,
follow these steps.
 Press the MENU button on
the remote control to show the
onscreen menu.
> Press the CURSOR DOWN
| button once to highlight SOUND.
<> Press the CURSOR RIGHT
button and the menu will shift to
the left.
<4> Press the CURSOR DOWN
button repeatedly until AUDIO
OUT is highlighted.
 Press the CURSOR LEFT or
CURSOR RIGHT button to set
the AUDIO OUT to VARIABLE or
FIXED.
<g> Press the STATUS/EXIT but-
ton to remove the menu from the
screen.
©
* PICTURE TREBLE
BAS
e FEATURES BALANCE
e INSTALL №.
INCR. SURROUND
SOUND .
LRA
» АМ.
e INCR. SURROUND
8 v
SOUND 4
8 INCR. SURROUND
e HEADPHONE
e STEREO
e SAP
« AUDIO OUT CAE)
8 у
OR
SOUND 4
8 INCR. SURROUND
e HEADPHONE
e STEREO
e SAP
« AUDIO QUI
NT
C01 Sound — USING THE TV SPEAKER CONTROL AND AUDIO OUTPUT JACKS
We you like to hear TV pro-
grams through your audio hi-
fi system? The TV's Audio Output
jacks and TV Speaker ON/OFF
control work together to offer you
this TV sound option.
 Connect the Right) and
To AUDIO OUT jacks on the
TV to the R and L audio input
jacks on your amplifier or sound
system. Set the audio system's
+ me to a normal listening level.
<> Turn the TV and audio sys-
tem ON. You can now adjust the
sound level coming from the audio
system with the VOLUME (+) or
(-) buttons on the TV or remote
control.
To hear the TV sound from only
Ss audio system speakers:
 Press the MENU button on
E remote control to show the
| mors menu.
Press the CURSOR DOWN
button once to highlight SOUND,
Press the CURSOR RIGHT
button and the menu will shift to
о left.
<6> Press the CURSOR DOWN
button repeatedly until the
> mth control is highlighted.
<D> Press the CURSOR RIGHT
or CURSOR LEFT button to
turn the television’s speakers ON
or OFF. With the SPEAKERS con-
trol set to OFF, you should hear
the TV sound coming only from
the audio system speakers.
(mr mme) re
Tu
SMART HELP
Remember, the audio
E system may have to be in
AUX(iliary) mode to play sound
from the TV.
e FEATURES
LIE
e BASS
e BALANCE
e M
e INCR SURROUND v
SOUND 4
e HEADPHONE
e STEREO
PESTE PETT
REAR OFTHE |
TELEVISION — *
AUDIO OUT
(RED/WHITE)
RCA PHONO
PLUG CABLES
AUDIO SYSTEM
x
y adding optional external
speakers to the TV's sound sys-
tem, you can create the feeling of
reflected sound that surrounds you
at a movie theater or concert hall.
BEGE
 Connect both external speak-
ers to the speaker wire terminals
on the TV.
Recommended speakers: 8 ohm,
15 watt minimum. Be sure the (+)
and (-) speaker wires are connect-
ed to the correct R(ight) and L(eft)
speaker terminals on the TV.
<> Place the speakers so that the
viewing area is between the TV
and the rear surround speakers.
(See overhead view drawing.)
 Turn the TV and the
STEREO control ON.
After setup, whenever a stereo sig-
nal is received, the audio will be
heard in Surround Sound.
OUND — USING THE SURROUND SOUND EXTERNAL SPEAKER CONNECTIONS [J
ANT 75Q
©
RES AENA sion,
© Remember, Surround
É Sound will not work with
only one speaker connected, nor
with a monaural audio source sup-
plied, unless the Incredible
Surround feature is turned ON
(see page 31).
BACK OF TV
REAR SURROUND SOUND
TERMINALS
Ат in
© ©€
o
@ © = 5-VIDEO
© © Е
VIDEO (O
R
REAR SURROUND SOUND SPEAKERS
NOTE: The rear Surround Sound speakers
will not be heard at the same volume level as TV
the front TV speakers. The rear speakers are
intended to give a background noise effect that
requires a lower volume level than the TV's
front speakers.
REAR SPEAKER REAR SPEAKER
[| PRIMARY VIEWING AREA
35
KH)
AUDIO/VIDEO INPUTS
Tr TV's audio/video input
Jacks are for direct picture
and sound connections between
the TV and a VCR (or similar
device) that has audio/video out-
put jacks.
D Connect the VIDEO (yellow)
cable to the VIDEO AVI jack on
the back of the TV. Then con-
nect the AUDIO (red and
white) cables to the AUDIO (left
and right) AV1 jacks on the rear
of the TV.
 Connect the VIDEO (yellow)
cable to the VIDEO OUT jack
on the back of the VCR. Then
connect the AUDIO (red and
white) cables to the AUDIO (left
and right) OUT jacks on the rear
of the VCR.
B Turn the VCR and the TV
A ON.
<> Press the SOURCE button
on the remote control until the
AVI source is selected. After
AV1 appears, insert a prerecord-
ed tape into the VCR and press
the PLAY button to view the tape
on the television. If AV1 did not
appear, perform steps 5-9,
NOTE: the actions described in
steps 5-9 are not illustrated on
this page.
 If AVI dia not appear
onscreen as one of the choices
available to you by pressing the
SOURCE button, press the
M Link button on the remote
control to display the M-Link™
onscreen ment.
<6> Press the CURSOR RIGHT
or CURSOR LEFT button to
| highlight CVI.
 Press the CURSOR UP but-
N ton to toggle from CVI to AVI.
Press the STATUS/EXIT
button to remove the M-Link™
menu from the screen.
Press the SOURCE button to
tune the AV1 source. You are
now ready to view the VCR tape
on the TV.
©
©
©—
SOUND — USING THE AUDIO/VIDEO INPUT JACKS
[ NOTE: Repeatedly pressing the SOURCE button on
the remote control will toggle the picture source from
the current channel, the fast viewed channel, then AV1
(or CVI) connection, then the AV2 connection, and then aaa ———— т
VCR
(EQUIPPED WITH VIDEO AND
AUDIO OUTPUT JACKS)
If you are using a
— nonstereo device, use
only the Audio R jack,
SIDE VIDEO
JACK PANEL INPUTS
“handy for playing back camcorder (composite video
NOTE: For more convenient direct playback con-
nections, you can use your TV's side video input
panel, located on the right and angled toward the
front for casy access. The audio/video jacks in this
panel allow for quick connections that are especially
or S-VHS) tape recordings. Press the remote control's
SOURCE button to select the AV3 mode. Then use
the side jack panel inputs for playback on the TV.
36
SOUND — USING THE AUDIO/VIDEO
| , NOTE: Repeatedly pressing the
Te S(uper)-Video connection SOURCE button on the remote will
on the rear of the TV can pro- toggle the picture source from the
vide you with better picture detail current channel, the last viewed BACK OF TV
d clari for the pl back o of channel, then the AVI (or CVI) con-
ana cia [y pay nection, the AV2 connection, and the
accessory sources such as DBS AV3 connection. . 5
(digital broadcast satellite), DD | _ \ AEE |
(digital video discs), video games, 24 si E 4 | od
and S-VHS VCR (video cassette AE -
recorder) tapes than the normal
| antenna picture connections.
NOTE: The accessory device A
must have an S-VIDEO OUT(put) 3 9 6 ©
jack in order for you to complete 5 A NA GN
the connection on this page. 7 =
|
 Connect the S-VIDEO
CABLE to the S-VIDEO input
jack on the rear of the television.
Then connect the AUDIO (red
and white) cables to the AUDIO
AV2 jacks on the rear of the TV.
<2> Connect the S-VIDEO
CABLE to the S-VIDEO output
jack on the accessory device.
Then connect the red and white
AUDIO cables to the AUDIO
(left and right) output jacks on the
rear of the accessory device.
S-VIDEO CABLE
(NOT SUPPLIED)
——
Turn the accessory device
| ON.
<> Press the SOURCE button on DBS, DVD, Video Game, etc.
(EQUIPPED WITH S-VIDEO AND
AUDIO OUTPUT JACKS)
the remote control to tune the
AV2 channel. You are now ready
to view the tape or disc on the
L ©
NULA SUN
NOTE: If you are using a
nonstereo device, use only
the Audio R jack.
/ The S-VIDEO and
§ VIDEO AV2 in(puts) are in
parallel. The S-VIDEO input is
dominant when in use. If separate
video signals are connected to the
S-VIDEO and VIDEO AV2
in(puts), the signal from the
VIDEO AV2 in(put) will not be
usable.
If you have added AV2 in(puts) to
the TV's channel memory, just
press the CHANNEL (+) or (-)
button until the AV2 in(puts)
(channel) mode is selected.
37
SOUND — USING THE AUDIO/VIDEO INPUT JACKS (CONT’D)
COMPONENT VIDEO INPUTS
mponent Video inputs pro-
Cobos the highest possible
color and picture resolution in the
playback of digital signal source
material, such as with DVD p
ers. The color difference signals
(Pb, Pr) and the luminance (Y)
signal are connected and received
separately, which allows for
improved color bandwidth infor-
mation (not possible when using
composite video or S-Video con-
nections),
D Connect the Component (Y,
Pb, Pr) Video OUT jacks from
the DVD player (or similar
device) to the (Y, Pb, Pr) in(put)
jacks on the TV,
 Connect the red and white
AUDIO CABLES to the Audio
(left and right) output jacks on the
rear of the accessory device to the
Audio & and R) AVI in(put) jacks
on the TV.
<8> Turn the TV and the DVD
| Jor digital accessory device)
<> Press the SOURCE button on
the remote control until the CV1
source is selected, After CVI
appears, insert a disc into the
D (or other digital accessory
device) and press the PLAY but-
ton to view the disc on the televi-
sion, If CV1 did not appear, per-
form steps 5-9,
NOTE: The actions described in
steps 5-9 are not illustrated on this
page.
If CVI did not appear
onscreen as one of the choices
available to you by pressing the
SOURCE button, press the M
Link button on the remote con-
trol to display the M-Link™
onscreen menu,
Press the CURSOR RIGHT
or CURSOR LEFT button to
highlight AVI.
Press the CURSOR UP but-
ton to toggle from AV1 to CVI.
Press the STATUS/EXIT but-
ton to remove the M-Link™ menu
from the screen.
Press the SOURCE button to
tune to the CVI source. You are
now ready to view the disc on the
©
©
| NOTE: Repeatedly pressing the SOURCE
button on the remote will toggle the picture
source from the current channel, the last viewed
channel, then the CVI (or AV1) connection, the
AV2 connection, and the AV3 connection. Use
CVI for Component Video Connections.
fr
24
BACK OF TV.
COMP VIDEO
(BLUE)
OA 5 AUDIO IN
NAS (RED/VHITE)
BACK OF DIGITAL
ACCESSORY
DBS, DVD, Video Game, ete.
(EQUIPPED WITH COMPONENT VIDEO
OUTPUTS AND AUDIO QUTPUT JACKS)
NOTE: Optional video/audio cables (with
standard RCA plug connectors) are available
to complete your component vídeo input jack
connections, Contact your dealer or our Parts
Information Center (1-800-851-8885) to order
any optional accessories,
The description for the
component video connectors
may differ depending on the DVD
player or accessory digital source
equipment used (for example, Y,
Pb, Pr; Y, B-Y, R-Y; Y, Cr, Cb).
Although abbreviations and terms
may vary, the letters b and r stand |
for the blue and red color compo-
nent signal connectors, and Y indi-
cates the luminance signal. Refer
‘to your DVD or digital accessory
owner's manual for definitions and
connection details.
AUTOPICTURETM
REMOTE CONTROL — USING
ether you're watching a
movie or a video game, your
TV has automatic video control set-
tings that will match with your cur-
rent program source or content.
AutoPicture™ quickly resets your
TV's video controls for a number of >
different types of programs and —
viewing conditions that you may
have in your home. The Movies,
Sports, Weak Signal, and
Multmedia AutoPictureTM controls
have been preset at the factory to
automatically adjust the TV's
brightness, color, picture, sharp-
ness, tint, and color temperature |
levels. The Personal AutoPicture™ A
settings are the ones that you made | |
through the PICTURE options with-| |
in the onscreen menu. ; eE E
Press the PICTURE button
on the remote control, The current
AutoPicture™ setting will appear in
the middle of the screen.
 Press the PICTURE button
repeatedly to select either PER-
SONAL, MOVIES, SPORTS,
WEAK SIGNAL, or MULTI
MEDIA picture settings.
PERSONAL
BRIGHTNESS {mmm} 48
COLOR ne —— 41
PICTURE LB 81
SHARPNESS | mmm] 46
MOVIES
NOTE: The PERSONAL setting
and the PICTURE options within
the onscreen menu are the same.
This is the only option in
AutoPicture™ that can be changed.
To adjust these settings, use the
PICTURE options within the
onscreen menu. All other settings
are set up at the factory during pro-
duction and cannot be adjusted.
@
MULTI MEDIA
BRIGHTNESS [snl 40
COLOR men) 31
39
REMOTE CONTROL — USING AUTOSOUNDTM
utoSound™ allows you to
select from three factory-set
controls and a personal control that| a:
you set according to your ownpref-{ me TT Ц
erences through the onscreen Sound ” -
menu. The three factory-set controls
(Voice, Music, and Theatre) enable
you to tailor the TV sound so as to
enhance the particular program
you are watching. Follow these
steps to select any of the options.
<> Press the SOUND button on
the remote control. The current
AutoSound™ setting will appear in
the middle of the screen.
<> Press the SOUND button
repeatedly to toggle among the
four settings: PERSONAL,
VOICE, MUSIC, or THEATRE.
Remember, only the PERSONAL
control can be changed by the
viewer. This changes the settings
in the main onscreen menu’s
SOUND controls.
©
МАО ETA pP
©) Remember, AutoSound™
e works only with the pro-
grams coming through the
ANTENNA/CABLE (ANT A or B)
input on the rear of the TV (RF
audio). It will not control the
sound levels for the external con-
nections.
AutoSound! Options
PERSONAL - presents the TV's sound
according to the settings you make within the
sound menu.
VOICE - brings voices to the forefront and
emphasizes them. Moves music to the back-
ground,
MUSIC -- emphasizes music over voices.
THEATRE - provides a balance between
voices and music.
40
1 list or series of previously
viewed channels can be select-
ed with the SURF button on your
remote control. With this feature,
you can easily switch between dif-
erent TV channels that currently
interest you. The SURF control
allows you to set up to ten channels
in its quick viewing list.
BEGIN
to select a channel to add to the
SURF list.
 Press the SURF button on the
/ remote control. The onscreen dis-
| button (or the numbered buttons)
play may read, “SURF LIST
EMPTY.” The number of the cur-
rent channel will be shown with
“ADD?” to the right.
B While the SURF list message or
‘the SURF channel list appears on |
the screen, press the CURSOR
RIGHT button to add the present
channel to the SURF list.
<> If you want to delete the present
channel from the SURF list, press
the CURSOR RIGHT button
again,
Repeat steps 1 through 3 to add
more channels (up to 10) to the
SURF list.
©
REMOTE CONTROL — USING CHAN
NEL SURF
<D Press the CHANNEL(+) or >) |
Your remote also has an A/CH
(Alternate Channel) button.
Pressing this button will toggle
between the current and one previ-
ous channel.
SURF
» 12
SURF LIST EMPTY
ADO?
DELETE?
ADD?
x
SURF
12
24
e 32 DELETE?
NOTE: Along with regularly pro-
grammed channels, the external video
source connections can be added to the
SURF list. This means that the AVI,
AV2, and AV3 channels can be added to
your SURF list. Just tune to their chan-
nel and use the same procedure
described on this page.
41
PIP — BASIC CONNECTIONS
[Pure in-Picture (PIP) is the
showing of two pictures on the
TV screen at the same time (one
main screen and and one, small, pic-
ture, or PIP).
Please note that a VCR or other
accessory device is required to sup-
Ply the PIP signal,
The following steps describe the
basic hookups that are necessary to
use PIP.
D First, use an optional signal
splitter and connect the original
cable or antenna TV signal to both
the CABLE/ANT IN on the VCR
ÿ and the ANT 75Q (ohm) input jack
on the back of the television.
Connect the VIDEO OUT jack
on the VCR to the VIDEO (yellow)
AV1 in(put) jack on the TV.
 Connect the AUDIO OUT
(right and left) jacks from the
VCR to the AUDIO (red and white)
AV1 in(put) (right and left) jacks on
the television.
NOTE: In order to get a picture in
the PIP window, you must select a
source by pressing the PIP
SOURCE button on your remote
control and toggling among the
sources (see page 43, “Selecting the
Signal Source™). To view the signal
supplied by your VCR (or another
accessory device, such as a DVD),
be sure that you select the external
AV source to which you have con-
nected the device
| O
SMART HELP
For other possible PIP
E connections see the “More
Connections” section on pages 46-
47,
If you need any accessories or parts
to complete the described PIP con-
nections, contact your dealer, or call
our Parts Information Center at;
MAIN SCREEN PICTURE
PIP PICTURE
a. BACK OF TV
CABLE TY SIGNAL
or
ANTENNA TV SIGNAL
VIDEO CABLE
(YELLOW)
AUDIO CABLES
ROUND CABLE (RED & WHITE)
OPTIONAL
TWO-WAY
SIGNAL SPLITTER
with RF coaxial
connecting cables
ROUND CABLE
(75 OHM)
NOTE: Other signal sources (such as a
satellite dish system, an additional exter-
nal antenna, an additional VCR, or a
video game) also can be connected and
displayed on the TV's PIP screen window.
1-800-851-8885
42
LY
PIP — SELECTING THE SIGNAL SOURCE
Tr picture for the PIP window
Tras come through either the
ANT/CABLE or any of the exter-
nal audio/video connections on MAIN SCREEN PICTURE — PIP PICTURE
the back of the TV. PIP SOURCE
simply tells the TV which one of
these sources it is to show in the
PIP window.
BEGIN)
<> Turn the TV and VCR (or
other device hooked to the exter- |
Ц AN connections) ON. NOTE: The PIP source picture can come from the
ANT/CABLE input, the AUDIO/VIDEO AV1, the
<@> Press the PIP button on the AUDIO/VIDEO AV2, the AUDIO/VIDEO AV3, or
remote control. The PIP window the S-VIDEO input jacks located at the rear and side
of the TV.
should appear in the upper right- |
Sn portion of the screen.
<8> Press the SOURCE button on
the remote control to toggle
among the different external con-
nections.
The PIP SOURCE may come
from the following:
AV1, AV2, AV3, S-VIDEO ~ for
picture signal coming from the
external audio/video jacks on the
TV. (You must have an external
device hooked up at one of these
locations in order for PIP to work.)
ANTENNA/CABLE - for a pic-
ture signal coming from the
ANT/CABLE input on the back
of the TV.
©
(OR SIMILAR DEVICE)
43
PIP — REMOTE CONTROL BUTTONS
| В” using the PIP buttons on
the remote control, you can D
change the size of the PIP win-
dow and move and swap the PIP
picture with the main screen.
The PIP picture also can be
Jrozen within the PIP window.
8
D Press the PIP ON/OFF but- | &.
ton to show the PIP window. —] o
PIP appears in one of the four 1. PIP ON/OFF
corners of the screen. Press the
PIP ON/OFF button again to
reduce the window size. Press
the PIP ON/OFF button a third
time to remove the PIP window
from the main screen.
<> Press the POSITION button
on the remote control to move
the PIP picture to any of the four
corners.
B Press the FREEZE button on
the remote control to stop the
action within the PIP window.
Press the FREEZE button
again to resume the normal view-
ing action.
<4> Press the SWAP button to >. FIPFREEZE
swap the main screen picture
with the PIP picture. Pressing
the SWAP button again will
return the main picture to the
screen.
4, PIP SWAP
D OO
DIOIOÏ
e Picture-in-Picture (PIP)
COLOR and TINT controls are
used to make fine-tune adjustments
to the picture settings for PIP
(when shown on the TV screen).
Press the MENU button on the
| remote control to show the
onscreen menu.
<2> Press the CURSOR DOWN
button twice to highlight FEA-
TURES.
Press the CURSOR RIGHT
button and the menu will shift to
the left.
Press the CURSOR DOWN
| button twice to highlight PIP.
Press the CURSOR RIGHT
button again to shift the display to
the COLOR adjustment bar.
Press the CURSOR RIGHT or
the CURSOR LEFT button to
adjust the COLOR bar to the
desired level.
Press the CURSOR DOWN
button to highlight the TINT
adjustment bar.
Press the CURSOR RIGHT or
the CURSOR LEFT button to
adjust the TINT bar to the desired
level.
<O> Press the STATUS/EXIT but-
ton to remove the menu from the
screen. ©
PIP — ADJUSTING THE COLOR AND Г)
NO
e PICTURE TIMER
e SOUND
Qui FEATURES
FEATURES
TIME
e AutoLock START TIME
» РР STOP TIME
e CLOSED CAP CHANNEL
* FORMAT ACTIVATE
FEATURES
e TIMER COLOR
e Autolock TINT
e CLOSED CAP
e FORMAT
FEATURES
The PIP Window appears when
adjustments are being made.
45
PIP — MORE CONNECTIONS
Cable Box and VCR Connections
is page shows how to hook
PIP up with a cable box and a
VCR.
REAR OF TV
 First, use an optional signal
splitter and connect the original =
cable TV signal to both the CABLE
IN on the cable converter and the
ANTENNA plug on the rear of the
Bo com
<2> Connect the CABLE OUT on O
[on Converter to the ANTENNA IN
|: the VCR.
 Connect the VIDEO OUT
jack on the VCR to the VIDEO IN
jack on the TV.
Also connect the AUDIO OUT
(right and left) jacks from the
VCR to the AUDIO IN jacks on the
television.
SURROUND SOUND
VIDEO CABLE
(YELLOW) AUDIO CABLES
(RED AND WHITE)
©
Contact the Parts
Information Center
at 1-800-851-8885
to order any optional
accessories.
CABLE TV CONVERTER
46
PIP — MORE CONNECTIONS (CONT’D)
Te steps for hooking up a VCR
(video cassette recorder), DVD
lar device to work with PIP are
shown here.
 First, connect the original
cable TV signal or antenna signal
to the ANTENNA IN jack on the
back of the VCR.
 Connect the ANTENNA OUT
>: on the rear of the VCR to the
Anne) jack on the back of the
 Connect the yellow video
Pa from the VIDEO OUT jack
on the VCR to the AV1 in(put)
VIDEO jack on the TV. Then con-
nect the red and white audio
cables from the AUDIO OUT jacks
(L and R) on the VCR to the AV1
in(put) AUDIO jacks on the rear of
the TV.
<> Connect the yellow video
cable from the VIDEO OUT jack
on the DVD or similar device to the
AV2 in(put) VIDEO jack on the
TV. Then connect the red and
white audio cables from the
AUDIO OUT jacks (L and R) on
the DVD or similar device to the
AV2 in(put) AUDIO jacks (L and
R) on the back of the TV.
NOTE: Remember that when you
are selecting the PIP SOURCE, the
VCR will appear on the AV1 chan-
nel and the DVD or similar device
will appear on the AV2 channel.
(digital video disc player), or simi- |
BACK OF TV
il ===
=
к?
y
SURROUND SOUND
Alin AVZin
VIDEO
CABLE
(YELLOW)
AUDIO CABLES
(RED AND WHITE)
VIDEO
. CABLE
AUDIO CABLES (YELLOW)
(RED AND WHITE)
DVD (OR SIMILAR DEVICE)
OUTSIDE UHF/VHF
ANTENNA OR
CABLE TV SIGNAL
47
TROUBLESHOOTING
ease make these simple checks
before calling for service.
Because charges for TV installa-
tion and adjustment of customer
controls are not covered under
your warranty, these tips can save
you time and money.
No Power
No Picture
No Sound
Remote Does Not
Work
TV Displays Wrong
Channel or No
Channels Above 13
Cleaning and Care
CAUTION: A video source (such as a video game, compact disc interactive [CDI], or
TV information channel) that shows a constant nonmoving pattern on the TV screen can
cause picture tube damage. When your TV is continuously used with such a source, the
pattern of the nonmoving portion of the game (or other source) can leave a permanent
image on the picture tube. When you're not using the video source, tum it OFF. Also,
regularly alternate the use of such video sources With normal TV viewing.
* Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert the plug into
the outlet and push the POWER button again. |
+ Check that the outlet is not on a wall switch.
* Be sure the fuse is not blown on the AC power strip, if one is being used.
-—- " "- - -—_—_—_——_—_—_—— ——””———#——m—"x———————————_
Check antenna connections. Are they properly secured to the TV's ANT 752 plug?
Check the TUNER MODE control for the correct tuner setting.
* Try running the Auto Program feature to find all available channels.
* Press the AV button on the remote to make sure the correct signal source is selected
(AV 1 [or CVI], AV 2, AV 3, or S-VIDEO).
* (If applicable) Check the audio receiver for the correct operating mode.
* Check the VOLUME buttons.
+ Check the MUTE button on the remote control. |
+ Check the SPEAKER onscreen control. If it is in the OFF position, sound at the set will
be eliminated.
* If you're attempting to hook up auxiliary equipment, check the audio jack connections.
* Check the batteries. If necessary, replace them with AA Heavy Duty (Zinc Chloride) or
Alkaline batteries.
* Clean the remote control and the remote control sensor window on the TV.
* Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert the plug into
the outlet and push the POWER button again.
* Be sure the fuse is not blown on the AC power strip, if one is being used.
» Check to be sure the TV outlet is not on a wall switch.
* Repeat channel selection. |
* Add the desired channel numbers (using the CHANNEL EDIT control) into the TV's
memory.
* Check to be sure the TUNER MODES are set to the CABLE option and run the Auto
Program feature to find all available channels.
* To avoid possible shock hazard, be sure the TV is unplugged from the electrical outlet
before cleaning.
* When you are cleaning the TV, take care not to scratch or damage the screen surface
(avoid wearing jewelry or using anything abrasive). Wipe the front screen with a clean
cloth dampened with water. Use even, easy, vertical strokes when cleaning. |
* Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of
cool, clear water. Use a clean, dry cloth to dry the wiped surfaces.
« Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they §
might cause permanent marring of the cabinet finish.
48
GLOSSARY OF TELEVISION TERMS
Alternate Channel * The feature that allows you to toggle
between the last two channels viewed by pressing the A/CH but-
ton on the remote control. |
Auto Programming * The feature that, when activated, scans
for all available channels from regular antenna or cable signals
and stores only active broadcast stations in the TV’s memory.
Channel Edit » The feature that allows you to add or delete
channels from the list of channels stored in the TV’s memory.
Channel Edit makes it easy to limit or expand the number of
channels that are available to you when you press the Channel
(+) or (=) buttons on your remote control.
Closed Captioning * The broadcast standard feature that allows
you to read the voice content of television programs on the TV
screen. Designed to help the hearing impaired, Closed
Captioning uses onscreen “text boxes” to show dialogue and
conversations while a TV program is in progress.
Coaxial Cable * A single, solid antenna wire normally matched
with a metal plug (F type) end connector that screws (or pushes)
directly onto a 75-ohm input found on the television or VCR.
Direct Audio/Video Inputs * Connectors, located on the rear of
the TV, used for the input of audio and video signals. These
inputs are designed for use with VCRs (or other accessories) in
order to receive higher picture resolution and offer sound-con-
nection options.
Identify * The method by which a TV remote control searches
and finds an operating code for another product (such as a VCR
or a cable converter). After the code has been “identified,” the
TV remote control can operate and send commands to

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

Philips 26LL5001/21 CRT Television User Manual

Related manuals
