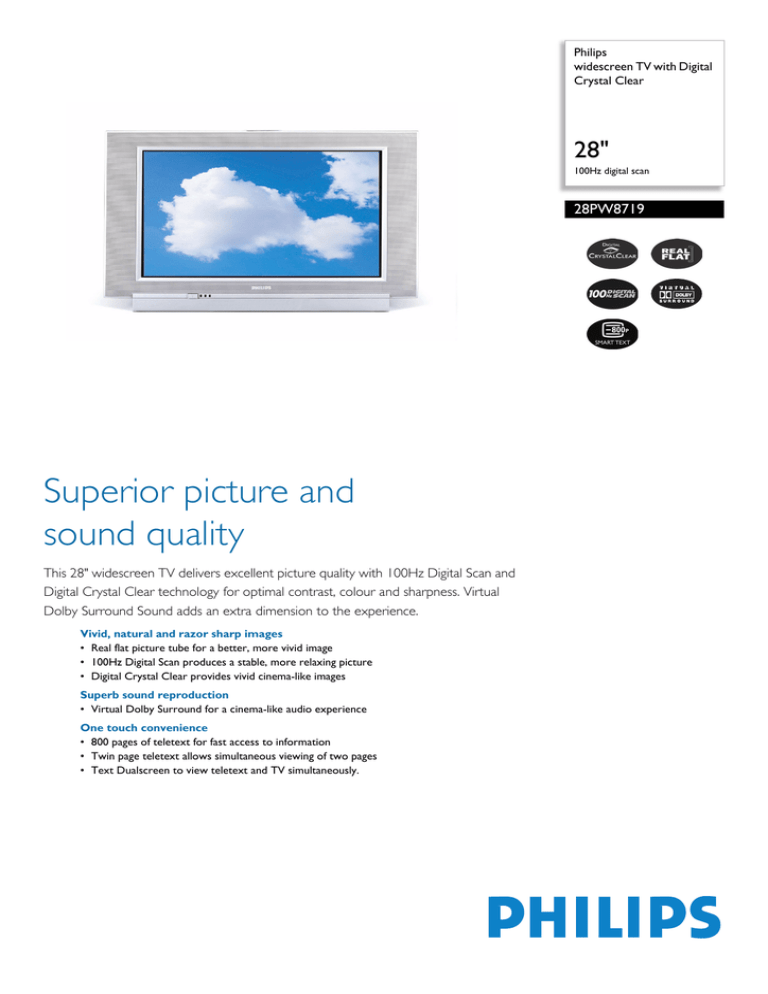

Philips
widescreen TV with Digital
Crystal Clear
28"
100Hz digital scan
28PW8719
Superior picture and
sound quality
This 28" widescreen TV delivers excellent picture quality with 100Hz Digital Scan and
Digital Crystal Clear technology for optimal contrast, colour and sharpness. Virtual
Dolby Surround Sound adds an extra dimension to the experience.
Vivid, natural and razor sharp images
• Real flat picture tube for a better, more vivid image
• 100Hz Digital Scan produces a stable, more relaxing picture
• Digital Crystal Clear provides vivid cinema-like images
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
One touch convenience
• 800 pages of teletext for fast access to information
• Twin page teletext allows simultaneous viewing of two pages
• Text Dualscreen to view teletext and TV simultaneously.
For preview purpose only
28PW8719/05
widescreen TV with Digital Crystal Clear
28" 100Hz digital scan
Technical specifications
Picture / Display
•
•
•
•
•
•
Aspect ratio: 16:9
Visible diagonal screen size: 68 cm
Diagonal screen size: 28 inch
Diagonal screen size - tele: 72 cm
Display screen type: Real flat picture tube
Picture enhancement: Colour transient
improvement, Digital noise reduction, Dynamic
contrast, Dynamic scavem, LTI, Picture freeze,
Progressive scan, 2D combfilter
• Screen enhancement: Anti reflection coated
screen
• Picture processing: 100 Hz digital scan, 100 Hz
Sound
• Sound enhancement: DSP
• Sound system: Nicam stereo, Virtual dolby
surround
Loudspeakers
Product highlights
• Screen format adjustments: Zoom 16:9, Zoom
14:9, Widescreen, Subtitle and heading shift,
Continuous zoom, Super wide
• Clock: Sleep timer, Smart clock, Wake up clock
Tuner / Reception / Transmission
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL, SECAM, SECAM L/L', PAL B/G,
PAL I
• Video playback: NTSC
• Aerial input: 75 ohm coaxial (IEC75)
• Number of preset channels: 100
Connectivity
• Number of scarts: 2
• Other connections: Monitor out, CVBS, L/R
(cinch), Antenna IEC75
• Front / Side connections: Audio L/R in,
Headphone out, S-Video in, Video in
Power
• Built-in speakers: 2
Convenience
• Ease of installation: Automatic Channel Install
(ACI), Automatic Tuning System (ATS), Auto
store, Plug & Play, PLL digital tuning, Auto search
• Ease of Use: Smart picture control, Smart sound
control, Top controls, Auto volume leveller
(AVL), Picture freeze
• Remote control type: RCAE04_SA
• Teletext: 800 page Smart Text
• Teletext enhancements: 4 favourite pages,
Program information line, Fast text
• Power consumption: 115 W
• Standby power consumption: < 1 W
• Power supply: 200-240 V, 50Hz
Dimensions
• Weight incl. packaging: 44kg kg
• Box dimensions (W x H x D):
915 x 654 x 687 mm
• Set colour: Pearl white silver(11092)
• Set dimensions (W x H x D):
803 x 515 x 512 mm
• Set weight: 37kg kg
•
Real flat picture tube
The real tube provides a wider viewing angle while
minimising reflections for the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminate "colour blooming" compared to
standard tubes.
100Hz Digital Scan
A conventional TV shows a picture by scanning 50 times
per second (50Hz). This frequency can be detected by
the human eye in the form of a flickering picture.
100Hz sets show a picture by scanning 100 times per
second eliminating the field flickering. Philips' digital
scan doubles the rate of line flicker, making it
undetectable. The result is a more stable picture that is
relaxing for your eye.
Digital Crystal Clear
Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimises picture quality to
optimal contrast, colour and sharpness levels. It's like
watching vivid cinema-like images.
Virtual dolby surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
800 page Smart Text
Teletext is a common system transmitted by most
broadcasters. 800 page smart text gives you fast access
to information when changing pages.
Twin page teletext
Twin page teletext allows you to simultaneously view
two teletext pages side by side
Video and teletext dual screen
Video and teletext dual screen provides you with the
capability to show video and teletext pages from the
same channel side by side on one screen.
Date of issue 2006-07-07
Version: 4.0
12 NC: 8670 000 20465
EAN: 87 10895 81548 2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
