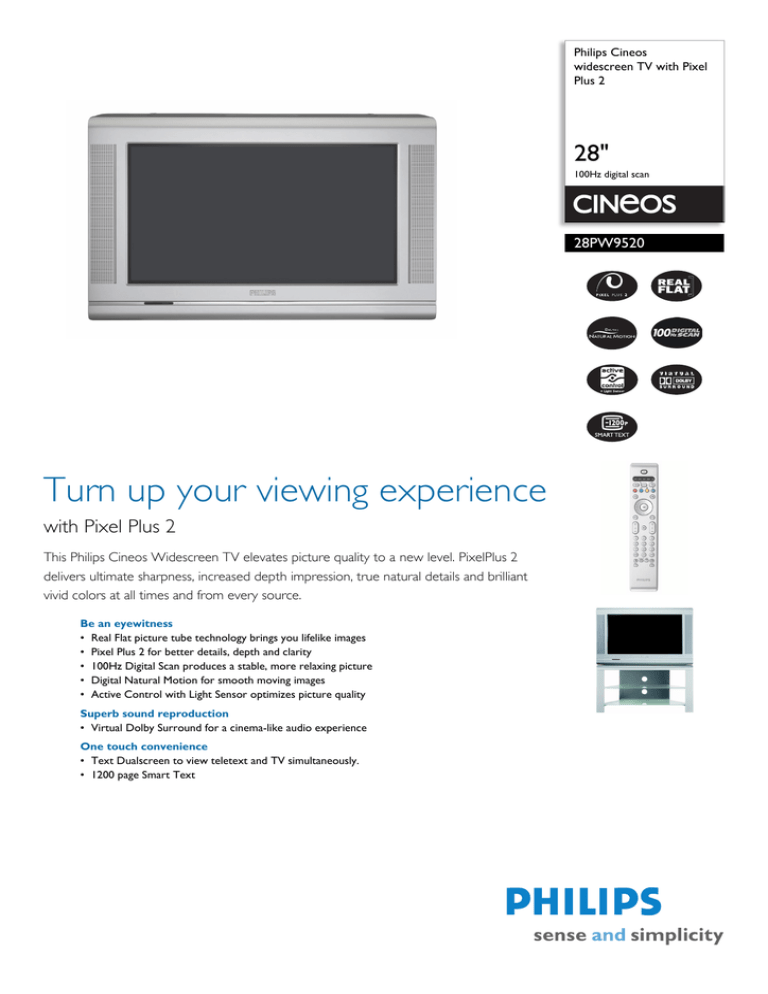

Philips 28PW9520 Flat Panel Television User Manual

Philips 28PW9520 Flat Panel Television User Manual
Philips Cineos
widescreen TV with Pixel
Plus 2
28"
100Hz digital scan
28PW9520
Turn up your viewing experience
with Pixel Plus 2
This Philips Cineos Widescreen TV elevates picture quality to a new level. PixelPlus 2
delivers ultimate sharpness, increased depth impression, true natural details and brilliant
vivid colors at all times and from every source.
Be an eyewitness
• Real Flat picture tube technology brings you lifelike images
• Pixel Plus 2 for better details, depth and clarity
• 100Hz Digital Scan produces a stable, more relaxing picture
• Digital Natural Motion for smooth moving images
• Active Control with Light Sensor optimizes picture quality
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
One touch convenience
• Text Dualscreen to view teletext and TV simultaneously.
• 1200 page Smart Text
28PW9520/12
Widescreen TV with Pixel Plus 2
28" 100Hz digital scan
Specifications
Product highlights
Picture/Display
•
•
•
•
Aspect ratio: 16:9
Diagonal screen size: 28 inch / 70 cm
Visible diagonal screen size: 66 cm
Picture enhancement: Pixel Plus 2, Digital Crystal
Clear, Active Control + Light sensor, Digital
Natural Motion, Widescreen Plus, Dynamic Noise
Reduction, Picture Freeze
• Screen enhancement: Anti-Reflection
• Picture processing: 100 Hz Digital Scan
• Display screen type: Real Flat picture tube
Sound
• Sound Enhancement: Digital Sound Processing,
Graphic Equaliser, 3-D sound
• Sound System: Nicam Stereo, Virtual Dolby
Surround
• Output power (RMS): 2 x 15 W
• Music Power: 60 W
Modes, Auto Format, Continous Zoom, Subtitle
and Heading Shift, Subtitle Zoom, Superwide,
Widescreen Signalling Bit, Zoom 14:9, Zoom 16:9,
4:3 expand, Widescreen
• Clock: Sleep Timer, Smart Clock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.
Pixel Plus 2
Pixel Plus 2 is a digital picture processing technology that
improves the resolution of still and moving pictures. It
does more than adding pixels, it also makes the pixels
better, resulting incredible sharpness and picture depth
every time and from any source. And it does not just
improve the resolution either, because you also benefit
from improved color reproduction, resulting in the finest
color details and superior brilliance.
Connectivity
• Built-in speakers: 2
Number of Scarts: 2
Ext 1 Scart: CVBS in/out, RGB
Ext 2 Scart: CVBS in/out, S-video in
Other connections: Stereo constant level out
Front / Side connections: Audio L/R in, S-video in,
Video in, Headphone out
• Headphone: 3.5 mm
100Hz Digital Scan
A conventional TV shows a picture by scanning 50 times
per second (50Hz). This frequency can be detected by
the human eye in the form of a flickering picture. 100Hz
sets show a picture by scanning 100 times per second
eliminating the field flickering. Philips' digital scan doubles
the rate of line flicker, making it undetectable. The result
is a more stable picture that is relaxing for your eye.
Convenience
Power
Digital Natural Motion
Philips invented Digital Natural Motion to eliminate
juddering effects that are visible with moving picture
content. Digital Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and recorded movie material (such as DVD).
The resulting smooth motion reproduction and excellent
sharpness take the viewing experience to a higher level.
Loudspeakers
• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning, Plug &
Play, Sorting
• Ease of Use: Graphical User Interface, Top
Controls, Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control, Picture
Freeze
• Remote control type: RCTE05SLS05
• Teletext: 1200 page Easytext
• Teletext enhancements: Habit Watch, Program
information Line, Word Search
• Screen Format Adjustments: 4:3, 6 Widescreen
•
•
•
•
•
• Power consumption: 109 W
• Standby power consumption: <3w
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
•
•
•
•
Product weight: 42 kg
Weight incl. Packaging: 48 kg
Color cabinet: Silver Frost (11027)
Box dimensions (W x H x D):
854 x 503 x 590 mm
• Set dimensions (W x H x D):
766 x 503 x 487 mm
•
Active Control + Light Sensor
Active Control is a unique and intelligent way of
optimizing picture quality by measuring and analyzing
the incoming signal to automatically adjust picture quality
settings. Active Control with Light Sensor uses a sensor to
adjust the picture brightness depending on the room light
conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
Video and teletext dual screen
Video and teletext dual screen provides you with the
capability to show video and teletext pages from the
same channel side by side on one screen.
1200 page Smart Text
The teletext is a common system transmitted by most
broadcasters. 1200 page smart text gives you fast access
to information when changing pages.
Issue date 2008-01-19
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 24.0.26
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 21859
EAN: 87 10895 86791 7
www.philips.com
