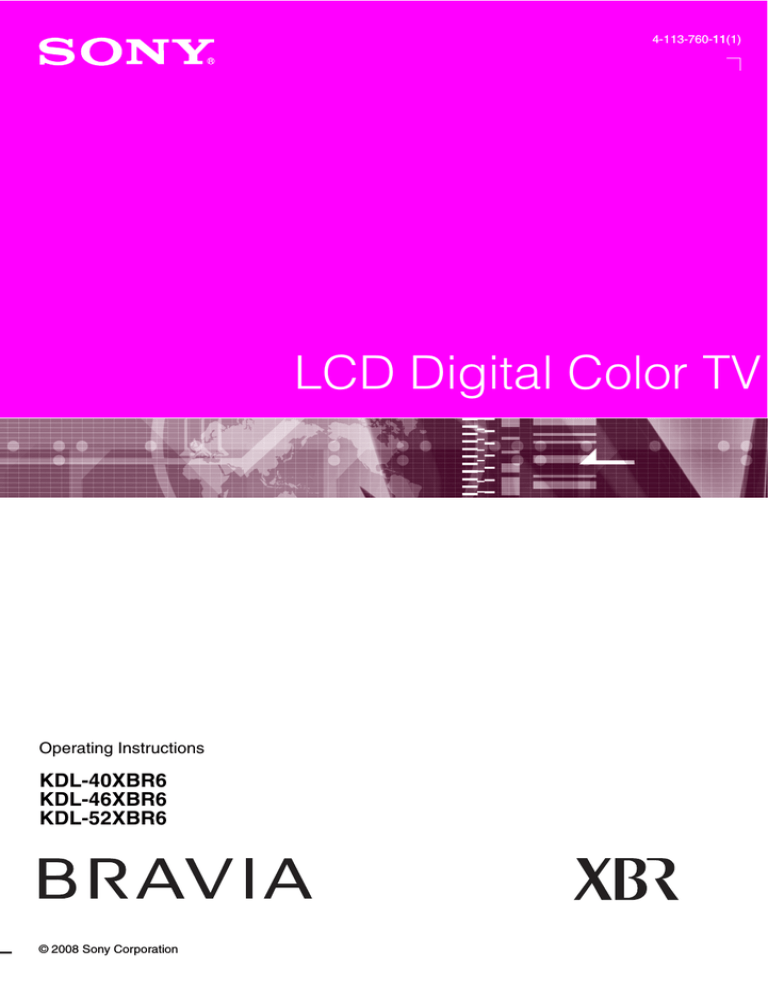

Operating Instructions

KDL-40XBR6

KDL-46XBR6

KDL-52XBR6

© 2008 Sony Corporation

4-113-760-11(1)

LCD Digital Color TV

Owner’s Record

The model and serial numbers are located at the rear of the TV. Record these numbers in the spaces provided below.

Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

s Operate the TV only on 120 V AC.

Declaration of Conformity

Trade Name: SONY

Model: KDL-40XBR6/KDL-46XBR6/

KDL-52XBR6

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the

FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTIFICATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s Reorient or relocate the receiving antenna.

s Increase the separation between the equipment and receiver.

s Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

s Consult the dealer or an experienced radio/

TV technician for help.

Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

For Customers in Canada

This Class B digital apparatus complies with

Canadian ICES-003.

CAUTION

Use the following Sony TVs only with the following WALL-MOUNT BRACKET or

TV-stand.

Sony TV Model No.

KDL-

40XBR6

KDL-

46XBR6

KDL-

52XBR6

Sony

Wall-Mount

Bracket

Model No.

Sony TV

Stand

Model No.

SU-WL500

WS-S10LS

SU-FL71M –

Use with other WALL-MOUNT BRACKETS or TV stands may cause instability and possibly result in injury.

To Customers

Sufficient expertise is required for installing the specified TV. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation.

Note

This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider.

Licensing Information

Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing,

LLC.

Fergason Patent Properties, LLC:

U.S. Patent No. 5,717,422

U.S. Patent No. 6,816,141

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

In the United States, TV Guide and other related marks are registered marks of

Gemstar-TV Guide International, Inc. and/or one of its affiliates. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide

International, Inc.

The TV Guide On Screen system is manufactured under license from Gemstar-TV

Guide International, Inc. and/or one of its affiliates.

The TV Guide On Screen system is protected by one or more of the following United States patents 4,908,713; 6,498,895; 6,850,693;

6,396,546; 5,940,073; 6,239,794 to

Gemstar-TV Guide International, Inc. and/or its subsidiaries.

Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV

Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On

Screen system.

Blu-ray Disc is a trademark.

“BRAVIA” and , S-Force,

Motionflow, BRAVIA Sync, , DMe x

,

MICRO VAULT, and “x.v. Color” are trademarks or registered marks of Sony

Corporation.

“XrossMediaBar” is a trademark of Sony

Corporation. “XMB” is a trademark of Sony

Corporation and Sony Computer

Entertainment Inc.

“PLAYSTATION” is a registered trademark and “PS3” is a trademark of Sony Computer

Entertainment Inc.

Adobe is a registered trademark or a trademark of Adobe Systems Incorporated in United

States and/or other countries.

DLNA

®

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living

Network Alliance.

For Customers in the United

States

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the

Electronic Industries Alliance

(www.eiae.org).

2

Contents

Welcome to the World of BRAVIA®

The Four Steps to a Full HD Experience: Set,

Sound, Source, and Setup ............................4

Picture Quality and Aspect Ratio.......................4

TV Home Menu: XMB

(XrossMediaBar)..........5

Getting Started

1. Installing the TV...............................................6

Carrying the TV ..............................................6

Preparation for Table-Top Stand ....................6

Preparation for Wall-Mount Bracket ...............7

When Installing the TV Against a Wall or

Enclosed Area.............................................7

Bundling the Connecting Cables ....................8

Securing the TV..............................................9

2. Locating Inputs and Outputs .......................10

3. Connecting the TV.........................................12

Cable System or VHF/UHF Antenna

System ......................................................12

Cable System and VHF/UHF Antenna

System ......................................................12

HD Cable Box/HD Satellite Box....................12

PC.................................................................14

Other Equipment ..........................................15

4. Setting Up the Channel List –

Initial Setup ..................................................16

Operating the TV

Inserting Batteries into the Remote Control...18

When Using the Remote Control .....................18

TV Controls ........................................................18

Remote Control Button Description ................19

Indicators ...........................................................24

Programming the Remote Control...................25

Programming Other Equipment....................25

Auto Backlight...............................................25

Backlight Time Out .......................................25

Reset the Remote Control ............................25

Manufacturer’s Code List .................................26

Sony Equipment Codes................................26

Other Manufacturer Equipment Codes.........26

Using Other Equipment with Your Remote

Control ..........................................................27

Exploring Fun Features

Favorites ............................................................28

Displaying Favorites .....................................28

Navigating Favorites.....................................28

Adding to Favorites.......................................28

Removing from Favorites .............................28

Quick Setup Guide (separate volume)

Provides a variety of optional equipment connection diagrams.

Background TV.................................................. 29

Navigating Background TV........................... 29

DLNA Certified™ Photo Media Player ............. 29

Enjoying Photos and Music through

USB Port ....................................................... 29

Using USB Equipment.................................. 29

Removing USB Equipment........................... 29

USB Equipment Functionality....................... 29

Photo .................................................................. 30

Accessing Photos ......................................... 30

Navigating through Photo ............................. 30

Photo Options............................................... 31

Music .................................................................. 32

Accessing Music........................................... 32

Navigating through Music ............................. 33

Music Options............................................... 33

How to Use TV Guide On Screen ..................... 34

Using BRAVIA Sync with Control for HDMI .... 36

Using DIGITAL MEDIA PORT Adapter............. 36

Using P&P and PIP Features............................ 37

To Enter P&P and PIP.................................. 37

To Change Inputs or Channels .................... 37

To Exit from P&P and PIP ............................ 37

Using TV Settings

Media Category Icons ....................................... 38

Adjusting TV Settings ............................. 38

Viewing Photos ....................................... 38

Listening to Music ................................... 38

Watching TV ........................................... 38

Accessing External Inputs ...................... 38

Navigating through TV Home Menu on XMB

...................................................... 39

TV Settings Descriptions.................................. 40

Product Support...................................... 40

Clock/Timers Settings............................. 40

Picture Settings ...................................... 41

CC

Sound Settings ....................................... 43

Screen Settings ...................................... 44

Channel Settings .................................... 46

Closed Captions (CC) Settings............... 47

Parental Lock Settings ............................ 47

External Inputs Settings.......................... 50

HDMI Settings ........................................ 50

Network Settings .................................... 51

General Setup Settings .......................... 51

Initial Setup............................................. 52

Other Information

Troubleshooting ................................................ 53

Specifications .................................................... 57

Index ................................................................... 58

Customer Support

United States http://www.sony.com/tvsupport

Canada http://www.sony.ca/support

On-line Registration

United States http://productregistration.sony.com

Canada http://www.sonystyle.ca/registration

3

Welcome to the World of BRAVIA

®

4

Thank you for purchasing this Sony BRAVIA

®

high-definition television. The quality of the image you see on your BRAVIA TV is only as good as the quality of the signal it receives. To experience the stunning detail of your new BRAVIA TV, you need access to HD programming. Your BRAVIA TV can receive and display HD programming from:

• Over-the-air broadcasting via HD-quality antenna

• HD cable subscription

• HD satellite subscription

• Blu-ray Disc™ player or other HD compatible external equipment

Contact your cable or satellite provider for information on upgrading to HD programming.

To learn more about HDTV, visit:

U.S.A.

http://www.sony.com/HDTV

Canada http://www.sonystyle.ca/hd

The Four Steps to a Full HD Experience: Set, Sound, Source, and Setup

Along with your BRAVIA TV set, a complete HD system requires an HD sound system, a

source of HD programming and proper setup connections. This manual explains basic setup

connections (see page 12). The Quick Setup Guide, enclosed separately, illustrates how to

connect other optional equipment.

Picture Quality and Aspect Ratio

You can enjoy crisp, clear images, smooth movement and high-impact visuals from 1080 HD signals. When you compare a high-definition signal to a standard analog signal, you will notice a big difference.

High-definition and standard-definition signals are transmitted with different aspect ratios (the width-to-height ratio of the image). HDTV uses a wider screen than conventional standarddefinition TV.

16:9 (high-definition) source

Most HDTV signals use a wide screen aspect ratio of 16:9. The 16:9 fills your BRAVIA screen, maintaining a crisp, clear, vivid picture.

4:3 (standard-definition) source

Most standard-definition signals use a boxy 4:3 aspect ratio. When a 4:3 image is displayed on an

HDTV, you will see black bars on the sides. The picture quality may not be as sharp as with HD sources.

~

• You can use the Wide Mode function of the TV to adjust the 4:3 image to fit the entire screen (see pages 21, 44

and 45).

TV Home Menu: XMB

(XrossMediaBar)

The XMB

is an easy way to access the TV settings for customizing, making adjustments, viewing the available TV channels, photo and music files, and selecting connected equipment.

Press the HOME button on your remote control to display the XMB

.

DISPLAY LIGHT POWER TV POWER

DVD AMP STB TV

FUNCTION

PREV REPLAY ADVANCE NEXT

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

Settings

Product Support

Clock/Timers

Media

Category

Bar

Sound

Screen

Channel

TV

Category Object Bar

From the horizontal Media Category Bar you can control:

Settings: adjust timer, picture, sound, screen and other options (see page 40 for

customization options).

Photo: view photo files via USB or compatible DLNA Certified™ equipment (see page

30).

Music: listen to music files via USB or add music to a slideshow (see page 32).

TV Channels: access TV Guide On Screen™ and available channels.

External Inputs: select cable, satellite, VCR, DVD players or other optional equipment can also be selected from the vertical Category Object Bar from the External Inputs.

Your BRAVIA TV is Energy Star Compliant. It meets strict energy efficiency

guidelines set by the EPA and US Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices.

• When the TV is initially set up, it is designed to stay within the Energy Star guidelines.

• Changes to certain features, settings, and functionalities of this TV (i.e. TV guide, Picture/

Sound, Light Sensor, Power Savings) can slightly change the power consumption.

Depending upon such changed settings, the power consumption may increase which possibly could exceed the limits required for the Energy Star qualification.

~

• This manual is for the 40, 46 and 52 inch BRAVIA KDL-XBR6 series models with screen size measured diagonally.

5

Getting Started

1. Installing the TV

This TV can be mounted on a wall using a Wall-

Mount Bracket or placed on a TV stand (each sold separately). This section will explain:

• How to carry the TV

• Preparation for a Table-Top stand

• Preparation for a Wall-Mount Bracket

• Installation against a wall or enclosed area

• Bundling the connecting cables

• Securing the TV

Carrying the TV

Be sure to follow these guidelines to protect your property and avoid causing serious injury.

• Before carrying the TV, disconnect all cables.

• Carrying the large size TV requires two or more people.

• When carrying the TV, place your hand as illustrated and hold it securely. Do not subject the

TV to shocks, vibration, or excessive force.

Preparation for Table-Top Stand

Follow the assembling steps required to place on a

TV stand (except model, KDL-52XBR6).

1

Remove the Table-Top Stand and screws from the carton. The screws can be found in the accessory bag.

For product protection and safety reasons,

Sony strongly recommends that you use the screws provided with the TV.

Table-Top Stand

TV Unit

Screws

2

Place the Table-Top Stand on a level and stable surface.

• Lift the TV by placing your palm directly underneath the panel but do not put stress on the

LCD panel.

3

Gently slide the TV unit onto the neck of the

Table-Top Stand and align the screw holes.

• Do not lift the TV from the bottom center.

~

• Do not put stress on the LCD panel or the frame around the screen.

• Be careful to not pinch your hands or the AC power cord when you install the TV unit to the Table-Top

Stand.

6

4

Use the supplied screws to attach the TV unit to the Table-Top Stand (refer to the “Attaching the Table-Top Stand” flyer).

AC IN

If an electric screwdriver is used, set the torque to tighten at approximately 1.5 N·m,

15 Kgf·cm.

When Installing the TV Against a Wall or Enclosed Area

Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).

Installed with stand

11

7 /

8 inches

(30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

/

(6 cm)

Preparation for Wall-Mount Bracket

All models are ready to be mounted on a wall.

• For product protection and safety reasons,

Sony strongly recommends that you use the

Wall-Mount Bracket model designed for your

TV and the wall-mounting of your TV should be performed by a Sony dealer or licensed contractor.

• Sufficient expertise is required in installing this

TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• Be sure to use the screws supplied with the Wall-

Mount Bracket when attaching the mounting hooks to the TV set.

The supplied M6 screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8-12 mm

Leave at least this much space around the set.

Installed on the wall

11 7 /

8 inches

(30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

4 inches (10 cm)

Leave at least this much space around the set.

Never install the TV set as follows:

Air circulation is blocked.

Air circulation is blocked.

Wall

Wall

M6 screw (supplied with the Wall-Mount

Bracket)

Mounting Hook

Rear of the TV set

• Be sure to store the unused screws and Table-Top

Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

For details on how to use the Wall-Mount Bracket compatible with your model, visit www.sony.com/accessories

Or call 1-800-488-7669 (for United States)

1-877-899-7669 (for Canada)

~

• Inadequate air circulation can lead to overheating of the TV and may cause damage to your TV or cause a fire.

Consider the following for best picture quality

• Do not expose the screen to direct illumination or sunlight.

• Use spot lighting directed down from the ceiling or cover the windows that face the screen with opaque drapery.

• Install the TV in a room where the floor and walls are not of a reflective material.

(Continued)

7

8

• When moving the TV from a cold area to a warm area, a sudden room temperature change may cause the TV’s picture to blur or show poor color due to moisture condensation.

Should this occur, please wait a few hours to allow the moisture to evaporate before powering on the TV.

Bundling the Connecting Cables

You can bundle the connecting cables as illustrated below.

AC IN

~

• Do not bundle the AC power cord with other connecting cables.

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Prevent the TV from Toppling Over

s

Secure the TV to a wall and/or stand.

s Do not allow children to play or climb on furniture and TV sets.

s Avoid placing or hanging items on the TV.

s Never install the TV on:

• slippery, unstable and/or uneven surfaces.

• furniture that can easily be used as steps, such as a chest of drawers.

s

Install the TV where it cannot be pulled, pushed, or knocked over.

s

Route all AC power cords and connecting cables so that they are not accessible to curious children.

Use a Sony TV Stand

Use a Sony specified TV stand (see page 2) and

follow the instruction manual provided with the

Sony TV stand.

If a Sony specified TV stand is not used, consider the following recommended measures.

Recommended Measures to Secure the TV

Secure the Stand for the TV

Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand.

For each angle brace use the appropriate hardware to:

• attach one side of the angle brace to the wall stud.

• attach the other side to the TV stand.

Angle brace

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

Anchor bolt

Screw hole on the Table-

Top Stand

Screw

~

Contact Sony Customer Support to purchase the optional

Support Belt Kit by providing your TV model name.

• For United States call: 1-800-488-7669 or visit: www.sony.com/accessories

• For Canada call: 1-877-899-7669

Anchor the TV to the Wall

Use the hardware listed below (not supplied):

• Two M6 × 10-12 mm anchor bolts (screw into the top-most wall-mount holes located on the rear of the TV)

• Rope or chain (attach to one M6 anchor bolt)

• Wall-anchor (attach to the wall stud) strong enough to support the weight of the TV (pass the rope through the wall-anchor, then attach to the other M6 anchor bolt)

Anchor bolts

Wall-mount holes

Rope or chain

Wall- anchor

Stand

Secure the TV to the Stand

Use the optional hardware listed below (not supplied):

• M6 × 10-12 mm anchor bolt (screwed into the

TV’s Table-Top Stand)

• A screw or similar (attach it to the TV stand)

~

• Securing the TV to the stand without securing it and the stand to the wall provides minimum protection against the TV toppling over. For further protection, follow all three measures recommended above.

9

2. Locating Inputs and Outputs

Rear of TV

5

1

1

VIDEO

L

(MONO)

A UDIO

R

VIDEO IN

3

S VIDEO

COMPONENT IN

1 2

PC IN IN

DIGITAL

OUT

(OPTICAL)

Y

RGB

3

P

B

P

R

L

AU DI O

R

(1080p/1080i/720p/480p/480i )

AU DI O

AU DI O

4

AU DIO OU T

L

R

(V AR/FIX)

2

3

4

LAN

(10/100)

DMe /

SER VICE

6

7

8

9

DMPOR T CABLE/ANTENNA

0

Side Panel qa

IN

4

2

qs

AC IN

2

VIDEO IN

VIDEO

L

(MONO)

AU DI O

R

1

~

• This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

• An HDMI or Component video (YP

B

P

R

) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. 1080/24p is available only with HDMI connection.

10

Item

1 VIDEO IN 1

S VIDEO

Description

Connects to the S VIDEO output jack of video equipment. If both composite video and

S VIDEO are connected, S VIDEO signal has priority.

VIDEO IN 2/3

VIDEO/L(MONO)-

AUDIO-R

Connects to the composite video and audio output jacks on your A/V equipment.

~

• If you have mono equipment, connect its audio output jack to the TV’s L (MONO) audio input jack.

Connects to your equipment’s component video (YP

B

P

R

) and audio (L/R) jacks.

2 COMPONENT IN

1/2 (1080p/1080i/

720p/480p/480i)/

L-AUDIO-R

3 PC IN

(RGB/AUDIO)

4 HDMI IN 1/2/3

Connects to a personal computer’s video and audio output connector (see page 14). Can

also be connected to other analog RGB equipment. See “PC Input Signal Reference

Chart” on page 14 for the signals that can be displayed.

~

• For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). If this is the case, connect the adapter to the computer before connecting the

HD15-HD15 cable.

• If the picture is noisy, flickering or not clear, adjust Phase and Pitch of Screen

settings on page 45.

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped A/V equipment. HDMI supports enhanced, or high-definition video, plus digital audio.

HDMI IN 4

R-AUDIO-L

5 LAN (10/100)

If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the

HDMI IN 4 (with DVI-to-HDMI cable or adapter) jack, and connect the audio jack to the

AUDIO IN (L/R) jacks of HDMI IN 4.

~

• Be sure to use only an HDMI cable that bears the HDMI logo.

• When connecting a DVI-equipped PC to an HDMI jack, also connect an Audio cable between the PC and R-AUDIO-L jack.

Connects to a Local Area Network using an Ethernet cable. You can use this connection to connect to a network, receive software updates and enjoy photos from the Internet (see

page 30).

6 DMe

x

/

SERVICE

7 DIGITAL AUDIO

OUT (OPTICAL)

8 AUDIO OUT

(VAR/FIX)

9 DMPORT

This USB port is for service only unless you are connecting the optional BRAVIA external module (DMe ).

Connects to the optical audio input of your digital audio equipment that is PCM/Dolby*

Digital compatible.

x

Connects to the left and right audio input jacks of your analog audio equipment. You can use these outputs to listen to your TV’s audio through your stereo system.

Connects to devices via a DIGITAL MEDIA PORT interface (not supplied) and displays photos or plays videos and music directly onto the TV from some DIGITAL MEDIA

PORT equipment. Some devices can be controlled with the TV’s remote control (see

page 25).

0 CABLE/

ANTENNA

RF input that connects to your cable or VHF/UHF antenna.

qa USB qs AC IN

Connects to USB equipment to access photo files and music files (see page 29).

Connects to your power source. Connect the supplied power cord to AC IN and the nearest wall outlet.

* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

11

3. Connecting the TV

Cable System or VHF/UHF Antenna

System

You can enjoy high-definition and standarddefinition digital programming (if available in your area) along with standard-definition analog programming.

~

• This TV is capable of receiving unscrambled digital programming for both cable (QAM and 8VSB) and external VHF/UHF antenna (ATSC).

• It is strongly recommended that you connect the

CABLE/ANTENNA input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.

Cable or VHF/UHF (or VHF only)

75-ohm coaxial cable

Rear of TV

CABLE/ANTENNA

HD Cable Box/HD Satellite Box

You can enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.

Shown with HDMI Connection

Rear of TV

1

VIDEO IN

3

S VIDEO

VIDEO

L

(MONO)

AUDIO

R

1

COMPONENT IN

2

PC IN IN

1

DIGITAL

AUDIO

OUT

(OPTICAL)

Y RGB

3

P

B

P

R

L

AUDIO

R

(1080p/1080i/720p/480p/480i)

AUDIO

R AUDIO L

4

AUDIO OUT

L

AUDIO

R

(VAR/FIX)

Cable System and VHF/UHF Antenna

System

Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna programming, as indicated below.

Cable

Antenna

A-B RF switch

A

B

Rear of TV

CABLE/ANTENNA

~

• Be sure to set the Signal Type setting to Cable or

Antenna in the Channel settings for the type of

input signal you choose (see page 46).

HDMI cable

HD cable box/

HD satellite box

CATV/Satellite antenna cable

12

Shown with DVI Connection

CATV/Satellite antenna cable

Rear of TV

1

VIDEO IN

3

S VIDEO

VIDEO

L

(MONO)

AUDIO

R

1

COMPONENT IN

2

Y

PC IN

RGB

IN

1

DIGITAL

AUDIO

OUT

(OPTICAL)

3

P

B

P

R

L

AUDIO

R

(1080p/1080i/720p/480p/480i)

AUDIO

R AUDIO L

4

AUDIO OUT

L

AUDIO

R

(VAR/FIX)

DVI-to-HDMI cable

HD cable box/

HD satellite box

AUDIO-R (red)

AUDIO-L (white)

Audio cable

~

• If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN 4 (with DVI-to-HDMI cable or adapter) jack and connect the audio jack to the AUDIO IN (L/R) jacks of HDMI IN 4. For details, see

page 11.

Shown with Component Connection

Rear of TV

1

VIDEO IN

3

S VIDEO

VIDEO

L

(MONO)

AUDIO

R

1

COMPONENT IN

2

Y

PC IN

RGB

IN

1

DIGITAL

AUDIO

OUT

(OPTICAL)

3

P

B

P

R

L

AUDIO

R

(1080p/1080i/720p/480p/480i)

AUDIO

R AUDIO L

4

AUDIO OUT

L

AUDIO

R

(VAR/FIX)

AUDIO-R (red)

AUDIO-L (white)

P

R

(red)

P

B

(blue)

Y (green)

HD cable box/

HD satellite box

Component video cable

CATV/Satellite antenna cable

Audio cable

(Continued)

13

PC

Use the TV as a monitor for your PC by connecting a HD15-HD15 cable as shown below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the separate Quick Setup Guide.)

Rear of TV

1

VIDEO IN

3 1

COMPONENT IN

2

PC IN IN

1

DIGITAL

AUDIO

OUT

(OPTICAL)

Y

RGB

3

S VIDEO

P

B

VIDEO

L

(MONO)

AUDIO

R

P

R

L

AUDIO

R

(1080p/1080i/720p/480p/480i)

AUDIO

R AUDIO L

4

AUDIO OUT

L

AUDIO

R

(VAR/FIX)

HD15-HD15 cable (analog

RGB)

Audio cable (stereo mini plugs)

~

• Connect the PC IN jack to the PC using an HD15-

HD15 cable with ferrite core (analog RGB) and audio

cable (see page 11).

• If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV

enters the standby mode automatically (see page 52).

PC Input Signal Reference Chart

After connecting the PC to the TV, set the output signal from the PC according to the supported resolutions and timings indicated below.

Supported resolutions

Signal

VGA

Horizontal

(Pixel)

640

SVGA

640

720

800

XGA

800

1,024

WXGA

1,024

1,024

1,280

1,280

SXGA

HDTV

1,280

1,360

1,280

1,920

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Vertical

(Line)

480

768

768

768

768

768

768

1,024

1,080

480

400

600

600

768

Horizontal frequency (kHz)

56.5

60.0

47.4

47.8

60.3

47.7

64.0

67.5

31.5

37.5

31.5

37.9

46.9

48.4

Vertical frequency (Hz)

60

75

60

70

75

60

60

60

60

75

70

60

75

60

Standard

VGA

VESA

VGA-T

VESA Guidelines

VESA

VESA Guidelines

VESA

VESA

VESA

VESA

VESA

VESA

CEA-861*

~

• This TV’s PC input does not support Sync on Green or

Composite Sync.

• This TV’s PC VGA input does not support interlaced signals.

• Your PC must support one of the above PC input signals to display on the television.

• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency. In plug and play, signals with a 60

Hz vertical frequency will be detected automatically.

(PC reboot may be necessary.)

* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC timing. This affects Picture settings, Wide Mode settings, and PIP function. To view PC content set Picture Mode to

Custom, Wide Mode to Full, and Display Area to

Full Pixel.

14

Other Equipment

Personal computer

Blu-ray

Disc player/

“PS3”

DVD player

Digital satellite receiver

Digital cable box

Audio system

USB drive

Rear of TV

1

VIDEO IN

3

S VIDEO

COMPONENT IN

1 2

PC IN

Y

RGB

P

B

VIDEO

L

(MONO)

A UDIO

R

P

R

L

AU DI O

R

(1080p/1080i/720p/480p/480i)

AU DI O

IN

1

DIGITAL

AUDIO

OUT

(OPTICAL)

3

AU DI O

4

AU DIO OUT

L

R

(V AR/FIX)

LAN

(10/100)

DMe /

SERVICE

DMPOR T CABLE/ANTENNA

IN

2

2

VIDEO IN

VIDEO

AU DI O

R

VCR

Game system

Digital recorder

Analog audio equipment

(A/V Receiver/

Home Theater)

DIGITAL MEDIA

PORT adapter for portable player

CABLE/

ANTENNA

Digital audio equipment

(A/V Receiver/

Home Theater)

LAN connection Camcorder

~

• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.

15

4. Setting Up the Channel List

– Initial Setup

The Initial Setup screen appears when you turn on the TV for the first time.

Initial Setup

Step 1 of 6

Please select a language. Language settings will apply to

on screen display as well as default audio for digital channels. Highlight a choice and press to continue.

English

Español

Français

• If the language that you have selected in the

Language setting is available from the broadcaster as an Alternate Audio language, your TV will automatically switch to the matching language with the Alternate Audio feature. The Alternate Audio option may be accessed by pressing OPTIONS on the remote control when an alternate audio stream is available from the broadcaster. Alternate Audio is

only available for digital programs (see page 44).

4

Set the date and time.

Begin your TV Guide On Screen Setup

When the Initial Setup is completed, the TV will display this screen and prompt you to set up the electronic program guide. Follow the on screen instructions using your remote control.

Initial Setup Step 6 of 6

1

Complete your cable connections (refer to the preceding pages and the Quick Setup Guide provided separately) before proceeding with the Initial Setup.

2

Use the remote control to navigate through the

Initial Setup:

CEC CC FREEZE

V/v button:

Allows you to highlight options where applicable.

button:

Allows you to select the highlighted option and advance to the next screen.

B button:

Allows you to move back to the previous screen.

b button:

Allows you to move to the next screen.

3

Follow the help text provided on the screen to run Auto Program. Auto Program will scan for available channels from the signal source directly connected to the TV’s

CABLE/ANTENNA input.

If you receive channels from a cable box or satellite receiver without using the CABLE/

ANTENNA input (e.g. using HDMI or component input), skip Auto Program.

~

• If you select Skip, you will be asked to disable

Channel Tuning Keys to avoid accidental input

change while using an external input; see page 50 for

details.

Initial Setup is complete.

This TV features an electronic program guide.

Select to begin the TV Guide setup.

Next, you will see a confirmation screen with instructions on how to acquire the TV Guide On

Screen service.

• The service is free of charge.

• Your TV acquires program listing information while your TV is turned off.

• Allow 24 hours (some areas may take longer) for the TV to fully receive the program listing information.

• Once the program information is obtained by the TV, you will be able to view a guide of up

to two days of TV programming. See page 34

on how to use the TV Guide On Screen.

s To Display TV Guide On Screen

Press GUIDE.

16

s To Run Initial Setup Again or Auto

Program at a Later Time

Select the Initial Setup feature from the XMB

™ or perform the steps described in the Initial

Setup section on page 52. To run Auto

Program, see page 46.

HDMI Settings

General Setup

Settings

Initial Setup

TV s To Add Digital Channels

Use the Add Digital Channels feature as

described on page 46. (Useful for antenna

installations.)

~

• If you accidentally turn off the TV during the Initial

Setup process, the Initial Setup will restart from the beginning when the TV is turned back on.

Auto Program may be canceled while the channels are being scanned. Press RETURN first, then press either

B/b on the remote control. Select Yes to cancel or No to resume Auto Program.

17

Operating the TV

Inserting Batteries into the Remote Control

Insert two size AA batteries (supplied) by matching e and E on the batteries to the diagram inside the battery compartment of the remote control.

Push to open

When Using the Remote Control

Follow the guidelines below

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

TV Controls

The buttons located on the side of the TV operate the same as the corresponding buttons on the remote control.

18

Remote Control Button Description

1

2

3

4

5

6

DISPLAY

DVD AMP STB TV

FUNCTION

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

MUTING

VOL CH

JUMP

REC REC PAUSE REC STOP

BD/DVD

TOP MENU MENU

F1 F2

~

• The 5, PLAY and CH+ buttons have a tactile dot. Use them as a reference when operating the TV.

Button

1 DISPLAY

2 LIGHT

3 FUNCTION

Buttons

4 Equipment

Control/

BRAVIA

Sync

5 SOUND

6 DMe

x

Description

Press once to display the banner with channel/program information you are watching. The banner will time out in about 10 seconds or press again to exit. You can select the banner size based on the amount of information. See Info

Banner on page 51.

Press to light up the remote control buttons. The

FUNCTION button indicator light will light up in red for the device mode the remote control is operating and other

buttons will light up in blue (see page 25).

The FUNCTION button indicator lights up momentarily when pressed to show which external equipment the remote control is operating. These buttons can be programmed to operate external equipment. You must first press one of these FUNCTION buttons to operate the corresponding

equipment. See page 25 for “Programming the Remote Control”.

The buttons listed below can operate video equipment programmed to the DVD, AMP, or STB FUNCTION buttons of the remote control. When the TV FUNCTION button is selected, the buttons can also be used to control the connected equipment with the Control for HDMI function

(not available on all Control for HDMI equipment).

. PREV: Press to replay the current program from the previous chapter mark (if any) or from the beginning of the live TV cache.

REPLAY: Press to replay the current program for a set period of time.

ADVANCE: Press to advance forward a set period of time when playing back a recorded program.

> NEXT: Press to advance forward to the next chapter mark (if any) or to live TV when playing back a recorded program.

m (fast reverse): Press to play a program in fast rewind mode.

N PLAY: Press to play a program at a normal speed.

M (fast forward): Press to play a program in fast forward mode.

X PAUSE: Press to pause playback.

x STOP: Press to stop playback.

SYNC MENU: Press once to display the Sync’d HDMI

Devices (while a Control for HDMI device is not selected). Select the HDMI device and then press SYNC

MENU to display the menu of connected equipment (not available on all Control for HDMI equipment).

THEATER: Press to turn on and off the Theater Mode.

The picture settings will be set for a cinema-like experience and the audio will be switched to the audio output of the attached speakers of your BRAVIA Sync audio system.

Your BRAVIA Sync audio system must be connected by an

HDMI connection to your TV (see page 36 for details).

Press to cycle through different sound settings: Dynamic,

Standard, Clear Voice. The sound modes can also be accessed in the Sound settings. For details, see Sound

settings on page 43.

Press to access features in the optional BRAVIA external module (e.g. DMX-NV1). See your dealer or www.sony.com/bravia for more information. The module may not be available in all regions.

(Continued)

19

Button Description

7 FAVORITES Press once to display the Favorites menu. Press again to

exit from the Favorites menu. See page 28 for detailed

information.

7

8

9

0

DISPLAY

DVD AMP STB TV

FUNCTION

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

qa qs qd qf qg qh qj qk

MUTING

VOL CH

JUMP

REC REC PAUSE REC STOP

BD/DVD

TOP MENU MENU

F1 F2

8 GUIDE Press to open the TV Guide On Screen system. Press again to exit the Guide. For instructions on using a specific menu,

see “How to Use TV Guide On Screen” on page 34.

9 RETURN

0 HOME

Press to go back to the previous screen or exit from the screen when displaying menu items and settings.

Press to display the TV Home Menu/XMB

to access the

TV Home Menu items such as the TV Settings, Photo,

Music, TV channels and External Inputs list (see pages

5 and 38).

Product Support

Clock/Timers

Settings

Screen

Channel

TV qa 0-9 ENT qs qd MUTING qf VOL +/– qg DVR/VCR

Record

Buttons

Press 0-9 to select a channel; the channel changes after two seconds. Press ENT to change channels immediately.

Use with 0-9 and ENT to select digital channels.

For example, to enter 2.1, press

2

, ,

1

and ENT.

Press to mute the sound. Press again or press VOL + to restore the sound.

Press to adjust the volume.

z REC: Press to record. Pressing this button alone starts the recording process.

X REC PAUSE: Press to pause recording.

x REC STOP: Press to stop recording.

Press to display the top menu of the BD/DVD disc.

qh BD/DVD

TOP MENU

qj BD/DVD

MENU

qk Red, Green,

Blue, Yellow

Press to display the BD/DVD disc menu.

~

• For more information, refer to the operating manual of the connected equipment.

To use with Sony Blu-ray player (BD) see chart on page 26.

20

DISPLAY

DVD AMP STB TV

FUNCTION

ql w;

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

wa

Button Description

ql TV POWER

Press to turn on and off the TV. w; POWER wa WIDE

Press to turn on and off the external equipment selected by

FUNCTION buttons.

Press repeatedly to cycle through the available Wide

Mode settings: Wide Zoom, Normal, Full, H Stretch,

Zoom. The Wide Mode settings can be also accessed in

the Screen settings (see pages 44 and 45).

Changing the Wide Screen Mode

4:3 Original source

Standard-definition source

16:9 Original source

High-definition source m

Wide Zoom

m

Wide Zoom

Normal

Full

Normal

This mode is not available.

Full

H Stretch

This mode is not available.

Zoom

H Stretch

Zoom

MUTING

VOL CH

JUMP

REC REC PAUSE REC STOP

BD/DVD

TOP MENU MENU

F1 F2

~

Normal is available with 480i or 480p sources only.

H Stretch is only available with 720p, 1080i, 1080p and

1080/24p sources.

Changing the Wide Screen Mode for PC

Timing

Incoming PC signal Incoming PC signal

800 × 600

1,280 × 768 m

Normal Normal

m

Full 1

Full 2

Full 1

Full 2

(Continued)

21

22

DISPLAY

DVD AMP STB TV

FUNCTION

Button

ws PICTURE wd FREEZE

Description

Press repeatedly to cycle through the available picture modes:

Vivid, Standard, Cinema, Custom, Photo-Vivid,

Photo-Standard, Photo-Original, Photo-Custom,

Video, Text. (Available options depend on the current mode.)

The picture modes can also be accessed in the Picture

settings. For details, see Picture settings on page 41.

Press once to display a frozen image with the current program in a window. Press again to fill the screen with the frozen image. Press a third time to return to the current program.

Freeze

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

MUTING

VOL CH

JUMP

REC REC PAUSE REC STOP

BD/DVD

TOP MENU MENU

F1 F2

ws wd wf wg wh wj wf CC wg INPUT

Current program

Frozen picture

Press the V/v/B/b to move the small window showing current program to a different location on the screen.

~

• With the Freeze feature active, some features are unavailable.

• While the Freeze feature is active, pressing HOME will deactivate Freeze and display the XMB

.

Press to cycle through the available settings for Closed

Captions (CC): On, Off, and On with Muting.

Press to display the list of External Inputs and TV mode.

Press repeatedly to toggle through the inputs.

~

• See page 50 on setting up the External Inputs labels.

wh V/v/B/b Press V/v/B/b to move focus/highlight. Press to select/ confirm an item.

wj OPTIONS

Press to display a list of convenient functions and menu shortcuts. The OPTIONS menu items vary based on current input and content.

Menu Item

Picture Adjustments

Sound Adjustments

P&P or PIP

Exit P&P or Exit PIP

Speakers

Audio Swap

Screen

Add to Favorites/

Remove from Favorites

MTS

Alternate Audio

Digital Rating

Background TV

Motion Enhancer

Device Control

Device Control (Menu) for

DMPORT


Music

Reference Page

See page 41

See page 43

See page 37

See page 37

See page 44

See page 37

See page 45

See page 28

See page 44

See page 44

See page 48

See page 29

See page 42

See page 50

See page 36

See page 30

See page 32

~

• The Digital Rating and Alternate Audio options will appear in Options only when digital ratings or alternate audio streams are available in the currently tuned digital program.

DISPLAY

DVD AMP STB TV

FUNCTION

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

Button

wk JUMP

Description

Press to jump back and forth between two channels. The

TV alternates between the current channel and the last channel that was selected.

JUMP JUMP

wl CH +/– e; F1/F2

Press to scan through channels. To scan quickly through channels, press and hold down either +/–.

Press to select the function of connected components. For details, see “Using Other Equipment with Your Remote

Control” on page 27.

MUTING

VOL CH

JUMP

wk wl

REC REC PAUSE REC STOP

BD/DVD

TOP MENU MENU F1 F2

e;

23

Indicators

7

1

PIC OFF/TIMER STANDBY POWER

2

3 4 5

6

Item

1 Speaker

2 PIC OFF/

TIMER LED

3 STANDBY

LED

Description

Outputs the audio signal.

Lights up in green when the Picture Off feature is activated.

Lights up in orange when the timer is set. When the timer is set, this LED will remain lit even if the TV is turned off. For

details, see page 40 (Timer) and page 52 (Picture Off).

Lights up in red when your TV is in PC standby mode. If the

LED blinks in red continuously, this may indicate that the TV needs servicing (see contacting Sony information on the back cover).

4 POWER LED Lights up in green when the TV is turned on.

5 Light Sensor Senses room light level and adjusts the screen brightness

accordingly (see page 52 for details). Do not put anything

near the sensor or the nearby general area (as shown above), as its function may be affected.

6 (IR) Infrared

Receiver

Receives IR signals from the remote control. Do not put anything near the sensor, as its function may be affected.

7 SONY Logo The Sony logo will illuminate when the TV is powered on.

You can turn off the logo illumination, for details see page 52.

24

Programming the Remote

Control

The remote control can be programmed to operate other equipment and is pre-programmed to operate the following Sony equipment.

Function Button Sony Equipment Code Number

DVD DVD Player 31033

AMP

STB

Receiver

Digital Satellite

52172

01639

Programming Other Equipment

~

• Any of the FUNCTION buttons can be programmed to operate other equipment regardless of the labeling. For example, DVD can be programmed to operate a Bluray player.

Confirm the Programming

If you can turn your equipment on and off using the green POWER button, the programming is complete. If not, try the next code listed.

~

• In some cases, you may not be able to program your remote control. If this is the case, use your equipment’s own remote control.

DISPLAY

DVD AMP STB

FUNCTION

TV

PLAY

SYNC MENU PAUSE STOP

THEATER SOUND PICTURE WIDE

CC FREEZE

2

2

4

3

VOL CH

Follow the steps below to program your TV remote control.

1

Find the code that corresponds to your

equipment from page 26. If more than one

code is provided, try programming the first code listed.

2

Press and hold DVD, AMP or STB simultaneously with the INPUT button and release. When in the programming mode, the

FUNCTION button blinks for approximately

30 seconds until a code is entered.

3

Enter the five digit code using 0-9. while the

FUNCTION button is lit. If the code is not

entered within 30 seconds, you must repeat step 2.

4

Press successfully programmed, the FUNCTION button blinks twice; if not, it blinks five times.

Auto Backlight

The backlight can be set to light up when a button is pressed.

To set backlight:

Press LIGHT and MUTING simultaneously until the four FUNCTION buttons blink red.

To turn off backlight:

Press LIGHT and MUTING until the TV button blinks red.

Backlight Time Out

The remote control can be set to remain lit longer than the default time setting of approximately five seconds with the FUNCTION buttons.

To change backlight time setting:

1

Press LIGHT, VOL+, and then CH+ simultaneously until the FUNCTION button blinks red.

2

Select the FUNCTION button that corresponds to your preferred time out setting and press

.

DVD 5 seconds (default)

STB 15 seconds

AMP 10 seconds

TV 20 seconds

Reset the Remote Control

To reset the remote control to the factory default settings, press SOUND, TV POWER, and then

. The FUNCTION buttons blink red simultaneously when successfully reset.

25

Manufacturer’s

Code List

If your equipment’s code is not listed, visit

http://esupport.sony.com/remotecodes

for a more comprehensive list.

Sony Equipment Codes

Sony Equipment Programmable

Code Number

AV Receiver

Blu-ray Disc Player

Cable –Digital

DVD AV System

52172

41516, 42178, 42180

02177

51622, 51558, 51658,

51858

DVD Changers

DVD Player

31633

31033, 31069, 31070

DVD/HDD Combo

Player

DVD/VCR Combo

Player

31033, 31069, 31070

30864

DVR /HDD Player 22181, 22182, 22183

Satellite

VCR

01639

21232, 21546, 22184

Other Manufacturer

Equipment Codes

HD Blu-ray Players

Manufacturer

LG

Panasonic

Philips

Pioneer

Samsung

Code

40741

41641

42084

40142

40199

DVD Player

Manufacturer

Coby

Cyberhome

GPX

JVC

Koss

Memorex

Panasonic

Philips

RCA

Samsung

Sylvania

Toshiba

Code

30778, 30852, 31077,

31086, 31107, 31165,

31177, 31351, 31628

30816, 30874, 31023,

31024, 31117, 31129,

31502, 31537

30699, 30769

30558, 30623, 30867,

31164, 31550, 31602

30651, 30769, 30896,

31061, 31423

30695, 30831, 31270

30490, 30503, 30571,

30703, 31762

30503, 30539, 30646,

30675, 31267, 31354,

32056

30522, 30571, 30717,

30790, 30822, 31022

30490, 30573, 30744,

31044, 31075, 31470

30675, 31268

30503, 30539, 30573,

30695, 31154, 31503,

31588, 31608, 31854

26

DVD Changers

Manufacturer

Sylvania

Techwood

Toshiba

Yamaha

Zenith

Code

30675

30692

30503, 31154

30497, 30545

30741

DVD Recorder

Manufacturer

Cyberhome

JVC

LG

Lite-On

Panasonic

Philips

Samsung

Sylvania

Toshiba

Code

31129, 31502

31164

30741

31158, 31416, 31440

30490

30646

30490, 31470

30675

31588

DVD/VCR Combo Units

Manufacturer

JVC

Broksonic

Panasonic

Toshiba

Zenith

Code

30867, 31164, 31550,

31602

30695, 31419

31762

30503, 31854

30741, 30869

VCR's

Manufacturer

Daewoo

JVC

Panasonic

Philips

Sylvania

Code

20037, 20045, 20046,

20278, 21137

20041, 20067, 21162

20000, 20035, 20162,

20225, 20226, 20614,

20616, 21062, 21162,

21262

20000, 20035, 20045,

20048, 20081, 20162,

20209, 20616, 20618,

20739, 21081, 21181

20000, 20035, 20043,

20081, 20593, 21593

A/V Receiver/Home Theater Systems

Manufacturer

Audiovox

Bose

Denon

Emerson

JVC

Koss

LG

Onkyo

Panasonic

Philips

Pioneer

RCA

Samsung

Sherwood

Yamaha

Zenith

Code

30790, 51390

50674, 51229, 51933

50121, 51142, 51306,

51360, 52857

50531

50331, 51495

30651

51293

51298, 51320, 51805

50308, 51288, 51308,

51316, 51548, 51633,

51763, 51764

31267, 51189, 51266,

51269

50150, 50531, 50630,

50823, 51023, 51384

30790, 50531, 50823,

51023, 51254, 51390,

51511, 51609

51295, 51500

31077, 51077, 51517,

51653

30497, 50176, 50354,

51023, 51276, 51331,

51376, 51815

51293

Digital Video Recorders

Manufacturer

TiVo

Code

01442, 01443, 01444,

20618, 20636, 20739

Satellite

Manufacturer

DirecTV

Dish Network

System

Echostar

Funai

GE

Hitachi

Hughes

Humax

JVC

LG

Panasonic

Philips

RCA

Samsung

TiVo

Code

00099, 00247, 00392,

00566, 00639, 00749,

00819, 01076, 01108,

01109, 01142, 01377,

01392, 01414, 01442,

01442, 01443, 01444,

01609, 01639, 01640,

01749, 01856, 20739

00775, 01170, 01505,

01775

00775, 01170, 01505,

01775

01377

00392, 00566

00749, 00819, 01250

00749, 01142, 01443,

01444, 01749, 20739

01790, 20739, 21797,

21988

00775, 01170, 01775

01226, 01414, 22010

00247, 00701, 20614,

20616

00099, 00722, 00749,

00775, 00819, 01076,

01142, 01749, 20618,

20739

00143, 00392, 00566,

00775, 00855, 01142,

01392, 01442, 20880

01108, 01109, 01142,

01276, 01377, 01442,

01609, 20739

01442, 01443, 01444,

20618, 20636, 20739

Cable Box

Manufacturer Code

Jerrold/

General Inst./

Motorola

Pace

Panasonic

Pioneer

00003, 00276, 00476,

00810, 01187, 01254,

01376

00008, 00237, 00877,

01877

00000, 00008, 00107,

00144

00144, 00533, 00877,

01877

Scientific Atlanta 00000, 00003, 00008,

00237, 00477, 00877,

01877

Zenith 00000, 00525, 00899

Using Other Equipment with Your Remote Control

Remote control tips are provided below for the equipment you have programmed on the DVD, AMP, STB

buttons of the remote control. See page 25 for programming equipment to the remote control.

Press INPUT to see your connected equipment in the External Inputs menu. Button functionality may differ depending on your equipment.

Universal

Blu-ray,

HD-DVD, DVD,

DVD-R, DVD/

HDD, DVD/VCR

Universal VCR,

DVR

Universal SAT/

CBL

Universal AMP/

Receiver Button

Access Control

Action

DISPLAY

Display

Select

ENT

Shortcuts Control

GUIDE

Guide

FAVORITES

Favorites

INPUT

RETURN

HOME

OPTIONS

TOP MENU

MENU

Clear, (cancel)

Enter

Input Select

Exit

Setup Menu

Options

Top Menu/List

F1

F2

Menu

For selecting between DVD/

VCR in combo units

Equipment Control

POWER

Turn on/off

.

Previous, Skip backward

> m

N

M

X

Replay

Advance, Skip

Next, Skip forward

Rewind

Play

Fast Forward

Pause x

Stop

Recording Control

z

X

Record

Record Pause x Stop

Navigation Control

V/v

B/b

Cursor up/down

Cursor left/right

Tuning Control

0 - 9

Digit input

CH +/–

Channel up/down

JUMP

Volume Control

Last channel

N/A

N/A

Top Menu

Menu

HDD, DVD/HDD,

DVD/VCR

DVD

N/A

Information

N/A

List

List

Menu

VCR, VCR/DVD

DVD

N/A

N/A

List

List

Menu

N/A

N/A

N/A

List

Top Menu

Menu

N/A

N/A

Band

Surround

N/A

VOL +/–

TV volume +/–

N/A AMP/RECEIVER

Vol.

N/A N/A N/A

MUTING

Muting

R/G/B/Y Control

Red

Red

Green

Green

Blue

Yellow

Blue

Yellow

N/A

N/A

N/A

N/A

DVD or BD Input

VIDEO 1 or A/V Input

SAT or Cable Input

TV or Tuner Input

27

Exploring Fun Features

Favorites

With Favorites, you can manage your preferred TV channels, External Inputs, Photo content, Music content, and Background TV themes for easy access.

Displaying Favorites

Press FAVORITES.

Background TV

Photos Music

Recently viewed channels and inputs

Saved channel or external input

~

• The first time you enter Favorites, the recently viewed channels and inputs are highlighted.

Background TV themes, built-in photos and music, and some inputs are automatically saved into Favorites as a factory default. To remove from Favorites, follow the instructions below.

Navigating Favorites

1

Press

B/b to move between saved selections in a carousel-like fashion.

2

When the recently viewed channels and inputs are highlighted, press

V/v to toggle between them.

3

To view an item, highlight its icon and press .

~

• To clear your recently viewed channels and inputs list, highlight the list in Favorites and press OPTIONS, then select Clear Recently Viewed. Recently viewed items are also cleared when the TV is powered off.

Adding to Favorites

1

From the XMB

TM

, select a Photo, Music, TV, or External Inputs icon. Locate the item you wish to add and press OPTIONS.

2

Press

V/v to highlight Add to Favorites and press

.

Removing from Favorites

1

Press FAVORITES, then select an item to be removed, and press OPTIONS.

2

Press

V/v to highlight Remove from Favorites and press

.

~

Auto Program will clear your TV channels from Favorites (see pages 16 and 46).

Initial Setup will return your Favorites to factory default settings (see page 52).

28

Background TV

Background TV displays images of current

video on your TV that are similar to a screen saver.

Background TV is available from the CABLE/

ANTENNA, Composite, and DMPORT inputs.

Navigating Background TV

1

Tune to one of the inputs listed above.

2

Press OPTIONS.

3

Highlight Background TV and press .

4

Highlight a theme and press . The TV will display the current channel or input using the selected Background TV theme.

Enjoying Photos and Music through USB Port

The TV offers easy access to JPEG photos and

MP3 music files stored on Sony digital cameras

(not supplied) connected via USB interface and

Sony MICRO VAULT™ USB Flash Drives (not supplied).

Using USB Equipment

The USB port is located on the side TV panel.

5

Press RETURN to exit the Background TV and return to the current channel or input.

~

Background TV themes may also be saved to

Favorites, so that you can launch these themes from the Favorites screen.

DLNA Certified™ Photo Media

Player

This TV is a DLNA Certified digital media photo player that can display JPEG photo content from your DLNA Certified networked equipment.

After configuring the TV to an active network (see

page 51), the available media servers will be found

automatically and will be displayed under the Photo

icon (see page 30). See Show/Hide Servers

(page 51) to manually search for media servers.

Consult your DLNA Certified media server's operating instructions for more details on JPEG photo displaying capabilities. Sony does not guarantee that all media servers will display JPEG photos on this TV.

~

• Viewing content which is obtained between networked

DLNA Certified equipment depends on the media formats supported by the DLNA Certified equipment.

With the TV powered off, gently insert your USB equipment into the USB port and power on the TV.

When inserted properly, it should slide in with little resistance. The TV will display “USB device detected”. For information on how to access

Photo or Music files, see pages 30-33.

Removing USB Equipment

Power off the TV and slide the USB Equipment out of the USB port.

USB Equipment Functionality

Sony cannot guarantee or assure the USB functionality on this TV in the following cases:

• Use of non-Sony brand USB equipment

• Use of video or audio clips processed on a computer

• Use of files obtained from the Internet or from a printed film processing center.

Sony recommends backing up all data stored on

USB equipment to avoid potential data corruption.

Sony cannot accept responsibility for lost or damaged data recorded on USB equipment.

The USB functionality on this TV is designed to be compatible with various Sony brand digital cameras and MICRO VAULT USB Flash Drives, but not all. Sony cannot guarantee or assure compatibility with all formats or products.

29


The Photo feature allows easy access to JPEG files from Sony USB connected equipment and DLNA

Certified media servers.

Accessing Photos

Under the Photo icon found on the XMB

, select the DLNA Certified media server, USB, or Samples icon to locate your photo files.

1

Press HOME.

2

Highlight and select the Photo category.

3

Press V/v to highlight and select the photo file location.

A sample DLNA Certified media server icon is shown below (actual icon may differ).

DLNA Certified media server

USB

Samples


US0013A92B6949: server:

4

After locating your photo files, the List View will appear and display photo folders and files. Press

V/v to highlight a file or folder and select (shown below with USB selected).


List View

DSC02991

Fri 5/25/2007 12:06 PM

JPG



~

• To view available DLNA Certified media servers, your TV must be connected and configured to an active network

(see page 51).

• The TV can display a maximum photo file size of 8 megabytes from DLNA Certified media servers.

• The photo display resolution range is 16 x 16 to 4,096 x 4,096 pixels.

Navigating through Photo

Use the remote control buttons described below to navigate through the feature.

Button

OPTIONS

RETURN

To do...

To access Photo Options menu

To play and pause a slideshow or select a folder

To stop slideshow and return to List

View/Thumbnail View

Button

PLAY

PAUSE

STOP

To do…

To play a slideshow

To pause a slideshow

To stop slideshow and return to List

View/Thumbnail View

30

Photo Options

Pressing OPTIONS while displaying the List View will display the following Options menu.

List View Options menu

Playback Method

Photo Settings

Sets the Slideshow play mode and photo display order.

Shuffle

Select On to shuffle the photo order during the slideshow.

Sets the Slideshow settings.

Slideshow

Speed

Select from Fast, Medium, or Slow to set the photo display duration.

Slideshow

Music

Select music to play during the slideshow. Tracks must be added in

Music to be available for selection (see page 32).

Slideshow

Effect

Select from Simple, Butterfly, Maze, Sepia, Monochrome,

Slide, or Fade to set the slideshow transition or image effect (shown below is Butterfly effect).

~

Maze and Butterfly slideshow effects can only display JPEG files.

Display

Preference

Select to optimize picture display quality or display speed.

Display Size

Select to view photos in Standard or Expanded size.

File Order

Sets the order in which files will be listed. Select from Original, Alphabetical,

Alphabetical Reverse, Date Order, or Date Order Reverse.

Thumbnail View

Select to fill the display screen with thumbnails.

View

Select to view the photo file highlighted.

Start Slideshow

Select to start the slideshow.

File Actions

Select to modify file settings for photos from a USB connected equipment.

Rotate and Save Select to rotate a photo Right 90°, Left 90°, or 180° and save.

Protection

Select to protect a photo from deletion.

Delete

Select to delete a photo.

Print Quantity

Select to set Print Quantity and save to USB connected equipment.

~

• Not available with photos accessed from a DLNA Certified media server.

Information

Select to view photo folder, equipment, or server information.

Add to Favorites

Select to add a photo, folder, or equipment to Favorites.

Remove from Favorites Select to remove from Favorites.

(Continued)

31

Pressing OPTIONS while displaying a photo will display the following Photo Options menu.

Photo Options menu

Picture Adjustments

Select to make adjustments to photos (see page 41 Picture Adjustments).

Sound Adjustments

Select to make sound adjustments (see page 43 Sound Adjustments).

Speakers

Select to set sound to TV Speakers or Audio System.

~

• For Display Size, Playback Method, Photo Settings, Start Slideshow, Rotate and Save, Delete,

Information, Add to Favorites, and Remove from Favorites see page 31.

• Photos cannot be stored in the TV.

Music

Listen to music MP3 files directly from a Sony connected USB equipment (not supplied) or add music to a slideshow.

Accessing Music

Under the Music icon, select the USB or Samples icon to locate your MP3 files.

1

Press HOME.

2

Highlight and select the Music category.

3

Press

V/v to highlight and select the music file location. A sample USB icon is selected below.

USB

Samples

Music

USB

4

Music files and folders will be displayed in a List View. Highlight and select any available file or folder.

32

Navigating through Music

Use the remote control buttons described below to navigate through music tracks.

Button

OPTIONS

.

>

PLAY

To do...

To access Music Options menu

To play or pause a music, to select a folder or track

To play the previous music track

To play the next music track

To play a track

Button

PAUSE

STOP

V/v

B/b

RETURN

To do…

To pause or resume play of a music track.

To stop playing a music track and return to List View/Thumbnail

View.

To navigate the List View or to play the previous/next music track

Press and hold to display control panel. Release to continue play.

To navigate the List View/

Thumbnail View.

Music Options

Pressing OPTIONS while displaying the List View will display the following Music Options menu.

Music Options menu

Omit from Slideshow

Select to remove selected track from the slideshow music.

Playback Method

Sets the play order and visual effect settings while playing music files.

Repeat

Select On to continuously play tracks.

Shuffle

Select On to shuffle the track play order.

Track Selection Select Single Track or All Tracks to play during a slideshow.

Visualizer

Effect

Select Album Art, Bloom, or Burst visual effects during a track play (shown below is Burst effect).

File Order

Sets the order in which files will be listed on the List View. Select from Original,

Alphabetical, Alphabetical Reverse, Date Order, or Date Order Reverse.

Thumbnail View

Select to fill display screen with thumbnails.

Add for Slideshow

Select to make a music file accessible to play during slideshow. After adding a music file,

see Slideshow Music under the Photo Options on page 31.

Information

Select to view track, folder, or equipment information.

Add to Favorites

Select to add a track, folder, or equipment to Favorites.

Remove from Favorites Select to remove a track, folder, or equipment from Favorites.

~

• Music tracks cannot be stored in the TV.

33

How to Use TV Guide On Screen

Use the Guide to find the show that you want to watch. The Guide allows you to search for shows by program categories and by keyword. The Guide provides up to two days of TV programming information.

The Guide is available with cable service (without a cable box) or over-the-air antenna. Be sure to

complete the Initial Setup on page 16 to use this service.

TV Guide On Screen System Components

TV Guide Video

Logo Window Clock

Current

Service Label

Service Bar

Info Icon

Info Box

Time Slot

Panel Menu/Panel Ad Channel Logo/Number Title HDTV Show Icon

~

• Image shown above includes digital channels, which may not be available in some areas.

If available, it may be necessary to manually change the channel display (see next page).

Use your TV’s remote control to navigate the Guide system.

To Do This …

View TV Guide

Find a program to watch

Do This…

Press GUIDE to display the TV Guide. Press GUIDE again to exit or press HOME to exit to XMB

™ taken.

. The TV Guide will time out in approximately 5 minutes when no action is

Use V/v/B/b to highlight a program. The CH+/– buttons can be used to page up/down through the listings. The program information will appear in the Info Box. Press to tune to the highlighted program.

Return to Service Bar Press RETURN while in the TV Guide, or press OPTIONS to display the Panel Menu then highlight the go to Service Bar and press . You can also press

V repeatedly to access the Service Bar.

Use shortcuts Shortcuts allow viewing of listings for a different time slot or jumping to a channel of your choice. Enter a number using 0-9 buttons while LISTINGS on the Service Bar is highlighted. The Panel Menu will appear as soon as you enter a number. Complete entering the number in the Shortcuts. The entered number will determine the channel or listing hours ahead or back to view the program. Press V/v to make your selection.

34

To Do This …

Search program

Do This…

Press V/v/B/b to highlight SEARCH on Service Bar. You can search for programs using the following options: KEYWORD, ALPHABETICAL, MOVIES, SPORTS,

CHILDREN, EDUCATIONAL, NEWS, VARIETY, SERIES and HDTV. Press then press B/b to highlight your search option. Press V/v to narrow your search. Press when you find the program. If the program is airing now, press to watch.

Keyword search

Customizing the TV

Guide On Screen system settings

Keyword search can be done by type, category or subcategory of a program. Highlight

SEARCH on the Service Bar, press

then press

B/b to highlight KEYWORD. Press again or press OPTIONS to display Keyword Options in the Panel Menu. Select new

search to narrow your search by type, category or subcategory by pressing V/v/B/b.

Highlight SETUP on the Service Bar then press v to highlight the available options to customize your system settings. You can change system settings, change channel display, change default options, display setup progress and diagnostics information.

Change channel display Highlight SETUP on the Service Bar then press v to highlight the Change channel

display then press

. Highlight a channel then press OPTIONS to display the Grid

Options. Make the changes using

V/v and/or 0-9 buttons. When the changes are made, select done and press .

The Grid Options can also be used to re-sort the channel display numerically.

Display the Grid Options and select re-sort numerically then press . Confirm the numerical re-sort by selecting yes to complete the task.

The Guide appears each time TV is turned on

Highlight SETUP on the Service Bar then press v to highlight Change default options and then press . Highlight General defaults and press to display options in the

Panel Menu. Set auto guide to on to have the Guide appear when the TV powers on.

Lock/unlock video Allows you to set the Video Window display to remain on a single channel (locked) or change channels (unlocked) as you navigate through Listings. While in Service Bar, press

OPTIONS to display the Listings Options in the Panel Menu. Press B/b to lock or

unlock the video. The locked video option displays a single channel.

35

Using BRAVIA Sync with

Control for HDMI

The BRAVIA Sync function on this TV communicates with other Sony equipment supporting the Control for HDMI function.

To connect Sony equipment with Control for HDMI

Use an HDMI cable that bears the HDMI logo for

connection. See pages 12 to 15 or see the HDMI

connection shown in the Quick Setup Guide provided with the TV documentation.

Setting the Control for HDMI

The Control for HDMI function must be set up in order for the TV to communicate with other

Control for HDMI enabled equipment. See

page 50 for information on how to set up this TV’s

Control for HDMI function. For other

equipment, refer to its operating instructions.

Available options using Control for HDMI

The following operations are available after you connect the supported Sony equipment with

Control for HDMI function to your TV:

• Automatically turn off the connected equipment when you turn off the TV.

• The TV will automatically turn on and select the respective HDMI input through the connected equipment by One-Touch-Play.

• Equipment listed under the External Inputs on the XMB

will turn on automatically when

selected, see pages 5 and 38.

• Possible operations with BRAVIA Sync

buttons, see page 19.

When a Sony A/V receiver with BRAVIA Sync is connected, the following additional operations are possible:

• Turning on the A/V receiver when the TV is turned on.

• Automatically switching to the audio output of the A/V receiver’s attached speakers.

• Adjusting the volume and muting of the A/V receiver with the TV’s remote control.

~

• The A/V receiver cannot be selected from the XMB

.

Using DIGITAL MEDIA PORT

Adapter

Connecting a DIGITAL MEDIA PORT

(DMPORT) adapter lets you display photos and play videos and music from a portable player on your TV.

The DMPORT adapter's menu and portable player can be controlled via the TV’s remote control. The

DMPORT input can be selected by pressing

INPUT.

By pressing m, PLAY, PAUSE, M or STOP you may be able to navigate through the portable player’s menu.

~

• Viewing the equipment’s menu on the TV and controlling it via the TV’s remote control depends on the equipment; refer to the portable player’s operating instructions.

• Available DIGITAL MEDIA PORT adapters vary in each area.

• Do not connect an adapter other than the DIGITAL

MEDIA PORT adapter.

• If the portable player is capable of sending video signals, then the DIGITAL MEDIA PORT will have video output. In this case, the system outputs a composite video signal.

• Check compatibility between portable player and the

DIGITAL MEDIA PORT adapter.

• The output volume level between the DMPORT input and TV or other equipment input may be significantly different; adjusting the TV or other equipment's volume may be necessary.

36

Using P&P and PIP Features

This TV comes with the P&P and PIP features which allow you to view two pictures simultaneously. P&P (picture and picture) provides two windows side by side. PIP (picture in picture) provides PC input signal and TV channels.

~

• The CABLE/ANTENNA input must be connected to use the P&P/PIP features.

P&P is not available with 1080/24p video format.

Closed Captions (CC) is available with P&P and

PIP (see page 47).

P&P

Main Window

Sub Window

PIP

Main Window

(PC)

Sub Window

(Location of the Sub

Window can be moved by pressing

V

/ v

/

B

/ b

.)

To Enter P&P and PIP

1

Press OPTIONS while watching one of the following inputs: TV channels, Video,

Component, HDMI, DMPORT or PC.

2

Press V/v to highlight P&P or PIP and press .

P&P Supported Inputs

In main window In sub window

Video 1/2/3

Component 1/2

HDMI IN 1/2/3/4

(except PC timing)

DMPORT

TV channel

(CABLE/

ANTENNA)

~

• To swap audio in P&P mode, use the

B/b button to swap the highlight between the Main Window and Sub

Window.

• To swap audio in PIP mode, press OPTIONS, then press

V/v to highlight Audio Swap.

• For compatible PC Timings, refer to the PC Input

Signal Reference Chart (see page 14).

To Change Inputs or Channels (P&P)

Press B/b to highlight the window to change for

P&P.

• In the main window, press INPUT to select an input to watch.

• In the sub window, change the channel by: pressing CH+/; entering the channel number using the 0-9 numeric buttons; or pressing

JUMP to switch to the previously viewed

channel.

To Change Channels (PIP)

You can change the channel of the sub window by pressing CH+/–; entering the channel number using the 0-9 numeric buttons; or pressing JUMP to switch to the previously viewed channel.

To Exit from P&P and PIP

1

Press OPTIONS.

2

Press

V/v to highlight Exit P&P or Exit PIP

(depends on the mode you are in), and press

to exit.

~

• You may also press RETURN while in these features to exit.

• Additional compatible device with TV tuner is required to watch two simultaneous live TV programs.

PIP Supported Inputs

In main window In sub window

PC

HDMI IN 1/2/3/4 (PC timing)

TV channel

(CABLE/

ANTENNA)

37

Using TV Settings

CEC CC FREEZE

The HOME button allows you to access the TV Home Menu on the XMB

(XrossMediaBar) as well as a variety of TV features.

Settings

Product Suppo r t

Clo c k/Timers

The XMB

displays the Media Category icons (horizontally) and available features

(vertically) within the highlighted icon.

Sound

Screen

Channel

The XMB

is shown here with

Settings highlighted.

TV

Media Category Icons

Settings

Adjusting TV Settings

Customize the TV settings with various options.

Explanations of different Settings start on page 40.

• The available options vary depending on the situations and conditions applied. Unavailable options are grayed out or not displayed.

Viewing Photos

View photos and customize slideshows (see page 30).


Listening to Music

Listen to music or add a music track to a slideshow (see page 32).

Music

TV

External

Inputs

Watching TV

Navigate through the channel list or select the TV Guide On Screen icon located at the top of the channel list to select a channel (see

page 34).

• You can also select a TV channel using the 0-9 or CH+/– buttons (see remote control section on

pages 20 and 23).

Accessing External Inputs

Watch a movie, play a game, record a program or work on your PC.

Assign a label using the Manage Inputs feature for your convenience (see page 50).

38

4

5

6

Navigating through TV Home Menu on XMB

1

Press HOME to display the XMB

.

2

Press

B/b to select a Media Category icon.

3

Settings

Available TV settings and features are listed under the Settings icon.

Photo file access under the

Photo icon.

Music file access under the

Music icon.

TV Guide On

Screen and available channels are listed under the TV icon.

Select inputs from

CTRL: HDMI (Control for HDMI)

Video 1-3

Component 1-2

HDMI 1-4

DMPORT

PC

under the External Inputs icon.

Press

V/v to move within the Category Object Bar.

(The Category Object Bar shown below is for Settings.)

CC

Product Support (page 40)

Clock/Timers (page 40)

Picture (page 41)

Sound (page 43)

Screen (page 44)

Channel (page 46)

Closed Captions (CC) (page 47)

Parental Lock (page 47)

External Inputs (page 50)

HDMI Settings (page 50)

Network (page 51)

General Setup (page 51)

Initial Setup (page 52)

Press when desired item is highlighted.

39

TV Settings Descriptions

Product Support

Contact Sony

Signal Diagnostics

Software Update

Sony contact information is available from this screen for your convenience. Your TV’s specific information such as Model Name, Serial Number, Software Version and downloadable ratings if available from the TV are displayed here.

Select to view the diagnostics information for the current signal.

To view the current software version and check for software updates, the network must be connected to the TV or a broadcast download must be available (for U.S. customers only).

Press

V/v to choose the new version (if available) and press

to begin the software update.

~

• The Cable/Antenna cable needs to be connected directly to the TV and have digital TV programming (not available with the use of a cable box).

• The broadcast download is performed while the TV is off.

• The software update is performed while the TV is powered on.

• Do not turn off the TV during the software update, it may damage the TV software.

Clock/Timers Settings

Current Time

Timer

Sleep Timer

Set the current day and time (date, hour, minutes, and AM/PM). The Timer feature will not be available until you set the Current Time.

~

• If the option is disabled, the TV Guide On Screen has automatically set the time.

Timer can be set to have the TV tune to a certain TV channel or other connected equipment as well as a specified volume at the specified time and duration you set.

Turning on the Timer will allow setting the following: Day of the Week, Time,

Duration, Input, Channel, and TV On Volume.

Sets the time in minutes (Off, 15 min, 30 min, 45 min, 60 min, 90 min, or 120 min) that you want the TV to remain on before shutting off automatically.

40

Picture Settings

Picture Adjustments Picture Mode

For Video

Vivid

Standard

Cinema

For enhanced picture contrast and sharpness.

For standard picture settings. Recommended for home entertainment.

For viewing film-based content. Most suitable for viewing in a theater-like environment.

For Photo

Custom

Photo-Vivid

Allows you to store your preferred settings.

For enhancing contrast and sharpness.

Photo-Standard For standard viewing; select for home use.

Photo-Original

Images resemble the printed pictures from your photo album.

Photo-Custom

Allows you to store your preferred settings.

For PC Timings

Video

This option is available for PC timing (HDMI or

PC input) signal to enhance the video shown on the screen.

Text

This option is available for PC timing (HDMI or

PC input) signal to enhance the text shown on the screen.

~

Picture Mode for all inputs can also be accessed by pressing PICTURE on the remote control to directly toggle the modes.

• The options for Picture Mode may vary depending on the Video/Photo Optimizer

setting (see page 43) and PC input.

Reset

Backlight


Brightness

Resets the current settings to the default values.

Brightens or darkens the backlight.

Increases or decreases picture contrast.

Brightens or darkens the picture.

Color

Hue

Increases or decreases color intensity.

Increases or decreases the green tones.

Color Temperature

White adjustment

Cool

Neutral

Gives the white colors a bluish tint.

Gives the white colors a neutral tint.

Sharpness

Noise

Reduction

MPEG Noise

Reduction

Warm 1, 2 Gives the white colors a reddish tint.

~

• The option Warm 1, 2 is not available for Vivid and Photo-Vivid.

Sharpens or softens the picture.

Reduces the picture noise level.

Reduces the mosaic effect in MPEG-compressed video. Useful for

DVDs, Blu-ray and digital TV channels.

(Continued)

41

Motion Enhancer

CineMotion

Advanced

Settings

Available in the following Picture Modes: Standard, Cinema,

Custom, Photo-Standard, Photo-Original, and Photo-

Custom.

Reset

Resets all the advanced settings to the default values.

Black Corrector Enhances black areas of the picture for stronger contrast.

Advanced C.E.

(Advanced

Contrast Enhancer)

Automatically optimizes the backlight and contrast. This setting is especially effective for dark picture scenes.

Gamma

Clear White

Color Space

Adjusts the balance between light and dark areas of the picture.

Emphasizes white and light colors.

Live Color

Selects the range of color reproduction from

Wide or Standard.

Available when Color Space is set to Wide.

Makes colors more vivid and reproduces clear skin tones.

White Balance

Adjusts the color temperature in detail.

~

Picture settings for all inputs can also be accessed by pressing OPTIONS on the remote control, then selecting Picture Adjustments settings from the OPTIONS menu.

Picture settings available during PC input are Picture Mode, Reset, Backlight,

Picture, Brightness, and Color Temperature.

Activates Motionflow to enhance the smoothness of picture movement and to reduce blur.

High

Standard

Provides smoother picture movement for film-based content.

Provides smooth picture movement. Use this setting for standard use.

Off

Use this setting when the High and Standard settings result in video artifacts such as ghosting.

~

• A noticeable change may be seen depending on the video.

Motion Enhancer is not available when Game Mode is set to On.

Automatically detects film-based content and applies an inverse 3-2 pull-down process and a motion estimation engine to improve film content and de-interlacing performance.

Auto 1

Applies an inverse 3-2 pull-down process along with motion estimation to obtain the smoothest picture quality and reduces artifacts of moving images. Select for standard use.

Auto 2

Applies only the inverse 3-2 pull-down process. Picture movement will be similar to the original film.

Off

Turns off CineMotion.

~

• The CineMotion feature can be set separately for each input (except PC IN).

42

Game Mode

Video/Photo

Optimizer

Select On to optimize the enjoyment of fast paced video games where response time is important. Select Off to disable this feature.

~

• The Game Mode can be set separately for each external input (except PC IN).

Sets the picture settings to optimize the image quality of video (moving pictures) or photo

(still image) content. Feature is only available for 1080i/p (excluding 1080/24p) content connected to the Component or HDMI input.

Video-A

The TV will automatically set the picture settings for video or still image content when Sony optional equipment that supports Video-A mode is connected to the HDMI input.

Video

Select to set the picture settings for video.


Select to set the picture settings for photos.

~

Game Mode and Video/Photo Optimizer features are not available when Theater Mode is set to On.

Sound Settings

Available Sound settings depend on the Speakers setting.

Sound Adjustments Sound Mode

Reset

Treble

Bass

Balance

Surround

Voice Zoom

Dynamic

Standard

Enhances treble and bass.

Standard sound optimized for home use.

Clear Voice

Suitable for spoken dialog.

Resets the current settings to the default values.

Increases or decreases higher-pitched sounds.

Increases or decreases lower-pitched sounds.

Emphasizes left or right speaker balance.

S-FORCE

Front Surround

Provides a virtual surround sound experience made possible using just two front speakers.

Off

Select for normal stereo or mono reception.

Adjusts the clarity of human voices. For example, if the voice of a news announcer is indistinct, you can turn up this setting to make the voice clearer. Conversely, if you are watching a sports program, you can turn down this setting to soften the voice of the commentator.

Sound Booster The Sound Booster provides a fuller sound with a greater sense of depth and width, by emphasizing the high and low frequency sounds.

Select High, Low or Off for the amount of boost you desire.

Selecting Off will bypass the emphasis.

~

• Only available when in Standard mode.

Steady Sound

Select On to stabilize the volume across all programs and commercials. Select Off to disable this feature.

Volume Offset

Adjusts the volume level of the current input (TV or video input) relative to other inputs.

~

Sound Adjustments can also be accessed by pressing OPTIONS on the remote control.

(Continued)

43

MTS

Enjoy stereo, bilingual and mono programs

Stereo

For stereo reception when viewing a TV program broadcasted in stereo.

Auto SAP

Automatically switches the TV to second audio programs when a SAP signal is received. If no SAP signal is present, the TV remains in

Stereo mode.

For mono reception. Use to reduce noise during weak stereo broadcasts.

Mono

~

MTS is available only for analog programs.

MTS can also be accessed by pressing OPTIONS on the remote control.

Speakers

Audio Out

Easy control of volume adjustment

TV Speakers

Select to use the TV speakers for audio.

Audio System

Select this option if you wish to use an external audio system for the

TV sound. By selecting this option you are disabling the TV speakers.

Fixed

Variable

Select to fix the audio output and allow you to adjust the volume with your audio system’s remote control. (The TV’s remote control’s VOL and MUTING buttons have no effect on the Audio Out.)

Select to control the volume of your TV’s speakers or audio system with your TV’s remote control.

Woofer Level

Increases or decreases the low frequency sounds.

~

Alternate Audio is available only for digital programs. If the program you are watching is also available in other languages from the audio tracks, and if that language is what you have selected in the Language setting, your TV will automatically switch to the matching language with the Alternate Audio feature. The Alternate Audio option may be accessed by pressing OPTIONS on the remote control when an alternate audio stream is available from the broadcaster.

Screen Settings

Wide Mode

Auto Wide

Wide Zoom

Normal

Fills the screen with minimum distortion.

Displays the 4:3 picture in its original aspect ratio when the original source is 4:3.

Full

H Stretch

Enlarges the picture horizontally to fill the screen when the original source is 4:3. When the original source is 16:9 (High-definition source), select this mode to display the 16:9 picture in its original size.

Enlarges the picture horizontally to fill the screen when the original source is 16:9. It is useful for HD channels with 4:3 content.

Zoom

Select to enlarge the picture horizontally and vertically to fill the screen while maintaining the aspect ratio.

~

Wide Mode can also be accessed by pressing WIDE on the remote control.

• See WIDE button description on page 21 for accessing the Wide Mode.

Normal is available with 480i or 480p sources only.

H Stretch is only available with 720p, 1080i, 1080p and 1080/24p sources.

On

Off

Automatically changes Wide Mode setting based upon content. If frequent screen changes are disturbing to you, select Off.

Turns off the Auto Wide option. Choose a Wide Mode from the

Wide Mode option.

44

4:3 Default

Select the default screen mode to use for 4:3 sources

Display Area

Screen Position

Vertical Size

Wide Zoom

Normal

Full

Zoom

Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of the original image as possible.

Displays the 4:3 picture in its original aspect ratio.

Select to enlarge the 4:3 picture horizontally only, to fill the screen.

Select to enlarge the picture horizontally and vertically to fill the screen while maintaining the aspect ratio.

Off

Select to continue using the current Wide Mode setting when the channel or input is changed.

~

4:3 Default is not available if Auto Wide is set to Off.

• If 4:3 Default is set to anything but Off, the Wide Mode setting applies only to the current channel. When you change channels (or inputs), Wide Mode is automatically replaced with the 4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and inputs are changed, set 4:3 Default to Off.

Full Pixel

Normal

Displays the picture for 1080i, 1080p or 1080/24p sources in its original size.

Displays the picture in its original size.

-1/-2

Enlarges the picture to hide the edges of the picture.

~

• For 720p, 1080i, 1080p and 1080/24p, feature is only available when Wide Mode is set to Full.

Adjust the Vertical positioning by pressing

V/v. Press B/b to adjust the Horizontal positioning.

~

Screen Position feature is useful if the TV is connected to game equipment.

• Vertical position is available only when Wide Mode is set to Zoom.

• For high-definition signals, Vertical and Horizontal positions are not available.

Adjusts the vertical size of a standard-definition picture.

~

Vertical Size is available only when Wide Mode is set to Wide Zoom or Zoom for standard-definition channels.

Screen settings for PC timings and HDMI-PC (PC input) differ from all other input modes and are shown below.

Auto Adjust

Reset

Phase

Pitch

Select Yes to start the auto adjust for the PC input.

Resets the settings to the default values.

Adjust after Pitch to fine tune overall sharpness.

Adjust uneven sharpness on screen.

~

• For the PC Input Signal Reference Chart, see page 14.

Allows you to move the position of the picture horizontally (left and right).

H Center

V Center

Wide Mode

Allows you to move the position of the picture vertically (up and down).

Normal

Select to display the picture in its original resolution and aspect ratio.

Full 1

Select to enlarge the picture to fill the screen, while maintaining its original aspect ratio.

Full 2

Select to enlarge the picture to fill the screen.

~

Wide Mode can also be accessed by pressing WIDE on the remote control.

• See WIDE button description on page 21 for accessing Wide Mode.

~

Phase and Pitch options are not available with PC signal connected to HDMI input.

45

Channel Settings

Signal Type Cable

For receiving cable channels via cable TV provider.

Antenna

For receiving signal via over-the-air antenna.

~

• You should run Auto Program after changing the Signal Type setting.

Auto Program

Automatically sets the channel list in the TV for all receivable channels. Channel scanning will be based on the Signal Type (Cable/Antenna) setting.

1

Select Auto Program.

2

Select OK to start Auto Program. When Auto Program is completed, the screen will display the number of channels found.

3

Press RETURN to exit Auto Program.

~

• Running Auto Program will clear the Favorites channel list for the current signal type.

• If you run Auto Program again, previously scanned channels will be overwritten with the newly scanned channels.

Add Digital Channels

Select to add digital channels. Be sure to have the Signal Type option selected appropriately for the signal source. (Useful for antenna installations.)

Show/Hide Channels

Allows you to show or hide channels when you surf with the CH +/– button or in the TV channel list on the XMB

.

1

Press V/v to scroll through the channels until you highlight the channel to show or hide.

2

Press to select Shown or Hidden.

To show or hide more channels, repeat steps 1-2.

~

Hidden channels can be accessed by entering the channel number with 0-9 buttons on the remote control.

Edit Channel Labels

Assigns labels (such as station call letters) to channel numbers.

1

Press V/v to scroll through the channel numbers. Then press to select the channel number to assign a label.

2

Press V/v to scroll through the label characters (A-Z, 0-9, etc.). Press b to move to the next character. Repeat to add up to 7 characters to the label. Press to set it.

To assign labels to more channels, repeat steps 1-2.

~

• This feature is not available when using the TV Guide On Screen system.

46

CC

Closed Captions (CC) Settings

CC Display

Analog CC

Digital CC

This option allows you to view Closed Captions (CC).

On

Enables CC Display.

Off

Disables CC Display.

On with Muting Automatically displays closed captions when the TV is muted.

For the basic analog (EIA-608) closed caption options.

CC1, CC2,

CC3, CC4

Text1, Text2,

Text3, Text4

Displays a printed version of the dialogue or sound effects of a program. (Should be set to CC1 for most programs.)

Displays network/station information presented using either half or the whole screen (if available).

For both analog (EIA-608) and digital (EIA-708) closed caption options.

Select from Service 1-6 and CC1-4 (advanced digital closed caption options).

Display Options

Customize the Closed Captions (CC) displays with Text, Character Size,

Character Style, Character Color, Character Opacity, Edge Type, Edge Color,

Background Color and Background Opacity.

~

Closed Captions (CC) can be turned On, Off or On with Muting directly by pressing CC on the remote control.

Parental Lock Settings

The Parental Lock feature allows you to block programs according to their content and rating levels and block channels (regardless of the programs). Password is necessary in setting up blocking.

~

• The Parental Lock feature is also available with Video and Component (480i) inputs.

To View Blocked Programs

Press ENT when tuned to a blocked program, then enter the password. To reactivate the Parental Lock settings, turn off and on the TV.

Password

Country

Use 0-9 button on the remote control to enter a four-digit password. The first time the password is created, you must re-enter it again to confirm the password. “Password set” message will appear on the screen upon confirmation.

Change Password

You can change your password by entering the Parental Lock setting with the previously set password. Highlight and select Change Password, then enter the new password.

~

• You need your password for any future access into the Parental Lock settings. If you

lose your password, see “Lost password” on page 56.

Select the country name of U.S.A. or Canada for the appropriate ratings. The rating

system varies between these two countries. See Custom Rating System Chart on page 49.

(Continued)

47

Rating Off

Child

Youth

Young Adult

Turns off Parental Lock. No programs are blocked from viewing based on their ratings.

Ratings permitted are:

United States

TV Rating: TV-Y, TV-G MPAA: G

Canada

English TV Rating: C, G French TV Rating: G

Maximum ratings permitted are:

United States

TV Rating: TV-PG

Canada

MPAA: PG

English TV Rating: PG French TV Rating: 8 ans+

Maximum ratings permitted are:

United States

TV Rating: TV-14

Canada

MPAA: PG-13

English TV Rating: 14+ French TV Rating: 13 ans+

Custom

Sets ratings manually.

U.S.: See page 49 for details.

Canada: See page 49 for details.

~

• If you are not familiar with the parental guideline rating system, you should select Child, Youth, or Young Adult to help simplify the rating selection. To set more specific ratings, select Custom.

Digital Rating

(Available only in U.S.A. where advanced ratings exist)

Off

Custom

Turn Digital Rating off. No programs containing digital ratings are blocked from viewing.

Select to customize the Parental Lock with downloadable digital ratings.

Select to clear the downloaded ratings.

Clear All

Unrated

(Available only when

Country is set to U.S.A.)

Allow

Block

~

Allows programs and movies that are broadcasted without a rating.

Blocks all programs and movies that are broadcasted without a rating.

• If you block unrated TV programs, be aware that the following types of programs may be blocked: programs broadcast from another country, emergency broadcasts, political programs, sports, news, public service announcements, religious programs and weather.

Channel Block

Allows you to block specific channels regardless of program ratings. The password needs to be set up prior to blocking channels. The blocked channel can only be viewed by entering the correct password.

To View a Blocked Channel

Press ENT when tuned to the blocked channel then enter the password.

48

Custom Rating System Chart

For Country selection of U.S.A.:

Movie Rating

TV Rating

Block programs by their rating, content or both

G

PG

PG-13

R

All children and general audience

Parental guidance suggested

Parental guidance for children under 13

Restricted viewing, parental guidance is suggested for ages under 17

NC-17 and X

Age-Based Ratings

No one 17 or under allowed

TV-Y

TV-Y7

TV-G

TV-PG

All children

Directed to children age 7 and older

General audience

Parental guidance suggested

D

L

S

TV-14

TV-MA

Parents strongly cautioned

Mature audience only

Content-Based Ratings

FV

Fantasy violence

Suggestive dialogue

Strong language

Sexual situations

V

Violence

~

• To ensure maximum blocking capability, set the Age-Based Ratings.

For Country selection of Canada:

English Rating

French Rating

U.S.A. Rating

C

C8+

G

PG

14+

18+

G

8 ans+

All children

Children 8 years and older

General programming

Parental guidance

Viewers 14 and older

Adult programming

General programming

Not recommended for young children

13 ans+

16 ans+

Not recommended for ages under 13

Not recommended for ages under 16

18 ans+

Programming restricted to adults

See TV Rating under U.S.A. for details.

49

External Inputs Settings

Manage Inputs

Follow the steps below to customize your input menu for easy recognition when the

INPUT button is pressed or when selecting an input from the XMB

.

1

Press V/v to highlight your input selection.

2

Press to set Enable setting to either Always or Auto. The Always option will display this input in the input menu at all times. With the Auto option, the input with connected icon will only appear when external equipment is connected and/or an

HDMI signal is present. Some external equipment may not be detected automatically.

3

To assign your own label to the input, press b to highlight the label option, then press

V/v to choose a name of the equipment that is connected to this input.

~

• You can assign the following labels for each input (except PC IN and DMPORT):

–, DVD, Cable Box, Satellite, BD, VCR, Receiver, DVR, Game,

Camcorder, PC.

• “” indicates that no labels are assigned.

Channel Tuning Keys

This setting controls how the remote control channel tuning keys (0-9, CH+/– and

JUMP) behave while using an external input.

Enabled

Select to allow the TV to exit from the external input and return to a

TV channel when pressing the tuning keys.

Disabled

Select to disable the tuning keys during external input mode and prevent unintentionally exiting the external input.

~

• Useful for applications that do not have a connection to the CABLE/ANTENNA input.

HDMI Settings

HDMI inputs of this TV will recognize and communicate with other Sony equipment equipped with

Control for HDMI function.

Control for HDMI

On/Off feature allows your TV to communicate with other equipment that supports

Control for HDMI function.

Device Auto Power Off Select On to have your connected equipment with Control for HDMI function to power off automatically when the TV is turned off. Select Off to disable this function. This feature is available when Control for HDMI is On.

TV Auto Power On

Select On to control your TV’s power on from your connected equipment with Control

for HDMI function. Select Off to disable this function. This feature is available when

Control for HDMI is On.

Displays a list of equipment with Control for HDMI function connected to the TV.

Device List

~

• Press OPTIONS while the equipment supporting Control for HDMI is connected to display the Device Control options. The Device Control option provides access to the Menu, Options and Content List of your connected equipment with your TV remote control.

• Some equipment with Control for HDMI does not support the Device Control feature.

50

Network Settings

Network Setup

Show/Hide Servers

Server Diagnostics

Select to configure your TV’s accessibility to your network via an Ethernet cable and configure Network Setup or review your TV’s current network settings. Select your preferred configuration type.

Easy

The TV will automatically configure your network settings. Most networks can be configured with this option.

Custom

Review

This option allows you to manually enter the IP address and proxy settings

(FOR ADVANCED USERS ONLY).

Auto

Select to populate the IP address and jump to the proxy setting selection.

Manual

Select to manually enter an IP address. If you would like to use a proxy setting, select Use, if not, select Don’t Use.

Select to view current network settings.

Allows you to show or hide available DLNA Certified media servers. When in Show/

Hide Servers menu, press OPTIONS to display the items below.

Delete All

Select to delete all connected servers.

Update List Select to update the server list.

Details

Select to display the detailed information of the connected server.

Delete

Select to delete the highlighted server.

~

• The items above can only be accessed by pressing OPTIONS while in the Show/Hide

Servers menu.

Select to view the server diagnostic information.

General Setup Settings

Language

Info Banner

USB Auto Start

Select the language of your choice from English, Español and Français to be used for displaying all the on-screen settings.

Displays the program name and the program information such as program title and program rating (if available from the broadcaster). Select the amount of program information to display when tuning.

Small

Medium

Select to display minimal channel and program information.

Select to display channel and program information.

Large

Select to display detailed channel and program information.

~

Info Banner appears on the screen each time the channel and external inputs are changed or when DISPLAY on the remote control is pressed.

Select to automatically display photos when a camera is connected via USB.

Slideshow

Select to view JPEG files as a Slideshow.

Thumbnail

View

Select to view JPEG files up to 60 thumbnails at a time.

Off

Select to disable this function.

~

• Press HOME on the remote control to exit this function.

(Continued)

51

Home Menu Scrolling Adjust the navigation speed through menu items.

Power Saving

Standard

Select to scroll quickly with V/v buttons.

Mode 1

Select to scroll slowly with V/v buttons.

Mode 2

Select to scroll individually with repeated V/v/B/b button press.

Reduces the power consumption by adjusting the backlight brightness. This also enhances the black level. Select from Off, Low, High and Picture Off.

~

• While Picture Off is set, pressing VOL +/– or MUTING buttons will not disable this function. Press other buttons to disable it.

Light Sensor

PC Power

Management

Enables the automatic picture (screen) brightness control. The Light Sensor measures the room brightness which allows the TV to automatically adjust the backlight brightness based on the picture settings and the ambient room light conditions.

~

• Be sure not to put anything around the sensor, as its function may be affected (see page 18).

• In low light the range of the backlight control is reduced when the Light Sensor is set to On.

Select On to have the TV automatically enter standby mode when there is no signal input for more than 30 seconds. The STANDBY LED on the front panel illuminates with the

On option. Select Off to disable this feature.

~

• Press POWER to exit from standby mode.

PC Power Management is not VESA-compliant.

Logo Illumination

Picture Adjustments

Lock

Select On to illuminate the SONY logo on the front panel or select Off to disable this function.

Select Lock to prevent the picture adjustments from being changed. To disable this feature and allow picture adjustments, select Unlock.

Initial Setup

If you missed the Initial Setup when you first connected the TV or if you want to scan all receivable channels, select Initial Setup. Follow the instructions on the screen. Some settings such as Picture

Adjustments, Sound Adjustments, and Parental Lock will not be affected by this Initial Setup. If

you wish to return your TV to factory settings, please see the Troubleshooting section on page 56.

~

Favorite channel list will be cleared each time you run the Initial Setup.

52

Other Information

Troubleshooting

If you have questions, service needs, or require technical assistance related to the use of your

Sony TV, please visit our website or call one of the following numbers: http://www.sony.com/tvsupport for US Support http://www.sony.ca/support for Canadian Support

1-800-222-SONY(7669) for US Support

1-877-899-SONY(7669) for Canadian Support

Condition

No picture

No picture

Explanation/Solution

• Check the Power Saving settings (see page 52).

Cannot receive any channels • Make sure the power cord is connected securely.

• Turn on the power of the TV.

• Check cable/antenna connections.

• Make sure the Signal Type setting is correct for your TV signal source.

TV is locked to one channel • Perform Auto Program to add receivable channels that are not present in the

TV’s memory (see pages 16 and 46).

Cannot receive or select channels

• Perform Auto Program to add receivable channels that are not present in the

TV’s memory (see pages 16 and 46).

• To receive or select cable channels, make sure that Signal Type in the

Channel settings is set to Cable (see page 46). To receive or select UHF

channels over an antenna, make sure Signal Type is set to Antenna.

The TV turns off automatically

• Check if Sleep Timer is activated, or confirm the Duration setting of Timer

(see page 40).

• Check PC Power Management in General Setup settings (see page 52).

No picture from some video sources

• Check the connection between the optional video equipment and the TV.

• Press INPUT on the remote control (see page 22).

• Press HOME on the remote control. Select your desired input from the

External Inputs list.

Poor picture

Picture quality not as good as viewed at the store

Broadcast HD formats have poor quality

Double images or ghosts

Only snow and noise appear on the screen

Dotted lines or stripes

• Picture quality depends on the signal content. See Quick Setup Guide

(supplied) to display the best possible picture for that signal.

• Content and signal quality are regulated by the signal provider. Many HD channels and content are actually upscaled versions of standard-definition broadcasts. The picture is affected by the quality of the signal received, which varies between channel and program.

• Confirm the picture quality by selecting Signal Diagnostics in the Product

Support settings (page 40). Then select Sample Image (or Additional

Information first). An HD image will display on the screen to confirm routine panel operation. If your normal picture quality is worse than this sample image, it is most likely due to the signal provided by the broadcaster.

• Check cable/antenna connections.

• Check the antenna location and direction.

• Set the Motion Enhancer to Standard or Off (see page 42).

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its serviceable life. (3-5 years in normal use, 1-2 years at the seaside.)

• Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.

• If using 300 ohm twin lead, move the excess lead away from the TV or try using

75 ohm coaxial cable instead.

(Continued)

53

Condition

No color / Dark picture / Color is not correct / The picture is too bright

Explanation/Solution

• Press PICTURE to select the desired Picture Mode (see page 22).

• Adjust the Picture Mode options in the Picture settings (see page 41).

• If you set the Power Saving mode to Low or High, it will enhance the black

level (see page 52).

Noisy picture

Blurry picture / Poor color

• Make sure that the antenna is connected using a 75-ohm coaxial cable.

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

• Transporting the TV from a cold to a warm location or a sudden change in room temperature may cause moisture condensation, resulting in a blurry picture or poor color. Turn off your TV and wait a few hours before powering on again.

No sound / Noisy sound

No sound / Good picture

Audio noise

No Audio or Low Audio with

Home Theater System

• Check the volume control.

• Press MUTING or VOL + so that “Muting” disappears from the screen (page 20).

• Set Speakers to TV Speakers in the Sound settings (see page 44). If it is

set to Audio System, sound is not output from the TV’s speakers regardless of the TV’s volume control.

• When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL

AUDIO OUT (Optical) may not provide an audio signal.

• When tuned to a digital channel with Alternate Audio, the broadcaster may not be broadcasting your preferred Alternate Audio language. Press

OPTIONS, highlight and select Alternate Audio, and change the Alternate

Audio language (see page 44).

• Make sure that the antenna is connected using a 75-ohm coaxial cable.

• Keep the antenna cable away from other connecting cords.

• To avoid TV interference, make sure to use an undamaged antenna cable.

• Press THEATER for BRAVIA Sync activated Theater System (see page 19).

• Set Speakers to Audio System in the Sound settings (see page 44).

• Set Audio Out to Fixed in the Sound settings (see page 44).

BRAVIA Sync

Cannot find connected

BRAVIA Sync HDMI device

Cannot control second AV receiver

• Make sure that the Control for HDMI is set up on both the TV and the optional

device compatible with BRAVIA Sync (see page 36).

• Only one A/V receiver may be used with the BRAVIA Sync and Control for

HDMI functions at one time (see page 50).

DLNA

DLNA Certified™ Photo

Media Player is not connecting to the server

When “Network disconnected” appears on your

TV screen

• Check the LAN cable/connection to your server and your TV.

• Check if your network is properly configured on your TV. See Network Setup

on page 51.

• Check the current network settings. From the Network icon located on the

XMB

TM

, select Network Setup, then the Review option. If all of your network settings are 0.0.0.0, your server may not be connected properly. Check your network connections and/or server’s instruction manual for connection information.

• Reconfigure your network settings. See Network Setup on page 51.

• If the LAN cable is connected to an active server and the TV has acquired an IP

Address, check your DLNA Certified media server’s connections and configurations.

~

• Your IP Address configuration can be viewed by selecting the Review option.

See Network Setup on page 51.

DLNA Certified™ server is listed under the Photo icon, but is inaccessible

• The TV may have lost connection with the server, check your LAN cable/ connection or your server connections.

54

Condition

PC Input

No picture / No signal

Explanation/Solution

Poor Picture

• Confirm the PC is correctly connected to the TV with either the PC IN (with an

HD15 cable) or with the HDMI IN.

• Ensure the output signal from the PC is one of the formats listed on page 14.

• Turn the PC off. Confirm the PC connection and restart the PC. Plug-and-play will auto-detect the TV and correctly set up PC timing.

• Verify PC Power Management is activated (see page 52).

• Verify the PC is not in standby or hibernation mode.

• Adjust the resolution (see page 14).

• Adjust Pitch and Phase.

General

Wide Mode changes automatically

Suddenly the picture gets smaller

“Black box” on screen

Black bands appear at the edges of the screen

Certain programs on DVD or other digital sources display a loss of detail, especially during fast-motion or dark scenes

Remote control does not operate

• The current Wide Mode setting is automatically replaced with the 4:3

Default setting when you change the channel or video input, if 4:3 Default in the Screen settings is set to other than Off. If you want to lock in Wide Mode selected with WIDE on the remote control, set 4:3 Default to Off in the

Screen settings (see page 44).

• Check the Auto Wide option in the Screen settings (see page 44).

• The picture gets smaller during the commercials due to the method in which the provider broadcasts their content. When HD content channels switch to SD content (commercials), the picture may be small with a black border.

Auto Wide will not expand the picture during these content changes since the content information is regulated by the channel signal provider. You can

manually change the Wide Mode if you prefer (see page 21). This setting will

remain in effect until you change the channel or input or manually change the

Wide Mode again.

• You have selected a text option and no text is available (see page 47). To turn off

this feature, set the CC Display option to Off. If you were trying to select closed captioning, select CC1 instead of Text1-4.

• Some wide screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and bottom of the screen. For more details, check the documentation that came with your DVD (or contact your program provider).

• Programs in 4:3 aspect ratio will have bands on left and right sides of the screen.

• Programs broadcasted in HD formats (720p and 1080i) with 4:3 content will commonly have black bands on the left and right sides of the screen which are added by the broadcaster (see image on left).

Auto Wide will not expand the picture when the black bands on the sides of the screen are added by the broadcaster. You can manually change the Wide

Mode to Wide Zoom, H Stretch or Zoom to fill the screen, which will remain in affect until you change the channel or input or manually change the

Wide Mode again.

• This is due to the digital compression of the source content used by certain digital broadcasts and DVDs which may cause your TV’s screen to display less detail than usual, or cause artifacts (small blocks or dots, pixelations) to appear on your screen. These signal compressions are more visible and are dependent on the clarity and resolution of the TV.

• To determine if the problem is with the remote control or not, press a button on the TV.

• Check the polarity of the batteries or replace the batteries.

• Point the remote control at the remote control sensor located at the front of the TV.

• Keep the remote control sensor area clear from obstacles.

• Fluorescent lamps can interfere with your remote control operation; try turning off the fluorescent lamps.

(Continued)

55

Condition

Some digital cable channels are not being displayed

Explanation/Solution

• Certain cable companies have limitations on the broadcast of digital cable channels. Check with your cable company for more information.

• The digital cable channel may be set to Hidden in the Show/Hide Channels

setting (see page 46).

Some photo files or music files are not displayed from my USB equipment or DLNA

Certified media server

Photo images appear small in the screen

Photo images or folders take time to display

Lost password

• The accessible file or folder limit in a directory is 1,000 for USB and 30,000 for a DLNA Certified media server. This limit includes non-JPEG, MP3 files or just folders. Files or folders are populated based on their time stamps. Photo, music files or folders exceeding the limit will not be displayed.

• Set Display Size to Expanded (see page 31).

• Whether or not photo images can or cannot be displayed in full-screen depends on the resolution or aspect ratio of the file.

• Depending on the image dimension, file size, and number of files in a folder, some photo images or folders take time to display.

• The first time a camera is connected to the TV via USB cable, it may take up to a couple of minutes for the photos to display.

• Select the Password settings on the Parental Lock settings, then enter the following master password: 4357. This password clears your previous password

and allows you to enter a new password (see page 47).

How to reset the TV to factory settings

• Turn on the TV. While holding down

V on the remote control, press POWER on the TV. (The TV will turn itself off, then back on again.) Release

V.

WARNING: The reset will clear all of your customized settings including the

Parental Lock setting.

The speaker grill is loose • Orient the speaker grill so that the location of the marks on the speaker grill and

TV match, insert the protrusions on the speaker grill into the holes on the TV, and support gently. Check that the speaker grill and TV are in contact without any gaps, and then secure it by pushing and sliding the speaker grill left into place.

56

TV screen feels warm • Due to the thin profile of this television, the heat generated by the LCD panel backlight and supporting electronics will be more noticeable. This is normal operation and not a cause for concern.

Specifications

Model

System

Television system

KDL-40XBR6 KDL-46XBR6 KDL-52XBR6

Channel coverage

Panel system

Speaker output

NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69

Analog Cable: 1 - 135 / Digital Cable: 1 - 135

LCD (Liquid Crystal Display) Panel

8W (L) + 8W (R) + 11W (Assist Woofer)

10W (L) + 10W (R) + 15W

(Assist Woofer)

Input/Output jacks

CABLE/ANTENNA

VIDEO IN 1/2/3

COMPONENT IN 1/2

HDMI IN 1/2/3/4

AUDIO OUT

DIGITAL AUDIO OUT

(OPTICAL)

PC IN

PC AUDIO INPUT

LAN (10/100)

DMPORT

USB

Power and others

Power requirement

Power consumption in use in standby

Screen size

(inches measured diagonally)

Display resolution

Speaker/Front (2) (mm)

(inches)

Tweater (2) (mm) ø

(inches) ø

Assist Woofer (mm)

(inches)

Dimensions (W x H x D) with stand (mm)

(inches) without stand (mm)

(inches) wall-mount hole pattern

(mm) wall-mount screw size

Mass with stand (kg)

(lb.)

without stand (kg)

(lb.)

Supplied accessories

Optional accessories

75-ohm external terminal for RF inputs

S VIDEO (4-pin mini DIN) (VIDEO 1 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /

C: 0.286 Vp-p (Burst signal), 75 ohms

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms

YP

B

P

R

(Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / P

B

: 0.7 Vp-p, 75 ohms /

P

R

: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p

AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms

HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p / Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital

AUDIO (HDMI IN 4 only): 500 mVrms (Typical) / Impedance: 47 kilohms

500 mVrms (Typical)

PCM/Dolby Digital optical signal

D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

See the PC Input Signal Reference Chart on page 14.

Stereo mini jack, 500 mVrms, (Typical) / Impedance: 47 kilohms

10 BASE-T/100 BASE-TX Connector (connection speed may vary depending on the network environment. This product does not guarantee network quality or speed of 10 BASE-T/100 BASE-TX terminals.)

VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms

Hi-Speed USB

120 V AC, 60 Hz

225 W

All models less than 0.2 W*

40

1,920 dots (horizontal) × 1,080 lines (vertical)

34 × 104

1

3

/

8

× 4

1

/

8

30

1

1

/

8

50 × 100

2 × 4

953 x 684 x 279

37

5

/

8

x 27 x 11

953 x 645 x 103

37

5

/

8

x 25

1

/

2

x 4

1

/

8

300 × 300

285 W

46

1089 x 765 x 307

42

7

/

8

x 30

1

/

8

x 12

1

/

8

1089 x 723 x 104

42

7

/

8

x 28

1

/

2

x 4

1

/

8

295 W

52

55 × 120

2

1

/

8

× 4

3

/

4

1257 x 874 x 346

49

1

/

2

x 34

1

/

2

x 13

5

/

8

1257 x 831 x 127

49

1

/

2

x 32

3

/

4

x 5

M6 (length: refer to diagram on page 7)

20.0

45.0

23.5

52.0

23.5

52.0

28.0

62.0

35.5

79.0

42.5

94.0

Remote control RM-YD024 (1) / Size AA batteries (2) / AC power cord (1) / Cable holder (1 attached to the Table-

Top Stand) / Operating Instructions (1) / Quick Setup Guide (1) / Warranty Card (1) / Safety and Regulatory

Booklet (1)

For KDL-40XBR6 and KDL-46XBR only: Attaching the Table-Top Stand (1) / Screws (4)

Connecting cables / Support Belt Kit / Colour Variation Unit / Wall-Mount Bracket: SU-WL500 / TV Stand: see

page 2

* While the TV is collecting TV Guide data and/or during software update the power consumption is less than 30 W.

~

• Optional accessories availability depends on its stock.

• Design and specifications are subject to change without notice.

57

Index

0-9 buttons

20

4:3 Default

45

A

AC IN

11

Add Digital Channels

46

Add for Slideshow

33

Add to Favorites

31, 33

Advanced Settings

42

Analog CC

47

Audio Out

44

AUDIO OUT jack

11

Auto Adjust

45

Auto Program

46

Auto Wide

44

B

Background TV

29

Backlight

41

Balance

43

Bass

43

BD/DVD MENU button

20

BD/DVD TOP MENU button

20

Bilingual audio

44

Brightness

41

C

CABLE/ANTENNA input

11

CC button

22

CC Display

47

CH +/– button

23

Channel Block

48

Channel Tuning Keys

50

CineMotion

42

Color

41

Color Temperature

41

COMPONENT IN jack (1080p/1080i/

720p/480p/480i)

11

Contact Sony

40

Control for HDMI

50

Country

47

Current Time

40

D

Device Auto Power Off

50

Device List

50

DIGITAL AUDIO OUT (OPTICAL) jack

11

Digital CC

47

Digital Rating

48

Display Area

45

DISPLAY button

19

Display Options

47

DMe x

button

19

DMe x

/SERVICE

11

DVR/VCR Record Buttons

20

E

Edit Channel Labels

46

English Rating

49

ENT button

20

Equipment Control/BRAVIA Sync

19

F

F1/F2 button

23

Favorites

28

FAVORITES button

20

File Actions

31

File Order

31, 33

FREEZE button

22

French Rating

49

FUNCTION buttons

19

G

Game Mode

43

GUIDE button

20

H

H Center

45

HDMI IN jack

11

HOME button

20

Home Menu Scrolling

52

Hue

41

I

Info Banner

51

Information

31, 33

Infrared Receiver (IR)

24

INPUT button

22

Installing the TV on a wall

7

J

JUMP button

23

L

Language

51

LIGHT button

19

Light Sensor

Described

24

Setting

52

Logo Illumination

52

M

Manage Inputs

50

Motion Enhancer

42

Movie Rating

49

MPEG Noise Reduction

41

MTS

44

Music

32

MUTING button

20

N

Network Setup

51

Noise Reduction

41

O

Omit from Slideshow

33

OPTIONS button

22

P

P&P

37

Password

47

PC IN jack

11

PC Power Management

52

Phase

45


30

Photo Settings

31

PIC OFF/TIMER LED

24


41

Picture Adjustments

32, 41

Picture Adjustments Lock

52

PICTURE button

22

Picture Mode

41

PIP

37

Pitch

45

Playback Method

31, 33

POWER button

21

POWER LED

24

Power Saving

52

R

Rating

48

Remote control programming

25

Remove from Favorites

31, 33

Reset

41, 43, 45, 56

RETURN button

20

S

S VIDEO jack

11

Screen Position

45

Server Diagnostics

51

Settings

Channel

46

Clock/Timers

40

Closed Captions (CC)

47

External Inputs

50

General Setup

51

HDMI Settings

50

Initial Setup

52

Network

51

Parental Lock

47


41

Product Support

40

Screen

44

Sound

43

Sharpness

41

Show/Hide Channels

46

Show/Hide Servers

51

Signal Diagnostics

40

Signal Type

46

Sleep Timer

40

Software Update

40

Sound Adjustments

32, 43

Sound Booster

43

SOUND button

19

Sound Mode

43

Speaker

24

Speakers

32, 44

STANDBY LED

24

Start Slideshow

31

58

Steady Sound

43

Surround

43

T

Thumbnail View

31, 33

Timer

40

Treble

43

Troubleshooting

53–56

TV Auto Power On

50

TV Guide On Screen

34

TV POWER button

21

TV Rating

49

U

U.S.A. Rating

49

Unrated

48

USB Auto Start

51

V

V Center

45

Vertical Size

45

VIDEO IN jack

11

Video/Photo Optimizer

43

View

31

Voice Zoom

43

VOL +/– button

20

Volume Offset

43

W

WIDE button

21

Wide Mode

44, 45

Woofer Level

44

59

For Your Convenience

Please contact Sony Customer Support directly if you:

z

Have questions on the use of your television after reading your Operating Instructions manual and Quick Setup Guide z

Experience difficulty operating your television

For United States http://www.sony.com/tvsupport

or to speak with a support representative: 1-800-222-SONY (7669)

For Canada http://www.sony.ca/support

or to speak with a support representative: 1-877-899-SONY (7669)

Sony will work to resolve your questions more quickly than your retailer or place of purchase.

Please Do Not Return the Product to the Store

On-line Registration Available:

Be sure to register your TV.

United States

http://productregistration.sony.com

Canada

http://www.sonystyle.ca/registration

40%

Body pages printed on recycled paper.

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
