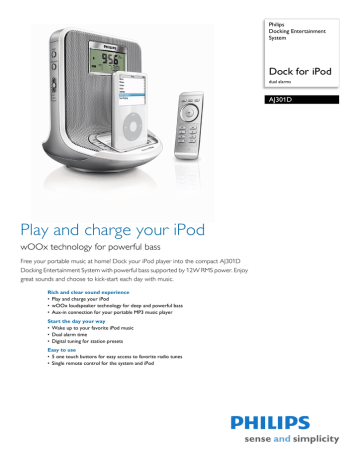

Philips AJ301D/12 MP3 Docking Station User Manual

Philips AJ301D/12 MP3 Docking Station User Manual
Philips
Docking Entertainment
System
Dock for iPod
dual alarms
AJ301D
Play and charge your iPod
wOOx technology for powerful bass
Free your portable music at home! Dock your iPod player into the compact AJ301D
Docking Entertainment System with powerful bass supported by 12W RMS power. Enjoy
great sounds and choose to kick-start each day with music.
Rich and clear sound experience
• Play and charge your iPod
• wOOx loudspeaker technology for deep and powerful bass
• Aux-in connection for your portable MP3 music player
Start the day your way
• Wake up to your favorite iPod music
• Dual alarm time
• Digital tuning for station presets
Easy to use
• 5 one touch buttons for easy access to favorite radio tunes
• Single remote control for the system and iPod
AJ301D/12
Docking Entertainment System
Dock for iPod dual alarms
Specifications
iPod compatibility
• Compatible with: iPod touch, iPod classic, iPod
nano 3rd Generation, iPod 5th Generation, iPod
with color display, iPod nano 2nd Generation, iPod
nano 1st Generation, iPod mini
Tuner/Reception/Transmission
•
•
•
•
Tuner Bands: FM
Auto digital tuning
Station presets: 5
Antenna: FM Antenna
Highlights
Sound
• Output power (RMS): 2 x 6W
• Sound System: Stereo
• Volume Control: Volume Control up/down
wOOx™ Technology
Loudspeakers
• Built-in speakers: 5
• Loudspeaker Enhancement: wOOx Bass Radiator
• Neodynium magnet system
Connectivity
• Aux in: Line-in, 3.5 mm
Audio Playback
• Cradle playback mode: Charging iPod, Play and
Pause, Next and Previous track, Fast forward and
backward
Power
Convenience
Dimensions
• Clock/Version: Digital
• Alarms: 24 hour alarm reset, Dual alarm time,
Buzzer Alarm, Radio Alarm, Repeat alarm
(snooze), Sleep timer
• Display Type: LCD
• Backlight
• Backlight color: White
• Remote Control: Multi-functional
• Mains power
• Adaptor type: 100-240V 50/60Hz
• Product dimensions (W x H x D):
161 x 191 x 164 mm
• Weight: 1.34 kg
• Packaging dimensions (W x H x D):
248 x 224 x 212 mm
• Weight incl. Packaging: 1.94 kg
•
wOOx technology is a revolutionary loudspeaker
concept that allows you to hear and feel profoundly
deep bass that is richer than any other audio system.
Special speaker drivers work in harmony with the
wOOx bass radiator, and precise tuning between the
main driver and the tweeter ensures smooth
transitions from low-mid to high frequencies. Dual
suspension and a totally symmetrical sandwich
construction deliver low and precise base without
noticeable distortion. wOOx produces exceptionally
deep and dynamic bass by using the speaker box full
volume to truly magnify the impact of the music.
Aux-in connection
Aux-in connection for your portable MP3 music
player
Wake up to iPod music
Wake up to your favorite iPod music
Digital tuning for presets
Digital tuning for station presets
5 one-touch radio presets
Issue date 2009-08-10
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 38713
EAN: 87 12581 41026 1
www.philips.com
Access your favorite stations with simple one touch
operation
