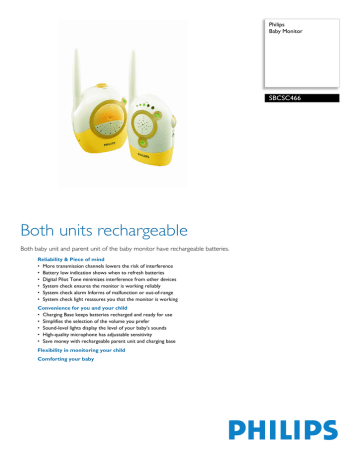

Baby Monitor
Both units rechargeable
Both baby unit and parent unit of the baby monitor have rechargeable batteries.
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Battery low indication shows when to refresh batteries
• Digital Pilot Tone minimizes interference from other devices
• System check ensures the monitor is working reliably
• System check alarm Informs of malfunction or out-of-range
• System check light reassures you that the monitor is working
Convenience for you and your child
• Charging Base keeps batteries recharged and ready for use
• Simplifies the selection of the volume you prefer
• Sound-level lights display the level of your baby's sounds
• High-quality microphone has adjustable sensitivity
• Save money with rechargeable parent unit and charging base
Flexibility in monitoring your child
Comforting your baby
For preview purpose only
Baby Monitor
Technical specifications
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 16
Pilot tone: Digital
Maximum range: 250 m
Number of channels: 4
• Auto out of range warning
• Battery charging indication
• Battery low indication
Product highlights
• Power on indication
• Volume control
• AC/DC Adaptor: 2x 9V DC 200mA
• Batteries: NiMH pack for Baby unit incl
• User Manual
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
Battery-low indication
To know in time when the batteries need to be
recharged or replaced.
Digital Pilot Tone
A special tone that is transmitted along with the audio
signal to minimize the chance of interference from
other wireless appliances.
System check
When interference is detected in the communication
link between the baby unit and parent unit or if the
signal is too weak, the visual and audible alarms will be
System check alarm
The parent unit gives an audible alarm when it is
outside the communication range of the baby unit or
when the communication link is not reliable.
System check light
Green light on the parent unit lights when the
connection between the baby and the parent unit is
reliable and flashes when the parent unit is outside the
range of the baby unit or when the communication link
is not reliable.
Charging base
Thanks to the built-in battery charger in the base, you
get extra freedom (when fully charged) to take the
parent unit with you around the home and stay in touch
with your baby. It' s also a convenient place to store the
parent unit, and ensure it's always ready for use.
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Sound-level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Adjust Microphone sensitivity
Possibility to set the sensitivity of the microphone so you
only hear the sounds you want to hear.
Rechargeable Parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Range in open air
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you into
the garden or to the neighbour's house without loosing
Night light
A soft, glowing light is reassuring and provides a focal
point in the dark.
Date of issue 2006-07-07
Version: 2.0
12 NC: 9082 100 02307
EAN: 87 10895 79059 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
