Philips SBCSC467 Baby Monitor User Manual

Philips SBCSC467 Baby Monitor User Manual
For preview purpose only

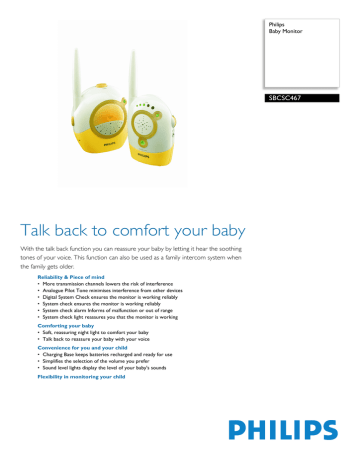

Philips
Baby Monitor
SBCSC467
Talk back to comfort your baby
With the talk back function you can reassure your baby by letting it hear the soothing
tones of your voice. This function can also be used as a family intercom system when
the family gets older.
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Analogue Pilot Tone minimises interference from other devices
• Digital System Check ensures the monitor is working reliably
• System check ensures the monitor is working reliably
• System check alarm Informs of malfunction or out of range
• System check light reassures you that the monitor is working
Comforting your baby
• Soft, reassuring night light to comfort your baby
• Talk back to reassure your baby with your voice
Convenience for you and your child
• Charging Base keeps batteries recharged and ready for use
• Simplifies the selection of the volume you prefer
• Sound level lights display the level of your baby's sounds
Flexibility in monitoring your child
For preview purpose only
SBCSC467/00
Baby Monitor
Technical specifications
Tuner / Reception / Transmission
•
•
•
•
•
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 16
Pilot tone: Digital
Maximum range: 250 m
Number of channels: 4
Convenience
• Auto out of range warning
• Battery charging indication
• Battery low indication
Product highlights
• Power on indication
• Volume control
Accessories
• AC/DC adaptor: 2x 9V DC 200mA
• Batteries: 4 x AA baby unit not incl.
• User manual
Power
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
•
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
neighbourhood.
Digital Pilot Tone
A special tone that is transmitted along with the audio
signal minimises the chance of interference from other
wireless appliances.
Digital System check
A visible and audible warning is activated if the
communication link between the baby unit and parent
unit is unreliable.
System check
When interference is detected in the communication
link between the baby unit and parent unit or if the
signal is too weak, the visual and audible alarms will be
activated.
System check alarm
The parent unit gives an audible alarm when it is
outside the communication range of the baby unit or
when the communication link is not reliable.
System check light
Green light on the parent unit lights when the
connection between the baby and the parent unit is
reliable and flashes when the parent unit is outside the
range of the baby unit or when the communication link
is not reliable.
Night light
A soft, glowing light is reassuring and provides a focal
point in the dark.
Talk back to comfort baby
Not every situation means you have to go to your baby.
The talk back feature from parent unit to baby unit lets
you comfort your baby with the soothing tones of your
voice.
Charging base
Thanks to the built in battery charger in the base, you
get extra freedom (when fully charged) to take the
parent unit with you around the home and stay in touch
with your baby. It' s also a convenient place to store the
parent unit, and ensure it's always ready for use.
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Sound level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Adjust microphone sensitivity
Possibility to set the sensitivity of the microphone so you
only hear the sounds you want to hear.
Rechargeable parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Date of issue 2006-07-07
Version: 2.0
12 NC: 9082 100 00248
EAN: 87 10101 69604 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
