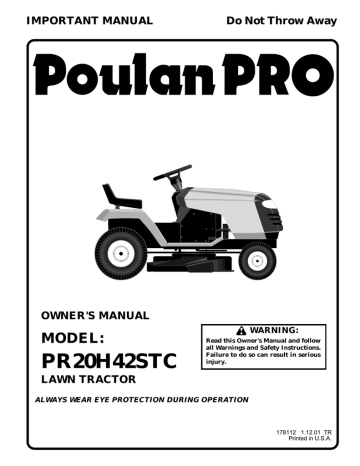

IMPORTANT MANUAL Do Not Throw Away

OWNER'S MANUAL

MODEL:

PR20H42STC

LAWN TRACTOR

WARNING:

Read this Owner's Manual and follow all Warnings and Safety Instructions.

Failure to do so can result in serious injury.

ALWAYS WEAR EYE PROTECTION DURING OPERATION

178112 1.12.01 TR

Printed in U.S.A.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the manual and on the machine before starting.

• Only allow responsible adults, who are familiar with the instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into a trailer or truck.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mowerrelated injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

II.

SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

• Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments. These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

DO NOT:

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments.

The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could cause sliding.

Do not try to stabilize the machine by putting your foot on the ground.

• Do not use grass catcher on steep slopes.

III.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

IV.

SERVICE

• Use extra care in handling gasoline and other fuels.

They are flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check components and replace with manufacturer's recommended parts, when necessary.

• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as required.

2

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

• Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

• Never carry passengers or children even with the blades off.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Look for this symbol to point out important safety precautions. It means CAUTION!!!

BECOME ALERT!!! YOUR SAFETY IS IN-

VOLVED.

CAUTION: Do not coast down a hill in neutral, you may lose control of the tractor.

CAUTION: Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

CAUTION: In order to prevent accidental starting when setting up, transporting, adjusting or making repairs, always disconnect spark plug wire and place wire where it cannot contact spark plug.

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY

AND TYPE:

2.0 GALLONS

UNLEADED REGULAR

OIL TYPE (API-SF-SJ):

OIL CAPACITY:

SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

W/FILTER 4.0 PINTS

W/O FILTER 3.75 PINTS

SPARK PLUG:

(GAP: .040")

CHAMPION RC12YC

GROUND SPEED (MPH): Forward:

Reverse

TIRE PRESSURE: FRONT:

REAR:

0-5.5

0-2.4

14 PSI

10 PSI

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY:

BLADE BOLT TORQUE:

AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

27–35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tractor.

• Follow the instructions under the "Customer Responsibilities" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws

(if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

A spark arrester for the muffler is available through your nearest authorized service center/department (See REPAIR

PARTS section of this manual).

In the state of California the above is required by law (Section

4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ...................... 4, 16-19

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-15

MAINTENANCE SCHEDULE ....................................... 16

SERVICE AND ADJUSTMENTS ............................. 20-25

STORAGE ................................................................... 26

TROUBLESHOOTING ............................................. 27-28

REPAIR PARTS - TRACTOR .................................. 30-45

WARRANTY ................................................................ 46

4

UNASSEMBLED PARTS

Steering Wheel

Seat

Steering

Sleeve

Steering

Wheel Insert

Steering

Extension

Shaft

(1) Hex Bolt

3/8-16 x 1

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

(1) Large Flat

Washer

Steering Adapter

(1) Oil Drain Tube

For Future Use

Slope Sheet

(1) Lock washer 3/8

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Locknut

5/16-18

5

(2) Mulch Blades

(2) Keys

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

Utility knife

(1) 9/16" wrenches

(2) 1/2" wrenches

Pliers

Tire pressure gauge

When right or left hand is mentioned in this manual, it means when you are in the operating position (seated behind the steering wheel).

INSERT

3/8 HEX BOLT

3/8 LOCK WASHER

LARGE FLAT

WASHER

TO REMOVE TRACTOR FROM CAR-

TON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons from carton.

• Cut, from top to bottom, along lines on all four corners of carton, and lay panels flat.

• Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM

SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

• Slide extension shaft onto lower steering shaft. Align mounting holes in extension and lower shafts and install

5/16 hex bolt and locknut. Tighten securely.

• Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing straight forward.

• Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension.

• Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock washer, 3/8 hex bolt and tighten securely.

• Snap steering wheel insert into center of steering wheel.

• Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

STEERING

WHEEL

ADAPTER

5/16 LOCKNUT

LOWER

STEERING

SHAFT

FIG. 1

STEERING

BOOT

TABS

EXTENSION SHAFT

5/16 HEX BOLT

TAB

SLOTS

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

• Lift seat pan to raised position and open battery box door.

• If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in CUSTOMER RESPONSIBILITIES section of this manual for charging instructions).

6

SEAT PAN

BATTERY

BOX DOOR

TERMINAL

FIG. 2

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor.

• Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor.

• Pivot seat and pan forward and assemble adjustment knob and flat washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SEAT PAN

FLAT WASHER

ADJUSTMENT

KNOB

FIG. 3

SEAT

ASSEMBLY

LABEL

TERMINAL

SHOULDER

BOLT

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Operation section, page 10, for location and function of controls)

• Press lift lever plunger and raise attachment lift lever to its highest position.

• Release parking brake by depressing clutch/brake pedal.

• Place freewheel control in freewheeling position to disengage transmission (See “TO TRANSPORT” in the

Operation section of this manual).

• Roll tractor forward off skid.

• Remove banding holding deflector shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See Operation section, page 10, for location and function of controls)

WARNING: Before starting, read, understand and follow all instructions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other people and objects.

• Be sure all the above assembly steps have been completed.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "transmission engaged" position.

• Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.

• Place motion control lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever to its highest position.

• Start the engine. After engine has started, move throttle control to idle position.

• Release parking brake.

• Slowly move the motion control lever forward and slowly drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place motion control lever in neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

I M P O R T A N T : F O R S H I P P I N G P U R P O S E S , T H E

MULCHER PLATE WAS PREATTACHED TO YOUR

MOWER. THE MULCHER PLATE MUST ONLY BE USED

WITH THE MULCHING BLADES THAT CAME PACKED

SEPARATELY IN THE CARTON.

YOUR MOWER CAME FACTORY EQUIPPED WITH HIGH

PERFORMANCE BLADES, WHICH ARE THE BEST

BLADES FOR BAGGING AND DISCHARGING. TO USE

YOUR MOWER WITH THE HIGH PERFORMANCE BLADES

THE MULCHER PLATE MUST BE REMOVED FROM THE

MOWER (SEE FIG. 4).

TO SET UP YOUR MOWER FOR MULCHING

• Remove high performance blades and install mulcher blades, (see BLADE REMOVAL in the CUSTOMER

RESPONSABILITY section of this manual).

7

TO INSTALL MULCHER PLATE (See Fig. 4)

NOTE: If you installed the mulching blades you will need to install the mulcher plate.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove deflector shield from mower. Raise and hold shield when attaching mulcher plate and allow it to rest on plate while in operation.

DEFLECTOR

SHIELD

FIG. 4

TO CONVERT TO BAGGING OR DISCHARG-

ING

NOTE: The mulcher blades will discharge and bag grass, but for best bagging and discharging install the high performance blades.

• Remove mulcher plate and mulcher blades and install high performance blades, (see BLADE REMOVAL in the

CUSTOMER RESPONSABILITY section of this manual).

• Store mulcher blades and mulcher plate in a safe place.

Your mower is now ready for discharging or installation of optional grass catcher accessory.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

• Reduce tire pressure to PSI shown in “PRODUCT

SPECIFICATIONS” section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

MULCHER

PLATE

ASSEMBLY

LATCH

HOOKS

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments section of this manual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual.

3

CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND SATISFACTION FROM THIS

QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

3

All assembly instructions have been completed.

3

No remaining loose parts in carton.

3

Battery is properly prepared and charged. (Minimum 1 hour at 6 amps).

3

Seat is adjusted comfortably and tightened securely.

3

All tires are properly inflated. (For shipping purposes, the tires were overinflated at the factory).

3

Be sure mower deck is properly leveled side-to-side/ front-to-rear for best cutting results. (Tires must be properly inflated for leveling).

3

Check mower and drive belts. Be sure they are routed properly around pulleys and inside all belt keepers.

3

Check wiring. See that all connections are still secure and wires are properly clamped.

3

Before driving tractor, be sure freewheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

3

Engine oil is at proper level.

3

Fuel tank is filled with fresh, clean, regular unleaded gasoline.

3

Become familiar with all controls - their location and function. Operate them before you start the engine.

3

Be sure brake system is in safe operating condition.

3

It is important to purge the transmission before operating your tractor for the first time. Follow proper starting and transmission purging instructions (See “TO START

ENGINE” and “PURGE TRANSMISSION” in the Operation section of this manual).

8

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY CAUTION OR

WARNING

REVERSE FORWARD FAST SLOW

ENGINE ON ENGINE OFF OIL PRESSURE

LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT

PARKING BRAKE

LOCKED

UNLOCKED

MOWER LIFT

ATTACHMENT

CLUTCH ENGAGED

REVERSE NEUTRAL HIGH LOW

15

P

PARKING BRAKE

15

15

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

9

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

AMMETER

ATTACHMENT

CLUTCH LEVER

IGNITION

SWITCH

CHOKE

CONTROL

THROTTLE

CONTROL

CLUTCH/BRAKE

PEDAL

LIGHT

SWITCH

POSITION

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

MOWER DECK

HEIGHT ADJUSTMENT

POSITIONS

PARKING

BRAKE

FREE WHEEL

CONTROL

MOTION

CONTROL

LEVER

FIG. 5

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the mower blades, or other attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on and off.

AMMETER - Indicates charging (+) or discharging (-) of battery.

CHOKE CONTROL - Used when starting a cold engine.

THROTTLE CONTROL: Used for controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and braking the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the brake position.

MOTION CONTROL LEVER: Selects the speed and direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the engine.

FREEWHEEL CONTROL: Disengages transmission for pushing or slowly towing the tractor with the engine off.

10

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 6)

Your tractor is equipped with an operator presence sensing switch. When engine is running, any attempt by the operator to leave the seat without first setting the parking brake will shut off the engine.

• Depress clutch/brake pedal into full “BRAKE” position and hold.

• Place parking brake lever in “ENGAGED” position and release pressure from clutch/brake pedal. Pedal should remain in “BRAKE” position. Make sure parking brake will hold tractor secure.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF" WILL CAUSE THE

BATTERY TO BE DISCHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor completely, as described above, before leaving the operator's position; to empty grass catcher, etc.

THROTTLE

CONTROL

LEVER

"BRAKE"

POSITION

CHOKE

CONTROL

LEVER

CLUTCH/BRAKE

PEDAL "DRIVE"

POSITION

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

IGNITION KEY

"DISENGAGED"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

MOTION

CONTROL

LEVER

PARKING BRAKE

"DISENGAGED"

POSITION

TO USE THROTTLE CONTROL (SEE FIG. 6)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the battery charging rate.

• Full throttle offers the best bagging and mower performance.

TO USE CHOKE CONTROL (See Fig. 6)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD (See

Fig. 6)

The direction and speed of movement is controlled by the motion control lever.

• Start tractor with motion control lever in neutral (N) position.

• Release parking brake and clutch/brake pedal.

• Slowly move motion control lever to desired position.

FIG. 6

STOPPING (See Fig. 6)

MOWER BLADES -

• To stop mower blades,move attachment clutch lever to

“DISENGAGED” position.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into full “BRAKE” position.

• Move motion control lever to neutral (N) position.

IMPORTANT:

THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and allowing engine to idle before stopping may cause engine to

“backfire”.

• Turn ignition key to “OFF” position and remove key.

Always remove key when leaving tractor to prevent unauthorized use.

11

TO ADJUST MOWER CUTTING HEIGHT (See

Fig. 6)

The position of the attachment lift lever determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move lever to desired position.

The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.

OPERATION

• For best cutting performance, grass over 6 inches in height should be mowed twice. Make the first cut relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS (See Fig. 7)

Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.

• Adjust gauge wheels with tractor on a flat level surface.

• Adjust mower to desired cutting height (See “TO AD-

JUST MOWER CUTTING HEIGHT” in the Operation section of this manual).

• With mower in desired height of cut position, gauge wheels should be assembled so they are slightly off the ground. Install gauge wheel in appropriate hole with shoulder bolt, 3/8 washer, and 3/8-16 locknut and tighten securely.

• Repeat for opposite side installing gauge wheel in same adjustment hole.

ATTACHMENT

CLUTCH LEVER

"DISENGAGED"

POSITION

3/8-16

LOCKNUT

GUAGE WHEEL

MOUNTING

BRACKET

3/8 WASHER

GAUGE WHEEL

SHOULDER

BOLT

FIG. 7

TO OPERATE MOWER (See Fig. 8)

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine.

• Select desired height of cut.

• Start mower blades by engaging attachment clutch control.

• TO STOP MOWER BLADES - disengage attachment clutch control.

CAUTION: Do not operate the mower without either the entire grass catcher, on mowers so equipped, or the deflector shield in place.

"ENGAGED" POSITION

ATTACHMENT

LIFT LEVER

HIGH POSITION

LOW

POSITION

DEFLECTOR

SHIELD

FIG. 8

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.

• Choose the slowest speed before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move motion control lever to neutral (N) position.

IMPORTANT:

THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

• To restart movement, slowly release parking brake and clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TO TRANSPORT (See Figs. 5 and 9)

When pushing or towing your tractor, be sure to disengage transmission by placing freewheel control in freewheeling position. Free wheel control is located at the rear drawbar of tractor.

• Raise attachment lift to highest position with attachment lift control.

• Pull freewheel control out and down into the slot and release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

12

OPERATION

CAUTION: Fill to bottom of gas tank filler neck. Do not overfill. Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

FIG. 9

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been shipped, from the factory, already filled with summer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until

“FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the

Customer Responsibilities section of this manual).

• To change engine oil, see the Customer Responsibilities section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

13

TO START ENGINE (See Fig. 5)

When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

• Be sure freewheel control is in the transmission engaged position.

• Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt. For a warm engine start attempt the choke control may not be needed.

NOTE: Before starting, read the warm and cold starting procedures below.

• Insert key into ignition and turn key clockwise to

“START” position and release key as soon as engine starts. Do not run starter continuously for more than fifteen seconds per minute. If the engine does not start after several attempts, push choke control in, wait a few minutes and try again. If engine still does not start, pull the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. Continue to push the choke control in small steps allowing the engine to accept small changes in speed and load, until the choke control is fully in. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly. This may require an engine warm-up period from several seconds to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the transmission should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral.

Release the parking brake and let the clutch/brake s l o w l y return to operating position.

• Allow one minute for transmission to warm up. This can be done during the engine warm up period.

• The attachments can be used during the engine warmup period after the transmission has been warmed up and may require the choke control be pulled out slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance.

See “TO ADJUST CARBURETOR” in the Service and

Adjustments section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disengage freewheel lever while the engine is running.

To ensure proper operation and performance, it is recommended that the transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have developed during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

R E M O V A L F O R S E R V I C E O R R E P L A C E M E N T , I T

SHOULD BE PURGED AFTER REINSTALLATION BEFORE

OPERATING THE TRACTOR.

• Place tractor safely on level surface with engine off and parking brake set.

• Disengage transmission by placing freewheel control in freewheeling position (See “TO TRANSPORT” in this section of manual).

• Sitting in the tractor seat, start engine. After the engine is running, move throttle control to slow position. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal.

• Move motion control lever to full forward position and hold for five (5) seconds. Move lever to full reverse position and hold for five (5) seconds. Repeat this procedure three (3) times.

NOTE: During this procedure there will be no movement of drive wheels. The air is being removed from hydraulic drive system.

• Move motion control lever to neutral (N) position. Shutoff engine and set parking brake.

• Engage transmission by placing freewheel control in driving position (See “TO TRANSPORT” in this section of manual).

• Sitting in the tractor seat, start engine. After the engine is running, move throttle control to half (1/2) speed. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal.

• Slowly move motion control lever forward, after the tractor moves approximately five (5) feet, slowly move motion control lever to reverse position. After the tractor moves approximately five (5) feet return the motion control lever to the neutral (N) position. Repeat this procedure with the motion control lever three (3) times.

• Your tractor is now purged and now ready for normal operation.

OPERATION

MOWING TIPS

• Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trimming.

• Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the machine. This will result in a more even distribution of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished

(See Fig. 10).

• If grass is extremely tall, it should be mowed twice to reduce load and possible fire hazard from dried clippings. Make first cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

Always operate engine at full throttle when mowing

to assure better mowing performance and proper discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired.

• When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used.

FIG. 10

14

OPERATION

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH.

CLEAN AFTER EACH USE.

• The special mulching blade will recut the grass clippings many times and reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed. Also, the mulched grass will biodegrade quickly to provide nutrients for the lawn. Always mulch with your highest engine (blade) speed as this will provide the best recutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet grass tends to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area will not be exposed to the direct sun.

For best results, adjust the mower cutting height so that the mower cuts off only the top one-third of the grass blades (See Fig. 11). For extremely heavy mulching, reduce your width of cut on each pass and mow slowly.

• Certain types of grass and grass conditions may require that an area be mulched a second time to completely hide the clippings. When doing a second cut, mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow north to south one week then change to east to west the next week. This will help prevent matting and graining of the lawn.

FIG. 11

MAX 1/3

15

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

SERVICE DATES

T

0

R

T

R

A

C

Check Brake Operation

Check Tire Pressure

Check Operator Presence and

Interlock Systems

Check for Loose Fasteners

Sharpen/Replace Mower Blades

Lubrication Chart

Check Battery Level

Clean Battery and Terminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tension

6

4

7

5

5

E

N

G

I

N

E

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

Clean Air Screen

Inspect Muffler/Spark Arrester

Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1

,

2

2

1

, 2

2

2

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - If equipped with oil filter, change oil every 50 hours.

4 - Replace blades more often when mowing in sandy soil.

5 - If equipped with adjustable system.

6 - Not required if equipped with maintenance-free battery.

7 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum.

Do not overtighten.

LUBRICATION CHART

À

SPINDLE

ZERK

À

SPINDLE

ZERK

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear. A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

À

FRONT WHEEL

BEARING ZERK

À

FRONT WHEEL

BEARING ZERK

Á

ENGINE

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and interlock systems for proper operation.

• Check for loose fasteners.

À

GENERAL PURPOSE GREASE

Á

REFER TO CUSTOMER RESPONSIBILITIES “ENGINE”

SECTION

16

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted.

(See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See “PRODUCT

SPECIFICATIONS” section of this manual).

• Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are working properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the clutch/brake pedal is fully depressed and attachement clutch control is in the disengaged position.

• When the engine is running, any attempt by the operator to leave the seat without first setting the parking brake should shut off the engine.

• When the engine is running and the attachment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should never operate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace bent or damaged blades.

TRAILING

EDGE UP

BLADE

LOCK WASHER

CENTER

HOLE

FLAT WASHER

MANDREL

ASSEMBLY

STAR

HEX BOLT (GRADE

8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

NOTE: We do not recommend sharpening blade - but if you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration and eventual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone balancer, follow the instructions supplied with balancer).

NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

CENTER HOLE

BLADE REMOVAL (See Fig. 12)

• Raise mower to highest position to allow access to blades.

• Remove hex bolt, lock washer and flat washer securing blade.

• Install new or resharpened blade with trailing edge up towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

• Reassemble hex bolt, lock washer and flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

5/8" BOLT

OR PIN

BLADE

17

FIG. 13

BATTERY

Your tractor has a battery charging system which is sufficient for normal use. However, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

CUSTOMER RESPONSIBILITIES

NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause the battery to “leak” power.

• Open battery box door.

• Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY” in the

SERVICE AND ADJUSTMENTS section of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent possible damage to seals, do not use high pressure water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and clean.

• Inspect cooling fins for dirt, grass clippings and other materials. To prevent damage to seals, do not use compressed air or high pressure sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid maintenance is not required for the life of the transaxle. Should the transaxle ever leak or require servicing, contact your nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classification SF-SJ. Select the oil’s SAE viscosity grade according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and after each eight (8) hours of operation. Tighten oil fill cap/ dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 14 and 15)

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

• Remove cap from bottom fitting of drain valve and install the drain tube onto the fitting.

• Unlock drain valve by pushing inward and turning counterclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” section of this manual.

• Use gauge on oil fill cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at “FULL” line on dipstick.

CLOSED

AND

LOCKED

POSITION

OIL DRAIN VALVE

DRAIN

TUBE

SAE VISCOSITY GRADES

CAP

SAE 30

5W-30

°

F

°

C

-20° 0° 30° 32° 40° 60° 80° 100°

-30°

-20°

-10°

0° 10°

20° 30°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

40°

FIG. 14

FIG. 15

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine damage from overheating. Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers.

18

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen, cooling fins, and other external surfaces of the engine are kept clean at all times.

Every 100 hours of operation (more often under extremely dusty, dirty conditions), remove the blower housing and other cooling shrouds. Clean the cooling fins and external surfaces as necessary. Make sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked grass screen, dirty or plugged cooling fins, and/or cooling shrouds removed will cause engine damage due to overheating.

AIR FILTER (See Fig. 16)

Your engine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knobs and cover.

TO SERVICE PRE-CLEANER

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in clean, absorbent cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

• Clean cartridge by tapping gently on flat surface. If very dirty or damaged, replace cartridge.

• Reinstall precleaner cartridge, cover and secure with knobs.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY CARTRIDGE.

KNOBS

COVER

CUSTOMER RESPONSIBILITIES

CARTRIDGE

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in

“PRODUCT SPECIFICATIONS” section of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. If fuel filter becomes clogged, obstructing fuel flow to carburetor, replacement is required.

• With engine cool, remove filter and plug fuel line sections.

• Place new fuel filter in position in fuel line with arrow pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP CLAMP

FUEL

FILTER

FIG. 17

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign matter.

• Keep finished surfaces and wheels free of all gasoline, oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your tractor unless the electrical system, muffler, air filter and carburetor are covered to keep water out. Water in engine can result in a shortened engine life.

FOAM

PRE-CLEANER

FIG. 16

19

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key “OFF” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 18)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch in “DISENGAGED” position.

• Move attachment lift lever forward to lower mower to its lowest position.

• Roll belt off engine pulley.

• Remove small retainer spring, and lift clutch spring off pulley bolt.

• Remove large retainer spring, slide collar off and push housing guide out of bracket.

• Disconnect anti-swaybar from chassis bracket by removing retainer spring.

• Disconnect suspension arms from rear deck brackets by removing retainer springs.

• Disconnect front links from deck by removing retainer springs.

• Raise lift lever to raise suspension arms. Slide mower out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS AND HOOK THE CLUTCH

SPRING INTO SQUARE HOLE IN FRAME.

TO INSTALL MOWER (See Fig. 18)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of removal instructions.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See “PROD-

UCT SPECIFICATIONS” section of this manual). If tires are over or underinflated, you will not properly adjust your mower.

SQUARE HOLE

SUSPENSION ARMS

SMALL RETAINER SPRING

CLUTCH SPRING

ENGINE PULLEY

FRONT LINK

RETAINER SPRING

ANTI-SWAY BAR

COLLAR

RETAINER SPRINGS

(BOTH SIDES)

HOUSING GUIDE

LARGE RETAINER

SPRING

BRACKET

Fig. 18

20

SERVICE AND ADJUSTMENTS

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height from bottom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other.

• If adjustment is necessary, make adjustment on one side of mower only.

• To raise one side of mower, tighten lift link adjustment nut on that side.

• To lower one side of mower, loosen lift link adjustment nut on that side.

NOTE: Three full turns of adjustment nut will change mower height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE OF

MOWER TO GROUND

BOTTOM EDGE OF

MOWER TO GROUND

• To raise front of mower, loosen nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trunnion on both front links.

• Recheck side-to-side adjustment.

MANDREL

"D"

"D"

FIG. 21

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

“A”

GROUND LINE

FIG. 19

SUSPENSION ARM

“A”

NUT "F"

LIFT LINK ADJUSTMENT NUT

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position.

Check adjustment on right side of tractor. Measure distance

“D” directly in front and behind the mandrel at bottom edge of mower housing as shown.

• Before making any necessary adjustments, check that both front links are equal in length. Both links should be approximately 10-3/8".

• If links are not equal in length, adjust one link to same length as other link.

• To lower front of mower loosen nut “E” on both front links an equal number of turns.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links.

21

TRUNNION

FRONT LINKS

FIG. 22

NUT "E"

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 23)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See “TO REMOVE

MOWER” in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all belt guides.

• Install mower in reverse order of removal instructions.

WITH PARKING BRAKE “ENGAGED”

NUT

“A”

1-9/16"

JAM NUT

OPERATING

ARM

MANDREL

PULLEYS

IDLER

PULLEYS

FIG. 23

TO ADJUST BRAKE (See Fig. 24)

Your tractor is equipped with an adjustable brake system which is mounted on the side of the transaxle.

If tractor requires more than six (6) feet stopping distance at high speed in highest gear on a level dry concrete or paved surface, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and nut

“A” on brake rod.

• If distance is other than 1-9/16", loosen jam nut and turn nut “A” until distance becomes 1-9/16". Retighten jam nut against nut “A”.

• Road test tractor for proper stopping distance as stated above. Readjust if necessary. If stopping distance is still greater than six (6) feet in highest gear, further maintenance is necessary. Contact your nearest authorized service center/department.

DO NOT TOUCH THIS NUT. IF FURTHER BRAKE ADJUST-

MENT IS NECESSARY CONTACT YOUR NEAREST

AUTHORIZED SERVICE CENTER/DEPARTMENT

FIG. 24

TO REPLACE MOTION DRIVE BELT

(See Fig. 25)

Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest.

• Remove mower (See “TO REMOVE MOWER” in this section of this manual.)

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor. Carefully remove belt upwards from transmission input pulley and over cooling fan blades.

• Pull belt toward front of tractor and remove downward from around engine pulley.

• Install new belt by reversing above procedure.

ENGINE

PULLEY

CLUTCHING

IDLER

STATIONARY

IDLER

TRANSMISSION

INPUT PULLEY

FIG. 25

22

SERVICE AND ADJUSTMENTS

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or replacement, it should be purged after reinstallation and before operating the tractor. See “PURGE TRANSMIS-

SION” in the Operation section of this manual.

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 26)

The motion control lever has been preset at the factory and adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel, and lightly tighten.

• Start engine and move motion control lever until tractor does not move forward or backward.

Hold motion control lever in that position and turn engine off.

• While holding motion control lever in place, loosen the adjustment bolt.

• Move motion control lever to the neutral (N) (lock gate) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to adjustment bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satisfied.

MOTION CONTROL

LEVER

NEUTRAL

LOCK GATE

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steering wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toein or camber, contact your nearest authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS (See Fig.

27)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

• Replace washers and snap retaining ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

RETAINING

RING

WASHERS

AXLE COVER

SQUARE KEY

(REAR WHEEL ONLY)

FIG. 27

ADJUSTMENT

BOLT

FIG. 26

23

SERVICE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 28)

CAUTION: Lead-acid batteries generate explosive gases. Keep sparks, flame and smoking materials away from batteries. Always wear eye protection when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See “BATTERY” in the CUSTOMER RESPON-

SIBILITIES section of this manual).

If “jumper cables” are used for emergency starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

V E H I C L E M U S T A L S O B E A 1 2 V O L T N E G A T I V E

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE (+) terminal of each battery, taking care not to short against chassis.

• Connect one end of the BLACK cable to the NEGATIVE

(-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully charged battery.

• RED cable last from both batteries.

POSITIVE TERMINAL

NEGATIVE TERMINAL

REPLACING BATTERY (See Figs. 29 and 30)

CAUTION: Do not short battery terminals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to prevent sparking from accidental grounding.

• Lift seat pan to raised position and open battery box door.

• Disconnect BLACK battery cable first then RED battery cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as old battery.

• First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) terminal with remaining hex bolt and keps nut. Tighten securely.

• Close battery box door.

SEAT PAN

BATTERY

BOX DOOR

CHASSIS

POSITIVE

TERMINAL

FIG. 28

FIG. 29

KEPS

NUT

CABLES

NEGATIVE

TERMINAL

CHARGED

BATTERY

HEX

BOLT

24

POSITIVE (RED)

CABLE

NEGATIVE

(BLACK) CABLE

FIG. 30

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the grill.

• Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

• Close hood.

SERVICE AND ADJUSTMENTS

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the Repair

Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD

• Choke should be closed. If it is not, loosen casing clamp screw and move choke cable until choke is completely closed. Tighten casing clamp screw securely.

• Replace air cleaner cover assembly and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not operate properly due to suspected carburetor problems, take your tractor to an authorized service center for repair and/or adjustment.

High speed stop is factory adjusted. Do not adjust - damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

T H E F A C T O R Y H I G H S P E E D S E T T I N G C A N B E

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

N E A R E S T A U T H O R I Z E D S E R V I C E C E N T E R /

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

E X P E R I E N C E T O M A K E A N Y N E C E S S A R Y

ADJUSTMENTS.

STOP

HEADLIGHT WIRE

CONNECTOR

FIG. 31

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 32)

The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening cable. If adjustment is necessary, proceed as follows:

• With engine not running, move throttle control lever to fast position.

• Check that swivel is against stop. If it is not, loosen cable clamp screw and pull cable back until swivel is against stop. Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 33)

The choke control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening cable. If adjustment is necessary, proceed as follows:

• With engine not running, move choke control (located on dash panel) to full choke position.

• Loosen knob and remove cover assembly from air cleaner.

25

SWIVEL

FIG. 32

CLAMP SCREW

FIG. 33

CLAMP

SCREW

STORAGE

Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.

CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark. Allow the engine to cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See “CLEANING” in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt replacement instructions in the Service and Adjustments section of this manual).

• Lubricate as shown in the Customer Responsibilities section of this manual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require recharging.

• To help prevent corrosion and power leakage during long periods of storage, battery cables should be disconnected and battery cleaned thoroughly (see “TO CLEAN

BATTERY AND TERMINALS” in the Customer Responsibilities section of this manual).

• After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM

PARTS SUCH AS CARBURETOR, FUEL FILTER, FUEL

H O S E , O R T A N K D U R I N G S T O R A G E . A L S O ,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil.

(See “ENGINE” in the Customer Responsibilities section of this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into cylinder(s).

• Turn ignition key to “START” position for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

26

TROUBLESHOOTING POINTS

PROBLEM

Will not start

CAUSE

1.

Out of fuel.

2.

Engine not “CHOKED” properly.

3.

Engine flooded.

4.

Bad spark plug.

5.

Dirty air filter.

6.

Dirty fuel filter.

7.

Water in fuel.

8.

Loose or damaged wiring.

9.

Carburetor out of adjustment.

10.

Engine valves out of adjustment.

CORRECTION

1.

Fill fuel tank.

2.

See “TO START ENGINE” in Operation section.

3.

Wait several minutes before attempting to start.

4.

Replace spark plug.

5.

Clean/replace air filter.

6.

Replace fuel filter.

7.

Drain fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.

8.

Check all wiring.

9.

See “To Adjust Carburetor” in Service Adjustments section.

10.

Contact an authorized service center/department.

Hard to start

1.

Dirty air filter.

2.

Bad spark plug.

3.

Weak or dead battery.

4.

Dirty fuel filter.

5.

Stale or dirty fuel.

6.

Loose or damaged wiring.

7.

Carburetor out of adjustment.

8.

Engine valves out of adjustment.

Engine will not turn over

1.

Clutch/brake pedal not depressed.

2.

Attachment clutch is engaged.

3.

Weak or dead battery.

4.

Blown fuse.

5.

Corroded battery terminals.

6.

Loose or damaged wiring.

7.

Faulty ignition switch.

8.

Faulty solenoid or starter.

9.

Faulty operator presence switch(es).

1.

Clean/replace air filter.

2.

Replace spark plug.

3.

Recharge or replace battery.

4.

Replace fuel filter.

5.

Drain fuel tank and refill with fresh gasoline.

6.

Check all wiring.

7.

See “To Adjust Carburetor” in Service Adjustments section.

8.

Contact an authorized service center/department.

1.

Depress clutch/brake pedal.

2.

Disengage attachment clutch.

3.

Recharge or replace battery.

4.

Replace fuse.

5.

Clean battery terminals.

6.

Check all wiring.

7.

Check/replace ignition switch.

8.

Check/replace solenoid or starter.

9.

Contact an authorized service center/department.

Engine clicks but will not

1.

Weak or dead battery.

start

2.

Corroded battery terminals.

3.

Loose or damaged wiring.

4.

Faulty solenoid or starter.

Loss of power

1.

Recharge or replace battery.

2.

Clean battery terminals.

3.

Check all wiring.

4.

Check/replace solenoid or starter.

1.

Cutting too much grass/too fast.

2.

Throttle in “CHOKE” position.

3.

Build-up of grass, leaves and trash under mower.

4.

Dirty air filter.

5.

Low oil level/dirty oil.

6.

Faulty spark plug.

7.

Dirty fuel filter.

8.

Stale or dirty fuel.

9.

Water in fuel.

10.

11.

15.

Spark plug wire loose.

Dirty engine air screen/fins.

12.

Dirty/clogged muffler.

13.

Loose or damaged wiring.

14.

Carburetor out of adjustment.

Engine valves out of adjustment.

1.

Set in “Higher Cut” position/reduce speed.

2.

Adjust throttle control.

3.

Clean underside of mower housing.

4.

Clean/replace air filter.

5.

Check oil level/change oil.

6.

Clean and regap or change spark plug.

7.

Replace fuel filter.

8.

Drain fuel tank and refill with fresh gasoline.

9.

Drain fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.

10.

Connect and tighten spark plug wire.

11.

Clean engine air screen/fins.

12.

Clean/replace muffler.

13.

Check all wiring.

14.

See “To Adjust Carburetor” in Service Adjustments section.

15.

Contact an authorized service center/department.

Excessive vibration

1.

Worn, bent or loose blade.

2.

Bent blade mandrel.

3.

Loose/damaged part(s).

1.

Replace blade. Tighten blade bolt.

2.

Replace blade mandrel.

3.

Tighten loose part(s). Replace damaged parts.

27

TROUBLESHOOTING POINTS

PROBLEM CAUSE

Engine continues to run

1.

Faulty operator-safety presence control system.

when operator leaves seat with attachment clutch engaged

CORRECTION

1.

Check wiring, switches and connections. If not corrected, contact an authorized service center/ department.

Poor cut - uneven

Mower blades will not rotate

1.

Worn, bent or loose blade.

2.

Mower deck not level.

3.

Buildup of grass, leaves, and trash under mower.

4.

Bent blade mandrel.

5.

Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.

1.

Replace blade. Tighten blade bolt.

2.

Level mower deck.

3.

Clean underside of mower housing.

4.

Replace blade mandrel.

5.

Clean around mandrels to open vent holes.

1.

Obstruction in clutch mechanism.

2.

Worn/damaged mower drive belt.

3.

Frozen idler pulley.

4.

Frozen blade mandrel.

1.

Remove obstruction.

2.

Replace mower drive belt.

3.

Replace idler pulley.

4.

Replace blade mandrel.

Poor grass discharge

Headlight(s) not working

1.

Switch is “OFF”.

(if so equipped)

2.

Bulb(s) burned out.

3.

Faulty light switch.

4.

Loose or damaged wiring.

5.

Blown fuse.

Battery will not charge

1.

Engine speed too slow.

2.

Travel speed too fast.

3.

Wet grass.

4.

Mower deck not level.

5.

Low/uneven tire air pressure.

6.

Worn, bent or loose blade.

7.

Buildup of grass, leaves and trash under mower.

8.

Mower drive belt worn.

9.

Blades improperly installed.

10.

Improper blades used.

11.

Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.

1.

Place throttle control in “FAST” position.

2.

Shift to slower speed.

3.

Allow grass to dry before mowing.

4.

Level mower deck.

5.

Check tires for proper air pressure.

6.

Replace/sharpen blade. Tighten blade bolt.

7.

Clean underside of mower housing.

8.

Replace mower drive belt.

9.

Reinstall blades sharp edge down.

10.

Replace with blades listed in this manual.

11.

Clean around mandrels to open vent holes.

1.

Bad battery cell(s).

2.

Poor cable connections.

3.

Faulty regulator (if so equipped).

4.

Faulty alternator.

1.

2.

3.

4.

5.

Turn switch “ON”.

Replace bulb(s).

Check/replace light switch.

Check wiring and connections.

Replace fuse.

1.

Replace battery.

2.

Check/clean all connections.

3.

Replace regulator.

4.

Replace alternator.

Loss of drive

Engine “backfires” when turning engine

“OFF”

1.

Freewheel control in “disengaged” position.

2.

Motion drive belt worn, damaged, or broken.

3.

Air trapped in transmission during shipment or servicing.

1.

Engine throttle control not set at “SLOW” position for 30 seconds before stopping engine.

1.

Place freewheel control in “engaged” position.

2.

Replace motion drive belt.

3.

Purge transmission.

1.

Move throttle control to “SLOW” position and allow to idle for 30 seconds before stopping engine.

28

SCHEMATIC

TRACTOR - - MODEL NUMBER PR20H42STC

RED

BLACK

BATTERY

A

AMMETER

(OPTIONAL)

RED

FUSE

RED

M

STARTER

BLACK

WHITE

SOLENOID

RED

B

G

L

S

M

A2

A1

IGNITION

SWITCH

CLUTCH / BRAKE

(PEDAL UP)

WHITE

SEAT SWITCH

(NOT OCCUPIED)

WHITE

IGNITION SWITCH

POSITION CIRCUIT

OFF

RUN/LIGHT

RUN

START

M+G+A1

B+A1

B+A1

B + S + A1

“MAKE”

NONE

A2+L

NONE

NONE

BLACK

BLACK

HOUR

METER

(OPTIONAL)

BLACK

ATT'MENT CLUTCH

(CLUTCH OFF)

BLACK

GROUNDING

CONNECTOR

BLACK

BLUE

FUEL

LINE

BLACK

IGNITION

UNIT

SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

ORANGE

RED

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

BLACK

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

29

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ELECTRICAL

21 22

8

24

27

43

27

42

41

27

27

26

25

40

16

16

33

30

27

. A

MP

ER

ES

45

52

28

29

1

2

30

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ELECTRICAL

KEY PART

NO.

NO.

DESCRIPTION

1

2

8

163465

74760412

156417

16 153664

21 166181

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140401

40 170217

41 71110408

42 131563

43 175141

45 121433X

52 141940

Battery

Bolt Hex Hd 1/4-20unc X 3/4

Case Battery Mech Hinge

Switch Interlock Push-In

Harness Socket Light

Bulb, Light # 1156

Cable Battery

Cable Battery 6 Ga Red w/16 wire

Fuse 20 Amp

Nut Keps Hex 1/4-20 Unc

Cable Ground 6ga 12 black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Generic

Harness Ign

Bolt Fin Hex 1/4-20uncx 1/2

Cover Terminal Red

Solenoid

Ammeter Rectangular

Protection Loop

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

31

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

CHASSIS

212

17

159

30

24

18

12

28

208

24

26

25

31

3

5

26

25

5

53

51

52

55

57

58

208

9

11

207

26

208

54

207

20

23

64

206

2

3

35

3

3

3

33

142

10

3

14

142

3

3

3

3

35

14

38

37

34

145

37

26

207

1

13

208

29

32

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

CHASSIS

KEY PART

NO.

NO.

DESCRIPTION

1

2

3

5

169830

176554

17060612

155272

Chassis

Drawbar

Screw 3/8-16 X .75

Bumper Hood/Dash

9 168337X012 Dash P/L

10 72140608 Bolt Carriage 3/8-16 x 1

11 155927

12 145660

Panel Dash Lh

Clip Tinnerman

13 172107X010 Panel Dash Rh

14

17490608

Screw Thdrol 3/8 x 16 x 1/2

17 159639X428 Hood LT/PL

18 126938X Bumper Hood

20 156437

23 124028X

24 74780616

25 19131312

Plate Mtg Battery Fuel Tank Fr

Bushing

Bolt Fin Hex 3/8-16 x 1 Gr 5

Washer 13/32 X 13/16 X 12 Ga

26 73800600

28 170474

Nut Lock Hex W/Ins 3/8-16 Unc

Grille/Lens Asm

29 170472X599 Lens LT/PL

30 169470X428 Fender Footrest Pnt

31 136619 Bracket Fender

33 145244X428 Footrest Pnt Lh

34 145243X428 Footrest Pnt Rh

35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

37 17490508

38 169834

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

Screw Thdrol 6/16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Nut Lock Hex W/Ins 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracjet Grukke Lh

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Rh

Bolt Hex 1/4-20 x 3/4

58 174930

64 154798

142 165867

145 156524

Duct Air

Dash Lower STLT

Plate Reinforcement STLT

Rod Pivot Chassis/Hood

159 169473X428 Cupholder

206 170165 Bolt Shoulder 5/16-18

207 17670508

208 17670608

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

212 156229

--5479J

Insert Lens Relect

Plug BTN. Blk

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

33

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

DRIVE

51

57

16

77

15

89

197

96

26

69

81

32

30

52

95

1

63

169

198

164

161

159

158

162

59

61

83

14

163

168

21

10

82

165

156 166

8

35

41

40

38

56

62

52

32

36

212

70

116

66

65

64

50

42

39

34

37

27

49

47

120

36

35

202

150

48

151

51

53

28

30

26

29

16

22

77

26

25

19

24

74

75

61

78

76

71

73

200

16

26

84

27

16

61

199

55

34

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

DRIVE

KEY PART

NO.

1

NO.

- - - - - -

8 165619

10 76020416

14 10040400

15 74490544

16 73800500

19 73800600

21 140845

22 169498

24 73350600

25 106888X

26 19131316

27 76020412

28

175765

29 71673

30 169592

32 74760512

34

175578

35 120183X

36 19211616

37 1572H

38

165936

39

74760648

40

175461

41

175556

42 19131312

47 127783

48 154407

49 123205X

50 74760624

51 73680600

52 73680500

53 105710X

55 105709X

56

17060616

57 140294

59 169691

61 17060612

62 8883R

63

175410

DESCRIPTION

Transaxle Hydro Gear 314-0510

(Order Parts From Transaxle

Manufacturer)

Rod Shift Hydro LT

Pin Cotter 1/8 x 1 CAD

Washer Lock Hvy Helical

Bolt, Hex FLGHD 5/16-18 Gr. 5

Nut Lock Hex W/Ins 5/16-18 Unc P

Nut Lock Hex W/Wsh 3/8-16 Unc

Knob, Round 1/2-13

Rod, Brake Hydro

Nut

Spring, Brake Rod

Washer

Pin Cotter 1/8 x 3/4 CAD.

Rod, Parking Brake

Cap, Parking Brake

Bracket, Transaxle

Bolt Hex Hd 5/16-18 Unc x 3/4

Shaft, Foot Pedal Nibbed

Bearing, Nylon

Washer

Pin, Roll

Pulley, Composite, Flat

Bolt

Spacer, Split

Keeper, Belt Idler

Washer 13/32 x 13/16 x 12 Gauge

Pulley, Idler, V-Groove

Bellcrank Clutch Grnd Drv STL

Retainer, Belt

Bolt

Nut Crownlock 3/8-16 UNC

Nut Crownlock 5/16-18 UNC

Link, Clutch

Spring, Return, Clutch

Bolt Fin Hex 3/8-16 UNC x 1-1/4

V-Belt, Ground Drive

Keeper, Center Span

Screw Thdrol. 3/8-16 x .75

Cover, Pedal

Pulley, Engine

KEY PART

NO.

NO.

DESCRIPTION

64 71170764

65 10040700

66 154778

69 142432

70 134683

71 169183

73 169182

74 137057

75 121749X

76 12000001

77 123583X

78 121748X

81 165596

82 123782X

83 19171216

Bolt, Hex

Washer

Keeper Belt Engine

Screw

Guide Belt

Strap Torque Lh Hydro

Strap Torque Rh Hydro

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm. Cross Hydro

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.

84 169594 Link Transaxle

89 169373X428 Console, Hydro

95 170201

96 4497H

Control Asm Bypass Hydro

Retainer Spring 1" Zinc/Cad

116 72140608

120 73900600

150

175456

151 19133210

Bolt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Flg. 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

156 166002

158 165589

159 165494

161 72140406

162 73680400

163 74780416

164 19091010

165 165623

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

166 166880

168 165492

169 165580

197 169613

198 169593

199 169612

200 72140508

202

72110614

212 145212

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Nyliner Snap-In 5/8" ID

Washer Nyl 7/8 ID x .105

Bolt Shoulder 5/16-18 Unc

Bolt Rdhd Sqnk 5/16-18 Unc x 1

Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5

Nut Hex Flange Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

35

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

STEERING ASSEMBLY

38

63

11

39

1

37

41

42

37

36

51

44

91

43

29

29

68

15

15

15

54

88

71

29

17

29

82

87

2

5

46

6

8

3

11

32

65

13

68

67

67

67

46

8

6

87

5

4

43

40

10

33

34

35

43

6

8

36

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

STEERING ASSEMBLY

KEY PART

NO.

NO.

DESCRIPTION

3

4

1

2

5

6

159944X428 Wheel Steering

172393 Axle Asm Cast Iron LT

169840

169839

6266H

121748X

Spindle Asm LH

Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 X 1-5/8 X 16 Ga

8 12000029

10

175121

11 10040600

13 136518

Ring Klip #t5304-75

Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Spacer Brg Axle Front

15 145212

17

177876

29 17060612

32 171888

33 19111216

34 10040500

35 73540500

36 155099

Nut Hex Flange Lock

Shaft Asm Strg

Screw 3/8-16 x .75

Rod Tie

Washer 11/32 x 3/4 x 16 Ga

Washer Lock Hvy Hlcl Spr 5/16

Crownlock Nut 5/16-24 Unf

Bushing Strg

37 152927 Screw

38 159946X428 Insert Cap Strg Wh

39 19132411

40 7810H

Washer 13/32 X 1-1/2 X 11 Ga

Lock nut

41 159945 Adaptor Wheel Strg

42 145054X428 Boot Steering Dash

43 121749X

44 153720

Washer 25/32 X 1 1/4 X 16 Ga

Extension Steering Shaft LR/LT

46 121232X

51 73800500

54 74780520

63 74780616

65 160367

67 72140618

68 169827

71

175146

82 169835

87 173966

88

175118

91

175553

Cap Spindle Fr Top Blk

Nut Lock Hex w/Ins 5/16-18

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Fin Hex 3/8-16unc x 1 Gr. 5

Spacer Brace Axle

Bolt Rdhd Sq 3/8-16 Unc x 2-3/4

Axle, Brace

Steering Asm.

Bracket Susp Chassis Front

Washer Flat .781 x 1 1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

37

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

SEAT ASSEMBLY

1

14

10

8

9

7

8

9

7

5

6

22

21

2

24

5

16

15

25

11

13

17

12

KEY PART

NO.

NO.

4

5

6

7

1

2

3

171683

140551

71110616

19131610

145006

73800600

124181X

8

9

17000616

19131614

10 174894

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pivot Seat 8 720

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 1 X 10 Ga

Clip Push-In

Nut Hex w/Ins. 3/8-16 Unc

Spring Seat Cprsn 2 250 Blk Zi

Screw 3/8-16 x 1.5 Smgml

Washer 13/32 X 1 X 14 Ga.

Pan Seat

Knob Seat

Bracket Mounting Switch

3

4

38

KEY PART

NO.

NO.

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 73800500

24 19171912

25 127018X

DESCRIPTION

Bushing Snap Blk Nyl 50 Id

Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split 28x 88

Spring Cprsn

Nut Lock 1/4 Lge Flg Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

DECALS

2

11 16

4

4

3

10

2

9

1

8

6

20

14

5

KEY PART

NO.

NO.

3

4

1

2

5

6

8

157032

176303

176308

177020

170851

169210

170563

9 172740

10 157140

DESCRIPTION

Decal Oper

Decal Fender Auto

Decal Hood LH

Decal Side Panel Logo

Decal HP Engine

Decal By Pass Lt Hydro

Decal Mower Warn Keep Hand

Away

Decal Fender Logo

Decal Fender Danger E/F

WHEELS AND TIRES

1

2 5,8

4,10

7

3,9

6

11

KEY PART

NO.

NO.

- -

- -

- -

- -

11 172743

14 160396

16 176307

20 145005

- -

- -

133671

138311

173587

173589

178112

178113

DESCRIPTION

Decal Ins Strg Whl

Decal V-Belt Schematic

Decal Hood Rh

Decal Bat Dan/Psn

Pad Footrest

Decal Handle Lft Height Adjust

Decal Fend Reflector Rh

Decal Fend Reflector Lh

Manual Owner's (English)

Manual Owner's (French)

KEY PART

NO.

NO.

DESCRIPTION

3

4

5

1

2

59192

65139

Cap Valve Tire

Stem Valve

170455 Tire F T 15 X 6 0 - 6 Service

59904 Tube Front (Service Item Only)

106732X421 Rim Asm 6"front Service

6

7

8

9

278H

9040H

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel nly)

106108X421 Rim Asm 8"rear Service

170456 Tire R T 20x10-8 Service

10 7152J Tube Rear (Service Item Only)

11 104757X428 Cap Axle Blk 1 50 X 1 00

- 144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

39

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ENGINE

2

1

32

31

40

25

26

14

38

81

17

44

46

33

37

33

23

29

OPTIONAL EQUIPMENT

Spark Arrester

3

16

17

13

11

12

5

6

8

10

45

4

40

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ENGINE

KEY PART

NO.

NO.

DESCRIPTION

1

2

170771

17720410

Control Throt

Screw Hex Thd Cut 1/4-20x5/8 T

4

5

3

6

- - - - - - - Engine B&S Model No. 407777

149723

159955

160589

8 171877

10 162797

(Order parts from engine manufacturer)

Muffler Exhaust

Exhaust Asm. Lh

Exhaust Asm. Rh

Bolt 5/16-18unc x 3/4 w/sems

Heat Shield Lt

11

10040500

12 71070512

13 165391

14 148456

16 11050600

17 17490624

23

169837

25 145996

Washer Lock Hvy. Helical 1/4

Screw Hex Hd Cap 5/16-18 x 3/4

Gasket Muffler

Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16x1-1/2 Tytt

Shield BRN/DBR Guard

Control Choke

26 73920600

29 137180

31 174642

32 140527

33 123487X

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19091416

81 73510400

Nut Keps 3/8-24 UNF

Arrestor Spark

Tank Fuel

Cap Fuel

Clamp Hose Blk

Line Fuel

Plug Drain Oil Easy

Bushing Snap Nyl Black

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex wsh Thdrol 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Nut Keps Hex 1/4-20 unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

41

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER DECK

151

152

158

5

157

153 154

67

156

153

155

44

159

46

68

40

37

36

40

143

144

45

150

40

37

145

53

52

56

55

51

48

147

142

49

50

59

54

146

33

32

31

30

148

34

1

147

142

116

113

111

114

117

119

118

3

115

121

2

16

15

14

18

21

2

21

114

21

20

18

29

121

28

90

106

105

104

103

102

101

102

21

22

23

24

25

26

103

105

104

106

27

4

149

90

91

92

93

94

93

92

95

13

112

6

19

21

10

9

8

115

118

11

119

113

117

116

42

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER DECK

KEY PART

NO.

NO.

DESCRIPTION

3

4

5

1

2

165892X421 Mower Deck Assembly, 42"

72140506 Bolt

138017 Bracket Asm Fr. Sway Bar 3/42

165460X421 Bracket Asm Deck 42" Sway Bar

4939M Retainer Spring

6

8

130832

850857

9 10030600

10 140296

11 134149

138498

13 137645

14 128774

Arm, Suspension, Rear

Bolt 3/8-24 x 25 Gr. 8 patched

Washer, Lock

Washer, Hardened

Blade, Mulching 42” Std

Blade Mower 42” Hi-Lift Std

Shaft Assembly, Mandrel, Vented

Housing, Mandrel, Vented

15 110485X

16 174493

18 72140505

19 132827

Bearing, Ball, Mandrel

Stripper, Mower Deck

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder

20 159770

21 73680500

Baffle, Vortex

Nut

22 134753X421 Stiffener Bracket

23 131267X421 Bracket, Deflector Mower 42"

24 105304X

25 123713X

Cap, Sleeve 80 x 112 Blk Mower

Spring, Torsion, Deflector 2 52

26 110452X Nut, Push Phos & Oil

27 130968X428 Shield, Deflector 42" Blk

28 19111016

29 131491

30 157722

31 129963

Washer 11/32 x 5/8 x 16 Ga.

Rod, Hinge 42" 6 75 W/G

Screw Thdrol Washer Head

Washer, Spacer Mower Vented

32 173436

33 137266

34 72110614

36 173438

37 19131316

40 73680600

44 140088

45 4497H

46 137729

48 133944

49 174284

50 131340

51 69180

52 139888

53 131845

54 133943

Pulley, Mandrel

Nut, Toplock 9/16

Bolt

Pulley, Idler, Flat

Washer 13/32 x 13/16 x 16 Ga.

Nut

Guard, Mandrel, LH

Retainer

Screw, Thdrol 1/4-20 x 5/8 T

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 Unc

Arm Assembly, Pad, Brake

Washer, Hardened

55 155046X421 Arm, Idler

56 122052X Spacer, Retainer

59 173442 Guard TUV Idler

KEY PART

NO.

NO.

DESCRIPTION

67 171598

68 144959

90 74760616

91 132274

92 73800600

93 19171416

94 132264

95 132273

101 136420

102 71081010

103 19061216

104 10071000

105 160793

Knob Round

V-Belt, 42" Mower

Bolt Fin Hex 3/8-16 Unc x 1

Bracket Asm Noseroller LH

Nut, Lock, Hex W/Ins 3/8-16 Unc

Washer 17/3 x 7/8 x 6 Ga.

Roller Nose 38 & 42

Bracket Asm Noseroller RH

Mulcher Cover

Screw Pan Hd Phillips 10-24 x 5/8

Washer, Flat

Washer, Lock

Latch Assembly

106 2029J Nut, Weld

111 155197X421 Bracket, Ga., Wheel LH

112 155198X421 Bracket, Ga., Wheel RH

113 17060514 Screw 5/16 - 18

114 73510500

115 72110504

116 4898H

117 165746

Nut, Keps 5/16 - 18 Unc

Bolt, Carriage 5/16-18 x 1/2

Bolt, Shoulder

Wheel, Ga.

118 73930600

119 19121414

Nut Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

121 173986 Bracket, Extruded

142 165890X421 Arm Spring Brake Mower

143 157109X421 Bracket Arm Idler 42"

144 173441 Keeper Belt 42" Clutch Cable

145 173437

146 173443

Pulley Idler Flat

Bolt Carriage Idler

147 131335

148 169022

149 165898

150 19091216

151 169670

152 169676

153 169674

154 169675

155 169671

156 169672

157 169669

158 17720410

159 72140614

- 130794

- 172559

Spring Extension

Spring Return Idler

Retainer Spring Yellow

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch Cable

Clutch Cable 42"

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention LVR CLTCH CAB

Spacer Clutch Cable

Rod Clutch Cable 3/8"

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10,13-15, 31 and 33)

Mower Deck, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

43

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER LIFT

2

3

6

1

5

4

8

7

41

36

5

37

38

40

11

19

13

13

31

32

31

32

13

4

6

12

13

19

20

15

20

16

17 18

20

20

15

44

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER LIFT

KEY PART

NO.

NO.

DESCRIPTION

5

6

7

8

1

2

3

4

159460

159471

105767X

12000002

19211621

120183X

125631X

170770

11 139865

12 139866

13 4939M

15 173288

16 73350800

17 130171

18 73800800

19 139868

20 163552

31 169865

32 73540600

36 155097

37 123935X

38 17060516

40 19112410

41 155098

Wire Asm Inner/Sprg W/plunger LT

Shaft Asm Lift RH w/Inf

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer 21/32 X 1 X 21 Ga

Bearing Nylon Blk 629 Id

Grip Handle

Button Plunger

Link Lift LH Fixed Length

Link Lift RH Fixed Length

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion Blk Zinc

Nut Lock W/Wsh 1/2-13 Unc

Arm Suspension Rear

Retainer Spring

Bearing Pvt Lift

Nut Crownlock 3/8 - 24

Pointer Height Indicator

Plug Hole Blk. 1.485/1.515 Dia.

Screw 5/16-18 x 1

Washer 11/32 x 1-1/210 Ga.

Indicator Height STLT

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

45

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1.

This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components, battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2.

Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products.

3.

Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4.

The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original purchase.

5.

This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in accordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

6.

Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard hardware and normal maintenance.

7.

In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

In Canada contact:

Electrolux Home Products a division of WCI Outdoor Products, Inc.

Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

Electrolux Home Products a division of WCI Outdoor Products, Inc.

7075 Ordan Drive

Mississauga, Ontario

L5T 1K6 giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

46

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

CUT OUT ON DOTTED LINES

THIS IS A 15

° SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15° MAX.

Operate your Tractor up and down the face of slopes (not greater than 15°), never across the face. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.

PARTS AND SERVICE

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid quality standards. As with all mechanical products, some adjustments or part replacement may be necessary during the life of your unit.

FOR SERVICE OR REPLACEMENT PARTS:

1.

Consult your dealer/place of purchase.

2.

Consult the yellow pages of your phone directory for the name of the nearest service dealer

(under “saws” for Chain Saws or under “lawn mowers” for Trimmers, Brushcutters, and

Blowers).

3.

For replacement parts, have available the following information: a. Model Number/Manufacturer's I.D. Number.

b. Description of part.

NOTE:

Electrolux Home Products provides parts and service through its authorized distributors and dealers; therefore, all requests for parts and service should be directed to your local dealer(s). The philosophy of Electrolux Home Products is to continually improve all of its products. If the operating characteristics or the appearance of your product differs from those described in this Manual, please contact your local local dealer for updated information and assistance.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
