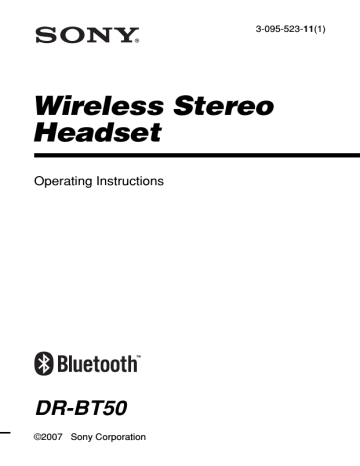

3-095-523-11(1)
Wireless Stereo
Headset
Operating Instructions
DR-BT50
©2007 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
To reduce the risk of fire, do not cover the
ventilation of the apparatus with
newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not place objects filled with
liquids, such as vases, on the apparatus.
Connect the AC power adaptor to an
easily accessible AC outlet. Should you
notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet
immediately.
Do not expose the battery to excessive
heat such as direct sunlight, fire or the
like.
Hereby, Sony Corp., declares that this
equipment is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
For details, please access the following
URL :
http://www.compliance.sony.de/
2
Use of this radio equipment is not allowed
in the geographical area within a radius of
20 km from the centre of Ny-Alesund,
Svalbard in Norway.
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is
under license.
Other trademarks and trade names are
those of their respective owners.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Disposal of Old
Electrical &
Electronic
Equipment
(Applicable in the
European Union and
other European
countries with
separate collection
systems)
This symbol on the product or on its
packaging indicates that this product shall
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product. The recycling of materials will
help to conserve natural resources. For
more detailed information about
recycling of this product, please contact
your local Civic Office, your household
waste disposal service or the shop where
you purchased the product.
Table Of Contents
Welcome! .......................... 4
3 steps to Bluetooth
function ................................. 5
Location and Function of
Parts ............................... 6
Charging the unit ............. 7
Pairing ............................... 9
What is pairing? ........................ 9
Procedures of pairing ................ 9
Wearing the headset ...... 11
Indications of Bluetooth
function ....................... 12
Listening to music ......... 13
Controlling the audio
device – AVRCP ................. 14
Calling ............................. 16
Controlling the Bluetooth
mobile phone –
HFP, HSP ............................ 18
Calling while playing
back music .................. 19
Disposing of the unit ..... 20
Precautions .................... 21
What is Bluetooth wireless
technology? ................ 23
Troubleshooting ............. 24
Initializing the unit ......... 26
Specifications ................. 27
3
Welcome!
Thank you for purchasing this Sony Wireless Stereo Headset. This unit uses
Bluetooth™ wireless technology.
• Enjoy music wirelessly with a Bluetooth music player.*1
• 40 mm driver units reproduce superb sound quality.
• Luxury ear pads for comfortable fitting.
• Hands-free conversation can be enjoyed on your Bluetooth mobile phone
without taking it out of your bag.*2
• For convenience, you can remotely operate the basic functions of a
Bluetooth music player (Play, Stop, etc.).*3
• Useful rechargeable function.
• Convenient foldable type for easy carrying.
For details on Bluetooth wireless technology, see page 23.
Talking on the phone
4
Listening to music
*1 The connected Bluetooth device is required to support A2DP (Advanced Audio
Distribution Profile).
*2 The connected Bluetooth device is required to support HFP (Hands-free Profile) or
HSP (Headset Profile).
*3 The connected Bluetooth device is required to support AVRCP (Audio Video Remote
Control Profile).
3 steps to Bluetooth function
Pairing
First, register (“pair”) a Bluetooth device (mobile phone, etc.) and this
unit with each other. Once pairing is established, there is no need for
pairing again.
Bluetooth
mobile phone,
etc.
Wireless Stereo
Headset
Pairing
c Page 9
V
V
Listening to music
Calling
Bluetooth connection
Bluetooth connection
Operate the Bluetooth device to
make the Bluetooth connection.
When the unit is turned on, the
unit starts making the Bluetooth
connection to the recognized
mobile phone automatically.
Connection
A2DP
AVRCP
c Page 13
V
Listening to music
You can listen to music played
on the Bluetooth device.
Playback, stop, or pause is
possible from this unit.
Music
c Page 13 - 15
Connection
HFP
HSP
c Page 16
V
Talking on the phone
You can make and receive a call
by operating this unit.
Voice
c Page 17 - 19
5
GETTING STARTED
Location and Function of Parts
1 POWER button
2 Multi function button
9 VOL (volume) +* button
0 Jog switch
Controls various call functions.
3 Indicator (blue)
Indicates the communication
status of the unit.
4 Indicator (red)
Indicates the power status of
the unit.
5 Microphone
6 DC IN 3 V jack
7 RESET button
Push this button when the unit
does not operate properly.
Pairing information is not
deleted by this operation.
8 VOL (volume) – button
6
Controls various functions when
listening to music.
qa
+/– buttons
Jump to previous/succeeding
groups when listening to music.
qs Slider
qd (RIGHT) (right) indication
qf Right ( (RIGHT)) unit
qg Ear pad
qh Left ( (LEFT) ) unit
qj (LEFT) (left) indication
qk Headband
* This button has a tactile dot.
Charging the unit
The unit contains a rechargeable Lithium-Ion battery, which should be
charged before using for the first time.
1 Connect the supplied
AC power adaptor to the
DC IN 3 V jack on the
unit.
Wireless Stereo
Headset
2 Make sure that indicator
(red) lights up while
charging.
RIGHT
To an AC
outlet
RIGHT
To DC IN
3 V jack
AC power
adaptor
(supplied)
When the AC power adaptor is
connected to an AC outlet,
charging starts.
Tip
If the AC power adaptor is connected
to an AC outlet while the unit is
turned on, the unit will be turned off
automatically.
Charging is completed in about
3 hours* and the indicator (red)
goes off automatically.
* Time required for empty battery to
recharge.
Caution
If this unit detects a problem while
charging, the indicator (red) may
turn off, although charging is not
complete.
Check for the following causes:
– Ambient temperature exceeds the
range of 0 °C – 40 °C (32 °F –
104 °F).
– There is a problem with the
battery.
In this case, charge again within the
above-mentioned temperature range.
If the problem persists, consult your
nearest Sony dealer.
Continued
7
Notes
• If the battery is not used for a long time,
battery may be quickly depleted,
however, after a few recharges, battery
life will improve.
• If the life of the built-in rechargeable
battery drops to half the normal length,
the battery should be replaced. Consult
your nearest Sony dealer for
replacement of the rechargeable battery.
• Avoid exposure to temperature
extremes, direct sunlight, moisture,
sand, dust or mechanical shock. Never
leave in a car parked in the sun.
• Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor.
Usage hours*
When pressing the POWER button
while the unit is turned on, the
indicator (red) flashes. You can
check the remaining battery by the
number of times the indicator (red)
flashes.
Indicator (red)
Status
3 times
Full
2 times
Mid
1 time
Low (needs to
charge)
Note
Status
Approx.
usage hours
Communication
time (including
music playback
time) (up to)
17 hours
Standby time
(up to)
200 hours
You cannot check the remaining battery
immediately after the unit is turned on, or
while pairing.
When the battery is almost empty
* Time stated above may vary, depending
on ambient temperature or conditions of
use.
8
Checking the remaining
battery
The indicator (red) flashes slowly
automatically.
When the battery becomes empty, a
beep sounds and the unit will turn
off automatically.
Pairing
What is pairing?
Bluetooth devices need to be
“paired” with each other beforehand.
Once Bluetooth devices are paired,
there is no need for pairing again,
except in the following cases:
• Pairing information is deleted
after repair, etc.
• This unit is paired with 9 or more
devices.
This unit can be paired with up to
8 devices; if a new device is
paired after 8 devices have been
paired, the device whose latest
connection time is the oldest
among the 8 paired devices is
replaced by the new one.
• When recognition of the unit by
the device to be connected is
deleted.
• This unit is initialized.
All pairing information is deleted.
Procedures of pairing
1 Place the Bluetooth
device within 1 m (3 ft)
of this unit.
2 Press and hold the
POWER button for
7 seconds or more to
standby for pairing
while the unit is turned
off.
Notes
• After about 3 seconds, power is
turned on and the indicator (blue)
and indicator (red) flash together
twice. Keep the button pressed
without releasing until both
indicators start flashing together,
then release the button. This unit
enters into pairing mode.
• If pairing is not established within
about 5 minutes, pairing mode will
be cancelled and this unit will turn
off. In this case, start over from
step 1.
Continued
9
3 Perform pairing
procedure on the
Bluetooth device to
detect this unit.
The list of detected devices
appears on the display of the
Bluetooth device. This unit is
displayed as “DR-BT50.”
If “DR-BT50” is not displayed,
repeat from step 1.
4 Select “DR-BT50” on
the display of the
Bluetooth device.
5 If Passcode* input is
required on the display
of a Bluetooth device,
input “0000.”
Pairing is complete when the
indicator (blue) flashes slowly.
The message standing for
“Pairing complete” appears on
the display of some Bluetooth
devices.
* Passcode may be called “Passkey,”
“PIN code,” “PIN number,” or
“Password.”
6 Start the Bluetooth
connection from the
Bluetooth device.
This unit memorizes the device
as the last connected device.
Some Bluetooth devices may
connect with the unit
automatically when pairing is
complete.
10
When pairing with a
Bluetooth device that
cannot display a list of
detected devices or that
has no display
You may pair the device by setting
both this unit and the Bluetooth
device to pairing mode. For details,
refer to the operating instructions
supplied with the Bluetooth device.
Tips
• To pair with other Bluetooth devices,
repeat steps 1 to 5 for each device.
• To delete all pairing information, see
“Initializing the unit” (page 26).
Wearing the headset
The headset has (LEFT) and
(RIGHT) indications; wear it
accordingly on your left and right
ears.
Pulling down and folding
the headset
LEFT
RIGHT
y
Slider
Tip
There is a tactile dot on the (LEFT)
indication to show the left unit.
Tip
Pull down the sliders on both ends when
folding to make it more compact.
11
Indications of Bluetooth function
B : Indicator (blue)
R : Indicator (red)
Pairing
Connectable
– –
B
R –
– –
– –
– –
– –
...
Connecting
B
R
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
...
...
Music
Connected
B
R
Phone
12
Flashing patterns
Searching
Connecting
Status
HFP/HSP or A2DP B
(standby for receiving audio signal)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
– ...
– ...
– – – – – – – – –
– – – – – ...
–
–
R –
HFP/HSP and A2DP B
– – – – – – –
– – – ...
(standby for receiving audio signal)
R –
Listening
B
R –
– – – – – – – –
– – – – ...
Listening during standby B
for telephone call
R –
– – – – – – –
– – – ...
...
Incoming call
B
R –
Talking
B
R –
– – – – – – – –
– – – – ...
Calling while
B
playing back music
R –
– – – – – – –
– – – ...
OPERATING THE UNIT
Listening to music
2 Make the Bluetooth
POWER button
connection (A2DP) from
a Bluetooth device to
this unit.
– button
+ button
Refer to the operating
instructions supplied with the
Bluetooth device on how to
operate it.
Jog switch
VOL + button
VOL – button
Jog switch
operation
FF
3 Start playback on the
Bluetooth device.
Nx
REW
Check the following before
operating the unit.
– The Bluetooth device is turned
on.
– Pairing of this unit and the
Bluetooth device is complete.
– The Bluetooth device supports the
transmitting music function
(profile: A2DP*).
1 Press and hold the
POWER button for
about 3 seconds while
the unit is turned off.
Tip
Bluetooth connection of A2DP
(Advanced Audio Distribution Profile)
can also be operated with the jog switch
from this unit to the Bluetooth device
except when making a call on this unit.
Note
When you play music by connecting the
unit to a Bluetooth device using HSP
(Headset Profile), sound quality will not
be high. For better sound, change the
Bluetooth connection to A2DP by
operating the Bluetooth device.
* For detail on profiles, see page 23.
The indicator (blue) and
indicator (red) flash together
twice and the unit is turned on.
Notes
• Do not press and hold the POWER
button for more than 7 seconds,
otherwise pairing mode is entered.
• After the unit is turned on, the unit
attempts to connect to the last
connected Bluetooth device
automatically with HFP or HSP. To
make or receive a call while
listening to music, make ready the
last connected Bluetooth device for
HFP or HSP connection before
turning on the headset.
Continued
13
To adjust the volume
Press the VOL + or – button while
listening to the music.
Tips
To stop use
If the Bluetooth audio device
connected with this unit supports
AVRCP (Audio Video Remote
Control Profile), you can control by
using the unit buttons.
Refer to the operating instructions
supplied with the Bluetooth device
on how to operate it.
1 Terminate the Bluetooth
Note
• Depending on the connected device, it
may be necessary to adjust the volume
on the connected device as well.
• Volume level for calling and listening
to music can be set independently.
connection by operating
the Bluetooth device.
2 Press and hold the
POWER button for
about 3 seconds.
The indicator (blue) and
indicator (red) light up together,
and the unit turns off.
Tip
When you finish playing music, the
Bluetooth connection may terminate
automatically, depending on the
Bluetooth device.
14
Controlling the audio
device – AVRCP
Operation of the Bluetooth connecting
device by this unit will vary depending on
its specification.
Status: In stop or pause mode
Short Press Long Press
Nx
1
2
FF / REW
3
4
5
6
+/–
Starts playback*1
Stop
Skip to next/previous
Fast-forward/Fast-rewind*2
Jump to the succeeding/previous
groups*2
6 Continuously jump to the
succeeding/previous groups*2
1
2
3
4
5
Status: In play mode
Short Press Long Press
Nx
7
8
FF / REW
9
0
qa
qs
+/–
Pause*1
Stop
Skip to next/previous
Fast-forward/Fast-rewind*2
Jump to the succeeding/previous
groups*2
qs Continuously jump to the
succeeding/previous groups*2
7
8
9
0
qa
*1 You may need to press the button
twice depending on the Bluetooth
device.
2
* Some Bluetooth devices may not
operate.
Note
You cannot adjust the volume of the
Bluetooth device by the unit volume
buttons.
15
Calling
Multi function
button
POWER button
VOL + button
VOL – button
Check the following before
operating the unit.
– The Bluetooth function is active
on the mobile phone.
– Pairing of this unit and the
Bluetooth mobile phone is
complete.
1 Press and hold the
POWER button for
about 3 seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice, the unit turns on and then
this unit tries to connect to the
last Bluetooth mobile phone that
was used.
Note
Do not press and hold the POWER
button for more than 7 seconds,
otherwise pairing mode is entered.
Tip
This unit will stop trying to connect
to the Bluetooth mobile phone after 1
minute. In such a case, press the multi
function button to try to connect
again.
16
When this unit does not
connect to a Bluetooth
mobile phone automatically
You can make a connection by
operating Bluetooth mobile phone
or by operating this unit to connect
the last connected Bluetooth device.
A To make a connection
by operating Bluetooth
mobile phone
1 Make the Bluetooth
connection (HFP or
HSP*) from the
Bluetooth mobile phone
to this unit.
Refer to the manual supplied
with your Bluetooth mobile
phone for operation details.
The list of recognized devices
appears on the display of the
Bluetooth mobile phone. This
unit is displayed as “DR-BT50.”
When you use the Bluetooth
mobile phone features both HFP
(Hands-free Profile) and HSP
(Headset Profile), set to HFP.
Note
When connecting to a Bluetooth
mobile phone which is different from
the last connected one, make the
connection following the above
procedure.
* For details on profiles, see page 23.
B To make a connection
with the last connected
Bluetooth device by
operating this unit
1 Press the multi function
button.
The indicator (blue) and
indicator (red) start flashing at
the same time, and the unit
performs the connection
operation for about 5 seconds.
Note
When listening to music with this unit, a
Bluetooth connection cannot be made
with the multi function button.
To call
1 Use the buttons on your
mobile phone when
making a call.
If no dial tone is heard on this unit,
press and hold the multi function
button for about 2 seconds.
Tip
You can call in the following way,
depending on the Bluetooth mobile
phone. Refer to the manual supplied with
your mobile phone on operating details.
– When not communicating, you can call
using the voice-dial function by
pressing the multi function button.
– You can call the last dialed number by
pressing the multi function button for
about 2 seconds.
To receive a call
When an incoming call arrives, a
ring tone will be heard from the
unit.
1 Press the multi function
button on the unit.
The ring tone differs in the
following ways, depending on
your mobile phone.
– ring tone set on the unit
– ring tone set on the mobile
phone
– ring tone set on the mobile
phone only for Bluetooth
connection
Note
If you received a call by pressing the
button on the Bluetooth mobile phone,
some Bluetooth mobile phones may have
handset use priority. In this case, set to
talk with the unit by pressing and holding
the multi function button for about 2
seconds, or by operating the Bluetooth
mobile phone. For details, refer to the
manual supplied with your Bluetooth
mobile phone.
To adjust the volume
Press the VOL + or – button.
Tips
• You cannot adjust the volume when not
communicating.
• Volume level for calling and listening
to music can be set independently.
To terminate a call
You can end a call by pressing the
multi function button on the unit.
To stop use
1 Terminate Bluetooth
connection by the
Bluetooth mobile
phone.
2 Press and hold the
POWER button for
about 3 seconds to turn
off the power.
The indicator (blue) and
indicator (red) light up together,
and the unit turns off.
Continued
17
Controlling the
Bluetooth mobile
phone – HFP, HSP
The operation of the buttons on this
unit varies depending on your
mobile phone.
HFP (Hands-free Profile) or HSP
(Headset Profile) is used for
Bluetooth mobile phone. Refer to
the operating instructions supplied
with your Bluetooth mobile phone
on supported Bluetooth profiles or
how to operate.
HFP (Hands-free Profile)
Status
Multi function button
Short Press
Long Press
Start Voice
Dial
Last number
redial
Cancel Voice
Dial
–
Outgoing call End outgoing
call
–
Standby
Voice Dial
active
Incoming call
Answer
Reject
During call
End call
Change active
device
HSP (Headset Profile)
Status
Standby
Multi function button
Short Press
Long Press
–
Dial*1
Outgoing call End outgoing End outgoing
call*1
call or change
active device to
headset*2
Incoming call
During call
18
Answer
–
End call*3
Change active
device to
headset
*1 Some functions may not be supported
depending on the Bluetooth mobile
phone.
*2 This may vary, depending on the
Bluetooth mobile phone.
*3 Some functions may not be supported
when calling using the Bluetooth
mobile phone.
Calling while playing back music
The Bluetooth connection using HFP or HSP as well as A2DP is necessary
to make a call while playing back music.
For example, to make a call using a Bluetooth mobile phone while listening
to music on a Bluetooth compatible music player, this unit needs to be
connected to the mobile phone using HFP or HSP.
Make a Bluetooth connection between this unit and the
device in use following the procedures outlined below.
1 Make a Bluetooth connection between this unit and
the mobile phone in use with HFP or HSP following
the procedures outlined in “Calling” (see page 16).
2 Operate the Bluetooth device (music player or mobile
phone) used for playing the music to make a
Bluetooth connection to this unit using A2DP.
To make a call while
playing back music
To receive a call while
playing back music
1 Press the multi function
When an incoming call arrives, the
music pauses and the ring tone is
heard from this unit.
button while playing
back music (page 18), or
operate your Bluetooth
mobile phone to make a
telephone call.
If no dial tone is heard on this
unit, press and hold the multi
function button for about 2
seconds.
1 Press the multi function
button and talk.
After finishing the call, press the
multi function button. This unit
is switched back to music
playback.
When no ring tone is heard
even if an incoming call
arrives
1 Stop music playback.
2 When ringing, press the
multi function button
and talk.
19
ADDITIONAL INFORMATION
Disposing of the unit
This unit has a Lithium-lon rechargeable battery inside the right unit.
For environmental conservation, be sure to remove the built-in rechargeable
batteries from the unit before disposing, and dispose of the batteries
appropriately.
3 Disconnect the
1 Detach the right
housing from the right
unit.
rechargeable battery
from this unit.
1 Remove the ear pad from the
right unit.
2 Remove the 3 screws.
3 Remove the right housing.
1 Remove the screw.
2 Remove and turn over the
circuit board on which the
rechargeable battery is
installed.
3 Pull out the connector on the
circuit board.
2
1
Right housing
3
2 Remove the jog switch
from the right housing.
1 Remove the screw located at
the side of the rechargeable
battery.
2 Lift up the circuit board on
which the jog switch is
installed together with the
jog switch cover.
4 Slide out and remove
the rechargeable
battery.
Rechargeable
battery
20
Precautions
On Bluetooth communication
• Bluetooth wireless technology operates
within a range of about 10 meters
(about 30 feet).
Maximum communication range may
vary depending on obstacles (person,
metal, wall, etc.) or electromagnetic
environment.
• The aerial of this unit is built into the
housing for the right ear. The sensitivity
of Bluetooth communication will
improve by placing a connected
Bluetooth device on your right side.
• The following conditions may affect the
sensitivity of Bluetooth communication.
– There is an obstacle such as a person,
metal, or wall between this unit and
Bluetooth device.
– A device using 2.4 GHz frequency,
such as a wireless LAN device,
cordless telephone, or microwave
oven, is in use near this unit.
• Because Bluetooth devices and wireless
LAN (IEEE802.11b/g) use the same
frequency, microwave interference may
occur and resulting in communication
speed deterioration, noise, or invalid
connection if this unit is used near a
wireless LAN device. In such as case,
perform the following.
– Use this unit at least 10 m (about
30 ft) away from the wireless LAN
device.
– If this unit is used within 10 m (about
30 ft) of a wireless LAN device, turn
off the wireless LAN device.
– Install this unit and Bluetooth device
as near to each other as possible.
• Microwaves emitting from a
Bluetooth device may affect the
operation of electronic medical
devices. Turn off this unit and other
Bluetooth devices in the following
locations, as it may cause an accident.
– where inflammable gas is present,
in a hospital, train, airplane, or a
petrol station
– near automatic doors or a fire alarm
• This unit supports security
capabilities that comply with the
Bluetooth standard to provide a
secure connection when the Bluetooth
wireless technology is used, but
security may not be enough
depending on the setting. Be careful
when communicating using Bluetooth
wireless technology.
• We do not take any responsibility for
the leakage of information during
Bluetooth communication.
• Connection with all Bluetooth
devices cannot be guaranteed.
– A device featuring Bluetooth
function is required to conform to
the Bluetooth standard specified by
Bluetooth SIG, and be
authenticated.
– Even if the connected device
conforms to the above mentioned
Bluetooth standard, some devices
may not be connected or work
correctly, depending on the features
or specifications of the device.
– While talking on the phone hands
free, noise may occur, depending
on the device or communication
environment.
• Depending on the device to be
connected, it may require some time
to start communication.
Continued
21
On the supplied AC power
adaptor
• Use the AC power adaptor supplied
with this unit. Do not use any other AC
power adaptor since it may cause the
unit to malfunction.
Polarity of the plug
• If you are not going to use this unit for
a long time, unplug the AC power
adaptor from the AC outlet. To remove
the AC power adaptor from the wall
outlet, grasp the adaptor plug itself;
never pull the cord.
Others
• Do not place this unit in a place
exposed to humidity, dust, soot or
steam, subject to direct sunlight, or in a
car waiting at a traffic signal. It may
cause a malfunction.
• Be careful not to pinch your fingers
when folding the headset.
• Using the Bluetooth device may not
function on mobile phones, depending
on radio wave conditions and location
where the equipment is being used.
• If you experience discomfort after using
the Bluetooth device, stop using the
Bluetooth device immediately. Should
any problem persist, consult your
nearest Sony dealer.
• Listening with this unit at high volume
may affect your hearing. For traffic
safety, do not use this unit while driving
or cycling.
• Do not put weight or pressure on this
unit as it may cause the unit to deform
during long storage.
22
• The ear pads are consumable. They may
deteriorate due to long-term storage or
use. Replace with new ones if they are
damaged.
• If you have any questions or problems
concerning this unit that are not covered
in this manual, please consult your
nearest Sony dealer.
What is Bluetooth wireless
technology?
Bluetooth wireless technology is a
short-range wireless technology that
enables wireless data
communication between digital
devices, such as a computer or
digital camera. Bluetooth wireless
technology operates within a range
of about 10 meters (about 30 feet).
Connecting two devices as
necessary is common, but some
devices can be connected to
multiple devices at the same time.
You do not need to use a cable for
connection, nor is it necessary for
the devices to face one another, such
is the case with infrared technology.
For example, you can use such a
device in a bag or pocket.
Bluetooth standard is an
international standard supported by
thousands of companies all over the
world, and employed by various
companies worldwide.
Communication System
and Compatible Bluetooth
Profiles of this unit
Profile is standardization of the
function for each Bluetooth device
specification. This unit supports the
following Bluetooth version and
profiles:
Communication System:
Bluetooth Specification version 2.0
Compatible Bluetooth Profiles:
– A2DP (Advanced Audio Distribution
Profile): Transmitting or receiving
audio content of high-quality.
– AVRCP (Audio Video Remote Control
Profile): Controlling A/V equipment;
pausing, stopping, starting playback,
volume control, etc.
– HSP (Headset Profile)*: Talking on the
phone/Operating the phone.
– HFP (Hands-free Profile)*: Talking on
the phone/Operating the phone by
hands-free.
* When you use a Bluetooth mobile
phone supported by both HFP (Handsfree Profile) and HSP (Headset Profile),
set to HFP.
Note
To be able to use the Bluetooth function,
the Bluetooth device to be connected
requires the same profile as the unit’s.
Note also that even if the same profile
exists, devices may vary in function
depending on their specifications.
23
Troubleshooting
If you run into any problems using this unit, use the following checklist.
Should any problem persist, consult your nearest Sony dealer.
Common
The unit is not turned on.
, Charge the battery of the unit.
, The unit is not turned on while
charging. Unplug the unit from AC
power adaptor and then turn on the
unit.
Pairing cannot be done.
, Bring this unit and the Bluetooth
device closer together.
Cannot make the Bluetooth
connection.
, Check that this unit is turned on.
, Check that the Bluetooth connecting
device is turned on and the Bluetooth
function is on.
, Connection with the Bluetooth device
may not be memorized on this unit.
Make the Bluetooth connection from
the Bluetooth device to this unit soon
after pairing is complete.
, This unit or Bluetooth connecting
device is in sleep mode.
, The Bluetooth connection is
terminated. Make the Bluetooth
connection again.
Distorted sound
, Ensure that this unit is not receiving
interference from a wireless LAN,
other 2.4 GHz wireless device, or
microwave oven.
, Re-position this unit.
24
The correspondence
distance is short. (Sound
skips.)
, If a device that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth
device(s), or a microwave oven is
nearby, move away from such
sources.
The unit does not operate
properly.
, Reset the unit. Pairing information is
not deleted by this operation.
Insert a small pin, etc., into the hole
at a slight angle, and push until you
feel a click.
RIGHT
When listening to
music
No sound
, Check that both this unit and the
Bluetooth device are turned on.
, Check that both this unit and the
Bluetooth device are making the
Bluetooth connection, A2DP
(Advanced Audio Distribution Profile).
, Check that music is being played
back by the Bluetooth device.
, Check that the volume of the unit is
not set too low.
, Turn up the volume on the connected
device if necessary.
, Pair this unit and Bluetooth device
again.
Low sound level
, Turn up the volume of this unit.
, Turn up the volume on the connected
device if necessary.
Low sound quality
, Switch the Bluetooth connection to
A2DP (Advanced Audio Distribution
Profile) when HSP (Headset Profile)
is set.
Cannot make the Bluetooth
connection from Bluetooth
device to this unit.
, The Bluetooth device is not equipped
with SCMS-T content protection*.
With the unit turned off, press and
hold POWER and Nx for about 7
seconds to deactivate the SCMS-T
protection. The indicator (blue)
flashes once.
* The SCMS-T content protection
method is one of the methods to
protect the contents transmitted on
the Bluetooth wireless technology.
This unit can receive the contents
protected by this method. Press and
hold the POWER button and Nx
again for about 7 seconds to
reactivate the SCMS-T content
protection method on this unit. The
indicator (blue) flashes twice.
*2 Note that this may not always
reduce the sound skip depending on
the circumstances. Press and hold
Nx again for about 7 seconds to
set the unit so as to receive high bit
rate music. The indicator (blue)
flashes twice.
When calling
The recipient’s voice
cannot be heard.
, Check that both this unit and the
Bluetooth mobile phone are turned
on.
, Check the connection between this
unit and the Bluetooth mobile phone.
, Check that output of the Bluetooth
mobile phone is set for this unit.
, Check that the volume of the unit is
not set too low.
, Turn up the volume on the connected
Bluetooth mobile phone if necessary.
, If you are listening to music using
this unit, stop playback, press the
multi function button and talk.
Low sound from recipient
, Turn up the volume of this unit.
, Turn up the volume on the connected
Bluetooth mobile phone if necessary.
Sound skips frequently
during playback.*1
, Terminate the Bluetooth connection
(A2DP) by operating the Bluetooth
device. While the unit is turned on,
press and hold Nx for about 7
seconds to lower the bit rate. The
indicator (blue) flashes once.*2
*1 This unit can receive high bit rate
music, however, at higher bit rates,
sound skipping may occur.
25
Initializing the
unit
You can reset this unit to its default
(such as volume setting) and delete
all pairing information.
1 If this unit is turned on,
press and hold the
POWER button for
about 3 seconds to turn
off this unit.
2 Press and hold the
POWER button and
multi function button
together for about
7 seconds.
The indicator (blue) and
indicator (red) flash together
four times, and this unit is reset
to the default setting. All pairing
information is deleted.
26
Specifications
General
Headset
Communication System
Bluetooth Specification version 2.0
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (30 ft) *1
Frequency band
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method
FHSS
Power source
DC 3.7 V: Built-in lithium-ion
rechargeable battery
Mass
Approx. 180 g (6.4 oz)
Rated power consumption
3.0 W
Receiver
Type
Closed type, dynamic
Compatible Bluetooth Profiles*
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Driver unit
40 mm dome type
Supported Codecs*3
SBC*4, MP3
Type
Omni directional, electret condenser
Transmission range (A2DP)
20 - 20,000 Hz (sampling frequency
44.1 kHz)
Effective frequency range
100 – 4,000 Hz
2
Supplied accessory
AC power adaptor (1)
Carrying porch (1)
Operating instruction (this book) (1)
Reproduction frequency range
10 – 25,000 Hz
Microphone
Design and specifications are subject to
change without notice.
*1 The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
reception sensitivity, aerial’s
performance, operating system,
software application, etc.
*2 Bluetooth standard profiles indicate
the purpose of Bluetooth
communication between devices.
3
* Codec: Audio signal compression and
conversion format
*4 Subband Codec
27
Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
