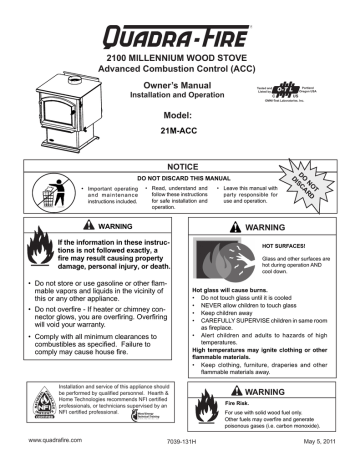

R

2100 MILLENNIUM WOOD STOVE

Advanced Combustion Control (ACC)

Owner’s Manual

Installation and Operation

Tested and

Listed by

O-T L

Portland

Oregon USA

C US

OMNI-Test Laboratories, Inc.

Model:

21M-ACC

NOTICE

Important operating and maintenance instructions included.

DO NOT DISCARD THIS MANUAL

• Read, understand and follow these instructions for safe installation and operation.

• Leave this manual with party responsible for use and operation.

WARNING

If the information in these instructions is not followed exactly, a fire may result causing property

damage, personal injury, or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• Do not overfire - If heater or chimney connector glows, you are overfiring. Overfiring will void your warranty.

• Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house fire.

Installation and service of this appliance should be performed by qualified personnel. Hearth &

Home Technologies recommends NFI certified professionals, or technicians supervised by an

NFI certified professional.

www.quadrafire.com

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as fireplace.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

• Keep clothing, furniture, draperies and other flammable materials away.

7039-131H

WARNING

Fire Risk.

For use with solid wood fuel only.

Other fuels may overfire and generate poisonous gases (i.e. carbon monoxide).

May 5, 2011

2100 Millennium Wood Stove (ACC)

and Welcome to the Quadra-Fire Family

!

Hearth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality, durability, and performance.

This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we make products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation of our stoves, inserts and fireplaces. And yet we are old-fashioned when it comes to craftsmanship. Each unit is meticulously fabricated and surfaces are hand-finished for lasting beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection.

We wish you and your family many years of enjoyment in the warmth and comfort of your hearth appliance. Thank you for choosing Quadra-Fire.

NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction

SAMPLE OF SERIAL NUMBER / SAFETY LABEL

LOCATION: BACK OF APPLIANCE

CAUTION

:

ATTENTION:

LISTED ROOM HEATER, SOLID FUEL TYPE.

ALSO FOR USE IN MOBILE HOMES. (UM) 84 HUD .

"For Use with Solid Wood Fuel Only"

PREVENT HOUSE FIRES

Install and use only in accordance with manufacturer's installation and operating instructions. Contact local building or fire officials about restrictions and installation inspections in your area. Do not obstruct the space beneath heater.

WARNING - For Mobile Homes: Do not install in a sleeping room. An outside combustion air inlet must be provided and unrestricted while unit is in use. The structural integrity of the mobile home floor, ceiling and walls must be maintained. The stove needs to be properly grounded to the frame of the mobile home. Components required for mobile home installation: Outside Air Kit, Part

Number 831-1780.

Refer to manufacturer's instructions and local codes for precautions required for passing chimney through a combustible wall or ceiling and maximum offsets.

Inspect and clean chimney frequently - Under

Certain Conditions of Use, Creosote Buildup May

Occur Rapidly.

Do not connect this unit to a chimney serving another appliance.

Optional Components: Optional Blower, Part

831-1701.

Electrical Rating: 115 VAC, 1.2 Amps, 60 Hz.

Route power cord away from unit. Do not route cord under or in front of appliance.

DANGER: Risk of electrical shock. Disconnect power supply before servicing.

Replace glass only with 5mm ceramic available from your dealer.

Do not use grate or elevate fire. Build wood fire directly on hearth.

Do not overfire - if heater or chimney connector glows, you are overfiring.

Operate only with the fuel loading door closed.

Open only to add fuel to the fire.

FLOOR PROTECTION

:

Floor protector must be a 3/8 inch min. thickness, non-combustible material or equivalent, extending beneath heater and to front/sides/rear as indicated on the diagram below. Exception: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and extend 2 inches (51mm) beyond each side.

HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN AND CLOTHING AWAY. CONTACT MAY CAUSE SKIN BURNS. KEEP

FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL FAR AWAY FROM THE APPLIANCE. SEE NAMEPLATE AND INSTRUCTIONS

CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE L'ESPACE DÉSIGNÉ DE L'INSTALLATION. LE CONTACT PEUT CAUSER DES

BRÛLURES À LA PEAU. GARDEZ LES MEUBLES ET LES MATÉRIAUX COMBUSTIBLES LOIN DE L'ESPACE DÉSIGNÉ DE L'APPAREIL. VOIR L'ÉTIQUETTE ET LES INSTRUCTIONS.

APPAREIL DE CHAUFFAGE DE PIÈCE, DE TYPE DE

COMBUSTIBLE SOLIDE, POUR USAGE DANS LES

MAISONS MOBILES. (UM) 84-64 HUD. "Pour Usage

Avec Bois Solide Seulement"

PRÉVENTION DES FEUX DE MAISON

Installez et utilisez en accord avec les instructions d'installation et d'opération du fabricant. Contactez le bureau de la construction ou le bureau des incendies au sujet des restrictions et des inspections d'installation dans votre voisinage. Ne pas obstruez l'espace en dessous de l'appareil.

AVIS - Pour Les Maisons Mobiles: Ne pas installer dans une chambre à coucher. Un tuyau extérieur de combustion d'air doit être installé et ne doit pas être obstrué lorsque l'appareil est en usage. La structure intégrale du plancher, du plafond et des murs de la maison mobile doit être maintenue intacte.

L'appareil de chauffage doit être fixé à la charpente de la maison mobile. Les composants requis pour l'installation des maisons mobiles: Assemblage d'air extérieur, Numéro de

Pièce 831-1780.

Référez vous aux instructions du fabricant et des codes locaux pour les précautions requises pour passer une cheminée à travers un mur ou un plafond combustibles, et les compensations maximums.

Inspectez et nettoyez la cheminée fréquemment. Sous certaines conditions, il se peut que la créosote s'accumule rapidement.

Ne pas connecter cet appareil à une cheminée servant un autre appareil.

Composants Optionnels: Ventilateur Optionnel, Pièce

#831-1701.

Puissance Électrique: 115 VAC, 1.2 Amps, 60 Hz.

Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil

électrique au dessus ou en dessous de l'appareil.

DANGER: Il y a risque de décharge électrique. Déconnectez le fil électrique de la prise de contact avant le service.

Remplacez la vitre seulement avec une vitre céramique de 5 mm disponible chez votre fournisseur.

N'élevez pas le feu. Bâtissez le feu de bois directement sur l'âtre.

Ne pas surchauffer. Si l'appareil de chauffage ou le tuyau de cheminée rougissent, vous surchauffez.

Opérez l'appareil seulement lorsque la porte de chargement est fermée. Ouvrez la porte seulement lorsque vous devez ajouter des combustibles dans le feu.

PROTECTION DU PLANCHER

:

L E

INSTALLATION: HORIZONTAL WITH MINIMUM 2 FT VERTICAL OFF STOVE TOP

INSTALLATION: HORIZONTALE AVEC 609mm VERTICAL MINIMUM DU HAUT DU POÊLE

S A

Le protecteur de plancher doit être d'un minimum de 3/8 inch d'épaisseur, de matériel incombustible ou équivalent, s'étendant du dessous de l'appareil de chauffage à l'avant, aux cotés et à l'arrière comme indiqué sur le diagramme suivant. Exception: Les protections incombustibles du plancher doivent s'étendre en dessous du conduit de cheminée lorsqu'installées avec une ventilation à l'horizontale et s'étendre de 2 inches (51mm) de chaque côté.

Tested and

Listed by

O-T L

Portland

Oregon USA

C US

OMNI-Test Laboratories, Inc.

R

2100 Millennium ACC

SERIAL NO. / NUMÉRO DE SÉRIE

007004

Report / Rapport

061-S-70-6

TESTED TO:/ TESTÉ À:

UL 1482, ULC S627-00.

VENT SPECIFICATIONS:

SINGLE WALL: Six inch (6 inches) (152mm) diameter, minimum 24 MSG black or blued steel connector pipe, with a listed factory-built UL103HT* Class "A" chimney, suitable for use with solid fuels, or a masonry chimney, and the referenced clearances.

DOUBLE WALL: Six inch (6 inches) (152mm) diameter, listed double wall air insulated connector pipe with listed factory-built UL103HT* Class "A" chimney, or a masonry chimney and the referenced clearances

*In Canada must comply with Standard CAN/ULC-S629-M87 for the 650 degree

Factory-built chimneys.

MOBILE HOME: Use double wall pipe by Dura-Vent DVL, Selkirk Metalbestos DS or

Security DL double wall connector pipe. Must be equipped with a spark arrestor.

SPÉCIFICATIONS DE LA VENTILATION:

MUR SIMPLE: De six (6 inches) (152mm) de diamètre le connecteur de conduit de minimum d'acier noir ou bleu de minimum de 24MSG, avec une cheminée bâtit en usine UL103HT* de Classe "A", adéquate pour usage avec les combustions solides, ou une cheminée de briques, avec espaces libres référés.

MUR DOUBLE: De six (6 inches) (152mm) de diamètre, le connecteur du conduit d'air isolé pour mur double avec une cheminée bâtit en usine UL103HT* de Classe

"A, ou une cheminée de briques, avec espaces libres alloués.

*Au Canada doit conformer a CAN/ULC-S629-M87 la norme pour 650 degré C cheminée bâtit en usine.

MAISON MOBILE: Utiliser un conduit de mur double par Dura-Vent DVL, Selkirk

Metalbestos DS ou Security DL. Doit être équipé d'un arrêt d'étincelle. Utiliser les espaces libres pour mur double comme mentionné ci-bas.

Apply double wall clearances below when installing unit.

MINIMUM CLEARANCES TO COMBUSTIBLES In Inches & (Millimeters)

NOTE: All "A" , "C" and "F" Dimensions are to inside diameter of the flue collar.

ESPACES LIBRES MINIMUM DES MATÉRIAUX COMBUSTIBLES En Pouces &

(millimètres)

NOTE: Toutes les dimensions "A", "C", et "F" sont à partir du diamètre intérieur de l'entrée du conduit.

INSTALLATION: FULL VERTICAL / ENTIÈREMENT VERTICALE

SINGLE WALL PIPE

A B C D E F G

15 (381) 11 (279) 21.5 (546) 13 (330) 8.5 (216) 17 (432) 56 (1422)

H

N/A

CONDUIT DU MUR SIMPLE

BACKWALL/SIDEWALL

MUR ARRIÈRE/MUR DE CÔTÉ

DOUBLE WALL PIPE

SINGLE WALL PIPE

DOUBLE WALL PIPE

DOUBLE WALL PIPE

8.75 (222) 5.75 (146) 20 (508) 10.5 (267) 7.5 (191) 16 (406) 43 (1092)

M P

9.5 (241) 5.5 (140) 21.5 (572) 13.5 (343)

ALCOVE SIDE VIEW /

VUE DE CÔTÉ DE L'ALCÔVE

N/A

ALCOVE TOP VIEW /

VUE DU HAUT DE L'ALCÔVE

N/A

14 (356) 10 (254) 20.5 (521) 12 (305) 8.5 (216) 17 (432) 56 (1422) 9.5 (241)

9.5 (241) 5.5 (140) 21.5 (546) 13 (330) 7.5 (191) 16 (406) 43 (1092) 5 (127)

N/A 43 (1092) 5 (127)

C ONDUIT DU MUR DOUBLE

CONDUIT DU MUR SIMPLE

CONDUIT DU MUR DOUBLE

INSTALLATION: ALCOVE - Six inch (6 inches) (152mm) diameter listed DOUBLE WALL air insulated connector pipe with UL 103 HT listed factory-built

Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark arrestor.) Maximum depth of Alcove shall be no more than 48 inches (1220mm) with a minimum height of 43 inches (1092mm) to top of unit, and the referenced clearances.

INSTALLATION: ALCÔVE - De six (6 inches) (152mm) de diamètre, le connecteur du conduit d'air isolé pour mur double avec une cheminée bâtit en usine 103HT de Classe "A", ou une cheminée de briques. (Les maisons mobiles doivent être équipées d'un arrêt d'étincelle). La profondeur maximum de l'alcôve ne doit pas être de plus de 48 inches (1220mm) avec une hauteur minimum de 43 inches (1092mm) du haut de l'appareil, et des espaces libres alloués.

CONDUIT DU MUR DOUBLE

G

H

E

A

F

B

F

C

E

D

CORNER INSTALLATION

INSTALLATION DU COIN

G

203mm (8 in.)

A

C

5-3/4 in. 2-1/4 in."

Fuel loading door

36 in.

minimum

203mm

(8 in.)

203mm

(8 in.)

1332mm

(52-7/16 in.) minimum

B

D

8 in.

STOVE TO CEILING CLEARANCE

ESPACE LIBRE DU POÊLE AU PLAFOND

16" from glass

USA

457mm (18 in.)

CANADA

1000mm (38-3/8 in.) minimum

29-5/8 in.

minimum

U.S. ENVIRONMENTAL PROTECTION AGENCY - Certified to comply with July 1990 particulate emission standards.

Manufactured by:

Fabriqué par:

2009 2010 2011 Jan. Feb. Mar. Apr. May June July Aug. Sept. Oct. Nov. Dec.

1445 N. Highway, Colville, WA 99114 www.quadrafire.com

7039-134

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L'ÉTIQUETTE

Made in U.S.A./Fait Aux États-Unis

Serial No.

Model

Name

Test Lab &

Report No.

Mfg. Date

Page 2 7039-131H

May 5, 2011

R

R

2100 Millennium Wood Stove (ACC)

Safety Alert Key:

DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates practices which may cause damage to the fireplace or to property.

TABLE OF CONTENTS

Section 1: Listing and Code Approvals

A. Appliance Certifications ......................4

B. Mobile Home Approved ......................4

C. Glass Specifications ............................4

D. BTU & Efficiency Specifications ..........4

Section 2: Getting Started

A. Design, Installation & Location

Considerations ....................................5

B. Fire Safety ..........................................5

C. Negative Pressure ..............................6

D. Flue Draft Considerations ...................7

E. Venting Systems .................................7

F. Tools and Supplies Needed................7

G. Inspect Appliance & Components.......7

H. Typical Stove System .........................8

Section 3: Dimensions & Clearances

A. Appliance Dimensions ........................9

B. Clearances to Combustibles ...............10

Section 4: Installation Consideration

A. Hearth Requirements .........................11

B. Outside Air ..........................................12

C. Blower Installation ...............................13

Section 5: Chimney Requirements

A. Venting Components ..........................14

B. Chimney Systems ...............................14-16

C. Installing Chimney Components .........16

D. Chimney Termination Requirements ..17

E. 2-10-3 Rule ..........................................17

Section 6: Mobile Home ...............................

18

Section 7: Appliance Set-Up

A. Door Handle Assembly .......................19

B. Blower Speed Adjustment ..................19

Section 8: Operating Instructions

A. Overfiring Your Appliance ...................20

B. Wood Selection & Storage ..................20

C. Burning Process ..................................20-21

D. Automatic Combustion Control (ACC) ....21

E. Air Controls .........................................21-22

F. Burn Rates & Operating Efficiency .....22

G. Building A Fire .....................................23

H. Correct Baffle & Blanket Placement ....24

I. Blower Operating Instructions .............25

J. Opacity (Smoke) .................................25

K. Frequently Asked Questions ...............26

Section 9

:

Maintaining & Servicing Appliance

A. Quick Reference Maintenance Guide .27

B. General Maintenance & Cleaning .......28

C. Glass Replacement .............................29

D. Firebrick Replacement ........................30

E. Baffle Removal ....................................31

F. Snap Disc Replacement .....................31

G. Tube Channel Replacement ...............32

Section 10: Troubleshooting ........................

33

Section 11: Reference Material

A. Exploded Drawings .............................34

B. Service Parts & Accessories...............35-37

C. Service & Maintenance Log ................38-39

D. Homeowner’s Notes ...........................40-41

E. Warranty Policy ...................................42-43

F. Contact Information .............................44

May 5, 2011 7039-131H

Page 3

2100 Millennium Wood Stove (ACC)

1

Listing and Code Approvals

A. Appliance Certification

Model:

Laboratory:

2100 Millennium (ACC)

OMNI Test Laboratories, Inc.

Report No & Date:

061-S-70-6

Type:

Listed Room Heater, Solid Fuel Type

Standard:

UL1482 and ULC S627-00 and

(UM) 84-HUD, Mobile Home

Approved.

NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the

UL1482, (UM)

84-HUD and NPFA211 in the U.S.A. and the ULC S627-00 and

CAN/CSA-B365 Installation Codes in Canada.

D. BTU & Efficiency Specifications

EPA Certified:

EPA Certificate Number and Date:

Efficiency:

BTU Output:

Heating Capacity:

Vent Size:

Firebox Size:

Max Wood Length:

Fuel:

Shipping Weight:

2.1 grams per hour

Number: 664

Issued: 07-20-2007

78.5%

12,000 to 28,800

800 to 1,500 sq ft depending on climate zone

6 inches

1.46 cubic feet

16 inches

Cord Wood

300 lbs

R

The Quadra-Fire 2100 Millennium Wood Stove (ACC) meets the U.S. Environmental Protection Agency’s 1990 particulate emission standards.

B. Mobile Home Approved

This appliance is approved for mobile home installations when not installed in a sleeping room and when an outside combustion air inlet is provided.

The structural integrity of the mobile home floor, ceiling, and walls must be maintained.

The appliance must be properly grounded to the frame of the mobile home with #8 copper ground wire, and use only listed double-wall connector pipe.

Outside Air Kit, part OAK-ACC must be installed in a mobile home installation.

C. Glass Specifications

This stove is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass.

WARNING

Fire Risk.

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance.

• Modification of the appliance.

• Installation other than as instructed by Hearth & Home

Technologies.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

• Operating appliance without fully assembling all components.

• Operating appliance without legs attached (if supplied with unit).

• Do NOT Overfire - If appliance or chimney connector glows, you are overfiring.

Any such action that may cause a fire hazard.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

For assistance or additional information, consult a qualified installer, service agency or your dealer.

Quadra-Fire is a registered trademark of Hearth & Home

Technologies.

NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice.

Page 4 7039-131H

May 5, 2011

2100 Millennium Wood Stove (ACC)

R

2

Getting Started

A. Design, Installation & Location Consider ations

Consideration must be given to:

• Safety

• Convenience

• Traffic flow

• Chimney and chimney connector required

It is a good idea to plan your installation on paper, using exact measurements for clearances and floor protection, before actually beginning the installation. If you are not using an existing chimney, place the appliance where there will be a clear passage for a factory-built listed chimney through the ceiling and roof.

We recommend that a qualified building inspector and your insurance company representative review your plans before and after installation

If this appliance is in an area where children may be near it is recommended that you purchase a decorative barrier to go in front of the appliance. Remember to always keep children away while it is operating and do not let anyone operate this appliance unless they are familiar with these operating instructions.

NOTE: Service Space

In order to replace the tube channel a clearance of 17 inches (432mm) is required on the right side of stove in order to remove the tubes with the stove in place.

If space is not available, the stove will have to be disconnected from the chimney to proceed with the tube replacement.

See page 32.

CAUTION

Check building codes prior to installation.

• Installation MUST comply with local, regional, state and national codes and regulations.

• Consult insurance carrier, local building, fire officials or authorities having jurisdiction about restrictions, installation inspection, and permits.

B. Fire Safety

To provide reasonable fire safety, the following should be given serious consideration:

1. Install at least one smoke detector on each floor of your home to ensure your safety. They should be located away from the heating appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and installation instructions, and be sure to maintain regularly.

2. A conveniently located Class A fire extinguisher to contend with small fires resulting from burning embers.

3. A practiced evacuation plan, consisting of at least two escape routes.

4. A plan to deal with a chimney fire as follows:

In the event of a chimney fire: a Evacuate the house immediately b. Notify fire department

WARNING

Fire Risk.

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance.

• Modification of the appliance.

• Installation other than as instructed by Hearth & Home

Technologies.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

• Operating appliance without fully assembling all components.

• Operating appliance without legs attached (if supplied with unit).

• Do NOT Overfire - If appliance or chimney connector glows, you are overfiring.

Any such action that may cause a fire hazard.

WARNING

Asphyxiation Risk.

• DO NOT CONNECT THIS UNIT TO A CHIM-

NEY FLUE SERVICING ANOTHER APPLI-

ANCE.

• DO NOT CONNECT TO ANY AIR DISTRIBU-

TION DUCT OR SYSTEM.

May allow flue gases to enter the house.

WARNING

Fire Risk.

• Do not operate appliance before reading and understanding operating instructions.

• Failure to operate appliance properly may cause a house fire.

Page 5

May 5, 2011 7039-131H

R

2100 Millennium Wood Stove (ACC)

C. Negative Pressure

Draft is the pressure difference needed to vent appliances successfully. Considerations for successful draft include:

• Preventing negative pressure

• Location of appliance and chimney

Negative pressure results from the imbalance of air available for the stove to operate properly. Causes for this imbalance include:

• Exhaust fans (kitchen, bath) etc.)

• Range hoods

• Combustion air requirements for furnaces, water heaters and other combustion appliances

• Clothes dryers

• Location of return-air vents to furnace or air conditioning

• Imbalances of HVAC air handling system

• Upper level air leaks

• Recessed lighting

• Attic hatch opening

• Duct leaks

To minimize the affects of negative air pressure the following must be considered:

• Install the outside air kit. Install the intake on the side of the house towards prevailing winds during the heating season.

• Ensure adequate outdoor air is supplied for combustion appliances and exhaust equipment.

• Ensure furnace and air conditioning return vents are not located in the immediate vicinity of the appliance,

• Avoid installing the appliance near doors, walkways or small isolated spaces.

• Recessed lighting should be of “sealed can” design; attic hatches weather stripped or sealed; and attic mounted ductwork and air handler joints and seams taped or sealed.

WARNING

Asphyxiation Risk.

• Negative pressure can cause spillage of combustion fumes, soot and carbon monoxide.

• Appliance needs to draft properly for safety.

Recommended Location:

• Above peak

Recommended Location:

• Above peak

• Inside heated space

Marginal Location:

• Below peak

Marginal Location:

• Wind loading possible

Location NOT recommended:

• Not the highest point of the roof

• Wind loading possible

Recommended:

• Insulated exterior chase in cooler climates

Location NOT recommended:

• Too close to tree

• Below adjacent structure

• Lower roof line

• Avoid outside wall

Windward

Leeward

Multi-level Roofs

Figure 6.1

Recommended:

Outside Air Intake on windward side

NOT recommended:

Outside Air Intake on leeward side

Page 6 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

D. Flue Draft Considerations

Location of the appliance and chimney will affect performance. As shown in Figure 6.1 on page 6 the chimney should:

• Be installed through the warm space enclosed by the building envelope. This helps to produce more draft, especially during lighting and die down of the fire.

• Penetrate the highest part of the roof. This minimizes the affects of wind turbulence and down drafts.

• Consider the appliance location in order to avoid floor and ceiling attic joists and rafters.

F. Tools And Supplies Needed

Before beginning the installation be sure that the following tools and building supplies are available.

Reciprocating saw

Pliers

Hammer

Phillips Head Screwdriver

Flat Blade Screwdriver

Plumb Line

Level

Tape Measure

Framing Material

Hi-Temp Caulking Material

Gloves

Framing Square

Electric Drill & Bits (1/4”)

Safety Glasses

1/2 in. - 3/4 in. length, #6 or

#8 self drilling screws (need 3 per pipe section connection)

Exterior conditions such as roof line, surrounding trees, prevailing winds and nearby hills can influence stove performance. Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will easily correct your flue problem.

To be sure that your appliance burns properly, the chimney draft (static pressure) should be approximately -.04 inch water column (W.C.) during a low burn and -.10 inch W.C. during a high burn, measured 6 inches (152mm) above the top of the appliance after one hour of operation at each burn setting.

NOTE: These are guidelines only, and may vary somewhat for individual installations.

E. Venting Systems

The venting system consists of a chimney connector (also known as stove pipe) and a chimney. These get extremely hot during use. Temperatures inside the chimney may exceed 2000°F (1100°C) in the event of a creosote fire. To protect against the possibility of a house fire, the chimney connector and chimney

must be properly installed and

maintained. An approved thimble must be used when a connection is made through a combustible wall to a chimney.

A chimney support package must be used when a connection is made through the ceiling to a prefabricated chimney.

These accessories are absolutely necessary to provide safe clearances to combustible wall and ceiling material.

Follow venting manufacturer’s clearances when installing venting system.

G. Inspect Appliance & Components and

3.

4.

5.

6.

7.

1.

2.

8.

9.

10.

11.

Pre-Burn Check List

Place the appliance in a location near the final installation area and follow the procedures below:

Open the appliance and remove all the parts and articles packed inside the Component Pack. Inspect all the parts and glass for shipping damage. Contact your dealer if any irregularities are noticed.

All safety warnings have been read and followed.

This Owner’s Manual has been read.

Floor protection requirements have been met.

Venting is properly installed.

The proper clearances from the appliance and chimney to combustible materials have been met.

The masonry chimney is inspected by a professional and is clean, or the factory built metal chimney is installed according to the manufacturer’s instructions and clearances.

The chimney meets the required minimum height.

All labels have been removed from the glass door.

A power outlet is available nearby if installing optional blower assembly.

WARNING

Asphyxiation Risk.

• DO NOT CONNECT THIS UNIT TO A CHIM-

NEY FLUE SERVICING ANOTHER APPLI-

ANCE.

• DO NOT CONNECT TO ANY AIR DISTRIB-

UTON DUCT OR SYSTEM.

May allow flue gases to enter the house.

WARNING

Fire Risk.

Inspect appliance and components for damage.

Damaged parts may impair safe operation.

• Do NOT install damaged components.

• Do NOT install incomplete components.

• Do NOT install substitute components.

Report damaged parts to dealer.

May 5, 2011 7039-131H

Page 7

2100 Millennium Wood Stove (ACC)

H. Typical Stove Systems

Stove system with masonry chimney consists of:

• Stove

• Chimney Connector (stove pipe)

• Thimble

• Masonry Chimney

• Hearth Pad Floor Protection

Spark Arrestor Cap

Concrete Cap

Rafter

1" (25mm) Clearance

With Firestop

Ceiling Joist

Combustible Wall

Fireclay Flue Liner

With Air Space

Flashing

Eave

Thimble,

12" (305mm)

Of Brick

Sheathing

Floor

Protector

Outside Air Rear Vent

Outside Air

Termination Cap

Airtight

Cleanout Door

Figure 8.1 Masonry Chimney

Stove system with prefabricated metal chimney consists of:

• Stove

• Chimney Connector

(stove pipe)

• Thimble (for exterior chimney)

• Firestops

• Insulations Shields

• Storm Collar and Flashing

• Termination Cap

• Hearth Pad Floor Protection

Listed Termination Cap

Roof Brace (if required)

Trim Collar on

Inside Wall

Chimney

Connector

Storm Collar

Flashing

Listed Chimney

Insulated " T "

Wall Support

Thimble

Listed Chimney

Ceiling Support

Chimney

Connector

Listed Termination Cap

Storm Collar

Flashing

Floor

Protector

Floor

Protector

R

Page 8

Figure 8.2 Exterior Prefabricated Chimney

7039-131H

Figure 8.3 Interior Prefabricated Chimney

May 5, 2011

R

3

Dimensions and Clearances

A. Appliance Dimensions

NOTE: Flue Collar size is 6 inch

(152mm) diameter (ID)

2100 Millennium Wood Stove (ACC)

8-5/8 in.

(219mm)

23-3/8 in. (594mm)

CL

11-11/16 in.

(297mm)

27-15/16 in.

(709mm)

9-1/4 in. (235mm)

13-1/2 in. (342mm)

17 in. (432mm)

12-3/4 in.

(324mm)

Figure 9.1 Front View

26-7/16 in. (671mm)

24-5/16 in. (618mm)

6-11/16 in.

(170mm)

May 5, 2011

11-1/2 in.

(292mm)

16 in. (406mm)

CL

20-3/4 in. (527mm)

Figure 9.2 Side View

7039-131H

4-1/2 in

(108mm)

Outside Air

Connection

Page 9

2100 Millennium Wood Stove (ACC)

B. Clearances to Combustibles (UL and ULC)

BACKWALL / SIDEWALL

NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction

A

B

C

D

STOVE TO CEILING

CLEARANCE

CORNER INSTALLATION

E

F

E

F

ALCOVE SIDE VIEW

G

A

B

ALCOVE TOP VIEW

C

D

R

Page 10

WARNING

Fire Risk.

• Comply with all minimum clearances to combustibles as specified.

• Failure to comply may cause house fire.

NOTE: Service Space

In order to replace the tube channel assembly a clearance of 17 inches (432mm) is required on the right side of stove in order to remove the tubes with the stove in place.

If space is not available, the stove will have to be disconnected from the chimney to proceed with the tube replacement.

7039-131H

May 5, 2011

2100 Millennium Wood Stove (ACC)

4

Installation

R

A. Hearth Protection Requirements

FLOOR PROTECTION: Floor protector must be non-combustible material, extending beneath heater and to the front, sides and rear as indicated. The floor must be non-combustible or otherwise adequately protected from radiant heat given off by the unit and from sparks and falling embers. A layer of thin brick or ceramic tile over a combustible floor is not sufficient.

In US installations, it is necessary to install a floor protector of a minimum of 3/8 inch (9.5mm) thick metal clad millboard or equivalent a minimum of 16 inches (406mm) in front of glass and 8 inches (203mm) to both sides of the fuel loading door. Open the door and measure 8 inches (203mm) from the side edge of the opening in the face of the appliance.

*

See exception.

In Canada, similar floor protection must be provided 18 inches (457mm) in front and 8 inches (203mm) from the sides and rear of the stove. *

See exception.

*EXCEPTION: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and extend 2 inches (51mm) beyond each side.

See Figure 11.4.

WARNING

Fire Risk.

• Hearth pads must be installed exactly as specified.

High temperatures or hot embers may ignite concealed combustibles.

50-3/4 in.

op tio co ve na l rag e

29

-5/

8 i n.

32-7/8 in.

5-3/4 in. 2-1/4 in."

Fuel loading door

39 in.

minimum

16" from glass

8 in.

USA

29-5/8 in.

minimum

USA

39 in.

3 in.

13

25

-3/

8 i n.

USA

Figure 11.1

Figure 11.3

USA required

Canada recommended

203mm (8 in.)

203mm

(8 in.)

203mm

(8 in.)

1244mm

(49 in.) minimum

457mm (18 in.)

1000mm (39-3/8 in.) minimum

CANADA

Must extend 2 in. (51mm) beyond each side of pipe (shaded area)

Figure 11.2

Figure 11.4

NOTE:

Illustrations and photos reflect typical installations and are FOR DESIGN PURPOSES ONLY.

I llustrations/diagrams are not drawn to scale.

Actual installation may vary due to individual design preference

Hearth & Home Technologies reserves the right to alter its products.

May 5, 2011 7039-131H

Page 11

R

2100 Millennium Wood Stove (ACC)

B. Outside Air Kit Installation

A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is consumed by the fire must be replaced. Air is replaced via air leakage around windows and under doors. In homes that have tightly sealed doors and windows, an outside air source is needed.

An optional Outside Air Kit is available.

Included in OAK-ACC:

Termination cap, (2) wire ties, flex adapter, and fasteners

Included in SRV7033-041:

Cover plate and sealing rope (see

Floor Installation Alternative below,

Figure 12.2)

Items Needed for Installation (not supplied)

• 4 inch flex aluminum pipe, or if using alternate material, then it shall be made from durable, non-combustible, heat resistant material up to 350 o length for your installation.

F. Cut the pipe to the required

• Phillips head screw driver

• Silicone sealant

• Drills and saws necessary for cutting holes through the wall or flooring in your home

WARNING

Fire Risk.

Asphyxiation Risk.

Do not draw outside combustion air from:

• Wall, floor or ceiling cavity

• Enclosed space such as an attic or garage

• Close proximity to exhaust vents or chimneys

Fumes or odor may result

WARNING

Asphyxiation Risk.

Outside air inlet must be located to prevent blockage from:

• Leaves

• Snow or ice

• Other debris

Block may cause combustion air starvation

Smoke spillage may set off alarms or irritate sensitive individuals.

1. Remove all materials from packing box.

2. Using a #2 Phillips screw driver attach the flex adapter to the stove using 4 screws.

Figure 12.1.

3. For floor installations, remove circular “knock-out” in the base of the pedestal. Figure 12.1.

4 .

Floor & Rear Installation: Cut a 4 inch (102mm) hole in outside wall or floor to accommodate outside air piping.

Use 4 inch (102mm) aluminum metal flex or rigid piping to directly connect outside air to appliance intake. Use the supplied termination cap with a rodent screen. Seal between the wall (or floor) and the pipe with silicone to prevent moisture penetration.

WARNING

Asphyxiation Risk.

Length of outside air supply duct shall NOT exceed the length of the vertical height of the exhaust flue.

Fire will not burn properly

Smoke spillage occurs when door is opened due to air starvation.

5. Floor Installation Alternative: In some instances you may not be able to install the flex pipe as show in

Figure

12.1. If that is the case, you will need to order SRV7033-

041 which includes a cover plate and sealing rope as shown in Figure 12.2. The goal is to seal the pedestal so no room air can leak into the pedestal and to seal or for cold air infiltration.

For Floor Installations Remove

Circular “Knock-Out” in Base of Pedestal.

Flex Line

Wire Tie

Figure 12.1 - Floor & Rear Installation

Page 12

Flex Adapter

Wire Tie

Termination

Cap

Cover

Plate

7039-131H

Figure 12.2 - Floor Installation Alternative

May 5, 2011

R

C. Blower (Optional)

1. Remove the 3 bolts (1/4”-20 Phillips head) on the outer skin at the bottom rear of appliance.

2. Align holes in mounting flange of blower with bolt holes in appliance. Blower should be positioned at bottom of rear outer skin as shown in Figure 13.1.

3. Re-insert and tighten bolts, securing blower onto outer wall of appliance.

4. Place the bracket containing the snap disc and magnet under the bottom left rear corner as shown in Figure 13.1.

See page 25 for detailed operating instructions for the blower and snap disc.

Secure blower with 3 bolts

Snap Disc

Bracket with Magnet

2100 Millennium Wood Stove (ACC)

CAUTION

Shock Risk.

• Do NOT remove grounding prong from plug.

• Plug directly into properly grounded 3 prong receptacle.

• Route cord away from appliance.

• Do NOT route cord under or in front of appliance.

Secure wires with wire tie

MANUAL

FAN

AUTO

LOW

HIGH

OFF

MANUAL: Over-rides the

Snap Disc

AUTO: Fan will turn ON/OFF

Automatically by the Snap Disc

Controls the Fan Speed

Figure 13.1

13-15/16 in. (355mm)

Figure 13.2 - Blower Housing Dimensions

May 5, 2011 7039-131H

3-1/8 in.

(80mm)

4-13/16 in.

(122mm)

4-15/16 in.

(125mm)

Page 13

2100 Millennium Wood Stove (ACC)

5

Chimney Requirements

A. Venting Components

Chimney Connector:

It is also known as flue pipe or stove pipe. The chimney connector joins the stove to the chimney. It must be a 6 inch

(152mm) minimum diameter 24 gauge mild steel black or

26 gauge blued steel, or an approved air-insulated double wall venting pipe.

Thimble:

A manufactured or site-constructed device installed in combustible walls through which the chimney connector passes to the chimney. It is intended to keep the walls from igniting. Site constructed thimbles must meet

NFPA 211 Standards. Prefabricated must be suitable for use with selected chimney and meet UL103 Type HT

Standards. Follow instructions provided by the manufacturer for manufactured thimbles for masonry chimney and prefabricated chimneys.

Chimney:

The chimney can be new or existing, masonry or prefabricated and must meet the following minimum requirements specified in Section 5B.

Listed Termination Cap

Storm Collar

Flashing

R

B. Chimney Systems

Prefabricated Metal Chimney

• Must be minimum 6 inch (152mm) diameter (ID) high temperature chimney listed to UL 103 HT (2100

ULC S629M.

o

F) or

• Must use components required by the manufacturer for installation.

• Must maintain clearances required by the manufacturer for installation.

• Refer to manufacturers instructions for installation.

NOTE: In Canada when using a factory-built chimney it must be safety listed,

Type UL103 HT (2100

conforming to

CAN/ULC-S629M, STANDARD FOR 650

FACTORY-BUILT CHIMNEYS.

o

F) CLASS “A” or

o

C

Listed Termination Cap

Roof Brace (if required)

Listed Chimney

Storm Collar

Flashing

Ceiling Support

Chimney

Connector

Trim Collar on

Inside Wall

Chimney

Connector

Listed Chimney

Insulated " T "

Wall Support

Thimble

Floor

Protector

Floor

Protector

Figure 14.1 Prefabricated Exterior Chimney

Page 14 7039-131H

Figure 14.2 - Prefabricated Interior Chimney

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

Thimble

Site constructed for masonry chimney installation:

Components

• A minimum length of 12 inches [305mm] (longer for thicker walls) of solid insulated factory-built chimney length constructed to UL 103 Type HT 6 inch (152mm) inside diameter. Chimney needs to extend a minimum of 2 inches (51mm) from the interior wall and a minimum of 1 inch (25mm) from the exterior wall.

• Wall spacer, trim collar and wall band to fit solid pack chimney selected.

• Minimum 8 inch (203mm) diameter clay liner section (if not already present in chimney) and refractory mortar.

Air Clearances

• Masonry chimney clearance must meet NFPA 211 minimum requirement of 2 inches (51mm) to sheet metal supports and combustibles.

• Minimum of 1 inch (25mm) clearance around the chimney connector.

• Top of wall opening is a minimum of 13-1/2 inches

(343mm) from ceiling or 4-1/2 inches (114mm) below minimum clearance specified by chimney connector manufacturer. NFPA 211 minimum vertical clearance of

18 inches (457mm) from chimney connector and ceiling or minimum recommended by chimney connector manufacturer.

Figure 15.1.

Instructions:

1. Open inside wall at proper height for the chimney connector to entry the masonry chimney.

Figure 15.1

2. Entry hole to masonry chimney must be lined with an 8 inch (203mm) minimum diameter clay liner, or equivalent, secured with refractory mortar.

3. Construct a 17 inch x 17 inch (432mm x 432mm) outside dimension frame from 2 x 2 framing lumber to fit into wall opening. Inside opening of frame should be no less than 14 inch x 14 inch (356mm x 356mm).

Figure 15.1.

4. Attach the wall spacer to the chimney side of the frame.

5. Nail the frame into the wall opening. The spacer should be on the chimney side.

6. Insert the section of the solid insulated chimney into the outer wall of the masonry chimney.

7. Tightly secure the length of the solid insulated chimney with the wall band to the masonry chimney.

8. Insert a section of chimney connector into the chimney.

Make sure it does not protrude past the edge of the clay chimney liner inside the chimney.

9. Seal the end of the chimney connector to the clay liner with refractory mortar.

10. Install trim collar around the sold pack chimney section.

May 5, 2011

17.0” OD

14.0” ID

8.0”

Center of Hole

Thimble

Figure 15.1

7039-131H

Trim Collar

Chimney Section with 2 inch

(51mm)

Clearance to

Combustibles ceiling

Minimum18.0”

NFPA 211

Include depth of hearth pad

1.5”

1.5”

1.0 min air clearance

4.5

2.0”

1.0”

CL

2.0”

1.0”

Solid Pack Chimney with Metal Supports as a Thimble

Chimney

Connector

CL

Wall

13.5” below ceiling to top of opening or top of opening is a min.of

4.5” below min.clearance specified by connector mfg.

Fire Clay Flue

Liner with Airspace

Masonry

Chimney

Wall Spacer

Wall Band to

Secure Chimney

Section

Wood Studs Used for Framing - Spaced

2 inch (51mm) clearance from

Masonry Chimney

Figure 15.2

WARNING

Fire Risk.

Do NOT pack insulation or other combustibles between spacers.

• ALWAYS maintain specified clearances around venting and spacers.

• Install spacers as specified.

Failure to keep insulation or other material away from vent pipe may cause fire.

Page 15

R

2100 Millennium Wood Stove (ACC)

Solid Pack Chimney with Metal Supports as a

Thimble (Cont’d)

Min. Chimney Clearance to

Wall Spacer and

Combustibles - 2 inch (51mm)

Min. Clearance

2 inch (51mm)

Chimney Flue

Liner

Fireclay

Liner or

Equivalent

1 inch (25mm) Air

Space to Chimney

Section

Chimney

Connector

Chimney Section

Trim Collar

Masonry Chimney

Constructed to NFPA 211

Wall Band

Wall Spacer

Figure 16.1

C. Installing Chimney Components

Chimney Connector

Single wall connector or stove pipe.

This must be at least 24 gauge mild steel or 26 gauge blue steel. The sections must be attached to the appliance and to each other with the crimped (male) end pointing toward the stove. All joints, including the connection at the flue collar, should be secured with 3 sheet metal screws. Make sure to follow the minimum clearances to combustibles. Where passage through the wall, or partition of combustible construction is desired in Canada, the installation shall conform to CAN/CSA-B365.

Factory-built listed chimney connector (vented).

A listed connector (vented) must be used when installing this unit in a mobile home. The listed connectors must conform to each other to ensure a proper fit and seal.

Chimney Height / Rise and Run

This product was designed for and tested on a 6 inch (152mm) chimney, 14 to 16 feet (420-480cm) high, (includes stove height) measured from the base of the appliance. The further your stack height or diameter varies from this configuration, the possibility of performance problems exists.

Chimney height may need to be increased by 2 - 3% per each 1000 feet above sea level. It is not recommended to use offsets or elbows at altitudes above 4000 feet above sea level or when there are other factors that affect flue draft.

Page 16

WARNING

Fire Risk.

Inspection of Chimney:

• Chimney must be in good condition.

• Meets minimum standard of NFPA 211

• Factory-built chimney must be 6 inch

(152mm) UL103 HT.

Crimped

End

Toward

Stove

Flue Gas

Direction

Secure pipe sections with a minimum of 3 screws

Figure 16.2 Chimney Connector (Stove Pipe)

WARNING

Fire Risk.

Follow Chimney Connector Manufacturer’s

Instructions for Proper Installation.

ONLY use connector:

• Within the room, between appliance and ceiling or wall.

Connector shall NOT pass through:

• Attic or roof space

• Closet or similar concealed space

• Floor or ceiling

Maintain minimum clearances to combustibles

WARNING

Asphyxiation Risk.

• DO NOT CONNECT THIS UNIT TO A CHIM-

NEY FLUE SERVICING ANOTHER APPLI-

ANCE.

• DO NOT CONNECT TO ANY AIR DISTRI-

BUTION DUCT OR SYSTEM.

May allow flue gases to enter the house.

7039-131H

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or your dealer.

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

D. Chimney Termination Requirements

Follow manufacturer’s instructions for clearance, securing flashing and terminating the chimney.

Must have an approved and listed cap

Must not be located where it will become plugged by snow or other material

NOTE:

• Chimney performance may vary.

• Trees, buildings, roof lines and wind conditions affect performance.

• Chimney height may need adjustment if smoking or overdraft occurs.

• Must terminate at least 3 feet (91cm) above the roof

and at least 2 feet (61cm) above any portion of the roof within 10 feet (305cm).

• Must be located away from trees or other structures

E. 2-10-3 Rule

These are safety requirements and are not meant to assure proper flue draft.

Less than 10 ft. (305cm)

3 ft. (91cm)

Minimum

2 ft. (61cm)

10 ft. (305cm) To Nearest Roofline

2 ft. (61cm)

3 ft. (91cm)

Minimum

Pitched Roof

Figure 17.1

10 ft. (305cm) or more

Wall or Parapet

3 ft. (91cm) Minimum

Less than 10 ft. (305cm)

3 ft. (91cm) Minimum

2 ft. (61cm)Minimum

Figure 17.2

May 5, 2011

Flat Roof

7039-131H

Page 17

2100 Millennium Wood Stove (ACC)

6

Mobile Home Installation

You must use a Quadra-Fire Outside Air Kit Part

OAK-ACC and (depending on floor installation, Part

SRV7033-041) for installation in a mobile home.

Spark Arestor Cap

R

1. An outside air inlet must be provided for combustion See

page 12 for installation information.

2. Appliance must be secured to the mobile home structure by bolting the pedestal through hearth pad and into floor.

3. Appliance must be grounded with #8 solid copper grounding wire or equivalent and terminated at each end with N.E.C. approved grounding device.

4. Appliance must be installed with an approved UL103 HT ventilated chimney connector, UL103 HT chimney, and terminal cap with spark arrestor. Never use a single wall connector (stove pipe) in a mobile home installation. Use only double-wall connector pipe, Dura-Vent DVL, Selkirk metalbestos DS or Security DL double-wall connector or any listed double-wall connector pipe.

5. In Canada, this appliance must be connected to a 6 inch

(152mm) factory-built chimney conforming to CAN/ULC-

629M, STANDARD FOR FACTORY BUILT CHIMNEYS.

6. Follow the chimney and chimney connector manufacturer’s instructions when installing the flue system for use in a mobile home.

7. Maintain clearance to combustibles.

8. Floor protection requirements must be followed precisely.

9. Use silicone to create an effective vapor barrier at the location where the chimney or other component penetrates to the exterior of the structure.

NOTE: Offsets from the vertical, not exceeding 45°, are allowed per Section 905(a) of the Uniform Mechanical Code

(UMC). Offsets greater than 45° are considered horizontal and are also allowed, providing the horizontal run does not exceed 75% of the vertical height of the vent. Construction, clearance and termination must be in compliance with the

UMC Table 9C. This installation must also comply with NFPA

211.

NOTE: Top sections of chimney must be removable to allow maximum clearance of 13.5 feet (411cm) from ground level for transportation purposes.

10. Burn wood only. Other types of fuels may generate poisonous gases (e.g., carbon monoxide).

11. If unit burns poorly while an exhaust blower is on in home, (i.e., range hood), increase combustion air.

12. Installation shall be in accordance with the Manufacturers

Home & Safety Standard (HUD) CFR 3280, Part 24.

Storm Collar

Joist Shield/Firestop

Floor Protector

Figure 18.1

Outside Air Floor Vent

Roof Flashing

Double wall connector pipe

Outside Air

Rear Vent

CAUTION

THE STRUCTURAL INTEGRITY OF THE MOBILE HOME

FLOOR, WALL AND CEILING/ROOF MUST BE MAIN-

TAINED

Do NOT cut through:

• Floor joist, wall, studs or ceiling trusses.

• Any supporting material that would affect the structural integrity.

WARNING

Asphyxiation Risk.

NEVER INSTALL IN A SLEEPING ROOM.

Consumes oxygen in the room.

Page 18 7039-131H

May 5, 2011

2100 Millennium Wood Stove (ACC)

R

7

Appliance Set-Up

A. Door Handle Assembly

1. Install washer on door handle shaft.

2. Slide door handle through door.

3. Install second washer(s) as shown in

Figure 19.1.

4. Install key in groove.

5. Align groove in latch cam with key; slide latch cam over shaft

6. Install locknut but do not overtighten, the handle needs to move smoothly.

7. Install spring handle turning in a counter-clockwise motion to

required 2 inch (51mm) clearance location on door handle rod.

Figure 19.1.

B. Adjusting The Blower Speed Control

The blower speed control for this unit is adjusted at the factory, and normally does not require further adjustment.

NOTE: When the speed control is turned clockwise, it will click on to high speed. Continue to turn the speed control clockwise to decrease the speed. At full clockwise, the blower should blow gently, but should not stop.

1. With the appliance plugged in, turn the speed control knob to slow (full clockwise).

2. With a small screwdriver, adjust the blower speed by turning the adjustment mechanism through the hole on the side of the speed control.

3. Adjust the speed so the blower runs slowly, but does not stop. Turn clockwise to slow the blower and counterclockwise to increase the speed.

CAUTION

• Do NOT overtighten lock nut.

• Door handle needs to move smoothly.

Door Cross Section

(example)

2 inch (51mm) clearance required from bend in door handle rod to end of spring handle.

Latch Cam

Locknut

Spring

Handle

Spacing

Washers

Square Key

Door Handle

Figure 19.1

WARNING

HOT. Injury Risk.

• Maintain clearance between bend of door handle rod and spring handle.

• Spring handle will get hot and may cause injury.

Page 19

May 5, 2011 7039-131H

2100 Millennium Wood Stove (ACC)

8

Operating Instructions

A. Over-Firing Your Appliance

WARNING

Fire Risk

Do not over-fire.

Over-firing may ignite creosote or will damage the stove and chimney.

To prevent over-firing your stove, DO NOT:

• Use flammable liquids

• Overload with wood

• Burn trash or large amounts of scrap lumber

• Permit too much air to the fire

1. Symptoms of Over-Firing

Symptoms of over-firing may include one or more of the following:

• Chimney connector or appliance glowing

• Roaring, rumbling noises

• Loud cracking or banging sounds

• Metal warping

• Chimney fire

2. What To Do if Your Stove is Over-Firing

• Immediately close the door and air controls to reduce air supply to the fire.

• If you suspect a chimney fire, call the fire department and evacuate your house.

• Contact your local chimney professional and have your stove and stove pipe inspected for any damage.

• Do not use your stove until the chimney professional informs you it is safe to do so.

Hearth & Home Technologies WILL NOT warranty stoves that exhibit evidence of over-firing. Evidence of over-firing includes, but is not limited to:

• Warped air tube

• Deteriorated refractory brick retainers

• Deteriorated baffle and other interior components

B. Wood Selection & Storage

Burn only dry seasoned wood. Store wood under cover, out of the rain and snow. Dry and well-seasoned wood will not only minimize the chance of creosote formation, but will give you the most efficient fire. Even dry wood contains at least

15% moisture by weight, and should be burned hot enough to keep the chimney hot for as long as it takes to dry the

B. Wood Selection & Storage (Cont’d)

wood out - about one hour. It is a waste of energy to burn unseasoned wood of any kind.

Dead wood lying on the forest floor should be considered wet, and requires full seasoning time. Standing dead wood can be considered to be about 2/3 seasoned. To tell if wood is dry enough to burn, check the ends of the logs. If there are cracks radiating in all directions from the center, it is dry. If your wood sizzles in the fire, even though the surface is dry, it may not be fully cured.

Splitting wood before it is stored reduces drying time. Wood should be stacked so that both ends of each piece are exposed to air, since more drying occurs through the cut ends than the sides. This is true even with wood that has been split. Store wood under cover, such as in a shed, or covered with a tarp, plastic, tar paper, sheets of scrap plywood, etc., as uncovered wood can absorb water from rain or snow, delaying the seasoning process.

C. Burning Process

In recent years there has been an increasing concern about air quality. Much of the blame for poor air quality has been placed on the burning of wood for home heating. In order to improve the situation, we at Quadra-Fire have developed cleaner-burning woodstoves that surpass the requirements for emissions established by our governing agencies. These woodstoves, like any other appliances, must be properly operated in order to insure that they perform the way they are designed to perform. Improper operation can turn most any wood stove into a smoldering environmental hazard.

1. Kindling or First Stage

It helps to know a little about the actual process of burning in order to understand what goes on inside a stove. The first stage of burning is called the kindling stage. In this stage, the wood is heated to a temperature high enough to evaporate the moisture which is present in all wood. The wood will reach the boiling point of water (212°F) and will not get any hotter until the water is evaporated. This process takes heat from the coals and tends to cool the appliance.

Fire requires three things to burn - fuel, air and heat. So, if heat is robbed from the appliance during the drying stage, the new load of wood has reduced the chances for a good clean burn. For this reason, it is always best to burn dry, seasoned firewood. When the wood isn’t dry, you must open the air controls and burn at a high burn setting for a longer time to start it burning. The heat generated from the fire should be warming your home and establishing the flue draft, not evaporating the moisture out of wet, unseasoned wood, resulting in wasted heat.

R

Page 20 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

2. Second Stage

The next stage of burning, the secondary stage, is the period when the wood gives off flammable gases which burn above the fuel with bright flames. During this stage of burning it is very important that the flames be maintained and not allowed to go out. This will ensure the cleanest possible fire. If the flames tend to go out, it is set too low for your burning conditions. The air control located at the upper right hand corner is used to adjust for burn rates. This is called the Burn Rate

Air Control.

Figure 21.1.

3. Final Stage

T he final stage of burning is the charcoal stage. This occurs when the flammable gases have been mostly burned and only charcoal remains. This is a naturally clean portion of the burn.

The coals burn with hot blue flames.

It is very important to reload your appliance while enough lively hot coals remain in order to provide the amount of heat needed to dry and rekindle the next load of wood. It is best to open the Burn Rate Air and Start-Up Air Controls before

reloading. This livens up the coalbed and reduces excessive emissions (opacity/smoke). Open door slowly so that ash or smoke does not exit appliance through opening. You should also break up any large chunks and distribute the coals so that the new wood is laid on hot coals.

Air quality is important to all of us, and if we choose to use wood to heat our homes we should do so responsibly. To do this we need to learn to burn our stoves in the cleanest way possible. Doing this will allow us to continue using our wood stoves for many years to come.

The second function of the Start-Up Air Control is operation of the rear air system. The rear air is used primarily during a High Burn Rate. However, in some instances rear air is desired during normal operation to help with combustion of fuel towards the back of the firebox particularly when burning hardwoods. The rear air is controlled independently from the

ACC system. Slide the Start-Up Air Control between the first and third marker as indicated on the label to allow rear air to enter the firebox.

Figure 21.1.

2. Manual Timer Over-Ride

If you need to shut the ACC system off before it shuts itself off after 25 minutes (i.e. overfire situation), reach down to the bottom right rear corner and pull the lever toward you.

Figure 21.2.

Burn Rate

Air Control

HIGH

MED

LOW

D. Automatic Combustion Control (ACC)

Typically, when you build a fire, you open the air controls fully and monitor the fire to prevent it from going into an overfire situation and/or burning your wood up too quickly before you shut down the air controls to the desired burn rate. With the

Automatic Combustion Control (ACC) system, you do not have to continually monitor the fire. Once you set the ACC system it will control the fire for you. Follow the instructions below to learn how to operate your stove with ease.

E. Air Controls

1. Start-Up Air Control

The Start-Up Air Control has two primary functions. The first function is to activate the Automatic Combustion Control system (ACC). This function is performed by sliding the control all the way back until it stops at the “HI” indicator on the label and then pulling forward to the front of the stove until it stops. This activates the ACC system and opens the front air channel and allows air to enter the front of the stove for approximately 25 minutes. The front air channel gradually shuts down until it is completely closed at the end of the 25 minutes. The fire is now controlled by the air supplied by the

Burn Rate Air Control. This function should be performed each time you reload the stove.

Figure 21.1.

May 5, 2011 7039-131H

Figure 21.1

Start-Up

Air Control

Pull Forward to Shut Down

Figure 21.2

Manual

Timer (ACC)

Shut Down

Page 21

R

2100 Millennium Wood Stove (ACC)

2. Burn Rate Air Control

This air supply enters at the upper front of the firebox, near the top of the glass door. This preheated air supplies the necessary fresh oxygen to mix with the unburned gases, helping to create second, third and fourth combustions. This air is regulated by the Burn Rate Air Control. There are four settings

High, Medium-High, Medium-Low and Low. When the control is raised all the way up it is on the High setting and when pushed all the down it is on the Low setting.

Figure 22.1.

4. Medium-Low Burn Rate - 10,000 to 15,000 BTU/hr

Raise the Burn Rate Air Control up to the bottom of the middle marker and stop. Slide the Start-Up Air

Control all the way back until it stops (HI marker) and then pull forward until it stops. This activates the timer system (ACC).

5. Low Burn Rate - Below 10,000 BTU/hr

Leave the Burn Rate Air Control at the bottom marker.

Slide the Start-Up Air Control all the way back until it stops (HI marker) and then pull forward until it stops.

This activates the timer system (ACC).

F. Burn Rates and Operating Efficiency

For maximum operating efficiency

1. This appliance has a timer system (ACC) that operates the stove at its maximum efficiency removing any guess work for the homeowner. Follow the instructions below for each burn rate for the Start-Up Air Control and Burn

Rate Air Control.

Figure 22.1.

2. Burn dry, well-seasoned wood.

Burn Rates

1. Starting a Fire and Reloading

Open both controls fully by raising the Burn Rate Air

Control all the way up until it stops and slide the Start-up

Air Control back until it stops. After loading the stove with wood and starting the fire, set both controls to the desired setting by following the burn rate instructions below.

LOW

Burn Rate

Air Control

HIGH

Low (Closed)

Shown with Side

Shield Removed

High (Open)

Front Air Channel

Operated by Timer

Timer

NOTE: These are approximate settings, and will vary with type of wood or chimney draft. Due to altitude and other environmental circumstances, this operational information is a guideline only.

2. High Burn Rate - Maximum Heat

Raise the Burn Rate Air Control all the way up until it stops

(top marker) to a fully open position. Slide the Start-Up Air

Control all the way back until it stops (HI marker) and leave it there. This setting over-rides the timer system (ACC) so you must monitor the fire closely while in this setting.

Start-Up Air

Control

Rear Air Channel

Operates independently from Timer

REAR AIR

START-UP

HI

Timer Manual

Shut-off

WARNING

Risk of Fire.

When set on High Burn Rate and over-riding the Automatic Combustion Control system an overfire situation can occur and may result in a chimney fire.

Overfiring will void the stove warranty.

3. Medium-High Burn Rate

-

15,000 to 30,000 BTU/hr

Raise the Burn Rate Air Control all the way up until it stops (top marker) to a fully open position. Slide the

Start-Up Air Control all the way back until it stops (HI marker) and then pull forward until it stops. This activates the timer system (ACC).

Page 22

Closed

Wide

Open

“HI” setting over-rides

Timer

After activating the timer (ACC), if the control is placed within the rear air section on the label it will allow rear air to enter the firebox. This will not interfere with the timer gradually closing the front air channel in 25 minutes. If control is set on “HI” it over-rides the timer (ACC).

F igure 22.1

NOTE:

Operate appliance on High Burn 15 minutes a day to help keep flue/chimney clean.

7039-131H

May 5, 2011

R

G. Building A Fire

Before lighting your first fire in the stove:

1. Confirm the baffle is correctly positioned. It should be even with the front tube and resting on all tubes.

Figure

23.1.

2. Remove all labels from glass.

There are many ways to build a fire. The basic principle is to light easily-ignitable tinder or paper, which ignites the fast burning kindling, which in turn ignites the slow-burning firewood. Here is one method that works well:

1. Open the Burn Rate Air and Start-Up Air Controls fully.

2. Place several wads of crushed paper on the firebox floor.

Heating the flue with slightly crumpled newspaper before adding kindling keeps smoke to a minimum.

3. Lay small dry sticks of kindling on top of the paper.

4. Make sure that no matches or other combustibles are in the immediate area of the appliance. Be sure the room is adequately ventilated and the flue unobstructed.

5. Light the paper in the appliance. NEVER light or rekindle fire with kerosene, gasoline, or charcoal lighter fluid; the results can be fatal.

6. Once the kindling is burning quickly, add several fulllength logs 3 inches (76mm) or 4 inches (102mm) in diameter. Be careful not to smother the fire. Stack the pieces of wood carefully; near enough to keep each other hot, but far enough away from each other to allow adequate air flow between them.

7. Set the Burn Rate Air Control and activate the timer system (ACC).

8. When ready to reload, It is best to fully open both the

Burn Rate Air and Start-up Air Controls before reload-

ing. This livens up the coalbed and reduces excessive emissions (opacity/smoke). Open door slowly so that ash or smoke does not exit appliance through opening.

Large logs burn slowly, holding a fire longer. Small logs burn fast and hot, giving quick heat.

9. As long as there are hot coals, repeating steps 6 through 8 will maintain a continuous fire throughout the season.

NOTE:

• Build fire on brick firebox floor.

• Do NOT use grates, andirons or other methods to support fuel.

It will adversely affect emissions.

2100 Millennium Wood Stove (ACC)

Baffle Board even with front tube & resting on all tubes

Ceramic Blanket on Top

Tube Channel

2 pc Baffle Board

Figure 23.1

WARNING

Burn Rate

Air Control

Start-Up

Air

Control

Fire Risk.

Do NOT store wood:

• Closer than required clearances to combustibles to appliance

• Within space required for loading or ash removal.

Do NOT operate appliance:

• With appliance door open.

• With ash removal system door open.

WARNING

Fire Risk.

Do NOT burn wet or green wood.

Store wood in dry location.

Stack wood so both ends are exposed to air.

Wet, unseasoned wood can cause accumulation of creosote.

May 5, 2011 7039-131H

Page 23

2100 Millennium Wood Stove (ACC)

H. Correct Baffle & Blanket Placement

WARNING

Fire Risk

Firebox damage due to improper baffle placement is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only.

Not doing so could result in:

• Reduced efficiency

• Overheating the chimney

• Overheating the rear of the firebox

• Poor performance

Ensure correct baffle placement and replace baffle components if damaged or missing.

CORRECT POSITION

INCORRECT POSITIONS

Ceramic Blanket and Baffle Board are NOT in contact with the back of the firebox.

R

Back of Firebox

Ceramic Blanket

Ceramic Blanket is NOT in contact with the back of the firebox and NOT even with the

Baffle Board in the front.

Ceramic Blanket

Back of Firebox

Baffle Board

Ceramic Blanket and Baffle Board MUST be in contact with the back of the firebox and even with each other in the front.

Figure 24.1

Page 24

Baffle Board

Ceramic Blanket is bunched up at the back of the firebox and NOT even with the Baffle

Board in the front.

Figure 24.2

7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

I. Blower Operating Instructions

NOTE: If your Quadra-Fire wood stove is equipped with an optional blower, you should follow these guidelines:

1.

Initial (cold) start-up and all Burn Settings

The blower can be plugged in and turned on right away.

The blower fan is turned on and off by a snap disc.

When your stove has reached a certain temperature the blower will turn on and when your stove has cooled down to a certain temperature it will turn off.

NOTE: The blower can still be left on at all burn rates even if you have deactivated the snap disc with the manual over-ride knob. See page 13.

2. The blower is equipped with a speed control. Adjust the fan speed by turning the speed control clockwise to “Low” or counterclockwise to “High”.

3.

Snap Disc Location

If you find the blower coming on and off at undesirable temperatures, relocate the snap disc to another location in the designated zone on the back of the appliance.

Figure 25.1. There is a manual over-ride switch to deactivate the snap disc, if necessary.

See page 13.

J. Opacity (Smoke)

This is the measure of how cleanly your appliance is burning. Opacity is measured in percent; 100% opacity is when an object is totally obscured by the smoke column from a chimney, and 0% opacity means that no smoke column can be seen. As you become familiar with your appliance, you should periodically check the opacity. This will allow you to know how to burn as nearly smoke-free as possible (goal of

0% opacity).

WARNING

Fire Risk.

DO NOT BURN GARBAGE OR FLAMMABLE

FLUIDS SUCH AS GASOLINE, NAPTHA OR

ENGINE OIl.

Do NOT burn treated wood or wood with salt (driftwood).

May generate carbon monoxide if burn material other than wood.

May result in illness or possible death.

WARNING

Fire Risk.

Keep combustible materials, gasoline and other flammable vapors and liquids clear of appliance.

• Do NOT store flammable materials in the appliance’s vicinity.

• DO NOT USE GASOLINE, LANTERN FUEL,

KEROSENE, CHARCOAL LIGHTER FLUID OR

SIMILAR LIQUIDS TO START OR “FRESHEN UP” A

FIRE IN THIS HEATER.

• Keep all such liquids well away from the heater while it is in use.

• Combustible materials may ignite.

Figure 25.1

May 5, 2011 7039-131H

Page 25

R

2100 Millennium Wood Stove (ACC)

K. Frequently Asked Questions

ISSUES

Odor from appliance

Metallic noise

Whirring sound

SOLUTIONS

When first operated, this appliance may release an odor for the first several hours. This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing.

Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the appliance.

If the optional blower has been installed, the blower produces a whirring sound which increases in volume as the speed is increased.

CAUTION

Odors and vapors released during initial operation.

• Curing of high temperature paint.

• Open windows for air circulation.

Odors may be irritating to sensitive individuals.

Page 26 7039-131H

May 5, 2011

R

9

Maintaining & Servicing Your Appliance

A. Quick Reference Maintenance Guide

2100 Millennium Wood Stove (ACC)

BAFFLE & BLANKET PLACEMENT

INSPECT FIREBRICKS & ASH GRATE

(AFTER EACH CLEANING)

2

2

Baffle and blanket placement is critical to heat output, efficiency and overall life of the unit. Make sure the baffle is pushed all of the way to the back of the firebox and the blanket is laying flat.

Step Top Models Only

Firebrick is designed to protect your firebox. Replace firebricks that are crumbling, cracked or broken. If you have an optional ash door, check to make sure the door is closing properly.

CHIMNEY & CAP INSPECTION

The chimney and chimney cap must be inspected for soot and creosote during the burn season. This will prevent pipe blockage, poor draft, and chimney fires.

Always burn dry wood to help prevent cap blockage and creosote build-up.

DOOR & LATCH CHECK

Keeping the door and glass gasket in good shape will maintain good burn times on a low burn setting.

Check the glass frame for loose screws to prevent air leakage.

Check the door latch for proper adjustment. This is very important especially after the door rope has formed to the stove face.

Start the first inspection of your unit after the first 2 months of use, or if performance changes, and adjust your schedule accordingly.

May 5, 2011 7039-131H

Maintenance is required for safe operation and must be performed to maintain your warranty.

Page 27

WARNING

Fire Risk.

Prevent creosote buildup.

• Inspect chimney connector and chimney once every two months during heating season.

• Remove creosote to reduce risk of chimney fire.

• Ignited creosote is extremely HOT.

R

2100 Millennium Wood Stove (ACC)

B. General Maintenance

1. Creosote (Chimney) Cleaning

• Frequency:

Every 2 months during heating season or as recommended by a certified chimney sweep; more frequently if chimney exceeds or is under 14-16 ft. (measured from bottom of appliance)

• By: Certified Chimney Sweep

Remove all ash from the firebox and extinguish all hot embers before disposal. Allow the appliance to cool completely.

Disconnect flue pipe or remove baffle and ceramic blanket from appliance before cleaning chimney. Otherwise residue can pile up on top of the baffle and ceramic blanket and the appliance will not work properly. (See Baffle Removal on

page 31). Close the door tightly. The creosote or soot should be removed with a brush specifically designed for the type of chimney in use. Clean out fallen ashes from the firebox.

It is also recommended that before each heating season the entire system be professionally inspected, cleaned and repaired if necessary.

Inspection: Inspect the system at the appliance connection and at the chimney top. Cooler surfaces tend to build creosote deposits quicker, so it is important to check the chimney from the top as well as from the bottom.

Formation and Need For Removal: When wood is burned slowly, it produces tar and other organic vapors which combine with expelled moisture to form creosote.

The creosote vapors condense in the relatively cool chimney flue of a newly-started or a slow-burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote creates an extremely hot fire which may damage the chimney or even destroy the house.

The chimney connector and chimney should be inspected once every 2 months during the heating season to determine if a creosote or soot buildup has occurred. If creosote or soot has accumulated, it should be removed to reduce the risk of a chimney fire.

2. Disposal of Ashes

• Frequency: When ash is within 1-3/4 in. (44mm) of firebox lip

• By: Homeowner

Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled.

3. Glass Cleaning

• Frequency: As desired

• By: Homeowner

Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack. If the deposits on the glass are not very heavy, normal glass cleaners work well. Heavier deposits may be removed by using a damp cloth dipped in wood ashes or by using a commercially available oven cleaner.

After using an oven cleaner, it is advisable to remove any residue with a glass cleaner or soap and water. Oven cleaner left on during the next firing can permanently stain the glass and damage the finish on plated metal surfaces.

A portion of the combustion air entering the firebox is deflected down over the inside of the door glass. This air flow “washes” the glass, helping to keep smoke from adhering to its surface.

When operated at a low burn rate, less air will be flowing over the glass and the smokey, relatively cool condition of a low fire will cause the glass to become coated.

Operating the appliance with the Burn Rate Air Control and

Start-Up Air Control all the way open for 15-20 minutes should remove the built up coating.

WARNING

Fire Risk.

• Do not use chimney cleaners or flame colorants in your appliance.

Will corrode pipe.

WARNING

Fire Risk.

Disposal of Ashes

• Ashes should be placed in metal container with tight fitting lid.

• Do not place metal container on combustible surface.

• Ashes should be retained in closed container until all cinders have thoroughly cooled.

Page 28 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

CAUTION

Glass

Assembly

Handle glass assembly with care.

When cleaning glass:

• Avoid striking, scratching or slamming glass.

• Do NOT clean glass when hot.

• Do NOT use abrasive cleaners.

• Use a hard water deposit glass cleaner on white film.

• Use commerical oven cleaner on heavier deposits.

• Remove all residue of oven cleaner or will permanently stain glass on next firing.

Refer to maintenance instructions.

WARNING

Handle glass with care.

Glass

Assembly

• Inspect the gasket to ensure it is undamaged.

• Do NOT strike, slam or scratch glass.

• Do NOT operate appliance with glass

& door assembly removed.

• Do NOT operate with glass cracked, broken or scratched.

WARNING

Fire Risk.

Injury Risk.

• Use only glass specified in manual.

• DO NOT REPLACE with any other material.

Glass breakage will occur.

C. Glass Replacement

1. Ensure that the fire is out and the appliance is cool to the touch.

2. Protect a table or counter top with padding or towels.

Protect your hands and wear gloves to prevent injury.

3. Remove the door with the broken glass by lifting the door up and off of the hinges.

4. Lay door face down on a table or counter making sure the handle hangs over the edge so the door lays flat, on a soft surface.

5. Remove the screws from each glass retainer and remove the glass. (If screws are difficult to remove, soak with penetrating oil first).

6. Center the glass with edges evenly overlapping the opening in the door, (i.e. same space top and bottom, left and right sides).

7. Replace the glass retainers. Be careful not to cross thread the screws.

8. Tighten each retainer just a few turns until each is secured. Check again for centering of glass in door frame. Continue to tighten each retainer alternately, a few turns at a time, until the glass is secure. DO NOT

OVERTIGHTEN.

9. Replace the door on the appliance.

Quadra-Fire stoves are equipped with ceramic super heatresistant glass, which can only be broken by impact or misuse. Do not slam stove door or impact the glass. When closing door, make sure that logs do not protrude against the glass. Inspect glass regularly. If you find a crack or break, immediately put the fire out and return the door to your dealer for replacement of glass before further use.

May 5, 2011 7039-131H

Page 29

2100 Millennium Wood Stove (ACC)

D. Firebrick Replacement

Replace the firebrick if they become crumbly and/or if there is a 1/4 inch (6.35mm) gap between the bricks.

Inspect the firebrick after each ash removal.

The firebox is lined with high quality firebrick, which has exceptional insulating properties. There is no need to use a grate; simply build a fire on the firebox floor. Do not operate appliance without firebrick.

1. After the coals have completely cooled, remove all old brick and ash from unit and vacuum firebox.

2. Remove new brick set from box and lay out to diagram shown.

3. Lay bottom bricks in unit.

4. Install rear bricks on the top of the bottom bricks.

Slide top of bricks under clip on back of firebox wall and push bottom of brick back.

5. Install side bricks. Slide top of brick under clips on side of firebox and push the bottom of the brick until it is flush with the side of the unit.

Use Part 832-0550 when ordering individual brick. Provide brick dimension or copy this page, mark the desired brick and take it to your authorized dealer.

3 3

5

1

1

1

2

1

2

1

2

1

4

1

1

1

8-1/2 inches (216mm)

4

6-1/4 inches

(159mm)

7 inches (178mm)

1-3/8 in.

(35mm)

1-3/4 in.

(44mm)

5

3 inches

(76mm)

8-1/2 inches (216mm)

Figure 30.1

No.

1

2

3

4

5

Brick Size

9 x 4-1/2 x 1-1/4

6 x 4-1/2

8 x 4-1/2 x 1-1/4

Brick with angle (see drawing)

Brick with angle (see drawing)

Qty

9

3

2

1

1

R

Page 30 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

E. Baffle Removal

F. Snap Disc Replacement

1. Remove all ash from the firebox, and extinguish all hot embers before disposal into a metal container.

2. The baffle board has 2 pieces. With the ceramic blanket still in place, slide one baffle piece over the top of other one and pull out top piece through the door opening and then remove bottom baffle piece.

Figure 31.1.

3. Remove the ceramic blanket.

4. Re-install the baffle pieces one piece at a time. Be sure the baffle boards are even with the front manifold tube and is resting on all tubes.

Figure 23.1 on page 23. See Also

Correct Blanket & Baffle Position on page 24.

5. To re-install the ceramic blanket, it is easier to fold it in half first. Figure 31.2. Place on top of baffle board, open up and flatten and smooth out the blanket. Re-check the baffle board for correct positioning.

Figure 23.1 on page 23 and page 24.

1. Locate the snap disc bracket assembly at the bottom left rear corner of the stove.

Figure 31. 3.

2. A magnet holds the bracket to the stove. Pull the bracket down away from the stove to expose the snap disc.

3. Pull the snap disc and spade connectors up and out of bracket as shown in

Figure 31.4.

4. Using a Phillips head screw driver, remove the 2 screws from the snap disc and then remove the snap disc from the spade connectors. Replace with new snap disc and re-connect to spade connectors.

5. Push the snap disc and spade connectors back inside bracket and re-attach the bracket to the stove.

Figure 31.1 - Baffle

Figure 31.2 - Ceramic Blanket

May 5, 2011

Snap Disc Location

Figure 31.3

Snap Disc

Magnet

Figure 31.4

7039-131H

Spade

Connectors

Page 31

2100 Millennium Wood Stove (ACC)

G. Tube Channel Assembly Replacement

Removing Tube Channel Assembly

1. Remove the right side shield by removing 2 screws in the back using a Phillips head screw driver.

2. Remove 4 screws from channel access cover and remove cover.

3. Locate 2 channel nuts inside of chamber and remove using a 7/16 socket wrench. Slide out tube channel assembly.

NOTE: Soak the bolts with penetrating oil for at least 15 minutes before trying to remove them.

Replacing Tube Channel Assembly

1. Slide one gasket on each tube first

2. Slide the tube channel assembly into side of firebox and insert each tube into the corresponding hole in the tube channel rack starting with the back hole first.

3. Make sure tube channel assembly is flush against the side of the stove and secure with channel nuts.

4. Re-install channel cover and side shield.

NOTE: Service Space

In order to replace the tube channel assembly a clearance of 17 inches (432mm) is required on the right side of stove in order to remove the tubes with the stove in place.

If space is not available, the stove will have to be disconnected from the chimney to proceed with the tube replacement.

R

Tube Channel Rack

Slide one gasket over each tube

Channel

Access

Cover

Channel Cover

Screws (4)

Remove

2 Screws

Channel

Nuts (2)

Tube Channel

Assembly

Side Panel

Figure 32.1

Page 32 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

10

Troubleshooting

Start Fire Problems Possible Cause

With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken.

Solution

Can’t get fire started

Excessive smoke or spillage

Burns too slowly

Smolders, sizzles

Not enough kindling/paper or no kindling/paper

Use dry kindling, more paper. Arrange kindling & wood for air movement.

Not enough air for fire to ignite Check for restricted cap/shroud

Open outside air kit (if installed).

Check for flue blockage.

Pre-warm flue before starting fire (refer to starting fire section).

Check for adequate vent height (refer to chimney assembly section).

Open window below the appliance towards the wind.

Wood condition is too wet, too large Use dry, seasoned wood (refer to wood fuel section).

Fire burns too fast

Bed of coals not established before adding wood

Flue blockage such as birds’ nests or leaves in termination cap

Start with paper & kindling to establish bed of coals (refer to starting fire section).

Have chimney inspected for creosote and cleaned by a certified chimney sweep.

Down draft or negative pressure

Competition with exhaust devices

Extremely dry or soft wood

Overdrafting

Do not use exhaust fans during start-up (refer to negative pressure section).

Open window below the appliance towards the wind.

Mix in hardwood.

Mix in less seasoned wood after fire is established (refer to wood fuel section).

Check for correct vent height; too much vertical height creates overdrafting.

Check location of vent termination (refer to chimney requirements section).

Page 33

May 5, 2011 7039-131H

2100 Millennium Wood Stove (ACC)

R

Service Parts

2100 Millennium Wood Stove

Advanced Combustion Control (ACC)

21M-ACC

Beginning Manufacturing Date: July 2007

Ending Manufacturing Date: Active

R

3

2

1

4

16

6

5

7

8

12

13

10

9

Part number list on following pages.

Page 34 7039-131H

11

14

15

04/11

May 5, 2011

R

R

Service Parts

2100 Millennium Wood Stove (ACC)

21M-ACC

Beginning Manufacturing Date: July 2007

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

COMMENTS ITEM

1

2

3

DESCRIPTION

Convection Air Channel -

Retain Originial Serial Number

Flue Collar

Panel Assembly, Side, Left

PART NUMBER

SRV7039-107

SRV7000-302

SRV7039-003

#4 Brick Assembly

4.3

4.3

4.1

4.1

4.1

4.1

4.5

4.2

4.1

4.1

4.1

4.2

4.2

4.1

4.4

4.1

Stocked at Depot

Y

8-1/2”

1-3/8”

4.4

1-3/4”

6-1/4”

4

4.1

4.2

4.3

4.4

4.5

Brick Assembly - Complete Set

Brick, 9 x 4-1/2 x 1-1/4”

Brick, 6 x 4-1/2 x 1-1/4”

Brick, 8 x 4-1/2 x 1-1/4”

Brick, see diagram

Brick, see diagram

Brick, Uncut

9

10

11

12

13

14

7

8

5

6

15

Tube Support Rack

Brick Retainer

Ceramic Fiber Blanket, 1/2” Thick

Baffl e Board, 8-1/8 in. W x 13 in. H

Pedestal Riser

Pedestal Base

Strip, Oak Trim

Rear Channel Assembly

Tube Channel Assembly - Manifold Tubes

Panel Assembly, Side, Right

Tube Channel Top - Access Cover

Component Pack (Includes Touch-Up Paint, Gold Spring

Handles 1/2 In & 1/4 In (1) Each, Trimount Plug, Owners

Manual, Warranty Card)

Additional service part numbers appear on following page.

7”

4.5

8-1/2”

Qty. 9 Req.

Qty. 3 Req.

Qty. 2 Req.

Qty. 1 Req.

Qty. 1 Req.

Pkg of 1

Pkg of 6

Pkg of 2

Pkg of 2

3”

SRV7039-007

832-0550

832-3040

SRV7039-108

7033-149

832-3390

SRV7039-111

7033-207

7033-163

832-0560

SRV7039-001

SRV7039-004

SRV7039-002

SRV7039-114

7039-011

Y

Y

Y

May 5, 2011 7039-131H

04/11

Page 35

R

2100 Millennium Wood Stove (ACC)

R

Service Parts

21M-ACC

Beginning Manufacturing Date: July 2007

Ending Manufacturing Date: Active

#18 Baffl e Protection Channel

# 16 Burn Rate Control Assembly

#17 Door Assembly

16.1

16.2

16.10

16.9

17.1

Side view

Front, looking into unit

17.2

16.3

16.4

16.5

16.7

16.6

16.8

17.3

17.4

17.7

17.8

17.6

17.9

17.5

Baffle protection channel sits in between front tube and fiber

Ceramic blanket

Fiber baffle

This tab sits behind the front tube.

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

COMMENTS ITEM DESCRIPTION

16.1

Burn Rate Control Assembly

Spring Handle, 1/4” Nickel

16.2

Spring Handle, 1/4” Gold

Spring Handle, 1/4” Black

16.3

Timer Air Control Assembly

Rear Air Door Assembly

16.4

Rear Air Control Arm Assembly

16.5

Start-Up Control Knob

16.6

Latch, Magnet - for Air Control

16.7

Air Control Rod Guide

16.8

Timer (Only) Replacement Assembly

16.9

Timer Arm Assembly

16.10

Door Gasket - Front & Rear Air Timer Doors

17.1

Door Assembly

Pre SN 0070040260

Post SN 0070040260

17.2

Hinge Pins, 1/2”

Black

Gold

Nickel

Black

17.3

Spring Handle, 1/2”, Nickel

Spring Handle, 1/2”, Gold

Spring Handle, 1/2”, Black

17.4

Door Handle Only

17.5

Glass Assembly - 14-1/8 in. W x 9-13/16 in. H

17.6

Key, Cam Latch

17.7

Cam Latch

17.8

Nut, Locking Door Handle

17.9

Frame, Glass, Top

18 Baffl e Protection Channel

Additional service part numbers appear on following page.

Pre SN 0070040260

Post SN 0070040260

Pkg of 24

PART NUMBER

7039-016

250-8340

832-0630

SRV7000-614

SRV7039-015

7037-013

SRV7039-006

7000-343

229-0631

7033-210

SRV480-1940

7033-034

7033-282

SRV7039-008

832-0250

430-5320

7000-606/2

250-8330

832-0620

SRV7000-613

430-1131

7000-013

430-1151

430-1141

226-0100/24

GL-FRM-21M

SRV7039-144

Stocked at Depot

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

04/11

Page 36 7039-131H

May 5, 2011

R

R

Service Parts

2100 Millennium Wood Stove (ACC)

21M-ACC

Beginning Manufacturing Date: July 2007

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

ITEM DESCRIPTION

Component Pack (Includes Gold Spring Handles (1) 1/2"

& (2) 1/4", (2) Gold Hinge Pins, Quadra-Fire Logo

Gasket, Glass Tape

Rope, Door, 3/4” X 84”

Paint Touch-Up

Plug, Trimount, .250”

Door Handle Assembly

COMMENTS

For Black & Gold

Doors

5 FT

7 Ft

Pkg of 24

Logo, Quadra-Fire

Gold

Nickel

Outside Air Cover Plate Assembly

PART NUMBER

436-5350

832-0460

832-1680

812-0910

229-0880/24

832-0540

200-3180

200-3240

SRV7033-041

Stocked at Depot

Y

Y

Y

Y

Y

ACCESSORIES

Blower Assembly

Blower Control Box W/Switch

Blower, Convection

Component Pack

Snap Disc Bracket Assembly

Snap Disc, # 1, Convection Blower

Wire Harness (Blower)

Gasket, Manifold

Outside Air Kit, Floor & Rear

Outside Air Collar Assembly

Outside Air Shield

Upgrade, Door, Nickel - Handles, Hinge Pins & Logo

Hinge Pins, 1/2”

Logo, Quadra-Fire

Spring Handle, 1/2”

Spring Handle, 1/4”

FASTENERS

Avk Rivnut Repair Kit - 1/4-20 & 3/8-16 Rivnut Tools

Bolt, Hex Head, 1/4-20 X 1

Nut, Ser Flange Small 1/4-20

Screw, Flat Head Philips 8-32 X 1/2

Screw, Sheet Metal #8 X 1/2 S-Grip

Washer, 1/4 Sae

Washer, Sae, 3/8

Pkg of 4

Pkg of 10

Pkg of 24

Pkg of 10

Pkg of 40

Pkg of 24

Pkg of 3

BK-ACC

SRV7000-194

812-4900

7033-051

7033-036

SRV230-0470

7033-262

7038-168/4

OAK-ACC

7033-039

33271

UK-DRNL

430-5320

200-3240

250-8330

250-8340

RIVNUT-REPAIR

25221A/10

226-0130/24

832-0860

12460/40

28758/24

832-0990

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

May 5, 2011 7039-131H

04/11

Page 37

2100 Millennium Wood Stove (ACC)

C. Service And Maintenance Log

Date of Service Performed By Description of Service

R

Page 38 7039-131H

May 5, 2011

R

C. Service And Maintenance Log (Cont’d)

Date of Service Performed By

2100 Millennium Wood Stove (ACC)

Description of Service

May 5, 2011 7039-131H

Page 39

2100 Millennium Wood Stove (ACC)

D. Homeowner’s Notes

R

Page 40 7039-131H

May 5, 2011

R

D. Homeowner’s Notes

2100 Millennium Wood Stove (ACC)

May 5, 2011 7039-131H

Page 41

2100 Millennium Wood Stove (ACC)

E. Warranty Policy

R

Page 42 7039-131H

May 5, 2011

R

2100 Millennium Wood Stove (ACC)

May 5, 2011 7039-131H

Page 43

R

CONTACT INFORMATION:

Hearth & Home Technologies

1445 North Highway

Colville, WA 99114

Division of HNI INDUSTRIES

Please contact your Quadra-Fire dealer with any questions or concerns.

For the number of your nearest Quadra-Fire dealer, visit our web site at www.quadrafire.com

Important operating and maintenance instructions included.

NOTICE

DO NOT DISCARD THIS MANUAL

• Read, understand and follow these instructions for safe installation and operation.

• Leave this manual with party responsible for use and operation.

We recommend that you record the following pertinent

information for your 2100 MILLENNIUM WOOD STOVE (ACC)

Date purchased/installed:

Serial Number:

Dealership purchased from:

Notes:

Location on appliance:

Dealer phone:

This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534,

5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407,

5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099,

6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579,

6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064,

6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408,

2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.

Page 44

7039-131H May 5, 2011

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
