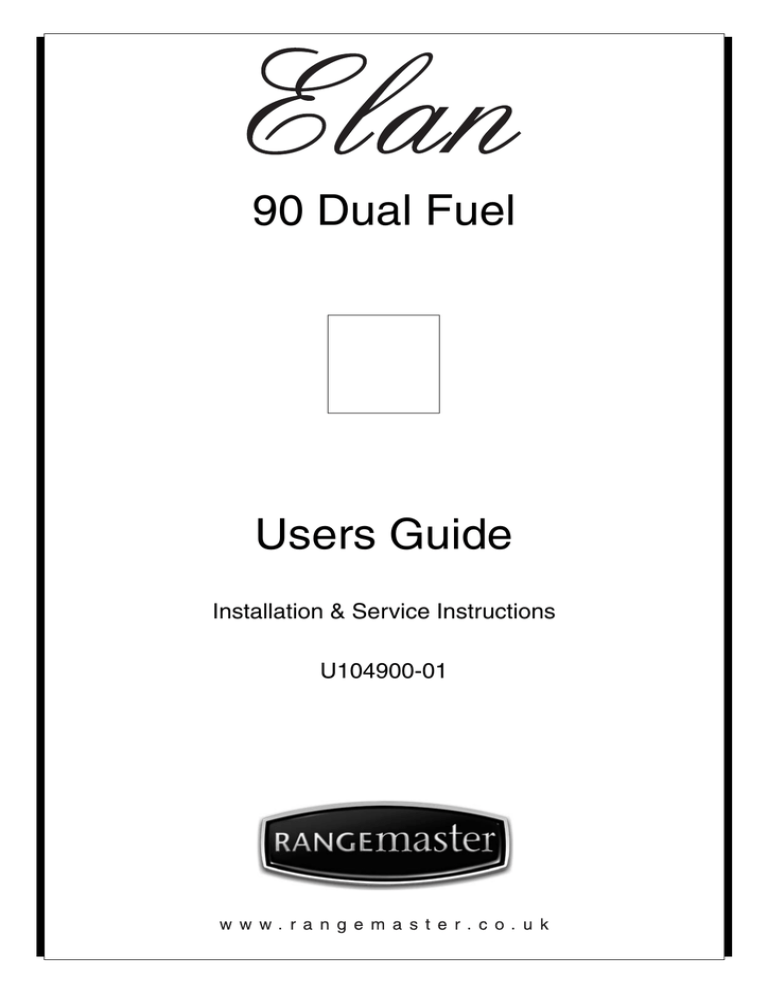

90 Dual Fuel

Users Guide

Installation & Service Instructions

U104900-01

Be safe

You need clean fresh air - so does your cooker. Burner fl ames produce exhaust gases, heat and moisture. Make sure that the kitchen is well ventilated: keep natural ventilation holes open or install a powered cooker hood that vents outside.

If you have several burners on or use the cooker for a long time, open a window or turn on an extractor fan. For more detail see the Installation Instructions.

We recommend you read the ‘General Safety Instructions’ section if you have not used a gas cooker before. We describe some basic guidelines on how to use a gas cooker safely.

Gas and Electricity on

Make sure that the gas supply is turned on and that the cooker is wired in and switched on.

The cooker needs electricity.

Peculiar smells

When you fi rst use your cooker it may give off a slight odour. This should stop after a little use.

2

Contents

Hotplate Burners

The Griddle

The Wok Ring

The Grill

The Ovens

The Left Hand Oven

The Right Hand Tall Oven

The Clock

Both Ovens

Multi-function oven

Handyrack

Oven shelves

Tall oven shelves

Multi-function Oven cooking guide

Oven Cooking chart

Cleaning your cooker

Moving your cooker

Troubleshooting

General Safety Instructions

Conversion to LP gas

Circuit Diagram

Technical Data

Page 14

Page 14

Page 15

Page 16

Page 17

Page 20

Page 20

Page 22

Page 4

Page 5

Page 6

Page 7

Page 8

Page 8

Page 8

Page 9

Page 11

Page 12

Page 30

Page 37

Page 38

3

Hotplate Burners

The drawing by each knob indicates which burner that knob controls.

Push in and turn a knob to the large fl ame symbol ( ) and press the igniter button or light with a match.

Avoid using unstable and misshapen pans that may tilt easily and pans with a very small base diameter e.g. milk pans, single egg poachers. The minimum pan diameter recommended is 120mm (about 4

3

/

4

").

Adjust the fl ame height to suit by turning the knob. On this cooker the low position is beyond high, not between high and off. The small fl ame marks the ‘low position’.

Turn the knob towards it after the contents of a pan have boiled.

Make sure fl ames are under the pans. Using a lid will help the contents boil more quickly.

Pans and kettles with concave bases or down turned base rims should not be used.

Simmering aids, such as asbestos or mesh mats, are

NOT recommended. They will reduce burner per form ance and could damage the pan supports.

The Wok burners are designed to provide even heat over a large area. They are ideal for large pans and stir frying.

For heating smaller pans the smaller burners may be more effi cient.

When ignition button knob is pressed in, sparks will be made at every burner, this is normal.

If after lighting, a hotplate burner’s fl ame goes out, turn it off and leave it for one minute before relighting it.

You can remove the burner cap and trim rings for cleaning, see pages 18/19.

You should wipe the enamel top surface of the cooker around the hotplate burners as soon as possible after spills occur. Try to wipe them off while the enamel is still warm.

Avoid using unstable and misshapen pans, which may tilt easily, and pans with a very small base di am e ter, e.g. milk pans, single egg poachers.

The minimum pan diameter rec om mend ed is

120mm (4

3

/

4

"). Smaller pans will be unstable.

Pans and kettles with down turned base rims should not be used.

Note:

Use of aluminium pans may cause metallic marking of the pan supports. This does not affect the durability of the enamel and may be cleaned off with a metal cleaner such as

'Brasso'.

4

The Griddle

The griddle fi ts the left pan support, front to back. It is designed for cooking food on directly. Don’t use pans of any kind on it. The griddle surface is non-stick and metal cooking utensils (e.g. spatulas) will damage the surface.

Use heat resistant plastic or wooden utensils.

Preheat the griddle for a maximum of 5 minutes before adding food. Leaving it longer may cause damage. The controls can be turned to a lower position simply by turning the control knobs towards the lower position marked with the small fl ame symbol.

Don’t put it on the centre Wok burner - it is not designed to fi t the Wok burner pan support and will be unstable.

Always leave space around the griddle for the gases to escape. Never fi t two griddles side by side. Large pans should also be spaced well apart.

Position the griddle over the hotplate burners resting on the pan support.

Check that it is securely located.

Use the following heat settings as a guide for griddle cooking.

High/medium:

Drop scones, Bacon, Chops, Steak, Burgers.

Medium/low:

Potato cakes, Eggs, Fish cakes.

Experience will soon fa mil iar ise you with the correct setting to use for cooking.

After cooking allow the griddle to cool before cleaning.

Don’t put it on a Wok burner - it is not designed to fi t the Wok burner pan supports.

The griddle can be lightly brushed with cooking oil before use. Light the hotplate burners. Adjust the fl ame heights to suit.

5

The Wok cradle

The Rangemaster Wok cradle is designed to fi t a

Typhoon

TM

Professional 14” Wok.

This is available from CookCraft (www.cookcraft.com) and also from other retailers.

Make sure the cradle is stable and that the Wok is sitting level in the ring.

If you use a different Wok make sure that it fi ts the cradle.

Woks vary very widely in size and shape. It’s important that the Wok sits down on the pan support - but if the Wok is too small the cradle will not support it properly.

The cradle will get very hot in use - allow plenty of time for it to cool before you pick it up.

Care and Cleaning

Essential information

Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt.

Recommended cleaning materials are hot soapy water, a moistened soap pad, cream cleaner or a nylon scourer.

The cradle should be used on the triple ring Wok burner only.

When you fi t the cradle check that the Wok is properly located on the front and rear fi ngers and that it is supported properly on a pan support.

6

The Grill

C

AUTION

: Accessible parts may be hot when the grill is in use. Young children should be kept away.

Remove the pan from the bottom of the grill compartment.

5

The grill pan grid can be turned over to give two grilling positions.

After placing your food on the grill tray pan, slide the grill pan onto the side supports just below the el e ments. Make sure it is pushed right in and touches the backstop.

Don’t leave the grill on for more than a few moments, without the grill pan underneath it.

For best results, especially with toast, preheat the grill with the grill pan in the cooking position for two minutes before use.

The grill trivet can be removed and the food placed on it while you are waiting for the grill to preheat.

The grill pan grid can be turned over to give two grilling positions.

You can brown the top of dishes cooked in the oven, under the grill by placing the dish onto the base of the grill pan, which can easily slide along the fl oor of the grill cavity.

The grill has two elements that allow ei ther the whole area of the pan to be heated or just the right hand half.

Turn the knob to position 3.

For best results preheat for 2 minutes with the grill pan in position. After placing your food on the grill pan grid, slide the grill pan onto the side supports. Adjust the heat to suit by turning the knob.

Make sure it is pushed right in and touches the back stop.

Never close the grill door when the grill is on.

7

The Ovens

During use the appliance becomes hot. Care should be taken to avoid the touching heating elements inside the oven.

The clock must be set to the time of day before the ovens will work. See ‘The Clock’ section for instructions on setting the time of day.

The Left Hand Oven The Right Hand Tall Oven

The left hand oven is a Multi-function oven. As well as the oven fan and fan element, it is fi tted with two extra heating elements, one visible in the top of the oven and the second under the oven base. Take care to avoid touching the top element and element defl ector when placing or removing items from the oven. For more detail on this oven see the section ‘Multi-function oven’.

The fan in the right hand oven circulates hot air continuously, which means faster more even cooking.

The recommended cooking temperatures for a fanned oven are generally lower than a non-fanned oven.

The Multi-function oven has two controls, a function selector and a temperature setting knob..

The right hand fan oven control is at the right hand end of the control panel.

Turn the function selector control to a cooking function.

This is the fan oven setting.

Turn the oven temperature knob to the temperature you need.

Turn the oven temperature knob to the temperature you need.

The oven heating light will glow until the oven has reached the temperature you selected. It will then cycle on and off during cooking.

The oven indicator light will glow until the oven has reached the temperature you selected. It will then cycle on and off during cooking

8

The Clock

You can use the timer to turn the ov ens on and off. The clock must be set to the time of day before the ovens will work.

Setting the time of day

To stop the beeper when it sounds

Turn the Adjusting knob anticlockwise

To stop automatically

Use when you have started the oven manually.

Turn the Timer knob to the

( ) position.

Use the Adjusting knob to set the time you need.

‘Stop Time’ shows.

AUTO will show in the display.

Timer knob Adjusting knob

When the clock is fi rst connected the display will fl ash ( ) and ( ) al ter nate ly.

To set the clock to read the time of day turn and hold the Timer knob to the clock symbol ( ) and at the same time turn the Adjusting knob left or right until the clock shows the time of day.

Remember this is a 24 hour clock. Let go of the

Timer knob and it will spring back to the vertical

( ) oven manual setting.

To time something that’s cooking

(minute minder)

Turn the Timer knob to the right to the ( ) minute minder setting - it should click into position.

Use the Adjusting knob to set the time you need.

Turn the Timer knob to the (

AUTO

) setting.

When your cooking is fi nished the beeper sounds. Turn the Timer knob to the vertical ( ) to return to manual cooking.

To start and stop the oven automatically

Before you set the clock, you must have two numbers clearly in mind.

The ‘cook time’, which is the period of time you want the oven to cook.

The ‘stop time’, which is the time of day you want the oven to stop cooking.

You cannot set a start time directly - this is set automatically by setting the cooking period and stop time.

Turn the Timer knob to the

( ) position.

You can turn the knob back to the ( ) manual setting to keep an eye on the time of day or leave it in the ( ) minute minder position as the time ticks down.

Use the Adjusting knob to set the ‘cooking time’ you need.

9

Turn the Timer knob to the

( ) position. The display will show the current time of day plus the ‘cook period’ you just set.

Use the Adjusting knob to set the ‘Stop time’ you need.

‘Stop Time’ shows. AUTO will show in the display.

Clock Special Features - Key Lock

When the key lock is activated, the clock can be operated as usual but the ovens are locked and will not come on. This means that your child could select a cook program but the program will not be activated and ovens will not switch on.

To activate the key lock

Make sure that the clock is in manual mode and cancel any active programs.

Turn and hold the Timer knob to the clock symbol (

) for about 8 seconds.

‘On’ will appear on the display.

Set the oven(s) to the cooking tem per a ture you need (don’t forget to set a function if using the

Multi-function oven).

Turn the Timer knob to the (

AUTO

) setting.

When your cooking is fi nished the beeper sounds. Turn the Timer knob to the vertical ( ) to return to manual cooking.

If you are out, don’t worry about the beeper going off, it stops after a while. When you return, turn the Timer knob to the vertical ( ) to return to manual cooking. Turn the thermostat to the off position.

AUTO is showing, you want to reset to manual cooking.

You can cancel any automatic settings by turning the Timer knob to the vertical manual symbol ( ).

Keep holding the Timer knob turned to the clock symbol ( ) and turn the

Adjusting knob clockwise until the key symbol (

) and ‘Of’ shows on the display. Let go of the knobs

The ovens are now locked.

After a few seconds the display will revert to show the time of day and the key symbol.

To turn off the key lock

Turn and hold the Timer knob to the clock symbol (

) for about 8 seconds.

‘Of’ will appear on the display.

Keep holding the Timer knob turned to the clock symbol (

) and turn the

Adjusting knob clockwise until the key symbol

( ) goes out on the display and ‘On’ shows. Let go of the knobs.

After a few seconds the display will revert to show the time of day.

The ovens can now be used normally.

10

Cooking using the timer

The timer can be used to turn just one oven or both on and off automatically. The start and stop time must be the same for both ovens but different cooking temperatures can be set.

If you want to turn one of the ovens on at the same time as the timer is set for automatic cooking, you must wait until the timer has turned on the oven/ ovens fi rst. Then you can adjust either of them manually in the normal way.

You can set the oven to turn on any time over the following 24 hour period.

If you want to cook more than one dish, choose dishes that require ap prox i mate ly the same time. However, dishes can be

‘slowed down’ slightly by using small containers and covering them with aluminium foil, or ‘speeded up’ slightly by cooking smaller quantities or placing in larger containers.

Very perishable foods such as pork or fi sh should be avoided if a long delay period is planned, especially in hot weather.

Don’t place warm food in the oven.

Don’t use an oven already warm.

Don’t use if an adjoining oven is warm.

Avoid using wine or beer if there is a delay period, as fermentation may take place.

To avoid curdling, cream should be added to dishes just before serving.

Fresh vegetables, which may discolour during a delay period, should be coated in melted fat or immersed in a water and lemon juice solution.

Fruit pies, custard tarts or similar wet mixtures on top of uncooked pastry are only sat is fac to ry if there is a short delay period. Dishes containing leftover cooked meat or poultry should not be cooked automatically if there is a delay period.

Whole poultry must be thoroughly defrosted before placing in the oven.

Check that meat and poultry are fully cooked before serving.

Both Ovens

Before using for the fi rst time, heat the ovens to

200°C for 30 minutes to dispel man u fac tur ing odours.

The wire shelves should always be pushed fi rmly to the back of the oven.

Baking trays meat tins etcetera should be placed level centrally on the oven’s wire shelves. Keep all trays and containers away from the sides of the oven, as overbrowning of the food may occur.

For even browning, the maximum recommended size of a baking tray is 325mm by 290mm.

Cooking high moisture content foods can create a ‘steam burst’, when the oven door is opened. When opening the oven stand well back and allow any steam to disperse.

When the oven is on, don’t leave the door open for longer than necessary, otherwise the knobs may get very hot.

• Always leave a ‘fi ngers width’ between dishes on the same shelf. This allows the heat to circulate freely around them.

• The Cook & Clean oven liners (see Cleaning your cooker) work better when fat splashes are avoided. Cover meat when cooking.

To reduce fat splashing when you add vegetables to hot fat around a roast, dry them thor ough ly or brush lightly with cooking oil.

Suffi cient heat rises out of the oven while cooking to warm plates in the grill compartment.

If you want to brown the base of a pastry dish, preheat the baking tray for 15 minutes before placing the dish in the centre of the tray.

• Where dishes may boil and spill over during cooking, place them on a baking tray.

11

Multi-function oven

The left hand oven of your Elan cooker is Multifunction. It has many varied uses. We sug gest you keep a careful eye on your cooking until you are familiar with each function. Remember - not all functions will be suitable for all food types.

Please remember that all cookers vary - temperatures in your new Elan ovens may differ to those in your previous cooker.

Multi-function oven functions

Defrost

This function operates the fan to circulate cold air only. No heat is applied. This enables small items such as desserts, cream cakes and pieces of meat, fi sh and poultry to be defrosted.

Defrosting in this way speeds up the process and protects the food from fl ies. Pieces of meat, fi sh and poultry should be placed on a rack, over a tray to catch any drips. Be sure to wash the rack and tray after defrosting.

Defrost with the oven door closed.

Large items, such as whole chickens and joints should not be defrosted in this way. We recommend this be carried out in a refrigerator.

Defrosting should not be carried out in a warm oven or when an adjoining oven is in use or still warm.

Ensure that dairy foods, meat and poultry are completely defrosted before cooking.

Fan oven

This function operates the fan and the heating element around it. An even heat is produced throughout the oven, allowing you to cook large amounts quickly.

Fan oven cooking is particularly suitable for baking on several shelves at one time and is a good ‘all-round’ function. It may be necessary to reduce the temperature by approximately 10°C for recipes previously cooked in a conventional oven.

If you wish to pre-heat the oven, wait until the indicator light has gone out before inserting the food.

Fanned grilling

This function operates the fan whilst the top element is on. It produces a more even, less fi erce heat than a conventional grill. For best results, place the food to be grilled, on a grid over a roasting tin, which should be smaller than a conventional grill pan. This allows greater air circulation. Thick pieces of meat or fi sh are ideal for grilling in this way, as the circulated air reduces the fi erceness of the heat from the grill. The oven door should be kept closed whilst grilling is in progress, so saving energy. You will also fi nd that the food needs to be watched and turned less than for normal grilling. Pre-heat this function before cooking.

Fan assisted oven

This function operates the fan, circulating air heated by the elements at the top and the base of the oven. The combination of fan and conventional cooking (top and base heat) makes this function ideal for cooking large items that need thorough cooking, such as a large meat roast. It is also possible to bake on two shelves at one time, although they will need to be swapped over during the cooking time, as the heat at the top of the oven is greater than at the base, when using this function.

This is a fast intensive form of cooking; keep an eye on the food cooking until you have become accustomed to this function.

12

Conventional oven (top and base heat)

This function combines the heat from the top and base elements. It is particularly suitable for roasting and baking pastry, cakes and biscuits.

Food cooked on the top shelf will brown and crisp faster than on the lower shelf, because the heat is greater at the top of the oven than at the base, as in ‘Fan assisted oven’ function. Similar items being cooked will need to be swapped around for even cooking. This means that foods requiring different temperatures can be cooked together, using the cooler zone in the lower half of the oven and hotter area to the top.

Browning element

This function uses the element in the top of the oven only. It is a useful function for the browning or fi nishing of pasta dishes, vegetables in sauce, shepherds pie and lasagne, the item to be browned being already hot before switching to the top element.

Base heat

This function uses the base element only.

It will crisp up your pizza or quiche base or fi nish off cooking the base of a pastry case on a lower shelf. It is also a gentle heat, good for slow cooking of casseroles in the middle of the oven or for plate warming.

The Browning and Base heat functions are useful additions to your oven, giving you

Handyrack

The maximum weight than can be held by the

Handyrack is 5.5kg (12lb). It should only be used with the supplied meat tin, which is designed to fi t the Handyrack. Any other vessel could be unstable.

The Handyrack fi ts on the oven door. Food cooking on it is easy to attend to, because it’s accessible when the door is open. It can be fi tted at two different heights. One of the oven shelves must be removed and the other positioned to suit.

When the Handyrack is used in its highest position, other dishes can be cooked on the bot tom shelf position of the oven or standing on the base of the oven

When the Handyrack is used in its lowest position, other dishes can be cooked on the second shelf position of the oven or standing on the base of the oven.

To fi t the Handyrack, locate one side of it on the door bracket.

use, you will soon realise how these functions can com bine to extend your cooking skills.

Then spring the other side out to clip it onto the other bracket.

13

Oven shelves

Steam

the shelf guard should be at the back pointing upwards

The oven shelves can be easily re moved and refi tted.

Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides.

During cooking, food naturally produces steam, particularly when cooking foods with high water content (e.g. oven chips). There may be some steam visible at the grille at the rear of the hotplate. This is perfectly normal.

As this steam can condense to water droplets on the cool outer trim of the oven, it may be necessary during cooking to wipe away any moisture with a soft cloth. This will also help to prevent soiling and discolouration of the oven exterior by cooking vapours.

Oven light

Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf for ward.

Press the appropriate button to turn on the Main oven light.

If the oven light fails, turn off the power

supply before you change the bulb. See the

‘Trou ble shoot ing’ section for details on how to change an oven light bulb.

Tall oven shelves

The tall oven is supplied with four normal cooking shelves

To refi t the shelf, line up the shelf with a groove in the oven side and push the shelf back until the ends hit the shelf stop. Lift up the front so the shelf ends clear the shelf stops, and then lower the front so that the shelf is level and push it fully back.

and a plate warming shelf.

When using the tall oven you can cook on all four shelves at the same time; but make sure they are well spaced out to allow the hot air to circulate.

14

Multi-function Oven cooking guide

Remember - not all functions will be suitable for all food types. The oven control settings and cooking times given are intended to be used only as a guide. Individual tastes may require the temperature to be altered to provide a preferred result.

Food is cooked at lower temperature in a fan oven than in a conventional oven. When using recipes, reduce the temperature by 10°C and the cooking time by 5-10 min utes. The temperature in the fanned oven does not vary with height in the oven - so you can use any shelf.

The shelves should not be fi tted directly one above the other. When cooking on more than one shelf always leave at least one runner space between them. Place baking trays, individual cake tins or baking dishes centrally on the oven shelf. For best results pre-heat the oven until the oven indicator light goes out.

Cooking chart - Fan assisted oven function

Oven Shelf

Fairy cake 170°C 2-4 20 min

Scone 180°C min

Deep apple pie

Plate tart

Rich fruit cake

197mm x 92mm

160°C

190°C

145°C

2-4 45 min interchange after 25 minutes

2-4 45 min interchange After 25 minutes

3 1 hr 45 min - 2 hr

Victoria sandwich

180mm

Milk pudding

Puff pastry

170°C

150°C

220°C

2-4

3

20 - 25 min

2 hrs

3 - 5 15-40 mins according to size. Interchange 2/3rds through cook ing time

For roast meats and poultry refer to the Fan oven guide - reduce cooking time slightly.

500g is approximately 1lb (1lb 2oz)

Ensure meat and poultry is fully cooked before serving

15

Oven Cooking chart - Conventional and full Fan oven functions

Convection Oven

Temperature

Shelf

Position

Fan Oven

Food

FISH

Temperature Approximate Cooking Time

190°C

190°C

190°C

3

3

3

180°C

180°C

180°C

Fillets 15-20mins.

Whole 10mins.per 500g + 10mins.

Steaks according to thickness.

ROAST MEATS

Beef with bone

Beef without bone

160°C

200°C

160°C

200°C

2-3

2-3

2-3

2-3

150°C

190°C

150°C

190°C

20-25mins. per 500g + 20-25mins.

15-20mins. per 500g + 15-20mins.

30-35mins. per 500g + 30-35mins.

20-25mins. per 500g + 20-25mins.

Lamb

Pork

160°C

200°C

160°C

200°C

2-3

2-3

2-3

2-3

170°C

190°C

150°C

190°C

30-35mins. per 500g + 30-35mins.

25-35mins. per 500g + 25-30mins.

35-40mins. per 500g + 35-40mins.

25-30mins. per 500g + 25-30mins.

Stuffed and rolled - Add approx. 10 mins. per 500g to above cooking times or cook at 200°C for 20mins. then 160°C for remainder.

THOROUGHLY THAW FROZEN JOINTS AND POULTRY BEFORE COOKING.

POULTRY

Chicken

Turkey

160°C

200°C

160°C

200°C

2-3

2-3

2

2

150°C

190°C

150°C

190°C

20-25mins. per 500g + 20-25mins.

15-20mins. per 500g + 15-20mins.

20-25mins. per 500g + 20-25mins.

15-20mins. per 500g + 15-20mins.

Stuffed Poultry - Cook at 200°C or at 200°C for 20mins. then 160°C for remainder. Prepacked (fresh or frozen) follow packers cooking times

CASSEROLE

YORKSHIRE PUDDING

140-150°C

220°C

2-3

4

140°C

200°C

2-4hrs according to recipe

Large tin 30-35mins. Individual 10-20mins.

CAKES

Very Rich Fruit

Rich fruit (180mm)

Madeira (180mm)

Queen Cakes

Scones

Victoria Sandwich

PASTRIES

140°C

150°C

160°C

190°C

220°C

180°C

2

2

2

3 & 5 or 3

2 & 4 or 3

2 & 4 or 3

140°C

145°C

150°C

180°C

210°C

170°C

45-50mins. per 500g mixture

2

1

/

2

-3hrs.

80-90mins.

15-25mins.

10-15mins.

20-30mins.

Plate Tart

Fruit Pie

Tartlets

Puff Pastry

BREAD

MERINGUES

PUDDINGS

Baked Egg Custard

Baked sponge pudding

Milk pudding

200°C

200°C

200°C

220°C

220°C

110°C

160°C

190°C

140-150°C

2 & 4

2 & 4

4

2,3 or 4

2 & 4

3

3

3

3

190°C

190°C

190°C

200°C

200°C

100°C

150°C

180°C

150°C

45-50mins. Interchange after 25mins.

35-40mins.

15-20mins. according to size.

20-40mins. according to size.

20-30mins.

2-2 1 /

2 hrs

45mins.-1hr.

40-45mins.

2-3hrs.

16

Cleaning your cooker

Essential information

Before thorough cleaning isolate the electricity supply. Remember to switch on the electricity supply and reset the clock before using the cooker.

Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Don’t mix different cleaning products - they may react together with hazardous results.

Recommended cleaning materials are shown in the table at the end of this section.

If you want to move your cooker for cleaning, see the section called ‘Moving your cooker’.

All parts of the cooker can be cleaned with hot soapy water - but take care that no surplus

water seeps into the appliance.

For cleaning materials see the ‘Cleaning Table’ at the end of this section.

Hotplate burners

Some models have a separate trim ring, which fi ts on the burner head.

The burner heads and caps can be removed for cleaning. Make sure they are absolutely dry before replacing.

The outer hotplate burners

The Wok burner

The Wok burner is a little more complicated but it also can be taken apart for cleaning.

Wok burner

C burner burner inner burner head

E Wok burner base

D outer burner head

When reassembling a Wok burner, turn over the large base ring and fi nd the ‘D’ shaped area.

A cap, B head, C notch, D electrode, E base

When refi tting the burner head, make sure that the notch lines up with the electrode or hole in the base. Check that the burner head is level and that the cap is fi tted centrally on the burner head.

Turn the head until the ‘D’ matches the one on the burner base. Turn the head over and place it on the burner base.

17

To fi t the small inner burner, fi nd the larger electrode notch in the burner rim. Line this up with the white ignition electrode and place the inner burner on the large base ring.

Now fi t the two trim rings, making sure that they are sitting down properly.

Griddle

Always clean the griddle after use. Allow to cool completely before removing. Immerse the griddle plate in hot soapy water. Use a soft cloth or, for stubborn stains, a nylon washing up brush.

NEVER USE CAUSTIC OR ABRASIVE

CLEANERS AS THESE WILL DAMAGE THE

SURFACE.

Grill

The grill pan and grid should be washed in hot soapy water. After grilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use. Stubborn particles may be removed from the grid by using a nylon brush.

Control Panel and Doors

Avoid using any abrasive cleaners including cream cleaners, e.g. Cif, on brushed Stainless

Steel surfaces. For best results use a liquid detergent e.g. Domestos Multi Surface Cleaner.

The control panel and control knobs should only be cleaned with a soft cloth wrung out in clean hot soapy water. Wipe with a clean dampened cloth then polish with a dry cloth. The oven doors should only be cleaned with a soft cloth wrung out in clean hot soapy water.

The Main Oven

The Main oven has panels which have been coated with a special enamel that partly cleans itself. This does not stop all marks on the lining, but helps to reduce the amount of manual cleaning needed.

The Cook & Clean panels work better above

200°C. If you do most of your cooking below this temperature, occasionally remove the panels and wipe with a lint free cloth and hot soapy water. The panels should then be dried and replaced and the oven heated at

200°C for about one hour. This will ensure the Cook & Clean panels are working effectively.

Don’t use steel wool (Brillo) or any other materials that will scratch the surface. Don’t use oven cleaning pads.

Removing the Oven Linings

Some of the lining panels can be removed for cleaning and for cleaning behind. Remove the shelves fi rst.

The side panels of the main oven can be removed.

Each side of the oven is fi xed with four fi xing screws. You don’t have to remove the screws to remove the oven linings. Lift each side panel upwards and they will slide off the screws. Then pull them forwards.

Once the linings are removed, the oven enamel interior can be cleaned.

When replacing the linings fi t the side linings fi rst.

18

Cleaning Table

Hotplate

Part

Hotplate Top

Pan Supports, Wok Cradle (some models only)

Finish

Enamel or

Stainless Steel

Enamel coated

Cast Iron or

Stainless Steel

Recommended Cleaning Method

Hot soapy water, soft cloth. Any stubborn stains remove gently with a nylon scourer.

Cif Cream Cleaner- Faberge Lever and a nylon scourer.

Dishwasher.

Warming Zone (some models only)

Burner Caps

Toughened Glass

Burner Trim Rings (some models only) and Burner Head

Enamel

Aluminium

Griddle Plate (some models only) Non-Stick

Surface

Hot soapy water, cream cleaner/scourer if necessary.

Cream cleaner, nylon scourer. Dishwasher

Cif or other cream cleaner with a soft cloth. Be careful not to be over vigorous.

Allow to cool. Wash in hot soapy water. Do not use abrasive cleaners/scourers. Dishwasher.

Outside of cooker

Finish Recommended Cleaning Method

Part

Door, Door surround and Storage

Drawer exterior.

Sides and Plinth

Splashback/Rear Grille

Control panel

Enamel or paint Hot soapy water, soft cloth.

Any stubborn stains, remove gently with a liquid detergent.

Stainless Steel E Cloth (Comet) or Vileda Microfi bre Plus All Purpose

Cloth Freudenberg Household Products LP (supermarket)

Painted surface

Enamel or

Stainless Steel

Hot soapy water, soft cloth

Hot soapy water, soft cloth. Cream cleaner, with care, if necessary.

Paint, Enamel or

Stainless Steel

Warm soapy water. Do not use abrasive cleaners on lettering.

Plastic/ Chrome Warm soapy water, soft cloth.

Toughened glass Hot soapy water, cream cleaner/scourer if necessary.

Control Knobs/Handles

Oven Door Glass/Glass Lid

Oven and Grill

Part

Sides, fl oor & roof of oven -

NOT COOK & CLEAN OVEN

PANELS (see below)

Finish

Enamel

Cook & Clean Oven Panels (some models only)

Oven Shelves, Handyrack, Grill

Trivet, Handygrill rack

Grill Pan/Meat Tin, Handygrill Pan

(some models only)

Special enamel that partly cleans itself

Chrome

Enamel

Recommended Cleaning Method

Any proprietary oven cleaner that is suitable for enamel.

CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS

- FOLLOW MANUFACTURERS INSTRUCTIONS. Do not allow contact with the oven elements. Protect the burner in gas ovens with foil whilst cleaning the oven interior.

This surface cleans itself at 200°C and above, or the panels can be removed and washed with hot soapy water and a nylon brush. (see ‘The Ovens’ in ‘Cleaning your cooker’)

An oven interior cleaner that is suitable for chrome. Soap fi lled pad. Dishwasher.

Hot soapy water. Soap fi lled pad (Brillo). Dishwasher.

Cleaners listed are available from Supermarkets or elec tri cal retailers as stated. Cleaner manufacturer in

Italics

For enameled surfaces use a cleaner that is approved for use on vitreous enamel. The vitreous enamel association has a list of approved cleaners. Contact them via their website www.ive.org.uk or telephone:

01527 893031.

Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately.

To help keep your oven clean, cover meat when roasting, with foil or use a roasting bag. Brush vegetables with fat before placing around the meat.

19

Moving your cooker

Switch off the electricity supply.

The cooker is heavy, two people may be required to move it. There are two levelling rollers at the back and also two screw down levelling feet at the front.

Open the grill door and right hand oven door so that you can get a good grip on the bottom of the fascia panel as you move the oven.

Lift the front of the cooker slightly and pull forward.

Do not move the oven by pulling the door handles or knobs.

Move the oven a bit at a time, checking behind it to make sure the gas hose is not caught.

Make sure both electricity and gas cables have suffi cient slack to move the cooker forward as you go along.

If a stability chain is fi tted, release it as you ease the cooker out. Don’t forget to refi t it when you replace the cooker.

When you replace the cooker, again check behind to make sure that the electricity and gas cables are not caught or trapped.

Troubleshooting

Steam is coming from the oven

During cooking, food naturally produces steam, particulary when cooking foods with high water content (e.g. oven chips). There may be some steam visible at the grille at the rear of the hotplate. This is perfectly normal. Steam can condense to water droplets on the cool outer trim or the oven door. It may be necessary during cooking to wipe away any moisture with a soft cloth. This will also help to prevent soiling and discolouration of the oven exterior by cooking vapours.

Take care when opening the oven door as there may be a momentary puff of steam when the oven door is opened. Stand well back and allow any steam to disperse.

The oven fan is noisy

The note of the oven fan may change as the oven heats up - this is perfectly normal.

What cleaning materials are recommended for the cooker?

See the ‘Cleaning’ section of the Easy Guide for a full list of rec om mend ed cleaning materials.

We do not recommend Mr. Muscle, as it contains chemicals which may damage the surfaces of your cooker.

The knobs get hot when I use the oven or the grill, can I avoid this?

Yes, this is caused by heat rising from the oven or the grill, and heating them up. Don’t leave the oven door open. Make sure that the grill pan is pushed right back to the ‘backstop’ when grilling.

If there is an installation problem and I don’t get my original installer to come back to fix it who pays?

You do. Service organisations will charge for their call outs if they are correcting work carried out by your original installer. It’s in your interest to track down your original installer.

Current Operated Earth Leakage Breakers

Where the cooker installation is protected by a

30 milliamp sensitivity residual current device

(RCD), the combined use of your cooker and other domestic appliances may occasionally cause nuisance tripping. In these instances the cooker circuit may need to be protected by fi tting

100mA device. This work should be carried out by a qualifi ed electrician.

20

Food is cooking too slowly, too quickly, or burning

Cooking times may differ from your previous oven. Check that you are using the recommended temperatures and shelf positions.

See the ‘Oven cooking guide’ section of these instructions. The oven control settings and cooking times are intended to be used only as a guide. Individual tastes may require the temperature to be altered either way, to get the results you want. Try cooking at a higher temperature setting. Is the oven roof in?

The oven is not cooking evenly

Do not use a tin or baking tray larger than

340mm x 305mm in the main oven or 232mm x

321mm in the Tall oven.

If you are cooking a large item, be prepared to turn it round during cooking.

If more than one shelf is used, check that space has been left for the heat to circulate. When a baking tray is put into the oven, make sure it is placed centrally on the shelf.

Check that the door seal is not damaged and that the door catch is adjusted so that the door is held fi rmly against the seal.

A dish of water when placed on the shelf should be the same depth all over. (For example, if it is deeper at the back, then the back of the cooker should be raised up or the front lowered). If the cooker is not level arrange for your supplier to level it for you.

Oven not coming on when turned on manually

Is the power on? Is the clock illuminated?

Is the key symbol ( ) showing in the display?

See the Clock section of the instructions for more information on the key lock feature of the clock.

If using the Multi-function oven have you set a cooking function?

If not there may be something wrong with the power supply. Is the cooker supply on at the isolator switch?

Oven not coming on when automatic cooking

Timer set correctly but oven knob left OFF by mistake?

Is the key symbol ( ) showing in the display?

See the Clock section of the instructions for more information on the key lock feature of the clock.

If using the Multi-function oven have you set a cooking function?

Oven temperature getting hotter as the cooker gets older

If turning the knob down has not worked or only worked for a short time then you may need a new thermostat. This should be fi tted by a service person.

Grill not cooking properly

Are you using the pan and trivet supplied with the cooker? Is the pan being used on the runners, not the fl oor of the compartment? Is the grill tray pushed fully back to stop?

The oven light is not working

The bulb has probably blown. You can buy a replacement bulb (which is not covered under the guarantee) from a good electrical shop. Ask for an Edison screw fi tting 15w 240v lamp, FOR

OVENS. It must be a special bulb, heat resistant to 300 °C. See the HELP leafl et for spares by mail order.

Open the oven door and remove the Handyrack

(if fi tted) and oven shelves.

Turn off the power supply.

Unscrew the bulb cover by turning anticlockwise.

Unscrew the old bulb. Screw in the new bulb, screw back the bulb cover. Turn on the electricity supply and check that the bulb now lights.

Unscrew the old bulb and fi t the new one.

Hotplate ignition or hotplate burners faulty

Is the power on? Is the clock illuminated? If not there maybe something wrong with the power supply.

See ‘power supply’ section further on.

Are the sparker (ignition electrode) or burner slots blocked by debris?

Is the burner trim correctly located?

Are the burner caps correctly located?

See the section entitled ‘Cleaning’

Hotplate burners will not light

If only one or all the hotplate burners will not light, make sure that the parts have been replaced correctly after wiping or removing for cleaning.

Check that there is not a problem with your gas supply. You can do this by making sure that other gas appliances you may have are working.

Do the burners spark when you push the button? If not check the power is on - is the clock illuminated?

21

General Safety Instructions

In the UK the cooker must be installed by a CORGI registered engineer. In IE, the installation must be carried out by a Competent

Person.

The installation must be in accordance with the in stal la tion instructions and comply with the relevant regulations and also the local gas and electricity supply companies’ requirements.

If you smell gas

Don’t turn electric switches on or off.

Don’t smoke

Don’t use naked flames

Do turn off the gas at the meter or cylinder

Do open doors and windows to get rid of the gas

Call your gas supplier.

If you are using natural gas in the UK ring British

Gas - Trans Co on

0800 111 999

This appliance is designed for domestic cooking only. Use for any other purpose could invalidate any warranty or liability claim.

The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is in stalled. Ensure that the kitchen is well ventilated: keep nat u ral ven ti la tion holes open or install a mechanical ventilation device,

(mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for ex am ple opening a window, or more effective ventilation, for example in creas ing the lev el of mechanical ventilation where present.

The cooker should be serviced by a qualifi ed service engineer and only approved spare parts used. Have the installer show you the location of the cooker control switch. Mark it for easy reference. Always allow the cooker to cool and then switch off at the mains and before cleaning or carrying out any maintenance work, unless specifi ed otherwise in this guide.

All parts of the cooker become hot with use and will retain heat even after you have stopped cooking.

Take care when touching cooker, to minimize the possibility of burns, always be certain that the controls are in the OFF position and that it is cool before attempting to clean the cooker.

Use dry oven gloves when applicable - using damp gloves might result in steam burns when you touch a hot surface. Never operate the cooker with wet hands.

Do not use a towel or other bulky cloth in place of a glove. They might catch fi re if they touch a hot surface.

Clean with caution. If a wet sponge or cloth is used to wipe spills on a hot surface, be careful to avoid steam burns. Some cleansers can produce noxious fumes if applied to a hot surface.

Do not use unstable saucepans and position the handles away from the edge of the hotplate.

Babies, toddlers and young children should not be allowed near the cooker at any time.

They should never be allowed to sit or stand on any part of the appliance. Teach them not to play with controls or any other part of the cooker.

Never store anything of interest to children in cabinets above a cooker - children climbing on the cooker to reach them could be seriously injured.

Clean only parts listed in this guide.

In the interests of hygiene and safety the cooker should be kept clean at all times as a build up in fats and other food stuff could result in a fi re.

Always keep combustible wall coverings or curtains etc. a safe distance away from your cooker.

Do not spray aerosols in the vicinity of the cooker while it is in on.

Do not store or use combustible materials, or fl ammable liquids in the vicinity of this appliance.

Do not use water on grease fi res. Never pick up a fl aming pan. Turn the controls off. Smoth er a fl aming pan on a surface unit by covering the pan completely with a well fi tting lid or baking tray. If available use a multipurpose dry chemical or foam-type fi re extinguisher.

Never leave the hotplate unattended at high heat settings. Pans boiling over can cause smoking and greasy spills may catch on fi re.

22

Never wear loose-fi tting or hanging clothes while using the appliance. Be careful when reaching for items stored in cabinets over the hotplate.

Flammable material could be ignited if brought in contact with a hot surface unit and may cause severe burns.

Take great care when heating fats and oils, as they will ignite if they get too hot.

Use a deep fat thermometer whenever possible to prevent overheating fat beyond the smok ing point.

Never leave a chip pan unattended. Always heat fat slowly, and watch as it heats. Deep fry pans should be only one third full of fat. Filling the pan too full of fat can cause spill over when food is added. If you use a combination of oils or fats in frying, stir them together before heating, or as the fats melt.

Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan. Carefully watch for spills or overheating of foods when frying at high or medium high temperatures. Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.

When the grill is on, do not use the top of the fl ue (the slot along the back of the cooker) for warming plates, dishes, drying tea towels or softening butter.

When using an electrical appliance near the hotplate, be sure that the cord of the appliance does not come into contact with the hotplate.

Take care that no water seeps into the appliance

Only certain types of glass, glass-ceramic, earthenware or other glazed containers are suitable for hotplate cooking; others may break because of the sudden change in temperature.

Do not allow anyone to climb, stand or hang on any part of the cooker.

Do not use aluminium foil to cover shelves, linings or the oven roof.

Make sure that your kitchen is well ventilated at all times. Use extractor fans or hoods when fi tted.

Never heat unopened food containers. Pressure build up may make container burst and cause injury.

23

The cooker is designed for cooking foods only and must not be used for any other purpose.

The oven should NOT be used for heating the kitchen, not only does this waste fuel but the control knobs may become overheated.

When the oven is on DO NOT leave the oven door open for longer than necessary.

The specifi cation of this cooker should not be altered.

This appliance is heavy, take care when moving it.

When the cooker is not in use ensure that the control knobs are in the off position.

Installation

Dear Installer

Before you start your installation, please complete the details BELOW.

If your customer has a problem relating to your installation they will be able to contact you easily.

Thank you

Installer’s Name

Installer’s Company

Installer’s Telephone number

You must be aware of the following safety requirements & regulations

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

This appliance shall be installed in accordance with the regulations in force and only in a well ventilated space.

Read the instructions before installing or using this appliance.

In the UK

the regulations and standards are as follows:-

In your own interest and that of safety, it is law that all gas appliances be installed by competent persons.

CORGI registered installers undertake to work to safe and satisfactory standards. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution. The cooker must be installed in accordance with

All relevant British Standards / Codes of

Practice, in particular BS 5440 Part 2 2000,

or Natural Gas - BS 6172 : 1990 and BS 6891

: 1998

For LP Gas - BS 5482-1:1994 (when the installation is in a permanent dwelling), BS

5482-2:1977, (when the installation is in a caravan or other non permanent dwelling), or

BS 5482-3:1999 , (when the installation is in a boat).

The Gas Safety (Installation and Use) regulations 1998.

The relevant Building / IEE regulations.

In IE

, the installation must be carried out by a Competent

Person and installed in accordance with the current edition of I.S.813 “Domestic Gas Installations”, the current

Building Regulations and reference should be made to the current ETCI rules for electrical installation.

Provision of Ventilation

This appliance is not connected to a combustion products evacuation device. Particular attention shall be given to the relevant requirements regarding ventilation.

In the UK

The room containing the cooker should have an air supply in accordance with BS 5440 Part 2 : 2000. All rooms require an openable window or equivalent, while some rooms require a permanent vent in addition to the openable window. The cooker should not be installed in a bedsitting room with volume less than 20m 3 . If it is installed in a room of volume less than 5m 3 an air vent of effective area 100cm 2 is required; if it is installed in a room of volume between 5m 3 and 10m 3 , an air vent of effective area 50cm 2 is required; while if the volume exceeds 11m 3 , no air vent is required.

If there are other fuel burning appliances in the same room, BS 5440 Part 2 : 2000 should be consulted to determine the requisite air vent requirements.

In IE

Reference should be made to the current edition of IS

813 which makes clear the conditions that must be met to demonstrate that suffi cient ventilation is available.

Location of Cooker

The cooker may be installed in a kitchen/kitch en diner but

NOT in a room con tain ing a bath or shower.

NOTE:

An appliance for use on LPG shall not be installed in a room or internal space below ground level. e.g. in a basement.

Conversion

All models are supplied set for use on group H natural gas. A conversion kit for LP gas is included with the appliance. See the instructions that are supplied with the conversion kit. After converting the appliance please attach the Gas Conversion sticker over the appropriate area of the data badge, this will identify the gas type the appliance is now set for.

This appliance is designed for domestic cooking only. Use for any other purpose could invalidate any warranty or liability claim.

24

You will need the following equipment to complete the cooker installation satisfactorily

STABILITY BRACKET

9. Pencil

10. Adjustable spanner

11. Screws for fittingstability bracket

Checking the parts

If the cooker is to be supplied with gas through a fl exible hose, a stability bracket or chain must be fi tted.

These are not supplied by with the cooker

but are available at most builders’ merchants.

GAS PRESSURE TESTER

3 pan supports Griddle plate

Grill pan and trivet Levelling tool

FLEXIBLE GAS HOSE

Handyrack Meat tin

Must be in accordance with the relevant standards.

MULTIMETER

(for electrical checks)

2 Main oven shelves

Tall oven shelves & shelf supports.

You will also need the following tools:

(only required if fitting the cooker on a stone or concrete floor)

3. Rawlplugs

(only required if fitting the cooker on a stone or concrete floor)

4. Steel tape measure

5. Cross head screwdriver

6. Flat head screwdriver

7. 4mm & 3mm Allen keys

Splashback & Plinth

Conversion kit from Natural gas to LP gas

25

Positioning the Cooker

The diagrams below show the minimum recommended distance from the cooker to nearby surfaces.

The cooker should not be placed on a base.

The hotplate surround should be level with, or above, any adjacent work surface. Above hotplate level a gap of 75mm should be left between each side of the cooker and any adjacent vertical surface.

For non-combustible surfaces (such as unpainted metal or ceramic tiles) this can be reduced to 25mm.

A minimum space of 650mm is required between the top of the hotplate and a horizontal combustible surface.

Unpacking the Cooker

Do not take any packaging off the cooker until it is directly in front of the place it is to be installed (unless it will not fi t through a door in its outer packaging).

Cut the banding straps and lift the cardboard box off the cooker, LEAVING THE COOKER STANDING ON THE

BASE PACKAGING. See the loose unpacking sheet.

Moving the Cooker

The cooker is very heavy. Take great care.

We recommend two people manoeuvre the cooker.

Ensure that the fl oor covering is fi rmly fi xed, or removed to prevent it being disturbed when moving the cooker around. You will need the levelling tool.

From the back tilt the cooker forward and remove the rear half of the polystyrene base pack.

*Any cooker hood should be installed in accordance with the hood man u fac tur er’s instructions.

Surfaces of furniture and walls at the sides and rear of the appliance should be heat, splash and steam resistant. Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage and discolouration. We cannot accept responsibility for damage caused by normal use of the cooker to any material that de-laminates or discolours at temperatures less than 65°C above room temperature.

For safety reasons curtains must not be fi tted im me di ate ly behind the cooker.

We recommend a gap of 910mm between units to allow for moving the cooker. If a fl ush fi t is required, fi t the cooker up to the unit at one side then fi t the unit the other side. Do not box the cooker in; it must still be possible to move the cooker in and out for cleaning and servicing. The cooker should not be placed on a base.

A clearance of 130mm is required if the cooker is near a corner of the kitchen to allow the oven doors to open.

Repeat from the front and remove the front half of the

LOWER THE TWO REAR ROLLERS.

First fi t the levelling tool on the hexagonal adjusting nut as shown below.

Make 10 complete (360º) turns clockwise. (This means turning and removing the levelling tool 20 times).

26

Levelling

You are recommended to use a spirit level on a shelf in one of the ovens to check for level.

Place the cooker in its intended position taking care not to twist it within the gap between the kitchen units as damage may occur to the cooker or the units.

The front feet and rear rollers can be adjusted to level the cooker. To adjust the height of the rear of the cooker use the levelling tool supplied to turn the adjusting nuts at the front bottom corners of the cooker. To set the front feet turn the bases to raise or lower.

Fit the Handles

Remove the 4mm Allen screws from the doors with the hexagon key tool. Use the screws to fi t the door handles.

Make sure you lower BOTH REAR ROLLERS. There are two adjusting nuts, one for each roller, at both the front bottom corners of the cooker.

Unfold the rear edge of pack base tray. Open the grill door and the Tall oven door. Grip under the facia panel and lift the front of the cooker.

The handles should be above the fi xings.

Fit the plastic blanking plugs to the fi xing holes.

Remove the 4mm Allen screws from the top corners of the fascia and fi x the front handrail in position.

Carefully push the cooker backwards off the pack base.

Remove the pack base tray. Position the cooker close to its fi nal position leaving just enough space to get behind it.

Fitting the splash back (optional)

Remove the two fi xing screws (3mm hexagonal socket head) and nuts that pass through the top of the rear fl ue grille. Hold the splash back in position. From the rear refi t the 2 fi xing screws and nuts.

Do not use the door handles or control knobs to manoeuvre the cooker. Use the hotplate and griddle bowl areas.

27

Fitting a stability bracket

A stability bracket or chain (not supplied by with the

cooker) should be fi tted when the cooker is connected to a fl exible gas supply.

When fi tting a stability bracket read these instructions together with the leafl et supplied with the bracket.

Gas Connection

The Gas sup ply needs to terminate with a down facing bayonet. The rear cover boxes limit the position of the supply point.

1. Place the cooker in its intended position and level the cooker.

2. Draw a pencil line 70mm from the front edge of the levelling feet.

3. Mark the centre line for the bracket by measuring

550mm from the left hand side of the cooker.

4. Lower the front roller and move the cooker forward.

5. Measure back from the pencil line 550mm to locate the front edge of the bracket. Fix the bracket to the fl oor.

6. Measure the height from fl oor level to engagement edge in back of cooker. Add 3mm to this dimension and assemble the stability bracket to this height. (i.e. from fl oor level to underside of the top member) and ensure the bracket does not foul the oven burner assembly.

view from the rear

A position for gas supply connector

Because the height of the cooker can be adjusted and each connection is different it is diffi cult to give precise dimensions. Ideally the house supply bayonet should be in the shaded area shown in the diagram. Although a 900mm hose can be used, a 1250mm hose will allow slightly more fl exibility in the positioning of the bayonet and make moving the cooker easier. The hose should be fi tted so that both inlet and outlet connections are vertical so that the hose hangs downwards.

The connector is located just below the hotplate level at the rear of the cooker.

For Natural Gas the fl exible hose must be in accordance with B.S.669.

If in doubt contact, your supplier.

Screw connect the threaded end of the hose into the gas inlet in the underside of the connector block on the back of the cooker.

After completing the gas connection, check the cooker is gas sound with a pressure test.

Pressure testing

The gas pressure can be measured at one of the centre hotplate burner injectors (not the Wok burners). Lift off a burner head. Fit the pressure gauge to the injector. Turn on the hotplate burner and turn on and light one of the other hotplate burners.

For Natural Gas cookers the pressure should be

20mbar.

For LP Gas cookers the pressure should be 29mbar for Butane

37mbar for Propane.

Reassemble burner top, making sure it is re as sem bled in the correct way on the burner body.

28

Electrical Connection

This appliance must be installed by a qual i fi ed electrician to comply with the relevant In sti tute of

Electrical Engineers (I.E.E.) regulations and also the local elec tric i ty supply company re quire ments.

WARNING: THIS APPLIANCE MUST BE EARTHED

Note

The cooker must be connected to the cor rect electrical supply as stated on the voltage la bel on the cooker, through a suitable cooker control unit incorporating a double pole switch having a contact separation of at least 3mm in all poles. This cooker must not be connected to an ordinary domestic power point.

Hotplate

Check each burner in turn. Push in tap and turn to the large fl ame symbol. Press ignition switch on facia panel.

Grill

Open the grill compartment door. Turn on the grill control and check that the grill heats up.

Oven check

Set the clock to the time of day

When the clock is fi rst connected the display will fl ash (

) and ( ) alternately.

The cable size used should be between 6mm

2

and

10mm 2 , twin and earth.

Access to the mains terminal is gained by re mov ing the electrical terminal cover box on the back panel.

Connect the mains cable to the correct terminals for your electrical sup ply type (see fi g.). Check that the links are correctly fi tted and that the terminal screws are tight.

Secure the mains cable us ing the cable clamp.

These appliances are of type X with regard to protection against over heating of the sur round ing surfaces.

Current Operated Earth Leakage Breakers

Where the installation is protected by a 30 milliamp sensitivity residual current device (RCD), the combined use of your cooker and other domestic appliances may oc ca sion al ly cause nuisance tripping. In these instances the cooker circuit may need to be protected by fi tting

100mA device. This work should be carried out by a qualifi ed electrician.

Oven Light

Press the oven light switch and check that the light is working.

NB. The oven light bulb is not included in the guarantee

To set the clock to read the time of day turn and hold the

Timer knob to the clock symbol

and at the same time turn the Adjusting knob left or right until the clock shows the time of day. Remember this is a 24 hour clock.

Let go of the Timer knob and it will spring back to the vertical oven manual setting.

Turn on the oven and check that the oven fan starts to turn and that the oven starts to heat up. Turn off the oven.

Fitting the plinth

Loosen the 3 screws along the front bottom edge of the cooker. Hook the central keyhole over the central screw.

Twist and fi t each end keyhole over their respective screws. Tighten the fi xing screws.

Customer care

Please complete your details in this Guide, inform the user how to operate the cooker and hand over the

Instructions.

Thank you.

29

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

Conversion to LP gas

Remove the 2 cross headed screws that were hidden by the handrail end brackets.

Check in the Technical Data section at the back of the book that the cooker is convertible to the gas you want to use.

This conversion must be performed by a competent person. After conversion the installation must comply with the relevant regulations and also the local electricity supply company requirements. Read the instructions before converting this appliance.

Failure to convert the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.

This instruction must be used in conjunction with the rest of the appliance in struc tion, in particular for information on Standards, cooker positioning, connection hose suitability etc.

When servicing or replacing gas-carrying components disconnect from gas before commencing operation and check appliance is gas sound after completion.

Do not use re-conditioned or unauthorised gas controls.

Jets

Standard burner Wok burner

Open the oven door & or grill door and remove the fi xing screws underneath the control panel. NB some models have a plate under the facia held in place by the bottom fi xing screws.

Lower facia panel clear of top retaining tags.

shield fi xing screws

Remove the two screws holding the shield in front of the control taps and remove the shield.

A jet, B internal injector, C external injector

Remove burner caps and heads. Remove old jets. Fit new jets (see table on the next page for the correct jets).

Reassemble in reverse order.

Tap adjustment

Pull off all the control knobs. If the handrail has been fi tted remove it - remove the plastic blanking plugs and remove the 2 end bracket fi xing screws.

A tap bypass screw

Turn the bypass screw on each gas control clockwise to the stop.

Stick on label

Stick the appropriate label on to the data badge to indicate the gas the appliance is now set for.

Pressure Testing

Connect the appliance to the gas supply. Check the appliance is gas sound.

The gas pressure can be measured at one of the left hand hotplate burner jets. Lift off a burner head. Fit the pressure gauge to the jet. Turn on the hotplate burner and turn on and light one of the other burners.

Reassemble burner top, making sure it is re as sem bled in the correct way on the burner body.

Check the appliance is gas sound.

Check operation of all the burners.

30

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

Natural gas LP gas

Burner

Wok centre

Wok outer

kW

Large

kW

Medium

kW

Small

kW

G 20 at 20mbar G31 at 29mbar

80

129

3.65

134

3.0

109

1.7

75

1.0

54

77

3.5

87

3.0

68

1.7

51

1.0

31

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

Servicing Notes

When servicing or replacing gas carrying components disconnect from gas before commencing operation and check appliance is gas sound after completion.

When checking for gas leaks use a liquid leak detector at all joints and connections to check for leaks in the system. Use a product specifi cally manufactured for leak detection. In GB refer to BS 6891; in IE refer to the current edition of IS 813.

Leak testing of the appliance shall be conducted in accordance to the manufacturer’s instructions.

CAUTION: DO NOT USE A FLAME TO CHECK

FOR GAS LEAKS.

Do not use re-conditioned or unauthorised gas controls.

Disconnect from electricity supply before commencing servicing, particularly before removing any of the following: control panel, side panels, cooktop tray, or any of the electrical components or cover boxes. Before electrical reconnection check that the appliance is electrically safe.

1. To Remove the Handrail

Remove the handrail plastic blanking plugs and remove the 2 end bracket fi xing screws.

2. To Remove Control Panel

Disconnect from electricity supply.

Pull off all the control knobs. Remove the handrail (see

2) Remove the 2 cross headed screws that were hidden by the handrail end brackets.

Open the grill door and R H oven door and remove the 2 screws underneath the control panel.

Pull the control panel forward and support so that the wires are not strained.

Reassemble in reverse order. When replacing leads refer to the wiring diagram. Check operation of timer, ignition, and oven light switches.

3. To Remove the Hotplate top

Disconnect from electricity supply.

Remove the pan supports, cooktop burner caps and tops. If there are screws holding the cooktop burners to the cooktop, remove them (not the spark electrode fi xing screws).

A Hotplate front fi xing screws

B Hotplate rear fi xing screws

Remove the 4 rear cooktop fi xing screws (B) and the 4 front cooktop fi xing screws (A).

Remove the screws holding the fl ue grille stays.

Lift the cooktop clear of the appliance. Replace in reverse order.

Reassemble in reverse order ensuring that the leads are reconnected.

Check for correct burner operation.

4. To Remove a Side Panel

Disconnect from electricity supply.

Remove control panel (see 2). Pull the cooker forward.

Remove the 4 retaining screws for each panel (2 at the front and 2 at the rear). The lower front retaining screws

(one each side) are situated beneath the lower edge at the front corners of the side panels

Reassemble in reverse order.

5. To Remove Oven Light Switch

Remove control panel (see 2).

NB The old switch may be destroyed during removal.

Remove switch button and old switch from its bezel by gripping the switch body behind the control panel and twisting sharply.

The switch bezel can then be removed by folding back its locking wings and pushing forward. Fit the new bezel to the control panel by fi rst lining up the raised key on its body with the cutout in the control panel and pushing it in from the front. Assemble the new switch to the bezel by lining up the key sections and pushing home. Fit the new button by pushing in from the front.

Replace control panel in reverse order and test for correct operation.

Disconnect from electricity supply.

Pull off the timer control buttons and remove the control panel (See 2). Remove the timer/mounting bracket assembly from the control panel by removing the two fi xing screws. Remove the timer from its mounting bracket by depressing the plastic lugs on the timer case, at the same time pulling the unit forward.

Reassemble in reverse order. When replacing leads refer to the wiring diagram. Check operation of timer.

32

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

Remove control panel (see 2) and cooktop (see 3).

Open the appropriate oven door and remove the oven shelves.

RH oven

Remove oven roof. Remove the two fi xings that secure the thermostat phial cover. Unclip the thermostat phial from the clips in the oven back panel & remove from the top rear of the oven.

LH oven

Remove the two screws holding the thermostat phial to the oven fan cover at the rear of the oven. Pull the unit forward to access the rear of the cooker. Remove both rear cover boxes by removing the fi xing screws and lifting clear. Feed the thermostat capillary clear of the oven. Disconnect the wires from the thermostat and undo the two fi xings that secure the control to the mounting plate. Fit the replacement and re-assemble in reverse order. Ensure that the phial is clipped to the oven rear, positioned centrally between the clips. Check that the thermostat functions correctly.

8. To Change Grill Controller

Remove the control panel (see 2) and cooktop (see 3).

Disconnect wiring from controller. Remove 2 screws holding switch/controller to mounting panel. Fit new controller and reassemble in reverse order. Check for correct operation.

BEFORE SERVICING ANY GAS CARRYING

COMPONENTS TURN OFF GAS SUPPLY.

11. To Change Hotplate Burner Electrode

Lift off hoplate pan supports, remove burner cap.

Remove the screw holding the electrode. Pull electrode vertically up suffi ciently to grip the lead between thumb and forefi nger. Pull off the electrode, but keep hold of the lead. Fit new electrode to the lead. Fix electrode in burner with screw. Replace burner cap. Check the burner ignition. Replace pan supports.

12. To Remove or Change a Hotplate Burner.

Remove the cooktop tray (see 3). Remove the control panel (see 2).

Outer Hotplate burners

The burners are mounted in 2’s on cross supports.

Disconnect the burner feed pipes at the burners.

Remove the cooktop top, see 3. Undo the nut at rear of the valve and remove the screw(s) securing valve to gas rail. Remove old valve, discard old gasket/seal. Fit new gasket/seal to new valve.

Reassemble in reverse order. Check valve is adjusted for correct gas. Check cooker is gas sound.

10. To Change a Hotplate burner jet

Standard burner Wok burner

Remove the screw at the front holding the cross support. Slide the support to the right to release in from the rear location. Lift the cross support and burners clear. The burners are fi xed to the cross supports with screws underneath. Remove the appropriate burner and fi t the new one. Reassemble in reverse order. Check burner operation is satisfactory.

Wok burner

Disconnect the burner feed pipes at the burner. Fit the new one and reassemble in reverse order. Check burner operation is satisfactory.

To Remove Grill Outer Door Panel

Open left hand oven door and remove 2 screws from bottom edge of grill door. Open grill door, support grill door outer panel and remove two screws from top inner face of grill door.

Reassemble in reverse order.

A jet, B internal injector, C external injector

Remove burner cap and head. Remove old jet. Fit new jet. Note the Wok burner has 2 jets. Reassemble in reverse order. Check appliance is gas sound.

33

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

14. To Remove Main Oven Door

Open oven door and remove Handyrack (where fi tted) by springing one side out of the bracket on the door and sliding the other side free. Support the door and remove the two screws securing the upper hinge and packing to the cooker front. Remove the door from the lower hinge by lifting slightly and moving outwards.

Reassemble in reverse order.

16. To Change Main Oven Door Catch

Remove outer door panel (see 15). Remove screws

‘B’ holding catch assembly to inner door panel. Fit new catch and reassemble in reverse order.

Check correct door operation.

15. To Change Main Oven Door Outer Panel

17. To Change Oven Door Seal

Open oven door. The seal is held in place by small hooks on the rear face. At the corner pull seal diagonally away from the door centre until that hook is released.

Proceed to the next hook and release it in a similar way, and so on.

Remove the two plastic blanking plugs from the door handles. Remove the 4mm Hex headed screws holding the handle to the door with the hexagon key tool.

Remove two screws from top edge and two from bottom edge of the door.

Remove outer door panel. Fit door handle to new panel.

Fit the plastic blanking plugs to the fi xing holes.

The handles should be above the fi xings.

Fit panel to door. If replacing the outer panel on the right hand door (with the Thermodial) take care to make sure the sensor of the Thermodial is sealed to the door by the rubber grommet.

Reassemble in reverse order.

Fig. 4

When fi tting new seal, position the seal join at the bottom. Hook the new seal in one of the corner holes of the door, and proceed round the door snapping in each hook in turn.

18. To Adjust Oven Door Catch Keep

Open oven door, slacken off locknut at base of keep, and screw in or out as required until required fi t is obtained. Retighten locking nut.

19. To Change Ignition Generator

Disconnect from electricity supply.

Pull cooker forward to gain access to the cover box at the rear of the left hand cooker. Remove the screws securing the cover and lift clear. Pull off all the leads to the generator noting their positions. Slacken the two screws holding generator to cooker and remove generator.

Fit new generator to cooker and replace leads.

Reassemble in reverse order. Refer to wiring diagram.

Check ignition performance.

34

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

20. To Remove Oven Inner Back.

Open the oven door. Remove oven furniture. For the LH oven unscrew the 2 thermostat phial fi xing screws.

24. To Remove Grill Element.

Disconnect from electricity supply.

Remove grill pan from grill chamber. From inside grill compartment remove enamelled front shield from grill roof, 2 screws and washers. Remove 2 screws and washers securing the grill element front support.

Remove 1 screw from each of the grill elements and withdraw grill elements from grill chamber. Disconnect the leads and connect to the replacement elements and re-assemble parts in reverse order. Check operation of grill.

25 To Remove the LH Oven Bottom and Top

Elements

Disconnect from the electricity supply.

Bottom Element

Pull the cooker forward to access the cover boxes at the rear of the unit. Remove the fi xings that secure the cover and lift it clear.

Remove the fi xings that secure the inner back to the oven rear.

Lift the removable panel away. Re-assemble in reverse order. Ensure that the retaining fi xings are fully tightened. For the LH oven unscrew the 2 thermostat phial fi xing screws. Remove the screws that secure the inner back to the oven rear. Lift the removable panel away. Re-assemble in reverse order. Ensure that the retaining fi xings are fully tightened.

22. To Replace an Oven Fan

Disconnect from electricity supply.

Pull the unit forward to access the cover boxes at the rear of the appliance.

Remove the fi xings that secure the cover and lift it clear.

Remove the fan wiring, noting the connection positions.

Remove the inner back as detailed in Section 20. Hold the fan blades and undo the centre nut (LH thread), brass washers and fan blade. Undo the fi xings that retain the fan and remove it from the cavity rear. Fit the replacement and re-assemble parts in reverse order.

Check that the oven operates satisfactorily.

23. To Remove an Oven fan Element

Disconnect from electricity supply.

Remove the inner back as detailed in Section 20.

Remove the 2 screws ‘A’ and allow the plate to drop down.

Remove the fi xings that secure the element within the oven and lift the element away carefully. Disconnect the leads and connect to the replacement element and re-assemble parts in reverse order. Check that the oven operates correctly.

Remove the 2 screws B, holding the element to the bottom sheet.

Disconnect the leads, noting their positions.

Withdraw bottom element. Fit the new element and reassemble parts in reverse order.

Top Element

Open the LH oven door and undo the fi xings that secure the heat shield. Remove the top element bracket fi xings and withdraw element. Replace the element and reassemble parts in reverse order. Check that the oven operates satisfactorily.

35

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

26. To change Main oven light bulb.

Disconnect from the electricity supply.

Remove the oven furniture. Unscrew the bulb.

Fit an Edison screw fi tting 15w 125-130v lamp, FOR

OVENS. It must be a special bulb, heat resistant to 300

°C.

27 To Remove Tall Oven Door

Open oven door, support the door and remove the two screws securing the upper hinge and packing to the cooker front. Remove the door from the lower hinge by lifting slightly and moving outwards.

Reassemble in reverse order.

28. To Change Tall Oven Door Outer Panel

Remove oven door see 16. Lay door face down on a suitable surface and remove 2 screws from bottom edge of door and 2 screws from inside face of door.

Remove outer door panel. Remove door handle by unscrewing 2 screws. Remove 2 cross-headed screws holding door handle fi xing bracket to door panel. Fit door handle bracket and door handle to new panel.

Fit panel to door. Reassemble in reverse order.

29. To Change Tall Oven Door Magnetic Latch

Remove the control panel (see 4).

Remove the plinth (3 screws) and the central vertical cover (5 screws). Prize the retaining clip off the magnet unit. Fit new unit and retaining clip.

Reassemble in reverse order.

Check correct door operation.

36

SERVICING - WARNING

Disconnect from electricity and gas before servicing. Check ap pli ance is safe when you have finished.

37

Circuit Diagram

38

Technical Data

This cooker is category II

2H3+

It is supplied set for group H natural gas.

A conversion kit from NG to LP gas is included.

INSTALLER: Please leave these instructions with the User.

DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening.

Country of Destination: GB/IE

Gas Electric

Natural Gas 20mbar 220 - 240V 50Hz

Butane 29mbar

Propane 37mbar

(See appliance data badge for test pressures)

Dimensions

Overall height minimum 898mm maximum 925mm

Overall width

Overall depth

Space for fi xing

Minimum space above hotplate

900mm See ‘Positioning of Cooker’

648mm

See ‘Positioning of Cooker’

650mm

Connections

Rp 220 - 240V 50Hz

Ratings

Natural Gas L.P. Gas

Hotplate

Wok burner

Large Burner

Medium Burner

3.65kW internal 80 3.5kW (246g/h) internal 54

external external

3.0kW 134

1.7kW 109

Small Burner 1.0kW 75

Gas burner inputs based on Gross Calorifi c Value

3.0kW (210g/h) 87

1.7kW (119g/h) 68

1.0kW (70g/h) 51

Ovens

Grill

Left hand Multifunction Oven

2.5kW

1.2kW

1.15kW

1.0kW

2.3kW

Right hand Fan Oven

2.5kW

Maximum total electrical load at 230V 7.4kW*

*approximate total including oven lights, oven fan etc.

Multifunction Forced air convection Tall Oven Ovens

Energy effi ciency class

on a scale of A (more effi cient) to G (less effi cient)

Energy consumption based on standard load

Usable volume (litres)

Size

B

0.90kWh

62

Medium

B

0.95kWh

53

Medium

39

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
