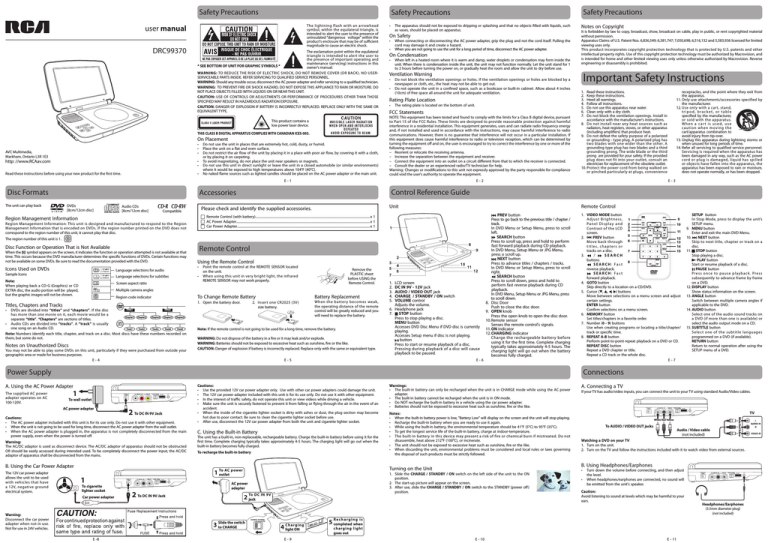

Safety Precautions
The lightning flash with an arrowhead
symbol, within the equilateral triangle, is
intended to alert the user to the presence of
uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient
magnitude to cause an electric shock.
user manual
DRC99370
The exclamation point within the equilateral triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in this
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
owner’s manual.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: Should any trouble occur, disconnect the AC power adapter and refer servicing to a qualified technician.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
Disc Formats
The unit can play back
• When connecting or disconnecting the AC power adapter, grip the plug and not the cord itself. Pulling the
cord may damage it and create a hazard.
• When you are not going to use the unit for a long period of time, disconnect the AC power adapter.
On Condensation
• When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1
to 2 hours before turning the power on, or gradually heat the room and allow the unit to dry before use.
Ventilation Warning
• Do not block the ventilation openings or holes. If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.
• Do not operate the unit in a confined space, such as a bookcase or built-in cabinet. Allow about 4 inches
(10cm) of free space all around the unit for adequate ventilation.
Rating Plate Location
• The rating plate is located on the bottom of unit.
FCC Statements
E-1
E-2
On Placement
Read these instructions before using your new product for the first time.
On Safety
• Do not use the unit in places that are extremely hot, cold, dusty, or humid.
• Place the unit on a flat and even surface.
• Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth,
or by placing it on carpeting.
• To avoid magnetizing, do not place the unit near speakers or magnets.
• Do not use this unit in direct sunlight or leave the unit in a closed automobile (or similar environments)
where it would be exposed to high temperatures above 104°F (40°C).
• No naked flame sources such as lighted candles should be placed on the AC power adapter or the main unit.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
http: //www.RCAav.com
• The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such
as vases, should be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This product contains a
low power laser device.
AVC Multimedia,
Markham, Ontario L3R 1E3
Audio CDs
[8cm/12cm disc]
Compatible
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region
Management Information that is encoded on DVDs. If the region number printed on the DVD does not
correspond to the region number of this unit, it cannot play that disc.
When the symbol appears on the screen, it indicates the function or operation attempted is not available at that
time. This occurs because the DVD manufacturer determines the specific functions of DVDs. Certain functions may
not be available on some DVDs. Be sure to read the documentation provided with the DVD.
Icons Used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played,
but the graphic images will not be shown.
Screen aspect ratio
Remote Control (with battery)................................................................................................................................................x 1
AC Power Adapter.......................................................................................................................................................................x 1
Car Power Adapter......................................................................................................................................................................x 1
Remote Control
Using the Remote Control
• Point the remote control at the REMOTE SENSOR located
on the unit.
• When using this unit in very bright light, the infrared
REMOTE SENSOR may not work properly.
Remove the
PLASTIC sheet
before using the
Remote Control.
Multiple camera angles
1
Region code indicator
To Change Remote Battery
1. Open the battery door.
Titles, Chapters and Tracks
Title1
Title2
• DVDs are divided into “titles” and “chapters”. If the disc
has more than one movie on it, each movie would be a
Chapter1 Chapter2
Chapter3 Chapter1 Chapter2
separate “title”. “Chapters” are sections of titles.
• Audio CDs are divided into “tracks”. A “track” is usually
one song on an Audio CD.
Track1
Track2
Track3
Track4
Track5
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your
geographic area or made for business purposes.
E-4
Battery Replacement
2. Insert one CR2025 (3V )
size battery.
When the batter y becomes weak ,
the operating distance of the remote
control will be greatly reduced and you
will need to replace the battery.
Note: If the remote control is not going to be used for a long time, remove the battery.
WARNING: Do not dispose of the battery in a fire or it may leak and/or explode.
WARNING: Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
1.
2.
3.
4.
5.
6.
7.
LCD screen
DC IN 9V - 12V jack
AUDIO / VIDEO OUT jack
CHARGE / STANDBY / ON switch
VOLUME control
Adjusts the volume.
Headphone jack
STOP button
Press to stop playing a disc.
MENU button
Accesses DVD Disc Menu if DVD disc is currently
playing.
Accesses Setup menu if disc is not playing.
button
Press to start or resume playback of a disc.
Pressing during playback of a disc will cause
playback to be paused.
E-5
E-6
Power Supply
1
To wall outlet
AC power adapter
2
receptacles, and the point where they exit from
the apparatus.
11.Only use attachments/accessories specified by
the manufacturer.
12.Use only with a cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or
when unused for long periods of time.
14.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as the AC power
cord or plug is damaged, liquid has spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
1. VIDEO MODE button
9
Ad j u s t B r i g ht n e s s, 1
Pa n e l D i s p l a y a n d 2
10
3
Contrast of the LCD
4
11
screen.
5
2.
PREV button
12
M
6
Move back through
13
14
titles, chapters or
tracks on a disc.
15
7
3.
/
SEARCH
buttons
8
S E A R C H : Fa s t
reverse playback.
S E A R C H : Fa s t
forward playback.
4. GOTO button
Skip directly to a location on a CD/DVD.
5. Cursor ( , , , ) buttons
Move between selections on a menu screen and adjust
certain settings.
ENTER button
Confirm selections on a menu screen.
6. MEMORY button
Set titles/chapters in a favorite order.
7. Number (0 - 9) buttons
Use when creating programs or locating a title/chapter/
track or specific time.
8. REPEAT A-B button
Perform point-to-point repeat playback on a DVD or CD.
REPEAT DISC button
Repeat a DVD chapter or title.
Repeat a CD track or the whole disc.
E-7
VIDEO
MODE
MENU
PREV
SEARCH
GOTO
NEXT
STOP
PAUSE
ANGLE
DISPLAY
PLAY
ENTER
MEMORY
AUDIO
2
3
5
6
SUBTITLE/
RETURN
4
7
8
9
0
SETUP
A-B
DISC
REPEAT
SETUP button
In Stop Mode, press to display the unit’s
SETUP menu.
9. MENU button
Enter and exit the main DVD Menu.
10.
NEXT button
Skip to next title, chapter or track on a
disc.
11. STOP button
Stop playing a disc.
PLAY button
Start or resume playback of a disc.
PAUSE button
Pre s s o n ce to p a u s e p l ay b a c k . Pre s s
subsequently to advance frame by frame
on a DVD.
12.DISPLAY button
Show status information on the screen.
13.ANGLE button
Switch between multiple camera angles if
applicable to the DVD.
14.AUDIO button
Select one of the audio sound tracks on
a DVD (if more than one is available) or
select the audio output mode on a CD.
15.SUBTITLE button
Selec t one of the subtitle languages
programmed on a DVD (if available).
RETURN button
Return to normal operation after using the
SETUP menu of a DVD.
Warning:
The AC/DC adaptor is used as disconnect device. The AC/DC adaptor of apparatus should not be obstructed
OR should be easily accessed during intended used. To be completely disconnect the power input, the AC/DC
adaptor of apparatus shall be disconnected from the mains.
B. Using the Car Power Adapter
Cautions:
• Use the provided 12V car power adapter only. Use with other car power adapters could damage the unit.
• The 12V car power adapter included with this unit is for its use only. Do not use it with other equipment.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an
accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
C. Using the Built-in Battery
The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before using it for the
first time. Complete charging typically takes approximately 4-5 hours. The charging light will go out when the
built-in battery becomes fully charged.
To recharge the built-in battery
To cigarette
lighter socket
Car power adapter
2 To DC IN 9V Jack
Notes:
• When the built-in battery power is low, "Battery Low" will display on the screen and the unit will stop playing.
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not
disassemble, heat above 212oF (100oC), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing
the disposal of such products must be strictly followed.
1. Slide the CHARGE / STANDBY / ON switch on the left side of the unit to the ON
position.
2. The start-up picture will appear on the screen.
3. After use, slide the CHARGE / STANDBY / ON switch to the STANDBY (power off )
position.
AC power
adapter
To DC IN 9V
2 jack
A. Connecting a TV
If your TV has audio/video inputs, you can connect the unit to your TV using standard Audio/Video cables.
TV
White Red Yellow
To AUDIO / VIDEO OUT jacks
Audio / Video cable
(not included)
Watching a DVD on your TV
1. Turn on the unit.
2. Turn on the TV and follow the instructions included with it to watch video from external sources.
B. Using Headphones/Earphones
Turning on the Unit
AC power
1 To
outlet
1
Warnings:
• The built-in battery can only be recharged when the unit is in CHARGE mode while using the AC power
adapter.
• The built-in battery cannot be recharged when the unit is in ON mode.
• Do NOT recharge the built-in battery in a vehicle using the car power adapter.
• Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
White Red Yellow
To DC IN 9V Jack
Cautions:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the wall outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main
power supply, even when the power is turned off.
The 12V car power adapter
allows the unit to be used
with vehicles that have
a 12V, negative ground
electrical system.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block the ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of a polarized
or grounding - type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on
or pinched particularly at plugs, convenience
Connections
A. Using the AC Power Adapter
The supplied AC power
adapter operates on AC
100-120V.
Important Safety Instructions
Remote Control
PREV button
Press to go back to the previous title / chapter /
track.
In DVD Menu or Setup Menu, press to scroll
left.
SEARCH button
Press to scroll up, press and hold to perform fast forward playback during CD playback.
In DVD Menu, Setup Menu or JPG Menu, press o scroll up.
NEXT button
Press to advance titles / chapters / tracks.
In DVD Menu or Setup Menu, press to scroll
right.
SEARCH button
Press to scroll down, press and hold to perform fast reverse playback during CD playback.
In DVD Menu, Setup Menu or JPG Menu, press to scroll down.
8. Disc Door
Push to close the disc door.
9. OPEN knob
Press the open knob to open the disc door.
10.Remote sensor
Senses the remote control's signals.
11.ON indicator
12.CHARGING indicator
Charge the rechargeable battery before
using it for the first time. Complete charging
typically takes approximately 4-5 hours. The
charging light will go out when the battery
becomes fully charged.
The region number of this unit is 1.
Disc Function or Operation That is Not Available
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited
viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
E-3
Unit
Please check and identify the supplied accessories.
Notes on Copyright
Control Reference Guide
Accessories
DVDs
[8cm/12cm disc]
Safety Precautions
Safety Precautions
• Turn down the volume before connecting, and then adjust
the level.
• When headphones/earphones are connected, no sound will
be emitted from the unit's speaker.
Caution:
Avoid listening to sound at levels which may be harmful to your
ears.
Headphones/Earphones
(3.5mm diameter plug)
(not included)
Warning:
Disconnect the car power
adapter when not in use.
Not for use in 24V vehicles.
the switch
3 Slide
to CHARGE
E -8
Recharging is
4
C h a rg i n g
light ON
E-9
5 completed when
charging light
goes out
E - 10
E - 11
Playing a Disc (Basic Playback)
Repeat Playback
This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in a
manner that allows specific or limited operation during playback. Therefore, this unit may not respond to
all operating commands. THIS IS NOT A DEFECT. Please refer to the instructions accompanying the specific
DVD in question for more information about the options available on that DVD.
“
” may appear on the screen during operation. A “
” means the desired operation is not permitted
by the unit or disc.
Notes:
• The DVD player mutes sound and subtitles
during reverse and forward scan of DVDs.
• The fast playback speed may differ depending
on the disc.
Playing a Disc
• Press the
NEXT button to advance titles,
chapters/tracks.
• Press the
PREV button to go back to current
or previous titles, chapters/tracks.
• For an Audio CD, use the number buttons on the
remote control to go directly to the desired track
number.
1. Slide the CHARGE / STANDBY / ON switch on
the left side of the unit to the ON position.
See Customizing the function settings before
proceeding to step 2.
2. Press the OPEN knob to open the disc door.
3. Hold the disc by its sides and carefully place it
onto the spindle with the label side facing up,
pushing gently until you hear a “click”.
4. Close the disc door. It takes a short while for
your unit to load the disc. After loading, the unit
will automatically bring you to the main menu of
the DVD or start playing the DVD.
5. If the unit does not automatically start playing
the DVD, press the   PLAY button on the
remote control or
button on the unit.
Stopping Playback
Press the STOP button at the location where you
want to interrupt playback. To resume playback at
the position where the disc was stopped, press the
PLAY button on the remote control or
button
on the unit.
If you press the STOP button twice, the unit’s
memory will be cleared and pressing the
PLAY
button on the remote control or
button on the
unit will reset the DVD to the beginning.
Fast Forward / Fast Reverse
1. Press the SEARCH
or
SEARCH button
when a disc is playing. Each time you press the
SEARCH
or
 SEARCH button, the playback
speed changes in the following sequence:
Pausing Playback (Still Mode)
Press the PAUSE button. To resume normal
playback, press the
PLAY button on the remote
control or button on the unit.
For a DVD, each time you press the PAUSE button
on the remote control, the picture advances one
frame.
2. Press the
PLAY button on the remote control
or press the
button twice on the unit when
you reach the desired point to resume normal
playback.
Skip (Forward / Reverse)
Audio Selection
On some DVDs, the sound is recorded in two or more
formats. Follow the directions below to select the
preferred language and sound system.
1. While a disc is playing, press the AUDIO button
to show the current audio format number.
Audio 1/3:Dolby D 2ch English
2. Press the AUDIO button repeatedly to select the
desired audio format.
Notes:
• If only one audio format is recorded on the DVD,
the number does not change.
• Some DVDs allow you to change audio selections
using the disc menu only. If this is the case, press
the MENU button and choose the appropriate
language on the disc menu.
• You can select different audio channels (Stereo,
E - 12
If you know the chapter/title number for the chapter/title that you want to play, you can locate it by directly
selecting that number.
1. Press the GOTO button. Title 01/03 Chapter 03/12 / Title 01/03 Chapter 00/00
2. Press the / button to highlight chapter/title number, then press the corresponding number buttons
(2 digits) for the chapter/title you want (for example: 02, 08, 10 or 15). If you press only 1 numeric button,
press the ENTER button to confirm.
3. Playback starts from the selected chapter/title.
Notes:
If the chapter/title number entered is not permitted by the DVD, " Input invalid " will display. Repeat steps 1 and 2
to re-enter the correct number.
Some discs may not respond to this process.
This method of locating a chapter/title is available only on a DVD that contains chapter/title numbers.
Locating a Specific Time
You can move to a specific location by entering its corresponding time (hours, minutes, seconds).
1. Press the GOTO button two times. Title 01/03 Time : :
2. Press the corresponding number buttons (5 digits: X:XX:XX, for example: 0 30 05, 1 08 23, 1 22 56) for the
setting point you want.
3. Playback starts from the selected section.
Notes:
•
•
•
•
If the time entered is not permitted by the DVD, " Input invalid " will display. You should re-enter the correct time.
Some discs may not respond to this process.
Some scenes may not be located as precisely as you specified.
This method for accessing specific locations is available only within the current title of the DVD.
Subtitle 02/03:Spanish
2. Press the SUBTITLE button repeatedly to select
the desired subtitle language. You can turn
subtitles off by pressing the SUBTITLE button
repeatedly until the “ Subtitle Off ” is displayed.
Notes:
• S o m e D V D s a r e s e t t o d i s p l a y s u b t i t l e s
automatically, and you cannot turn them off
even if you set the subtitle function to off.
• During some scenes, the subtitles may not
appear immediately after you select your desired
scene.
• The number of subtitle languages recorded
differs depending on the disc. I f only one
language is recorded, the language does not
change.
• This function can only be used for discs on
which subtitles have been recorded in multiple
languages.
• Some DVDs allow you to change subtitles using
the disc menu only. If this is the case, press
the MENU button and choose the appropriate
subtitle on the disc menu.
1. While you are playing a DVD with different angles recorded,
press the ANGLE button to view the number of current
angles available.
2. Press the ANGLE button repeatedly to change the scene to
the next recorded angle.
• After approx. two seconds, playback will continue from
the new angle selected.
• If no button is pressed within 10 seconds, playback
continues without changing the current angle.
2. Input the title (2 digits) and chapter (2 digits) by pressing the number buttons (for example: 01 02, 02 05,
02 11). It will move to the next item automatically.
• You can use the Cursor buttons ( , , , ) to move the highlighted bar to any item, and re-enter the title
and chapter. Press the
NEXT /
PREV to move to the next / previous setup page.
• You can use the Cursor buttons ( , , , ) to move the highlighted bar to “Clear”, “Exit”, “Start” or “Next /
Prev”, and press the ENTER button to confirm.
3. Press the
PLAY button on the remote control or
button on the unit to start memory playback.
(“ Program ” appears on the screen).
4. To resume normal playback from memory playback
1). Press the MEMORY button to display the memory menu.
2). Use the Cursor buttons ( , , , ) to move the highlighted bar to “Stop”. Press the ENTER button to
confirm “Stop”.
3). Use the Cursor buttons ( , , , ) to highlight “Clear”, and then press the ENTER button to confirm.
4). Use the Cursor buttons ( , , , ) to highlight “Exit”, and then press the ENTER button to confirm. It
will return to normal playback (“ Program ” disappears from the screen).
Notes:
•
•
Sound System
Video
System
Language
1. Press the SETUP button on the remote control or MENU
- - System Menu - button on the unit in stop mode (when disc is not playing).
TV Display
Wide
2. Press the / button to select System Menu.
Default
No
3. Press the / button to select the option (TV Display or
Default), then press the button.
4. Press the / button to adjust the settings, then press the
ENTER button to confirm.
5. Repeat steps 3 and 4 to adjust other options. Press the
Go To System Menu
button to return to the previous menu.
6. Press the SETUP or RETURN button to exit the menu.
TV Display
Cut off when a wide-screen
Pan Scan
video image is played.
• When wide-screen video is played, this mode clips the right and left sides of the
image so that it can be viewed on a conventional screen.
• Some wide-screen DVDs that do not permit Pan Scan mode playback are
automatically played in letterbox mode (black bands that appear at the top and
bottom of the screen).
Letter Box
Pan Scan
• When wide-screen video is played in this mode on a conventional screen, black
bands appear at the top and bottom of the screen.
Wide Screen
• This is the correct mode for playing wide-screen videos on the unit screen or
other external wide-screens.
Notes:
• The displayable picture size is preset on the DVD. Therefore the playback picture
of some DVDs may not conform to the picture size selected.
Letter Box
• When you play DVDs recorded in the 4:3 aspect ratio, the playback picture will
always appear in the 4:3 aspect ratio regardless of the TV display setting.
• Select Wide Screen to conform the LCD screen on the unit. Always be sure that
your TV display conforms to the actual TV in use if you connect the unit to a TV.
Wide Screen
1 /3
2 /3
3 /3
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can
reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for twochannel listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel
soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Maintenance
Cleaning the Disc
A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
Handle the disc by holding its inner and outer edges.
• Do NOT touch the surface of the unlabeled side of the disc.
• Do NOT stick paper or tape on the surface.
• Do NOT expose the disc to direct sunlight or excessive heat.
• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.
• NEVER use solvents such as benzine or alcohol to clean the disc.
• Do NOT use irregular shaped discs (example: heart shaped, octagonal, etc.). They may cause malfunctions.
Cleaning the Unit
Display Function
While the disc is playing, press the DISPLAY button repeatedly to display information on operation status.
Repeating a Chapter
1. While the DVD is playing, press the REPEAT DISC
Chapter ” indicator displays
button until the “
on the screen. The current chapter is played
repeatedly.
Repeating a Title
To Resume Normal Playback
3. While the DVD is playing, press the REPEAT DISC
button until the “ Repeat Off ” indicator displays
on the screen.
You can play a single CD track or the whole disc repeatedly.
Repeating a Single Track
1. While the CD is playing, press the REPEAT DISC
button until the “
” indicator displays on
the screen. The current track is played repeatedly.
Repeating the Whole Disc
Adjust the LCD Screen
2. While the CD is playing, press the REPEAT DISC
button until the “
” indicator displays on
the screen. The whole disc is played repeatedly.
You can adjust Brightness, Panel Display and Contrast of the LCD screen.
1. Press the VIDEO MODE button.
2. Press the / button to select Brightness, Panel Display or Contrast.
3. Press the / button to change the setting.
4. Press the VIDEO MODE button to exit the menu.
To Resume Normal Playback
4. While the disc is playing, press the REPEAT A-B
button until the “
AB OFF ” indicator displays
on the screen (the repeat indicator disappears
from the screen for a CD). The system will return
to normal playback.
Notes:
• Some discs may not permit A-B repeat operation.
• You cannot set the A-B repeat function for a
segment that includes multiple camera angles.
• You can specify a segment only within the
current title or track.
• There may be a slight difference between point
A and the location where playback actually
resumes depending on the disc.
Customizing the Function Settings
Language Setup
1. Press the SETUP button on the remote control or MENU
button on the unit in stop mode (when disc is not playing).
2. Press the button to select Language Menu.
3. Press the / button to select the option (Player Menu,
Audio, Subtitle or Disc Menu), then press the button.
4. Press the / button to select your preferred language,
then press the ENTER button to confirm.
5. Repeat steps 3 and 4 to adjust other options. Press the
button to return to the previous menu.
6. Press the SETUP or RETURN button to exit the menu.
Viewing JPEG Files
1. Press the OPEN knob to open the disc door.
2. Hold a JPEG file disc by its edges and gently push it onto
the spindle with the label side facing up until you hear a
“click”.
3. Close the disc door. The JPEG files on the disc will be
displayed one by one automatically. If the disc does not
play automatically, press the  PLAY button on the remote
control or
button on the unit.
4. Press the MENU or STOP button to display a folder list.
Press the / button to highlight a JPEG file to play. Press the
button on the unit to start playback.
 PLAY button on the remote control or
Notes:
•
•
•
•
You can play a specific section repeatedly.
1. While the disc is playing, press the REPEAT A-B
A  ”
button at the beginning of the section (“
is displayed) you want to play repeatedly.
2. Press the REPEAT A-B button again at the end of
AB ” is displayed).
the section (“
3. The unit will immediately begin replaying your
selection.
3. While the CD is playing, press the REPEAT DISC
button until the “ Repeat Off ” indicator displays
on the screen.
E - 15
This unit can play JPEG files recorded on a CD-R or CD-ROM disc (CD-RW is not recommended).
•
Repeating a Specific Section
To Resume Normal Playback
E - 14
You can press the PAUSE button on the remote control or
button on the unit to freeze the picture. Press the
PLAY button on the remote control or
button on the unit to resume picture slide show.
You can press the STOP button to quit playback.
You can press the
PREV or
NEXT button to change the picture.
You can press the ANGLE button to rotate direction of the picture by 90°.
Some discs may not permit this operation.
E - 18
Symptom
Cause (and remedy)
No power.
• Ensure the AC power adapter is connected.
• The unit is not turned on.
The remote
control does
not function.
• Make sure the infrared remote sensor is not blocked.
• Make sure the plastic sheet has been removed from the remote control.
• Point the remote directly at the infrared remote sensor on the unit.
• Replace the battery in the remote control with a new one.
No sound or
only a very
low-level
sound is
heard.
• The volume control is located on the side of the unit – please try adjusting this.
• The system is in pause mode. Press the
PLAY button to return to normal play mode.
• The unit is in fast-forward or fast-reverse mode. Press the
PLAY button to return to
normal play mode.
• Make sure the AUDIO/VIDEO output connections are correct.
• The DTS DVD cannot be decoded to have speaker output.
• The unit is too hot; shut off the unit for 30 minutes to cool it down.
No picture.
• The region number of the disc doesn't match the region
number of this unit.
The picture is
not clear.
• Clean the disc.
• The disc is scratched.
• Adjust the LCD's brightness and contrast using the VIDEO MODE button on the remote control.
Severe hum or • The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
noise is heard. • Clean the disc.
The disc does
not play.
•
•
•
•
•
There is no disc inside (“No Disc” appears on the screen).
Insert the disc correctly with the playback side facing down.
Clean the disc.
A non-NTSC disc has been inserted. The unit and disc region number are incompatible.
Condensation may have formed inside the unit due to a sudden change in temperature.
Wait about an hour for it to clear and try again.
Need More Help?
Please visit online help at http://www.RCAav.com
Important Note
Printed in China
E - 22
811-937091W011
System
Player Menu
Audio
Subtitle
Disc Menu
Eng
Eng
Off
Eng
Go To Language Menu
Video Setup
E - 19
Troubleshooting Guide
Video
Language
- - Language Menu - -
Notes:
• Some DVDs may not play in the audio language you selected. A prior language may be programmed on the disc.
• Some DVDs may be set to display subtitles in a language other than the one you selected. A prior subtitle
language may be programmed on the disc.
• Some DVDs allow you to change subtitle selections using the disc menu only. If this is the case, press the
MENU button and choose the appropriate subtitle language from the selection on the disc menu.
• Some DVDs may not include your pre-selected language. In this case, the DVD player automatically displays
disc menus consistent with the disc's initial language setting.
1. Press the SETUP button on the remote control or MENU
button on the unit in stop mode (when disc is not playing).
2. Press the / button to select Video Menu.
3. Press the / button to select the option (Brightness or
Contrast), then press the button.
4. Press the / button to adjust the setting, then press the
ENTER button to confirm.
5. Repeat steps 3 and 4 to adjust other options. Press the
button to return to the previous menu.
6. Press the SETUP or RETURN button to exit the menu.
• Be sure to turn the unit off and disconnect the AC power adapter before cleaning the unit.
• Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has
been dipped in a weak soap-and-water solution and wrung out thoroughly, then wipe with a dry cloth.
• Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. Do NOT use compressed air to
remove dust.
• Before transporting the unit, remove the disc from the disc compartment.
E - 21
You can play a specific DVD title or chapter repeatedly (title repeat, chapter repeat, A-B repeat).
2. While the DVD is playing, press the REPEAT DISC
Title ” indicator displays on
button until the “
the screen. The current title is played repeatedly.
Note: This function can only be used for discs on which scenes shot from multiple angles have been recorded.
E - 17
System Setup
Sequence of angle shots (Example)
For a CD, you can only arrange order for tracks. The display will be a little different.
If the title or chapter number entered is not permitted by the DVD, it will disappear. You should re-enter correct
number.
You should input items one by one following the 1, 2, 3 ... sequence.
If the DVD contains only one title, you can only arrange order for chapters.
Some discs may not permit memory playback operation.
If you select repeat during memory playback, the DVD player repeats the current memory playback.
If you press the MEMORY button while the display appears on the TV screen, the display disappears.
The programmed selections will be cleared when you press the STOP button two times, open the disc tray or turn
off the DVD player.
E - 16
Customizing the Function Settings
1/3
1
Viewing JPEG Files
You can combine your favorite titles/chapters/tracks and
play them in the order you determine.
1. Press the MEMORY button while a disc is playing. The
following display appears.
Clear: Delete all input programs.
Exit: Exit memory menu and return to normal playback.
Start: Start memory playback.
Next / Prev: Move to the next / previous setup page.
•
•
•
•
•
•
Default
It takes 3-5 seconds to reset the DVD settings to the factory default.
E - 20
1. While a DVD is playing, press the SUBTITLE
button to display the current language setting,
as shown in the example.
Some DVDs contain scenes that have been shot from a number of different angles. For these discs, the same
scene can be viewed from each of these different angles.
Programmable Memory
Locating a Specific Chapter / Title
•
•
Subtitle Selection
Angle Selection
E - 13
Locating a Desired Section
•
Mono Left, Mono Right or Mix-Mono) on an
Au d i o C D b y p r e s s i n g t h e AU D I O b u t t o n
repeatedly.
Video
Language
- - Video Menu - Brightness
Contrast
Go To Video Menu
00
00
System
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
