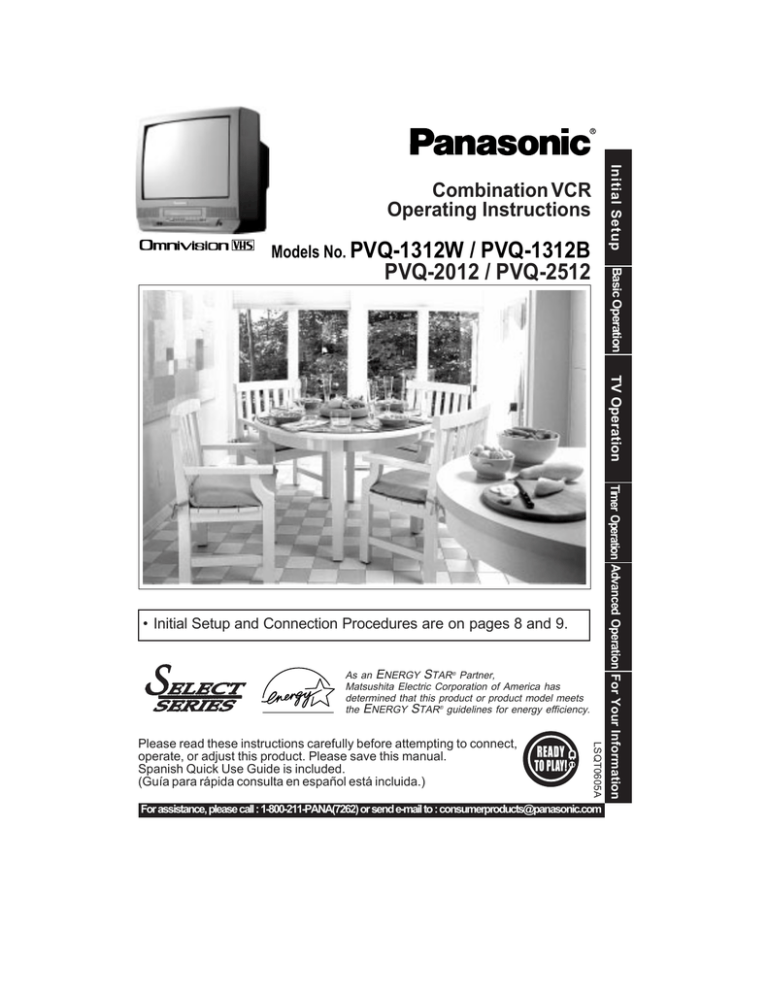

Combination VCR

Operating Instructions

Models No.

PVQ-1312W / PVQ-1312B

PVQ-2012 / PVQ-2512

• Initial Setup and Connection Procedures are on pages 8 and 9.

As an

E

NERGY

S

TAR

®

Partner,

Matsushita Electric Corporation of America has determined that this product or product model meets the

E

NERGY

S

TAR ® guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual.

Spanish Quick Use Guide is included.

(Guía para rápida consulta en español está incluida.)

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Important Safeguards and Precautions

READ AND RETAIN ALL SAFETY AND

OPERATING INSTRUCTIONS. HEED ALL

WARNINGS IN THE MANUAL AND ON UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric

Utility Service Company or Video Products Dealer verify your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug.

Always hold the plug firmly and make sure your hands are dry when plugging in or unplugging the

AC power cord. Regularly remove dust, dirt, etc.

on the plug.

POLARIZED PLUG CAUTION:

The plug fits into outlet one way. If it cannot be fully inserted, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not tamper with the plug.

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to provide some protection against built up static charges

NEC - NATIONAL

ELECTRICAL CODE

ANTENNA LEAD

IN WIRE

and voltage. Section 810 of the National Electrical Code,

ANSI/NFPA 70 (in Canada, part 1 of the Canadian

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

Electrical Code) provides

information regarding proper

POWER SERVICE

GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE

POWER LINES OR CIRCUITS

Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal.

GROUNDING PLUG CAUTION:

The plug requires a three-hole grounding outlet.

If necessary, have an electrician install the proper outlet. Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against electrical shock, fire or personal injury:

-Keep power cord away from heating appliances and walking traffic. Do not rest heavy objects on, or roll such objects over the power cord.

-Do not tamper with the cord in any way.

-An extension cord should have the same type plug (polarized or grounding) and must be securely connected.

-Overloaded wall outlets or extension cords is a fire hazard.

-Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fire hazard or heat damage to cassettes.

For your protection: a. Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless properly ventilated.

USING THE UNIT

Before unit is brought out of storage or moved to a new location, refer again to the INSTALLATION section of these safeguards.

1 KEEP UNIT WELL AWAY FROM WATER OR

MOISTURE, such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG

IMPACT, unplug unit and have it inspected by a qualified service technician before use.

3 ELECTRICAL STORMS

During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERATE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, malodors, or noises.

Immediately unplug unit, and have it inspected by a service technician to avoid potential fire and shock hazards.

• Never drop or push any object through openings in unit.

Touching internal parts may cause electric shock or fire hazard.

• Keep magnetic objects, such as speakers, away from unit to avoid electrical interference.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING UNIT

Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc.

may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

5 AVOID EXTREMELY HOT LOCATIONS OR

SUDDEN TEMPERATURE CHANGES

Do not place unit over or near a heater or regulator, in direct sunlight, etc. If unit is suddenly moved from a cold place to a warm place, moisture may condense in unit and on the tape causing damage.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or stand that is not firm, level, and adequately strong.

The unit could fall causing serious injury to a child or adult and damage to the unit.

• Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn.

• Carefully follow all operating instructions.

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF

If, after carefully following detailed operating instructions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug unit and contact a qualified service technician.

2 REPLACEMENT OF PARTS

Make sure the service technician uses only parts specified by the manufacturer, or have equal safety characteristics as original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING

After unit is serviced or repaired, request that a through safety check be done as described in the manufacturer’s service literature to insure video unit is in safe operating condition.

2

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Safety Precautions/Mesures de sécurité

Warnin

g :

To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Caution :

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Avertissement :

Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer cet appareil à la pluie ou à une humidité excessive.

Attention :

Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS equipment. Only use those tapes with the mark. It is recommended that only cassette tapes that have been tested and inspected for use in 2, 4, 6, and 8 hour

VCR machines be used. This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

FCC WARNING :

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included.

Therefore, it should be read carefully in order to avoid any problems.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance: <http://www.eiae.org.>

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below.

The serial number is on the tag located on the back of your unit.

Accessories

Remote Control

LSSQ0308

(PVQ-1312W)

LSSQ0280

(PVQ-1312B

/PVQ-2012/PVQ-2512)

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Batteries 2 “AA”

To order accessories, call toll free 1-800-332-5368.

Loading the Batteries

Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

To record again.

Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

Record

Tab

Screwdriver

Cover the hole with cellophane tape.

3

Unit Information

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Head Clog Sensor

During playback this screen appears if clogging is detected. To remove screen, press PLAY on the remote or unit.

Use “dry” type head cleaning cassette only.

(Part No. NV-TCL30PT is recommended.)

• Follow cleaning tape directions carefully.

Excessive use of head cleaning tape can shorten the video head life.

V I DEO HEADS MAY

NEED CLEAN I NG

PL EASE I NSERT HEAD

• If head clog symptoms persist, contact your nearest Factory

Service Center or authorized

CLEAN I NG CASSETTE

OR REFER TO MANUAL

Service Center. (See Page 32.)

END : PLAY KEY

Built-in Head Cleaner

Your unit is equipped with a built-in, non-chemical head cleaning system that helps prevent clogging of the video heads. Cleaning is performed each time a video cassette is loaded or unloaded.

Note: This feature is preventative only. If the video heads are seriously clogged, consider the use of a chemical non-abrasive head cleaning kit or take the unit to a Service Center.

Features for a Quality Picture

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control (to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise. Press the 3 or 6 number key on the remote control or CH on the unit until the picture clears up. To return to Auto Tracking, press

POWER off, then on again a few seconds later.

PanaBlack

TM

Picture Tube

PVQ-2512 use a PanaBlack TM picture tube for better color reproduction and picture contrast.

Specifications

Display

Picture Tube: 13 inch measured diagonal

90° deflection picture tube

(PVQ-1312W/PVQ-1312B)

20 inch measured diagonal

90° deflection picture tube

(PVQ-2012W)

25 inch measured diagonal

110° deflection Picture Tube

(PVQ-2512)

VCR

Video Recording

System:

Audio Track:

2 rotary heads helical scanning system

1 track

Tuner

Broadcast Channels: VHF 2 ~ 13, UHF 14 ~ 69

CABLE Channels: Midband A through I (14 ~ 22)

Superband J through W (23 ~ 36)

Hyperband AA ~ EEE (37 ~ 64)

Lowband A-5 ~ A-1 (95 ~ 99)

Special CABLE channel 5A(01)

Ultraband 65 ~ 94, 100 ~ 125

General

Power Source: 120 V AC, 60 Hz

Power Consumption: Power On

Approx. 69 watts

(PVQ-1312W/PVQ-1312B)

Approx. 110 watts(PVQ-2012)

Approx. 130 watts(PVQ-2512)

Power Off

Approx. 2.5 watts

Television System:

Speaker:

EIA Standard NTSC color

1 piece

Operating Temperature:

5°C ~ 40°C (41°F ~ 104°F)

Operating Humidity: 10 % ~ 75 %

Weight: 12 Kg (26.42 lbs.)

(PVQ-1312W/PVQ-1312B)

23 Kg (50.6 lbs.) (PVQ-2012)

Dimensions:

31 Kg (68.2 lbs.) (PVQ-2512)

386(W) X 385(H) X 374(D) mm

15-3/16”(W) X 15-3/16”(H) X 14-3/4”(D)

(PVQ-1312W/PVQ-1312B)

515(W) X 505(H) X 474(D) mm

20-5/16”(W) X 19-7/8”(H) X 18-11/16”(D)

(PVQ-2012)

634(W) X 590(H) X 464(D) mm

24-15/16”(W) X 23-1/4”(H) X 18-1/4”(D)

(PVQ-2512)

Note: Designs and specifications are subject to change without notice.

Record/Playback Time

Only use tapes with the mark in this unit.

DST (Daylight Saving Time)

Tape Speed

Setting

SP (Standard Play)

LP (Long Play)

Type of Video Cassette

T60

1 Hour

2 Hours

T120

2 Hour

4 Hours

T160

2 Hours

40 Minutes

5 Hours

20 Minutes

Unit auto adjusts clock for DST (Daylight Saving Time.)

Spring (First Sunday in April)

DST : ON => Sets clock ahead one hour.

Autumn (Last Sunday in October)

DST : ON => Turns clock back one hour.

SLP (Super Long Play) 3 Hours

6 Hours

8 Hours

• If your area does not observe Daylight Saving

Time, select DST:OFF.

• Keep these time changes in mind when

4

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Table of Contents

Important Safeguards and Precautions / Safety Precautions .. 2, 3

Before Using ....................................................................................... 3

Unit Information ................................................................................. 4

Table of Contents ............................................................................... 5

Location of Controls ........................................................................... 6

Connections / Initial Setup (Ready to Play) ................................. 8, 9

Reset Language, Channels, Clock, Time Zone Adjust ........... 10, 11

Playback a Tape ................................................................................ 12

Record On a Tape ............................................................................. 12

Copy Your Tapes (Dubbing) ............................................................ 13

TV Operation .................................................................................... 14

Picture Adjustment .......................................................................... 15

TV Timer Features ..................................................................... 16, 17

Closed Caption System ............................................................. 18, 19

Timer Recording ........................................................................ 20, 21

Tape Operation ........................................................................... 22~24

Special VCR Features ............................................................... 25, 26

V-Chip Control Feature ............................................................. 27~29

On-Screen Display (OSD) ................................................................ 30

Before Requesting Service .............................................................. 31

Servicenter List ................................................................................. 32

Limited Warranty .............................................................................. 33

Spanish Quick Use Guide / Guía para rápida consulta ......... 34, 35

Index .................................................................................................. BC

5

Location of Controls

Remote Control Buttons

EJECT button:

When EJECT is pressed, the tape is ejected from Cassette Compartment.

If EJECT is pressed during recording, the unit will not respond to the command.

EJECT

Ejects tape.

POWER

Turn on or off the unit.

DISPLAY

Displays the VCR status and clock.

TAPE POSITION

Finds out present tape position and amount of tape remaining.

COUNTER RESET

Resets to “0:00:00” at the desired position.

RAPID TUNE

Displays the last channel you were watching.

MUTE

Mutes the sound instantly.

VOLUME UP/DOWN

Adjusts volume.

SET/BACK SPACE

Sets a selected menu, or goes back to correct.

ACTION

Displays main menu.

STOP

Stops recording or playback.

REC

Records the program.

REWIND/SEARCH

Rewinds tape, and searches reverse scene.

NITE

Color and picture intensity level are adjusted during night time use.

SLEEP

Turns off the unit autmatically.

TRACKING UP/DOWN

Reduces picture noise during

Playback and Slow Motion.

NUMBER keys

Selects a channel directly.

ADD/DELETE

Adds or deletes a channel.

SEARCH

Goes directly to the desired recording. Locates end point of recording.

CHANNEL UP/DOWN

Selects a channel.

SELECT UP/DOWN

Control the navigation around on-screen menu.

PROGRAM

Displays SET PROGRAM screen.

You can set Timer Program and

On-Timer.

FAST FORWARD/SEARCH

Fast forwards tape, and searches forward scene.

CM/ZERO

In Stop mode, goes to the counter “0:00:00.” In Play mode, skips over 1 to 3 minutes of tape.

SPEED

Selects recording speed.

PLAY

Begins playback.

PAUSE/SLOW

Pauses and slow motion and frame advance picture.

6

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Front View of the unit and Indicators on the Front Panel

<Model PVQ-2012 unit shown>

Built-In Speaker

AUDIO VIDEO IN Jack

For dubbing.

POWER

See previous page.

VOLUME UP/DOWN

SET/BACK SPACE

See previous page.

CHANNEL UP/DOWN

TRACKING UP/DOWN

SELECT UP/DOWN

See previous page.

STOP/EJECT

See previous page.

ACTION

Press together with REW.

REWIND/SEARCH

See previous page.

ACTION

Press together with STOP.

PLAY

See previous page.

REPEAT

Repeats a recording.

FAST FORWARD/

SEARCH

See previous page.

REC

See previous page.

TIMER

Sets a timer alarm up 60.

Rear View of the Unit

<Models PVQ-1312W/PVQ-1312B unit shown>

Easy Grip-Handle

Use when transporting the unit.

PHONES Jack

Connect an earphone or headphones.

PROG TIMER

Indicator

Lights when the unit is set for

Timer Recording.

ON TIMER

Indicator

Lights when the

On-Timer is set.

REC Indicator

Lights during recording.

Remote Sensor

See above.See

previous page.

AC Power Plug

When plugged into an AC outlet, the unit consumes 2.5 W of electric power in

OFF condition.

VHF/UHF

VHF/UHF Antenna

Input Terminal

In from your Antenna or Cable.

Page 8.

7

Connections/ Initial Setup

(Ready to Play)

Please make all cable or antenna connections before plugging into

How to Connect

auto channel and clock set.

Connecting

For ANT./Cable

Connect the cable from

Antenna/Cable to the VHF/UHF terminal on the unit.

VHF/UHF

VHF/UHF

IN from

ANT./CABLE

VHF/UHF

UNIT

For DSS/Cable Box

Connect the OUT jack on your cable box to the VHF/UHF terminal on the unit with a RF cable.

VHF/UHF

Cable TV

Converter Box

WARNING:

Overtightening "Nut type" RF coaxial cables may damage jacks. Finger tighten only.

VHF/UHF

IN from

ANT./CABLE

Initial Setup (Ready to Play)

1

Plug the unit power cord into an

AC wall outlet.

2

Press Power* on the remote or unit. The unit comes on and auto channel and clock set starts.

3

Settings are made automatically. When setup is done, this screen appears.

2 / 6 / 2002 WED 12 : 00PM

DST : ON

SETT I NG : CH 1 0

AUTO CLOCK SET

COMPLETED

CH AUTO SET PROCEEDING

• If you use a cable box, turn it on and set it to the

Public Broadcasting Service (PBS) channel in your time zone. If you use a DSS reciever, it must be turned off.

If AUTO CLOCK SET IS

INCOMPLETE screen appears, set the clock using

MANUAL CLOCK SET procedure on next page.

AUTO CLOCK SET

PROCEEDING

CANCEL : PRESS STOP KEY

AUTO CLOCK SET

I S I NCOMPLETE

PLEASE SET CLOCK BY

PRESS I NG ACT I ON KEY

8

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Manual Clock Set

If AUTO CLOCK SET was incomplete, manually set the clock as follows.

1

Press ACTION on the Remote to display SET CLOCK Menu screen.

1 / /

SET CLOCK

:

DST : ON

SELE CT MONTH

SELECT :

SET :

END : ACT I ON

2

Press to select the month and press to set. In the same manner, select and set the date, year, time, and DST. (Daylight

Saving Time)

SET CLOCK

2 / 6/

:

DST : ON

SELE CT COMPLETED

SET :

END : ACT I ON

3

Press ACTION twice to start

CLOCK and exit.

Reset all unit Memory Functions

When moving unit to a new location, or if a mistake was made in the Initial Setup section.

• Make sure a tape is not inserted in the unit.

<Model PVQ-2012 unit shown>

1

2

Turn the unit

Power on.

Press and hold both PLAY and

FF on the unit for more than 5 seconds.

• The power will shut off.

• Please ignore “NO CASSETTE” warning.

3

Do “Initial Setup” on page 8.

POWER

ACTION

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

Note to CABLE System Installer

This reminder is provided to call the

CABLE (Cable TV) System Installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

9

Reset Language, Channels, Clock,

1

M A I N MENU

T V VCR LANGUAGE

Press ACTION

to display MAIN MENU.

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2

Language

1) Press to select language icon.

M A I N MENU

Channels

1) Press select “CH.”

to

M A I N MENU

Clock

1) Press to select “CLOCK.”

M A I N MENU

T V VCR LANGUAGE

T V VCR LANGUAGE

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

CANAL REL OJ

ELEG I R :

F I JAR : ACT I ON

SAL I R

For Spanish

MENU

BONJOUR

T ELE MAGNET .

LANGUE

CANAL HORLOGE SORT I E

SEL. :

REGLER : ACT I ON

For French

M A I N MENU

HELLO

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

CHANNEL CAPT I ON

WEAK S I GNAL D I SPLAY : OFF

CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET CLOCK

2) Press ACTION repeatedly.

MENU PR I NC I PAL

HO L A

VCR IDIOMA

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

For English

3) Press to select “EXIT.”

Press ACTION to exit.

SELECT :

SET :

END : ACT I ON

3) Press to select

“ANTENNA,” then

press to set your antenna system

(“TV” or “CABLE”).

4) Press to select

“AUTO SET,” then

press .

• After Channel Auto Set is finished, Clock Auto Set will be performed. (If clock is set manually, Clock Auto

Set will not be performed.)

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : 0

SELECT :

SET :

END : ACT I ON

(“TIME ZONE ADJUST” appears only when auto clock is set.)

3) Press to select

“MANUAL” or

“AUTO CLOCK

SET” and press .

• For Auto Clock Set, select “AUTO CLOCK

SET,” then press .

SET CLOCK

2 / 6/ 2002 12 00

DST : ON

SELE CT HOUR

SELECT :

SET :

END : ACT I ON

4) Press and

press to select and set the month, date, year, time, and DST (Daylight

Saving Time).

5) Press ACTION twice to start the clock and exit this mode.

10

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Time Zone Adjust

POWER

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press to select “CLOCK.”

M A I N MENU

T V VCR LANGUAGE

CLOCK

SELECT :

SET : ACT I ON

EX I T

2) Press ACTION.

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : 0

SELECT :

SET :

END : ACT I ON

3) Press to select TIME ZONE

ADJUST and

press or to subtract or add hour(s) as necessary.

SET CLOCK

AUTO CLOCK SET

MANUAL

T I ME ZONE ADJUST : +1

SELECT :

SET :

END : ACT I ON

4) Press ACTION twice to exit.

ACTION

ACTION key on the unit

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

Using keys

VOL CH

On Unit

You can operate the menu screen using unit buttons. To display the menu, press STOP/

EJECT and REW together with no tape inserted. To exit the menu, repeat above with or without tape inserted until normal screen appears.

On Remote

On Unit

: CH UP

: CH DOWN

: VOLUME UP

: VOLUME DOWN

Whenever the menu or program screen is displayed,

CHANNEL UP/DOWN function as and VOLUME UP/

DOWN function as only.

Add or Delete a Channel

To add channel:

Select channel with number keys and press ADD/DLT.

To delete channel:

Select channel with

CH or number keys and press ADD/DLT.

CHANNEL 08 ADDED

CHANNEL 08 DELE TED

11

Playback a Tape Record On a Tape

1

Ready Check List

All connections are made.

Your unit is plugged in.

Insert a cassette.

• The unit power comes on automatically.

To prevent tape jam,

remove loose or peeling labels from tapes.

2

Record tab

Press PLAY.

• Playback begins if cassette has no record tab.

Forward/Reverse scene search

=> Press FF or REW

=> PRESS again or PLAY to release.

Still (Freeze) picture

=> Press PAUSE/SLOW

=> Press PLAY to release.

Slow Motion picture

=> Hold down PAUSE/SLOW in

Still mode

=> Press PLAY to release.

Frame by Frame picture

=> Press PAUSE/SLOW in Still mode

=> Press PLAY to release.

Notes

• These features work best in SP or SLP mode.

• After the unit is in Still or Slow mode for 3 minutes, it will switch to Stop mode automatically to protect the tape and the video head.

1

Insert a cassette with record tab.

• The unit power comes on automatically.

2

Press CH

or number keys to Select Channel.

• For “LINE” input, see bottom of next page.

3

Press SPEED to select recording speed

(see page 4).

SP = Standard Play

LP = Long Play

SLP = Super Long Play

• Selected speed is displayed.

4

Press REC to start recording.

• To edit out unwanted portions, press

PAUSE/SLOW to pause and resume recording.

• You cannot view another channel during recording.

Stop => Press STOP

One Touch Recording (OTR)

Press REC repeatedly

Normal Rec to set the recording length (30 min - 4 hours).

4:00 3:00

0:30

2:00

1:00

1:30

• The unit stops recording at a preset time.

• PROG TIMER indicator lights on the unit.

Notes

• After the unit has been in Rec Pause mode for

5 minutes, it will stop automatically to protect the tape and the video head.

• The remaining recording time of an OTR can be displayed by pressing DISPLAY.

EJECT

Stop => Press STOP

Rewind tape => Press REW in Stop mode

Fast forward tape => Press FF in Stop mode

Eject tape => Press EJECT on the remote or

STOP/EJECT on the unit

You can operate on the unit

CH

Insert a cassette PLAY

REC

DISPLAY

NUMBER

Keys

PLAY

ACTION

STOP

REC

REW

TRACKING

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

FF

SPEED

VIDEO IN AUDIO IN

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

ACTION

REC ON TIMER PROG TIMER

PAUSE/

SLOW

Press to stop and/or eject tape.

REC Indicator

12

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Copy Your Tapes (Dubbing)

Connections you’ll need to make.

Recording (Editing) unit

Playing (Source) VCR

AUDIO

OUT

VIDEO

IN

IN FROM ANT.

OUT TO TV

VIDEO IN AUDIO IN

AUDIO IN

2

3

1

4

Playback (Source)

Our Vacation

Insert prerecorded tape.

Recording (Editing) unit

Insert blank tape with record tab.

• Dubbing tapes protected with Copy Guard will have poor quality results.

Select “LINE” mode.

See “Selecting Input Mode” below.

Press PLAY then

PAUSE at starting point to put in

Standby mode.

Press REC, then

PAUSE/SLOW

immediately to put in

Standby mode.

(Perform operation of steps 4 and 5 on both units at same time.)

Press PLAY

to start dubbing.

Press PAUSE/SLOW

to start dubbing.

5

STOP

Press STOP

to stop dubbing.

Press STOP

to stop dubbing.

Caution

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Selecting Input Mode

Method 1:

Press CH

. The display will change as follows.

1 2 3

Method 2:

LINE

(CABLE)

125 or

a Press ACTION for MAIN MENU.

(TV)

69

b Press

to select “TV”, then press

ACTION for SET UP TV screen.

c Press

to select “INPUT SELECT,” and then press to select “TUNER” or “LINE.”

d Press ACTION twice to exit this mode.

13

TV Operation

1

Press POWER on the remote or unit.

2

0 8

ABC

Use CH or

number keys to select a channel.

Ready Check List

All connections are made.

Your unit is plugged in.

<Model PVQ-2012 unit shown>

3

24

Press VOL + or VOL

- to adjust volume.

NIGHT (NITE) Mode

Color and picture intensity levels are adjusted so the screen is easier on your eyes during night time use.

N I GHT

Press NITE to set

NIGHT mode.

• NIGHT mode may be selected when watching TV or playing a tape.

Press NITE to cancel.

• Previous settings are restored.

• NIGHT mode is canceled when power is turned off or power failure occurs.

VOL + / VOL-

PLAY/

REPEAT

VIDEO IN AUDIO IN

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

ACTION

REC ON TIMER PROG TIMER

CH

POWER

PHONES

Jack

Using the 100 key

When selecting CABLE channels 100 to 125 with the number keys, first press the 100 key, and then enter the remaining two digits.

Rapid Tune

Press R-TUNE to display the last channel you were watching.

Audio Mute

Press MUTE to instantly mute the sound. Press again to restore the previous sound level.

Phones

Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack.

14

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Picture Adjustment

1

Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

POWER

100 Key

RAPID

TUNE

MUTE

VOL UP/

DOWN

ACTION

Picture Adjustment

COLOR Control

Adjust color intensity.

TINT Control

Adjust for natural flesh tones.

BRIGHTNESS Control

Adjust picture brightness.

PICTURE Control

Adjust picture intensity by adjusting both contrast and color level in the proper balance.

SHARPNESS Control

Adjust picture sharpness.

NITE

NUMBER

Keys

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

SELECT :

SET :

END : ACT I ON

CH UP/

DOWN

1) Press to select

VIDEO ADJUST.

2) Press to display screen.

4

COLOR

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NORMAL

SELECT :

ADJUST :

END : ACT I ON

1) Press to select an adjustment item.

(See below left.)

2) Press to adjust.

COLOR

T I NT

BR I GHTNESS

P I CTURE

SHARPNESS

NORMAL

SELECT :

SET :

END : ACT I ON

To Reset Picture

Controls.

Press

and to select and set

“NORMAL.”

All controls return to their factory settings.

5

Press ACTION three times to exit.

15

TV Timer Features

ON-TIMER with Alarm

This unit can be set to automatically power on in one of 2 modes (TV, Playback).

You can also combine the On-Timer with a one minute alarm that gradually increases in volume.

1

Press PROG to display SET PROGRAM screen.

2

SET PROGRAM

T I MER PROGRAMMING

ON TIMER

1) Press to select

“ON TIMER.”

2) Press to display

ON TIMER screen.

SELECT :

SET :

END : PROG

Ready Check List

The clock is set to correct time.

<Model PVQ-2012 unit shown>

3

ON T I MER

6:--AM CH --

ALARM : ON

SELE CT HOUR

SELECT :

SET :

END : PROG

• ON-TIMER mode selection order

CH01

CH02 CH03

PLAY

CH125

1) Press to select desired settings.

2) Press to set the

ON-TIMER TIME or

ON-TIMER mode.

• Make sure a tape is inserted if Playback mode is selected.

4

ON T I MER

6:00AM CH08

ALARM : ON ABC

SELE CT ALARM

CANCEL : ADD / DLT

SELECT :

SET :

END : PROG

Press

to select

ALARM “ON” or

“OFF.”

When “ON” is selected,

an alarm will gradually increase in volume for one minute or until canceled by pressing any button

(including VOL + -).

To Make Corrections,

use and to move back and correct.

VIDEO IN AUDIO IN

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

ACTION

REC ON TIMER PROG TIMER

CH

TIMER

ON TIMER indicator

5

Press PROG to set ON TIMER.

• “ON TIMER SET” is displayed.

• ON TIMER Indicator lights on the unit.

To Cancel ON-TIMER set,

Repeat steps 1 and 2. Then, press ADD/DLT to clear the time in step 3. Now, press PROG to end.

“ON TIMER END” briefly appears on-screen.

16

Note

If no button on the remote or unit

(including a button used to turn off the alarm) is pressed within 60 minutes after unit turns itself on, it will turn itself back off.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

SLEEP

DISPLAY

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

SLEEP

Sleep Timer

This unit can be set for auto power off.

Press SLEEP repeatedly to set SLEEP TIMER.

Pressing DISPLAY with sleep timer set displays remaining time.

Press SLEEP repeatedly until “SLEEP TIMER 00” appears to cancel.

SLEEP TIMER 30

SLEEP TIMER 60

SLEEP TIMER 90

SLEEP TIMER 00

1:00 (one minute)

2:00

3:00 one-minute increase until 10:00

9:00

10:00

15:00

20:00

25:00 five-minute increase until 30:00

30:00

40:00

50:00 ten-minute increase until 60:00

60:00 (Max)

Note

• While timer function is in progress, you can change channels on the unit with CH while “CANCEL/SET” screen is not displayed.

Instant Alarm

You can set a timer alarm up to 60 min. Useful when you are cooking, etc.

1

Press TIMER on the unit to display the instant alarm CANCEL/SET screen.

2

5 : 20PM

Press CH on the unit with CANCEL/SET screen displayed to set alarm.

(Time changes in the order shown left.)

CANCEL : ADD / DLT 02 : 00

SET : CH KEY ON UN I T

Remaining Time

• Pressing TIMER repeatedly on the unit will change display as follows.

To cancel, press TIMER then press ADD/DLT on the remote while CANCEL/SET screen is displayed.

To increase timer in progress, repeat step 2. Time will be rounded up to next 1, 5, or 10 minute interval.

(See chart left.)

<Example>

• If current time remaining is 12:15, countdown will restart from 15:00.

• If current time remaining is 9:15, countdown will restart from 10:00.

3

Alarm will sound at 0: 00.

Press any button to stop

• The volume of the alarm gradually increases for one minute and then continues to beep until any button is pressed.

17

Closed Caption System

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to everyone.

Closed Caption Mode Feature

1

Press ACTION

to display MAIN MENU.

2

T V

M A I N MENU

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP

TV screen.

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

SELECT :

SET :

END : ACT I ON

1) Press to select “

CAPTION

”.

2) Press to display

CAPTION screen.

4

CAPT I ON

CAPT I ON MODE : CAP C1

CC ON MUTE : CAP C1

SELECT :

SET :

END : ACT I ON

TEXT C2

OFF CAP C1

TEXT C1

CAP C2

1) Press to select CAPTION

MODE.

2) Press repeatedly to select mode.

(See left.)

5

Press ACTION three times to return to the normal screen.

Closed Caption Mode

Selections

Caption Mode: CAP C1 or C2

A narration of selected TV programs is displayed.

Check TV program listings for

CC(Closed Caption) broadcasts.

Caption Mode: TEXT C1 or

C2

The lower half of the screen will be blocked out. When the

TV station broadcasts information, such as program listings, it will appear in this space.

Caption Mode: OFF

Closed Caption / Text narration will not be displayed.

NOTE :

The closed caption or text signal may be broadcast over

C1, C2, or both. Also, text contents can vary so you may wish to try different settings.

Recording and Playing Back a Closed Caption/Text Program

Record:

Record normally.

Closed Caption/ Text signal, if present, is recorded automatically.

Playback: Start playback. Do above steps to select desired caption mode.

18

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

MUTE

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

Caption On Mute Feature

Closed Caption narration, if available, is displayed when MUTE button is pressed for silence.

1 Press ACTION to display MAIN MENU.

2

T V

M A I N MENU

VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

SELECT :

SET :

END : ACT I ON

1) Press to select “CAPTION”.

2) Press to display

CAPTION screen.

4

CAPT I ON

CAPT I ON MODE : OFF

CC ON MUTE : CAP C1

SELECT :

SET :

END : ACT I ON

1) Press to select CAPTION

MODE.

2) Press repeatedly to select “OFF.”

5

NO CAP C1

CAP C2

1) Press to select

CC ON MUTE.

2) Press repeatedly to select desired mode.

• Each press of will change the display as shown left.

• The caption may be broadcast over CAP C1 or C2.

6

Press ACTION three times to return to the normal screen.

7

Press MUTE to mute the sound and display closed captioning.

• To cancel, press MUTE again.

19

Timer Recording

You can set up to 8 programs to be recorded while you are away.

1

2

Press PROG to display SET PROGRAM screen.

SET PROGRAM

T I MER PROGRAMMING

ON TIMER

SELECT :

SET :

END : PROG

1) Press to select

TIMER

PROGRAMMING

.

2) Press to display screen

.

• If a program is already in memory, press , and

to select an unused program number.

3

DATE START STOP CH

7 FR I --:-- --:-- --

TODAY

SLP

- - - - - - - - -- - - - - - - -- - - - - - -

SELE CT START DATE

SELECT :

SET :

END : PROG / ACT I ON

Press

to select and or to set the recording DATE.

• 1~31 = One time

• DAILY = MON~FRI

• WEEKLY SUN~SAT

= Same time once a week

Example

Today’s

Date

7

8 9

31 1

2

SELECT / Selection Order

6

WEEKLY

(SAT)

WEEKLY

(MON)

WEEKLY

(SUN)

DAILY

Repeat step 3 to set:

• start time, stop time

• Channel (or LINE for outside source)

• Speed (SP, LP, SLP)

Ready Check List

All connections are made.

Your unit is plugged in.

The clock is set to correct time.

The tape is long enough.

The record tab is in place.

<Model PVQ-2012 unit shown>

VIDEO IN AUDIO IN

POWER VOL

ACTION

REC ON TIMER PROG TIMER

PROG TIMER indicator

Timer Recording Using unit Buttons

You can set a Timer Recording using ACTION key on the unit.

(See page 11.)

4

P DT START STOP CH SPD

1 day 00 p 12 : 00 08

2 -- -- : -- -- : -- -- --

3 -- -- : -- -- : -- -- --

4 -- -- : -- -- : -- -- --

CANCEL : ADD / DLT

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

Press PROG (or

ACTION) to end the program.

To Enter More Programs, press

to select and to set a blank program number, and then repeat step 3.

5

Press PROG twice (or ACTION) to exit this mode.

• If you’re using a cable box, make sure that it is tuned to the desired channel and the power is left on for timer recording.

• PROG TIMER indicator lights on the unit.

Press STOP/EJECT and REW

together without a tape inserted to display MAIN MENU.

Press + - to select “VCR” and STOP/EJECT and REW together to display SET UP

VCR screen.

Press to select “TIMER

PROGRAM” and + to display the TIMER PROGRAM screen.

Repeat main steps 3 ~ 5.

20

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Cancel a Timer Recording:

(Recording is in progress)

Hold down STOP for a few seconds to cancel the Timer Recording.

• Any future daily or weekly recordings will be performed as programmed.

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

PROG

STOP

Review, Replace or Clear Program

Contents :

(Recording is not in progress)

1

2

Repeat steps 1 and 2 on page 20.

P DT START STOP CH SPD

1 day 9 : 00p 12 : 00a 08 SP

2 8 10 : 00a 12 : 00p 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

CANCEL : ADD / DLT

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

Press

to select the desired program.

3

To Replace program...

DATE START STOP CH

8 SAT 9:00P 12: 00A 08

TODAY ABC

SP

----------------------------------------------

SELE CT START DATE

SELECT :

SET :

END : PROG / ACT I ON

1) Press to display.

2) Press to select and press or to set new program contents.

3) Press PROG (or

ACTION).

To Clear program...

Press ADD/DLT.

P DT START STOP CH SPD

1 -- -- : -- -- : -- -- --

2 8 10 : 00p 12 : 00a 125 SP

3 10 8 : 00p 9 : 00p 10 SP

4 SU 9 : 00p 10 : 00p L LP

SELECT 1 - 8 :

ENTER :

END : PROG / ACT I ON

4

Press PROG twice (or ACTION) to exit this mode.

Notes

• 2 minutes before Timer recording is performed,

“PLEASE PREPARE FOR TIMER REC” appears and/ or the PROG TIMER Indicator flashes. Be sure a cassette with record tab is loaded and the unit is in

Stop mode.

• If the start times of two programs overlap, the lower numbered program will have priority.

• If the start time for a Timer Recording comes up during a normal recording or One Touch Recording (page 12), the Timer Recording will not be performed.

• If there is a power interruption of more than one minute, the recording may not be performed or continued.

• If “INCOMPLETE” appears after all items have been set, check all entries and make necessary corrections.

21

Tape Operation

Search System is ...

Each time a recording is made, an invisible index mark is placed on the tape.

When timer recordings are made, program index and information are also included.

These index marks can be used to access or scan recordings.

Index Search

Go directly to the desired recording.

1

I NDEX SEARCH

ENTER I NDEX NUMBER : 1

US I NG 1- 9 KEYS

FORWARD SEARCH : FF

REVERSE SEARCH : REW

NEXT : SEARCH

EX I T : STOP

Press SEARCH in

Playback or Stop mode to display

INDEX SEARCH screen.

Program End Search

Locates end point of recording for continuity.

1

2

Press SEARCH twice in Playback or Stop mode to display

.

PROGRAM END SEARCH screen

PROGRAM END SEARCH

Press FF to start search.

SEARCH START : FF

2

3

I NDEX SEARCH 3

I NDEX SEARCH

I NDEX SEARCH

FORWARD SEARCH : FF

REVERSE SEARCH : REW

Press number

keys to select the recording number.

• To calculate number, see below.

To calculate the Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

EX I T : SEARCH

Press FF or REW to start search.

• Play begins at search end. To search forward or back 1 index, press FF or

REW while screen left in displayed (10 seconds).

Example of Program End Search operation.

Fig.1

Program 1

PLAYBACK DIRECTION

Program 2 or BLANK

Press SEARCH button

FF

Fig.2

Program 1

BLANK

End Point

Program 2

BLANK

Press SEARCH button

Fig.3

If search exceeds a few seconds in BLANK area.

Press SEARCH button

Program 1

BLANK

Program 2

FF

FF

End Point

End Point

1 2 3 4 5 6

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

7

Upon locating end point...

The unit searches slightly past end point, reverse searches, and plays the last few seconds of the program, then stops.

1 2 3 4 5 6 7

NOTE: indicates start points of each recording.

Press SEARCH button

Notes

• Make each entry within 10 seconds, or the Index

Search mode will be canceled.

• If Index Search is started very close to an index mark, that index mark may not be counted in the search.

Notes

• If Program End Search is started very close to an index mark, that mark may be skipped over.

• To cancel, press PLAY or STOP.

22

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

<Model PVQ-2012 unit shown>

Auto Operation Functions

Auto Shut Off

No broadcast signal in TV, blank tape is

Played for 5 minutes

=> Power turns off

• This feature is canceled if any button is pressed during above mode.

Auto Playback

Insert a tape in Power off mode

=> Power turns on

• Playback begins if tape has no record tab.

Auto Rewind

Tape reaches its end

=> Rewind => Stop

Playback Auto Eject

(Repeat Play is “OFF”)

Tape with no record tab reaches its end

Rewind => Stop => Eject

VIDEO IN AUDIO IN

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

REC ON TIMER PROG TIMER

ACTION

FF

REW

TAPE

POSITION

NUMBER

Keys

SEARCH

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

FF

REW

Tape Position Display

To find out present tape position and amount of tape remaining.

Tape position cannot be detected for

C-Cassettes, tapes under 30 minutes, and some other tapes.

1

Press TAPE POSITION to detect current tape position.

DETECT I NG TAPE POS I T I ON

• “DETECTING TAPE POSITION” is displayed only when a cassette is first inserted and it takes several seconds for correct tape position to appear.

• The present tape position indication and amount of tape remaining (according to tape speed) is displayed.

• Tape remaining time display may not be precise.

BEG I N END

SLP

R 120 MIN.

2

Press TAPE POSITION (or wait 5 seconds) to return to normal screen.

Note

• This function cannot display exact amount of tape remaining for tapes 30 minutes or less, or for tapes over 120 minutes in length.

23

Tape Operation

(continued)

Zero Search

To quickly return to a specific tape counter location.

1

Press DISPLAY during playback to display the Counter.

2

0 : 00 : 00

Press COUNTER

RESET at the desired position to reset to “0:00:00.”

BEG I N END

3

4

5

Continue playback, rewind, or fast forward.

Press STOP.

1 : 23 : 45

Press CM/ZERO

in stop mode to start ZERO

SEARCH.

• : Present position mark

: Zero position mark BEG I N END

• Unit goes into FF or REW mode and stops at the last point the Counter was set to 0:00:00.

Note

• If a blank portion exists on the tape, and depending on the position of the mark, the

mark display may be out of position.

Repeat Play

Set to see a recording over and over.

1

Press ACTION to display

MAIN MENU.

2

M A I N MENU

T V VCR

LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press to select “VCR.”

2) Press

ACTION to display SET

UP VCR screen.

3

SET UP VCR

REPEAT PLAY : OFF

T I MER PROGRAMMING

SELECT :

SET :

END : ACT I ON

1) Press to select

“REPEAT

PLAY.”

2) Press to set REPEAT

PLAY “ON” or

“OFF.”

4

Press ACTION twice to end setup.

Notes

• Playback repeats when tape end is reached or unrecorded portion over 30 seconds is detected.

• During playback, you may also press PLAY/

REPEAT repeatedly on the unit to select

REPEAT “ON” or “OFF.”

Commercial Skip

By pressing the CM/ZERO button in Playback mode you can skip over 1 to 3 minutes of recorded tape in just a few seconds.

1

Press CM/ZERO repeatedly to select skip time in Play mode.

• No indication appears.

24

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Special VCR Features

DISPLAY

COUNTER

RESET

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

CM/ZERO

ACTION

<Model PVQ-2012 unit shown>

VIDEO IN AUDIO IN

POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC TIMER/FM

ACTION

REC ON TIMER PROG TIMER

REC

Weak Signal Display ON/OFF

When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent.

1

2

Press ACTION to display MAIN

MENU.

M A I N MENU

T V

C H

VCR

CLOCK

LANGUAGE

SELECT :

SET : ACT I ON

EX I T

1) Press to select “CH.”

2) Press ACTION to display SET

UP CHANNEL screen.

3

SET UP CHANNEL

ANTENNA : CABLE

AUTO SET

CHANNEL CAPT I ON

WEAK S I GNAL D I SPLAY : OFF

SELECT :

SET :

END : ACT I ON

1) Press to select WEAK

SIGNAL

DISPLAY .

2) Press to set

“ON” or “OFF.”

Notes

• “ON” = Picture is displayed regardless of signal condition, and may not always be clearly visible.

“OFF” = Screen turns solid blue when signal is absent or weak.

• If unit is connected to equipment which has blue back feature, selecting “ON” will have no effect on the other equipment.

4

Press ACTION twice to return to the normal screen.

VCR Lock

All operations are prohibited except Timer recording and tape eject. Useful for families with small children.

VCR LOCK ACT I VATED

VCR LOCK OFF

In stop mode, hold

down REC on the unit without a cassette inserted for 7 seconds to turn “ON.” Please ignore NO CASSETTE warning.

Repeat above with or without cassette to turn “OFF.”

• VCR Lock is canceled automatically

• after about 24 hours if clock is set.

Auto power on

is not prohibited when

VCR Lock is activated.

25

Special VCR Features

(continued)

Channel Caption is ...

Station names, e.g. ABC, TNN, etc. are set so they will appear when a channel is selected. Choose 24 preset names.

Preset Caption

1

Press ACTION to display MAIN MENU.

2

M A I N MENU

T V

C H

VCR

CLOCK

SELECT :

SET : ACT I ON

LANGUAGE

EX I T

1) Press to select “CH.”

2) Press ACTION to display SET

UP CHANNEL screen.

SET UP CHANNEL

3

ANTENNA : CABLE

AUTO SET

CHANNEL CAPT I ON

WEAK S I GNAL D I SPLAY : OFF

SELECT :

SET :

END : ACT I ON

1) Press to select CHANNEL

CAPTION.

2) Press to display screen.

4

PRESET CAPT I ON

ABC

CBS

FOX

NBC

- -

- -

- -

- -

PBS

CNN

ESPN

HBO

- -

- -

- -

- -

SELECT :

SET :

END : ACT I ON

PRESET CAPT I ON

TNT

UPN

WB

DSC

4 2

- -

3 5

- -

CBC

CTV

TSN

GLOB

6 2

2 1

5 2

1 2 3

CLEAR : ADD / DLT KEY

SELECT :

SET :

END : ACT I ON

1) Press to select a station.

2) Press to move cursor to the right.

3) Press to select channel number.

4) Press to set preset captions.

• Repeat step 4 until the

Caption List is complete.

To Make Corrections

Press , then to select channel number.

Press to change, or ADD/DLT to delete.

5

Press ACTION four times to end setup.

ACTION

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

26

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

V-Chip Control Feature

Process of V-Chip Control

Setup

Blocking

V-Chip Control Feature is...

This unit has a built-in V-Chip Control which allows you to block unwanted TV usage based on US

MOVIES and US TV PROGRAMS Ratings.

Enter Secret Code

A 4-digit code must be entered to view a blocked program or change rating settings.

1

Press ACTION to display MAIN MENU.

2

M A I N MENU

T V VCR LANGUAGE

C H CLOCK

SELECT :

SET : ACT I ON

EX I T

1) Press select “TV.”

to

2) Press ACTION to display SET UP TV screen.

NUMBER Keys

ADD/DLT

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

3

SET UP TV

LOCK

CAPT I ON

I NPUT SELECT : TUNER

V I DEO ADJUST

SELECT :

SET :

END : ACT I ON

1) Press to select

LOCK.

2) Press to display screen.

ACTION

4

LOCK

ENTER 4-D I G I T CODE

---

1) Press number

keys to enter your secret code.

2) Enter same code again for confirmation.

ENTER : 0

-

9

END : ACT I ON

To Make Corrections

Press repeatedly to move the cursor. Press number keys to make the correction.

• Step 2) not necessary when changing rating or secret code.

• Take care that you are not observed entering the secret code.

5

LOCK

CONF I RM 4-D I G I T CODE

****

RECOGN I ZED

CHANGE CODE : ADD / DLT

CONT I NUE :

END : ACT I ON

Press to display US

Ratings menu

(see page 28).

Or

Press ACTION

three times to exit.

Changing your secret code

• You will need your current code. Do steps 1 ~ 4. In step

5, press ADD/DLT to clear current code. Repeat steps 4 and 5 to enter new code.

Notes

• DO NOT forget your secret code.

• Once ratings are set, restricted tapes or programs cannot be accessed unless the secret code is entered.

27

V-Chip Control Feature

(continued)

If LOCK menu is not displayed, do

“Enter Secret Code” steps on page 27.

Setup US MOVIES Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select US

MOVIES.

2) Press to set

“ON” or “OFF.”

“ON” = > V-Chip Control is activated.

“OFF” = > V-Chip Control is deactivated.

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing Canadian tapes or broadcasts.

Process of V-Chip Control Feature

Enter Code Setup Blocking

Setup US TV PROGRAMS Ratings

1

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select US TV

PROGRAMS.

2) Press to set

“ON” or “OFF.”

“ON” = > V-Chip Control is activated.

“OFF” = > V-Chip Control is deactivated.

Note

• “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing

Canadian tapes or broadcasts.

2

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

2

LOCK

US MOVIES : OFF

CHANGE SETT I NGS

US TV PROGRAMS : OFF

CHANGE SETT I NGS

NEXT PAGE

SELECT :

SET :

END : ACT I ON

1) Press to select

CHANGE

SETTINGS.

2) Press to display screen.

3

V I EW NR PROGRAMS? : YES

G

UNLOCKED

PG

PG-13

R

NC-17

X

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some movies, such as old movies or foreign movies usually have no ratings.

3

V I EW NR PROGRAMS? : YES

TV-Y

TV-Y7 FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

V S L D

V S L D

V S L

CONTA I NS NO RAT I NG

SELECT : SET :

END : ACT I ON

1) Press to select

VIEW NR

PROGRAMS?.

2) Press to set

“YES” or “NO.”

NR (Not Rated) PROGRAMS

Some TV shows, such as news, sports, weather, bulletins, emergency information usually have no ratings.

4

V I EW NR PROGRAMS? : YES

G UNLOCKED

PG

PG-13

R

NC-17

X

GENERAL AUD I ENCE

SELECT : SET :

END : ACT I ON

Press

to select and to set ratings to be blocked.

(See ratings chart next page.)

4

V I EW NR PROGRAMS? : YES

TV-Y

TV-Y7

FV

UNLOCKED

TV-G

TV-PG

TV-1 4

TV-MA

V S L D

V S L D

V S L

FOR ALL CH I LDREN

SELECT : SET :

END : ACT I ON

Press to select and to set ratings to be blocked.

(See ratings charts next page.)

Note

5

Press ACTION to redisplay LOCK menu and continue with US TV

PROGRAMS Ratings Setup (this page).

• You may select from standard TV ratings

(chart 1), or customize to a specific content rating

(chart 2).

• Ratings highlighted in Green will be blocked. Ratings in white letters will not be blocked.

Or, press ACTION four times to exit.

5

Press ACTION four times to exit this mode.

28

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Process of V-Chip Control Feature

Enter Code Setup

Blocking

Blocking Message

<When V-Chip Control is activated>

RAT I NG : PG-1 3

ACCESS CODE ----

ENTER : 0-9

ABC

PROGRAM RAT I NG EXCEEDED

• If a program or movie exceeds the ratings you have set, a message will appear on a black background and sound is muted.

To View a Blocked Program / Movie

[Temporarily Deactivate V-Chip Control]

Enter your secret code (ACCESS CODE) in the Blocking Message screen.

• V-Chip Control is reactivated when power is turned off or power failure occurs.

[Deactivate V-Chip Control]

Enter your secret code (steps 1-4 page 27).

Then, set US MOVIES and/or US TV

PROGRAMS to “OFF” using and keys. (Ratings set on page 28 is retained and will be in effect when V-Chip Control is activated again.)

DISPLAY

SELECT/SET

:CH UP

:CH DOWN

:VOL UP

:VOL DOWN

ACTION

US MOVIES RATINGS

G

PG

PG-13

R

NC-17

X

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

Some material may not be suitable for children.

PARENTS CAUTIONED:

Some material may be inappropriate for children under 13.

RESTRICTED:

Children under 17 must be accompanied by a parent or adult.

OVER AGE 17 ONLY:

No one 17 and under admitted.

ADULTS ONLY:

US TV PROGRAMS RATINGS:Chart 1

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

FOR ALL CHILDREN:

Content specifically geared to young viewers ages 2-6.

FOR AGE 7 AND OLDER:

May contain mild physical or comedic violence which may frighten children under 7.

GENERAL AUDIENCE:

Contains little or no violence, strong language, or sexual dialogue or situations.

PARENTAL GUIDANCE:

May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

PARENTS CAUTIONED:

May contain sophisticated themes, sexual situations, strong language, and more intense violence.

MATURE AUDIENCE:

May contain mature themes, profane language, graphic violence, and sexual situations.

FV

V

S

L

D

US TV PROGRAMS RATINGS: Chart 2

Fantasy Violence

Violence

Sexual Situations

Adult Language

Sexually Suggestive Dialogue

29

On-Screen Display (OSD)

VCR Status & Clock Display

Press DISPLAY

to display or remove the overlay.

Channel Caption

(See page 26.)

Function Status

Current Time

Counter

Rec Time

Remaining

(OTR mode only, see page 12.)

REC 1 2 : 0 0PM

0 : 25

ABC

-0 : 1 2 : 3 4

SP

Blue Screen Display

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with the

Weak Signal Display set to “OFF” (see page 25), the screen will turn solid blue.

Channel & Function Display

When a function button is pressed (PLAY,

FF, etc.) or you change channels, the unit mode or channel number will be displayed.

(Some station names may also appear if

Channel Caption is set. See page 26.)

0 8

ABC

Tape Speed

Warning and Instruction Displays

OSD

PLEASE SET CLOCK BEFORE

PROGRAMMING

These displays will alert you to a missed operation or provide further instructions.

Page

Caution

• If you attempt to set or review a Timer Recording, or set the On-Timer and the Clock is not set...

8 - 11

CHECK CASSETTE RECORD TAB

• If you press REC, and a cassette is inserted with no record tab...

3, 12

TO CANCEL TIMER REC HOLD DOWN

STOP KEY FOR APPROX 3 SEC

• If you press STOP during a Timer Recording...

21

NO CASSETTE

PLEASE INSERT A CASSETTE

• If you press PLAY, FF, REW, or REC without a cassette inserted...

12

PLEASE PREPARE FOR TIMER REC

VIDEO HEADS MAY NEED CLEANING

PLEASE INSERT HEAD CLEANING

CASSETTE OR REFER TO MANUAL

END: PLAY KEY

VCR LOCK ACTIVATED

• If the unit is not in Stop mode or a cassette with record tab is not inserted two minutes before a

Timer Recording is about to begin...

• If head cleaning becomes necessary while playing back a tape...

• If you press a function button other than STOP/EJECT or POWER while the unit is in VCR Lock mode...

20, 21

4

25

30

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

Power

No power…

Correction

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

Monitor

No picture or sound...

Poor picture with normal sound...

Poor sound with normal picture...

Poor TV reception...

No color or poor color...

Ghost (multiple) images...

TV programs cannot be watched...

Channel cannot be selected...

Correction

• Make sure your antenna system (TV or CABLE), is correctly set. (P. 8)

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP TV menu. (P. 15)

• Adjust VOLUME control. (P. 14)

• Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P. 15)

• Adjust TINT and COLOR controls in the SET UP TV menu. (P. 15)

• Install a directional antenna.

• Make sure the selected channel is in unit’s memory. (P. 10, 11)

• Only the channel being recorded can be viewed on this unit.

VCR

TV program cannot be recorded...

Timer recording cannot be performed…

No playback picture, or the playback picture is noisy or contains streaks...

VCR cannot be controlled...

Correction

• Make sure your antenna system (TV or CABLE), is correctly set. (P. 8)

• Make sure cassette record tab is intact. (P.3)

• Check that clock is set to current time and date.

• Make sure DSS/CABLE box (if used) is left on and tuned to channel to be recorded.

• Set recording Start/Stop times correctly. (P. 20-21)

• Timer recording may not be performed or continued if a power interruption of more than 1 minute occurs before or during a Timer recording even after power is restored.

• Adjust TRACKING control in either direction. (P. 4)

• Try Head Cleaning. (P. 4)

• Make sure VCR LOCK is set to off. (P. 25)

• Make sure unit is not in a Timer Record operation.

Remote Control

Unit cannot be controlled...

Correction

• Aim remote at remote sensor on unit (P. 7) so that signal is unobstructed.

• Inspect the remote batteries. (P. 3)

• Make sure VCR LOCK is set to off. (P. 25)

• Exposing unit remote sensor to direct fluorescent or outdoor light may cause signal interference.

• Check remote batteries.

ACTION, PROG and FM/TV buttons cannot be selected...

Miscellaneous

Video cassette cannot be inserted...

Video cassette cannot be removed...

Tape cannot be ejected or inserted...

Video cassette ejects when a recording is started, or the power is turned off for timer recording...

In Stop mode, the VCR motor

(CYLINDER) continues to rotate...

VCR cannot be controlled...

Correction

• Insert the cassette window side up; record tab facing you.

• Completely insert Power Plug into an AC outlet.

• Try ejecting or inserting the tape again after turning POWER off, then back on.

• Make sure cassette record tab is intact. (P. 3)

• To enable Quick Play mechanism, the VCR cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode and from Play to Rewind Search mode.

• Make sure VCR LOCK is set to off. (P. 25)

If you cannot resolve the problem, please call the Customer Satisfaction Center for product assistance at 1-800-211-PANA(7262).

To locate an authorized servicenter call toll free 1-800-211-PANA(7262) or send e-mail to : [email protected]

31

Service Center List

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquires please contact:

1-800-211-PANA(7262)

,

Monday-Friday 9am-9pm Saturday-Sunday 9am-7pm, EST.

or send e-mail : [email protected]

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST)

(Visa, Master Card, Discover Card, American Express, Check)

Factory Servicenter Locations

CALIFORNIA

6550 Katella Avenue

Cypress, CA 90630

800 Dubuque Avenue

S. San Francisco,

CA 94080

3878 Ruffin Road

Suite A

San Diego, CA 92123

FLORIDA

3700 North 29th Avenue

Suite 102

Hollywood, FL 33020

GEORGIA

8655 Roswell Road

Suite 100

Atlanta, GA 30350

ILLINOIS

1709 North Randall Road

Elgin, IL 60123

MASSACHUSETTS

60 Glacier Drive,

Suite G

Westwood, MA 02090

MINNESOTA

7850-12th Avenue South

Airport Business Center

Bloomington, MN 55425

OHIO

2236 Waycross Road

Civic Center Plaza

Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Blvd. West

Suite B

Langhorne, PA 19047

TEXAS

13615 Welch Road

Suite 101

Farmers Branch,

TX 75244

WASHINGTON

20425-84th Avenue

South

Kent, WA 98032

HAWAII

99-859 Iwaiwa Street

Aiea, Hawaii 96701

Phone (808) 488-1996

Fax (808) 486-4369

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:

Ave. 65 de Infanteria. Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Phone (787) 750-4300 Fax (787) 768-2910

As of June 2001

32

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

Limited Warranty

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America, One Panasonic Way

Secaucus, New Jersey 07094

Panasonic Sales Company,

Division of Matsushita Electric of Puerto Rico, Inc.

AVE. 65 de Infantería, Km. 9.5 San Gabriel

Industrial Park Carolina, Puerto Rico 00985

PANASONIC/QUASAR Video Products

Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the

Warrantor”) will repair or replace this product with new or refurbished parts or equivalent product, free of charge, in the USA or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of the original purchase):

PRODUCT

CAMCORDER

DVD/VCR DECK

DIGITAL STILL

CAMERA

PARTS

ONE (1) YEAR, EXCEPT

CCD IMAGE SENSOR

CCD IMAGE SENSOR

- SIX (6) MONTHS

ONE (1) YEAR

ONE (1) YEAR, EXCEPT

CCD IMAGE SENSOR

CCD IMAGE SENSOR

- SIX (6) MONTHS

ONE (1) YEAR A/V MIXER

TV/VCR, TV/DVD

TV/DVD/VCR

COMBINATION

ONE (1) YEAR,

EXCEPT CRT

CRT - TWO (2) YEARS

LABOR

NINETY (90) DAYS

NINETY (90) DAYS

NINETY (90) DAYS

NINETY (90) DAYS

SERVICE

Carry-In or Mail-In

Carry-In or Mail-In

Carry-In or Mail-In

CONTACT NUMBER

1-800-211-PANA(7262)

1-800-211-PANA(7262)

1-800-272-7033

NINETY (90) DAYS

NINETY (90) DAYS

NINETY (90) DAYS

CRT - NINETY (90) DAYS

Carry-In or Mail-In 1-800-211-PANA(7262)

Carry-In: 21” CRT and

Smaller

In-Home or Carry-In:

22” CRT and Larger

In-Home or Carry-In

1-800-211-PANA(7262)

1-888-843-9788 TV/HDR

COMBINATION

ONE (1) YEAR,

EXCEPT CRT

CRT - TWO (2) YEARS

NINETY (90) DAYS

CRT - NINETY (90) DAYS

Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for ten (10) days. Non-rechargeable batteries are not warranted.

Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days.

Memory cards (if included) - Exchange defective item for new one for ninety (90) days.

In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period by contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Servicenter Directory.

Or call toll free contact number listed above, to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales Company telephone number listed in the Servicenter Directory.

This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of the original purchase is requires before warranty service is rendered.

This warranty only covers failures due to defects in materials and workmanship, which occur during normal use and does not cover normal maintenance, including, but not limited to, video and audio head cleaning. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING,

WITHOUT LIMITATION, DAMAGE TO RECORDING MEDIA) RESULTING FROM THE USE OF THIS PRODUCTS,

OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE

LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary, from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the Consumer Affairs Department at the Panasonic Consumer Electronics Company address above.

SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS DETERMINED

BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED. COSTS OF SUCH SERVICE CALLS

ARE THE RESPONSIBILITY OF THE PURCHASER.

warvid 02/ 12/ 2001

33

Spanish Quick Use Guide/Guía para rápida consulta

1

Connexiones/Configurcion Inicial

Conecte por favor todas las conexiones del cable o de la antena antes de turing potencia.

Conectando el cordon AC de la VCR en toma de pared iniciara automaticamente la

Para Ant./Cable

Conecte Ant./Cable a la entrada de antena de la TV (VHF/UHF).

Para Sistema Digital de Satelite (DSS)/

Convertidor de cable

Conecte la salida del convertidor de cable la

"VHF/UHF" con el RF cable.

Realizando Configuracion Inicial

Tape el cable electrico de la unidad en el enchufe de pared de la CA. POWER de la prensa en el telecontrol o la unidad.

La unidad se adelanta y comienzo auto del canal y del reloj.

CH AUTO SET PROCEEDING

AUTO CLOCK SET

PROCEEDING

Si usa convertidor de cable, enciendala y seleccione el Servicio

Publico de Canales de

Television (PBS) en su horario de uso o tiempo de su zona. Si utiliza receptor DSS este debe de estar apagado.

CANCEL : PRESS STOP KEY

2

2 / 6 / 2002 WED 12 : 00PM

DST : ON

SETT I NG : CH 1 0

AUTO CLOCK SET

COMPLETED

AUTO CLOCK SET

I S I NCOMPLETE

PLEASE SET CLOCK BY

PRESS I NG ACT I ON KEY

Selecciones se realizaran automaticamente cuando la configuracion termine, la pantalla siguiente aparecera.

Si "AUTO CLOCK SET IS

INCOMPLETE" aparece en pantalla, coloque el tiempo usando el procedimiento manual (MANUAL CLOCK

SET), vealo enseguida..

Ajuste Manual del Reloj

Si el ajuste automático del reloj no se ha completado, ajuste el reloj manualmente de la siguiente manera:

1) Presione la tecla ACTION en el control remoto para visualizar la pantalla del menú RELOJ.

2) Presione

▲▼

para seleccionar el mes y para ajustar. De la misma forma, seleccione y ajuste la fecha, año, hora y DST

(Hora de Verano).

3) Presione dos veces la tecla

ACTION para poner el RELOJ en marcha y salir.

Ajustar de nuevo el reloj

1 Presione ACTION para exhiba el menú.

2

MENU PR I NC I PAL

TV VCR

CANAL REL OJ

ELEG I R :

F I JAR : ACT I ON

IDIOMA

SAL I R

Presione

▲▼

para seleccionar

“RELOJ”.

Presione

ACTION.

3

F I JAR RELOJ

F I JAC I ON AUTOMAT I CA

MANUAL

AJUSTE ZONA HORA : 0

ELEG I R :

F I JAR :

TERM I NAR : ACT I ON

Presione

▲▼

para seleccionar

“MANUAL” y luego presione .

4

F I JAR RELOJ

::

VERANO : ACT

ELEG I R :

F I JAR :

TERM I NAR : ACT I ON

Presione

▲▼

y para seleccionar y ajustar la hora y la fecha.

5

Presione ACTION dos veces para que el reloj comience a funcionar y salir desde este modo.

34

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

1

Operaciones básicas para la reproducción

Inserte un casete.

• El videograbador combinado se enciende automáticamente.

2

Presione PLAY.

• La reproducción comienza automáticamente si el casete no tiene la lengüeta para prevención de grabación.

Para encontrar una escena en particular

Búsqueda hacia adelante => Presione FF

Búsqueda hacia atrás => Presione REW

Para ver una imagen fija (congelada) => Presione

PAUSE/SLOW

Para ver en cámara lenta => Mantenga pulsado el

■ botón PAUSE/SLOW en el modo de imagen fija

Para ver imágenes cuadro a cuadro => Presione

PAUSE/SLOW en el modo de imagen fija

Para parar => Presione STOP

Para rebobinar la cinta => Presione REW

Para hacer avanzar la cinta rápidamente =>

Presione FF

Para expulsar la cinta => Presione EJECT en el control remoto o STOP/EJECT en el videograbador combinado

1

Grabación con temporizador

Exhiba FIJAR PROGRAMACION.

Presione PROG.

2

F I JAR PROGRAMAC I ON

TEMPOR l ZADOR

ENCENDIDO AUTOMATICO

Exhiba

TEMPORIZADOR.

1) Presione

▲▼

ELEG l R :

F I JAR :

TERM l NAR : PROG para seleccionar.

2) Presione para exhibir.

• Si ya existe un programa en la memoria, presione

▲▼

y para seleccionar un número de programa sin usar.

3

FECHA INICIO PARADA CA

7 VIE --:-- --:-- --

HOY

SLP

- - - - - - - - -- - - - - - - -- - - - - - -

ELEGIR FECHA DE INICIO

ELEG l R :

F I JAR :

TERM l NAR : PROG / ACTION

Ajuste la fecha de grabación.

1) Presione

▲▼ para seleccionar.

2) Presione o para ajustar.

• 1 - 31 = Grabación única

• DIARIO = a la misma hora de lunes a viernes

• SEMANAL = a la misma hora una vez a la semana

Fecha de hoy

1

2

Operaciones básicas para la grabación

Inserte un casete con la lengüeta para prevención de grabado.

• El videograbador combinado se enciende automáticamente.

Seleccione el canal.

Presione CH

▲▼

o las teclas numéricas correspondiente.

3

Seleccione la velocidad de grabación.

Presione SPEED.

SP = reproducción normal

LP = reproducción larga

SLP = reproducción super larga

• La velocidad seleccionada debe aparecer en la pantalla.

4

Comience la grabación.

Presione REC.

• Para editar partes no deseadas de una grabación, presione PAUSE/SLOW para hacer una pausa durante la grabación.

• No podrá ver otro canal durante la grabación.

Para parar

=>

Presione STOP.

El videograbador combinado deja de grabar a una hora prefijada.

(Grabación de un toque)

Presione REC repetidamente para ajustar la hora de grabación (30 min

- 4 horas.)

Grabación normal

0:30 1:00

4:00 3:00 2:00 1:30

Repita el paso 3 para ajustar: hora de comienzo, hora de parada, canal

(o LINEA para una fuente exterior), velocidad

(SP, LP, SLP)

4

P FE I N I C PARADA CA VEL

1 D I 9 : 00p 12 : 00a 08 SP

2 -- -- : -- -- : -- -- --

3 -- -- : -- -- : -- -- --

4 -- -- : -- -- : -- -- --

CANCELAR : ADD/DLT

ELEG I R 1-8 :

ENTRAR :

TERM I NAR : PROG / ACT I ON

Termine el programa.

Presione PROG

(o ACTION.)

Para introducir más programas.

presione

▲▼

y para seleccionar y ajustar el número de programa en blanco, y luego repita los pasos 3 y 4.

5

Salga de este modo.

Presione PROG dos veces (o

ACTION.)

• Si está usando un decodificador de TV cable, asegúrese que se encuentra en el canal deseado y que la alimentación queda conectada para grabar con temporizador.

• El indicador PROG TIMER se enciende en el videograbador combinado.

35

INDEX

A

Accessories ................................................ 3

Audio Mute ................................................ 14

Auto Operation Functions ......................... 23

B

Batteries ....................................................... 3

Before Requesting Service .......................... 31

Before Using ................................................. 3

Blocking Message ....................................... 29

Blue Screen Display .................................... 30

C

Caption On Mute ......................................... 19

Channel ................................................ 10, 30

Channel Caption .......................................... 26

Clock .......................................................... 10

Closed Caption ........................................... 18

Commercial Skip ......................................... 24

Connections .................................................. 8

Connections, DSS / Cable Box ...................... 8

Connections, Outdoor Antenna ..................... 8

Copy Your Tapes (Dubbing) ....................... 13

D

DST (Daylight Saving Time) .......................... 4

E

Eject tape .................................................... 12

F

Fast Forward .............................................. 12

Forward Search .......................................... 12

Frame by Frame Advance .......................... 12

Front Panel Indicators ................................... 7

Function Display ......................................... 30

H

Head Cleaning .............................................. 4

I

Important Safeguards and Precautions ......... 2

Index Search .............................................. 22

Initial Setup for ANT. / Cable Connection ....... 8

Initial Setup for DSS / Cable box Connection ...... 8

Input Mode .................................................. 13

INSTANT ALARM ....................................... 17

L

Language .................................................... 10

Limited Warranty ......................................... 33

Location of Controls ................................ 6 - 7

N

NIGHT Mode .............................................. 14

O

100 Key ...................................................... 14

One Touch Recording ................................. 12

ON-TIMER with Alarm ................................. 16

P

Phones .................................................. 14

Playback ............................................... 12

Picture Adjustment ................................ 15

Program End Search ............................ 22

Q

Quality Picture ........................................ 4

R

Rapid Tune ........................................... 14

Rec(ord) ................................................ 12

Record/Playback Speed Settings ........... 4

Remote Control Buttons ......................... 6

Repeat Play .......................................... 24

Reset Language, Channels, Clock ....... 10

Reset unit ................................................ 9

Reverse Search .................................... 12

Rewind .................................................. 12

S

Secret Code .......................................... 27

Service Center List ............................... 32

Sleep Timer .......................................... 17

Slow Motion .......................................... 12

Spanish Quick Use Guide ..................... 34

Special VCR Features .......................... 25

Specifications .......................................... 4

Still Picture ............................................ 12

STOP .................................................... 12

T

Tape Erasure Prevention ........................ 3

Tape Position Display ........................... 23

Time Zone Adjust .................................. 11

Timer Program Review, Replace, Clear 21

Timer Recording ................................... 20

Timer Recording Cancellation .............. 21

TV Operation ......................................... 14

TV Timer Features ................................ 16

U

Unit, Front/Rear view .............................. 7

US MOVIES/TV PROGRAMS Ratings . 29

V

VCR Lock .............................................. 25

VCR Status & Clock Display ................. 30

V-Chip Control Feature ......................... 27

W

Warning and Instruction Displays ......... 30

Weak Signal Display ON/OFF .............. 25

Z

Zero Search .......................................... 24

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus,

New Jersey 07094

Panasonic Sales Company (“PSC”),

Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infanteria. Km. 9.5

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

P

Printed in Indonesia

LSQT0605A

M0202-0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
