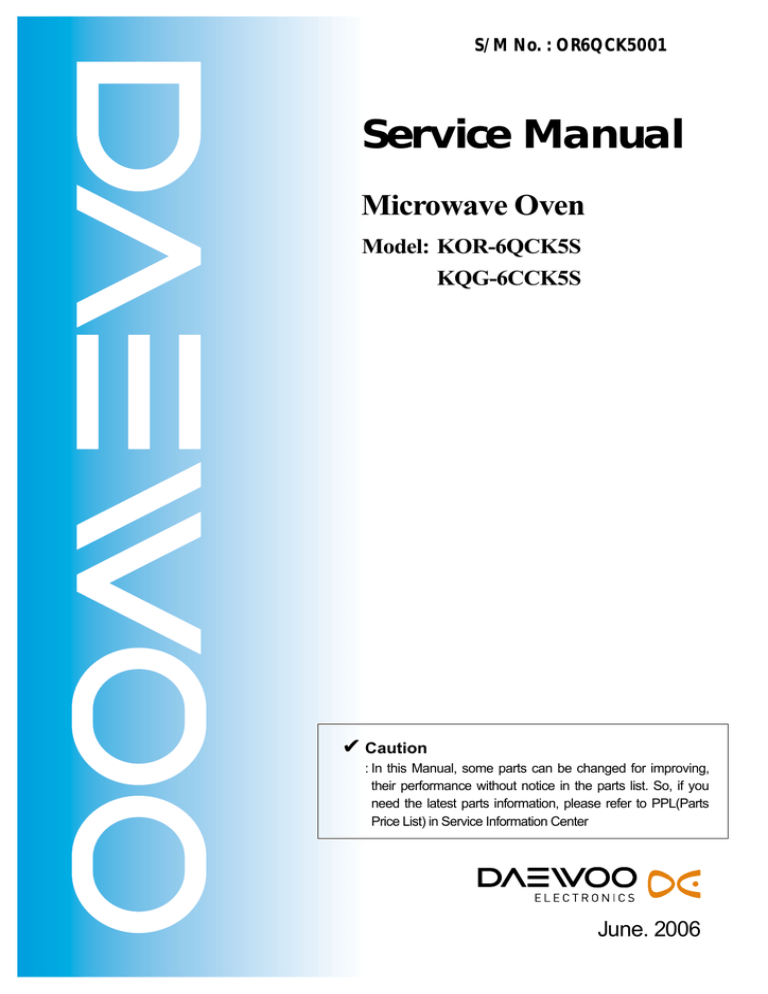

Service Manual Microwave Oven Model: KOR-6QCK5S KQG-6CCK5S

Service Manual Microwave Oven Model: KOR-6QCK5S KQG-6CCK5S

S/M No. : OR6QCK5001

Service Manual

Microwave Oven

Model: KOR-6QCK5S

KQG-6CCK5S

Caution

: In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts

Price List) in Service Information Center

June. 2006

PRECAUTIONS TO BE OBSERVED BEFORE AND

DURING SERVICING TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open.

(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5)

Evidence of dropping or abuse.

(c) Before turning on power to the microwave oven for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connections.

(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

(e) A microwave leakage check to verify compliance with the Federal performance standard should be performed on each oven prior to release to the owner.

TABLE OF CONTENTS

SAFETY AND PRECAUTIONS ................................................................................................................................................2

1. FOR SAFE OPERATION.......................................................................................................................................2

2. FOR SAFE SERVICE PROCEDURES ................................................................................................................2

SPECIFICATIONS.....................................................................................................................................................................3

EXTERNAL VIEW .....................................................................................................................................................................4

1. OUTER DIMENSION .............................................................................................................................................4

2. FEATURE DIAGRAM ............................................................................................................................................5

3. CONTROL PANEL.................................................................................................................................................7

INSTALLATION.........................................................................................................................................................................9

OPERATIONS AND FUNCTIONS..........................................................................................................................................10

DISASSEMBLY AND ASSEMBLY.........................................................................................................................................11

INTERLOCK MECHANISM AND ADJUSTMENT .................................................................................................................18

TROUBLE SHOOTING GUIDE ..............................................................................................................................................19

MEASUREMENT AND TEST ................................................................................................................................................23

1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT ..........................................................................23

2. MICROWAVE RADIATION TEST ......................................................................................................................24

3. COMPONENT TEST PROCEDURE...................................................................................................................25

WIRING DIAGRAM .................................................................................................................................................................26

PRINTED CIRCUIT BOARD ...................................................................................................................................................28

1. CIRCUIT CHECK PROCEDURE .......................................................................................................................28

2. PCB CIRCUIT DIAGRAM ....................................................................................................................................32

3. P.C.B. LOCATION NO ........................................................................................................................................33

EXPLODED VIEW AND PARTS LIST....................................................................................................................................35

1. DOOR ASSEMBLY .............................................................................................................................................35

2. CONTROL PANEL ASSEMBLY..........................................................................................................................35

3. TOTAL ASSEMBLY .............................................................................................................................................35

1

SAFETY AND PRECAUTIONS

1. FOR SAFE OPERATION

Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator.

IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE.

(Only a trained service personnel should make repairs.)

(1) A broken door hinge.

(2) A broken door viewing screen.

(3) A broken front panel, oven cavity.

(4) A loosened door lock.

(5) A broken door lock.

The door gasket plate and oven cavity surface should be kept clean.

No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven.

DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN.

The microwave oven has concealed switches to make sure the power is turned off when the door is opened.

Do not attempt to defeat them.

DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.

2. FOR SAFE SERVICE PROCEDURES

1. If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing the oven.

2. If any certified oven unit is found to servicing, a microwave emission check should be performed prior to servicing the oven.

(a) inform the manufacturer, importer or assembler,

(b) repair the unit at no cost to the owner,

(c) attempt to ascertain the cause of the excessive leakage,

(d) tell the owner of the unit not to use the unit until the oven has been brought into compliance.

3. If the oven operates with the door open, the service person should tell the user not to operate the oven and contact the manufacturer and the dealer immediately.

IMPORTANT

The wire in this main lead coloured in accordance with the following code.

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter ‘E’, earth symbol or coloured green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red.

NOTE :

The oven is designed for counter-top use only.

2

SPECIFICATIONS

MODEL

POWER SUPPLY

POWER CONSUMPTION

MICROWAVE

GRILL

COMBINATION

MICROWAVE ENERGY OUTPUT

MICROWAVE FREQUENCY

OUTSIDE DIMENSIONS (W X H X D)

CAVITY DIMENSIONS (W X H X D)

NET WEIGHT

TIMER

FUNCTION SELECTIONS

POWER SELECTIONS

CAVITY VOLUME

KOR-6QCK5S KQG-6CCK5S

230V-50Hz, SINGLE PHASE WITH EARTHING

1200W

1050W

2200W

800W

2450MHz

465 x 279 x 352 mm (18.3 x 11.0 x 13.9 in)

290 x 220 x 316 mm (11.4 x 8.7 x 12.4 in)

APPROX. 11.3 kg (24.9 lbs)

30 min. 00 sec.

MICROWAVE

10 LEVELS

0.7 Cu. Ft.

* SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

3

EXTERNAL VIEW

1. OUTER DIMENSION

465 352

4

2. FEATURE DIAGRAM

1) KOR-6QCK5S

1 2 3 8 4 5

6

7

0 w q

9

1

Door hook - When the door is closed, it will automatically lock shut. If door is opened while oven is operating, magnetron tube will immediately stop operating.

2

Door seal - Door seal maintains the microwave within the oven cavity and prevents microwave leakage.

3

Oven cavity

4

Oven lamp - Automatically turns on during oven operating.

5

Safety interlock system

6

Control panel

7

Door opening button - To open the door push the door opening button. When door is closed, it will automatically lock shut. If door is opened while oven is operating, magnetron tube will immediately stop operating.

8

Spatter shield - Protects the microwave outlet from splashes of cooking foods.

9

Roller guide - Supports the glass cooling tray.

0

Coupler - This fits over the shaft in the center of the oven cavity floor. This is to remain in the oven for all cooking.

q

Glass cooking tray - Made of special heat resistant glass. The tray must always be in proper position before operating. Do not cook food directly on the tray.

w

Door screen - Allows viewing of food. Microwave cannot pass through perforations in screen.

5

2) KQG-6CCK5S

1 2 3 e r 84 5

6

7

0 t w q

9

1

Door hook - When the door is closed, it will automatically lock shut. If door is opened while oven is operating, magnetron tube will immediately stop operating.

2

Door seal - Door seal maintains the microwave within the oven cavity and prevents microwave leakage.

3

Oven cavity

4

Oven lamp - Automatically turns on during oven operating.

5

Safety interlock system

6

Control panel

7

Door opening button - To open the door push the door opening button. When door is closed, it will automatically lock shut. If door is opened while oven is operating, magnetron tube will immediately stop operating.

8

Spatter shield - Protects the microwave outlet from splashes of cooking foods.

9

Roller guide - Supports the glass cooling tray.

0

Coupler - This fits over the shaft in the center of the oven cavity floor. This is to remain in the oven for all cooking.

q

Glass cooking tray - Made of special heat resistant glass. The tray must always be in proper position before operating.

Do not cook food directly on the tray.

w

Door screen - Allows viewing of food. Microwave cannot pass through perforations in screen.

e

Cover Heater

r

Heating Element

t

Metal Rack

6

3. CONTROL PANEL

1) KOR-6QCK5S

1 7

8

9

0 q

2

3

4

5

6

1

Display - Cooking time, power level, indicators are displayed.

2

Auto Defrost - Used to defrost foods.(for weight defrost)

3

Auto Cook - Used to cook or reheat many of favorite food.

4

Chilled Meal - Used to reheat meal or dinner plate.

5

Micro Power - Used to set power level.

6

Soup/Sauce - Used to reheat Soup/Sauce.

7

Night Light - Used to turn ON/OFF the Night Light.

8

Quick Defrost - Used to defrost foods very quickly.

9

Time Set Pad - Used to set the cooking time and weight.

0

Stop/Clear - Used to stop the oven operation or to delete the cooking data.

q

Start/Express Cook - Used to start the oven operation/used to increase the reheat time by 30 seconds.

7

2) KQG-6CCK5S

1 7

8

9

0 q

2

3

4

5

6

1

Display - Cooking time, power level, indicators are displayed.

2

Auto Defrost - Used to defrost foods. (for weight defrost)

3

Auto Cook - Used to cook or reheat many of favorite food.

4

Chilled Meal - Used to reheat meal or dinner plate.

5

Micro Power - Used to set power level.

6

Grill/Combi - Used to cook grill/combi.

7

Night Light - Used to turn ON/OFF the Night Light.

8

Quick Defrost - Used to defrost foods very quickly.

9

Time Set Pad - Used to set the cooking time and weight.

0

Stop/Clear - Used to stop the oven operation or to delete the cooking data.

q

Start/Express Cook - Used to start the oven operation/used to increase the reheat time by 30 seconds.

8

INSTALLATION

1. Steady, flat location

This microwave oven should be set on a steady, flat surface.

This microwave oven is designed for counter top use only.

2. Leave space behind and side

All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, cause failure.

3. Away from radio, and TV sets

Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, or feeder and so on. Position the oven as far from them as possible.

4. Away from heating appliances and water taps

Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

5. Power supply

• Check your local power source.

This microwave oven requires a current of approximately 12 amperes, 230 Volts, 50 Hz.

• Power supply cord is about 0.8 meters long.

• The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.

• This appliance is supplied with cable of special type, which, if damaged, must be repaired with cable of same type.

Such a cable can be purchased from DAEWOO and must be installed by a qualified person.

6. Examine the oven after unpacking for any damage such as:

A misaligned door, broken door or a dent in cavity.

If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.

7. Do not operate the oven if it is colder than room temperature

(This may occur during delivery in cold weather.) Allow the oven to become room temperature before operating.

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of the electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earth-ing plug. The plug must be plugged into an outlet that is properly installed and earthed.

WARNING

Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified electrician or service-man if the earthing instructions are not completely understood, or if doubt exists as to whether the appliance is properly earthed, and either : If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade earthing plut, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance, or Do not use an extension cord.

9

OPERATIONS AND FUNCTIONS

1 1. Connect the main lead to an electrical outlet.

1 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always be in place during cooking.

1 3. Close the door securely.

1 4. When the oven door is opened, the light turns off.

1 5. The oven door can be opened at any time during operation.

The oven will automatically shut off. To restart the oven, close the door and then touch START.

1 6. The oven automatically cook on full power unless set to a lower power level.

1 7. The display will show : 0 when the oven is plugged in.

1 8. Time clock returns to the present time when the cooking time ends.

1 9. When the CANCEL button is touched during the oven operation, the oven stops cooking and all information is retained.

To erase all information (except the present time), touch the CANCEL button once more. If the oven door is opened during the oven operation, all information is retained.

10. If the START button is touched and the oven does not operate, check door is closed securely.

The oven will not start cooking unless the door is completely closed or the program has been reset.

Make sure the oven is properly installed and plugged into the electrical.

Wattage output chart

The power level is set by pressing the POWER button. The chart shows the display, the power level and the percent-age of power.

Touch POWER button

Once

Twice

3 times

4 times

5 times

6 times

7 times

8 times

9 times

10 times

11 times

Power level(Display)

P-HI

P-90

P-80

P-70

P-60

P-50

P-40

P-30

P-20

P-10

P-00

Approximate Percentage of Power

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

00%

10

DISASSEMBLY AND ASSEMBLY

Cautions to be observed when trouble shooting.

Unlike many other appliances, the microwave oven is high-voltage, high-current equipment.

It is completely safe during normal operation.

However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit.

You are asked to observe the following precautions carefully.

1. Always remove the power plug from the outlet before servicing.

2. Use an insulated screwdriver and ware rubber gloves when servicing the high voltage side.

3. Discharge the high voltage capacitor before touching any oven components or wiring.

(1) Check the grounding.

Do not operate on a two-wire extension cord.

The microwave oven is designed to be used while earthed.

It is imperative, therefore, to make sure it is earthed properly before beginning repair work.

(2) Warning about the electric charge in the high voltage capacitor.

For about 30 seconds after the operation stopped and electric charge remains in the high voltage capacitor.

When replacing or checking parts, short between oven chassis and the negative high terminal of the high voltage capacitor by using a properly insulated screwdriver to discharge.

4. When the 15A fuse is blown out due to the operation of the monitor switch; replace primary interlock switch, secondary interlock switch and interlock monitor switch.

5. After repair or replacement of parts, make sure that the screws are properly tightened, and all electrical connections are tightened.

6. Do not operate without cabinet.

SHORT

CAUTION : Service personnel should remove their watches whenever working close to or replacing the magnetron.

WARNING : When servicing the appliance, need a care of touching or replacing high potential parts because of electrical shock or exposing microwave. These parts are as follows - HV Transformer, Magnetron,

HV Capacitor, HV Diode, HV fuse.

11

1. To remove cabinet

1) Remove three screws on cabinet back.

2) Push the cabinet backward.

2. To remove door assembly

1) Remove one screw which secure the stopper hinge top.

2) Remove the door assembly from top plate of cavity.

3) Reverse the above for reassembly.

NOTE : After replacing the door assembly, perform a check of correct alignment with the hinge and cavity front plate.

12

3. TO REMOVE DOOR PARTS.

REF NO. PART CODE

A01 3517008810

PART NAME

BARRIER-SCREEN *O

A02

A03

3512208730

7121400611

FRAME DOOR

SCREW TAPPING

A04

A05

DESCRIPTION

SAN CR-5381 SMOG

ABS SG-175, SG-0760D

T2S PAN 4X6 MFZN

3515204110 STOPPER HINGE *T AS KOR-636T1S

3511719500 DOOR PAINTING AS KOR-6C0B5S

PP

POM

PW1

(1) Remove the gasket door from door weld as.

(2) Remove the door frame from door weld as.

(3) Remove the stopper hinge top from door weld as.

(4) Remove the spring and the hook.

(5) Remove the barrier screen outer from door frame.

(6) Reverse the above steps for reassembly.

1

1

1

1

Q’TY REMARK

1

1

1

1

1

13

4. Method to reduce the gap between the door seal and the oven front surface.

(1) To reduce gap located on part A

Loosen a screws on stopper hinge top, and then push the door to contact the door seal to oven front surface.

Tighten two screws.

(2) To reduce gap located on part B

Loosen two screws on stopper hinge under, and then push the door to contact the door seal to oven front surface.

Tighten two screws.

NOTE : A small gap may be acceptable if the microwave leakage does not exceed 4mW/cm 2 .

14

5. TO REMOVE CONTROL PANEL PARTS.

REF NO.

B02

PART CODE PART NAME DESCRIPTION

DECORATOR AL

3511412700 COVER LED SAN CLEAR

B11

B12

B13

B14

B15

B16

B04

B05

B06

B07

B08

B09

B10

3516732090 CONTROL PANEL

3516912650 BUTTON FUNCTION *B

3516912550 BUTTON FUNCTION *A

3516914910 BUTTON START

3511412800 COVER START BUTTON

3513701420 LEVER DOOR OPEN

441G430171 SPRING BUTTON

3516911020 BUTTON DOOR OPEN

3511412900 COVER OPEN BUTTON

ABS SG-175, SG-0760D

ABS SG-175, SG-0760D COATING

ABS SG-175, SG-0760D COATING

PKBPMSGC00 PCB BUTTON MANUAL AS KOR-6CCKWS

7621301011 SCREW TAPPING T2 PAN 3X10 PW MFZN

PKMPMSGC00 PCB MAIN MANUAL AS

7122401211 SCREW TAPPING

KOR-6CCKWS

T2S TRS 4X12 MFZN

ABS SG-175, SG-0760D COATING

SAN CLEAR

PP

SWP DIA. 0.7

ABS SG-175, SG-0760D COATING

ABS SG-175, SG-0760D

1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.

2) Remove the lever door open from the control panel.

3) Remove three screws which secure the PCB assembly to control panel.

4) Disconnect membrane tail from the connector of the PCB assembly.

5) Detach membrane from the control panel.

6) Remove button door open and spring button from the control panel.

7) Reverse the above steps for reassembly.

1

1

1

1

1

1

1

3

1

7

Q’TY REMARK

1

1

1

1

1

1

15

6. To remove high voltage capacitor.

1) Remove a screw which secure the grounding ring terminal of the H.V. diode and the capacitor holder.

2) Remove the H.V. diode from the capacitor holder.

3) Reverse the above steps for reassembly.

High voltage circuit wiring

7. To remove magnetron.

1) Remove a screw which secure the magnetron.

2) Remove the magnetron.

3) Reverse the above steps for reassembly.

NOTE : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to prevent microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It shall not exceed 4mW/cm 2 for a fully assembled oven with door normally closed.

Metallic gasket plate

Magnetron antenna

Cooling fin

Filament terminal

<MAGNETRON>

16

8. To remove wind guide assembly.

1) Remove a screw for earthing.

2) Remove the noise filter from the wind guide.

3) Remove a screw which secure the wind guide assembly.

4) Draw forward the wind guide assembly.

5) Pull the fan from the motor shaft.

6) Remove two screws which secure the motor shaded pole.

7) Remove the motor shaded pole.

8) Reverse the above steps for reassembly.

9. To remove H.V.transformer.

1) Remove four screws holding the H.V.transformer.

2) Remove the H.V.transformer.

3) Reverse the above steps for reassembly.

17

INTERLOCK MECHANISM AND ADJUSTMENT

The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave.

(1) Primary interlock switch

When the door is closed, the hook locks the oven door. If the door is not closed properly, the oven will not operate.

When the door is closed, the hook pushes the button of the microswitch. Then the button of the primary interlock switch bring it under ON condition.

(2) Secondary interlock switch and interlock monitor switch

When the door is closed, the hook pushes the lock lever downward. The lock lever presses the button of the interlock monitor switch to bring it under NO condition and presses the button of the secondary interlock switch to bring it under

ON condition.

ADJUSTMENT :

Interlock monitor switch

When the door is closed, the interlock monitor switch should be changed (NO condition) before other switches are closed.

When the door is opened, the interlock monitor switch should be changed (NC condition) after other switches are opened.

(3) Adjustment steps a) Loosen the one mounting screws.

b) Adjust interlock switch assembly position.

c) Make sure that lock lever moves smoothly after adjustment is completed.

d) Tighten completely one mounting screws.

NOTE :

Microwave emission test should be performed after adjusting interlock mechanism. If the microwave smission exceed

4mW/cm 2 , readjust interlock mechanism.

18

TROUBLE SHOOTING GUIDE

Following the procedure below to check if the oven is defective or not.

1. Check grounding before trouble checking.

2. Be careful of the high voltage circuit.

3. Discharge the high voltage capacitor.

4. When checking the continuity of the switches, fuse or high voltage transformer, disconnect one lead wire from these parts and check continuity with the AC plug removed. To do otherwise may result in a false reading or damage to your meter.

NOTE : When electric parts are checked, be sure the power cord is not inserted the wall outlet.

Check wire harness, wiring and connected of the terminals and power cord before check the parts listed below.

(TROUBLE 1) Oven does not operate at all ; any inputs can not be accepted.

CONDITION

Fuse blows.

CHECK

Check continuity of interlock monitor switch with door closed

Check continuity of both primary and secondary interlock switch with door colosed

Check continuity of primary interlock switch contact with door partially open until interlock monitor switch contact close

(COM NO)

Check continuity of primary winding of low voltage transformer

Disconnect high voltage fuse and operate the unit

RESULT

Continuity

No Continuity

No Continuity

Continuity

Continuity

0 or infinite

Approx.

150~310

(normal)

Fuse again blows

CAUSE

Malfunction of interlock monitor switch

Malfunction of interlock switch

Shorted contacts of primary interlock switch.

Defective low voltage transformer

Defective low voltage transformer

REMEDY

Replace

NOTE 1

Replace

NOTE 1

Replace

NOTE 1

Replace

Replace

19

CONDITION

Outlet has proper voltage Fuse does not blow.

CHECK

Check continuity of magnetron

Check continuity of noise filter board

Check continuity of power supply cord

RESULT

No

Continuity

No

Continuity

No

Continuity

Normal

CAUSE

Defective magnetron

Defective magnetron

Open power supply cord

Defective touch control circuit

REMEDY

Replace

Replace

Replace

Replace

NOTE

All these switches must be replaced at the same time, please refer to Interlock Mechanism And Adjustment .

(TROUBLE 2) Display shows all figures selected, but oven does not start cooking, even though desired program and

time are set and start button is tapped.

CONDITION

Turn table motor and oven lamp do not turn on

CHECK

Check continuity of primary interlock switch

Check continuity of secondary interlock switch

Check D.C. voltage being supplied to RELAY (RY2) coil

RESULT

No

Continuity

No

Continuity

0 V

Approx.

12 VDC

CAUSE

Malfunction of primary interlock switch

Malfunction of secondary interlock switch

Defective touch control circuit

Faulty contacts of

RELAY (RY2) or open relay coil

REMEDY

Adjust or replace

Adjust or replace

Replace

Replace

20

(TROUBLE 3) No microwave oscillation even though fan motor rotates.

CONDITION

No microwave oscillation

CHECK

Check continuity of high voltage fuse

Replace high voltage fuse

Check continuity of high voltage capacitor terminals with wires removed

Check continuity of high voltage rectifier in forward and backward direction with DC megger

Connect megger leads to magnetron terminal and magnetron body

Check resistance of primary and secondary coil of high voltage transformer

Check continuity of magnetron with wires removed

RESULT

Continuity

Continuity

Continuity in backward direction

Continuity

0 or

No

Continuity

Check continuity of filament terminal of high voltage transformer

Check D.C. voltage being supplied to RELAY (RY1) coil

No

Continuity

0 V

Approx

15 VDC

CAUSE

Defective high voltage transformer

Defective high voltage rectifier

Defective magnetron

Defective high voltage transformer

Defective magnetron

Defective high voltage transformer

Defective touch control circuit

Faulty contacts or

RELAY (RY1) or open relay coil

REMEDY

Replace

Replace

Replace

Replace

Replace

Replace

Replace

Replace

21

(TROUBLE 4) The following visual conditions indicate a probable defective touch control circuit or membrane switch assembly.

1 1. Incomplete segments

(1) Segments missing

(2) Partical segments missing

(3) Digit flickering other than normal display slight flickering

(4) :0 does not display when power is on.

1 2. A distinct change in the display are not on when they numbers is the display.

1 3. One or more digits in the display are not on when they should be.

1 4. Display indicates a number different from one touched.

1 5. Specific numbers (for example 2 or 3) will not display when the button is touched.

1 6. Display does not count down or up with time cooking or clock operation.

1 7. Oven is programable and cooks normally but no display shows.

1 8. Display obviously jumps in time while counting down.

1 9. Display counts down noticeably too fast while cooking.

10. Display does not show the time of day when cancel button is touched.

11. Oven lamp and turntable motor do not stop although cooking is finished. Check if the RELAY 2 contacts close if they are close, replace touch control circuit.

CONDITION

Display does not show programming at all, even if keyboard is touched.

CHECK

Check rach pad for continuity of the membrane keyboard for the following keyboard check procedure

RESULT

Normal

Abnormal

CAUSE

Malfunction of touch control circuit of control box sub-assembly

Malfunction of the membrane keyboard

REMEDY

Replace control box subassembly

Replace the membrane keyboard

NOTE

Before following the particular steps listed above in the trouble shooting guide for the membrane keyboard’s, failure, please check for the continuity of each wire-harness between the membrane keyboard and P.C.B.

assembly.

22

23

24

3. COMPONENT TEST PROCEDURE

¥ High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle.

¥ It is neither necessary nor advisable to attempt measurement of the high voltage.

¥ Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor.

1. High voltage transformer

(1) Remove connections from the transformer terminals and check continuity.

(2) Normal readings should be as follows:

Secondary winding ...................Approx. 140

Filament winding....................................Approx. 0

Primary winding .....................................Approx. 2

2. High voltage capacitor

(1) Check continuity of capacitor with meter on the highest OHM scale.

(2) A normal capacitor will show continuity for a short time, and then indicate 10M once the capacitor is charged.

(3) A shorted capacitor will show continuous continuity.

(4) An open capacitor will show constant 10M .

(5) Resistance between each terminal and chassis should be infinite.

3. High voltage diode

(1) Isolate the diode from the circuit by disconnecting the leads.

(2) With the ohmmeter set on the highest resistance scale measure the resistance across the diode terminals.

Reverse the meter leads and again observe the resistance reading.

Meter with 6V, 9V or higher voltage batteries should be used to check the front-back resistance of the diode, otherwise an infinite resistance may be read in both directions.

A normal diode s resistance will be infinite in one direction and several hundred K in the other direction.

4. Magnetron

For complete magnetron diagnosis, refer to Measurement of the Microwave Power Output .

Continuity checks can only indicate and open filament or a shorted magnetron.

To diagnose for an open filament or a shorted magnetron.

(1) Isolate magnetron from the circuit by disconnecting the leads.

(2) A continuity check across magnetron filament terminals should indicate 0.1

or less.

(3) A continuity check between each filament terminal and magnetron case should read open.

5. Fuse

If the fuse in the primary and monitor switch circuit is blown when the door is opened, check the primary and monitor switch before replacing the blown fuse.

In case the fuse is blown by an improper switch operation, replace the defective switch and fuse at the same time.

Replace just the fuse if the switches operate normally.

25

WIRING DIAGRAM

1) KOR-6QCK5S

26

2) KQG-6CCK5S

27

PRINTED CIRCUIT BOARD

1. CIRCUIT CHECK PROCEDURE

1. Low Voltage Transformer check

The low voltage transformer is located on the P.C.B.

Measuring condition: input voltage : 230V/Frequency : 50Hz

Terminal Voltage

5-6-7

LOAD

AC 12.6 V

NO LOAD

AC 14.7 V

NOTE :

1. Refer to Circuit Diagram (point 4).

2. Secondary side voltage of the low voltage transformer changes in proportion to fluctuation of power source voltage.

3. The allowable tolerance of the secondary voltage is within 5% of nominal voltage.

2. Voltage check

Key check point

NO

1

2

CHECK POINT

IC 1 PIN 5

IC 1 PIN 8

REMARK

5 VDC

T:20ms(50Hz)

3 IC 1 PIN 35 OR PIN 36

T:250ns(4MHz)

Check method

NO MEASURE POINT

1

2

MP1

MP2

WAVE FORM

DC 5V 0.25V

DC 12V 2.0V

REMEDY

Replace VL1, EC1

Replace EC2, D12, D13, D14

REMARK

NO LOAD

NO LOAD

NOTE :

Each measure point must be measured with GND point.

28

MP1

GND

MP2

Measure Point

29

3. WHEN THERE IS NO MICROWAVE OSCILLATION

1) When touching START pad, oven lamp does not turn on.

Fan motor does not rotate, but cook indicator in display comes on.

B

RY2

(TRAY

LAMP)

D9

RY2 Q12

- Check method

POINT

A

STATE

RELAY 2 ON

RELAY 2 OFF

5VDC

GND

2) When touching START pad, oven lamp turns on.

Fan motor and turntable rotate and cook indicator in display comes on.

B

RY1

(M/W)

D8

RY1

Q10

- Check method

POINT

A

STATE

RELAY 1 ON

RELAY 1 OFF

5VDC

GND

4. When there is no grillwave oscillation

RY3

Q9

RY3

- Check method

POINT

STATE

A

RELAY 4 ON

RELAY 4 OFF

5VDC

GND

5. When the door is opened during operation, the count down timer does not stop.

A

42

A

41

B

GND

12VDC

B

GND

12VDC

B

GND

12VDC

30

- Check method

STATE

POINT

1) DOOR OPEN

2) DOOR CLOSED

A

OPEN

CLOSE

CHECK NO

1

HETHOD

Check the stage(ON, OFF) of the door open monitor switch by resistance measurement.

6. When the digital clock does not operate properly.

→ refer to Circuit Diagram.

POINT

IC 1 PIN 8

WAVE FORM

T: 20 ms(50Hz)

B

5VDC

GND

REMEDY

Replace door open monitor switch.

If clock does not keep exact time, you must check resistor R20 and zener diode ZD2.

31

2. P.C.B. CIRCUIT DIAGRAM

32

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service

Information Center (http://svc.dwe.co.kr).

3. P.C.B. LOCATION NO.

1) KOR-6QCK5S

NO NAME

1 PCB MAIN

2 BUZZER

3 C ARRAY

4 C CERA

5 C CERA

6 C ELECTRO

7 C ELECTRO

8 CONN WAFER

9 CONN WAFER

10 CONN WAFER

11 DIODE

12 DIODE

13 DIODE ZENER

14 IC MICOM

15 IC MICOM

16 IC REGULATOR

17 LED DISPLAY

18 R ARRAY

19 R ARRAY

20 R CARBON FILM

21 R CARBON FILM

22 R CARBON FILM

23 R CARBON FILM

24 R CARBON FILM

25 R CARBON FILM

26 R CARBON FILM

27 R CARBON FILM

28 RESONATOR CERA

29 SW RELAY

30 SW RELAY

31 TR

32 TR

33 TR

34 TRANS POWER

35 WIRE COPPER

36 WIRE COPPER

37 WIRE COPPER

1 PCB SUB

2 CONN WAFER

3 R CARBON FILM

4 SW TACT

5 WIRE COPPER

6 WIRE FLAT

7 LED

VL1

DP1

RA1

RA2

R1,R18

R4~R11

R17

R13

R12,R14,R19,R20

R3,R23,R24

R02

R15

CR1

RY1

RY2

Q12

BOARD

SYMBOL

BZ1

CA1

C2,C4,C5,C6

C1,C7,C8

EC1

EC2

CN1

CN2

CN3

D1~D6,D8~D12,D15

D13,D14

ZD1

IC1

IC2

Q1

Q2~Q7,Q10,Q11

LVT1

J2~J6,J8,J10~J12

J1,J9

SJ6,SJ7

BOARD

CN101

R101

SW101~SW112

J101,J102,J103,J104

WF1

LED1

SPECIFICATION

M323

PART CODE Q'TY REMARK

3514329920 1

BM-20K (BUJEON) 3515600100 1

7P(6) 1000PF M 50V 2.54MM

CN6XB-102M 1

50V B 1000PF K (AXIAL) CCZB1H102K 4

HIKF 50V 0.1MF Z AXIAL CCZF1H104Z 3

50V RS 10MF (5X11) TP CEXE1H100A 1

25V RSS 1000MF(13X20) TP CEXF1E102V 1

YW396-02V(YEONHO)

HLEM15S-1

YW396-05AV(YEONHO)

1N4148 AUTO 52MM

KN4004A AUTO 52MM

UZ-5.1BSB(4.97-5.18V)

HMS87C1708B-HN038

K1A7033AP

3519150520

3519150510

DZN4148---

1

4CW215SBD0 1

1

12

DZN4004A-2

DZUZ5R1BSB 1

150S6CCK00

1K1A7033AP

1

1

MC7805C(S/S)

TOF-4422BG-B14-B

8P(7) 1/8 100K OHM J

7P(6) 1/8 100K OHM J

1/6 4.7K OHM J

1/6 330 OHM J

1/6 100 OHM J

1/6 1M OHM J

1/6 1K OHM J

1/6 10K OHM J

1/6 47K OHM J

1/4 51 OHM J

CRT 4.00MS

G5G-1A 1C 1P DC12V

CS11-12SH 1C 1P

KTC3198GR (1815GR)

1CPMC7805C 1

DDDG6CCK-1

RA-88X104J

RA-87X104J

RD-AZ472J-

RD-AZ331J-

RD-AZ101J-

RD-AZ105J-

RD-AZ102J-

RD-AZ103J-

RD-AZ473J-

RD-4Z510J-

5P4R00MTS-

5SC0101121

5SC0101128

TZTC3198GR

1

1

2

8

1

1

4

3

1

1

1

1

1

1

KTA1266Y- (AUTO)(1015Y) TZTA1266Y-

KRC106M(AUTO) TZRC106M--

DMR-631FS

1/0.52 TIN COATING

5EPV035303

85801052GY

1/0.52 TIN COATING

1/0.52 TIN COATING

M324

HLEM15R-1

85801052GY

85801052GY

3514330020

2

2

1

4CW215RBD0 1

1

9

1

8

1/6 330 OHM J

KPT-1115AM

1/0.52 TIN COATING

15/90 WH C

RD-AZ331J-

85801052GY

WSJ-159007

TOL-50BUWDK0A-ETB6-K49 DT0L-ETB6-

1

5S50101Z93 12

1

4

1

7.5mm

10mm

7.5mm

10mm

33

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service

Information Center (http://svc.dwe.co.kr).

2) KQG-6CCK5S

NO NAME

1 PCB MAIN

2 BUZZER

3 C ARRAY

4 C CERA

5 C CERA

6 C ELECTRO

7 C ELECTRO

8 CONN WAFER

9 CONN WAFER

10 CONN WAFER

11 DIODE

12 DIODE

13 DIODE ZENER

14 IC MICOM

15 IC MICOM

16 IC REGULATOR

17 LED DISPLAY

18 R ARRAY

19 R ARRAY

20 R CARBON FILM

21 R CARBON FILM

22 R CARBON FILM

23 R CARBON FILM

24 R CARBON FILM

25 R CARBON FILM

26 R CARBON FILM

27 R CARBON FILM

28 RESONATOR CERA

29 SW RELAY

30 SW RELAY

31 TR

32 TR

33 TR

34 TRANS POWER

35 WIRE COPPER

36 WIRE COPPER

37 WIRE COPPER

1 PCB SUB

2 CONN WAFER

3 R CARBON FILM

4 SW TACT

5 WIRE COPPER

6 WIRE FLAT

7 LED

VL1

DP1

RA1

RA2

R1,R16,R18

R4~R11

R17

R13

R12,R14,R19,R20

R3,R23,R24

R02

R15

CR1

RY1,RY3

RY2

Q9,Q12

BOARD

SYMBOL

BZ1

CA1

C2,C4,C5,C6

C1,C7,C8

EC1

EC2

CN1

CN2

CN3

D1~D6,D7~D12,D15

D13,D14

ZD1

IC1

IC2

Q1

Q2~Q8,Q10,Q11

LVT1

J2~J6,J8,J10~J12

J1,J9

SJ7

BOARD

CN101

R101

SW101~SW112

J101,J102,J103,J104

WF1

LED1

SPECIFICATION

M323

PART CODE Q'TY REMARK

3514329920 1

BM-20K (BUJEON) 3515600100 1

7P(6) 1000PF M 50V 2.54MM

CN6XB-102M 1

50V B 1000PF K (AXIAL) CCZB1H102K 4

HIKF 50V 0.1MF Z AXIAL CCZF1H104Z 3

50V RS 10MF (5X11) TP CEXE1H100A 1

25V RSS 1000MF(13X20) TP CEXF1E102V 1

YW396-02V(YEONHO)

HLEM15S-1

YW396-05AV(YEONHO)

1N4148 AUTO 52MM

KN4004A AUTO 52MM

UZ-5.1BSB(4.97-5.18V)

HMS87C1708B-HN038

K1A7033AP

3519150520

3519150510

DZN4148---

1

4CW215SBD0 1

1

13

DZN4004A-2

DZUZ5R1BSB 1

150S6CCK00

1K1A7033AP

1

1

MC7805C(S/S)

TOF-4422BG-B14-B

8P(7) 1/8 100K OHM J

7P(6) 1/8 100K OHM J

1/6 4.7K OHM J

1/6 330 OHM J

1/6 100 OHM J

1/6 1M OHM J

1/6 1K OHM J

1/6 10K OHM J

1/6 47K OHM J

1/4 51 OHM J

CRT 4.00MS

G5G-1A 1C 1P DC12V

CS11-12SH 1C 1P

KTC3198GR (1815GR)

1CPMC7805C 1

DDDG6CCK-1

RA-88X104J

RA-87X104J

RD-AZ472J-

RD-AZ331J-

RD-AZ101J-

RD-AZ105J-

RD-AZ102J-

RD-AZ103J-

RD-AZ473J-

RD-4Z510J-

5P4R00MTS-

5SC0101121

5SC0101128

TZTC3198GR

1

1

3

8

1

1

4

3

1

1

1

2

1

2

KTA1266Y- (AUTO)(1015Y) TZTA1266Y-

KRC106M(AUTO) TZRC106M--

DMR-631FS

1/0.52 TIN COATING

5EPV035303

85801052GY

1/0.52 TIN COATING

1/0.52 TIN COATING

M324

HLEM15R-1

85801052GY

85801052GY

3514330020

2

1

1

4CW215RBD0 1

1

9

1

9

1/6 330 OHM J

KPT-1115AM

1/0.52 TIN COATING

15/90 WH C

RD-AZ331J-

85801052GY

WSJ-159007

TOL-50BUWDK0A-ETB6-K49 DT0L-ETB6-

1

5S50101Z93 12

1

4

1

7.5mm

10mm

7.5mm

10mm

34

EXPLODED VIEW AND PARTS LIST

1. DOOR ASSEMBLY

Refer to Disassembly and assembly.

2. CONTROL PANEL ASSEMBLY

Refer to Disassembly and assembly.

3. TOTAL ASSEMBLY

1) KOR-6QCK5S

35

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service

Information Center (http://svc.dwe.co.kr).

F36

F37

F38

F39

F40

F29

F30

F31

F32

F33

F34

F35

F41

F42

F43

F44

F45

F15

F16

F17

F18

F19

F10

F11

F12

F13

F14

F20

F21

F22

F23

F24

F25

F26

F27

F28

F05

F06

F07

F08

F09

NO

A00

B00

F01

F02

F03

F04

3515201101

3512781400

4415A17352

4415A66910

4415A17352

3518571000

3513702600

3513811700

3513601600

7112401011

3966031600

7272400811

3511406220

3517400620

3514700710

3512517300

3517203610

PART CODE

3511726220

PART NAME

DOOR AS

PKCPSWGC10 CONTROL-PANEL AS

3510808400

7112401011

CABINET AS

SCREW TAPPING

3516117400

7122401211

CAVITY AS

SCREW TAPPING

7122401211

7112401011

35113AEQ0D

7112401011

7121300611

SCREW TAPPING

SCREW TAPPING

CORD POWER AS

SCREW TAPPING

SCREW TAPPING

3518907200

3518607600

7121402511

3963512310

3512517000

3511800300

3518003700

3516004000

7122400811

3513003200

3518302200

3518400900

3518701100

3518119880

3516003700

3510316000

7112401011

3512100900

7272400811

THERMOSTAT

NOISE-FILTER

SCREW TAPPING

MOTOR SHADED POLE

GUIDE WIND

FAN

MAGNETRON

SPECIAL SCREW

SCREW TAPPING

HOLDER HV CAPACITOR

CAPACITOR HV

DIODE HV AS

FUSE HV

TRANS HV

SPECIAL SCREW

BASE

SCREW TAPPING

FOOT

SCREW TAPTITE

STOPPER HINGE *U

HARNESS MAIN

SW MICRO

SW MICRO

SW MICRO

SWITCH PUSH

LEVER LOCK

LOCK

LAMP

SCREW TAPPING

MOTOR SYNCRO

SCREW TAPTITE

COVER WAVE GUIDE

COUPLER

ROLLER

GUIDE ROLLER

TRAY

DESCRIPTION

KOR-6CCKWS

KOR-6QCK5S

KOR-6NM51A

T1 TRS 4*10 MFZN

KOR-6NM51A

T2S TRS 4X12 MFZN

T2S TRS 4X12 MFZN

T1 TRS 4*10 MFZN

3X0.75 70X70 100-RTML

T1 TRS 4*10 MFZN

T2S PAN 3X6 MFZN

OFF:85 ON:75 H #187

DWLF-M12 A 250V 10A

T2S PAN 4X25 MFZN

230V 20W MW10CA-M02

PP

PP+30%GLASS

2M218JFL 6CF

T2 BOLT FLANGE 5X12 DACRO

T2S TRS 4*8 MFZN

SECC T0.6

2100VAC 0.98UF #187

HVR-1X-30B #187

5KV 0.55A HV-41A55-02

R1S580(EA00)

TT3 HEX 4X8 FLG MFZN

SBHG T0.7

T1 TRS 4*10 MFZN

PP DASF-130

TT3 TRS 4X8 MFZN

SCP-1 T2.5

KOR-6NMC3S

VP-533A-OF SPNO #187 200G

VP-531A-OF/SZM-V16-FA-61

VP-533A-OF SPNO #187 200G

MP101C

POM

POM BLACK

BL 240V 25W T25 C7A H187

T1 TRS 4*10 MFZN

220/240V 50/60HZ ST-16 MN73MQAD A

TT3 TRS 4X8 MFZN

HEATPROOF PP

XAREC

TEFLON

PP 5113MF6 A353B

BORO-SI GLASS(NEG)

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

1

1

1

1

1

1

1

1

1

2

1

1

1

5

2

1

1

4

1

1

1

1

2

1

1

1

Q'TY

1

1

1

3

1

1

36

2) KQG-6CCK5S

37

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service

Information Center (http://svc.dwe.co.kr).

F44

F45

F46

F47

F48

F49

F38

F39

F40

F41

F42

F43

F50

F51

F52

F32

F33

F34

F35

F36

F37

F26

F27

F28

F29

F30

F31

F16

F17

F18

F19

F20

F21

F10

F11

F12

F13

F14

F15

F22

F23

F24

F25

F04

F05

F06

F07

F08

F09

NO

A00

B00

C00

F01

F02

F03

3512100900

7272400811

3515201101

3512717600

4415A17352

4415A66910

4415A17352

3518571000

3513702610

3513811710

3513601600

7121400611

3966310100

3518905300

3513003410

7272400811

4078502031

3511405100

3517402130

3514700900

3512509210

3517203610

3517204510

7112401011

3511408200

3518905900

7121400611

PART CODE PART NAME

3511726220 DOOR AS

PKCPSWGC20 CONTROL-PANEL AS

3512803600 HEATER * T AS

3510805300

7112401011

3516111900

CABINET AS

SCREW TAPPING

CAVITY AS

7122401211

7122401211

7112401011

35113A5QJ5

7112401011

4414A25110

SCREW TAPPING

SCREW TAPPING

SCREW TAPPING

CORD POWER AS

SCREW TAPPING

FUSE

3518606100

7121402511

3963512310

3512517000

3511800300

3518002400

3516004000

7122400811

3513003200

3518302200

3518400900

3518701100

3518119880

3516003700

3510311700

7112401011

NOISE-FILTER

SCREW TAPPING

MOTOR SHADED POLE

GUIDE WIND

FAN

MAGNETRON

SPECIAL SCREW

SCREW TAPPING

HOLDER HV CAPACITOR

CAPACITOR HV

DIODE HV AS

FUSE HV

TRANS HV

SPECIAL SCREW

BASE

SCREW TAPPING

FOOT

SCREW TAPTITE

STOPPER HINGE *U

HARNESS MAIN

SW MICRO

SW MICRO

SW MICRO

SWITCH PUSH

LEVER LOCK

LOCK

LAMP

SCREW TAPPING

MOTOR SYNCRO

THERMOSTAT

HOLDER THERMOSTAT

SCREW TAPTITE

BUTTON LOCKING

COVER WAVE GUIDE

COUPLER

ROLLER

GUIDE ROLLER

TRAY

TRAY RACK

SCREW TAPPING

COVER INSULATOR *T

THERMOSTAT

SCREW TAPPING

1

1

1

1

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

5

1

4

1

1

1

1

2

1

1

1

1

1

1

2

Q'TY

1

1

1

1

3

1

DESCRIPTION

KOR-6CCKWS

KQG-6CCK5S

KOG-57350S

KOR-61152S

T1 TRS 4*10 MFZN

KOG-57350S

T2S TRS 4X12 MFZN

T2S TRS 4X12 MFZN

T1 TRS 4*10 MFZN

3X1.5 80X80 120-RTML

T1 TRS 4*10 MFZN

250V 15A

DWLF-M13

T2S PAN 4X25 MFZN

230V 20W MW10CA-M02

PP

PP+30%GLASS

2M218J(F) 5CF

T2 BOLT FLANGE 5X12 DACRO

T2S TRS 4*8 MFZN

SECC T0.6

2100VAC 0.98UF #187

HVR-1X-30B #187

5KV 0.55A HV-41A55-02

R1S580(EA00)

TT3 HEX 4X8 FLG MFZN

SBHG T0.6

T1 TRS 4*10 MFZN

PP DASF-130

TT3 TRS 4X8 MFZN

SCP-1 T2.5

KOG-573R0S

VP-533A-OF SPNO #187 200G

VP-531A-OF/SZM-V16-FA-61

VP-533A-OF SPNO #187 200G

MP101C

POM

POM BLACK

BL 240V 25W T25 C7A H187

T2S PAN 3X6 MFZN

220V 2.5W GM-16-24FD12

OFF:75 ON:65 H #187 NB

PP(BK)

TT3 TRS 4X8 MFZN

PP HONAM A353

MICA T0.35

XAREC

TEFLON

PP 5113MF6 A353B

BORO-SI GLASS(NEG)

MSWR3 94MM DIA:3

T1 TRS 4*10 MFZN

SBHG T0.6

OFF:75 ON:65 V #187

T2S PAN 3X6 MFZN

38

S/M NO. : OR6QCK5001

DAEWOO ELECTRONICS CORP.

686, AHYEON-DONG MAPO-GU SEOUL, KOREA

C.P.O. BOX 8003 SEOUL, KOREA

TELEX: DWELEC K28177-8

CABLE: “DAEWOOELEC”

PRINTED DATE: June. 2006

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
