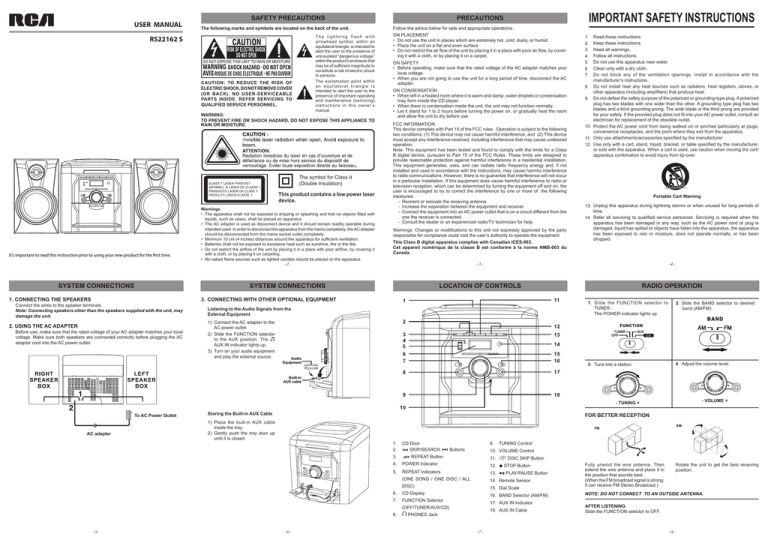

USER MANUAL
SAFETY PRECAUTIONS
The following marks and symbols are located on the back of the unit.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to the
presence of important operating
and maintenance (servicing)
instructions in this owner ’s
manual.
RS22162 S
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
The symbol for Class
(Double lnsulation)
This product contains a low power laser
device.
It's important to read this instruction prior to using your new product for the first time.
SYSTEM CONNECTIONS
1. CONNECTING THE SPEAKERS
Connect the wires to the speaker terminals.
Note: Connecting speakers other than the speakers supplied with the unit, may
damage the unit.
2. USING THE AC ADAPTER
Before use, make sure that the rated voltage of your AC adapter matches your local
voltage. Make sure both speakers are connected correctly before plugging the AC
adapter cord into the AC power outlet.
Warnings
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on apparatus.
• The AC adapter is used as disconnect device and it should remain readily operable during
intended used. In order to disconnect the apparatus from the mains completely, the AC adapter
should be disconnected from the mains socket outlet completely.
• Minimum 10 cm (4 inches) distances around the apparatus for sufficient ventilation.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not restrict the airflow of the unit by placing it in a place with poor airflow, by covering it
with a cloth, or by placing it on carpeting.
• No naked flame sources such as lighted candles should be placed on the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
PRECAUTIONS
Follow the advice below for safe and appropriate operations.
ON PLACEMENT
• Do not use the unit in places which are extremely hot ,cold ,dusty, or humid.
• Place the unit on a flat and even surface.
• Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth, or by placing it on a carpet.
ON SAFETY
• Before operating, make sure that the rated voltage of the AC adapter matches your
local voltage.
• When you are not going to use the unit for a long period of time, disconnect the AC
adapter.
ON CONDENSATION
• When left in a heated room where it is warm and damp, water droplets or condensation
may form inside the CD player.
• When there is condensation inside the unit, the unit may not function normally.
• Let it stand for 1 to 2 hours before turning the power on, or gradually heat the room
and allow the unit to dry before use.
FCC INFORMATION
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an AC power outlet that is on a circuit different from the
one the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warnings: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your AC power outlet, consult an
electrician for replacement of the obsolete outlet.
10 Protect the AC power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
1
2
3
4
5
6
7
Portable Cart Warning
13 Unplug this apparatus during lightning storms or when unused for long periods of
time.
14 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the AC power cord or plug is
damaged, liquid has spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been
dropped.
-2-
-3-
-4-
SYSTEM CONNECTIONS
LOCATION OF CONTROLS
RADIO OPERATION
3. CONNECTING WITH OTHER OPTIONAL EQUIPMENT
Listening to the audio signals from the
external equipment
1) Connect the AC adapter to the
AC power outlet.
2) Slide the FUNCTION selector
to the AUX position. The
AUX IN indicator lights up.
3) Turn on your audio equipment
and play the external source.
Audio
Equipment
1. Slide the FUNCTION selector to
TUNER.
The POWER indicator lights up.
2. Slide the BAND selector to desired
band (AM/FM).
3. Tune into a station.
4. Adjust the volume level.
Built-in
AUX cable
- VOLUME +
- TUNING +
To AC Power outlet
AC adapter
Storing the Built-in AUX cable
FOR BETTER RECEPTION
1) Place the built-in AUX cable
inside the tray.
2) Gently push the tray door up
until it is closed.
1. CD door
2.
SKIP/SEARCH
3.
9. TUNING control
buttons
10. VOLUME control
REPEAT button
11.
4. POWER indicator
12.
5. REPEAT indicators
13.
(ONE SONG / ONE DISC / ALL
DISC)
15. Dial scale
16. BAND selector (AM/FM)
7. FUNCTION selector
8.
-5-
-6-
PLAY/PAUSE button
14. Remote sensor
6. CD display
DISC SKIP button
STOP button
17. AUX IN indicator
(OFF/TUNER/AUX/CD)
18. AUX IN cable
PHONES jack
-7-
Fully unwind the wire antenna. Then
extend the wire antenna and place it in
the position that sounds best.
(When the FM broadcast signal is strong,
it can receive FM Stereo Broadcast.)
Rotate the unit to get the best receiving
position.
NOTE: DO NOT CONNECT TO AN OUTSIDE ANTENNA.
AFTER LISTENING
Slide the FUNCTION selector to OFF.
-8-
COMPACT DISC PLAYBACK
1. Slide the FUNCTION selector to CD.
The POWER indicator lights up.
COMPACT DISC PLAYBACK
2. Open the disc compartment.
7. Press the PLAY/PAUSE
DISC
4. Press the DISC SKIP button to revolve
the tray clockwise.
Place other disc(s) on the disc holder(s).
8
TRACK
SKIP or SEARCH
button can only be used to choose a track on the
Note: The
current disc. To choose a track of another disc, the DISC SKIP button should be pressed
to get to the desired disc first.
2
DISC
SKIP
2
DISC
2
To fast forward or fast reverse to a particular point
• To scan forward at high speed, press and hold the
forward search button and
release it at the desired point.
• To scan backward at high speed, press and hold the
reverse search button and
release it at the desired point.
• fast forward or fast reverse will continue searching the CD until it reaches the end.
DISC
• Remove the protective plastic
tab before operating the remote
control.
• To change battery
1. Open the battery door.
2. Insert one CR2025 (3V) size battery.
5
TRACK
BATTERY REPLACEMENT
Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
To cancel repeat play
• Press the
REPEAT button until all indicators turn off.
2
DISC
5
TRACK
NOTE: If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
WARNINGS:
• Do not dispose of battery in fire. Battery may explode or leak.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
- 10 -
- 11 -
- 12 -
TROUBLESHOOTING GUIDE
MAINTENANCE
LIMITED WARRANTY
LIMITED WARRANTY
AVC MULTIMEDIA ("AVC") makes the following limited warranty. These limited
warranties extend to the original consumer purchaser and is limited to non-commercial
user of the product.
All warranties implied by state law, including the implied warranties of merchantability
and fitness for a particular purpose, are expressly limited to the duration of the limited
warranties set forth above. With the exception of any warranties implied by state law
as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties,
guarantees, agreements and similar obligations of manufacturer or seller with
respect to the repair or replacement of any parts. In no event shall AVC be liable for
consequential or incidental damages.
No sound
CAUSE (AND REMEDY)
CLEANING THE DISC
If the CD skips or will not play, the disc may need to be cleaned.
Before playing, wipe the disc from the center outward with a cleaning
cloth. After playing, store the disc in its case.
• Turn VOLUME clockwise.
• The headphones are connected.
Disconnect them.
No sound from one channel or
unbalanced left and right volume
• Check the speaker connections of the
inoperative channel.
CLEANING THE UNIT
Reversed left and right sound
• Check the speaker cord connection and
speaker location.
IMPORTANT NOTE
Lack of bass sound or imprecise
physical location of musical
instruments
• Check the speaker connection for proper
phasing.
Severe hum or noise
• The TV or VCR is too close to the stereo
system. Separate the stereo system from the
TV or VCR.
CD
Disc in place but unit won’t play
Poor AM reception
TRACK
-9-
SYMPTOM
Poor FM reception
5
When the battery becomes weak, the operating distance of the remote control is greatly
reduced and you will need to replace the battery.
Note: Searching and skipping can be done during playback or pause mode but are effective for the currently selected disc only. Use the DISC SKIP button to choose another
disc.
RADIO
USING THE REMOTE CONTROL
CORRECTLY
• Point the remote control at the REMOTE
SENSOR located on the unit.
• When there is a strong ambient light source,
the performance of the infrared REMOTE
SENSOR may be degraded, causing unreliable
operation.
• The recommended effective distance for
remote operation is about 13 feet.
TRACK
To repeat all discs
• Press the
REPEAT button until the ALL DISC indicator lights up.
REVERSE
FORWARD
Press it once
REVERSE
FORWARD
Keep it pressed
Disc skips
5
To repeat the whole disc
• Press the
REPEAT button until the ONE DISC indicator lights up. The current disc
will be played repeatedly starting from the current playing point.
To skip to a different track
• To skip to the beginning of the current or the previous track, press the
reverse skip
button.
forward skip button.
• To skip to the beginning of the next track, press the
• A short period of time will be needed for the disc to read the information of the desired
track before playback can begin.
6. Press the DISC SKIP button to select the desired disc. Press either the
button to select the desired track.
or SEARCH
1. PLAY/PAUSE
button
2.
SKIP/SEARCH button
3. DISC SKIP button
4.
SKIP/SEARCH button
5.
REPEAT button
6.
STOP button
To repeat the current track
• Press the
REPEAT button until the ONE SONG indicator lights up. The current
track will be played repeatedly until the STOP button is pressed.
To stop playing:
(a) Press the PLAY/PAUSE
button and the track no. will flash. Press this button again
to resume playing.
(b) Press the STOP button.
5. Close the CD door by gently pushing down until it is secure. The disc no. and the
total number of tracks will show in the CD display for a few seconds.
REMOTE CONTROL
REPEAT PLAYBACK DURING PLAYBACK MODE
button to start playback.
2
3. Place a disc onto the disc(s) holder,
with the label side up.
COMPACT DISC PLAYBACK
Do not use volatile chemicals on this unit. Clean by lightly wiping with a soft cloth.
• If an abnormal display indication or an operating problem occurs, disconnect the AC
adapter. Wait at least 5 seconds, then reconnect it.
• Before transporting the unit, remove all discs from the disc compartment.
SPECIFICATIONS
Power consumption:
Power source:
• Make sure the AC adapter is secure in the AC
power outlet, and the outlet has power.
• Make sure FUNCTION selector is set to CD.
• Make sure disc label is facing up.
• Make sure disc is clean.
• Pause mode is activated.
• Disc may be damaged or dirty; check disc.
10 W
AC 120V~60Hz
AVC products purchased in the United States are warranted to be free from defects in
materials or workmanship for a period of one year from the date of their original retail
purchase. If the unit fails to conform to this warranty, we will service the product using
new or refurbished parts and products, at AVC's sole discretion.
During a period of one year from the effective warranty date, AVC will provide, when
needed, service labor to repair a manufacturing defect at its designated Service Center.
To obtain warranty service in the United States, you must first call our Customer
Support Center at 1-877-252-6873, during the hours listed in the box below. The
deternination of service will be made by AVC customer support.
PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR
AUTHORIZATION. New or remanufactured replacements for defective parts or
products will be used for repairs by AVC at its designated Service Center for one year
from the defective warranty date. Such replacement parts or products are warranted
for an additional one year from the date of repair or replacement. The Customer will
be required to ship the unit to the Service Center indicated at the time Customer
Support is contacted to make the necessary repairs. The customer is responsible for
all transportation charges to the service facility.
Packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the original carton
box and packing material or an equivalent as designated by AVC.
Your Responsibility
(1)You must retain your bill of sale to provide proof of purchase.
(2)These warranties are effective only if the product is purchased and operated in the
U.S.A. or Canada.
(3)Warranties extend only to defects in material or workmanship, and do not extend
to any product or parts which have been lost or discarded, or damage to product
or parts caused by misuse, accident, improper operation or maintenance, or use
in violation of instructions provided with the product, or to product which has been
altered or modified without authorization of AVC, or to products or parts thereof
which have had the serial number removed or changed.
• Make sure the unit is on a secure spot.
Vibration or jarring can cause the disc to
skip.
• Make sure FM antenna wire is unwound.
• Electrical interference in your home can cause
poor reception. Move the unit away from
sources of interference (especially those with
motors and transformers).
No person, agent, distributor, dealer or company is authorized to change, modify or
extend the terms of these warranties in any manner whatsoever. The time within action
must be commenced to enforce any obligation of AVC arising under the warranty or
under any statute, or law of the United States or any state thereof, is hereby limited to
one year from the date of purchase. This limitation does not apply to implied warranties
arising under state law.
This warranty gives you specific legal rights and you may also have other rights, which
may vary from state to state. Some states do not allow limitation on how long an
implied warranty lasts, when an action may be brought, or the exclusion or limitation of
incidental or consequential damages, so the above provisions may not apply to you.
For more information on other products and services, please contact our web site at
www.RCAav.com
Important: Also keep your “Bill of Sale” as proof of purchase.
Model no ..................................................... Product name ............................................
Type of set ........................................................................................................................
Serial no. ......................................................Invoice no. .................................................
Date purchased ............................................Dealer name ..............................................
FOR SUPPORT, SERVICE AND REPAIR, PLEASE VISIT
www.RCAav.com.
Out of Warranty
In the event your product requires repair after the limited warranty period has
expired, please contact our Customer Support Center at 1-877-252-6873 or www.
RCAav.com
Hours: Monday-Thursday: 9am-7pm, Friday: 9am-5pm, Saturday: 9am-NOON
Eastern time.
Important:
You are responsible for any transportation, shipping or insurance relative to the
return of the product to our Product Returns Center.
• Reposition or turn the main unit for better
reception.
- 13 -
One Year Parts & Labor Warranty
- 14 -
- 15 -
Specifcations and external appearance are subject to change without notice.
Printed in China
811-216291W100
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
