00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 101
ENGLISH

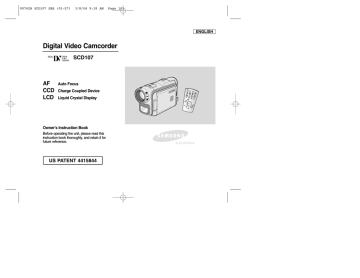

Digital Video Camcorder
SCD107
AF
CCD
LCD
Auto Focus
Charge Coupled Device
STAR
T/
STOP
SELF
TIMER
PHO
SEARTO
CH
Liquid Crystal Display
ZERO
MEMORY
A.DUB
DISPLAY
DATE/
TIME
SLOW
X2
F.ADV
Owner’s Instruction Book
Before operating the unit, please read this
instruction book thoroughly, and retain it for
future reference.
US PATENT 4415844
ELECTRONICS
00762B SCD107 SEA-SAFETY
3/8/04 9:17 AM
Page 100
ENGLISH
Notices and Safety Instructions
Safety Instructions
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). NO USER SERVICEABLE
PARTS INSIDE, REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
To prevent electric shock, match wide blade of plug
to wide slot and fully insert.
This symbol is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of fire or electric shock.
This symbol is intended to alert the user to the presence of important
operating and maintenance instructions in the literature accompanying
this product.
1. READ INSTRUCTIONS:
All the safety and operating instructions should be read
before the CAMCORDER is operated.
2. RETAIN INSTRUCTIONS:
The safety and operating instructions should be retained for
future reference.
3. HEED WARNINGS:
All warnings on the CAMCORDER and in the operating instructions
should be adhered to.
4. FOLLOW INSTRUCTIONS:
All operating and maintenance instructions should be followed.
5. CLEANING:
Unplug this CAMCORDER from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners.
Use a dry cloth used for dusting cabinets.
6. ATTACHMENTS:
Do not use attachments not recommended by the CAMCORDER
product manufacturer as they may be hazardous.
7. WATER AND MOISTURE:
Do not use this CAMCORDER near water;
for example, near a bathtub, wash bowl, kitchen sink, laundry
tub, in a wet basement, near a swimming pool or lake.
8. ACCESSORIES:
Do not place this CAMCORDER on an unstable cart, stand, tripod,
bracket or table. The CAMCORDER may fall, causing serious injury
to a child or adult, and serious damage to the unit.
Use only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer or sold with the CAMCORDER. Any mounting
of the unit should follow the manufacturer’s instructions and should
use a mounting accessory recommended by the manufacturer.
A. An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause
the appliance and cart combination to overturn.
PORTABLE CART WARNING
(Symbol provided by RETAC)
00762B SCD107 SEA-SAFETY
3/8/04 9:17 AM
Page 101
ENGLISH
Notices and Safety Instructions
9.
VENTILATION:
Slots and openings in the cabinet are provided for ventilation to
ensure reliable operation of the CAMCORDER and to protect it
from overheating. These openings must not be blocked or
covered. Never place your CAMCORDER on a bed, sofa, rug,
or other similar surface: on or near a radiator or heat register.
This CAMCORDER should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is provided
or the manufacturer’s instructions have been adhered to.
10. POWER SOURCES:
The CAMCORDER should be operated only from the type of
power source indicated on the label.
If you are not sure of the type of power supply at your home,
consult your appliance dealer or local power company.
A CAMCORDER is intended to be operated from battery power,
or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION:
This CAMCORDER may be equipped with either a polarized
2-wire AC line plug (a plug having one blade wider than the other)
or a 3-wire grounding type plug, a plug having a third (grounding)
pin.
If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug still fails to fit, contact your electrician to
replace your outlet. Do not defeat the safety purpose of the
polarized plug.
12. POWER-CORD PROTECTION:
Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords or plugs, convenient
receptacles, and the point where they exit from the unit.
13. OUTDOOR ANTENNA GROUNDING:
If an outside antenna or cable system is connected to the
CAMCORDER, be sure the antenna or cable system is grounded
to provide some protection against voltage surges and built-up
static charges, Section 810 of the National Electrical Code,
ANSI/NFPA No. 70-1984, provides information with respect to
proper grounding of the mast and supporting structure, grounding
of the lead-in wire and supporting structure, grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding to conductors, location
of antenna-discharge unit, connection to grounding electrodes
and requirements for the grounding electrode.
See figure below.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC NATIONAL ELECTRICAL CODE
00762B SCD107 SEA-SAFETY
3/8/04 9:17 AM
Page 102
ENGLISH
Notices and Safety Instructions
14. LIGHTNING:
For added protection of this CAMCORDER during a lightning
storm or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system.
This will prevent damage to the CAMCORDER due to lightning
and power-line surges.
15. POWER LINES:
An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits where
it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them
might be fatal.
16. OVERLOADING:
Do not overload wall outlets and extension cords as this can result
in a risk of fire or electric shock.
17. OBJECTS AND LIQUIDS:
Never push objects of any kind into this CAMCORDER through
openings as they may touch dangerous voltage points or short out
a part that could result in a fire or electric shock.
Never spill liquids of any kind onto the CAMCORDER. Should
spillage occur, unplug unit and have it checked by a technician
before use.
18. SERVICING:
Do not attempt to service this CAMCORDER yourself. Opening or
removing covers may expose you to dangerous voltage or other
hazards.
Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE:
Unplug this CAMCORDER from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into
the CAMCORDER.
c. If the CAMCORDER has been exposed to rain or water.
d. If the CAMCORDER does not operate normally by following the
operating instructions, adjust only those controls that are
covered by the operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified technician to restore
the CAMCORDER to its normal operation.
e. If the CAMCORDER has been dropped or the cabinet has been
damaged.
f. When the CAMCORDER exhibits a distinct change in
performance, this indicates a need for service.
20. REPLACEMENT PARTS:
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer and having the same characteristics as the original
part.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
21. SAFETY CHECK:
Upon completion of any service or repairs to this CAMCORDER,
ask the service technician to perform safety checks to determine
that the CAMCORDER is in safe operating order.
00762B SCD107 SEA-SAFETY
3/8/04 9:17 AM
Page 103
ENGLISH
Notices and Safety Instructions
22. To prevent damage which may result in fire or shock hazard,
do not expose this appliance to rain or moisture.
23. If this power supply is used at 240V ac, a suitable plug adapter
should be use.
NOTE TO CATV SYSTEM INSTALLER:
This reminder is provided to call the CATV system installer’s attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building as close to the point
of cable entry as practical.
USER INSTALLER CAUTION:
Your authority to operate this FCC certified equipment could be voided
if you make changes or modifications not expressly approved by this
party responsible for compliance to part 15 FCC rules.
NOTE:
“Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN
MERCURY AND MUST BE RECYCLED OR
DISPOSED OF ACCORDING TO LOCAL, STATE OR
FEDERAL LAWS”
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
and for additional suggestions.
The user may find the following booklet prepared by the Federal
Communications Commission helpful : “How to Identify and
Resolve Radio-TV Interference Problems.”
This Booklet is available from the U.S. Government Printing
Office, Washington, D.C. 20402, Stock No. 004-000-00345-4.
FCC Warning
The user is cautioned that changes or modifications not expressly
approved by the manufacturer could void the user’s authority to
operate the equipment.
FCC ID : A3L04DELTA2
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 2
ENGLISH
Contents
Notes and Safety Instructions ................................................................................................................................ 6
Getting to Know Your Camcorder ....................................................................................................................... 11
Features ....................................................................................................................................................................................................................................
Accessories Supplied with camcorder .....................................................................................................................................................................................
Front & Left View ......................................................................................................................................................................................................................
Left side View ...........................................................................................................................................................................................................................
Right & Top View ......................................................................................................................................................................................................................
Rear & Bottom View .................................................................................................................................................................................................................
Remote control .........................................................................................................................................................................................................................
OSD (On Screen Display in CAMERA and PLAYER modes) .................................................................................................................................................
OSD (On Screen Display in M.REC and M.PLAY modes) ......................................................................................................................................................
Turning the OSD on/off (On Screen Display) ....................................................................................................................................................................
11
12
13
14
15
16
17
18
19
19
Preparation .......................................................................................................................................................... 20
How to use the Remote Control ............................................................................................................................................................................................... 20
Battery Installation for the Remote Control ....................................................................................................................................................................... 20
Self Record using the Remote Control .............................................................................................................................................................................. 20
Lithium Battery Installation ......................................................................................................................................................................................................... 21
Adjusting the Hand Strap ........................................................................................................................................................................................................ 22
Hand strap ........................................................................................................................................................................................................................... 22
Shoulder Strap..................................................................................................................................................................................................................... 22
Attaching the Lens Cover.................................................................................................................................................................................................... 22
Connecting a Power Source .................................................................................................................................................................................................... 23
To use the AC Power adapter and DC Cable .................................................................................................................................................................. 23
To select the CAMCORDER mode...................................................................................................................................................................................... 23
Using the Lithium Ion Battery Pack ........................................................................................................................................................................................ 24
Charging the Lithium Ion Battery Pack .............................................................................................................................................................................. 24
Table of continuous recording time based on model and battery type ............................................................................................................................ 25
Battery level display ........................................................................................................................................................................................................... 26
Inserting and Ejecting a Cassette ........................................................................................................................................................................................... 27
BASIC Recording ................................................................................................................................................. 28
Making your First Recording ....................................................................................................................................................................................................
Selecting OSD LANGUAGE ....................................................................................................................................................................................................
Record Search (REC SEARCH) ......................................................................................................................................................................................
Hints for Stable Image Recording ............................................................................................................................................................................................
Recording with the LCD monitor ........................................................................................................................................................................................
Recording with the Viewfinder ..........................................................................................................................................................................................
Adjusting the LCD ...................................................................................................................................................................................................................
Using the VIEWFINDER .........................................................................................................................................................................................................
Adjusting the Focus ............................................................................................................................................................................................................
Playing back a tape you have recorded on the LCD ..............................................................................................................................................................
Adjusting the LCD during PLAY .........................................................................................................................................................................................
2 Controlling Sound from the Speaker ......................................................................................................................................................................................
28
29
30
31
31
31
32
33
33
34
35
35
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 3
ENGLISH
Contents
Advanced Recording ........................................................................................................................................... 36
Use of various Functions ......................................................................................................................................................................................................... 36
Setting menu items ............................................................................................................................................................................................................ 36
Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode .......................................................................................................... 37
Availability of functions in each mode ................................................................................................................................................................................ 38
CLOCK SET ...................................................................................................................................................................................................................... 39
WL. REMOTE...................................................................................................................................................................................................................... 40
DEMONSTRATION ........................................................................................................................................................................................................... 41
PROGRAM AE .................................................................................................................................................................................................................. 42
Setting the PROGRAM AE ................................................................................................................................................................................................ 43
WHT. BALANCE (WHITE BALANCE) ............................................................................................................................................................................... 44
Zooming In and Out ........................................................................................................................................................................................................... 45
Tele MACRO ...................................................................................................................................................................................................................... 45
Digital Zoom ...................................................................................................................................................................................................................... 46
DIS (Digital Image Stabilizer) ............................................................................................................................................................................................. 47
DSE (Digital Special Effects) SELECT .............................................................................................................................................................................. 48
Selecting an effect .............................................................................................................................................................................................................. 49
REC MODE ....................................................................................................................................................................................................................... 50
AUDIO MODE ................................................................................................................................................................................................................... 51
WIND CUT ........................................................................................................................................................................................................................ 52
DATE/TIME ....................................................................................................................................................................................................................... 53
TV DISPLAY ...................................................................................................................................................................................................................... 54
Using Quick Menu ................................................................................................................................................................................................................... 55
Setting the Quick menu ...................................................................................................................................................................................................... 56
SHUTTER SPEED & EXPOSURE ................................................................................................................................................................................... 57
SLOW SHUTTER(Low Shutter Speed) .................................................................................................................................................................................. 58
EASY Mode (for Beginners) .................................................................................................................................................................................................... 59
AF/MF (Auto Focus/Manual Focus) ......................................................................................................................................................................................... 60
Auto Focusing .................................................................................................................................................................................................................... 60
Manual Focusing ................................................................................................................................................................................................................ 60
BLC (Back Light Compensation) ............................................................................................................................................................................................. 61
Fade In and Out ....................................................................................................................................................................................................................... 62
To Start Recording ............................................................................................................................................................................................................. 62
To Stop Recording (use FADE IN / FADE OUT) ............................................................................................................................................................... 62
Audio dubbing............................................................................................................................................................................................................................ 63
Dubbing sound. ................................................................................................................................................................................................................... 63
Dubbed Audio Playback ..................................................................................................................................................................................................... 64
PHOTO Image Recording ........................................................................................................................................................................................................ 65
Searching for a PHOTO picture ......................................................................................................................................................................................... 65
NITE PIX (0 lux recording) ......................................................................................................................................................................................................... 66
POWER NITE PIX...................................................................................................................................................................................................................... 67
Using the VIDEO LIGHT .......................................................................................................................................................................................................... 68
Various Recording Techniques ................................................................................................................................................................................................ 69
3
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 4
ENGLISH
Contents
Playback .............................................................................................................................................................. 70
Tape Playback ..........................................................................................................................................................................................................................
Playback on the LCD .........................................................................................................................................................................................................
Playback on a TV monitor ..................................................................................................................................................................................................
Connecting to a TV which has Audio/Video input jacks ....................................................................................................................................................
Connecting to a TV which has no Audio and Video input jacks .......................................................................................................................................
Playback .............................................................................................................................................................................................................................
Various Functions while in PLAYER mode ..............................................................................................................................................................................
Playback pause ..................................................................................................................................................................................................................
Picture search (Forward/Reverse) ......................................................................................................................................................................................
Slow playback (Forward/Reverse) .....................................................................................................................................................................................
Frame advance (To play back frame by frame) .................................................................................................................................................................
X2 Playback (Forward/Reverse )........................................................................................................................................................................................
Reverse playback................................................................................................................................................................................................................
ZERO MEMORY .......................................................................................................................................................................................................................
PB DSE (Playback Digital Special Effects) ............................................................................................................................................................................
PB ZOOM ................................................................................................................................................................................................................................
Recording in PLAYER mode ....................................................................................................................................................................................................
70
70
70
70
71
71
72
72
72
72
73
73
73
74
75
76
77
IEEE 1394 Data Transfer ...................................................................................................................................... 78
Transferring IEEE1394 (i.LINK)-DV standard data connections .............................................................................................................................................
Connecting to a DV device ................................................................................................................................................................................................
Connecting to a PC ............................................................................................................................................................................................................
System requirements .........................................................................................................................................................................................................
Recording with a DV connection cable ..............................................................................................................................................................................
78
78
78
79
79
USB interface ...................................................................................................................................................... 80
Transferring a Digital Image through a USB Connection ........................................................................................................................................................
System Requirements ..............................................................................................................................................................................................................
Installing DVC Media 5.1 Program ...........................................................................................................................................................................................
Using the “PC camera” function........................................................................................................................................................................................
Using the “Removable Disk” function ...............................................................................................................................................................................
Using the “USB streaming” function .................................................................................................................................................................................
Connecting to a PC ..................................................................................................................................................................................................................
80
80
81
81
82
82
82
Digital Still Camera mode ....................................................................................................................................... 83
MEMORY STICK (Optional Accessory).................................................................................................................................................................................... 83
Memory Stick Functions...................................................................................................................................................................................................... 83
4
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 5
ENGLISH
Contents
Inserting and ejecting the Memory Card .................................................................................................................................................................................................. 84
Structure of folders and files on the Memory Card ................................................................................................................................................................................. 85
Image Format ............................................................................................................................................................................................................................................ 85
Selecting the CAMCORDER mode ................................................................................................................................................................................................................ 85
MEMORY FILE NUMBER .............................................................................................................................................................................................................................. 86
Selecting the image quality ............................................................................................................................................................................................................................. 87
Select the image quality .......................................................................................................................................................................................................................... 87
Number of images on the Memory Card ................................................................................................................................................................................................. 87
Recording Still images to a Memory Card in M.REC Mode .......................................................................................................................................................................... 88
Recording images to a Memory Card ....................................................................................................................................................................................................... 88
Recording an image from a cassette as a still image ............................................................................................................................................................................ 89
Viewing Still images ........................................................................................................................................................................................................................................ 90
To view a Single image.............................................................................................................................................................................................................................. 90
To view a slide show.................................................................................................................................................................................................................................. 90
To view the Multi Display ........................................................................................................................................................................................................................... 91
Copying still images from a cassette to Memory Card ................................................................................................................................................................................... 92
Marking images for printing ............................................................................................................................................................................................................................. 93
Protection from accidental erasure .................................................................................................................................................................................................................. 94
Deleting Still images ........................................................................................................................................................................................................................................ 95
Formatting the Memory Card .......................................................................................................................................................................................................................... 96
Attention .................................................................................................................................................................................................................................................... 96
MPEG RECORDING ...................................................................................................................................................................................................................................... 97
Selecting the moving picture sizes ................................................................................................................................................................................................................. 98
MPEG Playback .............................................................................................................................................................................................................................................. 99
Maintenance....................................................................................................................................................... 100
After finishing a recording .............................................................................................................................................................................................................................
Cleaning and Maintaining the Camcorder.....................................................................................................................................................................................................
Cleaning the Video Heads .....................................................................................................................................................................................................................
Using Your Camcorder Abroad .....................................................................................................................................................................................................................
Power sources ........................................................................................................................................................................................................................................
Color system ...........................................................................................................................................................................................................................................
100
101
101
102
102
102
Troubleshooting.................................................................................................................................................. 103
Troubleshooting .............................................................................................................................................................................................................................................
Self Diagnosis Display ............................................................................................................................................................................................................................
Moisture Condensation ...........................................................................................................................................................................................................................
Self Diagnosis Display in M.REC, M.PLAY mode .................................................................................................................................................................................
103
103
103
104
Specifications ......................................................................................................................................................106
INDEX ................................................................................................................................................................ 107
Warranty(SEA users only) ................................................................................................................................... 108
5
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 6
ENGLISH
Notes and Safety Instructions
Notes regarding the rotation of the LCD screen
Please rotate the LCD screen carefully as illustrated.
Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.
1. LCD screen closed.
1
2. Standard recording using the LCD screen.
■ Open the LCD screen with your finger.
2
3. Recording when looking at the LCD screen from the top.
3
4. Recording when looking at the LCD screen from the front.
4
5. Recording with the LCD screen closed.
5
LCD open knob
6
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 7
ENGLISH
Notes and Safety Instructions
Notices regarding COPYRIGHT
Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted.
Unauthorized copying of copyrighted material may be against the law.
Notes regarding moisture condensation
1. A sudden rise in atmospheric temperature may cause condensation to form inside the camcorder.
for example:
- When you move the camcorder from a cold location to a warm location (e.g. from outside to inside during winter.)
- When you move the camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.)
2. If the
(DEW) protection feature is activated, leave the camcorder for at least two hours in a dry, warm room with the
cassette compartment opened and the battery pack removed.
Notes regarding CAMCORDER
1. Do not leave the camcorder exposed to high temperature (above 60°C or 140°F).
For example, in a parked car in the sun or exposed to direct sunlight.
2. Do not let the camcorder get wet.
Keep the camcorder away from rain, sea water, and any other form of moisture. If the camcorder gets wet,
it may get damaged.
Sometimes a malfunction due to exposure to liquids cannot be repaired.
7
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 8
ENGLISH
Notes and Safety Instructions
Notes regarding the battery pack
- Make sure that the battery pack is fully charged before starting to record.
- To preserve battery power, keep your camcorder turned off when you are not
operating it.
- If your camcorder is in CAMERA mode, and it is left in STBY mode without being
operated for more than 5 minutes with a tape inserted, it will automatically turn
itself off to protect against unnecessary battery discharge.
- Make sure that the battery pack is fitted firmly into place.
Dropping the battery pack may damage it.
- A brand new battery pack is not charged.
Before using the battery pack, you need to charge it completely.
- It is a good idea to use the viewfinder rather than the LCD when making a long
recording, because the LCD uses up more battery power.
* When the battery reaches the end of its life, please contact your local dealer.
The batteries have to be dealt with as chemical waste.
Notes regarding the Video Head Cleaning
- To ensure normal recording and a clear picture, clean the video heads regularly.
If a square block-shape distorts playback, or only a blue screen is displayed, the video heads may be dirty.
If this happens, clean the video heads with a dry type cleaning cassette.
- Do not use a wet-type cleaning cassette. It may damage the video heads.
8
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 9
ENGLISH
Notes and Safety Instructions
Note regarding the LENS
- Do not film with the camera lens pointing directly at the sun.
Direct sunlight can damage the CCD(Charge Coupled Device).
Notes regarding electronic viewfinder
1. Do not position the camcorder such that the viewfinder is pointing towards the sun.
Direct sunlight can damage the inside of the viewfinder. Be careful when placing the camcorder under sunlight
or near a window exposed to sunlight.
Notes regarding ‘Record’ or ‘Playback’ using the LCD
1. The LCD display has been manufactured using high precision
technology. However, there may be tiny dots
(red, blue or green in color) that appear on the LCD display.
These dots are normal and do not affect the recorded picture
in any way.
2. When you use the LCD display under direct sunlight or outdoors,
it maybe difficult to see the picture clearly.
If this occurs, we recommend using the viewfinder.
3. Direct sunlight can damage the LCD monitor.
Notes regarding the hand strap
- To ensure a steady picture while filming, check that the hand strap is properly adjusted.
- Do not force your hand into the hand strap as you could damage it.
9
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 10
ENGLISH
Notes and Safety Instructions
Precautions regarding the Lithium battery
1. The lithium battery maintains the clock function and user settings; even if the battery pack or AC adapter is removed.
2. The lithium battery for the camcorder lasts about 6 months under normal operation from time of installation.
3. When the lithium battery becomes weak or dead, the date/time indicator will display “---” when you set the DATE/TIME to ON.
When this occurs, replace the lithium battery with a new one(type CR2025).
4. There is a danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Warning: Keep the LITHIUM BATTERY out of reach of children. Should a battery be swallowed, consult a doctor
immediately.
SERVICING
Do not attempt to service this CAMCORDER yourself.
Opening or removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
REPLACEMENT PARTS
When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer and having the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
10
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 11
ENGLISH
Getting to Know Your Camcorder
Features
• MULTI OSD LANGUAGE
You can select the desired OSD Language among English, French, Spanish, Portuguese, German and Italian.
• Digital data transfer function with IEEE1394
By incorporating the IEEE 1394 (i.LINK™ : i.LINK is a serial data transfer protocol and interconnectivity system, used to
transmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible
to produce or edit various images.
• USB interface for digital image data transfer
You can transfer images to a PC using the USB interface without an add-on card.
• PHOTO
The PHOTO function lets you capture an object as a still along with sound, while in Camera mode (DV only).
• 900x Digital zoom
Allows you to magnify an image up to 900 times its original size.
• Color TFT LCD
A high-resolution color TFT LCD gives you clean, sharp images as well as the ability to review your recordings immediately.
• Digital Image Stabilizer (DIS)
The DIS compensates for any handshake, reducing unstable images particularly at high magnification.
• Various digital effects
The DSE (Digital Special Effects) allows you to give your films a special look by adding various special effects.
• Back Light Compensation (BLC)
The BLC function compensates for the bright background behind a subject you're recording.
• Program AE
The Program AE enables you to alter the shutter speed and aperture to suit the type of scene/action to be filmed.
• NITE PIX
The NITE PIX function enables you to record a subject in a dark place.
• Digital Still Camera function
■ Using Memory Card, you can easily record and playback standard still images.
■ You can transfer standard still images on the Memory Card to your PC using the USB interface.
• MPEG Recording
MPEG recording makes it possible to record video onto a Memory Card.
• MULTI MEMORY CARD SLOT
11
Multi Memory Card Slot is compatible with Memory Stick, MMC(Multi-Media Card) and SD(Secure Digital).
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 12
ENGLISH
Getting to Know Your Camcorder
Accessories Supplied with camcorder
Make sure that the following basic accessories are supplied with your digital video camera.
Basic Accessories
1. Lithium Ion Battery pack
2. AC Power Adapter
(AA-E8 TYPE)
3. AC Cord
4. AUDIO/VIDEO Cable
5. Instruction Book
6. Lithium battery for
Remote Control or Clock.
(TYPE: CR2025)
7. Remote Control
8. USB cable
9. Software CD
10.Lens Cover
11.Shoulder strap
Optional Accessories
12.S-VIDEO Cable
13.8MB Memory Stick
1. Lithium Ion Battery pack
AD43-00128A
4. AUDIO/VIDEO Cable
AD44-00090A
AD59-00085A
10. Lens Cover
AD97-08447A
12. S-VIDEO Cable
3. AC cord
AD39-00076A
5. Instruction Book
6. Lithium battery
(CR2025)
8. USB cable
9. Software CD
AD39-00001A
7. Remote Control
AC39-42001Z
12
2. AC Power Adapter
(AA-E8 TYPE)
AD43-10130H
AD39-00073A
11. Shoulder strap
AD72-00054B
13. 8MB Memory Stick
1109-001221
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 13
ENGLISH
Getting to Know Your Camcorder
Front & Left View
5. Viewfinder
1. Internal MIC
2. Lens
6. TFT LCD monitor
3. Remote sensor
7. IR(Infrared) Light
4. Video Light
1. Internal MIC
2. Lens
3. Remote sensor
4. Video Light
5. Viewfinder
(see page 33)
6. TFT LCD monitor
7. IR(Infrared) Light
13
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 14
ENGLISH
Getting to Know Your Camcorder
Left Side View
1. Function buttons
REC SEARCH
FADE
BLC
S.SHOW
MULTI DISP.
EASY
REV
FWD
6. V. LIGHT
2. DISPLAY
3. PB ZOOM/MACRO
4. Mode switch
7. MENU button
8. MENU dial (VOL/MF)
9. ENTER button
5. Speaker
10. DC jack
1. Function buttons
PLAYER
-
14
CAMERA
EASY
M.PLAY
-
: (REW)
REC SEARCH –
REV
: (FF)
REC SEARCH +
FWD
: (PLAY/STILL)
FADE
SLIDE SHOW
: (STOP)
BLC
MULTI DISP.
2.
3.
4.
5.
6.
7.
8.
9.
10.
DISPLAY
PB ZOOM/MACRO
Mode switch (MEMORY CARD/TAPE)
Speaker
V. LIGHT
MENU button
MENU dial(VOL/MF)
ENTER button
DC jack
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 15
ENGLISH
Getting to Know Your Camcorder
Right & Top View
6. NITE PIX switch
1. Zoom lever
2. Focus adjustment knob
7. Slow shutter
3. PHOTO button
8. USB jack
9. DV jack
10. Audio/Video jack
11. S-VIDEO jack
12. Jack Cover
13. External MIC in
14. Hook for handstrap
15. LITHIUM Battery Holder
4. START/STOP button
5. Power switch
1. Zoom lever
8. USB jack
2. Focus adjustment knob
9. DV jack
3. PHOTO button
(see page 65)
10. Audio/Video jack
4. START/STOP button
5. Power switch (CAMERA or PLAYER)
6. NITE PIX switch
7. Slow shutter
11. S-VIDEO jack
12. Jack Cover
13. External MIC in
14. Hook for handstrap
15. LITHIUM Battery Holder
15
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 16
ENGLISH
Getting to Know Your Camcorder
Rear & Bottom View
3. Memory Card slot
4. Battery Release
1. Charging indicator
2. Hook for shoulder strap
5. Tripod receptacle
Memory Card slot
1. Charging indicator
2. Hook for shoulder strap
Memory Stick
Memory Stick PRO
3. Memory Card slot
4. Battery Release
SD/MMC
5. Tripod receptacle
6. TAPE EJECT
16
(Usable MEMORY CARDs)
6. TAPE EJECT
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 17
ENGLISH
Getting to Know Your Camcorder
Remote control
18. DISPLAY
1. PHOTO
2. START/STOP
3. SELF TIMER
4. ZERO MEMORY
5. PHOTO SEARCH
6. A.DUB
7.
(FF)
8.
(REW)
9.
(PLAY)
17. Zoom
16. X2
15. DATE/TIME
14.
(SLOW)
13. (STILL)
12. (STOP)
11. F. ADV
10. Direction
1. PHOTO
10. Direction (
,
) (see page 72)
2. START/STOP
11. F. ADV (see page 73)
3. SELF TIMER (see page 20)
12.
(STOP)
4. ZERO MEMORY (see page 74)
13.
(STILL)
5. PHOTO Search
14.
(SLOW)
6. A.DUB (see page 63)
15. DATE/TIME
7.
(FF)
16. X2 (see page 73)
8.
(REW)
17. Zoom
9.
(PLAY)
18. Display
17
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 18
ENGLISH
Getting to Know Your Camcorder
OSD (On Screen Display in CAMERA and PLAYER modes)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
18
Battery level (see page 26)
Easy mode (see pages 59)
DSE (Digital Special Effects) mode (see page 48)
Program AE (see page 42)
White Balance mode (see page 44)
BLC (Back Light Compensation) (see page 61)
Manual focus (see page 60)
Shutter speed and EXPOSURE (see page 57)
Zoom position (see page 45)
NITE PIX (see page 66)
DATE/TIME (see page 53)
USB
WL. REMOTE
WIND CUT (see page 52)
Audio recording mode (see page 51)
Zero memory indicator (see page 74)
Remaining Tape (measured in minutes)
Tape Counter
Operating mode
Record speed mode
PHOTO mode
Self recording and waiting timer (see page 20)
DIS (see page 47)
Volume control (see page 35)
Audio playback channel
DV IN(DV data transfer mode) (see page 79)
DEW (see page 7)
Message Line
PB DSE (see page 75)
PB ZOOM/ENTER (see page 76)
POWER NITE PIX (see page 67)
Tele MACRO (see page 45)
OSD in CAMERA mode
23 32 22 21
1
2
3
6
4
5
7
20
19
REC
M-0:00:00
EASY
MIRROR
5 5 min
BLC
TAPE !
1 6 bit
MF
NITE PIX
SHUTTER
EXPOSURE
P
18
17
16
28
15
14
13
12
12:00AM
JAN . 10 , 2 0 0 4
31
9
8
11
10
ZOOM
SHUTTER
EXPOSURE
OSD in PLAYER mode
21
25
30
29
SOUND [ 2 ]
PB ZOOM
1.2x
MIRROR
20
19
M-0:00:00
5 5 min
27
...C
1 6 bit
28
DV
26
12:00AM
30
JAN.10,2004
ENTER :
VOL.
[11]
24
11
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 19
ENGLISH
Getting to Know Your Camcorder
OSD (On Screen Display in M.REC/M.PLAY modes)
A. Folder number-file number (see page 85)
B. Image counter
- Current still image/Total number of recordable still images.
C. CARD (MEMORY CARD) indicator
D. Image recording and loading indicator
E. Quality
F. ERASE PROTECTION indicator (see page 94)
G. Print Mark (see page 93)
H. SLIDE SHOW
I. MPEG4 SCREEN SIZE
OSD in M.REC mode
E
D
C
SF 2 2 / 2 4 0
320
B
2 min
I
12:00AM
JAN.10,2004
Turning the OSD on/off (On Screen Display)
●
Turning OSD on/off
Press the DISPLAY button on the left side panel.
- Each press of the button toggles the OSD function on and off.
- When you turn the OSD off,
In CAMERA mode: The STBY, REC, EASY.Q modes are always displayed on the OSD,
even when the OSD is turned OFF and the key input is displayed for 3 seconds,
then turned off.
In PLAYER mode: When you press any Function button, the function is displayed
on the OSD for 3 seconds before it turns off.
●
OSD in M.PLAY mode
H
F
G
001
SLIDE
22/240
MEMORY CARD !
A
100-0001
12:00AM
JAN.10,2004
Turning the DATE/TIME on/off
- The DATE/TIME is not affected when the OSD function is switched ON or OFF.
- To turn the DATE/TIME on or off, access the menu and change the DATE/TIME mode. (see page 53)
- You may also use the Quick Menu to turn the DATE/TIME ON or OFF. (see page 55) (only in CAMERA/M.REC mode)
19
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 20
ENGLISH
Preparation
How to use the Remote Control
Battery Installation for the Remote Control
✤ You need to insert or replace the lithium battery when :
- You purchase the camcorder.
- The remote control doesn’t work.
✤ Ensure that you insert the lithium battery correctly, following the + and - markings.
✤ Be careful not to reverse the polarity of the battery.
Self Record using the Remote Control
When you use the Self Timer function on the remote control, the recording begins
automatically in 10 seconds.
1. Set the camcorder to CAMERA mode.
2. Press the SELF TIMER button until the appropriate indicator is displayed in the LCD.
3. Press the START/STOP button to start the timer.
- Self Timer starts counting down from 10 with a beep sound.
- In the last one second of the countdown, the beep sound gets faster, then recording starts automatically.
- If you want to cancel the Self Timer function before recording, press the SELF TIMER button.
4. Press START/STOP again when you wish to stop recording.
20
START/
STOP
Self
Timer
SELF
TIMER
ZERO
MEMORY
SEARCH
A.DUB
F.ADV
DISPLAY
DATE/
TIME
SLOW
X2
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 21
ENGLISH
Preparation
Lithium Battery Installation
✤ The lithium battery maintains the clock function and preset contents of the memory; even if the battery pack or AC power
adapter is removed.
✤ The lithium battery for the camcorder lasts about 6 months under normal operation from the time of installation.
✤ When the lithium battery becomes weak or dead, the date/time indicator will display “- - - ” when you set the DATE/TIME
to ON.
When this occurs, replace the lithium battery with type CR2025.
1. Open the Jack Cover.
2
2. Take out the lithium battery holder from the lithium battery compartment.
3. Position the Lithium battery in the Lithium battery holder, with the positive (
terminal face down.
)
3
4. Re-insert the Lithium battery holder into the lithium battery compartment until
you can hear a "CLICK".
4
Note
The lithium battery must be inserted in the correct direction.
Warning: Keep the LITHIUM BATTERY out of the reach of the children.
Should any battery be swallowed, consult a doctor immediately.
21
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 22
ENGLISH
Preparation
Adjusting the Hand Strap
It is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording.
The hand strap enables you to :
- Hold the camcorder in a stable, comfortable position.
- Press the Zoom and START/STOP button without having to change the position of your hand.
Hand strap
a. Pull open the Hand Strap cover
and release the Hand Strap.
b. Adjust its length and stick it back
onto the Hand Strap cover.
c. Close the Hand Strap cover
again.
a
Shoulder Strap
The Shoulder Strap enables you to carry your camcorder
around in complete safety.
1. Insert the end of strap into the Shoulder Strap hook
on the camcorder.
Insert the other end of strap into ring inside
hand strap.
2. Thread each end into the buckle, adjust the length
of the strap and then pull it tight in the buckle.
Attaching the Lens Cover
22
1
b
c
1
2
2
3
4
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 23
ENGLISH
Preparation
Connecting a Power Source
There are two types of power source that can be connected to your camcorder.
- The AC Power Adapter and AC cord : used for indoor recording.
- The Battery Pack : used for outdoor recording.
To use the AC Power adapter and DC Cable
1. Connect the AC Power adapter to the AC cord.
2. Connect the AC cord to a wall socket.
Notes
■
You must use the AA-E8 type AC Power adapter.
■ The plug and wall socket type may differ according to
your resident country.
3. Connect the DC cable to the DC jack socket of the
camcorder.
(When the battery is attached on the Camcorder make sure it
doesn’t get caught behind the DC cable.)
4. Set the camcorder to each mode by holding down the tab
on the power switch and turning it to the CAMERA or
PLAYER mode.
Power Switch
To select the CAMCORDER mode
✤ If you want to use this unit as a camcorder, set the mode switch to TAPE position.
✤ If you want to use this unit as a DSC (Digital Still Camera), set the mode switch to
MEMORY CARD position.
MEMORY
CARD
TAPE
23
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 24
ENGLISH
Preparation
Using the Lithium Ion Battery Pack
✤ The amount of continuous recording time available depends on
- The type and capacity of the battery pack you are using.
- How often the Zoom function is used.
It is recommended that you have several batteries available.
Charging the Lithium Ion Battery Pack
1. Attach the battery pack to the camcorder.
2. Connect the AC Power adapter to an AC cord and connect the AC cord to a
wall socket.
3. Connect the DC cable to the DC jack socket on the camcorder.
4. Turn the power switch to off, and the charging indicator will start to flash,
showing that the battery is charging.
Blinking time
Once per second
Charging rate
Less than 50%
Twice per second
Three times per second
Blinking stops and stays on
On for a second and
off for a second
50% ~ 75%
75% ~ 90%
90 ~ 100%
Error - Reset the battery pack and
the DC cable
Power Switch
5. When the battery is fully charged, disconnect the battery pack and the AC Power adapter from the
camcorder.
■ Even with the power switched off, the battery pack will still discharge if it is left connected to the
camcorder.
5
Notes
■
■
24
The battery pack may be charged a little at the time of purchase.
To prevent reduction in the life and capacity of the battery pack, always remove it from the camcorder after it is fully charged.
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 25
ENGLISH
Preparation
Using the Lithium Ion Battery Pack
Table of continuous recording time based on model and battery type.
✤ If you close the LCD screen, it switches off and the viewfinder switches on automatically.
✤ The continuous recording times given in the table below are approximations.
Actual recording time depends on usage.
Time
Continuous recording time
Charging
time
LCD ON
VIEWFINDER ON
SB-LS110
Approx.
2hr
Approx.
1hr 30min
Approx.
2hr
SB-LS220
Approx.
3hr 30min
Approx.
3hr 10min
Approx.
4hr 10min
Battery
Notes
■
■
■
■
■
■
The battery pack should be recharged in an environment of between 32°F (0°C) and 104°F (40°C).
The battery pack should never be charged in a room temperature that is below 32°F (0°C).
The life and capacity of the battery pack will be reduced if it is used in temperatures below 32°F (0°C)
or left in temperatures above 104°F (40°C) for a long period, even when it is fully recharged.
Do not put the battery pack near any heat sources (fire or flames, for example).
Do not disassemble, process, press, or heat the Battery Pack.
Do not allow the + and - terminals of the battery pack to be short-circuited.
It may cause leakage, heat generation, induce fire and overheating.
25
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 26
ENGLISH
Preparation
Battery level display
• The battery level display indicates the amount of power remaining in the battery pack.
a. Fully charged
a
b. 20~40% used
b
c. 40~80% used
d. 80~95% used
e. Completely used (flickers)
(The camcorder will turn off soon, change the battery as soon as possible)
c
d
e
✤ Please refer to the table on page 25 for approximate continuous recording time.
✤ The recording time is affected by environmental temperature and conditions.
The recording time becomes very short in a cold environment.
The continuous recording time in the operating instructions are measured using a fully charged battery pack at 77°F(25°C).
As the environmental temperature and conditions may differ when you actually use the camcorder, the remaining battery
time may not be the same as the approximate continuous recording time given in these instructions.
✤ The gray bar shown here to indicate battery level, is actually white in the viewfinder. For example, on the viewfinder, "a" (full)
will be displayed as a full white bar, and "e" (empty) will be displayed as a battery outline with the background image behind it.
Tips for Battery Identification
A charge mark is provided on the battery pack to help you remember whether it has been
charged or not.
Two colors are provided (red and grey)-you may choose which one indicates charged and
which indicates discharged.
Note
■
26
The charge mark setting does not affect the battery's charge status.
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 27
ENGLISH
Preparation
Inserting and Ejecting a Cassette
✤ When inserting a tape or closing a cassette holder, do not apply excessive force.
This may cause a malfunction.
✤ Do not use any tapes other than Mini DV cassettes.
1. Connect a power source and slide the TAPE EJECT switch and open
the cassette door.
- The cassette holding mechanism rises automatically.
2. Insert a tape into the cassette holder with the tape window facing outward and
the protection tab bottom.
3. Press the area marked PUSH on the cassette holding mechanism until
it clicks into place.
- The cassette is loaded automatically.
4. Close the cassette door.
- Close the door completely until you hear a “click”.
1
2
3
4
Note
When you have recorded something that you wish to keep, you can protect it so that it will
not be accidentally erased.
a. Protecting a tape :
Push the safety tab on the cassette so that the hole is uncovered.
b. Removing the tape protection :
If you no longer wish to keep the recording on the cassette, push the safety tab back so
that it covers the hole.
• How to store a tape
a. Avoid places with magnets or magnetic interference.
b. Avoid humidity and dust prone places.
c. Keep the tape in an upright position and avoid storing it in direct sunlight.
d. Avoid dropping or knocking your tapes.
push
a. SAVE
b. REC
27
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 28
ENGLISH
Basic Recording
Making your First Recording
1. Connect a Power source to the camcorder. (see page 23)
(A battery pack or a AC power adapter)
■ Insert a cassette. (see page 27)
1
2
4
3
2. Remove the LENS CAP.
3. Set the power switch to the CAMERA position.
■ Open the LCD monitor.
■ Set the mode switch to the TAPE position.
Make sure that STBY is displayed.
■ If the protection tab of the cassette is open, STOP and
PROTECTION! will be displayed.
■ Make sure the image you want to record appears on the
LCD monitor or viewfinder.
■ Make sure the battery level indicates that there is enough
remaining power for your expected recording time.
4. To start recording, press the START/STOP button.
■ REC is displayed on the LCD.
To stop recording, press the START/STOP button again.
■ STBY is displayed on the LCD.
28
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 29
ENGLISH
Basic Recording
Selecting OSD LANGUAGE
✤ Select the appropriate OSD Language among English, French, Spanish, Portuguese, German and Italian.
✤ The Language Function works in CAMERA, PLAYER, M.REC, M.PLAY modes.
1. Press the MENU button.
■ The menu list will appear.
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
CLOCK SET
WL. REMOTE
LANGUAGE
DEMO
3. Select LANGUAGE from the sub-menu and ENTER button.
4. Using the MENU DIAL, select the LANGUAGE and press the ENTER button.
■ Press the ENTER button to confirm the OSD LANGUAGE.
5. To exit, press the MENU button.
■ The OSD changes to the selected language.
Note
CAM MODE
INITIAL SET
CLOCK SET
WL.REMOTE
LANGUAGE
DEMONSTRATION
ENGLISH
CAM MODE
INITIAL SET
■
“LANGUAGE” and “LANGUAGE SELECT” are always indicated in ENGLISH.
LANGUAGE SELECT
ENGLISH
29
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 30
ENGLISH
Basic Recording
When a cassette is loaded and the camcorder is left in the STBY mode for more than 5 minutes without being used,
it will switch off automatically.
To use it again, push the START/STOP button or set the Power switch to OFF and then back to CAMERA.
This Auto Power off feature is designed to save battery power.
Record Search (REC SEARCH)
✤ You can view a recording using the REC SEARCH +, -- function in STBY mode.
REC SEARCH -- enables you to play the recording backwards and
REC SEARCH + enables you to play it forwards, for as long as you keep each
button pressed down.
REC SEARCH
✤ If you press the REC SEARCH -- button in STBY mode, your camcorder will play
in reverse for 3 seconds and return to the original position automatically.
Note
Mosaic shaped distortion may appear on the screen while in Record Search mode.
30
REC SEARCH
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 31
ENGLISH
Basic Recording
Hints for Stable Image Recording
■
■
While recording, it is very important to hold the camcorder correctly.
Fix the LENS cap firmly by clipping it to the hand strap. (see page 22)
Recording with the LCD monitor
1. Hold the camcorder firmly using the hand strap.
2. Place your right elbow against your side.
3. Place your left hand under or beside the LCD to support and adjust it.
Do not touch the built-in microphone.
4. Choose a comfortable, stable position for the shots that you are taking.
You can lean against a wall or on a table for greater stability.
Do not forget to breathe gently.
5. Use the LCD frame as a guide to determine the horizontal plane.
6. Whenever possible, use a tripod.
Recording with the Viewfinder
1. Hold the camcorder firmly using the hand strap.
2. Place your right elbow against your side.
3. Place your left hand under the camcorder to support it.
Be sure not to touch the built-in microphone.
4. Choose a comfortable, stable position for the shots that you are taking.
You can lean against a wall or on a table for greater stability.
5. Place your eye firmly against the viewfinder eyecup.
6. Use the viewfinder frame as a guide to determine the horizontal plane.
7. Whenever possible, use a tripod.
31
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 32
ENGLISH
Basic Recording
Adjusting the LCD
✤ Your camcorder is equipped with a 3.5 inch color Liquid Crystal Display(LCD) screen, which enables you to view what you
are recording or playing back directly.
✤ Depending on the conditions under where you are using the camcorder (indoors or outdoors for example), you can adjust ;
■ BRIGHT SELECT
■ BRIGHT ADJUST
■ COLOR ADJUST
1. Set the POWER switch to CAMERA position.
■ In the PLAYER mode, you may only setup the LCD while the tape is playing.
2. Open the LCD screen, and the LCD switches on.
3. Press the MENU button.
4. Turn the MENU DIAL so that VIEWER is highlighted and then
press the ENTER button.
CAM MODE
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
5. Turn the MENU DIAL so that LCD ADJUST is highlighted.
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
LCD ADJUST
DATE/TIME
TV DISPLAY
6. Press the ENTER button to enter the sub-menu.
7. Turn the MENU DIAL so that it highlights the menu item you want to adjust
(BRIGHT SELECT, BRIGHT ADJUST, COLOR ADJUST).
CAM MODE
VIEWER SET
LCD ADJUST
BRIGHT SELECT . . . . NORMAL
BRIGHT ADJUST . . . . . .[ 1 8 ]
COLOR ADJUST . . . . . . [ 1 8 ]
32
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 33
ENGLISH
Basic Recording
8. Press the ENTER button again.
■ You may select NORMAL or SUPER in the BRIGHT SELECT feature and press the ENTER button to save the setting.
■ Use the MENU DIAL to adjust the value of BRIGHT ADJUST and COLOR ADJUST.
■ You can set values for BRIGHT ADJUST between 00 ~ 35 and COLOR ADJUST between 00 ~ 35.
9. Press the MENU button to finish the setting.
Using the VIEWFINDER
✤ In the PLAYER mode, the VIEWFINDER will work when the LCD is closed.
✤ In the CAMERA mode, the VIEWFINDER will work when the LCD is closed or rotated counterclockwise 180°.
Adjusting the Focus
Use the focus adjustment knob of the VIEWFINDER to focus the picture.
(refer to figure )
33
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 34
ENGLISH
Basic Recording
Playing back a tape you have recorded on the LCD
✤ You can monitor the playback picture on the LCD monitor.
✤ Make sure that the battery pack is in place.
1. Hold down the power switch tab and turn it to the PLAYER position.
1
2. Insert the tape you wish to view. (see page 27)
3. Open the LCD screen.
Adjust the angle of the LCD screen and set the brightness or color if necessary.
4. Press the
(REW) button to rewind the tape to the starting point.
■ To stop rewinding, press the
(STOP) button.
■ The camcorder stops automatically after rewinding is complete.
2
4
5. Press the
(PLAY/STILL) button to start playback.
■ You can view the picture you recorded on the LCD.
■ To stop the PLAY operation, press the
(STOP) button.
Notes
■
■
34
You can also view the picture on a TV screen, after connecting the camcorder to a TV or VCR. (see page 70)
Various functions are available in PLAYER mode. (see page 72)
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 35
ENGLISH
Basic Recording
Adjusting the LCD during PLAY
✤ You can adjust the LCD during playback.
✤ The adjustment method is the same procedure as used in CAMERA mode. (see page 32)
Controlling Sound from the Speaker
The Speaker works in PLAYER mode only.
■
When you use the LCD screen for playback, you can hear recorded sound from
the built-in Speaker.
- Follow the instructions below to decrease or mute speaker volume in the PLAYER mode.
- Take the following steps to lower the volume or mute the sound while playing a tape
on the camcorder.
1. Set the power switch to PLAYER mode.
2. Press
(PLAY/STILL) to play the tape.
2
3-1
3. When you hear sounds once the tape is in play, use the MENU DIAL to adjust the volume.
■ A volume level display will appear on the LCD.
Levels may be adjusted from anywhere between 00 to 19.
■ If you close the LCD while playing, you will not hear sound from the speaker.
VOL/MF
<3-2>
0:23:47
5 5 min
Notes
■
■
When the cable is connected to the Audio/Video jack, you cannot hear sound from the speaker
or adjust the volume.
If a cable is connected to the AV jack, you can hear sound from the speaker when
AV IN/OUT MODE on MENU is set to AV IN.
VOL.
[11]
12:00AM
JAN.10,2004
35
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 36
ENGLISH
Advanced Recording
Use of various Functions
● Setting menu items
Available mode
SUB MENU
MENU
FUNCTIONS
CAMERA
PLAYER
M.REC
M.PLAY
Page
CLOCK SET
Setting the time
✔
✔
✔
✔
39
WL. REMOTE
Using the Remote Control
✔
✔
✔
✔
40
LANGUAGE SELECT
✔
✔
✔
29
INITIAL
CAMERA
Selecting the OSD language
✔
DEMO
Demonstration
✔
41
PROGRAM AE
Selecting the PROGRAM AE
Function
✔
42
WHT. BALANCE
Setting White Balance
✔
D. ZOOM
Selecting Digital Zoom
✔
46
DIS
Selecting the Digital Image
Stabilizing
✔
47
DSE SELECT
Setting the Digital special effect
✔
48
REC MODE
Selecting the recording speed
✔
PHOTO SEARCH
Searching pictures recorded in
TAPE
✔
65
PHOTO COPY
Copying pictures from TAPE onto
the Memory Card
✔
92
AUDIO MODE
Selecting Sound Quality for
recording
AUDIO SELECT
Selecting the Audio playback
channel
WIND CUT
Minimizing wind noise
PB DSE
AV IN/OUT
AV
36
✔
44
50
✔
51
✔
64
✔
52
Selecting a Digital Special Effect
during the playback
✔
75
Selecting Analog A/V in or out
✔
77
✔
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 37
ENGLISH
Advanced Recording
Available mode
MENU
SUB MENU
FUNCTIONS
CAMERA
PLAYER
M. REC
✔
Page
M. PLAY SELECT
Selecting Storage Media (MPEG4,
PHOTO) to playback
PHOTO QUALITY
Selecting Image Quality
MPEG4 SIZE
Selecting Image Resolution
PRINT MARK
Print images recorded on a Memory Card
✔
93
PROTECT
Preventing Accidental Erasure
✔
94
✔
86
✔
✔
✔
✔
99
87
✔
MEMORY
VIEWER
M. PLAY
98
FILE NO.
File Naming Options
DELETE
Deleting Files
✔
95
FORMAT
Formatting the Memory Card
✔
96
LCD ADJUST
Setting the Brightness and colour Tones
of the LCD
✔
✔
✔
✔
32
DATE/TIME
Setting the Date and Time
✔
✔
✔
✔
53
TV DISPLAY
Selecting OSD on/off of TV
✔
✔
✔
✔
54
● Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode
1. Press the MENU button.
The MENU OSD is displayed. The cursor ( HIGHLIGHT ) indicates the feature you are currently adjusting.
2. Use the MENU DIAL and press the ENTER button on the left side panel to select and activate the item.
3. You can exit the menu mode by pressing the MENU button.
37
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 38
ENGLISH
Advanced Recording
●
Availability of functions in each mode
Operating
Mode
Requested
Mode
Digital functions
DIS
D.ZOOM
O
DIS
D.ZOOM
O
✕
SLOW SHUTTER
(TAPE)
O
O
✕
SLOW
SHUTTER
*
✕
✕
O
Digital Special Effects
O
O
O
O
NITE PIX
O
O
O
O
Digital
special
effects
NITE PIX
O
O
O
O
✕
O
O
O
✕
O : The requested mode will work in this operating mode.
✕ : You can not change the requested mode.
: The operating mode will be released and the requested mode will work.
* : The operating mode will be released and the requested mode will work.
(operating mode data will be backed up)
Notes
■
■
38
When a menu item on the LCD is marked with an X , that item cannot be activated.
When you select an item that cannot be changed, an error message will be displayed.
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 39
ENGLISH
Advanced Recording
● CLOCK SET
✤ CLOCK setup works in CAMERA, PLAYER, M.REC and M.PLAY modes.
✤ The DATE/TIME is automatically recorded onto a tape.
Before recording, please set the DATE/TIME.
1. Press the MENU button.
■ The menu list will appear.
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
CLOCK SET
WL. REMOTE
LANGUAGE
DEMO
3. Use the MENU DIAL to select CLOCK SET from the submenu.
4. Press the ENTER button to enter SETTING mode.
■ A blinking item indicates the item to be changed. The year will blink first.
5. Using the MENU DIAL, change the year setting.
6. Press the ENTER button.
■ The month will blink.
CAM MODE
INITIAL SET
CLOCK SET
WL.REMOTE
LANGUAGE
DEMONSTRATION
SET TIME!
ENGLISH
7. Using the MENU DIAL, change the month setting.
8. Press the ENTER button.
■ The day will blink.
CAM MODE
INITIAL SET
CLOCK SET
9. You can set the day, hour and minute following the same procedure for setting the year
and month.
10.Press the ENTER button after setting the minutes.
■ The word COMPLETE! will appear, and a few seconds later, the menu screen will
automatically return to the sub menu.
1 2 : 0 0 AM
J A N. 1 0 , 2 0 0 4
11.To exit, press the MENU button.
39
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 40
ENGLISH
Advanced Recording
● WL. REMOTE
✤ The WL. REMOTE function works in CAMERA, PLAYER, M.REC, M.PLAY modes.
✤ The WL. REMOTE option allows you to enable or disable the remote control for use with the camcorder.
1. Press the MENU button.
■ The menu list will appear.
CAM MODE
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
3. Use the MENU DIAL to select WL.REMOTE from the submenu.
INITIAL
CAMERA
A/V
MEMORY
VIEWER
CLOCK SET
WL. REMOTE
LANGUAGE
DEMO
4. Press the ENTER button to enable or disable the remote control.
The setting switches between ON/OFF each time you press the ENTER button.
5. To exit, press the MENU button.
■ If you set the remote to OFF in the menu and try to use it, the remote control icon will blink
for 3 seconds and disappear on the LCD.
40
CAM MODE
INITIAL SET
CLOCK SET
WL.REMOTE
LANGUAGE
DEMONSTRATION
ENGLISH
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 41
ENGLISH
Advanced Recording
● DEMONSTRATION
✤ Demonstration automatically shows you the major functions that are included with your camcorder so that you may use
them more easily.
✤ The DEMONSTRATION function may only be used in the CAMERA mode without a tape inserted in the camcorder.
✤ The demonstration operates repeatedly until the DEMONSTRATION mode is switched OFF.
1. Set the camcorder to CAMERA mode (The mode switch must be in the TAPE position).
2. Press the MENU button.
■ The menu list will appear.
3. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
4. Select DEMONSTRATION from the submenu and press the ENTER button.
5. To activate the DEMONSTRATION, set DEMONSTRATION ON.
■ Press the MENU button to quit the menu.
■ The demonstration will begin.
6. To end the DEMONSTRATION, go back into the Menu and set the DEMONSTRATION to OFF.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
CLOCK SET
WL. REMOTE
LANGUAGE
DEMO
CAM MODE
INITIAL SET
CLOCK SET
WL.REMOTE
LANGUAGE
DEMONSTRATION
ENGLISH
Notes
■
■
■
■
The DEMONSTRATION function only works without a TAPE inserted.
The DEMONSTRATION mode is automatically activated when the camcorder is left idle for more than 10 minutes after
switching to the CAMERA mode (no tape is inserted in the camcorder).
If you press other buttons (FADE, BLC, PHOTO, EASY) during the DEMONSTRATION mode,
the DEMONSTRATION stops temporarily and resumes 10 minutes later if you do not operate any other functions.
While setting the NITE PIX to ON, the DEMONSTRATION function does not work.
41
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 42
ENGLISH
Advanced Recording
● PROGRAM AE
✤ The PROGRAM AE function works in CAMERA mode only.
✤ The PROGRAM AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions.
✤ They give you creative control over the depth of field.
■ AUTO mode
- Auto balance between the subject and the background.
- To be used in normal conditions.
- The shutter speed automatically varies from 1/60 to 1/250 per second, depending on the scene.
■ SPORTS mode ( )
- For recording people or objects moving quickly.
■ PORTRAIT mode ( )
- For focusing on the background of the subject, when the background is out of focus.
- The PORTRAIT mode is most effective when used outdoors.
- The shutter speed automatically varies from 1/60 to 1/1000 per second.
■ SPOTLIGHT mode ( )
- For recording correctly when there is only light on the subject and not the rest of the picture.
■ SAND/SNOW mode ( )
- For recording when people or objects are darker than the background because of reflected light from sand or snow.
■ High S. SPEED(High Shutter Speed) mode ( )
- For recording fast-moving subjects such as players in golf or tennis games.
42
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 43
ENGLISH
Advanced Recording
Setting the PROGRAM AE
CAM MODE
1. Press the MENU button.
■ The menu list will appear.
INITIAL
CAMERA
A/V
MEMORY
VIEWER
2. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
3. Select PROGRAM AE from the submenu.
4. Press the ENTER button to enter the submenu.
CAM MODE
CAMERA SET
5. Using the MENU DIAL, select the PROGRAM AE mode.
■ Press the ENTER button to confirm the PROGRAM AE mode.
6. To exit, press the MENU button.
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
PROGRAM AE
AUTO
SPORTS
PORTRAIT
SPOTLIGHT
SAND / SNOW
HIGH S. SPEED
Notes
■
■
While setting the NITE PIX to ON, the PROGRAM AE function does not work.
The PROGRAM AE function will not operate in EASY mode.
43
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 44
ENGLISH
Advanced Recording
● WHT. BALANCE (WHITE BALANCE)
✤ The WHITE BALANCE function works in CAMERA or M.REC mode only.
✤ The WHITE BALANCE is a recording function that preserves the unique image color of the object in any recording
condition.
✤ You may select the appropriate WHITE BALANCE mode to obtain good quality image color.
■ AUTO ( ): This mode is used to control the WHITE BALANCE automatically.
■ HOLD ( ):This fixes the current WHITE BALANCE value.
■ INDOOR (
): This controls the WHITE BALANCE according to the indoor ambience.
- Under halogen or studio/video lighting
- Subject is of one dominant color
- Close up
CAM MODE
■ OUTDOOR ( ) : This controls the WHITE BALANCE according to the outdoor ambience.
INITIAL
PROGRAM AE
CAMERA
- In daylight, especially for close up and where the subject is of one dominant color.
WHT. BALANCE
A/V
MEMORY
VIEWER
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
4. Select WHT.BALANCE from the submenu.
5. Press the ENTER button to enter the sub-menu.
6. Using the MENU DIAL, select the WHITE BALANCE mode.
■ Press the ENTER button to confirm the WHITE BALANCE mode.
7. To exit, press the MENU button.
Notes
■
■
■
■
■
44
When NITE PIX is set to ON, the WHT.BALANCE function does not work.
The WHT.BALANCE function will not operate in EASY mode.
Turn the digital zoom off (if necessary) to set a more accurate white balance.
Reset the white balance if lighting conditions change.
During normal outdoor recording, setting to AUTO may provide better results.
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
WHT. BALANCE
AUTO
HOLD
INDOOR
OUTDOOR
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 45
ENGLISH
Advanced Recording
Zooming In and Out
✤ Zooming is a recording technique that lets you change the size of the subject in a scene.
For more professional looking recordings, do not use the zoom function too often.
✤ You can zoom using variable zoom speeds.
✤ Use these features for different shots. Please note that over-use of the zoom feature can lead to unprofessional looking
results and a reduction of battery usage time.
1-1
1. Move the zoom lever slightly for a gradual zoom, move it further for a
high-speed zoom.
Your zooming is monitored on the OSD.
2. T(Telephoto) side: Subject appears closer.
3. W(Wide angle) side: Subject appears farther away.
■ You can record a subject that is about 10mm
(about 0.5 inch) away from the lens surface in the
WIDE position.
1-2
TELE
WIDE
Tele MACRO
✤ Tele Macro Function works in both CAMERA and M.REC mode.
✤ Effective focal distance in TELE MACRO mode is 50 cm (19.7 inches) ~ 100 cm (39.4
inches).
PB ZOOM
MACRO
1. Press the MACRO button.
MACRO Icon (
) will be displayed.
2. If you want to cancel the Tele Macro function, press the MACRO button again.
STBY
Notes
■
■
■
■
■
■
When recording in TELE MACRO Mode, the FOCUS speed may be slow.
When you operate the ZOOM function in the TELE MACRO mode, then the recording subject
may be out of focus.
Use a tripod to prevent hand shake in the TELE MACRO mode.
Avoid shadows when recording in the TELE MACRO mode.
As the distance to the subject decreases, focusing area narrows.
When you can not get proper focus, use the Zoom Lever.
0:23:47
45
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 46
ENGLISH
Advanced Recording
Zooming In and Out with DIGITAL ZOOM
✤ Zoom works in CAMERA mode only.
Digital Zoom
✤ Zooming more than 20x is performed digitally.
✤ The picture quality may deteriorate depending on how much you zoom in on the subject.
✤ We recommend that you use the DIS feature with DIGITAL ZOOM for picture stability. (see page 47)
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
3. Turn the MENU DIAL to CAMERA and press the ENTER button.
4. Select D.ZOOM from the submenu.
CAM MODE
5. Press the ENTER button to setup the 100x, 200x, 400x, 900x digital zoom function or
to turn the feature OFF.
6. To exit, press the MENU button.
CAMERA SET
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
D . ZOOM
OFF
100x
200x
400x
900x
46
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 47
ENGLISH
Advanced Recording
● DIS (Digital Image Stabilizer)
✤ The DIS function works in CAMERA mode only.
✤ DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the
camcorder (within reasonable limits).
✤ It provides more stable pictures when:
■ Recording with the zoom
■ Recording a small object close-up
■ Recording and walking at the same time
■ Recording through the window of a vehicle
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
3. Turn the MENU DIAL highlight to CAMERA and press the ENTER button.
■ The sub menu list will appear.
4. Turn the MENU DIAL to activate the DIS function, press the ENTER button.
■ The DIS menu is changed to ON.
■ If you do not want to use the DIS function, set the DIS menu to OFF.
5. To exit, press the MENU button.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
Notes
■
■
It is recommended that you deactivate the DIS function when using a tripod.
If you use the DIS function, the picture quality may deteriorate.
47
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 48
ENGLISH
Advanced Recording
● DSE(Digital Special Effects) SELECT
✤
✤
✤
✤
The DSE function works in CAMERA mode only.
The digital effects enable you to give a creative look to your recording by adding various special effects.
Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create.
There are 9 DSE modes.
a. ART mode
This mode gives the images a coarse effect.
a
b
c
d
e
f
g
h
b. MOSAIC mode
This mode gives the images a mosaic effect.
c. SEPIA mode
This mode gives the images a reddish-brown pigment.
d. NEGA mode
This mode reverses the colors, creating a negative image.
e. MIRROR mode
This mode cuts the picture in half, using a mirror effect.
f. BLK & WHT mode
This mode changes the images to black and white.
g. EMBOSS mode
This mode creates a 3D effect (embossing).
h. CINEMA mode
This mode covers the upper/lower portions of the screen to give a cinematic effect.
i. MAKE - UP mode
This mode allows the images to be selected in red, green, blue or yellow.
48
i
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 49
ENGLISH
Advanced Recording
Selecting an effect
1. Set the camcorder to CAMERA mode.
CAM MODE
2. Press the MENU button.
■ The menu list will appear.
INITIAL
CAMERA
A/V
MEMORY
VIEWER
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
4. Select DSE SELECT from the submenu.
CAM MODE
CAMERA SET
5. Press the ENTER button to enter the submenu.
6. Using MENU DIAL, select the DSE mode.
■ Press the ENTER button to confirm the DSE mode.
7. To exit, press the MENU button.
PROGRAM AE
WHT. BALANCE
D.ZOOM
DIS
DSE SELECT
CAM MODE
CAMERA SET
DSE SELECT
OFF
Notes
■
■
While setting the NITE PIX to ON, the DSE function does not work.
The DSE function will not operate in EASY mode.
ART
MOSAIC
SEPIA
NEGA
MIRROR
BLK&WHT
CAM MODE
CAMERA SET
DSE SELECT
EMBOSS
CINEMA
MAKE-UP
RED
GREEN
BLUE
YELLOW
49
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 50
ENGLISH
Advanced Recording
● REC MODE
✤ The REC MODE function works in CAMERA mode.
✤ This camcorder records and plays back in SP (standard play) mode and in LP (long play) mode.
■ SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.
■ LP (long play): This mode permits 90 minutes of recording time with a DVM60 tape.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select REC MODE from the submenu and press the ENTER button.
■ The REC MODE toggles between SP and LP with each press.
5. To exit, press the MENU button.
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
CAM MODE
A / V SET
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
Notes
■
■
■
50
We recommend that you use this camcorder to play back any tapes recorded on this camcorder.
Playing back a tape recorded in other equipment may produce mosaic shaped distortion.
When you record a tape in SP and LP modes, or LP mode only, the playback picture may be distorted or the time code may
not be written properly between scenes.
Record using SP mode for best picture and sound quality.
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 51
ENGLISH
Advanced Recording
● AUDIO MODE
✤ The AUDIO MODE function works in CAMERA mode.
✤ This camcorder records sound in two ways. (12bit, 16bit)
■ 12bit : You can record two 12bit stereo sound tracks.
The original stereo sound can be recorded onto the MAIN (SOUND1) track.
Additional stereo sound can be dubbed onto the SUB (SOUND2) track.
■ 16bit :You can record one high quality stereo sound track using the 16bit recording mode.
Audio dubbing is not possible when using this mode.
1. Set the camcorder to CAMERA mode.
CAM MODE
2. Press the MENU button.
■ The menu list will appear.
INITIAL
CAMERA
A/V
MEMORY
VIEWER
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select the AUDIO MODE from the menu and press the ENTER button.
■ The AUDIO MODE toggles between 12bit-16bit with each push.
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
CAM MODE
A / V SET
5. To exit, press the MENU button.
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
51
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 52
ENGLISH
Advanced Recording
● WIND CUT
✤ The WIND CUT function works in CAMERA and PLAYER modes.
✤ The WIND CUT function minimizes wind noise or other noise while recording.
- When the wind cut is on, some low sounds are eliminated along with the sound of the wind.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select WIND CUT from submenu.
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
CAM MODE
A / V SET
5. This feature toggles ON/OFF each time you press the ENTER button.
■
is shown in the display when you turn the WIND CUT on.
6. To exit, press the MENU button.
Notes
■
■
52
Make sure WIND CUT is set to off when you want the microphone to be as sensitive as possible.
Use the WIND CUT when recording in windy places such as the beach or near buildings.
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 53
ENGLISH
Advanced Recording
● DATE/TIME
✤ The DATE/TIME function works in CAMERA, PLAYER, M.REC and M.PLAY modes.
✤ The date and time are automatically recorded on a special data area of the tape.
1. Press the MENU button.
■ The menu list will appear.
2. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.
3. Turn the MENU DIAL to highlight DATE/TIME.
4. Press the ENTER button to select the sub-menu.
5. Using the MENU DIAL, select the DATE/TIME mode.
■ You can choose to display - OFF, DATE, TIME, DATE/TIME
- OFF only
- DATE only
- TIME only
- DATE & TIME
■ To return to the previous menu, highlight the DATE/TIME in the middle of OSD and
press the ENTER button.
6. To exit, press the MENU button.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
LCD ADJUST
DATE / TIME
TV DISPLAY
CAM MODE
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
CAM MODE
VIEWER SET
DATE / TIME
Notes
■
■
■
DATE
TIME
DATE&TIME
The DATE/TIME is not affected by the OSD ON/OFF (DISPLAY) button.
The DATE/TIME will read “- - -” in the following conditions:
- During playback of a blank section of a tape.
- If the tape was recorded before setting the DATE/TIME in the Camera’s memory.
- When the lithium battery becomes weak or dead.
Before you use the DATE/TIME function, you must set the Clock. See CLOCK SET on page 39.
53
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 54
ENGLISH
Advanced Recording
● TV DISPLAY
✤ The TV DISPLAY function works in CAMERA, PLAYER, M.REC and M.PLAY modes.
✤ You can select the output path of the OSD (On Screen Display).
■ OFF: The OSD appears in the LCD screen only.
■ ON: The OSD appears in the LCD screen, Viewfinder and TV.
■ Use the DISPLAY button located at the left side of the camcorder to turn the OSD ON/OFF displayed on the
LCD/Viewfinder/TV.
1. Set the camcorder to CAMERA, PLAYER, M.REC and M.PLAY mode.
2. Press the MENU button.
■ The menu list will appear.
CAM MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
LCD ADJUST
DATE / TIME
TV DISPLAY
3. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.
4. Select TV DISPLAY and press the ENTER button.
■ The DISPLAY mode switches between ON/OFF with each push.
5. To exit, press the MENU button.
54
CAM MODE
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 55
ENGLISH
Advanced Recording
Using Quick Menu(Navigation Menu)
✤ Quick menu is available only in CAMERA and M.REC mode.
✤ Quick menu is used to adjust camera functions by using the MENU DIAL.
This feature is useful for when you want to make simple adjustments without having to access the menus and submenus.
■ DATE/TIME (see page 53)
- Each time you select DATE/TIME and press the ENTER button, it will be displayed in the
order of DATE - TIME - DATE/TIME - OFF.
MIRROR
■ WL.REMOTE (
)
- Each time you select WL.REMOTE and press the ENTER button, the WL.REMOTE is
switched to either enabled (
) or disabled ( ).
12:00AM
J A N . 10 , 2 0 0 4
■ DIS (
)
- Each time you select DIS and press the ENTER button,
the DIS icon is displayed or set to OFF.
■ DSE (Digital Special Effect) (see page 48)
- Each time you select DSE and press the ENTER button, the DSE preset values are applied or set to OFF.
DSE values will not switch between On and Off if they have not been preset in the menu.
■ PROGRAM AE (see page 42)
- Each time you select PROGRAM AE and press the ENTER button, you can choose between the preset PROGRAM AE
values and AUTO. You can’t choose between Auto and the PROGRAM AE values if the values have not been preset in
the regular menu.
55
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 56
ENGLISH
Advanced Recording
■ WHT. BALANCE (see page 44)
- Each time you select WHT. BALANCE and press the ENTER button, you can choose between preset WHT.BALANCE
values and AUTO. As in PROGRAM AE, you can't choose between Auto and WHT.BALANCE values it they have not
been preset.
■ FOCUS (Auto Focus/Manual Focus) (see page 60)
- Each time you select FOCUS and press the ENTER button, the FOCUS is switched to either Manual Focus (MF) or
Auto Focus (
).
■ SHUTTER SPEED & EXPOSURE
- You can set values for SHUTTER SPEED and EXPOSURE by selecting (
For more information, see the next page.
) icon and pressing the ENTER button.
Setting the Quick menu
1. Set the camcorder to CAMERA mode.
2. Turn the MENU DIAL to select a function you want and then press the ENTER
button to change the values.
Notes
■
■
Quick menu function will not operate in EASY mode.
If you are using the M.FOCUS(MF) function,
you cannot use the Quick menu.
If you want to use the Quick menu function,
release the M.FOCUS(MF) mode.
DIS
STBY
DSE
MIRROR
0:00:00
PROGRAM AE
WHT. BALANCE
FOCUS
SHUTTTER
EXPOSURE
WL.REMOTE
SHUTTER
EXPOSURE
12:00AM
JAN.10,2004
56
DATE/TIME
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 57
ENGLISH
Advanced Recording
SHUTTER SPEED & EXPOSURE
✤
✤
✤
✤
You can set SHUTTER SPEED only in CAMERA mode.
The EXPOSURE function works in both CAMERA and M.REC modes.
SHUTTER SPEED and EXPOSURE values can only be set in the Quick Menu.
SHUTTER SPEED and EXPOSURE are automatically switched and/or deactivated.
1. Set the power switch to CAMERA mode.
2. Turn the MENU DIAL until you see the (
) icon, and then press the ENTER button.
■ You see a screen on which you can select SHUTTER SPEED and EXPOSURE.
■ Turn the MENU DIAL to select the item you want and then press the ENTER button.
■ SHUTTER SPEED can be set to 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000 or 1/10000.
■ EXPOSURE can be set between 00 and 29.
3. To exit from the setting screen, select the icon (
) and press the ENTER button.
Recommended Shutter speeds when recording
✤ Outdoor sports such as golf or tennis : 1/2000 or 1/4000.
✤ Moving cars or trains or other rapidly moving vehicles such as roller coasters : 1/1000, 1/500 or 1/250
✤ Indoor sports such as basketball : 1/100
Notes
■
■
■
■
■
If you want to use the selected shutter speed and exposure value, you should begin the recording with the shutter speed
and the exposure adjustment screens displayed on the LCD.
If you manually change the shutter speed and the exposure value when Auto-exposure option is selected, manual changes
are applied first.
The image may not seem as smooth when a high shutter speed is set.
The camcorder returns to the auto shutter setting and auto exposure setting when you set the NITE PIX to ON, or change to
the EASY, SLOW SHUTTER modes.
When recording with a SHUTTER SPEED of 1/1000 or higher, make sure the sun is not shining into the lens.
57
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 58
ENGLISH
Advanced Recording
SLOW SHUTTER (Low Shutter Speed)
✤ The SLOW SHUTTER function works in CAMERA mode only.
✤ The shutter speed can be controlled, allowing you to record slow moving objects.
1. Set the power switch to CAMERA mode.
2. Press the SLOW SHUTTER button.
3. Each time you press the SLOW SHUTTER button, SHUTTER SPEED is changed
to 1/30, 1/15, 1/8, off.
4. To exit, press the SLOW SHUTTER button.
Notes
■
■
58
When using "SLOW SHUTTER" the image takes on a slow motion like effect.
The SLOW SHUTTER function will not operate in EASY mode.
SLOW SHUTTER
00762B SCD107 SEA (28~59)
3/8/04 9:19 AM
Page 59
ENGLISH
Advanced Recording
EASY Mode (for Beginners)
✤ The EASY mode allows a beginner to easily make good recordings.
■ The EASY mode only operates in CAMERA mode.
1. Set the power switch to CAMERA mode.
2. By pressing the EASY button, all functions on the camera will be set to off and the recording
settings will be set to the following basic modes:
■ Battery level, recording mode, counter, DATE/TIME, and DIS (
) will be displayed.
■ The word “EASY.Q” will appear on the LCD at the same time.
However, the DATE/TIME will only be seen if it has been previously set. (see page 53)
EASY
STBY
3. Press START/STOP to start recording.
■ Recording will begin using the basic automatic settings.
4. Press the EASY button again in the STBY mode and then turn the EASY mode off.
■ The EASY function will not turn off while you are recording.
■ The camera will return to the settings that were set prior to activating EASY mode.
EASY
0:00:00
5 5 min
12:00AM
JAN.10,2004
Notes
■
■
In EASY mode, certain functions are not available, such as MENU, BLC, AF/MF.
- If you want to use these functions, you must first switch the EASY mode off.
The EASY mode settings are deleted when the battery pack is uninstalled from the camcorder and therefore, they must be
reset when a battery pack has been replaced.
59
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 60
ENGLISH
Advanced Recording
AF/MF (Auto Focus/Manual Focus)
✤ The AF/MF function works in CAMERA, M.REC mode only.
✤ In most situations, it is better to use the automatic focus feature, as it enables you to concentrate on the creative side
of your recording.
✤ Manual focusing may be necessary under certain conditions that make automatic
focusing difficult and/or unreliable.
a
b
Auto Focusing
✤ If you are inexperienced in the use of camcorders, we recommend that you
make use of Auto Focus.
c
d
Manual Focusing
✤ In the following situations, you may obtain better results by adjusting the focus
manually.
1
a. A picture containing several objects, some close to the camcorder,
others further away.
b. A person enveloped in fog or surrounded by snow.
c. Very shiny or glossy surfaces like a car.
d. People or objects moving constantly or quickly like an athlete or a crowd.
1. Set the power switch to CAMERA mode.
2. Turn the MENU DIAL up or down until the FOCUS is highlighted and then
press the ENTER button.
■ M. FOCUS(MF) will display.
3. Turn the MENU DIAL up or down until the object is in focus.
■ Zoom out a little if focusing is difficult.
4. To return to AF (Auto Focus:
), press the ENTER button again.
2
VOL/MF
3
STBY
0:00:00
5 3 min
M. FOCUS
MF
12:00AM
J A N . 10 . 2 0 0 4
60
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 61
ENGLISH
Advanced Recording
BLC (Back Light Compensation)
✤ BLC works in CAMERA/M.REC mode.
✤ Back lighting exists when the subject is darker than the background:
■ The subject is in front of a window.
■ The person to be recorded is wearing white or shiny clothes and
is placed against a bright background; the person’s face is too dark to
distinguish his/her features.
■ The subject is outdoors and the background is overcast.
■ The light sources are too bright.
■ The subject is against a snowy background.
* BLC off
* BLC on
1. Set the power switch to CAMERA mode.
2. Press the BLC button.
■ Normal - BLC - Normal
■ BLC enhances the subject.
BLC
Notes
■
■
When NITE PIX to set to ON, the BLC function does not work.
The BLC function will not operate in EASY mode.
61
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 62
ENGLISH
Advanced Recording
Fade In and Out
✤ The FADE function works in CAMERA mode only.
✤ You can give your recording a professional look by using special
effects such as fade in at the beginning of a sequence or fade
out at the end of a sequence.
To Start Recording
1. Before recording, hold down the FADE button.
The picture and sound gradually disappear (fade out).
2. Press the START/STOP button and at the same time
release the FADE button.
Recording starts and the picture and sound gradually
appear (fade in).
FADE
➔
➔
FADE
To Stop Recording (use FADE IN / FADE OUT)
3. When you wish to stop recording, hold down the
FADE button.
The picture and sound gradually disappear (fade out).
4. When the picture has disappeared,
press the START/STOP button to stop recording.
Hold down the FADE button
➔
➔
a. FADE OUT
STBY
0:00:00
REC
0:00:15
REC
0:00:15
STBY
0:00:20
Gradual disappearance
a. FADE OUT
(Approx. 4 seconds)
b. FADE IN
(Approx. 4 seconds)
62
Gradual appearance
b. FADE IN
Release the FADE button
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 63
ENGLISH
Advanced Recording
Audio dubbing
✤
✤
✤
✤
The AUDIO DUBBING function only works in PLAYER Mode.
You can add sound to the original sound on a pre-recorded tape recorded in SP mode with 12bit sound.
Use the internal and external microphones or other audio equipment.
The original sound will not be erased.
Dubbing sound
1. Set the camcorder to PLAYER mode.
■ If you want to use an external microphone, connect the microphone to
the external MIC input jack on the camcorder.
■ When you wish to dub using the External A/V input, connect the
AUDIO/VIDEO cable to the camcorder by inserting the cable Jack in to the
camcorder.
- Press the MENU button, turn the MENU DIAL to highlight A/V and press
the ENTER button.
- Turn the MENU DIAL to highlight AV IN/OUT and press the ENTER
button to select AV IN.
2. Press the
(PLAY/STILL) button and find the time frame of the scene to
be dubbed.
3. Press the
(PLAY/STILL) button to pause the scene.
4. Press the A.DUB button on the Remote Control.
■ A.DUB will be displayed on the LCD.
■ The camcorder is in a ready-to-dub state.
5. Press the
(PLAY/STILL) button to start dubbing.
■ Press the
(STOP) button to stop the dubbing.
DV
IEEE
1394
USB
A/V
S-VIDEO
MIC
DV
IEEE
1394
USB
A/V
Audio (L)
Audio (R)
S-VIDEO
AV IN
MIC
Notes
■
■
■
You can not use the audio dubbing function while playing a write protected video tape.
When you wish to dub using the External A/V input, you must connect the AUDIO/VIDEO cable to the audio system from
which you wish to record.
You can not dub sound on a pre-recorded tape in LP mode or 16 bit mode.
63
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 64
ENGLISH
Advanced Recording
Dubbed audio Playback
1. Insert the dubbed tape and press MENU button.
PLAYER MODE
A / V SET
2. Turn the MENU DIAL to highlight A/V.
3. Press the ENTER button to enter the sub-menu.
4. Use the MENU DIAL to select AUDIO SELECT from the submenu.
5. Press the ENTER button to enter the sub-menu.
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
PLAYER MODE
A / V SET
6. Using the MENU DIAL, select the AUDIO playback channel.
■ Press the ENTER button to confirm the audio playback channel.
- SOUND1 : play the original sound.
- SOUND2 : play the dubbed sound.
- MIX(1+2) : play back SOUND1 and 2 equally mixed.
7. To exit, press the MENU button.
8. Press the
(PLAY/STILL) button to playback the dubbed tape.
Note
When you playback added sound (SOUND2 or MIX mode), you may experience loss of sound quality.
64
AUDIO SELECT
SOUND [ 1 ]
SOUND [ 2 ]
MIX [ 1 + 2 ]
12
SOUND[1]
OUT
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 65
ENGLISH
Advanced Recording
PHOTO Image Recording
1. Set the power switch to the CAMERA mode.
2. Press the PHOTO button.
■ The still picture is recorded for about 6~7 seconds.
3. After the PHOTO has been recorded, the camcorder returns to STBY mode.
Searching for a PHOTO picture
✤ The PHOTO SEARCH works in PLAYER mode only.
1. Press the MENU button.
■ The MENU list will appear.
PLAYER MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
2. Turn the MENU DIAL to highlight A/V.
3. Press the ENTER button to enter the submenu.
4. Select PHOTO SEARCH from the submenu and press the ENTER button.
■ You can also press the PHOTO SEARCH button on the remote control.
5. Search the PHOTO using the
(FF) and
(REW) buttons.
■ The PHOTO search process appears on the LCD while you are searching.
■ After completing the search, the camcorder displays the still image.
6. To exit, press the
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
PLAYER MODE
A / V SET
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
(STOP) button.
65
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 66
ENGLISH
Advanced Recording
NITE PIX (0 lux recording)
✤ The NITE PIX function works in CAMERA/M.REC mode.
✤ The NITE PIX function enables you to record a subject in darkness.
ON
OFF
2. Slide the NITE PIX switch to ON.
■
(NITE PIX indicator) appears on the LCD monitor.
■ The infrared light is turned on automatically.
POWER
NITE PIX
1. Set the camcorder to CAMERA mode.
STBY
3. To cancel the NITE PIX function, slide the NITE PIX switch to OFF.
0:00:00
6 0 min
NITE PIX
Notes
■
■
■
■
■
66
The maximum recording distance using the infrared light is about 3 m (about 10 feet).
If you use the NITE PIX function in normal recording situations (ex. outdoors by day),
the recorded picture may be tinted green.
In the NITE PIX mode, certain functions are not available, such as White Balance, Program AE, DSE, BLC.
If focusing is difficult with the auto focus mode when using the NITE PIX function, focus manually.
Do not cover the Infrared Light with your hand.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 67
ENGLISH
Advanced Recording
POWER NITE PIX
✤ The POWER NITE PIX function works in CAMERA mode.
✤ The POWER NITE PIX function can record a subject more brightly in darkness than the NITE PIX function.
✤ POWER NITE PIX is displayed for three seconds on the LCD when the SLOW SHUTTER button is pressed in the
NITE PIX mode.
✤ When you work in POWER NITE PIX mode, the POWER NITE PIX (
) appears on the LCD continuously.
ON
1. Set the camcorder to CAMERA mode.
POWER
NITE PIX
2. Turn on the NITE PIX switch, and then press the SLOW SHUTTER button.
OFF
3. Press the SLOW SHUTTER button to set shutter speed. (1/30, 1/15, 1/8)
The SLOW SHUTTER function enables you to record a subject of three different brightness
levels.
4. When using POWER NITE PIX the image takes on a slow motion like effect.
5. To cancel the POWER NITE PIX function, press the SLOW SHUTTER button to set to “off ”
and then turn off the NITE PIX switch.
POWER NITE PIX
12:00AM
JAN.10,2004
Notes
■
■
■
■
The maximum recording distance using the infrared light is about 3 m (about 10 feet).
If you use the POWER NITE PIX function in normal recording situations (ex. outdoors by day),
the recorded picture may contain unnatural colors.
In the POWER NITE PIX mode, certain functions are not available, such as White Balance, Program AE, DSE, BLC.
When the subject is too bright, press the SLOW SHUTTER button (1/30 ➝ 1/8) to obtain better quality recordings.
67
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 68
ENGLISH
Advanced Recording
Using the VIDEO LIGHT
✤ VIDEO LIGHT works in CAMERA/M.REC mode only.
✤ Brightens the scene when natural lighting is too dim.
✤ The VIDEO LIGHT works in SP mode only.
- If you turn on the LIGHT in LP mode, the LIGHT indicator and “LP” will blink on the LCD.
DANGER
■ The VIDEO LIGHT can become extremely hot.
Do not touch it while in operation or soon after turning it off, otherwise serious injury may result.
■ Do not place the camcorder into the carrying case immediately after using the VIDEO LIGHT,
since it remains extremely hot for some time.
■ Do not use near flammable or explosive materials.
■ It is recommended that you consult your nearest SAMSUNG dealer for bulb replacement.
- The life of the bulb is approximately 50 hours.
1. Set the camcorder to the CAMERA mode.
2. Press the V.LIGHT button.
■ The VIDEO LIGHT indicator appears on the LCD and the light is turned on.
3. If you want to turn off the VIDEO LIGHT, press the V.LIGHT button again.
V.LIGHT
Notes
■
■
■
■
68
The light is turned off automatically during ejecting or inserting.
Even if the battery indicator does not blink when the battery pack's charge is low, the camcorder may turn off automatically
when you turn on the light, or when you start recording with the light turned on.
The built-in light is used as a subsidiary light, it may not be enough for outdoor lighting.
The picture quality may deteriorate if you use the VIDEO LIGHT continuously for more than 20 minutes.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 69
ENGLISH
Advanced Recording
Various Recording Techniques
✤ In certain situations, different recording techniques may be required for more dramatic results.
Note
Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the
LCD screen to the Camcorder.
1. General recording.
1
2
3
4
2. Downward recording.
Making a recording with a top view of the LCD screen.
3. Upward recording.
Making a recording viewing the LCD screen from below.
4. Self recording.
Making a recording viewing the LCD screen from the front.
5. Recording with the Viewfinder.
■
5
In circumstances where it is difficult to use the LCD monitor,
the viewfinder can be used as a convenient alternative.
69
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 70
ENGLISH
Playback
Tape Playback
✤ The playback function works in PLAYER mode only.
Playback on the LCD
✤ It is practical to view a tape using the LCD when in a car or outdoors.
Playback on a TV monitor
✤ To play back a tape, the television must have a compatible color system.
✤ We recommend that you use the AC Power Adapter as the power source for the camcorder.
Connecting to a TV which has Audio/Video input jacks
1. Connect the camcorder and TV with the AUDIO/VIDEO cable.
■ The yellow plug : Video
■ The white plug : Audio(L)-mono
■ The red plug : Audio(R)
- If you connect to a monaural TV or VCR, connect the yellow plug (Video)
to the video input of the TV or VCR and the white plug (Audio L) to the audio
input of the TV or VCR.
2. Set the power switch on the camcorder to PLAYER mode.
3. Turn on the TV and set the TV/VIDEO selector on the TV to VIDEO.
■ Refer to the TV or VCR user’s manual.
4. Play the tape.
S-VIDEO input
TV
Video input-Yellow
Audio input
(left)-White
Audio input
(right)-Red
Audio/Video
Camcorder
DV
IEEE
1394
USB
A/V
S-VIDEO
S-VIDEO
MIC
Notes
■
■
■
70
You may use an S-VIDEO (optional) cable to obtain better quality pictures if you have a S-VIDEO connector on your TV.
Even if you use an S-VIDEO (optional) cable, you need to connect an audio cable.
If you connect the cable to the Audio/Video Jack, you will not hear sound from the Camcorder's speakers.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 71
ENGLISH
Playback
Connecting to a TV which has no Audio and Video input jacks
✤ You can connect your camcorder to a TV through a VCR.
1. Connect the camcorder and VCR with the AUDIO/VIDEO cable.
■ The yellow plug : Video
■ The white plug : Audio(L) - Mono
■ The red plug : Audio(R)
2. Connect a TV to the VCR.
3. Set the power switch on the camcorder to PLAYER mode.
4. Turn on both the TV and VCR.
■ Set the input selector on the VCR to LINE.
■ Select the channel reserved for your VCR on the TV set.
5. Play the tape.
S-VIDEO
VCR
VIDEO
AUDIO(L)
AUDIO(R)
DV
IEEE
1394
USB
Audio/Video
A/V
S-VIDEO
TV
S-VIDEO
ANTENNA
MIC
CAMCORDER
Playback
1.
2.
3.
4.
Connect a power source and set the power switch to PLAYER mode.
Insert the tape you wish to play back.
Using the
(FF) and
(REW) buttons, find the first position you wish to play back.
Press the
(PLAY/STILL) button.
■ The images you recorded will appear on the TV after a few seconds.
■ If a tape reaches its end while being played back, the tape will rewind automatically.
Note
■
The playback mode (SP/LP) is selected automatically.
71
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 72
ENGLISH
Playback
Various Functions while in PLAYER mode
✤ The PLAY/STILL, STOP, FF, REW buttons are located on the camcorder and the Remote Control.
✤ The F.ADV(Frame advance), X2, SLOW buttons are located on the Remote Control only.
✤ To prevent tape and head-drum wear, your camcorder will automatically stop if it is left in STILL or SLOW modes for more
than 5 minutes.
Playback pause
✤ Press the
(PLAY/STILL) button during Playback.
✤ To resume playback, press the
(PLAY/STILL) button.
REC SEARCH
FADE
BLC
S.SHOW
MULTI DISP.
EASY
Picture search (Forward/Reverse)
✤ Press the
(FF) or
(REW) buttons during Playback or Still mode.
To resume normal playback, press the
(PLAY/STILL) button.
✤ Keep pressing
(FF) or (REW) buttons during Playback or Still mode.
To resume normal playback, release the button.
Slow playback (Forward/Reverse)
✤ Forward Slow Playback
■ Press the SLOW button on the remote control during Playback.
■ To resume normal playback, press the
(PLAY/STILL) button.
✤ Reverse Slow Playback
■ Press the
(_) button during Forward Slow Play back.
■ To resume forward slow playback, press the
(+) button.
■ To resume normal playback, press the
(PLAY/STILL) button.
72
REV
FWD
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 73
ENGLISH
Playback
Frame advance (To play back frame by frame)
● Press the F.ADV button on the Remote Control while in Still mode.
The F.ADV function works in still mode only.
● To resume normal playback, press the
(PLAY/STILL) button.
✤ Forward frame advance
■ Press the F.ADV button on the remote control in Still mode.
✤ Reverse frame advance
■ Press the
(_) the button on the remote control to change the direction in F.ADV mode.
■ Press the F.ADV button on the remote control.
X2 Playback (Forward/Reverse)
✤ Forward X2 Playback
■ Press the X2 button on the Remote Control during Playback.
■ To resume normal playback, press the
(PLAY/STILL) button.
✤ Reverse X2 Playback
■ Press the
(_) the button during during Forward X2 Playback.
■ To resume normal playback, press the
(PLAY/STILL) button.
Reverse playback
✤ To playback in reverse at normal speed, press the
(_) button during normal forward playback.
✤ Press the
(PLAY/STILL) or
(+) button to return to normal forward playback.
Notes
■
■
Mosaic shaped distortion may appear on the screen in some of the playback modes if you are using a tape recorded in LP.
Sound will only be heard during normal SP or LP playback.
73
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 74
ENGLISH
Playback
ZERO MEMORY
✤ The ZERO MEMORY function works in both CAMERA and PLAYER modes.
✤ You can mark a point on a tape that you want to return to following playback.
1. Press the ZERO MEMORY button on the remote control before the recording or during playback at the point
you wish to return.
■ The time code is changed to a tape counter that is set to zero memory with the M 0:00:00(Zero memory indicator)
■ If you want to cancel the zero memory function, press the ZERO MEMORY button again.
2. Finding the zero position.
■ When you are playing back, fast forward or rewinding the tape.
- The tape stops automatically when it reaches the zero position.
■ When you have finished recording, press the power switch on the PLAYER and press the
- The tape stops automatically when it reaches the zero position.
(REW) button.
3. The tape counter with the M (Zero memory indicator) disappears from the display and the tape counter is changed
to the time code.
Notes
■
■
74
In the following situations, ZERO MEMORY mode may be canceled automatically:
- At the end of the section marked with the ZERO MEMORY function.
- When the tape is ejected.
- When you remove the battery pack or power supply.
The zero memory may not function correctly where there is a break between recordings on the tape.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 75
ENGLISH
Playback
PB DSE (Playback Digital Special Effects)
✤ The PB DSE function works in PLAYER mode.
✤ The PB DSE function enables you to apply Digital Special Effects (DSE) to tape playback or still images.
1. Set the camcorder to the PLAYER mode and then play back a tape.
2. Press the MENU button and turn the MENU DIAL to highlight A/V.
PLAYER MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
3. Press the ENTER button to enter the sub-menu.
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
4. Select PB DSE from the sub-menu and press the ENTER button.
PLAYER MODE
5. Select PB DSE item (off, mirror, mosaic) from the sub-menu and press the ENTER button.
6. To exit, press the MENU button.
7. To cancel the PB DSE function, set the PB DSE to off or press the STOP button.
A / V SET
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
PLAYER MODE
A / V SET
PB DSE
Notes
■
■
OFF
MIRROR
MOSAIC
You cannot apply the PB DSE function to pictures which are being input from an external source.
Once you modify an image using the PB DSE function, it cannot be imported to your PC
from the camcorder’s DV jack.
75
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 76
ENGLISH
Playback
PB ZOOM
✤ The PB ZOOM function works in PLAYER mode.
✤ The PB ZOOM function enables you to magnify playback or still images.
1. Press the PB ZOOM button in playback or still mode.
2. The image is magnified starting from the center of image and arrows appear which allow you to
move the image in four directions.
PB ZOOM
MACRO
3. You can zoom in from 1.2x to 8.0x by moving the zoom lever.
4. You can move the image in the arrow directions using the MENU DIAL.
5. You can change the arrow direction(vertical, horizontal) by pressing the ENTER button.
6. To cancel the PB ZOOM function, press the PB ZOOM or STOP button.
Notes
■
■
You cannot apply the PB ZOOM function to pictures which are being input from
an external video source.
The PB ZOOM image cannot be imported to your PC from the camcorder’s DV jack.
VOL/MF
76
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 77
ENGLISH
Recording in PLAYER mode
Recording in PLAYER mode
✤ You can use this camcorder as a recorder.
✤ You can record a tape from VCR or TV.
S-VIDEO
VCR
VIDEO
AUDIO(L)
DV
IEEE
1394
AUDIO(R)
USB
1.
2.
3.
4.
Connect the camcorder and VCR or TV with the AUDIO/VIDEO cable.
Set the power switch of the camcorder to PLAYER mode.
Turn on the VCR or TV.
Insert the blank tape with protection tab closed into the camcorder.
■ If you want to record from a connected VCR,
insert a recorded VHS tape into the VCR.
5. Press the MENU button, turn the MENU DIAL to highlight A/V and press the
ENTER button.
6. Turn the MENU DIAL to highlight AV IN/OUT and press the ENTER button to select
AV IN.
■ “AV IN” and picture appear on the LCD monitor.
■ OUT : Releases the INPUT mode.
7. Press the START/STOP button to set the camcorder to REC PAUSE mode.
■ “PAUSE” on the LCD monitor.
8. Select the TV program or playback the VHS tape.
9. Press START/STOP button to start recording.
■ If you want to pause recording for a while, press the START/STOP button again.
10.To stop recording, press the (STOP) button.
Audio/Video
A/V
S-VIDEO
TV
MIC
S-VIDEO
CAMCORDER
ANTENNA
PLAYER MODE
A / V SET
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
IN
Notes
■
■
Recording from an analpg VCR to the camcorder is only possible when the VCR is playing back at normal speed.
If you want to see the camcorder picture with a TV, set AV IN/OUT in the menu to OUT.
77
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 78
ENGLISH
IEEE 1394 Data Transfer
Transferring IEEE1394 (i.LINK)-DV standard data connections
Connecting to a DV device
✤ Connecting with other standard products.
■ A standard DV connection is quite simple.
If a product has a DV port, you can transfer data by connecting to the DV port using an ieee cable.
!!! Please be careful since there are two types of DV ports, (4pin, 6pin). This camcorder has a 4pin terminal.
✤ With a digital connection, video and audio signals are transmitted in digital format, allowing high quality images
to be transferred.
Connecting to a PC
✤ If you want to transmit data to a PC, you must install a IEEE 1394 add-on card onto the PC. (not supplied)
✤ The frame rate recorded for video capturing is dependent on the capacity of the PC.
Notes
■
■
■
78
When you transmit data from the camcorder to another DV device, some functions may not work.
If this occurs, please reconnect the DV cable or turn the power OFF and ON again.
When you transmit data from the camcorder to PC, PC function button is not available in M.PLAY mode.
Do not use the camcorder and IEEE1394 together as this will cause IEEE1394 to shut off.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 79
ENGLISH
IEEE 1394 Data Transfer
● System requirements
■
■
■
■
CPU : faster Intel® Pentium III™ 450Mhz compatible.
Operating system : Windows® 98SE, ME, XP, Mac OS (9.1~10.2)
Main memory : more than 64 MB RAM
IEEE1394 add-on card or built in IEEE1394 card
Recording with a DV connection cable
1. Set the power switch to PLAYER mode.
2. Connect the DV cable (not supplied) from the DV jack of the camcorder
to the DV jack of the other DV device.
■ Make sure that DV IN appears on the screen.
3. Press the START/STOP button to begin REC PAUSE mode.
■ PAUSE is displayed on the OSD.
4. Start playback on the other DV device while you monitor the picture.
5. Press the START/STOP button to start recording.
■ If you want to pause recording momentarily, press the START/STOP
button again.
6. To stop recording, press the (STOP) button.
DV
IEEE
1394
USB
A/V
S-VIDEO
MIC
Notes
■
■
When using this camcorder as a recorder, the pictures that appear on a monitor may seem uneven,
however recorded pictures will not be affected.
Operation is not guaranteed for all computer environments recommended above.
79
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 80
ENGLISH
USB interface
● Transferring a Digital Image through a USB Connection
✤ You can easily transfer a image from a MEMORY CARD to a PC without additional add-on cards via a USB connection.
✤ If you transfer data to a PC, you need to install the software (Driver, DVC Media 5.1, Windows Media Player 9.0,
DirectX 9.0a) supplied with the camcorder.
System Requirements
CPU : Intel® Pentium III™ 450 processor compatible or better
Operating system : Windows® 98SE/ME/ 2000/XP
RAM : 128 MB or more
CD-ROM: 4x CD-ROM drive
VIDEO : 65,000-color or better video display card
Available USB port (V1.1)
Hard Disc : 4GB (8GB recommended)
■
■
■
■
■
■
■
Notes
■
■
■
■
80
Intel ® Pentium III™ is a trademark of the Intel Corporation.
Windows® is a registered trademark of the Microsoft® Corporation.
All other brands and names are property of their respective owners.
Operations are not guaranteed for all of the recommended computer environments mentioned above.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 81
ENGLISH
USB interface
Installing DVC Media 5.1 Program
✤ DVC Media 5.1 User's Manual is included on the accompanying CD(D:\help\) in Adobe's Portable Document
Format(PDF) The user's manual can be viewed using Acrobat Reader software, which is also included on the CD.
(The Acrobat Reader is a freeware product of AdobeSystems,Inc.)
✤ Do not connect the camcorder to PC before installing the program.
✤ If another camera or scanner is connected, please disconnect it in advance.
✤ This explanation is based on Windows® 98SE OS.
Program installation
1. Insert the software CD into CD-ROM drive.
- Installation selection screen appears on the monitor.
2. If the installation selection screen does not appear after inserting the CD, click “Run”
on the Windows “Start” menu and execute SETUP.EXE file to begin installation.
- When CD-ROM drive is set to “D:drive”, type “D:/setup.exe” and press Enter.
3. Click the icons listed below to install the selected software.
■ The program automatically checks and installs the driver.
■ DVC Driver: USB removable Disk Driver (Windows® 98SE only)
USB PC CAMERA Driver
USB Streaming Driver
■ DVC Media 5.1
■ DirectX 9.0a
■ Windows Media Player 9.0
■ Editing Software
3.
Using the “PC camera” function
✤ You can use this camcorder as a PC CAMERA.
✤ When you connect to a Web site that can provide video chatting functions, you can use your camcorder
for such functions.
✤ When using the camcorder as a PC Camera, connect an external microphone to your PC in order to participate in audio
chats.
✤ Using the camcorder with PC installed Net-meeting program, you can conduct video conference.
✤ The PC CAMERA's screen size is 160x120 pixels.
✤ If the PC is connected via USB to the camcorder, we recommend using the POWER SWITCH, MODE SWITCH,
ZOOM SWITCH and NITE PIX SWITCH to avoid errors.
1. Set the mode switch to Tape, set the power switch to CAMERA.
2. Connect one end of the USB cable to the USB jack on the camcorder and the other end to the USB connector on your computer.
81
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 82
ENGLISH
USB interface
Using the “Removable Disk” function
✤ You can easily transfer data from a Memory Card to a PC without additional add-on cards via a USB connection.
1. Set the mode switch to Memory Card, set the power switch to CAMERA or PLAYER.
2. Connect one end of the USB cable to the USB jack on the camcorder and the other end to the USB port on your computer.
Using the “USB streaming” function
✤ USB streaming data type is MPEG4.
✤ To use USB STREAMING, the DVC Media 5.1, DirectX 9.0a and Windows Media Player 9.0(included in the CD)
programs must be installed in the PC.
✤ You can view CAMCORDER video on your PC using USB streaming.
You can also store it as a moving picture in the "asf" file format, or as a still image in the "jpg" file format on a PC.
1. Set the mode switch to TAPE, set the power switch to CAMERA or PLAYER.
2. Connect one end of the USB cable to the USB jack on the camcorder and the other end to the USB port on your computer.
3. Execute the DVC Media 5.1 program.
If you want the detailed description of USB streaming, refer to the DVC Media 5.1 User's Manual.
Connecting to a PC
1. Connect a USB cable to the USB port on the PC.
2. Connect the other end of the USB cable into the proper terminal on the camcorder. (USB jack)
- If a PC is connected to the camcorder with a USB cable, only the Power Switch, Zoom Switch, Mode Switch and NITE PIX
operate.
Disconnecting the USB cable
✤ After completing the data transmission, you must disconnect the cable in the following way:
1. Select the removable disc icon and click the right mouse button to select [Eject].
2. Select [Confirm] and disconnect the USB cable when the Windows Splash screen appears.
Notes
■
■
82
If you disconnect the USB cable from the PC or the camcorder while transferring,
the data transmission will stop and the data may be damaged.
If you connect the USB cable to a PC via a USB HUB or simultaneously connect
the USB cable along with other USB devices, the camcorder may not work properly.
- If this occurs, remove all USB devices from the PC and reconnect the
camcorder.
USB Cable
DV
IEEE
1394
USB
A/V
S-VIDEO
MIC
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 83
ENGLISH
Digital Still Camera mode
MEMORY STICK (Optional Accessory)
✤ The Memory Stick stores and manages images recorded by the camera.
Memory Stick Functions
✤ Recording still images and MPEG4 movie
✤ Viewing still images and MPEG4 movie
■ Single
■ Slide show (Still images only)
✤ Multi display
✤ Protecting images against accidental erasure
✤ Deleting images recorded on a Memory Stick
✤ Print marking still images
✤ Formatting a Memory Stick
Terminal
Protection
tab
Notes
■
■
■
■
You can use most of the camera’s functions when recording to the Memory Stick.
“
” appears on the screen while recording to the Memory Stick.
While recording or loading an image, do not eject or insert the Memory Stick.
- Inserting or ejecting a Memory Stick while recording or loading an image can cause data damage.
If you want to save all images on the Memory Stick, set the write protect tab on the Memory Stick to LOCK.
TM
● “Memory Stick” and
are trademarks of Sony Corporation.
● All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
TM
Furthermore, “™”and “®” are not mentioned in every instance in this manual.
83
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 84
ENGLISH
Digital Still Camera mode
Inserting and ejecting the Memory Card
● Inserting the Memory Card
1. Turn the Power switch to OFF.
2. Insert the Memory Card in the direction of the arrow into the Memory Card slot
located on the bottom of the camcorder.
● Ejecting the Memory Card
1.
2.
3.
✤
Turn the Power switch to OFF.
Push the Memory Card, then it comes out of the camcorder automatically.
Pull out the Memory Card.
Do not attempt to pull the Memory Card out without first pushing it in.
Notes
■
■
■
■
■
■
■
■
■
84
Memory Stick
Memory Stick PRO
SD/MMC
(Usable MEMORY CARDs)
Memory Stick Duo type or RS-MMC should be inserted by using the ADAPTOR (not supplied).
If you set the camcorder to M.PLAY mode, the last recorded still image appears.
- If there are no recorded images on the Memory Card, NO STORED PHOTO! or NO STORED MPEG4! and
will
display on the screen.
While recording, loading, erasing or formatting, do not turn off the power or change the mode.
Please turn the power off before you insert or eject the Memory Card to avoid losing data.
Do not allow metal substances to come in contact with the terminals of the Memory Card.
Do not bend, drop or apply strong shock to Memory Card.
After pulling the Memory Card out from the camcorder, please keep the Memory Card in a soft case to prevent static shock.
The stored contents may be changed or lost as a result of misuse, static electricity, electric noise or repair.
Save important images separately.
Samsung is not responsible for data loss due to misuse.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 85
ENGLISH
Digital Still Camera mode
Structure of folders and files on the Memory Card
✤ The still images that you recorded are saved in JPEG file format on the Memory Card.
✤ The moving images that you recorded are saved in MPEG4 file format on the Memory Card.
✤ Each file has a file number and all files are assigned to a folder.
■ A file number from DCAM0001 to DCAM9999 is sequentially assigned to
each recorded image.
■ Each folder is numbered from 100SSDVC to 999SSDVC and recorded on the
Memory Card.
Image Format
✤ Still image
■ Images are compressed in JPEG (Joint Photographic Experts Group) format.
■ The number of pixels are 640✕480 in each mode.
■ Amount of still images must be under 1.4MB.
DCIM
100 SSDVC
DCAM 0001
DCAM 0002
..
..
101SSDVC
000-0000
File number
Folder number
✤ Moving Image
■ Images are compressed in MPEG (Moving Picture Experts Group) format.
■ The number of pixels are 320✕240, 160✕120 in each mode.
Selecting the CAMCORDER mode
✤ You can use this camcorder as a Digital Still Camera (DSC).
✤ You have to set the mode switch to the MEMORY CARD position to use this camcorder as a Digital Still Camera.
■ M.REC mode (Memory RECORD mode)
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to CAMERA.
■ M.PLAY mode (Memory PLAYBACK mode)
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER.
85
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 86
ENGLISH
Digital Still Camera mode
MEMORY FILE NUMBER
✤ File numbers will be given to images in order of recording when still images are stored on the Memory Card.
✤ MEMORY FILE NUMBERS may be set as follows:
■ SERIES: When there are existing files, the new image will be named as the next number in the sequence.
■ RESET
- When there are no files stored on the Memory Card: The file numbering starts from 0001
- When there are files stored on the Memory Card: File numbering will continue after the last file's number
1. Set the mode switch to MEMORY CARD and the power Switch to the CAMERA mode.
2. Press the MENU button.
■ The menu list will appear.
3. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.
M.REC MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
4. Turn the MENU DIAL to activate the FILE NO. and press the ENTER button.
M.REC MODE
5. To exit, press the MENU button.
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
SF
320X240
000
SERIES
Notes
■
■
86
When using a Memory Card that contains image files from another device, file numbering will begin after the highest number
that is memorized whether in the camera or Memory Card.
Numbering the file starts from 0001 again when 9999 files have been saved.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 87
ENGLISH
Digital Still Camera mode
Selecting the image quality
✤ You can select the quality of a still image to be recorded.
Select the image quality
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to the CAMERA mode.
3. Press the MENU button.
■ The menu list will appear.
4. Turn the MENU DIAL to highlight MEMORY.
5. Press the ENTER button to enter the sub-menu.
6. Turn the MENU DIAL to highlight PHOTO QUALITY
in the submenu.
7. Press the ENTER button.
8. Using the MENU DIAL, select the image quality.
■ Press the ENTER button to confirm the image quality.
■ If you exit the sub-menu without pressing the ENTER button,
the quality mode is not changed.
9. To exit, press the MENU button.
M.REC MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
MEMORY
CARD
TAPE
M.REC MODE
M.REC MODE
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
MEMORY SET
SF
320X240
000
PHOTO QUALITY
SUPER FINE
FINE
NORMAL
SF
F
N
SERIES
● Number of images on the Memory Card
QUALITY
SUPER FINE
8MB
16MB
Approx. 45
Approx. 90
FINE
Approx. 85
Approx. 170
NORMAL
Approx. 155
Approx. 310
- The actual number that you can record varies depending on the image size.
87
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 88
ENGLISH
Digital Still Camera mode
Recording Still images to a Memory Card in M.REC Mode.
✤ Audio cannot be recorded with a still image onto the Memory Card.
Recording images to a Memory Card
1. Set the mode switch to MEMORY CARD.
MEMORY
CARD
TAPE
2. Set the power switch to CAMERA.
3. Press the PHOTO button.
■ The still image is recorded to the Memory Card.
■ While the camcorder is recording the still image, “
” appears on the screen.
F
88
22/240
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 89
ENGLISH
Digital Still Camera mode
Recording an image from a cassette as a still image.
✤ You can record still images from a cassette onto a Memory Card.
✤ If you want to move recorded multiple still images from a cassette to a Memory Card, use the COPY function.
1. Set the mode switch to TAPE.
2. Set the power switch to PLAYER mode.
3. Play back the cassette.
4. Press the PHOTO button.
■ The still image is recorded on the Memory Card.
■ While the camcorder is recording the still image, “
” appears on the screen.
89
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 90
ENGLISH
Digital Still Camera mode
Viewing Still images
✤ You can playback and view still images recorded on the Memory Card.
✤ There are 3 ways to view recorded images.
■ Single : To view an image frame by frame.
■ Slide show : To view all images automatically and in consecutive order.
■ Multi display : To view 6 images at once.
To view a Single image
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER mode.
■ The last recorded image appears.
- If there are no recorded images on the Memory Card, NO STORED PHOTO!
or NO STORED MPEG4! and
will display on the screen.
3. Using the
(FWD) and
(REV) buttons, search for the desired still image.
■ To view the next image : press the
(FWD) button.
■ To view the previous image : press the
(REV) button.
■ Pressing
(FWD) when you are on the last image will take you to the first
image and pressing
(REV) when you are on the first image will take you
to the last image.
■ Keep pressing
(FWD) or
(REV) to search for an image quickly.
To view a slide show
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER mode.
■ The last recorded image appears.
3. Press the
(S.SHOW) button.
■ All images will be played back consecutively for 3~4 seconds each.
4. To stop the slide show, press the
(S.SHOW) button again.
90
REC SEARCH
FADE
BLC
S.SHOW
MULTI DISP.
EASY
REV
FWD
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 91
ENGLISH
Digital Still Camera mode
To view the Multi Display
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER mode.
■ The last recorded image appears.
3. To view six stored images on single screen, press the MULTI DISP. button.
■ A selection mark (
) appears under the image.
■ Turn the MENU DIAL to select a image.
19
20
22
23
21
24
100-0025
[24/24]
4. To return to single playback mode, press the MULTI DISP. button again.
Notes
■
■
REC SEARCH
To display the previous six images, press
(REV).
To display the next six images, press
(FWD).
FADE
BLC
S.SHOW
MULTI DISP.
EASY
REV
FWD
91
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 92
ENGLISH
Digital Still Camera mode
Copying still images from a cassette to Memory Card
✤ You can copy still images recorded with the PHOTO function on a cassette onto a Memory Card.
✤ Rewind the TAPE to point where you want copying to start.
1. Set the power switch to the PLAYER mode.
2. Press the MENU button.
PLAYER MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
■ The submenu will appear.
4. Turn the MENU DIAL to highlight PHOTO COPY and press the ENTER button.
■ All still images recorded on a cassette will be copied onto the Memory Card.
REC MODE
PHOTO SEARCH
COPY
AUDIO MODE
12
AUDIO SELECT
WIND CUT
PB DSE
OUT
AV IN/OUT
PLAYER MODE
A / V SET
5. The camcorder automatically performs photo search to find still images and starts copying.
6. Press (STOP) button to stop copying.
■ Copy stops when the cassette is finished or Memory Card is full.
92
REC MODE
PHOTO SEARCH
PHOTO COPY
AUDIO MODE
AUDIO SELECT
WIND CUT
PB DSE
AV IN/OUT
12
SOUND[1]
OUT
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 93
ENGLISH
Digital Still Camera mode
Marking images for printing
✤ This camcorder supports the DPOF (Digital Print Order Format) print format.
✤ You can automatically print images recorded on a Memory Card with a printer supporting DPOF.
✤ There are 2 ways to make a PRINT MARK.
■ THIS FILE : You can set a print mark on the photo image displayed on the LCD.
■ ALL FILES : To print 1 copy each of all of the stored images.
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER.
■ The last recorded image appears.
3. Using the
(FWD) and
(REV) buttons, search for the still image that you want to mark.
4. Press the MENU button.
M.PLAY MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
M.PLAY MODE
MEMORY SET
5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.
■ The MEMORY SET submenu will appear.
6. Turn the MENU DIAL to highlight PRINT MARK, press the ENTER button.
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
SF
320X240
000
SERIES
7. Use the MENU DIAL to select either THIS FILE or ALL FILES and press the ENTER button.
M.PLAY MODE
8. Use the MENU DIAL to select the quantity and press the ENTER button.
MEMORY SET
PRINT MARK
Notes
■
■
THIS FILE
ALL FILES
NUM:000
NUM:000
When you setup the PRINT MARK option to ALL FILES, 999 files from the first file
will be print marked. The files will be marked 000 or 001.
The ALL FILES option may require extended operation time depending on the number
of stored images.
93
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 94
ENGLISH
Digital Still Camera mode
Protection from accidental erasure
✤ You can protect important images from accidental erasure.
■ If you execute FORMAT, all images including protected images will be erased.
1. Set the mode switch to MEMORY CARD.
2. Set the power switch to PLAYER.
■ The last recorded image appears.
■ If there are no recorded images on the Memory Card, NO STORED PHOTO!
or NO STORED MPEG4! and
will display on the screen.
3. Using the
(FWD) and
(REV) buttons, search for the still image that you want to protect.
M.PLAY MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
M.PLAY MODE
MEMORY SET
4. Press the MENU button.
5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.
■ The submenu of MEMORY SET will appear.
6. Turn the MENU DIAL to highlight PROTECT and press the ENTER button.
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
SF
320X240
000
SERIES
M.PLAY MODE
MEMORY SET
7. Press the ENTER button to set PROTECT to ON or OFF.
■ THIS FILE : protects the currently selected file from erasure.
8. Using the
(FWD) and
(REV) buttons, search for the still image that you wish to protect.
9. To exit the menu, press the MENU button.
94
PROTECT
THIS FILE
ON
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 95
ENGLISH
Digital Still Camera mode
Deleting Still images
✤ You can erase the still images recorded on the Memory Card.
✤ If you want to delete protected images, you must first deactivate the image protection.
✤ An image which has been deleted cannot be recovered.
1. Set the mode switch to MEMORY CARD.
M.PLAY MODE
2. Set the power switch to PLAYER.
3. Using the
(FWD) and
(REV) buttons, search for the still image that you want to delete.
INITIAL
CAMERA
A/V
MEMORY
VIEWER
4. Press the MENU button.
5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.
■ The MEMORY SET submenu will appear.
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
M.PLAY MODE
6. Turn the MENU DIAL to highlight DELETE and press the ENTER button.
■ Using the MENU DIAL, select either THIS FILE or ALL FILES and press the ENTER button.
■ THIS FILE : deletes only the file currently selected.
■ ALL FILES : deletes all files stored in the Memory Card.
7. A box will appear to verify whether you wish to delete the image(s).
■ Using the MENU DIAL, select the item.
■ EXECUTE : deletes the selected image(s).
■ CANCEL : does not delete the selected image(s) and returns to the previous menu.
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
SF
320X240
000
SERIES
M.PLAY MODE
MEMORY SET
DELETE
THIS FILE
ALL FILES
CANCEL
Note
■
If you try to delete a protected image, “PROTECT!” appears on the screen.
95
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 96
ENGLISH
Digital Still Camera mode
Formatting the Memory Card
✤ You can use the MEMORY FORMAT functions to completely delete all images and options on the Memory Card,
including protected images.
✤ The format function restores the Memory Card to its initial state.
✤ The Memory Card supplied with this camcorder has been formatted already.
Attention
✤ If you execute the MEMORY FORMAT function, all images will be erased completely and erased images
cannot be recovered.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Set the mode switch to MEMORY CARD.
Set the power switch to PLAYER mode.
Press the MENU button.
Turn the MENU DIAL to highlight MEMORY and press the ENTER button.
■ The sub menu will appear.
Select FORMAT from the list and press the ENTER button.
“ALL FILES ARE DELETED! FORMAT REALLY?” appears on the screen.
Using the MENU DIAL, select the item.
■ NO : To return to previous menu
■ YES : To start formatting.
Press the ENTER button.
If you selected the “YES”, “COMPLETE!” is appeared on the screen when the
MEMORY CARD formatting is finished.
To exit the menu, push the MENU button.
M.PLAY MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
M.PLAY MODE
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
Note
■
■
96
If you want to format the Memory Stick on your PC, use only the “MS formatter” supplied with the software CD.
The MS formatter can only be used with Memory Sticks.
SF
320X240
000
SERIES
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 97
ENGLISH
Digital Still Camera mode
MPEG RECORDING
✤ You can record moving picture images with audio onto the Memory Card.
Recording moving pictures onto a MEMORY CARD
1. Insert a Memory Card into the slot on the camcorder.
2. Set the mode switch to MEMORY CARD position.
3. Set the power switch to CAMERA mode.
MEMORY
CARD
TAPE
4. Press the START/STOP button, the images are recorded on the MEMORY CARD
in MPEG4.
■ You can record 10 ~ 20 seconds continuously.
■ You can record a camera still image on Memory Card by pressing the Photo button
instead of the START/STOP button.
5. Press the START/STOP button to stop the recording.
Notes
■
■
■
■
■
■
DCIM
Moving images that you recorded are saved in *.asf file format on the Memory Card.
MISC
The moving picture images on a Memory Card are smaller size and lower definition
SSMOV
than one on Tape.
100SMDVC
The sound is recorded in mono.
The following functions cannot be operated in M.REC Mode.
- DIS (Digital Image Stabilizer), Digital Zoom, Fade, Program AE, Digital Special Effect, Slow Shutter.
Don’t insert or eject a tape during Memory card recording as it may record noise.
Don’t eject the Memory Card during recording as it may break the data on the Memory Card or the Memory Card itself.
97
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 98
ENGLISH
Digital Still Camera mode
Selecting the moving picture sizes
1. Set the mode switch to MEMORY CARD position.
2. Set the power switch to CAMERA mode.
3. Press the MENU button.
M.REC MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
4. Turn the MENU DIAL to highlight MEMORY.
5. Press the ENTER button to enter the submenu.
6. Turn the MENU DIAL to highlight MPEG4 SIZE.
7. Press the ENTER button.
■ The MPEG4 SIZE toggles between 320 ✕ 240 / 160 ✕ 120 with each push.
98
M.REC MODE
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO.
DELETE
FORMAT
SF
320X240
000
SERIES
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 99
ENGLISH
Digital Still Camera mode
MPEG Playback
✤ The MPEG Playback function works in M. PLAY mode only.
✤ You can play moving picture images on the Memory Card.
✤ To hear sound during MPEG4 playback, you must hook up to a PC and listen to the PC's
speaker. (You cannot hear it from the speaker on the camcorder or a TV)
1.
2.
3.
4.
5.
6.
7.
Set the mode switch to MEMORY CARD position.
Set the power switch to PLAYER mode.
Press the MENU button and turn the MENU DIAL to highlight MEMORY.
Press the ENTER button to enter sub-menu.
Use the MENU DIAL to select MPEG4 from the sub-menu. (M. PLAY SELECT)
To exit the menu, push the MENU button.
Using the
(FWD) and
(REV) buttons, search for the moving picture that you want to
playback.
8. Press the PLAY/STILL button.
■ The moving pictures recorded on the MEMORY CARD are playing back.
Notes
■
■
■
■
■
TAPE
MEMORY
CARD
M.PLAY MODE
INITIAL
CAMERA
A/V
MEMORY
VIEWER
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROTECT
FILE NO
DELETE
FORMAT
M.PLAY MODE
MEMORY SET
M.PLAY SELECT
PHOTO QUALITY
MPEG4 SIZE
PRINT MARK
PROJECT
FILE NO
DELETE
FORMAT
MPEG4
SF
320X240
000
SERIES
There may occasionally be broken or mosaic pictures while playing the MPEG4 moving picture
images, but it is not a malfunction.
Sharp G.726 Audio Codec is automatically installed through Internet when you play the MPEG4
file.
If Sharp G.726 Audio Codec is not properly installed on your PC, it will not play MPEG4 Audio.
Moving picture images recorded on the Memory Card may not play in other manufacturers' camcorders.
MPEG4 files recorded by another camcorder may not be playable by this camcorder.
- You need Microsoft Windows Media Player Version 9 or higher version and Sharp G.726 Audio Codec in order to play
MPEG4 files on the Memory Card on your PC. (Microsoft Windows Media Player V ersion 9 (Eng) is included on the CD
that is supplied.)
- You can download the Microsoft Windows Media Player on the Microsoft Website,
“http://www.microsoft.com/windows/windowsmedia/download/ default.asp”.
99
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 100
ENGLISH
Maintenance
After finishing a recording
✤ At the end of a recording you must remove the power source.
✤ When recording with a Lithium Ion Battery Pack, leaving the pack on the camcorder can reduce the life span of the battery.
1. Slide the TAPE EJECT switch in the direction of the arrow.
■ Opening the cassette door ejects the tape automatically.
■ Please wait while the tape is completely ejected.
2. After removing the tape, close the door and store the camcorder in a dust free
environment.
■ Dust and other foreign materials can cause square-shaped noise or jerky images.
1
2
3
4
3. Set the power switch to the OFF mode.
4. Disconnect the power source or remove the Lithium Ion Battery Pack.
■ Press the BATTERY RELEASE button and slide the battery pack in the direction of the arrow.
100
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 101
ENGLISH
Maintenance
Cleaning and Maintaining the Camcorder
Cleaning the Video Heads
To ensure normal recording and clear pictures, clean the video heads when the playback pictures display square block-shaped
noise or distortion, or a blue screen appears.
(blue screen)
1.
2.
3.
4.
Set the power switch to PLAYER mode.
Insert the cleaning tape.
Press the
(PLAY/STILL) button.
Press the (STOP) button after 10 seconds.
■
Check the quality of the picture using a videocassette.
If the picture quality has not improved, repeat the operation.
If the problem continues, contact your local authorized service center.
Clean the video heads with a dry type cassette cleaner.
Notes
■
101
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 102
ENGLISH
Maintenance
Using Your Camcorder Abroad
✤ Each country or region has its own electric and color systems.
✤ Before using your camcorder abroad, check the following items.
Power sources
■ You can use your camcorder in any country or area with the supplied AC Power Adapter within 100V to 240V, 50/60 Hz.
■ Use a commercially available AC plug Adapter, if necessary, depending on the design of the local wall outlet.
Color system
■ You can view your recording in the viewfinder.
However, to view it on a television or copy it to a videocassette recorder, the television or VCR must be NTSC-compatible
and have the appropriate audio/video jacks.
Otherwise, you may need to use a transcoder.
● PAL-compatible Countries/Regions
Australia, Austria, Belgium, Bulgaria, China, CIS, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece,
Great Britain, Holland, Hong Kong, Hungary, India, Iran, Iraq, Kuwait, Libya, Malaysia, Mauritius, Norway, Romania,
Saudi Arabia, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Syria, Thailand, Tunisia, etc.
● NTSC-compatible Countries/Regions
Bahamas, Canada, Central America, Japan, Korea, Mexico, Philippines, Taiwan, United States of America, etc.
Note
You can make recordings with your camcorder and view pictures on the LCD from anywhere in the world.
102
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 103
ENGLISH
Troubleshooting
Troubleshooting
✤ Before contacting a Samsung authorized service center, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Self Diagnosis Display
Display Blinking
Informs that...
Action
slow
the battery pack is almost discharged. Change to a charged one.
TAPE END!
slow
When the remaining time on the tape
is about 2 minutes
Prepare a new one.
TAPE END!
no
the tape reached its end.
Change to a new one.
TAPE!
slow
there is no tape in camcorder.
Insert a tape.
PROTECTION!
slow
the tape is protected from recording.
If you want to record, release
the protection.
....D
L
C
R
slow
the camcorder has some mechanical
fault.
1. Eject the tape.
2. Set to OFF.
3. Detach the battery.
4. Reattach the battery.
* If unresolved contact your
local service representative.
slow
moisture condensation has formed in
the camcorder.
see below.
Moisture Condensation
✤ If the camcorder is brought directly from a cold place to a warm place, moisture may condense inside the camcorder,
on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or the
unit may not operate correctly.
To prevent possible damage under these circumstances, the camcorder is fitted with a moisture sensor.
✤ If there is moisture inside the camcorder,
(DEW) is displayed. If this happens, none of the functions except cassette
ejection will work.
Open the cassette compartment and remove the battery.
Leave the camcorder for at least two hours in a dry warm room.
103
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 104
ENGLISH
Troubleshooting
Self Diagnosis Display in M.REC/M.PLAY mode
Display
104
Blinking
Informs that...
Action
MEMORY CARD!
slow
There is no Memory Card in
the camcorder.
Insert a Memory Card.
MEMORY FULL!
slow
There is not enough memory
to record.
Change to a new Memory
Card. Erase recorded image.
NO STORED
PHOTO! or
NO STORED
MPEG4!
slow
There are no images recorded
on the Memory Card.
Record new images.
WRITE
PROTECT!
slow
The Memory Card is record
protected.
Release the write protect tab
on the Memory Card.
PROTECT!
slow
When you try to delete a
protected image.
Cancel the image protection.
READ ERROR!
slow
The camera can not playback.
Format a Memory Card or
insert Memory Card recorded
on this camcorder.
WRITE ERROR!
slow
The camera can not record.
Format a Memory Card or
change to a new Memory Card.
NOT
FORMATTED!
slow
The Memory Card needs to
be formatted.
Format a Memory Card.
(see page 96)
NOW DELETE...
slow
FILE DELETE is progressing.
Wait until Delete has been
finished.
NOW FORMAT...
slow
MEMORY FORMAT is
progressing.
Wait until formatting has
finished.
NOW COPY...
slow
When FILE COPY is
progressing.
Wait until copy has finished,
or press the stop button.
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 105
ENGLISH
Troubleshooting
✤ If these instructions do not solve your problem, contact your nearest Samsung authorized service center.
Symptom
Explanation/Solution
You cannot switch the Check the battery pack or the AC Power Adapter.
camcorder on.
START/STOP button
does not operate
while recording.
Check the POWER switch is set to CAMERA.
You have reached the end of the cassette.
Check the record protection tab on the cassette.
The camcorder goes
off automatically.
You have left the camcorder set to STBY for more
than 5 minutes without using it.
The battery pack is fully exhausted.
The battery pack is
quickly exhausted.
The atmospheric temperature is too low.
The battery pack has not been charged fully.
The battery pack is completely dead, and cannot be
recharged, Use another battery pack.
When you see a blue
screen during
playback.
The video heads may be dirty.
Clean the head with a cleaning tape.
A vertical strip appears
on the screen when
recording a dark
background.
The contrast between the subject and the background
is too great for the camcorder to operate normally.
Make the background bright to reduce the contrast or
use the BLC function while you are recording brighter.
The image in the
viewfinder is blurred.
The Viewfinder lens has not been adjusted.
Adjust the viewfinder control lever until the indicators
displayed on the viewfinder come into sharp focus.
Auto focus does not
work.
Check the M.FOCUS menu.
Auto focus does not work in the Manual Focus mode.
Play, FF or REW
button does not work.
Check the POWER switch. Set the power switch to PLAYER.
You have reached the beginning or end of the cassette.
When you see a
broken block image
during the RECORD
SEARCH.
This is normal operation and it is not a failure or
defect.
105
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 106
ENGLISH
Specifications
Model name: SCD107
System
Video signal
Video recording system
Audio recording system
Usable cassette
Tape speed
Tape recording time
FF/REW time
Image device
Lens
Filter diameter
LCD monitor/Viewfinder
Size/dot number
LCD monitor Method
Viewfinder
Connectors
Video output
S-video output
Audio output
DV input/output
USB output
External mic
NTSC
2 rotary heads, Helical scanning system
Rotary heads, PCM system
Digital video tape (6.35mm width): Mini DV cassette
SP: approx. 18.81mm/s LP: approx. 12.56mm/s
SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60)
Approx. 150 sec. (using DVM60 tape)
CCD (Charge Coupled Device)
F1.6 ~ 2.7 20x(Optical), 900x(Digital) Electronic zoom lens
Ø30
3.5inchs 225k
TFT LCD
Color LCD
1Vp-p (75Ω terminated)
Y: 1Vp-p, 75Ω, C: 0. 286Vp-p, 75Ω
-7.5dBs (600Ω terminated)
4pin special in/out connector
Mini-B type connector
Ø3.5 stereo
General
Power source
Power source type
Power consumption
(Recording)
Operating temperature
Storage temperature
External dimension
Weight
Built-in MIC
Remote control
DC 8.4V, Lithium Ion Battery Pack 7.4V
Lithium Ion Battery Pack, Power supply (100V~240V) 50/60Hz
5.2W(LCD), 4.2W(Viewfinder)
0˚~40˚C (32˚F~104˚F)
-20˚C ~ 60˚C (-4˚F ~ 140˚F)
Height 3.44inches(87.5mm), Length 5.90inches(150mm), Width 2.16inches(55mm)
500g (Except for Lithium Ion Battery Pack and tape)
Omni-directional stereo condenser microphone
Indoors: greater than 49ft(15m) (straight line), Outdoors: about 16.4ft(5m) (straight line)
• These technical specifications and design may be changed without notice.
106
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 107
ENGLISH
INDEX
-A-
-O-
Accessories ................................................................................................12
AF/MF ....................................................................................................... 60
Audio dubbing ........................................................................................... 63
AUDIO MODE ........................................................................................... 51
OSD .................................................................................................... 18, 19
-BBattery Pack .............................................................................................. 24
BLC ........................................................................................................... 61
-CCassette .................................................................................................... 27
Cleaning .................................................................................................. 101
CLOCK SET ............................................................................................. 39
Connecting ................................................................................................ 71
-DDATE/TIME ............................................................................................... 53
DC Cable .................................................................................................. 23
Deleting ..................................................................................................... 95
DEMONSTRATION .................................................................................. 41
DIS ............................................................................................................. 47
DSE ........................................................................................................... 48
DV ........................................................................................................ 78, 79
-EEASY Mode .............................................................................................. 59
EXPOSURE .............................................................................................. 57
-FFade ..........................................................................................................
Formatting .................................................................................................
Frame advance .........................................................................................
Functions buttons .....................................................................................
62
96
73
14
-HHand Strap ................................................................................................ 22
-IIEEE1394 .................................................................................................. 78
-LLCD ..................................................................................................... 31, 32
-MMemory Card ............................................................................................
Memory Stick ............................................................................................
MPEG RECORDING .................................................................................
MPEG SIZE ...............................................................................................
-PPB DSE .....................................................................................................
PHOTO copy ............................................................................................
PHOTO quality ..........................................................................................
PHOTO SEARCH .....................................................................................
PROGRAM AE ..........................................................................................
Protection ..................................................................................................
75
92
87
65
42
94
-QQuick Menu ............................................................................................... 55
-RREC MODE .............................................................................................. 50
REC Search .............................................................................................. 30
Remote control ................................................................................... 17, 20
-SSHUTTER SPEED ...................................................................................
Sound ........................................................................................................
Speaker .....................................................................................................
Still images ................................................................................................
56
35
35
90
-TTele MACRO ............................................................................................. 45
TV DISPLAY ............................................................................................. 54
-UUSB ........................................................................................................... 80
-VViewfinder ........................................................................................... 31, 33
-WWHT. BALANCE ....................................................................................... 44
WIND CUT ................................................................................................ 52
WL. REMOTE ........................................................................................... 40
-ZZERO MEMORY ....................................................................................... 74
Zoom ................................................................................................... 45, 46
84
83
97
98
107
00762B SCD107 SEA (60~107)
3/8/04 9:20 AM
Page 108
Warranty (SEA users only)
SAMSUNG
LIMITED WARRANTY
SAMSUNG Electronics America Inc. (SEA), warrants that this product is free from defective material and workmanship.
SEA further warrants that if product fails to operate properly within the specified warranty period and the failure is due
to improper workmanship or defective material, SEA will repair or replace the product at it’s option.
All warranty repairs must be performed by a SEA authorized service center. The name and address of the location
nearest you can be obtained by calling toll free: 1-800 SAMSUNG (1-800-726-7864).
Labor
90 days carry-in
Parts
1 year
On carry-in models, transportation to and from the service center is the customer’s responsibility.
The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase.
It must be presented to the authorized service center.
EXCLUSIONS (WHAT IS NOT COVERED)
This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse, incorrect line
voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping.
Exterior and interior finish, lamps, and glass are not covered under this warranty.
Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is
valid only on products purchased in the United States and Puerto Rico.
Some States do not allow the exclusions or limitations of incidental or consequential damages, or allow limitations on
how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
108
00762B SCD107 SEA (01~27)
3/8/04 9:18 AM
Page 100
ENGLISH
THIS CAMCORDER IS MANUFACTURED BY:
ELECTRONICS
SERVICE DIVISION
400 Valley Road, Suite 201, Mt. Arlington N.J. 07856
Tel: 1-800-SAMSUNG
(1-800-726-7864)
*Samsung Electronics’ Internet Home Page
http://www.samsungusa.com
AD68-00762B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
