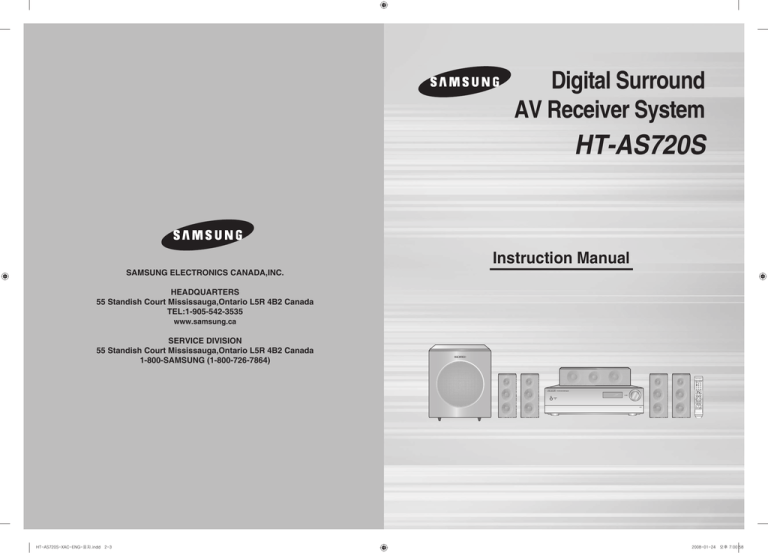

Digital Surround
AV Receiver System
HT-AS720S
Instruction Manual
SAMSUNG ELECTRONICS CANADA,INC.
HEADQUARTERS
55 Standish Court Mississauga,Ontario L5R 4B2 Canada
TEL:1-905-542-3535
www.samsung.ca
SERVICE DIVISION
55 Standish Court Mississauga,Ontario L5R 4B2 Canada
1-800-SAMSUNG (1-800-726-7864)
HT-AS720S-XAC-ENG-표지.indd 2-3
2008-01-24 오후 7:00:58
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 2
Safety Warnings
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
SERVICE PERSONNEL.
Note to CATV system installer :
This reminder is provided to call the CATV system
installer ’s attention to Section 820~40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
Precautions
PREPARATION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
ENG
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure
the ventilation slots are not covered. Do not stack anything on top of the amplifier. In order to disconnect the player completely
from the power supply, remove the mains plug from the wall outlet, especially when left unused for a long period of time.
This symbol indicates that dangerous voltage which can cause electric shock is present
inside this unit.
This symbol alerts you to important operating and maintenance instructions
accompanying the unit.
WARNING : To reduce the risk of fire or electric shock,do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK,MATCH WIDE BLADE OF PLUG TO WIDE SLOT,FULLY
INSERT.
2
During thunderstorms, disconnect AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of
the unit.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic
or electric fields (i.e.speakers...). Disconnect the power
cable from the AC supply if the player malfunctions. Your
player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been
stored in cold temperatures.
If transporting the player during the winter, wait
approximately 2 hours until the unit has reached room
temperature before using.
The battery used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
3
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 4
Features
Contents
PREPARATION
This product is a pure digital AV receiver that performs digital signal processing to minimize
signal distortion and loss.
Dolby Pro Logic llx
Safety Warnings ..............................................................................................................2
Precautions......................................................................................................................3
Features ..........................................................................................................................4
Description ......................................................................................................................6
Dolby Pro Logic IIx is a new technology that provides discrete 7.1 channel out of 2 channel
or multi channel sources.It also provides Music,Movie and Game modes.
CONNECTIONS
DTS is a surround format that implements 5.1 channel multi channel sound at 96KHz/24bit.
In addition, it can also reproduce the matrix 6.1 of DTS 96/24 decorder signals.
DOLBY DIGITAL EX
Adds a surround back channel for more spacious sound compared to regular 5.1 channel
Dolby Digital.
DTS (Digital Theater Systems)
DTS plays back 5.1 channel sound with less compression than Dolby Digital for richer
sound.
DTS-ES (Extended Surround)
DTS-ES adds an additional rear center surround channel for 6.1 channel sound.
It is compatible with existing DTS Digital Sound formats.
DTS
Reproduces digital PCM or analog stereo over 6.1 channels using a high precision
DTS digital matrix.
PREPARATION
Digital AV Receiver
DTS 96/24
ENG
Connecting speakers.......................................................................................................10
Connecting external devices ...........................................................................................12
Anynet+ ...........................................................................................................................16
Connecting the FM antenna ............................................................................................17
OPERATION
Before using the AV receiver ...........................................................................................18
Selecting digital/analog input ..........................................................................................19
Setting the speaker mode................................................................................................20
Setting the speaker listening distance ...........................................................................22
Setting digital input ..........................................................................................................23
Setting HDMI AUDIO.......................................................................................................24
Setting DRC (Dynamic Range Compression) .................................................................25
Test tone .........................................................................................................................26
Setting speaker level .......................................................................................................28
Dolby Pro Logic llx mode.................................................................................................29
Setting Dolby Pro Logic llx effect ....................................................................................30
Setting NEO:6 mode........................................................................................................31
Setting EX/ES mode........................................................................................................32
Setting Tone Control ........................................................................................................33
SFE mode........................................................................................................................34
Stereo mode ....................................................................................................................35
RADIO OPERATION
SFE (Sound Field Effect) Using 24bit Audio Digital Signal Processing
4
Provides more realistic surround sound with normal stereo audio sources.
Listening to radio ............................................................................................................36
Presetting radio stations .................................................................................................37
Anynet+ (HDMI-CEC) Function
MISCELLANEOUS
Anynet+ is a function that can be used to operate this AV Receiver with a Samsung TV
remote control, by connecting the receiver to a SAMSUNG TV using an HDMI Cable.
(This function is available only in connection with Samsung TV and DVD player supporting
Anynet+(HDMI-CEC).)
Convenient functions ......................................................................................................38
Operating your TV with the remote control......................................................................41
Operating your DVD or VCR with the remote control ......................................................43
Before calling for service .................................................................................................45
Specifications ..................................................................................................................47
5
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 6
ENG
Description
TONE CONTROL button
POWER STANDBY Indicator
POWER button
Remote control sensor SURROUND button
AUX IN Jack
HEADPHONE Jack
CD AUDIO INPUT JACKS HDMI OUTPUT JACK
VCR AUDIO
VCR VIDEO INPUT JACK
FM ANTENNA JACK
INPUT JACKS
VCR VIDEO OUTPUT JACK
HDMI INPUT
7.1 CH ANALOG
FRONT SPEAKER TERMINALS
JACKS
AUDIO INPUT JACKS
SURROUND SPEAKER TERMINALS
7.1CH IN
STEREO
VOLUME CONTROL
FUNCTION button
INPUT MODE button
SETUP button
TUNING MODE button
SELECT( , ) button
CENTER SPEAKER TERMINALS SURROUND BACK SPEAKER
TERMINALS
MONITOR VIDEO OUTPUT JACK
DVD VIDEO INPUT JACK
SAT(Cable/Satellite/Set-top box) VIDEO INPUT JACK
SUBWOOFER AUDIO OUTPUT JACK
DVD OPTICAL DIGITAL
AUDIO INPUT JACK
[ Display ]
SAT (ANYNET+)
OPTICAL AUDIO INPUT JACK
CD COAXIAL DIGITAL
AUDIO INPUT JACK
DOLBY DIGITAL EX INDICATOR
SPEAKER INDICATORS
PREPARATION
[ Rear panel ]
[ Front panel ]
VCR AUDIO OUTPUT JACKS
DVD AUDIO INPUT JACKS
DIGITAL LIVE SURROUND
INDICATOR INDICATOR
L.PCM INDICATOR
SAT AUDIO INPUT JACKS
RADIO
BROADCASTING
RECEIVING INDICATOR
√√ Accessories œœ
RADIO FREQUENCY
INDICATOR
FRONT DISPLAY
RADIO STEREO INDICATORS
Remote control
(AH59-01867F)
FM antenna
(AH42-00017A)
User’s manual
(AH68-01989S)
DTS INDICATOR
6
7
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 8
ENG
Description (Cont'd)
PREPARATION
[ Remote control ]
Insert remote control batteries
TV button
AMP button
DVD button
VCR button
1
DIMMER button
POWER button
NUMBER (0~9) buttons
SLEEP button
SUBWOOFER button
EX/ES button
TV/VIDEO, FUNCTION button
CD button
VCR button
DVD button
Remove the battery
cover in the direction
of the arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
7.1 CH button
SAT button
AUX button
INPUT MODE button
MO/ST button
TUNER button
EXTERNAL DEVICE PLAYBACK button
MUTE button
VOLUME CONTROL button
SETUP/MENU button
TUNING/CHANNEL button
TUNING MODE button
NEO : 6 MODE button
STEREO button
SPK LEVEL button
Range of operation of the remote control
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated
at a horizontal angle of up to 30° from the remote control sensor.
CURSOR/ENTER button
DRC button
INFO button
Follow these precautions to avoid leaking or cracking batteries:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
TUNER MEMORY button
MODE button
EFFECT button
TEST TONE button
SPK SELECT button
SFE MODE button
8
9
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 10
ENG
Connecting speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
ACTIVE SUBWOOFER
(BUILT-IN POWER AMPLIFIER)
PS-AW720S
FRONT (R)
PS-AF720S
FRONT (L) SURROUND (R)
PS-AF720S PS-AR720S
SURROUND (L)
PS-AR720S
SURROUND
BACK (R)
SURROUND
BACK (R)
(Not supplied)
SR
SBL
Surround Speakers
• Place AV Receiver on a dedicated stand or rack.
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they
face each other.
• Place them about 60 to 90cm (2 to 3feet) above your
ears, facing slightly downward.
❈ Unlike the front and center speakers, the surround
speakers are used to handle mainly sound effects and
sound will not come from them all the time.
Front Speakers
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at the
same height as your ears.
• Align the front face of the front speakers with the front
face of the center speaker or place them slightly in
front of the center speaker.
Center speaker
• It is best to install it at the same height as the front speakers.
• You can also install it directly over or under the TV.
Subwoofer
• The position of the subwoofer is not so critical.
Place it anywhere you like.
Surround Back Speakers SBL SBR
SYSTEM MODEL NAME : HT-AS720S
CENTER
PS-AC720S
MAIN UNIT
FRONT SPEAKER
CENTER SPEAKER
SURROUND SPEAKER
ACTIVE SUBWOOFER
AV-R720
PS-AF720S
PS-AC720S
PS-AR720S
PS-AW720S
√ CONNECTING SPEAKER WIRE
1. Loosen the knob by turning counterclockwise.
2. Insert the bare part of the wire into the hole in the side of each terminal.
3. Tighten the knob by turning clockwise to secure the wire.
• If you are using two rear center speakers, place them
facing forward from behind the listening position.
• Place the surround back speaker about 70 cm to 1 m
(2.3~3.3feet) above surround speakers, facing slightly
downwards.
• When you attach the speakers to a wall, make sure to
fasten them tightly so they do not fall off.
Subwoofer function
Active subwoofer with integrated 150W amplifier provides rich bass sound.
10
MAIN UNIT
AV-R720
SBR
Position of AV Receiver
CONNECTIONS
SL
1
Connect the SW OUT terminal of the amplifier (AV-R720) to the INPUT
terminal of the subwoofer speaker.
2
Press the POWER button on the rear side of the subwoofer to turn
the power on.
3
Using the subwoofer’s VOLUME control, you can set the desired bass level
(See page 30 "Setting Speaker Level" to set the subwoofer level in the menu).
√ Connecting the Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire
into the red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the Home Theater.
• Make sure the colors of the speaker terminals match the colors
of the connecting plugs.
Caution
• Keep the subwoofer speaker out of reach of children to
prevent them from inserting their hands or objects
into the duct (hole).
1
2
Black
Red
• Never touch speaker terminals while the power is on.
Doing so could result in electric shock.
• Make sure the polarities (+ and -) are correct.
• This system is capable of reproducing 6.1/7.1
channel sound, however only 5.1 speakers are
supplied.
11
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 12
ENG
Connecting external devices
Connecting video devices
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
SAT(Cable/Satellite/Settop Box)
DVD or Blu-RAY Player
CONNECTIONS
• If the external component has only one audio output
jack, connect it to either the right or left audio input
jack of the main unit.
• Connect the audio cable's red plug to the red jack
and white cable to the white jack.
or
or
TV
• Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
• Even though the Digital Audio inputs are labelled DVD, SAT and CD, you can connect your DVD/SAT/CD player to
either the OPTICAL or COAXIAL digital audio input (as long as it matches the Digital audio output on your player).
TV
VCR
12
13
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 14
ENG
Connecting external devices
(Cont'd)
Connecting audio/7.1 channel devices
Connecting external devices via HDMI
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
By connecting through the HDMI(High-Definition Multimedia Interface) interface, you can play back digital video and audio
without conversion to analog.
DVD or Blu-RAY Player
SAT(Cable/Satellite/Set-top box)
CONNECTIONS
CD Player
• Connect it if you
want to use Anynet+.
• Audio from SACD discs will not be played. To play a
DVD disk whose copyright is protected by CPPM, use a
player supporting CPPM.
• The quality of the audio output through the HDMI jack
(sampling frequency and bit rate) may be limited by the
performance of the connected device.
• Since HDMI connection supports both video and audio,
you don’t have to connect an additional audio cable.
TV
High-bandwidth Digital Content Protection System (HDCP) support
To play digital contents through the HDMI connection, both of the connected external device and TV must support High-bandwidth Digital Content
Protection System (HDCP). This product supports HDCP.
COMPATIBILITY WITH A TV SUPPORTING HDMI
TV
DVD/Blu-RAY or 7.1 channel player
A TV with an HDMI jack.
Video/Audio
A TV with a DVI-D jack (TV supporting HDCP)
Video
A TV with a DVI-D jack (TV not supporting HDCP)
-
• If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the AV receiver using the TV’s remote
control. This function is available only in connection with Samsung TV and DVD player supporting Anynet +(HDMI-CEC).
logo. If your TV has an
logo, then it supports the Anynet+ function.
• Please check the
14
15
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 16
Anynet+
Connecting external devices
ENG
(Cont'd)
Using Anynet+(HDMI-CEC)
Connecting AUX components
1
the Anynet+ function on your TV. (See the TV instruction manual for more information.)
2 Set
•
Connect the AV receiver to a Samsung TV with an HDMI cable. (See page 15)
You can connect external devices you use (camcorder, game console, mobile equipment,etc.) to the front of this unit for
convenience.
You can operate the AV receiver by using the TV remote control.
(Available TV button : VOLUME
,
button.)
CONNECTIONS
If you select TV
Set the Anynet+(HDMI-CEC) function to <On> on your TV.
• Receiver : On : You can listen to audio through the AV Receiver.
• Receiver : Off : You can listen to audio through the TV.
MOVE
MOVE
ENTER
ENTER
EXIT
EXIT
If you select the DVD Player
Camcorder
Select THEATER to connector and set the option of each items below.
• View TV : If Anynet+(HDMI-CEC) set to on and you select View TV, the AV receiver will
automatically switch to SAT OPTIC2(DIGITAL IN).
• Receiver : On : You can listen to audio through the AV receiver.
• Receiver : Off : You can listen to audio through the TV.
MOVE
ENTER
EXIT
To turn off Anynet+
1 Press SETUP/MENU button, and then press the ENTER button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press œ √ button to select the “ANYNET+ MODE”, and then press the ENTER button.
3 Press the …† button to set ANYNET+ to OFF.
- If you are using Anynet+, set ANYNET+ to ON and if not, set it to OFF.
Connecting the FM antenna
To exit setup mode
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
• When selecting View TV, you must have a digital optical cable connected
from the TV to the AV receiver to listen to the TV sound through the AV
receiver.
Caution
• When you are making Anynet+ connection, do not connect more than two AV receivers
(Anynet+ installed). Otherwise, it can cause a malfunction.
With Anynet+
You can operate this unit, power on your TV, or watch a movie by pressing the Play button on
your Samsung TV's remote control.
16
FM antenna (supplied)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a
wall or other rigid surface.
17
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 18
Before using the AV receiver
Selecting digital/analog Input
ENG
You can listen to sound in 2 channel analog , Dolby Digital or DTS using this unit.
Turning On/Off
Connect the power plug to the outlet.
Press the POWER button of the remote control.
• This unit will be turned on or set to Standby mode.
Remote control functions
You can operate your AMP (this AV receiver), TV, DVD and VCR with this
remote control.
See pages 41-44 for more details.
Method 1
Press the FUNCTION button.
• Each time you press this button, FM ➝ 7. 1 MULTI CH ➝ CD ➝ DVD
MAIN UNIT
Press the INPUT MODE button.
Press the INPUT MODE button.
• Each time you press this button, input mode changes
• Each time the button is pressed, input mode changes
OPERATION
To select a function
REMOTE CONTROL
as follows:
as follows:
For DVD/SAT function
➝ SAT ➝ VCR ➝ AUX will be selected in turn.
Method 2
Press CD, VCR, DVD, 7.1CH, SAT, AUX or TUNER button.
√
√
√
√
or
• You can directly select the desired function.
For CD function
√
• You can change the digital input setting for DVD, SAT and CD functions in the “DIGITAL IN” setup.
(See page 23)
• You can enjoy Dolby Digital or DTS if you connect the digital audio output jack of an external audio
component to the optical or coaxial digital audio input jack on the main unit.
18
19
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 20
ENG
Setting the speaker mode
Signal outputs and frequency response from the speaker will be adjusted according to your speaker configuration
and whether certain speakers are used or not.
√
REMOTE CONTROL
1 Press SETUP/MENU button, and then press the ENTER button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
Press
button to select the “SPK SETUP”, and then
2 press
the ENTER button.
MAIN UNIT
SETUP button, and then press the ENTER ( ) button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
button to select the speaker you want.
3 Press
Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ S.BACK ➝
•
•
2 Press
SUB ➝ CROVR will be selected in turn.
Press …† button to set the mode (LARGE, SMALL etc.)
4 for
the selected speaker.
3 Press
OPERATION
button to select the “SPK SETUP”, and then
press the ENTER ( ) button.
button to select the speaker you want.
• Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ S.BACK ➝
5 Repeat steps 3-4 to set the mode for each speaker.
SUB ➝ CROVR will be selected in turn.
To exit setup mode
4 Press …† button to set the mode (LARGE, SMALL etc.)
• Wait for about 5 seconds or press SETUP/MENU button.
for the selected speaker.
“SETUP OFF” appears on the display and Setup Mode is exited.
5 Repeat steps 3-4 to set the mode for each speaker.
Using the SPK SELECT button
1 Press SPK SELECT button to select the speaker you want.
To exit setup mode
• Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ S.BACK ➝
• Wait for about 5 seconds or press SETUP button.
SUB ➝ CROVR will be selected in turn.
“SETUP OFF” appears on the display and Setup Mode is exited.
2 Press …† button to set the mode (LARGE, SMALL etc.)
for the selected speaker.
3 Repeat steps 1-2 to set the mode for each speaker.
To turn the SUBWOOFER on or off.
Setting the Speaker
Press SUBWOOFER button on the remote.
• Each time you press this button, SUB : YES, SUB : NO will be selected in turn.
• If FRONT is set to LARGE, you can select YES or NO for SUB.
• If FRONT is set to SMALL, SUB is automatically set to YES.
NO cannot be selected.
20
SPEAKER
FRONT(Front)
CEN(Center)
SURR(Surround)
S.BACK (Surround Back)
SUB(Subwoofer)
CROVR
(Crossover Frequency)
Possible Settings
LARGE,SMALL
LARGE,SMALL,NONE
LARGE,SMALL,NONE
LARGE,SMALL,NONE
YES,NO
60,80,100,120,
150,180,200(Hz)
Default Setting
SMALL
SMALL
SMALL
SMALL
YES
150Hz
• LARGE : Select when using large speakers. You can listen to full
range sound.
• SMALL : Select this when using small speakers
• NONE : Select when no speaker is used
• YES (subwoofer) : Select when using the subwoofer speaker.
• NO (subwoofer) : Select when not using the subwoofer speaker.
• CROVR : Select the crossover frequency for the best bass response
in your room.
21
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 22
Setting the speaker listening distance
Setting digital input
If the speakers cannot be placed at equal distances from the listening position, you can adjust the
delay time of the audio signals from the center and surround speakers.
You can set the digital input for a DVD/SAT/CD player to either OPTICAL or COAXIAL to match the
connections you've made .
√
ENG
√
SETUP/MENU button, and then press the ENTER button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
1 Press SETUP/MENU button, and then press the ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “DIST SETUP”, and then
press the ENTER button.
button to select the speaker you want.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ SBR ➝ SBL ➝
•
S.L ➝ S.W will be selected in turn.
• For F.L, CEN, F.R, S.W, S.R, SBR, SBL, S.L Speaker, you can set the distance
from the speaker to listening position between 0.3~9.0m in intervals of
0.3m.
button to select the “DIGITAL IN”, and then
press ENTER button.
3 Press
button to select the the CD, DVD or SAT
function.
• Each time you press this button, CD ➝ DVD ➝ SAT will be selected in turn.
OPERATION
4 Press …† button to set the speaker distance.
2 Press
…† button to set the digital input.
4 Press
Each time you press this button, COAXIAL ➝ OPTICAL2 ➝ OPTICAL1
•
will be selected in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Setting Speaker Distance
Set the distance from the speaker to listening position in intervals of 0.3m.
• F.L (front left) : 0.9ft ~ 29.5ft
• F.R (front right) : 0.9ft ~ 29.5ft
• SBR (surround back right) : 0.9ft ~ 29.5ft
• S.L (surround left) : 0.9ft ~ 29.5ft
• CEN (center) : 0.9ft ~ 29.5ft
• S.R (surround right) : 0.9ft ~ 29.5ft
• SBL (surround back left) : 0.9ft ~ 29.5ft
• SW (subwoofer) : 0.9ft ~ 29.5ft
• If the listening position is beyond the range of the speaker distance setup,
set the speaker distance to the maximum.
• The distance range of the overall speaker system is determined based on
the F.L(front left) speaker distance from the listening position.
• Based on the max delay channel, the distance of the front speaker is
4.9ft(5ms) and the surround speaker can be set up to 14.7ft(15ms).
22
• You can select only one digital input for each function.
Example) If you have selected COAXIAL for the CD function,
you cannot select COAXIAL for the DVD or SAT function.
Function
DVD
SAT
CD
Digital input
OPTICAL1
OPTICAL2
COAXIAL
23
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 24
Setting HDMI AUDIO
Setting DRC (Dynamic Range Compression)
You can set HDMI audio settings.
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
DRC compresses the audio to make the loudest sounds quieter and the quietest sounds louder.
√
Before using!
• Press the INPUT MODE button to select HDMI1 or HDMI2. (see page 21)
• If you select Digital (Optical, Coaxial) or Analog, the HDMI audio setting will be
deactivated.
1 Press SETUP/MENU button, and then press the ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
• “HDMI : AVR” appears on the display.
…† button to set the HDMI audio.
3 Press
Each time you press this button, HDMI : AVR ➝ HDMI : TV will be selected
•
in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
√
1 Press SETUP/MENU button, and then press the ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “DRC SETUP”, and
then press the ENTER button.
• “DRC:STD” appears on the display.
…† button to set the DRC.
3 Press
Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN
•
OPERATION
button to select the “HDMI AUDIO”, and then
press the ENTER button.
ENG
will be selected in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Using the DRC button
Press DRC button.
• Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN will be
selected in turn.
Setting HDMI AUDIO
• AVR : Audio is played on this product.
• TV : Audio is played on a TV connected to the HDMI OUT jack and no audio is
played on this product.
Setting DRC
• STD : Sets DRC effect to standard.
• MAX : Sets DRC effect to maximum.
• MIN : Sets DRC effect to minimum.
• HDMI AUDIO setting is available only when the HDMI output is
connected to a TV.
• If you do not hear sound from the TV, should change the HDMI audio
output setting for your DVD PLAYER or SAT to PCM.
24
25
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 26
ENG
Test tone
Use the test tone check the speaker connection status or level.
To automatically output test tone
To Manually Output Test Tone
√
√
1 Press SETUP/MENU button, and then press the ENTER
1 Press SETUP/MENU button, and then press the ENTER
button.
• “SETUP MODE” appears on the display and the unit goes into Setup Mode.
Press
button to select the “TEST-T AUTO”,
2 and
then press the ENTER button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝
output level from -10 to +10 dB by 1 step.
To stop test tone
• Press SETUP/MENU button once time.
“SETUP OFF” appears on the display and test tone stops.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press ➛❿ button to select the “TEST-T MANU”, and then
press the ENTER button.
➛❿ button to select the speaker you want..
3 Press
Each time you press ➛❿button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ SBR ➝ SBL ➝
•
S.L ➝ S.W will be selected in turn.
4 Press …† button to set the test tone as you want.
• You can adjust the speaker output level from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
To stop test tone
• Press SETUP/MENU button once time.
Using the Test Tone button
“SETUP OFF” appears on the display and test tone stops.
Press TEST TONE button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R ➝
SBR ➝ SBL ➝ S.L ➝ S.W.
• During test tone output, press …† button to adjust the speaker output level from
-10 to +10 dB by 1 step.
Test Tone Output
• F.L (front left) : -10 ~ +10dB
• CEN (center) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB
• SBR (surround back right) : -10 ~ +10dB
• SBL (surround back left) : -10 ~ +10dB
• S.L (surround left) : -10 ~ +10dB
• S.W (subwoofer) : -10 ~ +10dB
26
27
OPERATION
S.R ➝ SBR ➝ SBL ➝ S.L ➝ S.W .
• During test signal output, press …† button to adjust the individual speaker
button.
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 28
Setting speaker level
Dolby Pro Logic llx mode
You can set the balance and level of speakers.
This mode provides 7.1 channel sound from 2 channel sources.
√
ENG
REMOTE CONTROL
Press
MODE button.
• Each time you press this button, CINEMA ➝ MATRIX ➝ GAME
1 Press SETUP/MENU button, and then press the ENTER
➝ PL ➝ MUSIC will be selected in turn.
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “LEVEL SETUP”, and then
press the ENTER button.
3 Press
button to select the speaker you want.
button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ SBR ➝ SBL
➝ S.L ➝ S.W will be selected in turn.
• Each time you press
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Using the SPK LEVEL button
SURROUND button to select “DPLIIx” mode.
1 Press
Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO
OPERATION
4 Press …† button to set the speaker mode.
MAIN UNIT
•
will be selected in turn.
2 Press SELECT(
,
) button.
) button, CINEMA ➝ MATRIX ➝
GAME ➝ PL ➝ MUSIC will be selected in turn.
• Each time you press SELECT (
) button, MUSIC ➝ PL ➝ GAME ➝
MATRIX ➝ CINEMA will be selected in turn.
• Each time you press SELECT (
To exit setup mode
• Wait for about 5 seconds.
1 Press SPK LEVEL button to select the speaker you want.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ SBR ➝ SBL ➝ S.L
➝ S.W ➝ SPK LVL OFF will be selected in turn.
2 Press …† button to set the speaker level you want.
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
Dolby Pro Logic llx mode
• MUSIC : Provides 7.1 channel surround sound for digital, analog or existing stereo
sources such as CD, TAPE, FM, TV and stereo VCR.
• CINEMA : Adds realism to the movie soundtrack.
• MATRIX : You will hear 7.1 channel surround sound.
• GAME : Enhances the excitement of the game's sound.
• PL : You will experience a surround effect with just the front left and right speakers.
Setting Speaker Level
• F.L (front left) : -10 ~ +10dB
• CEN (center) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB
• SBR (surround back right) : -10 ~ +10dB
• SBL (surround back left) : -10 ~ +10dB
• S.L (surround left) : -10 ~ +10dB
• S.W (subwoofer) : -10 ~ +10dB
28
• You cannot use Dolby Pro Logic llx mode for multi channel signals such as
Dolby Digital and DTS.
• Pro Logic works only for PCM audio signals with sampling frequencies of
32KHz, 44KHz or 48KHz.
• Sound will not be output from the surround back speaker if the PCM audio signal
is mono.
29
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 30
Setting Dolby Pro Logic llx effect
Setting NEO:6 mode
This function works only in Dolby PRO LOGIC IIx MUSIC Mode.
You can play back 2 channel sound over 6.1 channels when enjoying music or a movie.
Press SETUP/MENU button, and then press the ENTER
1 button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “
and then press the ENTER button.
MODE”,
ENG
REMOTE CONTROL
Press NEO:6 MODE button.
• Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
MAIN UNIT
SURROUND button briefly to select “NEO:6” mode.
1 Press
Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO will
•
3
be selected in turn.
Press
button.
• Each time you press this button,
C-WIDTH ➝ DIMENSION ➝
PANORAMA will be selected in turn.
To exit setup mode
“SETUP OFF” appears on the display and Setup Mode is exited.
1 Press
2 Press
To set the height of the center sound image
If your TV (or screen) is installed high on a wall, you can raise the center
sound image of the front and center speakers to compensate.
1 Press SETUP/MENU button, and then press the ENTER button.
“SETUP MODE” appears on the display and goes into Setup Mode.
2 Press button to select the “NEO:6 MODE”, and then
•
• Wait for about 5 seconds or press SETUP/MENU button.
Using the
•
EFFECT button
MODE button to select ‘MUSIC’ Mode.
EFFECT button.
• Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA
will be selected in turn.
3 Press …† button to select Dolby Pro Logic IIx effect you want.
• C-WIDTH : You can set from 0 to 7.
• DIMENSION : You can set from -7 to +7.
• PANORAMA : You can set it ON or OFF.
Dolby Pro Logic llx effect
• C-WIDTH : This sets the width of the center image. The higher the setting, the
less sound comes from the center speaker.
• DIMENSION : Incrementally adjusts the sound field (DSP)from the front or surround.
• PANORAMA : This mode extends the front stereo image to include the surround
speakers for an exciting "wraparound" effect with side wall imaging.
press the ENTER button.
• “CEN -- IMG : 2” appears on the display.
3 Press …† button to set the sound image you want.
• You can set the sound image from 0 to 5.
• This parameter adjusts the height of the center image through the front and
center speakers. “0” is the lowest while “5” is the highest.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
NEO : 6 Mode
This mode decodes 2 channel signals to a high precision digital matrix decoder.
for 6.1 channel sound.
• MUSIC : NEO:6 MUSIC mode is optimized for music playback
• CINEMA : NEO:6 CINEMA mode is optimized for movie playback.
• NEO:6 mode cannot be used with DTS and Dolby Digital multi channel signals.
• Pro Logic works only for PCM audio signals with sampling frequencies of
32KHz, 44KHz or 48KHz.
30
31
OPERATION
4
Press …† button to set the
Dolby Pro Logic llx effect you
want.
SELECT( , ) button.
2 Press
Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
HT-AS720S-XAC-ENG
2008.1.25
3:16 PM
Page 32
Setting EX/ES mode
Setting Tone Control
When surround back speakers are connected, you can listen to 6.1 or 7.1 multi-channel sound
using the built-in Dolby Digital Surround EX or DTS ES decoder. This function works when a Dolby Digital or
DTS source (such as a DVD player) is input, and does not work with L.PCM and Dolby Digital 2 channel sources.
This function allows setting up the tone quality of the front speakers.
SETUP/MENU button, and then press the ENTER button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
2 Press button to select the “EX/ES SETUP”, and then
ENG
•
press the ENTER button.
• “EX/ES : AUTO” appears on the display.
…† button to set
3 Press
the EX/ES you want.
• Each time you press this button,
EX/ES : AUTO ➝ EX/ES : ON ➝
EX/ES : OFF will be selected in turn.
1 Press SETUP/MENU button, and then press the ENTER button.
“SETUP MODE” appears on the display and goes into Setup Mode.
2 Press button to select “TONE CONTROL”, and
•
then press the ENTER button.
3 Press
button.
• Each time you press this button, BASS ➝ TREBLE ➝ TONE : OFF will be
selected in turn.
• If it is set to TONE: OFF, the Tone Control function will be disabled.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Press EX/ES button.
• Each time you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝ EX/ES : OFF
will be selected in turn.
• You can adjust it from -6 to +6dB by 1 step.
• The sound gets smaller at -6dB and louder at +6dB.
OPERATION
Using the EX/ES button
4 Press …† button to set the tone control you want.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
• The EX/ES button on the remote control is enabled only if the input source is of
Dolby Digital or DTS.
EX/ES Mode
• AUTO : If the unit receives an audio signal that it can recognize, it will select an
optimal decoder for playback in 6.1/7.1 channel.
If the amplifier does not recognize the audio signal, it will not play in
6.1/7.1 channel automatically.
• ON : Dolby Digital or DTS signal will be played in 6.1 / 7.1 channel using Dolby
Digital Surround EX / DTS ES decoder.
• OFF : Dolby Digital Surround EX / DTS ES decoder will not be used for playback.
Dolby Digital - EX
Movie soundtracks encoded with Dolby Digital EX will play audio over
the surround back channels also.
• You cannot use Dolby Digital-EX in the system without
Surround Back speakers connected.
• EX/ES Mode must be set to On when playing back discs
DTS-ES (Discrete 6.1, Matrix 6.1)
A surround back channel is added to the DTS 5.1 channel
system, improving the sense of sound directionality and space.
A built-in DTS-ES decoder has been equipped with this system
that supports discs encoded with DTS-ES Direct and DTS-ES
Matrix.
• Tone Control function is available only in the Stereo mode.
• You cannot use DTS-ES without surround back
speakers connected.
encoded with 6.1 channel Dolby Digital-EX.
• Some discs encoded with Dolby Digital-EX do not contain
an identification signal. In this case, set EX/ES to ON.
32
33
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 34
ENG
SFE mode
Stereo mode
The SFE (Sound Field Effect) function uses 7 different DSP sound field effects to digitally simulate actual music
environments such as concert halls or cinemas.
You can select this mode when listening to sound through the front left and right speakers and subwoofer.
REMOTE CONTROL
REMOTE CONTROL
Press SFE MODE button.
Press STEREO button.
• Each time you press this button, HALL ➝ THEATER ➝ ARENA ➝ CLUB ➝
• “STEREO” appears in the display and
DOME ➝ STADIUM ➝ CHURCH will be selected in turn.
Stereo Mode is selected.
MAIN UNIT
Press SURROUND button to select ‘STEREO’.
• Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
• If you press the STEREO button on the player, it will switch to STEREO mode.
To exit setup mode
• Wait for about 5 seconds.
Surround Mode and Input Signal Chart
SURROUND button to select ‘SFE’ Mode.
1 Press
Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO
•
will be selected in turn.
SELECT( , ) button.
2 Press
Each time you press Select (
) button, HALL
,
•
THEATER ARENA CLUB DOME STADIUM CHURCH will be selected
in turn.
To exit setup mode
OPERATION
MAIN UNIT
o = active, – = inactive
Surround
Mode
Input Signal
Dolby D Surr. EX
DOLBY
(MUSIC,
CINEMA,
MATRIX,
GAME,
PRO LOGIC)
NEO:6
(MUSIC,
CINEMA)
• Wait for about 5 seconds.
SFE
EX/ES
STEREO
Decoding
Output Channel
SL SBL SubW
L/R C SR
SBR
Display Information
Display Signal Format
Channel Status
Dolby Digital 5.1
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (5.1ch)
Dolby Digital 5.1
O
O
O
–
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
Pro Logic II x
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch Surr)
Pro Logic II x
O
O
O
O
O
DIGITAL
L.PCM (Audio)
Pro Logic II x
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SBL, SBR, SW
Analog
Pro Logic II x
O
O
O
O
O
ANALOG
L, C, R, SL, SR, SBL, SBR, SW
L.PCM (Audio)
Neo:6
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SBL, SBR, SW
Analog
Neo:6
O
O
O
O
O
ANALOG
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
Neo:6
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch Surr)
Neo:6
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
DD+SFE
O
O
O
–
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch Surr)
DD+SFE
O
O
O
–
O
DIGITAL
L.PCM (Audio)
SFE
O
O
O
–
O
L.PCM
L, C, R, SL, SR, SW
Analog
SFE
O
O
O
–
O
ANALOG
L, C, R, SL, SR, SW
Dolby D Surr. EX
Dolby Digital EX
O
O
O
O
O
DIGITAL
Dolby D (5.1ch)
Dolby Digital EX
O
O
O
O
O
DIGITAL
DTS-ES
DTS-ES
O
O
O
O
O
dts, ES
L, C, R, SL, SR, SBL, SBR, SW
DTS (5.1ch)
DTS-ES
O
O
O
O
O
dts
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
Stereo
O
–
–
–
O
DIGITAL
Dolby D (2ch Surr)
Stereo
O
–
–
–
O
DIGITAL
L.PCM (Audio)
Stereo
O
–
–
–
O
L.PCM
L.PCM 96KHz
Stereo
O
–
–
–
O
L.PCM
L, R, SW
Analog
Stereo
O
–
–
–
O
ANALOG
L, R, SW
L, C, R, SL, SR, SBL, SBR, SW
L, C, R, SL, SR, SW
L, C, R, SL, SR, SBL, SBR, SW
L, C, R, SL, SR, SBL, SBR, SW
L, R, SW
L, R, SW
L, R, SW
L/R : front speaker (left/right) C : center speaker SL/SR : surround speaker (left/right) SBL/SBR : surround back speaker (left/right)
SW : subwoofer
34
• Channel status displays are dependent on the speaker configuration.
• SFE mode works with 2-ch signals.
35
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 36
Listening to radio
Presetting radio Stations
You can listen to the chosen band (FM) by using either automatic or manual tuning.
You can preset up to 30 FM stations.
REMOTE CONTROL
E.g.: Setting station FM 89.10 in preset 2 .
1 Press TUNER button.
2 Selected frequency.
1 Press TUNER button.
TUNING MODE button to
2 Press
select MANUAL and then press
• Automatic tuning 1
:
TUNING/CH(
select 89.10.
1) Press TUNING MODE button to select PRESET.
2) Press TUNING/CH ( , ) button to select the preset frequency.
• Automatic tuning 2
:
automatically and manually.
3 Press TUNER MEMORY button.
:
1) Press TUNING MODE button to select MANUAL.
2) Press TUNING/CH ( , ) button briefly to increase or decrease the
frequency step by step.
• Tuner number will blink on the display.
4 Press TUNING/CH(
5 Press TUNER MEMORY button.
• Tuner number will disappear and station 89.10
will be saved in preset 2.
RADIO OPERATION
:
6 To preset other stations, repeat
1) Press TUNING MODE button to select PRESET.
2) Press TUNING/CH ( , ) button to select the preset frequency.
steps 2 to 5.
:
1) Press TUNING MODE button to select MANUAL
2) Press and hold TUNING/CH ( , ) button to automatically tune in frequency.
• Manual tuning
) button
• You can select from presets 1 to 30.
1 Press FUNCTION button to select FM.
2 Select the frequency.
• Automatic tuning 2
,
to select preset 2.
MAIN UNIT
• Automatic tuning 1
) button to
,
• Refer to step 2, page 38, to tune in
1) Press TUNING MODE button to select MANUAL
2) Press and hold TUNING/CH ( , ) button to automatically tune in frequency.
• Manual tuning
ENG
To Listen to Preset Station
• Press TUNING MODE button of the remote control to select the PRESET
:
and press TUNING/CH (
1) Press TUNING MODE button to select MANUAL.
2) Press TUNING/CH ( , ) button briefly to increase or decrease the
frequency step by step.
,
) button.
To Listen to mono/stereo
Press MO/ST button on the remote.
• Each time you press this button, STEREO ➝ MONO will be selected in turn.
• If you select MONO in an area with weak reception,
it will help to reduce noise.
• This function works only with the Remote Control.
36
36
37
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 38
ENG
Convenient functions
Sleep timer function
Reset function
You can set the time that this unit will shut itself off.
Press the SLEEP button.
• SLEEP : OFF ➝ 15 ➝ 30 ➝ 45 ➝ 60 ➝ 90 ➝ 120 M (MIN) will be selected in turn.
REMOTE CONTROL
1 Press the MUTE button.
MUTE appears on the display.
2 Press “0” button five times and then
•
To check sleep timer
Press the SLEEP button.
• The remaining time before this unit will shut itself off is shown on the display.
• Pressing the button again changes the sleep time from what you set previously.
To cancel sleep timer
press the ENTER button.
• “INITIAL : NO” appears on the display.
…† buttons to select “YES”.
3 Press
The unit will turn off after 5 seconds.
•
• Press SLEEP button until “SLEEP : OFF” appears on the display.
MAIN UNIT
Mute function
This function is useful when answering a doorbell or telephone call.
1 Turn off the power and hold the SELECT(
) button for
longer than 5 seconds.
• POWER STANDBY indicator will flash.
Press the MUTE button.
• MUTE appears on the display.
To output sound again
Caution!
• Using the RESET function will erase all stored settings.
• Do not use this unless necessary.
Press the MUTE button again.
• MUTE will disappear and sound will output.
MISCELLANEOUS
• SLEEP, Mute and the Adjust Display functions can only be
operated with the remote control.
38
39
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 40
Convenient functions (cont’d)
Adjust the display
You can adjust the brightness of the display.
Press the DIMMER button.
Operating your TV with the remote control
1
Press POWER button to turn on
the TV.
2
Press TV button to set the remote to TV
mode.
3
Point the remote control toward the TV.
4
While holding down POWER button,
enter the code corresponding to your
brand of TV.
ENG
• Each time you press this, the brightness changes as follows : DARK ➝ BRIGHT.
Using headphones
Use headphones (not supplied) for private listening pleasure.
Connect the headphones to the headphone jack and listen to
music.
• If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.
• If the code matches the TV's code, the TV will be turned off.
MISCELLANEOUS
5
If TV is turned on or off when you press the
power button of the remote control, the
setting is completed.
• You can use the TV POWER, VOLUME, CHANNEL, MENU and
Numeric buttons (0~9).
• Do not turn the volume up too high when you use headphones as It
may damage your hearing.
• The remote control may not work on some brands of TVs. Also, some operations
may not be possible depending on your brand of TV.
• The remote control will work with Samsung TVs by default.
40
41
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 42
Operating your TV with the remote control
Operating your DVD or VCR with the remote control
ENG
(cont’d)
TV Brand Code List
Brand
ADMIRAL (M.WARDS)
A MARK
ANAM
Code Number
42
LUXMAN
LXI (SEARS)
MAGNAVOX
MARANTZ
MATSUI
MGA
MITSUBISHI/MGA
MTC
NEC
NIKEI
ONKING
ONWA
PANASONIC
PENNEY
PHILCO
PHILIPS
PIONEER
PORTLAND
PROTON
QUASAR
RADIO SHACK
RCA/PROSCAN
REALISTIC
SAMPO
SAMSUNG
SANYO
SCOTT
SEARS
SHARP
SIGNATURE 2000 (M.WARDS)
SONY
SOUNDESIGN
SPECTRICON
SSS
Code Number
018
019, 054, 056, 059, 060,
062, 063, 065, 071
015, 017, 018, 048, 054,
059, 060, 062, 072, 089
040, 054
054
018, 040
018, 040, 054, 059, 060,
075, 101
018
018, 019, 020, 040, 059,
060
003
003
003
006, 007, 008, 009, 054,
066, 067, 073, 074
018
003, 015, 017, 018, 048,
054, 059, 062, 069, 090
015, 017, 018, 040, 048
054, 062, 072, 112, 114,
117, 118
063, 066, 080, 091
015, 018, 059
040
006, 066, 067
017, 048, 056, 060, 061,
075
018, 059, 067, 076, 077
078, 092, 093, 094
003, 019
040
000, 015, 016, 017, 040,
043, 046, 047, 048, 049,
054, 059, 060, 098
019, 061, 065, 101, 102,
103, 104
003, 040, 060, 061
015, 018, 019
015, 057, 064, 101, 105,
106, 115
057, 058
050, 051, 052, 053, 055,
101
003, 040
001
018
Brand
SYLVANIA
SYMPHONIC
TATUNG
TECHWOOD
TEKNIKA
TMK
TOSHIBA
VIDTECH
VIDECH
WARDS
YAMAHA
YORK
YUPITERU
ZENITH
ZONDA
DONGYANG
LOWE
FINLUX
YOKO
LOEWE OPTA
PHONOLA
RADIOLA
SCHNEIDER
AKAI
GRUNDIG
BLAUPUNKT
SIEMENS
CGE
IMPERIAL
MIVAR
SABA
BANG&OLUFSEN
BRIONVEGA
FORMENTI
METZ
WEGA
RADIOMARELLI
SINGER
SINUDYNE
TELEFUNKEN
Code Number
018, 040, 048, 054, 059,
060, 062
061, 095, 096
006
018
003, 015, 018, 025
018, 040
019, 057, 063, 071, 101
107, 109, 110, 111, 113
018
059, 060, 069
015, 017, 018, 040, 048,
054, 060, 064
018
040
003
058, 079
001
003, 054
054
054, 109, 114
054
054, 114
054, 112, 114
054, 112
054
103
108, 109, 113, 119, 120,
121
108
108
113
113
113
114
114
114
114
114
114
114
114
114
116
1
Press POWER button to turn on the DVD
(VCR).
2
Press DVD button to set the remote to
DVD mode.
3
Point the remote control toward the DVD
(VCR).
4
While holding down POWER button, enter
the code corresponding to your brand of
DVD (VCR).
• If you operate VCR, press VCR button to set the remote to VCR mode.
• If there is more than one code listed for your DVD (VCR) in
the table, enter one at a time to determine which code works.
• If the code matches the DVD (VCR)'s code, the DVD (VCR)
will be turned off.
5
If DVD (VCR) is turned on or off when you
press the power button of the remote
controller, the setting is completed.
MISCELLANEOUS
056, 057, 058
001, 015
001, 002, 003, 004,005,
006, 007, 008, 009, 010,
011, 012, 013, 014
AOC
001, 018, 040, 048
BELL & HOWELL (M.WARDS) 057, 058, 081
BROCSONIC
059, 060
CANDLE
018
CETRONIC
003
CITIZEN
003, 018, 025
CINEMA
097
CLASSIC
003
CONCERTO
018
CONTEC
046
CORONADO
015
CRAIG
003, 005, 061, 082, 083,
084
CROSLEX
062
CROWN
003
CURTIS MATHES 059, 061, 063
CXC
003
DAEWOO
002, 003, 004, 015,016,
017, 018, 019, 020, 021,
022, 023, 024, 025, 026,
027, 028, 029, 030, 032,
034, 035, 036, 040, 048,
059, 090, 099, 100
DAYTRON
040
DYNASTY
003
EMERSON
003, 015, 040, 046, 059,
061, 064, 082, 083, 084,
085
FISHER
019, 065, 103
FUNAI
003
FUTURETECH
003
GENERAL ELECTRIC (GE) 006, 040, 056, 059, 066,
067, 068
HALL MARK
040
HITACHI
015, 018, 050, 059, 069
INKEL
045
JC PENNY
056, 059, 067, 086
JVC
070
KTV
059, 061, 087, 088
KEC
003, 015, 040
KMC
015
LG (GOLDSTAR)
001, 015, 016, 017, 037,
038, 039, 040, 041, 042,
043, 044, 054, 086
Brand
• You can use DVD (VCR) POWER, VOLUME, PLAY, PAUSE,
STOP, SKIP, MENU and Numeric button (0~9).
• The remote control may not work on some brands of DVD (VCR).
Also, some operations may not be possible depending on your brand
of DVD (VCR).
• The remote control will work with Samsung DVD (VCR) by default.
43
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 44
Operating your DVD or VCR with the remote control
ENG
Before calling for service
(cont’d)
VCR Brand Code List
Brand
ADMIRAL (M.WARDS)
AWIA
AKAI
ANAM
AOC
AUDIO DYNAMIC
BELL & HOWELL (M.WARDS)
BROKSONIC
CANON
CAPEHART
CITIZEN
CRAIG
CRITERION
CURTIS MATHES
DAEWOO
DAYTRON
DBX
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC (GE)
GO VIDEO
HARMAN KARDON
HITACHI
JVC
KENWOOD
LG (GOLDSTAR)
LXI (SEARS)
MAGIN
MAGNAVOX
MARANTZ
MARTA
44
043, 106
044, 045, 046
088, 089, 090
001, 002, 003, 004, 005,
033
091
019, 047, 092
048, 093
092, 094, 095
001, 033, 049, 091
011
050
050, 072, 096
051
001, 031, 032, 033, 044,
091
006, 007, 008, 009, 010,
011, 012, 013, 014, 015,
016, 017, 018, 046, 051,
091
011
019, 047, 052, 092
025, 031, 032, 044, 046,
094, 095, 097, 098, 099
009, 048, 053, 054, 055,
100
044
001, 031, 032, 033, 056,
091
059, 060, 061
019
020, 021, 049, 054, 062,
100
051
001, 033, 049, 091
001, 033
025
047, 048, 052, 062, 091,
092
001, 033, 047, 052, 063,
064, 065, 092
047, 050, 052, 092
019, 020, 021, 022, 023,
024, 025, 026, 027, 028,
029, 030, 050
020, 025, 044, 048, 050,
053, 054, 055, 062, 100
072
001, 031, 032, 033, 049,
066, 067, 091
001, 019, 033, 047, 052,
092, 110
025, 050
Brand
MEI
MEMOREX
MINOLTA
MITSUBISHI/MGA
MTC
MULTITECH
NEC
OLYMPIC
OPTIMUS
ORION
PANASONIC
PENNEY
PENTAX
PHILCO
PHILIPS
PILOT
PIONEER
PORTLAND
QUASAR
RICO
RCA/PROSCAN
REALISTIC
SAMSUNG
SANYO
SANSUI
SCOTT
SEARS
SHARP
SINGER
SIGNATURE 2000 (M.WARDS)
SHINTOM
SONY
STS
SYLVANIA
SYMPHONIC
TANDY
Code Number
001, 033
001, 025, 033, 054, 091,
100
020, 021, 062
068, 069, 070, 101, 102
072
044, 057, 069
019, 047, 052, 057, 092
049, 091
101
103
001, 004, 033, 049, 067,
091, 107
019, 020, 072
001, 020, 021, 033, 062
001, 033, 046, 049, 091,
094
001, 030, 033, 049, 050,
066, 091
025
049
011
001, 033, 049, 067, 091,
107, 108
036
001, 020, 021, 031, 032,
033, 049, 051, 062, 066,
070, 091, 104
001, 009, 025, 033,
044, 048, 054, 091,
101, 105
000, 006, 031, 032, 057,
058, 071, 072, 073, 074,
075, 076, 077, 078, 079,
080, 081
008, 009, 046, 048, 050,
054, 058, 093, 100
092
006, 051, 054, 057, 069,
070, 100, 101
020, 021, 025
043, 105, 106
096
043, 044, 054, 100, 106
096
034, 035, 036, 037, 038,
039, 040, 041, 042,082,
083, 084, 085, 086
020
001, 033, 044, 049, 066,
091
044
009
Brand
TASHIRO
TATUNG
TEAC
TECHNICS
TEKNIKA
TOSHIBA
TOTEVISION
TAEKWANG
UNITECH
VECTOR RESEARCH
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code Number
050
047, 052, 092
044, 047, 052, 092
001, 033, 049, 091
001, 025, 033
006, 051
025, 072
087
072
019
019
072
001, 020, 031, 032, 033,
043, 050, 054, 072, 100,
105, 106, 109
019, 047,048, 052, 092,
019, 047,048, 052, 092
DVD Brand Code List
Brand
DENON
DOONOON
DMTECH
FISHER
GE
HARMAN/KARDON
JVC
KENWOOD
LG
MAGNAVOX
MITSUBISHI
ONKYO
OPTIMUS
PANASONIC
PROSCAN
PHILIPS
PIONEER
RCA
SAMSUNG
SANYO
SONY
THETA DIGITAL
TOSHIBA
YAMAHA
ZENITH
TAEGWANG
PS2
X-BOX
APEX
MARANTZ
Code Number
003, 032
019
017
002
006
012
010, 013
008
001
004
005, 016
004, 014
011
021
006
004, 023
007, 011, 022, 025
006
000, 027
002
015, 020
011
004, 018
009, 033
004, 024
026
028
029
030
031
Check
Symptom
Remedy
The unit will not turn on.
• Is the power cord plugged into the outlet?
• Connect the power plug to the outlet.
A function does not work
when the button is pressed.
• Is there static electricity in the air?
• Disconnect the power plug and connect it
again.
• Are the speakers and external
• Connect them correctly.
components connected properly?
Sound is not produced.
• Is the Mute function on?
• Press Mute button to cancel the function.
• Is the volume set to minimum?
• Adjust the volume.
• Is the speaker setup set incorrectly to
• Refer to pages 20~21 to select LARGE,
NONE?
Picture does not appear on a TV
when the function is selected.
• Is the external component connected
Remote controller does
not work.
• Are the batteries drained?
• Is the distance between remote
The sound from the
left/right channels is
reversed.
• Are the left/right speaker or left/right
Can't receive radio
control and main unit too great?
input/output cables connected
properly?
• Is FM antenna connected properly?
• Is SURR (surround) incorrectly set to
NONE in speaker setup?
• Is surround mode set to stereo?
center speaker
• Operate at close distance.
• Check the left/right channel and connect
it/them correctly.
• Connect the antenna correctly.
weak, install the FM antenna in a place
with good reception.
properly?
There is no sound from
• Replace with new batteries.
• If the input strength of antenna signal is
• Is the surround speaker connected
surround speakers.
• Connect it correctly.
properly?
broadcasts.
There is no sound from
SMALL or YES.
MISCELLANEOUS
HQ
INSTANT REPLAY
JCL
JCP
JC PENNY
Code Number
• Refer to pages 10~11 to connect them
properly.
• Refer to pages 20~21 to select LARGE or
SMALL.
• Refer to pages 29~35 to select proper
Surround Mode.
• Is the center speaker connected properly?
• Refer to pages 10~11 to connect it properly.
• Is CEN (center) incorrectly selected to
• Refer to pages 20~21 to select LARGE or
NONE in speaker setup?
• Is the surround mode selected to stereo?
SMALL.
• Refer to pages 29~35 to select other
Surround Modes.
45
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 46
Before calling for service (cont’d)
Symptom
Check
• Refer to pages 10~11 to connect it properly.
connected properly?
There is no sound from
surround back speakers
Can't select EX/ES mode.
Can't select Dolby Pro
GENERAL
• Is the S.BACK(Surround Back) selected
to NONE in Speaker Setup?
• Refer to pages 20~21 to select LARGE or
SMALL.
• Is Surround Mode set to EX/ES?
• Refer to page 32 to set Surround Mode to EX/ES.
• Is S.BACK(Surround Back) selected to
• Refer to pages 20~21 to select LARGE or
SMALL.
NONE in Speaker Setup?
• Is the input signal selected properly?
• Use 7.1 channel external component.
• Is the input signal selected properly?
• Select 2 channel Dolby Digital, PCM, and
Logic llx mode.
Specifications
Remedy
• Are the surround back speakers
FM TUNER
Analog input signal.
Can't select NEO:6 mode.
• Is the input signal selected properly?
There is no sound when
playing a DTS encoded
DVD.
• Is Digital input selected?
• Use PCM and Analog input signal.
AMPLIFIER
• Check whether the DVD player is properly
connected and refer to page 23 to select
the digital input.
FREQUENCY
RESPONSE
VIDEO
OUTPUT
Product protection function
• The protection function will come on if the main unit or power
transformer overheats.
"
" will appear in the display .
This function will come on :
- If speaker terminal is shorted
- If speaker cable is shorted
If there is no problem when you turn the unit on again after
turning it off, PROTECTION mark will disappear on the
display and the unit will work properly.
• If PROTECTION appears on the display,
check whether the speaker terminal is shorted
and then turn on the unit
S
P
E
A
K
E
R
S
Power supply
Standby power consumption
Main unit
Power consumption
Subwoofer
Weight
Dimensions (W x H x D)
Operating temperature range
Operating humidity range
Frequency response
Usable sensitivity
S/N ratio
Distortion
Stereo separation
Tuner output level
Rated output
Front speaker(left+right)
Center speaker
Surround speaker(left+right)
Surround back
Input sensitivity/impedance
S/N ratio (analog input)
Separation (1kHz)
Analog input
Digital input/96kHz PCM
TV format
Input level/impedance
Output level/impedance
Video frequency response
S/N ratio
Speaker system
Impedance
Rated input
Maximum input
Dimensions (W x H x D)
Weight
Front / Surround
4Ω x 4
100W
200W
3.9 x 10.6 x 3.8 inches
3.1 Ibs / 2.6 Ibs
120V, 60 Hz
0.9W
100W
90W
12.7 Ibs
16.9 x 5.7 x 13.7 inches
41°F~+95°F
10%~75%
87.5~108.0MHz
12dBf
MONO/STEREO 55/55dB
MONO/STEREO 0.3/0.8%
30dB
1kHz, 75kHz Dev
20Hz~20kHz/THD = 10%
4 Ω 100W/CH
4 Ω 100W/CH
4 Ω 100W/CH
4 Ω 100W/CH
450mV/47kΩ
80dB
60dB
20Hz~20kHz(±3dB)
20Hz ~44kHz(±3dB)
NTSC/PAL
1Vp-p/75 Ω
1Vp-p/75 Ω
5Hz to 10kHz(-3dB)
60dB
MISCELLANEOUS
Heat protection
ENG
Subwoofer speaker
Center
8Ω
4Ω
150W
100W
300W
200W
11.8 x 3.5 x 3.7 inches 12 x 15.6 x 17.4 inches
3.1 Ibs
31.7 Ibs
❈ S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines.
46
47
HT-AS720S-XAC-ENG
2008.1.25
3:17 PM
Page 48
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Region
Samsung Limited Warranty
North America
Samsung Electronics Canada Inc.(SECA), warrants that this product is free from
defective material and workmanship.
SECA further warrants that if this product fails to operate properly within the specified
warranty period and the failure is due to improper workmanship or FM TUNER
defective material SECA will repair or replace the product at its option.
Latin America
All warranty repairs must be performed by a SECA authorized service centre.
(The name and address of the location nearest you can be obtained by calling toll free
1-800-726-7864 or visiting our web site at www.samsung.ca)
Labour
one (1)year (carry-in)
one (1)year
Europe
The original dated sales receipt must be retained by the customer and is the only
acceptable proof of purchase. It must be presented to the authorized service centre at
the time service is requested.
Exclusions
This warranty does not cover damage due to accident, fire flood and/or other acts of
God; misuse, incorrect line voltage,improper installation, improper or unauthorized
repairs, commercial use, or damage that occurs in shipping. Exterior and interior
finish, lamps and glass are not covered under this warranty. Customer adjustments
which are explained in the instruction manual are not covered under the terms of this
warranty.
This warranty will automatically be voided for any unit found with a missing or altered
serial number. This warranty is valid only on products purchased and used in Canada.
CIS
Asia Pacific
Middle East &
Africa
48
Customer Care Center Web Site
DENMARK
FINLAND
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421 , 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
0032 (0)2 201 24 18
844 000 844
Distributor pro Českou republiku:
Samsung Zrt., česka organizační složka
Vyskočilova 4, 14000 Praha 4
70 70 19 70
030-6227 515
FRANCE
3260 SAMSUNG (€ 0,15/Min),
08 25 08 65 65 (€ 0,15/Min)
www.samsung.com
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
SOUTH AFRICA
U.A.E
01805 - SAMSUNG(726-7864) (€ 0,14/Min)
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
0035 (0)2 261 03 710
0900-SAMSUNG(726-7864) (€ 0,10/Min)
815-56 480
0 801 801 881 , 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902 10 11 30
0771-400 200
0845 SAMSUNG (7267864)
0818 717 100
0800-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
800-7267
800-7267
1300 362 603
0800SAMSUNG(726-7864)
800-810-5858 , 010-6475 1880
3698-4698
3030 8282 , 1800 110011
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG(726-7864)
1800-SAMSUNG(726-7864)
1800-29-3232 , 02-689-3232
0800-329-999
1 800 588 889
444 77 11
0860-SAMSUNG(726-7864 )
800-SAMSUNG (726-7864), 8000-4726
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/be
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com
www.samsung.com/se
www.samsung.com
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.com
www.samsung.kz
www.samsung.uz
CZECH REPUBLIC
Parts
On carry-in models,transportation to and from the service centre is the customer’s
responsibility.
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
www.samsung.com/ca
www.samsung.com
www.samsung.com
www.samsung.com/ar
www.samsung.com
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com
www.samsung.lt
www.samsung.com/lv
www.samsung.ee
www.samsung.com
www.samsung.com/nz
www.samsung.com
www.samsung.com/hk
www.samsung.com
www.samsung.com
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com
www.samsung.com
www.samsung.com/tw
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
49
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
