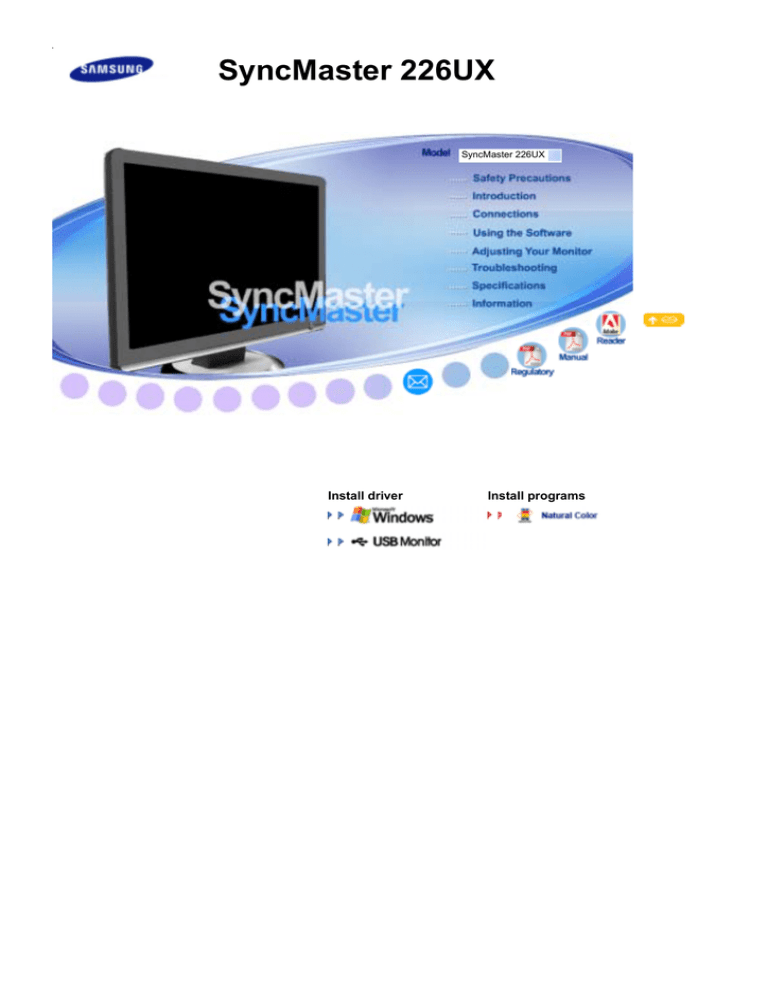

SyncMaster 226UX
SyncMaster 226UX
Install driver
Install programs
Model
SyncMaster 226UX
Notation
Failure to follow directions noted by this symbol could result in bodily harm or damage to the
equipment.
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the outlet
Do not touch
Ground to prevent an electric shock
Power
When not used for extended period of time, set your computer to DPM.
If using a screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or countries).
Do not use a damaged or loose plug.
This may cause electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
This may cause electric shock or fire.
Use only a properly grounded plug and receptacle.
An improper ground may cause electric shock or equipment damage. (Class l
Equipment only.)
Insert the power plug firmly so that it does not come loose.
A bad connection may cause fire.
Do not bend the plug excessively and wire nor place heavy objects upon them, which
could cause damage.
This may cause electric shock or fire.
Do not connect too many extension cords or plugs to one outlet.
This may cause fire.
Do not disconnect the power cord while using the monitor.
A surge may be caused by the separation and may damage the monitor.
Do not use the power cord when the connector or plug is dusty.
If the connector or plug of the power cord is dusty, clean it with a dry cloth.
Using the power cord with a dusty plug or connector may cause an electric shock
or fire.
To disconnect the apparatus from the mains, the plug must be pulled out from the
mains socket, therefore the mains plug shall be readily operable.
This may cause electric shock or fire.
Installation
Be sure to contact an authorized Service Center, when installing your monitor in a
location with heavy dust, high or low temperatures, high humidity, and exposed to
chemical substances and where it operates for 24 hours such as at airports, train
stations etc.
Failure to do so may cause serious damage to your monitor.
Place your monitor in a location with low humidity and a minimum of dust.
Failure to do so may cause electric shock or fire inside the monitor.
Do not drop the monitor when moving it.
This may cause damage to the product or the person carrying it.
Install the monitor base in a showcase or shelf so that the end of the base does not
protrude from the showcase or shelf.
Dropping the product may cause damage to the product or the person carrying it.
Do not place the product on the floor.
Take care, as someone, specifically children may trip over it.
Do not place the product on an unstable or small surface area.
Place the product on an even and stable surface, as the product may fall and
cause harm to someone walking by, specifically children.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN
FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
Otherwise, this may cause fire.
Keep any heating devices away from the power cable.
A melted coating may cause electric shock or fire.
Do not install the product in places with poor ventilation, for instance, a bookshelf,
closet, etc.
Any increase in the internal temperature may cause fire.
Put down the monitor carefully.
Failing to do so may damage the monitor.
Do not place the monitor face down.
This may damage the TFT-LCD surface.
The installation of the bracket must be done by a qualified professional.
Installing the bracket by unqualified personnel may result in injury.
Always use the mounting device specified in the owner's manual.
When installing the product, make sure to keep it away from the wall (more than 10
cm/4 inches) for ventilation purposes.
Poor ventilation may cause an increase in the internal temperature of the product,
resulting in a shortened component life and degraded performance.
Do not disconnect the power cord while using the monitor.
A surge may be caused by the separation and may damage the monitor.
Keep the plastic packaging (bag) out of children's reach.
The plastic packaging (bag) may cause suffocation if children play with it.
Cleaning and Use
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened, soft fabric.
Do not spray water or detergent directly onto the monitor.
This may cause damage, electric shock or fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it properly using
a dry cloth.
A dirty connector may cause electric shock or fire.
Make sure to unplug the power cord before cleaning the product.
Otherwise, this may cause electric shock or fire.
Unplug the power cord from the power outlet and wipe the product using a soft, dry
cloth.
Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air
freshener, lubricant or detergent.
Others
Do not remove the cover (or back).
This may cause electric shock or fire.
Refer to a qualified servicing company.
If your monitor does not operate normally - in particular, if there is any unusual sound
or smell coming from the monitor - unplug it immediately and the Service Center.
This may cause electric shock or fire.
Keep the product away from places exposed to oil, smoke or moisture; do not install
inside a vehicle.
This may cause a malfunction, electric shock or fire.
In particular, avoid operating the monitor near water or outdoors where it could be
exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off and unplug
the power cord. Then contact the Service Center.
The monitor may malfunction, causing electric shock or fire.
Disconnect the plug from the outlet during storms or lightning or if it is not used for a
long period of time.
Failure to do so may cause electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
This may cause a breakdown, electric shock or fire due to damage to the cable.
Do not move the monitor right or left by pulling only the wire or the signal cable.
This may cause a breakdown, electric shock or fire due to damage to the cable.
Do not cover the vents on the monitor cabinet.
Bad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects on the
monitor.
This may cause a malfunction, electric shock or fire.
If a foreign substance enters the monitor, unplug the power cord and contact the
Service Center.
Keep the product away from combustible chemical sprays or inflammable
substances.
This may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
This may cause electric shock, fire or injury.
Do not insert metal objects such as chopsticks, wire and tools or inflammable objects
such as paper or matches into the vent, headphone port or AV ports or etc.
This may cause electric shock or fire.
If an alien substances or water enters the product, turn the product off, unplug the
power connector from the wall outlet and contact the Service Center.
When viewing a fixed screen for an extended period of time, residual image or
blurriness may appear.
Change the mode to energy saving mode or set a screensaver to a changing
picture when away from the monitor for an extended period of time.
Adjust the resolution and frequency to the level appropriate for the model.
An inappropriate resolution may cause undesirable picture quality.
22 inch Wide (55 cm) - 1680 X 1050
Viewing the monitor continuously at a too close angle may result in damage to your
eyesight.
To ease eye strain, take at least a five-minute break after every hour of using the
monitor.
Do not install the product on an unstable, uneven surface or a location prone to
vibrations.
Dropping the product may cause damage to the product or the person carrying it.
Using the product in a location prone to vibrations may shorten the lifetime of the
product or may cause the product to catch fire.
When moving the monitor, turn off and unplug the power cord. Make sure that all
cables, including the antenna cable and cables connected to other devices, are
disconnected before moving the monitor.
Failure to disconnect cables may damage it and cause fire or electric shock.
Place the product out of children's reach, as they could damage by hanging onto it.
A falling product may cause injury to the person or even fatality.
When not using the product for an extended period of time, keep the product
unplugged.
Otherwise, this may cause heat emission from the accumulated dirt or degraded
insulation, causing electric shock or fire.
Do not place your children's favorite toys or any other objects of interest on the
product.
Children may try to climb on the product to retrieve an object.
The product could fall, causing injury or even fatality.
When lifting up or moving the monitor, do not lift the monitor upside down while
holding only the stand.
This may cause your monitor to fall, and become damaged or cause personal
injury.
Good Postures When Using the Monitor
Try to maintain a good posture when using the monitor.
z
z
z
z
z
z
z
Keep your back straight.
Keep a distance of about 45 ~ 50 cm between your eyes and the
monitor screen. Look at the screen from slightly above it, and have
the monitor directly in front of you.
Tilt the monitor upwards by 10 ~20 degrees. Adjust the monitor
height so that the top of the monitor is slightly below eye level.
Adjust the monitor angle so that there is no reflected light on the
screen.Try to maintain your arms perpendicular to your armpits.
Keep your arms level with the back of your hands.
Keep the angle of the elbow perpendicular.
Keep the angle of the knees at more than 90 degree. Do not let your
feet fall up from the floor. Adjust the arm position so that it is below
the heart.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Model
SyncMaster 226UX
Features
RTA Monitor
RTA (Response Time Accelerator)
A function that accelerates the response speed of the panel so as to provide a sharper and more
natural video display.
RTA On
Activates the RTA function so that the panel operates at a higher response speed than
its original speed.
RTA OFF Deactivates the RTA function so that the panel operates at its original response speed.
Package Contents
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without Stand
Monitor
With Stand
Monitor & Simple stand
Manual
Quick Setup Guide
Warranty Card
(Not available in all
locations)
User's Guide, Monitor Driver,
Natural Color software
Cable
Power Cord
D-sub Cable
Others
Cleaning Cloth
This is only provided for highly polished black products as a product feature.
Sold separately
DVI Cable
This is an accessory that can be added depending on the model.
USB Cable
Your Monitor
Front
MENU button [ ]
Opens the on-screen menu and exits from the menu.
MagicBright™ button
[ ]
MagicBright™ is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently seven different modes are available: Custom,
Text, Internet, Game, Sport and Movie, Dynamic Contrast. Each
mode has its own pre-configured brightness value. You can easily
select one of seven settings by simply pressing MagicBright™ control
button.
1) Custom
Although the values are carefully chosen by our engineers, the
pre-configured values may not be comfortable to your eyes
depending on your taste.
If this is the case, adjust the brightness and contrast by using the
OSD menu.
2) Text
For documentations or works involving heavy text.
3) Internet
For working with a mixture of images such as texts and graphics.
4) Game
For watching motion pictures such as a game.
5) Sport
For watching motion pictures such as a sport.
6) Movie
For watching motion pictures such as a DVD or Video CD.
7) Dynamic Contrast
Dynamic Contrast is to automatically detect distribution of inputted
visual signal and adjust to create optimum contrast.
>> Click here to see an animation clip
Brightness button [ ]
When OSD is not on the screen, push the button to adjust brightness.
>> Click here to see an animation clip
Not available in MagicBright mode of Dynamic Contrast.
Adjust buttons [
Adjust items in the menu.
]
Enter button [ ] /
SOURCE button
Activates a highlighted menu item. /
Push the 'SOURCE/ ', then selects the video signal while the OSD is
off. (When the 'SOURCE/ ' button is pressed to change the input
mode, a message appears in the upper left of the screen displaying
the current mode -- Analog, Digital or USB input signal.)
If the monitor is used as a USB monitor (when connected via USB
cable), select USB mode by clicking the Enter icon.
AUTO button
Use this button for auto adjustment.
>> Click here to see an animation clip
Power button [ ]
Use this button for turning the monitor on and off.
Power indicator
This light glows blue during normal operation, and blinking blue once
as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or
when leaving it unattended for long periods.
Rear
The configuration at the back of the monitor may vary from product to product.
POWER port
Connect the power cord for your monitor to the power port on the back of
the monitor.
DVI IN (HDCP) port
Connect the DVI Cable to the DVI IN (HDCP) port on the back of your
monitor.
RGB IN port
Connect the signal cable to the 15-pin, D-sub port on the back of your
monitor.
USB connection terminal UP (USB upstream port): Connect the
UP port of the monitor and
the USB port of the computer with the USB cable.
DOWN (USB downstream port): Connect the
DOWN port of the
USB monitor and a USB device with the USB cable.
To use
DOWN (Downstream Port), you have to connect the
UP (Upstream Cable ) to the PC.
Make sure to use the USB cable supplied with this monitor to connect
the monitor's
UP port and your computer's USB port.
Kensington Lock
The Kensington lock is a device used to physically fix the system when
using it in a public place.
The locking device has to be purchased separately.
For using a locking device, contact where you purchased it.
See Connecting Cables for further information regarding cable connections.
Model
SyncMaster 226UX
Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use appropriate connection for your computer.
Using the D-sub (Analog) connector on the video card.
- Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Using the DVI (Digital) connector on the video card.
- Connect the DVI Cable to the DVI IN (HDCP) port on the back of your Monitor.
[DVI IN (HDCP)]
Connected to a Macintosh.
-Connect the monitor to the Macintosh computer using the D-sub connection cable.
If the monitor and the computer are connected, you can turn them on and use them.
Connecting USB
You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by
connecting them to the
DOWN port of the monitor without connecting them to the PC.
The USB port of the monitor supports High-Speed Certified USB 2.0.
High speed
Full speed
Low speed
Data Rate
480 Mbps
12 Mbps
1.5 Mbps
Power Consumption
2.5W
(Max., each port)
2.5W
(Max., each port)
2.5W
(Max., each port)
Connect the
To use
UP port of the monitor and the USB port of the computer with the USB cable.
DOWN port, you have to connect the UP (Upstream Cable) to the PC.
Make sure to use the USB cable supplied with this monitor to connect the monitor's
UP port and your computer's USB port.
Connect the
DOWN port of the USB monitor and a USB device with the USB cable.
The use procedures are as the same as those for using an external device connecting to the PC.
z
z
z
z
You can connect and use a keyboard and mouse.
You can play a file from a media device.
(Examples of media devices: MP3, digital camera, etc.)
You can run, move, copy or delete the files on the storage device.
(Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3
player, etc.)
You can use other USB devices that can be connected to a computer.
z
When connecting a device to the
DOWN port of the monitor, connect the device
using a cable appropriate to the device.
(For the purchase of the cable and external devices, ask the service center of the
corresponding product.)
z
z
z
The company is not liable for problems or damages to an external device caused by
using an unauthorized cable for the connection.
Some products do not follow the USB standard, and it may cause a malfunction of
the device.
If the device malfunctions even if it is connected to the computer, contact the
service center of the device/computer.
USB monitor
You can use this product as a monitor simply by connecting the power cable and the USB cable
to your PC.
Minimum hardware requirements
1. When connecting one (1) or two (2) USB monitors
Minimum hardware requirements: 1.2 GHz CPU / 512 MB memory
Display: One monitor can support DVD quality resolution in full screen mode.
( It may not support a sufficient frame speed during playback.)
2. When connecting three (3) USB monitors
Minimum hardware requirements: 1.8 GHz CPU / 1GB memory
Display: One monitor can support DVD quality resolution in full screen mode.
( It may not support a sufficient frame speed during playback.)
3. Monitor connection: Multiple screens of 6 monitors
Minimum hardware requirements: 1.6 GHz Dual core CPU / 1 GB memory
Display: One monitor can support DVD quality resolution in full screen mode.
( It may not support a sufficient frame speed during playback.)
When connecting serially
You can connect up to four (4) USB monitors serially.
When connecting in parallel
You can connect up to six (6) USB monitors in parallel.
When connecting external devices to the USB monitor, you can only connect up to four (4) devices.
Installation (Auto & Manual)
Installing Your USB Monitor
z
z
z
Make sure to connect the USB cable and begin the installation after your PC has booted.
The auto installation will take about one minute. If you turn off your monitor or remove the USB
cable while the installation is in progress, it may cause a problem with your PC and Windows OS.
The optimal resolution for this USB monitor is 1680 x 1050.
If you connect your USB monitor to your PC, it recognizes the monitor and the "Found New
Hardware" wizard is displayed, as shown in the figure below.
Click "I Accept".
The installation is started automatically and the installation progress window is displayed, as shown
in the figure below.
-
Manual
If the USB driver is not installed automatically, insert the provided USB Monitor
Installation Install CD into the CD-ROM drive of your PC. ‘Double-click My Computer on the
Windows Desktop and click on User Manual (I:). The volume name of the removable
storage disk (for example, E:, F:, G: ) may be different depending on your computer
environment.
Right-click it and select 'Open' from the displayed menu. Double-click the 'Setup' file
and an installation progress window is displayed, as shown in the figure below. The
remaining steps are the same as for the automatic installation.
Click "Next".
Select "I accept the terms in the License Agreement" and click "Next".
Click "Install".
Click "Finish" to complete the installation.
When setup is finished, a monitor icon is created in the system tray at the bottom of the monitor
screen, and the information for the installed USB monitor is displayed.
When the installation is completed, configure the following settings to use multiple monitors.
1. Right-click on the ‘Windows Desktop’ and select ‘Properties’ from the displayed menu. The
“Display Properties” window appears.
2. 'Select the “Settings” tab. A list of connected USB monitors is displayed.
3. You can see the deactivated monitor No.2 (this may appear activated). Monitor No.2 is a
virtual monitor which cannot actually be used. Therefore, first arrange the activated monitors
in the order which they are actually used and move monitor No.2 to the last position.
A virtual monitor may be not displayed in the 'Display Properties' window.
Example) Three or four monitors may be displayed in the 'Display Properties' window when two or
three monitors respectively are actually connected. In this case, the second one is a virtual monitor.
4. Then click "OK" button.
Configuring the USB Monitor Display Information
When the driver setup for the USB monitor is finished, a monitor icon is created in the system tray at the
bottom of the monitor screen.
Click the monitor icon to display a list of connected USB monitors.
Example) The following figure shows when two USB monitors are connected.
Select the monitor for which you want to configure the display settings. You can configure the "Screen
Resolution" , "Color Quality" and "Screen Rotation" settings for your monitor.
Checking the configuration
After the installation, you can check the configuration by following these steps.
'Right-click ‘My Computer’, and select ‘Properties’ – ‘System Properties’ – the ‘Hardware tab’.
Click ‘Device Manager’.
A list of the installed device will be displayed, as shown in the figure below.
- The Initial Screen Settings after Installing the Program
Applicable mode: Extend mode
Mode position: To the right of the primary screen
Mode rotation: 0°
USB Monitor - Limitation
Supported OS (Operating Systems)
Windows XP
- Service Pack 1 or earlier: Unsupported
- Service Pack 2 or later: Supported
Windows 2000
- Service Pack 3 or earlier: Not Supported
- Service Pack 4 or later: Supported
Windows Server 2003: Not Supported
Windows Vista: Supported. (64bit Not Supported)
To check the information on the operating system of your PC, right-click ‘My Computer’ on the
‘Windows Desktop’ and select ‘Properties’ from the displayed menu. Check the information in the
‘General’ tab of the ‘Computer Properties’ window.
1. Because this USB monitor is recognized as a USB device, the DOS screen that appears for
general monitors when a PC is booting up is not displayed.
- If you want to use your USB monitor as the Primary Monitor, connect a D-Sub cable (for
analog signals) or a DVI cable (for digital signals) as well.
2. You cannot use the USB monitor for software using 3D hardware acceleration.
- Real Player (Expansion mode is not supported.)
- For most 3D games
- Programs running on the base of Direct X
3. Supported movie programs
- Power DVD
- Win DVD(Version 5 onwards)
- Windows Media Player (Version 10 or later is supported.)
- VLC
4. This monitor does not support the MagicTune program.
- The MagicRotation function may not function normally.
- If the MagicTune program is installed on your PC, it may not be compatible with this monitor.
5. The USB monitor may not work normally with USB 1.0.
6. If you connect multiple USB monitors, a blank screen is displayed while your PC recognizes
them. Screens are displayed on your USB monitors after your PC has recognized them.
7. If the graphics card of your PC does not support WDDM, the extended mode may not be
available in Windows Vista.
Example) Some versions of the Matrox Card
Using the Stand
Monitor Assembly
Monitor and Bottom
Swivel stand
Using ( ),You can swivel the monitor left and right at an angle of 350° to set the
monitor lengthwise. The rubber under the stand is to avoid the monitor slide.
When you try to rotate the monitor in the state of the power cord or cable connecting to
the monitor, the power cord of cable can be destroyed.
Tilt angle
Using ( ), You can adjust the tilt anlgle within a range of 0° forward to 23° backward for
the most comfortable viewing angle.
Attaching a Base
This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
A. Monitor
B. Mounting interface pad (Sold separately)
Turn off your monitor and unplug its power cord.
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
Remove four screws and then remove the stand from the LCD monitor.
Align the mounting interface pad with the holes in the rear cover mounting Pad and
secure it with four screws that came with the arm-type base, wall mount hanger or other
base.
z
z
z
z
z
z
z
Do not use screws longer than the standard dimension, as they may damage the inside of the
Monitor.
For wall mounts that do not comply with VESA standard screw specifications, the length of the
screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications. Do not
fasten the screws too tightly, as this may damage the product or cause the product to fall,
leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified
wall mount is used or the consumer fails to follow the product installation instructions.
To mount the monitor on a wall, you should purchase the wall mounting kit that allows you to
mount the monitor at least 10cm away from the wall surface.
Contact the nearest Samsung Service Center for more information. Samsung Electronics will
not be responsible for damages caused by using a base other than those specified.
Please use Wall Mount according to the International standards.
Model
SyncMaster 226UX
Monitor Driver
When prompted by the operating system for the monitor driver, insert the CD-ROM included with this
monitor. Driver installation is slightly different from one operating system to another. Follow the
directions appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown below.
Internet web site :http://www.samsung.com/ (Worldwide)
http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Installing the Monitor Driver (Automatic)
Insert CD into the CD-ROM drive.
Click "Windows".
Choose your monitor model in the model list, then click the "OK" button.
If you can see following message window, then click the "Continue Anyway" button. Then click
"OK" button (Microsoft® Windows® XP/2000 Operating System).
This monitor driver is under certifying MS logo, and this installation doesn't damage your
system.
The certified driver will be posted on Samsung Monitor homepage
http://www.samsung.com/
Monitor driver installation is completed.
Installing the Monitor Driver (Manual)
Windows Vista | Windows XP | Windows 2000 | Windows ME | Windows NT | Linux
Microsoft® Windows Vista™ Operating System
Insert your Manual CD into your CD-ROM drive.
Click
(Start) and "Control Panel". Then, double-click on "Appearance and Personalization".
Click "Personalization" and then "Display Settings".
Click "Advanced Settings…".
Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the
configuration for your monitor is completed. The monitor can be used as is.
If the message “Windows needs…” is displayed, as shown in the figure below,
click "Continue".
This monitor driver is under certifying MS logo, and this installation doesn't damage your
system.
The certified driver will be posted on Samsung Monitor homepage
http://www.samsung.com/
Click "Update Driver…" in the "Driver" tab.
Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list
of device drivers on my computer".
Click "Have Disk…" and select the folder (for example, D:\Drive) where the driver setup file is
located, and click "OK".
Select the model that matches your monitor from the list of monitor models on the screen, and
click "Next".
Click "Close"→ "Close" → "OK" → "OK" on the following screens displayed in sequence.
Microsoft® Windows® XP Operating System
Insert CD into the CD-ROM drive.
Click "Start" → "Control Panel" then click the "Appearance and Themes" icon.
Click "Display" icon and choose the "Settings" tab then click "Advanced...".
Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
Click "Update Driver..." and select "Install from a list or..." then click "Next" button.
Select "Don't search ,I will..." then click "Next" and then click "Have disk".
Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model
list and click the "Next" button.
If you can see following "Message" window, then click the "Continue Anyway" button. Then click
"OK" button.
This monitor driver is under certifying MS logo, and this installation doesn't damage your
system.
The certified driver will be posted on Samsung Monitor homepage
http://www.samsung.com/
Click the "Close" button then click "OK" button continually.
Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
Choose "OK" button on the "Insert disk" window.
Click the "Browse" button on the "File Needed" window.
Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
Click "Start" , "Setting" , "Control Panel".
Double click the "Display" icon.
Select the "Settings" tab and click "Advanced Properties" button.
Choose "Monitor".
Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please
stop installation
Case2 : If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
Click "Driver" and then click on "Update Driver..." then click on the "Next" button.
Choose "Display a list of the known drivers for this device so that I can choose a specific driver"
then click "Next" and then click "Have disk".
Click the "Browse" button then choose A:(D:\Driver).
Click the "Open" button, then click "OK" button.
Choose your monitor model and click the "Next" button then click "Next" button.
Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the
"Finish" button then the "Close" button.
Microsoft® Windows® Millennium Operating System
Click "Start" , "Setting" , "Control Panel".
Double click the "Display" icon.
Select the "Settings" tab and click "Advanced Properties" button.
Select the "Monitor" tab.
Click the "Change" button in the "Monitor Type" area.
Choose "Specify the location of the driver".
Choose "Display a list of all the driver in a specific location..." then click "Next" button.
Click the "Have Disk" button.
Specify A:\(D:\driver) then click "OK" button.
Select "Show all devices" and choose the monitor that corresponds to the one you connected to
your computer and click "OK".
Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue
box.
Microsoft® Windows® NT Operating System
Click "Start", "Settings", "Control Panel", and then double-click "Display" icon.
In Display Registration Information window, click Settings Tab and then click "All Display Modes".
Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and
then click "OK".
Click "Apply" button if you see the screen working normally after clicking "Test". If the screen is
not normal, change to a different mode (lower mode of resolution, colors or frequency).
If there is no Mode at All Display Modes, select the level of resolution and vertical
frequency by referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
Press "Enter" at the first and the second screen after executing the X86Config file.
The third screen is for setting your mouse.
Set a mouse for your computer.
The next screen is for selecting a keyboard.
Set a Keyboard for your computer.
The next screen is for setting your monitor.
First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
Set a vertical frequency for your monitor. (You can enter the frequency directly.)
"Enter" the model name of your monitor. This information will not affect the actual execution of XWindow.
You have finished setting up your monitor.
Execute X-Window after setting other requested hardware.
Natural Color
Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a printer
or other images scanned by a scanner or a digital camera are not the same as those shown on the
monitor. The Natural Color S/W is the very solution for this problem. It is a color administration
system developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors
and makes the color of the images on the monitor the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of
the program Natural Color will be executed. Click Natural Color on the initial screen to install the
Natural Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM
Drive, click the [Start] button of Windows and then select [Run...].
Enter D:\color\NCProSetup.exe and then press the [Enter] key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
How to delete the Natural Color software program
Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program".
Select Natural Color from the list and then click the "Add/Delete" button.
Model
SyncMaster 226UX
- When used as a USB monitor, the screen (OSD) cannot be adjusted
Control Buttons
[MENU / ] Opens the OSD menu. Also use to exit the OSD menu or return to the
previous menu.
[
] These buttons allow you to adjust items in the menu.
[ ] Press this button to activate a highlighted menu item.
If the input signal is Analog, the screen is adjusted automatically
Direct Functions
AUTO
Menu
Description
When the 'AUTO' button is pressed, the Auto Adjustment screen appears as
shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming Analog signal.
The values of fine, coarse and position are adjusted automatically.
(Available in Analog mode only)
AUTO
To make the automatic adjustment function sharper, execute the 'AUTO' function
while the AUTO PATTERN is on.
If auto adjustment does not work properly, press 'AUTO' button again to adjust
picture with more accuracy.
If you change resolution in the control panel, auto function will be executed
automatically.
OSD Locked & Unlock
AUTO
MENU
Menu
Description
This is the function that locks the OSD in order to keep the current states of
settings or prevent others from adjusting the current settings.
Locked : Hold down the menu button for more than five (5) seconds to activate
the OSD adjustment lock function.
OSD Locked &
Unlock
Unlock : Hold down the menu button for more than five (5) seconds to
deactivate the OSD adjustment lock function.
Though the OSD adjustment lock function is activated, you can still adjust
the brightness and contrast, and adjust MagicBright ( ) using the Direct
button.
MagicBright™
Menu
Description
Push the MagicBright™ button to circle through available preconfigured
modes.
MagicBright™
- seven different modes (Custom/Text/Internet/Game/Sport/Movie/Dynamic
Contrast)
Brightness
Menu
Brightness
Description
When OSD is not on the screen, push the button to adjust brightness.
SOURCE
Menu
Description
SOURCE
Selects the Video signal while the OSD is off. (Analog / Digital / USB)
OSD Function
Brightness
Contrast
Color
MagicColor
Color Tone
Color Control
Gamma
Coarse
Fine
Sharpness
H-Position
V-Position
OSD
Language
H-Position
V-Position
Transparency
Display Time
Setup
Auto Source
Image Reset
Color Reset
RTA
Information
Menu
Brightness
Description
You can use the on-screen menus to change the
brightness according to personal preference.
MENU →
Contrast
Play/Stop
→
→
,
→ MENU
You can use the on-screen menus to change the contrast
according to personal preference.
MENU →
→
,
→
→
,
→ MENU
Color
Menu
Description
Play/Stop
MagicColor is a new technology that Samsung has exclusively
developed to improve digital image and to display natural color
more clearly without disturbing image quality.
MagicColor
Color Tone
Off
Demo
Returns to the original mode.
The screen before applying MagicColor appears
on the right and the screen after applying
MagicColor appears on the left.
Full
Displays not only vivid natural color but also
more realistic natural skin color with clearness.
Intelligent Displays vivid natural color with clearness.
The tone of the color can be changed and one of four modes
can be selected -Cool, Normal, Warm and Custom.
MENU →
Color Control
,
→
→
,
→
→
,
→ MENU
Adjusts individual Red, Green, Blue color balance. -Red, Green,
Blue
MENU →
,
→
→
,
→
→
,
→
→
,
→ MENU
Gamma correction changes the luminance of the colors with
intermediate luminance.
Gamma
- Mode 1
- Mode 2
- Mode 3
MENU →
,
→
→
,
→
→
,
→ MENU
Menu
Coarse
Description
Removes noise such as vertical stripes.
Coarse adjustment may move the screen image area. You
may relocate it to the center using the horizontal control
menu.
- Available in Analog mode only
MENU →
,
→
→
→
,
→ MENU
Play/Stop
Fine
Removes noise such as horizontal stripes.
If the noise persists even after fine tuning, repeat it after
adjusting the frequency (clock speed).
- Available in Analog mode only
MENU →
Sharpness
,
→
→
→
,
→ MENU
,
→
,
→
→
→
,
→ MENU
Changes the horizontal position of the monitor's entire
display.
- Available in Analog mode only
MENU →
V-Position
→
Changes the clearance of image.
MENU →
H-Position
,
,
→
,
→
→
→
,
→ MENU
Changes the vertical position of the monitor's entire
display.
- Available in Analog mode only
MENU →
,
→
,
→
→
→
,
→ MENU
OSD
Menu
Description
You can choose one of nine languages.
Language
The language chosen affects only the language of the OSD. It
has no effect on any software running on the computer.
MENU →
H-Position
→
→
→
,
→ MENU
You can change the horizontal position where the OSD menu
appears on your monitor.
MENU →
V-Position
,
,
→
→
,
→
→
,
→ MENU
You can change the vertical position where the OSD menu
appears on your monitor.
Play/Stop
MENU →
Transparency
,
,
→
→
,
→
→ MENU
Change the transparency of the background of the OSD.
MENU →
Display Time
→
,
→
,
→
→
,
→
→ MENU
The menu will be automatically turned off if no adjustments are
made for a certain time period.
You can set the amount of time the menu will wait before it is
turned off.
- 5 sec, 10 sec, 20 sec, 200 sec
MENU →
,
→
,
→
→
,
→
→ MENU
Setup
Menu
Auto Source
Description
Select Auto Source for the monitor to automatically select the
signal source.
MENU →
Image Reset
→
→
→
,
→ MENU
Image parameters are replaced with the factory default values.
MENU →
Color Reset
,
,
→
→
,
→
→
,
→ MENU
Color parameters are replaced with the factory default values.
MENU →
,
→
→
,
→
→
,
→ MENU
RTA (Response Time Accelerator)
A function that accelerates the response speed of the panel so
as to provide a sharper and more natural video display.
RTA
RTA On : Activates the RTA function so that the panel operates
at a higher response speed than its original speed.
RTA Off : Deactivates the RTA function so that the panel
operates at its original response speed.
MENU →
,
→
→
,
→
→
,
→ MENU
Play/Stop
Information
Menu
Information
Description
Shows a video source, display mode on the OSD screen.
MENU →
,
Model
SyncMaster 226UX
Check List
Before calling for assistance, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the Information section
or contact your dealer.
Symptom
No images on the
screen.
I cannot turn on the
monitor.
Check List
Solutions
Is the power cord
connected properly?
Check the power cord connection and supply.
Can you see "Check
Signal Cable" on the
screen?
(Connected using the D-sub cable)
Check the signal cable connection.
(Connected using the DVI cable)
If you still see an error message on the screen
when the monitor is connected properly, check
to see if the monitor status is set to analog.
Press 'SOURCE/ ' button to have the monitor
double-check the input signal source.
If the power is on, reboot
the computer to see the
initial screen(the login
screen), which can be
seen.
If the initial screen (the login screen) appears,
boot the computer in the applicable mode (the
safe mode for Windows ME/XP/2000) and then
change the frequency of the video card.
(Refer to the Preset Timing Modes)
If the initial screen (the login screen) does not
appear, contact the Service Center or your
dealer.
Can you see "Not
Optimum Mode",
"Recommended Mode
1680 X 1050 60 Hz" on
the screen?
You can see this message when the signal
from the video card exceeds the maximum
resolution and frequency that the monitor can
handle properly.
Adjust the maximum resolution and frequency
that the monitor can handle properly.
If the display exceeds WSXGA or 75 Hz, a "Not
Optimum Mode", "Recommended Mode 1680
X 1050 60 Hz" message is displayed. If the
display exceeds 85 Hz, the display will work
properly but the "Not Optimum Mode",
"Recommended Mode 1680 X 1050 60 Hz"
message appears for one minute and then
disappears.
Please change to the recommended mode
during this one-minute period.
(The message is displayed again if the system
is rebooted.)
There is no image on the
screen.
Is the power indicator on
the monitor blinking at 1
second intervals?
The monitor is in PowerSaver mode.
Press a key on the keyboard to activate the
monitor and restore the image on the screen.
If there is still no image, press the'SOURCE/
'button.
Then press any key on the keyboard again to
activate the monitor and restore the image on
the screen.
Connected using the DVI
cable?
You may get a blank screen if you boot the
system before you connect the DVI cable, or
disconnect and then reconnect the DVI cable
while the system is running as certain types of
graphic cards do not send out video signals.
Connect the DVI cable and then reboot the
system.
I cannot see the On
Screen Display.
Have you locked the On
Screen Display (OSD)
Menu to prevent
changes?
Unlock the OSD by pressing the [MENU /
button for at least 5 seconds.
The screen shows
strange colors or just
black and white.
Is the screen displaying
only one color as if
looking at the screen
through a cellophane
paper?
Check the signal cable connection.
Have the screen colors
become strange after
running a program or
due to a crash between
applications?
Reboot the computer.
Has the video card been
set properly?
Set the video card by referring to the video
card manual.
Have you changed the
video card or the driver?
Adjust screen image position and size using
the OSD.
Have you adjusted the
resolution or frequency
to the monitor?
Adjust the resolution and frequency at the
video card.
(Refer to the Preset Timing Modes).
The screen suddenly
has become
unbalanced.
]
Make sure the video card is fully inserted in it's
slot.
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
The screen is out of
focus or OSD cannot be
adjusted.
Have you adjusted the
resolution or frequency
on the monitor?
Adjust the resolution and frequency of the
video card.
(Refer to the Preset Timing Modes).
LED is blinking but no
images on the screen.
Is the frequency properly
adjusted when checking
the Display Timing on
the menu?
Adjust the frequency properly by referring to
the video card manual and the Preset Timing
Modes.
(The maximum frequency per resolution may
differ from product to product.)
There are only 16 colors
shown on the screen.
The screen colors have
changed after changing
the video card.
Have the Windows
colors been set
properly?
Windows XP :
Set the resolution at the Control Panel →
Appearance and Themes → Display →
Settings.
Windows ME/2000 :
Set the resolution at the Control Panel →
Display → Settings.
There is a message that
reads "Unrecognized
Has the video card been
set properly?
Set the video card by referring to the video
card manual.
Have you installed the
monitor driver?
Install the monitor driver according to the Driver
Installation Instructions.
monitor, Plug & Play
(VESA DDC) monitor
found".
See the video card
manual to see if the Plug
& Play (VESA DDC)
function can be
supported.
Install the monitor driver according to the Driver
Installation Instructions.
USB Monitor Check List
Symptom
There is no image
on the screen. I
cannot turn on the
monitor.
Check List
If you quickly and
repeatedly turn your
USB monitor off and
on, it may not work
normally.
Solutions
Your USB monitor is recognized as a general USB
device on your PC. Therefore, please refer to the
troubleshooting information for USB devices by
visiting Microsoft’s customer support site.
( www.microsoft.com - Support )
1. Right-click the ‘My Computer ’ and click on
‘Properties’.
2. The Device Manager is displayed.
3. From the “Action” menu, click “Scan for hardware
changes”. Reboot your PC.
The screen of the
USB monitor
freezes.
Check the ‘Hardware
acceleration’ setting
for your USB monitor
in the ‘Display
Properties’ window.
Set the ‘Hardware acceleration’ value to ‘Full’.
For more information on how to configure the settings,
click here.
My USB monitor is
connected but the
screen is blank.
Does the Auto
Installation program
run when your USB
monitor is connected?
Check your user account in the Control Panel.
1. Click Start – Control Panel – User Accounts Change an account – Admin: Computer administrator
– Change my account type. In the displayed window,
Computer administrator (Power User or higher) must
be selected. – For Windows XP computers.
2. Set your account type as directed above. Then turn
the Power button at the front of your USB monitor off
and on or reconnect the USB cable connected to the
monitor. If the problem persists, install the “USB
Monitor Installation Driver” from the provided CD. For
more information, refer to the Manual Installation
section.
3. When the installation is finished, reboot your PC.
My computer is on
and the LED is
blinking. However,
only a blank screen
is displayed on the
monitor.
Check whether the
USB cable is
connected correctly.
Connect the USB cable again.
Check whether your
computer is in
hibernation mode
(The monitor turns
off).
Move your mouse or press any key to display the
screen again.
1. Right-click the ‘Windows Desktop’ and click on
‘Properties’.
2. The “Display Properties” window appears.Select
the “Settings” tab and click on “Advanced”.
3. If the “Properties” window for your monitor is
displayed, select the “Troubleshoot” tab.Move the
“Hardware acceleration” slide to “Full
Check the following items if there is trouble with the monitor.
Check if the power cord and the video cables are properly connected to the computer.
Check if the computer beeps more than 3 times when booting.
(If it does, request an a service for the main board of the computer.)
If you installed a new video card or if you assembled the PC, check if the installed the adapter(video)
driver and the monitor driver.
Check if the scanning ratio of the video screen is set to between 56 Hz ~ 75 Hz.
(Do not exceed 60 Hz when using the maximum resolution.)
If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove
the Display Adapter in the "Control Panel → System → Device Administrator" and then reboot the
computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q&A
Question
How can I change the frequency?
Answer
The frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the
version of the driver used.
(Refer to the computer or the video card manual for details.)
How can I adjust the resolution?
Windows XP :
Set the resolution in the Control Panel → Appearance and
Themes → Display → Settings.
Windows ME/2000 :
Set the resolution in the Control Panel → Display → Settings.
Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows XP :
Set the resolution in the Control Panel → Appearance and
Themes → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer.
Windows ME/2000 :
Set the resolution in the Control Panel → Display → Screen
Saver.
Set the function in the BIOS-SETUP of the computer.
Refer to the Windows/Computer Manual
How can I clean the outer case/LCD
Panel?
Disconnect the power cord and then clean the monitor with a
soft cloth, using either a cleaning solution or plain water.
Do not leave any detergent or scratches on the case. Do not let
any water enter the monitor.
How can I remove the “USB Monitor
Installation Program” completely?
1.Click ‘Add/Remove Programs’ in the ‘Control Panel’. A list of
‘currently installed programs’ is displayed.
2. Select ‘Samsung UbiSync Monitor’ from the list and click
‘Remove’.
There is no response when I rightclick “Samsung UbiSunc (P:) (USB
Monitor)” in the “My Computer”
window and click “Eject” in the
displayed menu.
Though your USB monitor is recognized as a drive by your PC,
it has been designed so that the context menu usually
displayed when right-clicking on the “My Computer” window
does not work.
The screen size of the USB monitor
is larger than the actual monitor size.
If the primary monitor has a high resolution, screens are
expanded beyond the recommended resolution in Clone mode
(USB monitor). (Recommended resolution: 1680x1050)
The screen size of the USB monitor
is smaller than the actual monitor
size. The screen is centered on the
monitor.
If the primary monitor has a high resolution, screens are
smaller than the recommended resolution in Clone mode (USB
monitor). (Recommended resolution: 1680x1050)
I disconnected or turned off my USB
monitor but my PC still displays the
old monitor information in the Display
The deactivated USB monitors are such that the power to them
is turned off or their USB cables are disconnected. To remove
this information, you have to remove the 'Samsung Ubisync
Properties window.
Monitor' program from ‘Add/Remove Programs’ in the ‘Control
Panel’.
If you remove the program you cannot use all the connected
USB monitors. If you want to use the USB monitor again, you
have to setup the installation program again.
Icons and photos are broken or
jagged in Clone mode (USB
monitor).
This occurs because Windows does not send the screen
updating information to Clone mode if Extended mode is active
on a single PC.
We recommend using the monitor in Extend mode.
How I can clone or extend screen
mode?
Open the “Display Properties” window and select the “Settings”
tab,
Configure the screen mode in the “Settings” tab.
- For more information on how to configure the settings, click
here.
Self-Test
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
Your monitor provides a self test feature that allows you to check whether your monitor is functioning
properly.
Self-Test Feature Check
Turn off both your computer and the monitor.
Unplug the video cable from the back of the computer.
Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or damaged.
Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video controller
and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the screen
goes blank although the power indicator LED is still on. The message may indicate that the monitor is
out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other features of the
monitor.
If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another
room.
Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet
(one meter) of the monitor.
Useful Tips
A monitor recreates visual signals received from the computer. Therefore, if there is a problem with
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
become noisy, and video mode not supported, etc. In this case, first check the source of the problem,
and then contact the Service Center or your dealer.
Judging the monitor's working condition
If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1680 X 1050 60
Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.
If there is a message coming up on the screen or if the screen goes white, this means the monitor
is in working condition.
In this case, check the computer for trouble.
Model
Specifications
General
Model Name
SyncMaster 226UX
LCD Panel
Size
22 " Wide Diagonal (55 cm)
Display area
473.8 mm (H) x 296.1 mm (V)
Pixel Pitch
0.282 mm (H) x 0.282 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 75 Hz
Display Color
16.7M Colors
Resolution
Optimum resolution
1680 X [email protected] Hz
Maximum resolution
1680 X [email protected] Hz
Input Signal, Terminated
RGB Analog, DVI Compliant Digital RGB, USB Interface,
0.7 Vp-p ± 5 %,
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
146 MHz (Analog, Digital, USB)
Power Supply
AC 100 - 240 V~ (+/- 10 %),50/60Hz ± 3 Hz
SyncMaster 226UX
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable (Option)
USB Cable, Detachable
Dimensions (W x H x D) / Weight
514.6 X 353.3 X 63.0 mm / 20.2 x 13.9 x 2.4 inch (Without Stand)
514.6 X 422.0 X 219.3 mm / 20.2 x 16.6 x 8.6 inch (With Stand) / 5.7 kg / 12.5 lbs
VESA Mounting Interface
100 mm x 100 mm (for use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and
the computer systems will provide the best operating conditions and monitor settings. In most cases, the
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
appear to be bright sometimes or some black pixels may be seen. This is not from bad quality and you
can use it without any problelms.
For example, the number of TFT LCD sub pixels contained in this product are 5,292,000.
Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can be
used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor to low-power mode when it has not been used for a certain amount of time.
The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
Power off
(Power button)
EPA/ENERGY
2000
Power Indicator
Blue
Blue, Blinking
Black
Power Consumption
Less than 50 W
Analog / : Less than 2
DigitalW
: Less than 5
USB
W
(Off-mode)
Less than 1 W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPM
functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Preset Timing Modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA,1680 x 1050
64.674
59.883
119.000
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called the Horizontal Cycle and the inverse number
of the Horizontal Cycle is called the Horizontal Frequency. Unit : kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called the Vertical Frequency or Refresh Rate. Unit : Hz
Model
SyncMaster 226UX
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
North America
U.S.A
1-800-SAMSUNG (726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG (726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG (726-7864)
http://www.samsung.com/mx
ARGENTINE
0800-333-3733
http://www.samsung.com/ar
BRAZIL
0800-124-421
4004-0000
http://www.samsung.com/br
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com.co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
TRINIDAD &
TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
Latin America
Europe
AUSTRIA
0800-SAMSUNG(726-7864)
www.samsung.com/at
BELGIUM
02 201 2418
http://www.samsung.com/be
CZECH REPUBLIC
844 000 844
http://www.samsung.com/cz
DENMARK
70 70 19 70
http://www.samsung.com/dk
FINLAND
030-6227 515
http://www.samsung.com/fi
FRANCE
3260 SAMSUNG(726-7864)
08 25 08 65 65 (€ 0,15/min)
http://www.samsung.com/fr
GERMANY
01805-SAMSUNG(726-7864)
(€ 0,14/Min)
http://www.samsung.de
HUNGARY
06-80-SAMSUNG(726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG(726-7864)
http://www.samsung.com/it
LUXEMBURG
0035 (0)2 261 03 710
http://www.samsung.com/be
NETHERLANDS
0900 SAMSUNG(726-7864)
(€ 0,10/Min)
http://www.samsung.com/nl
NORWAY
815-56 480
http://www.samsung.com/no
POLAND
0 801 801 881
022-607-93-33
http://www.samsung.com/pl
PORTUGAL
80 8 200 128
http://www.samsung.com/pt
REPUBLIC OF
IRELAND
0818 717 100
http://www.samsung.com/ie
SLOVAKIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/sk
SPAIN
902 10 11 30
http://www.samsung.com/es
SWEDEN
0771-400 200
http://www.samsung.com/se
SWITZERLAND
0800-SAMSUNG(726-7864)
http://www.samsung.com/ch
U.K
0870-SAMSUNG(726-7864)
http://www.samsung.com/uk
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
800-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAHSTAN
8-10-800-500-55-500
http://www.samsung.kz
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
http://www.samsung.ru
UKRAINE
8-800-502-0000
http://www.samsung.ua
UZBEKISTAN
8-800-120-0-400
http://www.samsung.uz
CIS
Asia Pacific
AUSTRALIA
1300 362 603
http://www.samsung.com/au
CHINA
800-810-5858, 010- 6475 1880
http://www.samsung.com.cn
HONG KONG
3698-4698
http://www.samsung.com/hk
INDIA
3030 8282
1800 110011
http://www.samsung.com/in
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800SAMSUNG(726-7864)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG(726-7864)
http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com/th
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
http://www.samsung.com/za
TURKEY
444 77 11
http://www.samsung.com.tr
U.A.E
800-SAMSUNG (726-7864)
8000-4726
http://www.samsung.com/mea
Middle East & Africa
Terms
Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit : mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is called the Vertical Frequency or Refresh Rate.
Unit : Hz
Example : If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency.
Unit : kHz
Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom sequentially is called the NonInterlace method while showing odd lines and then even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically. This monitor follows the international standard VESA
DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called the
'resolution'. This number shows the accuracy of the display. A high resolution is good for performing
multiple tasks as more image information can be shown on the screen.
Example :If the resolution is 1680 X 1050 , this means the screen is composed of 1680
horizontal dots (horizontal resolution) and 1050 vertical lines (vertical resolution).
For Better Display
Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described below to
enjoy the best quality of picture. You can have an uneven quality of picture in the screen if the best
quality of picture is not provided in TFT-LCD.
Resolution : 1680 X 1050
Vertical frequency (refresh rate) : 60 Hz
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
seem to be bright sometimes or some of black pixels could be seen.
This is not from bad quality and you can use it without uneasiness.
For example, the number of TFT LCD sub pixels that is contained in this product are 5,292,000.
When cleaning the monitor and the panel outside, please apply the recommended small amount of
cleaner by using a soft cloth to polish. Do not force the LCD area but rub softly.
If excessive force is applied, you may stain it.
If you are not satisfied with the picture quality, you can get better quality of picture by performing the
"auto adjustment function" in display screen that is appeared as window termination button is
pressed.
If there's still noise after the automatic adjustment, use the FINE/COARSE adjustment function.
If you view a fixed screen for an extended period of time, residual image or blurriness may appear.
Change the mode to energy save or set a screensaver to moving picture when you need to be away
from the monitor for an extended period of time.
Authority
Information in this document is subject to change without notice.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are
registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and
logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY
STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY
STAR® guidelines for energy efficiency. All other product names mentioned herein may be the
trademarks or registered trademarks of their respective owners.
PRODUCT INFORMATION (Image Retention Free)
LCD Monitors and TVs may have image retention when switching from one image to another
especially after displaying a stationary image for a long time.
This guide is to demonstrate correct usage of LCD products in order to protect them from Image
retention.
Warranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.
What is Image retention ?
During normal operation of a LCD panel, pixel image retention doesn't occur. However,
if the same image is displayed for a long time, a slight difference in electric charge
accumulates between the two electrodes which encase the liquid crystal. This may
cause the liquid crystal to build up in a certain areas of the display. Thus, the previous
image is retained when switching to a new video image. All display products, including
LCD,are subject to image retention. This is not a product defect.
Please follow the suggestions below to protect your LCD from image retention
Power Off, Screen Saver, or Power Save Mode
Ex)
z Turn the power off when using a stationary pattern.
- Turn the power off for 4 hours after 20 hours in use
- Turn the power off for 2 hours after 12 hours in use
z Use a Screen saver if possible
- Screen saver in one color or a moving image is recommended.
z Set the Monitor to power off with the PC Display Properties Power Scheme.
Suggestions for specific applications
Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems
We recommend that you follow set up of your display system program as below:
Display Information together with Logo or Moving image cycle.
Ex) Cycle : Display Information for 1 hour followed by a
Display Logo or moving image for 1 minute.
Change the Color Information periodically (Use 2 different colors).
Ex) Rotate the Color Information with 2 colors every 30 minutes.
Avoid using a combination of characters and background color with large
difference in luminance.
Avoid using Grey colors, which can cause Image retention easily.
Avoid: Colors with big difference in luminance (Black & White, Grey)
Ex)
z
Recommended settings: Bright colors with little difference in luminance
- Change the characters color and background color every 30 minutes
Ex)
z
- Every 30 minutes, change the characters with movement.
Ex)
The best way to protect your monitor from Image retention is to set your PC or
System to operate a Screen Saver program when you are not using it.
Image retention may not occur when a LCD panel is operated under normal conditions.
Normal conditions are defined as continuously changing video patterns. When the LCD
panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be
slight difference in voltage between electrodes that work the liquid crystal (LC) in a
pixel. The voltage difference between electrodes increases with time, forcing the liquid
crystal to lean. When this occurs, the previous image may be seen when the pattern is
changed.
To prevent this, the accumulated voltage difference must be decreased.
Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II
Was this manual useful for you? yes no
