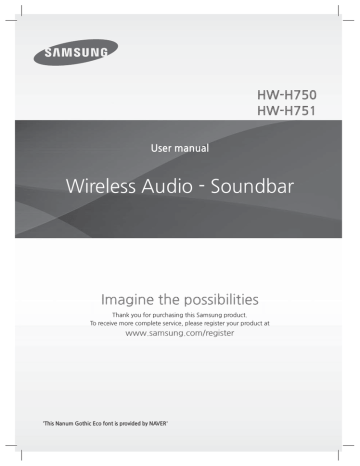

HW-H750

HW-H751

User manual

Wireless Audio - Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

'This Nanum Gothic Eco font is provided by NAVER'

FEATURES

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which lets you listen to sound from your TV through the

Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and spaciousness to your listening experience.

Surround Sound Expansion is powered by Sonic Emotion.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects - CINEMA / SPORTS / VOICE / MUSIC / STANDARD (Original Sound) - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

Multiroom Link

Once the Soundbar is connected to a smart device with Multiroom Link App, you can connect multiple

Samsung Multiroom devices together wirelessly.

LICENSES

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of

DTS, Inc. DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).

2

SAFETY INFORMATION

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO

NOT OPEN

The lighting flash and arrowhead within the triangle indicates that there is dangerous voltage Inside the product.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The explanation point within the triangle indicates that there are important instructions accompanying the product.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.

To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet that is on a different circuit than the radio or TV.

• Consult the dealer or an experienced radio/TV technician for help.

Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3

SAFETY INFORMATION

PRECAUTIONS

3.9 inch

3.9 inch

2.7 inch

3.9 inch

identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation 3~4 inches. Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet.

Unplug the unit if you intend to leave it unused for a long period of time.

from the wall outlet. Voltage peaks due to lightning could damage the unit.

heat sources. This could lead to overheating and cause the unit to malfunction.

chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only.

Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD, The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

4

CONTENTS

CONTENTS

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety warnings

4 Precautions

6 GETTING STARTED

6 Before reading the User’s Manual

6 What’s Included

7 DESCRIPTIONS

7 Front/Bottom Panel

8 Rear Panel

9 REMOTE CONTROL

9 Remote Control Buttons and Functions

11 CONNECTIONS

11 Installing the Wall Mount

12 Detaching the Wall Mount

12 Installing the bracket without referring to the Wall-mount Installation Guide

13 Connecting the Wireless Subwoofer

14 Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer

15 Connecting an External Device using an

HDMI cable

16 Connecting an External Device using

Optical (digital) cable or Audio (analog) cable

16 Assembling the Cable Clip

17 FUNCTIONS

17 Input mode

17 ARC (HDMI OUT)

18 Bluetooth

20 TV SoundConnect

21 USB

22 Using the Network Standby On function

22 Using the AUTO POWER LINK Function

23 Using the Multiroom Link

25 Software update

26 TROUBLESHOOTING

27 APPENDIX

27 Specifications

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

5

GETTING STARTED

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+ Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

+ Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 26)

+ Copyright

2014 Samsung Electronics Co.,Ltd.

All rights reserved; no part of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

(Wall Mount L: 1EA)

Remote Control / Lithium

Battery (3V : CR2032)

(AH59-02632A /

4301-001042)

User Manual /

Quick Guide

(AH68-02725A) /

(AH68-02707H)

(Wall Mount R: 1EA)

Bracket-Wall Mount

(L : AH61-03833A /

R : AH61-03834A)

Wall Mount Guide

AH63-03710A

(Holder-screw1: 2EA)

(Holder-screw2: 2EA)

Holder-screw

(AH61-03342A/

6001-001961)

AUX Cable

(BN39-01286A)

Power Cord

(3903-000598)

USB Cable

(AH39-01178B)

DC Adapter

(BN44-00732A)

Cable Clip

(AH65-00012B)

(For Subwoofer power cable 1EA)

Toroidal ferrite core

(3301-000144)

● The appearance of the accessories may differ slightly from the illustrations above.

● Use the dedicated USB cable to connect external USB devices to the unit.

DESCRIPTIONS

DESCRIPTIONS

FRONT/BOTTOM PANEL

AUX IN

Connect to the Analog output of an external device.

(USB Port)

Connect USB devices such as

MP3 players here to play files on the devices.

(Function) Button

Selects the D.IN, AUX, HDMI, BT, TV, USB input.

● While the unit is powered on, pressing the (

) button for more than 3 seconds sets the button to act as MUTE button. To cancel MUTE button setup, press the ( ) button for more than

3 seconds again.

VACUUM

TUBE AMP

Display

Displays the current mode.

● If there is no input from the product or remote control for

15 seconds, the display will turn off automatically.

● The display will not turn off automatically in BT READY, TV

READY, and USB Playing modes.

Volume +/-

Controls the volume level.

The numeric value of the volume level appears in the front panel display.

(Power) Button

Turns the Soundbar on and off.

● When you turn on this unit, there will be a 10 to 12 second delay before it produces sound.

● Do not bring cellular phones or mobile devices near the vacuum tube amp, or put other electronic devices on the top of the product. Signals from these devices can cause noise or distortion in the audio.

● Do not let children touch the product's surface when the set is on. It will be hot.

● Open the USB COVER to use USB or AUX port.

7

DESCRIPTIONS

REAR PANEL

WPS/Wi-Fi SETUP Button

Press this button to connect your

Soundbar to your network using

WPS or Wi-Fi setup.

SPK ADD Button

Press the button to connect Soundbar to the

HUB. (not supplied)

DC 24V (Power Supply In)

Connect the DC power adaptor to the power supply jack, and then connect the AC power adaptor plug to a wall outlet.

LAN

Lets you connect to a network using a LAN cable.

HDMI IN

Inputs digital video and audio signals simultaneously using an

HDMI cable. Use when connecting a supported external device.

HDMI OUT (TV)

Outputs digital video and audio signals simultaneously using an HDMI cable.

OPTICAL IN

Connect to the digital (optical) output of an external device.

● When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug.

Do not pull the cable.

● Do not connect this unit or other components to an AC outlet until all connections between components are complete.

REMOTE CONTROL

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

SOURCE

Press to select a source connected to the Soundbar.

MUTE

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

REPEAT OFF : Cancels Repeat Playback.

REPEAT FILE : Repeatedly play a track.

REPEAT ALL : Repeatedly play all tracks.

REPEAT RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the $ button, the next file is selected.

AUDIO SYNC

If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the AUDIO SYNC buttons to sync the audio with the video. Use the #,$ buttons to set the audio delay between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the

Audio Sync function may not work.

Press and hold the AUDIO SYNC button on the remote for over 7 seconds to activate Wi-Fi SETUP function.

DIMMER/Anynet+

DIMMER : Press the DIMMER/Anynet+ button to control the brightness of the VACUUM TUBE AMP. DIMMER does not function for

30 seconds after you turn on the product for the very first time.

Anynet+ : Press and hold the DIMMER/Anynet+ button for more than

5 seconds to turn the Anynet+ function and AUTO POWER LINK function on or off. The Anynet+ function lets you control the

Soundbar with the remote from an Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

See page 22 for details about AUTO POWER LINK.

TREBLE BASS

Press to select Treble or Bass. Then, use the #,$ button to adjust the Treble or Bass volume from -3 to +3.

● Soundbar is a Samsung proprietary name.

● Operate the TV using the TV's remote control.

9

REMOTE CONTROL

POWER

Turns the Soundbar on and off.

VOLUME

Adjusts the volume level of the unit.

Skip Back

If there is more than one file on the device you are playing, and you press the # button, the previous file is selected.

Play/Pause

Press the ► button to pause playing the file temporarily.

Press the ► button again to play the selected file.

SOUND EFFECT

Press to select a sound effect mode.

Select the STANDARD mode if you want to enjoy the original sound.

When you choose a Sound Effect mode (except STANDARD),

Surround Sound Expansion will automatically be turned OFF.

WOOFER

You can control the woofer volume.

Press the #,$ button to increase or decrease the subwoofer volume. You can set it from SW -6 to SW +6.

Press and hold the WOOFER button on the remote for over 5 seconds to activate SPK ADD function.

Surr.Sound (Surround Sound Expansion)

Press the Surr.Sound button on the remote to add depth and spaciousness to the sound.

When you select SURROUND SOUND AUTO: If the sound source has more than 2 channels, SURROUND SOUND ON turns on automatically. If the sound source has 2 channels (stereo) or less,

SURROUND SOUND OFF is selected automatically.

Press and hold the Surr.Sound button on the remote for over 5 seconds to activate WPS function.

+ Installing the Battery in the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

CONNECTIONS

CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

+ Installation Precautions

● Install on a vertical wall only.

● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.

● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.

● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

Diameter : M5

-

Length: 1 3/8 in (35 mm) or longer recommended.

● Connect cables from the unit to external devices before you install it on the wall.

● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the installation guide against the wall surface.

• The installation guide must be level.

• Install at least 2 inches (5 cm) below the TV, if the TV is mounted on the wall.

2. Mark the location where the screws will go through on the wall using a pen, and then remove the installation guide.

3. Fasten the wall mounts and screws to the marked locations.

• The left and right mounts are different shapes.

4. Secure the two holder screws to the screw holes on the back of the Soundbar's main body, one on the left and one on the right.

5. Dust may be introduced into the Soundbar's inside if mounted on the wall. Make sure to keep the USB COVER closed.

6. Set the holder screws on the back of the Soundbar into the grooves of the wall mount.

For safe installation, make sure to push the holder screws all the way to the bottom of the grooves.

2 inches

(5 cm) or more

Using the Soundbar with Wall Mount

[Wall Mounting the Soundbar]

11

CONNECTIONS

DETACHING THE WALL MOUNT

1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mount.

Using the Soundbar with Wall Mount

[Detaching the Soundbar from the Wall Mount]

● Do not hang onto the installed unit and avoid striking or dropping the unit.

● Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.

● When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall.

● For the optimal performance of a wall mount installation, install the speaker system at least 2 inches

(5 cm) below the TV, if the TV is mounted on the wall.

● For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

INSTALLING THE BRACKET WITHOUT REFERRING TO THE

WALL-MOUNT INSTALLATION GUIDE

2 inches

(5 cm) or more

2 inches

(5 cm) or more

6.3 inches

(16 cm)

6.9 inches

(17.5 cm)

Minimum 12.9 ~ 13.2 inches

(32.8 ~ 33.5cm)

1. Place the “Wall Mount L” on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its right end.

2. Place the “Wall Mount R” on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its left end.

• If Wall Mount L/R are to be mounted beneath the TV, check their fixing hole positions in steps 1 and 2, so that they are aligned appropriately to the center of the TV’s bottom.

3. Fix screws through the rest of holes.

CONNECTIONS

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the LINK indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

Complete this process within 30 seconds after the Link Indicator on the subwoofer starts blinking.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2. Confirm that the main unit is off (in STANDBY

Mode).

3. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

• The LINK indicator (Blue LED) on the subwoofer blinks quickly.

4. While the main unit is powered off (in STANDBY mode), press and hold the MUTE ( ) on the remote control for 5 seconds.

5. The ID SET message appears on the Soundbar's display.

6. To finalize the link, turn the main unit’s power on while the subwoofer’s LINK LED blinks.

• The main unit and the subwoofer should now be linked (connected).

• The LINK indicator (blue LED) on the subwoofer should be on and solid blue.

• If the LINK indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.

• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.

(See page 10)

● Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the LINK indicator (Blue LED) blinks for 30 seconds.

● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

● The transmission distance of the wireless signal between the main unit and subwoofer is about 33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

● If the main unit doesn't make a wireless connection, follow steps 1-6 in the left hand column to re-set the connection between the main unit and wireless subwoofer.

● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.

● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

13

CONNECTIONS

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER

CORD OF THE SUBWOOFER

You can reduce noise caused by electromagnetic radiation by fitting the ferrite core to the power cord of your subwoofer.

1. Unlock and open the ferrite core.

2. Wind the power cable of your subwoofer around the ferrite core twice.

(Start winding 2 to 4 inches away from the core).

3. Close the ferrite core by pressing it until it clicks.

CONNECTIONS

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes, and more.

Because HDMI transmits the highest quality digital signal, you can enjoy superior video and audio - as it was originally created at the digital source.

HDMI IN

HDMI Cable

(not supplied)

HDMI OUT

Digital Devices

HDMI OUT (TV)

HDMI Cable

(not supplied)

HDMI IN

HDMI IN

Connect an HDMI cable (not supplied) from the

HDMI IN jack on the back of the product to the

HDMI OUT jack on your digital device.

and,

HDMI OUT (TV)

Connect an HDMI cable (not supplied) from the

HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

● HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

ARC (HDMI OUT)

The ARC function allows digital audio to output via the HDMI OUT (ARC) port.

It can be enabled only when the Soundbar is connected to a TV that supports the ARC function.

● Anynet+ must be turned on.

● This function is not available if the HDMI cable does not support ARC.

15

CONNECTIONS

CONNECTING AN EXTERNAL DEVICE USING OPTICAL (DIGITAL)

CABLE OR AUDIO (ANALOG) CABLE

This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to connect it to a TV.

OPTICAL IN

OPTICAL

OUT

Optical Cable

(not supplied)

BD/ DVD player/

Set-top box/

Game console

AUX IN

AUDIO

OUT

Audio Cable

OPTICAL IN

Connect the OPTICAL IN on the main unit to the

OPTICAL OUT jack of the TV or Source Device.

● Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.

● Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

or,

AUX IN

Connect AUX IN (Audio) on the main unit to the

AUDIO OUT jack of the TV or Source Device.

Be sure to match connector colors.

ASSEMBLING THE CABLE CLIP

DC 24V DC 24V

Attach the cable clip to the unit as shown, and then run the cables through the clip to keep them neat.

FUNCTIONS

FUNCTIONS

INPUT MODE

Press the ( ) button on the main unit’s front panel or the select the mode you want.

(SOURCE) button on the remote control to

Input mode

Optical Digital input

AUX input

HDMI input

BLUETOOTH mode

TV mode

USB mode

Display

D.IN

AUX

HDMI

BT

TV

USB

The unit turns off automatically in the following situations:

● D.IN/HDMI/BT/TV/USB/ARC Mode

If there is no audio signal for 15 minutes.

● AUX Mode

-

If there is no KEY input for 8 hours when the

AUX cable is connected.

-

If the AUX cable is disconnected for 15 minutes.

● Use the provided USB cable if you cannot connect a USB flash memory device directly to the unit.

● To disable Auto Power down Off, press the & button for over 5 seconds in AUX mode.

ARC (HDMI OUT)

ARC (Audio Return Channel) transfers digital audio signal to the HDMI OUT (ARC) port.

HDMI Cable

1. Connect the TV supporting ARC to the Soundbar with an HDMI cable.

2. Turn on the TV, and turn on the Soundbar’s Anynet+.

3. Press the ( ) button on the main unit’s front panel or the to select the D.IN mode.

(SOURCE) button on the remote control

● If the HDMI cable does not support ARC feature, ARC may not work properly.

● To turn off the ARC function, turn Anynet+ off.

17

FUNCTIONS

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

+ To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

1. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on the remote control to select the BT mode.

2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the

Bluetooth device's user manual.)

3. Select the Stereo headset menu on the Bluetooth device.

• You will see a list of scanned devices.

4. Select "[Samsung] Soundbar" from the list.

• When the Soundbar is connected to the

Bluetooth device, it will display BT READY

[Bluetooth Device Name] → BT on the front display.

• The device name can only be displayed in

English. An underline " _ " will be displayed if the name is not in English.

• If the Bluetooth device has failed to pair with the Soundbar, delete the previous

"[Samsung] Soundbar" found by the

Bluetooth device and have it search for the

Soundbar again.

5. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the

Soundbar.

• In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

Bluetooth device

● If asked for PIN code when connecting a

Bluetooth device, enter <0000>.

● Only one Bluetooth device can be paired at a time.

● The Bluetooth connection will be terminated when you turn the Soundbar off.

● The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

-

If there is a strong electrical field around the Soundbar.

If several Bluetooth devices are simultaneously paired with the

Soundbar.

If the Bluetooth device is turned off, not in place, or malfunctions.

Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the

Bluetooth device, which can cause electric interference.

● The Soundbar supports SBC data

(44.1kHz, 48kHz).

● Connect only to a Bluetooth device that supports the A2DP (AV) function.

● You cannot connect the Soundbar to a

Bluetooth device that supports only the

HF (Hands Free) function.

FUNCTIONS

+ To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

● The Soundbar will be disconnected.

● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT

DISCONNECTED on the front display.

+ To disconnect the Soundbar from the Bluetooth device

Press the (SOURCE) button on the remote control or the ( ) button on the product's front panel to switch from BT to another mode or turn off the Soundbar.

● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the

Soundbar and the Bluetooth device exceeds 16.25 ft. (5m).

● The Soundbar automatically turns off after 15 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

● A Bluetooth device may cause noise or malfunction, depending on usage, when:

A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the

Soundbar.

It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

● Pair the Soundbar with the Bluetooth device while they are close together.

● The further the distance between the Soundbar and Bluetooth device, the worse the quality is.

If the distance exceeds the Bluetooth operational range, the connection is lost.

● In poor reception areas, the Bluetooth connection may not work properly.

● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

● This wireless device may cause electric interference during its operation.

19

FUNCTIONS

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV

SoundConnect function.

+ Connecting a TV to the Soundbar

Connect

1. Turn on the TV and Soundbar.

• Set the "Add New Device" menu of the TV to

"On".

2. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on the remote control to select the TV mode.

3. On the TV, a message asking whether to enable the TV SoundConnect function. "[Samsung]

Soundbar" is displayed on the TV screen.

4. Select <Yes> to finish connecting the TV and

Soundbar by TV remote control.

● Switching the Soundbar’s mode from TV to another mode automatically terminates

TV SoundConnect.

● To connect the Soundbar to another TV, the existing connection must be terminated.

● Terminate the connection to the existing

TV, and then press the ► button on the remote control for 5 seconds to connect to another TV.

● The TV SoundConnect (SoundShare) function is supported by some Samsung

TVs released from 2012 on. Check whether your TV supports the TV

SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV’s user manual.)

● If your Samsung TV was released before

2014, check the SoundShare setting menu.

● If the distance between the TV and

Soundbar exceeds 16.25 ft. (5m), the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

● TV SoundConnect Operational Ranges:

Recommended pairing range: within 20 inches (within 50cm)

-

Recommended operational range: within 16.25 ft. (within 5m)

The Play/Pause, Next, Prev buttons are not operable in TV SoundConnect mode.

USB

You can play music files located on USB storage devices through the Soundbar.

USB port Display

FUNCTIONS

1. Connect the USB device to the USB port of the product.

2. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on the remote control to select the USB mode.

3. USB appears on the display screen.

• The Soundbar connection to the USB device is complete.

• The Soundbar automatically turns off (Auto

Power Off) if no USB device has been connected for more than 15 minutes.

+ Before you connect a USB device

Be aware of the following:

● If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the

Soundbar's display.

● This product may not be compatible with certain types of USB storage media.

● The Soundbar supports the FAT16 and FAT32 file systems.

The NTFS file system is not supported.

● Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a

USB compatibility problem.

● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.

● Digital camera PTP protocols are not supported.

● Do not remove the USB device while it is transferring files.

● DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.

● External HDDs are not supported.

● Mobile phone devices are not supported.

● File Format Type Compatibility list:

Format

*.mp3

*.wma

*.aac

Codec

MPEG 1 Layer2

MPEG 1 Layer3

MPEG 2 Layer3

MPEG 2.5 Layer3

Wave_Format_MSAudio1

Wave_Format_MSAudio2

AAC

AAC-LC

HE-AAC

*.wav

*.ogg

*.flac

-

OGG 1.1.0

FLAC 1.1.0, FLAC 1.2.1

 Supported Sampling Rate above 16KHz

21

FUNCTIONS

USING THE NETWORK STANDBY ON FUNCTION

The Network Standby On function becomes available if wireless connection was properly established between the smart device and Soundbar. This function turns on the Soundbar automatically when a smart device attempts to connect to the Soundbar via Bluetooth or Wi-Fi. If the Soundbar was turned on via Bluetooth connection, its input mode is set to BT automatically. Turning on the Soundbar via Wi-Fi is available only by using the App. For further information, refer to the Web manual.

1. Connect the Smart device to your Soundbar.

2. Turn the Network Standby On function on by pressing the $ button on the Soundbar remote for more than 5 seconds. You can turn the function off by pressing the $ button again for more than 5 seconds.

● Available only if the Soundbar is listed among the Smart device’s paired devices. (The Smart device and the Soundbar must have been previously paired at least once.)

● Soundbar will appear in the Smart device’s searched devices list only when the Soundbar is displaying [BT READY] or [WiFi READY].

● In the TV SoundConnect mode, the Soundbar cannot be paired to another Smart device.

● If Network Standby On function did not work

-

The Network Standby On is set to Off.

● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off. Turn on the Soundbar and reconnect.

USING THE AUTO POWER LINK FUNCTION

If Soundbar was connected to an external device with optical cable, AUTO POWER LINK function can be used.

If you connect the main unit to a TV with a digital optical cable, set the Auto Power function ON to have the

Soundbar turn on automatically when you turn the TV on.

1. Connect the Soundbar and an External Device with an Optical cable.

2. Press and hold the DIMMER/Anynet+ button for over 5 seconds to toggle the function.

AUTO POWER LINK

ON

OFF

Display

ANYNET+ OFF /

POWER LINK ON

ANYNET+ ON /

POWER LINK OFF

FUNCTIONS

USING THE MULTIROOM LINK

Once the Soundbar is connected to a smart device with Multiroom Link App, you can connect multiple

Samsung Multiroom devices together wirelessly.

+ Before you begin

Communication Basics

Smart Device:

Android or iOS

(App Control)

Intrenet Wireless Router

1. Requirements: Wireless Router, Smart Device

2. The wireless router should be connected to the Internet.

3. The smart device should be connected to the router via a Wi-Fi connection.

+ Installing the Samsung Multiroom App

To use the Soundbar, you must download and then install the Samsung Multiroom App by accessing the app through Google play or the App Store. With the Samsung Multiroom App installed, you can play music stored in your smart device, from connected devices and other content providers, and from Internet radio stations.

Android or iOS

Download the Samsung Multiroom app from

Google Play or the App Store of your smart device.

* Market search : Samsung Multiroom

Accessing the Samsung Multiroom App

To access the Samsung Multiroom app, press the

Multiroom app icon on your smart device.

zˆ”šœ•Ž tœ“›™––”

or

ANDROID APP ON

23

FUNCTIONS

+ Connecting with Soundbar

Connect the Soundbar to a wired/wireless router. Wired or wireless connection

(using Wi-Fi SETUP or WPS, you can see the guide on Multiroom APP) to the router can be established.

Connecting the Soundbar to Your Network with a LAN Cable

Plug In

LAN

1. Connect your smart device to your Wi-Fi network.

Wireless Router

2. On your Smart device, select the Samsung Multiroom app. Setup starts.

3. In the app, select "I don’t have a Hub", and then press Next. On the next screen, select Soundbar from the device type, and then press Next.

4. Select Wired from the network type, and then press Next.

5. Connect one end of the LAN cable to the Soundbar’s LAN port. Connect the other end to your wireless router. (You cannot use the Soundbar without a wireless router.)

6. Plug the Soundbar into an electrical outlet.

● For further information on connecting the Soundbar with a wired/wireless router, refer to the manual on the Web.

● For further information on connecting the product for Multiroom Link, please refer to the web-based user manual or manual provided within the app.

-

Web manual : www.Samsung.com → Support → Product name search → HW-H750 or

HW-H751 PDF file download.

FUNCTIONS

SOFTWARE UPDATE

+ Updating with USB

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your

Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit Samsung.com or contact the Samsung call center to receive more information about downloading updates files.

1. While the Soundbar is turned off, connect the

USB storage device that contains the updating firmware to the Soundbar’s USB port.

2. Turn on the Soundbar UPDATE appears on the display and updating begins within 3 minutes.

• Upon completion of updating, the Soundbar turns off and on automatically.

If UPDATE was not displayed

1. Turn off the Soundbar, connect the USB storage device that contains update files to the

Soundbar’s USB port.

2. Disconnect the power cord, reconnect it and turn it on.

● Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

● Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

● After reset, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update.

Note that updating firmware resets subwoofer connection too. If connection to the subwoofer is not established automatically after resetting, refer to page 13.

If the firmware fails to update, we recommend formatting the USB device in

FAT16 and trying again.

● Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.

● Depending on the manufacturer, some

USB devices may not be supported.

+ Auto update

Even when the Soundbar is turned off, the

Soundbar will automatically check latest software version and continue to update if it was connected to the Internet.

● The Soundbar is configured to run auto update by default.

● To use auto update function, the

Soundbar must be connected to the

Internet.

● Wi-Fi connection to the Soundbar will be terminated if its power cord was disconnected or the power was cut off.

Turn on the Soundbar and reconnect.

25

TROUBLESHOOTING

TROUBLESHOOTING

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

The unit will not turn on.

• Is the power cord plugged into the outlet?

 Connect the power plug to the outlet.

A function does not work when the button is pressed.

• Is there static electricity in the air?

 Disconnect the power plug and connect it again.

Sound is not produced.

• Is the Mute function on?

• Is the volume set to minimum?

 Press the Mute button to cancel the function.

 Adjust the Volume.

The remote control does not work.

• Are the batteries drained?

• Is the distance between the remote control and main unit too far?

 Replace with new batteries.

 Move closer to the unit.

The TV SoundConnect (TV pairing) failed.

• Does your TV support TV SoundConnect?

• Is your TV firmware the latest version?

• Does an error occur when connecting?

• Reset the TV MODE and connect again.

 TV SoundConnect is supported by some

Samsung TVs released from 2012 on. Check your

TV to see if it supports TV SoundConnect.

 Update your TV with the latest firmware.

 Contact the Samsung call center.

 Press and hold the ► button for 5 seconds to reset the TV SoundConnect connection.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

• Your subwoofer may not be connected to the main body of the product.

 Try to connect your subwoofer again.

(See Page 13)

The subwoofer drones and vibrates noticeably.

• Try to adjust the vibration of your subwoofer.

 Press the WOOFER button on your remote control to adjust its value (between SW-6 and

SW+6).

APPENDIX

APPENDIX

SPECIFICATIONS

Model name

HW-H750, HW-H751

GENERAL

Power Supply

Standby Power Consumption

Power

Consumption

Main Unit

0.45W

49W

Subwoofer (PS-WH750, PS-WH751) 20W

USB

Main Unit

DC 24V

Subwoofer (PS-WH750, PS-WH751) AC 120V~60Hz

Weight

Main Unit

5V/0.5A

7.28 Ibs

Subwoofer (PS-WH750, PS-WH751) 21.6 Ibs

Dimensions

(W x H x D)

Main Unit

37.13 x 4.84 x 2.24 inches

Subwoofer (PS-WH750, PS-WH751) 12.02 x 15.29 x 12.02 inches

Operating Temperature Range

Operating Humidity Range

+41°F to +95°F

10 % to 75 %

AMPLIFIER

Main Front

Rated Output

Power

Main Bottom

40W/CH, 6 OHM, THD = 1%, 1kHz

40W/CH, 6 OHM, THD = 1%, 1kHz

Subwoofer (PS-WH750, PS-WH751) 160W, 3 OHM, THD = 10%, 100Hz

S/N Ratio (Analog Input)

Separation (1kHz)

65 dB

65 dB

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio

Engineering Society) guidelines.

* Nominal specification

-

Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

Weight and dimensions are approximate.

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call,

(877) 278 - 0799

Open Source License Notice

For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com

License

The Spotify Software is subject to third party licenses found here : www.spotify.com/connect/third-party-licenses.

-

For more information about Spotify Connect, please visit www.spotify.com/connect

27

WARRANTY

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts and Labor*

(*90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the

United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES

WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY

PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR

CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE

LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS

PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG

BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE

ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR

LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY

ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY

BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE

ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung reseller. THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS

PURCHASED FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION

MAY BE PROHIBITED. For a list of Samsung authorized retailers, please go to: http://www.samsung.com/us/ peaceofmind/authorized_resellers.html

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To obtain warranty hardware service, please contact SAMSUNG customer care center.

QUESTIONS OR COMMENTS?

COUNTRY

U.S.A

CALL OR VISIT US ONLINE AT

1-800-SAMSUNG

(726-7864)

www.samsung.com/us/support

WRITE

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

AH68-02725A-02 AH68-02725A-02

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
