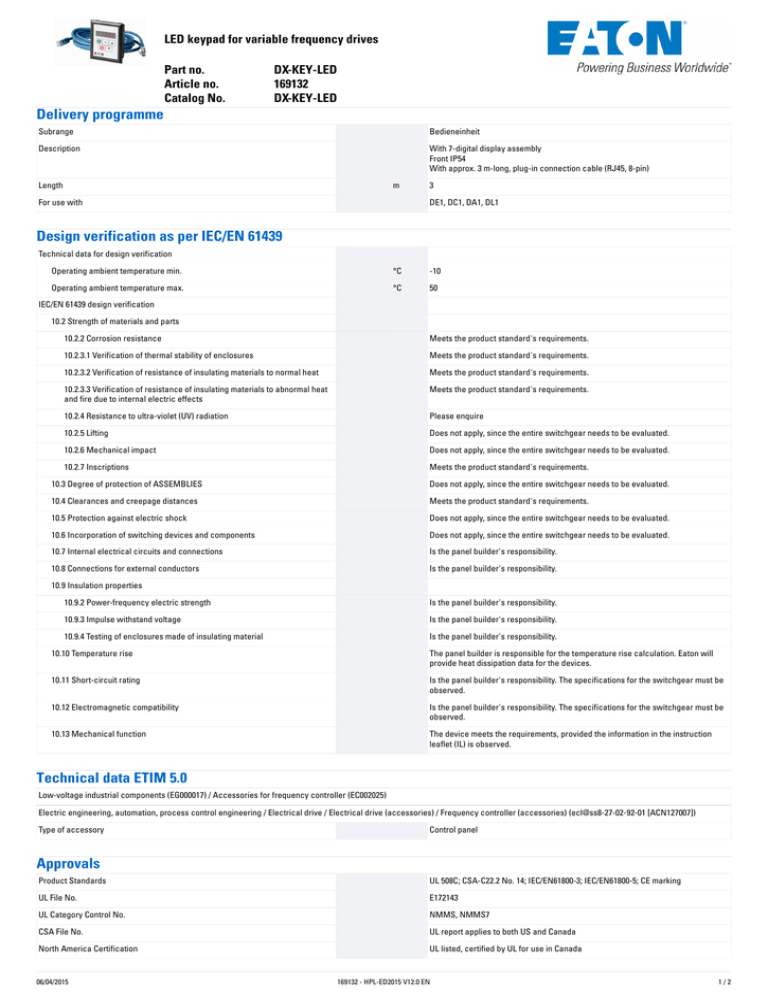

Delivery�programme LED�keypad�for�variable�frequency�drives Part�no.  DX-KEY-LED

Delivery�programme LED�keypad�for�variable�frequency�drives Part�no.  DX-KEY-LED
LED�keypad�for�variable�frequency�drives
Delivery�programme
Part�no. Article�no. Catalog�No. DX-KEY-LED
169132
DX-KEY-LED
Subrange
Bedieneinheit
Description
With 7-digital display assembly
Front IP54
With approx. 3 m-long, plug-in connection cable (RJ45, 8-pin)
Length
m
3
For use with
DE1, DC1, DA1, DL1
Design�verification�as�per�IEC/EN�61439
Technical data for design verification
Operating ambient temperature min.
°C
-10
Operating ambient temperature max.
°C
50
IEC/EN 61439 design verification
10.2 Strength of materials and parts
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat
and fire due to internal electric effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will
provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be
observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction
leaflet (IL) is observed.
Technical�data�ETIM�5.0
Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Electrical drive (accessories) / Frequency controller (accessories) ([email protected] [ACN127007])
Type of accessory
Control panel
Product Standards
UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.
E172143
UL Category Control No.
NMMS, NMMS7
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, certified by UL for use in Canada
06/04/2015
169132 - HPL-ED2015 V12.0 EN
Approvals
1/2
Specially designed for North America
No
Suitable for
Branch circuits
Degree of Protection
IEC: IP00
Dimensions
Additional�product�information�(links)
IL04012020Z�Remote�Keypad�LED/OLED
IL04012020Z Remote Keypad LED/OLED
ftp://ftp.moeller.net/DOCUMENTATION/AWA_INSTRUCTIONS/IL04012020Z2012_12.pdf
MN04020003Z�DC1�variable�frequency�drive,�manual
MN04020003Z Frequenzumrichter DC1,
Handbuch - Deutsch
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020003Z_DE.pdf
MN04020003Z DC1 variable frequency drive,
manual - English
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020003Z_EN.pdf
MN04020003Z Frekvenční měnič DC1, manuál - ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020003Z_CZ.pdf
čeština
MN04020003Z Convertitori di frequenza DC1,
manuale - italiano
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020003Z_IT.pdf
MN04020005Z�DA1�variable�frequency�drive,�manual
MN04020005Z Frequenzumrichter DA1,
Handbuch - Deutsch
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020005Z_DE.pdf
MN04020005Z DA1 variable frequency drive,
manual - English
ftp://ftp.moeller.net/DOCUMENTATION/AWB_MANUALS/MN04020005Z_EN.pdf
CA04020001Z_EN-INT Product range catalog:
Efficient Engineering for starting and
controlling motors.
http://www.eaton.eu/ecm/groups/public/@pub/@europe/@electrical/documents/content/pct_1095238.pdf
06/04/2015
Eaton Industries GmbH
http://www.eaton.eu
© 04/2015 by Eaton Industries GmbH
169132 - HPL-ED2015 V12.0 EN
2/2
