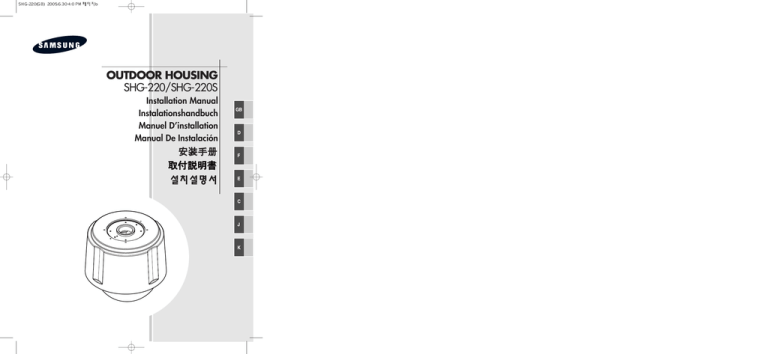

OUTDOOR HOUSING
SHG-220/SHG-220S
Installation Manual
Instalationshandbuch
Manuel D’installation
Manual De Instalación
GB
D
F
E
C
J
K
IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions should be read before the
unit is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future
reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions should be
adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Attachments - Do not use attachments not recommended by the product manufacturer
as they may cause hazards.
6. Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount.
The unit may fall, causing serious injury to a person and serious damage to the unit.
Use only with a stand, tripod, bracket, or mount recommended by the manufacturer or
sold with the product. Any mounting of the unit should follow the manufacturer's
instructions and should use a mounting accessory recommended by the
manufacturer. An appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
7. Power Sources - This unit should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply you plan
to use, consult your appliance dealer or local power company. For units intended to
operate from battery power or other sources, refer to the operating instructions.
8. Power Lines - An outdoor system should not be located in the vicinity of overhead
power lines or other electric light or power circuits or where it can fall into such power
lines or circuits. When installing an outdoor system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
U.S.A. models only - refer to the National Electrical Code Article 820 regarding
installation of CATV systems.
9. Servicing - Do not attempt to service this unit yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
10. Replacement Parts - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the
same characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
11. Safety Check - Upon completion of any service or repairs to this unit, ask the service
technician to perform safety checks to determine that the unit is in proper operating
condition.
12. Coax Grounding - If an outside cable system is connected to the unit, be sure the
cable system is grounded. U.S.A. models only--Section 810 of the National Electrical
Code, ANSI/NFPA No.70-1981, provides information with respect to proper grounding
of the mount and supporting structure, grounding of the coax to a discharge unit, size
of grounding conductors, location of discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
1
FCC & ICES INFORMATION (U.S.A.AND CANADIAN MODELS ONLY)
WARNING - This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry
Canada. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential installation. This equipment
generates, uses, and radiates radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at
his own expense. Intensional or unintensional changes or modifications not expressly
approved by the party responsible for compliance shall not be made. Any such changes
or modifications could void the user’s authority to operate the equipment.
GB
If necessary, the user should consult the dealer or an experienced radio/television
technician for corrective action. The user may find the following booklet prepared by the
Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV
Interference Problems." This booklet is available from the U.S. Government Printing
Office, Washington, DC 20402, Stock No.004-000-00345-4.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS.
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This label may appear on the bottom of the unit due to space limitations.
The lightning flash with an arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
Summary
The Outdoor Housing (SHG-220/SHG-220S) is used for installating
the Smartdome Camera on an outdoor wall or ceiling.
Precautions Before Installation
•
Make sure that the proposed location can support the combined weights of the
Corner Mounted Adaptor, Wall Mounted Adaptor, Outdoor Housing and Smartdome
Camera (about 11 kg).
•
•
Use a 24V AC, 3.0 A power adaptor.
This goods should only be installed by a qualified technician using approved materials
and wiring practices in accordance with national, state, and local electrical code.
Installation
1
Select a location that is capable of supporting four times the
total weight of the product to be installed.
2
Depending on the installation location, use the appropriate
adaptor for installing the Outdoor Housing.
1. Wall Mounted Adaptor (SADT-100WM): For direct installation on a wall.
2. Ceiling Mounted Adaptor (SADT-100CM): For installation on a ceiling.
3. Pole Mounted Adaptor (SADT-100PM): For installation on a cylindrical pole.
• The Wall Mounted Adaptor (SADT-100WM) is also used in conjunction with
the Pole Mounted Adaptor.
4. Corner Mounted Adaptor (SADT-110CM): For installation in the corner of a wall.
• The Wall Mounted Adaptor (SADT-100WM) is also used in conjunction with
the Pole Mounted Adaptor.
3
3
Connect the Outdoor Housing power cable to the camera
adaptor's AC 24V-out connector.
HOUSINMG
GB
CAMERA ADAPTOR
4
Connect the power cable, video-out cable and
communications cable to the camera adaptor.
(For details, refer to the Smartdome Camera User's Guide.)
5
After tidying up the cables, align the camera adaptor lever
with the cover top boss and fasten it to the cover top using
four screws (M4 x 8).
CAMERA ADAPTOR
Boss
LEVER
4
6
Disengage the dome from the Smartdome Camera.
1) Loosen the (M2) screw on the side of Smartdome Camera, turn the dome
clockwise about 15 degrees and pull it off.
SMARTDOME CAMERA
DOME
15 degree
7
Align the arrow on the camera adaptor with the arrow on the
Smartdome Camera, insert the three bosses on the back of
the camera into the three camera adaptor holes, together with
the connectors, and turn the camera about 15 degrees
clockwise. (Listen for the click that confirms engagement and
make sure that the locking lever returns to its original
position.)
CAMERA ADAPTOR
CAMERA ADAPTOR
CAMERA
CAMERA
15 degree
5
2
1
8
Secure the camera body to the camera adaptor using the screw (BH
M3 x L8) provided with the Smartdome Camera.
• To disengage the camera from the camera adaptor, loosen the engaging screw
(BH M3 x L8), turn the camera counterclockwise while the locking lever is
turned clockwise, and pull the camera off.
GB
9
For smooth assembly of the dome, apply silicon grease to the
gasket, align it with the boss and push the dome vertically
into the housing.
GASKET
(GREASE
APPLICATION)
DOME
6
10
Insert three pins into the side of the Housing and insert the
screws (M3 x L12) into the pins from below.
PIN
Product Specifications
External dimensions:
ø 266 x H259
Weight: 3.7kg
Suitable Temperature range:
- 40°~ 50°C
Suitable Humidity range:
0~100%
Fan operating temperature:
45°C or higher
Heater operating temperature:
10°C or less
1 1/2" NPT PIPE THREAD
172
259
168
266
7
Accessories
Screw(BH M3 X L12).......................... 3
PIN ........................................................ 3
SILICON GREASE 5g ........................ 1
GB
8
AB68-00235A
PRINTED IN KOREA
