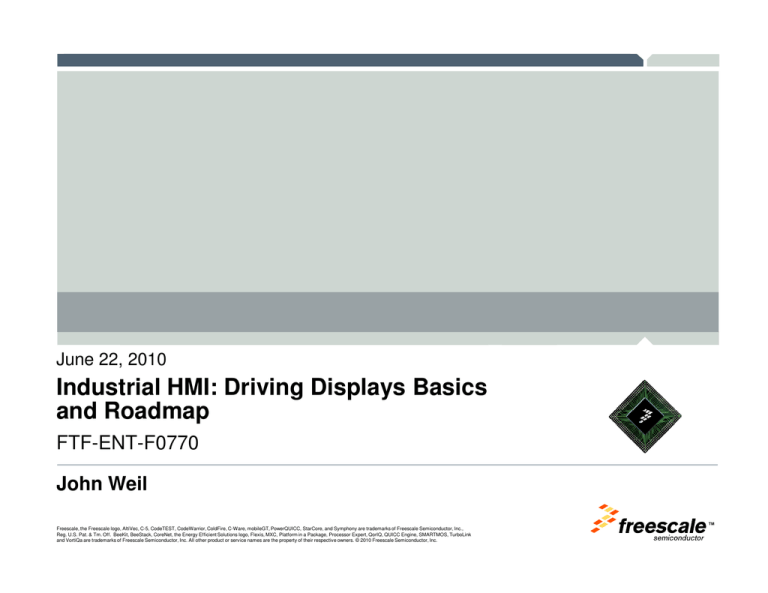

Industrial HMI: Driving Displays Basics
and Roadmap
FTF-ENT-F0770
John Weil
TM
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
Agenda
►Trends
and Trade-Offs
►Hardware Interfacing
►Content Generation
►Freescale Solutions
►Conclusion
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
2
Display Content Delivery
►General Observations
• iPhone and iPad have ushered in a new era of UI expectation
• Public welcomes and expects digital content everywhere
• Cost, low-power and longer battery life are key enablers
►Trade-Off
•
– Creation vs. Delivery Cost
Reducing content creation cost
Leverage development community skill set
Leverage common tool sets
Leverage existing content
•
Reducing content delivery cost
Implies increasing content creation and management costs
Efficiencies can be gained with specialized tool sets
UI expectations works against cost reductions
►Change
on the Horizon?
There is a push for more efficient embedded solutions, e.g. MID/tablet/netbook
• Embedded UIs are becoming more complex but still have high cost pressure
• Controlling delivery costs enables more public deployment and ROI
•
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
3
Display Solutions Tiers
► Segmented
Display (288 Segments & Below)
Low-end integrated MCU solutions
• 288 segments is the cost cross-over point to pixel based displays
•
► Smart
•
•
•
•
•
Low/mid-range general MCU/MPU solutions
Smart displays have an integrated frame buffer and MCU to refresh display
Memory mapped communication is used to update pixel changes
Serial/Parallel bus communication accommodates generic MPU/MCU solutions
Amount of pixel update is limited by communication bandwidth
► Dumb
•
•
•
•
•
•
Pixel Display (VGA & Below)
Pixel Display (VGA & Above)
Low/mid/high-end integrated display controller MCU/MPU solutions
Dumb displays have no buffer and are refreshed by the MCU/MPU
Display interface contains all data to update entire display at a refresh rate
Clocked interface happens over RGB, LVDS, HDMI and Display Port
Mid-range integrates multi-plane blend, graphics and video acceleration
High-end solutions interface to high-end graphics processors
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
4
Display Spectrum
Display Technologies
Small-size Displays
Monochrome LCD
Segment-based
Monochrome LCD
Dot-Matrix/Graphical
Organic Light Emitting
Diode Displays
(OLED)
Med- to Large-sized Displays
Monitors, Terminals, TVs, etc
Vacuum Fluorescent
Display (VFD)
Passive
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
LED Matrix
Color LCD/TFT
Plasma/LED
Graphical
Active
TM
5
Display Spectrum
Monochrome LCD
Segment-based
Monochrome LCD
Dot-Matrix/Graphical
Color LCD
Graphical
Organic Light Emitting
Diode Displays
(OLED) – SM and P
Vacuum Fluorescent
Display (VFD)
LED Matrix
Strengths:
►Inexpensive
►Easily customizable
►Multiple suppliers of
glass and controllers
►Power consumption is
relatively low for
comparable sizes
►Standard
and
customizable displays
►Graphics vs fixed
characters
►Price approaching
seg/char-based
►Color
graphical
display
►Range up to full
graphics (VGA)
►Very
bright, color
display
►High contrast
►Very wide viewing
angle
►Functionality in harsh
environments (very
cold climates)
►Brightness
and color
approaching VFD
►No backlight req’d
►Seg/char and
graphical displays
available
►Manufacturing options
(i.e. flexible display for
PLEDs) and process
►Lower power
consumption
Very bright display with
multiple color options
Could be used for
larger displays
Weaknesses:
►Monochrome
►Fixed displays
►Requires very high
segment count for
graphics
►Viewing angle
►Graphics can be
limited due to controller
code and/or dot count
►Code req’d is more
complex than seg/charbased displays
►Viewing angle
►Power
►Power
►Life
span
►Patented technology
by Kodak (SM)
►Patented tech by CDT
(polymer)
►Water resistance
(lack thereof)
Power consumption
Viability for smaller
displays
►Backlight
consumption
►Fixed displays
►Manufacturing
process
Opportunities:
“will always be around”
Demand is increasing
for graphical display
►Demand increasing
►Still
►If
Threats:
displays
coming down to
seg/char-based display
prices offer key
advantages
Consumer demand for
color displays
►Other
consumption
►Cost
►Controller
reqs
needed
►Limited number of
suppliers with
affordable displays
►Viewing angle
for graphical displays
used in Industrial
applications in
outdoor/cold climates
longer life can be
realized, offers many
benefits over LCD
►Being
taken over by
OLED in many
applications
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
6
Common Display Resolutions
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
7
Hardware Interfacing
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
8
Segment LCD Interface Options
Integrated LCD driver
-LCD peripheral generates the FP
and BP signals necessary to drive the
display
40 FP
(seg)
4 BP (com)
GPIO
LED
LCD Glass module with SPI interface
SPI
- MCU generates the communication
protocol necessary to interface to a
smart LCD display
GPIO
LED
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
9
LCD Interface Options
MPU
Unified
Memory
MPU
Memory
MCU/MPU
MCU/MPU
MPU
RGB
ITU
656
PCI
VGA
HDMI
DP
LCD
Long Run
Long Run
Cable
Cable
External
GPU
LVDS
MPU
Unified
Memory
MCU/MPU
RGB
Frame
Buffer
LCD
CVBS
MPU
Unified
Memory
LVDS
Dumb
Displays
MCU/MPU
LCD
SPI
Mem Mapped Parallel
CVBS
MPU
Smart
Unified
Displays Memory
LCD
LCD
DRAM
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
10
Memory Mapped vs. RGB Interface Trade-Off
24-bit Efficiency QVGA
Horizontal
320
Vertical
240
Pixels (MPix)
0.08
Buffer (MB)
0.23
Bus Width
1-bit
8-bit
16-bit
RGB Width
8-bit
24-bit
90%
70%
70%
100%
100%
VGA WQVGA SVGA
640
800
800
480
480
600
0.31
0.38
0.48
0.92
1.15
1.44
XGA
1024
768
0.79
2.36
720p WXGA 1080p
1280
1366
1920
720
768
1080
0.92
1.05
2.07
2.76
3.15
6.22
40 MHz
(1-bit interface = SPI)
19.53
4.88
3.91
3.13
1.91
121.53
30.38
24.31
19.44
11.87
243.06
60.76
48.61
38.89
23.74
1.63
10.13
20.25
1.43
8.90
17.79
0.72
4.50
9.00
66 MHz
173.61
43.40
520.83 130.21
14.47
43.40
12.71
38.13
6.43
19.29
34.72
104.17
27.78
83.33
16.95
50.86
* Example frequencies and interface efficiencies are not necessarily reflective of all market solutions
Interface efficiency is a measure of addressing overhead on an interface
► At a given bit width an RGB is more efficient in number of lines, however memory mapped is shared
► Memory mapped will have a higher frame rate for partial screen updates in proportion to the subset
► Motion graphics needs an update rate of at least 30fps to appear smooth
► RGB interface needs a refresh rate of at least 60fps (based on CRTs, LCDs can take less)
► RGB interfaces clock at higher than frequency due to front/back porch and line blanking intervals
►
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
11
RGB Interface Frequency Overhead
Interface
Rate
Vertical Blanking
Front Porch (Y_front)
Horizontal
Blanking
Front
Porch
(X_front)
Pixel
Processing
Rate
► LCD
Higher effective pixel rate
over refreshed resolution rate
due to horizontal blanking
Horizontal
Blanking
Back
Porch
(X_back)
Vertical Blanking
Back Porch (Y_back)
technology follows CRT interface standards
Front/Back porch horizontal and veridical blanking are an artifact of CRT signaling
• LCD specs maintain 60fps refresh, crystals can be refreshed slower
•
► Pixel
rate not to same as interface rate
Blanking intervals results in inflated horizontal/vertical interface pixel rates
• Pixel processing can runs slower than interface, but need to buffer pixels
(buffer up pixel during blue regions):
•
Pixel_processing_rate = X * Y * refresh_rate
Buffer_size >= X * ((PIX_CLK_freq – Pixel_processing_rate) / PIX_CLK_freq), cover higher interface pixel rate
Buffer_size <= Pixel_processing_rate * ((X_front + X_back) / PIX_CLK_freq), max buffering on horizontal blanking
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
12
Digital Content
Common Standards
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
13
Important Video Codec Formats
Video codecs provide the mechanism to reduce storage and bandwidth
requirements to deliver changing display content. Codecs are judged on the
basis of compression, quality and total cost to deploy.
►MPEG2
• DVD playback
►H.263
•
Video conference, internet content
►H.264 / MPEG4 AVC
• DivX, QuickTime, Flash FLV, IPTV, YouTube
►Sorenson, On2 VP
• Flash FLV, YouTube
►WMV, VC-1
• PC, internet content
►Real
Video, RMVB
►Theora
•
Open source, royalty free
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
14
Khronos – Driving Open Standards
The Khronos Group is an industry consortium creating open
standards for the authoring and acceleration of parallel computing,
graphics and dynamic media on a wide variety of platforms and
devices.
►Website:
www.khronos.org
►The consortium has a wide and involved membership
►Good industry push towards their open royalty free standards
►“Foundation-Level” API standards close to the hardware
►Heavy focus on portable platforms aside from OpenGL
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
15
Ecosystem of APIs
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
16
Adobe® Flash®
Adobe Flash is the most established content delivery mechanism given its wide
deployment and developer community. Adobe made its first attempt to open this
“defacto” standard with Adobe FlashLite 3.1 and has recently released the follow-on
Adobe Flash10 standard. Both imply licenses and runtime fees and working within
the bounds of an approved Adobe system house or license agreement.
►Desktop
Adobe Flash
Adobe Flash 9 introduced ActionScript3
• Adobe Flash 10 introduced 3D manipulation
•
►Embedded
Flash
Adobe FlashLite 3.1 (based on Flash 8)
• QNX Aviage built on FlashLite 3.1.7
• Gnash open source flash player
• Swfdec open source library
•
►FLV
•
- Video Container
Supports Sorenson, On2 and H.264 codecs
►Converters
•
Content is covered off-line to support a more efficient runtime display engine.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
17
JAVA™ – Hardware Independence
Java offers a hardware independent platform for delivering graphics
on an embedded system.
►Java
2D API
►AWT (Abstract Windowing Toolkit) API
►Swing build widgets on top of Java 2D API
►M3G – Mobile 3D Graphics API
►JOGL – JAVA Open Graphics Library (OpenGL binding)
Apache Harmony project created a JVM with an Apache License to
allow closed code work as oppose to the open GPL License.
There are many open source JVM solutions emphasizing reduced
memory footprint, performance and safety critical certified aspects.
These can be build from GPL or Apache code base.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
18
Android™ OS – Open Smartphone Platform
Android OS offers a hardware independent platform enabling an apps
development community, while offering vertical customization.
►Dalvik
VM is derived from the Apache Harmony code base
►Graphics: Canvas (drawing + paint) -> bitmap
►AppWidgets allows sharing Widgets between apps
►EGL Interface
►OpenGL ES API Interface
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
19
Android OS Architecture
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
20
Window Managers & GUI
►Linux®
•
•
•
MPlayer
VLC
GStreamer
►Frame
•
Frameworks/Players
Buffer
DirectFB – lightweight
►Windowing
•
Library
X-Server: X11, Tiny-X , Nano-X, … (heavy to lightweight)
►Desktops
•
GNOME, KDE, …
►GUI
development tools
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
21
Digital Content
Custom GUI Development
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
22
Freescale Embedded GUI (eGUI)
►GUI
library enabling rapid development of
cost-effective graphical interfaces
►Pre-configured objects (button, check box,
radio button, gauge, icon, label, menu, slider,
picture and graph) complete with
CodeWarrior demo projects
►Touch screen support
►Window manager for objects
►Interface support for SPI, memory mapped
parallel bus and frame buffer to RGB
►Utilities including font, image and PC
graphics converters
►Complimentary source code with any
Freescale device
►Support for Freescale MQX and Linux
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
23
eGUI Implementation Layering
►
►
►
►
User application – layer of
user application code
Application programmable
interface - interface layer
between user application and
FGUI
eGUI high level - layer that
manage all screens and
objects (redraws, input keys,
touch screen events etc.)
LCD low level – manage
communication with LCD and
provides some basic function
(Draw line, bitmap, circle
etc.)
SW
SW
User application
API
User interface - API
(D4D API)
SW
LCD High level driver
D4D
LCD Low level driver
HW
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
MCU/MPU
LCD module
TM
24
PEG Value Proposition
C/PEGTM
►
►
►
►
►
PEG ProTM
PEG +TM
► Screen transitions
Overlapping windows
•
Small LCDs
► Multiple alpha► Alpha-blended images
•
Low color-depth
blended windows
► Decorated windows
Very small footprint
► True anti-aliased line
► Run-time image decoders
& font drawing
Single window display
► Run-time language
► Dynamic themes
Multi-language capable
resources
► Written in C++
Written in ANSI C
► Written in C++
The smallest footprint and most efficient code base available
Designed for:
90 KB
►
175 KB
250 KB
PEG (Portable Embedded GUI) is a suite of products
for rapid GUI development for embedded systems.
PEG offers an effective method to scale GUIs from
high-end MPU down to low-end MCU product families.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
25
FMSoft’s MiniGUI
FMSoft provides a mature GUI support system has been shown
run smoothly on real-time embedded systems
►The
new MiniGUI 3.0 includes many more features such as double buffering of main
window, Look and Feel Renderer, Irregular Windows, etc.
►
For a video demo of MiniGUI click here
►
For more information visit:
http://www.minigui.com
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
26
Segger GUI Library
www.segger.com
►MCF5227x
•
•
•
•
& MCF532x devices are supported with
emWin (GUI
embOS (RTOS)
emFile (USB
emUSB
►emWin: An efficient, processor- and LCD controller-
independent graphical user interface (GUI) for any
application that operates with a graphical LCD
• Any display, any CPU, any application
• Easy switch from b/w to grey scale or color
• Small footprint
• Extremely flexible for small graphics applications to
high end graphics
• Simulation environment included
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
27
Freescale Display Enabled Products
Overview
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
28
Freescale Display Enabled Products
Freescale
Processor
Seg/BP
Resolution
Arch
Max
MIPS
HW Accel
Display
Buffer
Display
Out
LCD
Cntrl
Video
In/Out
Other
MC9RS08LE4
112 / 8
RS08
20MHz
-
eFlash
3/5V
-
-
low-cost
MC9S08LL8
160 / 8
S08
20MHz
-
eFlash
3/5V
-
-
ultra-lp/rcp
MC9RS08LA8
168 / 8
RS08
20MHz
-
eFlash
3/5V
-
-
low-cost
MC9S08LL16
192 / 8
S08
20MHz
-
eFlash
3/5V
-
-
ultra-lp/rcp
MC9S08LL/LH36/64
288 / 8
S08
40MHz
-
eFlash
3/5V
-
-
ultra-lp/rcp
MC9S08LG32
296 / 8
S08
40MHz
-
eFlash
3/5V
-
-
ultra-lp/rcp
MCF51EM128/256
288 / 8
CFv1
47
-
eFlash
3/5V
-
-
ultra-lp/rcp
MCF5227x
SVGA
CFv2
160
-
DDR1
RGB19
LCDC
-
rtouch
MCF532x/7x
SVGA
CFv3
240
-
DDR1
RGB18
LCDC
-
-
WQVGA
PAe200z0
85
-
eFlash
RGB24
DCU
In
gauge
MPC5125
WXGA/720p
PAe300c4
800
-
DDR2
RGB24
DIU
-
-
MPC5121e/5123
WXGA/720p
PAe300c4
800
OGL/AXE
DDR2
RGB24
DIU
In
-
MPC8610
SXGA
PAe600
3060
AltiVec
DDR2/3
RGB24
DIU
-
-
P1022/1013
SXGA
PAe500v2
5000
-
DDR2/3
RGB24
DIU
-
-
i.MX233
SVGA
A926EJ-S
500
PXP/DCP
LPDDR1
RGB18
LCDIF
Out
rtouch/vDAC
i.MX25x
SVGA
A926EJ-S
440
-
DDR2
RGB24
LCDC
In/Out
rtouch
i.MX27
SVGA
A926EJ-S
440
VC
LPDDR1
RGB24
LCDC
In
-
i.MX31
SVGA
A1136JF-S
585
OGL/VC
LPDDR1
RGB24
IPU
In/Out
-
i.MX35x
WSGA
A1136JF-S
585
OVG
DDR2
RGB24
IPU
In/Out
-
i.MX51
WXGA/720p
ACortex-A8
1600
OGL/OVG/VC
DDR2
RGB24
IPU
In/Out
-
MPC560xS
OGL
OVG
VC
PXP
DCP
AXE
OpenGL hardware accelerator (also provides OpenVG and video codec support)
Dedicated OpenVG hardware accelerator
Dedicated video codec hardware accelerator
Pixel pipeline processing block handling blending, CSC and scaling
Data co-processor that supports CSC
Audio/DSP core
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semicon
TM
Freescale Display Controllers
►DIU
• 3-plane + cursor blend with N-plane writeback iterative blending
• Each plane has flexible linked list of Area Of Interest (AOI) source buffer
• Flexible αRGB and 8-bit palletized pixel formats
►DCU (DIU derivative)
• 4-plane blend selected from 16-layers (fixed priority) with bkgnd/cursor blit
• Direct ITU656 input which can be a slave to or master display clock
• Compressed data formats supported with tile and luminous modes
►IPU
• 2-plane blend (video with graphics)
►LCDC (IPU derivative)
• 2-plane blend (graphics with background)
►LCDIF/PXP
• Single plane
• PXP accelerator does mem-mem blending and processing
►Segment Drivers
• Integrated front and backplane segment drivers supporting 3V and 5V
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
30
Freescale Display Enabled Products
8-Bit S08 & 32-Bit ColdFire MCU Segment Drivers
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
31
8bit Architecture Overview;
Part Freescale’s Controller Continuum
ColdFire® V4
ColdFire V3
ColdFire V2
ColdFire V1
Flexis™ Series
The Controller
Continuum
“Connection Point”
32-bit
S08 Based Families
Broad range of Solutions
From 2KB to 128KB Memory Sizes
Small 8pin packages up to highly function 80pin options
Starting from $0.60 - $4.00
Compatible with 32bit, part of Flexis Series
S08 core
RS08 Based Products
Entry Level Line
RS08 core
Ultra-Low-Cost, starting sub $0.50
Small Packages; 6pin – 20pin
Small Memory Sizes; 1KB – 8KB
8-bit
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
32
LCD controller
►LCD
waveforms functional in LPRun, LPWait, wait, stop2 and stop3 lowpower modes
►64 LCD (LCD[63:0]) pins with selectable frontplane/backplane configuration
►Programmable LCD frame frequency with software configurable frame
interrupt
►Programmable blink modes and frequency
►Integrated charge pump requires only four external capacitors for
generating LCD bias voltages configurable to drive 3-V or 5-V LCD panels
►Internal regulated voltage source with a 4-bit trim register to apply contrast
control
►Internal ADC channels are connected to VLL1 and VLCD to monitor their
magnitudes. This feature allows software to adjust the contrast.
►Backplane reassignment to assist in vertical scrolling on dot-matrix displays
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
33
Key Differentiating Features
►Fewer
pins required to drive LCD segments
• 32 pins required for 192 segments in 8x24 mode
• 28 pins required for 160 segments in 8x20 mode
• 17 pins required for 104 segments in 8x13 mode
►Low
power blinking mode
• Internal software selectable regulated power supply that keeps constant voltage across LCD
glass to avoid degradation
• LL16 offers 4 bits resolution trim to adjust contrast control
(Only for S08 and V1 cores)
►Front
and back plane re-assignment
• FP and BP can be software selectable to be either FP or BP, making board layout an
easier task and very flexible for changes
►Internal
charge pump provides all voltages required to power up LCD glass
• Internal software selectable regulated power supply that keeps constant voltage across LCD
glass to avoid degradation
• LL16 offers 4 bits resolution trim to adjust contrast control
(Only for S08 and V1 cores)
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
34
Using Blink Mode
Benefits of using blink mode
1- Blinking to a blank screen turns all segments off, leading to lower standby current for the time that the screen is
blank
78°C
78°C
Stop Mode
2 - Using the Alternate blink mode allows the application to remain in Stop mode for longer periods of time.
Example: Using alternate display to show time across 2 Seconds
WITHOUT ALT
BLINK
7:01:54
7:01:55
Stop Mode
LCD Glass
7:01:54
WITH ALT
BLINK
LCD Glass
7:01:55
Stop Mode
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
35
Factors that will affect LCD standby current
LCD Frame Rate – Frame rate is the rate at which the LCD segments will
be refreshed. Frame rates that are too fast will produce ghosting, frame
rates that are too slow will have poor contrast.
LCD Peripheral allows for
configurable frame rate.
.
Using the LCLK bits the frame
rate can be optimized for the
custom glass.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
36
Factors that will affect LCD standby current
LCD Glass Capacitance - LCD glass capacitance is determined by the
area of the segments on the glass. The larger the segment area, the
larger the Capacitance will be.
500pF glass
8000pF glass
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
37
Factors that will affect LCD standby current
Segments configuration – Worst case configuration will be every other
segment on. This will cause a rail to rail square wave on the Segment
pins. Best case configuration will be all segments off.
1 Frame
A'
B'
A
B
A'
B'
A
B
A'
B'
A
B
A'
B'
V
LL
2
LL
1
For all segments off the LCD
Front plane wave forms switch
between VLL1 and VLL2
LL
2
LL
3
V
LL
1
For every other segment on the
LCD front plane waveforms
switch between 0 and VLL3
0
V
V
0
V
LL
3
B
V
A
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
38
Even more factors that will affect LCD standby current
Number of segments supported – More segments will lead to higher
power consumption.
Temperature - Due to leakage at high temperatures, there is a sharp
increase after 70C.
Glass Voltage – When supporting 5V glass, the power consumption will
increase due to the increased demands to the LCD charge pump.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
39
Product Comparison: LL16 vs. TI MSP430
Configuration
Segments Configuration
MSP430FG46
18/F2013 IDD
LL16 IDD
PERCENT
Improvement %
No Contrast control, Low power Mode, Crystal Oscillator enabled, 32Hz
frame rate, 4x22
ALL ON
6uA
1.8uA
70
No Contrast control, Low power Mode, Crystal Oscillator enabled, 32Hz
frame rate, 4x22
ALL OFF
5uA
1.2uA
76
No Contrast control, Low power Mode, Crystal Oscillator enabled, 32Hz
frame rate, 4x22
EVERY OTHER SEG
5.4uA
1.8uA
67
With Contrast control (3.08V), Low power Mode, Crystal Oscillator
enabled, 32Hz frame rate, 4x22
ALL ON
9.8uA
3.3uA
66
With Contrast control (3.08V), Low power Mode, Crystal Oscillator
enabled, 32Hz frame rate, 4x22
ALL OFF
7.4uA
2.0uA
73
With Contrast control (3.08V), Low power Mode, Crystal Oscillator
enabled, 32Hz frame rate, 4x22
EVERY OTHER SEG
7.9uA
3.3uA
58
Significant
improvement
Which is your choice?
LL16 beats MSP430 on the power consumption with over 70% improvement.
* Base on the same testing environment.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
40
LCD MCU Series Roadmap
ColdFire®
S08LL64
S08/RS08
S08LG32
5V Segment
MCU
MCF532x
S08LL16
Graphic LCD
MPU
MCF52274/7
Graphic LCD
MPU
Ultra-low power
Segment LCD
MCU
Ultra-low-power
Segment LCD
MCU
S08LC60
Segment LCD
MCU
RS08LA8
Graphic LCD
MCU
S08LL36
Ultra-low-power
Segment LCD
MCU
S08
S08
Segment
LCD
LCD MCU
MCU
S08LL8
Ultra-low power
Segment LCD
MCU
ColdFire
Segment LCD
MCU
S08LC36
Segment LCD
MCU
RS08LE4
Segment LCD
MCU
Current
Future
Roadmap designates planned devices.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
41
Explore new segment LCD solutions
S08LC60/36
3V up to 160segments with charge pump, up to 64K Flash
S08LL16/8
ULP, Up to 192 Segment LCD, Flexible LCD solution, 1.8-3.3V, with
charge pump
RS08LA8
2.7-5V LCD, up to 168 segment LCD with change pump
RS08LE4
2.7-5.5V LCD, up to 112 segment in small (28SOIC ) footprint.
S08LG32/16 – NEW!!
2.7-5.5V LCD, up to 288 segments with charge pump, up to 32K Flash
►LCD Family Features:
•
•
•
•
•
From 72 up to 288 segment LCD support; Drive more segments with less pins
FP or BP reassignment
Blink in Stop capability
Internal Charge Pump (RS08LA, S08LL, S08LG)
3V ULP and 5V solutions
►LCD Resources
• Application Notes, Reference Designs, Demos, www.freescale.com/lcd
►LCD Developments
• Expansion of LL family to larger packages with more memory, higher accuracy
ADCs
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
42
MCF51EM256/128
ColdFire V1 32-bit Core with Multiply Accumulate unit
►
Efficiently supports complex power calculations
• Inherently supports large memory systems
• Provides enough throughput for application and connectivity
Independent Real Time Clock (RTC)
• Operates from an independent power supply, even during
power outages when other MCU systems are not powered
• Consumes very little power, less than 2µA
•
►
►
Robust Firmware Update
• Meter continues to operate from one Flash block, while other
is updated and verified with new firmware
• Flash block swap reliably completes firmware update
►
Tamper Detection
• Detects and records tamper attempt even during power off
• Detects and records attempts to disconnect backup battery
Four 16-bit high speed SAR ADCs
►
Support simultaneous sampling of four analog inputs
• Include phase shift compensation needed with Current
Transformers
LCD Controller
•
Part #
Flash
SRAM
SPIs
Package
10K Sugg
Resale
Price
MCF51EM256CLL
2x 128KB
16KB
3
100 LQFP
$4.22
MCF51EM256CKL
2x 128KB
16KB
2
80 LQFP
$3.97
MCF51EM128CLL
2x 64KB
8KB
3
100 LQFP
$3.86
MCF51EM128CKL
2x 64KB
8KB
2
80 LQFP
$3.60
►
•
•
Supports a wide range of displays, up to 288 segments
Up to eight backplanes reduces number of pins and system
cost
MC product available
by end of Q1, 2010
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
Samples available
now as PCF
TM
43
MC9RS08LE4
LCD Driver
9RS08LE4
Based on 8 backplanes
8x14 = 112 segments
RS08 Core
Packages
ICS
LVI
RTI
Based on 4 backplanes
4x18 = 72 segments
4K Flash
LCD Driver
KBI
SCI
Packages
COP
256 RAM
RS08BDM
►Voltage
•
Range
2.7V to 5.5V
►Core
•
RS08
►1-20MHz Capability
►Features
•
•
•
•
8-ch keyboard interrupt
Up to 26 GPIOs
LVI (low voltage inhibit)
RTI
28 SOIC
8-10 bits ADC
LCD Driver
8x14 or 4x18
2x2-ch 16-bit
Timer
►Internal
•
•
•
•
Clock Source (ICS)
FLL
On-chip oscillator
External crystal support
2% accuracy over full operating range
►Development
•
Tools
On-chip BDM
►Memory
•
•
4K flash
256 bytes RAM
►$0.90
MSRP at 10K units
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
44
MC9RS08LA8
LCD Driver
9RS08LA8
Based on 8 backplanes
8x21 = 168 segments
RS08 Core
Packages
ICS
LVI
SCI
KBI
Based on 4 backplanes
4x25 = 100 segments
8K Flash
MTIM
48 QFN
COP
LCD Driver
9S08LL16
256 RAM
Packages
Comparator
SPI
6-10 bits ADC
RS08BDM
►Voltage
•
Range
2.7V to 5.5V
►Core
•
10 MHz CPU speed
►Features
•
•
•
•
•
8-ch keyboard interrupt
Up to 34 GPIOs
16 LCD pins mux with GPIO
LVI (low voltage inhibit)
RTI
LCD Driver
8x21
1x2-ch 16-bit
Timer
►Internal
•
•
•
•
Clock Source (ICS)
FLL
On-chip oscillator
External crystal support
2% accuracy over full operating range
►Development
•
48 LQFP
Tools
On-chip ICE and RS08BDM
►$0.99
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
MSRP at 10K units
TM
45
MC9S08LL16/8
LCD Driver
9S08LL16/8
LL16:
S08 Core
Based on 8 backplanes
8x24 = 192 segments
Based on 4 backplanes
4x28 = 112 segments
LL8:
LL16: 16K
LL8: 8K
Based on 8 backplanes
8x16 = 128 segments
SCI
COP
ICS
48 & Packages
64
48 LQFP
LQFP
TOD
Comparator
ICE + 08BDM
LCD Driver
Range
1.8V to 3.6V
►Core
20 MHz CPU speed
►Features
•
•
•
•
•
KBI
LL8
8-12 bits ADC
Based on 4 backplanes
4x20 = 80 segments
•
IIC
9S08LL16
2K RAM
•
LL16
LVD
SPI
LCD Driver
►Voltage
Packages
8-ch keyboard interrupt
Up to 38 GPIOs
Up to 18 LCD pins mux with GPIO
LVD (low voltage detect)
Time-of-day module
LL16: 2x2-ch 16-bit
Timer
LL8: 1x2-ch 16-bit
Timer
►Internal
•
•
•
•
48 QFN
Clock Source (ICS)
FLL
On-chip oscillator
External crystal support
2% accuracy over full operating range
►Development
•
48 QFN
Tools
On-chip ICE and 08BDM
►Start
from $1.50* MSRP at 10K units
*Varies by package
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
46
MC9S08LL64/36
General purpose
►
S08 Core
w/MMU
Dual 32K
Flash Arrays
= 64K
LVD
2xSCI
KBI
ICS
•
•
•
COP
IIC
•
►
SPI
10ch-12 bit ADC
4K RAM
LCD Driver
8x36=288
BDM
ACMP
•
•
►
•
•
•
VREF
Design Considerations:
•
•
TPM
Ultra-Low Power
S08 core
1.8V – 3.6V
•
•
►
•
Availability:
•
LL64 Beta samples: July 2009
•
LL64 Qualification: September 2009 (MC)
Dual bank 32K flash
4K RAM
Internal Clock Source (ICS)
•
•
•
•
►
2xSCIs, IIC, SPI, KBI, TOD, ACMP
2x2ch 16bit TPM
10ch 12bit ADC
VREF1.2 (1.2v – 40PPM/°°C)
EEPROM emulation
80LQFP/64LQFP package
Up to 39 GPIO
Memory
•
►
Up to 288 segment LCD drive(8x mode)
BP/FP reassignment
Blink operation in low-power modes
Drive 3V and 5V LCD glass
Features
•
2x2-ch 16bit
TOD
►
LCD Driver
FLL
On chip oscillator
External crystal support(32Khz, 1-16Mhz)
2% accuracy over full operating range
Development Tools
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
•
On chip BDM
47
TM
5V MC9S08LG Family Overview
►Family
overview
1xSPI
• Targets low end cluster and general
purpose LCD applications for autos,
motorcycles, scooters, marine, etc.
WDG COP
16ch 12bit ADC
1xI2C
2 x 16 KB Dual Flash
6-ch. + 2-ch.,
16-bit Timer
1-ch., 8-bit MTIM
2 KB RAM
• Integrated LCD, supporting both x8
and x4 mode up to 8 x 37 or 4 x 41
segments
2xSCI
ICE
37x8 / 41X4 LCD
RTC
• Dual bank flash for EEPROM
emulation
BDM
ICS
80 LQFP
64 LQFP
48 LQFP
S08 CPU 20 MHz Bus
GPIO
• Multiple time bases for motor control
Note: block diagram represents the LG32
• Internal Clock Source
• 2% accuracy across temp
• Strong EMC performance in tough
environment
Family Differences
Device
LG32
• -40◦C to 105◦C and 2.7–5.5V
operation available
LG16
►Availability
•
Alpha samples March 2009
•
MC Qual April 2009
Package
Flash
LCD
ADC
GPIO
80-LQFP
Dual 16+16K
8x37, 4x41
16-ch., 12-bit
69
64-LQFP
Dual 16+16K
8x29. 4x33
12-ch., 12-bit
53
48-LQFP
Dual 16+16K
8x21, 4x25
9-ch., 12-bit
53
64-LQFP
Dual 16+2K
8x29. 4x33
12-ch., 12-bit
39
48-LQFP
Dual 16+2K
8x21, 4x25
9-ch., 12-bit
39
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
48
MC9S08LH64/36
High Resolution ADC
►
S08 Core
w/MMU
Dual 32K
Flash Arrays =
64K
4K RAM
LVD
2xSCI
KBI
ICS
COP
SPI
LCD Driver
8x36=288
•
•
•
IIC
10ch-16 bit
ADC
2 dedicated
differentials
•
►
•
2x2-ch 16bit
•
TOD
TPM
•
ACMP
Vref
•
•
•
►
•
Design Considerations:
Ultra-Low Power
S08 core
1.8V – 3.6V
•
•
►
•
Availability:
•
LH64 Beta samples: October 2009
•
LH64 Qualification: January 2010 (MC)
Dual bank 32K flash
4K RAM
Internal Clock Source (ICS)
•
•
•
•
►
2xSCIs, IIC, SPI, KBI, TOD, ACMP
2x2ch 16bit TPM
10ch 16bit ADC, 2 dedicated differentials
VREF1.2 (1.2v – 40PPM/°°C)
EEPROM emulation
80LQFP/64LQFP package
Up to 39 GPIO
Memory
•
►
Up to 288 segment LCD drive(8x mode)
BP/FP reassignment
Blink operation in low-power modes
Drive 3V and 5V LCD glass
Features
•
BDM
►
LCD Driver
FLL
On chip oscillator
External crystal support(32Khz, 1-16Mhz)
2% accuracy over full operating range
Development Tools
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
•
On chip BDM
49
TM
Freescale Display Enabled Products
ColdFire MPU Products
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
50
MCF5227x
68K/
68K/Cold
ColdFire
Fire® V2 Core
► Up
BDM
PLL
GPI/O
JTAG
SVGA LCD
Controller
8x12-bit ADC
Touchscreen
USB otg
UART
4ch
PWM
16ch DMA
DSPI
UART
4ch PIT
4ch 32-bit
Timer
SSI
UART
Serial Boot
Facility
CAN
I2 C
RTC
16K
Configurable
I/D Cache
V2
Cold
ColdFire
Fire®
Core
EMAC
to 158 Dhrystone 2.1 MIPS @ 160 MHz (Hip7A)
► Enhanced Multiply Accumulate and Hardware Divide
► 16K bytes Configurable I/D Cache
► 128K bytes SRAM
► Integrated LCD Controller
► CSTN and TFT w/ Up to 800x 600(SVGA) resolution
► 8x12-bit ADC w/ Touch-screen Controller
► **Real touch screen controller**
► USB 2.0 full-speed On-the-go Controller
► CAN 2.0B Controller (FlexCAN)
► 3 UARTs
► DMA Serial Peripheral Interface (DSPI)
► I2C bus interface
► Synchronous Serial Interface (SSI)
► 4 ch. 32-bit timers with DMA support
► Real Time Clock
► 16 ch. DMA controller
► 16-bit DDR / 32-bit SDR SDRAM controller
► Up to 55 General-Purpose I/O
► System Integration (PLL, SW Watchdog)
► 1.5V Core, 1.8V/2.5V/3.3V Bus I/O
► Temperature Range: -40°C to +85°C
System Bus
Controller
128K
SRAM
DDR/SDR
SDRAM
Controller
• M52277EVB Full Evaluation Platform
• Available packages: 176QFP and 196BGA
• Lowered pricing starting at $5.99 10K SRP
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
51
MCF532x
68K/
68K/Cold
ColdFire
Fire V3 Core
► Up
to 200 Dhrystone 2.1 MIPS @ 240 MHz
MAC Module and HW Divide
► 16K bytes Unified Cache
► 32K bytes SRAM
► Integrated LCD Controller
• STN and TFT
• Up to 800x 600(SVGA) resolution
► USB 2.0 host controller
► USB 2.0 Host/Device/On-the-go Controller
► Enhanced
PLL
GPI/O
JTAG
SVGA LCD
Controller
4ch 32-bit
Timer
USB
h/d/otg
UART
16ch DMA
4ch
PWM
USB
host
UART
SSI
I2 C
QSPI
UART
High Speed ULPI support
10/100 Ethernet MAC (external PHY)
► Optional Hardware Accelerated Encryption
• Random Number Generator
• DES, 3DES, AES, Block Cipher Engine
• MD5, SHA-1, HMAC, Hash Accelerator
► Optional CAN 2.0B Controller
► Synchronous Serial Interface (SSI)
► 3 UARTs
► Queued Serial Peripheral Interface (QSPI)
► I2C bus interface
► 4 ch. 32-bit timers with DMA support
► 4 ch. 16-bit PWM timer
► 16 ch. DMA controller
► 16-bit DDR / 32-bit SDR SDRAM controller
► Up to 94 General-Purpose I/O
► System Integration (PLL, SW Watchdog)
► 1.5V Core, 1.8V/2.5V/3.3V Bus I/O
► Temperature Range: -40°C to +85°C
10/100
FEC
16K
Unified
Cache
CAN
32K
SRAM
Crypto
Optional
Additional Modules
V3
Cold
ColdFire
Fire®
Core
EMAC
► Optional
DMA
•
BDM
System
Bus
Controller
DDR/SDR
SDRAM
Controller
&
Chip Selects
• M5329EVB Evaluation Platform
• M53281KIT VoIP Solution
•Available packages: 196BGA and 256BGA
•Pricing starting at $6.49 10K SRP
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
52
Freescale Display Enabled Products
Power Architecture MCU Products
(MPC560xS)
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
53
DCU Features
16 Layers
► 4 planes
► Frame buffer limited by memory size (all memories, RAM, ROM INT, EXT)
► Target size WVGA (Limited by memory bandwidth and pixel clock speed)
► Support 16, 24, 32 bit color depth.
► Support 1, 2, 4, 8bpp indirect color mode
► Support TFT type LCD with 16, 18, 24bit wide digital RGB interface
► Alpha blend (per pixel and per layer in 4 planes)
► Chroma key (range per RGB component in 4 planes)
► Combined alpha blend and chroma key modes
► Font mode blending (transparency mode/alpha map)
► Highlight area mode. (luminance offset)
► Tile mode
► Digital video input
► Safety mode support
► Hardware cursor
►
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
54
DCU (MPC56xxS Main Display Port)
DCU
registers
CLUT
Tile
memory
Layer CD
Hardware
cursor
Gamma
correction
table
Memory mapped register area
DMA
Foreground
plane FIFO
DMA
Foreground
Plane FIFO
DMA
DMA
Foreground
plane FIFO
Background
Plane FIFO
24bpp
Format
converter 24bpp
24bpp
Ext. Video Sync
24bpp
Gamma 24bpp
correction
24bpp
Format
converter
System CLK 64MHz
PDI
Blend/
Chr key
CLK
manager
Display
drive
TCON
24bpp
RSDS or
Dig RGB
12bit
(Rainbow)
Signature
calculator
X1
CRC result output
Ext. Video CLK
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
55
DCU Layers & Planes
►
Layer priority is fixed.
►
Layers arbitrate for 4 planes on per pixel basis.
The active layer that has the highest priority loads in the foreground plane 1,
the next loads in foreground plane 2 etc….
►
►
If no layer qualifies for the BG plane the BG color is loaded in the BG plane
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
56
MPC5606S – Single chip cluster example
LEDs
TFT
DISPLAY
2x CAN
2x LIN
GP I/O
DCU on MPC5606S enables
direct drive of Quarter VGA
and WQVGA.
6 Stepper Motor Drivers
with patented stall detection
PDI allows cheap video
input (no buffer) eg to
display reversing camera
image on dashboard TFT.
MPC5606S
48kb
RAM
EEPROM
160kb
RAM
1MB
FLASH
DCU
sound
PWMs
QuadSPI
Serial
Flash
40x4
LCD seg driver
PDI
VIDEO
INPUT
SEE “MPC5606S” DEMO ON
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
57
DCU Tool Workflow
Tools
Uses
Illustrator
Photoshop
Paint
Gimp
Blender
Outputs
Images
Fonts
Skins
Vector Files
3D Models
Graphic
Designer
Tools
Images
Fonts
Skins
Vector Files
3D Models
Uses
Are used
by
Adobe Flash
GIMP
Excel
Specification
Outputs
+
Image processing
Batch processing
[Others tools]
Images
Fonts
Vector Files
UI Designer
Specification
(excel files)
(requirements
document)
+
Images
Fonts
Vector Files
(excel files)
(requirements
document)
Tools
Libraries
Are used
by
Uses
Spectrum Libraries
Image Encoder
Font Encoder
Outputs
Spectrum
Application
Code
Developer
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
58
Freescale Display Enabled Products
Power Architecture MPU Products
(mobileGT, MPC8610 and QorIQ)
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
59
Flexible DIU Blending
► 3-plane
•
All planes fetched and blended at refresh rate and sent to display
► N-plane
•
•
blend
blend
Plane 1 is fetched at refresh rates and sent to display
Iterative blends of planes 2 and 3 used to construct future plane 1 to be displayed
Video and/or graphic planes
Plane 1
Video
2D/3D
Graphics
Plane 2
plane 2/3 blend (option)
Plane 3
Display
Interface
DIU
Unit
3-Plane Blend
or Plane 1
Unified DRAM Memory System
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
60
DIU Area Descriptors
►
►
►
►
►
►
Area descriptors (AD) defines areas of interest (AOI) on a plane
Each AOI has its own independent definition specified by the AD
Planes can have unlimited AOIs as long as they do no share a horizontal scan line
DIU accesses ADs in vertical order using a linked list of pointers to the next AD
Only pixels within AOIs are fetched by the DIU using the format specified in the AD
AD linked lists can be manipulated to change plane content and move an AOI between planes
Source Frame Buffer
x1,y1
AOI1
∆y1
∆x1
►32-Byte AD Specifies:
• Pixel format (extremely flexible)
• Chroma key RGB max/min values
• Global alpha override
• Endian byte swapping
• Source buffer address & dimension
• Source crop offset & dimension
• AOI display position
• Image flipping (horizontal or vertical)
• Next AD pointer
Plane1
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
61
DIU Area Descriptors
►
►
►
►
►
►
Area descriptors (AD) defines areas of interest (AOI) on a plane
Each AOI has its own independent definition specified by the AD
Planes can have unlimited AOIs as long as they do no share a horizontal scan line
DIU accesses ADs in vertical order using a linked list of pointers to the next AD
Only pixels within AOIs are fetched by the DIU using the format specified in the AD
AD linked lists can be manipulated to change plane content and move an AOI between planes
Source Frame Buffer
x2,y2
x1,y1
AOI1
AOI1
∆y1
∆y1
∆x1
x2,y2
AOI2
∆y2
∆x2
∆x1
Plane2
Plane1
►32-Byte AD Specifies:
• Pixel format (extremely flexible)
• Chroma key RGB max/min values
• Global alpha override
• Endian byte swapping
• Source buffer address & dimension
• Source crop offset & dimension
• AOI display position
• Image flipping (horizontal or vertical)
• Next AD pointer
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
62
DIU Area Descriptors
►
►
►
►
►
►
Area descriptors (AD) defines areas of interest (AOI) on a plane
Each AOI has its own independent definition specified by the AD
Planes can have unlimited AOIs as long as they do no share a horizontal scan line
DIU accesses ADs in vertical order using a linked list of pointers to the next AD
Only pixels within AOIs are fetched by the DIU using the format specified in the AD
AD linked lists can be manipulated to change plane content and move an AOI between planes
x1,y1
x2,y2
x1,y1
x2,y2
AOI1
AOI2
AOI1
Source Frame Buffer
AOI1
∆y1
∆x1
∆y2
∆y1
∆x2
x3,y3
AOI3
∆x3
∆x1
x4,y4
∆y1
∆y3
AOI4
∆y4
x2,y2
AOI2
∆y2
∆x4
∆x2
∆x1
Plane3
Plane2
Plane1
►32-Byte AD Specifies:
• Pixel format (extremely flexible)
• Chroma key RGB max/min values
• Global alpha override
• Endian byte swapping
• Source buffer address & dimension
• Source crop offset & dimension
• AOI display position
• Image flipping (horizontal or vertical)
• Next AD pointer
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
63
DIU Pixel Conversion
8/16/24/32-Bit Pixel Input
(can vary per AOI within planes)
Swapping
Endian
LSB
0~8 bits
MSB
LSB
Alpha
0~8 bits
MSB
LSB
Red
8 bits
MSB
LSB
Alpha
8 bits
MSB
LSB
Red
8 bits
Red
MSB
LSB
0~8 bits
MSB
Blue
Palette LUT
LSB
8 bits
MSB
LSB
Green
Blending
LSB
MSB
Green
Component Swapping
LSB
0~8 bits
8 bits
MSB
Blue
Gamma Correction
8 bits
MSB
LSB
Green
8 bits
MSB
Blue
24-Bit Pixel Output
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
64
Freescale Power Architecture MPU/MCU Family
Display enabled devices
Embedded flash e200 MCUs
MPC8610
e600 AltiVec SIMD
1.33GHz
Power
ISA 1.10
Compatibility
mobileGT
MPC5121e – e300
800DMIPS, 400MHz
QorIQ P3 – e500
Multi-core
QorIQ P2 – e500
1~2 cores
800MHz ~ 1.2GHz
PowerQUICC III
MPC85xx - e500
1GHz
PowerQUICC II Pro
MPC83xx – e300
400 ~ 667MHz
QorIQ P5 – e500
Multi-core
QorIQ P4 – e500
4 ~ 32 cores
533MHz ~ 1.5GHz
QorIQ P1 – e500
1~2 cores
533MHz ~ 800MHz
Power
ISA 2.x
Migration
- High degree of binary compatibility
- Migratable OS solutions (Linux, MQX, WR…)
- Best-in-class density / performance (VLE)
mobileGT
Power Architecture
MPC5123 – e300
800DMIPS, 400MHz
mobileGT
MPC5200B – e300
760DMIPS, 400MHz
Power ISA (2.x) – Merged Architecture
mobileGT
MPC5125 – e300
800DMIPS, 400MHz
MPC567xx <=4M
715DMIPS, 264MHz
PowerQUICC II Pro
MPC830x – e300
266 ~ 400MHz
MPC551x <=1.5M
120DMIPS, 80MHz
PowerQUICC
XPC823E
100DMIPS, 75MHz
Desktop
Category: Embedded
(PowerPC
(formerly Book E/EIS)
Architecture 1.10)
VEA
Book II
Book II (with extensions
OEA Book III: (Desktop) Book III-E: (Embed) Book III-S: (Server)
MPC560xS <=1M
85DMIPS, 64MHz
G2/e300
e600
MPC560xP/B <=512K
85DMIPS, 64MHz
Now
UISA (with extensions
ISA
MPC563xM <=1.5M
150DMIPS, 80MHz
Category: Server
(formerly PowerPC
Architecture 2.02)
e200
e500
e700
G5
IBM 970
P5
Future
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
65
MPC52xx/512x Family
CPU Core
CPU Freq (DMIPS)
Cache (I/D)
Graphics Core
Audio/DSP Core
DRAM Controller
DRAM Clk Freq (BW)
NAND Flash
controller
Display Controller
Video Input
PCI
USB
Ethernet
CAN
UART
I2C
SPI
GPIO
SD / SDIO
PATA/SATA
Chip ID / OTP
Package
Power (Standby)
Junction Temp
Silicon Status
Price @ 10Ku Ind
XPC823e
PPC
66MHz (90DMIPS)
16K / 8K
66MHz CPM
-
MPC5200B
PPC e300c0, DP-FPU
400MHz (760DMIPS)
16K / 16K
16/32-bit SDR/DDR1
-
133MHz (300MB/s)
-
yes
ITU-656
USB 1.1 FS
PCI-2.2, 32-bit, 66MHz
USB 1.1 FS
2
1
1
1x 10/100BaseT
2
6
2
7
32
1x PATA
292 PBGA
27x27mm, 1.27mm
<2W (50mW)
-40C to 115C
Production
$20.95
PCMCIA
256 PBGA
23x23mm, 1.27mm
<1W (10uA)
-40C to 95C
Production
~ $30
MPC5121e
PPC e300c4, DP-FPU
400MHz (800DMIPS)
32K / 32K
100MHz PowerVR-MBX
200MHz AXE
16/32-bit DDR1/2,
LPDDR
200MHz (1100MB/s)
8/16-bit, 4-bit ECC
bootable
WXGA/720p 24-bit
ITU-656
PCI-2.3, 32-bit, 66MHz
2x USB2.0 HS OTG
1x PHY HS OTG
1x 10/100BaseT
4
12
3
12
32
1
1x PATA / 1x SATA
256-bits / 256-bits
516 PBGA
27x27mm, 1mm
<1.5W (25uW)
-40C to 125C
Production
$23.24
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
MPC5123
PPC e300c4, DP-FPU
400MHz (800DMIPS)
32K / 32K
200MHz AXE
16/32-bit DDR1/2,
LPDDR
200MHz (1100MB/s)
8/16-bit, 4-bit ECC
bootable
WXGA/720p 24-bit
ITU-656
PCI-2.3, 32-bit, 66MHz
2x USB2.0 HS OTG
1x PHY HS OTG
1x 10/100BaseT
4
12
3
12
32
1
1x PATA / 1x SATA
256-bits / 256-bits
516 PBGA
27x27mm, 1mm
<1.5W (25uW)
-40C to 125C
Production
$22.08
MPC5125
PPC e300c4, DP-FPU
400MHz (800DMIPS)
32K / 32K
16/32-bit DDR1/2,
LPDDR, 32-bit SDR
200MHz (1100MB/s)
8/16-bit, 32-bit ECC
4-page robust bootable
WXGA/720p 24-bit
2x USP 2.0 HS OTG
2x 10/100BaseT
4
10
2
10
64
2
256-bits / 256-bits
324 PBGA
23x23mm, 1mm
<1W (25uW)
-40C to 125C
Production
$10.95
TM
66
MPC5125
Robust high-performance Power Architecture™
display solution at a low-cost/power-efficient
point with full OS and middleware support.
COP
►Dual
LCD
Controller
USB
h/d/otg
I2 C
x3
CAN2.0 A/B
x4
10/100
Enet MAC
USB
h/d/otg
SDHC
x2
J1850
10/100
Enet MAC
64ch DMA
Timer x16
16-bit
PSC
x10
10/100BT Ethernet for bridging solutions
►Display
interface supporting WXGA / 720p, 24-bit color
Chip ID
256-bit OTP
GPI/O
x64
JTAG
►Low-Power
• Total system power is typically <1W @400MHz
• Hibernation power down mode <25uW
I-Cache
D-Cache
SRAM
Power
Architecture
e300c4
Flash Ctrlr
NAND
32K
MMU
/ low-power memory systems support
• Bootable NAND flash interface
- ECC corrects up to 32 errors (beyond MLC support)
- Pipelined multi-access/correction/DMA operation
- Robust booting with x4 redundant boot image scheme
• DRAM interface (high-bandwidth, low-latency)
- 32/16-bit DDR2 and 32-bit SDR support (low-cost)
- 32/16-bit MobileDDR support (low-power)
32K
DP-FPU
►Cost-effective
32K
42-bit
LPC
DRAM Ctrlr
DDR / SDR
►Rich
•
•
•
•
set of connectivity
10x Flexible PSC (SPI, UART, AC’97, I2S, Multi-Ch TDM)
4x CAN2.0 A/B , data rates in excess of 1Mbs
2x High Speed USB 2.0 Host/Device/On-The-Go
2x SDHC (MMC, SD, SDIO expansion)
Temp
Sensor
• 800 DMIPS @ 400 MHz
• Packages: 324 PBGA, 23x23mm, 1mm pitch
• In production (industrial/consumer)
• Documentation available on request
• ADS5125 development board $1999
• TWR-MPC5125 dev system $119 / KIT $169
• Price: $10.95 @ 10Ku
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
67
Robust high-performance Power Architecture™
display solution at a low-cost/power-efficient
point with full OS and middleware support.
Temp
Sensor
COP
Chip ID
256-bit OTP
GPI/O
x32
JTAG
►Display
•
•
•
•
/ processing support
Display interface supporting WXGA / 720p, 24-bit color
Audio / Intelligent DMA acceleration, DSP-C programmable
OpenGL / OpenVG graphics acceleration (MPC5121e)
ITU-656 video input
MPC5121e / MPC5123
►Rich
•
•
•
•
•
set of connectivity
12x Flexible PSC (SPI, UART, AC’97, I2S, Multi-Ch TDM)
4x CAN2.0 A/B, supports data rates in excess of 1Mbs
2x High Speed USB 2.0 with 1x PHY Host/Device/On-The-Go
1x SDHC (MMC, SD, SDIO expansion)
66MHz PCI-2.3 expansion
ATA/ATAPI-6
UDMA-5
SATA
1.5G PHY
CAN x4
J1850
10/100
Enet MAC
USB2 OTG
x2
SDHC
S/PDIF
LCD
Controller
Video Input
ITU-656
Timer x8
16-bit
PSC x12
Graphics
Accelerator
Audio / iDMA
Accelerator
DMA
64-ch
I2C x3
32K
I-Cache
32K
D-Cache
128K
SRAM
►Low-Power
• Total system power is typically <1.5W @400MHz
• Hibernation power-down mode <25uW
42-bit
LPC
DRAM Ctrlr
DDR
Power
Architecture
e300c4
Flash Ctrlr
NAND
MMU
►Cost-effective
DP-FPU
/ low-power memory system support
• Bootable NAND flash interface
- ECC corrects up to 4 errors (MLC support)
- Pipelined access/correction operating at NAND speeds
- Bootable interface
• DRAM interface (high-bandwidth, low-latency)
- 32/16-bit DDR2 support (low-cost)
- 32/16-bit MobileDDR support (low-power)
PCI-2.3
66MHz
• 800 DMIPS @ 400 MHz
• Packages: 516 PBGA, 27x27mm, 1mm pitch
• In production (industrial/consumer)
• Documentation available on Freescale website
• ADS512101 development board $1999
• TWR-MPC5121 dev system $139 / KIT $189
• Price: $23.24(5121e) / $22.08(5123) @ 10Ku
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
68
PowerVR™ MBX Tile Based Deferred Rendering
Pixel
Processing
Texturing
Hidden
Pixel
Removal
Blending
Hidden
Pixel
Removal
Tiling
Texturing
Blending
Tile Buffer
Off- chip
memory
Texture
Z-buffer
memory
memory
Frame
memory
Immediate Mode Rendering
►
•
Off- chip
Texturing
memory
Tile Based Deferred Rendering
Screen Tiling
Developed for unified memory embedded systems
•
►
Tile Data
Buffer
Unnecessary pixel processing is removed early in the rendering process
Memory intensive pixel processing is confined to a small on chip tile memory
Benefit
•
•
Greatly reduces power and memory bandwidth
Enables more efficient scalability to higher frame resolutions
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
69
MPC8610
General Applications:
Robotic Vision, Point-of-sale terminals, Printers,
Military/Aerospace, Single-Board Computers
e600 CPU:
667 MHz – 1.33 GHz e600 CPU
AltiVec vector processor for image processing
256 KB on-chip L2 Cache
Interfaces:
DDR/DDR2 controller, 64 or 32-bit, 400-533 MHz
LCD Controller, 24 bit/pixel, 60 Hz refresh
SXGA 1280x1024, XGA 1024x768, QVGA 320x240,
WVGA 854x480, SVGA 800x600, VGA 640x480
PCI-Express x 2 ports (x1/x2/x4/x8 and x1/x2/x4)
PCI 2.2, 32-bit, 33/66 MHz
I2C x 2, GPIO x 32 (16 dedicated, 16 multiplexed)
UART x 4ch, 115 kb/s
IrDA x 2ch FIR/SIR, 4 Mb/s
DMA 2 x 4ch, Watch dog timer
SPI
Machine Check external interrupt pin
Local bus, 32-bit, up to 133 MHz
Power, Package, Technology, Schedule:
15W max at 1066 MHz, 105C, 0.95V fanless
11.5W max at 667 MHz, 105C, 0.95V fanless
783 PBGA CMOS90SOI NodeC 6-layer board
Rev 1.0 Samples 2Q07, Production 1Q08
AltiVec™
Engine
MCP interrupt
MPX Bus
Local Bus
32bit
PIC
(Timer x4)
Queue
•
e600
Core
256K L2
Cache
MPX Coherency
Module
64/32b DDR/
DDR2 SDRAM
Controller
2 x DMA
4 ch each
2x I2C
SPI
WDT
UART 4ch
32x GPIO
IrDA 2ch
LCD
Controller
(DIU)
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
PCI Exp
x1/2/4/8
PCI Exp
x1/2/4
Execution
70
PCI
32bit
33/66MHz
TM
QorIQ™ P1022/13 Processor
►Scalable
P1022 dual core
Security
Accel
e500 Core
XOR
DDR2/DDR3,
SDRAM
Controller
e500 Core
256KB
L2
Advanced
Power
Management
32kB
32kB
I-Cache D-Cache
LCD
(DIU)
Enhanced
Local Bus
32kB
32kB
I-Cache D-Cache
Perf Mon,
DUART, MPIC
2x I2C, Timers
•
•
•
•
Single/Dual e500v2r5
Up to 1.067GHz operation
High Speed DDR2 and DDR3 (667MHz)
HW math and secure networking acceleration
►Low
Coherency Module
2x USB2.0
►High
System
System
Bus Bus
SATA
Gigabit
Ethernet
Speed Serial Interconnect
• 3 PCI Express Controller (6 lanes)
• High Speed SPI
• SGMII
SD/MMC
On-Chip Network
►Green
2x DMA
PCI
Express
PCI
Express
PCI
Express
x2 SERDES
(PCIe/SATA/SGMII)
x4 SERDES
(PCIe/SGMII)
Energy Operation
• Fanless dynamic <2.75W core power
(dual core 1GHz + logic, typ., est.)
• Packetlossless deepsleep for EnergyStarTM support
•<200mW deepsleep @35C (typ., est.)
•Programmable wake-on-packet ;
•Wake-on-timer/GPIO/USB/IRQ
IEEE1588
RGMII
System Cost
• Integrated system peripherals
•Dual USB 2.0
SD/MMC
•Dual SATA
Dual Gigabit Ethernet
•LCD
Audio /VoIP TDM
• Low cost 6 layer PCB layout
SPI
TDM
/I2S
Processing Performance
►Process
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
& Package
• 45nm, 1.0V+/-50mV
• 689 pin TePBGAII
TM
71
Freescale Display Enabled Products
ARM® MPU i.MX Products
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
72
Freescale Applications Processor Value Proposition
►
Performance (MHz & Memory Efficiency)
►
Low Power (Audio < 18 mW system, HD720 Video < 250 mW)
►
State of the art Audio, Video, Graphics and Codecs
►
Consistent and scalable architecture
►
Complete OS/SW platform
►
Mixed signal integration
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
73
i.MX Industrial & General Embedded Roadmap
i.MX515
•
•
•
Cortex A8
•
ARM11
• OpenGL ES 1.1 3D
i.MX31L
•
•
•
ARM9
• D1 Video Encode
• D1 Video Decode
i.MX27L
i.MX5x
720p Video Decode
D1 Video Encode
i.MX5x
i.MX512
ARM1136, 532 MHz
Ethernet, DDR2
USB Phy x 2, CAN x 2
• ARM1136, 400 MHz
• USB (High Speed)
i.MX27
•
•
Open VG 1.1
i.MX353
i.MX31
i.MX5x
i.MX513
i.MX357
Associated
PMIC:
MC13783
i.MX5x
Open VG
OpenGL ES 2.0
Security
•
•
Cortex A8, 800MHz
Ethernet, DDR2, USB Phy
Future Cortex A8
Products
Associated
PMIC:
MC13892
i.MX258
Security
•
i.MX257
•
•
• ARM926, 400MHz
• Ethernet
Associated
PMIC:
MC34704B
i.MX2x
Touchscreen
CAN x 2
i.MX2x
i.MX253
•
•
•
i.MX2x
ARM926, 400MHz
Ethernet, DDR2
USB Phy x 2
i.MX233
•
•
•
ARM926, 450MHz
Touchscreen
Integrated PM, Audio
2010
2009
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
2011
TM
74
i.MX35 Applications Processor
► Specifications
CPU:
ARM1136JF-S, 400/532 MHz
Process:
CMOS90LP
Core Voltage [email protected], -40/85C, [email protected]
MHz
Package:
400 ball 0.8mm BGA
► i.MX35
Value Proposition
Same high performance CPU complex as i.MX31
Enhancements from the i.MX31
IPU - Image Processing Unit supporting 24-bit
WVGA
OpenVG vector graphics processor (i.MX356)
Enhanced Audio Peripherals – Multi-channel
audio, S/PDIF, sample rate conversion
Flexible Memory Support
SDRAM 16/32 bit, 133 MHz
DDR2 16/32 bit, 266MHz
SLC/MLC NAND
Connectivity enhancements
CAN (x2) and MLB (MOST)
USB PHY integration
10/100 Ethernet
i.MX356
Connectivity
2 x CSPI
CPU Complex
Smart Speed
ARM1136 CPU
Switch (MAX)
2 x SSI/I2S
System Control
JTAG, ETM
Bootstrap
System Reset
PLL &
Power Mgmt
Multimedia &
Human Interface
16KB
i-cache
OpenVG 1.1
2.5D Accel.
Processing Unit
Inversion and
Rotation
Pre & Post
Processing
Camera I/F
Blending
Display Ctrl
128KB
SRAM
Vector Floating
Point Unit
Special
Functions
Security HW
External
Memory
SDRAM
mSDRAM
mDDR
DDR2
NOR
SLC NAND
MLC NAND
Inherited from i.MX31
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
128KB
L2-cache
32KB Boot ROM
2KB Secure RAM
8x8 Keypad
ASRC
16KB
d-cache
Standard
System I/O
ESAI
3 x I2C
3 x UART
USB HS Host
FS-PHY or ULPI
USB HS OTG
w/ HS-PHY
S/PDIF I/O
2 x FlexCAN
sDMA
MLB
3 x Timers
Ethernet
PWM
1-Wire
WD Timer
2 x SDIO/MMC
RTC
SDIO/
Memory Stick
GPIO
PATA
CE-ATA
New or enhanced from i.MX31
TM
75
i.MX35 Enabling an Efficient and Rich UI
► Low
•
platform cost impact from graphics
Graphics hardware should not significantly add to platform cost beyond
the added value
► Simple
driver layer
Small memory footprint
• Low CPU impact
• Easy integration
•
► Low
power consumption
► Easily approachable development path
► Ability to utilize legacy content
► Easy-to-integrate UI software layer
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
76
Specifications:
i.MX51 Family Applications Processor
Cortex A8, up to 800MHz
►
65nm, LP/GP
►
0.8-1.15V
►
19x19 0.8mm
►
-20 to 70C* (consumer)
-40 to 85C* (industrial)
-40 to 85C* (Auto)
* See Datasheet for case/junction temperatures
►
CPU:
Process:
Core Voltage:
Package:
Temp Range:
Key i.MX515 Features and Advantages
►
►
►
High performance CPU: Cortex A8
Low power multimedia
Delivers rich graphics and UI in HW
►
Drives high resolution video in HW
►
OpenGL ES 2.0 3D accelerator (AMD Z430)
OpenVG 1.1 graphics accelerator (AMD Z160)
Neon Vector floating point co-processor
Display up to WXGA
Multi-format D1 video encode
Multi-format HD720 video decode
Mixed signal integration - HD720 TV out and high
speed USB with embedded PHY
i.MX51
System
Control
Secure JTAG
Power Mgmt
PLL x 3
►
i.MX512, i.MX513, i.MX514, i.MX515, i.MX516
Availability:
Fast IrDA
32KB
32KB
256KB
i-cache d-cache L2-cache
HS MMC/SDIO x4
CSPI HS x2 / LS x1
ETM
UART x3
Vector Floating
Point Unit
Timers
I2C x3
SSI/I2S x3
Timer x3
Multimedia
PWM x2
1-Wire
OpenGL ES 2.0
Watch Dog
ATA-6
OpenVG1.1
Memory
HW Video Codecs
ROM 32KB
RAM 128KB
HD720 TV-Out
Security
TrustZone®
USB OTG HS+PHY
USB HS Host x3
SPDIF Tx
Imaging Processing Unit
GPIO
Display Controller
Keypad
Resizing & Blending
Ethernet
Sahara v4
Inversion / Rotation
Image Enhancement
SCC v2
Camera
SRTC
eFUSES
Market:
Consumer, Industrial & Auto
► Sample:
Now
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Production:
Now
(C),
April‘10
Reg. ►
U.S. Pat.
& Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient
Solutions
logo, Flexis,
MXC, Platform(A)
in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
May’10 (I)
►
ARM CortexTM-A8
Neon
Clock Reset
RTIC
Available Parts
Connectivity
CPU Platform
Ext Memory I/F
mDDR 200 MHz
DDR2 200 MHz
Smart DMA
TM
77
i.MX51 Graphics
► Native
•
•
•
•
•
Same architecture and same content tools as
in Xbox 360 and AMD’s PC graphics chips
Licensed by several industry leaders, providing for
a strong foundation for a content creation ecosystem
Binning architecture provides for low memory/power requirements
27 M triangles / sec
166 M pixels / sec raw performance (1 pixel / clock)
►A
OpenGL ES 2.0 3D based on ATI/AMD Unified Shader Architecture
500 M pixels / sec (effective w/ 3x overdraw)
native OpenVG 1.1 2D hardware implementation
Driving high-quality UIs and Flash based internet
browsing with extremely low power consumption
• Free 16x antialiasing for very high-quality fonts and graphics
• Capable of delivering a full 3D user interface experience
beyond anything on the market today with a fraction of
the power consumption compared to any other solution
• 166 M pixels / sec raw performance (1 pixel / clock)
•
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
78
i.MX51 Applications Processor
System
Control
Cortex A8
ARM-based CPU
Video Processing Unit
►Multi-standard
video
playback/record
SIMD/Neon
Timers
Memory
Vector Floating
Point Unit
Connectivity
►Video
telephony
►Video
transcoding
►You
Tube, Skype, Hulu
Video
Processing Unit
Processing Unit
Security
2D
Graphics
3D
Graphics
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
79
i.MX233 Applications Processor
►
Key Features and Advantages
•
•
•
•
•
•
•
•
•
•
454MHz ARM926EJ-S core
Based on Sigmatel IP platform
PMU with high efficiency on-chip DC/DC with
4.2V output, supports Li-Ion batteries
LCD Controller with Touchscreen
1.5W Mono speaker amplifier
Stereo headphone DAC w/ 99dB SNR &
Stereo ADC w/ 85 dB SNR with integrated
amplifiers
NAND support – SLC/MLC and managed
Hardware BCH (up to 20-bit correction) and
RS ECC8 for current and future MLC NAND
support
DDR1 Support with integrated 2.5V regulator
High speed USB with embedded PHY
Standard
Connectivity
I2 C
Ext Memory I/F
Power Management
NAND
LD0 x 4
DC/DC – 4.2V
BCH 20-bit
Battery Charger
SPI x 2
ECC8
UART
DDR1
i.MX233
ARM926EJ-S
454MHz
12-bit ADC
HS USB Phy
GPIO
Audio
I2 S
x2
mDDR
Internal Memory
32KB SRAM
16K I
Cache
16K D
Cache
S/PDIF Tx
1.5W Mono
Speaker Amp
Stereo ADC/DAC
with Amp
Package and Temperature
•
•
•
•
169fpBGA 11x11mm .8mm
128LQFP 14x14mm
-10 to +70C (Consumer)
-40C to +85C (Industrial)
MMC+/SD x 2
DRM Unique ID
OTP AES Key
128-bit AES
SHA-1 Hashing
128 LQFP
169 BGA
UART
2
3
12-bit ADC
2
6
Timer x 4
PWM x 5
10-bit Video DAC
Watch Dog
DMA
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
PWM
3
5
User I/F
LCD Controller
Touchscreen
Multimedia
PAL/NTSC
Analog
TV Encoder
Ext Storage
Security
Standard System
►
64KB ROM
Scaling
Alpha Blending
Rotation
System Debug
ETM
SJTAG
Color Space
Conversion
Not available in QFP package
TM
80
i.MX233 Peripherals – Display
8 x Overlays
RGB (S1)
Video YUV
(S0)
PXP Block
CSC + Scale
PXP
Colorkey / Alpha-Blend
Rotation
TV-Out block
TVENC
+
VDAC
TVE
NTSC/PAL Encoder
(digital)
LCDIF Block
BT.656
Display Out
(RGB, System,
BT.656)
LCDIF
Video DAC
(analog)
To TV Out Pins
To LCD Pins
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
81
i.MX233 Peripherals – PXP
►PiXel
Pipeline
4 source image pixel:
p00, p10, p01, p11
p00
Bi-linear YUV/YCbCr scaling and color
space conversion, rotation
Multiple graphic overlays (BITBLT) with
concurrent alpha blending and color
keying
Processes 8x8 blocks, and linked
commands
P
1 destination image pixel:
P, bilinear filter
(1-Ry)
Overlay
Overlay
Overlay
Overlay
Overlay
Overlay
Overlay
Overlay
p10
Ry
Px0
p01
Px1
Rx
p11
(1-Rx)
S1
RGB
alpha blending/
color key
S3
rotation
Y
U
Scaler
CSC
S0
V
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
82
i.MX233 Peripherals – LCDIF
Display Controller
(LCDIF)
►
AHB
DIV
PIXCLK
AHB-to-APBH
Bridge
HCLK
Shared DMA
DMA
Request
APBH
Master
AHB-AXI
FBRIC
APB
APBH
AXI Master
HCLK Domain
DIV
APBH
AHB
Up to 24-bit DOTCLK, system-mode,
VSYNC with programmable timings.
On-the-fly RGB->YCbCr 4:2:2 for
ITU-R/BT.656 DV interface (with
interlacing)
AHB
Master
AHB Slave
LCDIF
24-MHz
XTAL
Osc. or
PLL
SRAM
AXI
ARM Core
HW_LCDIF_CTRL and
_DATA Registers and
DMA Slave
APBH Ctrl
Write Data
38x128 LFIFO
Rich support for RGB formats
including pixel packing and swizzling.
System / VSYNC/
DOTCLK LCD
Interface
38x2 INTFIFO
Digital Video
Interface
38x8 TXFIFO
PIXCLK Domain
128-pixel FIFO provides robustness
for up to VGA resolution at 60Hz.
AXI Master for efficiency
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
Direct internal connection to TVE
To LCD Pins
TM
83
►
►
►
Key Features and Advantages
• 400MHz ARM926EJ-S™
• 16KB L1 I-Cache, 16KB L1 D-Cache
• 128KB on-chip SRAM for low power LCD refresh
• External memory interface supports DDR2, mDDR,
or SDRAM up to 133MHz, 16-bit data bus
• Supports off-chip NAND or NOR Flash
• 10/100 Ethernet MAC with RMII support
• USB 2.0 OTG 480Mbps with high-speed PHY
• USB 2.0 Host 480Mbps with full-speed PHY or ULPI
• Two CAN interfaces
• Two Smartcard interfaces
• SDIO interface for external Wi-Fi module
• VGA (640x480) LCD controller
• Resistive touchscreen controller
• CMOS sensor interface
• P-ATA for external CD connection or HDD
• CE-ATA and SD/MMC+ for external storage
• Enhanced serial audio interface
• 3 general purpose 12-bit ADC channels
• UART’s, CSPI’s, I2C, I2S
• Enhanced security features, including tamper
detection for voltage, frequency and temperature
• High-Assurance Boot (HAB)
• 3.3V I/O reduces external component count
Available Parts
• i.MX251, i.MX255, i.MX253, i.MX257, i.MX258
Package and Temperature
• 0.8mm, 400-pin MAPBGA
• -20C to +70C, -40C to +85C temperature options
• AEC-Q100 Grade3 Qualification
i.MX25x Family
Ext Storage
Advanced Connectivity
MMC+/SD x 2
P-ATA
CE-ATA x 2
Ext Memory I/F
10/100 Ethernet
HS OTG + Phy
NAND
CAN x 2
HS Host + Phy
NOR
SDIO x 2
Smartcard x 2
DDR2
Int Memory
mDDR
128KB SRAM
i.MX25x
ARM926EJ-S
400MHz
32KB ROM
Standard
Connectivity
16K I
Cache
I2 C x 3
CSPI x 3
16K D
Cache
System Debug
UART x 5
SJTAG
ETM
GPIO x 4
SDRAM
User I/F
LCD Controller
Touchscreen
Controller
CMOS Sensor I/F
8x8 Keypad
SLCD Controller
Standard
System
12-bit ADC x 3
1-Wire
Security
Timer x 4
Audio
SCC
RNGB
PWM x 4
SSI/I2S x 2
HAB
SRTC
SDMA
ESAI
RTICv3
Dry-Ice
Watch Dog
Common IP with
i.MX35x
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
Not available
on all variants
TM
84
►Specifications:
• CPU:
ARM926EJ-S, 400MHz
• Process:
90nm
• Core Voltage:
1.2-1.5V
►Key
•
•
•
IP cameras
i.MX27 Features and Advantages
16 KB L1 I-Cache and D-Cache
16-channel DMA
Multi-standard video codecs at D1 resolution (i.MX27 only)
•Video
•
i.MX27(L) Applications Processor
Accelerator
•Security controller with encrypted RAM storage
•Electronically blown fuse box
•High-assurance boot
•
•
CLK
Mgt.
Std System
•Crypto
•
Bootstrap
Real-time OS/SW integrity checker
Dynamic Process temperature Compensation (DPTC)
Connectivity
802.3 MAC
•USB 2.0 OTG 480Mbps
•USB 2.0 Host 12Mbps, USB 2.0 Host 480Mbps
•PCMCIA/CF, Audio MUX
•MMC, SD, IrDA, 8x8 keypad, CMOS sensor interface
•ATA-6, Memory Stick (i.MX27 only)
Timer x6
Watch Dog
GPIO
DMA
•Ethernet
►Availability:
• Package types
•404-ball,
•473-ball,
•
17x17, MAPBGA, 0.65mm pitch
19 x 19, MAPBGA, 0.8mm pitch,
ARM926EJ-S
I
Cache
CPU
Platform
D
Cache
MMU
Memory
Bus
Internal
Control Control Control
MMC/SD x3
PCMCIA/CF
UART x6
SSI/I2S x2
I2C x2
HS USB OTG
Host x2
RTC
PWM
Connectivity
IrDA
JTAG/ICEM
pre- and post-processing, scaling
Security
i.MX27(L)
System Control
Multimedia Accelerator
Hardware Video Codecs
MPEG4/H.263/H.264
Audio Mux
1-Wire
ATA-6
Pre and Post Processing
CSPI x3
Security
Ext Memory I/F
10/100 Ethernet
GPIO
Sahara v2
RTIC
DDR/SDRAM
NAND Flash
EIM
SCC
RNGA
8x8 Keypad
LCD Control
Memory Stick Pro
IIM
Camera I/F
Not available on i.MX27L
Extended temp -40 to 85C & qual’d for greater than 10 years
operating life at 100% duty cycle
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
85
i.MX31 Applications Processor
►Specifications:
•
•
•
CPU:
Process:
Core Voltage:
ARM1136, 532MHz, 400 MHz Auto
90nm
1.2-1.6V
i.MX31
Connectivity
Internal
CPU Complex
3 x CSPI
►Key
ARM1136 with 128 KB L2 Cache
Integrated 3D graphics processor
i.MX31 Features and Advantages:
Eliminates 2 chip solution
Integrated HW Image Processing Unit (IPU)
CMOS/CCD Interface
Resize, CSC, Deblock, Dering, Blending
Vector Floating Point Co-Processor (VFP)
Smart DMA RISC-based DMA controller
Connectivity
WLAN, BT, GPS via external chipset
HS USB, ATA-6, MMC/SDIO, MS-Pro, Compact Flash
266MHz Mobile DDR, NAND/NOR, Mobile SDRAM, SRAM
2 x SSI/I2S
3 x I2 C
Audio Mux
ARM1136 CPU
i-cache
Scale - shipped multi-million units
Breadth – design wins in PMP, PND, Cellular,
IP Telephony, POS terminals
►Availability:
•
•
•
Shipping Now
Package types
• 14x14 MAPBGA 0.5mm pitch
• 19x19 MAPBGA 0.8mm pitch
2007 10K re-sale pricing $16.69 - $24.86
Smart Speed
Switch (MAX)
d-cache
ROM
Patch
External
5 x UART
L2-cache
Fast IrDA
Special
Functions
Security HW
Expansion
2 x MMC / SD
PCMCIA / CF
Bootstrap
System Reset
PLL &
Power Mgmt
Multimedia &
Human
Interface
2 x USB Host
1-Wire
JTAG, ETM
ETM
VFP
USB OTG HS
System Control
Graphics
Accelerator
Std System
I/O
MPEG-4
Encoder
Keypad
eDMA
Memory
Interface
3 x Timers
SDRAM/DDR
PWM
VSync
WD Timer
2 x Memory
Stick - Pro
NANDF Ctl
RTC
SIM
PSRAM
GPIO
ATA
SmartMedia
RAM, ROM
IPU
Inversion and
Rotation
Camera I/F
Blending
Display/TV Ctl
Pre & Post
Processing
Not available on i.MX31L
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
86
Video Processing Implementation
Display
Image Sensor
Performed by:
Camera (Image Signal Processing)
(or ARM11 SW)
Image Processing Unit in i.MX31
MPEG4 Encoder in i.MX31
ARM11 SW
Bayer
RGB
Format
Conversion
Processing
Unit
(IPU)
YUV
Quality
Enhancement
Conversion
View-Finder Window
Conversion
Post Filtering
Image Conversion:
►
►
►
►
Resizing (resolution adjustment)
Rotation & Inversion
Pixel format conversion
(color space, packing…)
Combining with a graphics overlay
YUV
Compression
MPEG-4
Encoder
De-compression
Memory
Combining
with Audio
Communication
Network
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
Separation
from Audio
TM
87
Freescale Display Enabled Products
8-Bit S08 & 32-Bit ColdFire MCU Segment Drivers
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
88
Summary, Conclusion & Links
►Extensive
•
roadmap
Segment drivers
RS08 - low-cost MCUs
S08 - ultra low-power MCUs
ColdFire - low-power pin-compatible 32-bit MCUs
•
LCD drivers
ColdFire - low-cost MPUs
Power Architecture - low-cost to extreme high-performance MCU/MPUs
i.MX – low-cost to high-performance integrated multimedia MPUs
►Learn
•
•
•
•
More
Automotive: AUT-F0656, AUT-F0668, AUT-F0674, AUT-F0675
Consumer: CON-F0581
Enabling Tech: ENT-F0573, ENT-F0757, ENT-F0758
Industrial: IND-F0554, IND-F0602
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
89
TM
Glossary
►
►
►
►
►
►
►
►
►
►
►
►
►
Active Matrix –
Analog Resistive Touch Panel - This touch panel is comprised of two transparent resistive layers, separated by small spacers. Touching the screen
causes the two layers to come in contact and form a switch closure. By measuring the voltage gradient in the horizontal and vertical axis, position can
be determined.
COB – Chip on Board. The LCD driver is epoxied onto the PCB and wire bonds are installed for connections to the IC. The chip plus bonding wires are
covered with black epoxy as a seal.
COG – Chip on Glass. method of bonding driver integrated circuits (ICs) directly to the edges of active matrix liquid crystal displays (LCDs) for smaller
packages, higher quality, and improved ruggedness. The driver IC is mounted upside down (flip chip) eliminating bond wires and interconnects.
Reliability is improved due to reduction in interconnects.
COF – Chip on Flex. The LCD driver is incorporated into a flex connector, which is attached by a heat seal method to the contact edge of the LCD
glass.
CSTN - Color Super Twisted Nematic. A passive matrix display technology used to produce low cost color displays without resorting to TFT
manufacturing technology. Color STN Technology is actually STN technology that uses a white backlight and color filters to produce the hues required
for a color display. Each visual pixel of a CSTN display is actually 3 separate pixels using a colored filter of Red. Green, and Blue. Each of those
colors is controlled individually by the graphic controller chip. So actually a 320 by 240 pixel CSTN display contains 960 by 240 individually colored
pixels.
Dot Matrix /Graphic Display- A display made up of an array of pixel elements in a matrix. Also called “graphic display”. Can be used to display
graphics, pictures and text.
Driver - Voltage IC mounted on the display, which provides the voltage to each row and column (do not confuse with the controller IC).
Controller: An IC, usually mounted in the graphics board, which takes the microprocessor output and tells the display which pixels to light up to produce
the image requested.
Direct Drive: Direct electrical contact from the microprocessor or controller to each pixel on a display. Used in simple glass displays with a few
segments and icons, like a thermostat or digital meter. Also known as Static Drive.
EL Backlight - A type of backlight using electroluminescent material. The thinnest available backlight. Electroluminescent can also be a type of display.
Provides uniform light distribution over the active area. Requires an inverter to provide 90VAC at 400Hz. Low power consumption.
Emissive - A direct-view display, such as cathode ray tube (CRT), field emission display (FED), plasma, electroluminescent (EL), and organic light
emitting diode (OLED), where the light generation, switching, and coloring are all done at once by the display. These displays do not need a separate
backlight to provide light for the image.
FSTN - Film Super Twist Nematic display. STN display with a film layer to improve contrast and viewing angle. This film also changes the display “on”
color from blue to black.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
91
Glossary
►
►
►
►
►
►
►
►
►
►
►
►
►
LCD - Active matrix liquid crystal display (LCD). A display technology that uses a switch at each pixel to create high resolution and fast response times.
One type of LCD in which the switch used is a thin film transistor (TFT), is known as a TFT-LCD. Displays based on this technology range from as
small as 1" diagonal up to 40" diagonal.
LCD Module - A thin film transistor-passive or active matrix liquid crystal display (TFT-LCD) that contains all components, including backlight and driver
integrated circuits (ICs), and is ready to be integrated into an end product such as a TV, monitor, notebook PC, or other device. This term is often used
interchangeably with LCD panel.
LCD Panel - A thin film transistor-passive or active matrix liquid crystal display (TFT-LCD) that includes the array, color filter, and liquid crystal. May
also include a backlight and driver integrated circuits (ICs), but sometimes is used to refer to just the glass-liquid crystal composite. Often used
interchangeably with LCD module.
LED Backlights - LEDs are becoming the most popular type of backlight because they do not require an inverter, and they have a longer lifetime than
EL or CCFL. Character modules and small graphic modules use yellow-green LEDs because they are lowest in cost and have the longest life.
Monochrome FSTN and color modules require white LEDs, which are becoming lower in cost and longer in lifetime.
Mother Glass – similar to silicon wafers, LCD factories are designed with equipment sets for specific mother glass size
MTBF - Mean Time Between Failures. This is the lifetime of the component or the system. System lifetime can be calculated from the lifetime of the
individual components and the number of interconnects. Lifetime is usually expressed in hours. For LCDs, the lifetime is determined by the backlight.
EL panels are the lowest, yellow-green LEDs are the highest.
Multiplex - Method of sharing rows or columns of pixels on a display to reduce the number of connections to the driver or controller. As the display
resolution increases, the multiplex rate must increase to allow all of the individual pixels to be addressed.
OLED - Organic light emitting diode (OLED), an emissive flat panel display that uses organic compounds to emit light. OLEDs can be passive or active
matrix. Passive matrix devices are easier to make, but not capable of full color or high resolution. Currently, active matrix devices use a poly-crystalline
silicon thin film transistor (TFT) array, similar to low temperature poly-crystalline silicon (LTPS) active matrix liquid crystal displays (LCDs). There has
been limited production to date because of short product lifetimes and differential aging rates of the OLED materials. This is also known as Organic EL.
NTSC - National Television Standard Committee. International television standard which uses 525 lines per frame at 60Hz field rate.
PAL - Phase Alternation Line. International television standard which uses 625 lines per frame at 50Hz field rate.
Passive Matrix LCDs - These are the predecessors to active matrix liquid crystal displays (LCDs); these displays do not incorporate a thin film transistor
(TFT) or switch at each pixel. As a result, they tend to have lower resolution, slower refresh rates, and poorer viewing angles than active matrix LCDs.
Pixel - An individual dot on the display. Short for "picture element," a pixel is the basic unit of information on a display. It can be made up of different
colored sub-pixels.
Polarizer - This is a material that selectively transmits light with a given polarization. Polarizers are critical in the operation of most active matrix liquid
crystal displays (LCDs), as the liquid crystal manipulates polarized light. A twisted-nematic (TN) LCD typically has polarizers on both sides of the LCD
cell.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
92
Glossary
►
►
►
►
►
►
►
►
►
►
►
►
Reflective - A display without a backlight. Reflective displays rely on ambient light to provide the image. Excellent for outdoors or bright light
conditions. Most digital watches and calculators use reflective LCDs, although some color versions have been developed for mobile phones and PDAs.
See also Emissive, Transmissive, and Projection. Emerging reflective technologies include Electrophoretic (made by E Ink and others), electrochromic
(made by NTERA and others), and microelectromechanical systems (MEMS)-based (made by Iridigm and others).
Refresh Rate - The time interval required for the electronics to fully address a display. This rate determines the capability of the display to show video
images.
Resolution - The number of pixels available for information display. More pixels (higher resolution) enables finer details to be displayed and generally
results in a better image quality.
Segment - A single active area in the segmented displays (as opposed to the background area).
STN - Super Twisted Nematic. A type of high-performance passive matrix display used to improve optical properties at high multiplex rates. Method is
to increase the twist angle in the LCD construction from the 90 degrees used in TN to a much higher twist (270 degrees or more). Hence the nickname
“super twist”. Used exclusively in character modules and graphic modules, including Color STN.
TAB Tape Automated Bonding - The LCD driver / controller is encapsulated in a bubble on a flex circuit. The flex is attached directly to the glass or a
PCB.
TFT - Thin-film transistor (TFT). Electronic technology upon which active matrix liquid crystal displays (LCDs) are based. Each pixel is driven by a
separate IC gate to speed the response time and improve the optics. The foundation of the TFT is a semiconductor layer (typically based on silicon)
which can switch current flow on or off by the application of an electric field. The IC gates are deposited directly onto the LCD glass substrate in a
combination of wafer fabrication and glass assembly.
TN - Twisted Nematic. The original construction method for LCDs using 90 degree twist angles. Used in 7 segment and direct drive display
applications. Very low cost manufacturing.
Touch Panel Controller - The hardware element that translates the information between the touch panel and the host system.
Touchscreen - A transparent glass or hard plastic sheet that mounts over the display viewing area and allows users to make a choice and input via
touching the screen.
Transflective - A display that combines reflective and transmissive qualities. In dark ambient light environments, the backlight can be used to provide
light for the display. In bright ambient light environments, the backlight can be switched off and the display used in reflective mode to save battery life.
Most often used in PDAs and mobile phones. Good in sunlight and outdoor applications. Contrast ratio and brightness are decreased compared to
transmissive type.
Transmissive - A display that uses a backlight shining through the LCD to produce the image. Good in regular or dim lighting. Not for use in sunshine.
Ambient light interferes with the backlight, and “washes out” the display image. The light is created by a CCFL or light emitting diode (LED) backlight,
the switching is provided by the thin film transistor (TFT) array, and the color is provided by the color filter.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
93
Glossary
TSTN - Triple Super Twist Nematic. Sharp name for film compensated super twist display which uses a retardation film to correct the color shift in STN
displays, and so produces a black and white image.
► Viewing Angle - The angle at which the viewer must be in comparison to the screen, in order to see the image on a display. For example, a 0°
horizontal viewing angle is directly in front of the display and a 90°horizontal viewing angle is directly to the side. Emissive displays show the same
brightness and color regardless of viewing angle, however, rear projection displays and transmissive displays can show some differences in color,
brightness, and gray scale, with the most difference being noticed at the steepest viewing angles.
► VFD - Vacuum Fluorescent Display.
► Zebra Strip - Conductive rubber strip, also called Elastomer, used to connect the contacts on the glass display to the printed circuit board of a LCD
character module. Also use in low resolution graphic modules. Electrical contact is made by compression with the bezel frame.
►
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
94
Viewing Modes
REFLECTIVE LCD
A reflector is bonded to the
rear polarizer. This mirror-like polarizer
reflects the incoming ambient light.
Used in thermostats and calculators.
Best performance in direct sunlight.
TRANSFLECTIVE LCD
A porous reflector is bonded to the
rear polarizer. This polarizer reflects the ambient
light as well as allowing light to pass through the
rear of the polarizer. Good performance indoors
& outdoors.
TRANSMISSIVE LCD
This viewing mode has neither a reflective or
transflective rear polarizer. A backlight is
required to view this module. Not suitable for
outdoor operation.
Usually operates in negative mode.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
95
Viewing Modes: + & Active elements when energized
appear dark in color against a
light background non-energized
(Transflective Positive)
Active elements when energized
appear light in color against a
dark background non energized
(Transmissive Negative)
The viewing
area is in the
off state. This
Is achieved
by having
both the front
and rear
polarizers in
the same axis.
In this mode
light passes
through the
energized
area.
(A backlight
Is required)
(Most
Common)
Small
To Mid
Graphic
Displays
(Outdoor)
(Least
Common)
Mid to
Large
Graphic
Displays
(Indoor)
POSITIVE Type “+”
Reflective & Transflective
NEGATIVE Type “-”
Transmissive
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
96
Viewing Modes
Viewing Mode
Display
Description
Application Comments
Direct
Sunlight
Office Light
Subdued Light
Very Low
Light
Reflective Positive
Dark segments
on light
background
Not backlit. Provides best
head-on contrast and
environmental stability
Excellent
Very Good
Average
Poor
Transflective
Positive Image
Dark segments
on grey
background
Can be viewed by reflected
ambient light or with
backlighting
Excellent
Good
(No Backlight) (No Backlight)
Good
(Backlit)
Very Good
(Backlit)
Transflective
Negative Image
Needs high ambient light or
Light grey
backlighting. Frequently used
Good
Fair
segments on dark
with color and multicolor
(No Backlight) (No Backlight)
background
transflector
Good
(Backlit)
Very Good
(Backlit)
Transmissive
Negative Image
Backlit segments
on dark
background
Good
(Backlit)
Very Good
(No Backlight)
Excellent
(Backlit)
Transmissive
Positive Image
Dark segments
on backlit
background
Good
(Backlit)
Very Good
(Backlit)
Excellent
(Backlit)
Cannot be read by reflection
Poor
(Backlit)
Designed for very low light
Good
conditions, yet able to be read
(No Backlight)
in bright ambient lights.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
97
Fluid Types
►
TN = Twisted Nematic: Used in segment displays and icon displays with low multiplex
rates.
►
STN = Super Twist Nematic: Character modules, first generation graphic modules.
Improved optics over TN.
►
FSTN = Film Super Twist Nematic: Uses film layer over STN to double viewing
angles and increase contrast 3X in monochrome graphic modules.
►
CSTN = Color Super Twist Nematic: Passive color. Uses filters to produce color. Low
cost color solution.
►
TFT = Thin Film Technology = Active Matrix. Marriage of semiconductor and LCD
technology to add individual drivers for each pixel right on the glass. Dramatic
increase in contrast, viewing angles, and response time.
►
OLED = ??
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
98
Viewing Angles
The orientation of the LCD display is often stated with reference
to a clock face. If the LCD is best viewed from above the
horizontal, it is referred to as a "12:00" or top view.
If the LCD is best viewed from below the horizontal, it is referred
to as a “6:00" view.
Freescale, the Freescale logo, AltiVec, C-5, CodeTEST, CodeWarrior, ColdFire, C-Ware, mobileGT, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. BeeKit, BeeStack, CoreNet, the Energy Efficient Solutions logo, Flexis, MXC, Platform in a Package, Processor Expert, QorIQ, QUICC Engine, SMARTMOS, TurboLink
and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
TM
99
TM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
