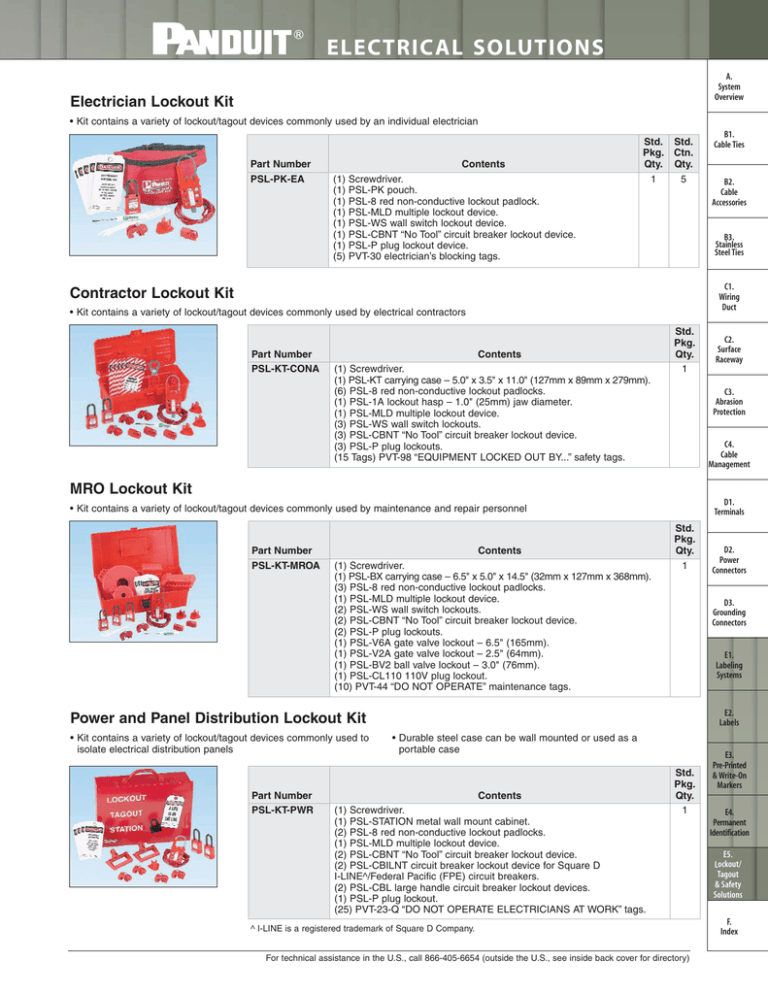

ELECTRICAL SOLUTIONS Electrician Lockout Kit

ELECTRICAL SOLUTIONS Electrician Lockout Kit
ELECTRICAL SOLUTIONS
A.
System
Overview
Electrician Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used by an individual electrician
Part Number
PSL-PK-EA
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(5)
Contents
Screwdriver.
PSL-PK pouch.
PSL-8 red non-conductive lockout padlock.
PSL-MLD multiple lockout device.
PSL-WS wall switch lockout device.
PSL-CBNT “No Tool” circuit breaker lockout device.
PSL-P plug lockout device.
PVT-30 electrician’s blocking tags.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Contractor Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used by electrical contractors
Part Number
PSL-KT-CONA
B1.
Cable Ties
Contents
(1) Screwdriver.
(1) PSL-KT carrying case – 5.0" x 3.5" x 11.0" (127mm x 89mm x 279mm).
(6) PSL-8 red non-conductive lockout padlocks.
(1) PSL-1A lockout hasp – 1.0" (25mm) jaw diameter.
(1) PSL-MLD multiple lockout device.
(3) PSL-WS wall switch lockouts.
(3) PSL-CBNT “No Tool” circuit breaker lockout device.
(3) PSL-P plug lockouts.
(15 Tags) PVT-98 “EQUIPMENT LOCKED OUT BY...” safety tags.
Std.
Pkg.
Qty.
1
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
MRO Lockout Kit
D1.
Terminals
• Kit contains a variety of lockout/tagout devices commonly used by maintenance and repair personnel
Part Number
PSL-KT-MROA
Contents
(1) Screwdriver.
(1) PSL-BX carrying case – 6.5" x 5.0" x 14.5" (32mm x 127mm x 368mm).
(3) PSL-8 red non-conductive lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-WS wall switch lockouts.
(2) PSL-CBNT “No Tool” circuit breaker lockout device.
(2) PSL-P plug lockouts.
(1) PSL-V6A gate valve lockout – 6.5" (165mm).
(1) PSL-V2A gate valve lockout – 2.5" (64mm).
(1) PSL-BV2 ball valve lockout – 3.0" (76mm).
(1) PSL-CL110 110V plug lockout.
(10) PVT-44 “DO NOT OPERATE” maintenance tags.
Std.
Pkg.
Qty.
1
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Power and Panel Distribution Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used to
isolate electrical distribution panels
Part Number
PSL-KT-PWR
D2.
Power
Connectors
• Durable steel case can be wall mounted or used as a
portable case
Contents
(1) Screwdriver.
(1) PSL-STATION metal wall mount cabinet.
(2) PSL-8 red non-conductive lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-CBNT “No Tool” circuit breaker lockout device.
(2) PSL-CBILNT circuit breaker lockout device for Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
(2) PSL-CBL large handle circuit breaker lockout devices.
(1) PSL-P plug lockout.
(25) PVT-23-Q “DO NOT OPERATE ELECTRICIANS AT WORK” tags.
Std.
Pkg.
Qty.
1
^ I-LINE is a registered trademark of Square D Company.
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
