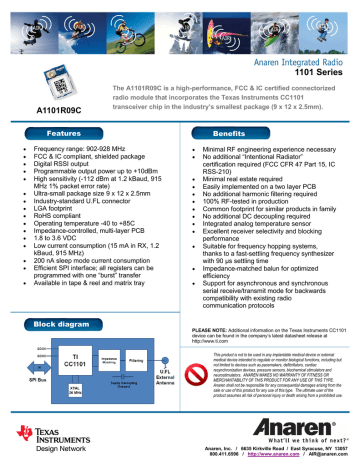

1101 Series

1101 Series
1101 Series
A1101R09C
The A1101R09C is a high-performance, FCC & IC certified connectorized
radio module that incorporates the Texas Instruments CC1101
transceiver chip in the industry’s smallest package (9 x 12 x 2.5mm).
Features
















Frequency range: 902-928 MHz
FCC & IC compliant, shielded package
Digital RSSI output
Programmable output power up to +10dBm
High sensitivity (-112 dBm at 1.2 kBaud, 915
MHz 1% packet error rate)
Ultra-small package size 9 x 12 x 2.5mm
Industry-standard U.FL connector
LGA footprint
RoHS compliant
Operating temperature -40 to +85C
Impedance-controlled, multi-layer PCB
1.8 to 3.6 VDC
Low current consumption (15 mA in RX, 1.2
kBaud, 915 MHz)
200 nA sleep mode current consumption
Efficient SPI interface; all registers can be
programmed with one “burst” transfer
Available in tape & reel and matrix tray
Block diagram
Benefits













Minimal RF engineering experience necessary
No additional “Intentional Radiator”
certification required (FCC CFR 47 Part 15, IC
RSS-210)
Minimal real estate required
Easily implemented on a two layer PCB
No additional harmonic filtering required
100% RF-tested in production
Common footprint for similar products in family
No additional DC decoupling required
Integrated analog temperature sensor
Excellent receiver selectivity and blocking
performance
Suitable for frequency hopping systems,
thanks to a fast-settling frequency synthesizer
with 90 μs settling time
Impedance-matched balun for optimized
efficiency
Support for asynchronous and synchronous
serial receive/transmit mode for backwards
compatibility with existing radio
communication protocols
PLEASE NOTE: Additional information on the Texas Instruments CC1101
device can be found in the company’s latest datasheet release at
http://www.ti.com
This product is not to be used in any implantable medical device or external
medical device intended to regulate or monitor biological functions, including but
not limited to devices such as pacemakers, defibrillators, cardiac
resynchronization devices, pressure sensors, biochemical stimulators and
neurostimulators. ANAREN MAKES NO WARRANTY OF FITNESS OR
MERCHANTABILITY OF THIS PRODUCT FOR ANY USE OF THIS TYPE.
Anaren shall not be responsible for any consequential damages arising from the
sale or use of this product for any use of this type. The ultimate user of the
product assumes all risk of personal injury or death arising from a prohibited use.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
Footprint
Product overview
The A1101R09C is a high-performance, FCC & IC
certified connectorized radio module that
incorporates the Texas Instruments CC1101
transceiver chip in the industry’s smallest package
(9 x 12 x 2.5mm) and is compatible with all TIapproved software stacks.
Top 2 pads optional for compatibility with other modules. Refer to
User’s Manual for additional layout guidelines. Dimensions in mm.
With an LGA pad footprint and industry-standard
U.FL button connector receptacle, this module is
designed to effortlessly integrate into a wide
range of applications, including: industrial control,
building automation, low-power wireless sensor
networks, lighting control, and automated meter
reading.
The A1101R09C has an RoHS-compliant ENIG
finish and is packaged on tape & reel or in matrix
trays for high-volume automated manufacturing.
Pin diagram
Nomenclature
DNC = Do Not Connect
A
1
2
3
4
5
6
7
Chip series
Function
Frequency band
Form factor
Design ID
Application
Packaging
(Anaren)
(CC1101, CC110L, CC2500)
(R = radio only)
(x100MHz)
(A = Internal Antenna, C = Connector)
(00 = Default)
(G = General)
(R = Tape/Reel, M = Matrix Tray)
Caution! ESD sensitive device.
Precautions should be used when
handling the device in order to
prevent permanent damage.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
1219a
