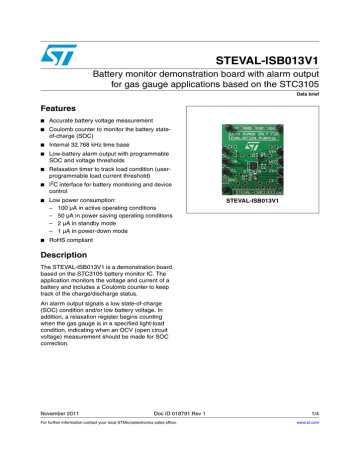

STEVAL-ISB013V1
Battery monitor demonstration board with alarm output
for gas gauge applications based on the STC3105
Data brief
Features
■
Accurate battery voltage measurement
■
Coulomb counter to monitor the battery stateof-charge (SOC)
■
Internal 32.768 kHz time base
■
Low-battery alarm output with programmable
SOC and voltage thresholds
■
Relaxation timer to track load condition (userprogrammable load current threshold)
■
I2C interface for battery monitoring and device
control
■
Low power consumption:
– 100 µA in active operating conditions
– 50 µA in power saving operating conditions
– 2 µA in standby mode
– 1 µA in power-down mode
■
RoHS compliant
STEVAL-ISB013V1
Description
The STEVAL-ISB013V1 is a demonstration board
based on the STC3105 battery monitor IC. The
application monitors the voltage and current of a
battery and includes a Coulomb counter to keep
track of the charge/discharge status.
An alarm output signals a low state-of-charge
(SOC) condition and/or low battery voltage. In
addition, a relaxation register begins counting
when the gas gauge is in a specified light-load
condition, indicating when an OCV (open circuit
voltage) measurement should be made for SOC
correction.
November 2011
Doc ID 018791 Rev 1
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
4
Schematic diagram
STEVAL-ISB013V1
1
Schematic diagram
Figure 1.
STEVAL-ISB013V1 circuit schematic
9&&
5XS
N
$/0
8
5XS
N 5XS
N
6'$
67&
&
X)
$/0
9,1
6'$
9&&
6&/
6&/
1&
*1'
*1'
&*
9,1
5
9&&
&
X)
&*
5FJ
P
5
&*
!-V
2/4
Doc ID 018791 Rev 1
STEVAL-ISB013V1
2
Revision history
Revision history
Table 1.
Document revision history
Date
Revision
14-Nov-2011
1
Changes
Initial release.
