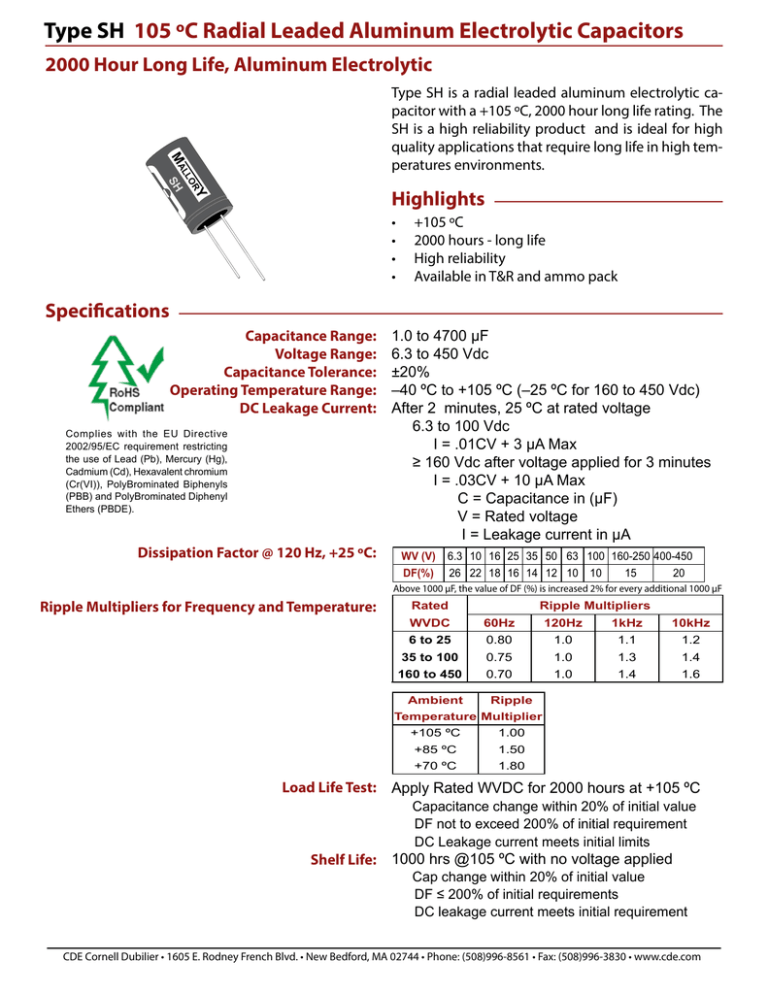

Type SH 105 ºC Radial Leaded Aluminum Electrolytic Capacitors

Type SH 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Type SH 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
2000 Hour Long Life, Aluminum Electrolytic
OR
LL
MA SH
Type SH is a radial leaded aluminum electrolytic capacitor with a +105 ºC, 2000 hour long life rating. The
SH is a high reliability product and is ideal for high
quality applications that require long life in high temperatures environments.
Y
Highlights
•
•
•
•
+105 ºC
2000 hours - long life
High reliability
Available in T&R and ammo pack
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
Dissipation Factor @ 120 Hz, +25 ºC:
1.0 to 4700 µF
6.3 to 450 Vdc
±20%
–40 ºC to +105 ºC (–25 ºC for 160 to 450 Vdc)
After 2 minutes, 25 ºC at rated voltage
6.3 to 100 Vdc
I = .01CV + 3 µA Max
≥ 160 Vdc after voltage applied for 3 minutes
I = .03CV + 10 µA Max
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
WV (V)
6.3 10 16 25 35 50 63 100 160-250 400-450
DF(%)
26 22 18 16 14 12 10
10
15
20
Above 1000 µF, the value of DF (%) is increased 2% for every additional 1000 µF
Ripple Multipliers for Frequency and Temperature:
Rated
Ripple Multipliers
WVDC
60Hz
120Hz
1kHz
10kHz
6 to 25
0.80
1.0
1.1
1.2
35 to 100
0.75
1.0
1.3
1.4
160 to 450
0.70
1.0
1.4
1.6
Ambient
Ripple
Temperature Multiplier
+105 ºC
1.00
+85 ºC
1.50
+70 ºC
1.80
Load Life Test: Apply Rated WVDC for 2000 hours at +105 ºC
Shelf Life:
Capacitance change within 20% of initial value
DF not to exceed 200% of initial requirement
DC Leakage current meets initial limits
1000 hrs @105 ºC with no voltage applied
Cap change within 20% of initial value
DF ≤ 200% of initial requirements
DC leakage current meets initial requirement
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type SH 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Outline Drawing
Outline Dimensions
(Millimeters)
PVC Sleeve
S 0.5
d 0.05
+
+
L
5
15 Min.
Case vented on
diameters 6.3 and greater
D
Vinyl sleeve adds .5 Max. to diameter
and 2.0 Max. to length
Part Numbering System
SH
100
Type
M
100
Capacitance
Rated
Capacitance Tolerance
(µF)
SH
S
T
Lead
Voltage
Packaging
Configuration
(%)
(Vdc)
1R0 = 1
K = ±10
6R3 = 6.3
A = Tape & Ammo
1 = Lead cut
100 = 10
M = ±20
010 = 10
E = Different Characteristic
2 = Lead form
101 = 100
100 = 100 R = Tape & Reel
102 = 1000
4 = Lead crimp & cut (form)
S = Standard
T = Standard
Temperature Characteristics
40
30
100
20
%C
50
47F 100V
10
%DF
0
100F 160V
-10
47F 100V
10
5
100F 160V
-20
-30
1
-40
0
40
80
Temperature C
120
-40
Capacitance Change Ratio
0
40
80
Temperature C
120
Dissipation Factor Change
Load Life Characteristics
100
10
%C
20
0
100F 160V
-10
47F 100V
-20
0
500
1000
1500
Time In Hours
2000
Capacitance Change Ratio
50
%DF 15
470F 25V
10
5
100F 160V
0
500
1000
1500
Time In Hours
2000
Dissipation Factor Change
%LC
10
5
100F 160V
47F 100V
1
0
500
1000
1500
Time In Hours
2000
Leakage Current Change
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type SH 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Ratings
Capacitance
(uF)
Catalog
Part Number
Max
ESR
Ripple Current
120
120 Hz/
Hz/+25°C
+105°C
(ohms)
(ma)
Size in. (mm)
Diameter
(D)
Length
(L)
Lead Space
(S)
Lead dia.
(d)
6.3 Vdc (8 Volts Surge)
47
SH470M6R3ST
7.34
65
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
100
SH101M6R3ST
3.45
100
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
220
SH221M6R3ST
1.57
165
0.248
(6.3)
0.433
(11.0)
0.098
(2.5)
0.020
(0.5)
330
SH331M6R3ST
1.04
200
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
470
SH471M6R3ST
0.73
280
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
1000
SH102M6R3ST
0.34
470
0.394
(10.0)
0.492
(12.5)
0.197
(5.0)
0.024
(0.6)
2200
SH222M6R3ST
0.17
930
0.512
(13.0)
0.787
(20.0)
0.197
(5.0)
0.024
(0.6)
3300
SH332M6R3ST
0.12
1100
0.512
(13.0)
0.787
(20.0)
0.197
(5.0)
0.024
(0.6)
4700
SH472M6R3ST
0.09
1320
0.630
(16.0)
0.984
(25.0)
0.295
(7.5)
0.031
(0.8)
47
SH470M010ST
6.21
75
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
10 Vdc (13 Volts Surge)
0.197
(5.0)
100
SH101M010ST
2.92
110
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
220
SH221M010ST
1.33
180
0.248
(6.3)
0.433
(11.0)
0.098
(2.5)
0.020
(0.5)
330
SH331M010ST
0.88
255
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
470
SH471M010ST
0.62
305
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
1000
SH102M010ST
0.29
570
0.394
(10.0)
0.630
(16.0)
0.197
(5.0)
0.024
(0.6)
2200
SH222M010ST
0.14
1010
0.512
(13.0)
0.787
(20.0)
0.197
(5.0)
0.024
(0.6)
3300
SH332M010ST
0.10
1220
0.512
(13.0)
0.984
(25.0)
0.197
(5.0)
0.024
(0.6)
4700
SH472M010ST
0.08
1410
0.630
(16.0)
0.984
(25.0)
0.295
(7.5)
0.031
(0.8)
33
SH330M016ST
7.23
70
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
16 Vdc (20 Volts Surge)
0.197
(5.0)
47
SH470M016ST
5.08
85
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
100
SH101M016ST
2.39
135
0.248
(6.3)
0.433
(11.0)
0.098
(2.5)
0.020
(0.5)
220
SH221M016ST
1.09
235
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
330
SH331M016ST
0.72
285
0.315
(8.0)
0.433
(11.0)
0.138
(3.5)
0.024
(0.6)
470
SH471M016ST
0.51
395
0.394
(10.0)
0.492
(12.5)
0.197
(5.0)
0.024
(0.6)
1000
SH102M016ST
0.24
700
0.394
(10.0)
0.787
(20.0)
0.197
(5.0)
0.024
(0.6)
2200
SH222M016ST
0.12
1150
0.512
(13.0)
0.984
(25.0)
0.197
(5.0)
0.024
(0.6)
3300
SH332M016ST
0.09
1350
0.630
(16.0)
0.984
(25.0)
0.295
(7.5)
0.031
(0.8)
4700
SH472M016ST
0.07
1560
0.630
(16.0)
1.26
(32.0)
0.295
(7.5)
0.031
(0.8)
25 Vdc (32 Volts Surge)
10
SH100M025ST
21.22
39
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
22
SH220M025ST
9.65
60
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
33
SH330M025ST
6.43
75
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
47
SH470M025ST
4.52
90
0.197
(5.0)
0.433
(11.0)
0.079
(2.0)
0.020
(0.5)
100
SH101M025ST
2.12
145
0.248
(6.3)
0.433
(11.0)
0.098
(2.5)
0.020
(0.5)
220
SH221M025ST
0.96
250
0.394
(10.0)
0.492
(12.5)
0.197
(5.0)
0.024
(0.6)
330
SH331M025ST
0.64
355
0.394
(10.0)
0.492
(12.5)
0.197
(5.0)
0.024
(0.6)
470
SH471M025ST
0.45
470
0.394
(10.0)
0.630
(16.0)
0.197
(5.0)
0.024
(0.6)
1000
SH102M025ST
0.21
855
0.512
(13.0)
0.787
(20.0)
0.197
(5.0)
0.024
(0.6)
2200
SH222M025ST
0.11
1230
0.630
(16.0)
0.984
(25.0)
0.295
(7.5)
0.031
(0.8)
3300
SH332M025ST
0.08
1450
0.630
(16.0)
1.26
(32.0)
0.295
(7.5)
0.031
(0.8)
4700
SH472M025ST
0.06
1690
0.709
(18.0)
1.40
(36.0)
0.295
(7.5)
0.031
(0.8)
