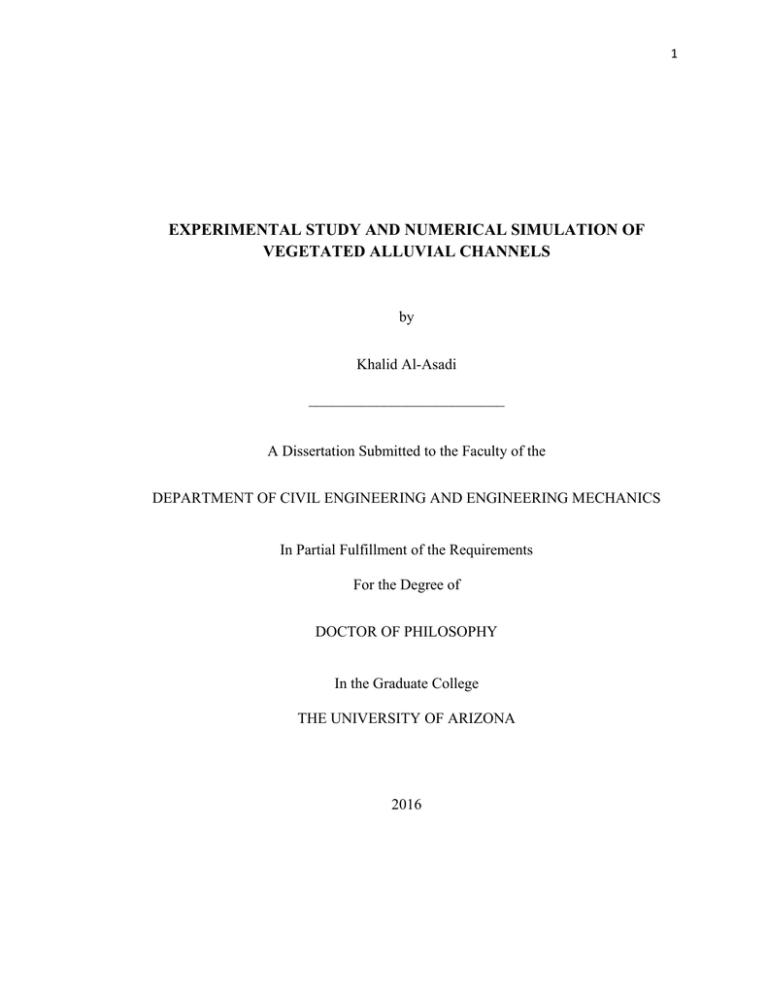

EXPERIMENTAL STUDY AND NUMERICAL SIMULATION OF
VEGETATED ALLUVIAL CHANNELS
by
Khalid Al-Asadi
__________________________
A Dissertation Submitted to the Faculty of the
DEPARTMENT OF CIVIL ENGINEERING AND ENGINEERING MECHANICS
In Partial Fulfillment of the Requirements
For the Degree of
DOCTOR OF PHILOSOPHY
In the Graduate College
THE UNIVERSITY OF ARIZONA
2016
2
THE UNIVERSITY OF ARIZONA
GRADUATE COLLEGE
As members of the Dissertation Committee, we certify that we have read the
dissertation prepared by Khalid Al-Asadi entitled “Experimental Study and Numerical
Simulation of Vegetated Alluvial Channels” and recommend that it be accepted as
fulfilling the dissertation requirement for the Degree of Doctor of Philosophy.
_____________________________________________ Date: December 8, 2015
Dr. Jennifer G. Duan
_____________________________________________ Date: December 8, 2015
Dr. Juan B Valdes
_____________________________________________ Date: December 8, 2015
Dr. Kevin Lansey
_____________________________________________ Date: December 8, 2015
Dr. Victor R. Baker
Final approval and acceptance of this dissertation is contingent upon the candidate’s
submission of the final copies of the dissertation to the Graduate College.
I hereby certify that I have read this dissertation prepared under my direction and
recommend that it be accepted as fulfilling the dissertation requirement.
_____________________________________________ Date: December 8, 2015
Dissertation Director: Dr. Jennifer G. Duan
3
STATEMENT BY AUTHOR
This dissertation has been submitted in partial fulfillment of requirements for an
advanced degree at the University of Arizona and is deposited in the University Library to
be made available to borrowers under rules of the Library.
Brief quotations from this dissertation are allowable without special permission,
provided that an accurate acknowledgment of source is made. Requests for permission for
extended quotation from or reproduction of this manuscript in whole or in part may be
granted by the head of the major department or the Dean of the Graduate College when in
his or her judgment the proposed use of the material is in the interests of scholarship. In
all other instances, however, permission must be obtained from the author.
SIGNED: Khalid Al-Asadi
4
ACKNOWLEDGEMENTS
I would like to express my sincere gratitude to my advisor, Dr Jennifer G. Duan,
for her valuable guidance, encouragement and continuous support through the course of
this study. The extensive knowledge, vision, and creative thinking of Dr. Duan have been
the source of inspiration for me throughout this study.
I am equally grateful to my committee members, Dr. Juan B Valdes, Dr. Kevin
Lansey and Dr. Victor R. Baker, for their encouragement and valuable instructions and
suggestions.
I am thankful to my colleagues Chuanshui Yu, Jaeho Shim, Yang Bai, Abdullah
Al-Hussein, and Umar Amjad for all the help they offered in my study.
I would like to express my deepest thanks and appreciation to my father, brothers and
sisters for their continuous love and support. I also would like to express my deepest thanks
and appreciation to my parents in law. Without them all, I would not have been able to come
this long.
In the last but not the least, I would like to express my deepest love and thanks to
my wife and kids. They were always there cheering me up and stood by me through the
good and bad times. This dissertation could not be completed without their patience, and
continuous love.
5
DEDICATION
To the soul of my Mother and Brother Nael
To my Father
To my Wife and Kids
To my Brothers and Sisters
6
TABLE OF CONTENTS
LIST OF TABLES .............................................................................................................. 9
LIST OF FIGURES .......................................................................................................... 10
ABSTRACT ...................................................................................................................... 12
CHAPTER ONE: INTRODUCTION ............................................................................... 14
1.1 Statement of the Problem ........................................................................................ 14
1.2 Literature Review .................................................................................................... 17
1.2.1 Quantify Vegetation Induced Friction Resistance by Using Empirical Relations
for Roughness Coefficients ....................................................................................... 17
1.2.2 Computational Modeling of Vegetation Impact ............................................... 21
1.2.3 Impact of Vegetation on Bed Resistance in Mobile Bed Channel ................... 24
1.2.4 Impact of Vegetation on Sediment Transport................................................... 26
1.3 Format of Dissertation ............................................................................................. 28
CHAPTER TWO: CURRENT STUDY ........................................................................... 29
2.1 Objective ................................................................................................................. 29
2.2 Methodology ........................................................................................................... 30
2.2.1 Experimental Study (Appendix A) ................................................................... 30
2.2.1.1 Grain Resistance in Vegetated Channel Flow ........................................... 31
2.2.1.2 Bed Form Resistance in Vegetated Channel Flow .................................... 32
2.2.1.3 Bed Surface Elevation................................................................................ 34
2.2.2 Numerical Simulation (Appendices B and C) .................................................. 37
2.3 Results ..................................................................................................................... 40
2.3.1 Experimental Study (Appendix A) ................................................................... 40
2.3.2 Numerical Simulation (Appendices B and C) .................................................. 41
2.4 Future Works ........................................................................................................... 43
Appendix A: Experimental Study of Bed Resistance and Bed Load Transport in
Vegetated Channel ............................................................................................................ 45
Abstract ......................................................................................................................... 45
Introduction ................................................................................................................... 45
Experimental Setup ....................................................................................................... 49
Flume Setup ............................................................................................................... 49
Bed Surface Elevation ............................................................................................... 51
7
Data Processing ............................................................................................................. 51
Grain Resistance ........................................................................................................ 51
Bed Form Resistance ................................................................................................. 53
Bed Form Height ....................................................................................................... 56
Results ........................................................................................................................... 58
Bed Form Resistance Relation .................................................................................. 58
Bed Load Transport Relation .................................................................................... 59
Variation of Bed Load Transport with Flow Parameter ........................................ 59
Conclusions ................................................................................................................... 60
Notation ......................................................................................................................... 62
Appendix B: Simulation of Tidal Flow through a Vegetated Marsh Area Using Delft3DFLOW Model .................................................................................................................... 74
Abstract ......................................................................................................................... 74
Introduction ................................................................................................................... 75
Study Area Location and Characteristics ...................................................................... 77
Delft3D-FLOW Model .................................................................................................. 78
Modeling Vegetation Impact ......................................................................................... 81
Model Configurations ................................................................................................... 82
Computational Mesh.................................................................................................. 82
Boundary Conditions ................................................................................................. 83
Results ....................................................................................................................... 84
Sensitivity Analysis ....................................................................................................... 87
Vegetation Blockage Index (a Value) ....................................................................... 87
Vertical Grid Selection .............................................................................................. 88
Conclusions ................................................................................................................... 89
Notation ......................................................................................................................... 91
Appendix C: (Technical Note) Three Dimensional Hydrodynamic Simulation of Tidal
Flow through a Vegetated Marsh Area ........................................................................... 111
Abstract ....................................................................................................................... 111
Introduction ................................................................................................................. 112
Study Area Location and Characteristics .................................................................... 113
Computational Model .................................................................................................. 113
Results ..................................................................................................................... 116
8
Grid Sensitivity Analysis ......................................................................................... 120
Conclusions ................................................................................................................. 121
Notation ....................................................................................................................... 123
REFERENCES ............................................................................................................... 133
9
LIST OF TABLES
Table A-1. Experimental runs ........................................................................................... 65
Table A-2. Experimental runs processing data ................................................................. 66
Table A-3. Ranges of literature test data considered ........................................................ 66
Table B-1. Manning’s n values for each sub-area used for the first approach ................. 93
Table B-2. List of the equations used to calculate n and C values for the second approach
........................................................................................................................................... 93
Table B-3. Roughness parameter values for all sub-areas used in the SED2D model
equation ............................................................................................................................. 95
Table C-1. RMSE and NSE vlues for simulated results compared with observations ... 125
10
LIST OF FIGURES
Figure 1.1 Comparison between vegetated and unvegetated channel flows .................... 16
Figure 2.1 Microsoft Kinect (http://www.pcmag.com/article2/0,2817,2402520,00.asp) . 35
Figure 2.2 Steps to capture bed surface elevations and bed form height .......................... 36
Figure A-1. Schematic drawing for (a) open bed formation, (b) closed bed formation ... 67
Figure A-2. Flume set-up .................................................................................................. 67
Figure A-3. Vegetation stems arrangement ...................................................................... 68
Figure A-4. Kinect Z-values, (a) with bed surfcae slope, (b) leveling bed surface .......... 68
Figure A-5. Bed surface elevation contours (a) run #7 {  =1.4%}, (b) run #18 { 
=0.5%} .............................................................................................................................. 69
Figure A-6. Variation of ΔZavg versus  .......................................................................... 70
Figure A-7. Variation of  bf versus η .............................................................................. 70
*
Figure A-8. Variation of
 bf versus 
........................................................................... 71
*
*
*
Figure A-9. (a) Variation of q b versus  g* , (b) Variation of q b versus  t .................... 72
*
Figure A-10. Variation of qb versus η ............................................................................. 73
Figure B-1. Locations of the study area, Highway 90 and lake Cataouatche USGS, and
the observed data gauges .................................................................................................. 96
Figure B-2. Panicum hemitomon profile (http://www.outdooralabama.com/maidencane)
........................................................................................................................................... 96
Figure B-3. Sub-area divisions ......................................................................................... 97
Figure B-4. Study area computation grid .......................................................................... 97
Figure B-5. Grid aspect ratio contour lines ....................................................................... 98
Figure B-6. Distribution of vertical layers at a section passing through the inlet canal ... 98
Figure B-7. Study area bathymetry changes ..................................................................... 99
Figure B-8. Boundary conditions of inflow and tidal stage hydrographs at Highway 90
and Lake Cataouatche gauges respectively....................................................................... 99
Figure B-9. WSE at all observed data gauges................................................................. 100
Figure B-10. Observed and simulated WSE for all gauges - approach 1 ....................... 101
11
Figure B-11. Observed and simulated WSE for all gauges - approach 2 ....................... 102
Figure B-12. Ranges of RMSE for all gauges for both approaches................................ 103
Figure B-13. Ranges of NSE for all gauges for both approaches ................................... 103
Figure B-14. Changes of the n values for the runs using Luhar and Nepf (2013), Klopstra
et al. (1997) and Baptist (2005) equations at gauge 21 .................................................. 104
Figure B-15. Observed and simulated WSE for all gauges - a = 1.020 m-1 ................... 105
Figure B-16. Observed and simulated WSE for all gauges - a = 11.220 m-1 ................. 106
Figure B-17. Observed and simulated WSE for all gauges - a = 22.440 m-1 ................. 107
Figure B-18. Ranges and averages of RMSE for all gauges for different a values using
best three equations ......................................................................................................... 108
Figure B-19. Ranges and averages of NSE for all gauges for different a values using the
best three equations ......................................................................................................... 108
Figure B-20. Observed and simulated WSE for all gauges using Luhar and Nepf (2013)
equation for different vertical grid selection ................................................................... 109
Figure B-21. Ranges of RMSE and NSE for all gauges using Luhar and Nepf (2013)
equaion for different vertical grid selection .................................................................... 110
Figure C-1. Study area, locations of the USGS and observed data gauges, and subarea
divisions .......................................................................................................................... 126
Figure C-2. Study area computation grid ........................................................................ 127
Figure C-3. Distribution of vertical layers at a section passing through the inlet canal . 128
Figure C-4. Boundary conditions of WSE and tidal height at the Highway 90 and Lake
Cataouatche gauges, respectively ................................................................................... 128
Figure C-5. Observed and simulated inflow and WSE ................................................... 129
Figure C-6. n value versus degree of submergence for the three (best) equations ......... 130
Figure C-7. Time variations of n and R from the best three equations: (a and b) Highway
90 Gauge; (c and d) Gauge 22; (e and f) Gauge 27 ........................................................ 131
Figure C-8. Observed and simulated inflow and WSE using fine and coarse meshes ... 132
12
ABSTRACT
Vegetation in rivers increases flow resistance and bank stability, reduces bed
resistance and flow conveyance, improves water quality, promotes habitat diversity, and
alters both mean and turbulent flow. By reducing bed resistance and altering turbulent
characteristics, vegetation can change the distribution of deposition and erosion processes.
To understand all above mentioned vegetation effects, more research is needed. The
goal of this dissertation was to determine the impacts of vegetation on bed resistance and
sediment transport and identify a best approach for quantifying vegetation induced friction
resistance. To achieve this, both experimental study and numerical simulation were
performed.
A series of laboratory experiments were conducted in an open channel flume to
investigate the impacts of vegetation density on bed resistance and bed load transport for
emergent vegetation condition. The bed resistance in a mobile bed channel is equal to the
summation of grain and bed form resistances. An attempt has been made to make a
separation between grain and bed form resistances, which is challenging and has never
been reported in literature. An alternative approach is used to calculate the grain resistance.
A new iterative method was derived to calculate the bed form resistance. Empirical
relations were formulated to calculate the bed form resistance and bed load transport rate
using a newly defined flow parameter that incorporates the vegetation concentration. The
bed elevations and bed form height were measured by the Microsoft Kinect 3D Camera. It
was found that the height of bed form depends on the vegetation concentration, which
determines whether ripple/dune or scour holes are dominant on the bed surface. For
sparsely vegetated flows, the bed form height and resistance are decrease rapidly as the
13
vegetation concentration was increased, and they decreased gradually when the vegetation
concentration was high.
To quantify the vegetation induced friction resistance, a 3D numerical simulation
was conducted using the Delft3D-FLOW open source program. The study area is Davis
Pond freshwater marsh area near New Orleans, Louisiana. The dominant vegetation type
for the study area is Panicum hemitomon. The study area was divided into several subareas depending on the existence of channels, overbanks, and vegetation height. Several
approaches were used to approximate the vegetation roughness; a constant Manning’s n
coefficient, a time-varying n or Chezy’s C coefficient, and the modified momentum and kε equations for each subarea. To quantify the time varying roughness coefficients, four
equations for calculating n values were incorporated in the Delft3D-FLOW program in
addition to two options offered by this program to calculate C values. It is concluded that
the use of the time varying roughness coefficient gives better results than other approaches.
Among the selected equations to calculate the time varying vegetation roughness, the
equations that account for the effect of the degree of submergence and the vegetation
frontal area per unit volume, symbolized as a, gave the closet matches with the
observations. The sensitivity of modeling results to the selection of vertical grid (σ –and
Z-grids), a value, and grid size were analyzed. It is found that using the σ -grid yielded
more accurate results with less CPU times and the best range of a value for the Panicum
hemitomon vegetation type is from 8.160 to 11.220 m-1. Also it was observed that the
adoption of a coarse mesh gives reasonable simulation results with less CPU time
compared with a fine mesh. A non-linear relation between the vegetation resistance, in
terms of n value, and degree of submergence was observed.
14
CHAPTER ONE
INTRODUCTION
1.1 Statement of the Problem
Flow in river channels and floodplains is highly complicated, and it is characterized
by the interactions among the flow, boundaries, and vegetation canopy. Because of the
importance of floodplain management and river restoration, an increase of interest has been
raised to understand the impact of vegetation on flow hydraulics and river alluvial
processes. Vegetation characteristics, such as vegetation type, distribution, density,
flexibility, and degree of submergence all affect flow depth, velocity, hydraulic radius, and
energy slope. The resistance to flow through vegetated areas is increased by an additional
drag force exerted by vegetation (Fenzl 1962, Temple et al. 1987). Because of this drag,
flow through vegetated areas decelerates, and the mean velocities reduce compared to
unvegetated areas (Shi et al. 1995, Zhang et al. 2010). Vegetation also improves the water
quality by removing nutrients and releasing oxygen to the waterbody, increasing bed and
bank stabilization, and promoting habitat diversity.
Both emergent and submerged vegetation alter the time-averaged velocity profile
in channels. Studies showed that the velocity profile in channels with submerged vegetation
can be divided into four zones (Baptist et al. 2007): the first zone is the boundary layer
flow near the bed, where the velocity distributions satisfies the logarithmic law; the second
zone is inside the vegetation layer and sufficiently away from the bed and the top of the
vegetation, and the velocity is uniformly distributed; the third zone is near the top of the
vegetation having a transitional profile between the uniform velocity inside the vegetation
15
and the logarithmic velocity profile above it; and finally, the fourth zone is above the
vegetation, and the logarithmic profile is observed.
Vegetation resistance has been approximated by means of resistance coefficients
such as the Chezy, Darcy and Manning coefficients (e.g. Ree and Palmer 1949, Chow 1959,
Petryk and Bosmaijan 1975, Shih and Rahi 1981, Klopstra et al. (1997), Green (2005a),
Nikora et al. (2008), and Luhar and Nepf (2013)). Various empirical and analytical
relations were derived to calculate these coefficients by correlating them with flow and
vegetation properties. Since vegetation induces momentum loss and influences turbulence
generation and dissipation, the vegetation effects can also be approximated by adding
additional terms in the momentum equations and turbulent closure models, such as the
kinetic energy (k) and energy dissipation (ε) model. The additional drag exerted by
vegetation influences the transport of sediment and solutes by promoting sediment
accumulation as the near-bed resistance reduces (Nepf 1999). Vegetation also changes
near-bed turbulent characteristics, and significantly affects the scour formation around
vegetation stems.
In vegetated channels, bed resistance is significantly smaller than that in an
unvegetated channel at the same flow discharge. A simple schematic sketch has been
plotted in Figure 1.1 to show the difference between flow through vegetated and
unvegetated channels in steady uniform flow. For the same total resistance, bed resistance
in the vegetated channel is less than that in the unvegetated channel. Eddies are generated
between the vegetation stems, and their sizes depend on vegetation densities, which
produce some degrees of turbulence that affect the erosion/deposition processes (sediment
transport).
16
Bed resistance is equal to the summation of grain and bed form resistances in a
mobile bed channel. On the fixed bed channel, it is equal to grain resistance, because there
is no bed form resistance. Grain resistance is the friction due to bed surface roughness and
it is a function of bed roughness height, while bed form resistance is a drag force due to
flow separation at the lee side of bed form and is a function of bed form height.
Figure 1.1 Comparison between vegetated and unvegetated channel flows
Although much research has been conducted to explore the effect of vegetation on
hydraulic roughness coefficients (e.g. Ree and Palmer 1949, Chow 1959, Petryk and
Bosmaijan 1975, Shih and Rahi 1981, Klopstra et al. (1997), Green (2005a), Nikora et al.
(2008), and Luhar and Nepf (2013)), its influences on suspended and bed load sediment
transport are less known. In open channel flow, many empirical equations have been
proposed to relate sediment transport to flow characteristics, however they are not
applicable for flow through vegetated channels because vegetation influences were not
considered.
17
1.2 Literature Review
This section provides a brief state-of-the art review of research on (1) quantification
of vegetation induced friction resistance by using empirical relations for roughness
coefficients, (2) computational modeling of vegetation impact, (3) impact of vegetation on
bed resistance in mobile bed channel, and (4) impact of vegetation on sediment transport.
1.2.1 Quantify Vegetation Induced Friction Resistance by Using Empirical
Relations for Roughness Coefficients
Many approaches have been developed to calculate vegetation resistance. Among
them, quantifying this resistance by means of friction coefficients, such as Chezy, Darcy
and Manning coefficients, is a computational cost-effective method. Ree and Palmer
(1949) conducted several experiments to study flow on trapezoidal and rectangular
channels lined with natural grasses. They developed empirical curves that related
Manning’s n to the product of the average velocity and the hydraulic radius for various
grass media. Cowan (1956) and Chow (1959) suggested values for n by taking into account
vegetation and several other factors. The n value according to Cowan (1956) is adjustable
and a function of a base n value (a minimum value for a uniform shaped channel in natural
material), channel surface irregularities, variation in channel cross section, obstruction,
vegetation type and channel meandering. Petryk and Bosmaijan (1975) gave a guidance to
calculate the n value for emergent rigid vegetation. They found that the n value, in the case
of vertically uniform dense vegetation, increases in proportion to two-thirds power of the
hydraulic radius and the square root of the vegetation density assuming that the channel
boundary shear stress is negligible. A field study conducted by Shi and Rahi (1981) showed
18
that the n values in a subtropical marsh were significantly increased by vegetation. The n
values are increased with a decrease in flow depth, and varied from 0.26 to 0.55 for water
hyacinth and from 0.16 to 0.43 for mixed vegetation with flow depth ranging from 40 to
65 cm. Reed et al. (1995) suggested a formula to calculate the n value in a constructed
wetland. This formula indicated that the n value is a function of flow depth and a resistance
factor. The resistance factor is a function of vegetation density and flow depth.
Klopstra et al. (1997) derived an analytical model to calculate the Chezy’s C
coefficient for submerged vegetation. The force balance was applied in the streamwise
direction under the assumption of steady uniform flow. The Boussinesq concept was used
to describe the shear stress, where the shear stress is equal to the product of eddy viscosity
and velocity gradient. Klopstra et al. (1997) assumed that the eddy viscosity can be
characterized by the product of a velocity scale and a length scale of large scale of
turbulence, which is responsible for the vertical transport of momentum. Also they
assumed that the velocity scale can be represented by the flow velocity profile, whereas the
length scale is independent of the vertical direction. Under these assumptions, they found
that the C value is a function of vegetation height and density, stem diameter, drag
coefficient, and the characteristic length scale of large scale turbulence. An implementation
based on Klopstra et al. (1996) has been added to the Klospstra et al. (1997) equation to
calculate the C value for emergent vegetation (Deltares 2011). This C value is a function
of bed coefficient, flow depth, drag coefficient, and vegetation frontal area per unit volume.
Wu et al. (1999) conducted an experimental work to investigate the variation of
vegetative roughness coefficient with flow depth for emergent and submerged flow
conditions. Their results revealed that the roughness coefficient reduces with increasing
19
flow depth under the emergent condition. However, when fully submerged, the vegetative
roughness coefficient tends to remain constant or increase at low depths but then decrease
to an asymptotic constant as the water level continues to rise.
Kouwen and Unny (1973) are the first to characterize the drag force induced by
flexible vegetation. This drag is smaller than that for rigid upright vegetation because of
the change of vegetation morphology (Vogel 1994). Kouwen and Fathi-Moghadam (2000)
incorporated the vegetation flexibility to estimate the roughness coefficient, Darcy’s ƒ or
n, for emergent vegetation on floodplains. The mathematical model (Kouwen and FathiMoghadam 2000) calculates roughness based on flow velocity, flow depth, and type of
vegetation. The vegetation type is characterized by a vegetation index defined as a function
of natural frequency, height, weight and length of plants.
Recently, Abood et al. (2006) conducted a laboratory study to analyze the effects
of two types of vegetation, Napier grass and Cattail grass, on the n value in an open channel,
and then developed a relationship between vegetation characteristics (density, degree of
submergence) and n. They found a logarithmic relation between n and the degree of
submergence, defined as the ratio of flow depth to the vegetation height. Their results
showed that n value for flows with high and low densities of Napier grass increased with
the increase in flow depth for both submerged and emergent conditions. For the Cattail
grass, the effect was reversed and a decrease in the n value was found for both high and
low grass densities. This was attributed to the physical characteristics of the Cattail grass,
which has no branching stem and leave in addition to the rigidity of grass stems.
In engineering practice, the SED2D model, a two dimensional vertically averaged
sediment transport model developed by Engineering Research and Development Center
20
(ERDC) of the US Army Corps of Engineers, adopted an empirical formula to calculate
the n value for vegetated channels. The Manning’s n in SED2D model equation is a
function of the maximum n value for unvegetated water, vegetation height, maximum n
value of vegetated water, and flow depth (WexTech System, Inc. 2011).
Vegetation alters velocity profile and flow resistance in open channel flow through
different scales ranging from individual branches and blades on a single plant, to a
community of plants in a patch or canopy, to a channel reach (Nepf 2012). Vegetation
resistance in a channel reach is determined primarily by the vegetation coverage or the
blockage factor (Green 2005a). This factor is defined as the fraction of channel crosssection or surface area blocked by vegetation, or the fraction of channel volume occupied
by vegetation (Green 2005a). It’s worth mentioning that Fisher (1992) first examined the
surface area and volumetric blockage factors, and recommended the surface area blockage
factor for calculating n coefficient because it’s easier to be measured. Recently, Green
(2005a), Nikora et al. (2008), and Luhar and Nepf (2013) used the cross-sectional blockage
factor to calculate n value. Since the cross-sectional blockage factor is a better
representation of turbulence wake in vegetated zones, it’s more favored in literature than
the surface blockage factor.
Green (2005a) conducted a field study to compute the n values in channels
containing submerged vegetation. They assumed that the vegetation component of the n
value is simply equals to the difference between the n values for the total and the bed
surface. At 35 river sites, the total n values were calculated using the Manning equation,
whereas the bed components were calculated using an equation that depends on the channel
hydraulic radius, bed roughness height. He found that the cross-sectional blockage factor
21
better represented the vegetation component of the n value compared with the other types
of blockage factors. Nikora et al. (2008) conducted a field study to examine the vegetation
effects on hydraulic resistance in small streams, and suggested to use the cross-sectional
blockage factor to calculate the vegetation resistance for submerged flow condition. Luhar
and Nepf (2013) developed equations to calculate the vegetation resistance in terms of the
n value for emergent and submerged flow conditions. They segregated flow field into two
layers, vegetation and overflow layers, and applied the force balance principle at both
layers for fully developed flow. They approximated the shear stress at the interface between
the vegetation layer and the overflow layer by a weighting coefficient and the average of
overflow velocity. The bed shear stress was approximated by the average velocity at the
vegetated layer in addition to a weighting coefficient. Luhar and Nepf (2013) found that
the n value for emergent vegetation depends primarily on the vegetation drag, flow depth,
and vegetation frontal area per unit volume. In addition to these factors, the n value for
submerged vegetation is a function of the blockage factor, vegetation height, and an
interface shear stress parameter. Some of the commonly used relations are compiled in
Table B-2.
1.2.2 Computational Modeling of Vegetation Impact
As stated earlier, vegetation affects the mean flow and turbulent structure. These
effects range from small scaled eddies to large scaled bed form changes. In order to provide
more details about these multi-scale effects, computational models were developed.
Wilson and Shaw (1977) developed a numerical model for simulating air flow
within the vegetation canopies. They simulated the momentum loss and turbulence
generation and dissipation by introducing a drag related sink term and drag related
22
turbulence production terms in the momentum and k-ε turbulent transport equations,
respectively. The model predicted mean wind velocity, Reynolds stress, and turbulent
intensities for the region from the soil surface to twice of the canopies height. They are the
first who recognized the importance of the spatial and temporal averaging of the governing
equations for the proper representation of these types of the problems.
For aquatic vegetation, Shimizu and Tsujimoto (1994) and Lopez and Garcia
(1997) followed the same Wilson and Shaw (1997) model to simulate steady uniform flow
through vegetation of uniform density. The drag related sink term is incorporated in the
Reynolds Average Navier Stokes (RANS) equations. This term is a function of drag
coefficient, time averaged velocity, and projected vegetation area. The drag related
production terms are functions of weighting coefficient, drag force, and time averaged
velocity for k and ε equations. Differences between Shimizu and Tsujimoto (1994) and
Lopez and Garcia (1997) numerical studies are how to deal with the drag coefficient and
the weighting coefficients. Lopez and Garcia (1997) kept the drag coefficient as a constant,
whereas Shimizu and Tsujimoto (1994) adjusted its value to get better matches with the
measurements of velocity and Reynolds stress profiles. Lopez and Garcia (1997) used
specific values for the weighting factors in the k and ε equations, whereas Shimizu and
Tsujimoto (1994) used calibrated values.
Naot et al. (1996) carried out computational simulation to study the hydrodynamic
response of turbulent flow in a partially vegetated compound channel. They simulated the
vegetation by vertical round rods, positioned at two modes: an aligned homogenous array
and a randomly distributed array. They modified the momentum and k-ε equations by
adding a drag related sink term and drag related turbulence production terms. Also they
23
introduced an algebraic stress model to take into account the non-isotropy of turbulence
coming from the existence of vegetation.
Fischer-Antze et al. (2001) computed the velocity distribution in a channel partially
covered with submerged vegetation using a three-dimensional model. They modified the
momentum equation using a drag related sink term, while keeping the k-ε equation
unchanged to avoid any calibration for simulations of different flow situations. They
assumed that the sink terms dominated the turbulent diffusive terms, so the values of k and
ε within the vegetation layers did not affect the velocity. The numerical model was tested
against three laboratory experiments from straight flumes with uniform flow, where
vegetation partially covered the cross-section. The velocity and vegetation density varied
in both vertical and horizontal directions in those cases. All tests gave fairly good
correspondence between computed and measured velocity profiles.
Neary (2003) simulated open-channel flows with submerged vegetation using the
k-ω (specific rate of dissipation or dissipation per unit kinetic energy) transport equations.
He introduced the vegetation drag term to the one-dimensional RANS equation and also
added turbulence production terms to the k-ω equations. Each turbulence production term
has a weighting factor to characterize the turbulence production and dissipation. Neary
(2003) adjusted these weighting factors to get reasonable predictions of streamwise
velocity and Reynolds stress profiles compared with measurements.
Choi and Kang (2004) applied the Reynolds stress model to simulate open-channel
flow with emergent and submerged vegetation. Their computed profiles were compared
with the results from the k-ε model and the algebraic stress model as well as the measured
data available in the literature. Choi and Kang (2004) also used the non-isotropic model to
24
take into account the increase in the level of non-isotropy of turbulence due to vegetation.
For open-channel flow with emergent vegetation, they observed that the Reynolds stress
model is able to simulate the non-isotropic nature of the flow better than the algebraic stress
model and the k-ε model. For open-channel flow with submerged vegetation, they found
that the Reynolds stress model predicts the mean velocity and turbulence quantities better
than any other turbulence closure models.
Zhang et al. (2010) used the modified momentum and k-ε equations to investigate
the flow structure, velocity distribution, and mass transport process in a straight compound
open channel and a curved open channel. They introduced an equation to simulate the
anisotropy using the standard k-ε model because the standard one does not have this
capability. Their simulated results showed reasonable agreements with the experimental
data. In a straight compound channel, all streamwise velocities follow the logarithmic
distribution in the case of unvegetated floodplains. A S-shaped profile of velocity occurs
at some place on the floodplain in the case of vegetated floodplains. In curved open channel
flow, the peak values of turbulent kinetic energy occurred at the bottom and interfacial
vegetation region. Velocity in the vegetated channel is smaller than that in the unvegetated
one due to the impact of vegetation resistance.
1.2.3 Impact of Vegetation on Bed Resistance in Mobile Bed Channel
Resistance in vegetated channels is composed of resistances from the boundary and
the vegetation stems. Boundary resistance consists of side wall, grain, and bed form
resistances on mobile bed surface. Grain resistance is the friction due to bed surface
roughness and is a function of bed roughness height, while bed form resistance is a drag
25
force due to flow separation at the lee side of bed form and is a function of bed form height.
The summation of grain and bed form resistance is called the bed resistance.
In vegetated channels, bed resistance is significantly smaller than that in an
unvegetated channel at the same flow discharge. Lopez and Garcia (1998) conducted a
numerical simulation to represent the flow through rigid vegetation by modifying the
governing momentum and k-ε equations. They found that the bed resistance in vegetated
channels reduced steadily with the increase of vegetation roughness density, defined as aH,
where a is the vegetation frontal area per unit volume ( m -1 ), and H is flow depth. For
channels with submerged vegetation having H/hv=3, where hv is the vegetation height, the
bed resistance is reduced to just 10% of the bare bed value.
Jordanova and James (2003) and Kothyari et al. (2009a) calculated bed resistance
by subtracting vegetation resistance from the total flow resistance when processing their
laboratory experimental data. The vegetation resistance was determined by using the drag
coefficient for a single cylindrical stem, but taking into account the effect of other adjacent
stems. Jordanova and James (2003) used the equations proposed by Li and Shen (1973) to
calculate the modified drag coefficient and the approaching velocity for the region located
within multiple wakes of vegetation stems. The modified drag coefficient equation is a
function of the drag coefficient for standard single cylindrical stem, average velocity and
approaching velocity, whereas the approaching velocity equation is a function of stem
diameter and spacing, and the average velocity. Kothyari et al. (2009a) used an equation
proposed by Kothyari et al. (2009b) to calculate the drag coefficient, which is related to
Froude number, Reynolds number as a function of stem diameter, staggering pattern, and,
vegetation concentration,  , defined as the fraction of bed area occupied by the vegetation
26
stems. Jordanova and James (2003) found that the bed shear stress was reduced within
stands of emergent vegetation through the absorption of momentum by the drag on the
stems.
1.2.4 Impact of Vegetation on Sediment Transport
Bed resistance and turbulence intensity have significant effects on sediment
transport in vegetated channels. Specht (2002) conducted several laboratory experiments
to investigate bed load transport in a bare bed channel with emergent vegetation on the
banks. Since flow velocity on the vegetated banks is less than that in the channel, a
secondary current is generated with the direction towards the channel center at the bottom,
but outwards at the free surface, resulting in a scour hole at the bank toe. This secondary
flow circulation considerably affects the direction of bed load transport. Based on the
experimental results, Specht (2002) developed a vegetation parameter that can be used with
the existing bed load transport formulae to account for the effect of vegetated banks on bed
load transport. Later, Jordanova and James (2003) and Kothyari et al. (2009a) correlated
sediment transport in vegetated channels with bed resistance. However, the results of
Jordanova and James (2003) are not generic because they are based on only one sediment
size, one stem diameter, and one vegetation density. Recently, Kothyari et al. (2009a)
studied the effect of emergent vegetation on bed load transport. They observed that
sediment transport rate in vegetated channels is smaller than that in unvegetated ones. The
sediment transport relationship by Hashimoto and Hirano (1996), originally for sediment
transport in unvegetated channels, was modified in Kothyari et al. (2009a). They found
sediment transport in vegetated channels is a function of bed resistance and critical shear
stress of bed sediment. Schmid et al. (2005) developed a mathematical model to describe
27
sediment transport and deposition in the constructed wetland ponds with emergent
vegetation. Flow through wetland ponds is characterized by slow flow in the transition
regime between laminar and turbulent, and this results in a significant effect on the
deposition of suspended sediment. They assumed the uniformly distributed streamwise
velocity through the emergent vegetation to simplify the mathematical modeling of
transport process.
Although most previous studies observed enhanced depositions within the
vegetated bed surface, the opposite trend has also been observed (Nepf 2012). Baptist
(2003) conducted experiments of sediment transport on channels with flexible submerged
vegetation. The results showed an increase in suspended sediment transport rate compared
to a case without vegetation. The increased turbulence levels in between the vegetation
stems are capable of picking up the sediment more effectively, and thus bringing the
sediment in suspension. Follett and Nepf (2012) observed the erosion and deposition
patterns formed in an experimental sand bed around a circular patch of emergent vegetation
imitated by rigid cylinders. All of their measurements showed some degrees of scouring
within the patch. This was attributed to the higher level of turbulence within the vegetation
patch. Sediment scoured from the sparse patch was mostly deposited within one patch
diameter downstream of the same patch. Additional deposition occurred further
downstream, but at the sides of the turbulence wake, creating an open bed formation
(Figure A-1 (a)). For a dense patch, flow experiences greater resistance, sediment scoured
from this patch was carried further downstream before depositing along the patch
centerline. Consequently, a closed bed formation was created (Figure A-1 (b)).
28
1.3 Format of Dissertation
The format of this dissertation is defined by The University of Arizona Graduate
College’s Manual for Theses and Dissertations and is, therefore, subject to some repetitions
of information. It includes a first chapter ‘INTRODUCTION’ describing the relevance of
this research, in the context of previous research, and a second chapter ‘CURRENT
STUDY’ that briefly summarizes the objectives, methodology and results of the three
manuscripts included in Appendices A, B, and C, and potential future work of the current
study. Appendix A is a scientific manuscript regarding a series of experiments to study the
grain and bed resistances and bed load transport in an open channel flume with emergent
vegetation, and it has been presented in the ASCE EWRI Congress 2015 and also submitted
to the Journal of Hydraulic Engineering. Appendix B is a scientific manuscript regarding
the numerical simulation (1st part) of hydrodynamic flow field in the vegetated marsh area
by introducing empirical roughness coefficients for each subarea, and it has been published
in the Proceedings of ASCE EWRI Congress 2014 and also submitted to the Journal of
Waterway, Port, Coastal and Ocean Engineering. Appendix C is a scientific manuscript
regarding the numerical simulation (2nd part) of tidal flow in vegetated marsh area in which
the time varying roughness coefficients and the modified momentum and k-ε equations
were used for each subarea to simulate the vegetation resistance, and has been published
by the Journal of Hydraulic Engineering.
29
CHAPTER TWO
CURRENT STUDY
2.1 Objective
The main objective of this study is to quantify vegetation impacts on flow resistance
and sediment transport. In order to achieve this, the following specific tasks were
completed:

Conduct a series of laboratory experiments to investigate grain and bed form
resistances, and bed load transport in a vegetated mobile bed channel. An attempt
was made to separate grain and bed form resistances, which is challenging and has
never been reported in literature. Bed surface elevations and bed form height were
captured by the Microsoft Kinect (Microsoft 2013) 3D Camera. Bed sediment size,
flow condition, and vegetation density were varied in the experiments. Empirical
relations to determine bed form resistance and bed load transport rate were derived
from the experimental data. Both were correlated with a dimensionless flow
parameter that depends on vegetation concentration using the experimental data
from this and other studies.

Simulate flow hydraulics in an estuarine fresh water marsh using Delft3D-FLOW
model (rigid bed). This task was divided into two parts:
 1st part: Two approaches were used to approximate the vegetation roughness: a
constant Manning’s n coefficient, and a time-varying n or Chezy’s C coefficient
for each sub-area. Observed water surface elevations were used for model
validation and verification. It is concluded that the use of time varying
30
roughness coefficient gives better simulated results comparing with the
observations. Several equations were used to quantify the time varying
roughness coefficients. It is found that the equations that account for the effect
of the degree of submergence and the vegetation frontal area per unit volume
give the closet matches with the observations.
 2nd part: The time varying roughness coefficients approach and the modified
momentum and k-ε equations approach for approximating vegetation induced
resistance were evaluated. Research from 1st part was extended by using fine
meshes and additional methods. Observed flow rate in addition to water surface
elevations were used for model validation and verification. The best empirical
equations identified in the 1st part gave better results than other equations as
well as the method for modifying the momentum and k-ε model.
2.2 Methodology
The impacts of vegetation on flow resistance and sediment transport were studied
through a series of laboratory experiments of variable vegetation densities (Appendix A).
Numerical simulation using the Delft3D-FLOW model is used to evaluate various
equations for calculating flow resistance in the vegetated channel. Different methods for
calculating vegetation induced roughness were implemented in Delft3D model
(Appendices B and C).
2.2.1 Experimental Study (Appendix A)
The impacts of vegetation on bed resistance and bed load transport were studied.
The vegetation stems were simulated by arrays of emergent PVC rods. Three different
31
staggered vegetation concentrations and two groups of uniformly sized sediment were
used. The total flow resistance was divided into bed and vegetation resistance, and bed
resistance is further separated into grain and bed form resistances. Bed load transport rate
was measured by a bed load sampler.
2.2.1.1 Grain Resistance in Vegetated Channel Flow
Nepf (2012) summarized several methods to measure bed resistance without the
presence of bed form in vegetated channel by using: (See Appendix A for variable
notations)
(1) The spatial averaged viscous stress on bed surface (  v / z ).
2
2
2
(2) The near bed turbulent kinetic energy (TKE) ( 0.2 [0.5(u'  v'  w' )] ).
(3) The near bed Reynolds stress (  u ' w ' ) or by extrapolating the linear profile of
Reynolds stress to the bed; and
(4) An alternative approach based on the ratio of the mean velocity in vegetated layer
and the stem diameter, (2.0 ± 0.2)2 (  Uv / d), for aH ≥ 0.3.
To calculate grain resistance using methods (1), (2) and (3), the measurements must
be made within the viscous sublayer (usually less than 1.0 mm in hydraulic rough flows).
This type of fine-scaled measurement is difficult for flow through a vegetated mobile bed.
If the measurement location is beyond the viscous sublayer, turbulence generated from bed
forms and vegetation stems are also included, which means the measured TKE and
Reynolds stresses are not appropriate for calculating the grain resistance. This leaves
method (4), the only method to estimate the bed resistance in vegetated channel. Without
the presence of bed form, the bed resistance calculated from method (4) is essentially the
32
grain resistance. Therefore, in this study, method (4) was used to calculate the grain
resistance.
The mean velocity over the vegetation layer, Uv , is equal to the mean pore velocity
over the entire cross section, Vv = Q/(BH(1-  )) because vegetation is emerged in this study
(Kothyari et al. 2009a, Cheng and Nguyen 2011). Therefore, the grain resistance is
calculated based on method (4) as:
 g = (2.0 ± 0.2)2 (  Vv / d),
for aH ≥ 0.3
(2.1)
2.2.1.2 Bed Form Resistance in Vegetated Channel Flow
The mathematical equation for the force balance in steady uniform open channel
flow with vegetation is: (See Appendix A for variable notations)
  S  ( g   bf ) Abed  FD
(2.2)
The drag force acting on the vegetation stems in Eq. (2.2), FD, can be calculated as:
FD 
1
C D N B d H Vv2
2
(2.3)
To calculate the bed form resistance using Eqs. (2.2) and (2.3), the value for CD
needs to be calculated first. Cheng (2013) developed an approach to calculate the
vegetation drag coefficient for a cylinder located in arrays of emergent cylinders using the
pseudo-fluid model. An analogy was made between the cylinder-induced drag in an open
channel flow with that induced by the cylinder settling in a stationary fluid. The CD value
calculated by Cheng (2013) is applicable for a wide range of vegetation concentrations and
Reynolds numbers, and different vegetation configurations.
33
To calculate the bed form resistance, a new trial and error method is adopted
because CD is a function of
rvm , which depends on the bed form resistance itself. The
detailed procedure is as follows:
2
Step #1: Calculate  g using Eq. (2.1), and convert it into the f g , using f g  (8 g /(  Vv ))
.
Step #2: Calculate rv value using
rv  ( / 4)(1   ) d / 
(Cheng and Nguyen 2011), r value
using r  1/ H  1/ rv  , and f value using f  (8 grS / Vv ) .
1
Step #3: Assume
2
f b . For the first trial, this guess must be greater than f . Then, perform
g
the following steps to recalculate the bed friction coefficient.

1- Calculate

2- Calculate Re ' using Re ' 
3-
 f b r 

H
f


rvm value using rvm  rv 1  
Calculate
CD '
1  S Vv d rvm
1  80  rv
(Cheng and Nguyen 2011).
(Cheng (2013)).
  R ' 0.7 
 1000

e

 


 


4500

  

R
'
0.75
0.9 1  e  e    1.2 1  e 
using C D '  11 Re '








(Cheng (2013)).
4- Calculate C D using CD 
1 S
CD '
1
5- Calculate
FD
6- Calculate
 bf using Eq. (2.2).
(Cheng (2013)).
using Eq. (2.3).
2
7- Calculate f bf using f bf  (8 bf / (  Vv )) .
34
8- Re-calculate
f b using f b  f g  f bf .
9- Repeat step #3 until the difference between the calculated and the assumed values
of
f b is within a desired tolerance.
2.2.1.3 Bed Surface Elevation
Bed surface elevation was captured by the Microsoft Kinect (Microsoft 2013) 3D
camera (Figure 2.1). Microsoft Kinect is a motion sensing device designed initialy for
video gaming and introduced in November 2010. It was found later that it has many other
applications (Voullieme et al. 2014, Kahn et al. 2013, Azzari et al. 2013, Mankoff and
Russo 2013). It is composed of RGB-D (Red Green Blue + Depth) sensors. These sensors
can produce a RGB visible light image and a depth-coded image from the structured
infrared light. The bed surface elevation and bed form height were captured by the depth
sensor. The basic principle of the depth sensor is to emit an infrared light pattern and
calculate depth from the light reflection at different positions (Andersen et al. 2012). This
allows to generate a depth-coded image that consisits of dots with known coordinates and
depths. Kinect is supported in MATLAB (version 2013a), and its data can be acquired
using the MATLAB Image Acquisition Toolbox.
After each experimental run, water is slowly drained out of the flume. When the
bed surface was still wet, vegetation stems were removed carefully to make this region
clear for taking images (Figure 2.2 (a)). Microsoft Kinect together with the MATLAB
Image Acquisition Toolbox was used to capture a depth image for the bed surface. Using
the MATLAB program, we converted the depth-coded image, and stored it as point clouds.
35
Each point in the cloud has X, Y, and Z values representing its position in space (X and Y)
as well as its distance or depth (Z) from the Kinect depth sensor (Figure 2.2 (b)).
Because the bed surface has longitudinal and transverse slopes, these slopes will
affect the distance (Z-value) from each point on the bed surface to the Kinect depth sensor
(Figure A-4 (a)). In order to remove these effects (bias) another MATLAB program was
used for leveling the bed surface (Figure A-4 (b)).
Finally, the average of the bed form height can be calculated by
 Z

2
i
Z /n .
Also the bed surface elevation contours can be drawn as shown in Figure 2.2 (c).
Figure 2.1 Microsoft Kinect (http://www.pcmag.com/article2/0,2817,2402520,00.asp)
36
(a)
(b)
Figure 2.2 Steps to capture bed surface elevations and bed form height
37
2.2.2 Numerical Simulation (Appendices B and C)
In order to simulate tidal flow in an estuarine marsh area, a three dimensional
hydrodynamic simulation using the Delft3D-FLOW open source program was performed.
Delft3D-FLOW is capable of simulating three dimensional (3D) unsteady incompressible
flow and transport phenomena resulting from tidal and/or meteorological forcing (Deltares
2011). It solves the RANS equations, under shallow water (hydrostatic pressure)
assumption, on a structured staggered curvilinear grid using a finite-difference scheme
(Stelling and van Kester 1994). The governing equations are solved with an Alternating
Direction Implicit (ADI) technique (Stelling 1984). In the vertical direction, Delf3DFLOW offers two different vertical grid system, the σ coordinate system (σ -grid) and the
Cartesian coordinate system (Z-grid) (Deltares 2011). In the σ -grid, the vertical layers
bounded by two sigma planes, which are not strictly horizontal but follow the bottom
topography and free surface. Because the σ -grid is boundary-fitted both to the bottom and
to the moving free surface, a smooth representation of the topography is obtained. In the
Z-grid, the layer thickness is fixed and the number of active layers varies with the depth.
The layer thickness at the top, however, is determined by the actual water level and at the
bottom by the local topography. The RANS equations under hydrostatic pressure
assumption were solved for both σ and Z-grids. An extension for solving non-hydrostatic
pressure has been added to Z-grid. Delft3D-FLOW offers four turbulence closure models:
constant eddy viscosity coefficient, algebraic eddy viscosity model, k-L model, and k-ε
model.
Delft3D-FLOW has a facility to define the bed and flow resistance on each subgrid using a function called Trachytopes (Deltares 2011). Three classes are available in the
38
Trachytopes function: area, line, and point class. The area class has three types: the first
type is a constant coefficient for bed roughness, such as White Colebrook, Chezy, and
Manning’s coefficients, the second type accounts for the form resistance resulting from
sand dunes, and the third type is for the roughness coefficient in vegetated channels. In a
simulation run, the roughness coefficient often remains a constant with time if choosing
the first type of area class while for the second type, it is determined by dune height, and
the third by vegetation properties. The line class of the Trachytopes function can be used
to approximate flow resistance for elements with hedge, bridge piers, and other structures.
The point class can be used to represent a set of point flow resistance elements, such as
groups of individual tree or small plant.
The vegetation effects have been incorporated in Delft3D-FLOW by applying an
adjusted bed roughness, such as using the Klopstra et al. (1997) equation, or adding an
artificial term to account for extra momentum loss due to vegetation using the Baptist
(2005) equation. Also, the momentum and k-ε turbulent closure model equations in
Delft3D-FLOW have been modified by including the vegetation induced momentum loss
as well as the influences of vegetation on turbulence generation and dissipation. The
influence of the vegetation upon the momentum equations is given by the vegetation drag
force ( F  1 C D au 2 ) in which  is water density (kg/m3) and u is the horizontal flow
2
velocity. The influence of vegetation on vertical mixing is reflected in an extra source terms
T and T 1 in the k and ε equations, respectively, where T [= (F u)] is the work spent on
the fluid and

is the minimum of the dissipation time scale of free turbulence
[  free  (1/ c2 )  (k /  ) ] and the dissipation time scale of eddies between the vegetation


[  veg  1 c2 c   (3 ( L2 / T ) ], where
c  and c 2 are constants and equal to 0.09 and
39
1.92, respectively, L [= ( Cl (1  Ap ) / N ) ] is the smallest distance in between the stems ;
Ap [= ( ( / 4)Wv N ) ] is the vegetation horizontal cross sectional area; Wv is the average
2
width of vegetation; N is the number of vegetation per unit bed area; and
Cl is a constant
and equals 0.8.
In Appendix B, two approaches were used for calculating vegetation induced
roughness: a constant Manning’s n coefficient and time varying n or Chezy’s C coefficient
for each sub-grid. Therefore, the first and third types of the area class of the Trachytopes
function in Delft3D model were adopted. Four empirical relations to calculate the time
varying roughness coefficients were programmed in Delft3D-FLOW program in addition
to two empirical relations offered by this program to calculate the C value (Table B-2).
Observed water surface elevations were used for model validation and verification. The σ
and Z grids were used in the vertical direction. The RANS equations under hydrostatic
pressure assumption were solved when using the σ grid, whereas the hydrostatic and nonhydrostatic pressures were solved when using the Z-grid. The sensitivity of modeling
results to the variation of a and vertical grid selection were analyzed.
In Appendix C, the time varying roughness equations and the modified momentum
and k-ε equations were used for calculating vegetation induced roughness for each subgrid. A finer mesh was used compared with that in the Appendix B. Observed flow rate in
addition to water surface elevations were used for model validation and verification. The
σ grid was used in the vertical direction. The RANS under hydrostatic pressure assumption
was solved. The variation of vegetation roughness coefficient with the degree of
submergence is handled in more details. The spatially and temporally variation of
40
vegetation roughness and Reynolds number are also explained, and the sensitivity of
modelling results to the variation of grid size was analyzed.
2.3 Results
2.3.1 Experimental Study (Appendix A)
A set of 18 experimental runs were conducted in an open channel flume to study
grain and bed form resistances and bed load transport in vegetated mobile bed. The
vegetation stems were simulated by arrays of emergent PVC rods. The stems were arranged
in a regular staggered grid with three concentrations 3.3%, 1.4%, and 0.5%. Two groups
of uniform sized sediments with the mean sizes of 0.45 mm and 1.6 mm were used. Three
flow discharge values were used for each vegetation concentration and sediment group
with overall range of 0.01 to 0.04 m3/s. Microsoft Kinect (Microsoft 2013) was used to
capture a depth image of bed surface for determining bed elevations and bed form heights.
The following conclusions were obtained in this study:
1- The height of bed form depends on the vegetation concentration, which determines
whether ripple/dune or scour holes are dominant on bed surface.
2- For sparsely vegetated flows, the bed form height and resistance decrease rapidly
as the vegetation concentration is increased, and they decreased gradually when the
vegetation concentration is high.
3- Sand dunes started to appear when the vegetation was sparse, and their sizes were
increased as the flow velocity was increased.
4- Based on the experimental data from this and other studies, poor correlations were
found between the grain resistance and the bed load transport rate and a similar
41
trend was found for the correlation between the total resistance and the bed load
transport rate. This means that the bed load transport rate in vegetated channel
should be correlated with other variables.
5- Empirical relations were formulated to calculate the bed form resistance and bed
load transport rate using a newly defined flow parameter. This parameter is a
function of flow characteristics, energy slope, vegetation concentration, vegetation
stem diameter, and sediment sizes.
2.3.2 Numerical Simulation (Appendices B and C)
Results from numerical modeling studies are summarized in Appendices B and C.
In Appendix B, the preliminary numerical simulation was focused on the difference
between a constant and time varying roughness coefficient for simulating hydrodynamic
flow field in vegetated marsh area. Further research suggested more advanced methods to
simulate the impacts of vegetation in open channel flow, such as the method for modifying
the momentum and k-ε model. However, the simulation results showed that the advanced
method did not provide more accurate results than using the empirical relations for varying
roughness in time and space. Detailed conclusions from numerical simulation are as
follows:
1- For the constant Manning’s n approach, the simulated results are underestimated
when using the Manning roughness coefficient for unvegetated channels, whereas
they are overestimated when using the Manning’s roughness for vegetated
channels. Several n values between the above two n values were selected to re-run
the model. However, there are no general improvements of modeling results. This
42
excludes the feasibility of using a constant roughness for simulating flow
hydrodynamics in a freshwater marsh.
2- The time varying roughness coefficient equations, especially those (best) equations
that take into account the degree of submergence and the vegetation frontal area per
unit volume (a value), gave better matches of simulated results with the
observations compared with the simulation results using a constant roughness
coefficient and modified momentum and k-ε equations.
3- The a value must be calculated by considering the vegetation stem diameter, leaf
width and number. The best range for the dominant grass in the study (Panicum
hemitomon) is 8.160 to 11.220 m-1.
4- Adopting the σ–grid model in the vertical direction gave better simulation results
compared with the two options of the Z-grid. This study recommends the use of the
σ–grid for shallow water marsh application.
5- When using the best time varying roughness coefficient equations, the simulation
results agreed very well with the observations for both fine-and coarse-grid meshes.
6- Adoption of coarse mesh gave reasonable simulation results with less CPU time.
7- A non-linear relation between the vegetation resistance (in terms of n value) and
degree of submergence was observed with an opposite trend for emergent and
submerged vegetation conditions.
8- In the case of emergent vegetation, as the degree of submergence is increased, the
vegetation resistance is increased owing to the increase of vegetation frontal area.
9- In the case of submerged vegetation, the vegetation resistance decreases with the
increasing degree of submergence due to the reduction in the relative roughness
43
(vegetation height/water depth) and the bending of the nonrigid plants. As the
degree of submergence increases further, the vegetation layer acts as a rough
surface, and the vegetation resistance becomes constant.
2.4 Future Works
Vegetation induced resistance is highly variable in the field due to the complex
vegetation types, density, height, and flexibility. Therefore, more research is needed to
quantify those varieties and their effect on flow resistance and sediment transport in
vegetated channels. The following works are recommended for the future:

It is found that the vegetation frontal area per unit volume, symbolized as a, is
considered one of the important factors to quantify vegetation properties. This value
is equal to the product of frontal area and vegetation density. Several factors affect
the vegetation frontal area, such as vegetation stem size, leaf width, number of
leaves, flexibility, and flow depth and velocity. This means that the a value is
varying in the vertical direction. Further research to better quantify the vegetation
characteristics, the a value, in both horizontal and vertical spaces are needed for
improving the numerical models.

Although relations of bed form resistance and sediment transport rate in a vegetated
mobile bed channel were derived through a series of experiments, those equations
can be implemented in the Delft3D model to improve its capability for simulating
flow and sediment transport in vegetated mobile bed channels.

Additional research can also be performed by using advanced Computational Fluid
Dynamics Models, such as Direct Navier Stokes (DNS) equation solution, or Large
Eddy Simulations (LES). This research allows the tracking of sediment particle
44
motion through complex turbulence flow fields within the vegetation stems.
However, High Performance Computers (HPC) will be needed for those
simulations.
45
Appendix A: Experimental Study of Bed Resistance and Bed Load Transport
in Vegetated Channel
Khalid Al-Asadi1, Jennifer G. Duan2
Abstract
A set of laboratory experiments were conducted to study the impact of vegetation
density on bed resistance and bed load transport in mobile bed channel. The vegetation
stems were simulated by arrays of emergent PVC rods. Three different staggered
vegetation configurations and two groups of uniformly sized sediment were used. Bed
elevation was measured by the Microsoft Kinect 3D Camera. The total flow resistance was
divided into bed and vegetation resistance, and bed resistance is further separated into grain
and bed form resistances. Based on the experimental data from this and other studies,
empirical relations were formulated to calculate the bed form resistance and bed load
transport rate. We found bed form resistance and bed load transport rate in vegetated
mobile bed channels is a function of a newly derived flow parameter that incorporates the
influence of vegetation concentration.
Introduction
Flow in vegetated rivers is characterized by the interactions among the flow,
channel boundary, and vegetation canopy. Vegetation characteristics, such as vegetation
type, distribution, density, flexibility, and degree of submergence, all affect flow depth,
1
Graduate Student, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email : [email protected]
2
Associate Professor, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email: [email protected]
46
velocity, hydraulic radius, and energy slope. The resistance to flow through vegetated areas
is increased by an additional drag force exerted by vegetation (Fenzl 1962, Temple et al.
1987). Because of this drag, flow through vegetated reaches decelerates, and the mean
velocity is smaller than those in unvegetated reaches (Shi et al. 1995, Zhang et al. 2010).
This additional drag also influences the transport of sediment and solutes by promoting
sediment accumulation as the near-bed shear resistance reduces (Nepf 1999). Vegetation
also changes near-bed turbulent characteristics, and significantly affects the scour
formation around vegetation stems.
Resistance in vegetated channel is composed of resistances from the boundary and
the vegetation stems. Boundary resistance consists of side wall resistance, grain and bed
form resistances on mobile bed surface. Grain resistance is the friction due to bed surface
roughness, and it is a function of bed roughness height. While bed form resistance is a drag
force due to flow separation at the lee side of bed form, and it is a function of bed form
height. The summation of grain and bed form resistance is called the bed resistance. In
vegetated channels, bed resistance is significantly smaller than that in an unvegetated
channel at the same flow discharge. Jordanova and James (2003) and Kothyari et al.
(2009a) calculated bed resistance by subtracting vegetation resistance from the total flow
resistance when processing their laboratory experimental data. The vegetation resistance
was determined by using the drag coefficient for a single cylindrical stem, but taking into
account the effect of other adjacent stems (Eq.5 in Jordanova and James 2003 and Eq.4 in
Kothyari et al. 2009a). Numerical modeling study (Lopez and Garcia 1998) found bed
resistance in vegetated channels reduced steadily with the increase of vegetation roughness
density, defined as aH, where a is the vegetation frontal area per unit volume ( m -1 ), and
47
H is flow depth. For channels with submerged vegetation having H/hv = 3, where hv is the
vegetation height, the bed resistance is reduced to just 10% of the bare bed value.
Bed resistance and turbulence intensity have significant effect on sediment
transport in vegetated channels. Specht (2002) conducted several laboratory experiments
to investigate bed load transport in a bare bed channel with emergent vegetation on the
banks. Since flow velocity on the vegetated banks is less than that in the channel, a
secondary current is generated with the direction towards the channel center at the bottom,
but outwards at the free surface, resulting in a scour hole at the bank toe. This secondary
flow circulation considerably affects the direction of bed load transport. Based on the
experimental results, Specht (2002) developed a vegetation parameter that can be used with
the existing bed load transport formulae to account for the effect of vegetated banks on bed
load transport. Later, Jordanova and James (2003) and Kothyari et al. (2009a) correlated
sediment transport in vegetated channels with bed resistance. However, the results of
Jordanova and James (2003) are not generic because they are based on only one sediment
size, one stem diameter, and one vegetation density. Recently, Kothyari et al. (2009a)
studied the effect of emergent vegetation on bed load transport. They observed that
sediment transport rate in vegetated channels is smaller than that in unvegetated ones. The
sediment transport relationship by Hashimoto and Hirano (1996), originally for sediment
transport in unvegetated channels, was modified in Kothyari et al. (2009a). They found
sediment transport in vegetated channel is a function of bed resistance and critical shear
stress of bed sediment.
Although most previous studies observed enhanced deposition within vegetated
bed surface, the opposite trend has also been observed (Nepf 2012). Follett and Nepf (2012)
48
observed the erosion and deposition patterns formed in an experimental sand bed around a
circular patch of emergent vegetation imitated by rigid cylinders. All of their measurements
showed some degrees of scouring within the patch. They attributed that to the higher level
of turbulence within the vegetation patch. Sediment scoured from the sparse patch was
mostly deposited within one patch diameter downstream of the same patch. Additional
deposition was occurred further downstream, but at the sides of the turbulence wake,
creating an open bed formation (Figure A-1 (a)). For dense patch, flow experiences greater
resistance, sediment scoured from this patch was carried further downstream before
depositing along the patch centerline. Consequently, a closed bed formation was created
(Figure A-1 (b)). The density of vegetation is apparently a key factor that influences
sediment transport and the resulted erosion/deposition pattern in vegetated channels.
However, this subject has not been thoroughly studied in literature.
Therefore, the objective of this study is to conduct a series of laboratory
experiments to investigate bed form resistance and bed load transport in vegetated mobile
bed channel. Sediment sizes, flow conditions, and vegetation densities were varied in the
experiments. Empirical relations to determine the bed form resistance and bed load
transport rate were derived from the experimental data. Both were correlated with a
vegetation concentration dependent dimensionless flow parameter using the experimental
data from this and other studies.
49
Experimental Setup
Flume Setup
A set of 18 experimental runs were conducted in an open channel flume at the
Department of Civil Engineering and Engineering Mechanics, University of Arizona. The
flume is 0.6 m wide and 12.2 m long with a flat bed. A large water tank was used to provide
water to the flume, and the flow rate was controlled by a valve installed at the inlet pipe. A
sharp crested suppressed rectangular weir located at the end of the flume was used to
measure flow rate. The vegetation stems were simulated by emergent PVC rods of 16 mm
outside diameter. The stems were inserted into holes drilled into a 1.5 cm thick and 4.8 m
long coated wood board, as shown in Figure A-2. The stems were arranged in a regular
staggered grid (Figure A-3). Three different staggered vegetation configurations were used
with three concentrations: 3.3%, 1.4%, and 0.5%, respectively. The vegetation
concentration,  , is defined as the fraction of bed area occupied by the vegetation stems =
 4 d
N
2
, where N is the number of stems per unit bed area, and d is the outsider diameter
of the stem.
Two groups of uniformly sized sediment with mean sizes, d50 = 0.45 mm and 1.6
0.5
mm, were used. The standard deviations of these two sediment mixtures,  g  (d 84 / d16 )
, are 1.47 and 1.35 for sediment sizes of 0.45 mm and 1.6 mm, respectively. Sediment
mixtures with the value of  g less than 1.6 can be considered as uniformed (Parker 2008).
The density of sediment,
 s , is equal to 2,650 kg/m3. Before each experimental run,
sediment was saturated and placed evenly among the vegetation stems at a depth of 10 cm
(Figure A-2).
50
Water depth was measured at an interval of 0.45 m along the vegetated reach using
a fine-scaled ruler of 1 mm accuracy. When the measured flow depths were nearly constant
along the study reach, the flow is considered as steady uniform. After each experiment, bed
elevations were also measured by a laser level (accuracy 1 mm) at an interval of 0.45 m
and 0.1 m in the streamwise and transverse directions within the vegetated reach,
respectively. Bed elevation at each cross section is the average of all the measured
elevations in the transverse direction. The longitudinal bed slope was obtained by fitting
the bed elevations at each cross section with a straight line. The water surface elevations at
each cross section were calculated as the summation of water depth and bed elevation.
Then, the friction (energy) slope was calculated by fitting the water surface elevations with
a straight line. For all the experimental runs, the correlations of curve fitting for calculating
bed and friction slopes are greater or equal 0.84. Results showed the friction slopes are
nearly equal to the measured bed slopes for all the experiments.
Bed load transport rate, qb , was measured by a bed load sampler at the end of
vegetated reach. The sampler nozzle is 4.5 cm high and 25 cm wide, and mounted on a rod.
The collection bag has a mesh size of 0.2 mm. The sampling time interval ranged from 1
to 8 minutes. Then, the bed load was dried and weighted. Bed load transport rate was first
calculated as weight per unit time, and then converted to the volume per unit time per unit
channel width (m2/s).
All the measurements in Table A-1 were taken after the flow has reached the steady
state. During each experimental run, sediment was supplied from time to time at the
upstream end of the flume to supplement the sediment being washed out of the flume, and
to keep approximately the steady state flow condition.
51
Bed Surface Elevation
Microsoft Kinect (Microsoft 2013) was used to capture a depth image of bed
surface for determining bed elevations of scoured vegetated reach. Microsoft Kinect was
initially designed for gaming, but it has many other applications (Voullieme et al. 2014,
Kahn et al. 2013, Azzari et al. 2013, Mankoff and Russo 2013). It is composed of RGB-D
(Red Green Blue + Depth) sensors. These sensors can produce a RGB visible light image
and a depth-coded image from the structured infrared light. The bed elevation deviations
are captured by the depth sensor. The basic principle of the depth sensor is to emit an
infrared light pattern and calculate depth from the light reflection at different positions
(Andersen et al. 2012). This allows to generate a depth-coded image that consisits of dots
with known coordinates and depths. Kinect is supported in MATLAB (version 2013a), and
its data can be acquired using the MATLAB Image Acquisition Toolbox.
Data Processing
Grain Resistance
Nepf (2012) summarized several methods to measure bed resistance without the
presence of bed form in vegetated channel by using: (i) the spatial averaged viscous stress
on bed surface (  v / z ), where  is the dynamic viscosity of water (N  s/m2), and
v / z is the velocity gradient within the laminar sub-layer; (ii) the near bed turbulent
2
2
2
kinetic energy (TKE) ( 0.2 [0.5(u'  v'  w' )] ), where  is the water density; u’, v’,
and w’ are the fluctuating velocities in the streamwise, transverse, and vertical directions,
respectively, and the overbar means time-average; (iii) the near bed Reynolds stress
(  u ' w ' ) or by extrapolating the linear profile of Reynolds stress to the bed; and (iv) an
52
alternative approach based on the ratio of the mean velocity in vegetated layer and the stem
diameter, (2.0 ± 0.2)2 (  Uv / d), for aH ≥ 0.3, where Uv is the mean velocity in vegetated
layer.
To calculate grain resistance using methods (i), (ii) and (iii), the measurements must
be made within the viscous sublayer (usually less than 1.0 mm in hydraulic rough flows).
This type of fine-scaled measurement is difficult for flow through vegetated mobile bed. If
the measurement location is beyond the viscous sublayer, turbulence generated from bed
forms and vegetation stems are also included, which means the measured TKE and
Reynolds stresses are not appropriate for calculating the grain resistance. This leaves
method (iv), the only method, to estimate the bed resistance in vegetated channel. Without
the presence of bed form, the bed resistance calculated from method (iv) is essentially the
grain resistance. Therefore, in this study, the (iv) method was used to calculate the grain
resistance. The mean velocity over the vegetation layer, Uv , is equal to the mean pore
velocity over the entire cross section, Vv= Q/(BH(1-  )) because vegetation is emerged in
this study, where B is channel width (m) (Kothyari et al. 2009a, Cheng and Nguyen 2011).
Therefore, the grain resistance is calculated based on method (iv) as:
 g = (2.0 ± 0.2)2 (  Vv / d),
for aH ≥ 0.3
(1)
Because grain resistance directly affects bed load transport, this study aims to
separate grain resistance from the total flow resistance. The calculation of grain resistance
in vegetated mobile bed channel is a challenge, which has never been reported in literature.
In this study, we made an attempt that uses method (iv) in Nepf (2012) to calculate the
grain resistance. However, we noticed that some of our experimental data, as well as data
used in this study have the vegetation roughness density (aH) less the lower limit for Eq.(1).
53
Therefore, we assumed Eq. (1) is valid for lower vegetation roughness density although
the original experimental data (Nepf 2012) doesn’t contain those data.
Bed Form Resistance
The mathematical equation for the force balance in steady uniform open channel
flow with vegetation is:
  S  ( g   bf ) Abed  FD
where 
[= Abed
(2)
is the specific weight of water (N/m3),  is the volume of water (m3)
 H ] in which Abed is bed surface area (m2), S is friction slope,  bf is bed form
resistance (N/m2), and FD is the vegetation drag force (N). The bed surface area for a reach
of unit length and width, B, is Abed
 B (1   ) . The friction force on the side wall is
neglected because it is several orders of magnitude smaller than other forces (Jordanova
and James 2003, Kothyari et al. 2009a).
The drag force acting on the vegetation stems in Eq. (2), FD, can be calculated as:
FD 
1
C D N B d H Vv2
2
(3)
where C D is the vegetation drag coefficient. From Eqs.(2) and (3), by knowing H, S, g , B,
d,  ,and Q, the coefficient of vegetation drag must also be known in order to find the bed
form resistance (  bf ). Cheng (2013) developed an approach to calculate the vegetation drag
coefficient for a cylinder located in arrays of emergent cylinders using the pseudo-fluid
model. An analogy was made between the cylinder-induced drag in an open channel flow
with that induced by the cylinder settling in a stationary fluid. The drag coefficient can be
calculated as follows:
54
CD 
1 S
CD '
1
(4)
where C D ' is the drag coefficient for the pseudo fluid model, and defined by:
  R '  0.7 
 1000

e

 


 


  4500  
Re ' 
 0.75


  1.2 1  e
C D '  11 Re ' 0.9 1  e








where
Re ' is Reynolds number for the pseudo fluid model, and can be calculated by:
Re ' 
where
(5)
rv
1  S Vv d rvm
; rv  ( / 4)(1   ) d / 
1  80  rv
(6)
is the vegetation-related hydraulic radius for the vegetated flows if only considers
vegetation resistance;
rvm is the modified vegetation-related hydraulic radius, and
calculated by taking the effect of vegetation and bed resistances into consideration (Cheng
and Nguyen 2011):
  f r 
rvm  rv 1   b 
  H f 
(7)
where f is the Darcy-Weisbach friction coefficient due to vegetation and bed resistances;
f b is the bed friction coefficient, and equal to the summation of grain and bed form friction
coefficients [=( f g  f bf )]; r is the total hydraulic radius including both vegetation and bed
resistances:
1 1
r    
 H rv 
1
(8)
55
In order to calculate the bed form resistance from measured flow properties (e.g.,
H, S) and vegetation parameters (  , d), and channel geometry (B) using Eq.(2), the trial
rvm ,
and error method is adopted because vegetation drag coefficient C D is a function of
which depends on the bed form resistance itself. The detailed procedure is as follows:
Step #1: Calculate the grain resistance using Eq.(1), and convert it into the Dracy-Weisbach
2
grain friction coefficient using f g  (8 g /(  Vv )) .
Step #2: Calculate the vegetation-related hydraulic radius using
rv  ( / 4)(1   ) d / 
, the
total hydraulic radius, r, using Eq. (8), and f value using f  (8 grS / Vv ) .
2
Step #3: Assume the Darcy-Weisbach bed friction coefficient,
guess must be greater than
fg .
f b . For the first trial, this
Then, perform the following steps to recalculate the bed
friction coefficient.
1- Calculate the modified vegetation-related hydraulic radius,
rvm , using Eq. (7).
2- Calculate Reynolds number for the pseudo fluid model, Re ' , using Eq. (6).
3- Calculate the drag coefficient for the pseudo fluid model, C D ' , using Eq. (5).
4- Calculate the vegetation drag coefficient, C D , using Eq. (4).
5- Calculate the vegetation drag force, FD , using Eq. (3).
6- Calculate the bed form resistance,  bf , using Eq. (2).
7- Calculate
the
Dracy-Weisbach
bed
form
friction
coefficient
using
f bf  (8 bf / (  Vv2 )) .
8- Re-calculate the Darcy-Weisbach bed friction coefficient using f b  f g  f bf .
56
9- Repeat #3 until the difference between the calculated and the assumed values of
fb
is within a desired tolerance.
 bf values for all the experiments are shown in
The calculated  g , Vv, C D , and
Table A-2. All the experimental flows are subcritical with Froude number (Fr) ranging
from 0.162 to 0.343. The Reynolds number (RH) based on flow depth are ranging from
16,775 to 68,018.
Bed Form Height
After each experimental run, water is slowly drained out of the flume. When the
bed surface was still wet, vegetation stems were removed carefully to make this region
clear for taking images. Microsoft Kinect together with the MATLAB Image Acquisition
Toolbox was used to capture a depth image for the bed surface at the region indicated
above. Using the MATLAB program, we converted the depth-coded image, and stored it
as point clouds. Each point in the cloud has X, Y, and Z values representing its position in
space (X and Y) as well as its distance or depth (Z) from the Kinect depth sensor.
Because the bed surface has a longitudinal and transverse slopes, these slopes will
affect the distance (Z-value) from each point on the bed surface to the Kinect depth sensor
(Figure A-4 (a)). In order to remove these effects, hereafter, called bias, another MATLAB
program was used for leveling the bed surface (Figure A-4 (b)).
The height of bed elevation, ΔZ, shown in Table A-2, is defined as the average bed
form height, calculated by
 Z
i
Z
n

2
, where
Z i is the bed elevation at point i; Z is the
mean bed elevation (m), which is a constant for a horizontal plane; n is the total number of
57
measurement points. Typical bed surface elevation contours, such as run #7 and #18, are
shown in Figure A-5 (a) and A-5 (b), respectively.
For  = 3.3% and 1.4%, scour holes were observed around each vegetation stem
with a depositional bed form in between (Figure A-5 (a)). These bed forms are formed by
the high level of turbulence from overlapping wakes and horseshoe vortices generated by
each stem. Regardless of flow properties and sediment sizes, the ΔZ values for  = 3.3%
were nearly the same (Table A-2), and the same trend was noticed for  = 1.4%. This means
that the bed form height is only dependent on vegetation concentration. The mean values
of bed form height, ΔZavg, for  = 1.4% and 3.3% are equal to 7.0 and 5.7 mm, respectively.
This indicates that the bed form height is slightly decreased with the increasing of
vegetation concentration.
For  = 0.5%, because of the formation of sand dunes, the ΔZavg value is equal to 12
mm, larger than that for other  values. For d50=0.45 mm, as shown in Table A-2, the ΔZ
value is slightly increased because smaller sized sand dunes were observed. When d50=1.6
mm, as shown in Figure A-5 (b) and Table A-2, the ΔZ values are increased as the flow
velocity are increased due to the increasing of sand dunes’ sizes. This implies that the sand
dunes are generated through the sparse vegetation as flow velocity increases.
The variation of ΔZavg versus  was shown in Figure A-6. This figure indicated that
the ΔZavg is decreased rapidly as the  value increased from 0.5% to 1.4% and then
decreased gradually as the  value increased from 1.4% to 3.3%. This trend is consistent
with the evolution of bed form from sand dunes at low vegetation concentration to fully
developed scour holes around each vegetation stem at high concentration.
58
Results
Bed Form Resistance Relation
In addition to data from this study, data from Jordanova and James (2003) and
Kothyari et al. (2009a) in Table A-3 were also included for analysis. The value of bed
resistance,
b
shown in Table A-3 is the sum of the grain (  g ) and bed form (  bf )
resistances, which were calculated and given in their papers. By knowing the grain
resistance (  g ) value (Eq.1) and the bed resistance (  b ). Then, the bed form resistance (
 bf ) value is simply the difference between  b and  g . A non-dimensional bed form
*
resistance is defined as  bf   bf /{(Gs  1) d 50} , where Gs is the specific gravity of
sediment, and equal to 2.65. In this study, through dimensional analysis, we formulated a
non-dimensional flow parameter as a function of flow characteristics, energy slope,
vegetation concentration, vegetation stem diameter, and sediment sizes, and defined by η
 d   Vv2 

  
S

= 

d
2
gH

 50  

0.18
. Regression analysis showed that  bf is correlated well with η for all
*
the datasets considered (Figure A-7). The correlation coefficient is R2 = 0.77. Therefore,
the dimensionless bed form resistance can be estimated using the dimensionless flow
variable, η, as:
 bf*  1.033  0.94
(9)
From Eq.(9), the vegetation concentration is one major factor affecting the bed form
resistance. When only changing the  -value, but keeping all other variables constant, the
changes of bed form resistance with vegetation concentration  is shown in Figure A-8.
This figure has the same trend as the one in Figure A-6, which indicated that the bed form
59
resistance increases with bed form height. The bed from resistance decreases rapidly with
the increase of vegetation concentration at low vegetation concentration (   1.4%), and
then decreases gradually as the concentration increases for high vegetation concentration.
Bed Load Transport Relation
3
The dimensionless bed load transport rate is defined as qb*  qb / (Gs  1) g d 50
. The
*
non-dimensional grain resistance is defined as  g   g /{(Gs  1) d 50} , and the non-
dimensional total resistance is defined as  t  H S /{(Gs  1) d 50 } . The dimensionless bed
*
load transport rate is traditionally correlated with the dimensionless grain resistance. Figure
*
A-9 (a) showed the relation of qb versus  g , apparently a poor correlation. Then, the
*
correlation between qb versus the total resistance,  t was plotted in Figure A-9 (b),
*
*
apparently is still very poor correlation. This means that the bed load transport rate in
vegetated channel should be correlated with other variables.
Variation of Bed Load Transport with Flow Parameter
The dimensionless flow parameter, η, has incorporated the vegetation concentration
effect into flow properties. Since bed load transport rate is dependent on the vegetation
*
concentration, we plotted the variation of qb versus η in Figure A-10. Regression analysis
using the available datasets yielded the correlation coefficient of R2=0.78. The empirical
relation was formulated from the curve fitting as:
qb*  3.763  2.206
(10)
60
Equation (10) indicates that the bed load transport rate decreases with the increasing
of vegetation concentration. This relation is consistent with previous research observations
(e.g. Abt et al. 1994, Nepf 1999, Cotton et al. 2006) that the sediment transport is reduced
in vegetated channel because of the additional drag exerted by the vegetation. However,
some other researchers observed the opposite trend of sediment transport due to the effect
of vegetation on turbulence characteristics. For sparse vegetation (low  -value), individual
vegetation behaves independently, the influence of vegetation concentration on bed load
transport is negligible. As vegetation concentration increases, bed load transport rate will
decrease due to the drag force induced by vegetation stems that reduces the resistnce acting
on bed surface. However, as vegetation becomes more dense, turbulence intensity will
continue to increase, and more sediment will be entrained from bed surface. An increase
of suspended load was observed by some researchers (Baptist 2003). However, the
vegetation stem generated turbulence does not affect bed load transport, so that the bed
load transport rate will remain unchanged. Eq. (10) is valid when the vegetation
concentration changes from low to high and bed load transport is dominant.
Conclusions
A series of laboratory experiments were conducted in an open channel flume to
study bed form resistance and bed load transport in vegetated mobile bed channel. An
alternative approach based on the ratio of the average pore velocity, Vv, and the stem
diameter is used to calculate the grain resistance. The bed form evolves from sand dunes
to structured scour holes around the vegetation stems overlapped on ripples or dunes as
vegetation concentration increases. The height of bed form depends on the vegetation
concentration, which determines whether ripple/dune or scour holes are dominant on bed
61
surface. A new iterative method was derived to calculate the bed form resistance. For
sparsely vegetated flows, the bed form height and resistance decrease rapidly as the
vegetation concentration is increased, and they decreased gradually when the vegetation
concentration is high. In our experiments, sand dunes started to appear when the vegetation
was sparse, and their sizes were increased as the flow velocity was increased. Empirical
relations were also formulated to calculate the bed form resistance and bed load transport
rate using a newly defined flow parameter that incorporates the vegetation concentration.
All empirical relations were verified by experimental data from this and other studies.
62
Notation
The following symbols are used in this paper:
a = vegetation frontal area per unit volume (m-1)
aH = vegetation roughness density (-)
Abed = bed surface area (m2)
B = channel width (m)
C D =drag coefficient for a cylindrical emergent stem
C D ' = drag coefficient for the pseudo fluid model
d = vegetation stem diameter (mm)
d16, d84 = sizes for which 16 % and 84 % of the sediment are finer than d16 and d84
respectively (mm)
d50 = median sediment size (mm)
FD = vegetation drag force (N)
f = Darcy-Weisbach friction coefficient due to vegetation and bed resistances
f b = bed Darcy-Weisbach friction coefficient= f g  f bf
f g , f bf = grain and bed form Darcy-Weisbach friction coefficients respectively
Fr = Froude number
g = gravity acceleration (m/s2)
Gs = specific gravity of the sediment
H = flow depth (m)
N = number of stems per unit bed area (m-2)
n = total number of bed elevation points
63
Q = flow rate (m3/s)
qb = bed load transport rate (m2/s)
qb* = non-dimensional bed load transport
Re ' = Reynolds number for the pseudo fluid model
RH = Reynolds number based on flow depth
r = total hydraulic radius that taking into account the vegetation and bed resistances (m)
rv , and rvm = vegetation-related, and modified vegetation-related hydraulic radii
respectively (m)
S = friction slope (-)
Ss = vegetation stem spacing (mm)
Vv= mean pore velocity (m/s)
X, Y, and Z = position of the bed points (points clouds) in space and distance (depth) (m)
Z i = bed elevation at any point i (m)
Z = mean bed elevation of original bed surface (m)
ΔZ = bed form height (mm)
ΔZavg = average of the bed form height for each  value (mm)
 = vegetation concentration (-)
 = specific weight of water (N/m3)
 = water dynamic viscosity (N  s/m2)
 ,  s = water and sediment density respectively (kg//m3)
 g = standard deviation of sediment mixture
64
b
= bed resistance (N/m2) =  g +  bf
 g ,  bf = grain and bed form resistances respectively (N/m2)
 bf* ,  g* , and  t* = non-dimensional bed form, grain, and total resistances respectively
 = volume of water (m3)
65
Tables
Table A-1. Experimental runs
d
Run
(mm)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
d50
(mm)
0.45
0.45
0.45
1.6
1.6
1.6
0.45
0.45
0.45
1.6
1.6
1.6
0.45
0.45
0.45
1.6
1.6
1.6
Stem
spacing
(Ss)
(mm)
78
78
78
78
78
78
120
120
120
120
120
120
200
200
200
200
200
200
N
164.366
164.366
164.366
164.366
164.366
164.366
69.4444
69.4444
69.4444
69.4444
69.4444
69.4444
25
25
25
25
25
25
(%)
S
(%)
H
(cm)
Q
×103
(m3/s)
qb
×106
(m2/s)
3.3
3.3
3.3
3.3
3.3
3.3
1.4
1.4
1.4
1.4
1.4
1.4
0.5
0.5
0.5
0.5
0.5
0.5
0.805
1.14
1.705
1.4
1.55
1.78
0.62
0.77
1.05
0.94
1.08
1.3
0.51
0.62
0.74
0.54
0.65
0.85
11.4
15.3
17.3
15.1
15.9
16.8
8.8
11.52
15.3
13.87
15.29
16.36
11.4
12.2
13.8
13.5
14.5
15.9
11.34
18.44
25.18
18.87
21.95
25.18
9.92
16.36
25.66
23.32
29.05
34.67
21.50
25.66
31.57
29.05
34.67
40.61
0.95
2.77
7.68
0.51
3.02
6.17
0.38
2.02
4.99
1.47
2.57
12.65
3.53
4.14
8.19
1.58
3.82
5.74

66
Table A-2. Experimental runs processing data
Run
g
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
(N/m )
0.043
0.052
0.063
0.054
0.059
0.065
0.048
0.060
0.071
0.071
0.080
0.090
0.079
0.088
0.096
0.090
0.100
0.107
2
Vv
(cm/s)
CD
17.15
20.78
25.09
21.54
23.80
25.84
19.06
24.00
28.35
28.42
32.12
35.82
31.60
35.23
38.32
36.05
40.05
42.78
1.18
1.15
1.12
1.16
1.13
1.12
1.12
1.04
1.01
1.00
0.97
0.96
0.95
0.94
0.93
0.92
0.92
0.92
 bf
2
(N/m )
3.587
6.768
12.251
9.597
10.256
12.265
3.286
4.743
8.661
6.429
7.515
9.479
3.458
4.484
6.131
3.810
4.848
7.756
ΔZ
(mm)
Fr
RH
5.5
5.4
5.6
6.1
5.2
6.5
7.7
7.3
7.8
6.3
5.7
7.0
9.2
13.0
15.0
5.4
10.3
21.7
0.162
0.170
0.193
0.177
0.191
0.201
0.205
0.226
0.231
0.244
0.262
0.283
0.299
0.322
0.329
0.313
0.336
0.343
19,547
31,791
43,408
32,527
37,837
43,408
16,775
27,649
43,369
39,416
49,110
58,600
36,019
42,979
52,876
48,669
58,074
68,018
Table A-3. Ranges of literature test data considered
Investigator
d
(mm)
d50
(mm)
Kothyari et
al. (2009a)
2.0
to
5.0
0.55
to
5.9
Jordanova &
James
(2003)
5.0
0.45

b
Fr
qb
×106
(m2/s)
1.70
to
59.43
0.44
to
1.77
0.5
to
8121
0.51
to
1.32
0.16
to
0.37
1.89
to
6.94
(%)
S
(%)
H
(cm)
Vv
(cm/s)
(N/m2)
0.2
to
1.2
1.7
to
20.8
2.78
to
6.08
33.6
to
94.2
3.14
1.18
to
1.84
2.05
to
11.1
15.1
to
18
67
Figures
Figure A-1. Schematic drawing for (a) open bed formation, (b) closed bed formation
Figure A-2. Flume set-up
68
Figure A-3. Vegetation stems arrangement
(a)
(b)
Figure A-4. Kinect Z-values, (a) with bed surfcae slope, (b) leveling bed surface
69
Figure A-5. Bed surface elevation contours (a) run #7 {  =1.4%}, (b) run #18 {  =0.5%}
70
14
ΔZavg(mm)
12
10
8
6
4
2
0
0
0.5
1
Figure A-6. Variation of ΔZavg versus
1.5
2
2.5
3
3.5

10
𝜏𝑏𝑓*
1
Our Data
0.1
Kothyari et al. (2009)
Jordanova & James (2003)
0.01
0.01
Figure A-7. Variation of
0.1
 bf*
versus η
η
1
10
71
4
3.5
3
2.5
2
1.5
1
0.5
0
0
Figure A-8. Variation of
5
10
 bf
versus
15

20
25
30
35
40
72
100
1
0.01
0.0001
0.001
0.01
0.1
1
(a)
100
1
0.01
0.0001
0.1
1
Our Data
Kothyari et al. (2009)
10
Jordanova & James (2003)
(b)
*
Figure A-9. (a) Variation of q b versus  g , (b) Variation of q b versus  t
*
*
*
73
100
10
1
0.1
Our Data
0.01
Kothyari et al. (2009)
Jordanova & James (2003)
0.001
0.0001
0.01
0.1
*
Figure A-10. Variation of qb versus η
1
10
74
Appendix B: Simulation of Tidal Flow through a Vegetated Marsh Area Using
Delft3D-FLOW Model
Khalid Al-Asadi1, Jennifer G. Duan2
Abstract
This paper reported the simulation of tidal flow in an estuarine marsh area using
the Delft3D-FLOW open source program. The study area was divided into several subareas depending on the existence of channels, overbanks, and vegetation height. Two
approaches were used to approximate the vegetation roughness: a constant Manning’s n
coefficient and a time-varying n or Chezy’s C coefficient for each sub-area. To quantify
the time varying roughness coefficients for each sub-area, four empirical equations for
calculating n values are incorporated in the Delft3D-FLOW program in addition to two
options offered by this program to calculate C values. Water surface elevations (WSE) at
eleven locations within the study area are calculated and compared with the corresponding
field observed data measured by stream gauges. It is concluded that the use of time varying
roughness coefficient gives better results than those using constant values. Among the
selected empirical equations to calculate the vegetation roughness, the equations that
account for the effect of the degree of submergence and the vegetation frontal area give the
closet matches with the field observed data. The vegetation frontal area for freshwater
marsh grass dominated by Panicum hemitomon type ranges from 8.160 to 11.220 m-1.
1
Graduate Student, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email : [email protected]
2
Associate Professor, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email: [email protected]
75
Introduction
Vegetation alters the velocity profile and flow resistance in open channel flow
through different scales ranging from individual branches and blades on a single plant, to
a community of plants in a patch or canopy, to a channel reach (Nepf 2012). Vegetation
resistance in a channel reach is determined primarily by the vegetation coverage, or the
blockage factor (Green 2005a). This factor is defined as the fraction of channel crosssection or surface area blocked by vegetation, or the fraction of channel volume occupied
by vegetation (Green 2005a). It’s worth mentioning that Fisher (1992) first examined the
surface area and volumetric blockage factors, and recommended the surface area blockage
factor for calculating Manning’s n coefficient because it’s easier to be measured. Recently,
Green (2005a), Nikora et al. (2008), and Luhar and Nepf (2013) used the cross-sectional
blockage factor to calculate n value. Since the cross-sectional blockage factor is a better
representation of turbulence wake in vegetated zones, it’s more favored in literature than
the surface area blockage factor.
Early researchers (e.g., Ree and Palmer 1949, Cowan 1956, Chow 1959, Petryk and
Bosmaijan 1975) formulated various empirical relations for Manning’s roughness
coefficient by correlating n value with flow and vegetation properties. However, the
applications of those relations are limited by vegetation types and experimental flow
conditions. To avoid the dependence of roughness coefficient on experimental conditions,
Klopstra et al. (1997) derived an analytical model to calculate the Chezy’s C coefficient
for submerged vegetation. They found that the C value is a function of vegetation height
and density, stem diameter, drag coefficient, and the characteristic length scale of large
scale turbulence. Wu et al. (1999) investigated the variation of vegetative roughness
76
coefficient in emergent and submerged flow conditions and developed a model for the drag
coefficient of vegetal element, and then converted it into Manning’s n value. Recently,
Abood et al. (2006) analyzed the effects of two types of vegetation, Napier grass and Cattail
grass, on the Manning roughness coefficient in an open channel, and then developed a
relationship between vegetation characteristics (density, degree of submergence and
distribution) and Manning's n. They found a linear relationship between Manning's n and
grass density for both vegetation types in both submerged and emergent flow conditions.
In engineering practice, the SED2D model, a two dimensional vertically averaged
sediment transport model developed by Engineering Research and Development Center
(ERDC) of the US Army Corps of Engineers, adopted an empirical formula to calculate n
value for vegetated channels. The Manning’s n value in SED2D model is a function of the
maximum n value for unvegetated water, vegetation height, maximum n value of vegetated
water, and flow depth (WexTech System, Inc. 2011).
When Acoustic Doppler Velocitimeter (ADV) and Laser Doppler Velocitimeter
(LDV) are available to measure turbulence around vegetation, researchers (e.g., Nepf et al.
1997, Nepf 1999) found the production of turbulence near the bed region is affected by bed
shear stress, while far away from that region, the stem wake turbulence dominated (Nepf
et al. 1997). Vortex generation by stem wake extracts energy from the mean flow, and
feeds it into the turbulence kinetic energy (Nepf 1999). Consequently, the turbulence
intensity initially increases with the increasing stem density but eventually decreases as the
density reaches a given value (Nepf et al. 1997).
However, up to date, there is no consensus on which method is the most feasible
for calculating Manning’s n roughness in freshwater marsh areas. Vegetation induced
77
resistance is highly variable in the field due to the complex vegetation types, density, and
height. To quantify those varieties, this study used the product of frontal width and
vegetation density, defined as the vegetation blockage index, symbolized as a, as the key
factor to quantify vegetation property. Then, various methods for quantifying vegetationinduced roughness were examined using field observed water surface elevations.
Study Area Location and Characteristics
The study area is Davis Pond located on the west bank of the Mississippi River,
two miles from Luling City in the Southwest of New Orleans, Louisiana (Figure B-1).
Natural and man-made levees have reduced freshwater, sediment, and nutrient inputs from
the Mississippi River to the surrounding estuarine-marsh areas (McAlpin et al. 2008). This
causes an intrusion of saltwater that threatens the existing freshwater habitat. To reduce the
effects caused by the saltwater intrusion, freshwater needs to be diverted from the
Mississippi River into the adjacent estuarine areas. To achieve this purpose, the Davis Pond
freshwater diversion project was constructed. When the project began to operate, a problem
of high water level was recognized throughout the study area. Water level was raised much
bigger than anticipated. McAlpin et al. (2008) simulated the study area using the RMA2
model, a depth-averaged 2D model developed by ERDC in the US Army Corps of
Engineers, to find a solution to lower the water levels. McAplin et al. (2008) validated their
model by comparing the simulated WSE with the observations, and then proposed 12
alternatives to reduce the water level throughout the study area.
The study area is enclosed by guided levees on the North, East, and West, and by a
gabion rock weir on the South edge, along the shoreline of Lake Cataouatche. The inlet
canal delivers freshwater to the pond and then drains into Lake Cataouatche. The area is
78
covered with a significant amount of floating freshwater marsh of typical vegetation, such
as Panicum hemitomon, Sagittaria Lancifolia, Eleocharis Baldwinii, or Cladium Mariscus
ssp. Jamaiscence (Sasser et al. 2008). O’Neil (1949) found that Panicum hemitomon is the
dominant vegetation for freshwater marshes in the Mississippi River delta. The stem height
for the mature Panicum hemitomon is about 0.762 m (USDA http://plants.usda.gov) and
its diameter ranges from 1 to 6 mm (Turner 1994). The leaf blade is 20 to 30 cm long and
1.25 cm wide, rough on the upper side, smooth on the lower side, and grows along its stem
(Leithead et al. 1971) (Figure B-2). For maidencane (Panicum hemitomon) marshes, the
averaged stem density is 255 stems per square meter; for deep marshes, stem densities are
only 18 per square meter; and in mixed shallow marshes (Eleocharis elongata, Sagittaria
lancifolia, Panicum hemitomon, and Pontederia cordata) its average density is 286 stems
per meter square (Turner 1996). The Davis Pond Marsh is apparently a maidencane
(Panicum hemitomon) marsh, therefore the averaged stem density is 255 stem/m2. A field
data showed that Manning’s n values in a subtropical marsh are varied from 0.26 to 0.55
for water hyacinth, and from 0.16 to 0.43 for mixed vegetation with flow depth ranging
from 40 to 65 cm (Shih and Rahi 1981). The Manning’s roughness is inversely calculated
by using the measured flow depth and velocity in the vegetated area.
Delft3D-FLOW Model
The study area is simulated using Delft3D-FLOW open source program
(http://oss.deltares.nl/web/delft3d/source-code). Delft3D-FLOW is capable of simulating
three dimensional (3D) unsteady incompressible flow and transport phenomena resulting
from tidal and/or meteorological forcing (Deltares 2011). It solves the Reynolds Averaged
Navier-Stokes (RANS) equations, under shallow water (hydrostatic pressure) assumption,
79
on a structured staggered curvilinear grid using a finite-difference scheme (Stelling and
van Kester 1994). The governing equations are solved with an Alternating Direction
Implicit (ADI) technique (Stelling 1984). Delft3D-FLOW offers two different vertical grid
systems: σ-grid and Z-grid, and four turbulence closure models: constant eddy viscosity
coefficient, algebraic eddy viscosity model, k-L model, and k-ε model.
Delft3D-FLOW has a facility to define the bed and flow resistance on each subgrid using a function called Trachytopes (Deltares 2011). Three classes are available in the
Trachytopes function: area, line, and point class. The area class has three types: the first
type is a constant coefficient for bed roughness, such as White Colebrook, Chezy, and
Manning’s coefficients, the second type accounts for the form resistance resulting from
sand dunes, and the third type is for the roughness coefficient in vegetated channels. In a
simulation run, the roughness coefficient often remains a constant with time if choosing
the first type of area class, while for the second type, it is determined by dune height, and
the third by vegetation properties. The line class of Trachytopes function can be used to
approximate flow resistance for elements with hedge, bridge piers, and other structures.
The point class can be used to represent a set of point flow resistance elements, such as
groups of individual tree or small plant.
The vegetation effects have been incorporated in Delft3D-FLOW by applying an
adjusted bed roughness, such as using Klopstra et al. (1997) equation, noting that an
implementation based on Klopstra et al. (1996) has been added to the Klopstra et al. (1997)
equation to calculate the C value for emergent vegetation (Deltares 2011) (Table B-2), or
adding an artificial term to account for extra momentum loss due to vegetation using
Baptist (2005) equation (Table B-2). Also, the momentum and k-ε turbulent closure model
80
equations in Delft3D-FLOW have been modified by including the vegetation induced
momentum loss as well as the influences of vegetation on turbulence generation and
dissipation.
Temmerman et al. (2005) studied the impact of vegetation on flow hydrodynamic
and sedimentation processes in a tidal creek within the Paulina salt marsh in the Scheldt
estuary, located at the Southwest of Netherland, using the modified momentum and k-ε
equations in Delft3D-FLOW. The vegetation types in the marsh are Puccinellia maritima,
Limonium vulgare, Halimione portulacoides, and Spartina anglica. They divided the
marsh area into several subareas, and each one has a combination of four dominated
vegetation types. The vegetation blockage index, a value for each subarea, was calculated
by measuring the density and frontal width for each vegetation type. The simulated flow
velocities at a location within the vegetated area during one tidal inundation cycle showed
good agreements with the observations for both flood rising and receding stages. Recently,
Horstman et al. (2013) used Delft3D-FLOW for modeling the tidal dynamics in the
mangrove forest in Trang Province, Thailand. The mangrove extends from a mountain
cliff, and consists of a complex network of incised branching streams. Rhizophora trees
are the dominant vegetation type throughout the mangrove. The a value, was ranging from
0.320 to 3.860 m-1. The vegetation effect was accounted for by using a constant n value for
the whole region, and also the equation in Baptist (2005). The modified momentum and
k-ε equations with 10 σ-layers in the vertical plane was also used. The simulated flow
velocities, suspended sediment concentration, and the depth of deposited sediment at two
locations within the mangrove, one in the main channel and the other in the forest, were
compared with the observed data. Results by using a constant n value for vegetation
81
showed higher flow velocities within the channel, and lower velocities in the forest. Both
two cases are in salt water marshes where tidal flow is dominant, and vegetation types are
distinct from those in fresh water marshes. None of those cases have compared the model’s
performances with results using other methods not embedded in Deflt3D to improve their
modelling results.
The objective of this study is to evaluate the accuracy of different methods for
calculating vegetation induced roughness. Those methods are not limited to those
programmed in Delft3D model, but all the methods available in literature. Therefore, the
first and third types of the area class of the Trachytopes function in Delft3D model are
adopted for incorporating other methods for calculating vegetation-induced roughness. The
orthogonal curvilinear coordinates system with the σ-grid option is adopted. The k-ε
turbulent closure model option is chosen to determine the coefficient of eddy viscosity.
The sensitivity of modeling results to the selection of vertical grid and key parameters (e.g.,
a value) were analyzed.
Modeling Vegetation Impact
This study evaluated two common approaches to approximate vegetation
roughness: one used a constant n value, and the other used a time-varying n or Chezy’s C
coefficients for each sub-area. The study area was divided into several sub-areas, shown in
Figure B-3, depending on the existence of channels, overbanks, and vegetation height,
according to a previous study (McAlpin et al. 2008). Table B-1 summarize the n values
used in the first approach, in which n1 and n2 are the maximum values of Manning’s
roughness coefficient for unvegetated and vegetated sub-areas, respectively (McAlpin et
al. 2008). Two options are used in the second approach. The equations developed by
82
Klopstra et al. (1997) and Baptist (2005) (Table B-2),
which have already been
incorporated in the Delft3D-FLOW program under the Trachytopes function, are used in
the first option to calculate the time varying C value, in which an individual grass or
vegetation is treated as a cylinder of frontal width equal to its diameter. In this study, the
number and width of the leaves along with the stem diameter are used to calculate the
average frontal width of an individual grass. In the second option, the rest four equations,
listed in Table B-2, are programmed in the Delft3D-FLOW program under the Trachytopes
function to calculate the time varying n value. In this study, because of the lack of detailed
vegetation distribution map, we assumed each sub-area is entirely filled with vegetation of
uniform height. This assumption is justified because any measure of hydraulic resistance
at the channel reach scale must, by definition, be an integrated quantity (Luhar and Nepf
2013). So, the volumetric and cross-sectional blockage factors are equal to the ratio of
vegetation height to flow depth.
Model Configurations
Computational Mesh
The computational grid of the study area was constructed using the available
geometric and bed elevations data provided by the US Army Corps of Engineers (USACE).
The computational grid is a structured grid with M=299, N=53, and K=15 (Figure B-4),
where M and N are the numbers of grid points on the horizontal plane in the direction of
main flow and normal to the main flow, respectively, and K is the number of σ-layers in
the vertical plane. A finer mesh is used in the inlet canal to capture the detailed bathymetry
because of rapidly varied bed elevation in this region. The maximum grid sizes in M and
N directions are 177.84 m and 462.5 m, respectively, and the minimum grid sizes in M and
83
N directions are 7.13 m and 19.19 m, respectively. The grid aspect ratio (N-grid size/Mgrid size) ranges from 1.0 to 20.55 (Figure B-5). The regions of high aspect ratio are located
along the border of the study area, where flow is predominately along the N-direction. In
the vertical plane, because the velocity gradient close to the bed is very high, the spacing
of vertical layers is smallest near the bottom, and gradually increases toward the free
surface (Figure B-6). The bathymetry for the entire domain shown in Figure B-7 was
surveyed by the USACE based on the North American Vertical Datum of 1988 (NAVD88).
Water depth has reached 6.5 m in the inlet canal, and 2.5 m in the other parts during the
flood period between 1:00 pm (CDT) on November 30 to 7:00 pm (CDT) on December 3,
2003.
Boundary Conditions
The simulation period is from 1:00 p.m. (CDT) on November 25, 2003, to 9:00 a.m.
(CDT) on January 10, 2004. The inflow data measured by U.S. Geological Survey (USGS)
gauge at Highway 90, shown in Figure B-1, were used as the upstream boundary condition.
The tidal heights measured at the Lake Cataouatche USGS gauge (Figure B-1) were used
as the downstream boundary condition. The inflow and tidal stage hydrographs at Highway
90 and Lake Cataouatche USGS gauges, respectively, are shown in Figure B-8. Slip
boundary conditions were used on the north side except for the inlet, east, and west levees.
At the free surface, shear stress is zero, and at the channel bottom, flow velocity is set as
zero.
84
Results
Eleven stream gauges are available throughout the study area, shown in Figure B1. Figure B-9 shows the measured (observed) water surface elevation (WSE) at all gauges
during the simulation period. A time step of one minute was used for both approaches to
obtain numerically stable simulations.
McAlpin et al. (2008) applied the vegetation resistance equation in SED2D model,
shown in Table B-2, for calculating the vegetation roughness. The parameters for
vegetation induced roughness in the SED2D model equation are summarized in Table B-3
(McAlpin et al. 2008). For the Luhar and Nepf (2013), Klopstra et al. (1997) and Baptist
(2005) equations, the average frontal width of an individual grass is calculated as 2.25
times the leaf width (approximately equal to 1.25cm) plus the average stem diameter (d
=0.4cm). Since the calculated frontal width for individual grass is 3.2 cm, which is equal
to 8d, this study assumes 8d is the vegetation frontal width. Because the a value is equal to
the product of the vegetation density and the frontal width. So, the larger the a value, the
larger the vegetation induced resistance. In a typical Panicum hemitomon grass dominated
freshwater marsh in Louisiana, the vegetation density is 255 stem/m2 and the average stem
diameter is 0.4 cm, then the a-value is 8.160 m-1. This value is within the range
recommended by Luhar et al. (2008), Lightbody and Nepf (2006), and Leonard and Luther
(1995), who found the a-value for the marsh grasses ranges from 1 to 10 m-1. The drag
coefficient, CD, is taken as 1.0; and the coefficient
C* , the shear stress parameter at the
interface between vegetated and unvegetated regions, is equal to 0.10 (Luhar and Nepf
2013). The comparison between the simulated and the corresponding observed for all
gauges using two approaches are shown in Figures B-10 and B-11, respectively.
85
In order to identify which approach or equation gives the best match of the
observed, the root mean square error (RMSE) and the Nash Sutcliffe efficiency (NSE)
coefficient were used. The following equations were used to calculate RMSE and NSE:
 Simulated value  Observed value 
 number of totalobserved points
2
RMSE 
 Simulated value  Observed value 
NSE  1  Observed value  Observed value 
2
2
   NSE  1.0
(1)
(2)
The RMSE and NSE values for the two approaches were calculated for all gauges,
and their ranges were shown in Figures B-12 and B-13, respectively. From these figures,
one can find that the RMSEs using the equation in SED2D model and those using Luhar
and Nepf (2013), Klopstra et al. (1997), and Baptist (2005) equations are relatively small.
Also their NSEs are closer to 1.0, which means that the mean square errors generated by
these equations are much smaller than the variance of the observed data, and the simulated
results are more accurate than the results from other equations
For the first approach, Figure B-12 showed that the range of RMSE for the
simulated WSE using the constant Manning roughness coefficient for unvegetated
channels (n1) is smaller than the results using the Manning’s roughness for vegetated
channels (𝑛2 ). The NSE value is also closer to 1.0 for the results using n1 (Figure B-13). It
can be seen from Figure B-10 that the WSE results are underestimated when using the
constant n1, while they are overestimated when using the constant n2. Although the results
using n1 is slightly better than the ones using n2, none of them matched the results well at
all the gauges. Therefore, several n values between n1 and n2 values were selected to rerun the model. However, for each value, the WSE results matched the observation data at
86
one gauge in one time interval but not in the others. And, the WSE results matched the
observation data better at some gauges but got worse at the rest. Regardless of the n value
being used, there is no general improvements of modeling results. This excludes the
feasibility of using a constant roughness for simulating flow hydrodynamics in a freshwater
marsh.
The second approach treats flow roughness as a temporal and spatial variable
depending on the local flow and vegetation characteristics. The ranges of RMSE using
Fisher (1992) and Reed et al. (1995) equations are larger (Figure B-12) than the results
from other equations. The corresponding NSE values using those two equations are also
farther from 1.0 than the rest. The range of RMSE using Luhar and Nepf (2013), Klopstra
et al. (1997) and Baptist (2005) equations are the smallest, and the NSE values are also the
closest to 1.0 (Figures B-12 and B-13). This attributes to the fact that Fisher (1992) and
Reed et al. (1995) equations didn’t consider the degree of submergence, which
differentiates the impacts of submerged and emerged vegetation. At low flow depth, the
vegetation height can be comparable to flow depth, or even emergent. In this condition,
vegetation induced roughness is dominant. However, as flow depth increases, vegetation
becomes submerged and the influence of vegetation on flow resistance is diminishing
(Nepf 2012). When the flow depth is orders of magnitude larger than the vegetation height,
the vegetation induced resistance will converge to a constant (Augustijn et al. 2008).
Therefore, this study recommends the use of variable Manning roughness value to account
for vegetation induced roughness. The changes of the n values for the runs by using Luhar
and Nepf (2013), Klopstra et al. (1997) and Baptist (2005) equations at gauge 21 are shown
in Figure B-14. Additionally, these three equation also incorporated the effect of vegetation
87
blockage index, a value. The sensitivity of modeling results to the a value will be discussed
in the next section. Nevertheless, the simulation results indicated that these three equations
are the best for simulating the spatially and temporally varied vegetation resistance.
A PC with Intel (R) Xeon (R) CPU X5550 (2 processors) and 32 GB RAM was
used for the simulation. The CPU times using the first approach were 74,218.84s and
73,815.20s for the simulation using constant n1 and n2 , respectively, whereas they are
72,790.89s and 77,252.20s using Reed et al. (1995) and Klopstra et al. (1997) equations,
respectively.
Sensitivity Analysis
Vegetation Blockage Index (a Value)
Luhar and Nepf (2013), Klopstra et al. (1997) and Baptist (2005) equations gave
the best WSE matches of the observed data. However, the results can be sensitive to the
key parameter, the a value. To find the sensitivity of the results using these three equations
to the variation of a values, three values of a were selected based on three values of the
average frontal width for the individual grass, which are equal to d, 11d, and 22d. Because
of the assumption of constant vegetation density (255 stem/m2) and the stem diameter (d
=0.4 cm), the a values are 1.020 m-1, 11.220 m-1, and 22.440 m-1 , respectively.
The results of the simulated WSE using those three a values were compared with
the observed WSE for all gauges, and showed in Figures B-15, B-16, and B-17. When a is
equal to 1.020 m-1, the simulated WSE results were underestimated at all gauges for all
three equations (Figure B-15), while they were overestimated, especially for Klopstra et
al. (1997) equation, when a is equal to 22.440 m-1 (Figure B-17). The simulated WSE
results using a =11.220 m-1 approximately matched the observed WSE (Figure B-16). The
88
ranges and averages of the RMSE and NSE for all three equations by using different a
values are shown in Figures B-18 and B-19, respectively. One can find, for a =1.020 m-1,
the averages of RMSE are the largest, and the NSE values are the most away from 1.0, for
all three equations. For a =11.220 m-1, the averages of RMSE became smaller, and the NSE
values got more close to 1.0. For a = 11.220 m-1 and 22.440 m-1, the averages of RMSE
using the Klopstra et al. (1997) equation are the largest among three equations, and the
NSE values are more away from 1.0 than the other two equations. This means that this
equation is high sensitive to the variation of a. Apparently, when a is equal to 1.020 m-1,
none of the three equations gave accurate results of WSE. This means that the stem size
(diameter) alone is not sufficient for calculating the frontal width for the individual grass,
and the number and width of leaves must be taken into consideration. It can be seen from
Figures B-12, B-13, B-18, and B-19, the smallest values of RMSE and the closest NSE
values to 1.0, for the three equations, were obtained when a equal to 8.160 m-1 and 11.220
m-1. This confirms that the best range for the average frontal width of an individual grass
is between 8d and 11d.
Vertical Grid Selection
As stated earlier, Delft3D-FLOW has two different vertical grid systems: σ-grid
and Z-grid. The RANS equations under hydrostatic pressure assumption were solved for
both σ and Z-grids. An extension for solving the non-hydrostatic pressure has been added
to Z-grid. All the computational runs conducted until now were using the σ-grid assuming
hydrostatic pressure. Since the σ-grid forces the convective transport along channel bottom,
it may allow false fluxes between the main channel and floodplain when their elevation
difference prohibits such transport. Therefore, the sensitivity of the results to the vertical
89
grid selection was performed in this section using Luhar and Nepf (2013) equation.
Additional computational runs are conducted using the same computational grid but 15 Zlayers in the vertical plane assuming both hydrostatic and non-hydrostatic pressure. A time
step of 0.1 minute was used to obtain numerically stable solutions. The CPU times for the
runs using the hydrostatic and non-hydrostatic pressure assumptions were 140,968.51s and
211,734.70s, respectively. The simulated results of WSE at all the gauges were compared
with those using σ –grid and the observations in Figure B-20. The results using Z-grid with
the non-hydrostatic pressure assumption is better than those using the hydrostatic pressure
assumption. But, these results still deviate far away from the observations, and those using
σ –grid. Figure B-21 showed the ranges of RMSE and NSE for all gauges using the σ and
Z-grids, which indicated that the RMSE range using σ–grid are the least, and the NSE
values are closer to 1.0 than both results using the Z-grid. The CPU time for the simulation
using σ–grid is 76,613.32s, much less than those using the Z-grid. One major reason is
because the σ–grid allows larger time steps (e.g., 1 min) than the Z-grid. Therefore, the Zgrid option did not yield more accurate results but more CPU times than the σ–grid. This
study recommends the use of σ–grid for shallow water marsh application.
Conclusions
This study evaluated the accuracy of various methods for calculating vegetation
induced resistance in freshwater marsh. The Delft3D-FLOW model is used for simulating
hydrodynamic flow field. Besides two equations embedded in Delft3D model, four other
empirical equations were programmed in the original Delft3D-FLOW program. The
simulated results of WSE at specific locations were compared with the corresponding
observed data. Results showed that vegetation induced roughness is a spatial and temporal
90
variable that changes with submergence and vegetation blockage index. If treating flow
roughness through each sub-area as constants, the results of WSE deviated considerably
from the measurements. But, if using the equations by Luhar and Nepf (2013), Klopstra et
al. (1997) and Baptist (2005), reasonable matches with the observed WSE were obtained,
because they successfully incorporate the effect of the degree of submergence and the
vegetation blockage index, a, into the roughness equation. The best results of WSE were
obtained when used a constant vegetation density for the Panicum hemitomon vegetation
type, and resulted in a values ranging from 8.160 to 11.220 m-1
91
Notation
The following symbols are used in this paper:
a = vegetation frontal area per unit volume (m-1);
BV, BX = volumetric and cross-sectional blockage factors, respectively (-);
C = total Chezy’s coefficient (m1/2/s);
Cb = Chezy’s coefficient for the unvegetated channel (m1/2/s);
CD=drag coefficient (-);
C = shear stress parameter at the interface between vegetated and unvegetated flow
regions (-);
g = gravity acceleration (m/s2);
H = flow depth (m);
hv = vegetation height (m);
n = total Manning’s coefficient (s/m1/3);
no, = n1 = maximum Manning’s coefficient for unvegetated channels (s/m1/3);
nv = n2 = maximum Manning’s coefficient for vegetated channels (s/m1/3);
uv 0 =
velocity within the vegetation (m/s);
u = horizontal flow velocity (m/s);
z0 =length scale for the bed roughness of the surface layer (m);

= coefficient depends on flow depth (-);
 = resistance factor (s  m1/6)
= 0.4 (for sparse, low density vegetation H > 0.3 m);
= 1.6 (for moderately dense vegetation H=0.3 m);
= 6.4 (for very dense vegetation 𝐻 <0.3 m);
92
 = length scale of large scale turbulence (m);
 = von Karman constant = 0.41 (-);
 =parameter representing the flow resistance due to vegetation (m-1); and
 = water density (kg/m3).
93
Tables
Table B-1. Manning’s n values for each sub-area used for the first approach
Sub-area
n1
n2
1
0.06
0.10
2
0.06
0.40
3
0.06
0.40
4
0.12
0.82
5
0.12
0.82
6
0.06
0.40
7
0.12
0.82
Table B-2. List of the equations used to calculate n and C values for the second approach
Authors/
Reference
Equations
Fisher
(1992)
 BV 

n  no  0.0239 
 VR 
Reed et al.
(1995)
SED2D
Model
n/ H
n
For H / hv  1,
Luhar and
Nepf
(2013)
no
H

0.3048
C a
n D 
 2 
 nv  e (  H / hv )
1/ 2
H 2 / 3 g 1 / 2
 2 1 / 2
For H / hv  1, n    1  B X
 C 


3/ 2
 2 

 
 C D a hv 
1/ 2
1

B X  H 1 / 6 g 1 / 2

94
For H / hv  1,
Klopstra
et al.
(1997)
For H / hv  1,
1  2 
h 2A
 u v20  C 3  u v20 
 C3 e v


H 3/ 2  2A 
h 2A
 u v20  u v 0 ) ( C 3  u v20  u v 0 ) 
u v 0  ( C 3 e v

ln
2 A  ( C e hv 2 A  u 2  u ) ( C  u 2  u ) 
3
v0
v0
3
v0
v0 

C


g ( H  (hv  b)) 
 H  (hv  b) 
b
 ( H  (hv  b)) ln 





b
ln

(
H

h
)
v 


z 


z0


 0


For H / hv  1,
Baptist
(2005)

1
C D aH
1
 2
2g
Cb
C
C  Cb
  CD a
;
g H
C D ahv Cb2


For H / hv  1 : C  Cb 
ln   1 
k
2g
 hv 
hv Cb2
  CD a
H C2
;
For Baptist (2005) equation, a term (   u 2 ) will be added as an extra term
2
in the momentum equations.

For Klopstra et al. (1997) equation;
2 g ( H  hv )
aC
A  D ; C3 
2
 2 A (e hv 2 A  e  hv
z 0  be
 F1
; F1 
 C3 e h
v
2A
 u v20
g ( H  (hv  b))
1 1
2A
; b
)
4 E12 2 ( H  hv )
g
2 E12 k 2
g
;   max( 0.001, 0.0227 hv0.7 );
; E1 
u v0 
2 A C 3 e hv
2 C 3 e hv
2A
hv
C D hv a 1
 2
2g
Cb
2A
 u v20
;
95
Table B-3. Roughness parameter values for all sub-areas used in the SED2D model
equation
Sub-area
no
hv (m)
nv

1
0.06
0.3048
0.10
0.05
2
0.06
0.381
0.40
0.20
3
0.06
0.3048
0.40
0.20
4
0.12
0.6096
0.82
0.41
5
0.12
0.762
0.82
0.41
6
0.06
0.381
0.40
0.20
7
0.12
0.6856
0.82
0.41
96
Figures
Figure B-1. Locations of the study area, Highway 90 and lake Cataouatche USGS, and the
observed data gauges
Figure B-2. Panicum hemitomon profile (http://www.outdooralabama.com/maidencane)
97
Figure B-3. Sub-area divisions
Figure B-4. Study area computation grid
98
Figure B-5. Grid aspect ratio contour lines
Figure B-6. Distribution of vertical layers at a section passing through the inlet canal
99
Figure B-7. Study area bathymetry changes
`
1.05
Highway 90 Inflow
Lake Cataouatche WSE
Inflow (m3/sec.)
300
0.9
250
0.75
200
0.6
150
0.45
100
0.3
50
0.15
0
-100
0
100
200
300
400
500
600
700
800
900
WSE (m) NAVD88
350
0
1000
Time (hrs)
(0 hr is 17:00 Nov. 29)
Figure B-8. Boundary conditions of inflow and tidal stage hydrographs at Highway 90 and
Lake Cataouatche gauges respectively
100
1.4
WSE (m) NAVD88
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-100
0
100
200
300
400
500
600
700
800
Time (hrs)
(0 hr is 17:00 Nov. 29)
Highway 90 Gauge
Gauge 22
Gauge 28
Gauge 128
Gauge 20
Gauge 23
Gauge 29
Gauge 129
Figure B-9. WSE at all observed data gauges
Gauge 21
gauge 27
Gauge 127
900
1000
101
Figure B-10. Observed and simulated WSE for all gauges - approach 1
102
Figure B-11. Observed and simulated WSE for all gauges - approach 2
103
0.50
RMSE (m)
0.40
0.30
0.20
0.10
0.00
0
1
2
3
4
5
6
7
8
1: Constant n1 ;
2: Constant n2 ;
3: Fisher (1992) Eq. ;
4: Reed et al. (1995) Eq. ; 5: SED2D Model Eq.; 6: Luhar & Nepf 2013)
Eq. ; 7: Klopstra et al. (1997) Eq. ;
8: Baptist (2005) Eq.
Figure B-12. Ranges of RMSE for all gauges for both approaches
Figure B-13. Ranges of NSE for all gauges for both approaches
9
104
0.55
0.50
0.45
0.40
0.35
n
0.30
0.25
0.20
0.15
0.10
0.05
0.00
-100
100
300
500
700
900
Time (hrs)
(0 hr is 17:00 Nov. 29)
Luhar & Nepf (2013) Eq.
Klopstra et al. (1997) Eq.
Baptist (2005) Eq.
Figure B-14. Changes of the n values for the runs using Luhar and Nepf (2013), Klopstra
et al. (1997) and Baptist (2005) equations at gauge 21
105
Figure B-15. Observed and simulated WSE for all gauges - a = 1.020 m-1
106
Figure B-16. Observed and simulated WSE for all gauges - a = 11.220 m-1
107
Figure B-17. Observed and simulated WSE for all gauges - a = 22.440 m-1
108
0.20
a = 1.0 m-1
a = 11.22 m-1
a = 22.44 m-1
RMSE (m)
0.16
0.12
0.08
0.04
0.00
Luhar & Nepf Eq.
Baptist Eq.
Klopstra et al. Eq.
Average
Figure B-18. Ranges and averages of RMSE for all gauges for different a values using best
three equations
1.20
a = 1 m-1
a = 11.22 m-1
a = 22.44 m-1
1.10
NSE
1.00
0.90
0.80
0.70
0.60
0.50
Luhar & Nepf Eq.
Baptist Eq.
Klopstra et al. Eq.
Average
Figure B-19. Ranges and averages of NSE for all gauges for different a values using the
best three equations
109
Figure B-20. Observed and simulated WSE for all gauges using Luhar and Nepf (2013)
equation for different vertical grid selection
110
1.20
RMSE
NSE
RMSE (m) or NSE
1.00
0.80
0.60
0.40
0.20
0.00
0
1
2
3
4
1: Sigma-grid-Hydrostatic; 2: Z-grid-Hydrostatic ;
3: Z-grid-Non-Hydrostatic
Figure B-21. Ranges of RMSE and NSE for all gauges using Luhar and Nepf (2013)
equation for different vertical grid selection
111
Appendix C: (Technical Note) Three Dimensional Hydrodynamic Simulation
of Tidal Flow through a Vegetated Marsh Area
Khalid Al-Asadi1, Jennifer G. Duan, M.ASCE2
Abstract
Simulation of tidal flow in an estuarine marsh area is challenging because of
resistance from spatially and temporally varied vegetation. This study simulated the tidal
flow in the Davis Pond marsh area near New Orleans, Louisiana using an open source
program. To quantify the time varying roughness coefficient, four empirical equations for
calculating Manning’s roughness coefficient were incorporated in the program in addition
to two options offered by the program to calculate the Chezy’s coefficient and one option
to use the modified momentum equations and the k-ε turbulence model. Results showed
that the time varying roughness coefficient equations accounting for both the degree of
submergence and the vegetation frontal area gave the closest matches with the observed
data.
Author keywords: Three-dimensional modeling; Vegetation; Marsh area; Tidal flow;
Delft3D.
1
Graduate Student, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email : [email protected]
2
Associate Professor, Dept. of Civil Engineering and Engineering Mechanics, University of Arizona, Tucson,
Arizona. Email: [email protected]
112
Introduction
The resistance to flow through vegetated areas is increased by an additional drag
exerted by vegetation (Zhang et al. 2010). Vegetation resistance in a channel reach is
determined primarily by vegetation coverage quantified by the blockage factor (Green
2005a). This factor is defined as the fraction of channel cross-section or surface area
blocked by vegetation, or the fraction of channel volume occupied by vegetation (Green
2005a). Recently, Green (2005a), Nikora et al. (2008), and Luhar and Nepf (2013) used
the cross-sectional blockage factor to calculate the Manning’s n value. Early researchers
(Ree and Palmer 1949, Chow 1959, Petryk and Bosmaijan 1975) found the n value in
vegetated channels varies with flow velocity, hydraulic radius, boundary roughness,
vegetation type, density, and distribution. Field data showed the Manning’s n values in
marsh areas varied from 0.26 to 0.55 for water hyacinth, and from 0.16 to 0.43 for mixed
vegetation with flow depth ranging from 40 to 65 cm (Shih and Rahi 1981). To avoid the
dependence of roughness coefficient on experimental conditions, Klopstra et al. (1997)
derived an analytical model to calculate the Chezy’s coefficient, C, for submerged
vegetation. Modifying the n value for vegetated areas is a typical engineering practice, for
example, the SED2D model developed by the Engineering Research and Development
Center (ERDC) of the Army Corps of Engineers (COE) adopted an empirical formula to
calculate n value for vegetated channels (WexTech System, Inc. 2011). This study
evaluated the accuracy of several formulas for calculating n or C values and the modified
momentum and k-ε equations through simulating flood flow in a marsh area using the
Delft3D model.
113
Study Area Location and Characteristics
The study area is Davis Pond located on the west bank of the Mississippi River,
3,22km (2 mi) from Luling City in the southwest of New Orleans, Louisiana (Figure C-1).
The study area is enclosed by guided levees on the north, east, and west edges, and by a
gabion rock weir on the south edge, along the shoreline of Lake Cataouatche. The inlet
canal delivers freshwater to the study area, and then drains into Lake Cataouatche. This
area is covered by typical freshwater marsh vegetation, such as Panicum hemitomon,
Sagittaria lancifolia, Eleocharis baldwinii (Sasser et al. 2008). O’Neil (1949) found that
Panicum hemitomon is the dominant vegetation for freshwater marshes in the Mississippi
River delta. The stem height for the mature Panicum hemitomon is approximately 0.762 m
(USDA http://plants.usda.gov), and its diameter ranges from 1 to 6 mm (Turner 1994). The
leaf blade is 20-30 cm long and 1.25 cm wide (Leithead et al. 1971). For maidencane
(Panicum hemitomon) marshes, the averaged stem density is 255 stem /m 2 (Turner 1994).
The Davis Pond marsh is apparently a maidencane (Panicum hemitomon) marsh; therefore,
the averaged stem density is 255 stem /m 2 .
Computational Model
The study area is simulated using Delft3D-FLOW open source program, version
4.00.02.557M (http://oss.deltares.nl/web/delft3d/source-code). Delft3D-FLOW is capable
of simulating three dimensional (3D) unsteady incompressible flow and transport
phenomena resulting from tidal and/or meteorological forcing. It solves the Reynolds
Averaged Navier Stokes equations on a structured staggered curvilinear grid using a finitedifference scheme (Stelling and van Kester 1994). The governing equations are solved by
using the Alternating Direction Implicit (ADI) technique (Stelling 1984). In this study,
114
flow field is simulated using the 3D unsteady flow with the k-ε turbulent closure model
option. The orthogonal curvilinear coordinates system with the σ-grid option was adopted.
The computational grid is a structural grid with 596 ×155 grid points on the
horizontal plane in the main flow and normal to the main flow directions, hereafter called
the M and N directions, respectively, and 15 layers in the vertical plane (Figure C-2). The
maximum grid sizes in M and N directions are 90.06 m and 156.61 m, respectively, and
the minimum grid sizes in M and N directions are 3.44 m and 6.16 m, respectively. In the
vertical plane, because the velocity gradient is very high near the bed surface, the spacing
of vertical layers is the smallest near the bottom, and it gradually increases toward the free
surface (Figure C-3). The bathymetry of the entire domain was surveyed based on the North
American Vertical Datum of 1988 (NAVD88).
The simulation period is from 1:00 pm on November 25, 2003, to 9:00 am on January
10, 2004. The observed water surface elevations (WSE) measured by the U.S. Geological
Survey (USGS) gauge at Highway 90 (Figure C-1) were used as the upstream boundary
condition. The tidal heights measured at the Lake Cataouatche USGS gauge (Figure C-1)
were used as the downstream boundary condition. The WSE and tidal height at Highway
90 and Lake Cataouatche USGS gauges, respectively, are shown in Figure C-4. At the
water surface, shear stress is set as zero.
Six equations, listed in Table B-2, were used to calculate the time-varying n or C
coefficients. The first four equations were programmed in the Delft3D-FLOW program,
and the rest, by Klopstra et al. (1997) and Baptist (2005), respectively, are available in
Delft3D-FLOW program (Deltares 2011). In this study, the time-varying n or C
coefficients were treated similarly in both flow directions, and a depth averaged velocity
115
was used in Fisher (1992) equation. The volumetric and cross-sectional blockage factors
were assumed equal to the ratio of averaged vegetation height (hv) to flow depth (H),
provided that vegetation is distributed approximately uniformly throughout the entire
channel area. This assumption is justified because any measure of hydraulic resistance at
the channel reach scale must, by definition, be an integrated quantity (Luhar and Nepf
2013).
In addition, Delft3D-FLOW has an option to incorporate the effects of vegetation
by modifying the momentum equations and the k-ε turbulent closure model (Deltares
2014). The influence of vegetation on the momentum equations is accounted by adding

 

the vegetation drag force F  1 C D au 2 , where  is the density of water (kg/m3);
2
CD is the drag coefficient; a is the vegetation frontal area per unit volume, and u is the
horizontal flow velocity. Vegetation also affects the vertical mixing, which is reflected in
the extra source terms, T and T  1 , in the k and ε equation, respectively, where T is the
work spent on the fluid per unit time (W); and  is the minimum of the dissipation time
scale of free turbulence and the dissipation time scale of eddies between the vegetation.
This approach is adapted as the seventh method for quantifying vegetation impacts.
A PC with Intel Xeon X5550 (2 processors) and 32 GB RAM was used for the
simulation. To achieve stable numerical solutions, the time step is 1 min when using the
formula in Klopstra et al. (1997) and the modified momentum and k-ε equations embedded
in Delft3D, and 0.5 min for the remaining equations listed in Table B-2. The CPU time for
the run using Klopstra et al. (1997) is 235,072.4 s; and using the modified momentum and
k-ε equations, it is 268,841.92 s. The CPU times for the other runs are between 502,118.4s
116
to 547,267.6s, which are the CPU times using the Baptist (2005) and SED2D model
equations, respectively.
Results
The study area was divided into several sub-areas (Figure C-1), depending on the
existence of channels, overbanks, and vegetation height, according to a previous study
(McAlpin et al. 2008). Among several stream gauges installed throughout the study area,
the measurements of WSE at gauges 22 and 27 and the inflow at Highway 90 gauge were
selected for model verification. McAlpin et al. (2008) simulated the study area using the
RMA2 model, a depth-averaged two-dimensional model developed by ERDC-COE, and
also applied the vegetation resistance equation in SED2D model (shown in Table B-2) for
calculating the vegetation roughness. The parameters for vegetation-induced roughness in
the SED2D model are summarized in Table B-3.
For the equations in Luhar and Nepf (2013), Klopstra et al. (1997), Baptist (2005),
and the modified momentum and k-ε equations, a is determined by multiplying the
vegetation density and the average frontal width of individual vegetation. The average
frontal width for the Panicum hemitomon is approximately 2.25 times its leaf width,
approximately 1.25 cm (Leithead et al. 1971), plus the average stem diameter of 0.4 cm
(Turner 1994). Then, the calculated frontal width for individual Panicum hemitomon is 3.2
cm. The density of Panicum hemitomon is 255 stem/m2, then the a value is found to be
8.16 m -1 . The a value is within the range recommended by Luhar et al. (2008) and
Lightbody and Nepf (2006), who found the a value for the marsh grasses ranges between
1 and 10 m -1 . The drag coefficient, C D , is taken as 1.0; and the coefficient C , the shear
117
stress parameter at the interface between vegetated and unvegetated regions, is equal to
0.10 (Luhar and Nepf 2013).
The results of inflow at the Highway 90 gauge and WSE at gauges 22 and 27 were
compared with the observed data in Figure C-5. To determine which method gives the best
match of the observed inflow and WSE, the root-mean square error (RMSE) and the Nash
Sutcliffe efficiency (NSE) coefficient were calculated. The following equations were used
to calculate RMSE and NSE:
 Simulated value  Observed value 
 number of totalobserved points
2
RMSE 
 Simulated value  Observed value
NSE  1  Observed value  Observed value
2
2
(1)
   NSE  1.0
(2)
The RMSE and NSE values for all methods were summarized in Table C-1. From
this table, the RMSE values for the equations in Luhar and Nepf (2013), Klopstra et al.
(1997), and Baptist (2005) are smaller than those for the rest of methods. Also the NSE
values for these equations (Luhar and Nepf 2013; Klopstra et al. 1997; Baptist 2005) are
closer to 1.0 than those from the rest of methods, which means that the mean square error
generated by using each equation is much smaller than the variance of observed data.
Essentially, the closer the NSE values are to 1, the more accurate the modeling result.
The RMSE values for Fisher (1992) and Reed et al. (1995) equations are larger than
three methods discussed in the previous paragraph, and the NSE values are farther from
1.0, because both of them do not consider the degree of submergence that differentiates the
impacts of submerged and emerged vegetation. The Fisher (1992) equation does not
account for the nonlinear nature of the n–VR relationships, where V and R are the depth-
118
averaged velocity and hydraulic radius, respectively (Green 2005b). The RMSE values for
the roughness equation in SED2D model and the modified momentum and k-ε equations
are approximately close to one another, but they are greater than those from using the
equations in Luhar and Nepf (2013), Klopstra et al. (1997), and Baptist (2005). The NSE
values from those two methods are slightly further from 1.0 than those from the Luhar and
Nepf (2013), Klopstra et al. (1997), and Baptist (2005) equations. Therefore, the equations
from Luhar and Nepf (2013), Klopstra et al. (1997), and Baptist (2005) performed better
for simulating the spatially and temporally varied vegetation. This is because these
equations account for both the degree of submergence and the frontal area of individual
vegetation per unit volume (a value).
Figure C-6 showed the effect of degree of submergence on the n value for subarea
1, by using the equations in Luhar and Nepf (2013), Klopstra et al. (1997), and Baptist
(2005). A constant a value (a = 8.16 m -1 ) was used for all the equations in Figure C-6. The
values of n from the equations in Luhar and Nepf (2013), and Klopstra et al. (1997) have
the same trend and are approximately close to one another but deviate from the equation in
Baptist (2005). This is because the equations in Luhar and Nepf (2013) and Klopstra et al.
(1997) calculate the vegetation roughness by using the updated degree of submergence
value, whereas the equation in Baptist (2005) calculates the vegetation roughness by using
  
the same degree of submergence value and also adds an extra term,   u 2 , to the
2
momentum equation, in which  is the parameter representing the flow resistance due to
vegetation. In the case of emerged vegetation, as the degree of submergence is increased,
the n values calculated by the equations in Luhar and Nepf (2013) and Klopstra et al. (1997)
are increased owing to the increase of vegetation frontal area, whereas it is a constant (no)
119
in Baptist (2005) equation, where no is the maximum n value for an unvegetated channel.
In the case of submerged vegetation, the n value decreases with the increasing degree of
submergence until reaching a constant value. This attributes to two factors: (1) the
reduction of relative roughness from vegetation to flow (hv/H); and (2) the bending of
nonrigid plants. As flow depth in the flow layer increases, the influence of vegetation is
minimizing as a result of the reduced relative roughness, hv /H, in the vegetation layer. In
the meantime, if the vegetation is nonrigid, the shear layer above the vegetation layer
makes the submerged vegetation more prone to bending than the emerged ones. When
vegetation bends, vegetation frontal area will decrease so that the resistance to flow will
decrease. This relationship is qualitatively represented by the n-VR’s curve in Ree (1949).
At very large degrees of submergence, the vegetation resistance to flow becomes
independent from the degree of submergence, as soon as the vegetation layer acts as a
rough surface, and the resistance to flow becomes a constant (Augustijn et al. 2008).
Consequently, the roughness can be approximated by a constant n value at large degrees
of submergence.
The simulated results of inflow at Highway 90 gauge and WSE at gauges 22 and 27
(Figure C-5) were calculated without taking the effect of vegetation bending. Because these
results showed good matches with the measurements, especially for the equations in Luhar
and Nepf (2013), Klopstra et al. (1997), and Baptist (2005), for this simulation case, the
vegetation bending has a minor effect on vegetation resistance.
The time variations of n and Reynolds number (R) from the simulations using the
equations in Luhar and Nepf (2013), Klopstra et al. (1997), and Baptist (2005) at all three
gauges were shown in Figure C-7. At Highway 90 gauge (Figure C-7 (a)), located in
120
subarea 1, the n values are small and approximately constant for all equations, indicating
vegetation was submerged during the simulation period with a high degree of submergence.
For gauge 22 (Figure C-7 (c)), located in subarea 6, the n values are bigger than that
observed in Highway 90 gauge. The n values from the Baptist (2005) equation are not
constant and less than the unvegetated value (no). This indicated that the vegetation was
submerged during the simulation period. For gauge 27 (Figure C-7 (e)), located in subarea
4, the n values were larger than those in other gauges. The n values from the Baptist (2005)
equation were sometimes equal to a constant, no, and at the other times less than no,
implying vegetation in this location is sometimes emerged and at the other time submerged
depending on flow conditions. The time variation of R at Highway 90 gauge is shown in
Figure C-7 (b). The R values from the Baptist (2005) equation were somehow higher than
those from the other equations especially during the time period from 64 to 420 hr. The R
value ranges from 177,571.4 to 4,220,428.2, and Froude number (F) from 0.004 to 0.08
because the simulated inflows from this equation were high (Figure C-5). At gauges 22 and
27 (Figures C-7 (d and f)), the R values were approximately the same from all the equations
except for the peak flow period from 50 to 100 hr, where the Baptist (2005) equation gave
higher values of R, ranging from 36,469.6 to 78,866.3. The Froude number ranges from
0.014 to 0.02.
Grid Sensitivity Analysis
A new computational grid was adopted to test the sensitivity of modeling results to
grid selection. The new grid was coarser than the previous one with M= 299, N=53, and
15 layers in the vertical plane. The maximum grid sizes in the M and N directions are
121
177.84 m and 462.5 m, respectively, and the minimum grid sizes in the M and N directions
are 7.13 m and 19.19 m, respectively. New runs were conducted using the best three
equations (Luhar and Nepf 2013; Klopstra et al. 1997; Baptist 2005). The time step of 1
min. was used for all equations to obtain stable numerical solutions. The CPU times for all
three runs are 63,453.47 s, 80,452.05 s, and 81,176.72 s by using the equations in Klopstra
et al. (1997), Luhar and Nepf (2013), and Baptist (2005), respectively. The results of
simulated inflow at gauge Highway 90, and WSE at gauges 22 and 27 using both grids, but
only the Klopstra et al. (1997) equation, as an example, were plotted in Figure C-8, which
shows that the simulated results using both grids are close to one another (except at the
time period from 100 to 450 hr, where the simulated results using the fine mesh are closer
to the observations). The same results were observed using the other two equations.
Because the CPU times for the runs using the coarse mesh are much less than that for the
runs using the fine mesh, the adoption of coarse mesh gives reasonable simulation results
with less CPU time.
Conclusions
A 3D hydrodynamic simulation of flood flow through Davis Pond marsh area was
conducted by using the Delft3D-FLOW open source program. The study area is covered
with freshwater marsh, and the vegetation roughness is approximated by the time-varying
Manning’s n and Chezy’s C coefficients and the modified momentum and k-ε equations.
The simulation results of inflow and WSE at several gauges have reasonably matched the
observed data when using the time-varying roughness coefficient equations (Luhar and
Nepf 2013; Klopstra et al. 1997; Baptist 2005) among the other equations or methods used,
because they successfully incorporated the effects of both the degree of submergence and
122
the vegetation frontal area per unit volume. Also using these equations, the simulation
results agreed very well with the observations for both fine-and coarse-grid meshes. The
maximum vegetation resistance was reached when vegetation just changed from the
emerged to the submerged state, and the vegetation effect becomes a constant at high
degrees of submergence. For this case study, the vegetation bending has a minor effect on
vegetation resistance.
123
Notation
The following symbols are used in this paper:
a = vegetation frontal area per unit volume (m-1);
BV, BX= volumetric and cross-sectional blockage factors, respectively (-);
C = total Chezy’s coefficient (m1/2/s);
Cb = Chezy’s coefficient for the unvegetated channel (m1/2/s);
CD = drag coefficient (-);
C = shear stress parameter at the interface between vegetated and unvegetated flow
regions (-);
F = vegetation drag force (N);
F = Froude number (-);
g = gravity acceleration (m/s2);
H = flow depth (m);
hv = vegetation height (m);
n = total Manning’s coefficient (s/m1/3);
no, nv = maximum Manning’s coefficients for unvegetated and vegetated channels,
respectively (s/m1/3);
R = hydraulic radius (m);
R = Reynolds number (-);
T = work spent on the fluid per unit time (W);
u = horizontal flow velocity (m/s);
uv 0
= velocity within the vegetation (m/s);
V = depth averaged velocity (m/s);
124
z0 =length scale for the bed roughness of the surface layer (m);

= coefficient depends on flow depth (-);
 = resistance factor (s  m1/6)
= 0.4 (for sparse, low density vegetation H > 0.3 m);
= 1.6 (for moderately dense vegetation H=0.3 m);
= 6.4 (for very dense vegetation 𝐻 <0.3 m);
 = length scale of large scale turbulence (m);
 = von Karman constant = 0.41 (-);
 = parameter representing the flow resistance due to vegetation (m-1); and
 = water density (kg/m3).
125
Tables
Table C-1. RMSE and NSE values for simulated results compared with observations
Gauge
Fisher
(1992)
Eq.
Reed
et al.
(1995)
Eq.
Highway
90
49.99/
0.44
0.149/
0.67
0.161/
0.65
43.19/
0.70
0.112/
0.81
0.13/
0.78
22
27
RMSE/
NSE
Luhar
Klopstra
SED2D
and
et al.
model
Nepf
(1997)
Eq.
(2013)
Eq.
Eq.
26.18/ 17.87/
17.80/
0.88
0.95
0.96
0.061/ 0.025/
0.026/
0.94
0.99
0.99
0.069/ 0.035/
0.034/
0.94
0.98
0.98
Baptist
(2005)
Eq.
19.69/
0.95
0.021/
0.99
0.045/
0.97
Modified
momentum
and k-ε
Eqs.
model
33.93/
0.85
0.057/
0.95
0.063/
0.95
126
Figures
Figure C-1. Study area, locations of the USGS and observed data gauges, and subarea
divisions
127
Figure C-2. Study area computation grid
128
Figure C-3. Distribution of vertical layers at a section passing through the inlet canal
1.4
Highway 90 Gauge
WSE (m) NAVD88
1.2
Lake Cataouatche Gauge
1.0
0.8
0.6
0.4
0.2
0.0
-100
`
100
300
500
Time (hrs)
(0 hr is 17:00 Nov. 29)
700
900
Figure C-4. Boundary conditions of WSE and tidal height at the Highway 90 and Lake
Cataouatche gauges, respectively
129
350
Highway 90 Gauge
300
Inflow (m3/s.)
250
200
150
100
50
0
-50
-100
100
300
500
700
900
700
900
700
900
1.3
WSE (m) NAVD88
Gauge 22
1.1
0.9
0.7
0.5
0.3
-100
100
300
Gauge 27
1.2
WSE (m) NAVD88
500
1.0
0.8
0.6
0.4
0.2
-100
100
300
500
Time (hrs)
(0 hr is 17:00 Nov. 29)
Observed
Simulated-Reed Eq.
Simulated-Luhar & Nepf Eq.
Simulated-Baptist Eq.
Figure C-5. Observed and simulated inflow and WSE
Simulated-Fisher Eq.
Simulated-SED2D
Simulated-Klopstra Eq.
Simulated-Modif. Mom. & k-ε Eqs.
130
Figure C-6. n value versus degree of submergence for the three (best) equations
131
x106
0.14
0.12
0.10
0.08
n
0.06
0.04
0.02
0.00
(a) -100
n
100
300
500
700
900
5.0
4.5
4.0
3.5
3.0
R 2.5
2.0
1.5
1.0
0.5
0.0
-100
(b)
0.40
90
0.35
80
0.30
70
0.25
60
0.20
R 40
(e)
700
900
100
300
500
700
900
300
500
700
Time (hrs)
(0 hr is 17:00 Nov. 29)
900
x103
20
0.05
0.50
0.45
0.40
0.35
0.30
0.25
n 0.20
0.15
0.10
0.05
0.00
-100
500
30
0.10
(c)
300
50
0.15
0.00
-100
100
10
100
300
500
700
900
(d) -100
60
50
40
R 30
20
10
100
300
500
700
Time (hrs)
(0 hr is 17:00 Nov. 29)
900
(f)
-100
100
Figure C-7. Time variations of n and R from the best three equations: (a and b) Highway
90 Gauge; (c and d) Gauge 22; (e and f) Gauge 27
132
Figure C-8. Observed and simulated inflow and WSE using fine and coarse meshes
133
REFERENCES
Abood, M. M., Yusuf, B., Mohammed, T. A., and Ghazi, A. H. (2006). “Manning
roughness coefficient for grass-lined channel.” Suranaree J. of Scien. and Tech.,
13(4), 317-330.
Abt, S., Clary, W., and Thornton, C. (1994). “Sediment deposition and entrapment in
vegetated streambeds.“ J. Irrig. Drain E , 120(6), 1098–1110.
Andersen, M. R., Jensen, T., Lisouski, P., Mortensen, A. K., Hansen, M. K., Gregersen,
T. , and Ahrendt, P. (2012), “Kinect depth sensor evaluation for computer vision
applications.“ Electrical and Computer Engineering, Tech. Rep., ECE-TR-6,
Department of Engineering, Aarhus University, Denmark.
Augustijn, D.C.M, Huthoff, F., and Velzen, van E.H. (2008). “Comparison of vegetation
roughness descriptions.” 4th Int. Conf. on Fluvial Hydraulics, River Flow 2008,
International Association of Hydraulic research (IAHR), Izmir, Turkey.
Azzari, G., Goulden, M. L., Rusu, R. B. (2013). “Rapid Characterization of Vegetation
Structure with a Microsoft Kinect Sensor”. Sensors 13, 2384–2398.
Baptist, M. J. (2005). “Modelling floodplain biogeomorphology.” Ph.D. thesis, Delft Univ.
of Technology, Netherlands.
Baptist, M. J. (2003), “A flume experiment on sediment transport with flexible, submerged
vegetation”. International workshop on RIParian FORest vegetated channels:
hydraulic, morphological and ecological aspects, Trento, Italy.
Cheng, N.-S. (2013). “Calculation of drag coefficient for arrays of emergent circular
cylinders with pseudofluid model”. J. Hydr. Eng., 139(6), 602-611.
134
Cheng, N.-S. and Nguyen, H. T. (2011). “Hydraulic radius for evaluating resistance
induced by simulated emergent vegetation in open-channel flows.” J. Hydr. Eng.
137(9):995-1004.
Choi, S.-U., Kang, H. (2004). “Reynolds stress modeling of vegetated open-channel
flows.” J. Hydraul. Res.. 42(1), 3-11.
Chow, V. T. (1959). “Open-Channel Hydraulics”. McGraw-Hill, New York.
Cotton, J., Wharton, G., Bass, J., Heppell, C., Wotton, R. (2006). “The effects of seasonal
changes to in-stream vegetation cover on patterns of flow and accumulation of
sediment.” Geomorphology, 77, 320–334.
Cowan, W. L. (1956). “Estimating hydraulic roughness coefficients.” Agric. Eng., 37(7),
473-475.
Deltares (2014). Delft3D-FLOW User Manual, Version 3.15.35009. Rotterdam,
Netherlands.
Deltares (2011). Delft3D-FLOW User Manual, Version 3.15.14499. Rotterdam,
Netherlands.
Fenzl, R. N. (1962). “Hydraulic resistance of broad shallow vegetated channels.” Ph.D.
thesis, University of California, Davis.
Fischer-Antze, T., Stoesser, T., Bates, P., and Olsen, N. R. B. (2001). “3D numerical
modelling of open-channel flow with submerged vegetation.” J. Hydraul. Res.,
39(3), 303-310.
Fisher, K. (1992). “The hydraulic roughness of vegetated channels”. Rep. SR 305.
Hydraulics Research Ltd, Wallingford, U.K.
135
Follett, E. M. and Nepf, H. M. (2012). “Sediment patterns near a model patch of reedy
emergent vegetation.” Geomorph., 179, 141-151.
Green, J. C. (2005a). “Comparison of blockage factors in modeling the resistance of
channels containing submerged macrophytes.” River Res. Appl., 21(6), 671–686.
Green J. C. (2005b). “Modeling flow resistance in vegetated streams: Review and
development of new theory.” Hydrol. Processes., 19(6), 1245–1259.
Hashimoto, H., Hirano, M. (1996). “Gravity flow of sediment-water mixtures in a steep
open channel.” J. Hydr. Coastal and Env. Engng. JSCE, II-36(545), 33–42.
Horstman, E., Dohmen-Janssen, M., and Hulscher, S. (2013). “Modeling tidal dynamics in
a mangrove creek catchment in Delft3D.” Coastal Dynamics 2013, 833-844,
Arcachon, France.
Jordanova, A. A., James, C. S. (2003). “Experimental study of bed load transport through
emergent vegetation.” J. of Hyd. Eng., 129(6), 474–478.
Kahn, S., Bockholt, U., Kuijper, A., Fellner, D.W. (2013). “Towards precise real-time 3d
difference detection for industrial applications.” Comp. in Ind., 64 (9), 1115-1128.
Special Issue: 3D Imaging in Industry.
Klopstra, D., Barneveld, H. J., van Noortwijk, J. M., and van Velzen, E. H. (1997).
“Analytical model for hydraulic roughness of submerged vegetation.” 27th
Congress of the Int. Association for Hydraulic Research, ASCE, New York, 775780.
Klopstra, D., Barneveld, H. J. and van Noortwijk, J. M. (1996). Analytisch model
hydraulische ruwheid van overstroomde moerasvegetatie. Tech. Rep. PR051, HKV
136
consultants, Lelystad, Netherlands. Commissioned by Rijkswaterstaat/RIZA,
Netherlands.
Kothyari, U. C., Hashimoto, H., Hayashi, K. (2009a), “Effect of tall vegetation on sediment
transport by channel flows.” J. Hydraul. Res., 47(6), 700-710.
Kothyari, U. C., Hayashi, K., and Hashimoto, H. (2009b). “Drag coefficient of
unsubmerged rigid vegetation stems in open channel flows.“ J. Hydraul. Res.,
47(6), 691-699.
Leithead, H. L., Yarlett, L. L., and Shiflet, T. N. (1971). “100 native forage grasses in 11
southern states.” Agricultural Handbook 389, U.S. Dept. of Agriculture,
Washington, DC.
Leonard, L. A., and Luther, M. E. (1995). “Flow hydrodynamics in tidal marsh canopies.”
Limnol. Oceanogr., 40, 1474–1484.
Li, R.-M., and Shen, H. W. (1973). ‘‘Effect of tall vegetations on flow and sediment.’’ J.
Hydraul. Div.,99(5), 793–814.
Lightbody, A. F., and Nepf, H. M. (2006). “Prediction of velocity profiles and longitudinal
dispersion in emergent saltmarsh vegetation.” Limnol. Oceanogr., 51 (1), 218–228.
Lopez, F., and Garcia, M. (1998). ‘‘Open-channel flow through simulated vegetation:
Suspended sediment transport modeling.’’ Water Res. Res., 34(9), 2341–2352.
Lopez, F., and Garcia, M. (1997). “Open-channel flow through simulated vegetation:
Turbulence modeling and sediment transport.’’ Wetlands Res. Program Tech. Rep.
WRP-CP-10, Waterw. Exp. Stn., Vicksburg, Miss.
Luhar, M., and Nepf, H. M. (2013). “From the blade scale to the reach scale: A
characterization of aquatic vegetative drag.” Adv. Water Resour., 51, 305-316.
137
Luhar, M., Rominger, J., and Nepf, H. M. (2008). “Interaction between flow, transport and
vegetation spatial structure.” Environ. Fluid Mech., 8(5–6), 423–439.
Mankoff, K. D., Russo, T. A. (2013). “The Kinect: a low-cost, high-resolution, short-range
3D camera”. Eart. Surf. Proc. and Landf., 38, 926-936.
McAlpin, T. O., Letter, J. V., Jr., and Martin, S. K. (2008). “A Hydrodynamic study of
Davis Pond, near New Orleans, LA.” Rep. / ERDC/CHL TR-08-11, Coastal and
Hydraulic Laboratory, U.S. Army Engineer Research and Development Center,
Vicksburg, MS.
Microsoft (2013). Kinect for windows.
Naot, D., Nezu, I., and Nakagawa, H. (1996). “Hydrodynamic behavior of partly vegetated
open channels.” J. Hydraul. Eng., 122(11), 625-633.
Neary, V. (2003). “Numerical solution of fully developed flow with vegetative resistance.”
J. Eng. Mech. 129(5), 558–563.
Nelson, J. M., Shreve, R. L., McLean, S. R., and Drake, T. G. (1995). “Role of near-bed
turbulence structure in bed load transport and bed form mechanics.” Water Resou.
Res., 31(8), 2071-2086.
Nepf, H. M., Sullivan, J. A., and Zavistoski, R. A. (1997). “A model for diffusion within
an emergent vegetation.” Limnol. Oceanogr., 42(8), 1735-1745.
Nepf, H. M. (1999). “Drag, turbulence, and diffusion in flow through emergent
vegetation.” Water Resou. Res., 35(2), 479-489.
Nepf, H. M. (2012). “Hydrodynamics of vegetated channels.” J. of Hydr.. Res., 50(3), 262–
279.
138
Nikora, V., Lamed, S., Nikora, N., Debnath, K., Cooper, G., and Reid, M. (2008).
“Hydraulic resistance due to aquatic vegetation in small streams: Field study.” J.
Hydraul. Eng., 134(9), 1326–1332.
O'Neil, T. (1949). The Muskrat in the Louisiana Coastal Marshes, Dept. of Wildlife and
Fisheries, New Orleans, LA.
Parker, G. (2008). “Transport of gravel and sediment mixtures. Sedimentation engineering:
processes, measurements, modelling and practice, M. Garcia, ed., ASCE, 165-251.
Petryk, S. and Bosmajian, G. (1975). “Analysis of flow through vegetation.” J. Hydraul.
Div., 101(HY7), 871-884.
Ree, W. D. and Palmer, V. J. (1949). “Flow of water in channels protected by vegetative
linings.” Tech. Bull. 967, U.S. Dept. of Agriculture, Washington, DC.
Ree, W. O. (1949). “Hydraulic characteristics of vegetation for vegetated waterways.”
Agric. Eng., 30, 184–187.
Reed, S. C., Crites, R. W., and Middlebrooks, E. J. (1995). Natural systems for waste
management and treatment.” 2nd Ed., McGraw-Hill., New York.
van Rijn, L. C. (1984), “Sediment transport, Part I: Bed load transport.” J. of Hyd. Eng.,
110, 1431-1456.
Sasser, C. E., Visser, J. M., Mouton, E., Linscombe, J., and Hartley, S.B. (2008).
“Vegetation types in coastal Louisiana in 2007.” USGS Open-File Rep. 2008–1224,
U.S. Geological Survey, Washington, DC.
Schmid, B. H., Stephan, U., and Hengl, M. A. (2005). “Sediment deposition in constructed
wetland ponds with emergent vegetation: laboratory study and mathematical
model.” Wat. Scein. Tech., 51(9), 307-314.
139
Shi, Z., Pethick, J., and Pye, K. (1995). “Flow structure in and above the various heights
of a saltmarsh canopy: A laboratory flume study.” J. Coast. Res., 11(4), 1204-1209.
Shih, S. F. and Rahi, G. S. (1981). “Seasonal variation of Manning’s roughness coefficient
in a subtropical marsh.” Trans. ASAE, 25(1), 116–119.
Shimizu, Y., and Tsujimoto, T. (1994). “Numerical analysis of turbulent open-channel flow
over a vegetation layer using a k-ε turbulence model.” J. Hydrosci. Hydraul. Eng.,
11, 57–67.
Specht, F.-J. (2002). “Einfluß von Gerinnebreite und Uferbewuchs auf die hydraulischedimentologischen Verhältnisse naturnaher Fließgewässer.” Mitt. des LeichtweißInstituts fürWasserbau, Heft 153. TU Braunschweig.
Stelling, G. S. (1984). “On the construction of computational methods for shallow water
flow problems.” Rijkswaterstaat Communications No. 35, Hague, Netherlands.
Stelling, G. S., and van Kester, J. A. T. M. (1994). “On the approximation of horizontal
gradients in sigma co-ordinates for bathymetry with steep bottom slopes.” Int. J.
Numer. Methods Fluids, 18(10), 915-935.
Temmerman, S., Bouma, T. J., Govers, G, Wang, Z. B., and De Vries, M. B.
(2005).”Impact of vegetation on flow routing and sedimentation patterns: Threedimensional modeling for a tidal marsh.” J. Geophs.. Res., 110(F04019).
Temple, D.M., Robinson, K. M. Ahring, R. M., and Davis, A. G. (1987). “Stability design
of grassed-lined open channels.” Agr. Handb., 667, U.S Dep. Agri., Washington,
D.C.
140
Turner, R. L. (1994). “The effects of Hydrology on the population dynamics of Florida
Applesnail (Pomacea paludosa).” SJ94-SP3, Florida Institute of Technology,
Melbourne, FL.
Turner, R. L. (1996). “Use of stems of emergent plants for oviposition by the Florida
Applesnail, Pomacea paludosa, and implications for marsh management.” Flori.
Scient., 59, 34-49.
Wilson, N. R., Shaw, R. H. (1977). “A Higher Order Closure Model for Canopy Flow.” J.
Appl. Meteor., 16, 1197-1205.
Voullieme, D. C., Jueza, C., Murillo, J., and Navarro, P. G. (2014). “2D dry granular freesurface flow over complex topography with obstacles. Part I: experimental study
using a consumer-grade RGB-D sensor.“ Comp. Geosc., 73, 177-197.
WexTech System, Inc. (2011). SED2D WES Users Guide, Version 4.5, NY.
Wu, F.-C., Shen, H. W., and Chou, Y.-J. (1999). “Variation of roughness coefficients for
unsubmerged and submerged vegetation.” J. of Hydraul. Eng., 125(9), 934–942.
Zavistoski, R. A (1992). “Hydrodynamic effects of surface piercing plants.” M.Sc Thesis,
Massachusetts Institute of Technology, Cambridge.
Zhang, M.-L., Li, C. W., and Shen Y.-M. (2010). “A 3D non-linear k–ε turbulent model
for prediction of flow and mass transport in channel with vegetation.” Appl. Math.
Model., 34(4), 1021–1031.
